ADP-42

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

DETAIL FLOW

INTELLIGENT KEY INTERLOCK FUNCTION : Component Parts Location

INFOID:0000000000960613

Order

Input

Output

Control unit condition

1

• Door unlock signal

(CAN)

• Key ID signal (CAN)

Driver seat control unit receives the door unlock signal and the key
ID signal from BCM when unlocking the door with Intelligent Key or
driver side door request switch.

2

Driver seat control unit performs the memory function.

3

Driver seat control unit performs the exit assist function after perform-
ing the memory function.

4

Driver seat control unit performs the entry assist function.

JMJIA0161GB

1.

BCM M118, M119, M122, M123

2.

Automatic drive positioner control unit
M51, M52

3.

Driver seat control unit B451, B452

4.

Unified meter and A/C amp. M67

5.

AV control unit
With NAVI M87, M88
Without NAVI M83, M85

6.

AT assembly connector F51

7.

Tilt & telescopic switch M31

8.

Key slot M22

9.

Tilt sensor M48

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-43

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

10. Telescopic sensor M48

11.

Seat memory switch D5

12. Door mirror remote control switch

D17

A.

Dash side lower (Passenger side)

B.

View with instrument driver lower
panel removed

C.

Backside of seat cushion (driver side)

D.

Behind cluster lid C

E.

AT assembly
(TCM is built in AT assembly)

F.

View with instrument driver lower
panel removed

G

View with steering column cover low-
er and upper removed

13. Front door switch (driver side) B16

14. AT device (detention switch) M137

15. Parking brake switch B14

16. Door mirror (driver side) D3

17. Telescopic motor M49

18. Tilt motor M49

H.

View with center console assembly
removed

I.

View with center console assembly
removed

J.

View with instrument driver lower
panel removed

19. Side support (seat cushion)

(Side support unit B420)

20. Reclining motor B454

21. Side support (seatback)

(Side support unit B420)

22. Side support unit B420

23. Reclining switch

(Power seat switch B459)

24. Sliding, lifting switch

(Power seat switch B459)

25. Side support switch (seat back side)

B419

26. Side support switch (cushion side)

B419

27. Sliding sensor B453

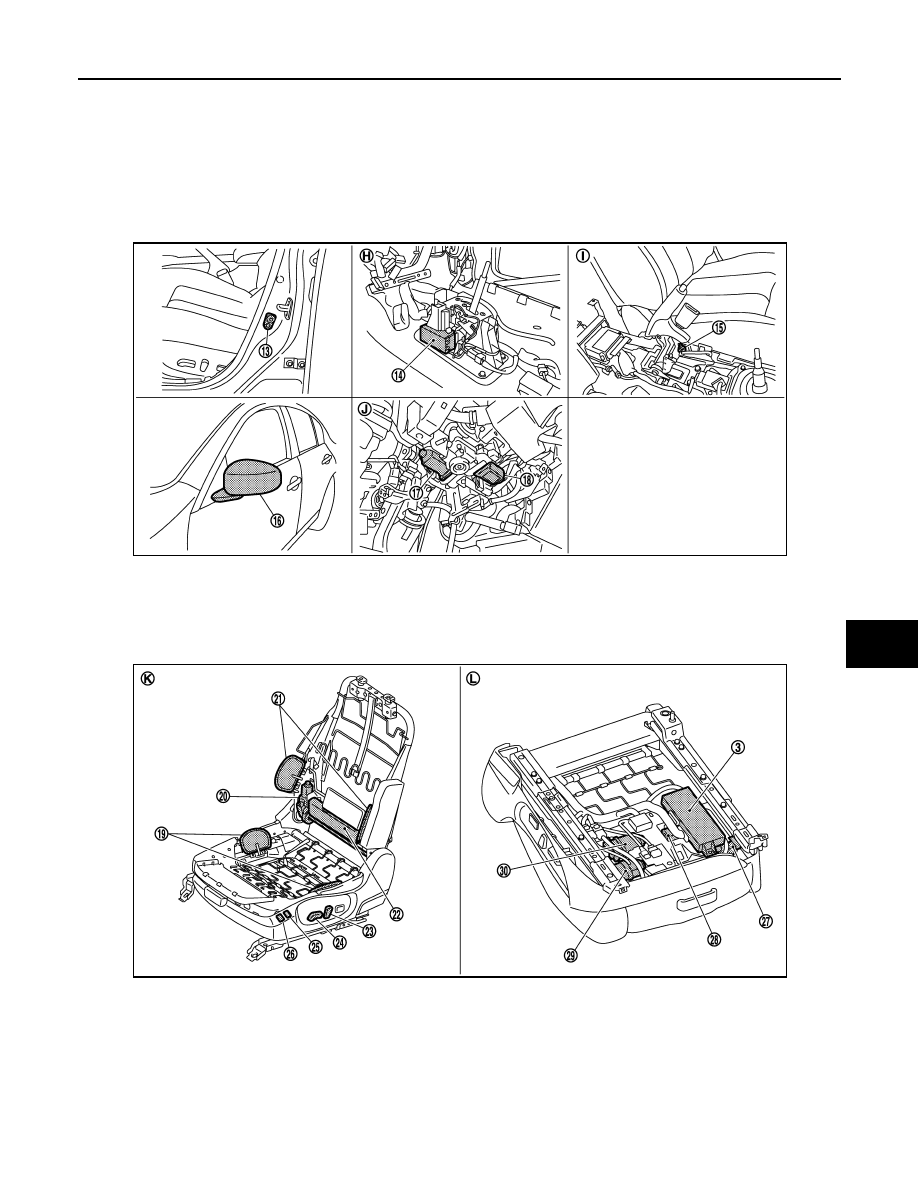

JMJIA0162GB

JMJIA0164GB

ADP-44

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

INTELLIGENT KEY INTERLOCK FUNCTION : Component Description

INFOID:0000000000960614

CONTROL UNITS

SIDE SUPPORT SYSTEM

SIDE SUPPORT SYSTEM : System Description

INFOID:0000000000960615

OUTLINE

• While operating the side support switch, the pump located inside side support unit operates and adjust theair

pressure in seat cushion and seatback side support.

• It is possible to soften the side support, by allowing some air to escape, by deflating the solenoid locatedin-

side side support.

•  It is possible to adjust seat cushion and seatback differently while inflating or deflating solenoid located

inside support unit.

NOTE:
The side support system is controlled independently with no link to the automatic drive positioner system.

28. Lifting motor (front) B455

29. Sliding motor B461

30.  Lifting motor (rear) B456

K.

View with seat cushion pad and seat-
back pad removed

L.

Backside of the seat cushion

Item

Function

Driver seat control unit

It performs memory function and entry/exit assist function after receiving the door
unlock signal from BCM.

Automatic drive positioner control unit

Operates the steering column and door mirror with the instructions from the driver
seat control unit.

BCM

Recognizes the following status and transmits it to the driver seat control unit via
CAN communication.
• Door lock: UNLOCK

 (with Intelligent Key or driver side door request swtich)

AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-45

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

SIDE SUPPORT SYSTEM : Component Parts Location

INFOID:0000000000960616

JMJIA0161GB

1.

BCM  M118,  M119,  M122,  M123

2.

Automatic drive positioner control unit
M51, M52

3.

Driver seat control unit B451, B452

4.

Unified meter and A/C amp. M67

5.

AV control unit
With NAVI M87, M88
Without NAVI M83, M85

6.

AT assembly connector F51

7.

Tilt & telescopic switch M31

8.

Key slot M22

9.

Tilt sensor M48

10. Telescopic sensor M48

11.

Seat memory switch D5

12. Door mirror remote control switch

D17

A.

Dash side lower (Passenger side)

B.

View with instrument driver lower
panel removed

C.

Backside of seat cushion (driver side)

D.

Behind cluster lid C

E.

AT assembly
(TCM is built in AT assembly)

F.

View with instrument driver lower
panel removed

G

View with steering column cover low-
er and upper removed
