DIAGNOSTIC PROCEDURE 3

=NCSC0020S05

Check “S” Terminal Circuit

NCSC0020S0501

1

CHECK “S” TERMINAL CONNECTION

Check to see if “S” terminal is clean and tight.

OK or NG

OK

©

GO TO 2.

NG

©

Repair “S” terminal connection. Confirm repair by performing complete Battery/Starting/
Charging system test.

2

CHECK ALTERNATOR “S” TERMINAL CIRCUIT

Check voltage between alternator connector E106 terminal 4 (W) and ground using a digital circuit tester.

SEL953X

OK or NG

OK

©

GO TO 3.

NG

©

Check the following.

I

7.5A fuse (No. 37, located in fuse and fusible link box)

I

Harness for open or short between alternator and fuse

3

CHECK “S” TERMINAL CONNECTION QUALITY (VOLTAGE DROP TEST)

Check voltage between alternator connector E106 terminal 4 (W) and battery positive terminal using a digital tester.

SEL954X

OK or NG

OK

©

Replace the alternator. Confirm repair by performing complete Battery/Starting/Charging
system test.

NG

©

Check harness between the battery and the alternator for poor continuity.

MALFUNCTION INDICATOR

NCSC0020S06

The

IC

regulator

warning

function

activates

to

illuminate

“CHARGE” warning lamp, if any of the following symptoms occur
while alternator is operating:

I

Excessive voltage is produced.

I

No voltage is produced.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

CHARGING SYSTEM

Trouble Diagnoses with Battery/Starting/Charging System Tester (Cont’d)

SC-29

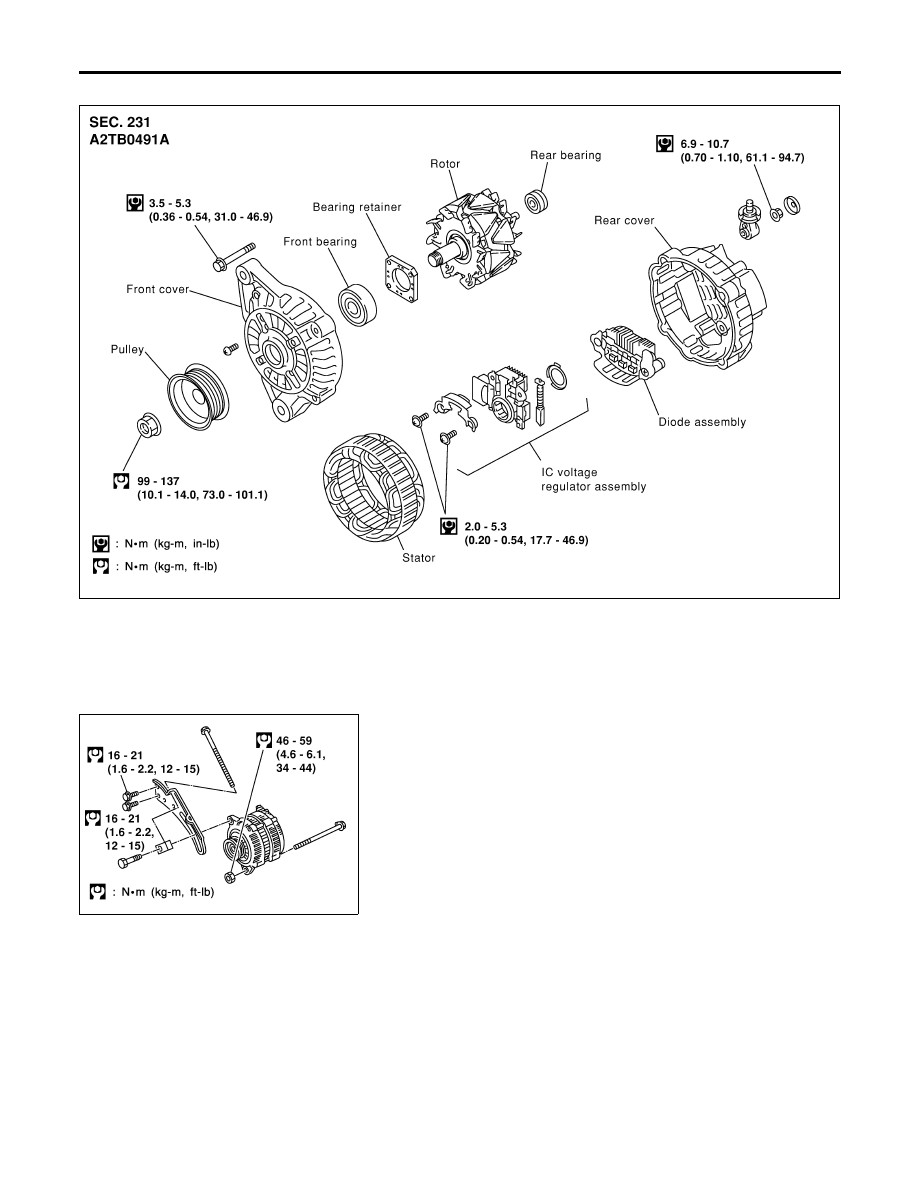

Construction

NCSC0012

MEL965N

MEL161JA

Removal and Installation

NCSC0013

1.

Remove A/C compressor assembly fixing bolt and move the
compressor assembly under the vehicle.

2.

Remove alternator adjusting bar.

3.

Remove alternator bracket with alternator.

4.

Pull out alternator assembly under the vehicle.

5.

Remove alternator pivot bolt from bracket.

6.

Install in the reverse order of removal.

CHARGING SYSTEM

Construction

SC-30

Battery

NCSC0014

Type

80D26L

Capacity

V-AH

12-55

Cold cranking current

A

(For reference value)

582

Starter

NCSC0015

Type

S114–831

HITACHI make

Reduction gear type

System voltage

12V

No-load

Terminal voltage

11.0V

Current

Less than 90A

Revolution

More than 2,700 rpm

Minimum diameter of commutator

28.0 mm (1.102 in)

Minimum length of brush

10.5 mm (0.413 in)

Brush spring tension

16.2 N (1.65 kg, 3.64 lb)

Clearance between bearing metal and armature shaft

Less than 0.2 mm (0.008 in)

Clearance between pinion front edge and pinion stopper

0.3 - 2.5 mm (0.012 - 0.098 in)

Alternator

NCSC0016

Type

A2TB0491A

MITSUBISHI make

Nominal rating

12V-90A

Ground polarity

Negative

Minimum revolution under no-load (When 13.5 volts is applied)

Less than 1,300 rpm

Hot output current (When 13.5 volts is applied)

More than 25A/1,300 rpm
More than 67A/2,500 rpm

Regulated output voltage

14.1 - 14.7V

Minimum length of brush

5.0 mm (0.197 in)

Brush spring pressure

4.8 - 6.0 N (490 - 610 g, 17.28 - 21.51 oz)

Slip ring minimum outer diameter

22.1 mm (0.870 in)

Rotor (Field coil) resistance

1.8 - 2.1

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

SC-31

NOTES
