STEERING SYSTEM

SECTION

ST

CONTENTS

PRECAUTIONS ...............................................................2

Supplemental Restraint System (SRS)

AIR

BAG

and

SEAT BELT PRE-TENSIONER

...............2

Precautions for Steering System.................................2

PREPARATION ...............................................................3

Special Service Tools ..................................................3
Commercial Service Tools ...........................................4

NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING
.....................................................5

NVH Troubleshooting Chart.........................................5

ON-VEHICLE SERVICE ..................................................6

Checking Steering Wheel Play....................................6
Checking Neutral Position on Steering Wheel ............6

PRE-CHECKING

........................................................6

CHECKING

...............................................................6

Front Wheel Turning Angle..........................................6
Checking Gear Housing Movement ............................6
Checking and Adjusting Drive Belts ............................7
Checking Fluid Level ...................................................7
Checking Fluid Leakage ..............................................7
Bleeding Hydraulic System..........................................7
Checking Steering Wheel Turning Force ....................8
Checking Hydraulic System.........................................8

STEERING WHEEL AND STEERING COLUMN .........10

Components...............................................................10
Removal and Installation ...........................................10

STEERING WHEEL

.................................................10

STEERING COLUMN

............................................... 11

Disassembly and Assembly.......................................13
Inspection...................................................................14

TILT MECHANISM

...................................................14

POWER STEERING GEAR AND LINKAGE ................15

Components...............................................................15
Removal and Installation ...........................................16
Disassembly...............................................................18
Inspection...................................................................18

BOOT

.....................................................................18

RACK

.....................................................................18

PINION ASSEMBLY

.................................................19

GEAR HOUSING CYLINDER

....................................19

TIE-ROD OUTER AND INNER SOCKETS

..................19

Assembly ...................................................................19
Adjustment .................................................................24

POWER STEERING OIL PUMP....................................26

Components...............................................................26
Pre-disassembly Inspection.......................................26
Disassembly...............................................................26
Inspection...................................................................27
Assembly ...................................................................28

SERVICE DATA AND SPECIFICATIONS (SDS) .........31

General Specifications...............................................31
Steering Wheel ..........................................................31
Steering Column ........................................................31
Steering Gear and Linkage .......................................32
Power Steering ..........................................................33

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NCST0001

The supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to INFINITI G20 is as follows:

I

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), seat belt
pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

I

For a side collision
The Supplemental Restraint System consists of side air bag module (located in the outer side of front seat),
satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision), wiring harness,
warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

I

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized INFINITI dealer.

I

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

I

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses (except “SEAT BELT PRE-TENSIONER” connector) can be
identified by yellow harness connector.

Precautions for Steering System

NCST0003

I

Before disassembly, thoroughly clean the outside of the unit.

I

Disassembly should be done in a clean work area. It is important to prevent the internal parts from
becoming contaminated by dirt or other foreign matter.

I

Place disassembled parts in order, on a parts rack, for easier and proper assembly.

I

Use nylon cloths or paper towels to clean the parts; common shop rags can leave lint that might
interfere with their operation.

I

Before inspection or reassembly, carefully clean all parts with a general purpose, non-flammable
solvent.

I

Before assembly, apply a coat of recommended Genuine Nissan PSF-II or equivalent to hydraulic
parts. Vaseline may be applied to O-rings and seals. Do not use any grease.

I

Replace all gaskets, seals and O-rings. Avoid damaging O-rings, seals and gaskets during instal-
lation. Perform functional tests whenever designated.

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

ST-2

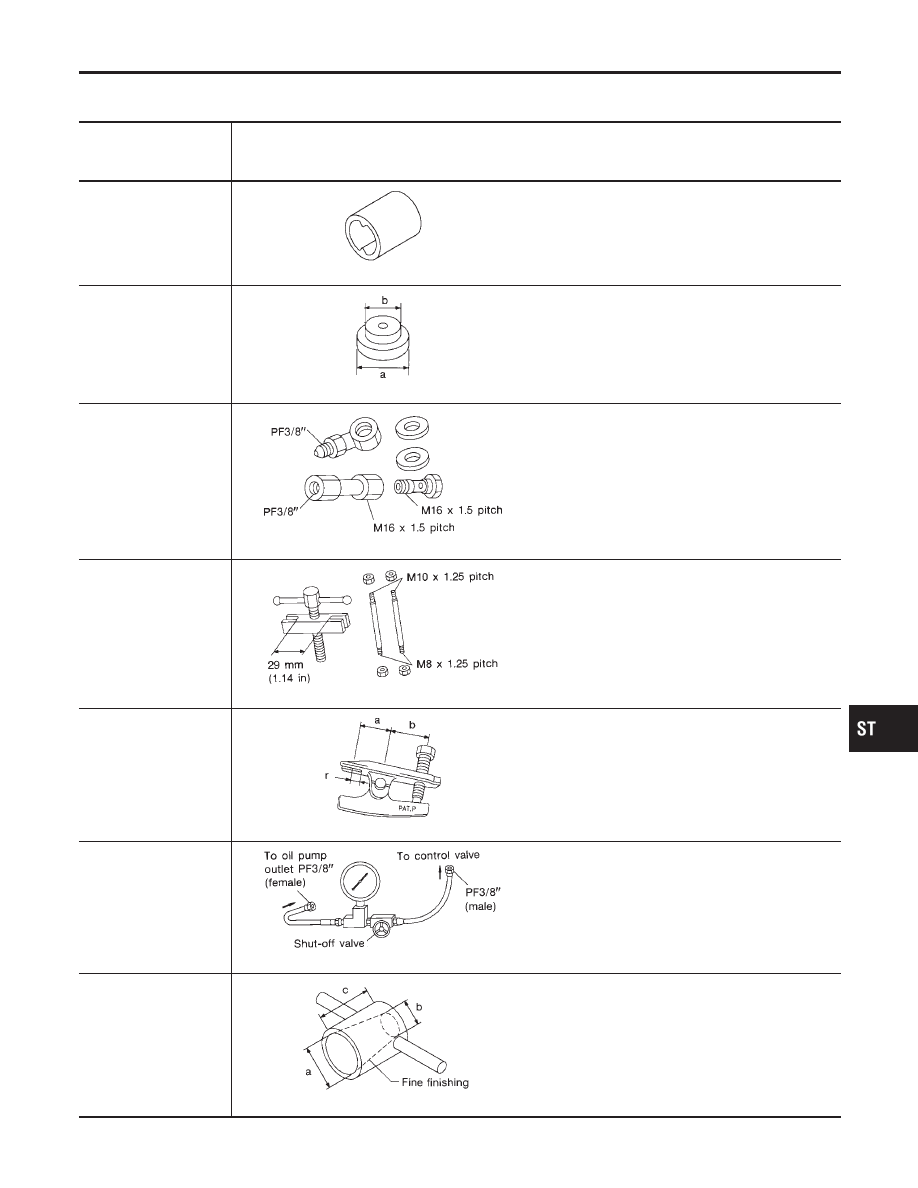

Special Service Tools

NCST0004

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV48100700
(J26364)
Torque adapter

NT169

Measuring pinion rotating torque

ST35300000
(

)

Drift

NT073

Installing power steering oil pump oil seal
a: 59 mm (2.32 in) dia.
b: 45 mm (1.77 in) dia.

KV48102500
(J33914)
Pressure gauge adapter

NT542

Measuring oil pressure

ST27180001
(J41777)
Steering wheel puller

NT544

Removing steering wheel

HT72520000
(J25730-B)
Ball joint remover

NT546

Removing ball joint
a: 33 mm (1.30 in)
b: 50 mm (1.97 in)
r: R11.5 mm (0.453 in)

KV48103500
(J26357 and J26357-
10)
Pressure gauge

NT547

Measuring oil pressure

KV48104400
(

)

Rack seal ring reformer

NT550

Reforming teflon ring
a: 50 mm (1.97 in) dia.
b: 36 mm (1.42 in) dia.
c: 100 mm (3.94 in)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

RS

BT

HA

SC

EL

IDX

PREPARATION

Special Service Tools

ST-3

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127S000
1 GG91030000
(See J25765-A)
Torque wrench
2 HT62940000
(

)

Socket adapter
3 HT62900000
(

)

Socket adapter

NT541

Measuring turning torque

(J-44372)
Spring gauge

NT127

Measuring steering wheel turning force

(J-44183-A)
Spring gauge

NT127

Measuring rack sliding force

Commercial Service Tools

NCST0005

Tool number

Description

Rear oil seal drift

NT063

Installing rear oil seal
a: 28 mm (1.10 in) dia.

Pinion oil seal drift

NT063

Installing pinion oil seal
a: 35 mm (1.38 in) dia.

Oil pump attachment

NT179

Disassembling and assembling oil pump
Unit: mm (in)

PREPARATION

Special Service Tools (Cont’d)

ST-4
