Infiniti G20 (P11). Manual - part 482





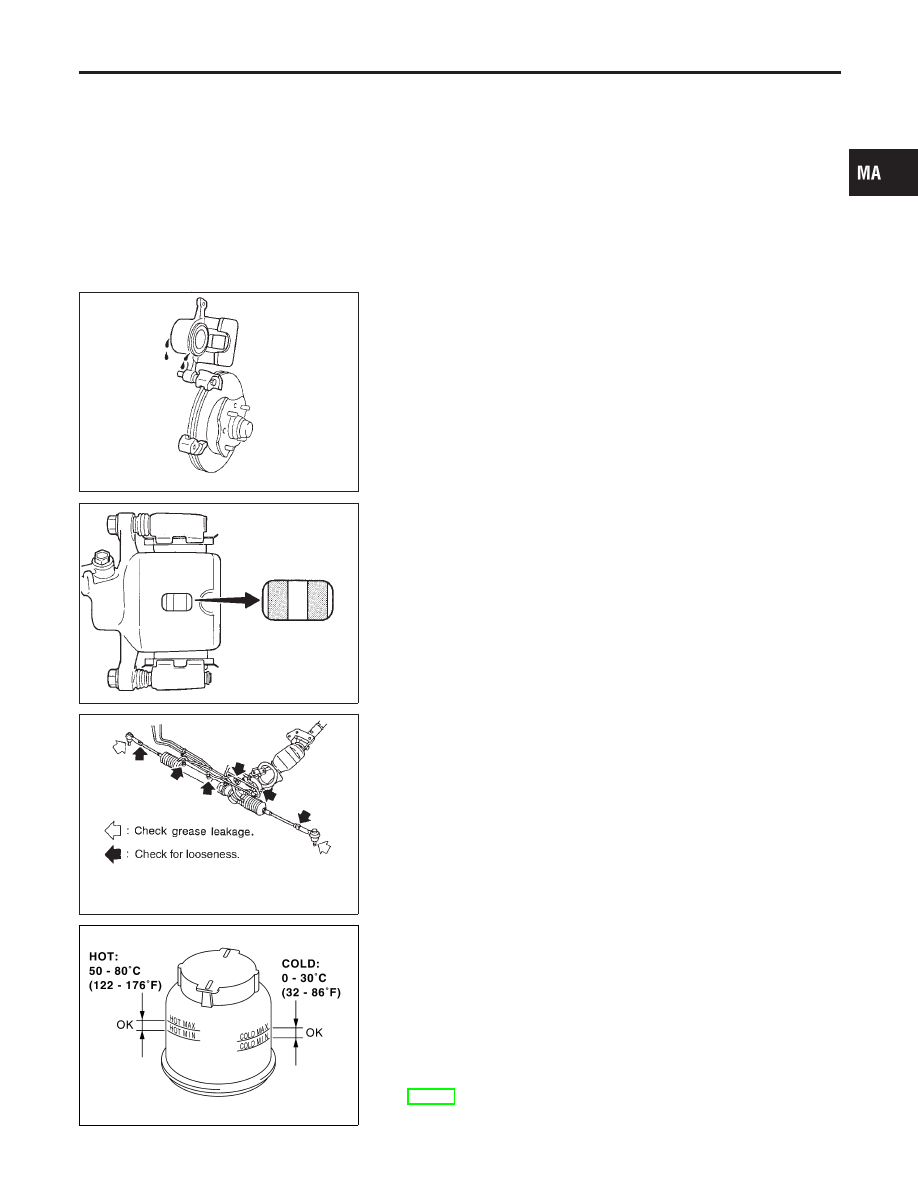

Checking Disc Brake

NCMA0007S18

ROTOR

NCMA0007S1801

Check condition and thickness.

Standard thickness:

Front 22 mm (0.87 in)
Rear 9 mm (0.35 in)

Minimum thickness:

Front 20 mm (0.79 in)
Rear 8 mm (0.31 in)

SMA922A

CALIPER

NCMA0007S1802

Check for leakage.

BRA0010D

PAD

NCMA0007S1803

Check wear or damage.

Standard thickness:

Front 11 mm (0.43 in)
Rear 10 mm (0.39 in)

Minimum thickness:

Front 2 mm (0.08 in)
Rear 1.5 mm (0.059 in)

SLIA0014E

Checking Steering Gear and Linkage

NCMA0007S20

STEERING GEAR

NCMA0007S2001

I

Check gear housing and boots for looseness, damage and
grease leakage.

I

Check connection with steering column for looseness.

STEERING LINKAGE

NCMA0007S2002

Check ball joint, dust cover and other component parts for
looseness, wear, damage and grease leakage.

SST850C

Checking Power Steering Fluid and Lines

NCMA0007S21

Check fluid level in reservoir tank with engine off.
Use “HOT” range at fluid temperatures of 50 to 80°C (122 to 176°F)
or “COLD” range at fluid temperatures of 0 to 30°C (32 to 86°F).

CAUTION:

I

Do not overfill.

I

Recommended fluid is Genuine NISSAN PSF II or equiva-
lent.
Refer to “RECOMMENDED FLUIDS AND LUBRICANTS”,
MA-11.

GI

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CHASSIS AND BODY MAINTENANCE

Checking Disc Brake

MA-25

SST851C

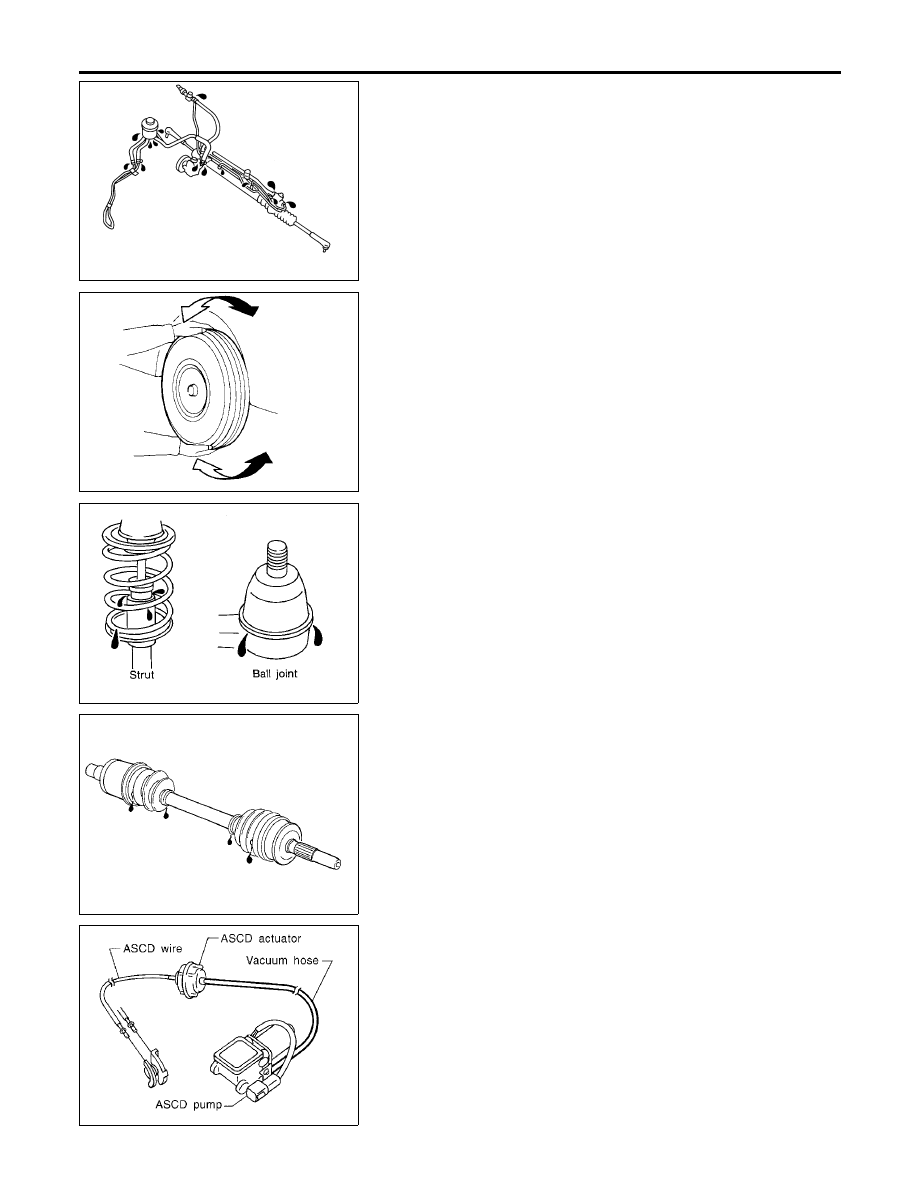

I

Check lines for improper attachment, leaks, cracks, damage,
loose connections, chafing and deterioration.

I

Check rack boots for accumulation of power steering fluid.

SMA525A

Axle and Suspension Parts

NCMA0007S24

Check front and rear axle and suspension parts for excessive play,
cracks, wear, or other damage.

I

Shake each wheel to check for excessive play.

I

Rotate each wheel to check for abnormal noise.

I

Check axle and suspension nuts and bolts for looseness.

I

Check strut (shock absorber) for oil leakage or other damage.

I

Check suspension ball joint for grease leakage and ball joint
dust cover for cracks or other damage.

SFA392B

SFA108A

Drive Shaft

NCMA0007S25

Check boot and drive shaft for cracks, wear, damage and grease
leakage.

MEL402G

Vacuum Hose

NCMA0007S26

Check vacuum hose (between ASCD actuator and ASCD pump)
for breakage, cracks or fracture.

CHASSIS AND BODY MAINTENANCE

Checking Power Steering Fluid and Lines (Cont’d)

MA-26

Lubricating Locks, Hinges and Hood Latches

NCMA0007S22

SMA913C

Checking Seat Belts, Buckles, Retractors,
Anchors and Adjusters

NCMA0007S23

SMA024DA

GI

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

CHASSIS AND BODY MAINTENANCE

Lubricating Locks, Hinges and Hood Latches

MA-27

Engine Maintenance

NCMA0008

DRIVE BELT DEFLECTION AND TENSION

NCMA0008S01

Deflection adjustment

Unit: mm (in)

Tension adjustment *1

Unit: N (kg, lb)

Used belt

New belt

Used belt

New belt

Limit

After adjust-

ment

Limit

After adjust-

ment

Compressor

With air condi-
tioner com-
pressor

9 (0.35)

5.5 - 6.5

(0.217 - 0.256)

4.5 - 5.5

(0.177 - 0.217)

304 (31, 68)

534 - 623

(54.5 - 63.5,

120.2 - 140.0)

652 - 740

(66.5 - 75.5,

146.6 - 166.5)

Generator

Without air
conditioner
compressor

12 - 13

(0.47 - 0.51)

8 - 9

(0.31 - 0.35)

7 - 8

(0.28 - 0.31)

265 (27, 60)

493 - 583

(50.3 - 59.5,

110.9 - 131.2)

603 - 691

(61.5 - 70.5,

135.6 - 155.5)

Power steer-
ing oil pump

With air condi-
tioner com-
pressor

12 (0.47)

8 - 9

(0.31 - 0.35)

7 - 8

(0.28 - 0.31)

265 (27, 60)

495 - 583

(50.5 - 59.5,

111.4 - 131.2)

603 - 691

(61.5 - 70.5,

135.6 - 155.5)

Without air
conditioner
compressor

12 (0.47)

8 - 9

(0.31 - 0.35)

7 - 8

(0.28 - 0.31)

265 (27, 60)

493 - 583

(50.3 - 59.5,

110.9 - 131.2)

603 - 691

(61.5 - 70.5,

135.6 - 155.5)

Applied pushing force

98 N (10 kg, 22 lb)

*1: If the belt tension gauge cannot be installed at check points shown, check belt tension at a different location on the belt.

SPARK PLUG TYPE

NCMA0008S02

Platinum-tipped type

Conventional type

Type

Standard

PFR5G-11

BKR5E

Hot

Cold

PFR6G-11
PFR7G-11

BKR6E, BKR7E

Plug gap

Nominal: 1.1 mm (0.043 in)

0.8 - 0.9 mm (0.031 - 0.035 in)

Chassis and Body Maintenance

NCMA0009

WHEEL BALANCE

NCMA0009S01

Maximum allowable unbalance

Dynamic (At rim flange)

g (oz)

10 (0.35) (one side)

Static

g (oz)

20 (0.71)

SERVICE DATA AND SPECIFICATIONS (SDS)

Engine Maintenance
