MAGNET CLUTCH CIRCUIT

=NCHA0156

SYMPTOM:

I

Magnet clutch does not engage when A/C switch and fan
switch are ON.

1

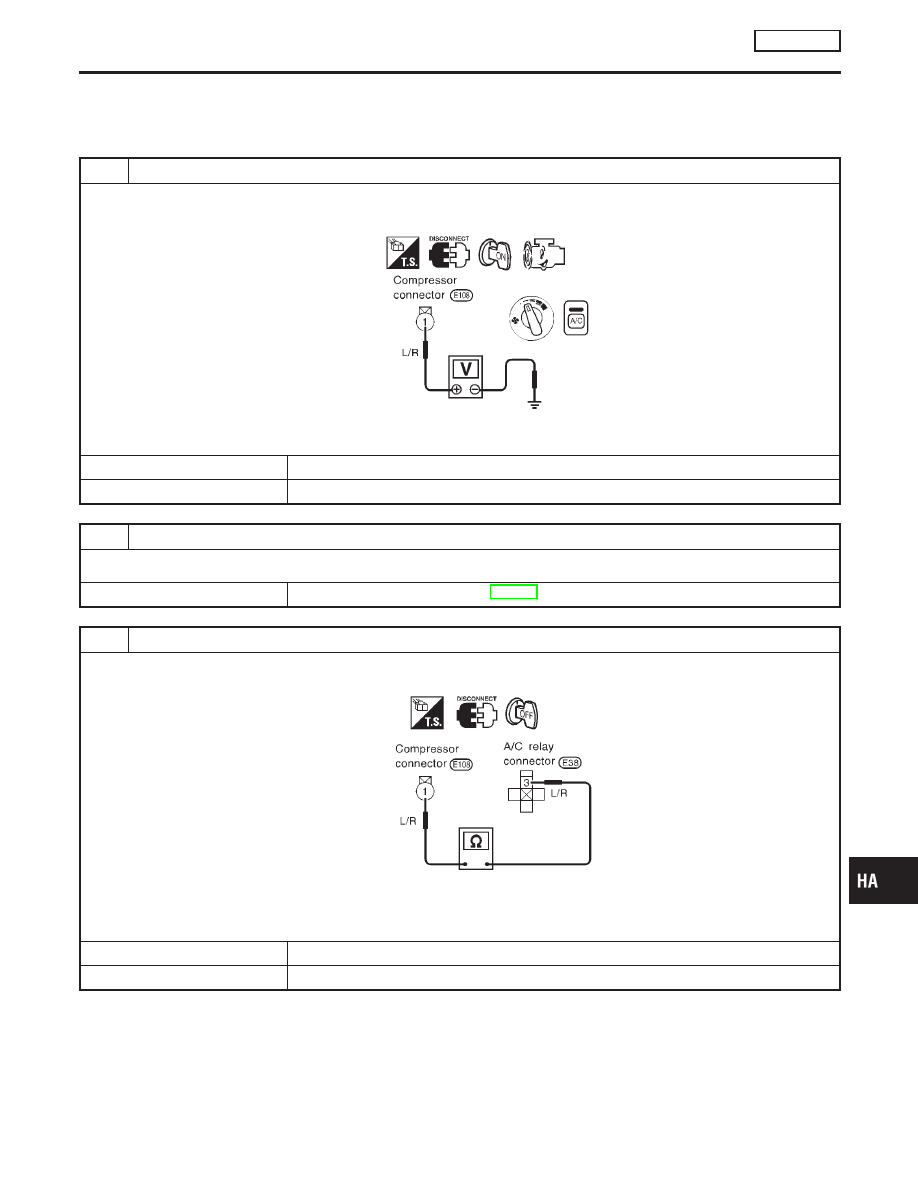

CHECK POWER SUPPLY FOR COMPRESSOR

Disconnect compressor harness connector.
Do approx. 12 volts exist between compressor harness terminal No. 1 and body ground?

RHA747FG

Yes or No

Yes

©

GO TO 2.

No

©

Disconnect A/C relay. GO TO 3.

2

CHECK MAGNET CLUTCH COIL

OK or NG

NG

©

Replace magnet clutch. Refer to HA-197.

3

CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND COMPRESSOR HARNESS

Check circuit continuity between A/C relay harness terminal No. 3 and compressor harness terminal No. 1.

Continuity should exist.

RHA127H

If OK, check harness for short.

OK or NG

OK

©

GO TO 4.

NG

©

Repair harness or connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

MANUAL

Magnet Clutch (Cont’d)

HA-175

4

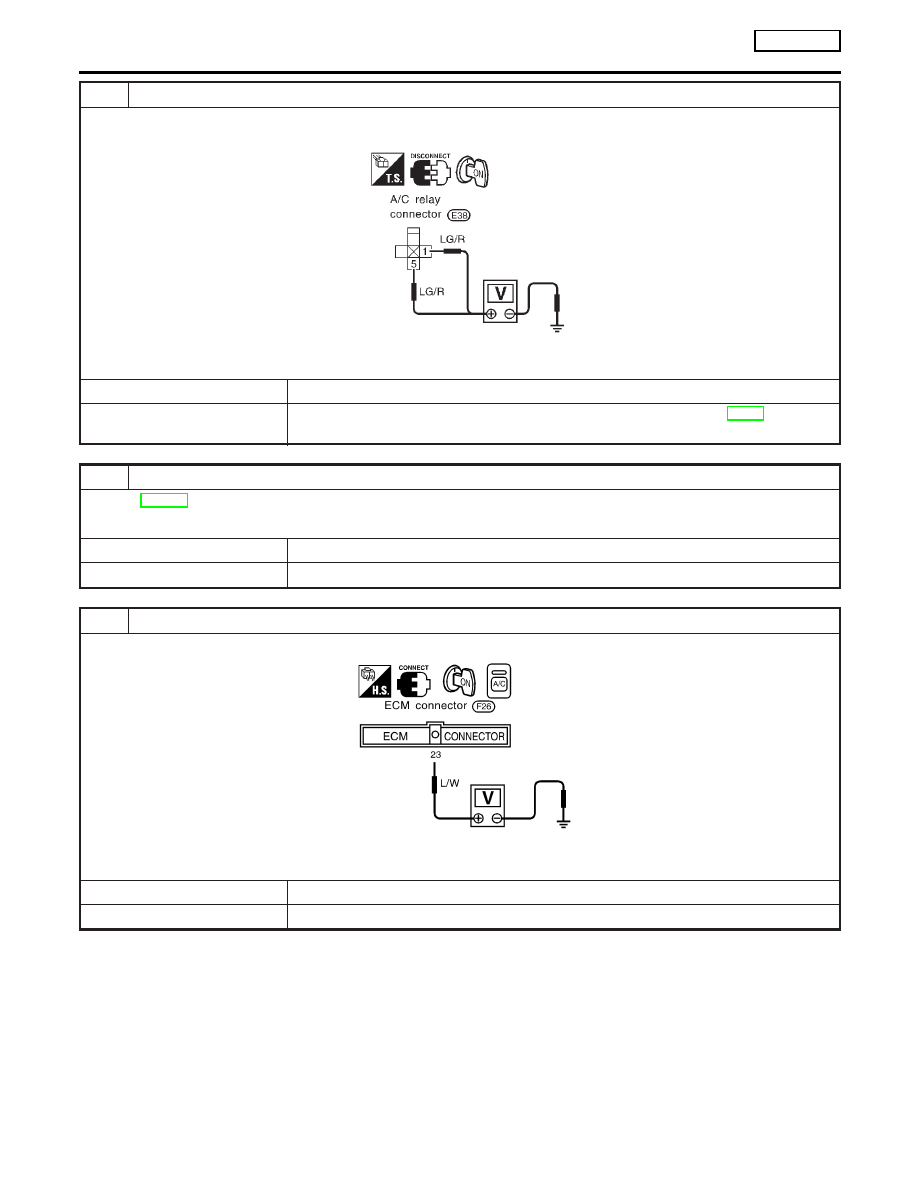

CHECK POWER SUPPLY FOR A/C RELAY

Disconnect A/C relay.
Do approx. 12 volts exist between A/C relay harness terminal Nos. 1, 5 and body ground?

RHA062H

Yes or No

Yes

©

GO TO 5.

No

©

Check power supply circuit and 10A (No. 6) fuse at fuse block. Refer to EL-14, “Wiring
Diagram — POWER —”.

5

CHECK A/C RELAY AFTER DISCONNECTING IT

Refer to HA-180.

OK or NG

OK

©

Reconnect A/C relay. GO TO 6.

NG

©

Replace A/C relay.

6

CHECK COIL SIDE CIRCUIT OF A/C RELAY

Do approx. 12 volts exist between ECM harness terminal No. 23 and body ground?

RHA534H

Yes or No

Yes

©

GO TO 8.

No

©

Disconnect A/C relay. Disconnect ECM harness connector. GO TO 7.

TROUBLE DIAGNOSES

MANUAL

Magnet Clutch (Cont’d)

HA-176

7

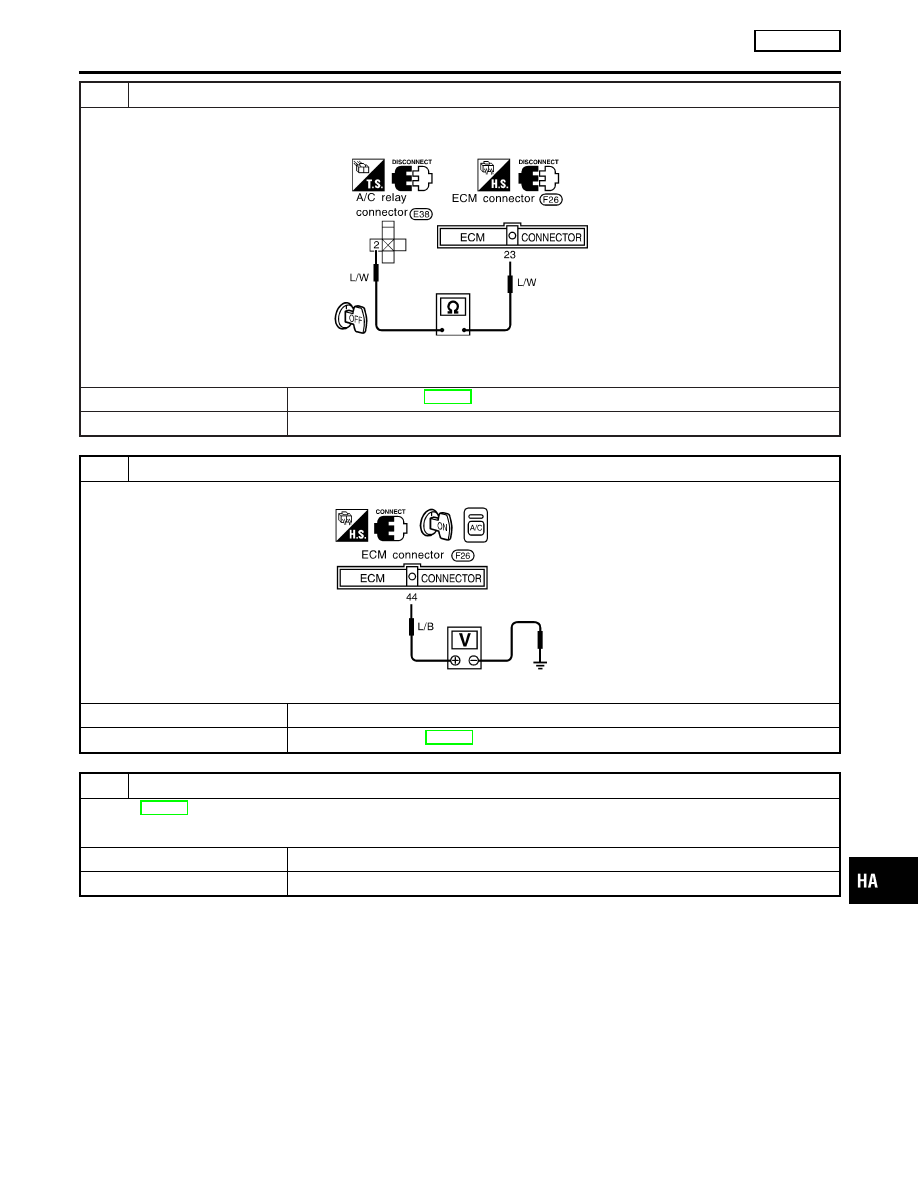

CHECK CIRCUIT CONTINUITY BETWEEN A/C RELAY AND ECM HARNESS

Check circuit continuity between A/C relay harness terminal No. 2 and ECM harness terminal No. 23.

Continuity should exist.

RHA535H

If OK, check harness for short.

OK or NG

OK

©

Check ECM. Refer to EC-134, “ECM Terminals and Reference Value”.

NG

©

Repair harness or connector.

8

CHECK VOLTAGE FOR ECM

Do approx. 12 volts exist between ECM harness terminal No. 44 and body ground?

RHA536HD

Yes or No

Yes

©

GO TO 9.

No

©

Check ECM. Refer to EC-134, “ECM Terminals and Reference Value”.

9

CHECK REFRIGERANT PRESSURE SENSOR

Refer to HA-181.

OK or NG

OK

©

GO TO 10.

NG

©

Replace refrigerant pressure sensor.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

MANUAL

Magnet Clutch (Cont’d)

HA-177

10

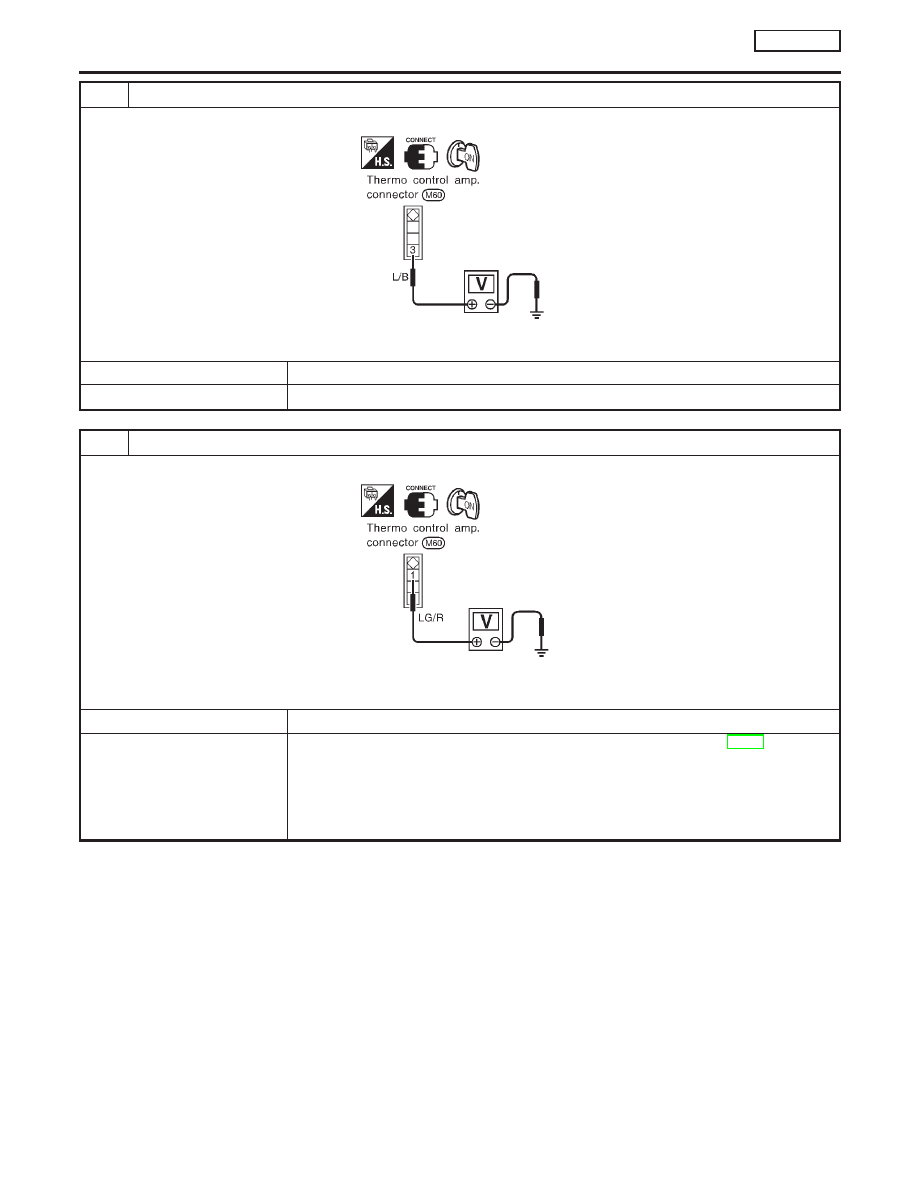

CHECK POWER SUPPLY FOR THERMO CONTROL AMP.

Do approx. 12 volts exist between thermo control amp. harness terminal No. 3 and body ground?

RHA131H

Yes or No

Yes

©

GO TO 11.

No

©

Repair harness or connector.

11

CHECK POWER SUPPLY FOR THERMO CONTROL AMP.

Do approx. 12 volts exist between thermo control amp. harness terminal No. 1 and body ground?

RHA132H

Yes or No

Yes

©

GO TO 12.

No

©

Check power supply circuit and 10A (No. 6) fuse at fuse block. Refer to EL-14, “Wiring
Diagram — POWER —”.

I

If OK, check for open circuit in wiring harness.
Repair or replace as necessary.

I

If NG, replace fuse and check wiring harness for short circuit.
Repair or replace as necessary.

TROUBLE DIAGNOSES

MANUAL

Magnet Clutch (Cont’d)

HA-178
