CHECK BODY GROUND CIRCUIT FOR INTAKE DOOR MOTOR

Check circuit continuity between intake door motor harness terminal No. 5 and body ground.

RHA101H

OK or NG

OK

©

Replace intake door motor.

NG

©

Repair harness or connector.

7

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE DOOR MOTOR AND PUSH CONTROL UNIT

Check circuit continuity between intake door motor harness terminal Nos. 1, (4) and push control unit harness terminal
Nos. 24, (21).

RHA907H

MTBL0132

OK or NG

OK

©

Replace push control unit.

NG

©

Repair harness or connector.

RHA163D

CONTROL LINKAGE ADJUSTMENT

NCHA0136

Intake Door Motor

NCHA0136S01

1.

Install intake door motor on intake unit.
Ensure that the intake door motor lever is fitted into the slit
portion of intake door link.

2.

Connect the intake door motor harness connector.

3.

Turn ignition switch to “ON” position.

4.

Check that intake door operates properly when REC switch is
turned ON and OFF.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

MANUAL

Intake Door (Cont’d)

HA-155

Mode Door Motor

TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR MOTOR

=NCHA0137

SYMPTOM:

I

Air outlet does not change.

I

Mode door motor does not operate normally.

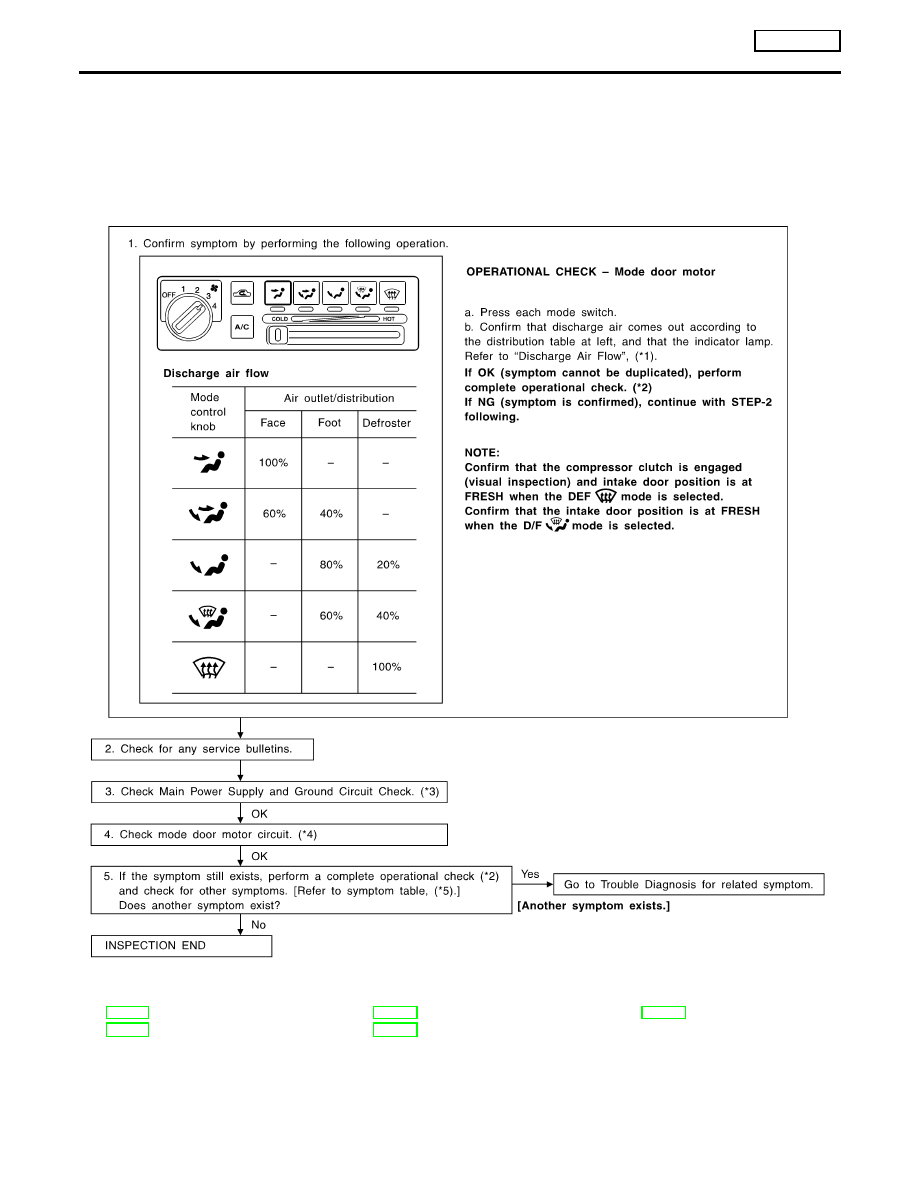

INSPECTION FLOW

SHA364F

*1: HA-138
*2: HA-148

*3: HA-151
*4: HA-158

*5: HA-147

TROUBLE DIAGNOSES

MANUAL

Mode Door Motor

HA-156

RHA104H

COMPONENT DESCRIPTION

NCHA0179

Mode Door Motor

NCHA0179S01

The mode door motor is attached to the heater unit. It rotates so
that air is discharged from the outlet set by the auto amp. Motor
rotation is conveyed to a link which activates the mode door.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

TROUBLE DIAGNOSES

MANUAL

Mode Door Motor (Cont’d)

HA-157

MODE DOOR MOTOR CIRCUIT

=NCHA0138

SYMPTOM:

I

Air outlet does not change.

I

Mode door motor does not operate normally.

1

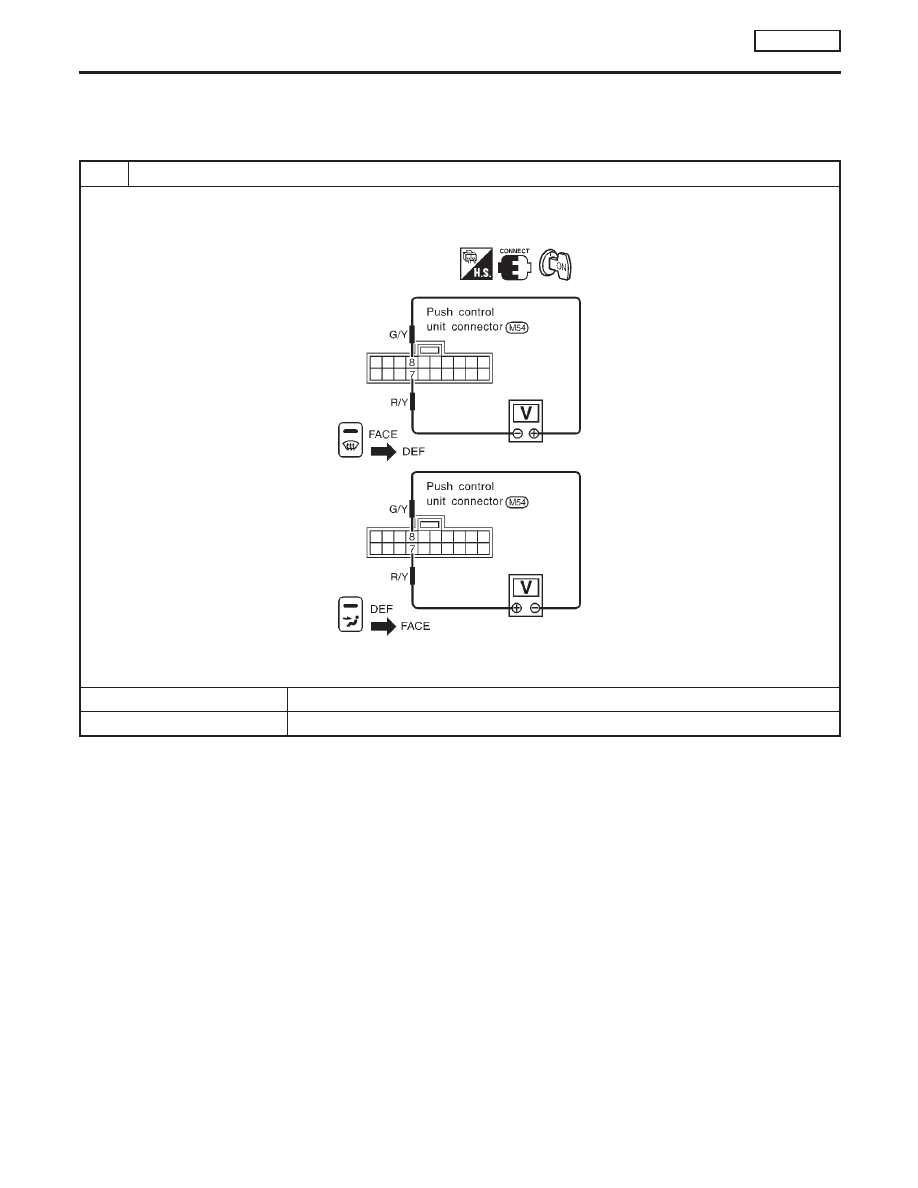

CHECK FOR OUTPUT OF PUSH CONTROL UNIT

Disconnect mode door motor harness connector.
Change the mode from FACE to DEF, or from DEF to FACE. Do approx. 12 volts exist between push control unit harness
terminal No. 7 and No. 8 in both cases?

RHA105H

Yes or No

Yes

©

GO TO 3.

No

©

GO TO 2.

TROUBLE DIAGNOSES

MANUAL

Mode Door Motor (Cont’d)

HA-158
