HFC-134a (R-134a) Service Tools and
Equipment

=NCHA0009

Never mix HFC-134a refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/or its lubri-
cant.
Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/
lubricant.
Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles
refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.
Adapters that convert one size fitting to another must never be used: refrigerant/lubricant contamination will
occur and compressor failure will result.

Tool number
(Kent-Moore No.)
Tool name

Description

HFC-134a (R-134a)
refrigerant

NT196

Container color: Light blue
Container marking: HFC-134a (R-134a)
Fitting size: Thread size

I

Large container 1/2

-16 ACME

KLH00-PAGR0
(

)

Nissan A/C System Oil
Type R

NT197

Type: Poly alkylene glycol oil (PAG), type R
Application: HFC-134a (R-134a) vane rotary com-
pressors (Nissan only)
Lubricity: 40 m



(1.4 US fl oz, 1.4 Imp fl oz)

(J-39500-INF)
Recovery/Recycling
Recharging equipment
(ACR4)

NT195

Function: Refrigerant Recovery and Recycling and
Recharging

(J-41995)
Electrical leak detector

AHA281A

Power supply:

I

DC 12V (Cigarette lighter)

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

PREPARATION

AUTO

HFC-134a (R-134a) Service Tools and Equipment

HA-11

Tool number
(Kent-Moore No.)
Tool name

Description

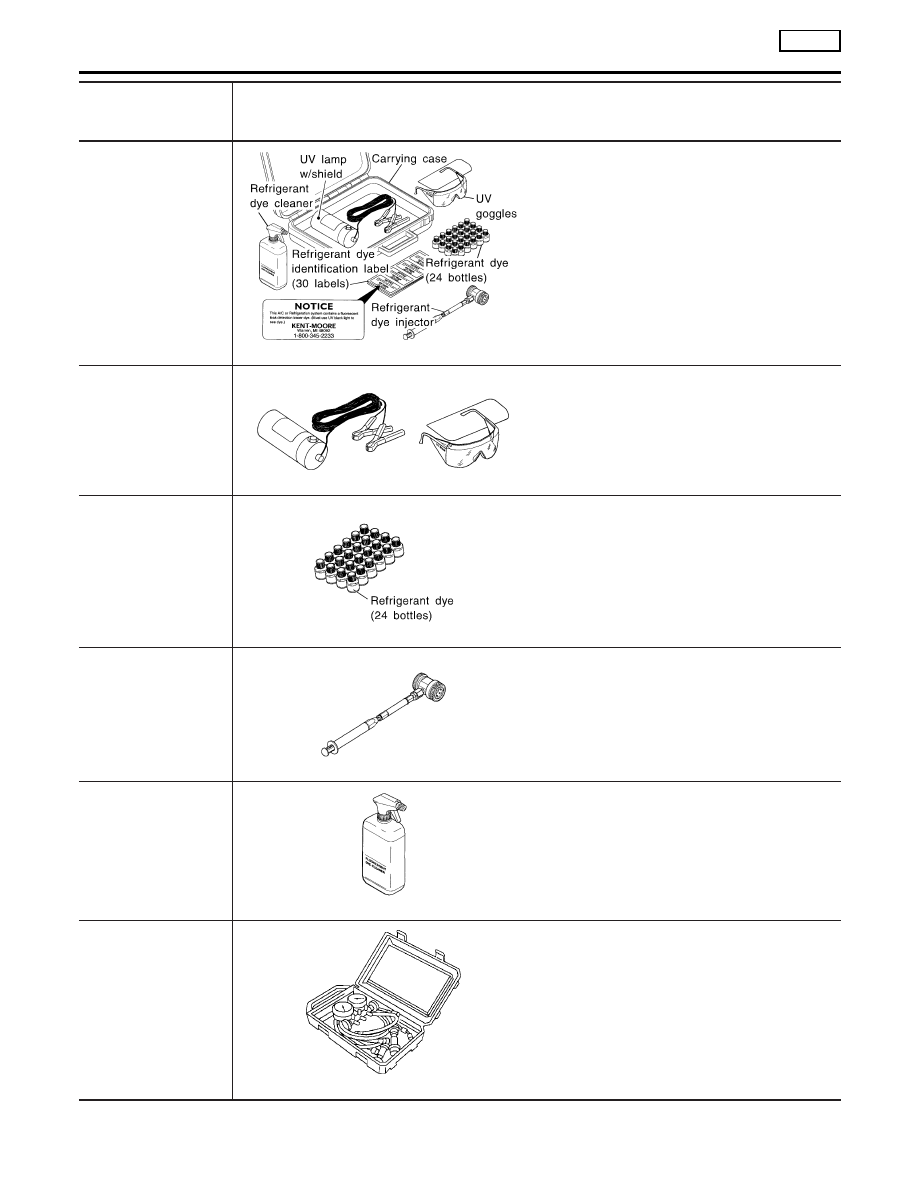

(J-43926)
Refrigerant dye leak
detection kit
Kit includes:
(J-42220) UV lamp and
UV safety glasses
(J-41459) Refrigerant
dye injector
(J-41447) qty. 24
R-134a refrigerant dye
(J-43872) Refrigerant
dye cleaner

SHA437F

Power supply:
DC 12V (Battery terminal)

(J-42220)
Fluorescent dye leak
detector

UV lamp

UV safety glasses

SHA438F

Power supply: DC12V (Battery terminal)
For checking refrigerant leak when fluorescent dye
is installed in A/C system.
Includes: UV lamp and UV safety glasses

(J-41447)
R134a Fluorescent Leak
Detection Dye (Box of
24, 1/4 ounce bottles)

Dye

SHA439F

Application: For R-134a PAG oil
Container: 1/4 ounce (7.4 cc) bottle
(Includes self-adhesive dye identification labels for
affixing to vehicle after charging system with dye.)

(J-41459)
R134a Dye Injector
Use with J-41447, 1/4
ounce bottle

Dye injector

SHA440F

For injecting 1/4 ounce of Fluorescent Leak Detec-
tion Dye into A/C system.

(J-43872)
Dye cleaner

SHA441F

For cleaning dye spills.

(J-39183)
Manifold gauge set (with
hoses and couplers)

NT199

Identification:

I

The gauge face indicates R-134a.

Fitting size: Thread size

I

1/2

-16 ACME

PREPARATION

AUTO

HFC-134a (R-134a) Service Tools and Equipment (Cont’d)

HA-12

Tool number
(Kent-Moore No.)
Tool name

Description

Service hoses

I

High side hose
(J-39501-72)

I

Low side hose
(J-39502-72)

I

Utility hose
(J-39476-72)

NT201

Hose color:

I

Low hose: Blue with black stripe

I

High hose: Red with black stripe

I

Utility hose: Yellow with black stripe or green
with black stripe

Hose fitting to gauge:

I

1/2

-16 ACME

Service couplers

I

High side coupler
(J-39500-20)

I

Low side coupler
(J-39500-24)

NT202

Hose fitting to service hose:

I

M14 x 1.5 fitting is optional or permanently
attached.

(J-39650)
Refrigerant weight scale

NT200

For measuring of refrigerant
Fitting size: Thread size

I

1/2

-16 ACME

(J-39649)
Vacuum pump
(Including the isolator
valve)

NT203

Capacity:

I

Air displacement: 4 CFM

I

Micron rating: 20 microns

I

Oil capacity: 482 g (17 oz)

Fitting size: Thread size

I

1/2

-16 ACME

COMMERCIAL SERVICE TOOL

NCHA0009S01

Tool name

Description

Refrigerant identifier
equipment

NT765

For checks refrigerant purity and for system con-
tamination

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

SC

EL

IDX

PREPARATION

AUTO

HFC-134a (R-134a) Service Tools and Equipment (Cont’d)

HA-13

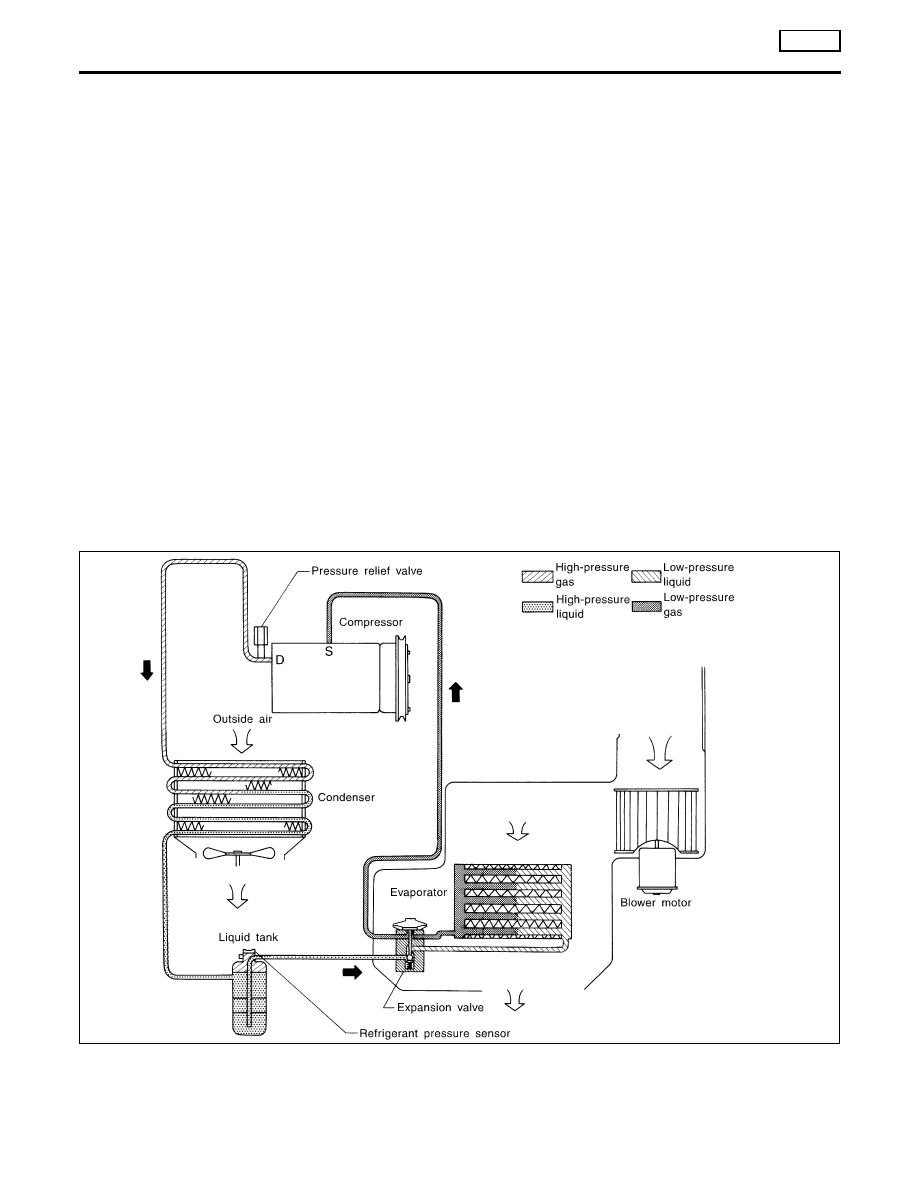

Refrigeration System

REFRIGERATION CYCLE

NCHA0010

Refrigerant Flow

NCHA0010S01

The refrigerant flows in the standard pattern, that is, through the compressor, the condenser, the liquid tank,
through the evaporator, and back to the compressor. The refrigerant evaporation through the evaporator coil
is controlled by an externally equalized expansion valve, located inside the evaporator case.

Freeze Protection

NCHA0010S02

The compressor cycles go on and off to maintain the evaporator temperature within a specified range. When
the evaporator coil temperature falls below a specified point, the thermo control amplifier interrupts the com-
pressor operation. When the evaporator coil temperature rises above the specification, the thermo control
amplifier allows compressor operation.

Refrigerant System Protection

NCHA0010S03

Refrigerant Pressure Sensor

NCHA0010S0303

The refrigerant system is protected against excessively high or low pressures by the refrigerant pressure
sensor, located on the liquid tank. If the system pressure rises above, or falls below the specifications, the
refrigerant pressure sensor detects the pressure inside the refrigerant line and sends the voltage signal to the
ECM. ECM makes the A/C relay go OFF and stops the compressor when pressure on the high pressure side
detected by refrigerant pressure sensor is over about 2,746 kPa (28 kg/cm

2

, 398 psi) or below about 177 kPa

(1.8 kg/cm

2

, 26 psi).

Pressure Relief Valve

NCHA0010S0302

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compres-
sor. When the pressure of refrigerant in the system increases to an abnormal level [more than 3,727 kPa (38
kg/cm

2

, 540 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant

into the atmosphere.

RHA347H

DESCRIPTION

AUTO

Refrigeration System

HA-14
