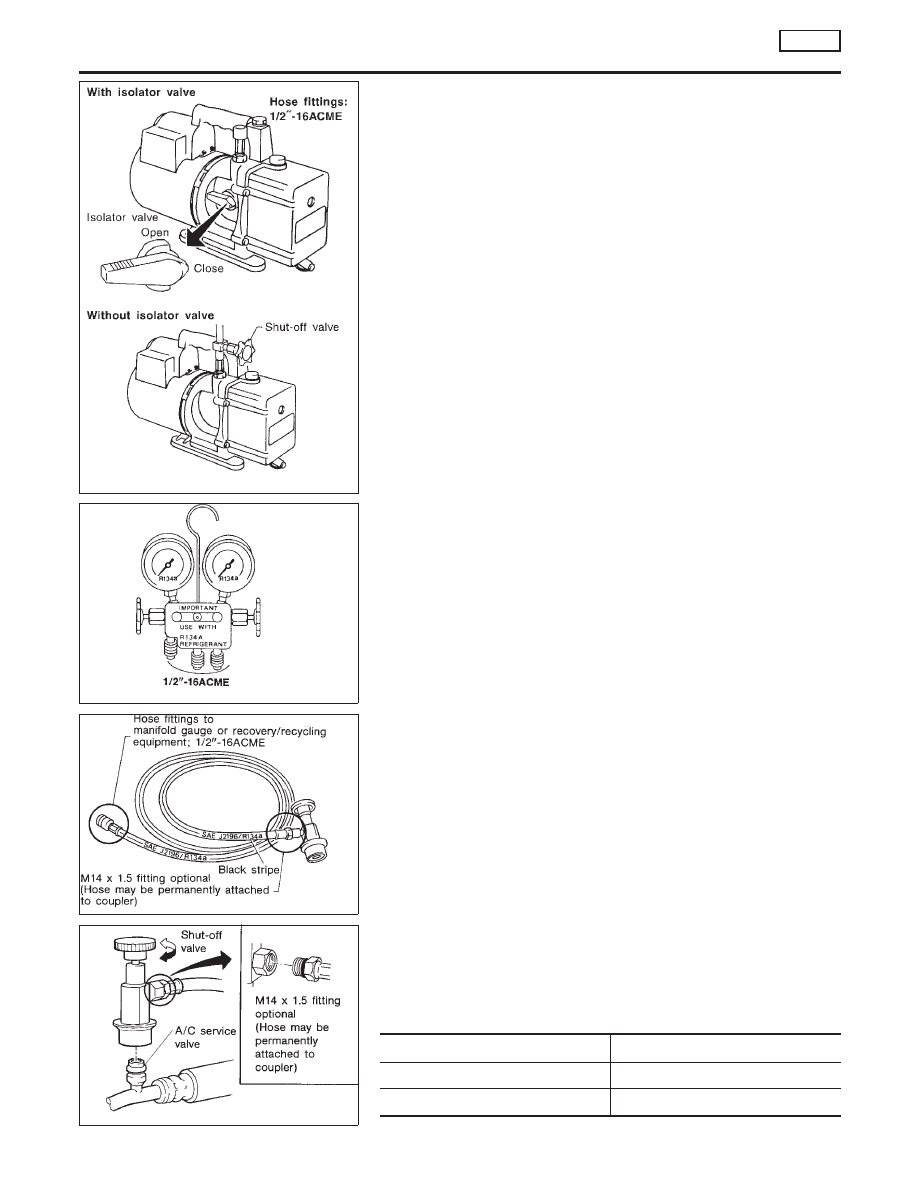

I When connecting tube, apply lubricant to circle of the O-rings shown in illustration. Be careful not I O-ring must be closely attached to dented portion of tube. I When replacing the O-ring, be careful not to damage O-ring and tube. I Connect tube until you hear it click, then tighten the nut or bolt by hand until snug. Make sure that I After connecting line, conduct leak test and make sure that there is no leakage from connections. RHA861F Precautions for Servicing Compressor NCHA0005 I Plug all openings to prevent moisture and foreign matter from entering. I When the compressor is removed, store it in the same position as it is when mounted on the car. I When replacing or repairing compressor, follow “Maintenance of Lubricant Quantity in Compres- I Keep friction surfaces between clutch and pulley clean. If the surface is contaminated, with I After compressor service operation, turn the compressor shaft by hand more than five turns in I After replacing the compressor magnet clutch, apply voltage to the new one and check for normal Precautions for Service Equipment NCHA0006 RECOVERY/RECYCLING EQUIPMENT NCHA0006S01 Be certain to follow the manufacturers instructions for machine ELECTRONIC LEAK DETECTOR NCHA0006S02 Be certain to follow the manufacturer’s instructions for tester opera- GI MA EM LC EC FE CL MT AT AX SU BR ST RS BT SC EL IDX PRECAUTIONS AUTO Precautions for Refrigerant Connection (Cont’d) HA-7 |
