Infiniti G20 (P11). Manual - part 397





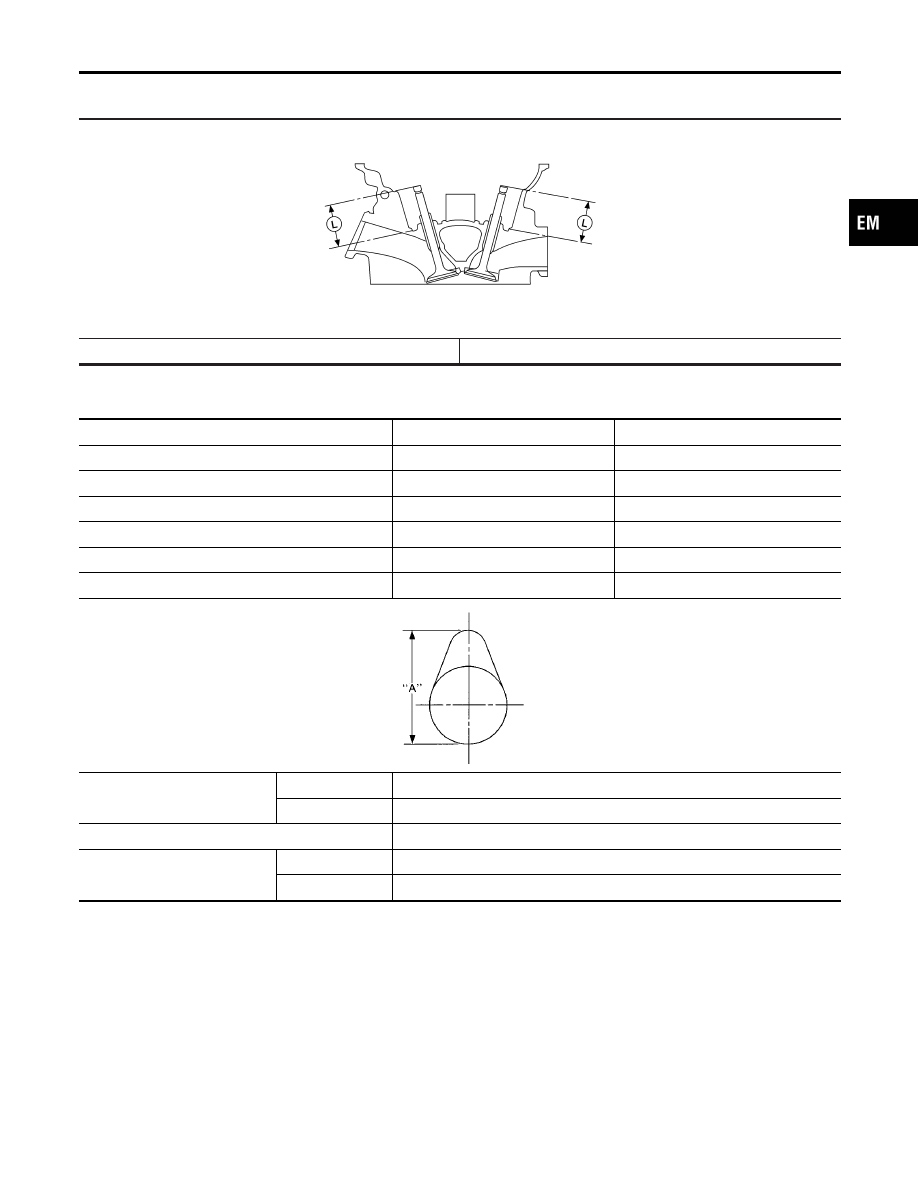

VALVE SEAT RESURFACE LIMIT

NCEM0031S08

Unit: mm (in)

AEM343

Depth (L)

42.74 - 43.26 (1.6827 - 1.7031)

Camshaft and Camshaft Bearing

NCEM0032

Unit: mm (in)

Standard

Limit

Camshaft journal to bearing clearance

0.030 - 0.071 (0.0012 - 0.0028)

0.15 (0.0059)

Inner diameter of camshaft bearing

28.000 - 28.021 (1.1024 - 1.1032)

Outer diameter of camshaft journal

27.935 - 27.955 (1.0998 - 1.1006)

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

0.1 (0.004)

Camshaft sprocket runout [TIR*]

Less than 0.25 (0.0098)

Camshaft end play

0.055 - 0.139 (0.0022 - 0.0055)

0.20 (0.0079)

EM671

Cam height “A”

Intake

37.550 - 37.740 (1.4783 - 1.4858)

Exhaust

37.920 - 38.110 (1.4929 - 1.5004)

Wear limit of cam height

0.2 (0.008)

Valve lift

Intake

9.4 (0.370)

Exhaust

8.8 (0.346)

*Total indicator reading

GI

MA

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Valve (Cont’d)

EM-73

Cylinder Block

NCEM0033

Unit: mm (in)

SEM008D

SEM686DB

Surface flatness

Standard

Less than 0.03 (0.0012)

Limit

0.10 (0.0039)

Cylinder bore
Inner diameter

Standard

Grade No. 1

86.000 - 86.010 (3.3858 - 3.3862)

Grade No. 2

86.010 - 86.020 (3.3862 - 3.3866)

Grade No. 3

86.020 - 86.030 (3.3866 - 3.3870)

Wear limit

0.20 (0.0079)

Out-of-round (X − Y)

Less than 0.015 (0.0006)

Taper (A − B and A − C)

Less than 0.010 (0.0004)

Difference in inner diameter between cylin-
ders

Limit

Less than 0.05 (0.0020)

Main journal inner diameter

Grade No. 0

58.944 - 58.950 (2.3206 - 2.3209)

Grade No. 1

58.950 - 58.956 (2.3209 - 2.3211)

Grade No. 2

58.956 - 58.962 (2.3211 - 2.3213)

Grade No. 3

58.962 - 58.968 (2.3213 - 2.3216)

SERVICE DATA AND SPECIFICATIONS (SDS)

Cylinder Block

EM-74

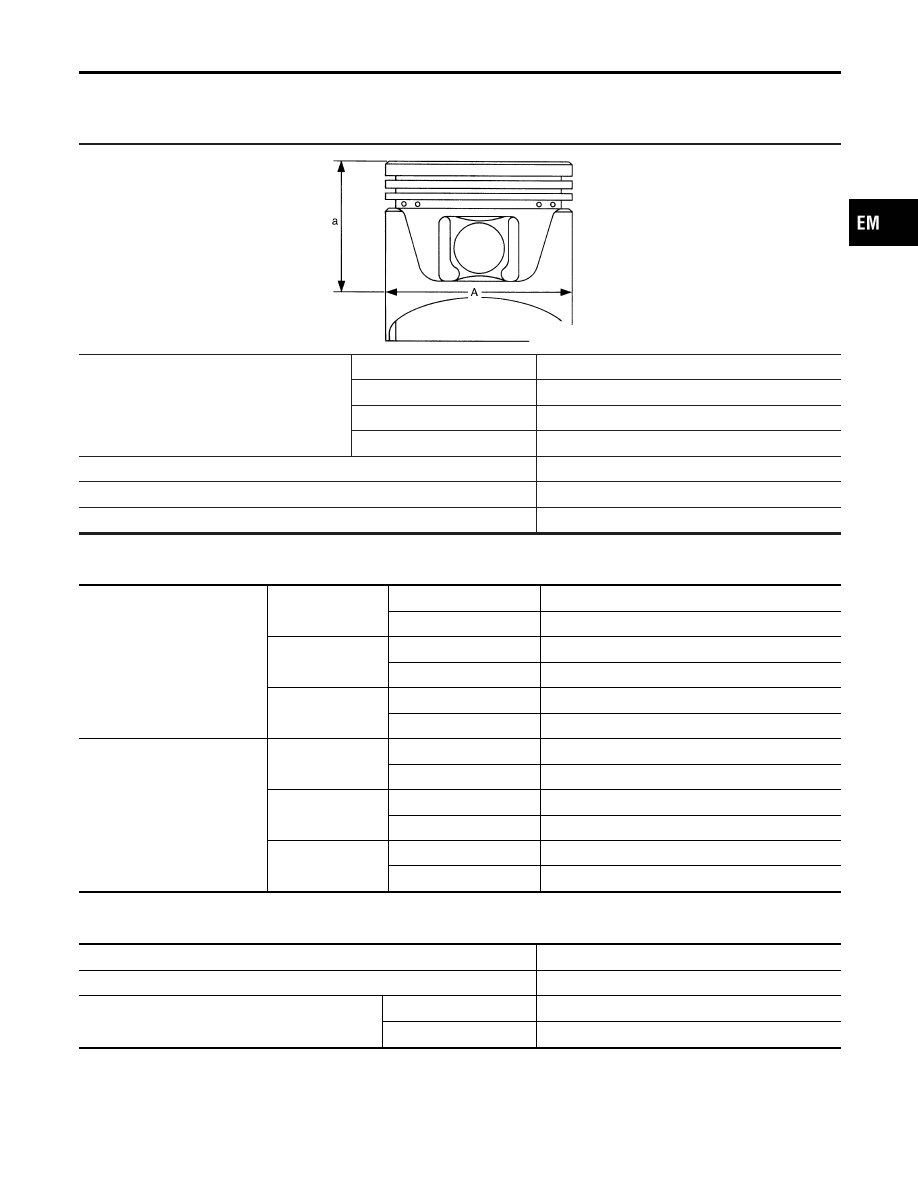

Piston, Piston Ring and Piston pin

NCEM0034

PISTON

NCEM0034S01

Unit: mm (in)

SEM086G

Piston skirt diameter “A”
Standard

Grade No. 1

85.980 - 85.990 (3.3850 - 3.3854)

Grade No. 2

85.990 - 86.000 (3.3854 - 3.3858)

Grade No. 3

86.000 - 86.010 (3.3858 - 3.3862)

0.20 (0.0079) oversize (Service)

86.180 - 86.210 (3.3929 - 3.3941)

“a” dimension

45.0 (1.772)

Piston clearance to cylinder block

0.010 - 0.030 (0.0004 - 0.0012)

Piston pin hole diameter

21.993 - 22.005 (0.8659 - 0.8663)

PISTON RING

NCEM0034S02

Unit: mm (in)

Side clearance

Top

Standard

0.04 - 0.08 (0.0016 - 0.0031)

Limit

0.1 (0.004)

2nd

Standard

0.03 - 0.07 (0.0012 - 0.0028)

Limit

0.1 (0.004)

Oil

Standard

0.065 - 0.135 (0.0026 - 0.0053)

Limit

Ring end gap

Top

Standard

0.20 - 0.39 (0.0079 - 0.0154)

Limit

0.53 (0.0209)

2nd

Standard

0.35 - 0.59 (0.0138 - 0.0232)

Limit

0.7 (0.028)

Oil

Standard

0.20 - 0.69 (0.0079 - 0.0272)

Limit

0.95 (0.0374)

PISTON PIN

NCEM0034S03

Unit: mm (in)

Piston pin outer diameter

21.989 - 22.001 (0.8657 - 0.8622)

Interference fit of piston pin to piston

0.002 - 0.006 (0.0001 - 0.0002)

Piston pin to connecting rod bushing clearance

Standard

0.005 - 0.017 (0.0002 - 0.0007)

Limit

0.023 (0.0009)

* Values measured at ambient temperature of 20°C (68°F)

GI

MA

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

SERVICE DATA AND SPECIFICATIONS (SDS)

Piston, Piston Ring and Piston pin

EM-75

Connecting Rod

NCEM0035

Unit: mm (in)

Center distance

136.25 - 136.35 (5.3642 - 5.3681)

Bend [per 100 (3.94)]

Limit

0.15 (0.0059)

Torsion [per 100 (3.94)]

Limit

0.30 (0.0118)

Connecting rod small end inner diameter

24.980 - 25.000 (0.9835 - 0.9843)

Piston pin bushing inner diameter*

22.000 - 22.012 (0.8661 - 0.8666)

Connecting rod big end inner diameter

51.000 - 51.013 (2.0079 - 2.0084)

Side clearance

Standard

0.20 - 0.35 (0.0079 - 0.0138)

Limit

0.5 (0.020)

*After installing in connecting rod

SERVICE DATA AND SPECIFICATIONS (SDS)

Connecting Rod

EM-76
