Infiniti G20 (P11). Manual - part 288





On Board Diagnosis Logic

NCEC0625

Malfunction is detected when an improper voltage signal is sent to
ECM through vacuum cut valve bypass valve.

Possible Cause

NCEC0626

I

Harness or connectors
(The vacuum cut valve bypass valve circuit is open or shorted.)

I

Vacuum cut valve bypass valve

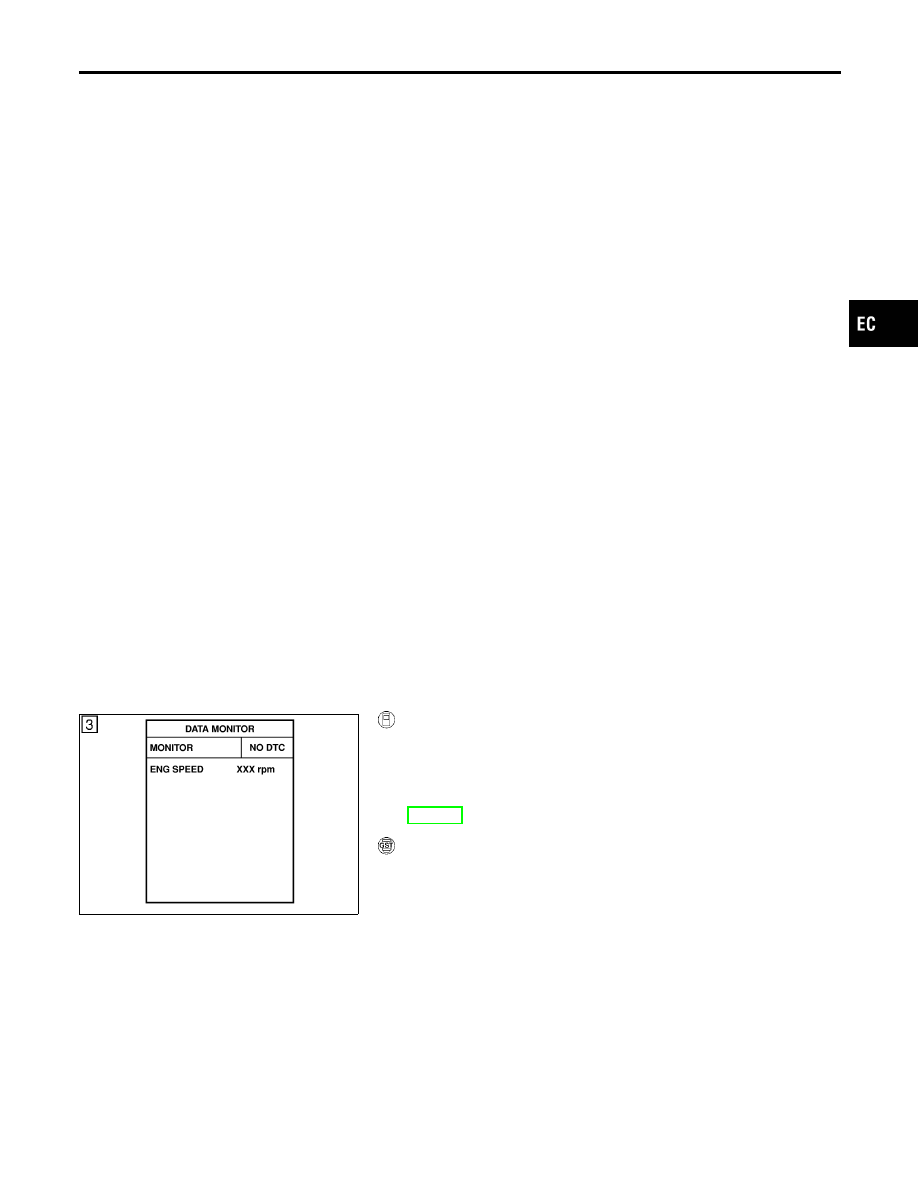

DTC Confirmation Procedure

NCEC0627

NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is more than 11V at idle speed.

SEF058Y

WITH CONSULT-II

NCEC0627S01

1)

Turn ignition switch “ON”.

2)

Select “DATA MONITOR” mode with CONSULT-II.

3)

Start engine and wait at least 5 seconds.

4)

If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-565.

WITH GST

NCEC0627S02

Follow the procedure “WITH CONSULT-II” above.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1490 VACUUM CUT VALVE BYPASS VALVE (CIRCUIT)

On Board Diagnosis Logic

EC-563

Wiring Diagram

NCEC0628

TEC720

DTC P1490 VACUUM CUT VALVE BYPASS VALVE (CIRCUIT)

Wiring Diagram

EC-564

Diagnostic Procedure

NCEC0629

1

INSPECTION START

Do you have CONSULT-II?

Yes or No

Yes

©

GO TO 2.

No

©

GO TO 3.

2

CHECK VACUUM CUT VALVE BYPASS VALVE CIRCUIT

With CONSULT-II

1. Turn ignition switch “OFF” and then “ON”.
2. Select “VC/V BYPASS/V” in “ACTIVE TEST” mode with CONSULT-II.
3. Touch “ON/OFF” on CONSULT-II screen.

SEF806Y

4. Make sure that clicking sound is heard from the vacuum cut valve bypass valve.

OK or NG

OK

©

GO TO 7.

NG

©

GO TO 3.

GI

MA

EM

LC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P1490 VACUUM CUT VALVE BYPASS VALVE (CIRCUIT)

Diagnostic Procedure

EC-565

3

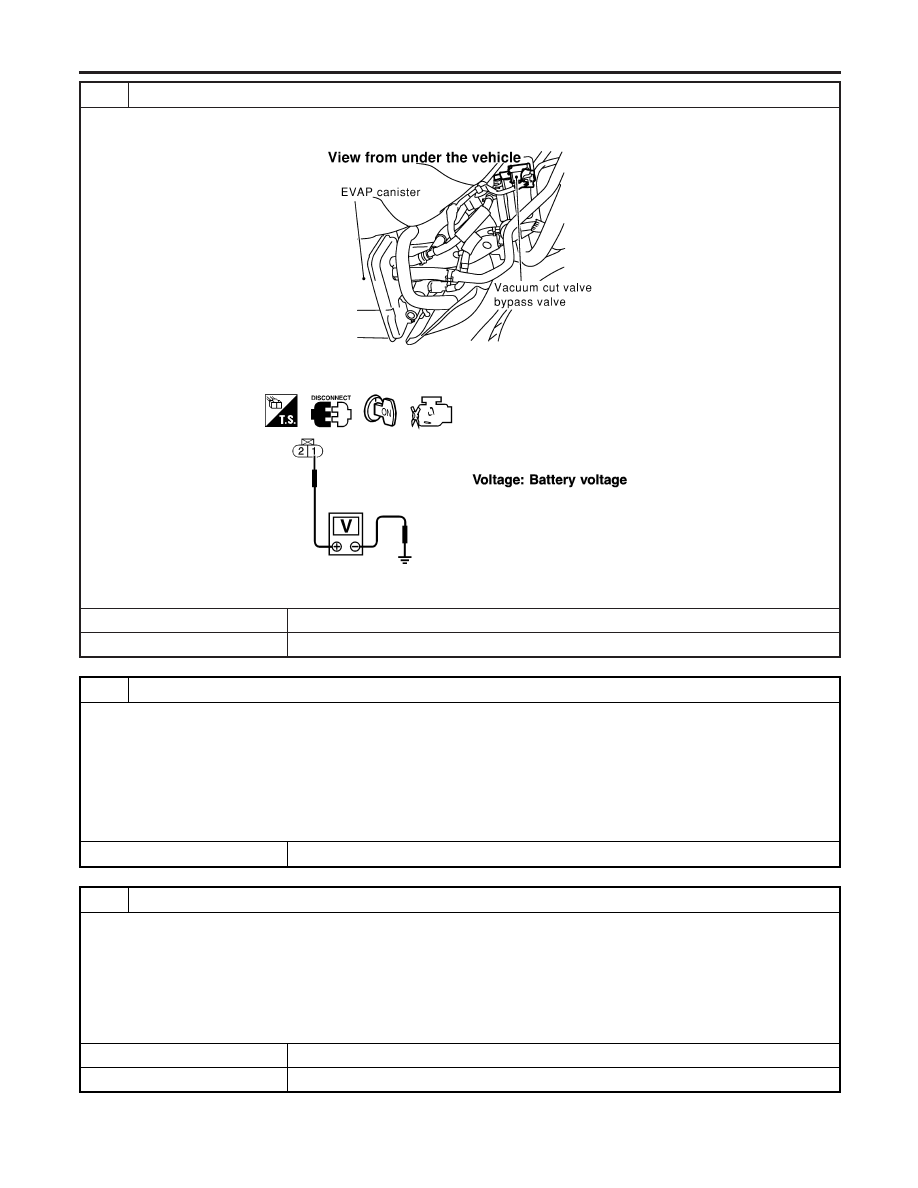

CHECK VACUUM CUT VALVE BYPASS VALUE POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.
2. Disconnect vacuum cut valve bypass valve harness connector.

SEF861X

3. Turn ignition switch “ON”.
4. Check voltage between vacuum cut valve bypass valve terminal 1 and ground with CONSULT-II or tester.

SEF356X

OK or NG

OK

©

GO TO 5.

NG

©

GO TO 4.

4

DETECT MALFUNCTIONING PART

Check the following.

I

Harness connectors M8, B3

I

Harness connectors B10, B120

I

Harness connectors B113, T1

I

Harness connectors T20, T19

I

Fuse block (J/B) connector M3

I

10A fuse

I

Harness for open or short between vacuum cut valve bypass valve and fuse

©

Repair harness or connectors.

5

CHECK VACUUM CUT VALVE BYPASS VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 2 and vacuum cut valve bypass valve terminal 2. Refer to Wiring Dia-

gram.

Continuity should exist.

4. Also check harness for short to ground and short to power.

OK or NG

OK

©

GO TO 7.

NG

©

GO TO 6.

DTC P1490 VACUUM CUT VALVE BYPASS VALVE (CIRCUIT)

Diagnostic Procedure (Cont’d)

EC-566
