System Components

NCBR0086

SBR470E

SBR124B

System Description

NCBR0087

SENSOR

NCBR0087S01

The sensor unit consists of a gear-shaped sensor rotor and a sen-
sor element. The element contains a bar magnet around which a
coil is wound. The sensor is installed on the back side of the brake
rotor. Sine-wave current is generated by the sensor as the wheel
rotates. The frequency and voltage increase(s) as the rotating
speed increases.

SBR860E

CONTROL UNIT

NCBR0087S02

The control unit computes the wheel rotating speed by the signal
current sent from the sensor. Then it supplies a DC current to the
actuator solenoid valve. It also controls ON-OFF operation of the
valve relay and motor relay. If any electrical malfunction should be
detected in the system, the control unit causes the warning lamp
to light up. In this condition, the ABS will be deactivated by the
control unit, and the vehicle’s brake system reverts to normal
operation.

SBR176E

ABS ACTUATOR AND ELECTRIC UNIT

NCBR0087S03

The ABS actuator and electric unit contains:

I

An electric motor and pump

I

Two relays

I

Eight solenoid valves, each inlet and outlet for
— LH front
— RH front
— LH rear
— RH rear

I

ABS control unit

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

DESCRIPTION

ABS

System Components

BR-35

This components controls the hydraulic circuit and increases, holds
or decreases hydraulic pressure to all or individual wheels. The
ABS actuator and electric unit are not disassemble.

ABS Actuator Operation

NCBR0087S0301

Inlet solenoid
valve

Outlet solenoid
valve

Normal brake operation

OFF (Open)

OFF (Closed)

Master cylinder brake fluid pressure is directly
transmitted to caliper via the inlet solenoid valve.

ABS operation

Pressure hold

ON (Closed)

OFF (Closed)

Hydraulic circuit is shut off to hold the caliper brake
fluid pressure.

Pressure
decrease

ON (Closed)

ON (Open)

Caliper brake fluid is sent to reservoir via the outlet
solenoid valve. Then it is pushed up to the master
cylinder by pump.

Pressure
increase

OFF (Open)

OFF (Closed)

Master cylinder brake fluid pressure is transmitted
to caliper.

DESCRIPTION

ABS

System Description (Cont’d)

BR-36

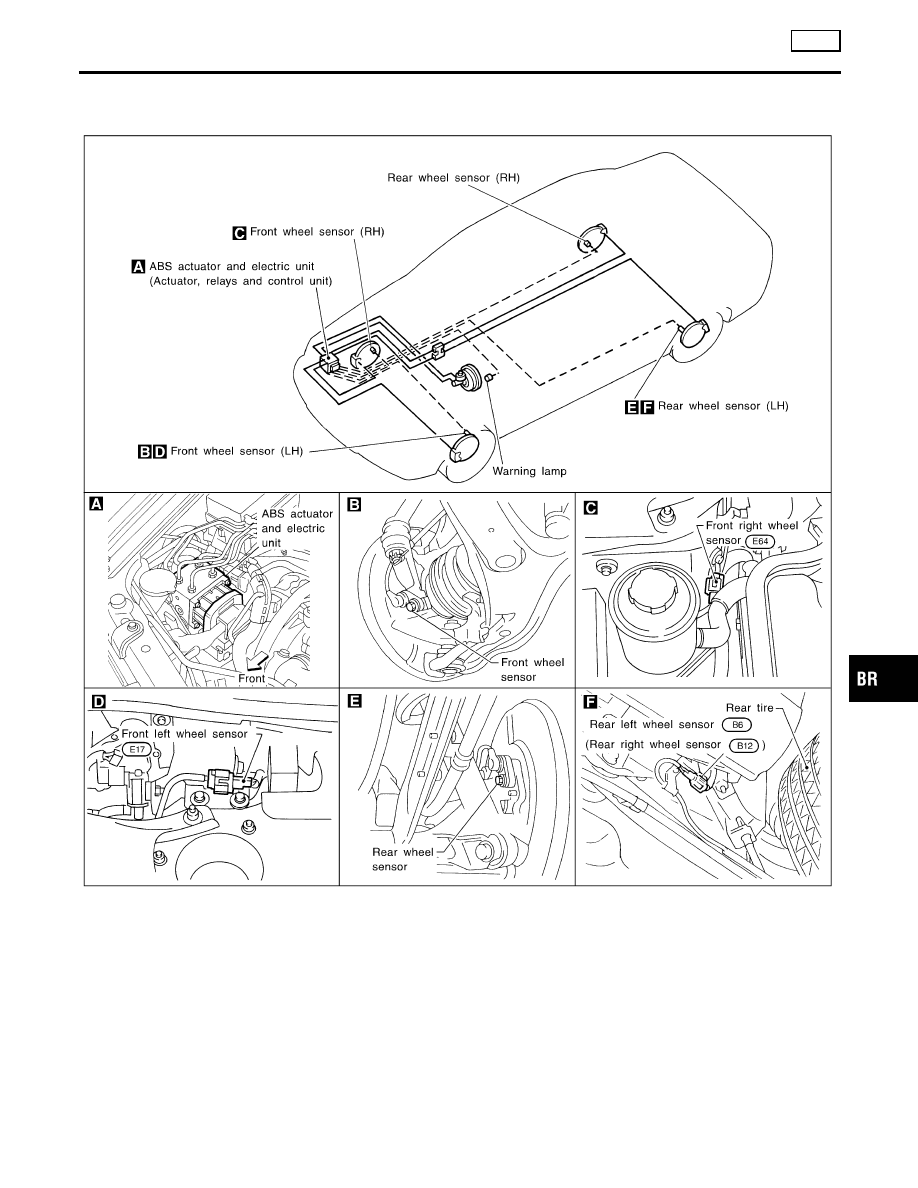

Component Parts and Harness Connector
Location

NCBR0088

SBR475E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

ST

RS

BT

HA

SC

EL

IDX

DESCRIPTION

ABS

Component Parts and Harness Connector Location

BR-37

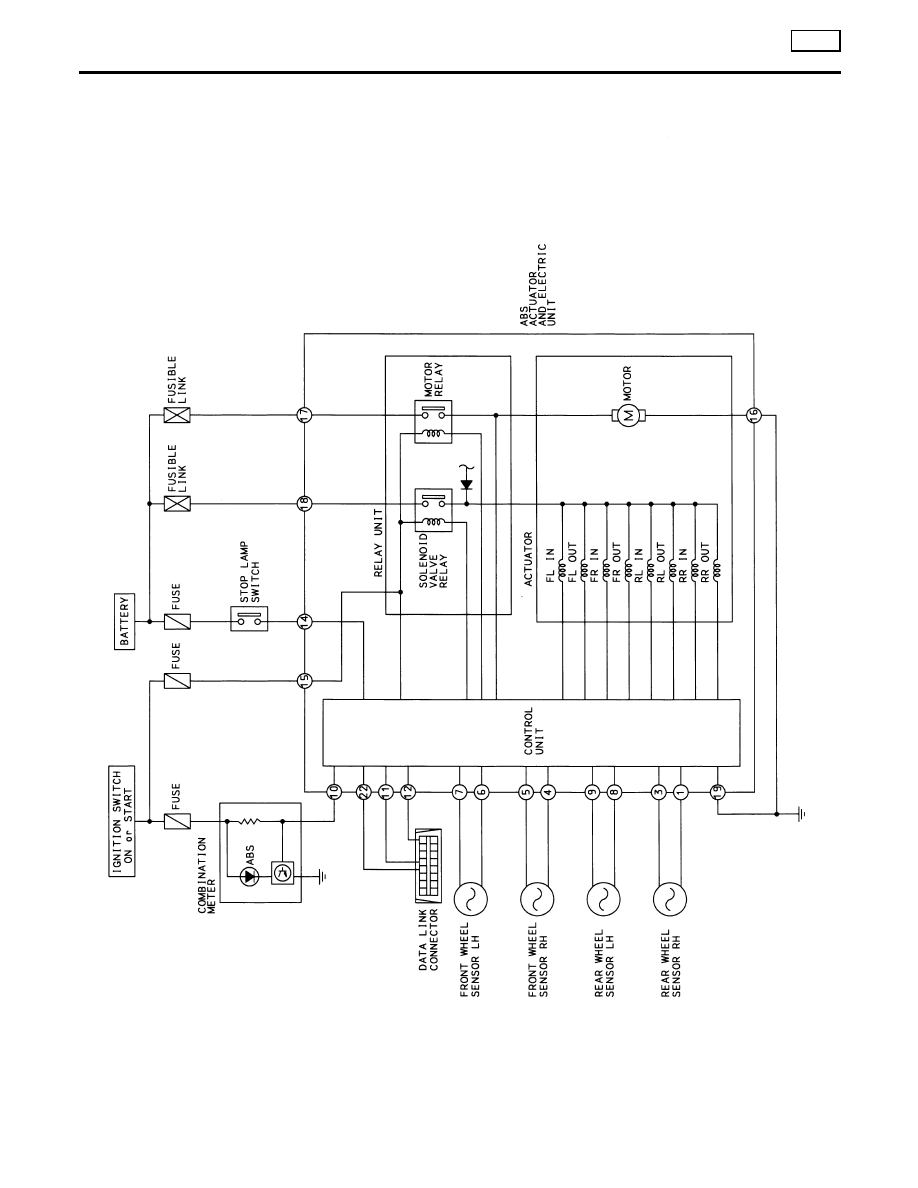

Schematic

NCBR0089

TBR182

DESCRIPTION

ABS

Schematic

BR-38
