Infiniti G20 (P11). Manual - part 56





SAT574J

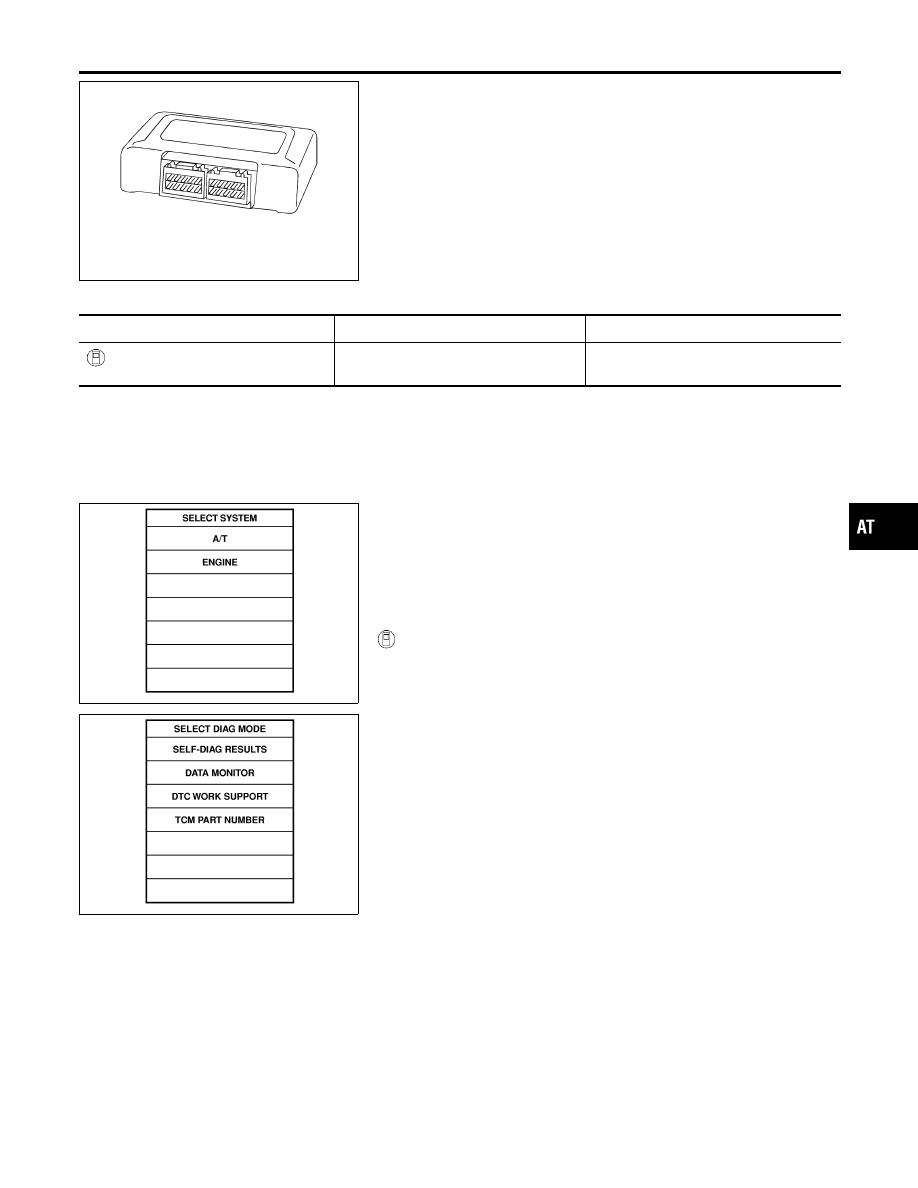

Description

NCAT0221

The TCM consists of a microcomputer and connectors for signal
input and output and for power supply. The unit controls the A/T.

ON BOARD DIAGNOSIS LOGIC

NCAT0221S01

Diagnostic trouble code

Malfunction is detected when ...

Check item (Possible cause)

: CONT UNIT (EEP ROM)

TCM memory (EEP ROM) is malfunction-
ing.

I

TCM

SAT014K

SAT971J

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE

NCAT0221S02

NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting
the next test.

With CONSULT-II

1)

Turn ignition switch “ON” and select “DATA MONITOR” mode
for A/T with CONSULT-II.

2)

Start engine.

3)

Run engine for at least 2 seconds at idle speed.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC CONTROL UNIT (EEP ROM)

Description

AT-221

Diagnostic Procedure

NCAT0222

1

CHECK DTC

With CONSULT-II

1. Turn ignition switch “ON” and select “SELF DIAGNOSIS” mode for A/T with CONSULT-II.
2. Move selector lever to “R” position.
3. Depress accelerator pedal (Full throttle position).
4. Touch “ERASE”.
5. Turn ignition switch “OFF” position for 10 seconds.
PERFORM DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE.
See previous page.

Is the “CONT UNIT (EEP ROM)” displayed again?

Yes

©

Replace TCM.

No

©

INSPECTION END

DTC CONTROL UNIT (EEP ROM)

Diagnostic Procedure

AT-222

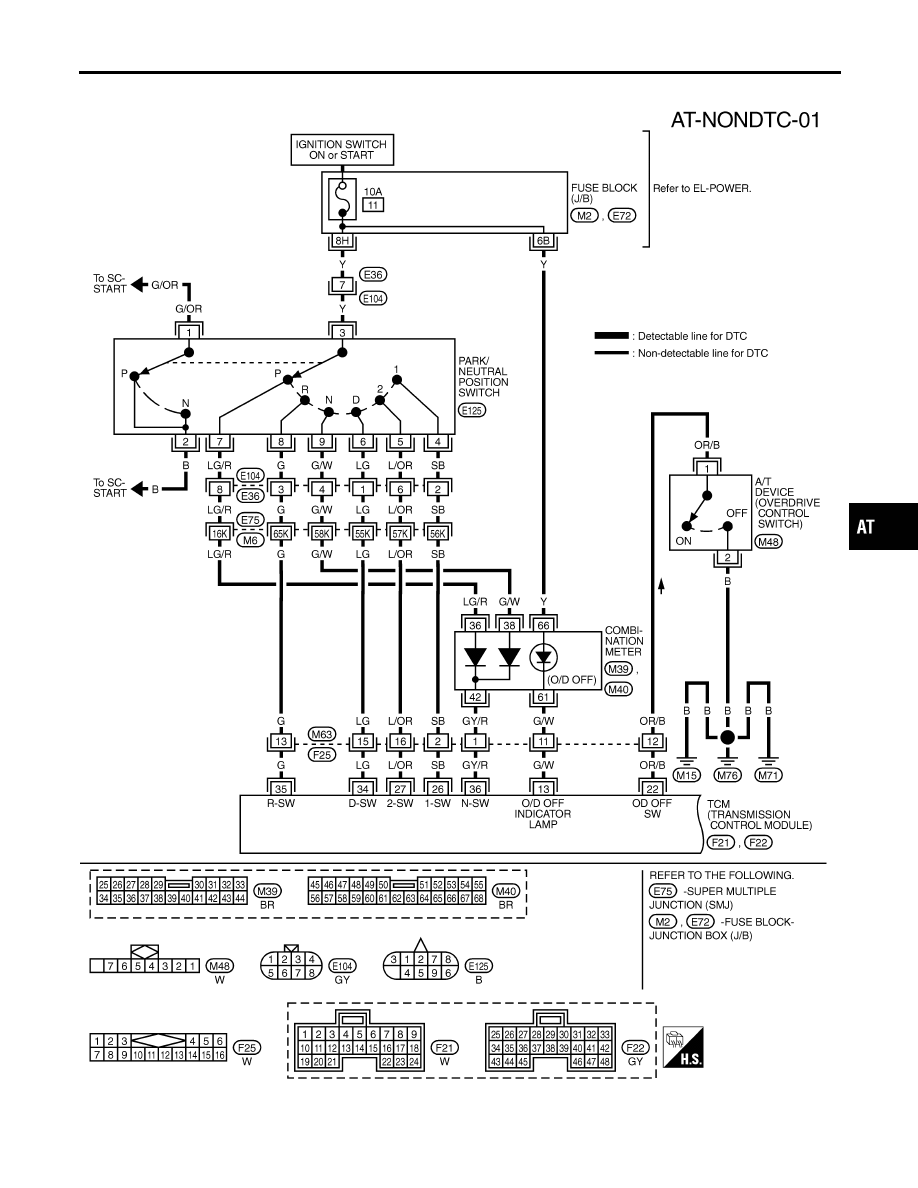

Wiring Diagram — AT — NONDTC

NCAT0216

TAT272

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

TROUBLE DIAGNOSES FOR SYMPTOMS

Wiring Diagram — AT — NONDTC

AT-223

TAT241

TROUBLE DIAGNOSES FOR SYMPTOMS

Wiring Diagram — AT — NONDTC (Cont’d)

AT-224
