Infiniti G20 (P11). Manual - part 43





6

CHECK LINE PRESSURE SOLENOID VALVE

1. Remove control valve assembly.

Refer to AT-280.

2. Check line pressure solenoid valve operation.

Refer to AT-173.

SAT893J

OK or NG

OK

©

GO TO 7.

NG

©

Replace solenoid valve assembly.

7

CHECK CONTROL VALVE

1. Disassemble control valve assembly.

Refer to AT-312.

2. Check line pressure circuit valves for sticking.

I

Pressure regulator valve

I

Pilot valve

I

Pressure modifier valve

SAT367H

OK or NG

OK

©

GO TO 8.

NG

©

Repair control valve.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Diagnostic Procedure (Cont’d)

AT-169

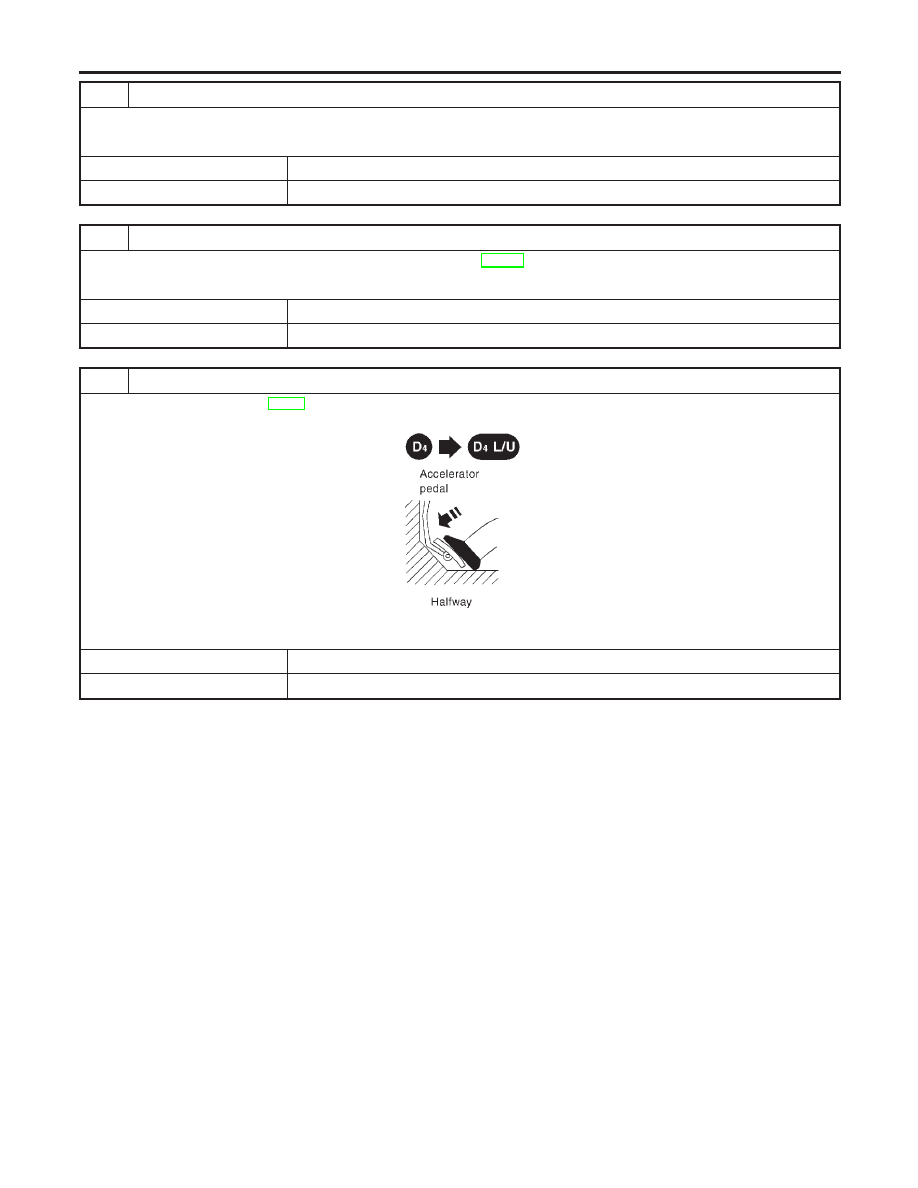

8

CHECK SHIFT UP (D

3

TO D

4

)

Does A/T shift from D

3

to D

4

at the specified speed?

Yes or No

Yes

©

GO TO 9.

No

©

Check control valve again. Repair or replace control valve assembly.

9

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-164.

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 10. And check for proper lock-up.

10

CHECK LOCK-UP CONDITION

During “Cruise test − Part 1” (AT-76), does A/T perform lock-up at the specified speed?

SAT989H

Yes or No

Yes

©

Perform “Cruise test − Part 1” again and return to the start point of this test group.

No

©

GO TO 11.

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Diagnostic Procedure (Cont’d)

AT-170

11

CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE

1. Remove control valve assembly.

Refer to AT-280.

2. Check torque converter clutch solenoid valve operation. Refer to AT-173.

SAT055K

OK or NG

OK

©

GO TO 12.

NG

©

Replace solenoid valve assembly.

12

CHECK CONTROL VALVE

1. Disassemble control valve assembly.

Refer to AT-312.

2. Check control valves for sticking.

I

Torque converter clutch control valve

I

Torque converter clutch relief valve

SAT367H

OK or NG

OK

©

GO TO 13.

NG

©

Repair control valve.

GI

MA

EM

LC

EC

FE

CL

MT

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Diagnostic Procedure (Cont’d)

AT-171

13

CHECK LOCK-UP CONDITION

Does A/T perform lock-up at the specified speed?

Yes or No

Yes

©

GO TO 14.

No

©

Check control valve again. Repair or replace control valve assembly.

14

CHECK DTC

Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-164.

OK or NG

OK

©

INSPECTION END

NG

©

Perform “Cruise test — Part 1” again and return to the start point of this test group.

DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)

Diagnostic Procedure (Cont’d)

AT-172
