TRANSFER ASSEMBLY

TF-51

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

11. Install drive chain to front drive shaft.

CAUTION:

Identification mark of drive chain should be in the side of
front bearing of front drive shaft.

12. Install drive chain to mainshaft, and then install tap front drive

shaft with plastic hammer. Press-fit rear bearing of front drive
shaft to rear case.

CAUTION:

Be careful not to tap drive chain.

13. Install mainshaft bearing to front case, using a drift.

14. Install snap ring to front case.

CAUTION:

Do not reuse snap ring.

15. Apply liquid gasket to mating surface of rear case.

• Use Genuine Anaerobic Liquid Gasket or equivalent.

Refer to

GI-44, "Recommended Chemical Product and

Sealant"

.

CAUTION:

Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.

PDIA0284E

PDIA0257E

Tool number

: ST30621000 (J-25742-5)

PDIA0283E

PDIA0267E

SDIA2312E

TF-52

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

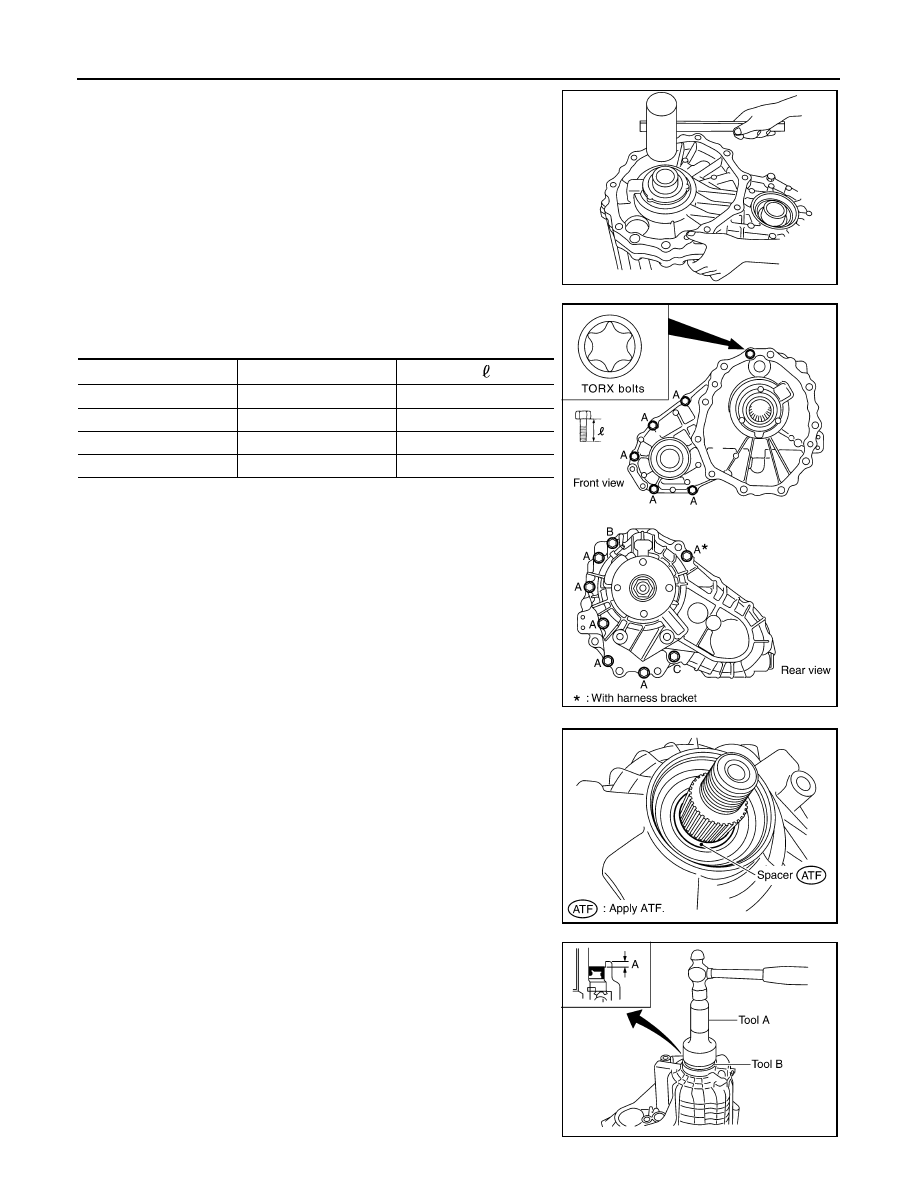

16. Set front case to rear case.

CAUTION:

Be careful not to damage the mating surface transmission
side.

17. Tighten front case and rear case fixing bolts to the specified

torque. Refer to "COMPONENTS".

18. Install spacer to mainshaft.

CAUTION:

Apply ATF to spacer.

19. Install rear oil seal to rear case, using a drift.

CAUTION:

• Do not reuse rear oil seal.
• Apply ATF to rear oil seal.
• When installing, do not incline rear oil seal.

PDIA0279E

Bolts symbol

Quantity

Bolt length “

” mm (in)

A

11

42 (1.65)

B

1

162 (6.38)

C

1

97  (3.82)

TORX bolts

1

40 (1.57)

PDIA0251E

PDIA0260E

Dimension A

: 6.7 - 7.3 mm (0.264 - 0.287 in)

Tool number

A: ST30720000 (J-25405)

B: KV40104830 (

—

)

PDIA0281E

TRANSFER ASSEMBLY

TF-53

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

20. Install companion flange while align the matching mark of main-

shaft with the mark of companion flange.

21. Tighten self-lock nut to the specified torque, with flange wrench.

Refer to "COMPONENTS".

CAUTION:

Do not reuse self-lock nut.

22. Install mainshaft oil seal until it is flush with end face of front

case, using drift.

CAUTION:

• Do not reuse mainshaft oil seal.
• Apply ATF to mainshaft oil seal.
• When installing, do not incline mainshaft oil seal.

23. Install front oil seal until it is flush with end face of front case,

using drift.

CAUTION:

• Do not reuse front oil seal.
• Apply ATF to front oil seal.
• When installing, do not incline front oil seal.

24. Apply sealant to threads of drain plug. Then install it to rear case

and tighten to the specified torque. Refer to "COMPONENTS".
• Use Genuine Silicone RTV or equivalent. Refer to

GI-44,

"Recommended Chemical Product and Sealant"

.

CAUTION:

Remove old sealant and oil adhering to threads.

25. Set gasket to filler plug. Install it to rear case and tighten to the specified torque. Refer to "COMPO-

NENTS".

CAUTION:

Do not reuse gasket.

SDIA2378E

SDIA2369E

Tool number

: ST30720000 (J-25405)

PDIA0282E

Tool number

: ST27862000 (

—

)

PDIA0287E

TF-54

< SERVICE INFORMATION >

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001327462

Applied model

VQ35DE

VK45DE

Transfer model

ETX13B

Fluid capacity (Approx.)

1.25

 (2-5/8 US pt, 2-1/4 lmp pt)
