TRANSFER ASSEMBLY

TF-47

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

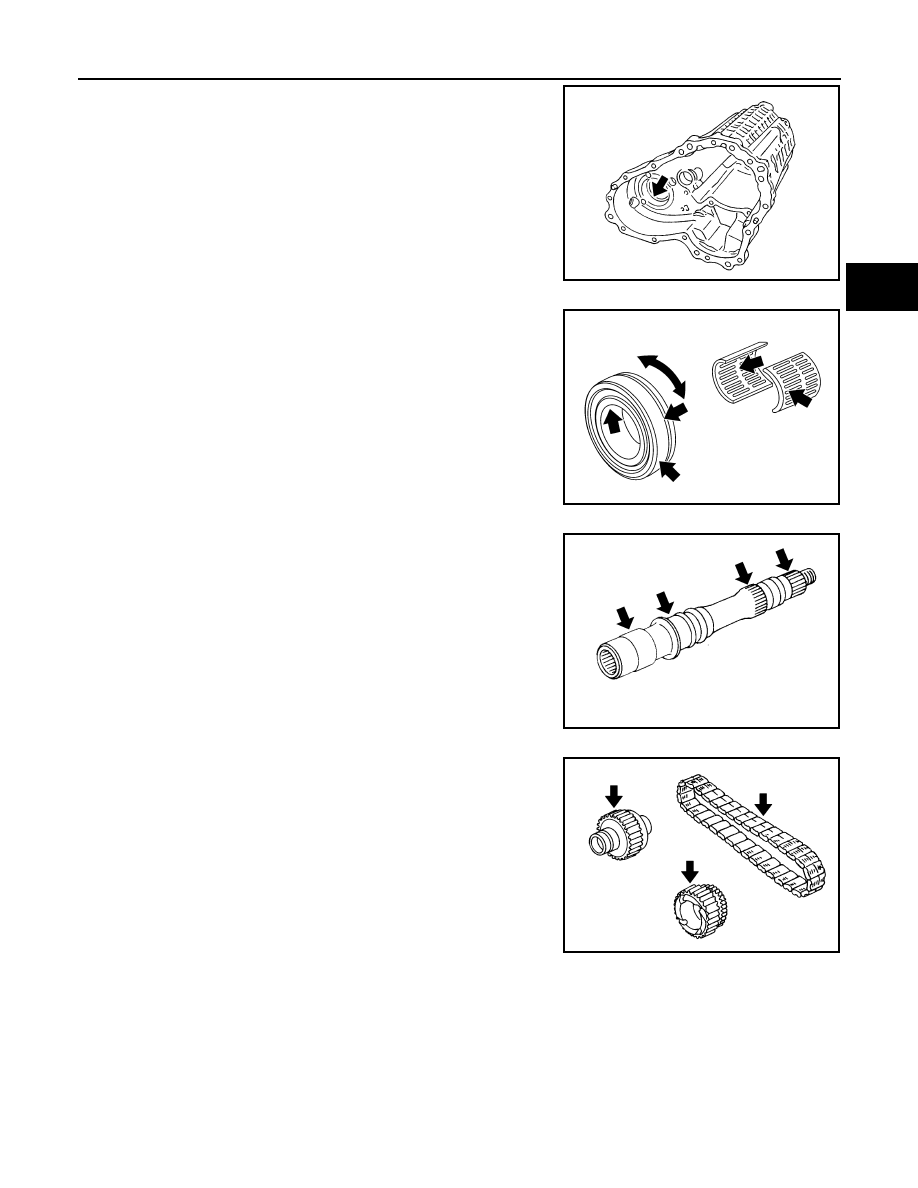

Check items below. If necessary, replace them with new ones.
• Contact surfaces of bearing for wear, damage, etc.
• Damage and cracks of case.

Bearing

Check items below. If necessary, replace them with new ones.
• Damage and rough rotation of bearing.

Shaft

Check items below. If necessary, replace them with new one.
• Damage, peeling, dent, uneven wear, bending, etc. of shaft.

Gears and Chain

Check items below. If necessary, replace them with new ones.
• Excessive wear, damage, peeling, etc. of gear and chain.

ASSEMBLY

Front Drive Shaft and Drive Chain

PDIA0293E

PDIA0300E

PDIA0294E

SDIA2365E

TF-48

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

1.

Install front drive shaft front bearing, using drifts.

2.

Install front drive shaft rear bearing, using a drift.

3.

Install drive chain to front drive shaft.

CAUTION:

Identification mark of drive chain should be in the side of
front bearing of front drive shaft.

4.

Install drive chain to mainshaft, and then install tap front drive
shaft with plastic hammer. Press-fit rear bearing of front drive
shaft to rear case.

CAUTION:

Be careful not to tap drive chain.

5.

Install front case to rear case. Refer to "Front case and rear
case".

Mainshaft Assembly

1.

Install needle bearing to mainshaft.

CAUTION:

Apply ATF to periphery of needle bearing.

2.

Install sprocket and electric controlled coupling to mainshaft.

3.

Install spacer to main shaft.

Tool number

: ST33200000 (J-26082)

PDIA0276E

Tool number

: KV38104010 (

)

PDIA0277E

PDIA0284E

PDIA0257E

PDIA0273E

TRANSFER ASSEMBLY

TF-49

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

4.

Install snap ring to mainshaft.

CAUTION:

Do not reuse snap ring.

5.

Install mainshaft assembly to rear case, then install front case
and rear case. Refer to "Front case and rear case".

Front Case and Rear Case

1.

Install breather tube, with plastic hammer.

CAUTION:

Pay attention to the direction of breather tube.

2.

Install baffle plate to rear case, and tighten bolt to the specified
torque. Refer to "COMPONENTS".

3.

Install rear bearing to rear case, using a drift.

CAUTION:

Apply ATF to inside of rear bearing.

4.

Install snap ring to rear case.

CAUTION:

Do not reuse snap ring.

SDIA1602E

PDIA0274E

Tool number

: KV38104010 (

)

PDIA0275E

PDIA0263E

TF-50

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

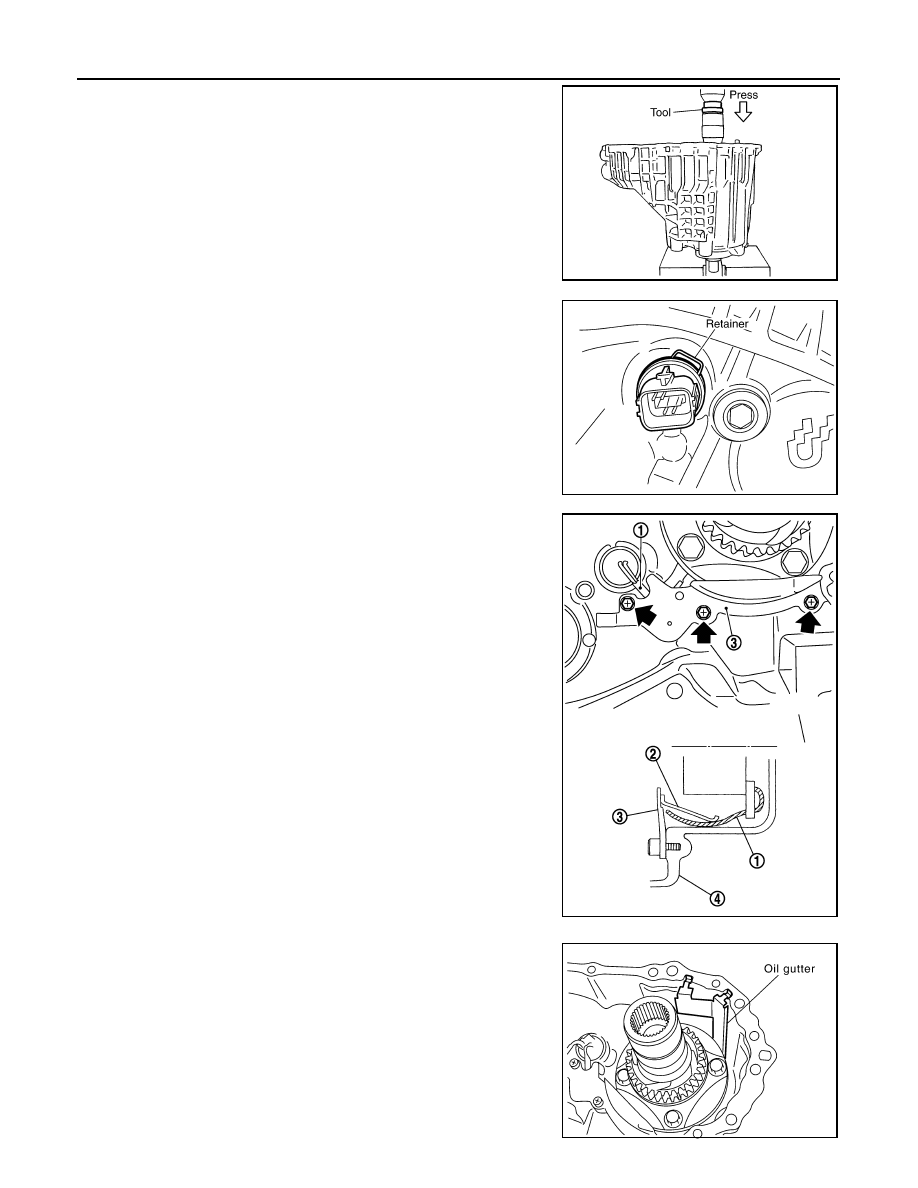

5.

Install mainshaft assembly to rear case, using a drift.

CAUTION:

ATF should be applied to contact surface of mainshaft and
rear bearing.

6.

Install O-ring to transfer assembly harness connector.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.

7.

Install transfer assembly harness connector into rear case.

8.

Install retainer to transfer assembly harness connector.

9.

Hold electric controlled coupling harness (1) with oil cover hold
plate (2), install oil cover (3) to rear case (4), and tighten bolt to
the specified torque. Refer to "COMPONENTS".

CAUTION:

The harness should be guided by a cut portion.

10. Install oil gutter to rear case.

CAUTION:

The tip of oil gutter should be put into rear case groove.

Tool number

: ST35321000 (

)

SDIA2368E

SDIA1597E

SDIA3610E

PDIA0261E
