TRANSFER ASSEMBLY

TF-43

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

7.

Remove rear oil seal from rear case, using a puller.

CAUTION:

Be careful not to damage the rear case.

8.

Remove spacer from mainshaft.

9.

Remove front case and rear case fixing bolts, then remove har-
ness bracket.

10. Separate front case and rear case. Then, remove front case by

levering it up with a tire lever or the like.

CAUTION:

Be careful not to damage the mating surface.

Tool number

: KV381054S0 (J-34286)

PDIA0259E

PDIA0260E

Bolts symbol

Quantity

Bolt length “

” mm (in)

A

11

42 (1.65)

B

1

162 (6.38)

C

1

97  (3.82)

TORX bolts

1

40 (1.57)

PDIA0251E

SDIA2460E

TF-44

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

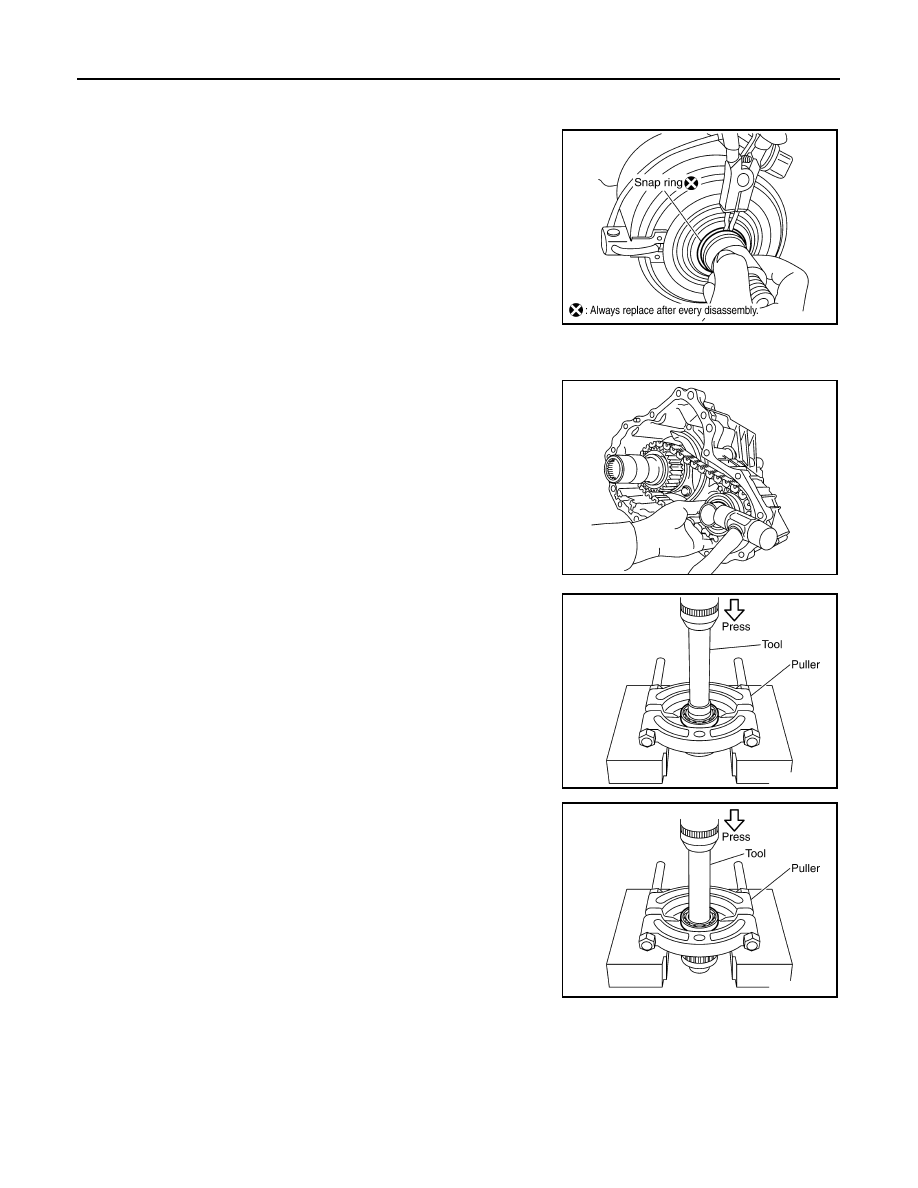

11. Remove snap ring from front case.

12. Remove mainshaft bearing from front case, using a drift.

13. Remove drive chain and front drive shaft while tapping front

drive shaft with plastic hammer.

CAUTION:

Be careful not to tap drive chain.

14. Remove oil gutter from rear case.

15. Remove oil cover bolt from rear case. And then, remove oil

cover (1).

PDIA0267E

Tool number

: KV38100300 (J-25523)

PDIA0256E

PDIA0257E

PDIA0261E

SDIA3609E

TRANSFER ASSEMBLY

TF-45

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

TF

N

O

P

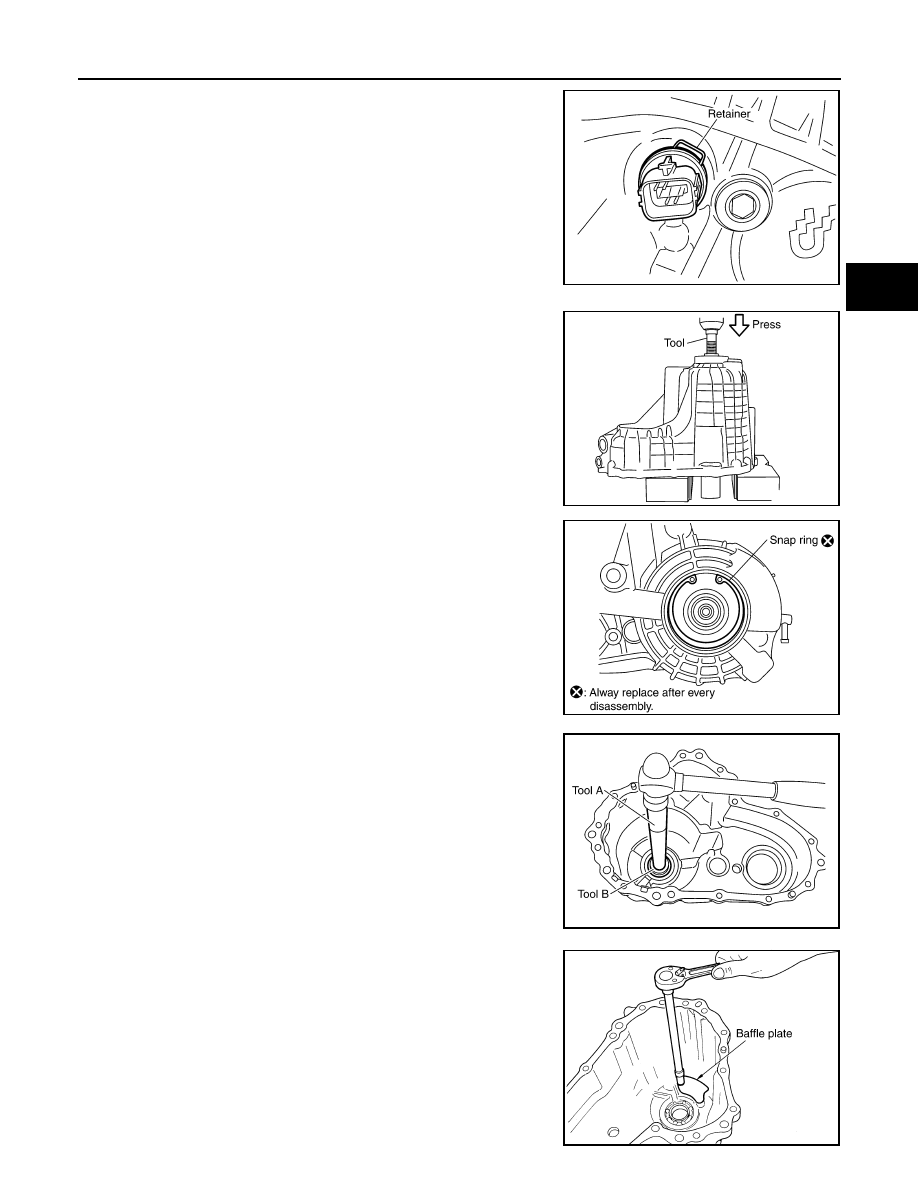

16. Remove retainer from transfer assembly harness connector.

17. Remove transfer assembly harness connector from rear case.
18. Remove O-ring from transfer assembly harness connector.

19. Remove mainshaft assembly from rear case, using a drift.

20. Remove snap ring from rear case.

21. Remove rear bearing from rear case, using a drift.

22. Remove baffle plate from rear case.
23. Remove breather tube from rear case.

SDIA1597E

Tool number

: ST33052000 (

—

)

PDIA0262E

PDIA0263E

Tool number

A: ST30611000 (J-25742-1)

B: ST35321000 (

—

)

PDIA0264E

SDIA1701E

TF-46

< SERVICE INFORMATION >

TRANSFER ASSEMBLY

Mainshaft Assembly

1.

Separate front case and rear case, then remove mainshaft assembly. Refer to "Front case and rear case".

2.

Remove snap ring from mainshaft.

3.

Remove spacer from mainshaft.

4.

Remove electric controlled coupling and sprocket from main-
shaft.

5.

Remove needle bearing from mainshaft.

Front Drive Shaft and Drive Chain

1.

Separate front case and rear case. Refer to "Front case and rear case".

2.

Remove drive chain and front drive shaft while tapping front
drive shaft with plastic hammer.

CAUTION:

Be careful not to tap drive chain.

3.

Remove front drive shaft front bearing, using drift and puller.

4.

Remove front drive shaft rear bearing, using drift and puller.

INSPECTION

Cases

SDIA1602E

PDIA0257E

Tool number

: ST31214000 (J-25269-B)

PDIA0269E

Tool number

: ST31214000 (J-25269-B)

PDIA0270E
