FRONT SEAT

6.

Remove the retainer and clip.

7.

After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad and the
seat cushion heater unit.

INSTALLATION OF SEAT CUSHION TRIM AND PAD

Install in the reverse order of removal.

PIIA6055E

REAR SEAT

SE-95

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

SE

N

O

P

REAR SEAT

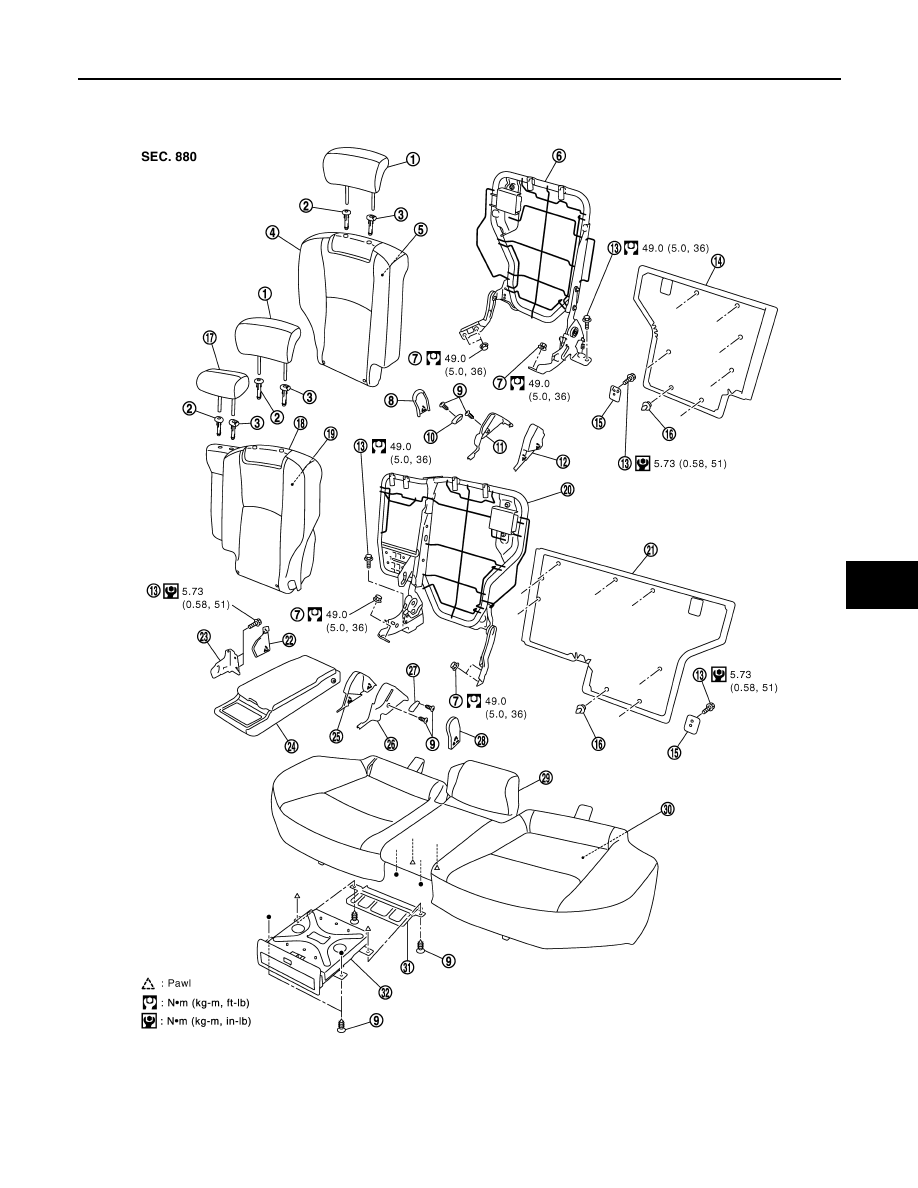

Removal and Installation

INFOID:0000000001328149

PIIB8527E

1.

Headrest (side)

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim (RH)

5.

Seatback pad (RH)

6.

Seatback frame (RH)

7.

Nut

8.

Seat hinge cover (RH)

9.

Screw

10. Reclining lever (RH)

11. Reclining device outer cover (RH)

12.

Reclining device inner cover (RH)

SE-96

< SERVICE INFORMATION >

REAR SEAT

REMOVAL

1.

Pull the lock at the front bottom of the seat cushion forward (1
for each side), and pull the seat cushion upward to release the
wire from the plastic hook, then pull the seat cushion forward to
remove.

2.

Remove the  seatback mounting nuts.

3.

Remove the seatback mounting bolt and nut.
Remove the remote control wire.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After rear wheel house finisher assembly is remove the seatback is installed. Refer to

EI-45, "Component

Parts Location"

.

REMOVAL OF SEAT CUSHION TRIM AND PAD

13. Bolt

14. Seatback garnish (RH)

15.

Trunk net hook

16. Clip (C101)

17. Headrest (center)

18.

Seatback trim (LH)

19. Seatback pad (LH)

20. Seatback frame (LH)

21.

Seatback garnish (LH)

22. Armrest bracket cover

23. Armrest bracket

24.

Armrest

25. Reclining device inner cover (LH)

26. Reclining device outer cover (LH)

27.

Reclining lever (LH)

28. Seat hinge cover (LH)

29. Seat cushion trim

30.

Seat cushion pad

31. Cup holder bracket

32. Cup holder

PIIA6034E

PIIA6035E

PIIA6036E

REAR SEAT

SE-97

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

SE

N

O

P

1.

Remove the cup holder in the back of the seat cushion.

2.

Removal the hog rings to separate the trim and pad.

INSTALLATION OF SEAT CUSHION TRIM AND PAD

Install in the reverse order of removal.

REMOVAL OF SEATBACK TRIM AND PAD

1.

Remove the trunk net hook in the back of the seatback.

2.

After removing the seatback garnish, remove the hog rings.

3.

Remove the headrest.

4.

Remove the headrest holder.
Squeeze and pull up headrest holder tabs to remove from seat-
back frame.
NOTE:
Before installing the headrest holder, check its orientation (front,
rear, left and right).

5.

Remove the armrest (LH only).

6.

After removing the seatback trim and pad, separate the trim and pad.

INSTALLATION OF SEATBACK TRIM AND PAD

Install in the reverse order of removal.

PIIA4985E

PIIA6037E

PIIA1158E

PIIA6038E
