HEATED SEAT

HEATED SEAT

Description

INFOID:0000000001328146

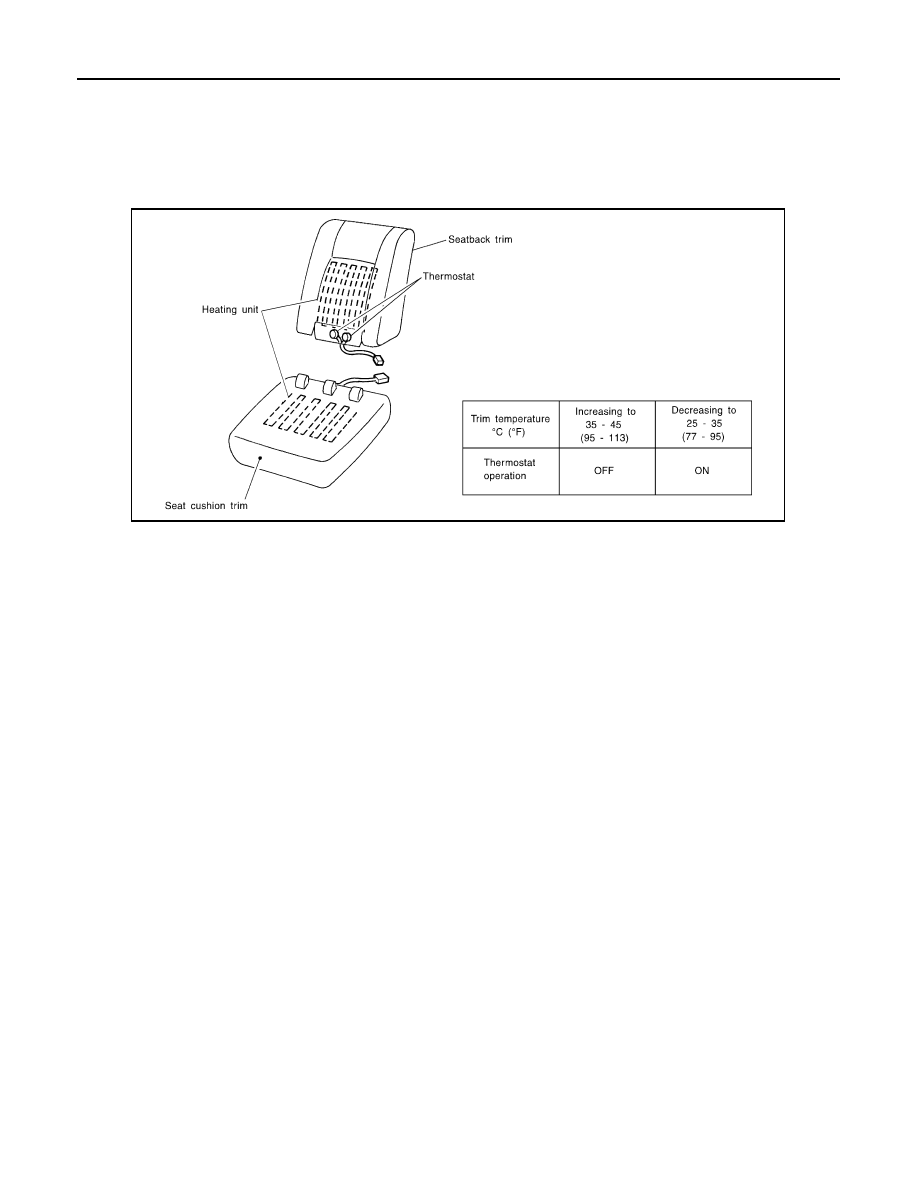

• When handling seat, be extremely careful not to scratch heating unit.
• To replace heating unit, seat trim and pad should be separated.
• Do not use any organic solvent, such as thinner, benzene, alcohol, etc. to clean trims.

SBT314

HEATED SEAT

SE-87

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

SE

N

O

P

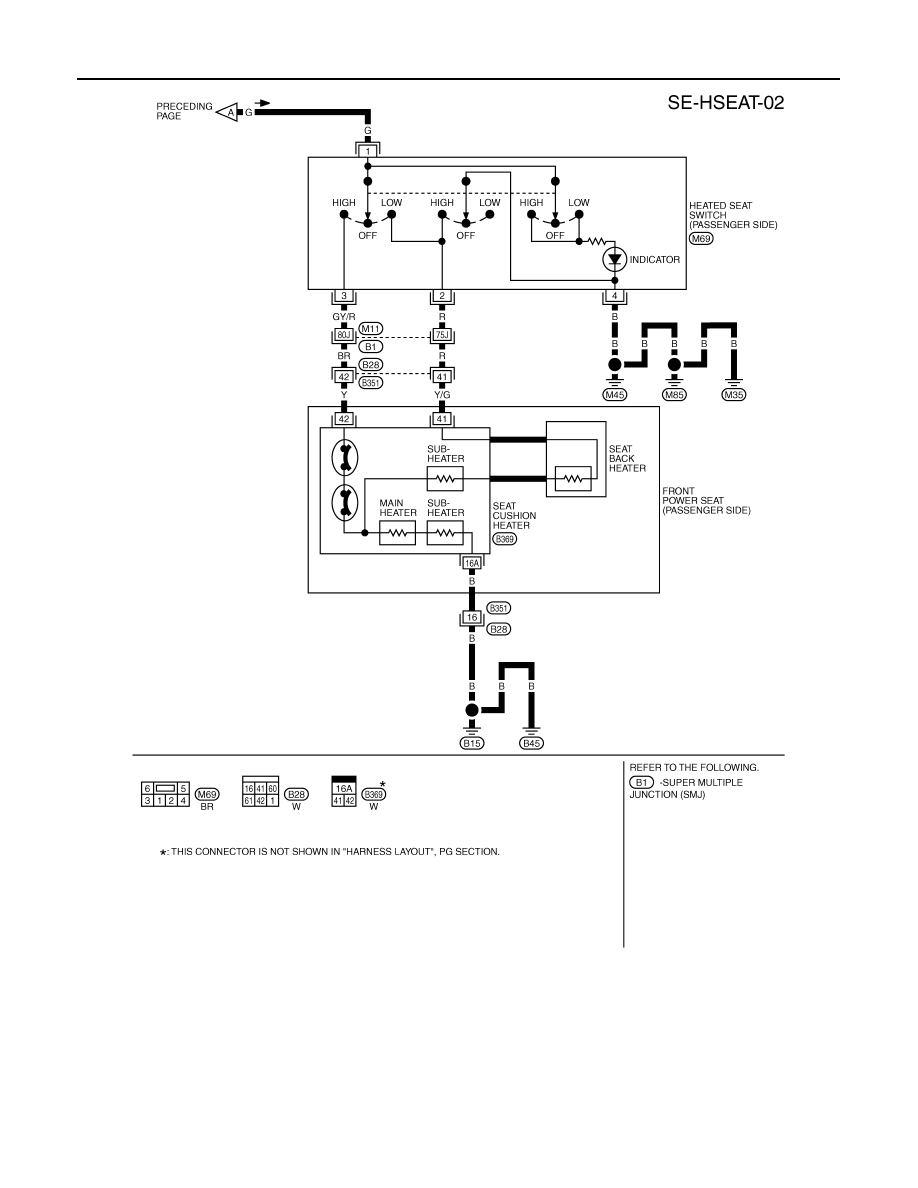

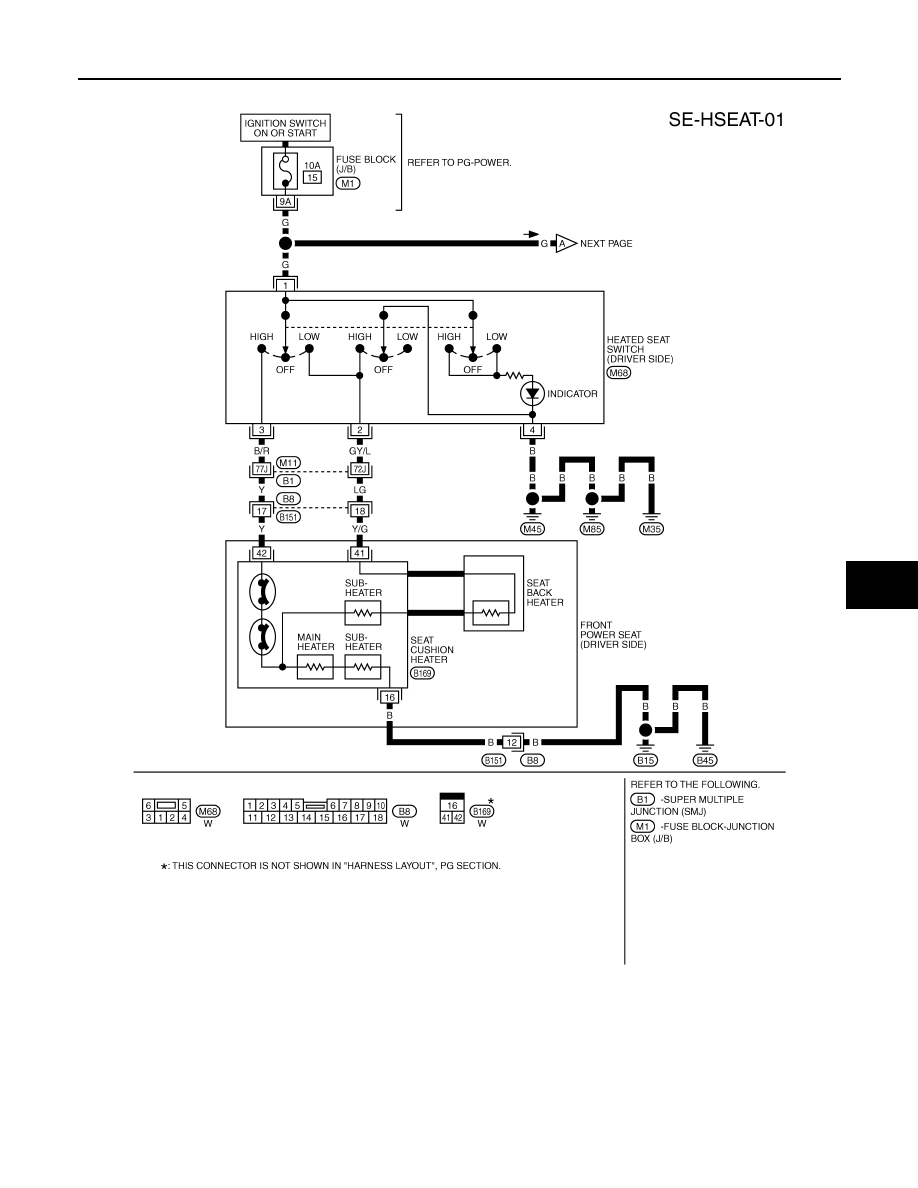

Wiring Diagram - HSEAT -

INFOID:0000000001328147

TIWM1706E

SE-88

< SERVICE INFORMATION >

HEATED SEAT

TIWM1707E

FRONT SEAT

SE-89

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

SE

N

O

P

FRONT SEAT

Removal and Installation

INFOID:0000000001328148

CAUTION:

Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below.

PIIB8524E
