Infiniti FX35 / FX45. Manual - part 896





SERVICE DATA AND SPECIFICATIONS (SDS)

RFD-39

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RFD

N

O

P

*: Always check with the Parts Department for the latest parts information.

Pinion Height Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Side Bearing Adjusting Washer

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Thickness

Part number*

Thickness

Part number*

3.05 (0.1201)
3.08 (0.1213)

3.11 (0.1224)

3.14 (0.1236)

38154 0C000
38154 0C001
38154 0C002
38154 0C003

3.17 (0.1248)
3.20 (0.1260)
3.23 (0.1272)
3.26 (0.1283)

38154 0C004
38154 0C005
38154 0C006
38154 0C007

Thickness

Part number*

Thickness

Part number*

2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906)

38453 N3100
38453 N3101
38453 N3102
38453 N3103
38453 N3104
38453 N3105
38453 N3106

2.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043)

38453 N3107
38453 N3108
38453 N3109

38453 N3110

38453 N3111

38453 N3112
38453 N3113

RSU-1

SUSPENSION

C

D

F

G

H

I

J

K

L

M

SECTION

RSU

A

B

RSU

N

O

P

CONTENTS

REAR SUSPENSION

SERVICE INFORMATION  ............................

2

PRECAUTIONS ...................................................

2

Cautions ....................................................................

2

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

Commercial Service Tool  ..........................................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

4

NVH Troubleshooting Chart  ......................................

4

REAR SUSPENSION ASSEMBLY  .....................

5

On-Vehicle Inspection and Service  ...........................

5

Wheel AlignmentInspection .......................................

5

Removal and Installation ...........................................

6

SHOCK ABSORBER  ..........................................

9

Removal and Installation ...........................................

9

Disassembly and Assembly  ......................................

9

SUSPENSION ARM  ..........................................

11

Removal and Installation  .........................................

11

RADIUS ROD  ....................................................

13

Removal and Installation  .........................................

13

FRONT LOWER LINK .......................................

14

Removal and Installation  .........................................

14

REAR LOWER LINK & COIL SPRING .............

15

Removal and Installation  .........................................

15

STABILIZER BAR .............................................

16

Removal and Installation  .........................................

16

REAR SUSPENSION MEMBER .......................

17

Removal and Installation  .........................................

17

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

18

Wheel Alignment (Unladen*)  ...................................

18

Ball Joint  ..................................................................

18

Wheelarch Height (Unladen*) ..................................

18

RSU-2

< SERVICE INFORMATION >

PRECAUTIONS

SERVICE INFORMATION

PRECAUTIONS

Cautions

INFOID:0000000001327548

• When installing rubber bushings, final tightening must be carried out under unladen conditions with tires on

level ground. Oil will shorten the life of rubber bushings. Be sure to wipe off any spilled oil.

• Unladen conditions means that fuel, engine coolant and lubricant are full. Spare tire, jack, hand tools and

mats are in designated positions.

• After servicing suspension parts, be sure to check wheel alignment.
• Caulking nuts are not reusable. Always use new ones when installing. Since new caulking nuts are pre-oiled,

tighten as they are.

PREPARATION

RSU-3

< SERVICE INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

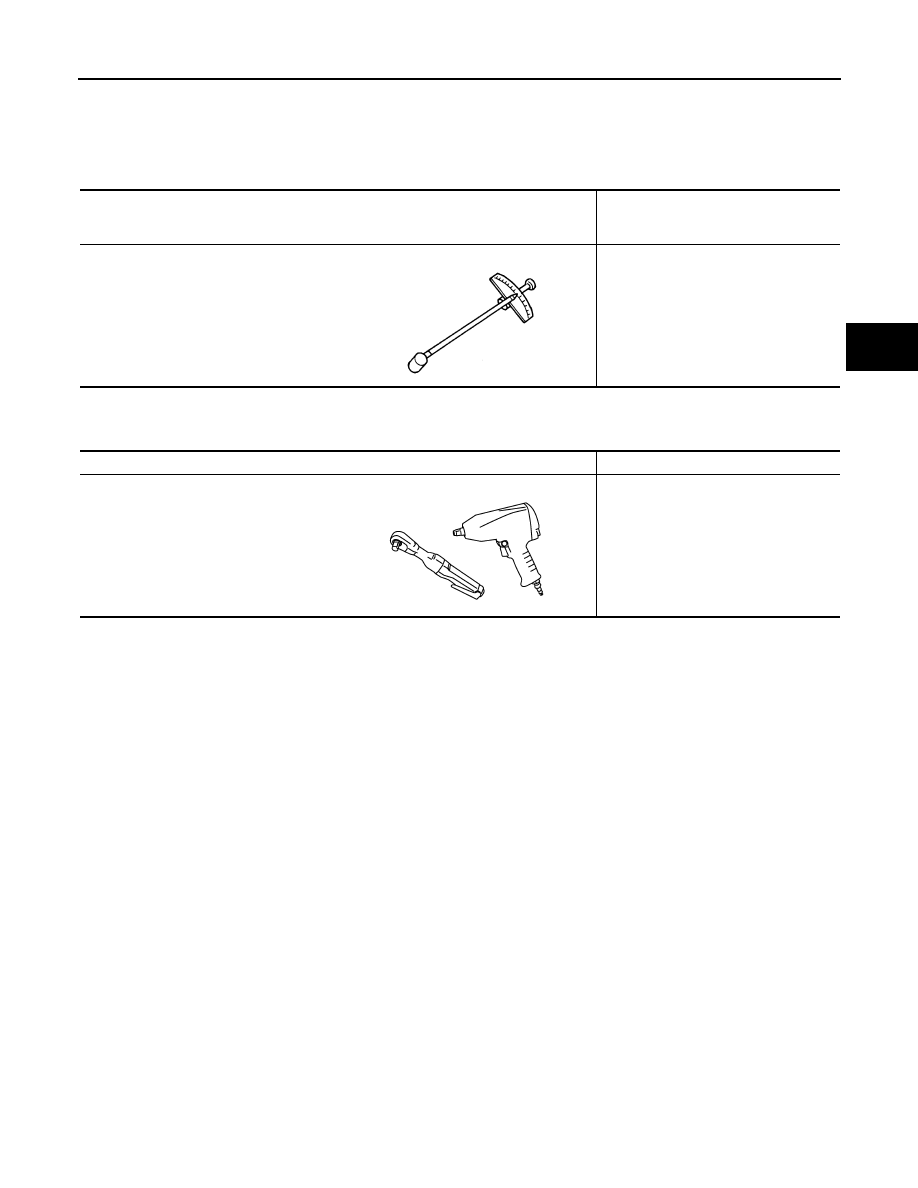

PREPARATION

Special Service Tool

INFOID:0000000001327549

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000001327550

Tool number
(Kent-Moore No.)
Tool name

Description

ST3127S000
(See J

25765-A)

Preload gauge

Measuring rotating torque of ball joint

ZZA0806D

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E
