REAR FINAL DRIVE ASSEMBLY

RFD-35

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RFD

N

O

P

7.

Align the matching mark of differential case with the mark of
drive gear, then place drive gear.

8.

Apply thread locking sealant into the thread hole of drive gear.
• Use Genuine High Strength Thread Locking Sealant or

equivalent. Refer to

GI-44

.

CAUTION:

Drive gear back and threaded holes shall be cleaned and
degreased sufficiently.

9.

Install drive gear on the mounting bolts, and then tighten to the
specified torque. Refer to "COMPONENTS".

CAUTION:

• Tighten bolts in a crisscross fashion.
• After tightening the bolts to the specified torque, tighten

the bolts additionally by turning the bolts 31 to 36
degrees.

10. Press side bearing inner races to differential case, using the drift

and the base.

CAUTION:

Never reuse side bearing inner race.

11. Install differential case assembly with side bearing outer races

into gear carrier.

12. Measure side bearing preload. If necessary, select the appropri-

ate side bearing adjusting washers. Refer to "Side Bearing Pre-
load".

SDIA2593E

SDIA2594E

SDIA0247J

Tool number

A: KV38100300 (J-25523)

B: ST33061000 (J-8107-2)

SPD353

SPD527

RFD-36

< SERVICE INFORMATION >

REAR FINAL DRIVE ASSEMBLY

13. Insert selected left and right side bearing adjusting washers in

place between side bearings and gear carrier.

14. Align matching marks on bearing cap with that on gear carrier.
15. Install bearing caps and tighten bearing cap mounting bolts to

the specified torque. Refer to "COMPONENTS".

16. Using the drift, drive side oil seals until it becomes flush with the

case end.

CAUTION:

• Never reuse oil seal.
• When installing, never incline oil seal.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

17. Check and adjust drive gear runout, tooth contact, drive gear to

drive pinion backlash, and total preload torque. Refer to "Drive
Gear Runout", "Tooth Contact", "Backlash", "Total Preload Torque".
Recheck above items. Readjust the above description, if necessary.

18. Apply sealant to mating surface of rear cover.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-44

.

CAUTION:

Remove old sealant adhering to mounting surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mounting surfaces.

19. Install rear cover on gear carrier and tighten mounting bolts with

the specified torque. Refer to "COMPONENTS".

20. Install side flange with the following procedure.

SPD558

SDIA1795E

Tool number

: KV38100200 (J-26233)

SPD560

PDIA0961E

REAR FINAL DRIVE ASSEMBLY

RFD-37

< SERVICE INFORMATION >

C

E

F

G

H

I

J

K

L

M

A

B

RFD

N

O

P

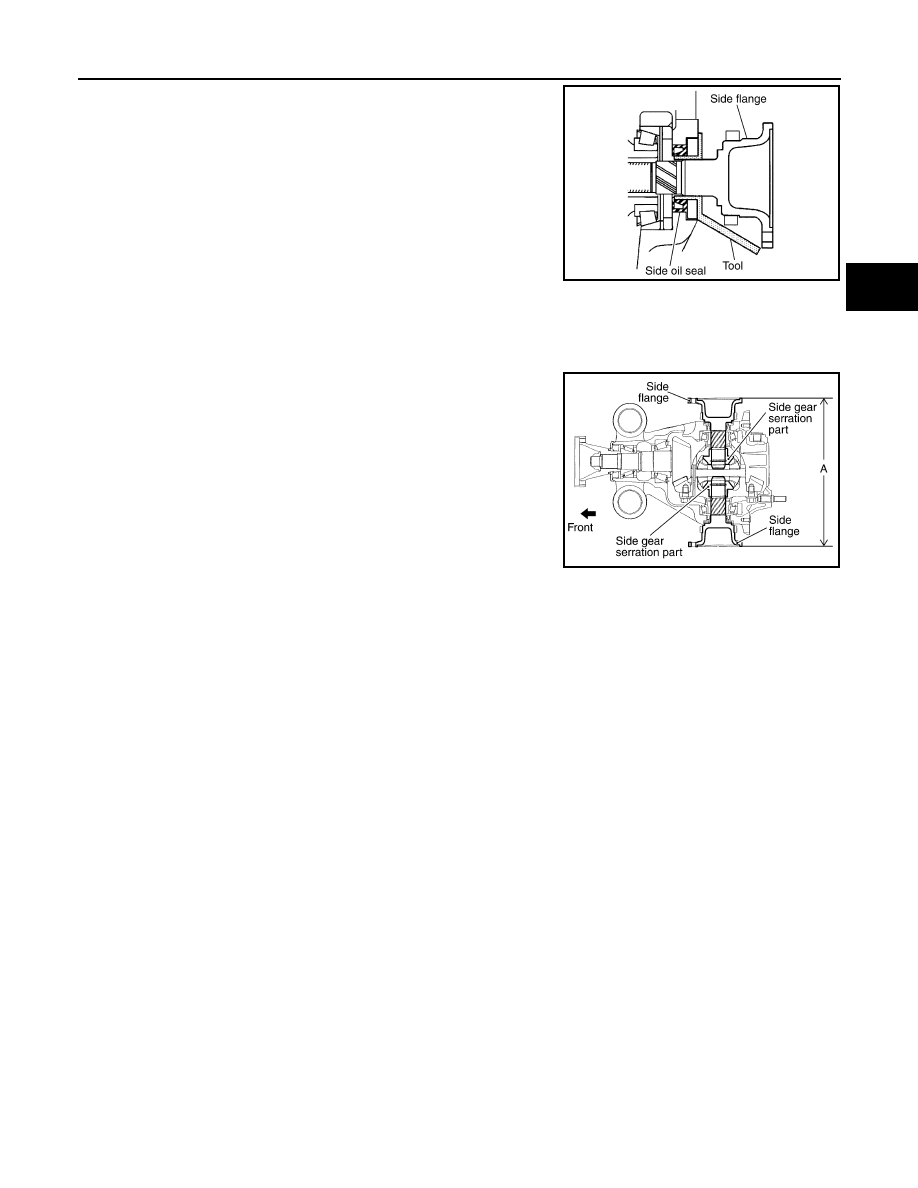

a.

Attach the protector to side oil seal.

b.

After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.

c.

Put a suitable drift on the center of side flange, then drive it until sound changes.
NOTE:
When installation is completed, driving sound of the side flange turns into a sound which seems to affect
the whole final drive.

d.

Confirm that the dimension of the side flange installation (Mea-
surement A) in the figure comes into the following.

Tool number

: KV38107900 (J-39352)

SDIA0822E

Measurement A: 326 - 328 mm (12.83 - 12.91 in)

SDIA1039E

RFD-38

< SERVICE INFORMATION >

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000001327501

Inspection and Adjustment

INFOID:0000000001327502

DRIVE GEAR RUNOUT

Unit: mm (in)

DIFFERENTIAL SIDE GEAR CLEARANCE

Unit: mm (in)

PRELOAD TORQUE

Unit: N·m (kg-m, in-lb)

BACKLASH

Unit: mm (in)

COMPANION FLANGE RUNOUT

Unit: mm (in)

SELECTIVE PARTS

Side Gear Thrust Washer

Unit: mm (in)

Applied model

VQ35DE

VK45DE

2WD

AWD

Final drive model

R200

Gear ratio

3.357

3.692

Number of teeth (Drive gear/Drive pinion)

47/14

48/13

Oil capacity (Approx.)

 (US pt, lmp pt)

1.4 (3, 2-1/2)

Number of pinion gears

2

Drive pinion adjustment spacer type

Collapsible

Item

Runout limit

Drive gear back face

 0.05 (0.0020)

Item

Specification

Side gear backlash (Clearance between side gear and differential
case)

0.2 (0.008) or less

(Each gear should rotate smoothly without excessive resistance

during differential motion.)

Item

Specification

Pinion bearing (P

1

)

2.65 - 3.23 (0.27 - 0.32, 24 - 28)

Side bearing (P

2

)

0.20 - 0.52 (0.02 - 0.05, 2 - 4)

Side bearing to pinion bearing (Total preload)
(Total preload = P

1

 + P

2

)

2.85 - 3.75 (0.29 - 0.38, 26 - 33)

Item

Specification

Drive gear to drive pinion gear

0.10 - 0.15 (0.0039 - 0.0059)

Item

Runout limit

Inner side of the companion flange

 0.08 (0.0031)

Thickness

Part number*

Thickness

Part number*

0.75 (0.0295)
0.78 (0.0307)
0.81 (0.0319)
0.84 (0.0331)

38424 EC000
38424 EC001
38424 EC002
38424 EC003

0.87 (0.0343)
0.90 (0.0354)
0.93 (0.0366)

38424 EC004
38424 EC005
38424 EC006
