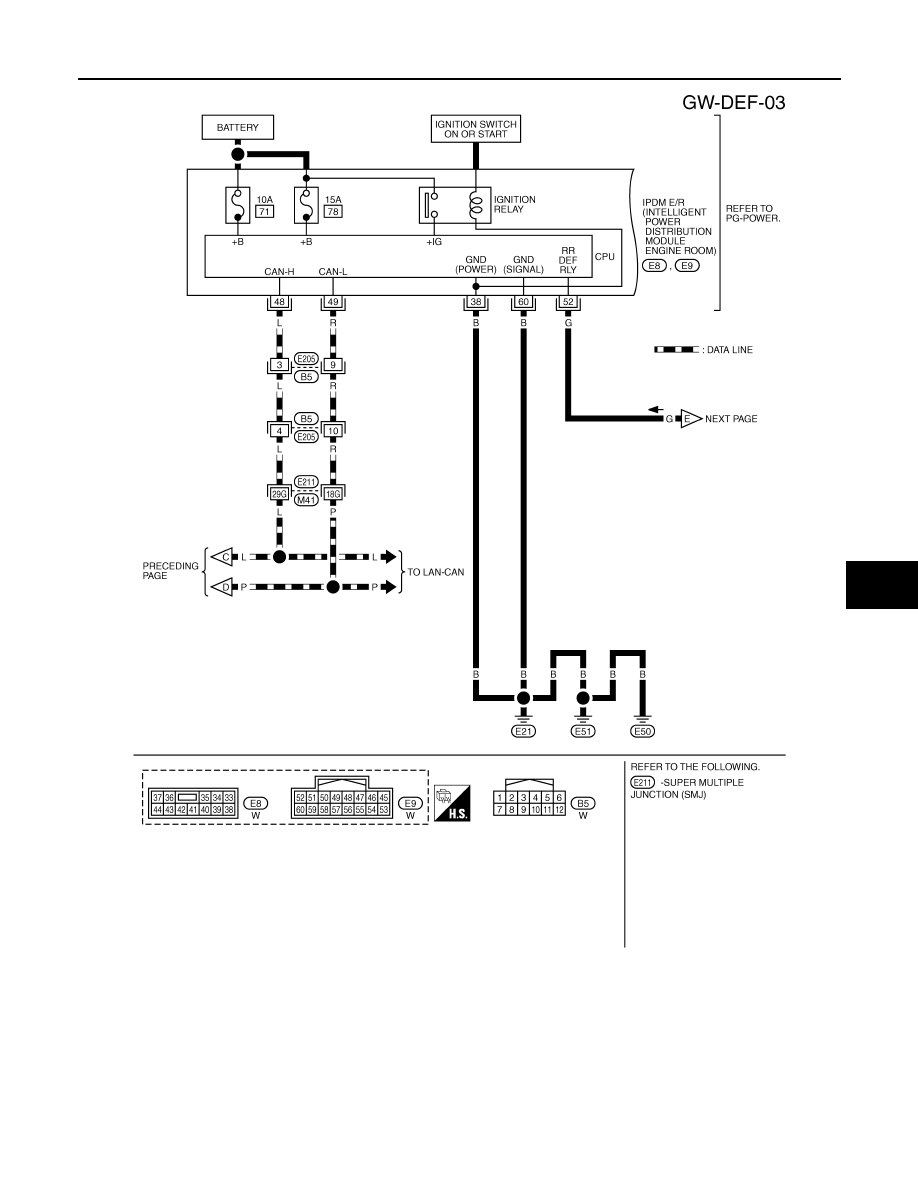

REAR WINDOW DEFOGGER

TIWM1686E

REAR WINDOW DEFOGGER

GW-65

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

TIWM1687E

GW-66

< SERVICE INFORMATION >

REAR WINDOW DEFOGGER

TIWM1688E

REAR WINDOW DEFOGGER

GW-67

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

Terminal and Reference Value for BCM

INFOID:0000000001328004

Terminal and Reference Value for IPDM E/R

INFOID:0000000001328005

CONSULT-III Function (BCM)

INFOID:0000000001328006

DATA MONITOR

ACTIVE TEST

Terminal

Wire col-

or

Item

Signal In-

put/

Output

Condition

Voltage (V)

(Approx.)

9

L/W

Rear window defogger
switch signal

Input

When rear window defogger switch is
pressed.

0

When rear window defogger switch is OFF.

5

38

W/L

Ignition switch ON or START

Input

Ignition switch (ON or START position)

Battery voltage

39

L

CAN

−

 H

Input/

Output

—

—

40

P

CAN

−

 L

Input/

Output

—

—

42

L/R

Power source (Fuse)

Input

—

Battery voltage

49

B

Ground (signal)

—

—

0

52

B

Ground (power)

—

—

0

55

G

Power source (Fusible link)

Input

—

Battery voltage

Terminal

Wire col-

or

Item

Signal

Input/

Output

Condition

Voltage (V)

(Approx.)

5

R

Battery power supply

Output

—

Battery voltage

6

W

Battery power supply

Output

—

Battery voltage

38

B

Ground (Power)

—

—

0

48

L

CAN

−

 H

Input/

Output

—

—

49

R

CAN

−

 L

Input/

Output

—

—

52

G

Rear window defogger relay
control signal

Input

When rear window defogger switch is ON.

0

When rear window defogger switch is
OFF.

Battery voltage

60

B

Ground (Signal)

—

—

0

BCM diagnostic test item

Check item diagnostic test mode

Content

REAR DEFOGGER

Data monitor

Displays the input data of BCM in real time.

Active test

Gives a drive signal to a load to check the operation.

Monitor item

Content

REAR DEF SW

Displays “Press (ON)/others (OFF)” status determined with the rear window defogger switch.

IGN ON SW

Displays “IGN (ON)/OFF” status determined with the ignition switch signal.
