GW-20

< SERVICE INFORMATION >

POWER WINDOW SYSTEM

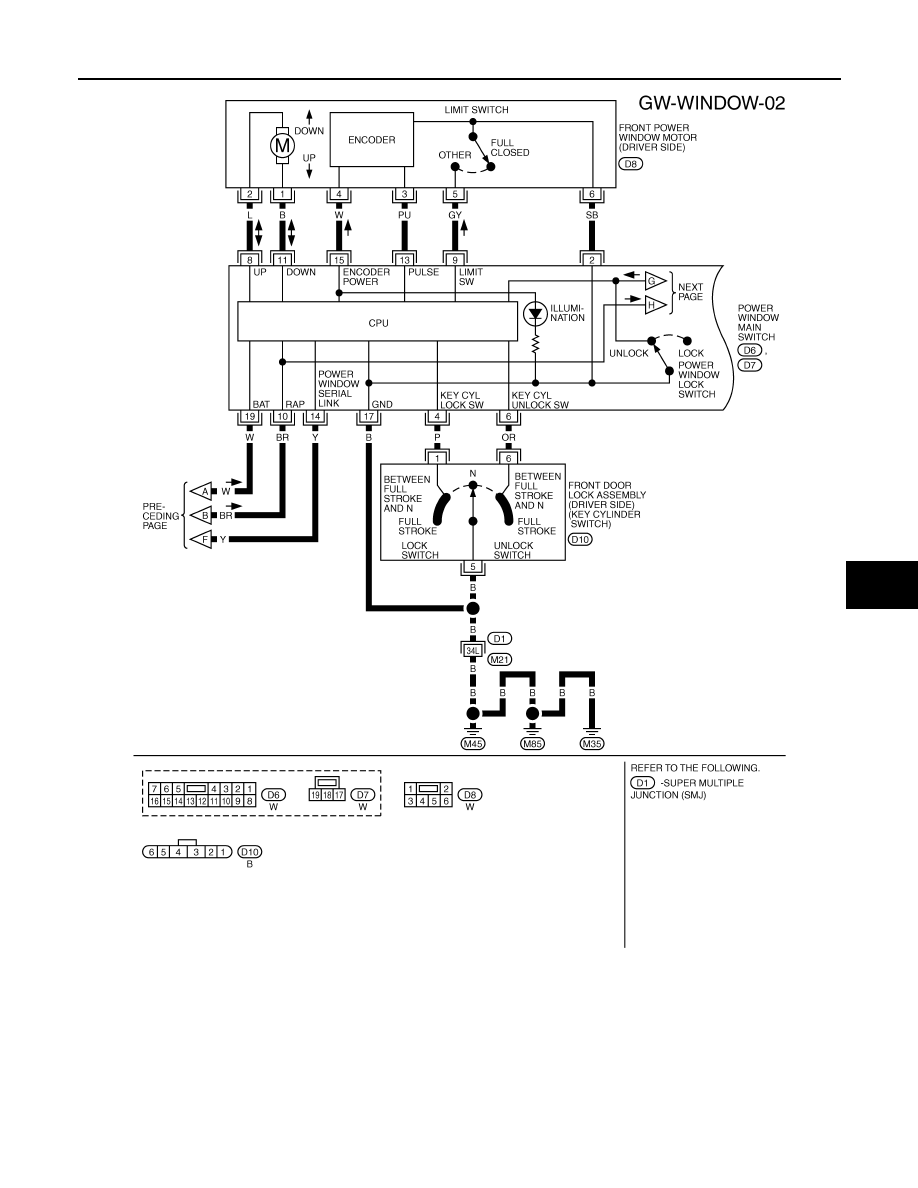

Wiring Diagram - WINDOW -

INFOID:0000000001327967

TIWM1681E

POWER WINDOW SYSTEM

GW-21

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

TIWH0052E

GW-22

< SERVICE INFORMATION >

POWER WINDOW SYSTEM

TIWM1682E

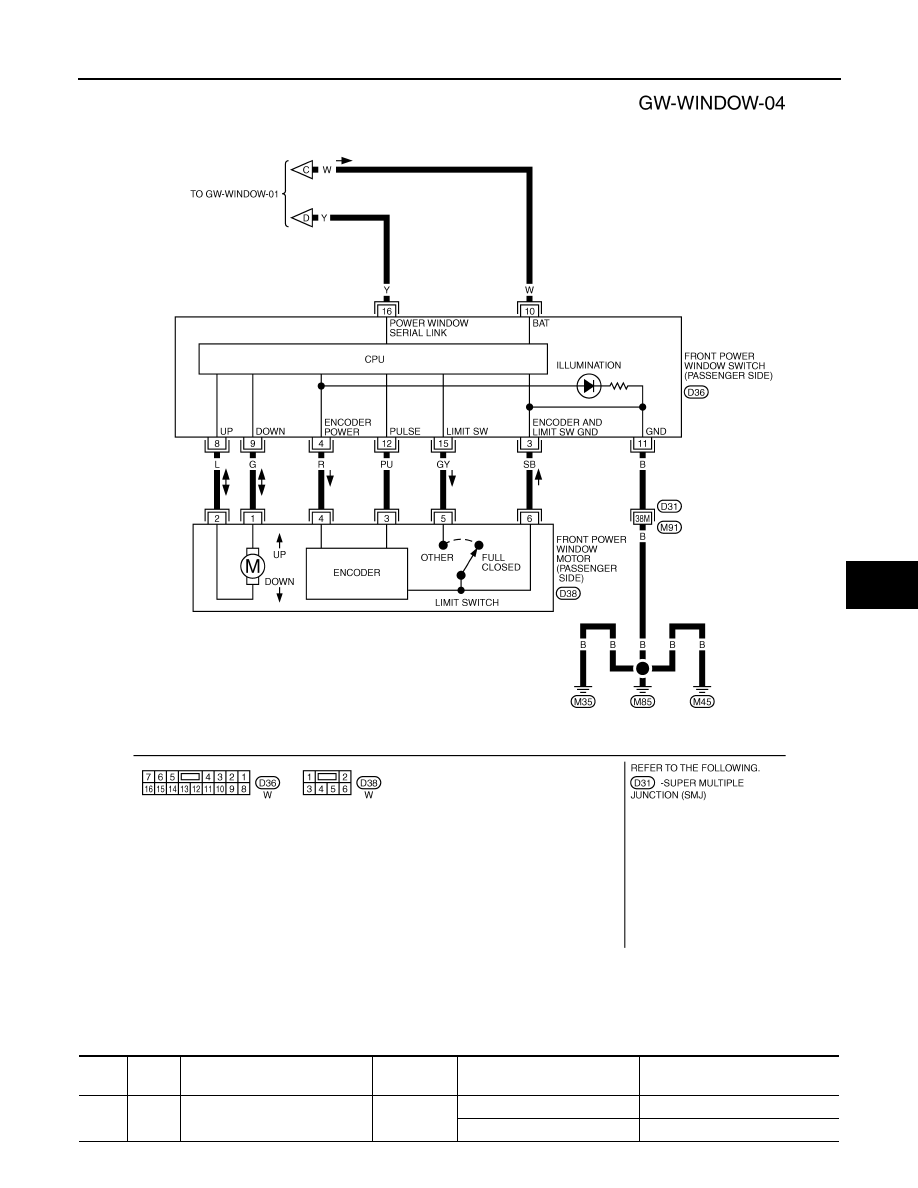

POWER WINDOW SYSTEM

GW-23

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

Terminal and Reference Value for BCM

INFOID:0000000001327968

TIWH0054E

Ter-

minal

Wire

color

Item

Signal

Input/Output

Condition

Voltage [V]

(Approx.)

12

P/B

Front door switch
passenger side signal

Input

ON (Open)

0

OFF (Close)

Battery voltage
