WINDSHIELD GLASS

CAUTION:

• Never use a cutting knife or power cutting tool when a windshield glass is reused.
• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

7.

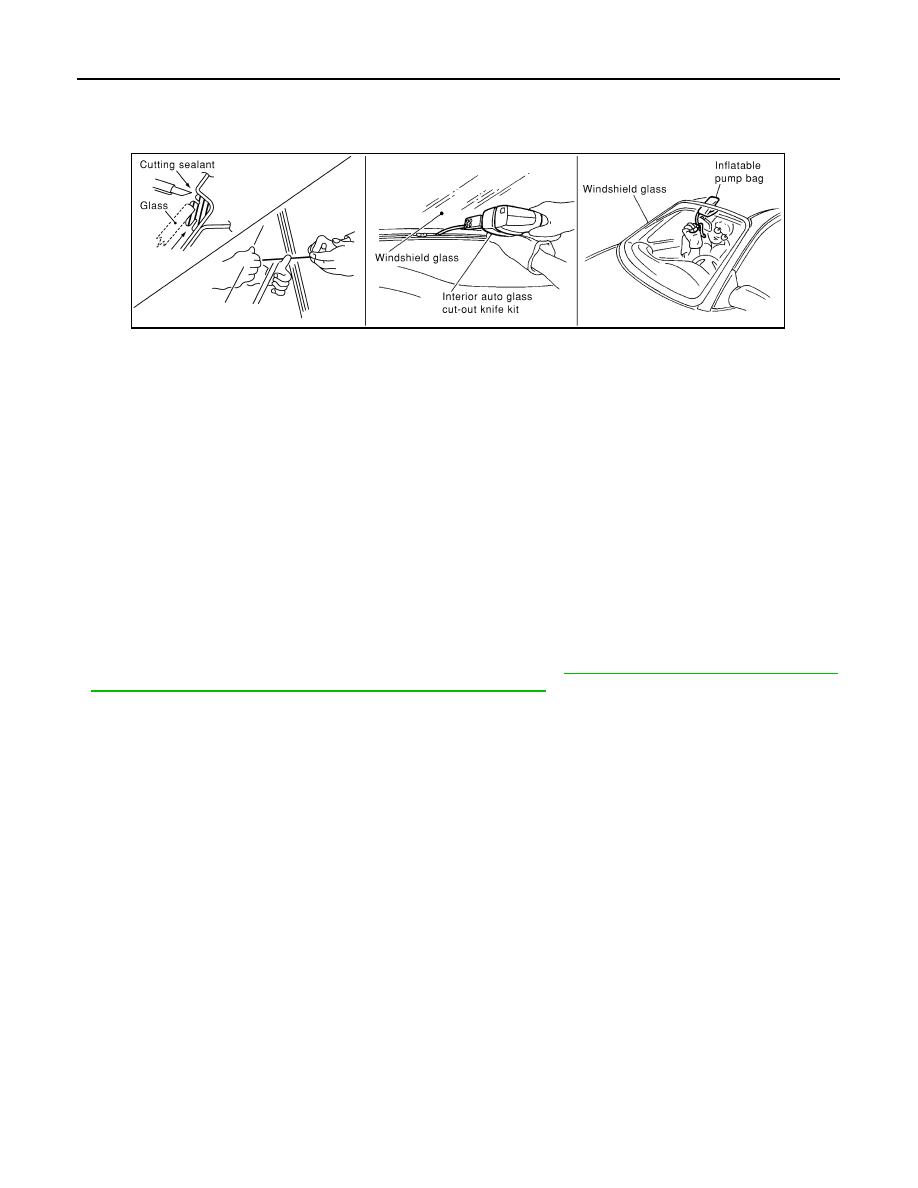

Remove the windshield glass, using suction.

INSTALLATION

• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished

with it.

• While the urethane adhesive is curing, open all doors windows. This will prevent the glass from being forced

out by passenger room air pressure when all door are closed.

• The molding must be installed securely so that it is in position and leaves no clearance.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air, if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Perform adjustment of front wiper arms stop location. Refer to

WW-23, "Removal and Installation of

Front Wiper Arms, Adjustment of Wiper Arms Stop Location"

.

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Adhere carefully to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidities. The curing time will increase
under lower temperature and lower humidity.

Repairing Water Leakage for Windshield

Leakage can be repaired without removing glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the windshield area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

PIIA0186E

BACK DOOR WINDOW GLASS

GW-13

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

BACK DOOR WINDOW GLASS

Removal and Installation

INFOID:0000000001327961

REMOVAL

1.

Remove the back door finisher. Refer to

EI-47

.

2.

Remove the rear wiper arm. Refer to

WW-44, "Removal and Installation of Rear Wiper and Washer

Switch"

.

3.

Remove the connectors and grounds for the rear window defogger.

• Remove glass using cutting knife or power cutting tool and an inflatable pump bag after removing molding.
• Mark the body and the glass with mating marks if a back door window glass is reused.

WARNING:

Always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes
or cutting your hands, when cutting the glass from the vehicle.

CAUTION:

• Be careful no to scratch the glass when removing.

1.

Dam rubber

2.

Back door window glass

3.

Adhesive

4.

Back door outer panel

5.

Back door inner panel

6.

Back door window molding

7.

Clip

8.

Back door finisher

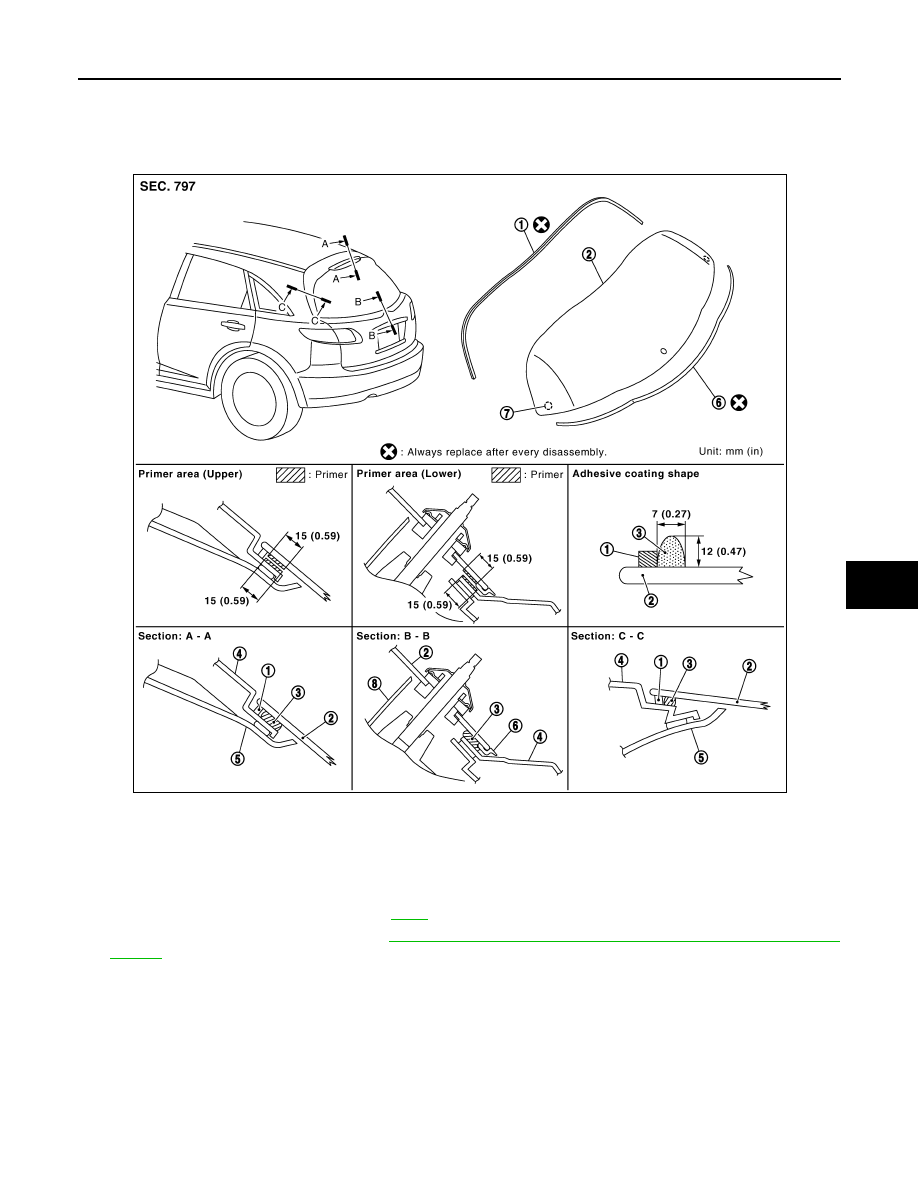

PIIA9191E

GW-14

< SERVICE INFORMATION >

BACK DOOR WINDOW GLASS

• Never set or stand the glass on its edge. Small chips may develop into cracks.

4.

Remove the back door window glass, using suction liter.

INSTALLATION

• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished

with it.

• While the urethane adhesive is curing, open all door windows. This will prevent the glass from being forced

out by passenger room air pressure when all doors are closed.

• The molding must be installed securely so that it is in position and leaves no clearance.
• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the back door window glass in case of an accident.

CAUTION:

• Perform adjustment of rear wiper arm. Refer to

WW-40, "Removal and Installation of Rear Wiper Arm,

Adjustment of Wiper Arms Stop Location"

.

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Adhere carefully to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase
under lower temperature and lower humidity.

PIIB0908E

POWER WINDOW SYSTEM

GW-15

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

GW

N

O

P

POWER WINDOW SYSTEM

Component Parts and Harness Connector Location

INFOID:0000000001327962

System Description

INFOID:0000000001327963

Power is supplied at all time
• through 50A fusible link (letter M, located in the fuse and fusible link box)
• to BCM terminal 55, and
• through BCM terminal 54

1.

Fusible link 50A letter M

2.

a: Fuse block (J/B) M1, M2
b: BCM M3, M4, B14

3.

Power window main switch D6, D7

4.

Rear power window switch LH D55

5.

Front power window motor D8
(driver side)

6.

Rear power window motor LH D56

7.

Front door switch (driver side) B26

8.

Front door switch (passenger side)
B36

9.

Front door lock assembly
(driver side)
(key cylinder switch) D10

PIIB8567E
