1.

Remove rear plate assembly. Refer to

EI-45, "Component Parts

Location"

.

2.

Remove back door striker mounting screws, and remove back
door striker from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing, perform fitting adjustment. Refer to

BL-141, "Fitting Adjustment"

.

Removal and Installation of Back Door Stay

INFOID:0000000001327882

REMOVAL

1.

Support the back door lock with a proper material to prevent it
from falling.

WARNING:

Body injury may occur if no supporting rod is holding the
back door open when removing the damper stay.

2.

Remove back door stay on back door.

3.

Remove back door stay assembly on vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

After installing, check operation.

PIIA9325E

PIIA6061E

PIIA6029E

PIIA6031E

BL-144

< SERVICE INFORMATION >

BACK DOOR

Removal and Installation of Dave Tail Male & Female

INFOID:0000000001327883

REMOVAL

1.

Remove the dave tail male.

2.

Remove the rear bumper. Refer to

EI-17, "Component Parts Location"

.

3.

Remove the dave tail female.

INSTALLATION

Install in the reverse order of removal.

Removal and Installation of Back Door Weather-strip

INFOID:0000000001327884

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

After removal, do not pull strongly on the weather-strip.

INSTALLATION

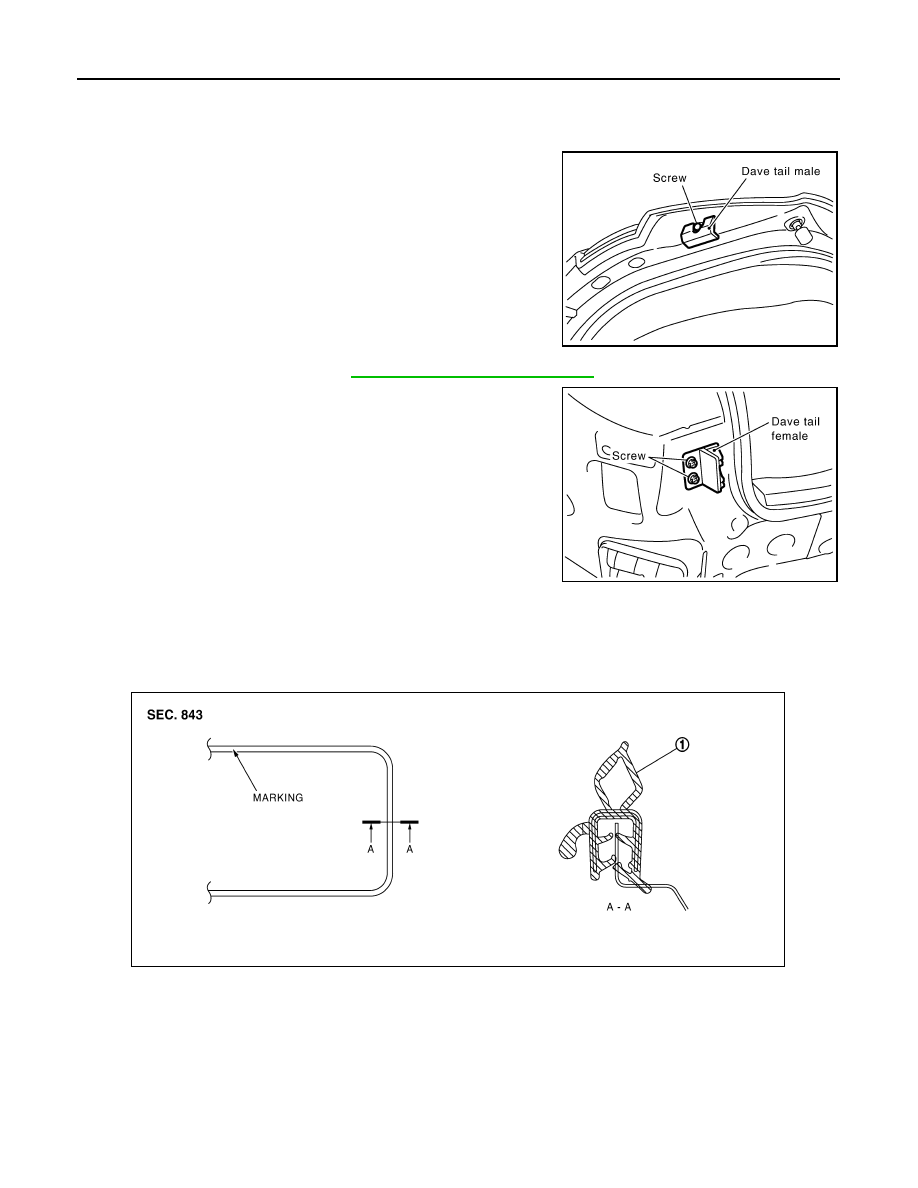

PIIA6078E

PIIA6079E

1.

Weather-strip

PIIA6032E

BACK DOOR

BL-145

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

1.

Working from the upper section, align weather-strip mark with vehicle center position mark and install
weather-strip onto the vehicle.

2.

For the lower section, align the weather-strip seam with center of the striker.

3.

After installation, pull the weather-strip gently to ensure that there is no loose section.
NOTE:
Make sure the weather-strip is fit tightly at each corner and back door rear plate.

BL-146

< SERVICE INFORMATION >

BACK DOOR LOCK ASSEMBLY

BACK DOOR LOCK ASSEMBLY

Removal and Installation of Back Door Lock & Closure Assembly

INFOID:0000000001327885

REMOVAL

1.

Remove back door finisher. Refer to

EI-47, "Component Parts Location"

.

2.

Disconnect the connector and the clip of the back door lock & closure assembly.

3.

Remove the mounting bolts.

4.

Disconnect the connector of the back door opener actuator.

5.

Remove the mounting bolts, remove back door lock & closure assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• After installing, check operation.
• After installing, perform fitting adjustment. Refer to

BL-141, "Fitting Adjustment"

.

INSPECTION

1.

Check back door lock for the following.
• Malfunction noise or door closing and opening effort
• Component wear or damage

2.

Apply body grease to the rotating part of the back door lock.

Removal and Installation of Back Door Opener Switch

INFOID:0000000001327886

REMOVAL

1.

Remove back door finisher. Refer to

EI-47, "Component Parts Location"

.

2.

Remove back door outside finisher. Refer to

EI-47

.

3.

Remove licence lamp. Refer to

LT-135, "License Plate Lamp"

.

4.

Cut back door inner panel along with cutting groove line.

CAUTION:

When cutting the back door panel, always wear safety
glasses, heavy gloves and a dust proof mask to prevent eye
and skin irritation from glass fiver splinters.
NOTE:

1.

Bolt

2.

Back door lock & closure assembly

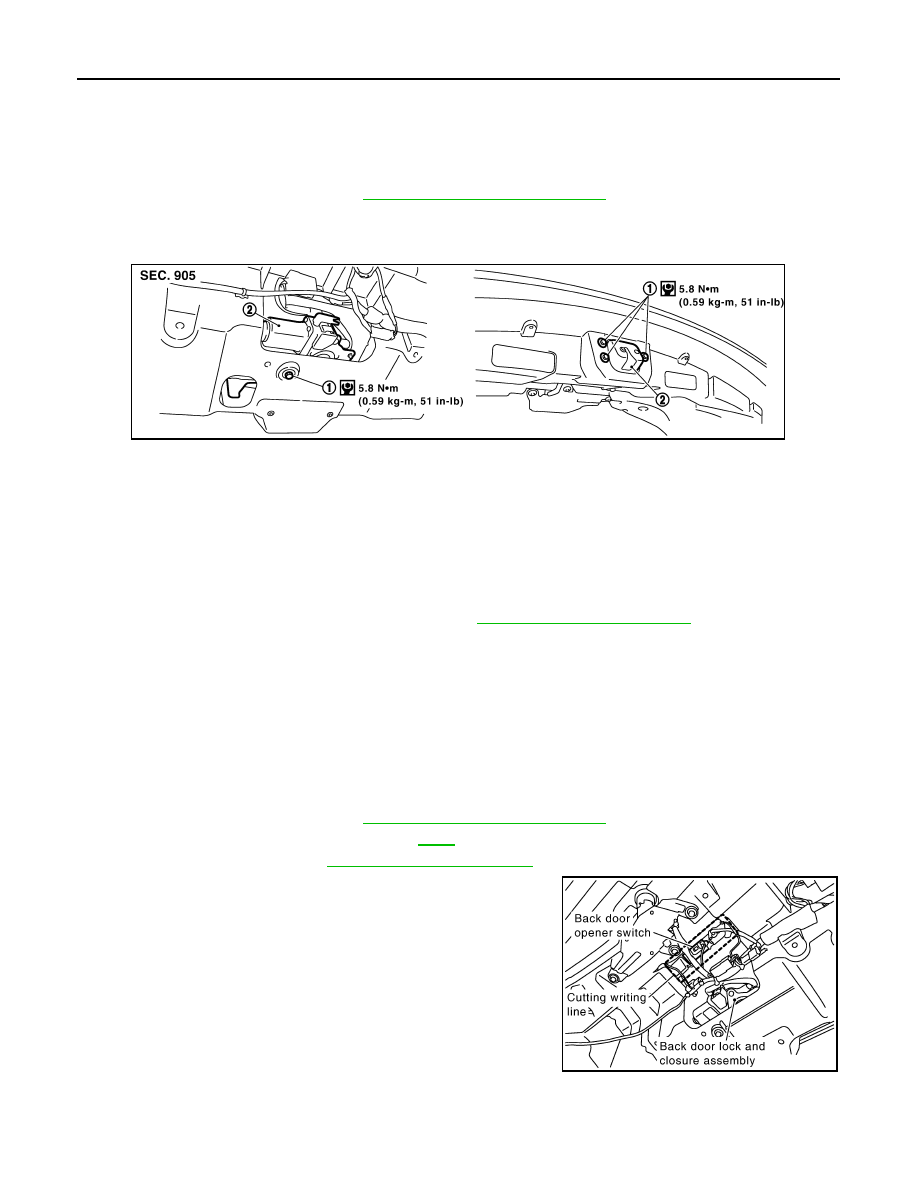

PIIA6043E

PIIA6903E
