Infiniti FX35 / FX45. Manual - part 197





REMOTE KEYLESS ENTRY SYSTEM

BL-55

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

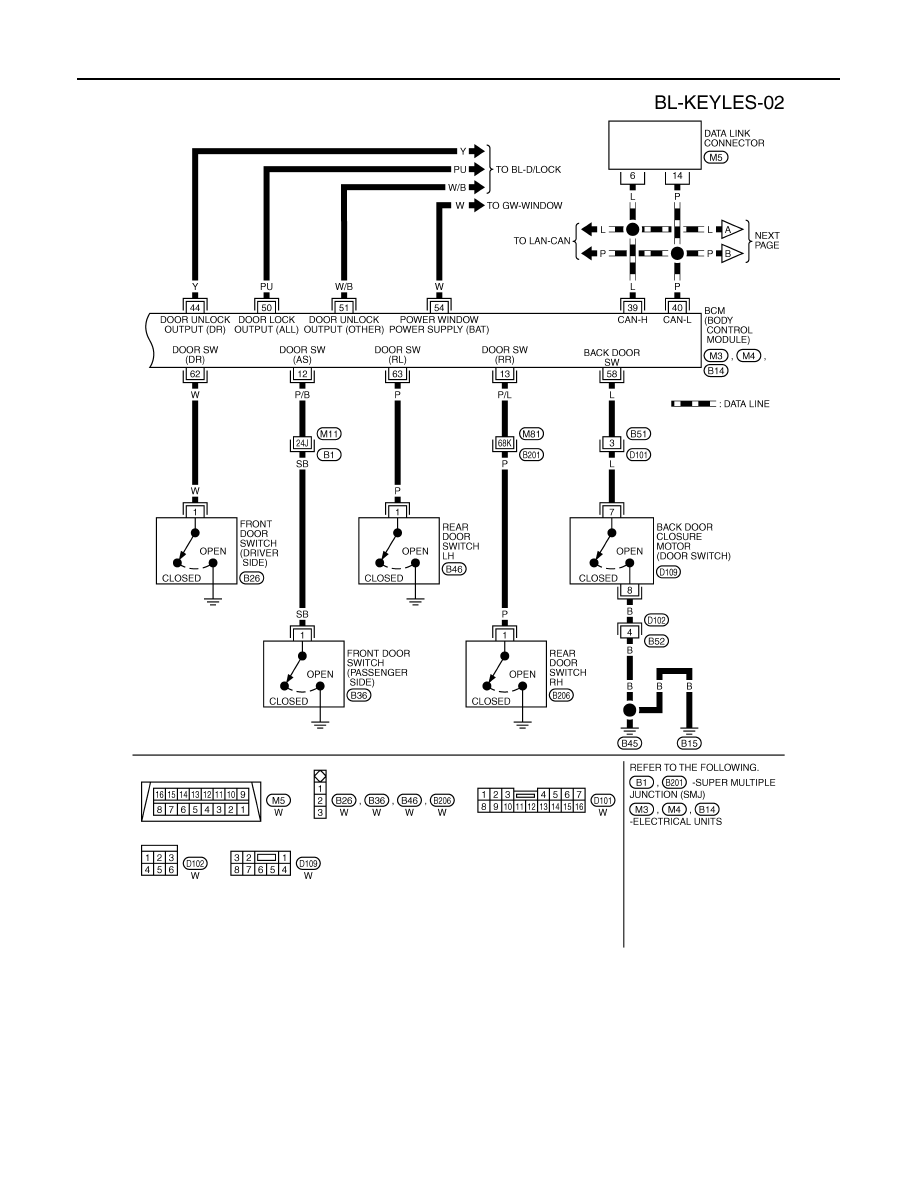

Wiring Diagram - KEYLES -

INFOID:0000000001327817

TIWM1656E

BL-56

< SERVICE INFORMATION >

REMOTE KEYLESS ENTRY SYSTEM

TIWM1657E

REMOTE KEYLESS ENTRY SYSTEM

BL-57

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

TIWM1658E

BL-58

< SERVICE INFORMATION >

REMOTE KEYLESS ENTRY SYSTEM

Terminal and Reference Value for BCM

INFOID:0000000001327818

Termi-

nal

Wire

Color

Item

Signal In-

put/ out-

put

Condition

Voltage (V)

Approx.

1

PU

Key ring illumination output
signal

Output

 Key ring illumination is lighting.

Battery voltage

Key ring illumination is being turned
off.

0

11

LG

Ignition switch

Input

Ignition switch is in ACC or ON po-
sition

Battery voltage

12

P/B

Front door switch (Passen-
ger side)

Input

ON (door open)

 OFF (door

closed)

 Battery voltage

13

P/L

Rear door switch RH

Input

ON (door open)

 OFF (door

closed)

 Battery voltage

18

B

Remote keyless entry re-
ceiver (Ground)

0

19

R

Remote keyless entry re-
ceiver (Power supply)

Output

Key is inserted in IGN key cylinder

0

All door closed

20

Y

Remote keyless entry re-
ceiver (Signal)

Input

Key is inserted in IGN key cylinder

0

Waiting
(All door closed)

When signal is received
(All door closed)

37

B/W

Key switch

Input

ON (Key is inserted in IGN key cyl-
inder)

 OFF (Key is removed

from IGN key cylinder)

Battery voltage

 0

38

W/L

Ignition switch

Input

Ignition switch is in ON or START
position

Battery voltage

39

L

CAN H

Input/

Output

40

P

CAN L

Input/

Output

41

R/B

Battery saver output signal

Output

30 minutes after ignition switch is
turned to OFF

0

Ignition switch is in ON position

Battery voltage

42

L/R

Battery power supply (fuse)

Input

Battery voltage

OCC3881D

OCC3879D

OCC3880D
