REMOTE KEYLESS ENTRY SYSTEM

BL-51

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

• to BCM terminal 55
• through 50A fusible link (letter M, located in the fuse and fusible link box).
• to BCM terminal 42
• through 15A fuse [No. 22, located in the fuse block (J/B)].
• to Horn relay terminal 2
• through 15A fuse (No. 34, located in the fuse and fusible link box).
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied
• to BCM terminal 37
• through key switch terminal 1 and 2
• through 15A fuse [No. 22, located in the fuse block (J/B)].
When the ignition switch is ACC or ON, power is supplied
• to BCM terminal 11
• through 10A fuse [No. 6, located in the fuse block (J/B)].
When the ignition switch is ON or START, power is supplied
• to BCM terminal 38
• through 15A fuse [No. 1, located in the fuse block (J/B)].
When the front door switch (driver side) is ON (door is OPEN), ground is supplied
• to BCM terminal 62
• through front door switch (driver side) terminal 1
• through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied
• to BCM terminal 12
• through front door switch (passenger side) terminal 1
• through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied
• to BCM terminal 63
• through rear door switch LH terminal 1
• through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied
• to BCM meter terminal 13
• through rear door switch RH terminal 1
• through rear door switch RH case ground.
When the back door switch is ON (door is open), ground is supplied
• to BCM terminal 58
• through back door closure motor (door switch) terminals 7 and 8
• through body grounds B15 and B45
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).
• to BCM terminal 20
• from remote keyless entry system controls operation of the
The remote keyless entry system controls operation of the
• power door lock
• hazard and horn reminder
• auto door lock
• panic alarm
• keyless power window down (open)
• room lamp and key ring illumination

OPERATED PROCEDURE

Power Door Lock Operation

BCM receives a LOCK signal from key fob. BCM locks all doors with input of LOCK signal from key fob.
When an UNLOCK signal is sent from key fob once, driver's door will be unlocked.
Then, if an UNLOCK signal is sent from key fob again within 5 seconds, all other door will be unlocked.
Power door lock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT” of “POWER DOOR LOCK SYSTEM”.
Refer to

BL-60, "CONSULT-III Function (BCM)"

.

Power door lock operation mode can be changed also on the display.

Hazard and Horn Reminder

When the doors are locked or unlocked by key fob, power is supplied to hazard warning lamp and lamp flash
as follows

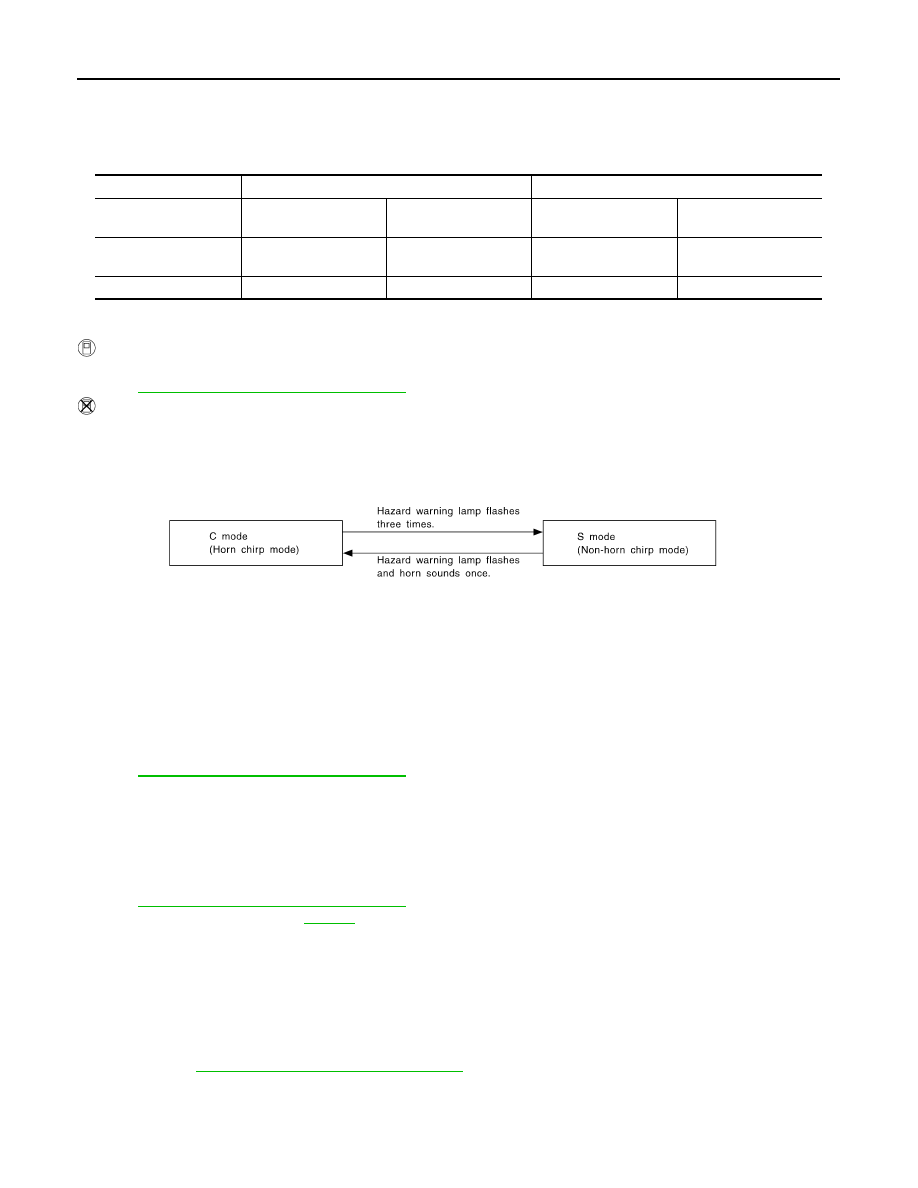

BL-52

< SERVICE INFORMATION >

REMOTE KEYLESS ENTRY SYSTEM

• LOCK operation: C mode (flash twice) or S mode (flash twice)
• UNLOCK operation: C mode (flash once) or S mode (do not flash)
BCM outputs to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).

Operating function of hazard and horn reminder

Hazard and horn reminder do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode

 With CONSULT-III

Hazard and horn reminder can be changed using “MULTI ANSWER BACK SET” mode in “WORK SUPPORT”.
Refer to

BL-60, "CONSULT-III Function (BCM)"

.

 Without CONSULT-III

When LOCK and UNLOCK signals are sent from the key fob for more than 2 seconds at the same time, the
hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:

Auto Door Lock Operation

Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the key fob:
• when door switch is turned ON for open.
• when the key switch is turned ON.
• when the lock signal is sent from the key fob.
Auto door lock mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.
Refer to

BL-60, "CONSULT-III Function (BCM)"

.

Auto door lock mode can be changed also on the display.

Panic Alarm Operation

When key switch is OFF (when ignition key is not inserted in key cylinder), BCM turns on and off horn and
headlamp intermittently with input of PANIC ALARM signal from key fob.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob.
Panic alarm operation mode can be changed using “PANIC ALARM SET” mode in “WORK SUPPORT”.
Refer to

BL-60, "CONSULT-III Function (BCM)"

.

For detailed description, refer to

BL-163

.

Keyless Power Window Down (Open) Operation

When key fob unlock switch is turned ON with ignition switch OFF, and key fob unlock switch is detected to be
on continuously for 3 seconds, the driver's door and passenger's door power windows are simultaneously
opened.
Power window is operated to open and the operation continues as long as the key fob unlock switch is
pressed.
Keyless power window down operation mode can be changed using “PW DOWN SET” mode in “WORK SUP-
PORT”. Refer to

BL-60, "CONSULT-III Function (BCM)"

Room Lamp and Ignition Key Ring Illumination Operation

When the following conditions come:
• condition of interior lamp switch is DOOR position;

C mode

S mode

Remote controller oper-
ation

Lock

Unlock

Lock

Unlock

Hazard warning lamp
flash

Twice

Once

Twice

Horn sound

Once

SEL153WA

REMOTE KEYLESS ENTRY SYSTEM

BL-53

< SERVICE INFORMATION >

C

D

E

F

G

H

J

K

L

M

A

B

BL

N

O

P

• door switch OFF (when all the doors are closed);
Remote keyless entry system turns on interior lamp (for 30 seconds) with input of UNLOCK signal from key
fob. For detailed description, refer to

LT-138

.

CAN Communication System Description

INFOID:0000000001327814

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

INFOID:0000000001327815

Refer to

LAN-43, "CAN System Specification Chart"

.

BL-54

< SERVICE INFORMATION >

REMOTE KEYLESS ENTRY SYSTEM

Schematic

INFOID:0000000001327816

TIWM0976E
