AT-308

< SERVICE INFORMATION >

ASSEMBLY

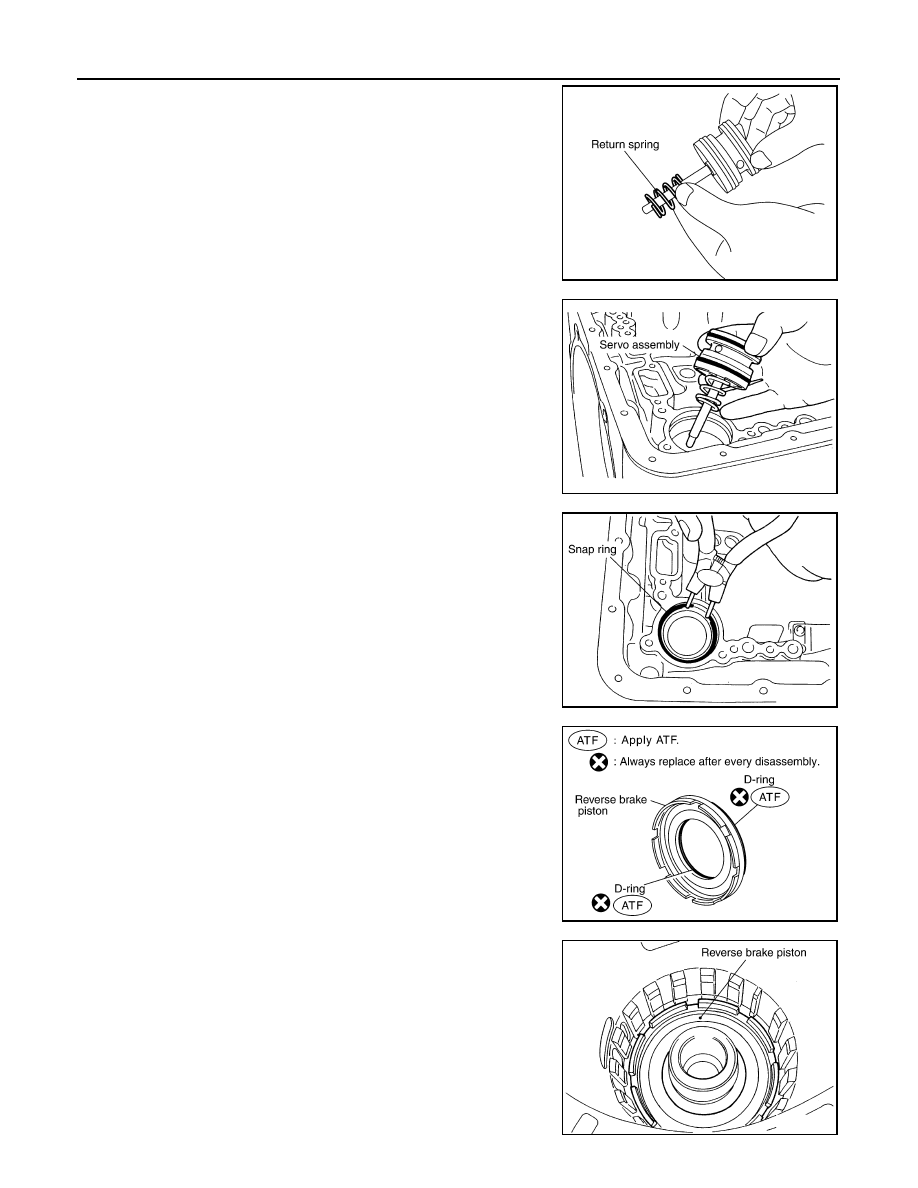

9.

Install return spring to servo assembly.

10. Install servo assembly in transmission case.

11. Using pair of snap ring pliers, install snap ring to transmission

case.

12. Install D-rings in reverse brake piston.

CAUTION:

• Do not reuse D-rings.
• Apply ATF to D-rings.

13. Install reverse brake piston in transmission case.

SCIA5717E

SCIA5679E

SCIA2333E

SCIA5340E

SCIA2325E

ASSEMBLY

AT-309

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

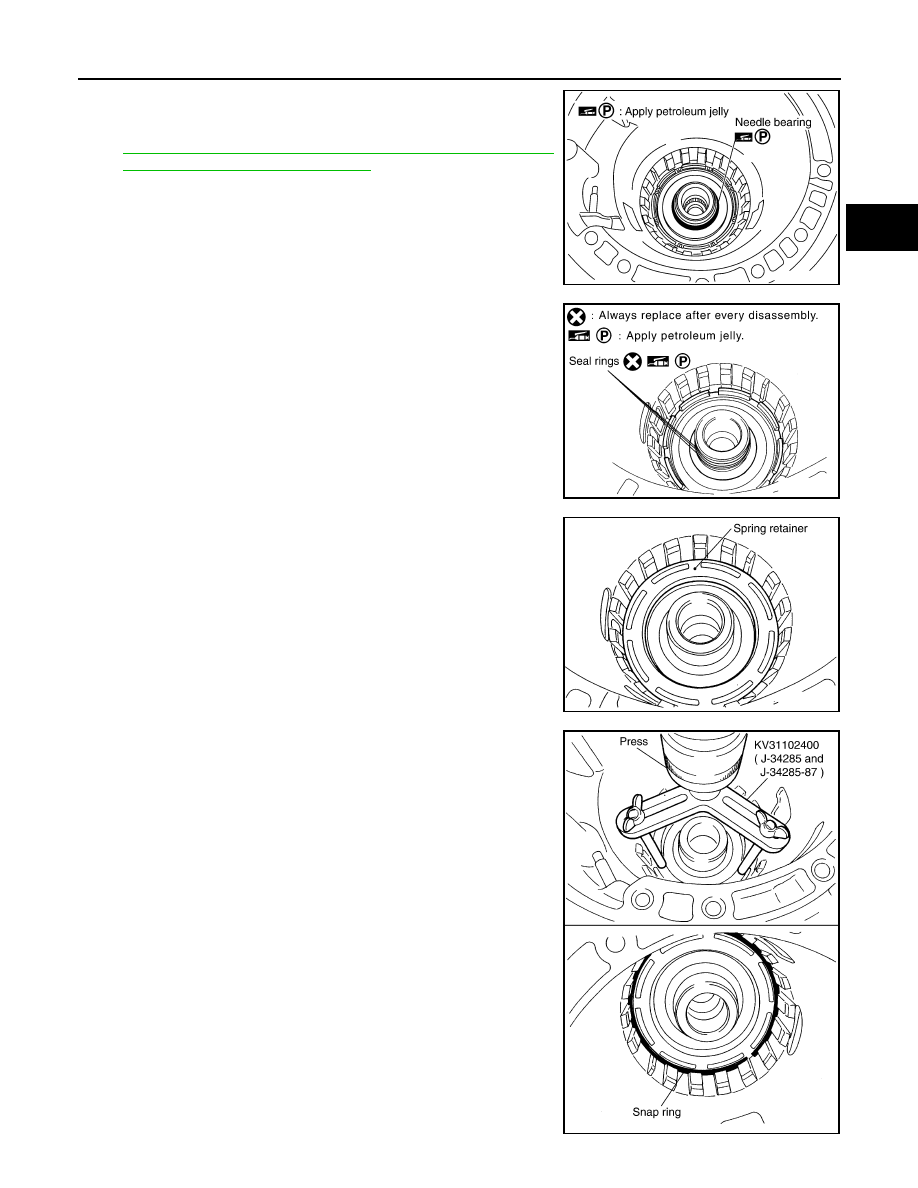

14. Install needle bearing to drum support edge surface.

CAUTION:

• Take care with the direction of needle bearing. Refer to

AT-264, "Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

.

• Apply petroleum jelly to needle bearing.

15. Install seal rings to drum support.

CAUTION:

• Do not reuse seal rings.
• Apply petroleum jelly to seal rings.

16. Install spring retainer and return spring in transmission case.

17. Set the SST on spring retainer and install snap ring (fixing spring

retainer) in transmission case while compressing return spring.

CAUTION:

Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.

SCIA2796E

SCIA3333E

SCIA2324E

SCIA5877E

AT-310

< SERVICE INFORMATION >

ASSEMBLY

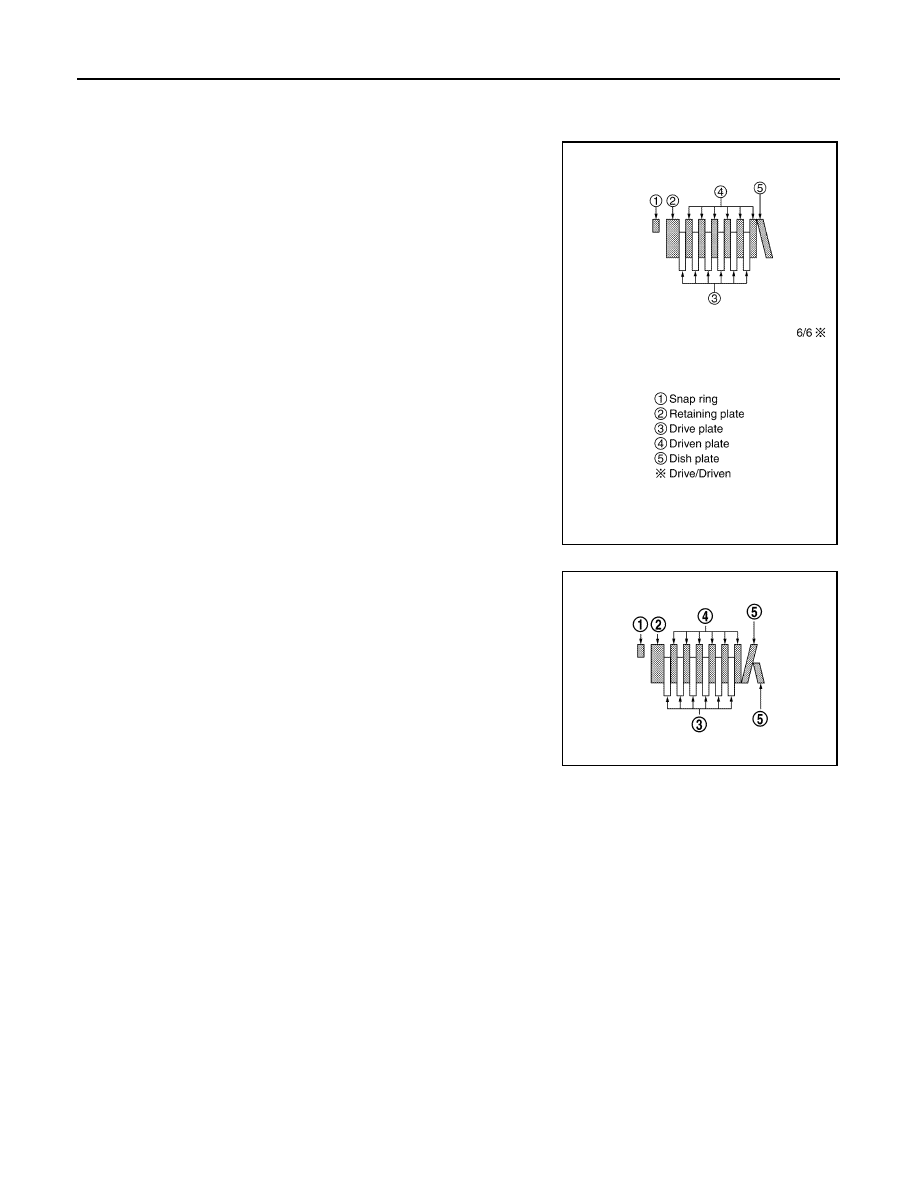

18. Install reverse brake drive plates, driven plates and dish plates in transmission case.

CAUTION:

Take care with order of plates.
• VQ35DE models

• VK45DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Dish plate (5)
- Drive plate/Driven plate: 6/6

SCIA5250E

SCIA6949E

ASSEMBLY

AT-311

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

19. Assemble N-spring.

20. Install reverse brake retaining plate in transmission case.

21. Install snap ring in transmission case.

22. Measure clearance between retaining plate and snap ring. If not

within specified clearance, select proper retaining plate. Refer to
“Parts Information” for retaining plate.

23. Install needle bearing to transmission case.

CAUTION:

• Take care with the direction of needle bearing. Refer to

AT-264, "Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

.

• Apply petroleum jelly to needle bearing.

SCIA5249E

SCIA2439E

Specified clearance “A”

Standard

: 0.7 - 1.1 mm (0.028 - 0.043 in)

SCIA3129E

SCIA5031E
