AT-300

< SERVICE INFORMATION >

REPAIR FOR COMPONENT PARTS

5.

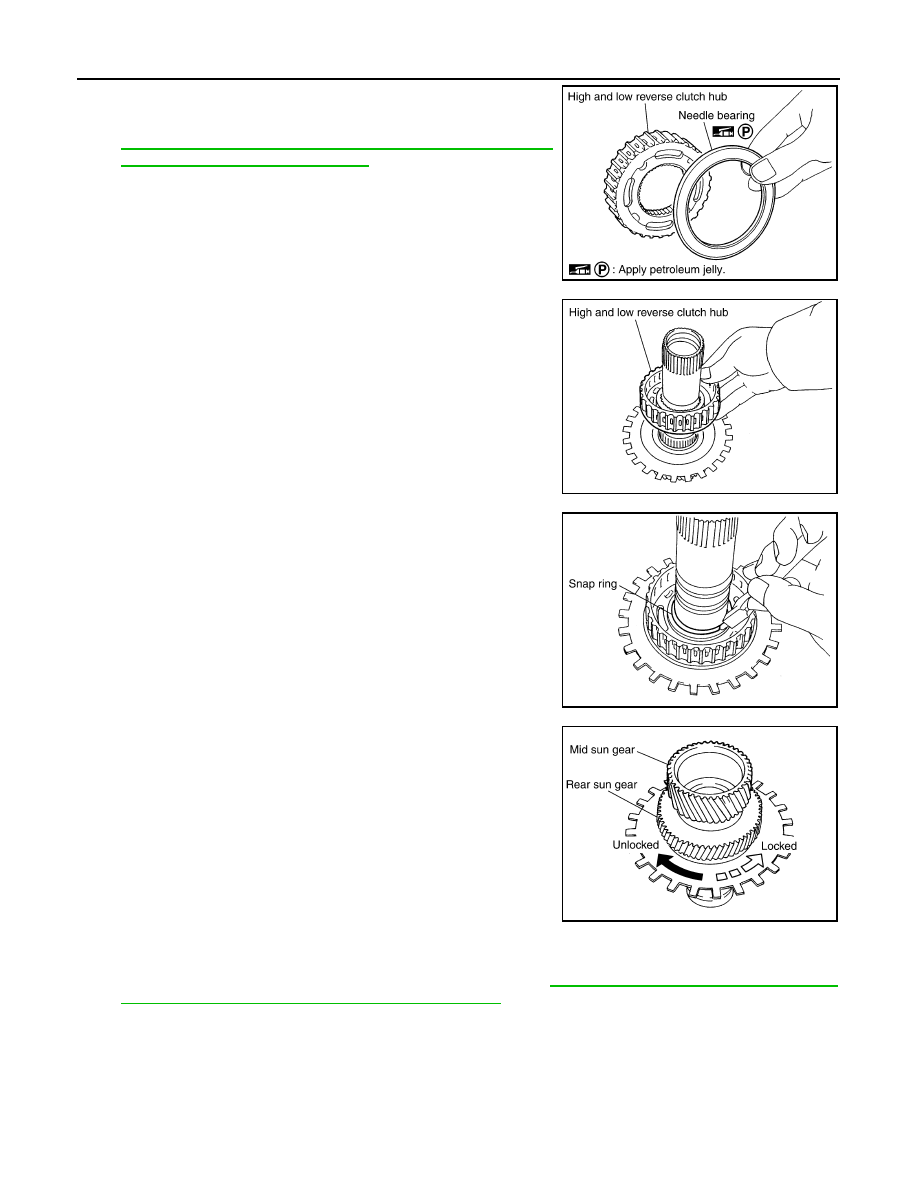

Install needle bearing to high and low reverse clutch hub.

CAUTION:

• Take care with the direction of needle bearing. Refer to

AT-264, "Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

.

• Apply petroleum jelly to needle bearing.

6.

Install high and low reverse clutch hub to mid sun gear assem-
bly.

7.

Using pair of snap ring pliers, install snap ring to mid sun gear
assembly.

CAUTION:

Do not expand snap ring excessively.

8.

Check operation of 1st one-way clutch.

a.

Hold mid sun gear and turn rear sun gear.

b.

Check 1st one-way clutch for correct locking and unlocking
directions.

CAUTION:

If not as shown in the figure, check installation direction of
1st one-way clutch.

9.

Install needle bearing and bearing races to high and low reverse clutch hub.

CAUTION:

• Take care with the direction of needle bearing . Refer to

AT-264, "Location of Adjusting Shims,

Needle Bearings, Thrust Washers and Snap Rings"

.


Apply petroleum jelly to needle bearing and bearing races.

SCIA2857E

SCIA2856E

SCIA2855E

SCIA3132E

REPAIR FOR COMPONENT PARTS

AT-301

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

• VQ35DE models

• VK45DE models

High and Low Reverse Clutch

INFOID:0000000001327408

COMPONENTS

VQ35DE models

SCIA2854E

SCIA5238E

SCIA5223E

1.

High and low reverse clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Bearing race

AT-302

< SERVICE INFORMATION >

REPAIR FOR COMPONENT PARTS

VK45DE models

DISASSEMBLY

1.

Remove bearing race from high and low reverse clutch drum.

2.

Using a flat-bladed screwdriver, remove snap ring from high and
low reverse clutch drum.

3.

Remove drive plates, driven plates and retaining plate from high
and low reverse clutch drum.

INSPECTION

• Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

• Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

• Check facing for burns, cracks or damage.

High and Low Reverse Clutch Retaining Plates and Driven Plates

• Check facing for burns, cracks or damage.

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.

SCIA5224E

1.

High and low reverse clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Bearing race

SCIA5215E

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-303

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

CAUTION:

Take care with order of plates.

2.

Using a flat-bladed screwdriver, install snap ring in high and low
reverse clutch drum.

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

• Take care with the direction of needle bearing. Refer to

AT-264, "Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

.

• Apply petroleum jelly to bearing race.

Direct Clutch

INFOID:0000000001327409

COMPONENTS

VQ35DE models

SCIA2868E

SCIA5215E

SCIA7128E

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate
