REPAIR FOR COMPONENT PARTS

VK45DE models

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap ring from direct
clutch drum.

2.

Remove drive plates, driven plates, retaining plate and dish
plate* from direct clutch drum.
*: VK45DE models

INSPECTION

• Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

• Check for deformation, fatigue or damage.

Direct Clutch Drive Plates

• Check facing for burns, cracks or damage.

Direct Clutch Retaining Plates, Driven Plates and Dish Plate*

• Check facing for burns, cracks or damage.

*: VK45DE models

ASSEMBLY

1.

Install drive plates, driven plates, retaining plate and dish plate* in direct clutch drum.
*: VK45DE models

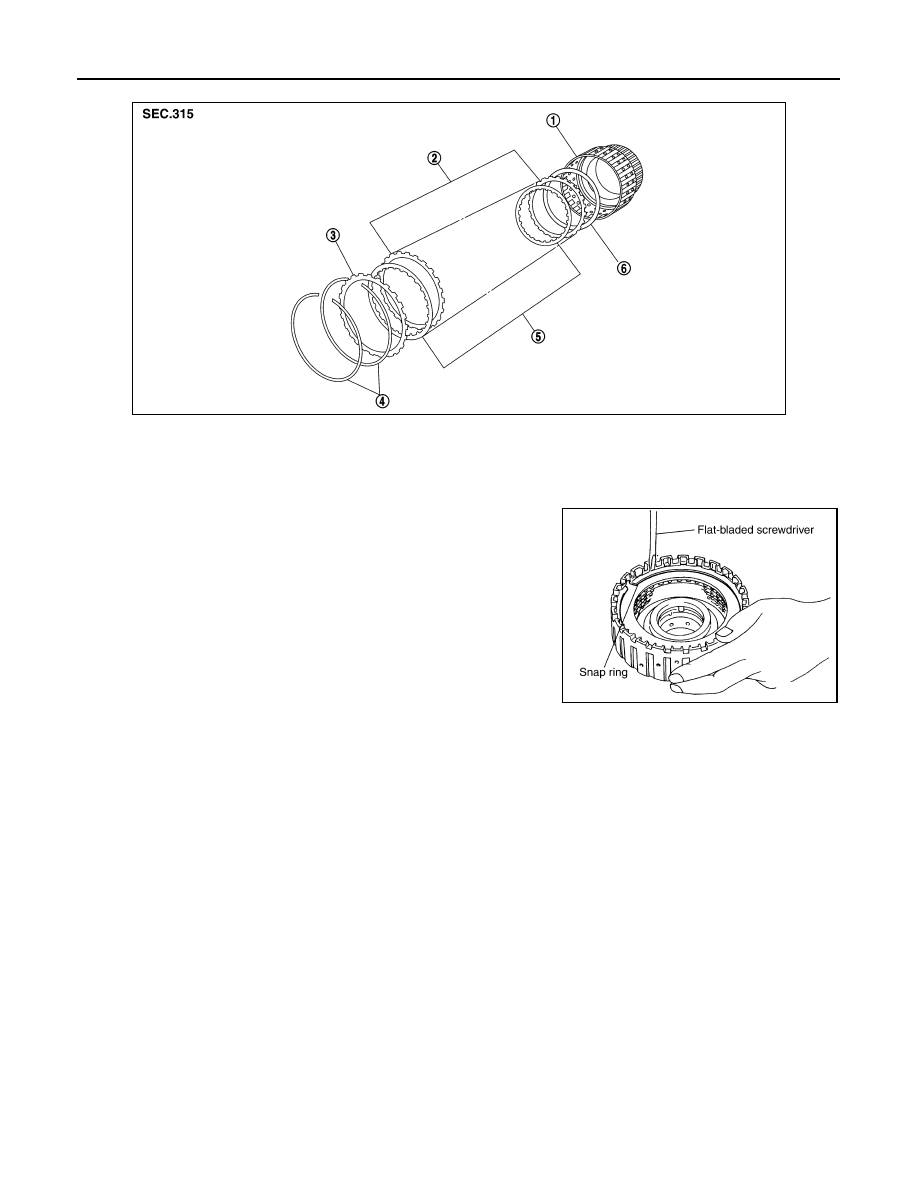

CAUTION:

Take care with order of plates.

SCIA6983E

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Dish plate

SCIA2868E

REPAIR FOR COMPONENT PARTS

AT-305

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

• VQ35DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Drive plate/Driven plate: 5/5

• VK45DE models
- Snap ring (1)
- Retaining plate (2)
- Drive plate (3)
- Driven plate (4)
- Dish plate (5)
- Drive plate/Driven plate: 6/6

2.

Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.

SCIA7134E

SCIA6951E

SCIA2868E

AT-306

< SERVICE INFORMATION >

ASSEMBLY

ASSEMBLY

Assembly (1)

INFOID:0000000001327410

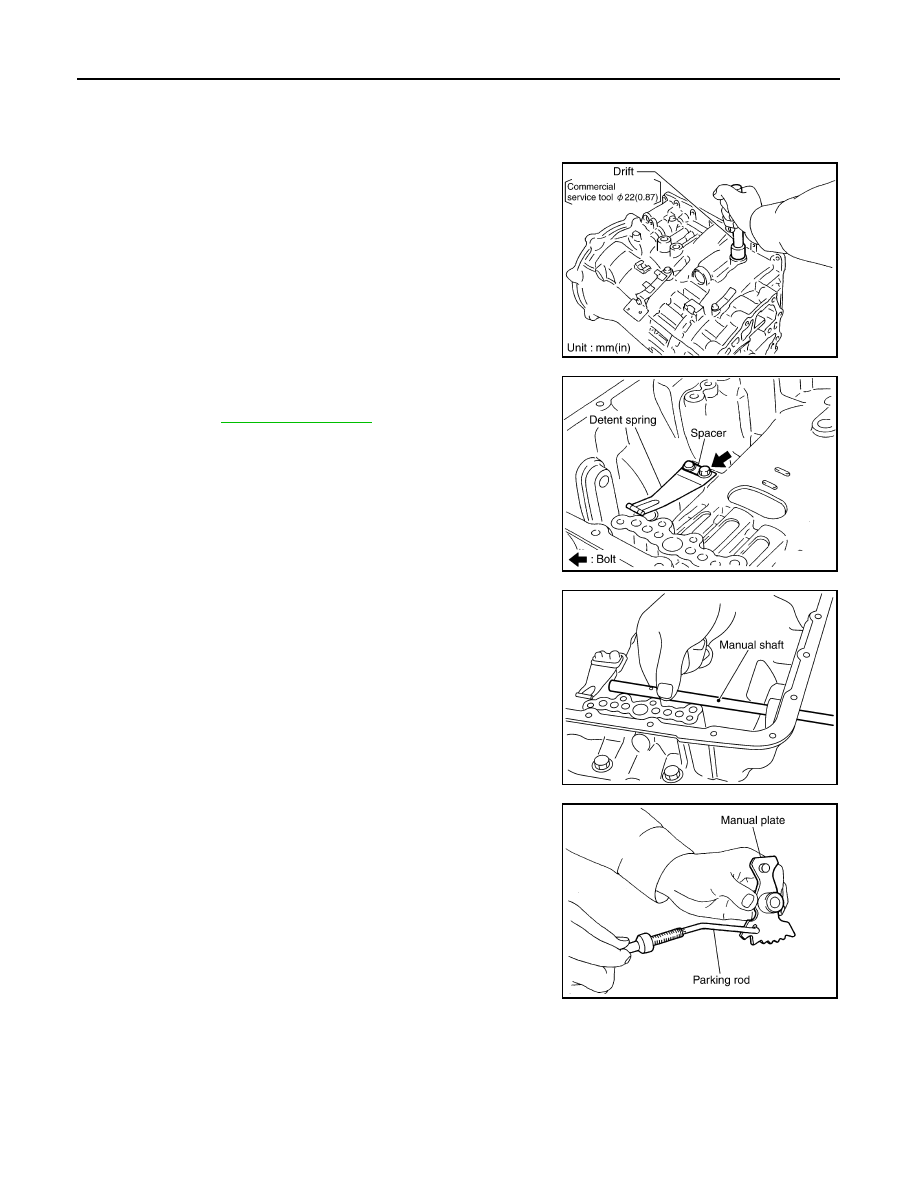

1.

As shown in the figure, use a drift [commercial service tool: 22
mm (0.87 in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.

CAUTION:

• Do not reuse manual shaft oil seals.
• Apply ATF to manual shaft oil seals.

2.

Install detent spring and spacer in transmission case, and then
tighten detent spring and spacer mounting bolt to the specified
torque. Refer to

AT-249, "Component"

.

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

SCIA5248E

SCIA5716E

SCIA5220E

ASSEMBLY

AT-307

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

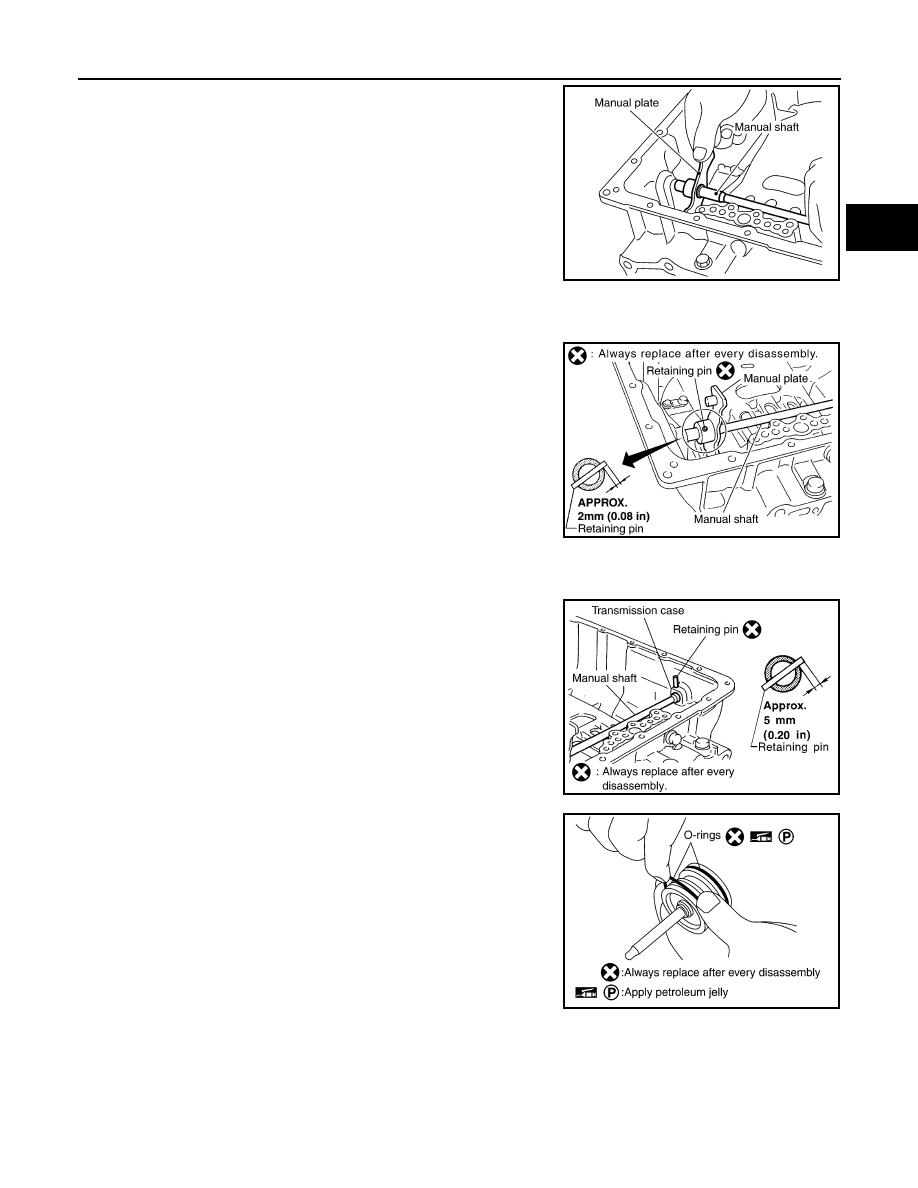

5.

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

• Do not reuse retaining pin.
• Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

7.

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

• Do not reuse retaining pin.
• Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the trans-

mission case.

8.

Install O-rings to servo assembly.

CAUTION:

• Do not reuse O-rings.
• Apply petroleum jelly to O-rings.

SCIA5715E

SCIA5297E

SCIA2427E

SCIA5719E
