Infiniti EX35. Manual - part 789

EXL-200

< ON-VEHICLE REPAIR >

[XENON TYPE]

AFS CONTROL UNIT

AFS CONTROL UNIT

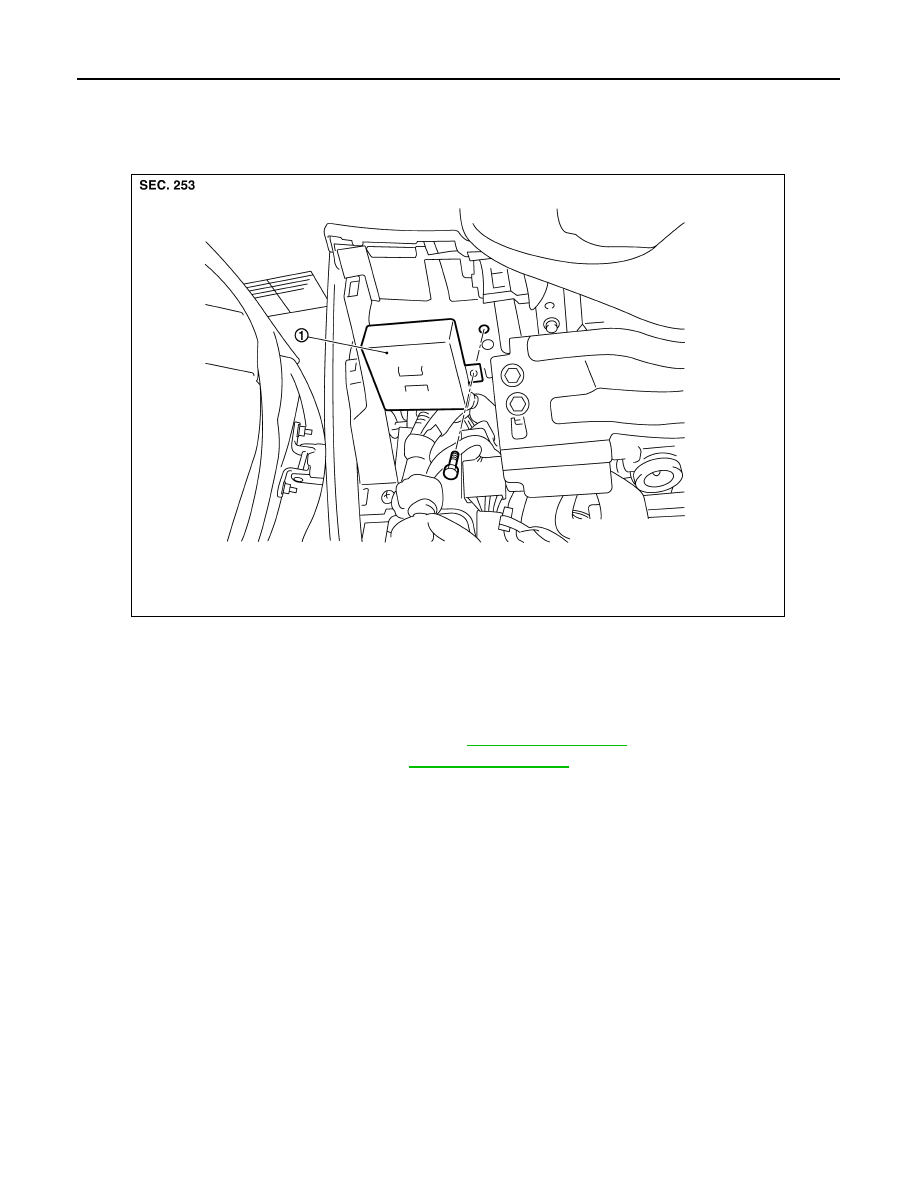

Exploded View

INFOID:0000000003135404

Removal and Installation

INFOID:0000000003135405

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

2.

Remove the instrument finisher A. Refer to

IP-11, "Exploded View"

.

3.

Remove the AFS control unit mounting bolt.

4.

Disconnect the AFS control unit connector.

5.

Remove the AFS control unit.

INSTALLATION

Install in the reverse order of removal.

1.

AFS control unit

JPLIA0102ZZ

STEERING ANGLE SENSOR

EXL-201

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

STEERING ANGLE SENSOR

Removal and Installation

INFOID:0000000003135406

Refer to

SR-6, "Removal and Installation"

.

EXL-202

< ON-VEHICLE REPAIR >

[XENON TYPE]

AFS OFF SWITCH

AFS OFF SWITCH

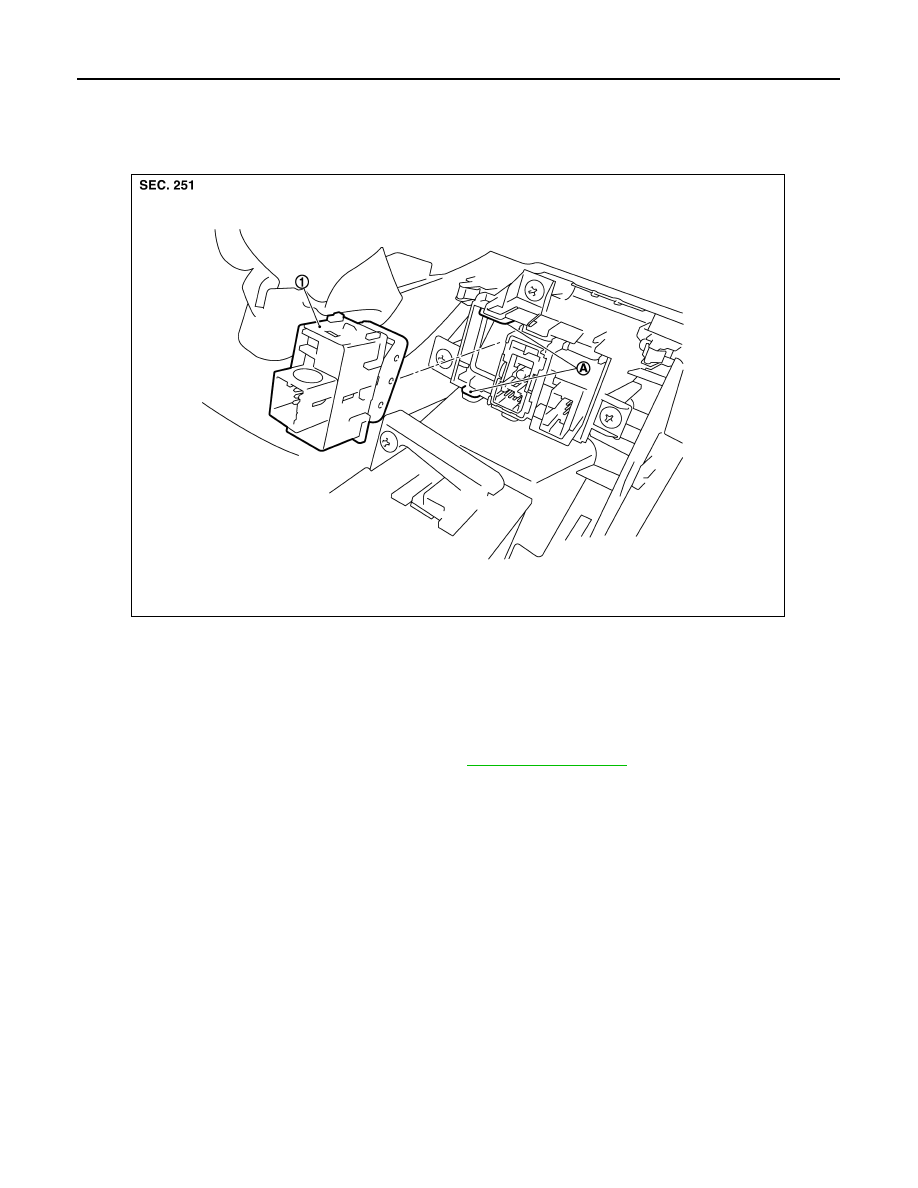

Exploded View

INFOID:0000000003135407

Removal and Installation

INFOID:0000000003135408

REMOVAL

1.

Remove the instrument driver lower panel. Refer to

IP-11, "Exploded View"

.

2.

Widen the pawl. And then remove AFS OFF switch.

INSTALLATION

Install in the reverse order of removal.

1.

AFS OFF switch

A

Pawls

JPLIA0103ZZ

HEIGHT SENSOR

EXL-203

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEIGHT SENSOR

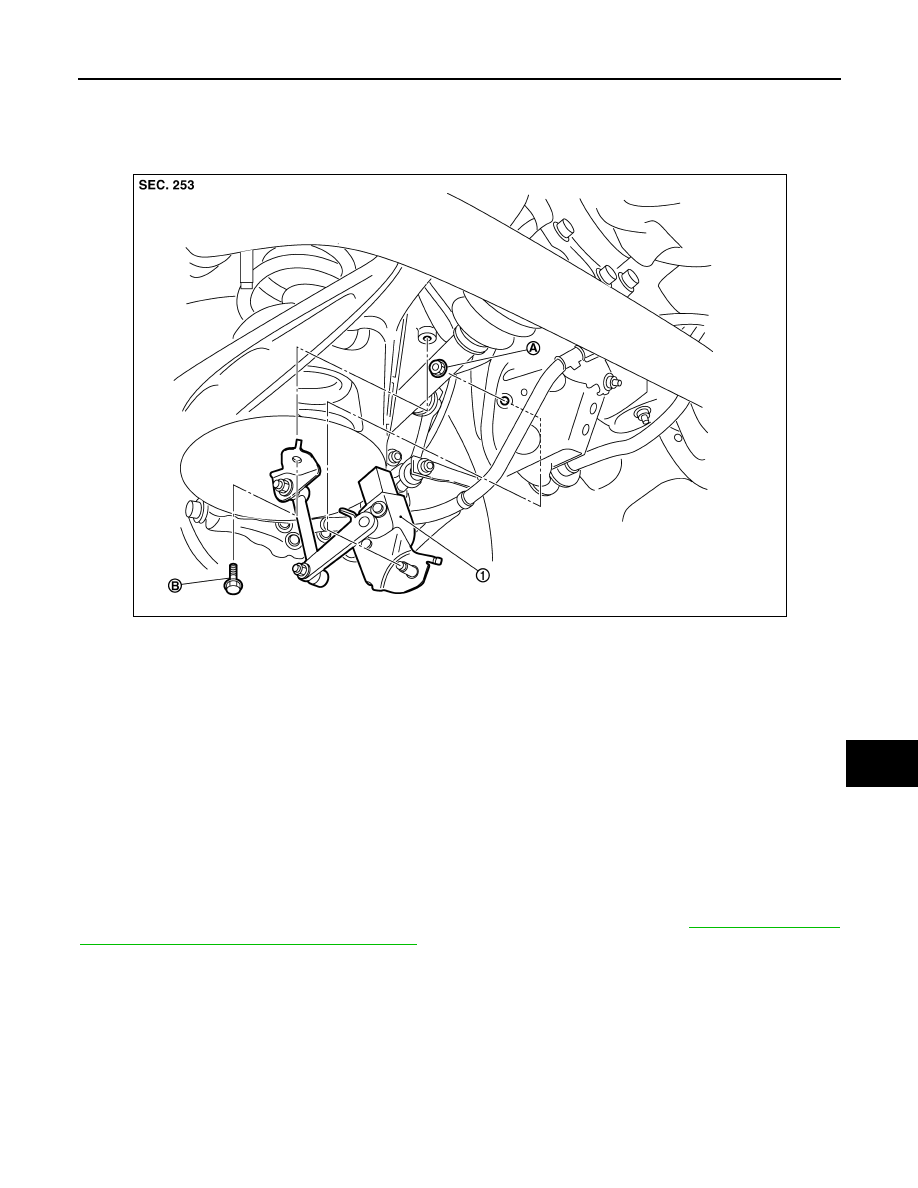

Exploded View

INFOID:0000000003135409

Removal and Installation

INFOID:0000000003135410

REMOVAL

1.

Remove the height sensor mounting nut.

2.

Remove the height sensor lever link bracket mounting bolt.

3.

Disconnect the height sensor connector.

4.

Remove the height sensor.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Perform the levelizer adjustment when removing the height sensor. Refer to

EXL-9, "LEVELIZER

ADJUSTMENT : Special Repair Requirement"

.

1.

Height sensor

A

Height sensor mounting nut

B.

Height sensor lever link bracket
mounting bolt

JPLIA0308ZZ
