EXL-196

< ON-VEHICLE REPAIR >

[XENON TYPE]

FRONT FOG LAMP

2.

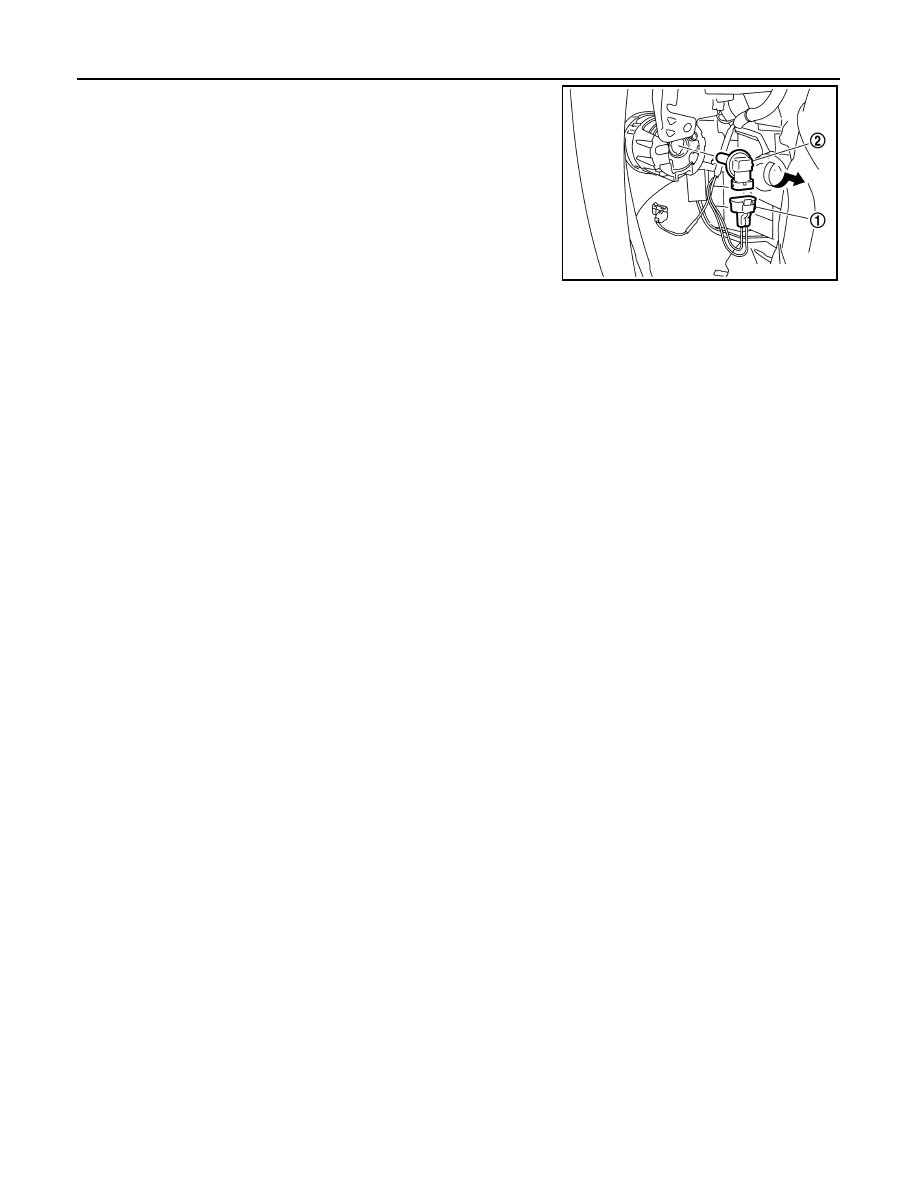

Remove the front fog lamp bulb connector (1).

3.

Rotate the bulb (2) counterclockwise and unlock it.

JPLIA0921ZZ

OPTICAL SENSOR

EXL-197

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OPTICAL SENSOR

Exploded View

INFOID:0000000003135400

Removal and Installation

INFOID:0000000003135401

REMOVAL

1.

Insert an appropriate tool between the optical sensor and the instrument upper panel. Pull out the optical
sensor upward.

2.

Disconnect the optical sensor connector. And then remove the optical sensor.

INSTALLATION

Install in the reverse order of removal.

1.

Optical sensor

JPLIA0922ZZ

EXL-198

< ON-VEHICLE REPAIR >

[XENON TYPE]

LIGHTING AND TURN SIGNAL SWITCH

LIGHTING AND TURN SIGNAL SWITCH

Exploded View

INFOID:0000000003135402

Lighting and turn signal switch is integrated in the combination switch.

BCS-85, "Exploded View"

.

HAZARD SWITCH

EXL-199

< ON-VEHICLE REPAIR >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Exploded View

INFOID:0000000003135403

The hazard warning switch is integrated in the multifunction switch. Refer to

AV-163, "Exploded View"

.
