DLK-242

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

HOOD LOCK

5.

Remove air cleaner case assembly (LH). Refer to

EM-27, "Removal and Installation"

.

6.

Disconnect hood lock switch connector from head lamp bracket (RH).

7.

Remove mounting bolts and remove hood lock bracket (RH/LH).

8.

Disconnect hood lock cable from hood lock (RH/LH).

9.

Disassembly hood lock from hood lock bracket (RH/LH).

10. Remove fender protector (LH). Refer to

EXT-25, "FENDER PROTECTOR : Removal and Installation"

.

11. Remove clips of hood seal assembly (side) (LH) (1).

12. Rotate hood lock control cable protector (1) toward the arrow

direction, then remove it from front combination lamp assembly
(2).

13. Remove hood lock control cable cover from hood lock control cable protector.

14. Disconnect hood lock control cable from hood lock control cable protector.

15. Remove mounting bolts and remove hood lock opener.
16. Remove grommet on the lower dash, pull hood lock control cable toward the passenger compartment.

CAUTION:

While pulling, never to damage (peeling) the outside of the hood lock control cable.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Never to bend cable too much, keeping the radius 100 mm (3.937 in) or more.

: hood lock switch connector

JMKIA2121ZZ

: Clip

JMKIA2119ZZ

JMKIA2120ZZ

HOOD LOCK

DLK-243

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• Check that hood lock control cable is properly engaged with hood lock.
• After installation, perform hood fitting adjustment. Refer to

DLK-212, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-243, "Inspection"

.

Inspection

INFOID:0000000003556330

NOTE:
If the hood lock cable is bent or deformed, replace it.

1.

Check that secondary latch is properly engaged with secondary striker [6.8 mm (0.268 in)] by hood
weight.

2.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

3.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

4.

Install so that static closing force of hood is 94 – 490 N·m (9.6 – 50.0 kg-m, 69 – 361 ft – lb).
NOTE:
• Exert vertical force on right side and left side of hood lock.
• Never press simultaneously both sides.

5.

Check the hood lock lubrication condition. If necessary, apply body grease to hood lock.

PIIB5801E

DLK-244

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

FRONT DOOR LOCK

DOOR LOCK

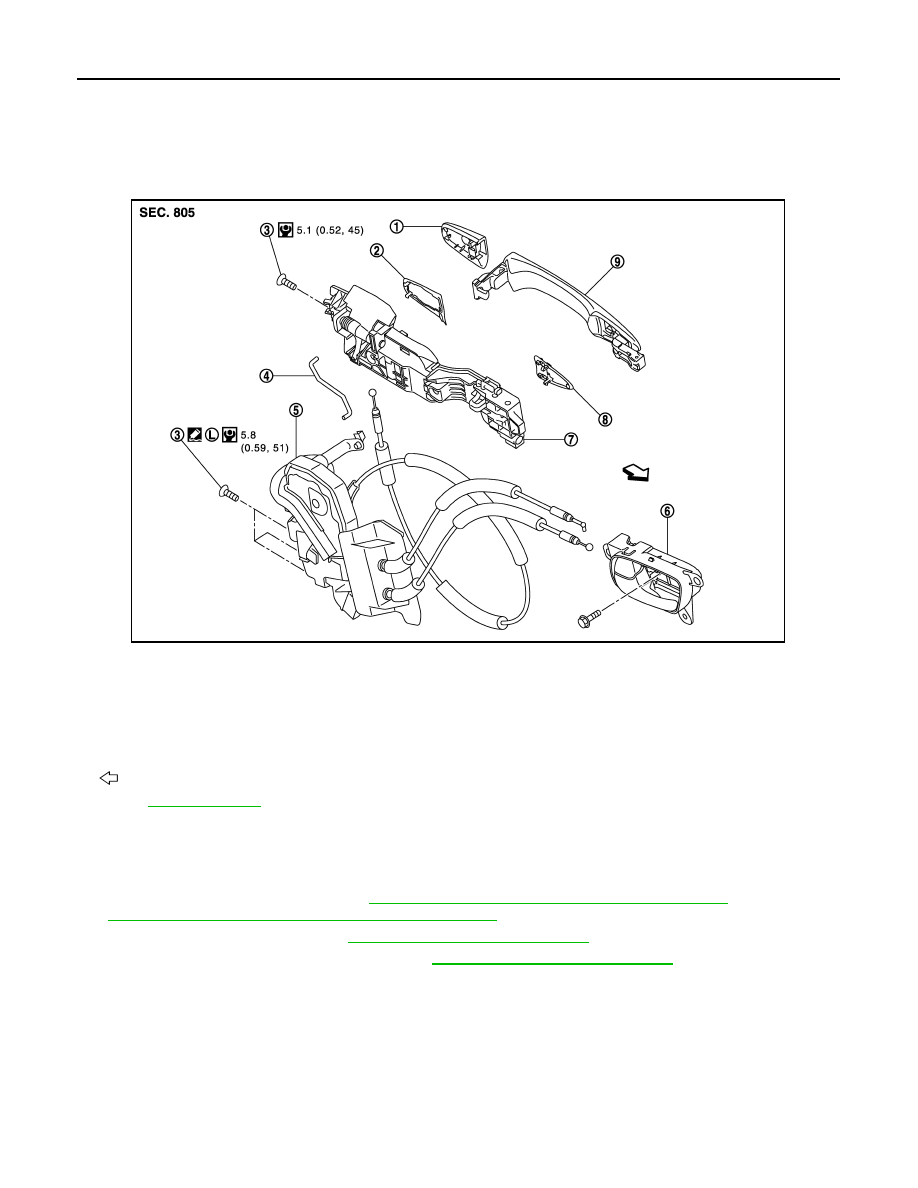

DOOR LOCK : Exploded View

INFOID:0000000003556364

DOOR LOCK : Removal and Installation

INFOID:0000000003556365

REMOVAL

1.

Remove front door finisher. Refer to

INT-11, "DRIVER SIDE : Removal and Installation"

 (driver side) or

INT-14, "PASSENGER SIDE : Removal and Installation"

 (passenger side).

2.

Remove front door glass. Refer to

GW-17, "Removal and Installation"

.

3.

Remove front door module assembly. Refer to

GW-20, "Removal and Installation"

.

4.

Disconnect door antenna and door request switch connector and remove harness clamp (with Intelligent
Key system model) on outside handle bracket.

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

TORX bolt

4.

Key rod (driver side)

5.

Door lock assembly

6.

Inside handle

7.

Outside handle bracket

8.

Front gasket

9.

Outside handle

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA2053GB

FRONT DOOR LOCK

DLK-245

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

CAUTION:

Never remove TORX bolt forcibly.

6.

Reach in to separate key rod (2) connection [on the door key
cylinder assembly (1)] (driver side).

7.

While pulling outside handle, remove door key cylinder assem-
bly (driver side) or outside handle escutcheon (passenger side).

8.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

9.

Remove front gasket and rear gasket.

: TORX bolt

JMKIA2094ZZ

JMKIA0553ZZ

JMKIA0560ZZ

JMKIA0524ZZ
