Infiniti EX35. Manual - part 363

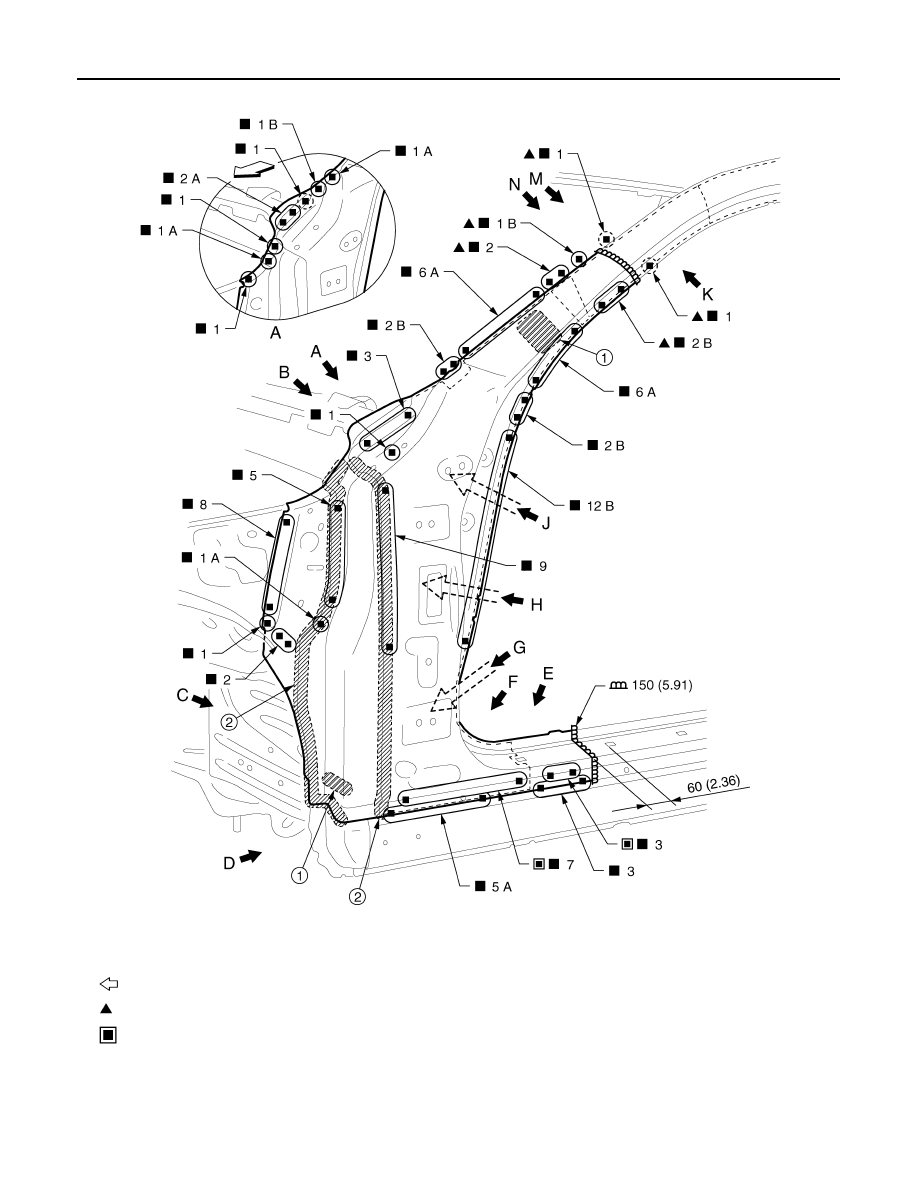

BRM-54

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

1.

Urethane foam

2.

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

:Perform the plug welding instead of the laser welding.

Replacement parts

l

Outer front side body (LH)

l

Front pillar brace (LH)

l

Upper rear hoodledge (LH)

l

Upper inner front pillar assembly
(LH)

JSKIA0605GB

REPLACEMENT OPERATIONS

BRM-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

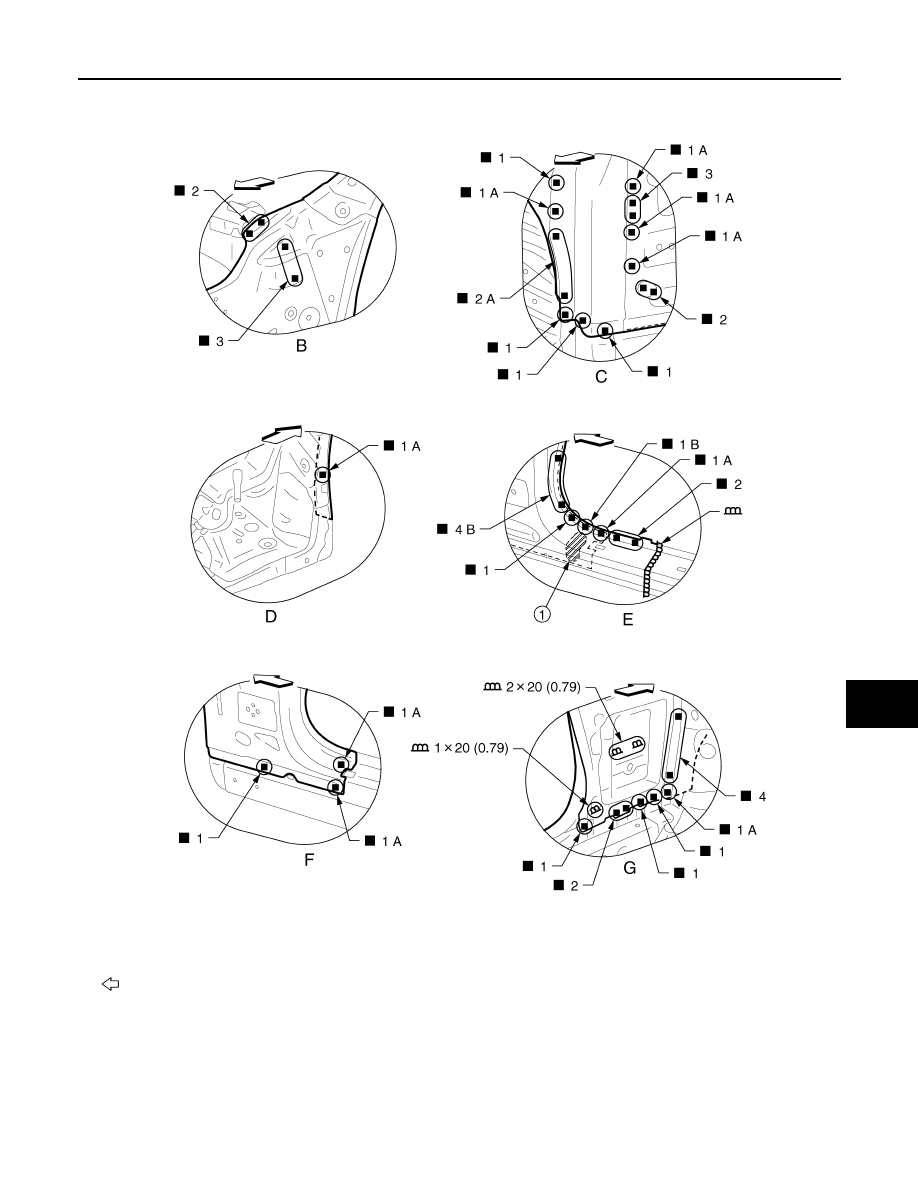

View B: Before installing outer front side body and front pillar brace
View F: Before installing outer front side body

1.

Urethane foam

Unit: mm (in)

: Vehicle front

JSKIA0606GB

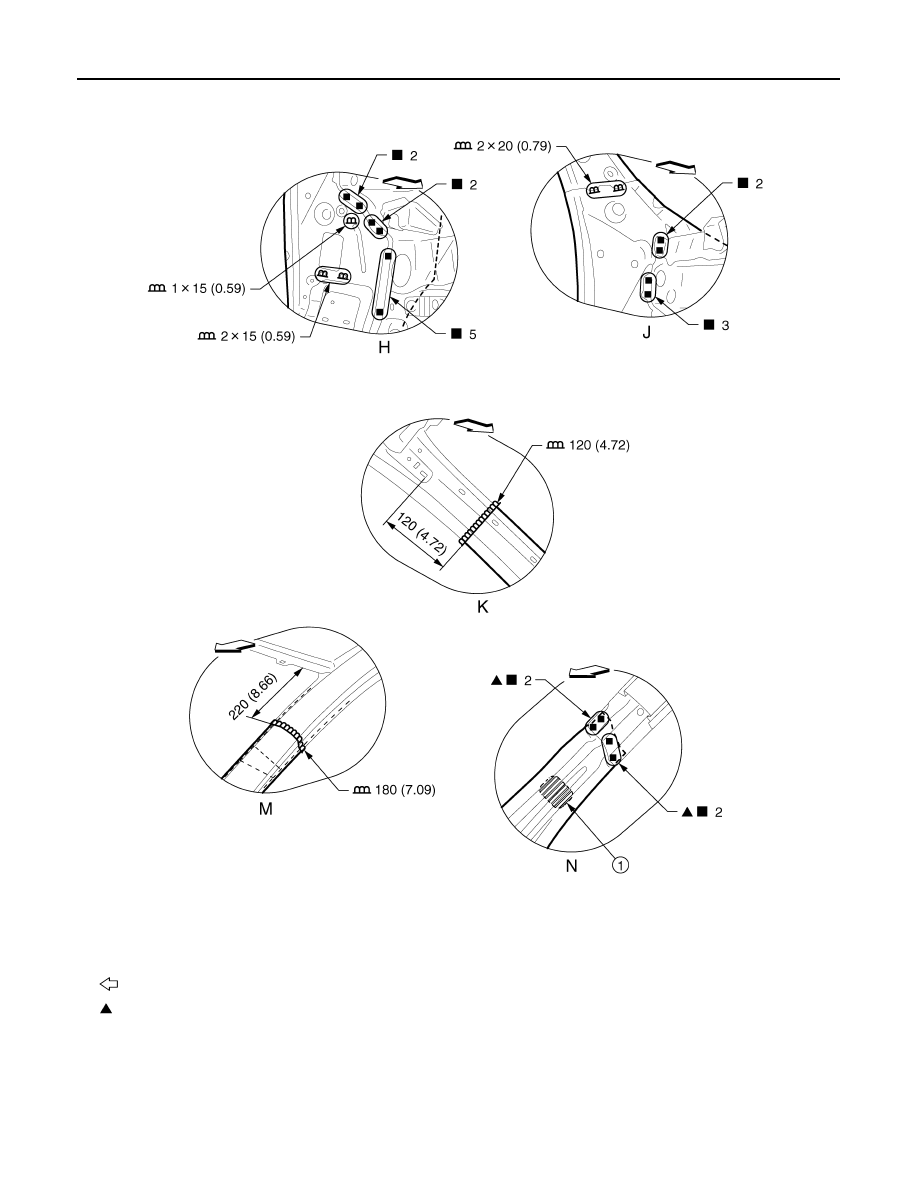

BRM-56

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View N: Before installing outer front side body

Center Pillar

INFOID:0000000003757474

Work after roof has been removed.

1.

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel plate).

JSKIA0607GB

REPLACEMENT OPERATIONS

BRM-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View A: Before installing outer front side body

1.

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

10 mm (0.39 in) hole for the plug welding hole (ultra high strength steel plate).

: Drill

φ

11 mm (0.43 in) hole for the plug welding hole (ultra high strength steel plate).

: Perform the plug welding instead of the laser welding.

Replacement parts

l

Outer front side body (LH)

l

Center pillar reinforcement (LH)

l

Inner center pillar (LH)

JSKIA0608GB
