BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

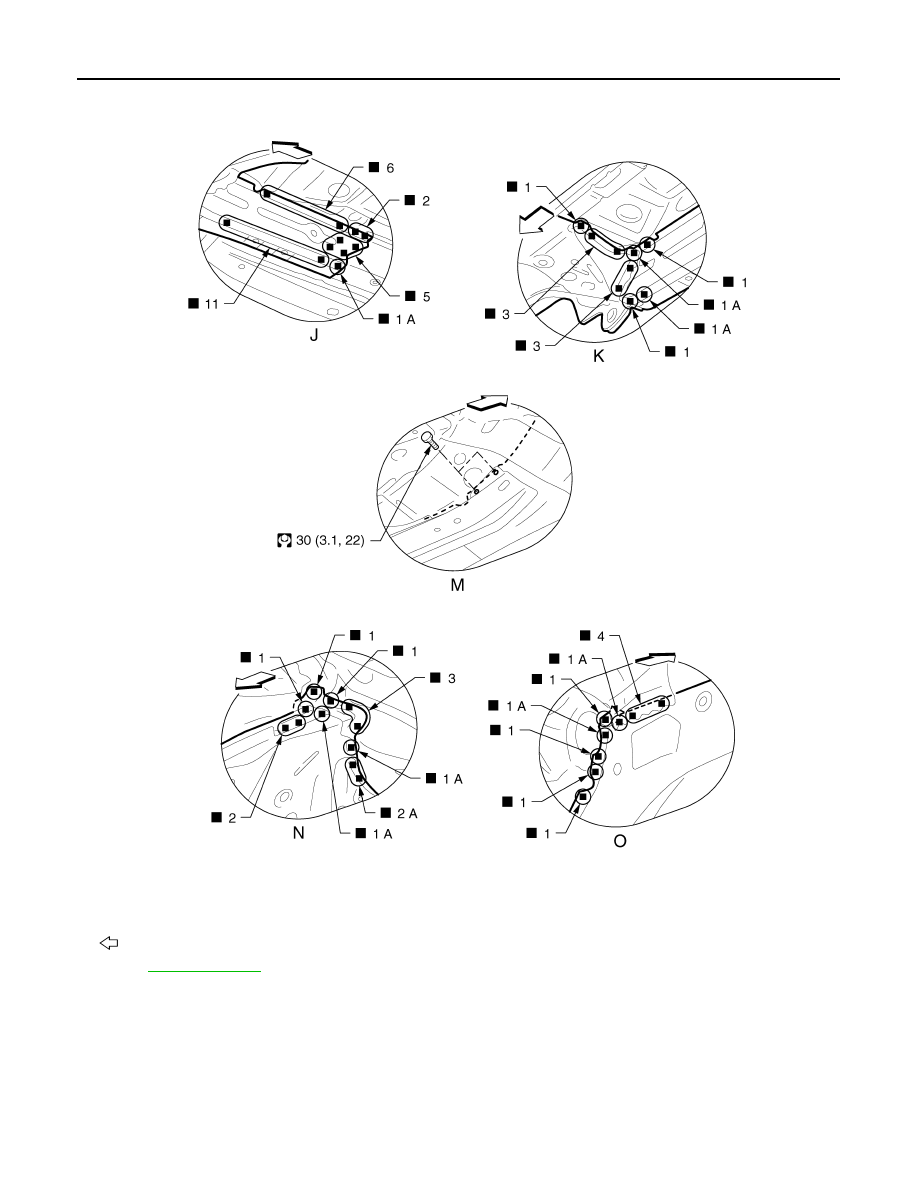

Front Side Member (AWD)

INFOID:0000000003757481

Work after radiator core support and hoodledge have been removed.
Assemble the hoodledge and check the fitting according to Body Alignment before replacing the front side
member center closing plate.

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSKIA0597GB

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

: Vehicle front

Replacement parts

l

Front side member assembly (LH)

l

Front side member closing plate as-
sembly (LH)

l

Front side member outrigger assem-
bly (LH)

JSKIA0598GB

BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View F: Before installing front side member outrigger assembly

Unit: mm (in)

: Vehicle front

JSKIA0599GB

REPLACEMENT OPERATIONS

BRM-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Front Side Member (Partial Replacement)

INFOID:0000000003757472

Work after radiator core support has been removed.

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JSKIA0600GB
