BRM-42

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

View B: Before installing hoodledge reinforcement

1.

Front side member connector as-
sembly

Unit: mm (in)

: Vehicle front

Replacement parts

l

Upper front hoodledge (LH)

l

Hoodledge reinforcement (LH)

l

Front strut housing (LH)

JSKIA0593GB

REPLACEMENT OPERATIONS

BRM-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

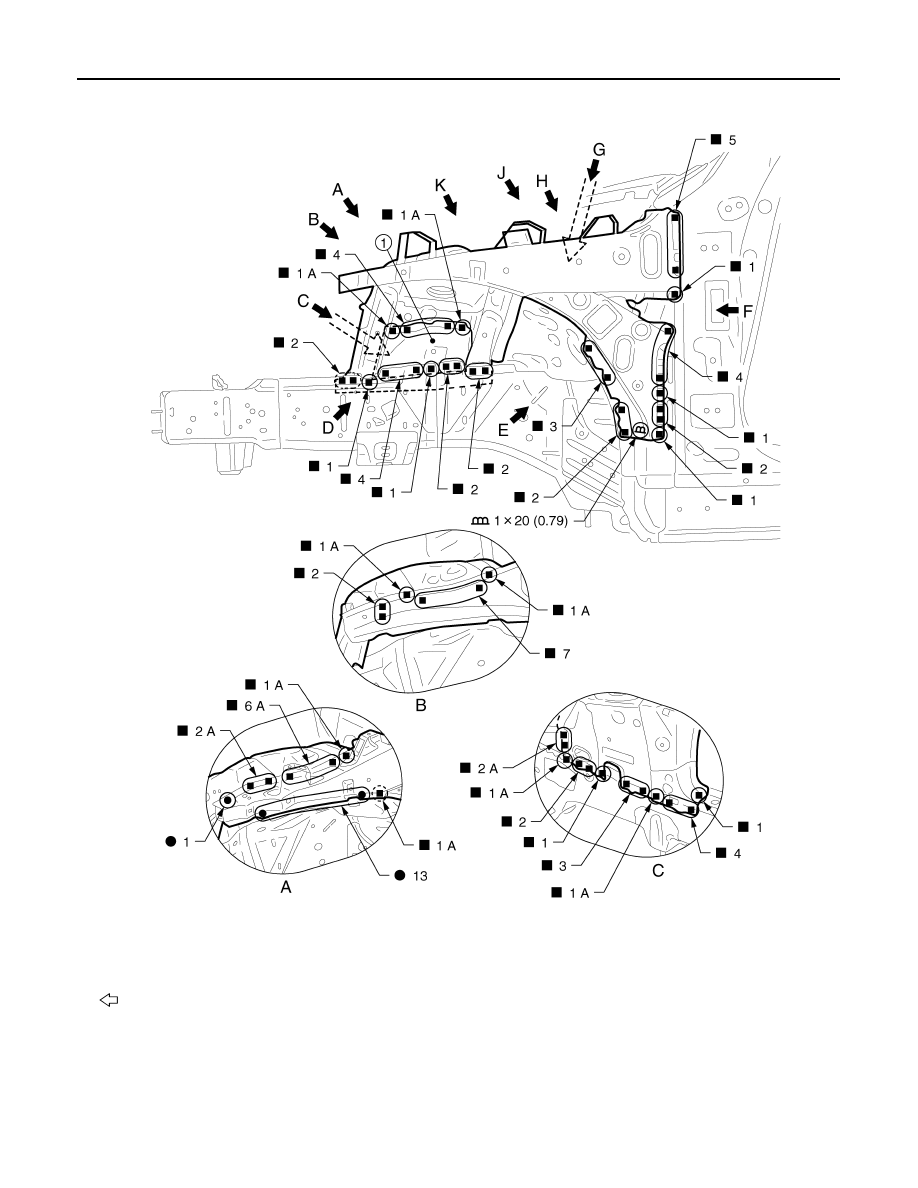

View H: Before installing hoodledge reinforcement

Front Side Member (2WD)

INFOID:0000000003757471

Work after radiator core support and hoodledge have been removed.
Assemble the hoodledge and check the fitting according to Body Alignment before replacing the front side
member center closing plate.

1.

Front side member connector as-
sembly

Unit: mm (in)

: Vehicle front

JSKIA0594GB

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Unit: mm (in)

: Vehicle front

Replacement parts

l

Front side member assembly (LH)

l

Front side member closing plate as-
sembly (LH)

l

Front side member outrigger assem-
bly (LH)

JSKIA0595GB

REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

View F: Before installing front side member outrigger assembly

Unit: mm (in)

: Vehicle front

JSKIA0596GB
