< PRECAUTION >

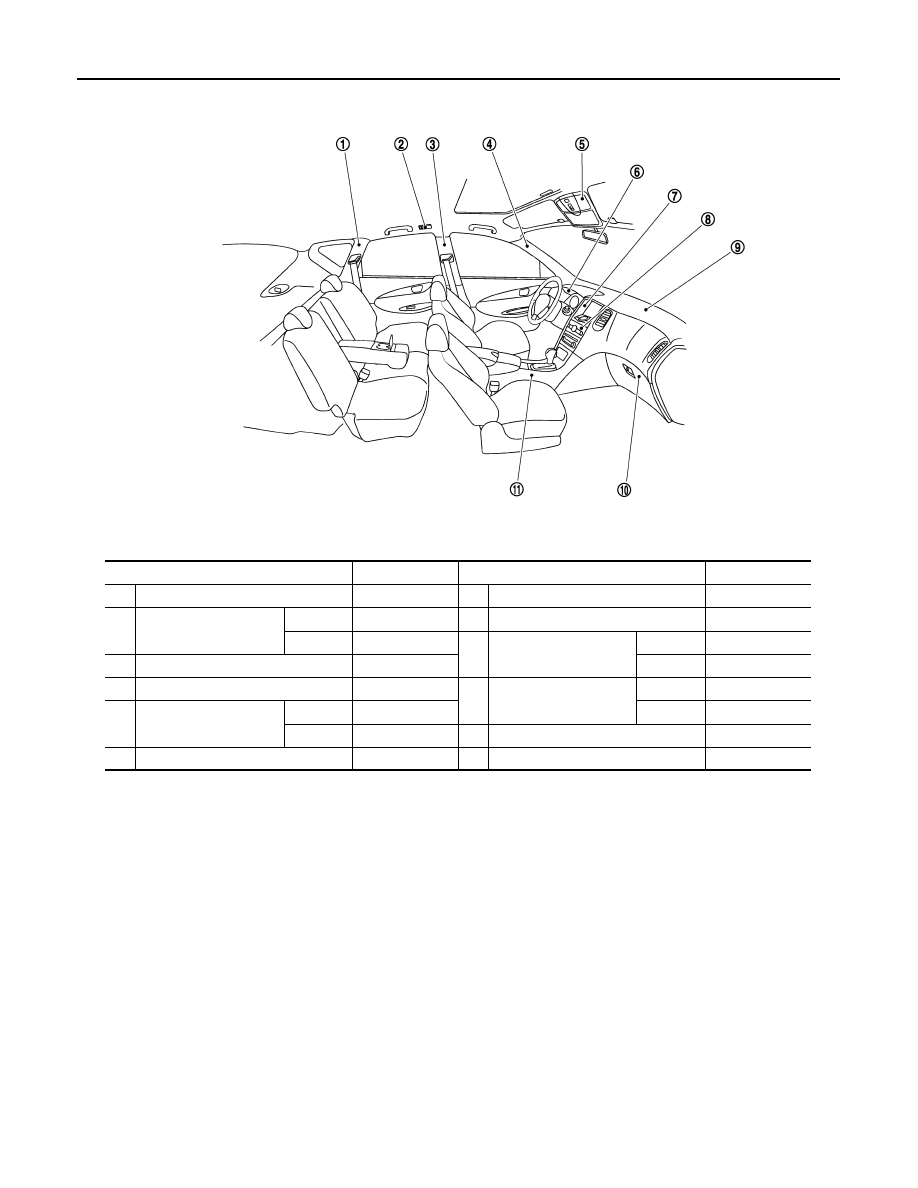

HANDLING PRECAUTIONS

Component

Material

Component

Material

1

Luggage side finisher

PP

7

Cluster lid D

PC + ABS

2

Personal  lamp

Lens

PC

8

Cluster lid C

PC + ABS

Housing

PP

9

Instrument panel

Skin

TPU

3

Center pillar garnish

PP

Pad

PP

4

Front pillar garnish

PP

10

Glove box

Skin

PVC

5

Map  lamp

Lens

PC

Core

ABS

Housing

PP

11

Console body

PC + ABS

6

Cluster  lid  A

PP

JSKIA0581ZZ

BODY COMPONENT PARTS

BRM-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REMOVAL AND INSTALLATION

BODY COMPONENT PARTS

Underbody Component Parts

INFOID:0000000003736006

JSKIA0583ZZ

BRM-8

< REMOVAL AND INSTALLATION >

BODY COMPONENT PARTS

1.

Radiator core support assembly (RH
& LH)

2.

Front strut housing (RH & LH)

3.

Lower rear hoodledge (RH & LH)

4.

Upper front hoodledge (RH & LH)

5.

Upper rear hoodledge (RH & LH)

6.

Hoodledge reinforcement (RH & LH)

7.

Upper side cowl top (RH & LH)

8.

Upper front cowl top assembly

9.

Cowl top bracket (RH & LH)

10. Upper dash

11.

Lower dash crossmember assembly 12. Lower outer battery support bracket

13. Lower battery support bracket

14. Lower dash

15. Center front floor

16. Front floor (RH & LH)

17. Inner sill (RH & LH)

18. Rear seat crossmember reinforce-

ment assembly

19. Rear floor front

20. Rear floor seat belt anchor reinforce-

ment

21. Rear floor rear

22. Spare tire clamp bracket

23. Rear floor side (RH & LH)

24. Front side member assembly (RH &

LH)

25. Front side member front extension

(RH & LH)

26. Front side member connector as-

sembly (RH & LH)

27. Front side member closing plate as-

sembly (RH & LH)

28. Front side member front closing

plate (RH & LH)

29. Front side member center closing

plate (RH & LH)

30. Front side member rear extension

(RH & LH)

31. Front side member outrigger assem-

bly (RH & LH)

32. Rear seat crossmember

33. 2nd rear crossmember

34. Rear crossmember center assembly 35. Rear side member assembly (RH &

LH)

36. Rear side member extension (RH &

LH)

37. Rear end crossmember assembly

 : Both sided anti-corrosive precoated steel portions

 : High strength steel (HSS) portions

 : Both sided anti-corrosive steel and HSS portions

BODY COMPONENT PARTS

BRM-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Body Component Parts

INFOID:0000000003134491

1.

Hood

2.

Front fender (RH & LH)

3.

Side body assembly (RH & LH)

4.

Outer front side body (RH & LH)

5.

Front pillar brace (RH & LH)

6.

Center pillar reinforcement (RH &
LH)

7.

Outer side roof rail reinforcement
(RH & LH)

8.

Outer sill reinforcement (RH & LH)

9.

Inner roof rail reinforcement (RH &
LH)

JSKIA0582ZZ
