Infiniti EX35. Manual - part 349





ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-111

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Before servicing, disconnect the battery cable from negative terminal.
• To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-

aged. To install, use flare nut crowfoot and torque wrench.

• Do not apply excessive impact to ABS actuator and electric unit (control unit), such as dropping it.
• Do not remove and install actuator by holding harness.
• After work is completed, bleed air from brake tube. Refer to

BR-11, "Bleeding Brake System"

.

• After installing harness connector in the ABS actuator and electric unit (control unit), make sure

connector is securely locked.

• When replacing ABS actuator and electric unit (control unit), make sure to adjust neutral position of

steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

BRC-112

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

YAW RATE/SIDE G SENSOR

YAW RATE/SIDE G SENSOR

Exploded View

INFOID:0000000003133009

Removal and Installation

INFOID:0000000003133010

REMOVAL

CAUTION:

Do not drop or strike yaw rate/side G sensor, or do not use power tool etc., because yaw rate/side G
sensor is sensitive to the impact.

1.

Remove center console. Refer to

IP-22, "Exploded View"

.

2.

Disconnect yaw rate/side G sensor harness connector.

3.

Remove mounting bolts. Remove yaw rate/side G sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Do not drop or strike yaw rate/side G sensor, or do not use power tool etc., because yaw rate/side G
sensor is sensitive to the impact.

1.

Yaw rate/side G sensor

2.

Connector

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol makes in the figure.

JSFIA0197GB

STEERING ANGLE SENSOR

BRC-113

< ON-VEHICLE REPAIR >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

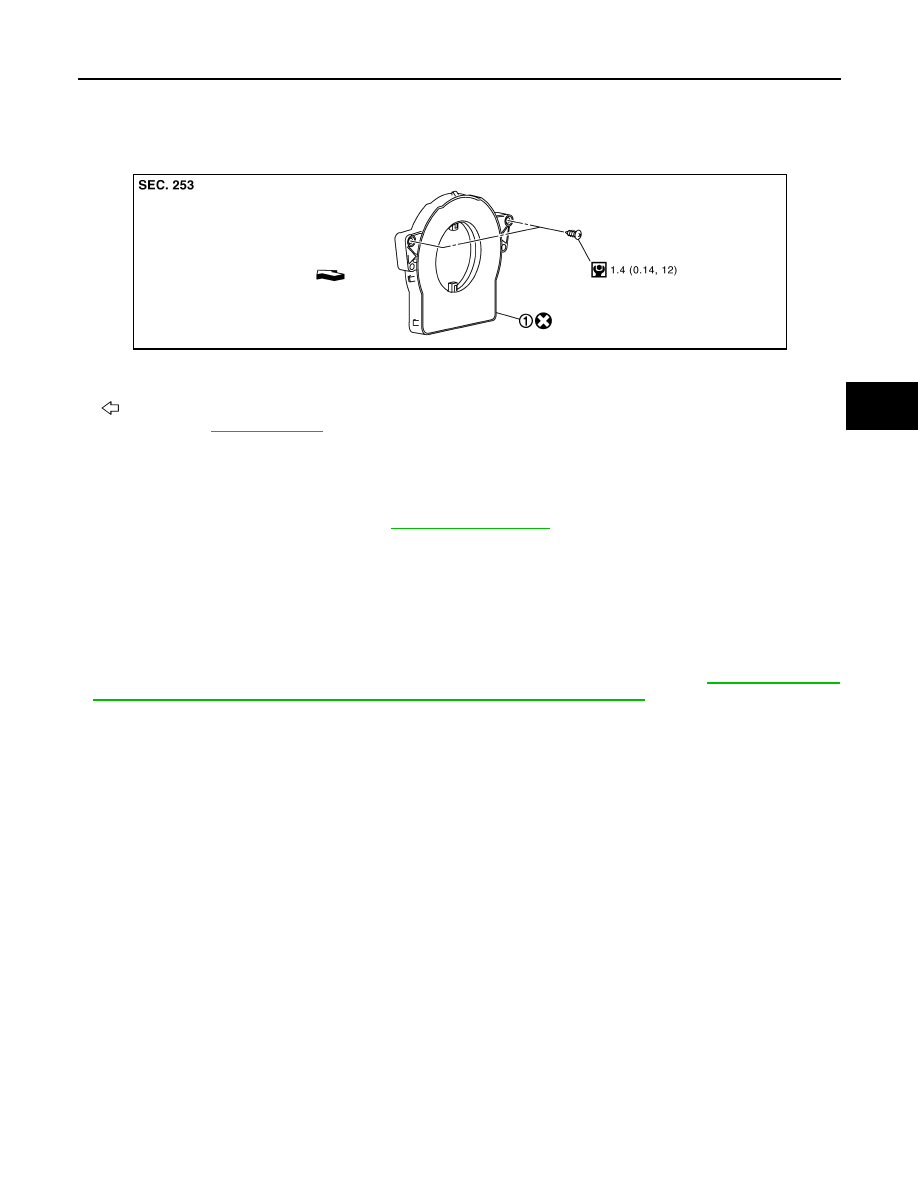

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000003133011

Removal and Installation

INFOID:0000000003133012

REMOVAL

1.

Remove spiral cable assembly. Refer to

SR-6, "Exploded View"

.

2.

Remove steering angle sensor from spiral cable assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse steering angle sensor.
• When installing steering angle sensor, tighten it to the specified torque with an electric screwdriver.

Be sure to tighten it completely with no floating and tilting.

• After work, make sure to adjust neutral position of steering angle sensor. Refer to

BRC-8, "ADJUST-

MENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Description"

.

1.

Steering angle sensor

: Vehicle front

Refer to GI section

GI-4, "Components"

 for symbol marks in the figure.

JSFIA0237GB

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

FEATURES OF NEW MODEL ......................

2

BODY EXTERIOR PAINT COLOR  .....................

2

Body Exterior Paint Color .......................................

2

PRECAUTION ...............................................

4

HANDLING PRECAUTIONS ...............................

4

Precautions For Plastics ..........................................

4

REMOVAL AND INSTALLATION ................

7

BODY COMPONENT PARTS  .............................

7

Underbody Component Parts ..................................

7

Body Component Parts  .............................................

9

CORROSION PROTECTION  .............................

11

Description ..............................................................

11

Anti-corrosive Wax  ..................................................

11

Undercoating ...........................................................

12

BODY SEALING .................................................

14

Description ..............................................................

14

BODY CONSTRUCTION ....................................

20

Body Construction ...................................................

20

BODY ALIGNMENT  ...........................................

22

Body Center Marks ................................................

22

Description ...............................................................

23

Engine Compartment ..............................................

23

Underbody (2WD) ....................................................

25

Underbody (AWD)  ...................................................

28

Passenger Compartment ........................................

30

Rear Body ...............................................................

32

REPAIRING HIGH STRENGTH STEEL  ...........

34

High Strength Steel (HSS) ....................................

34

REPLACEMENT OPERATIONS .......................

37

Description ...............................................................

37

Radiator Core Support .............................................

41

Hoodledge ...............................................................

41

Front Side Member (2WD)  ......................................

43

Front Side Member (AWD)  ......................................

46

Front Side Member (Partial Replacement) ...........

49

Front Pillar ..............................................................

50

Front Pillar (Partial Replacement) ...........................

53

Center Pillar .............................................................

56

Outer Sill .................................................................

58

Rear Fender ............................................................

62

Rear Panel ..............................................................

64

Rear End Crossmember ..........................................

64

Rear Floor Rear .....................................................

65

Rear Side Member Extension ...............................

66
