Infiniti EX35. Manual - part 317





BR-30

< ON-VEHICLE REPAIR >

BRAKE BOOSTER

• Depress the brake pedal with the engine running. Then stop the

engine while holding down the brake pedal. Check that the brake
pedal stroke does not change after holding down the brake pedal
for 30 seconds or more.
NOTE:
A slight impact with a small click may be felt on the pedal when the
brake pedal is fully depressed. This is a normal phenomenon due
to the brake system operation.

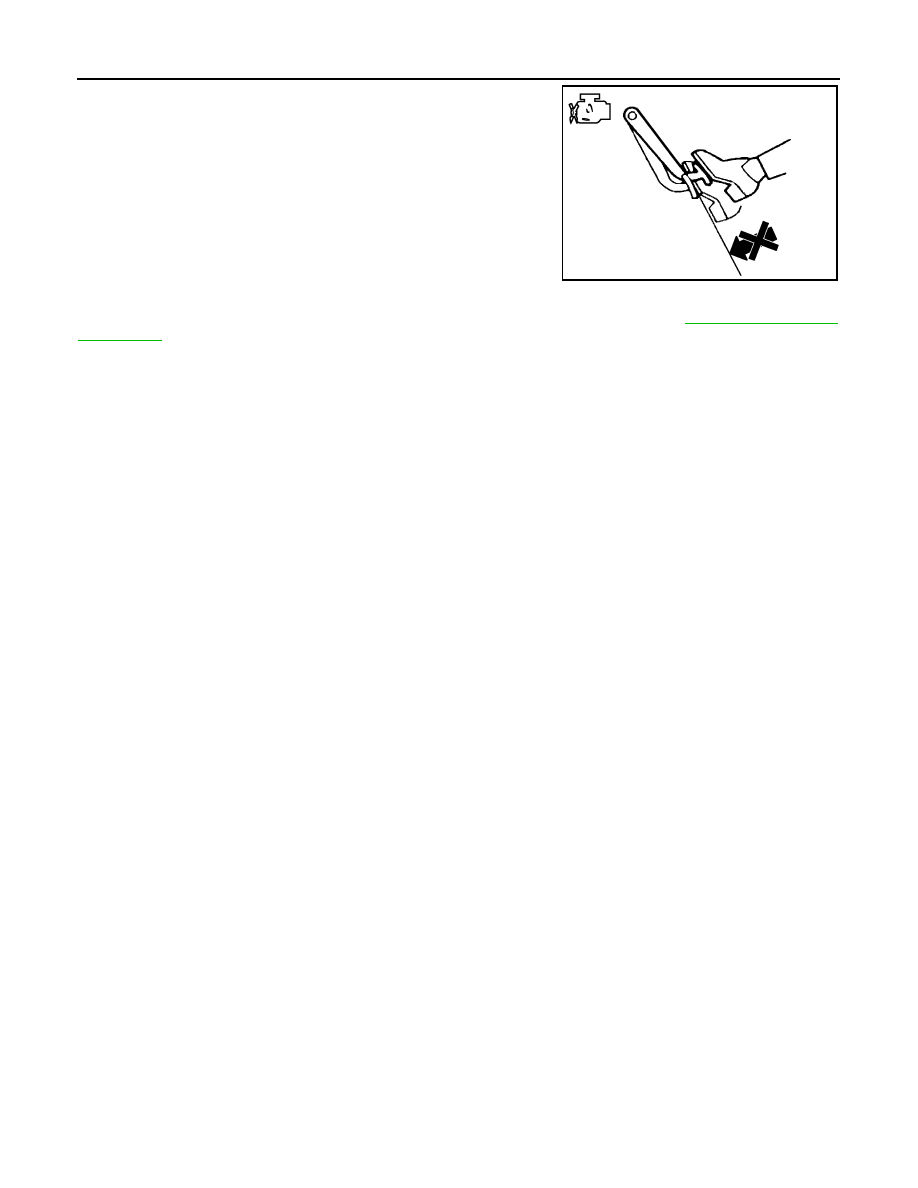

ADJUSTMENT AFTER INSTALLATION

Perform the brake pedal adjustment after installing the brake pedal assembly. Refer to

BR-7, "Inspection and

Adjustment"

.

JPFIA0044ZZ

VACUUM LINES

BR-31

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

VACUUM LINES

Exploded View

INFOID:0000000003140004

Removal and Installation

INFOID:0000000003140005

REMOVAL

1.

Remove the engine cover. Refer to

EM-25, "Exploded View"

.

2.

Remove the cowl top cover. Refer to

EXT-22, "Exploded View"

.

3.

Remove the vacuum hose and tube.

INSTALLATION

Note the following, install in the reverse order of removal.
• Because vacuum hose contains a check valve, it must be installed in the correct position. Refer to the stamp

to confirm correct installation. Brake booster will not operate normally if the hose is installed in the wrong
direction.

• When installing vacuum hose, insert it until its tip reaches the

back-end of length (A) or further as shown in the figure.

- Face the marking side up when assembling.

CAUTION:

Never use lubricating oil during assembly.

Inspection

INFOID:0000000003140006

INSPECTION AFTER REMOVAL

Appearance

1.

Grommet

2.

Clamp

3.

Vacuum hose (built in check valve)

4.

Vacuum piping

5.

Vacuum hose

A.

To intake manifold

B.

Paint mark

C.

Stamp indicating engine direction

D.

Stamp indicating grommet installa-
tion position

E.

To brake booster

JPFIA0022ZZ

Standard

A

: 24 mm (0.95 in) or more

JPFIA0023ZZ

BR-32

< ON-VEHICLE REPAIR >

VACUUM LINES

Check for correct assembly, damage and deterioration.

Check Valve Airtightness

• Use a handy vacuum pump (A) to check.

• Replace vacuum hose assembly if vacuum hose and check valve

are malfunctioning.

When connected to the booster side (B):

Vacuum should decrease within 1.3 kPa (9.8 mm-
Hg, 0.38 inHg) for 15 seconds under a vacuum of

66.7 kPa (

500 mmHg,

19.69 inHg).

When connected to the engine side (C):

Vacuum should not exist.

JPFIA0024ZZ

FRONT DISC BRAKE

BR-33

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

FRONT DISC BRAKE

BRAKE PAD

BRAKE PAD : Exploded View

INFOID:0000000003140010

BRAKE PAD : Removal and Installation

INFOID:0000000003140011

REMOVAL

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

• Never depress the brake pedal while removing the brake pads because the piston may pop out.
• Never spill or splash brake fluid on the disc rotor.

1.

Remove tires with power tool.

2.

Remove lower sliding pin bolt.

3.

Suspend the cylinder body with suitable wire so that the brake hose will not stretch. Then remove the
brake pads, shims, shim covers and pad retainers from the torque member.

CAUTION:

• Never deform the pad retainer when removing the pad retainer from the torque member.
• Never damage the piston boot.
• Never drop the brake pads, shims, and the shim covers.

INSTALLATION

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

• Never depress the brake pedal while removing the brake pads or the cylinder body because the pis-

ton may pop out.

• Never spill or splash brake fluid on the disc rotor.

1.

Cylinder body

2.

Inner shim cover

3.

Inner shim

4.

Inner pad (with pad wear sensor)

5.

Pad retainer

6.

Torque member

7.

Outer pad (with pad wear sensor)

8.

Outer shim

9.

Outer shim cover

: Apply copper based brake grease.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPFIA0327GB
