Hyundai Venue (2024 year). Manual in english - page 2





Instrument Cluster
Cluster Display Modes
Modes
Symbol
Explanation
This mode displays driving information such as the
tripmeter, fuel economy, etc.
Trip Computer
For more information, refer to "Trip Computer" in
this chapter.
This mode displays the state of:
- Lane Keeping Assist
- Driver Attention Warning
Drive Assist
- Tire pressure
(if equipped)
For more information, refer to "Lane Keeping
Assist (LKA)”, “Driver Attention Warning (DAW)” in
chapter 7 and "Tire Pressure Monitoring System
(TPMS)" in chapter 8.
The User Settings menu provides user options for
a variety of settings including door lock/unlock
User Settings
features, convenience features, driver assistance
settings, etc.
The Warning mode displays warning messages
Master Warning
related to the vehicle when one or more systems is
not operating normally.
The information provided may differ depending on which functions are applicable
to your vehicle.
4-22
04
Quick Guide Help
Drive Assist Mode
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more information about each
system, refer to this Owner's Manual.
Trip Computer Mode
OQX042017N
LKA
This mode displays the state of Lane
Keeping Assist.
For more details, refer to each system
information in chapter 7.
OQX042057N
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy, trip
meter information and vehicle speed.
For more information, refer to "Trip
Computer" in this chapter.
OQX042018N
Tire Pressure
This mode displays information related to
Tire Pressure.
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
4-23
Instrument Cluster
Master Warning Mode
User Settings Mode
OIG059097L
ONX4E040026
This warning light informs the driver the
In this mode, you can change the
following situations.
settings of the instrument cluster, doors,
lamps, etc.
• Forward Collision-Avoidance Assist
malfunction (if equipped)
1. Driver Assistance
• Forward Collision-Avoidance Assist
2. Cluster
radar blocked (if equipped)
3. Lights
• Blind-Spot Collision Warning
4. Door
malfunction (if equipped)
5. Convenience
• Blind-Spot Collision Warning radar
6. Units
blocked (if equipped)
7. Language
• Lamp malfunction (if equipped)
8. Reset
• High Beam Assist malfunction
(if equipped)
The information provided may differ
depending on which functions are
• Tire Pressure Monitoring System
applicable to your vehicle.
(TPMS) malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur. At this time, a Master
Warning icon (
) will appear beside the
User Settings icon (
), on the cluster
display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
4-24
04
1.
Driver Assistance
Items
Explanation
Warning
To adjust the warning volume of the driver assistance system
Volume
• Driving Safety Priority/ Parking Safety Priority / High / Medium / Low
To activate or deactivate the Leading vehicle departure alert.
Driver
• Leading vehicle departure alert
Attention
• Inattentive Driving Warning
Warning
For more details, refer to “Driver Attention Warning (DAW)” in chapter 7.
• Forward Safety
To activate or deactivate the Forward Safety.
• Forward Safety Warning Timing
To adjust the Forward Safety warning timing of the driver assistance
system.
For more details, refer to "Forward Collision-Avoidance Assist (FCA)" in
chapter 7
Driving
Safety
• Lane Safety
To activate or deactivate the Lane Safety.
For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7
• Blind-Spot Safety
To activate or deactivate the Blind-Spot Safety.
For more details, refer to “Blind-Spot Collision Warning (BCW)” in
chapter 7
• Rear Cross-Traffic Safety
Parking
To activate or deactivate Rear Cross-Traffic Safety.
Safety
For more details, refer to "Rear Cross-Traffic Collision-Avoidance Assist
(RCCA)" in chapter 7.
à The information provided may differ depending on which functions are applicable
to your vehicle.
4-25
Instrument Cluster
2. Cluster
Items
Explanation
Theme
You can select the theme of the cluster.
Selection
• Theme A / Theme B / Theme C
To activate or deactivate the Wiper/ Light mode.
Wiper/Lights
When activated, the cluster display shows the selected Wiper/Light mode
Display
whenever you changed the mode.
Traffic Signs
To set the traffic signs displayed.
Icy Road
To activate or deactivate the icy road warning.
Warning
Cluster Voice
Guidance
To adjust the cluster voice guidance volume.
Volume
Welcome
To activate or deactivate the welcome sound.
Sound
à The information provided may differ depending on which functions are applicable
to your vehicle.
4-26
04
3. Lights
Items
Explanation
To adjust the illumination level.
Illumination
• Level 1~20
• Off : The one touch turn signal function will be deactivated.
One Touch
• 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when
Turn Signal
the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Headlight
To activate or deactivate the Headlight delay function.
Delay
For more details, refer to "Lighting" in chapter 5.
High Beam
To activate or deactivate High Beam Assist.
Assist
For more details, refer to "High Beam Assist (HBA)" in chapter 5.
à The information provided may differ depending on which functions are applicable
to your vehicle.
4-27
Instrument Cluster
4. Door
Items
Explanation
• Enable on Shift : All doors will be automatically locked if the shift button
is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D
(Drive) position. (only when the engine is running.)
Automatically
Lock
• Enable on Speed : All doors will be automatically locked when the
vehicle speed exceeds 9 mph (15 km/h).
• Off : The auto door lock operation will be deactivated.
• On Shift to P: All doors will be automatically unlocked if the shift button
is shifted to the P (Park) position. (only when the engine is running.)
Automatically
• On key out/On vehicle off : All doors will be automatically unlocked
Unlock
when the ignition key is removed from the ignition switch is set to the
LOCK/OFF position.
• Off : The auto door unlock operation will be canceled.
• Off: The two press unlock function will be deactivated. Therefore, all
doors will unlock if the door unlock button is pressed.
Two Press
• On: Only the driver’s door will unlock if the door unlock button is
Unlock
pressed. When the door unlock button is pressed again within 4
seconds, the remaining doors will unlock.
To activate or deactivate the horn feedback.
If the horn feedback is activated, after locking the door by pressing the
Horn
lock button on the remote key, and pressing it again within 4 seconds,
Feedback
the horn feedback sound will operate once to indicate that all doors are
locked (if equipped with remote key).
Remote
To activate or deactivate the Remote Window Control
Window
à The information provided may differ depending on which functions are applicable
to your vehicle.
4-28
04
5. Convenience
Items
Explanation
Rear
To activate or deactivate the Rear Occupant Alert.
Occupant
For more details, refer to "Rear Occupant Alert (ROA) system" in chapter
Alert
5.
• Service Interval
To activate or deactivate the service interval function.
• Adjust Interval
Service
If the service interval menu is activated, you may adjust the time and
Interval
distance.
• Reset
To reset the service interval.
• On door unlock : The side view mirrors are unfolded and the welcome
light turns on automatically when the doors are unlocked.
Welcome
• On driver approach : The side view mirrors are unfolded and the welcome
Mirror/Light
light turns on automatically when the vehicle is approached with the
smart key.
For more details, refer to ''Welcome System'' in chapter 5."
Wireless
To activate or deactivate the wireless charging system in the front seat.
Charging
For more details, refer to "Wireless cellular phone charging system" in
System
chapter 5.
To activate or deactivate the Auto Rear Wiper function.
Auto Rear
If you move the shift button from D to R when the front wiper operates, the
Wiper (in R)
rear wiper will operate automatically. Then, if you move the shift button
from R to D, the rear wiper will stop."
à The information provided may differ depending on which functions are applicable
to your vehicle.
4-29
Instrument Cluster
6. Units
Items
Explanation
Speed Unit
To select the speed unit. (km/h, MPH)
Temperature
To select the temperature unit. (°C,°F)
Unit
Fuel
Economy
To select the fuel economy unit. (km/L, L/100km, MPG)
Unit
Tire Pressure
To select the tire pressure unit. (psi, kPa, bar)
Unit
à The information provided may differ depending on which functions are applicable
to your vehicle.
7. Language
Items
Explanation
Choose the language. You can choose the language in infotainment
Language
system. (if equipped)
à The information provided may differ depending on which functions are applicable
to your vehicle.
8. Reset
Items
Explanation
You can reset the menus in the User Settings Mode. All menus in the User
Reset
Settings Mode are reset to factory settings, except language and service
interval.
à The information provided may differ depending on which functions are applicable
to your vehicle.
4-30
04
TRIP COMPUTER
The trip computer is a microcomputer-
■ Type A
controlled driver information system that
displays information related to driving.
Information
■ Type B
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.

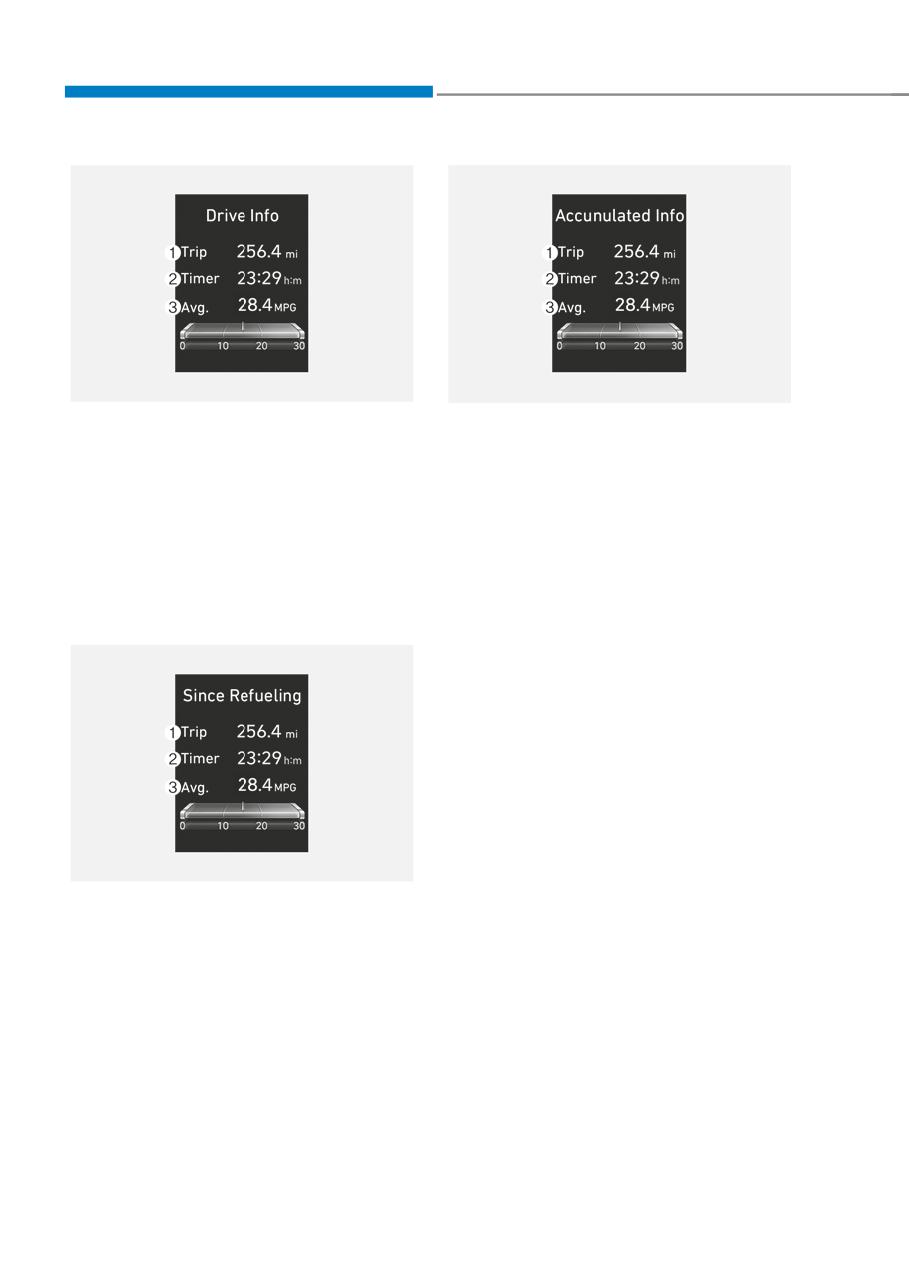

Trip Modes
OQX069060L
To change the trip mode, toggle the “
,
Fuel Economy
” switch on the steering wheel.
• Trip distance
• Total driving time
Manual reset
• Average fuel economy
To clear the average fuel economy
manually, press the OK button on the
steering wheel for more than 1 second
Accumulated Info
when the average fuel economy is
• Trip distance
displayed.
• Total driving time
• Average fuel economy
Automatic reset
To automatically reset the average fuel
economy after refueling, select the "Fuel
Drive Info
Econ. Reset" mode in the User Settings
• Trip distance
menu on the cluster display.
• Total driving time
- After Ignition: When the engine has
• Average fuel economy
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
Digital Speedometer
- After Refueling: The average fuel
economy will reset automatically after
adding 1.6 gallons (6 liters) of fuel or
more and after driving speed exceeds
1 mph (1 km/h).
4-31
Instrument Cluster
OQX042058N
OQX042060N
Drive Info
Accumulated Info
Trip distance (1), total driving time (2) and
Accumulated trip distance (1), total
average fuel economy (3) are displayed.
driving time (2) and average fuel
The information is combined for each
economy (3) are displayed. The
ignition cycle. However, when the engine
information is accumulated starting from
has been OFF for 3 minutes or longer the
the last reset.
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than
To reset manually, press the OK switch
on the steering wheel for more than 1
1 second when ‘Accumulated Info’ is
displayed.
second when ‘Drive Info’ is displayed.
OQX042059N
Since Refueling
Trip distance (1), total driving time (2)
and average fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
4-32
04
VEHICLE SETTINGS (INFOTAINMENT SYSTEM)

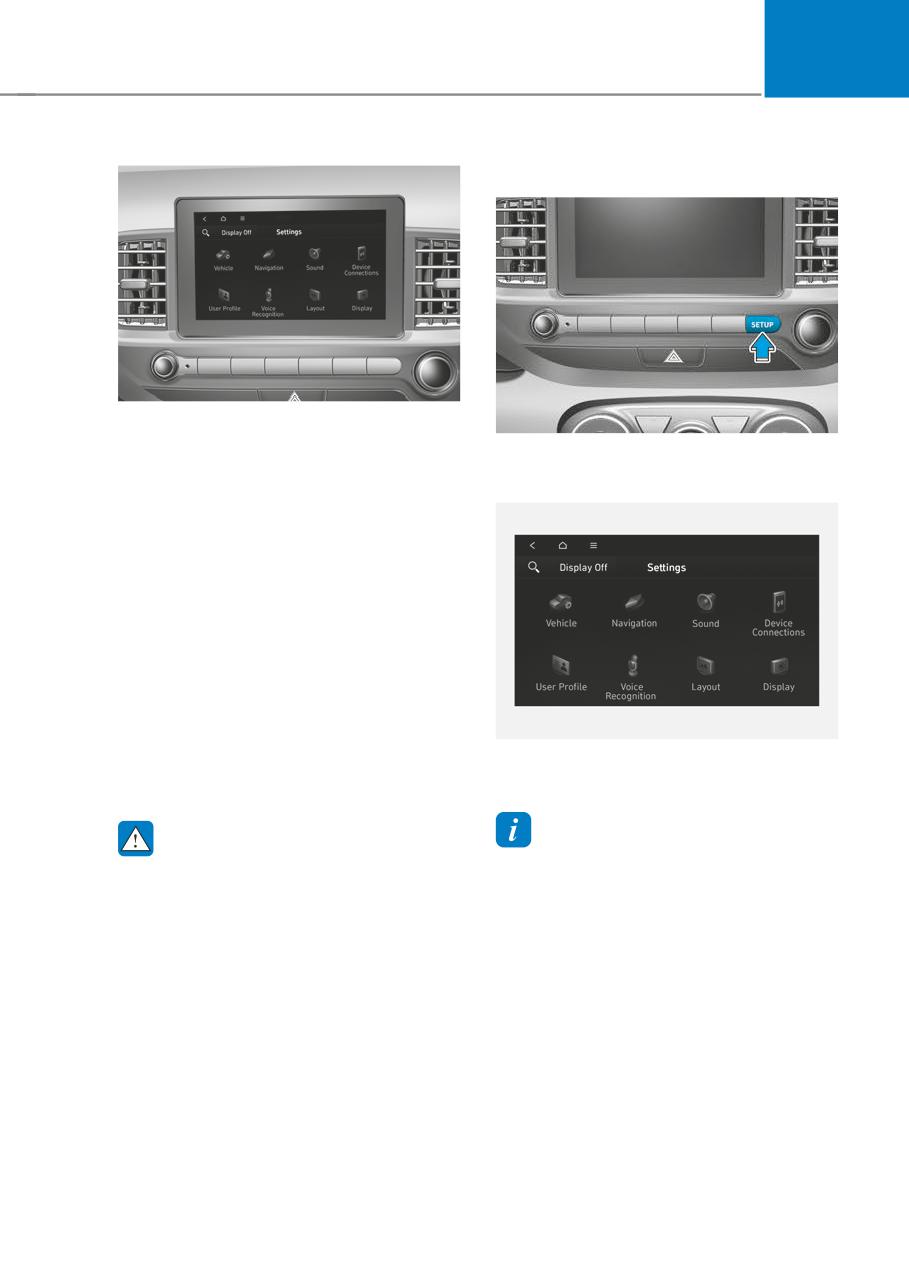

Setting Your Vehicle
OQX043064N
Vehicle Settings in the infotainment
OQX043065N
system provide user options for a variety
1. Press the SETUP button on the main
of settings including door lock/unlock
keyboard.
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
- Driver Assistance
- Cluster
- Climate
- Seat
- Lights
- Door
- Convenience
OAI3V043041
The information provided may differ
2. Select ‘Vehicle’ to change the Vehicle
depending on which functions are
Settings.
applicable to your vehicle.
Information
WARNING
The infotainment system may change after
Do not operate the Vehicle Settings
software updates. For more information,
while driving. This may cause
refer to the user's manual provided in
distraction resulting in an accident.
the infotainment system and the quick
reference guide.
4-33
5.Convenience Features
Accessing Your Vehicle
5-4
Remote Key
5-4
Smart Key
5-7
Immobilizer System
5-11
Door Locks
5-12
Operating Door Locks from Outside the Vehicle
5-12
Operating Door Locks from Inside the Vehicle
5-13
Automatic Door Lock and Unlock Features
5-15
Child-Protector Rear Door Locks
5-15
Theft-Alarm System
5-16
Rear Occupant Alert (ROA)
5-17
Rear Occupant Alert Operation
5-17
Steering Wheel
5-18
Motor Driven Power Steering (MDPS)
5-18
Tilt Steering / Telescope Steering
5-19
Horn
5-20
Mirrors
5-20
Inside Rearview Mirror
5-20
Side View Mirrors
5-21
5
Windows
5-23

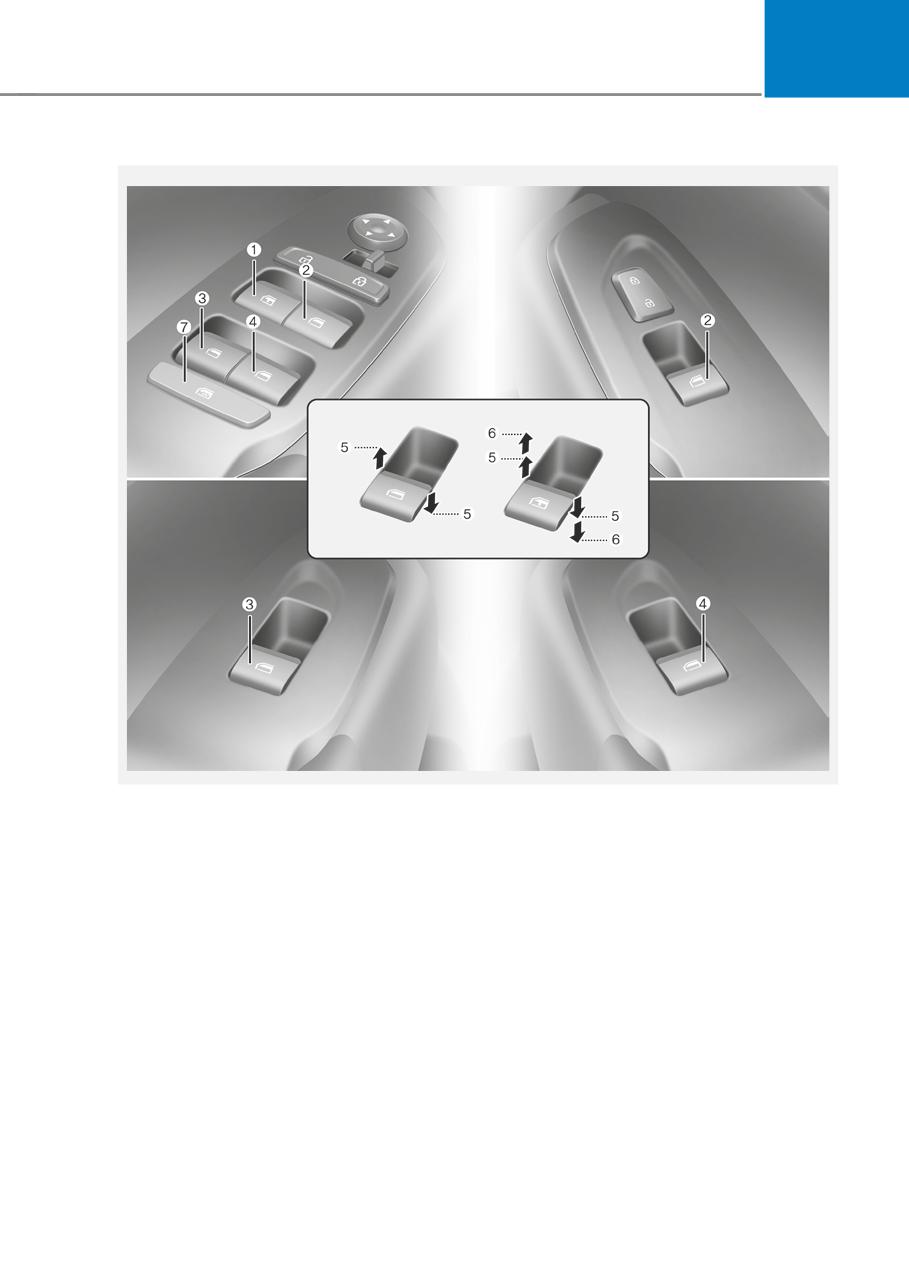

Power Windows
5-24
Sunroof
5-27
Sunshade
5-28
Tilt Open/close
5-28
Sunroof Opening and Closing
5-29
Automatic Reversal
5-29
Resetting the Sunroof
5-30
Sunroof Open Warning
5-31
Hood
5-32
Opening the Hood
5-32
Closing the Hood
5-33
Liftgate
5-34
Opening the Liftgate
5-34
Closing the Liftgate
5-34
Emergency Liftgate Safety Release
5-35
Fuel Filler Door
5-36
Opening the Fuel Filler Door
5-36
Closing the Fuel Filler Door
5-36
Lighting
5-38
Exterior Lights
5-38
Interior Lights
5-44
Wipers and Washers
5-47
Windshield Wipers
5-47
Windshield Washers
5-48
Rear Window Wiper and Washer
5-49
Manual Climate Control System
5-50
5
Heating and Air Conditioning
5-51
System Operation
5-54
System Maintenance
5-56
Automatic Climate Control System
5-58
Automatic Temperature Control Mode
5-59
Manual Temperature Control Mode
5-60
System Operation
5-64
System Maintenance
5-65
Windshield Defrosting and Defogging
5-67
Rear Window Defroster
5-69
5.Convenience Features
Storage Compartment
5-70
Center Console Storage
5-70
Sliding Armrest
5-70
Glove Box
5-71
Interior Features
5-71
Cup Holder
5-71
Sunvisor
5-72
Power Outlet
5-72
USB Charger
5-73
Wireless Cellular Phone Charging System
5-74
Clock
5-76
Clothes Hanger
5-76
Floor Mat Anchor(s)
5-77
Luggage Net Holder
5-77
Cargo Area Cover
5-78
Exterior Features
5-79
Roof Side Rails
5-79
Infotainment System
5-80
USB Port
5-80
Antenna
5-80
5
Steering Wheel Audio Control
5-82
Bluetooth® Wireless Technology Hands-Free
5-83
Infotainment system
5-83
Convenience Features
ACCESSING YOUR VEHICLE
Remote Key (if equipped)
WARNING
Do not leave the keys in your
vehicle with unsupervised children.
Unattended children could place the
key in the ignition switch and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking Your Vehicle
To unlock your vehicle:
OQX059138
1. Press the Door Unlock button (2) on
Your HYUNDAI uses a remote key, which
the remote key.
you can use to lock or unlock the driver
and passenger doors or the rear liftgate.
2. The driver’s door will unlock. The
hazard warning lights will blink two
(1) Door Lock
times.
(2) Door Unlock
Two press unlock setting:
(3) Panic
If you press the Door Unlock button
on the remote key again within
Locking Your Vehicle
four seconds, then all the doors will
To lock your vehicle:
unlock.
1. Make sure all doors, the engine hood
Two press unlock setting can be
and the liftgate are closed.
changed according to owner’s
2. Press the Door Lock button (1) on the
preference in the cluster User Settings
remote key to lock all doors.
mode or with the remote key.
3. If the Door Lock button (1) is pressed
• User settings mode method:
once more within four seconds, the
Select or deselect the ‘Two Press
horn will beep once and the hazard
Unlock’ feature in the User Settings
warning lights will blink.
mode on the cluster display (User
4. Make sure the doors are locked by
Settings → Door → Two Press Unlock).
checking the position of the door lock
button inside the vehicle.
Information
The infotainment system may change after
Information
software updates. For more information,
After locking the doors, if you press the
refer to the user’s manual provided in
Door Lock button again within four
the infotainment system and the quick
seconds, the hazard warning lights will
reference guide.
blink and the horn will sound one time to
confirm that the doors are locked.
Information
After unlocking the doors, the doors will
automatically relock after 30 seconds
unless a door is opened.
5-4
05
Panic Button (3)
To unfold the mechanical key, press the
release button on the remote.
Press and hold the Panic button (3) for
more than one second. The horn sounds
To return the key to its stored position,
and hazard warning lights flash for about
press the release button and fold the key
30 seconds.
back into the remote.
To cancel the panic mode, press any
Remote Key Precautions
button on the remote key.
The remote key will not work if any of the
Start-up
following occur:
For information, refer to the “Key
• The key is in the ignition switch.
Ignition Switch” section in chapter 6.
• You exceed the operating distance
limit (about 90 feet [30 m]).
NOTICE
• The remote key battery is weak.
To prevent damaging the remote key:
• Other vehicles or objects may be
blocking the signal.
Keep the remote key away from
water or any liquid and fire. Internal
• The weather is extremely cold.
circuits may malfunction if the inside
• The remote key is close to a radio
of the remote key gets damp (from
transmitter such as a radio station or
liquids or moisture) or if it is heated.
an airport which can interfere with
This can exclude the remote key from
normal operation of the remote key.
being covered under warranty.
If the remote key does not work
Avoid dropping or throwing the
correctly, open and close the door
remote key.
with the mechanical key. If you have a
Protect the remote key from extreme
problem with the remote key contact an
temperatures.
authorized HYUNDAI dealer.
If the remote key is in close proximity to
Mechanical Key
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails.
When possible, avoid placing the remote
key and your mobile phone in the same
location such as pants or jacket pocket in
order to avoid interference between the
two devices.
OQX059139
If the remote key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
5-5
Convenience Features
Battery Replacement
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
OPD046002
3. Changes or modifications not expressly
approved by the party responsible
If the remote key is not working properly,
for compliance could void the user’s
try replacing the battery with a new one.
authority to operate the device.
Battery Type: CR2032
To replace the battery:
NOTICE
1. Insert a slim tool into the slot and
Keep the remote key away from
gently pry open the cover.
electromagnetic materials that block
2. Using a screw driver, remove the
electromagnetic waves to the key
battery cover.
surface.
3. Remove the old battery and insert the
new battery. Make sure the battery
position is correct.
4. Reinstall the battery cover and key
cover in the reverse order of removal.
If you suspect your remote key might
have sustained some damage, or you feel
your remote key is not working correctly
contact an authorized HYUNDAI dealer.
WARNING
This product contains a button battery. If
swallowed, a lithium button battery can
cause severe or fatal injuries within 2 hours.
Keep batteries out of reach of children.
If you think batteries may have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
5-6
05
Smart Key (if equipped)
Information
The door handle button will only operate
when the smart key is within 28~40 inches
(0.7~1 m) from the outside door handle.
Note that you cannot lock your vehicle
using the door handle button if any of
the following occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is in
ACC or ON position.
OQX059036L
• Any of the doors are open except for
Your HYUNDAI uses a Smart Key, which
the liftgate.
you can use to lock or unlock the driver
and passenger doors or the rear liftgate.
WARNING
1. Door Lock
Do not leave the Smart Key in your
2. Door Unlock
vehicle with unsupervised children.
3. Remote start
Unattended children could press the
4. Panic
Engine Start/Stop button and may
operate power windows or other
Locking Your Vehicle
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking Your Vehicle
OQX059038L
To lock your vehicle using the door
handle button or the Smart Key:
1. Close all doors, hood and liftgate.
OQX059038L
2. Either press the door handle button or
To unlock your vehicle:
press the Door Lock button (1) on the
1. Make sure you have the smart key in
smart key.
your possession.
3. The hazard warning lights will blink
2. Press either the button on the door
and the chime will sound once.
handle or the Door Unock button (2)
4. When the doors are locked, the
on the smart key. The driver’s door will
indicator light on the central door
unlock and the hazard warning lights
lock/unlock switch will be illuminated.
will blink two times.
5-7
Convenience Features
3. Two Press Unlock Feature
Remote Start (if equipped)
The priority for unlocking the driver
You can start the engine and turn on the
door only, or unlocking all the doors
climate system by pressing the remote
with one press may be adjusted in
start button (3) outside the vehicle.
the User Settings menu in the cluster
To start and stop engine remotely:
display.
1. Press the door lock button (1), and
The Two Press Unlock feature, when
then the hazard warning lights blink
enabled, will require the user to press
once to alert you.
the door unlock button once for driver
2. Press the Remote Start button (3)
door only and twice for unlocking all
for more than 2 seconds to start the
the doors.
engine within 4 seconds after pressing
the door lock button (1).
Select or Deselect the Two Press Unlock
Feature in the User Settings menu in the
3. While remote starting, the hazard
cluster display. The option can be found
warning lights blink three times. If you
under the following menu:
want to stop the engine, press the
Remote Start button (3) again.
USER SETTINGS → DOOR → TWO PRESS
The climate system will be continuously
UNLOCK
maintained, as selected when the engine
is restarted. If the climate system is
turned off before you have stopped
Information
the engine, the climate system does
The door handle buttons will only
not operate when you start the engine
operate when the smart key is within
remotely.
28-40 inches (0.7~1m) from the outside
If someone without a designated smart
door handle
key drives your vehicle while remote
Either the driver or front passenger
starting, the engine is automatically
stopped for security purposes.
door can be opened with the door
handle button when the smart key is
within this range
Information
If you press the front passenger outside
After remotely starting the engine, the
door handle with the smart key in your
engine will turn off automatically after 10
possession, all the doors will unlock
minutes if you do not drive your vehicle.
The infotainment system may change
after software updates. For more
information, refer to the user’s manual
provided in the infotainment system
and the quick reference guide.
5-8
05
Mechanical Key
CAUTION
If the Smart Key does not operate
The remote start will not work if you
normally, you can lock or unlock the
exceed the operating distance limit
driver’s door by using the mechanical
(about 32 feet (10 m)).
key.
Avoid idling the engine for prolonged
periods to follow the emission
regulations in your country.
Laws in your country may restrict the
use of remote start. You should check
country regulations before using this
remote starting system.
It is only possible to start the engine
remotely when shifted to P (Park).
If the hood or the liftgate is opened,
you cannot start the engine
remotely.
OPD046045
Panic Button
To remove the mechanical key from the
smart key FOB, slide the release lever in
Press and hold the Panic button (4) for
the direction of the arrow (1) and then
more than one second. The horn sounds
pull the mechanical key (2) outward.
and hazard warning lights blink for about
To unlock the vehicle using the
30 seconds. To cancel the panic mode,
mechanical key. insert the mechanical
press any button on the Smart Key.
key into the key hole in the driver door.
Start-up
To reinstall the mechanical key into the
FOB, insert the key in the top of the key
You can start the vehicle without
FOB and push inward until a click sound
inserting the key.
is heard.
For information, refer to the “Engine
Start/Stop Button” section in chapter 6.
Loss of a Smart Key
A maximum of two Smart Keys can be
NOTICE
registered to a single vehicle. If you
To prevent damaging the smart key:
happen to lose your smart key, you
should immediately take the vehicle
Keep the smart key in a cool,
and remaining keys to your authorized
dry place to avoid damage or
HYUNDAI dealer or tow the vehicle, if
malfunction. Exposure to moisture
necessary.
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.
Avoid dropping or throwing the
smart key.
Protect the smart key from extreme
temperatures.
5-9
Convenience Features
Smart Key Precautions
Information
The smart key may not work if any of the
This device complies with Part 15 of the
following occur:
FCC rules.
• The smart key is close to a radio
Operation is subject to the following three
transmitter such as a radio station or
conditions:
an airport which can interfere with
normal operation of the transmitter.
1. This device may not cause harmful
interference.
• The smart key is near a mobile two
way radio system or a cellular phone.
2. This device must accept any
interference received, including
• Another vehicle’s smart key is being
interference that may cause undesired
operated close to your vehicle.
operation.
• If your windows are tinted, especially
3. Changes or modifications not expressly
with metallic window tint, it may
approved by the party responsible
cause frequency interference,
for compliance could void the user’s
reducing the smart key operating
authority to operate the device.
range.
If the smart key does not work correctly,
Battery Replacement
open and close the door with the
mechanical key. If you have a problem
with the smart key, contact an authorized
HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
OQX059142N
smart key and your mobile phone in the
same location such as a pants or jacket
If the Smart Key is not working properly,
pocket in order to avoid interference
try replacing the battery with a new one.
between the two devices.
Battery Type: CR2032
To replace the battery:
NOTICE
1. Remove the mechanical key.
Keep the smart key away from
2. Use a slim tool to pry open the rear
electromagnetic materials that blocks
cover of the smart key.
electromagnetic waves to the key
3. Remove the old battery and insert the
surface.
new battery. Make sure the battery
position is correct.
NOTICE
4. Reinstall the rear cover of the smart
Always have the smart key with you
key.
when leaving the vehicle. If the smart
If you suspect your smart key might have
key is left near the vehicle, the vehicle
sustained some damage, or you feel
battery may be discharged.
your smart key is not working correctly,
contact an authorized HYUNDAI dealer.
5-10
05
WARNING
WARNING
This product contains a button battery.
In order to prevent theft of your
If swallowed, a lithium button battery
vehicle, do not leave spare keys
can cause severe or fatal injuries within
anywhere in your vehicle. Your
2 hours. Keep batteries out of reach
immobilizer password is a customer
of children. If you think batteries may
unique password and should be kept
have been swallowed or placed inside
confidential.
any part of the body, seek immediate
medical attention.
NOTICE
The transponder in your key is an
Information
important part of the immobilizer
system. It is designed to give years
An inappropriately disposed
battery can be harmful to the
of trouble-free service, however you
should avoid exposure to moisture,
environment and human health.
Dispose of the battery according
static electricity and rough handling.
Immobilizer system malfunction could
to your local law(s) or regulation.
occur.
Immobilizer System
The immobilizer system protects your
Information
vehicle from theft. If an improperly
This device complies with Part 15 of the
coded key (or other device) is used, the
FCC rules.
engine’s fuel system is disabled.
Operation is subject to the following three
When the ignition switch is placed in the ON
position, the immobilizer system indicator
conditions:
should come on briefly, then go off. If the
1. This device may not cause harmful
indicator starts to blink, the system does not
interference.
recognize the coding of the key.
2. This device must accept any
Turn the ignition switch to the LOCK/OFF
interference received, including
position, then turn the ignition switch to
interference that may cause undesired
the ON position again.
operation.
In some circumstances, the vehicle may
3. Changes or modifications not expressly
not recognize your smart key if another
approved by the party responsible
smart key device is nearby or a metal
for compliance could void the user’s
object such as a key chain is causing
authority to operate the device.
interference with the smart key.
If this occurs, your vehicle may not
start. Remove any metal objects or
additional keys near the smart key before
attempting to start the vehicle again.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
5-11
Convenience Features
DOOR LOCKS
Operating Door Locks from
Once the doors are unlocked, they may
be opened by pulling the door handle.
Outside the Vehicle
When closing the door, push the door by
Mechanical Key
hand. Make sure that doors are closed
securely.
Smart Key
OQX059037N
If you lock the driver’s door with a
mechanical key, all vehicle doors will
lock. If you unlock the driver’s door with
a mechanical key, you can open and
OQX059038L
close the driver’s door only.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Remote Key
OQX059036N
[A]: Door Lock, [B]: Door Unlock
Press the button on the driver’s outside
door handle while carrying the Smart Key
with you or press the Door Unlock button
on the Smart Key, the driver’s door will
unlock.
If you press the button on the front
OQX059138N
passenger’s outside door, all doors will
unlock.
To lock the doors, press the Door Lock
button (1) on the remote key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
Press the Door Unlock button (2) on the
remote key, the driver’s door will unlock.
When closing the door, push the door by
If you press the Door Unlock button
hand. Make sure that doors are closed
on the remote key again within four
securely.
seconds, then all the doors will unlock.
5-12
05
• If the inner door handle of either
Information
the driver door or passenger door
In cold and wet climates, door lock
is pulled when the door lock button
and door mechanisms may not work
is in the lock position, the button is
properly due to freezing conditions.
unlocked and the door will open.
If the door is locked/unlocked multiple
• For Key Start Vehicles (Remote Key)
times in rapid succession with either
The front doors cannot be locked if
the vehicle key or door lock switch, the
the remote key is in the ignition switch
system may stop operating temporarily
and either of the front doors are open.
in order to protect the circuit and
• For Push Button Start Vehicles (Smart
prevent damage to system components.
Key)
Two press unlock setting can be
The doors cannot be locked if the
changed in the User Settings mode on
the cluster.
smart key fob is inside the vehicle and
any of the doors are open.
Operating Door Locks from
Inside the Vehicle
Information
With the Door Lock Button
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:
Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.
Operate the other door locks and
handles, front and rear.
Lower a front window and use the
mechanical key to unlock the door from
outside.
OQXI049006
• To unlock a door, push the door lock
button (1) to the “Unlock” position.
• To lock a door, push the door lock
button (1) to the “Lock” position.
• To open a door, pull the door handle
(2) outward.
5-13
Convenience Features
With the Central Door Lock Switch
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
OQX059035N
WARNING
The driver side door armrest is equipped
with a central door lock switch. The lock
Always secure your vehicle.
button is indicated by a (
) symbol.
Leaving your vehicle unlocked increases
The unlock button is indicated by a (
)
the potential risk to you or others from
symbol.
someone hiding in your vehicle.
When the lock button (2) is pressed, all
To secure your vehicle, while depressing
the vehicle doors will lock.
the brake, move the shift lever to the
When the unlock button (1) is pressed, all
P (Park) position, engage the parking
the vehicle doors will unlock.
brake, and place the ignition switch
• For Key Start Vehicles (with remote
in the LOCK/OFF position, close all
windows, lock all doors, and always
key)
take the key with you.
If the key is in the ignition switch and
any door is opened, the doors will not
lock even though the lock button (2) is
CAUTION
pressed.
Opening a door when something is
• For Push Button Start Vehicles (Smart
approaching may cause damage or
Key)
injury. Be careful when opening doors
If the smart key is in the vehicle and
and watch for vehicles, motorcycles,
any door is open, the doors will not
bicycles or pedestrians approaching the
lock even though the lock button (2) is
vehicle in the path of the door.
pressed.
WARNING
WARNING
If you stay in the vehicle for a long time
The doors should always be fully
while the weather is very hot or cold,
closed and locked while the
there are risks of injuries or danger to
vehicle is in motion. If the doors
life. Do not lock the vehicle from the
are unlocked, the risk of being
outside when someone is in the vehicle.
thrown from the vehicle in a crash is
increased.
Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
5-14
05
Automatic Door Lock and Unlock
Child-Protector Rear Door Locks
Features
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the cluster display.
Auto LOCK - Enable on Speed
When this feature is set in the cluster
display, all the doors will be locked
automatically when the vehicle exceeds
9 mph (15 kph).
OQXI049008
Auto LOCK - Enable on Shift
The child safety lock is provided to help
prevent children seated in the rear from
When this feature is set in the cluster
accidentally opening the rear doors. The
display, all the doors will be locked
rear door safety locks should be used
automatically when the vehicle is shifted
whenever children are in the vehicle.
out of P (PARK) while the engine is
running.
The child safety lock is located on the
edge of each rear door. When the child
Auto UNLOCK - Enable on Shift
safety lock is in the lock position, the
rear door will not open if the inner door
When this feature is set in the cluster
handle is pulled.
display, all the doors will be unlocked
automatically when the vehicle is shifted
To lock the child safety lock, insert a
back into P (PARK).
small flat blade tool (like a screwdriver or
similar) (1) into the slot and turn it to the
For more information on these features,
lock position as shown.
refer to the Cluster Display section later
in the chapter 4.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
Additional Unlock Safety Feature -
lock.
Air Bag Deployment
As an additional safety feature, all doors
WARNING
will be automatically unlocked when an
If children accidently open the rear
impact causes the air bags to deploy.
doors while the vehicle is in motion,
they could fall out of the vehicle. The
Information
rear door safety locks should always
be used whenever children are in the
The infotainment system may change after
vehicle.
software updates. For more information,
refer to the user’s manual provided in
the infotainment system and the quick
reference guide.
5-15
Convenience Features
THEFT-ALARM SYSTEM
This system helps to protect your vehicle
Information
and valuables. The horn will sound and
the hazard warning lights will blink
Do not lock the doors until all
continuously if any of the following
passengers have left the vehicle. If the
occur:
remaining passenger leaves the vehicle
when the system is armed, the alarm
• A door is opened without using the
will be activated.
remote key or smart key.
If the vehicle is not disarmed with the
• The liftgate is opened without using
remote key or smart key, open the
the remote key or smart key.
doors by using the mechanical key
• The engine hood is opened.
and place the ignition switch in the
The alarm continues for 30 seconds, then
ON position (for remote key) or start
the system resets. To turn off the alarm,
the engine (for smart key) by directly
unlock the doors with the remote key or
pressing the ignition switch with the
smart key.
smart key.
The Theft Alarm System automatically
If the system is disarmed by unlocking
sets 30 seconds after you lock the
the vehicle, but neither a door or the
doors and the liftgate. For the system to
liftgate is opened within 30 seconds, the
activate, you must lock the doors and
doors will relock and the system will
the liftgate from outside the vehicle
rearm automatically.
with the remote key or smart key or by
pressing the button on the outside of the
door handle with the smart key in your
possession.
The hazard warning lights will blink and
the chime will sound once to indicate the
system is armed.
Once the security system is set, opening
any door, the liftgate, or the hood
without using the remote key or smart
key will cause the alarm to activate.
The Theft Alarm System will not set if the
hood, the liftgate, or any door is not fully
closed. If the system will not set, check
the hood, the liftgate, or the doors are
fully closed.
Do not attempt to alter this system or
add other devices to it.
5-16
05
REAR OCCUPANT ALERT (ROA) (IF EQUIPPED)
Rear Occupant Alert helps prevent the
WARNING
driver from leaving a passenger in the
rear seats.
Rear Occupant Alert provides
information to the driver to check
the rear seats but it does not detect
Rear Occupant Alert Operation
whether there is an object or passenger.
Always check the rear seats when
leaving the vehicle.
Information
The open and close history of the rear
door is initialized if the driver turns off the
engine and lock vehicle doors.
However, the alarm may sound again
whenever the driver’s door is opened if
the previous history of the rear door is not
OCN7050135L
initialized.
When the driver turns off the engine and
opens the driver’s door after opening and
closing a rear door, a warning message
“Check rear seats” appears on the
cluster.
5-17
Convenience Features
STEERING WHEEL
Motor Driven Power Steering
Information
(MDPS)
The following symptoms may occur during
The system assists you with steering the
normal vehicle operation:
vehicle. If the vehicle is turned off or
The steering effort may be high
if the power steering system becomes
immediately after placing the ignition
inoperative, you may still steer the
switch in the ON position.
vehicle, but it will require increased
steering effort.
This happens as the system performs
the MDPS system diagnostics. When
Also, the steering effort becomes heavier
the diagnostics are completed, the
as the vehicle’s speed increases and
steering wheel effort will return to its
becomes lighter as the vehicle’s speed
normal condition.
decreases for better control of the
steering wheel.
When the battery voltage is low, you
might have to put more steering effort.
Should you notice any change in the
However, it is a temporary condition so
effort required to steer during normal
that it will return to normal condition
vehicle operation, have the system
after charging the battery.
checked by an authorized HYUNDAI
dealer.
A click noise may be heard from the
MDPS relay after the ignition switch is
in the ON or LOCK/OFF position.
CAUTION
Motor noise may be heard when the
If the Motor Driven Power Steering
vehicle is at a stop or at a low driving
System does not operate normally,
speed.
the warning light (
) will illuminate
When you operate the steering wheel
on the instrument cluster. You may
in low temperatures, abnormal noise
steer the vehicle, but it will require
may occur. If the temperature rises, the
increased steering efforts. Take your
noise will disappear. This is a normal
vehicle to an authorized HYUNDAI
condition.
dealer and have the system checked
When an error is detected from the
as soon as possible.
MDPS, the steering effort assist
When an abnormality is detected
function may become inoperative
in the Motor Driven Power Steering
in order to prevent fatal accidents.
system, to prevent a an accident, the
Instrument cluster warning lights may
steering assist function may become
be on or the steering effort may be
inoperative. At this time, the warning
high. If these symptoms occur, drive
light turns on or blinks on the cluster.
the vehicle to a safe area as soon as it is
The steering wheel may become
safe to do so. Have the system checked
difficult to control or operate. Have
by an authorized HYUNDAI dealer as
your vehicle checked immediately,
soon as possible.
after moving the vehicle to a safe
area.
5-18
05
Tilt Steering / Telescope Steering
Information
When adjusting the steering wheel to a
Sometimes the lock release lever may not
comfortable position, adjust the steering
engage completely. This may occur when
wheel so that it points toward your chest,
the gears of the locking mechanism do
not toward your face. Make sure you can
not completely mesh. If this occurs, pull
see the instrument cluster warning lights
down on the lockrelease lever, readjust the
and gauges. After locking the lever, push
steering wheel again, and then pull back
the steering wheel both up and down to
up on the release lever to lock the steering
be certain it is locked in position. Always
wheel in place.
adjust the position of the steering wheel
before driving.
CAUTION
WARNING
While adjusting the steering wheel
height, please do not push or pull it
NEVER adjust the steering wheel while
hard since the fixture can be damaged.
driving. This may cause loss of vehicle
control resulting in an accident.
OQX069059L
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and distance
forward/back (3).
3. Pull up the lock-release lever to lock
the steering wheel in place.
5-19
Convenience Features
MIRRORS
Horn
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
OQXI049023
head restraints which could interfere
with your vision through the rear
To sound the horn, press the area
window.
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
WARNING
pressed.
To prevent serious injury during an
accident or deployment of the air bag,
NOTICE
do not modify the rearview mirror and
Do not strike the horn severely to
do not install a wide mirror.
operate it, or hit it with your fist. Do not
press on the horn with a sharp-pointed
WARNING
object.
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
5-20
05
Day/night Rearview Mirror
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
OQXI049024
loss of vehicle control resulting in an
[A] : Day/night lever, [B] : Day
accident.
Make this adjustment before you start
driving and while the day/night lever is in
NOTICE
the day position.
Do not scrape ice off the mirror face;
Pull the day/night lever towards you to
this may damage the surface of the
reduce glare from the headlamps of the
glass.
vehicles behind you during night driving.
If the mirror is jammed with ice, do
Remember that you lose some rearview
not adjust the mirror by force. Use an
clarity in the night position.
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
Side View Mirrors
the vehicle to a warm place and
allow the ice to melt.
OQX059147N
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
5-21
Convenience Features
Side View Mirror Adjustment
Folding the side View Mirrors
OQX059016N
OQXI049026
Adjusting the side view mirrors:
To fold the side view mirrors, grasp the
1. Move either the L (driver’s side) or R
housing of the mirror and then fold it
inwards.
(passenger’s side) lever (1) to select
the side view mirror you would like to
adjust.
2. Use the mirror adjustment control
switch to position the selected mirror
up, down, left or right.
3. After adjustment, put the lever into
neutral (center) position to prevent
inadvertent adjustment.
NOTICE
The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.
Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
5-22
05
WINDOWS
OQX059013N
(1) Driver’s door power window switch
(5) Window opening and closing
(2) Front passenger’s door power
(6) Automatic power window
window switch
(7) Power window lock switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
switch
5-23
Convenience Features
Power Windows
Window Opening and Closing
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 30 seconds after the
ignition switch is placed in the ACC or
LOCK/OFF position. However, if the front
doors are opened, the Power Windows
OQX059133L
will not operate even within the 30
To open:
second period.
Press the window switch down to the
first detent position (5). Release the
WARNING
switch when you want the window to
stop.
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
To close:
Pull the window switch up to the first
detent position (5). Release the window
Information
switch when you want the window to
In cold and wet climates, power
stop.
windows may not work properly due to
freezing conditions.
Auto Down Window (if equipped)
While driving with the rear windows
Pressing the power window switch
down or with the sunroof (if equipped)
down momentarily to the second
opened (or partially opened), your
detent position (6) completely lowers
vehicle may demonstrate a wind
the window even when the switch is
buffeting or pulsation noise. This
released. To stop the window at the
noise is normal and can be reduced
desired position while the window is in
or eliminated by taking the following
operation, pull up or press down and
actions. If the noise occurs with one
release the switch.
or both of the rear windows down,
partially lower both front windows
Auto Up/down Window (if
approximately one inch. If you
equipped)
experience the noise with the sunroof
Pressing or pulling up the power window
open, slightly close the sunroof.
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
5-24
05
To Reset the Power Windows
Automatic Reverse (if equipped)
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
OLF044032
dealer.
If a window senses any obstacle while it
is closing automatically, it will stop and
WARNING
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
The automatic reverse feature doesn’t
activate while resetting the power
If the window detects the resistance
window system. Make sure body parts
while the power window switch is
or other objects are safely out of the
pulled up continuously, the window
way before closing the windows to
will stop upward movement then lower
avoid injuries or vehicle damage.
approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 inch (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
5-25
Convenience Features
NOTICE
WARNING
Do not install any accessories on the
Do not allow children to play with the
windows. The automatic reverse
power windows. Keep the driver’s
feature may not operate.
door power window lock switch in the
LOCK position. Serious injury or death
Power Window Lock Switch
can result from unintentional window
operation by a child.
NOTICE
To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
Never try to operate the main
switch on the driver’s door and the
OQX059017L
individual door window switch in
opposite directions at the same time.
The driver can disable the power window
If this is done, the window will stop
switches on the rear passenger doors by
and cannot be opened or closed.
pressing the power window lock switch.
When the power window lock switch is
pressed:
• The rear passenger control will not
be able to operate the rear passenger
power window
• Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
5-26
05
SUNROOF (IF EQUIPPED)
If your vehicle is equipped with a
WARNING
sunroof, you can slide or tilt your sunroof
with the sunroof control switch located
Adjust the sunroof or sunshade when
on the overhead console.
your vehicle stops. This could result
in loss of control and an accident
„„
Type A
that may cause injury, or property
damage.
Do not extend your head, arms or
body outside the sunroof while
driving, to avoid serious injury.
Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
OQX059018L
Do not operate sunroof when roof bars
„„
Type B
are installed on the vehicle or when
there is luggage on the roof.
OQX059075
The sunroof can only be operated when
the ignition switch or Engine Start/Stop
button is in the ON or START position.
The sunroof can be operated for
approximately 30 seconds after the
ignition switch or Engine Start/Stop
button is in the ACC or LOCK/OFF
position.
5-27
Convenience Features
Sunshade
Tilt Open/close
OCN7050029
OQX052201N
Use the sunshade to block direct sunlight
(1) Tilt open
coming through the sunroof glass.
(2) Tilt close
Open or close the sunshade by hand.
• Push the sunroof switch upward, the
sunroof glass tilts open.
Information
• Push the sunroof switch forward when
the sunroof glass is tilt opened, the
The sunshade opens automatically when
sunroof glass closes.
the sunroof glass is opened, but the
sunshade does not close automatically
The sunroof glass tilts open or closes
when the sunroof glass is closed. Also, only
while the switch is pushed.
the sunshade cannot be closed when the
sunroof glass is opened.
Information
NOTICE
The sunroof glass cannot slide open and
Do not pull the sunshade up or down,
tilt open at the same time. You cannot tilt
or apply excessive force as such action
the sunroof glass open while the sunroof
may damage the sunshade or cause it
glass is slide open. Also, you cannot slide
to malfunction.
the sunroof glass open while the sunroof
is tilt open. Slide open or tilt open the
sunroof glass when the sunroof glass is
completely closed.
5-28
05
Sunroof Opening and Closing
Automatic Reversal
OQX051200
ODH043039
• Push the sunroof switch rearward,
If the sunroof glass senses any obstacle
the sunshade and sunroof glass slide
while it is closing automatically, it will
open.
reverse direction then stop at a certain
Push the sunroof switch forward, only
position.
the sunroof glass closes.
The auto reverse function may not
work if an object thin or soft is caught
• Push the sunroof switch forward or
between the sliding sunroof glass and
rearward to the first detent position,
sunroof sash.
the sunroof glass moves until the
switch is released.
• Push the sunroof switch forward
WARNING
or rearward to the second detent
Make sure heads, hands, arms or
position, the sunroof glass operates
any other body parts or objects are
automatically (auto slide feature). To
out of the way before operating the
stop the sunroof movement at any
sunroof. Body parts or objects may
point, push the sunroof switch in any
get caught causing injuries or vehicle
direction.
damage.
• The sunroof glass stops halfway
Never deliberately use your body
(first detent position) before it is fully
parts to test the automatic reversal
opened. To fully open the sunroof
function. The sunroof glass may
glass, push the sunroof switch
reverse direction, but there is a risk
rearward once more. At this time, the
of injury.
sunroof glass opens only while the
switch is pushed.
Information
To reduce wind noise while driving, drive
at the recommended position (first detent
position) before the maximum slide open
position.
5-29
Convenience Features
NOTICE
Resetting the Sunroof
Do not continue to push the sunroof
„„
Type A
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
Regularly remove any accumulated
dust on the sunroof rail.
Dust accumulated between the
OQX051202
sunroof and roof panel can make
„„
Type B
noise. Open the sunroof and remove
dust regularly using a clean cloth.
Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered
with snow or ice. The sunroof may
not work properly and may break if
opened by force.
Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
OQX051203
the interior of the vehicle.
In some circumstances resetting the
Do not extend any luggage outside
sunroof operation may need to be
the sunroof while driving. Vehicle
performed. Some instances where
damage may occur if the vehicle
resetting the sunroof may be required
suddenly stops.
include:
• When the 12-volt battery is either
disconnected or discharged
WARNING
• When the sunroof fuse is replaced
Do not extend your head, arms, body
parts or objects outside the sunroof
• If the sunroof one-touch AUTO OPEN/
while driving. Injuries may occur if the
CLOSE operation is not functioning
vehicle suddenly stops.
properly
5-30
05
Sunroof resetting procedure:
Sunroof Open Warning
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the
fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof
glass is fully closed.
4. Push the switch forward until the
OQX049015L
sunroof glass moves slightly. Then
release the switch.
If the driver turns off the engine when
the sunroof is not fully closed, the
5. Once again push and hold the sunroof
warning chime will sound for several
switch forward until the sunroof glass
seconds and the sunroof open warning
slides open and close. Do not release
will appear on the cluster display.
the switch until the operation is
completed.
Close the sunroof securely when leaving
your vehicle.
If you release the switch during
operation, start the procedure again
from step 2.
CAUTION
Make sure the sunroof is closed fully
Information
when leaving your vehicle. If the
sunroof is left open, rain or snow may
If the sunroof does not reset when
wet the interior of the vehicle. Also,
the vehicle battery is disconnected or
leaving the sunroof open when the
discharged, or the sunroof fuse is blown,
vehicle is unattended may invite theft.
the sunroof may not operate normally.
5-31
Convenience Features
HOOD
Opening the Hood
OQXI059023N
4. Pull out the support rod and hold the
OQX059020L
hood open with the support rod.
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
WARNING
hood. The hood should pop open
The support rod must be inserted
slightly.
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent the
hood from becoming dislodged and
falling and causing potential injury.
OQX059080N
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
hood release lever (1) inside of the
hood center and lift the hood (2).
5-32
05
Closing the Hood
WARNING
1. Before closing the hood, check in and
Before closing the hood, ensure
around the engine compartment to
all obstructions are removed from
ensure the following:
around the hood opening.
• Any tools or other loose objects are
Always double check to be sure that
removed from the engine room area
the hood is firmly latched before
or hood opening area
driving away. Check there is no
• All glove, rags, or other combustible
hood open warning light or message
material is removed from the engine
displayed on the instrument cluster.
compartment
Driving with the hood opened may
• All filler caps are tightly and
cause a total loss of visibility, which
correctly installed
might result in an accident.
Do not move the vehicle with the
2. Lower the hood halfway (lifted
approximately 12 inches (30 cm) from
hood in the raised position, as vision
is obstructed, which might result in
the closed position) and push down
to securely lock in place. Then double
an accident, and the hood could fall
or be damaged.
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.
5-33
Convenience Features
LIFTGATE
Opening the Liftgate
Closing the Liftgate
OQX052159N
OQX059148N
Before attempting to open the liftgate,
Lower the liftgate lid and press down
make sure the vehicle is in PARK (P). To
until it locks. To be sure the liftgate lid is
open the liftgate, perform the following.
securely fastened, always check by trying
1. Unlock the vehicle using either the
to pull it up again without pressing the
liftgate handle button.
remote key fob (Key Start vehicles),
the Smart Key (Push Button Start
vehicles), or the Unlock button on the
Information
driver side armrest.
In cold and wet climates, door lock and
2. From outside the vehicle, press the
door mechanisms may not work properly
liftgate handle
due to freezing conditions.
WARNING
The liftgate swings upward. Make sure
no objects or people are near the rear of
the vehicle when opening the liftgate.
NOTICE
Make certain that you close the liftgate
before driving your vehicle. Possible
damage may occur to the liftgate struts
and mounting hinges if the liftgate is
not closed prior to driving.
5-34
05
To unlock and open the liftgate manually
WARNING
from inside the luggage compartment,
perform the following steps:
1. Insert the mechanical key from the
key fob or a small screwdriver into the
slot at the bottom of the liftgate inside
the luggage compartment.
2. Slide the key or screwdriver to the
right to engage the safety release
lever.
3. Push the liftgate outward and upward.
OQX059134L
WARNING
Do not hold on to or try to pull on
Be aware of the location of the
the liftgate strut. Be aware that the
emergency liftgate safety release
deformation of the liftgate strut may
lever in your vehicle and know how
cause vehicle damage and risk of injury.
to open the liftgate using the safety
release lever.
Emergency Liftgate Safety
No one should be allowed to occupy
Release
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.
Use the release lever for emergencies
only. Use extreme caution, especially
while the vehicle is in motion.
OQX059135L
Your vehicle is equipped with an
emergency liftgate safety release lever
located on the bottom of the liftgate
inside the vehicle.
5-35
Convenience Features
FUEL FILLER DOOR
Opening the Fuel Filler Door
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to
a warm place and allow the ice to melt.
Closing the Fuel Filler Door
1. To install the fuel tank cap, turn it
OQX059021L
clockwise until it “clicks” one time.
The fuel filler door is opened from inside
2. Close the fuel filler door until it is
the vehicle using the fuel filler door
latched securely.
release lever.
1. Turn the engine off. Locate the fuel
filler door release lever on the floor on
WARNING
the left side of the driver seat.
Gasoline is highly flammable and
2. Pull up on the release lever.
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:
Read and follow all warnings posted
at the gas station.
Before refueling, note the location of
the Emergency Gasoline Shut-Off, if
available, at the gas station.
Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
OQXI049021
distance away from the fuel filler
neck, nozzle, or other gas source,
3. Pull the fuel filler door (1) outward to
with your bare hand.
access the fuel tank cap.
Do not use cellular phones while
4. To remove the fuel tank cap (2), turn
refueling. Electric current and/or
it counterclockwise. You may hear a
electronic interference from cellular
hissing noise as the pressure inside
phones can potentially ignite fuel
the tank equalizes.
vapors and cause a fire.
5. Place the cap on the fuel filler door.
5-36
05
Do not get back into a vehicle
Do not over-fill or top-off your
once you have begun refueling.
vehicle tank, which can cause
You can generate a buildup of
gasoline spillage.
static electricity by touching,
If a fire breaks out during refueling,
rubbing or sliding against any item
leave the vicinity of the vehicle, and
or fabric capable of producing
immediately contact the manager
static electricity. Static electricity
of the gas station and then contact
discharge can ignite fuel vapors
the local fire department. Follow any
causing a fire. If you must re-enter
safety instructions they provide.
the vehicle, you should once again
If pressurized fuel sprays out, it can
eliminate potentially dangerous
cover your clothes or skin and thus
static electricity discharge by
subject you to the risk of fire and
touching a metal part of the vehicle,
burns. Always remove the fuel cap
away from the fuel filler neck, nozzle
carefully and slowly. If the cap is
or other gasoline source, with your
venting fuel or if you hear a hissing
bare hand.
sound, wait until the condition stops
When using an approved portable
before completely removing the cap.
fuel container, be sure to place the
Always check that the fuel cap is
container on the ground prior to
installed securely to prevent fuel
refueling. Static electricity discharge
spillage in the event of an accident.
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
Information
between your bare hand and the
Make sure to refuel your vehicle according
vehicle should be maintained until
to the “Fuel Requirements” suggested in
the filling is complete.
the Introduction chapter.
Use only approved portable plastic
fuel containers designed to carry and
NOTICE
store gasoline.
When refueling, always move the
Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
shift lever to the P (Park) position (for
IVT), set the parking brake, and place
fuel spilled on painted surfaces may
damage the paint.
the ignition switch to the LOCK/
OFF position. Sparks produced by
If the fuel filler cap requires
electrical components related to the
replacement, use only a genuine
engine can ignite fuel vapors causing
HYUNDAI cap or the equivalent
a fire.
specified for your vehicle. An
incorrect fuel filler cap can result
Do not use matches or a lighter and
in a serious malfunction of the fuel
do not smoke or leave a lit cigarette
system or emission control system.
in your vehicle while at a gas station,
especially during refueling.
5-37
Convenience Features
LIGHTING
Exterior Lights
Cornering lamp (if equipped)
Lighting Control
While driving a corner, for greater
visibility and safety, either the left or
To operate the lights, turn the knob at
right side cornering lamp will turn on
the end of the control lever to one of the
automatically. The cornering lamp
following positions:
will turn on when one of the following
conditions occur.
• Vehicle speed is less than 6 mph (10
km/h) and steering wheel angle is
turned approximately 80 degrees with
the low beam on.
• Vehicle speed is between 6 mph
(10 km/h) to 56 mph (90 km/h)
and steering wheel angle is turned
approximately 35 degrees with the
low beam on.
OOS047404N
• When the vehicle is in reverse with
one of the conditions above satisfied,
1. OFF
the light opposite to the direction the
2. AUTO headlight
steering wheel is turned will turn on.
3. Tail lamp
4. Headlight
Daytime running light (DRL) (if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:
• The headlights are ON.
OQX049021L
• The tail lamps are ON.
AUTO headlight (if equipped)
• The vehicle is turned off.
The tail lamp and headlight will be turned
ON or OFF automatically depending on
• The parking brake is engaged.
the amount of daylight as measured by
the ambient light sensor on the center
dash (1).
Even with the AUTO headlight feature
in operation, it is recommended to
manually turn ON the headlights when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
5-38
05
NOTICE
Information
Do not cover or spill anything on
The ignition switch must be in the ON
the sensor (1) located in front of the
position to turn on the headlight.
instrument panel.
Do not clean the sensor using
High Beam Operation
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
If your vehicle has window tint or
other types of metallic coating on the
front windshield, the AUTO headlight
system may not work properly.
OIG046415
To turn on the high beam headlight, push
the lever away from you. The lever will
return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
OIG046412
To turn off the high beam headlight, pull
Tail lamp (
)
the lever towards you. The low beams
will turn on.
The tail lamp, license plate lamp and
instrument panel lamp are turned ON.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.
OIG046413
Headlight (
)
The headlight, tail lamp, license plate
lamp and instrument panel lamp are
turned ON.
5-39
Convenience Features
Operating condition
1.
Place the headlight switch in the
AUTO position.
2.
Turn on the high beam by pushing the
lever away from you.
The High Beam Assist (
) indicator
will illuminate.
3.
High Beam Assist system will turn on
when vehicle speed is above 25 mph
(40 km/h).
OIG046414
• If the headlight switch is pushed
To flash the high beam headlight, pull the
away when the High Beam Assist
lever towards you, then release the lever.
system is operating, High Beam
The high beams will remain ON as long
Assist system will turn off and the
as you hold the lever towards you.
high beam will be on continuously.
• If the headlight switch is pulled
High Beam Assist (HBA) (if equipped)
towards you when the high beam
is OFF, the high beam will turn ON
without High Beam Assist system
canceled. When you let go of the
light switch, the lever will move to
the middle and the high beam will
turn OFF.
• If the headlight switch is pulled
towards you when the high beam is
on by High Beam Assist system, the
low beam will be on and the High
Beam Assist system will turn OFF.
OOS047409N
• If the headlight switch is placed
High Beam Assist (HBA) is a system that
to the headlight ON position,
automatically adjusts the headlight range
High Beam Assist system will turn
(switches between high beam and low
off and the low beam will be on
beam) according to the brightness of
continuously.
other vehicles and road conditions.
5-40
05
When High Beam Assist system is
operating, the high beam switches to low
beamif any of the following conditions
occur:
-
When the headlight of an on-coming
vehicle is detected.
-
When the tail lamp of a vehicle in front
is detected.
-
When the headlight or tail lamp of a
motorcycle or a bicycle is detected.
OQX072059N
-
When the surrounding ambient light is
Warning light and message
bright enough that high beams are not
When High Beam Assist system is not
required.
working properly, the Check High Beam
-
When streetlights or other lights are
Assist warning message will come on
detected.
for a few second. After the message
disappears, the master warning light (
)
-
When the headlight switch is not in
will illuminate. Take your vehicle to an
the AUTO position.
authorized HYUNDAI dealer and have the
-
When High Beam Assist system is off.
system checked.
-
When vehicle speed is below 22MPH
(35 km/h).
CAUTION
The system may not operate normally if
any of the following conditions should
occur:
1. When the illumination from an on-
coming vehicle or a vehicle in front is
dim. Such examples may include:
When the headlights of an on-
coming vehicle or the tail lamps of
a vehicle in front is covered with
dust, snow, or water.
When the headlights on an on-
coming vehicle are OFF, but the
fog lamps are ON.
5-41
Convenience Features
2.
When the High Beam Assist camera
WARNING
is adversely affected by an external
condition. Such examples may
Do not attempt to disassemble
include:
the front view camera without the
assistance of an authorized HYUNDAI
When the vehicle’s headlights have
dealer technician. If the front camera
been damaged or not repaired
is removed for any reason, the
properly.
system may need to be re-calibrated.
When the vehicle headlights are
Have the system inspected by an
not aimed properly.
authorized HYUNDAI dealer.
When the vehicle is driven on a
If the windshield of your vehicle is
narrow curved road or rough road
replaced, most likely the front view
When the vehicle is driven on an
camera will need to be re-calibrated.
uphill road or downhill road
If this occurs, have your vehicle
inspected and have the system re-
When only part of the vehicle in
calibrated by an authorized HYUNDAI
front is visible on a crossroad or
dealer.
curved road.
Be careful that water doesn’t get into
When there is a traffic light,
High Beam Assist unit and do not
reflecting sign, flashing sign or
remove or damage related parts of
mirror.
High Beam Assist system.
When the road conditions are bad
Do not place objects on the crash
such as being wet or covered with
pad that reflect light such as mirrors,
snow.
white paper, etc. The system may
When a vehicle suddenly appears
malfunction if sunlight is reflected.
from a curve.
At times, High Beam Assist system
When the vehicle is tilted from a
may not work properly. The system
flat tire or being towed.
is for your convenience only. It is the
When the Lane Keeping Assist
responsibility of the driver for safe
system warning light illuminates.
driving practices and always check
When the light from the on-coming
the road conditions for your safety.
or front vehicle is not detected
When the system does not operate
because of exhaust fume, smoke,
normally, change the headlight
fog, snow, etc.
position manually between the high
When the front window is covered
beam and low beam.
with foreign matters such as ice,
dust, fog, or is damaged.
3.
When the forward visibility is poor.
Such examples may include:
When the headlights of an on-
coming vehicle or a vehicle in front
is not detected due to poor outside
visibility (smog, smoke, dust, fog,
heavy rain, snow, etc.).
When the windshield visibility is
poor.
5-42
05
Turn Signals And Lane Change
Battery Saver Function
Signals
The purpose of this feature is to prevent
the battery from being discharged. The
system automatically turns off the tail
lamp when the driver turns the vehicle
off and opens the driver-side door.
With this feature, the tail lamps will turn
off automatically if the driver parks on
the side of road at night.
However, the position lamps stay ON
even when the driver-side door is opened
if the headlight switch is turned to the
position lamp OFF or AUTO position after
OIG046417
the engine is turned off.
To signal a turn, push down on the lever
If necessary, to keep the lamps on
for a left turn or up for a right turn in
turn the position lamps OFF and ON
position (A).
again using the headlight switch on
If an indicator stays on and does not flash
the steering column after the engine is
or if it flashes abnormally, one of the turn
turned off.
signal bulbs may be burned out and will
require replacement.
Headlight Delay Function
If the key is removed from the ignition
Onetouch turn signal function
switch or placed in the ACC position
To activate the One Touch Turn Signal
or the LOCK/OFF position with the
function, push the turn signal lever up or
headlights ON, the headlights (and/or tail
down to position (B) and then release it.
lamps) remain on for about 5 minutes.
However, if the driver’s door is opened
The lane change signals will blink 3, 5 or
and closed, the headlights are turned off
7 times.
after 15 seconds. Also, with the engine
You can activate or deactivate the One
off if the driver’s door is opened and
Touch Turn Signal function or choose
closed, the headlights (and/or tail lamps)
the number of blinks (3, 5, or 7) from the
are turned off after 15 seconds.
User Settings mode in the cluster display.
The headlights (and/or tail lamps) can be
For more information, refer to the
turned off by pressing the lock button
“Cluster Display” section in the chapter
on the remote key or smart key twice or
4.
turning the headlight switch to the OFF
or AUTO position.
You can activate or deactivate the
Headlight Delay function from the User
Settings Mode in the cluster display.
For more information, refer to the
“Cluster Display” section in the chapter
4.
5-43
Convenience Features
NOTICE
Front Lamps
If the driver exits the vehicle through
„„
Type A
another door besides the driver
door, the battery saver function
does not operate and the headlight
delay function does not turn OFF
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
turn OFF the headlights manually from
the headlight switch before exiting the
vehicle.
OQX059041L
„„
Type B
Interior Lights
WARNING
Do not use the interior lights when
driving in the dark. The interior lights
may obscure your view and cause an
accident.
NOTICE
Do not use the interior lights for
OQX059023L
extended periods when the vehicle is
Front Map Lamp (1):
turned off or the battery will discharge.
Press either lenses to turn the map lamp
on or off. This light produces a spot
Interior Lamp AUTO Cut
beam for convenient use as a map lamp
The interior lamps will automatically go
at night or as a personal lamp for the
off approximately 20 minutes after the
driver and the front passenger.
engine is turned off and the doors are
closed. If a door is opened, the lamp
will go off 40 minutes after the engine is
turned off. If the doors are locked by the
remote key or smart key and the vehicle
enters the armed stage of the theft
alarm system, the lamps will go off five
seconds later.
5-44
05
Front Door Lamp (2) (
):
Rear Lamp
The front or rear room lamps come on
„„
Type A
when the front or rear doors are opened
if the engine is running or not. When
doors are unlocked by the remote key or
smart key, the front and rear lamps come
on for approximately 30 seconds as long
as any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds when the door
is closed. However, if the ignition switch
is in the ON position or all doors are
locked, the front and rear lamps will turn
OOS047321
off. If a door is opened with the ignition
„„
Type B
switch in the ACC position or the OFF
position, the front and rear lamps stay on
for about 20 minutes.
Front room lamp
(3):
Press the button to turn ON the room
lamp for the front/rear seats.
(4):
Press the button to turn OFF the
OQX059024L
room lamp for the front/rear seats
Rear Room Lamp (
):
regardless of front or rear door open
Press this switch to turn the rear room
position.
lamp on and off.
5-45
Convenience Features
(1): The room lamp for the rear seats
Luggage Compartment Lamp
is automatically turned ON for
approximately 30 seconds,
when a door is opened.
The room lamp for the rear
seats is automatically turned ON
for approximately 15 seconds,
when the remote key (smart
key) unlocks the doors. The
room lamp fades out, when the
ignition switch is placed to the
ON position in 15 seconds. The
room lamp remains ON up to 20
OQX059025L
minutes, when a door is opened
The luggage compartment lamp comes
with the ignition switch in the
either the ACC or OFF position.
on when the liftgate is opened.
(2): With the Rear Room Lamp in
this position, the rear room lamp
NOTICE
remain on at all times.
The luggage compartment lamp comes
(3): With the Rear Room Lamp in
on as long as the liftgate is open.To
this position the rear room lamp
prevent unnecessary battery system
remain off at all times.
drain, close the liftgate securely after
using the luggage compartment.
NOTICE
Vanity Mirror Lamp
Do not leave the lamp switches on for
an extended period of time when the
engine is turned off.
OQX059001L
Push the switch to turn the light on or off.
: The lamp will turn on if this
button is pressed.
: The lamp will turn off if this
button is pressed.
NOTICE
Always have the switch in the off
position when the vanity mirror lamp
is not in use. If the sunvisor is closed
without the lamp off, it may discharge
the battery or damage the sunvisor.
5-46
05
WIPERS AND WASHERS
„„
Front windshield wiper/washer
Windshield Wipers
Operates as follows when the ignition
switch is in the ON position.
MIST: For a single wiping cycle, push
the lever upward and release. The
wipers will operate continuously if
the lever is held in this position.
OFF: Wiper is not in operation.
INT: Wiper operates intermittently at
the same wiping intervals. To vary
OTLE045161
the speed setting, move the speed
„
Rear windshield wiper/washer
control lever. The top most setting
will run the wipers most frequently
(for more rain). The bottom setting
will run the wipers the least
frequently (for less rain).
LO: The wiper runs at a lower speed.
HI: The wiper runs at a higher speed.
Information
OTLE045508
If there is heavy accumulation of snow
or ice on the windshield, defrost the
A. Wiper speed control
windshield for about 10 minutes, or until
• MIST - Single wipe
the snow and/or ice is removed before
• OFF - Off
using the windshield wipers to ensure
proper operation.
• INT - Intermittent wipe
If you do not remove the snow and/or ice
• LO- Low wiper speed
before using the wiper and washer, it may
• HI - High wiper speed
damage the wiper and washer system.
B. Intermittent control wipe time
adjustment
C. Wash with brief wipes
(pull lever towards you)
D. Rear wiper/washer control
• HI - High wiper speed
• LO - Low wiper speed
• OFF - Off
E.
Wash with brief wipes (rear)
(push lever away from you)
5-47
Convenience Features
Windshield Washers
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE
To prevent possible damage to the
OTLE045164
washer pump, do not operate the
washer when the fluid reservoir is
In the OFF position, pull the lever gently
empty.
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
To prevent possible damage to the
cycles. The spray and wiper operation
wipers or windshield, do not operate
will continue until you release the lever. If
the wipers when the windshield is
the washer does not work, you may need
dry.
to add washer fluid to the washer fluid
To prevent damage to the wiper
reservoir.
arms and other components, do
not attempt to move the wipers
manually.
To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.
5-48
05
Rear Window Wiper and Washer
Auto Rear Wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function on the
cluster display.
Go to ‘User Settings → Convenience →
Auto Rear Wiper (in R)’.
Information
The infotainment system may change after
software updates. For more information,
OTLE045165
refer to the user’s manual provided in
The rear window wiper and washer
the infotainment system and the quick
switch is located at the end of the wiper
reference guide.
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI - High wiper speed
LO - Low wiper speed
OFF - Off
OTLE045166
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
5-49
Convenience Features
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OQX059100L
1. Mode selection knob
5. Rear window defroster button
(if equipped)
2. Fan speed control knob
6. A/C (Air conditioning) button
3. Temperature control knob
4. Air intake control button
(recirculated air position or outside
(fresh) air position)
5-50
05
Heating and Air Conditioning
3. Set the temperature control to the
desired position.
1. Start the engine.
4. Set the air intake control to fresh
2. Set the mode to the desired position.
mode or recirculation mode position.
To improve the effectiveness of
5. Set the fan speed control to the
heating and cooling, select the mode
desired speed.
according to the following:
6. If air conditioning is desired, turn the
• Heating:
air conditioning system on.
• Cooling:
Mode Selection (1)
OQX052217N
The mode selection knob controls the direction of the air flow through the ventilation
system. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position.
5-51
Convenience Features
Face-Level (B, D)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level (B, C, D)
Air flow is directed towards the face and
OQX059102L
the floor.
MAX A/C-Level (B, D)
The MAX A/C mode is used to cool the
Floor-Level (A, C, D)
inside of the vehicle faster. Air flow is
directed toward the upper body and
face.
Most of the air flow is directed to the
In this mode, the A/C button and the
floor, with a small amount of the air
Recirculation mode button cannot be
being directed to the windshield and side
selected. Turn the fan speed mode to
window defrosters.
adjust.
After the interior cabin has cooled
Floor & Defrost (A, C, D)
sufficiently, move the temperature knob
away from the MAX A/C setting and
adjust the knob to the desired position.
Most of the air flow is directed to the
If you wish to continue using A/C
floor and the windshield with a small
ON, make sure the A/C button LED is
amount directed to the side window
illuminated.
defrosters.
Defrost-Level (A, D)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
5-52
05
Instrument Panel Vents
Air Intake Control (4)
OQX059103L
OQXI049309
The instrument panel vent air flow can be
The air intake control button is used to
directed up/down or left/right using the
select either Fresh mode (outside air) or
vent adjustment lever.
Recirculation mode (cabin air).
The air flow can also be CLOSED
Recirculation mode
using the vent adjustment lever. The
When Recirculation mode
instrument panel air vents are the “click-
is selected, air from the
to-close” type.
passenger compartment will
To CLOSE the instrument panel vents
be recirculated through the
perform the following:
system and heated or cooled
according to the function
• For the driver side vents, slide the
selected.
vent adjustment lever to the left until
it clicks.
Fresh mode
• For the passenger side vents, slide the
vent adjustment lever to the right until
When Fresh mode is selected,
it clicks.
air enters the vehicle from
outside and is heated or
Temperature Control (3)
cooled according to the
function selected.
Information
Using the system primarily in Fresh mode
and Recirculation mode only when needed
is recommended for best results.
Prolonged operation of the heater in
Recirculation mode and without the A/C
ON can cause fogging of the windshield.
In addition, prolonged use of the A/C
OQX059102L
ON in Recirculation mode may result in
excessively dry, dehumidified air in the
The temperature will increase by turning
the knob to the right.
cabin.
The temperature will decrease by turning
the knob to the left.
5-53
Convenience Features
NOTICE
WARNING
Operating the fan speed when the
Continued use of the climate control
ignition switch is in the ON position
system operation in Recirculation
could cause the battery to discharge.
mode for a prolonged period of
Operate the fan speed when the engine
time may cause drowsiness to the
is running.
occupants in the cabin. This may lead
to loss of vehicle control which may
Air Conditioning (6)
lead to an accident.
Continued use of the climate control
system operation in Recirculation
mode with the A/C OFF may allow
humidity to increase inside the
cabin. This may cause condensation
to accumulate on the windshield and
obscure visibility.
Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
OQX059104L
prolonged periods of time. Doing so
may increase the levels of carbon
Push the A/C button to turn the system
dioxide in the cabin which may lead
on (indicator light will illuminate) and off.
to serious injury or death.
System Operation
Fan Speed Control (2)
Cooling / Ventilation
1. Select the Face Level
mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
OQXI049310
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
airflow.
Setting the fan speed control knob to the
“0” position turns off the fan.
5-54
05
Heating
Air conditioning
1. Select the Floor Level
mode.
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
2. Set the air intake control to fresh
mode.
1. Start the engine. Push the air
conditioning button.
3. Set the temperature control to the
desired position.
2. Set the mode to the
position.
4. Set the fan speed control to the
3. Set the air intake control to the
desired speed.
outside air or recirculated air position.
5. If desired, turn the air conditioning ON
4. Adjust the fan speed control and
with the temperature control knob set
temperature control to maintain
to heat in order to dehumidify the air
maximum comfort.
before it enters into the cabin.
If the windshield fogs up, select the Floor
NOTICE
& Defrost
mode or press the Front
When using the air conditioning system,
Defrost
mode.
monitor the engine temperature gauge
closely while driving up hills or in heavy
Operation Tips
traffic when outside temperatures are
• To keep dust or unpleasant fumes
high. Air conditioning system operation
from entering the vehicle through the
when climbing a steep grade or in high
ventilation system, temporarily set
outside ambient temperatures can
the air intake control to recirculation
cause engine overheating.
mode. Return the control to Fresh
Continue to use the fan, but turn the air
mode when the unpleasant air outside
conditioning system off if the engine
has diminished. This will help keep the
temperature gauge indicates engine
driver alert and comfortable.
overheating.
• To help prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and fan
speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
5-55
Convenience Features
Air conditioning system operation tips
System Maintenance
If the vehicle has been parked in
Cabin Air Filter
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
After sufficient cooling has been
achieved, switch back from the
recirculated air to the fresh outside air
position.
To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
OIK047401L
conditioning system with the windows
[A] : Outside air, [B] : Recirculated air
and sunroof closed.
[C] : Cabin air filter, [D] : Blower
Use the air conditioning system
[E] : Evaporator core, [F] : Heater core
every month only for a few minutes
The cabin air filter is installed behind
to ensure maximum system
the glove box. It filters the dust or other
performance.
pollutants that enter the vehicle through
If you operate air conditioner
the heating and air conditioning system.
excessively, the difference between
Have the cabin air filter replaced by an
the temperature of the outside air and
authorized HYUNDAI dealer according to
that of the windshield could cause
the maintenance schedule. If the vehicle
the outer surface of the windshield
is being driven in severe conditions such
to fog up, causing loss of visibility. In
as dusty or rough roads, more frequent
this case, set the mode selection knob
cabin air filter inspections and changes
or button to the
position and fan
are required.
speed control to the lower speed.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
Checking the Amount of Air
Conditioner Refrigerant and
Compressor Lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
5-56
05
NOTICE
The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.
The refrigerant system should be
serviced in a well-ventilated place.
The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
OQX089050N
replacement MAC evaporators shall
Air conditioning refrigerant label
be certified (and labeled) as meeting
You can find out which air conditioning
SAE Standard J2842.
refrigerant is applied to your vehicle on
the label located underside of the hood.
NOTICE
It is important that the correct type and
„„
Example
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
WARNING
Vehicles equipped with R-1234yf
OHYK059001
Since the refrigerant is mildly
Each symbol and specification on the
flammable and operated
air conditioning refrigerant label is
at high pressure, the air
represented as below:
conditioning system should
1. Classification of refrigerant
only be serviced by trained
2. Amount of refrigerant
and certified technicians. It
3. Classification of compressor lubricant
is important that the correct
type and amount of oil and
4. Caution
refrigerant are used.
5. Flammable refrigerant
All refrigerants should be reclaimed
6. To require registered technician to
with proper equipment.
service air conditioning system
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.
5-57
Convenience Features
AUTOMATIC CLIMATE CONTROL SYSTEM
OQX059105L
1. Fan speed control knob
6. Recirculation mode/Fresh mode
2. Temperature control knob
7. Rear window defroster button
(if equipped)
3. AUTO (automatic control) button
8. Front windshield defroster button
4. OFF button
9. A/C (Air conditioning) button
5. Mode selection button
10. Climate control screen
5-58
05
Automatic Temperature Control
The selected function will be controlled
manually while other functions operate
Mode
automatically.
The Automatic Climate Control System
For your convenience and to improve the
is controlled by setting the desired
efficiency of the climate control, use the
temperature.
AUTO button and set the temperature to
1. Press the AUTO button (3).
72°F (22°C).
The modes, fan speeds, air intake and
To change the temperature unit from °F
air-conditioning will be controlled
to °C or °C to °F:
automatically by the temperature
Press and hold the AUTO and OFF
setting you select.
buttons on the climate control unit for 3
2. Turn the temperature control knob
seconds.
(2) to the desired temperature. If
the temperature is set to the lowest
setting (Lo), the air conditioning
system will operate continuously.
After the interior has cooled
sufficiently, adjust the knob to
a higher temperature set point
whenever possible.
To turn the automatic operation off,
select any button of the following:
• Mode selection button
• Front windshield defroster button
OQX059097
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
NOTICE
will illuminate on the information
Never place anything near the ambient
display once again.)
light/solar sensor to ensure better
• Fan speed control button
control of the heating and cooling
system.
5-59
Convenience Features
Manual Temperature Control
To improve the effectiveness of
heating and cooling, select the mode
Mode
according to the following:
The heating and cooling system can be
• Heating:
controlled manually by pushing buttons
other than the AUTO button. In this case,
• Cooling:
the system works sequentially according
3. Set the temperature control to the
to the order of buttons selected.
desired position.
When pressing any button except the
4. Set the air intake control to Fresh
AUTO button while using automatic
mode position.
operation, the functions not selected will
5. Set the fan speed control to the
be controlled automatically.
desired speed.
1. Start the engine.
6. If air conditioning is desired, turn the
2. Set the mode to the desired position.
air conditioning system on.
7. Press the AUTO button to convert to
full automatic control of the system.
Mode Selection (5)
OQX052156N
5-60
05
The mode selection button controls
Instrument Panel Vents
the direction of the air flow through the
ventilation system.
The air flow outlet direction is cycled as
follows:
Face-Level (B, D)
OQX059103L
The instrument panel vent air flow can be
Air flow is directed toward the upper
directed up/down or left/right using the
body and face. Additionally, each outlet
vent adjustment lever.
can be controlled to direct the air
discharged from the outlet.
The air flow can also be CLOSED
using the vent adjustment lever. The
instrument panel air vents are the “click-
Bi-Level (B, C, D)
to-close” type.
To CLOSE the instrument panel vents
perform the following:
Air flow is directed towards the face and
the floor.
• For the driver side vents, slide the
vent adjustment lever to the left until
it clicks.
Floor & Defrost (A, C, D)
• For the passenger side vents, slide the
vent adjustment lever to the right until
Most of the air flow is directed to the
it clicks.
floor and the windshield with a small
amount directed to the side window
defrosters.
Floor-Level (A, C, D)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
Defrost-Level (A, D) (8)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
5-61
Convenience Features
Temperature Control (2)
Information
Using the system primarily in Fresh mode
and Recirculation mode only when needed
is recommended for best results.
Prolonged operation of the heater in
Recirculation mode and without the A/C
ON can cause fogging of the windshield.
In addition, prolonged use of the A/C
ON in Recirculation mode may result in
excessively dry, dehumidified air in the
cabin.
OQX059106L
Turn the knob to the right to increase the
WARNING
temperature. Turn the knob to the left to
Continued use of the climate control
decrease temperature.
system operation in Recirculation
The temperature will increase or
mode for a prolonged period of
decrease by 1°F/0.5°C for each
time may cause drowsiness to the
incremental location. When set to the
occupants in the cabin. This may lead
lowest temperature setting, the air
to loss of vehicle control which may
conditioning will operate continuously.
lead to an accident.
Continued use of the climate control
Air Intake Control (6)
system operation in Recirculation
The air intake control button is used to
mode with the A/C OFF may allow
select either Fresh mode (outside air) or
humidity to increase inside the
Recirculation mode (cabin air).
cabin. This may cause condensation
to accumulate on the windshield and
Recirculation mode
obscure visibility.
When Recirculation mode
Do not sleep in your vehicle or
is selected, air from the
remain parked in your vehicle with
passenger compartment will
the windows up and either the
be recirculated through the
heater or the air conditioning ON for
system and heated or cooled
prolonged periods of time. Doing so
according to the function
may increase the levels of carbon
selected
dioxide in the cabin which may lead
to serious injury or death.
Fresh mode
When Fresh mode is selected,
air enters the vehicle from
outside and is heated or
cooled according to the
function selected.
5-62
05
Fan Speed Control (1)
Air Conditioning (9)
OQX059117L
OQX059111L
The fan speed can be set as desired by
Push the A/C button to manually turn the
pushing the fan speed control button.
system on (indicator light will illuminate)
and off.
More air is delivered with higher fan
speeds.
OFF Mode (4)
Pressing the OFF button turns off the fan.
Information
For better sound quality, fan speed may
automatically slow down for a couple
of minutes when you activate voice
recognition or hands free.
NOTICE
Operating the fan when the ignition
switch is in the ON position could cause
OQX059110L
the battery to discharge. Operate the
Push the OFF button to turn the climate
fan when the engine is running.
control system off. You can still operate
the mode and air intake buttons as
long as the ignition switch is in the ON
position.
5-63
Convenience Features
System Operation
Air conditioning
Cooling / Ventilation
HYUNDAI Air Conditioning Systems are
filled with R-1234yf refrigerant.
1. Select the Face Level
mode.
1. Start the engine. Push the air
2. Set the air intake control to fresh
conditioning button.
mode.
2. Set the mode to the
position.
3. Set the temperature control to the
desired position.
3. Set the air intake control to the
outside air or recirculated air position.
4. Set the fan speed control to the
desired speed.
4. Adjust the fan speed control and
temperature control to maintain
Heating
maximum comfort.
1. Select the Floor Level
mode.
2. Set the air intake control to fresh
NOTICE
mode.
When using the air conditioning system,
3. Set the temperature control to the
monitor the engine temperature gauge
desired position.
closely while driving up hills or in heavy
traffic when outside temperatures.
4. Set the fan speed control to the
Air conditioning system operation
desired speed.
when climbing a steep grade or in
5. If desired, turn the air conditioning ON
high outside ambient temperatures
with the temperature control knob set
can cause engine overheating.
to heat in order to dehumidify the air
Continue to use the fan, but turn the air
before it enters into the cabin.
conditioning system off if the engine
If the windshield fogs up, select the Floor
temperature gauge indicates engine
& Defrost
mode or press the Front
overheating.
Defrost
mode.
Operation Tips
• To keep dust or unpleasant fumes
from entering the car through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the to
Fresh mode when the unpleasant air
outside has diminished. This will help
keep the driver alert and comfortable.
• To help prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
5-64
05
Air conditioning system operation tips
System Maintenance
If the vehicle has been parked in
Cabin Air Filter
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.
After sufficient cooling has been
achieved, switch back from the
recirculated air to the fresh outside air
position.
To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
OIK047401L
conditioning system with the windows
[A] : Outside air, [B] : Recirculated air
and sunroof closed.
[C] : Cabin air filter, [D] : Blower
Use the air conditioning system
[E] : Evaporator core, [F] : Heater core
every month only for a few minutes
The cabin air filter is installed behind
to ensure maximum system
the glove box. It filters the dust or other
performance.
pollutants that enter the vehicle through
If you operate air conditioner
the heating and air conditioning system.
excessively, the difference between
Have the The cabin air filter replaced
the temperature of the outside air and
by an authorized HYUNDAI dealer
that of the windshield could cause
according to the maintenance schedule.
the outer surface of the windshield
If the vehicle is being driven in severe
to fog up, causing loss of visibility. In
conditions such as dusty or rough roads,
this case, set the mode selection knob
more frequent cabin air filter inspections
or button to the
position and fan
and changes are required.
speed control to the lower speed.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.
5-65
Convenience Features
Checking the Amount of Air Conditioner
Refrigerant and Compressor Lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
OQX089050N
The refrigerant system should only
be serviced by trained and certified
Air conditioning refrigerant label
technicians to insure proper and safe
You can find out which air conditioning
operation.
refrigerant is applied to your vehicle on
The refrigerant system should be
the label located underside of the hood.
serviced in a well-ventilated place.
The air conditioning evaporator (cooling
„„
Example
coil) shall never be repaired or replaced
with one removed from a used or
salvaged vehicle and new replacement
MAC evaporators shall be certified (and
labeled) as meeting SAE Standard J2842.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor and
abnormal system operation may occur. To
OHYK059001
prevent damage, the air conditioning system
Each symbol and specification on the
in your vehicle should only be serviced by
air conditioning refrigerant label is
trained and certified technicians.
represented as below:
1. Classification of refrigerant
WARNING
2. Amount of refrigerant
Vehicles equipped with R-1234yf
3. Classification of compressor lubricant
Since the refrigerant is mildly
4. Caution
flammable and operated
at high pressure, the air
5. Flammable refrigerant
conditioning system should
6. To require registered technician to
only be serviced by trained
service air conditioning system
and certified technicians. It
is important that the correct
type and amount of oil and
refrigerant are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
and environment. Failure to heed these
warnings can lead to serious injuries.
5-66
05
WINDSHIELD DEFROSTING AND DEFOGGING
Manual Climate Control System
WARNING
Windshield heating
Do not use the
or
position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
that of the windshield could cause the
outer surface of the windshield to fog
up, causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection knob or button to the
OQXI049321
position and fan speed control knob or
button to a lower speed.
To defog inside windshield
1. Select any fan speed except “0”
• For maximum defrost performance,
position.
set the temperature control knob
2. Select the desired temperature.
to the highest temperature setting
3. Select the
or
position.
(rotated all the way to the right) and
the fan speed control to the highest
4. Fresh mode will be selected
setting.
automatically. Additionally, the
air conditioning will automatically
• If warm air to the floor is desired while
operate if the mode is selected to the
defrosting or defogging, set the mode
position.
to the floor-defrost position.
Check to make sure the A/C is ON. If the
• Before driving, clear all snow and ice
A/C ON LED is not illuminated, press
from the windshield, rear window,
the A/C button once to turn the air
side view mirrors, and all side
conditioner ON.
windows.
• Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
NOTICE
If you start the vehicle when the
weather is cold, more adequate way to
heat the cabin is described below.
1. Turn off or lower the blower, right
after engine starting, because
engine temperature is still low and
the air flow is cold.
2. After few minutes of engine warm
up, turn the blower to low to medium
speed and set the temperature
control to Hot.
5-67
Convenience Features
Check to make sure the air intake control
Check to make sure the air intake
is in Fresh mode. If the air intake control
control is in Fresh mode. If the air intake
LED is illuminated, press the button once
control LED for Recirculation mode is
to enable Fresh mode (LED OFF).
illuminated, press the button for Fresh
mode until its LED is not illuminated
(OFF).
If the
position is selected, the fan
speed is automatically increased.
OQXI049322
To defrost outside windshield
1. Set the fan speed to the highest
setting (knob rotated all the way to
the right).
OQX059112L
To defrost outside windshield
2. Set the temperature control to the
highest temperature setting.
1. Set the fan speed to the highest
(extreme right) position.
3. Select the
position.
2. Set the temperature to the extreme
4. Fresh mode (Recirculation OFF) and
A/C ON will automatically be selected.
hot (HI) position.
3. Press the defroster button (
).
Automatic Temperature Control
4. The outside (fresh) air position will be
System (if equipped)
selected automatically.
If the
position is selected, lower fan
speed is adjusted to a higher fan speed.
OQX059113L
To defog inside windshield
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button (
).
4. Fresh mode will be selected
automatically.
5-68
05
Rear Window Defroster
• To activate the rear window defroster,
press the rear window defroster
button located in the center control
NOTICE
panel. The indicator on the rear
To prevent damage to the rear window
window defroster button illuminates
defroster conducting elements bonded
when the defroster is ON.
to the inside surface of the rear window,
• To turn off the defroster, press the rear
never use sharp instruments or window
window defroster button again.
cleaners containing abrasives to clean
the window.
Information
If you want to defrost and defog
the front windshield, refer to the
If there is heavy accumulation of snow
“Windshield Defrosting and Defogging”
on the rear window, brush it off before
section in this chapter.
operating the rear defroster.
The rear window defroster
„„
Manual climate control system
automatically turns off after
approximately 20 minutes or when the
ignition switch is in the LOCK/OFF
position.
Side View Mirror Defroster
(if equipped)
If your vehicle is equipped with the side
view mirror defrosters, they will operate
at the same time you turn on the rear
window defroster.
OQX059114L
„
Automatic climate control system
OQX059115L
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while the engine is running.
5-69
Convenience Features
STORAGE COMPARTMENT
Sliding Armrest (if equipped)
WARNING
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
OQXI049053
fast as the vehicle. If you have to stop
To move the armrest forward:
or turn quickly, or if there is a crash, the
Grab the front portion of the armrest (1)
items may fly out of the compartment
then pull it forward.
and may cause an injury if they strike
the driver or a passenger.
To move the armrest rearward:
Grab the front portion of the armrest (1)
NOTICE
then push the armrest rearward.
To avoid possible theft, do not leave
valuables in the storage compartments.
WARNING
Center Console Storage
Do not grab the front portion of the
armrest (1) when moving the armrest
rearward. You may pinch your fingers.
OQXI049052
To open:
Grab and hold the latch on the arm rest
then lift the lid.
5-70
05
INTERIOR FEATURES
Glove Box
Cup Holder
OQX051205
OQX059009L
To open:
Cups or small beverages cups may be
Pull the lever.
placed in the cup holders.
WARNING
WARNING
Avoid abrupt starting and braking
ALWAYS close the glove box door after
use.
when the cup holder is in use to
prevent spilling your drink. If hot
An open glove box door can cause
liquid spills, you could be burned.
serious injury to the passenger in an
Such a burn to the driver could cause
accident, even if the passenger is
loss of vehicle control resulting in an
wearing a seat belt.
accident.
Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.
Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
5-71
Convenience Features
NOTICE
Power Outlet
Keep your drinks sealed while driving
to prevent spilling your drink. If liquid
spills, it may get into the vehicle’s
electrical/electronic system and
damage electrical/electronic parts.
When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.
Sunvisor
OQX052040N
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 W with the engine
running.
WARNING
Avoid electrical shocks. Do not place
OOS047062
your fingers or foreign objects (pin, etc.)
To use the sunvisor, pull it downward.
into a power outlet or touch the power
To use the sunvisor to block the sun
outlet with a wet hand.
from the side window, pull it downward,
release it from the bracket (1) and swing
it to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped).
NOTICE
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
Do not put several tickets in the ticket
holder at one time. This could cause
damage to the ticket holder.
5-72
05
NOTICE
USB Charger (if equipped)
To prevent damage to the Power
„„
Front seat
Outlets:
Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
Only use 12V electric accessories
which are less than 180 W in electric
capacity.
OQX052206N
Adjust the air-conditioner or heater
„
Rear seat
to the lowest operating level when
using the power outlet.
Close the cover when not in use.
Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.
OQX052218N
Push the plug in as far as it will go. If
The USB charger is designed to recharge
good contact is not made, the plug
batteries of small size electrical devices
may overheat and the fuse may open.
using a USB cable.
Plug in battery equipped electrical/
The electrical devices can be recharged
electronic devices with reverse
when the ignition switch or the Engine
current protection. The current
Start/Stop button is in the ACC, ON or
START position.
from the battery may flow into the
vehicle’s electrical/electronic system
The battery charging state may be
and cause system malfunction.
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.
• A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.
• A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.
• The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media on the
Infortainment system.
5-73
Convenience Features
Wireless Cellular Phone
3. If the wireless charger does not work
gently move your smart phone on
Charging System (if equipped)
the pad until charging indicator light
turns orange. Depending on the smart
phone, the charging indicator light
will turn green after the charging is
complete.
4. If the wireless charging is not function
properly, the orange light will blink
and flash for ten seconds then turn
off.In such cases remove the smart
phone from the pad and replace or
double check charging status.
OQX052160N
If your smart phone is not charging:
[A]: Charging pad, [B]: Indicator light
• Slightly change the position of the
On certain models, the vehicle comes
smart phone on the charging pad.
equipped with a wireless smart phone
• Make sure the indicator light is
charger.
orange.
The system is available when all doors
are closed, and when the ignition switch
The indicator light will blink orange for 10
or Engine Start/Stop button is in the ON
seconds if there is a malfunction in the
or START position.
wireless charging system. In this case,
temporarily stop the charging process,
To charge a cellular phone
and re-attempt to charge your cellular
The wireless cellular phone charging
phone again.
system charges only the Qi-enabled
The system warns you with a message on
cellular phones. Read the label on the
the cluster display if the cellular phone
cellular phone accessory cover or visit
is still on the wireless charging unit after
your cellular phone manufacturer’s
the engine is turned OFF and the front
website to check whether your cellular
door is opened.
phone supports the Qi technology.
The wireless charging process starts
Information
when you put a Qi-enabled cellular
phone on the wireless charging unit.
For some manufacturers’ cellular phones,
the system may not warn you even though
1. Remove other items, including the
smart key, from the wireless charging
the cellular phone is left on the wireless
charging unit. This is due to the particular
unit. If not, the wireless charging
process may be interrupted. Place the
characteristic of the cellular phone and
not a malfunction of the wireless charging.
cellular phone on the center of the
charging pad (
).
2. You can turn ON or OFF the wireless
charging function in the user settings
mode on the instrument cluster.
For further information, refer to the
“Cluster Display Modes” in chapter 4.
5-74
05
NOTICE
If the ignition switch or Engine Start/
Stop button is in the OFF position,
The wireless smart phone charging
the charging also stops.
system may not support certain
smart phones, which are not verified
When any smart phone without
for the Qi specification (
).
a wireless charging function or a
metallic object is placed on the
When placing your smart phone on
charging pad, a small noise may
the charging pad, position the phone
sound. This small sound is due to the
in the middle of the mat for optimal
vehicle discerning compatibility of
charging performance. If your smart
the object placed on the charging
phone is off to the side, the charging
pad. It does not affect your vehicle or
rate may be less and in some cases
the smart phone in any way.
the smart phone may experience
higher heat conduction.
Some smart phones may not be able
to charge depending on the internal
In some cases, the wireless charging
structure of the smart phone. If
may stop temporarily when the
this occurs, try charging the mobile
smart key is used, either when
phone by moving it to the left or right
starting the vehicle or locking/
side of the wireless charging pad.
unlocking the doors, etc.
However, for some foldable smart
When charging certain smart
phones that have magnets inside the
phones, the charging indicator may
smart phone, try charging the smart
not change to blue when the smart
phone while holding it close to the
phone is fully charged.
left side of the wireless charging pad.
The wireless charging process may
temporarily stop, when temperature
abnormally increases inside the
Information
wireless smart phone charging
If the ignition switch is in the LOCK/OFF
system. The wireless charging
position, the charging also stops.
process restarts, when temperature
falls to a certain level.
Information
The wireless charging process may
temporarily stop when there is
This device complies with part 15 of the
any metallic item, such as a coin,
FCC Rules.
between the wireless smart phone
Operation is subject to the following two
charging system and smart phone.
conditions:
When charging some smart phones
1. This device may not cause harmful
with a self-protection feature,
interference, and
the wireless charging speed may
2. This device must accept any
decrease and the wireless charging
interference received, including
may stop.
interference that may cause undesired
If the smart phone has a thick cover,
operation.
the wireless charging may not be
possible.
If the smart phone is not completely
contacting the charging pad,
wireless charging may not operate
properly.
5-75
Convenience Features
Clock
Clothes Hanger
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
Vehicles with Audio System
Select the [SETUP] button on the audio
system → Select [Date/Time].
OTM048095
• Set time: Set the time displayed on
These hangers are not designed to hold
the audio screen.
large or heavy items.
• Time format: Choose between 12hour
and 24-hour time formats.
WARNING
Vehicles with Navigation System
Select the Settings menu on the
Navigation system → Select [Date/Time].
• GPS time: Displays time according to
the received GNSS time.
24-hour: Switches to 12 hour or 24
hour.
OQX059137L
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
5-76
05
Floor Mat Anchor(s)
Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.
Do not stack floor mats on top of one
another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should
be installed in each position.
IMPORTANT - Your vehicle was
manufactured with driver’s side floor
mat anchors that are designed to
securely hold the floor mat in place.
OQX059145N
To avoid any interference with pedal
operation, HYUNDAI recommends that
ALWAYS use the Floor Mat Anchors to
the HYUNDAI floor mat designed for use
attach the front floor mats to the vehicle.
in your vehicle be installed.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
Luggage Net Holder
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.
WARNING
The following must be observed when
OQX059045L
installing ANY floor mat to the vehicle.
To keep items from shifting in the
Ensure to remove a protective
luggage compartment, you can use the 4
film attached on the carpet
holders located in the luggage board to
before attaching a floor mat on
attach the luggage net.
the front floor carpet. Otherwise,
Make sure the luggage net is securely
the floor mat may move freely on
attached to the holders in the luggage
the protective film and it could
board.
result in unintentional braking or
accelerating.
Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.
5-77
Convenience Features
WARNING
WARNING
Avoid eye injury. DO NOT overstretch
Do not place objects on the cargo
the luggage net. ALWAYS keep your
area cover while driving. Such
face and body out of the luggage net’s
objects may be thrown about inside
recoil path. DO NOT use the luggage net
the vehicle and possibly injure
when the strap has visible signs of wear
vehicle occupants during an accident
or damage.
or when braking.
Use the luggage net to keep only light
Never allow anyone to ride in the
items from shifting in the luggage
luggage compartment. It is designed
compartment.
for luggage only.
Maintain balance of the vehicle and
Cargo Area Cover
locate the weight as far forward as
possible.
OQX059084L
Use the cover to hide items stored in
OQX059153
the cargo area. The cargo area cover
Fully insert the hinges (A) on both
will lift when the liftgate is opened.
sides of the cargo area cover into
Disconnect the strap (1) from the holder
position (B). If not fully inserted, the
if you want to return the cover to the
cargo area cover can be damaged.
original position. To remove the cargo
area cover completely, pull the cover
backward and out from the rail. To secure
a wider space, pull the cargo area cover
backward slightly and push down it.
NOTICE
Since the cargo area cover may be
damaged or deformed, do not put
luggage on it when it is being used.
5-78
05
EXTERIOR FEATURES
Roof Side Rails (if equipped)
WARNING
The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
OQXI049063
ROOF SIDE
220 lbs. (100 kg) EVENLY
If your vehicle comes equipped with roof
RAILS
DISTRIBUTED
side rails, then roof side rails crossbars
The vehicle center of gravity will be
can be installed on top of your vehicle.
higher when items are loaded onto
The roof side rails crossbars are an
the roof side rails. Avoid sudden
accessory and are available at your local
starts, braking, sharp turns, abrupt
HYUNDAI dealer.
maneuvers or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.
NOTICE
Always drive slowly and turn corners
If the vehicle is equipped with a
carefully when carrying items on the
sunroof, be sure not to position cargo
roof side rails. Severe wind updrafts,
onto the roof side rails in such a way
caused by passing vehicles or natural
that it could interfere with sunroof
causes, can cause sudden upward
operation.
pressure on items loaded on the
roof side rails. This is especially true
NOTICE
when carrying large, flat items such
as wood panels or mattresses. This
When carrying cargo on the roof side
could cause the items to fall off the
rails, take the necessary precautions
roof side rails and cause damage to
to make sure the cargo does not
your vehicle or others around you.
damage the roof of the vehicle.
To prevent damage or loss of cargo
When carrying large objects on the
while driving, check frequently
roof side rails, make sure they do
before or while driving to make sure
not exceed the overall roof length or
the items on the roof side rails are
width.
securely fastened.
5-79
Convenience Features
INFOTAINMENT SYSTEM
NOTICE
Antenna
If you install an aftermarket HID
„„
Type A
head lamp, your vehicle’s audio and
electronic devices may not function
properly.
Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
OQX053157L
„„
Type B
OQX053156L
OQX052010N
„„
Type C
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.
OQXI049067
The antenna transmits and receives
wireless signals such as AM/FM, SXM,
DAB, GNSS, LTE etc.The signals which
antenna can transmit and receive vary by
the vehicle option.
5-80
05
How to install the antenna pole (if
Type B
equipped)
Type A
OUS4053309
OUS4053310
OUS4053308
1. Using a flat-blade screwdriver remove
OUS4053307
the protection cap (1).
1. Using a flat-blade screwdriver remove
2. To install the antenna pole, turn it
the protection cap (1).
clockwise all the way.
2. To install the antenna pole, turn it
clockwise all the way.
5-81
Convenience Features
NOTICE
Steering Wheel Audio Control
Before entering a place with low
„„
Type A
height clearance or a car wash,
remove the antenna by rotating it
counterclockwise. If not, the antenna
may be damaged.
When reinstalling your antenna, it is
important that it is fully tightened
and adjusted to the upright position
to ensure proper reception.
When cargo is loaded on the roof
rack, do not place the cargo near
OQXI049068L
the antenna pole to ensure proper
reception.
„„
Type B
When other accessories are attached
to the antenna pole, antenna
reception may decrease, and the
pole may bend.
NOTICE
Do not clean the inside of the rear
window glass with a cleaner or use a
scraper to remove foreign deposits
as this may cause damage to the
OQXI049069L
antenna elements.
„„
Type C
Avoid adding metallic coatings
such as Ni, Cd, and so on. These can
degrade the received AM and FM
broadcast signals.
OQX052012N
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
VOLUME (VOL + / -) (1)
• Press the VOLUME switch up to
increase volume.
• Press the VOLUME switch down to
decrease volume.
5-82
05
Information
Information
You can set the volume level of each
The infotainment system may change after
source (FM, AM, SXM, USB, BT, etc.)
software updates. For more information,
individually by adjusting the VOLUME
refer to the user’s manual provided in
scroll.
the infotainment system and the quick
reference guide.
Then the infotainment system saves the
last volume level of each source in the
system sound settings.
Bluetooth® Wireless Technology
If you change the source, the volume will
Hands-Free
revert to the previously set volume for that
source.
SEEK/PRESET (
/
) (2)
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:
RADIO mode
It will function as the AUTO SEEK
select button. It will SEEK until you
release the button.
OQXI049071
MEDIA mode
With the Bluetooth® Wireless Technology
It will function as the FF/RW button.
in the vehicle, you can use the phone
wireless.
If the SEEK/PRESET switch is pressed up
(1) Call / Answer button
or down, it will function in the following
(2) Call end button
modes:
Detailed information for the Bluetooth®
RADIO mode
Wireless Technology hands-free is
It will function as the PRESET STATION
described in the Vehicle Infotainment
UP/DOWN button.
User’s Manual.
MEDIA mode
Infotainment system
It will function as the TRACK UP/
DOWN button.
(if equipped)
The infotainment system may change
MODE (
) (3)
after software updates. For more
Press the MODE button to toggle
information, refer to the user’s manual
through Radio, SXM, or Media.
provided in the infotainment system and
the quick reference guide.
MUTE (
) (4)
• Press the MUTE button to mute the
sound.
• Press the MUTE button again to
activate the sound.
Custom (
) (5)
Press the Custom button to set
frequently used features.
5-83
6.While Driving
Before Driving
6-4
Before Entering the Vehicle
6-4
Before Starting
6-4
Ignition Switch
6-5
Key Ignition Switch
6-5
Engine Start/Stop Button
6-8
Intelligent Variable Transmission (IVT)
6-12
Intelligent Variable Transmission (IVT) Operation
6-12
Good Driving Practices
6-16
Brake System
6-17
Power Brakes
6-17
Disc Brakes Wear Indicator
6-17
Rear Drum Brakes
6-18
Parking Brake
6-18
Anti-lock Brake System (ABS)
6-19
Electronic Stability Control (ESC)
6-21
Vehicle Stability Management (VSM)
6-23
Hill-Start Assist Control (HAC)
6-24
Good Braking Practices
6-24
Drive Mode Integrated Control System
6-25
Cluster Display Message
6-26
6
Special Driving Conditions
6-28
Hazardous Driving Conditions
6-28
Rocking the Vehicle
6-28
Smooth Cornering
6-29
Driving at Night
6-29
Driving in the Rain
6-29
Driving in Flooded Areas
6-29
Highway Driving
6-30
Reducing the Risk of a Rollover
6-30
Winter Driving
6-31
Snow or Icy Conditions
6-31
Winter Precautions
6-32
Vehicle Load Limit
6-34
Tire Loading Information Label
6-34
Trailer Towing
6-38
6
06
WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, have the exhaust
system checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at "Fresh" and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the liftgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at "Fresh", the air flow control at "Floor" or "Face", and the fan
control set to high.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust and a wide variety of automobile components including
components found in the interior furnishings in a vehicle, contain or emit harmful
chemicals known to the State of California to cause cancer and birth defects and
reproductive harm. In addition, certain fluids contained in vehicles and certain
products of components contain or emit chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
6-3
While Driving
BEFORE DRIVING
Before Entering the Vehicle
WARNING
• Be sure all windows, side rearview
To reduce the risk of SERIOUS INJURY or
mirror(s), and outside lights are clean
DEATH, take the following precautions:
and unobstructed.
ALWAYS wear your seat belt. All
• Remove frost, snow, or ice.
passengers must be properly belted
• Visually check the tires for uneven
whenever the vehicle is moving.
wear and damage.
For more information, refer to "Seat
• Check under the vehicle for any sign
Belts" in chapter 3.
of leaks.
Always drive defensively. Assume
• Be sure there are no obstacles behind
other drivers or pedestrians may be
careless and make mistakes.
you if you intend to back up.
Stay focused on the task of driving.
Before Starting
Driver distraction can cause
accidents.
Make sure the hood, the liftgate, and
the doors are securely closed and
Leave plenty of space between you
locked.
and the vehicle in front of you.
Adjust the position of the seat and
steering wheel.
WARNING
Adjust the inside and outside rearview
NEVER drink alcohol or take drugs and
mirrors.
drive.
Verify all the lights work.
Drinking alcohol or taking drugs and
Fasten your seatbelt. Check that
driving is dangerous and may result in
all passengers have fastened their
an accident and SERIOUS INJURY or
seatbelts.
DEATH.
Check the gauges and indicators
Drunk driving is the number one
in the instrument panel and the
contributor to the highway death
messages on the instrument display
toll each year. Even a small amount
when the ignition switch is in the ON
of alcohol will affect your reflexes,
position.
perceptions and judgment. Just
Check that any items you are carrying
one drink can reduce your ability to
are stored properly or fastened down
respond to changing conditions and
securely.
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous as or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don't drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
6-4
06
IGNITION SWITCH
Key Ignition Switch (if equipped)
WARNING
NEVER turn the ignition switch to the
WARNING
LOCK or ACC position while the vehicle
is in motion except in an emergency.
To reduce the risk of SERIOUS INJURY or
This will result in the engine turning
DEATH, take the following precautions:
off and loss of power assist for the
NEVER allow children or any person
steering and brake systems. This may
who is unfamiliar with the vehicle to
lead to loss of directional control and
touch the ignition switch or related
braking function, which could cause an
parts. Unexpected and sudden
accident.
vehicle movement can occur.
Before leaving the driver's seat, always
NEVER reach through the steering
make sure the shift lever is in P (Park,
wheel for the ignition switch, or any
for IVT vehicle) position, apply the
other control, while the vehicle is in
parking brake, and turn ignition switch
motion. The presence of your hand
to the LOCK position.
or arm in this area may cause a loss
Unexpected vehicle movement may
of vehicle control resulting in an
occur if these precautions are not
accident.
followed.
OIB054010
6-5















Content      ..      1      2      3      ..
