OWNER’S MANUAL
Operation
Maintenance
Specifications
All information in this Owner’s Manual is current at the time
of publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all HYUNDAI models and includes
descriptions and explanations of optional as well as standard
equipment. As a result, you may find material in this manual
that does not apply to your specific vehicle.
Introduction
CAUTION: MODIFICATIONS TO YOUR HYUNDAI
Your HYUNDAI should not be modified in any way. Such modifications may
adversely affect the performance, safety or durability of your HYUNDAI
and may, in addition, violate conditions of the limited warranties covering
the vehicle. Certain modifications may also be in violation of regulations
established by the U.S. Department of Transportation and other federal or state
agencies.
TWO-WAY RADIO INSTALLATION
Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger
Occupant Classification System and other CAN bus systems. It is possible for
an improperly installed/adjusted high powered two-way radio to adversely
affect electronic systems. For this reason, we recommend that you carefully
follow the radio manufacturer’s instructions if you choose to install one of these
devices.
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as DANGER, WARNING, CAUTION and
NOTICE.
These titles indicate the following:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result
in minor or moderate injury.
NOTICE
NOTICE indicates a situation which, if not avoided, could result in vehicle
damage.
F2
HYUNDAI VEHICLE OWNER PRIVACY POLICY
Your Hyundai vehicle may be equipped with technologies and services that use
information collected, generated, recorded or stored by the vehicle. Hyundai
has created a Vehicle Owner Privacy Policy to explain how these technologies
and services collect use and share this information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,
please contact the Hyundai Customer Care Center at:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com
Hyundai’s Customer Care Center representatives are available Monday through
Friday, between the hours of 6:00 AM and 5:00 PM PST and Saturday between
6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are
available Monday through Friday between 6:30 AM and 3:00 PM PST.
F3
Table of Contents
Foreword
1
Vehicle Information
2
Safety System
3
Instrument Cluster
4
Convenience Features
5
While Driving
6
Driver Assistance System
7
Emergency Situations
8
Maintenance
9
Index
I
1. Foreword
Introduction
1-2
Hyundai Motor America
1-2
Guide to Hyundai Genuine Parts
1-3
How to Use This Manual
1-4
1
Safety Messages
1-4
Fuel Requirements
1-5
Vehicle Modifications
1-7
Vehicle Handling Instructions
1-7
Vehicle Break-In Process
1-8
Vehicle Data Collection and Event Data Recorders
1-9
Foreword
INTRODUCTION
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome
you to the growing number of discerning people who drive HYUNDAIs. We are very
proud of the advanced engineering and high-quality construction of each HYUNDAI
we build.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely
operate your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your
car be performed by an authorized HYUNDAI dealer. HYUNDAI dealers are prepared
to provide high-quality service, maintenance and any other assistance that may be
required.
This Owner’s Manual should be considered a permanent part of your vehicle, and
should be kept in the vehicle so you can refer to it at any time. The manual should stay
with the vehicle if you sell it to provide the next owner with important operating, safety
and maintenance information.
HYUNDAI MOTOR AMERICA
CAUTION
Severe engine and transmission damage may result from the use of poor quality
fuels and lubricants that do not meet HYUNDAI specifications. You must always use
high quality fuels and lubricants that meet the specifications listed on Page 2-11 in
the Vehicle Specifications section of the Owner’s Manual.
publication may be reproduced, stored in any retrieval system or transmitted in
any form or by any means without the prior written permission of HYUNDAI Motor
America.
1-2
01
GUIDE TO HYUNDAI GENUINE PARTS
1. What are HYUNDAI Genuine Parts?
2. What are HYUNDAI Genuine Parts?
HYUNDAI Genuine Parts are the
HYUNDAI Genuine Parts are
same parts used by HYUNDAI Motor
engineered and built to meet rigid
Company to manufacture vehicles.
manufacturing requirements.
They are designed and tested for the
Damage caused by using imitation,
optimum safety, performance, and
counterfeit or used salvage parts is
reliability for our customers.
not covered under the HYUNDAI New
Vehicle Limited Warranty or any other
HYUNDAI warranty.
In addition, any damage to or failure
of HYUNDAI Genuine Parts caused
by the installation or failure of an
imitation, counterfeit or used salvage
part is not covered by any HYUNDAI
Warranty.
3. How can you tell if you are
purchasing HYUNDAI Genuine Parts?
Look for the HYUNDAI Genuine Parts
Logo on the package (see below).
HYUNDAI Genuine Parts exported
to the U.S. are packaged with labels
written only in English.
HYUNDAI Genuine Parts are only
sold through authorized HYUNDAI
Dealerships.
1-3
Foreword
HOW TO USE THIS MANUAL
SAFETY MESSAGES
We want to help you get the greatest
Your safety, and the safety of others,
possible driving pleasure from your
is very important. This Owner’s
vehicle. Your Owner’s Manual can assist
Manual provides you with many safety
you in many ways. To gain an overview
precautions and operating procedures.
of the contents of your Owner’s Manual,
This information alerts you to potential
use the Table of Contents in the front
hazards that may hurt you or others, as
of the manual. The first page of each
well as damage your vehicle.
Chapter includes a detailed Table of
Safety messages found on vehicle
Contents of the topics in that Chapter.
labels and in this manual describe these
To quickly locate information about your
hazards and what to do to avoid or
vehicle, use the Index in the back of the
reduce the risks.
manual. It is an alphabetical list of what
Warnings and instructions contained in
is in this manual and the page number
this manual are for your safety. Failure to
where it can be found.
follow safety warnings and instructions
For your convenience, we have
can lead to serious injury or death.
incorporated tabs on the right-hand
page edges. These tabs are coded with
the Chapter titles to assist you with
navigating through the manual.
1-4
01
FUEL REQUIREMENTS
Throughout this manual DANGER,
Your new vehicle is designed to obtain
WARNING, CAUTION, NOTICE and the
maximum performance with UNLEADED
SAFETY ALERT SYMBOL will be used.
FUEL, as well as minimize exhaust
emissions and spark plug fouling.
This is the safety alert symbol. It
is used to alert you to potential
physical injury hazards. Obey
Your new vehicle is designed to perform
all safety messages that follow
optimally unleaded fuel having an octane
this symbol to avoid possible
number ((R+M)/2) of 87 (Research
injury or death. The safety alert
Octane Number 91) or higher. (Do not
symbol precedes the signal
use methanol blended fuels)
words DANGER, WARNING and
CAUTION.
NOTICE
To prevent damage to the engine and
DANGER
engine components, never add any fuel
system cleaning agents to the fuel tank
DANGER indicates a hazardous
other than what has been specified.
situation which, if not avoided, will
result in death or serious injury.
Consult an authorized HYUNDAI dealer
for additional information.
WARNING
WARNING
WARNING indicates a hazardous
situation which, if not avoided, could
Do not “top off” after the nozzle
result in death or serious injury.
automatically shuts off when
refueling.
Always check that the fuel cap is
CAUTION
installed securely to prevent fuel
CAUTION indicates a hazardous
spillage in the event of an accident.
situation which, if not avoided, could
result in minor or moderate injury.
NOTICE
NOTICE indicates a situation which,
if not avoided, could result in vehicle
damage.
1-5
Foreword
Gasoline containing alcohol or
Using Fuel Additives (except
methanol
Detergent Fuel Additives)
Gasohol, a mixture of gasoline and
Using fuel additives such as:
ethanol (also known as grain alcohol) are
- Silicone fuel additive
being marketed along with or instead
- Ferrocene (iron-based) fuel additive
of leaded or unleaded gasoline. For
example, “E15” is a gasohol comprised of
- Other metallic-based fuel additives
15% ethanol and 85% gasoline.
may result in cylinder misfire, poor
Do not use gasohol containing more than
acceleration, engine stalling, damage
15% ethanol, and do not use gasoline or
to the catalyst, or abnormal corrosion,
gasohol containing any methanol. Either
and may cause damage to the engine
of these fuels may cause drivability
resulting in a reduction in the overall life
problems and damage to the fuel
of the powertrain.
system, engine control system and
- The Malfunction Indicator Lamp (MIL)
emission control system.
may illuminate.
Discontinue using gasohol of any kind if
drivability problems occur.
NOTICE
“E85” fuel is an alternative fuel
Damage to the fuel system or
comprised of 85 percent ethanol and 15
performance problem caused by the
percent gasoline, and is manufactured
use of these fuels or fuel additives may
exclusively for use in Flexible Fuel
not be covered by your New Vehicle
Vehicles. “E85” is not compatible with
Limited Warranty.
your vehicle. Use of “E85” may result in
poor engine performance and damage
Gasoline containing MMT
to your vehicle’s engine and fuel system.
HYUNDAI recommends that customers
Some gasoline contains harmful
do not use fuel with an ethanol content
manganese-based fuel additives such
exceeding 15 percent.
as MMT (Methylcyclopentadienyl
Manganese Tricarbonyl).
HYUNDAI does not recommend the use
NOTICE
of gasoline containing MMT.
To prevent damage to your vehicle’s
This type of fuel can reduce vehicle
engine and fuel system:
performance and affect your emission
Never use gasohol which contains
control system.
methanol.
The malfunction indicator lamp on the
Never use gasohol containing more
cluster may come on.
than 15% ethanol.
Never use leaded fuel or leaded
gasohol.
Never use “E85” fuel.
Your New Vehicle Limited Warranty
does not cover damage to the fuel
system or any performance problems
caused by the use of “E85” fuel.
1-6
01
VEHICLE MODIFICATIONS
Detergent Fuel Additives
• This vehicle should not be modified.
Modification of your vehicle could
HYUNDAI recommends that you use
affect its performance, safety or
good quality gasolines treated with
durability and may even violate
detergent additives such as TOP TIER
governmental safety and emissions
Detergent Gasoline, which help prevent
regulations.
deposit formation in the engine. These
gasolines will help the engine run
In addition, damage or performance
cleaner and enhance performance of
problems resulting from any
the Emission Control System. For more
modification may not be covered
information on TOP TIER Detergent
under warranty.
Gasoline, please go to the website (www.
• If you use unauthorized electronic
toptiergas.com).
devices, it may cause the vehicle to
For customers who do not use TOP Tier
operate abnormally, wire damage,
Detergent Gasoline regularly, and have
battery discharge and fire. For your
problems starting or the engine does
safety, do not use unauthorized
not run smoothly, detergent-based
electronic devices.
fuel additives that you can purchase
separately may be added to the gasoline.
VEHICLE HANDLING
If TOP TIER Detergent Gasoline is
not available, one bottle of additive
INSTRUCTIONS
added to the fuel tank according to the
As with other vehicles of this type, failure
maintenance schedule is recommended
to operate this vehicle correctly may
(refer to the Maintenance Schedule in
result in loss of control, an accident or
chapter 9).
vehicle rollover.
Additives are available from your
Specific design characteristics (higher
authorized HYUNDAI dealer along with
ground clearance, track, etc.) give this
information on how to use them. Do not
vehicle a higher center of gravity than
mix other additives.
other types of vehicles. In other words
they are not designed for cornering
Operation in foreign countries
at the same speeds as conventional
If you are going to drive your vehicle in
2-wheel drive vehicles. Avoid sharp turns
another country, be sure to:
or abrupt maneuvers. Again, failure to
• Observe all regulations regarding
operate this vehicle correctly may result
registration and insurance.
in loss of control, an accident or vehicle
rollover. Be sure to read the “Reducing
• Determine that acceptable fuel is
the risk of a rollover” driving guidelines,
available.
in section 6 of this manual.
1-7
Foreword
VEHICLE BREAK-IN PROCESS
By following a few simple precautions for
WARNING
the first 600 miles (1,000 km) you may
add to the performance, economy and
CALIFORNIA PROPOSITION 65
life of your vehicle.
WARNING
• Do not race the engine.
Items contained in motor vehicles or
emitted from them are known to the
• While driving, avoid sudden
State of California to cause cancer and
acceleration and stop.
birth defects or reproductive harm.
• Do not maintain a single speed for
These include:
long periods of time, either fast or
Gasoline and its vapors
slow. Varying engine speed is needed
to properly break-in the engine.
Engine exhaust
• Avoid hard stops, except in
Used engine oil
emergencies, to allow the brakes to
Interior passenger compartment
seat properly.
components and materials
• Fuel economy and engine
Component parts which are subject
performance may vary depending
to heat and wear
on vehicle break-in process and be
In addition, battery posts, terminals and
stabilized after 4,000 miles (6,000
related accessories contain lead, lead
km). New engines may consume more
compounds and other chemicals known
oil during the vehicle break-in period.
to the State of California to cause
cancer and reproductive harm.
For more information go to
passenger-vehicle
1-8
01
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving conditions and no
personal data (for example, name, gender, age, and crash location) are recorded.
However, other parties, such as law enforcement, could combine the EDR data with
the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.
1-9
2. Vehicle Information
Exterior Overview
2-2
Interior Overview
2-4
Instrument Panel Overview
2-5
Engine Compartment
2-6
Dimensions
2-7
Engine
2-7
Bulb Wattage
2-8
2
Tires and Wheels
2-9
Volume and Weight
2-10
Air Conditioning System
2-10
Recommended Lubricants and Capacities
2-11
Recommended SAE Viscosity Number
2-12
Vehicle Identification Number (VIN)
2-13
Vehicle Certification Label
2-13
Tire Specification and Pressure Label
2-14
Engine Number
2-14
Vehicle Information
EXTERIOR OVERVIEW
„„

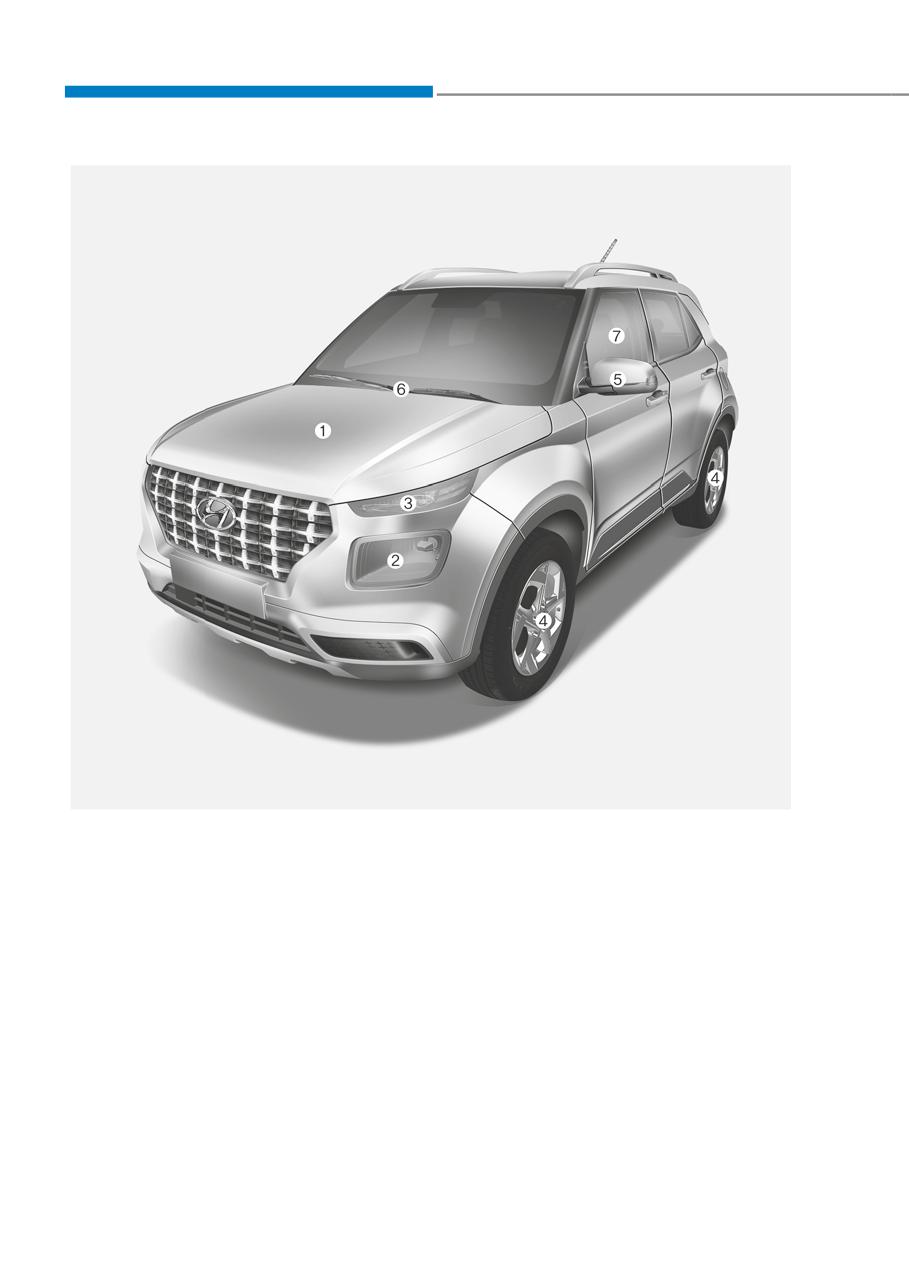

Front view
The actual shape may differ from the illustration.
OQX012001N
1. Hood
5-32
5. Side view mirror
5-21
2. Headlight/Daytime running lamp
9-51
6. Front windshield wiper blades
9-24
3. Turn signal lamp
9-52
7. Windows
5-23
4. Tires and wheels
9-28
2-2
02
„

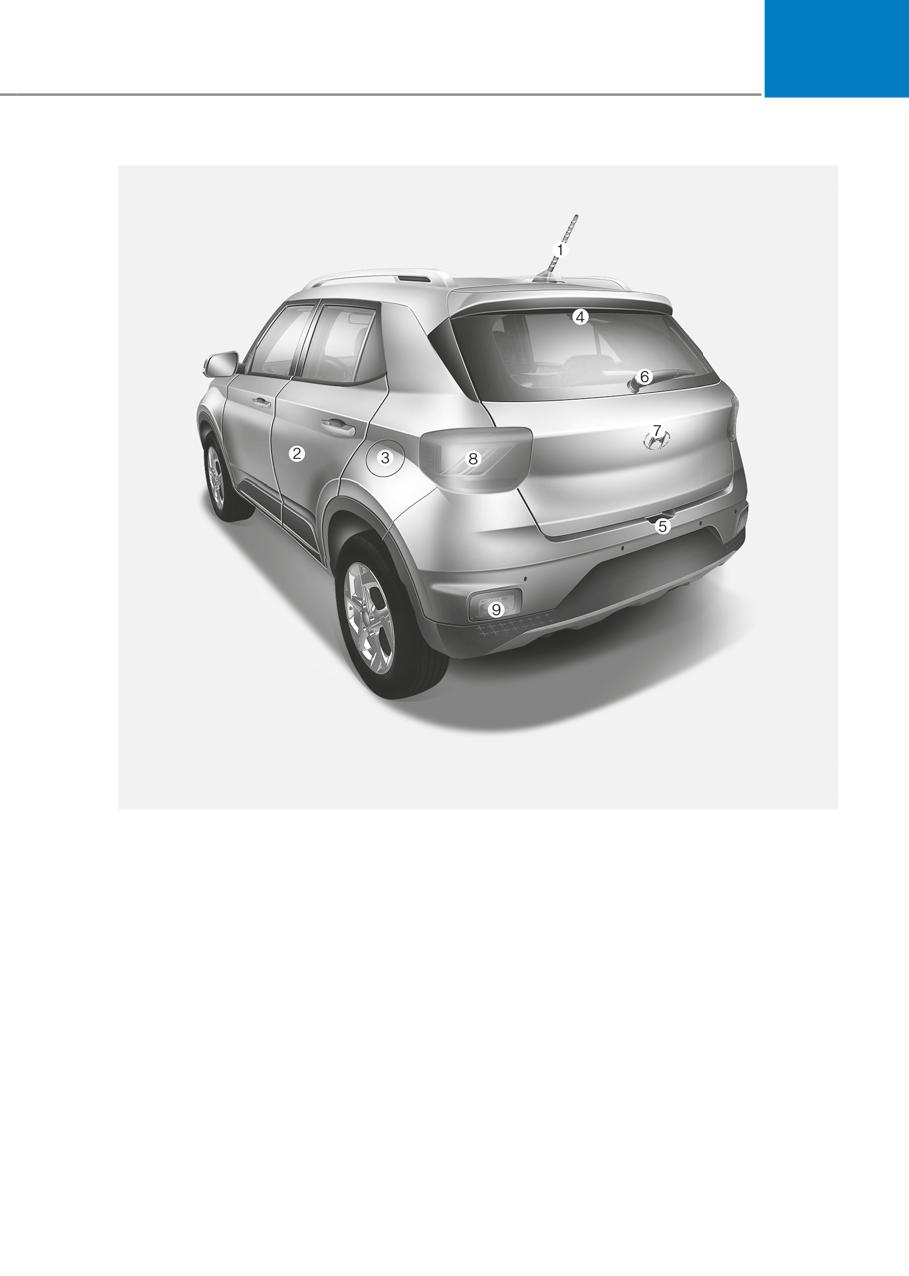

Rear view
The actual shape may differ from the illustration.
OQX012002N
1. Antenna
5-80
6. Rear window wiper blade
9-25
2. Doors
5-12
7. Liftgate
5-34
3. Fuel filler door
5-36
8. Rear lamps
9-56
4. High mounted stop lamp
9-58
9. Back-up lamp
9-57
5. Wide-rear view camera
7-57
2-3
Vehicle Information

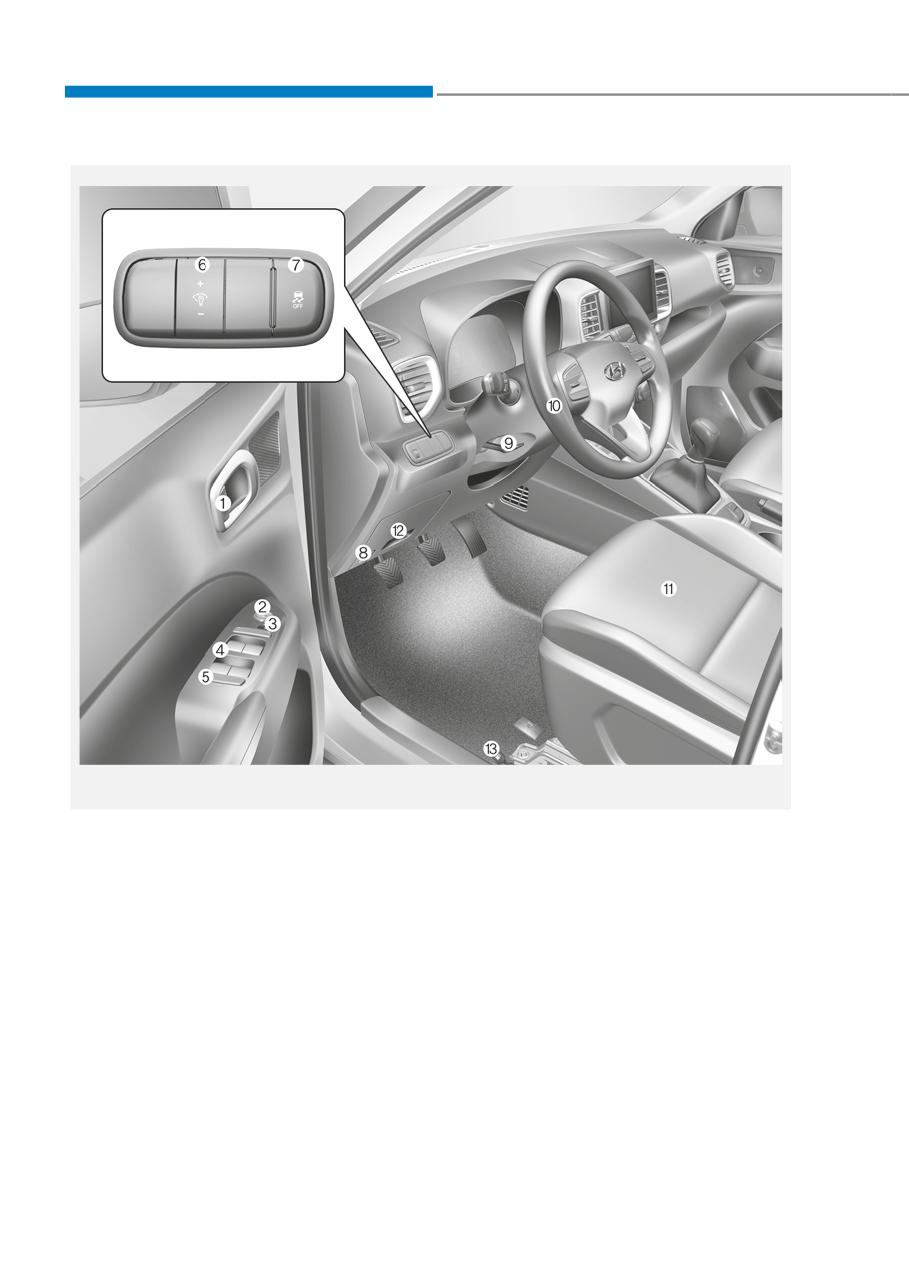

INTERIOR OVERVIEW
The actual shape may differ from the illustration.
OQX012003N
1. Door lock/unlock button
5-13
7. ESC OFF button
6-21
2. Outside rearview mirror control
8. Hood release lever
5-32
switch
5-22
9. Steering wheel tilt/telescopic lever
5-19
3. Central door lock switch
5-14
10. Steering wheel
5-18
4. Power window switches
5-23
11. Seat
3-3
5. Power window lock switch
5-26
12. Instrument panel fuse
9-41
6. Instrument panel illumination control
13. Fuel filler door open lever
5-36
switch
4-5
2-4
02

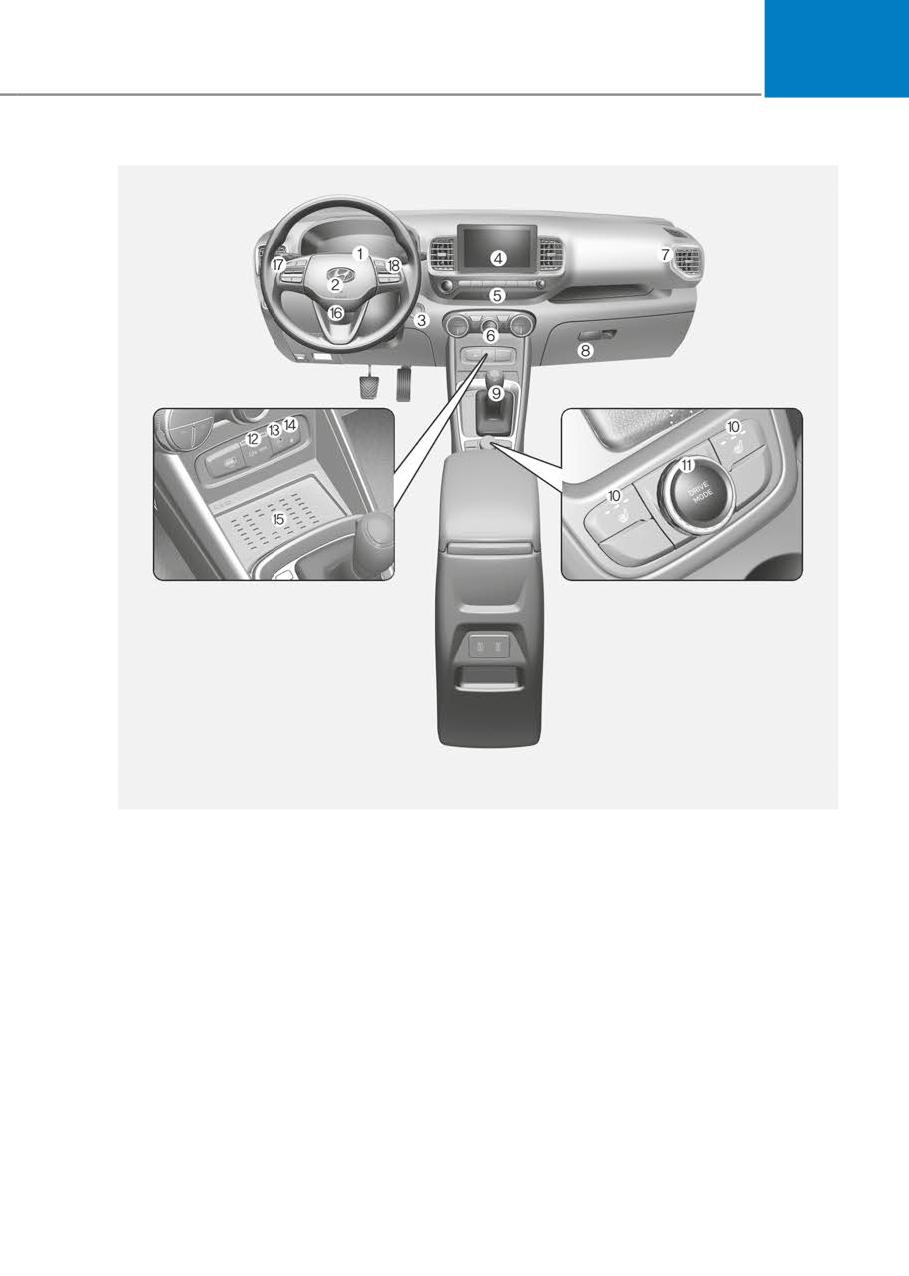

INSTRUMENT PANEL OVERVIEW
The actual shape may differ from the illustration.
OQX012011N
1. Instrument cluster
4-4
9. Intelligent variable transmission
shift lever
6-12
2. Horn
5-20
3. Key ignition switch
6-5
10. Seat warmer
3-12
Engine Start/Stop button
6-8
11. Drive mode selection knob
6-25
4. Infotainment system
5-80
12. Power outlet
5-72
5. Hazard warning flasher switch
8-2
13. USB charger
5-73
6. Manual climate control system
5-50
14. Wireless charging system indicator
5-74
Automatic climate control system
5-58
15. Wireless charging system pad
5-74
7. Passenger’s front air bag
3-33
16. Driver’s front air bag
3-33
8. Glove box
5-71
17. Light control
5-38
Turn signals
5-43
18. Wiper/Washer
5-47
2-5
Vehicle Information

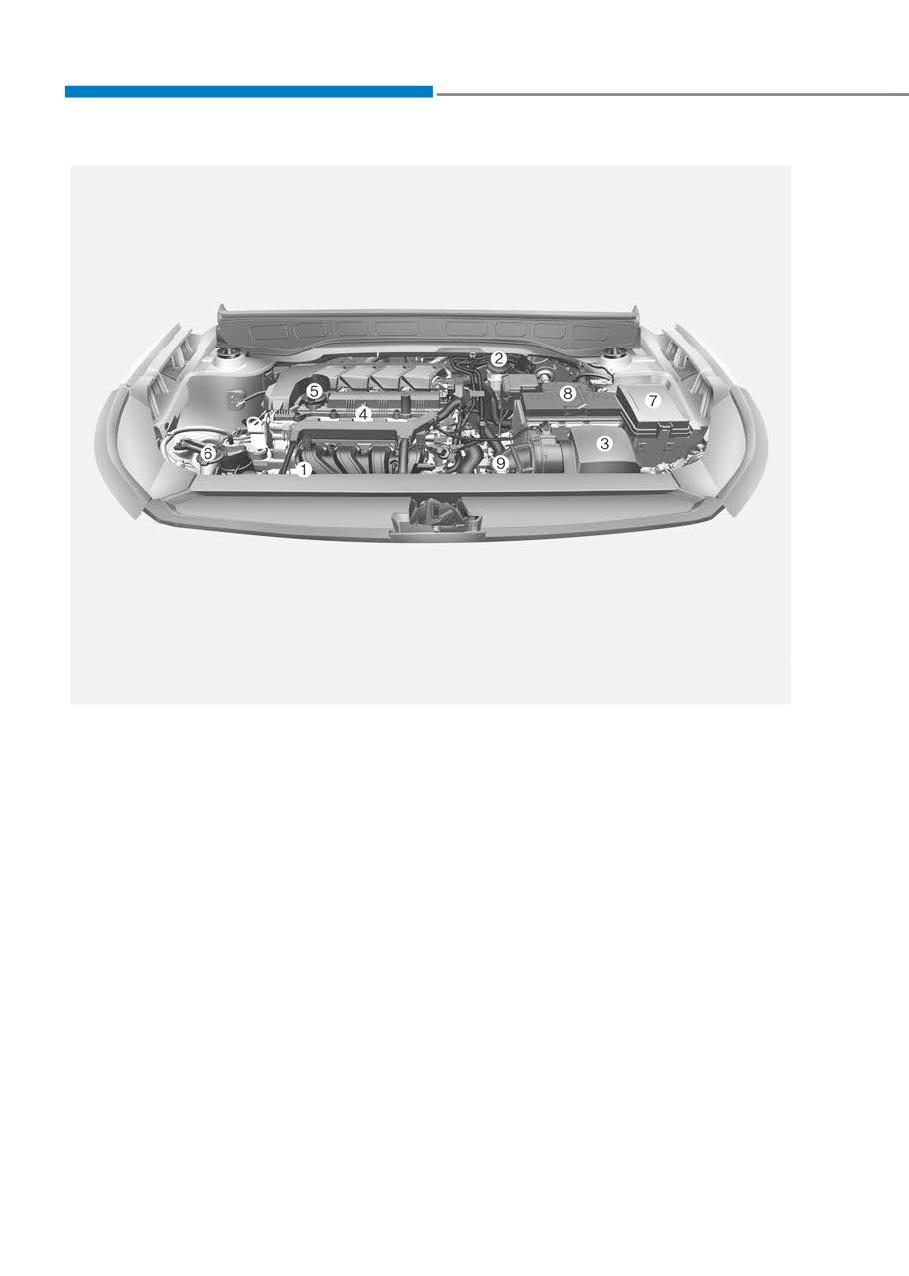

ENGINE COMPARTMENT
The actual engine room in the vehicle may differ from the illustration.
OQX089001L
1. Engine coolant reservoir
9-17
6. Windshield washer fluid reservoir
9-21
2. Brake/clutch fluid reservoir
9-20
7. Engine room junction block
9-42
3. Engine air filter
9-22
8. Battery
9-26
4. Engine oil dipstick
9-15
9. Radiator cap
9-18
5. Engine oil filler cap
9-15
2-6
02
DIMENSIONS
Item
in (mm)
Overall length
159.0 (4,040)
Overall width
69.7 (1,770)
With roof rack
62.7 (1,592)
Overall height
Without roof rack
61.6 (1,565)
185/65R15 (6.0J)
61.2 (1,555)
Front tread
205/55R17 (6.5J)
60.4 (1,535)
185/65R15 (6.0J)
61.6 (1,565)
Rear tread
205/55R17 (6.5J)
60.9 (1,546)
Wheelbase
99.2 (2,520)
ENGINE
Item
Smartstream G1.6
Displacement
97.5 (1,598)
cu.in (cc)
Bore x Stroke
2.98 x 3.5 (75.6 x 89.0)
in (mm)
Firing order
1-3-4-2
No. of cylinders
4, in-line
2-7
Vehicle Information
BULB WATTAGE
Light bulb
Bulb type
Wattage
Headlight (High/Low)
HB3
65
Type A
Parking lamp
W5W
5
Headlight
HB3
65
Daytime running lamp
Type B
LED
LED
(DRL)/parking lamp
Cornering lamp
H7
55
Headlight (High/low)
LED
LED
Front
Daytime running lamp
Type C
LED
LED
(DRL)/parking lamp
Cornering lamp
H7
55
Turn signal lamp
2357NA
28/8
Side marker
W5W
5
Side repeater lamp
WY5W
5
Side repeater lamp (Outside mirror)
LED
LED
Stop/tail lamp
P21/5W
21/5
Type A
Turn signal lamp
27W
7
Side marker
P21/5W
21/5
Stop/tail lamp
LED
LED
Tail lamp
LED
LED
Rear
Type B
Side marker
LED
LED
Turn signal lamp
PY21W
21
License plate lamp
W5W
5
Back up lamp
W16W
16
High mounted stop lamp
W16W
16
Type A
W10W
10
Map lamp
Type B
FESTOON
8
Interior
Room lamp
FESTOON
8
Vanity mirror lamp
FESTOON
5
Luggage compartment lamp
FESTOON
8
2-8
02
TIRES AND WHEELS
Inflation pressure psi (kPa)
Normal load *1
Maximum load
Wheel lug
Wheel
nut torque
Item
Tire Size
Size
lbf·ft, N·m
Front
Rear
Front
Rear
(kgf·m)
185/65 R15
6.0Jx15
36 (250)
36 (250)
36 (250)
36 (250)
Full size tire
205/55 R17
6.5Jx17
33 (230)
33 (230)
33 (230)
33 (230)
79~94,
107~127
Compact
T125/80 D15
4Tx15
60 (420)
60 (420)
60 (420)
60 (420)
(11~13)
spare tire
(if equipped)
T125/80 D16
4Tx16
60 (420)
60 (420)
60 (420)
60 (420)
*1 : Normal load: Up to 3 persons
NOTICE
It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level. (Air inflation per altitude:
+2.4 psi/1 mile)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
2-9
Vehicle Information
VOLUME AND WEIGHT
Smartstream G1.6
Items
IVT
Gross vehicle weight
3,770 (1,710)
lbs. (kg)
Luggage volume (SAE)
Behind 1st row : 18.66 (528)
cu ft ()
Behind 2st row : 31.86 (902)
IVT: Intelligent variable transmission
AIR CONDITIONING SYSTEM
Item
Weight of Volume
Classification
Refrigerant
17.6±0.88 (500±25)
R-1234yf
oz. (g)
Compressor lubricant
4.23±0.35 (120±10)
PAG
oz. (g)
Contact an authorized HYUNDAI dealer for more details.
2-10
02
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant
Volume
Classification
Engine oil *1 *2
(drain and refill)
Smartstream
4.02 US qt. (3.8 )
API SN PLUS/SP or ILSAC GF-6
G1.6
IVT fluid
6.34 US qt. (6.7 )
CVTF (SP-CVT1) *3
Mixture of antifreeze and water
Coolant
IVT
6.32 US qt. (5.78 )
(Phosphate-based Ethylene glycol
coolant for aluminum radiator)
0.74 ~ 0.85 US qt.
SAE J1704 DOT-4 LV, FMVSS 116
Brake/clutch fluid
(0.7 ~ 0.8 )
DOT-4, ISO4925 CLASS-6
Refer to “Fuel requirements” in
Fuel
11.89 US gal. (45 )
chapter 1.
IVT: Intelligent variable transmission
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Requires <API SN PLUS (or above) Full synthetic> grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
*3 : Use only specified genuine IVT fluid. The use of non-specified fluid (even marked
as compatible with genuine) could result in shift quality deterioration and
vibrations, eventually, the transmission failure.
2-11
Vehicle Information
Recommended SAE Viscosity Number
NOTICE
Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
Never add any additives to the engine oil. Engine oil additives can change the
properties of engine oil and may cause serious engine failure.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine
damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
°C
-30
-20
-10
0
10
20
30
40
50
Temperature
(°F)
-10
0
20
40
60
80
100
120
Engine Oil
0W-20*1
*1 : Requires <API SN PLUS (or above) Full synthetic> grade engine oil.
If a lower grade engine oil (mineral oil including Semi-synthetic) is used, then the engine
oil and engine oil filter must be replaced as indicated severe maintenance condition.
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
2-12
02

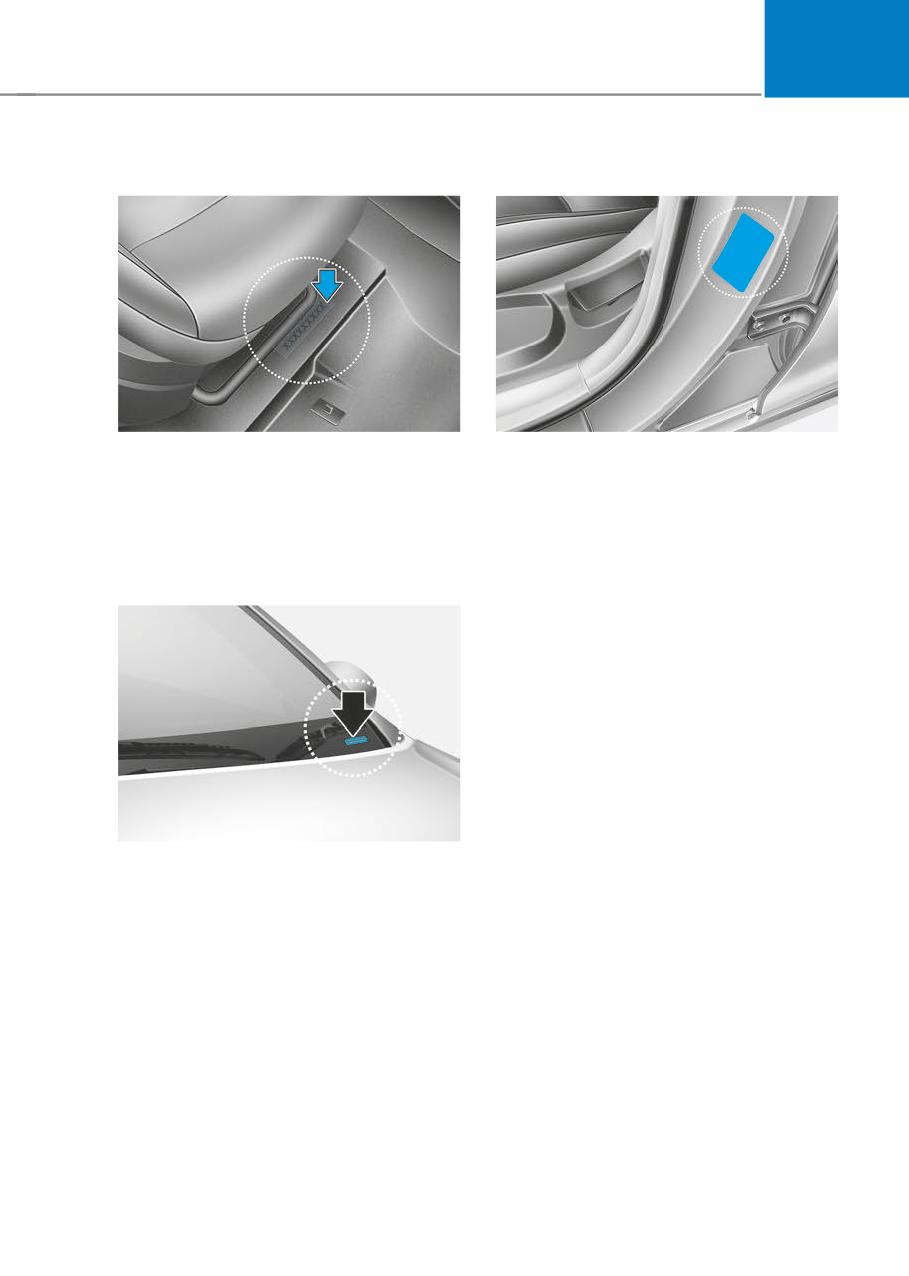

VEHICLE IDENTIFICATION
VEHICLE CERTIFICATION
NUMBER (VIN)
LABEL
„„
Frame number
OIB084003
OIB074059
The vehicle identification number (VIN) is
The vehicle certification label attached
the number used in registering your car
on the driver’s side center pillar gives the
and in all legal matters pertaining to its
Vehicle Identification Number (VIN).
ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
„
VIN label
OIB074054
The VIN is also on a plate attached to the
top of the dashboard. The number on
the plate can easily be seen through the
windshield from outside.
2-13
Vehicle Information

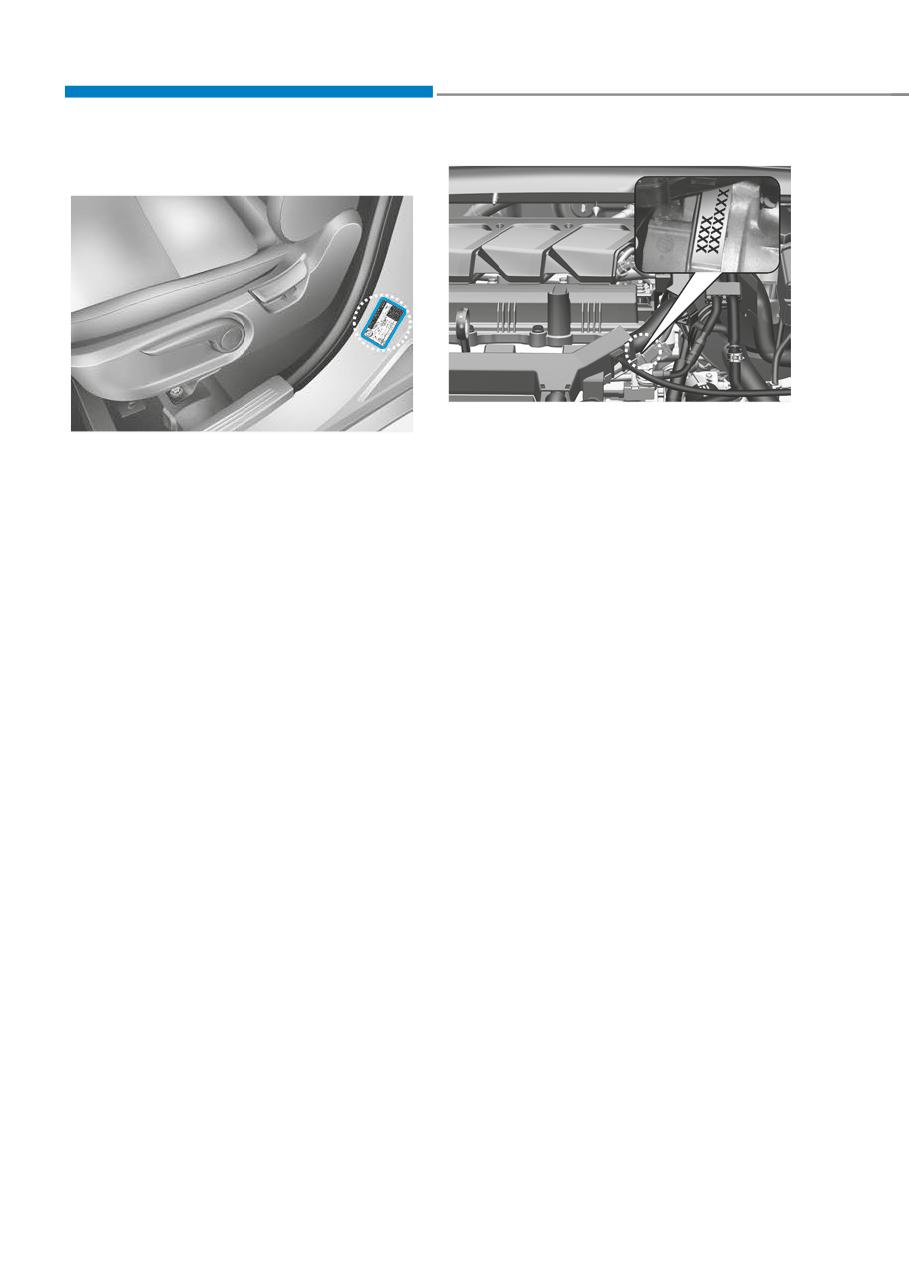

TIRE SPECIFICATION AND
ENGINE NUMBER
PRESSURE LABEL
OQX089040L
OQX089049N
The engine number is stamped on the
engine block as shown in the drawing.
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your car.
2-14
3.Safety System
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
Important Safety Precautions
3-2
Always Wear Your Seat Belt
3-2
Restrain All Children
3-2
Air Bag Hazards
3-2
Driver Distraction
3-2
Control Your Speed
3-2
Keep Your Vehicle in Safe Condition
3-2
Seats
3-3
Safety Precautions
3-4
Front Seats
3-5
Rear Seats
3-7
3
Head Restraints
3-9
Seat Warmers
3-12
Seat Belts
3-14
Seat Belt Safety Precautions
3-14
Seat Belt Warning Light
3-15
Seat Belt Restraint System
3-16
Additional Seat Belt Safety Precautions
3-20
Care of Seat Belts
3-22
Child Restraint System (CRS)
3-23
Children Always in the Rear
3-23
Selecting a Child Restraint System (CRS)
3-24
Installing a Child Restraint System (CRS)
3-25
Air Bag - Advanced Supplemental Restraint System
3-31
Where Are the Air Bags?
3-33
How Does the Air Bag System Operate?
3-36
What to Expect After an Air Bag Inflates
3-39
Occupant Classification System (OCS)
3-40
Why Didn’t My Air Bag Go Off in a Collision?
3-46
SRS Care
3-50
Additional Safety Precautions
3-51
Air Bag Warning Labels
3-51
Safety System
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Drivers can become distracted when
and recommendations throughout this
they take their eyes and attention off
section, and throughout this manual.
the road or their hands off the wheel to
The safety precautions in this section are
focus on activities other than driving. To
among the most important.
reduce your risk of distraction or getting
into an accident:
Always Wear Your Seat Belt
• ALWAYS set up your mobile devices
A seat belt is your best protection in all
(for example, MP3 players, phones,
types of accidents. Air bags are designed
navigation units, etc.) when your
to supplement seat belts, not replace
vehicle is parked or safely stopped.
them. So even though your vehicle is
• ONLY use your mobile device when
equipped with air bags, ALWAYS make
allowed by laws and when conditions
sure you and your passengers wear your
permit safe use. NEVER text or email
seat belts, and wear them properly.
while driving. Most states have laws
prohibiting drivers from texting. Some
Restrain All Children
states and cities also prohibit drivers
from using handheld phones.
All children under age 13 should ride
in your vehicle properly restrained in a
• NEVER let the use of a mobile device
rear seat, not the front seat. Infants and
distract you from driving. You have a
small children should be restrained in
responsibility to your passengers and
an appropriate child restraint. Larger
others on the road to always drive
children should use a booster seat with
safely, with your hands on the wheel
the lap/shoulder belt until they can use
as well as your eyes and attention on
the seat belt properly without a booster
the road.
seat.
Control Your Speed
Air Bag Hazards
Excessive speed is a major factor in crash
While air bags can save lives, they can
injuries and deaths. Generally, the higher
also cause serious or fatal injuries to
the speed, the greater the risk, but
occupants who sit too close to them, or
serious injuries can also occur at lower
who are not properly restrained. Infants,
speeds. Never drive faster than is safe
young children, and shorter adults are at
for current conditions, regardless of the
the greatest risk of being injured by an
maximum speed posted.
inflating air bag. Follow all instructions
and warnings in this manual.
Keep Your Vehicle in Safe
Condition
Driver Distraction
Having a tire blowout or a mechanical
Driver distraction presents a serious and
failure can be extremely hazardous. To
potentially deadly danger, especially for
reduce the possibility of such problems,
inexperienced drivers. Safety should be
check your tire pressures and condition
the first concern when behind the wheel
frequently, and perform all regularly
and drivers need to be aware of the wide
scheduled maintenance.
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using cellular phones.
3-2
03
SEATS

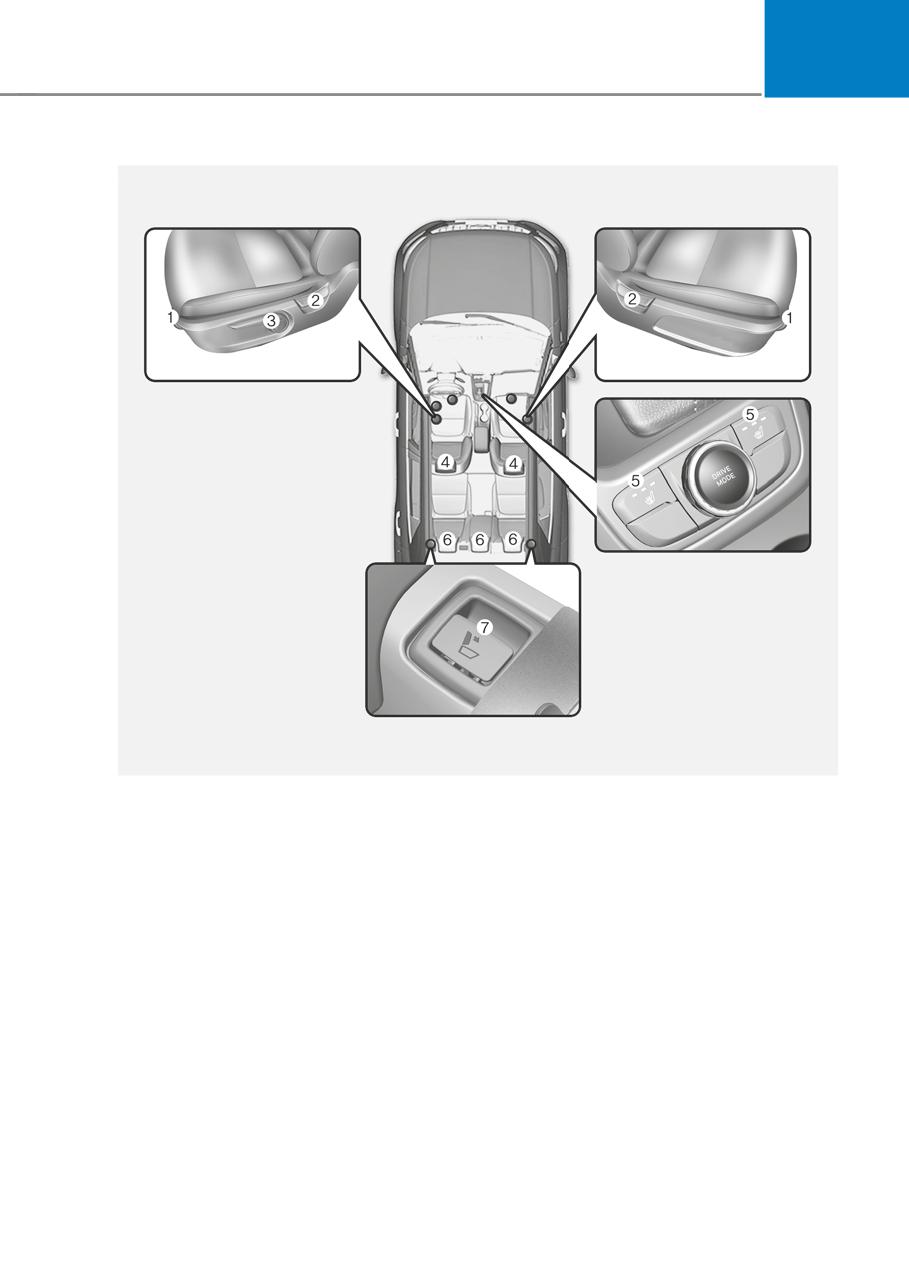

OQX039001N
Front seats
Rear seats

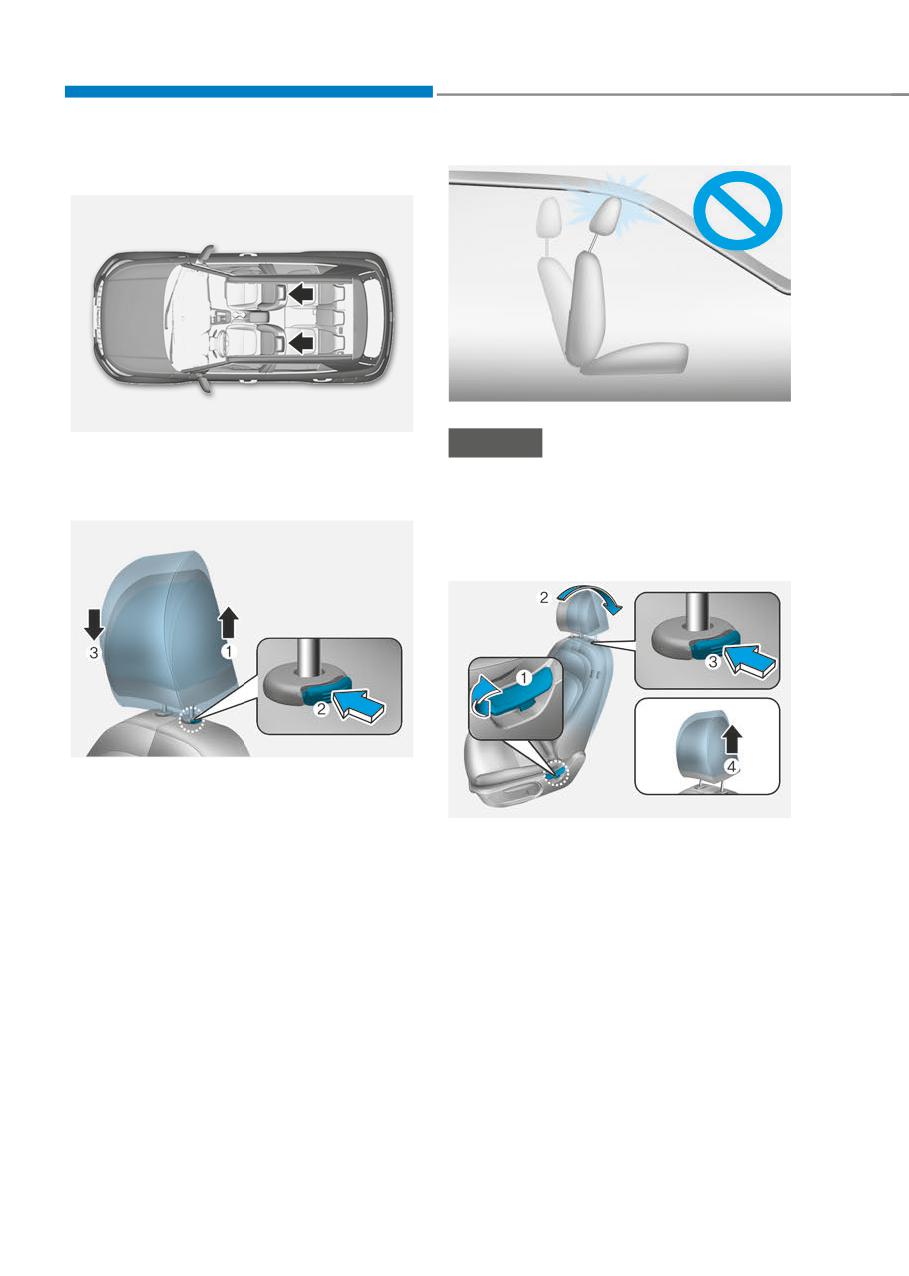

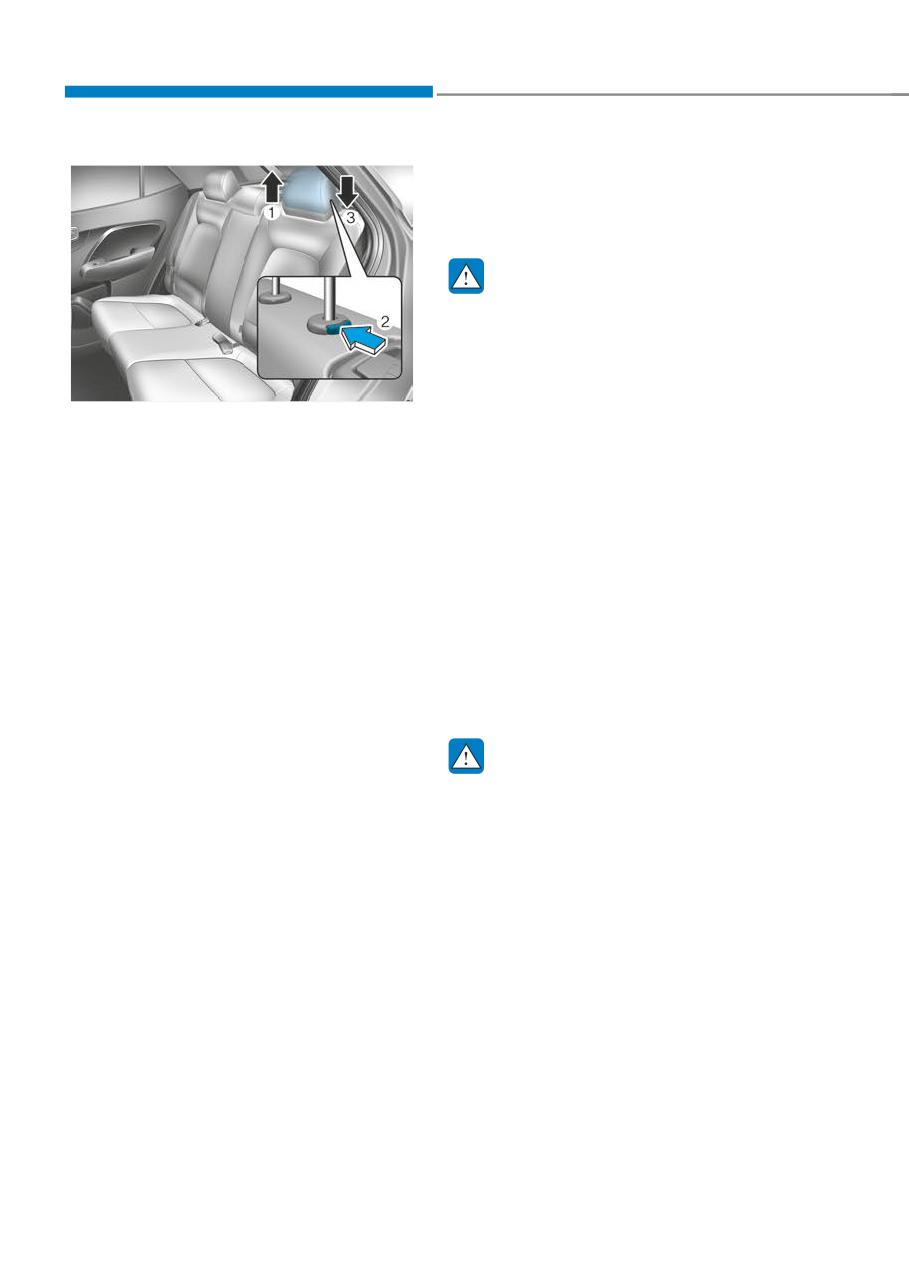

(1) Forward and backward
(6) Head restraint
(2) Seatback angle
(7) Seatback folding
(3) Seat height
(4) Head restraint
(5) Seat warmer
3-3
Safety System
Safety Precautions

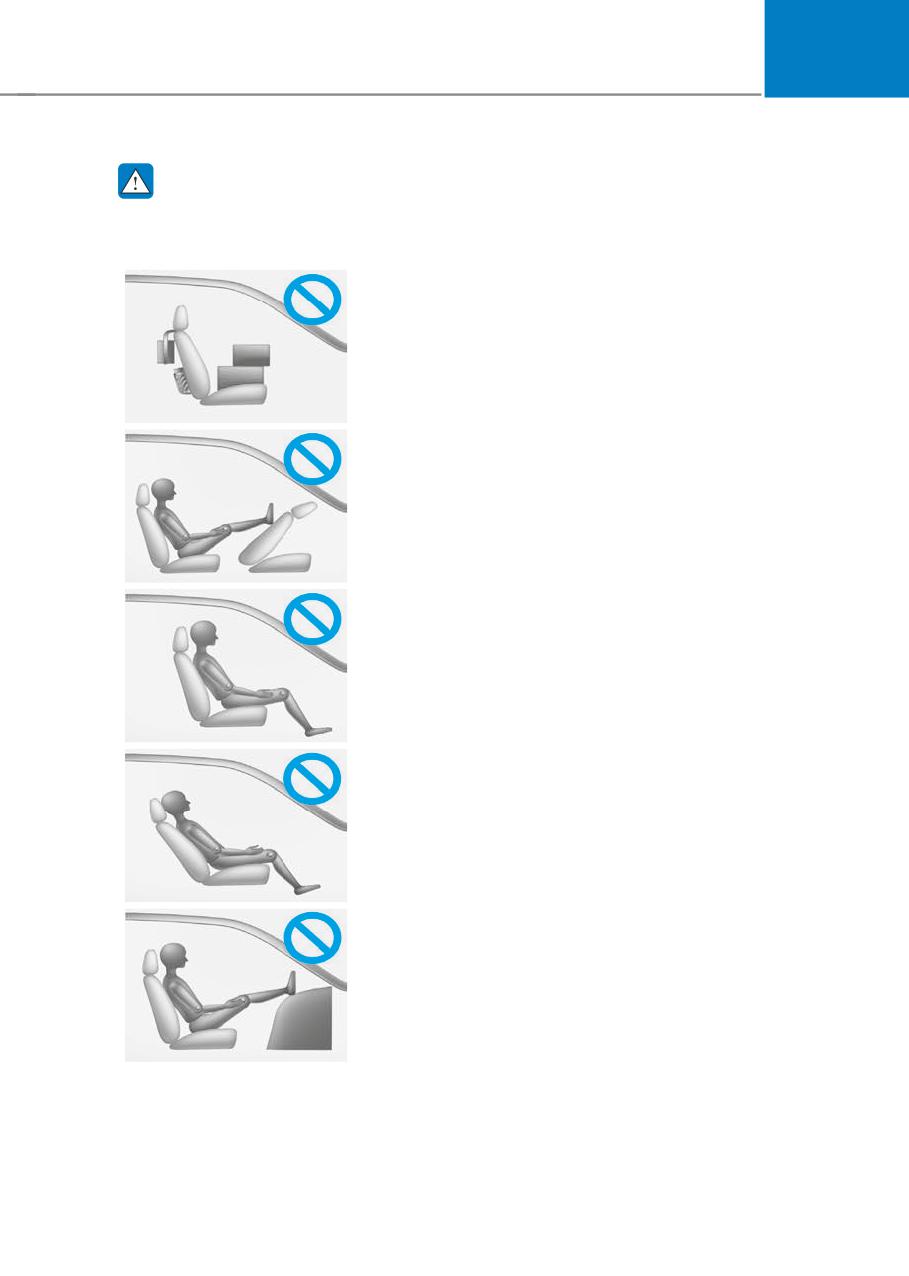

NEVER place anything or anyone
between the steering wheel and the
Adjusting the seats so that you are sitting
air bag.
in a safe, comfortable position plays an
important role in driver and passenger
Do not allow the front passenger to
safety together with the seat belts and
place feet or legs on the dashboard
air bags in an accident.
to minimize the risk of leg injuries.
Seat Belts
WARNING
Always fasten your seat belt before
Do not use a cushion that reduces
starting any trip.
friction between the seat and the
At all times, passengers should sit
passenger. The passenger’s hips may
upright and be properly restrained.
slide under the lap portion of the seat
Infants and small children must be
belt during an accident or a sudden
restrained in appropriate child restraint
stop. Serious or fatal internal injuries
systems. Adults and children who
could result because the seat belt
have outgrown a booster seat must be
cannot operate properly.
restrained using the seat belts.

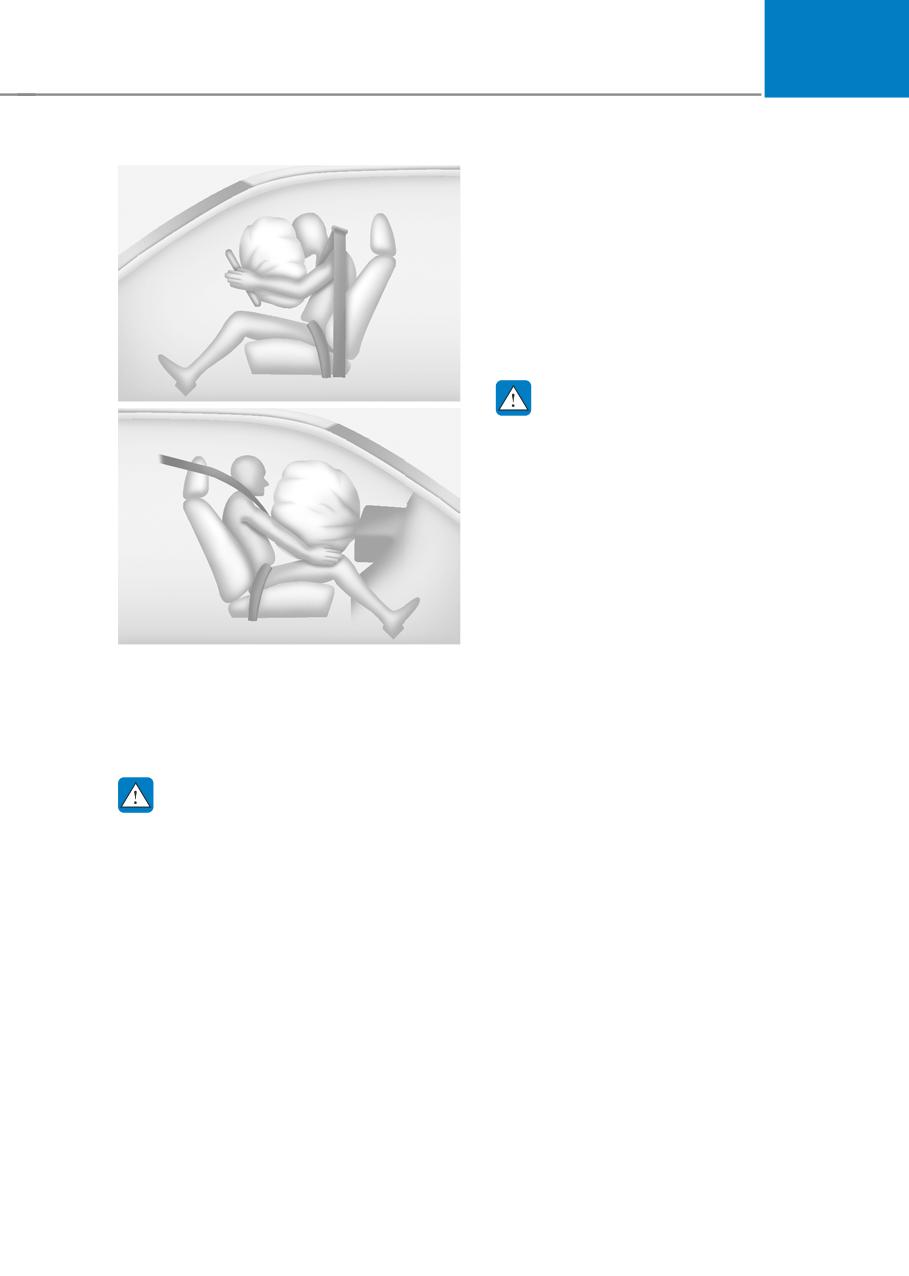

Air Bags
WARNING
You can take steps to reduce the risk
of being injured by an inflating air bag.
Take the following precautions when

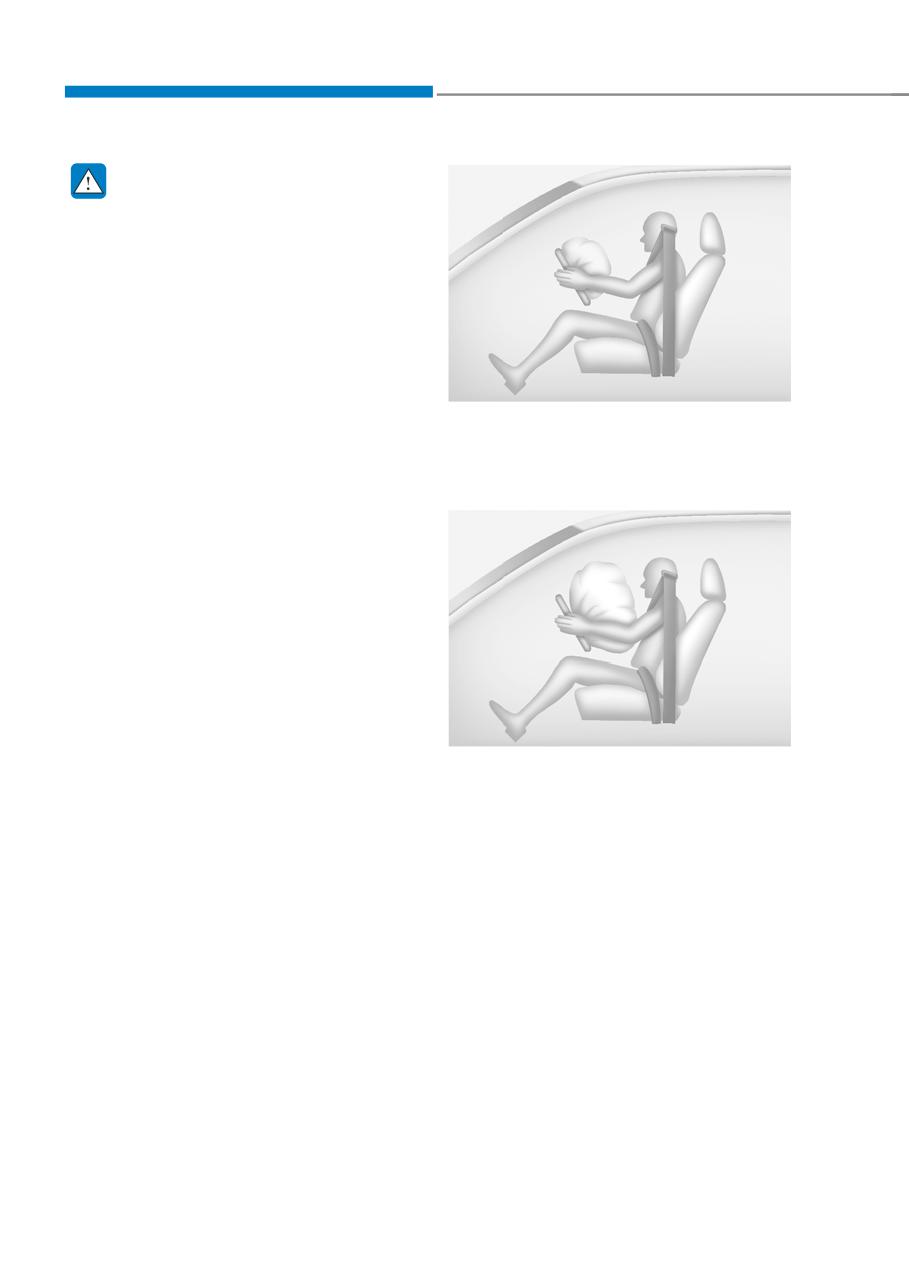

Sitting too close to an air bag greatly
adjusting your seat belt:
increases the risk of injury in the event
NEVER use one seat belt for more
the air bag inflates.
than one occupant.
The National Highway Traffic Safety
Always position the seatback upright
Administration (NHTSA) recommends
with the lap portion of the seat belt
that drivers allow at least 10 inches (25
snug and low across the hips.
cm) between the center of the steering
NEVER allow children or small infants
wheel and their chest.
to ride on a passenger’s lap.
Do not route the seat belt across your
WARNING
neck, across sharp edges, or reroute
To reduce the risk of serious injury or
the shoulder strap away from your
death from an inflating air bag, take the
body.
following precautions:
Do not allow the seat belt to become
Adjust the driver’s seat as far to the
caught or jammed.
rear as possible while maintaining
the ability to maintain full control of
the vehicle.
Adjust the front passenger seat as far
to the rear as possible.
Hold the steering wheel by the rim
with your hands at the 9 o’clock and
3 o’clock positions to minimize the
risk of injuries to your hands and
arms.
3-4
03

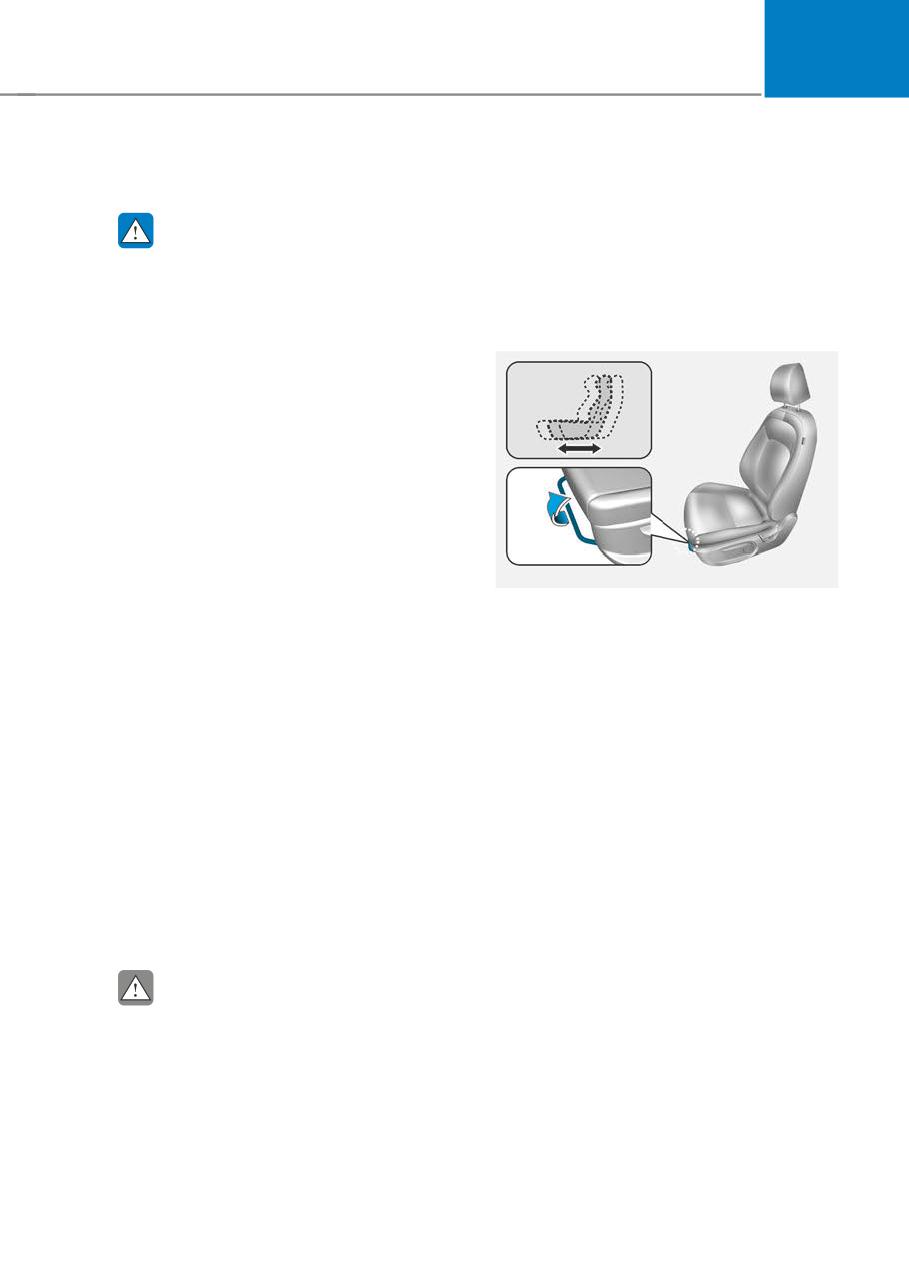

Front Seats
Manual Adjustment
The front seat can be adjusted by using
the levers located on the outside of
WARNING
the seat cushion. Before driving, adjust
Take the following precautions when
the seat to the proper position so that
adjusting your seat:
you can easily control the steering
wheel, foot pedals and controls on the
NEVER attempt to adjust the seat
while the vehicle is moving. The seat
instrument panel.
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.
Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.
Do not allow anything to interfere
with the normal position and proper
locking of the seatback.
OQX039002L
Do not place a cigarette lighter on
Forward and rearward adjustment
the floor or seat. When you operate
To move the seat forward or rearward:
the seat, gas may exit out of the
lighter causing a fire.
1. Pull up the seat slide adjustment lever
and hold it.
Use extreme caution when picking
up small objects trapped under the
2. Slide the seat to the position you
seats or between the seat and the
desire.
center console. Your hands might be
3. Release the lever and make sure the
cut or injured by the sharp edges of
seat is locked in place. Move forward
the seat mechanism.
and rearward without using the lever.
If there are occupants in the rear
If the seat moves, it is not locked
seats, be careful while adjusting the
properly.
front seat position.
Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:
Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.
Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
3-5
Safety System
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the

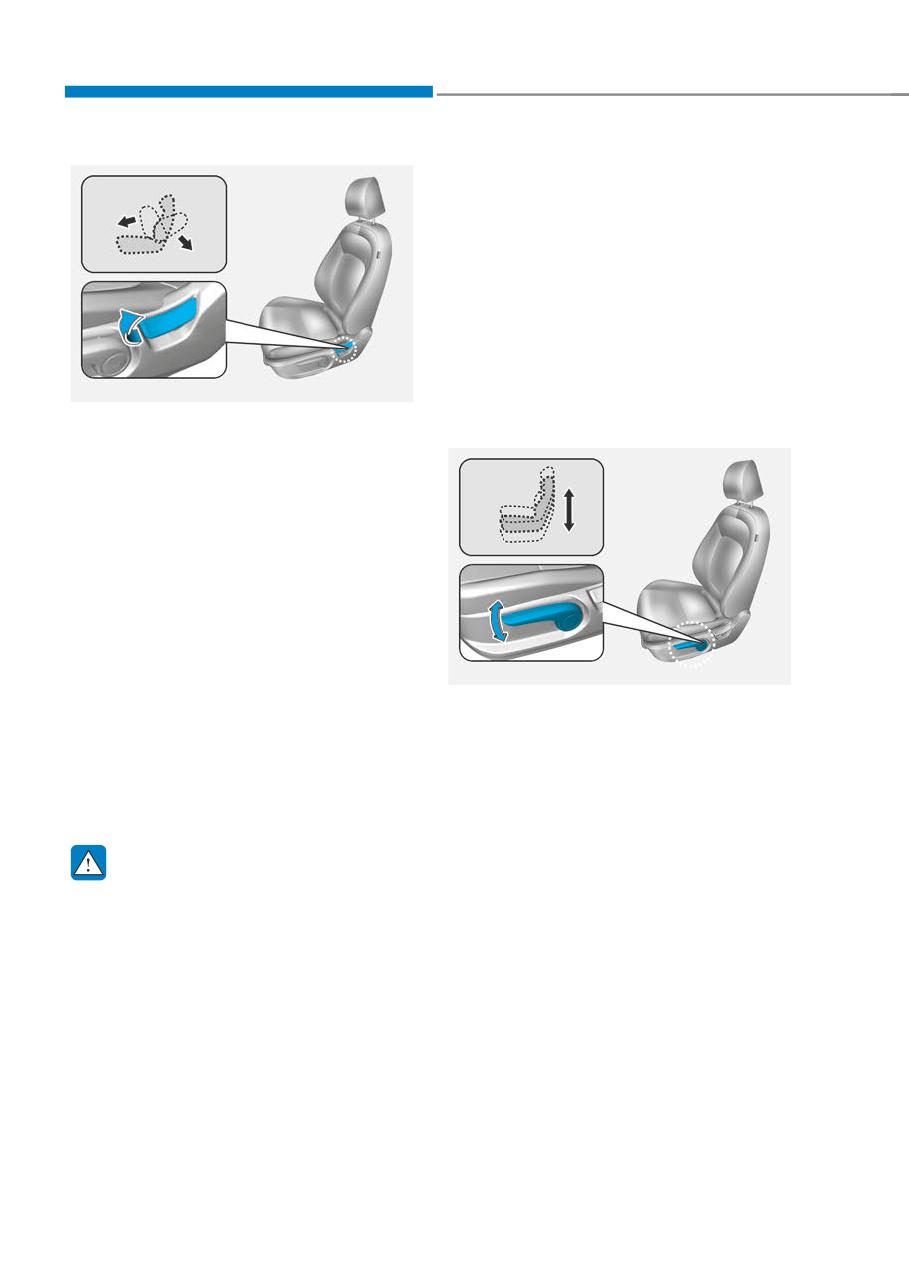

OQX039003L
passenger’s neck will strike the shoulder
Seatback angle
belt.
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and
adjust the seatback to the position
you desire.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
OQX039004L
Reclining seatback
Seat height (for driver’s seat)

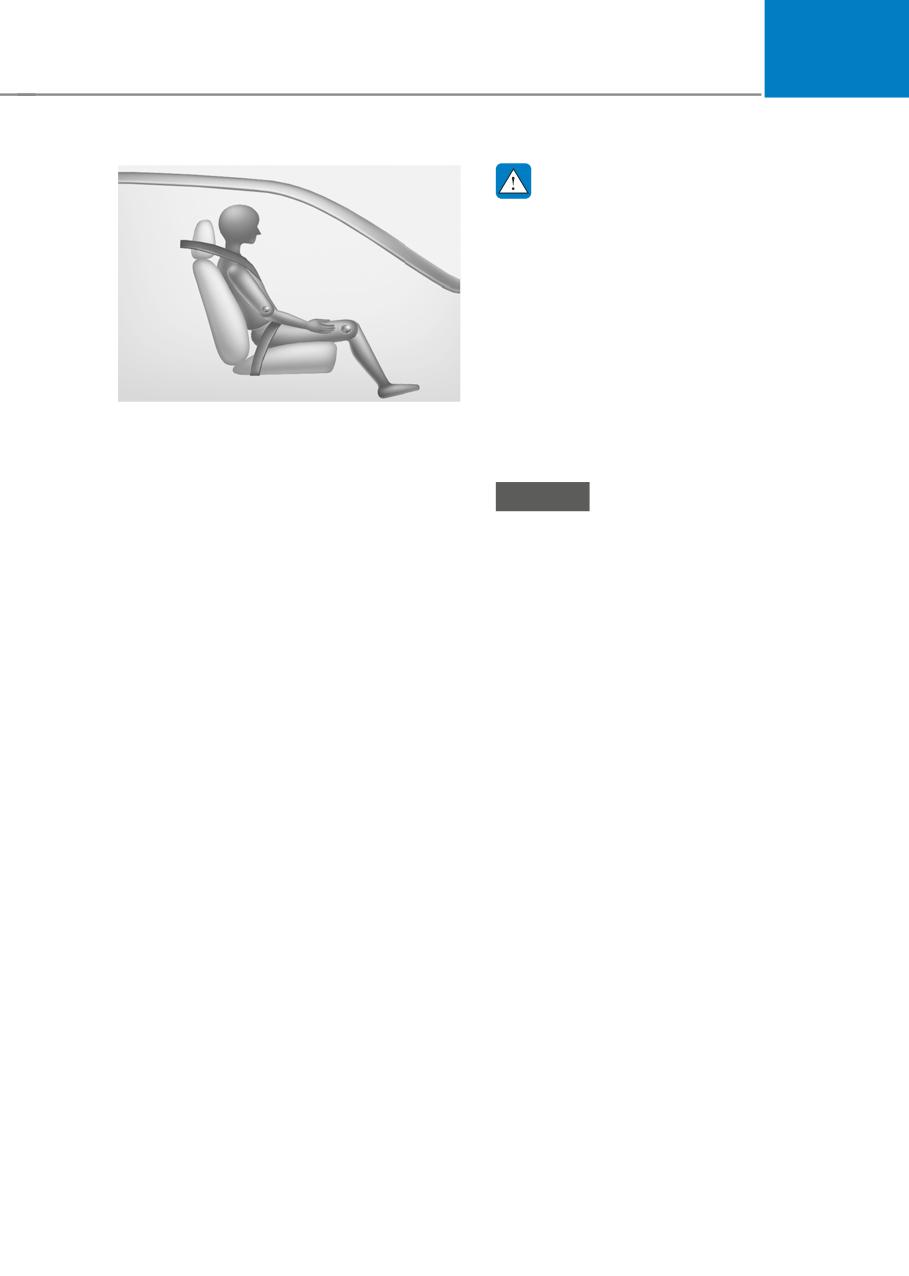

Sitting in a reclined position when the
vehicle is in motion can be dangerous.
To change the height of the seat cushion:
Even when buckled up, the protection of
• Push down on the lever several times,
your restraint system (seat belts and air
to lower the seat cushion.
bags) is greatly reduced by reclining your
• Pull up on the lever several times, to
seatback.
raise the seat cushion.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
3-6
03

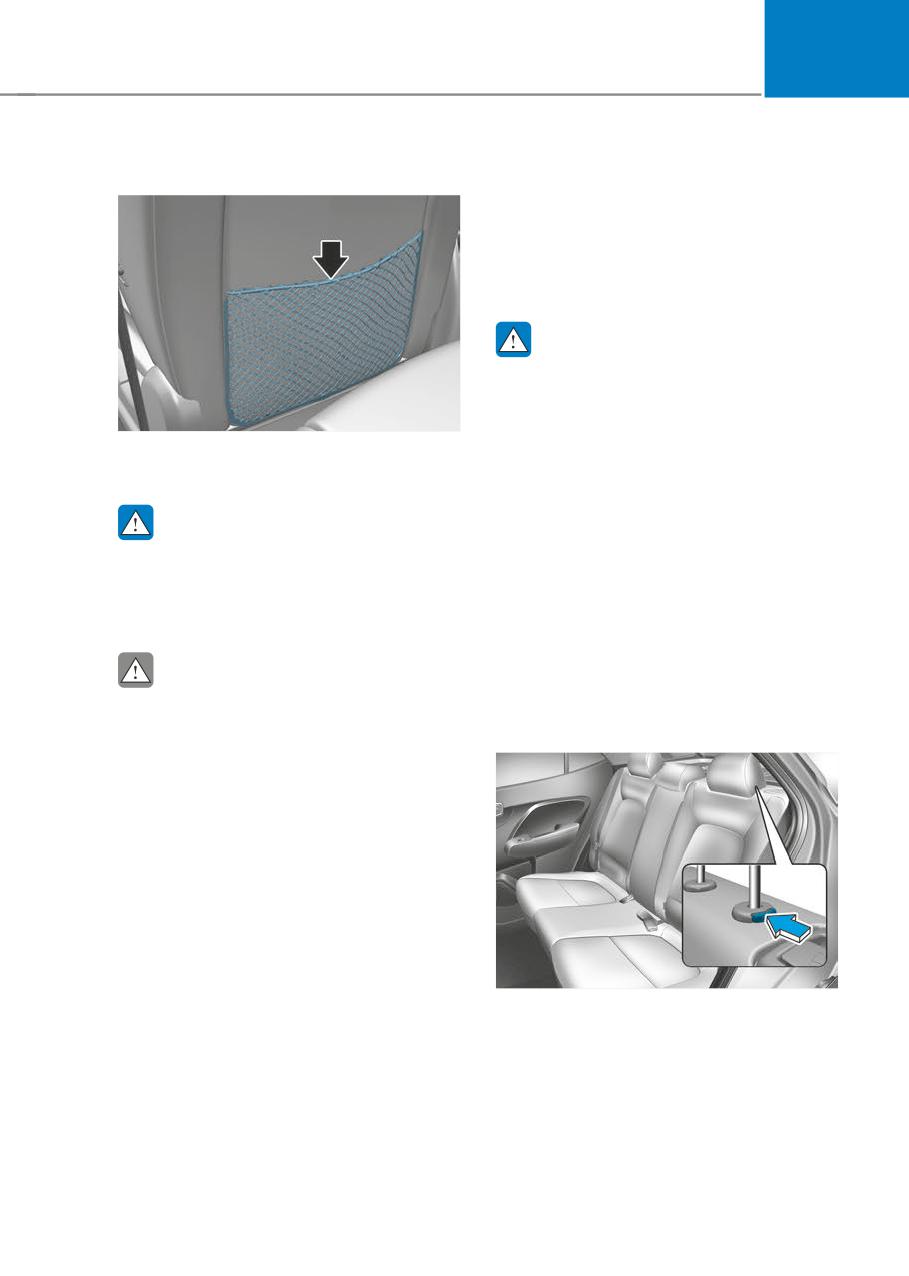

Seatback Pocket (if equipped)
Rear Seats
Folding the Rear Seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING
Never allow passengers to sit on top
of the folded down seatback while
the vehicle is moving. This is not a
OQX039041L
proper seating position and no seat
The seatback pocket is provided on the
belts are available for use. This could
back of the front seatbacks.
result in serious injury or death in
case of an accident or sudden stop.
Objects carried on the folded down
WARNING
seatback should not extend higher
To prevent the Occupant Classification
than the top of the front seatbacks.
System from malfunctioning:
This could allow cargo to slide
Do not hang onto the front passenger’s
forward and cause injury or damage
seatback.
during sudden stops.
To fold down the rear seatback:
CAUTION
1. Set the front seatback to the upright
Do not put heavy or sharp objects in the
position and if necessary, slide the
seatback pockets. In an accident they
front seat forward.
could come loose from the pocket and
injure occupants.
OQX039012N
2. Lower the rear head restraints to
the lowest position by pushing and
holding the release button and
pushing down on the head restraint.
3-7
Safety System

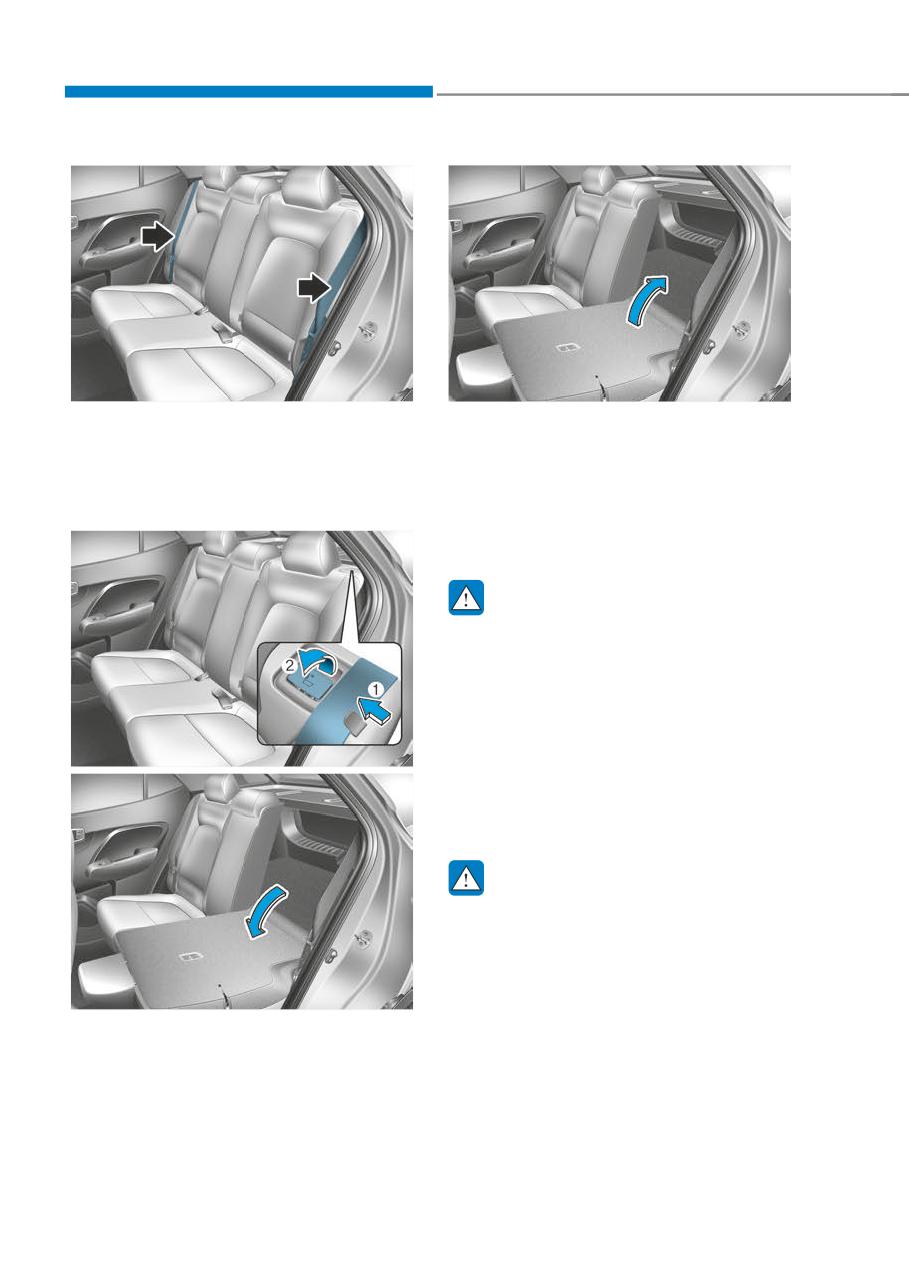

OQX039013N
OQX039006N
3.
Locate the seatbelt toward the
5. To use the rear seat, lift and unfold
outboard position before folding
the seatback to the upright position.
down the seatback. If not, the seatbelt
Push the seatback firmly until it clicks
system may be interfered by the
into place. Make sure the seatback is
seatback.
locked in place.
Return the seatbelt back into the
guide (1).
WARNING
When returning the rear seatback from
a folded to an upright position, hold the
seatback and return it slowly. Ensure
that the seatback is completely locked
into its upright position by pushing on
the top of the seatback. In an accident
or sudden stop, an unlocked seatback
OQX039005N
could allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
WARNING
Do not place objects in the rear seats,
since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or death.
OQX039007N
4.
Pull out the seatbelt from guide (1)
and pull up the seatback folding lever
(2), then fold the seat toward the front
of the vehicle.
3-8
03
WARNING
Make sure the vehicle is off, the shift
lever is in P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure to
take these steps may allow the vehicle
to move if the shift lever is inadvertently
moved to another position.
NOTICE

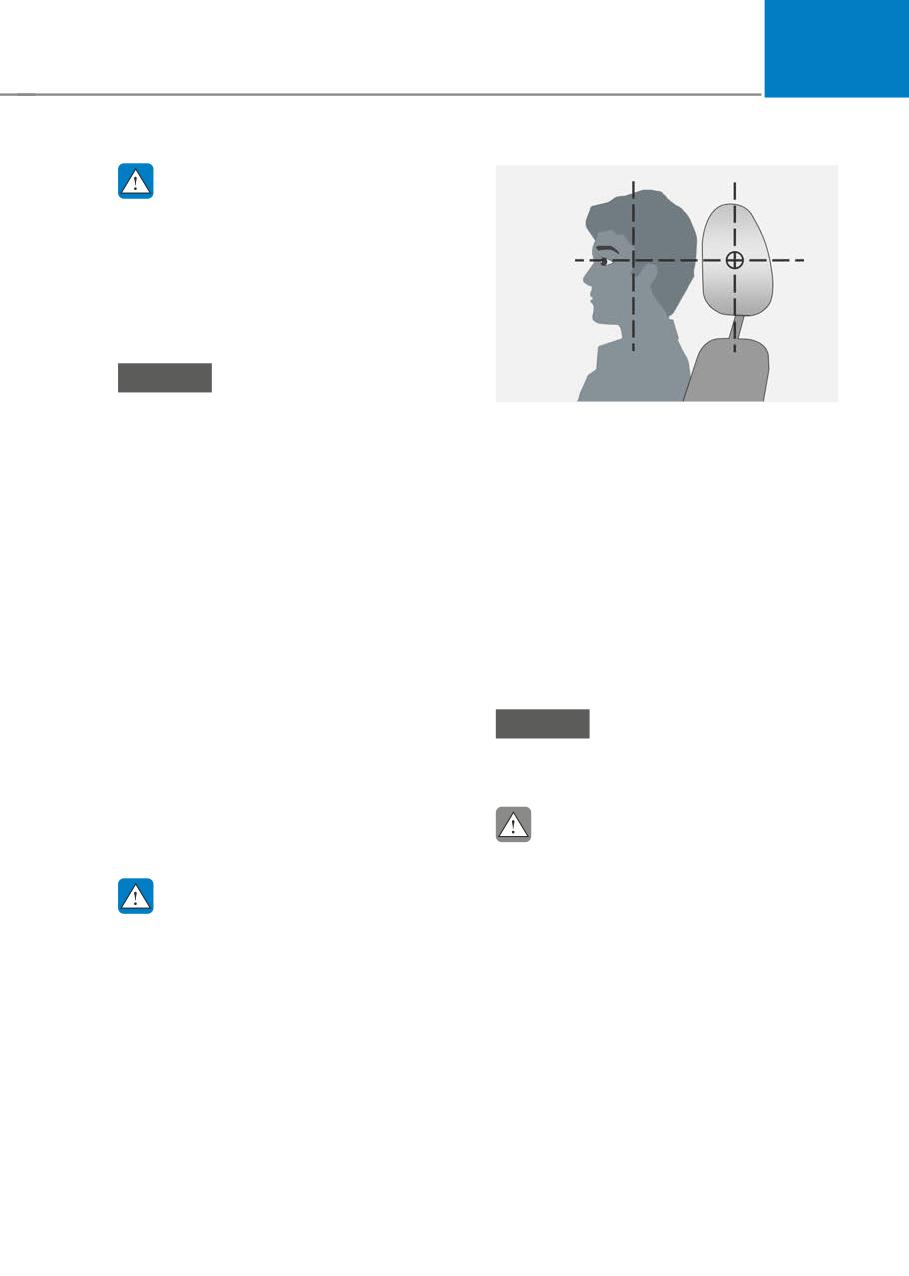

OLF034072N
Be careful when loading cargo
through the rear passenger seats
Adjust the head restraints so the
middle of the head restraint is at the
to prevent damage to the vehicle
interior.
same height as the height of the top
of the eyes.
When cargo is loaded through the
rear passenger seats, ensure the
NEVER adjust the head restraint
position of the driver’s seat when the
cargo is properly secured to prevent
it from moving while driving.
vehicle is in motion.
Adjust the head restraint as close to
Unsecured cargo in the passenger
the passenger’s head as possible. Do
compartment can cause damage
not use a seat cushion that holds the
to the vehicle or injury to the
body away from the seatback.
occupants.
Make sure the head restraint locks
Head Restraints
into position after adjusting it.
The vehicle’s front and rear seats
have adjustable head restraints. The
NOTICE
head restraints provide comfort for
To prevent damage, NEVER hit or pull
passengers, but more importantly they
on the head restraints.
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in
CAUTION
a rear impact collision.
When there are no occupants in the
rear seats, adjust the height of the head
WARNING
restraint to the lowest position. The
rear seat head restraint can reduce the
To help reduce the risk of serious
visibility of the rear area.
injury or death in an accident, take the
following precautions when adjusting
your head restraints:
Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.
NEVER let anyone ride in a seat
with the head restraints removed or
reversed.
3-9
Safety System
Front Seat head Restraints
OLF034015
OQX039008L
NOTICE
Both the driver’s and passenger’s front
seat are equipped with adjustable head
If you recline the seatback towards the
restraints for the safety and comfort.
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
OQX039009L
Adjusting the height up and down
To raise the head restraint:
OQX039010L
1. Pull it up to the desired position (1).
Removal/Reinstallation
To remove the head restraint:
To lower the head restraint:
1. Recline the seatback (2) rearward
1. Push and hold the release button (2)
using the seatback angle lever (1).
on the head restraint support.
2. Raise the head restraint as far as it can
2. Lower the head restraint to the
go.
desired position (3).
3. Press the head restraint release button
(3) while pulling the head restraint up
(4).
3-10

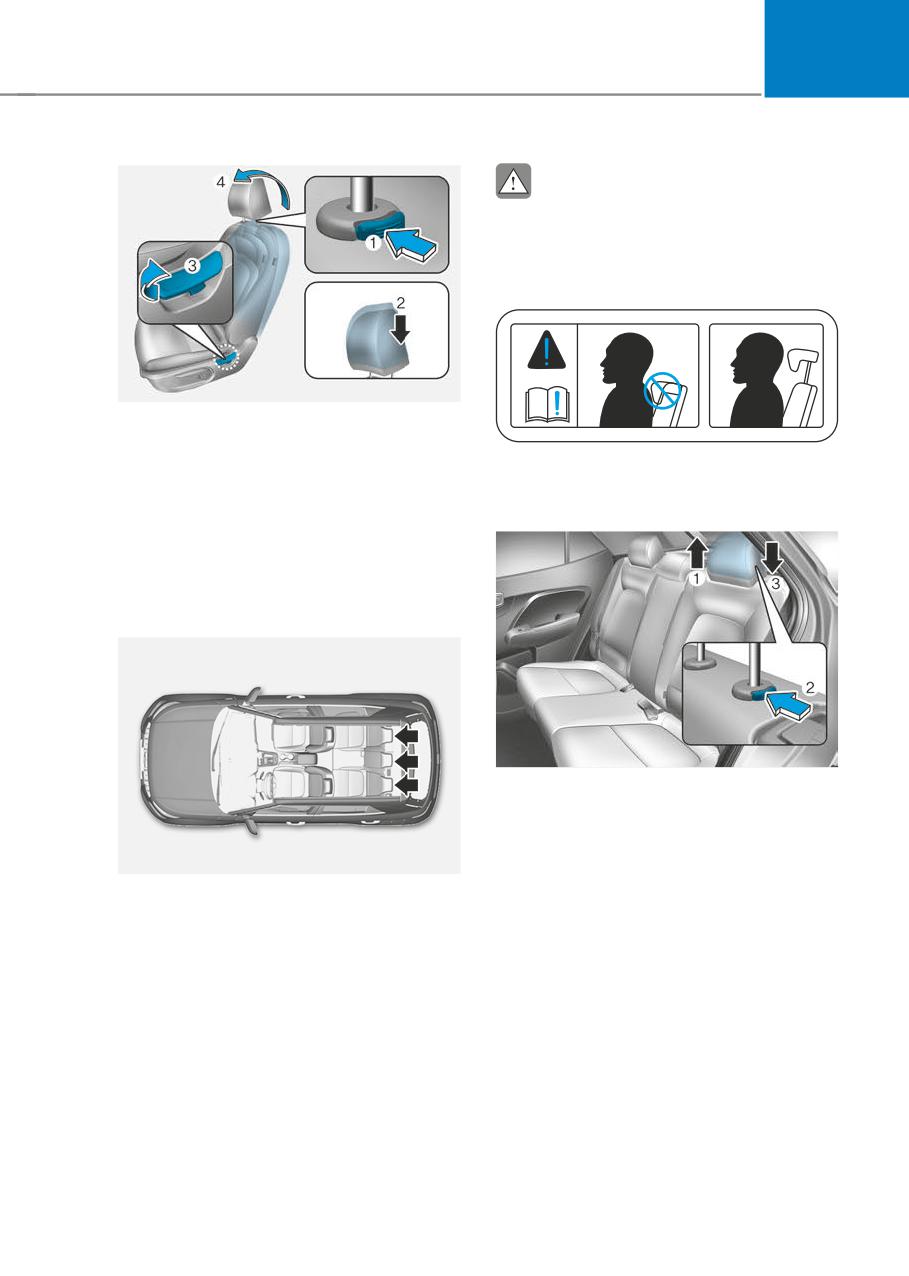

03
CAUTION
For each rear passenger, adjust the
head restraint so that the middle
of the head restraint is at the same
height as the height of the top of the
eyes.
OQX039011L
To reinstall the head restraint:
1. Put the head restraint poles (2) into
When seating on the rear seat, do
the holes while pressing the release
button (1).
not adjust the height of the head
restraints to the lowest position.
2. Adjust the head restraint to the
appropriate height.
3. Adjust the seatback (4) forward using
the seatback angle lever (3).
Rear Seat head Restraints
OQX039015N
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position (1).
OQX039032L
To lower the head restraint:
The rear seats are equipped with head
1. Push and hold the release button (2)
restraints in all the seating positions for
the passenger’s safety and comfort.
on the head restraint support.
2. Lower the head restraint to the
desired position (3).
3-11
Safety System
Seat Warmers (if equipped)
Seat warmers are provided to warm the
seats during cold weather.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
OQX039015N
Passengers must be able to feel if the
seat is becoming too warm so they can
Removal/Reinstallation
turn it off, if needed.
To remove the head restraint:
People who cannot detect temperature
1. Raise the head restraint as far as it can
change or pain to the skin should
go.
use extreme caution, especially the
2. Press the head restraint release button
following types of passengers:
(2) while pulling the head restraint up
Infants, children, elderly or disabled
(1).
persons, or hospital outpatients.
People with sensitive skin or who
To reinstall the head restraint:
burn easily.
1. Put the head restraint poles into the
Fatigued individuals.
holes (3) while pressing the release
Intoxicated individuals.
button (2).
People taking medication that can
2. Adjust the head restraint to the
cause drowsiness or sleepiness.
appropriate height.
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
3-12
03
NOTICE

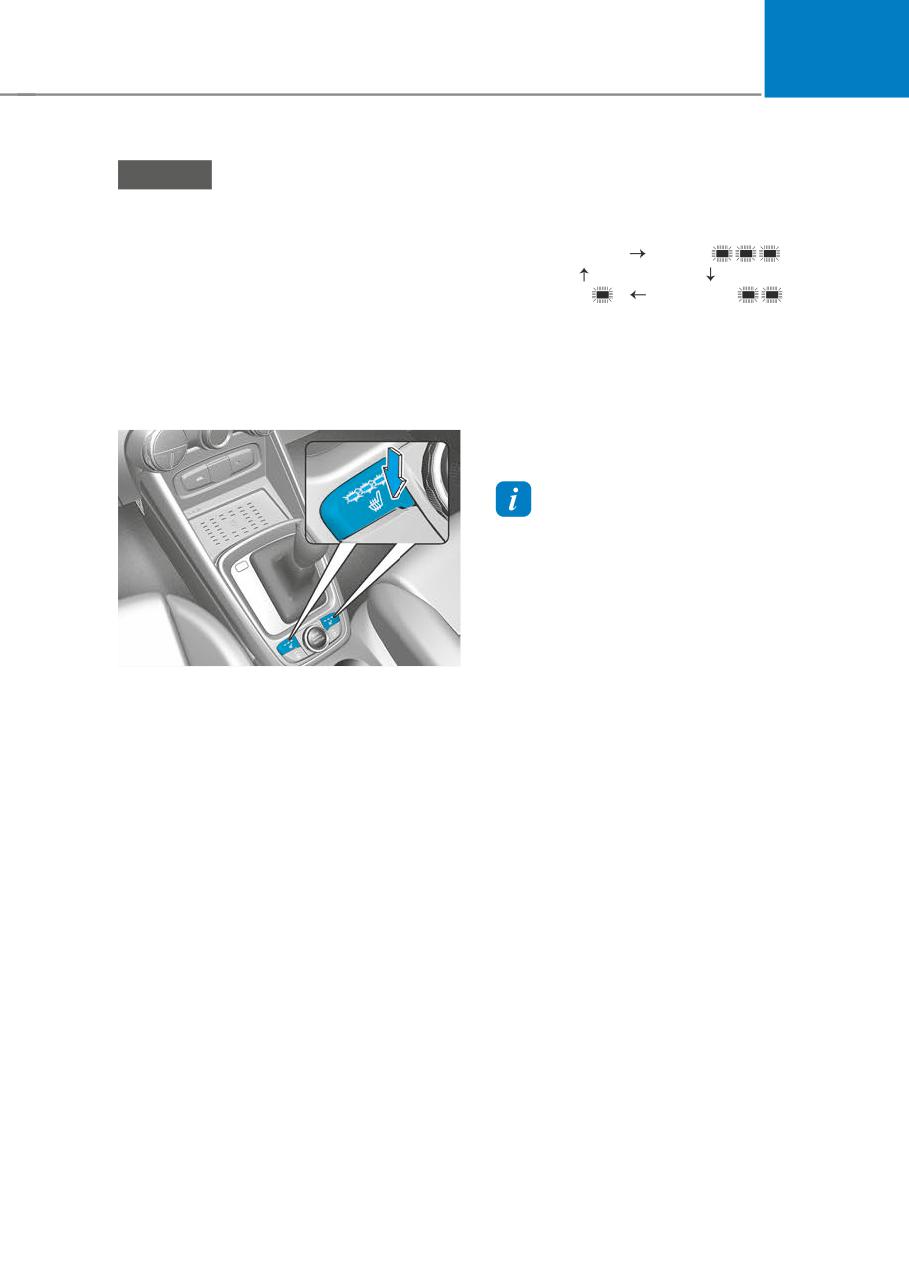

• Each time you push the switch, the
temperature setting of the seat is
To prevent damage to the seat warmers
changed as follows:
and seats:
Never use a solvent such as paint
OFF
HIGH (
)
thinner, benzene, alcohol or gasoline
to clean the seats.
LOW (
)
MEDIUM (
)
Do not place heavy or sharp objects
• When pressing the switch for more
on seats equipped with seat
than 1.5 seconds with the seat warmer
warmers.
operating, the seat warmer will turn
Do not change the seat cover. It may
OFF.
damage the seat warmer.
• The seat warmer defaults to the OFF
position each time the ignition switch
is turned to the ON position.
Information
With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending on
the seat temperature.
OQX032016N
While the engine is running, push either
of the switches to warm the driver’s seat
or front passenger’s seat.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the switches in the
OFF position.
3-13
Safety System
SEAT BELTS
This section describes how to use the
Do not latch the seat belt into the
seat belts properly. It also describes
buckles of other seats.
some of the things to avoid when using
NEVER unfasten the seat belt
seat belts.
while driving. This may cause loss
of vehicle control resulting in an
Seat Belt Safety Precautions
accident.
Always fasten your seat belt and make
Make sure there is nothing in the
sure all passengers have fastened their
buckle interfering with the seat belt
seat belts before starting any trip. Air
latch mechanism. This may prevent
bags are designed to supplement the
the seat belt from fastening securely.
seat belt as an additional safety device,
No modifications or additions
but they are not a substitute. Most states
should be made by the user which
require all occupants of a vehicle to wear
will either prevent the seat belt
seat belts.
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted to
WARNING
remove slack.
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. Take the following precautions
WARNING
when adjusting and wearing seat belts:
Damaged seat belts and seat belt
ALWAYS properly restrain children
assemblies will not operate properly.
under age 13 in the rear seats.
Always replace:
NEVER allow children to ride in the
Frayed, contaminated, or damaged
front passenger seat. If a child age 13
webbing
or older must be seated in the front
Damaged hardware
seat, move the seat as far back as
The entire seat belt assembly after it
possible and properly restrain them
has been worn in an accident, even
in the seat.
if damage to webbing or assembly is
NEVER allow an infant or child to be
not apparent
carried on an occupant’s lap.
NEVER ride with the seatback
reclined when the vehicle is moving.
Do not allow children to share a seat
or seat belt.
Do not wear the shoulder belt under
your arm or behind your back.
Always wear both the shoulder
portion and lap portion of the lap/
shoulder belt.
Do not use the seat belt if it is
twisted. A twisted seat belt will not
protect you properly in an accident.
Do not use a seat belt if the webbing
or hardware is damaged.
3-14
03

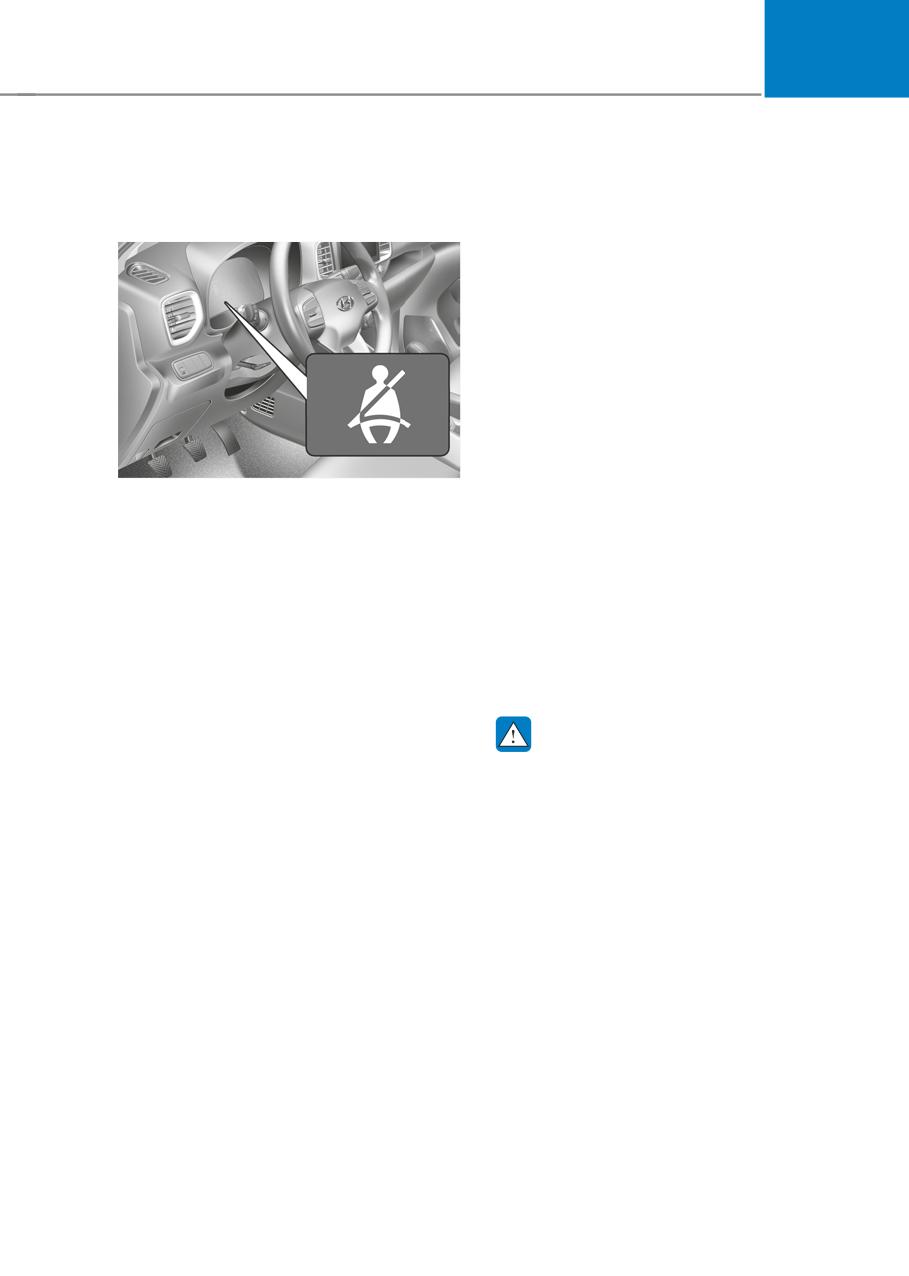

Seat Belt Warning Light
Seat Belt Warning Light
(for Front Passenger’s Seat)
Seat Belt Warning Light
(for Driver’s Seat)
As a reminder to the front passenger,
the front passenger’s seat belt warning
lights will illuminate for approximately 6
seconds each time you place the ignition
switch to the ON position regardless of
belt fastening.
If you continue not to fasten the seat belt
and you drive under 12 mph (20 km/h),
the warning light will stay illuminated.
If you continue not to fasten the seat
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
OQX039033L
for approximately 100 seconds and the
As a reminder to the driver, the seat
corresponding warning light will blink.
belt warning light will illuminate for
If you unfasten the seat belt while driving
approximately 6 seconds each time
under 12 mph (20 km/h) the seat belt
you place the ignition switch to the ON
warning light will illuminate until the seat
position regardless of belt fastening.
belt is fastened.
However, if the seat belt is unfasted,
If you unfasten the seat belt while
a warning chime will sound for
driving over 12 mph (20 km/h), the
approximately 6 seconds.
seat belt warning chime will sound for
If you continue not to fasten the seat belt
approximately 100 seconds and the
and you drive under 12 mph (20 km/h),
corresponding warning light will blink.
the warning light will stay illuminated.
If you continue not to fasten the seat
WARNING
belt and you drive over 12 mph (20 km/h)
the seat belt warning chime will sound
The front passenger’s seat belt warning
for approximately 100 seconds and the
light may not properly operate if the
corresponding warning light will blink.
front passenger does not sit properly in
the seat.
If you unfasten the seat belt while driving
under 12 mph (20 km/h), the seat belt
If you place an object on the passenger
warning light will illuminate until the seat
seat or back seat or under the seats,
belt is fastened.
the warning chime may sound. Please
remove the object if the chime sounds.
If you unfasten the seat belt while
driving over 12 mph (20 km/h), the
seat belt warning chime will sound for
approximately 100 seconds and the
corresponding warning light will blink.
3-15
Safety System
Seat Belt Restraint System
Seat Belt-Driver’s 3-point System
with Emergency Locking Retractor
WARNING
Improperly positioned seat belts may
increase the risk of serious injury
in an accident. Take the following
precautions when adjusting the seat
belt:
Position the lap portion of the seat
belt as low as possible across your
hips, not on your waist, so that it fits
snugly.
Position one arm under the shoulder

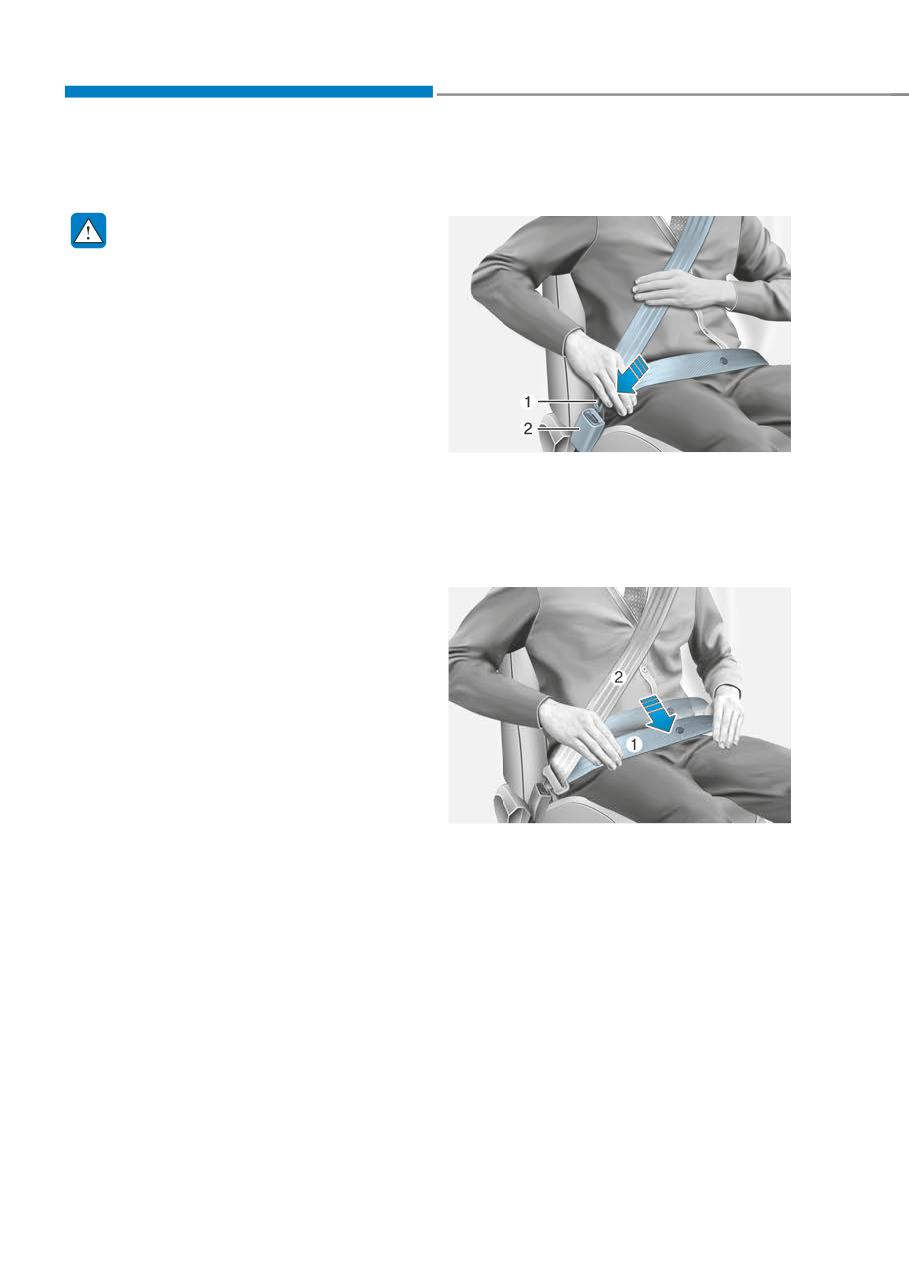

OHI038140
belt and the other over the belt, as
To fasten your seat belt:
shown in the illustration.
Pull the seat belt out of the retractor and
Always position the shoulder belt
insert the metal tab (1) into the buckle
anchor into the locked position at the
(2). There will be an audible “click” when
appropriate height.
the tab locks into the buckle.
Never position the shoulder belt
across your neck or face.
OHI038137
You should place the lap belt (1) portion
across your hips and the shoulder belt (2)
portion across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in
a slow, easy motion, the belt will extend
and move with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
3-16
03
NOTICE
To fasten your seat belt:
If you are not able to smoothly pull
Pull the seat belt out of the retractor
enough of the seat belt out from the
and insert the metal tab into the buckle.
retractor, firmly pull the seat belt out
There will be an audible “click” when
and release it. After release, you will be
the tab locks into the buckle. When
able to pull the belt out smoothly.
not securing a child restraint, the seat
belt operates in the same way as the
driver’s seat belt (Emergency Locking
Retractor Type). It automatically adjusts
to the proper length only after the lap
belt portion of the seat belt is adjusted
manually so that it fits snugly across your
hips.
When the seat belt is fully extended from
the retractor to allow the installation of
a child restraint system, the seat belt
operation changes to allow the belt to
retract, but not to extend (Automatic

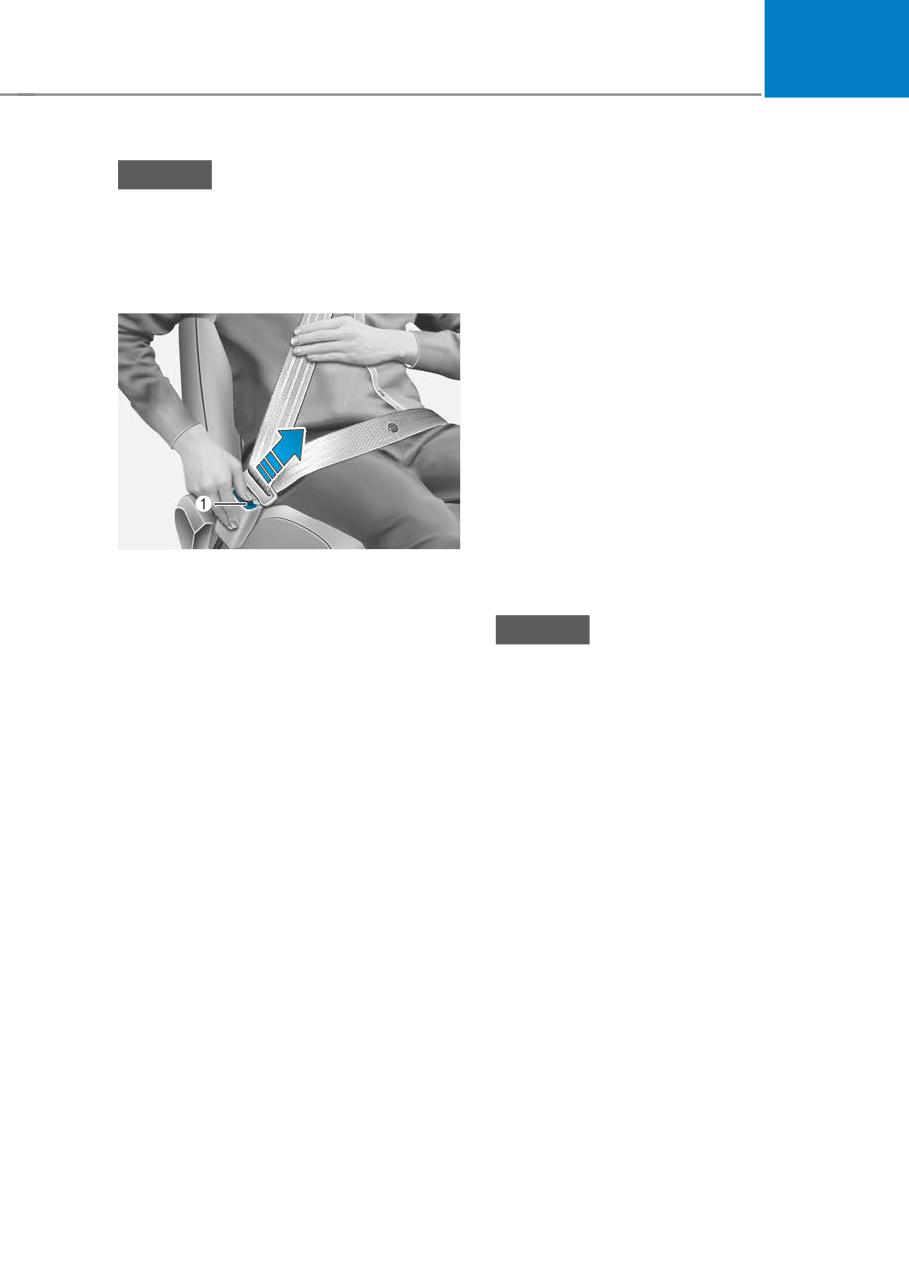

OHI038142
Locking Retractor Type). Refer to the
“Using a Child Restraint System” section
To release your seat belt:
in this chapter.
Press the release button (1) in the locking
buckle.
NOTICE
When it is released, the belt should
automatically draw back into the
Although the seat belt retractor
retractor. If this does not happen, check
provides the same level of protection
the belt to be sure it is not twisted, then
for seated passengers in either
try again.
emergency or automatic locking
modes, the emergency locking mode
Rear Seat Belt - Passenger’s 3-point
allows seated passengers to move
System with Convertible Locking
freely in their seat while keeping
some tension on the belt. During a
Retractor
collision or sudden stop, the retractor
This type of seat belt combines the
automatically locks the belt to help
features of both an emergency locking
restrain your body.
retractor seat belt and an automatic
To deactivate the automatic locking
locking retractor seat belt. Convertible
retractor type seat belts are installed
mode, unbuckle the seat belt and allow
the belt to fully retract.
in the rear seat positions to help
accommodate the installation of child
restraint systems. Although a convertible
retractor is also installed in the front
passenger seat position, NEVER place
any infant/child restraint system in the
front seat of the vehicle.
3-17
Safety System
Pre-tensioner Seat Belt
(Driver And Front Passenger)

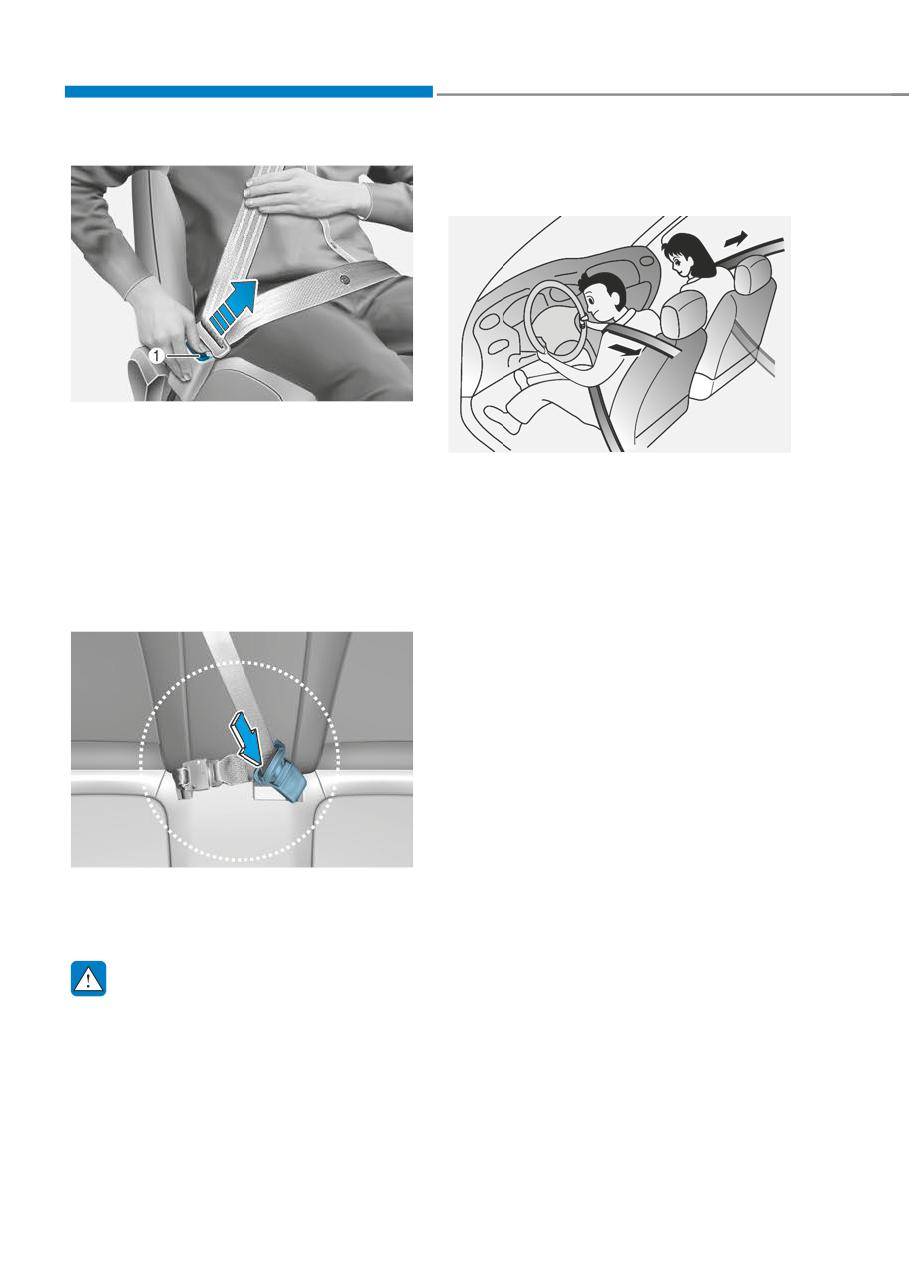

OHI038142
To release your seat belt:
Press the release button (1) in the locking
OHI038143L
buckle.
Your vehicle is equipped with driver’s
When it is released, the belt should
and front passenger’s Pre-tensioner
automatically draw back into the
Seat Belts (Retractor Pre-tensioner). The
retractor. If this does not happen, check
purpose of the pre-tensioner is to make
the belt to be sure it is not twisted, then
sure the seat belts fit tightly against the
try again.
occupant’s body in certain frontal or side
collision(s).
Rear Center Seat Belt
When the vehicle stops suddenly, or
if the occupant tries to lean forward
too quickly, the seat belt retractor will
lock into position. In certain frontal or
side collision(s), the pre-tensioner will
activate and pull the seat belt into tighter
contact against the occupant’s body.
If the system senses excessive tension
on the driver or passenger’s seat belt
when the pre-tensioner system activates,
the load limiter inside the retractor
pre-tensioner will release some of the
OQX039051N
pressure on the affected seat belt.
When using the rear center seat belt, the
buckle with the “CENTER” mark must be
used.
WARNING
Make sure that the seatback is locked in
place when using the rear center seat
belt.
If not, the seatback may move when
there is a sudden stop or collision,
which could result in serious injury.
3-18
03
WARNING
Always wear your seat belt and sit
properly in your seat.
Do not use the seat belt if it is loose
or twisted. A loose or twisted seat
belt will not protect you properly in
an accident.
Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to function

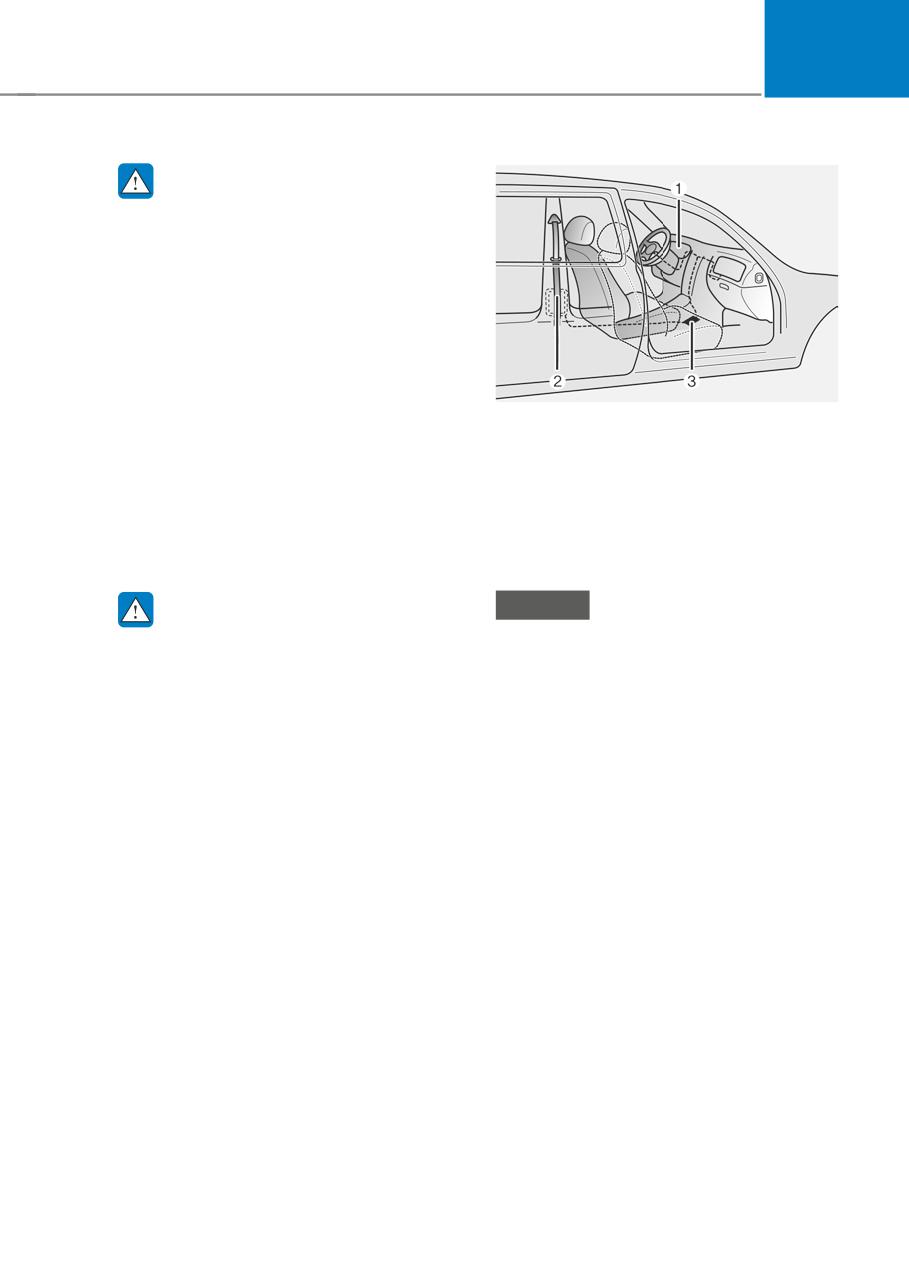

ODN8H033057
improperly.
The Pre-Tensioner Seat Belt System
Always replace your pre-tensioners
consists mainly of the following
after activation or an accident.
components. Their locations are shown
NEVER inspect, service, repair or
in the illustration above:
replace the pre-tensioners yourself.
1. SRS air bag warning light
This must be done by an authorized
HYUNDAI dealer.
2. Retractor pre-tensioner
Do not hit the seat belt assemblies.
3. SRS control module
NOTICE
WARNING
The sensor that activates the SRS air
Do not touch the pre-tensioner seat
bag is connected with the pre-tensioner
belt assemblies for several minutes
seat belts. The SRS air bag warning light
after they have been activated. When
on the instrument panel will illuminate
the pre-tensioner seat belt mechanism
for approximately 6 seconds after the
deploys during a collision, the pre-
ignition switch is in the ON position,
tensioners become hot and can burn
and then it should turn off.
you.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is being
driven, have an authorized HYUNDAI
dealer inspect the pre-tensioner seat
belts and SRS air bags as soon as
possible.
3-19
Safety System
NOTICE
Additional Seat Belt Safety
Both the driver’s and front
Precautions
passenger’s pre-tensioner seat belts
Seat Belt use during Pregnancy
may be activated in certain frontal or
The seat belt should always be used
side collisions or rollovers.
during pregnancy. The best way to
When the pre-tensioner seat belts
protect your unborn child is to protect
are activated, a loud noise may be
yourself by always wearing the seat belt.
heard and fine dust, which may
Pregnant women should always wear
appear to be smoke, may be visible in
a lap-shoulder seat belt. Place the
the passenger compartment. These
shoulder belt across your chest, routed
are normal operating conditions and
between your breasts and away from
are not hazardous.
your neck. Place the lap belt line so
Although it is non-toxic, the fine
that it fits snugly and as low as possible
dust may cause skin irritation and
across the hips, not across the abdomen.
should not be inhaled for prolonged
periods. Wash all exposed skin areas
thoroughly after an accident in
WARNING
which the pre-tensioner seat belts
Pregnant women and patients are
were activated.
more vulnerable to any impacts on
the abdomen during an abrupt stop
or accident. If you are in an accident
WARNING
while pregnant, consult your doctor.
Fasten your seat belt while sitting
To reduce the risk of serious injury or
properly in an upright position to
death to an unborn child during an
maximize the effectiveness of the
accident, pregnant women should
pre-tensioner seat belt system.
NEVER place the lap portion of the
A pre-tensioner seat belt system
seat belt above or over the area of
is designed to activate only once.
the abdomen where the unborn child
Replace the pre-tensioner seat belt
is located.
system, if it was activated in an
accident.
Seat Belt use and Children
Infant and small children
All 50 states have child restraint laws
which require children to travel in
approved child restraint devices,
including booster seats. The age at
which seat belts can be used instead
of child restraints differs among states,
so you should be aware of the specific
requirements in your state, and where
you are travelling. Infant and child
restraints must be properly placed
and installed in a rear seat. For more
information refer to the “Child Restraint
Systems” section in this chapter.
3-20
03
Larger children
WARNING
Children under age 13 and who are too
ALWAYS properly restrain infants
large for a booster seat must always
and small children in a child restraint
occupy the rear seat and use the
appropriate for the child’s height and
available lap/shoulder belts. A seat belt
weight.
should lie across the upper thighs and
To reduce the risk of serious injury or
be snug across the shoulder and chest
death to a child and other passengers,
to restrain the child safely. Check belt fit
NEVER hold a child in your lap or arms
periodically. Children are afforded the
when the vehicle is moving. The violent
most safety in the event of an accident
forces created during an accident will
when they are restrained by a proper
tear the child from your arms and throw
restraint system and/or seat belts in the
the child against the interior of the
rear seat. Always have the LATCH system
vehicle.
inspected by your authorized HYUNDAI
dealer after an accident. An accident can
Small children are best protected
damage the LATCH system and may not
from injury in an accident when
properly secure the child restraint.
properly restrained in the rear seat
If a larger child over age 13 must be
by a child restraint system that meets
seated in the front seat, the child must
the requirements of the Federal Motor
be securely restrained by the available
Vehicle Safety Standards. Before buying
lap/shoulder belt and the seat should be
any child restraint system, make sure
placed in the rearmost position.
that it has a label certifying that it meets
If the shoulder belt portion slightly
Federal Motor Vehicle Safety Standard
touches the child’s neck or face, try
FMVSS 213. The restraint must be
placing the child closer to the center
appropriate for your child’s height and
of the vehicle. If the shoulder belt still
weight. Check the label on the child
touches their face or neck they need to
restraint for this information. Refer to the
be returned to an appropriate booster
“Child Restraint Systems” section in this
seat in the rear seat.
chapter.
WARNING
Always make sure children are
wearing their seat belts and that they
are properly adjusted before driving.
NEVER allow the shoulder belt to
contact the child’s neck or face.
Do not allow more than one child to
use a single seat belt.
3-21
Safety System
Transporting an Injured Person
Care of Seat Belts
A seat belt should be used when an
Seat belt systems should never be
injured person is being transported.
disassembled or modified. In addition,
Consult a physician for specific
care should be taken to assure that seat
recommendations.
belts and belt hardware are not damaged
by seat hinges, doors or other abuse.
One Person Per Belt
Two people (including children) should
Periodic Inspection
never attempt to use a single seat belt.
All seat belts should be inspected
This could increase the severity of
periodically for wear or damage of
injuries in case of an accident.
any kind. Any damaged parts should
be replaced as soon as possible by an
Do Not Lie Down
authorized HYUNDAI dealer.
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Keep Belts Clean and Dry
Even when buckled up, the protections
Seat belts should be kept clean and
of your restraint system (seat belts and
dry. If belts become dirty, they can be
air bags) is greatly reduced by reclining
cleaned by using a mild soap solution
your seatback.
and warm water. Bleach, dye, strong
To reduce the chance of injuries in the
detergents or abrasives should not be
event of an accident and to achieve the
used because they may damage and
maximum effectiveness of the restraint
weaken the fabric.
system, all passengers should be sitting
up and the front and rear seats should
When to Replace Seat Belts
be in an upright position when the car is
The entire seat belt assembly or
moving.
assemblies should be replaced if the
A seat belt cannot provide proper
vehicle has been involved in an accident.
protection if the person is lying down in
This should be done even if no damage is
the rear seat or if the front or rear seats
visible. Additional questions concerning
are in a reclined position.
seat belt operation should be directed to
an authorized HYUNDAI dealer.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.
Drivers and passengers should
always sit well back in their seats,
properly belted, and with the
seatbacks upright.
3-22
03
CHILD RESTRAINT SYSTEM (CRS)
Children Always in the Rear
Child Restraint System (CRS)
Infants and younger children must be
restrained in an appropriate rear-facing
WARNING
or forward-facing CRS that has first
Always properly restrain children in the
been properly secured to the rear seat
rear seats of the vehicle.
of the vehicle. Read and comply with
the instructions for installation and use
Children of all ages are safer when
restrained in the rear seat. A child riding
provided by the manufacturer of the
child restraint.
in the front passenger seat can be
forcefully struck by an inflating air bag
resulting in SERIOUS INJURY or DEATH.
WARNING
An improperly secured child restraint
Children under age 13 must always
can increase the risk of SERIOUS
ride in the rear seats and must always
INJURY or DEATH in an accident. Always
be properly restrained to minimize the
take the following precautions when
risk of injury in an accident, sudden
using a child restraint system:
stop or sudden maneuver. According
to accident statistics, children are safer
NEVER install a child or infant
when properly restrained in the rear
restraint in the front passenger’s
seats than in the front seat. Even with
seat.
air bags, children can be seriously
Always properly secure the child
injured or killed. Children too large for
restraint to a rear seat of the vehicle.
a child restraint must use the seat belts
Always follow the child restraint
provided.
system manufacturer’s instructions
All 50 states have child restraint laws
for installation and use.
which require children to travel in
Always properly restrain your child in
approved child restraint devices. The
the child restraint.
laws governing the age or height/weight
restrictions at which seat belts can be
If the vehicle head restraint prevents
used instead of child restraints differs
proper installation of a child seat
among states, so you should be aware of
(as described in the child restraint
the specific requirements in your state,
system manual), the head restraint of
and where you are travelling.
the respective seating position shall
be readjusted or entirely removed.
Child restraint systems must be properly
placed and installed in the rear seat.
Do not use an infant carrier or a
You must use a commercially available
child safety seat that “hooks” over
child restraint system that meets the
a seatback, it may not provide
requirements of the Federal Motor
adequate protection in an accident.
Vehicle Safety Standards (FMVSS 213).
After an accident, have a HYUNDAI
Child restraint systems are generally
dealer check the child restraint
designed to be secured in a vehicle seat
system, seat belts, tether anchors
by lap belt portion of a lap/shoulder belt,
and lower anchors.
or by a LATCH system in the rear seats of
the vehicle.
3-23
Safety System
Selecting a Child Restraint
System (CRS)
When selecting a CRS for your child,
always:
• Make sure the CRS has a label
certifying that it meets applicable
Federal Motor Vehicle Safety
Standards (FMVSS 213).
• Select a child restraint based on
your child’s height and weight. The
required label or the instructions for

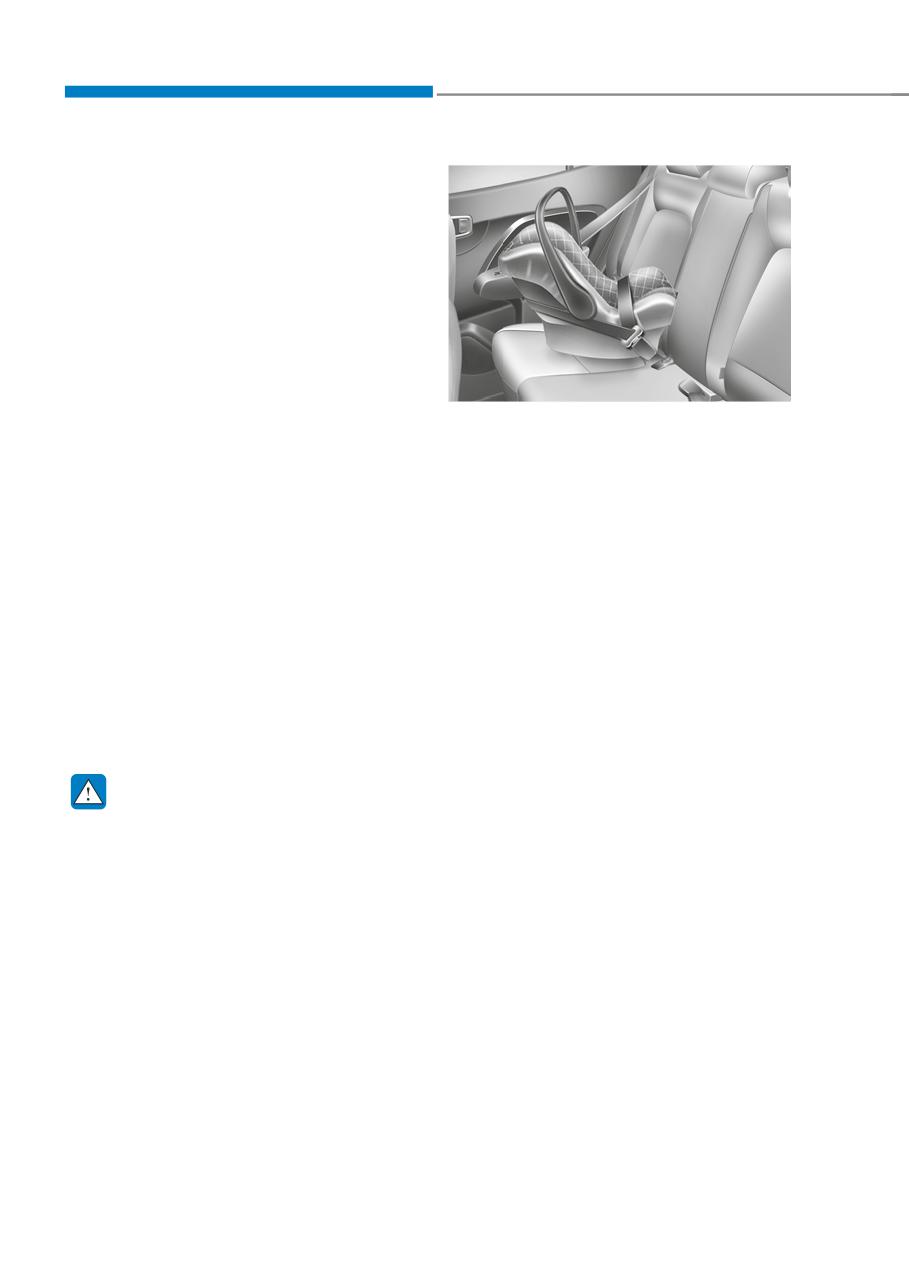

OQX039018N
use typically provide this information.
A rear-facing child seat provides restraint
• Select a child restraint that fits the
with the seating surface against the back
vehicle seating position where it will
of the child. The harness system holds
be used.
the child in place, and in an accident,
acts to keep the child positioned in the
• Read and comply with the warnings
seat and reduce the stress to the neck
and instructions for installation and
and spinal cord.
use provided with the child restraint
system.
All children under age one must always
ride in a rear-facing infant child restraint.
Child Restraint System Types
Convertible and 3-in-1 child seats
There are three main types of child
typically have higher height and weight
restraint systems: rear-facing seats,
limits for the rear-facing position,
forward-facing seats, and booster seats.
allowing you to keep your child rear-
They are classified according to the
facing for a longer period of time.
child’s age, height and weight.
Continue to use a rear-facing child seat
for as long as your child will fit within the
Rear-facing child seats
height and weight limits allowed by the
child seat manufacturer. It’s the best way
WARNING
to keep them safe. Once your child has
outgrown the rear-facing child restraint,
NEVER install a child or infant restraint
your child is ready for a forward-facing
in the front passenger’s seat.
child restraint with a harness.
Placing a rear-facing child restraint in
the front seat can result in SERIOUS
INJURY or DEATH if the child restraint is
struck by an inflating air bag.
3-24
03
Installing a Child Restraint
System (CRS)
WARNING
Before installing your child restraint
system always:
Read and follow the instructions
provided by the manufacturer of the
child restraint.

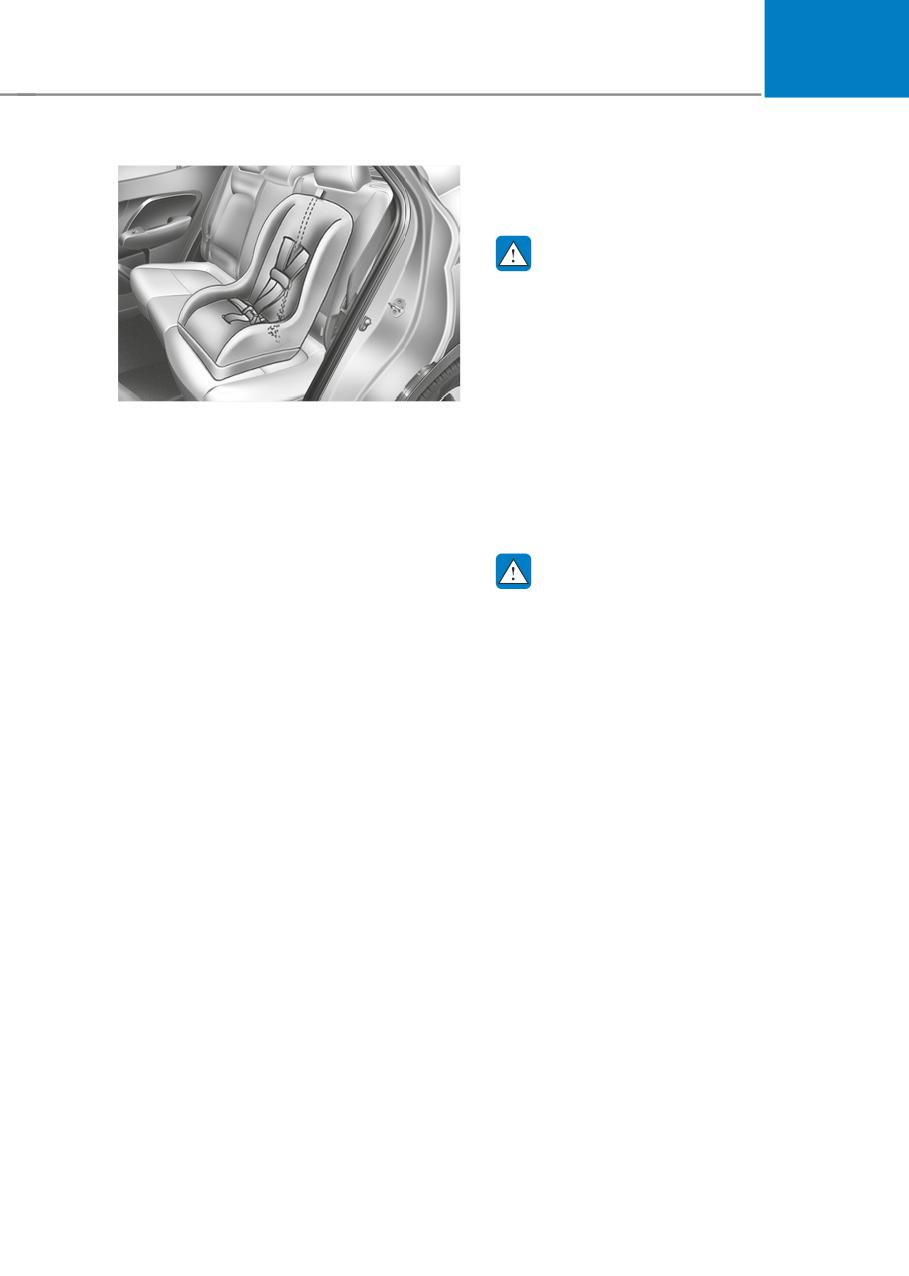

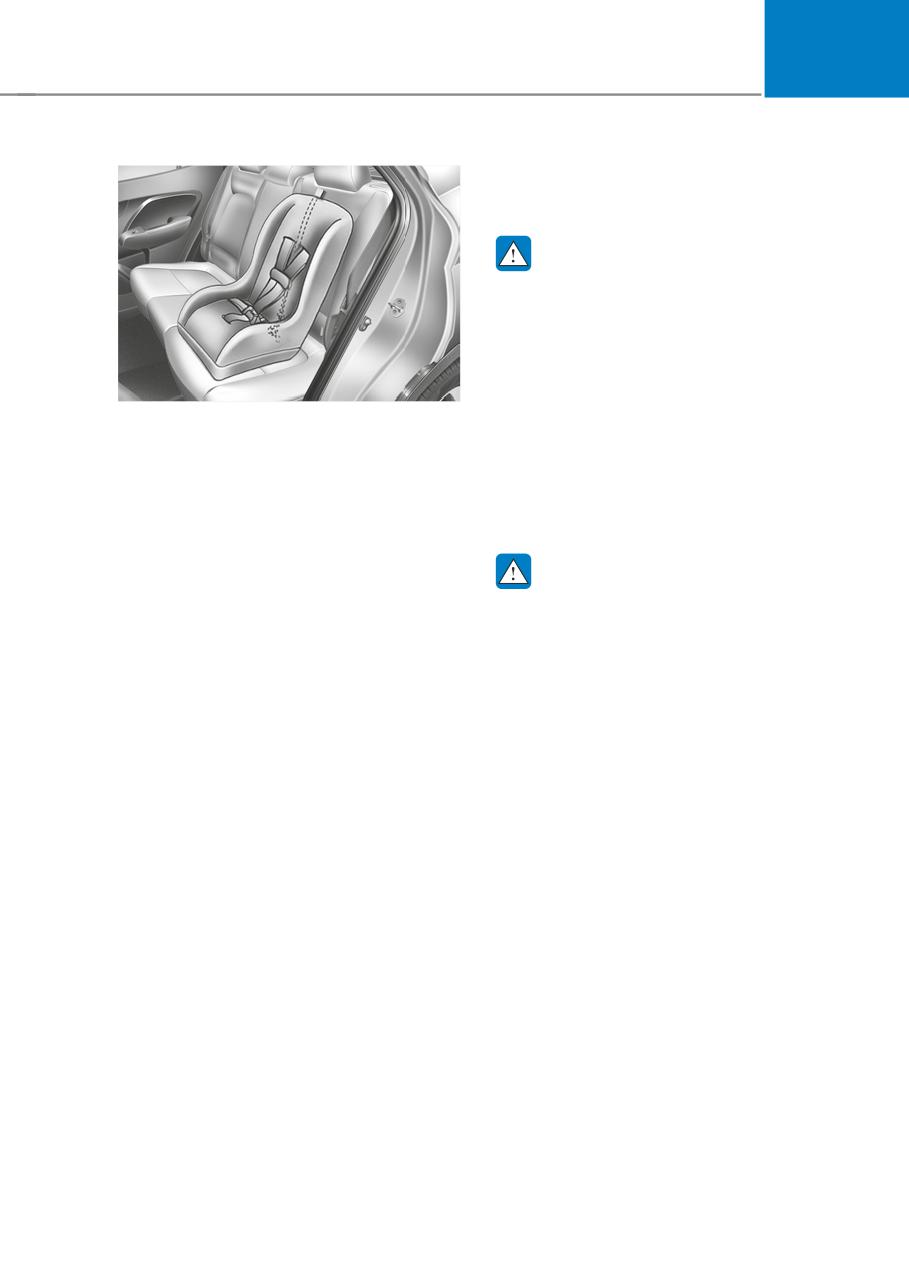

OQX039022N
Read and follow the instructions
regarding child restraint systems in
Forward-facing child restraints
this manual.
A forward-facing child seat provides
Failure to follow all warnings and
restraint for the child’s body with a
instructions could increase the risk of
harness. Keep children in a forward-
the SERIOUS INJURY or DEATH if an
facing child seat with a harness until
accident occurs.
they reach the top height or weight
limit allowed by your child restraint’s
manufacturer.
WARNING
If the vehicle head restraint prevents
Once your child outgrows the forward-
proper installation of a child seat (as
facing child restraint, your child is ready
described in the child seat system
for a booster seat. Booster seats
manual, the head restraint of the
A booster seat is a restraint designed to
respective seating position shall be
improve the fit of the vehicle’s seat belt
readjusted or entirely removed.
system. A booster seat positions the seat
belt so that it fits properly over the lap of
your child.
Keep your child in a booster seat until
they are big enough to sit in the seat
without a booster and still have the
seat belt fit properly. For a seat belt
to fit properly, the lap belt must lie
snugly across the upper thighs, not the
stomach. The shoulder belt should lie
snug across the shoulder and chest and
not across the neck or face. Children
under age 13 must always ride in the
rear seats and must always be properly
restrained to minimize the risk of injury.
3-25
Safety System
After selecting a proper child seat
Lower Anchors And Tether for
for your child, check to make sure it
Children (LATCH System)
fits properly in your vehicle. Follow
The LATCH system holds a child restraint
the instructions provided by the
during driving and in an accident. This
manufacturer when installing the child
system is designed to make installation
seat. Note these general steps when
of the child restraint easier and reduce
installing the seat to your vehicle:
the possibility of improperly installing
Properly secure the child restraint
your child restraint. The LATCH system
to the vehicle. All child restraints
uses anchors in the vehicle and
must be secured to the vehicle with
attachments on the child restraint. The
the lap part of a lap/shoulder belt
LATCH system eliminates the need to use
or with the LATCH system. If using
seat belts to secure the child restraint to
the lap/shoulder belt for your child
the rear seats.
restraint, the convertible locking
Lower anchors are metal bars built into
retractor should be pulled all the way
the vehicle. There are two lower anchors
out to engage the “automatic locking”
for each LATCH seating position that
mode. (See page 3-29)
will accommodate a child restraint with
Make sure the child restraint is
lower attachments.
firmly secured. After installing a
To use the LATCH system in your vehicle,
child restraint to the vehicle, push
you must have a child restraint with
and pull the seat forward-and-back
LATCH attachments.
and side-to-side to verify that it
is securely attached to the seat. A
The child seat manufacturer will provide
you with instructions on how to use the
child restraint secured with a seat
belt should be installed as firmly as
child seat with its attachments for the
LATCH lower anchors.
possible. However, some side-to-side
movement can be expected.
Secure the child in the child
restraint. Make sure the child is
properly strapped in the child restraint
according to the manufacturer
instructions.
CAUTION
A child restraint in a closed vehicle can
become very hot. To prevent burns,
check the seating surface and buckles

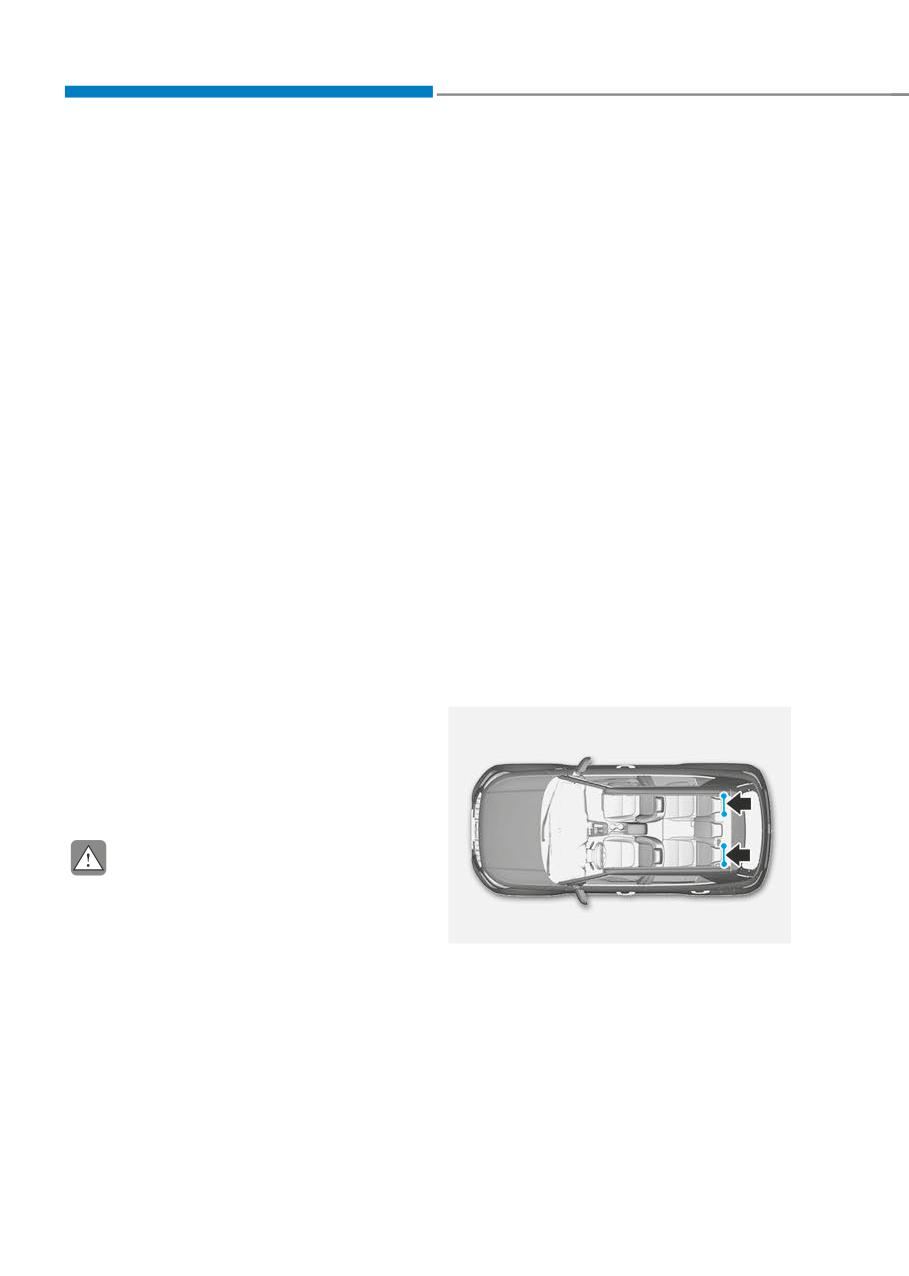

OQX039034L
before placing your child in the child
restraint.
LATCH anchors have been provided in
the left and right outboard rear seating
positions. Their locations are shown
in the illustration. There are no LATCH
anchors provided for the center rear
seating position.
3-26
03
Securing a Child Restraint with the
WARNING
LATCH Anchors System
Do not attempt to install a child
To install a LATCH-compatible child
restraint system using LATCH anchors in
restraint in either of the rear outboard
the rear center seating position. There
seating positions:
are no LATCH anchors provided for this
seat. Using the outboard seat anchors
1. Move the seat belt buckle away from
can damage the anchors which may
the lower anchors.
break or fail in a collision resulting in
2. Move any other objects away from
serious injury or death.
the anchors that could prevent a
secure connection between the child
restraint and the lower anchors.
3. Place the child restraint on the vehicle
seat, then attach the seat to the lower
anchors according to the instructions
provided by the child restraint
manufacturer.
4. Follow the child restraint instructions
for properly adjusting and tightening
the lower attachments on the child
restraint to the lower anchors.
OQX039020L

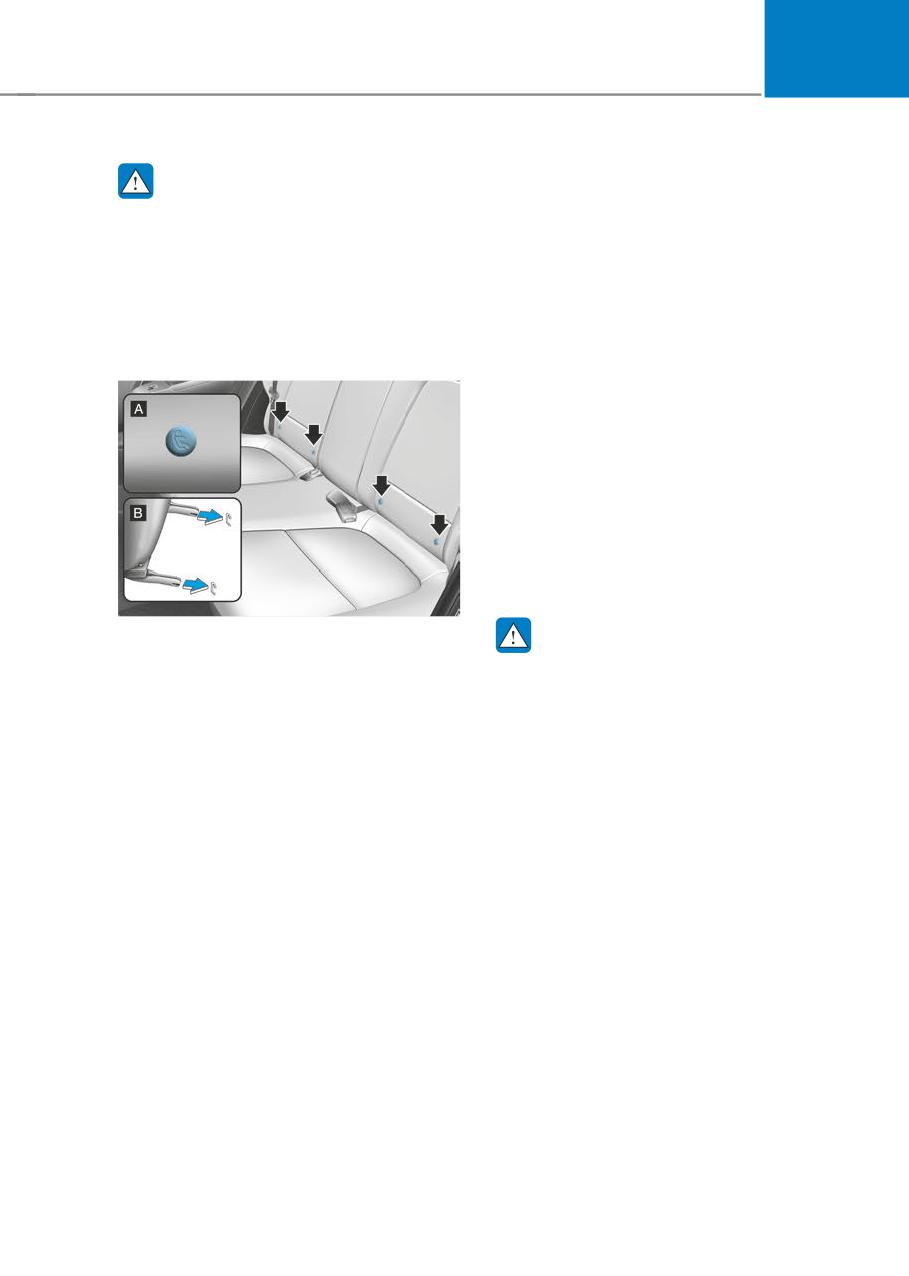

[A]: ISOFIX Anchorage Position Indicator,
WARNING
[B]: ISOFIX Anchorage
Take the following precautions when
The lower anchor position indicator
using the LATCH system:
symbols are located on the left and right
Read and follow all installation
rear seat backs to identify the position
instructions provided with your child
of the lower anchors in your vehicle (see
restraint system.
arrows in illustration).
To prevent the child from reaching
The LATCH anchors are located between
and taking hold of unretracted
the seatback and the seat cushion of the
seat belts, buckle all unused rear
rear seat left and right outboard seating
seat belts and retract the seat belt
positions.
webbing behind the child. Children
can be strangled if a shoulder belt
becomes wrapped around their neck
and the seat belt tightens.
NEVER attach more than one
child restraint to a single anchor.
This could cause the anchor or
attachment to come loose or break.
Always have the LATCH system
inspected by your authorized
HYUNDAI dealer after an accident.
An accident can damage the LATCH
system and may not properly secure
the child restraint.
3-27
Safety System
NOTICE
WARNING
The recommended weight for the
Take the following precautions when
LATCH system is under 65 lb (30 kg).
installing the tether strap:
How to determine an appropriate child
Read and follow all installation
restraint weight:
instructions provided with your child
Child weight + Child restraint weight <
restraint system.
65 lb (30kg)
NEVER attach more than one child
restraint to a single tether anchor.
Securing a Child Restraint Seat with
This could cause the anchor or
“Tether Anchor” System
attachment to come loose or break.
Do not attach the tether strap to
anything other than the correct
tether anchor. It may not work
properly if attached to something
else.
Do not use the tether anchors for
adult seat belts or harnesses, or for
attaching other items or equipment
to the vehicle.

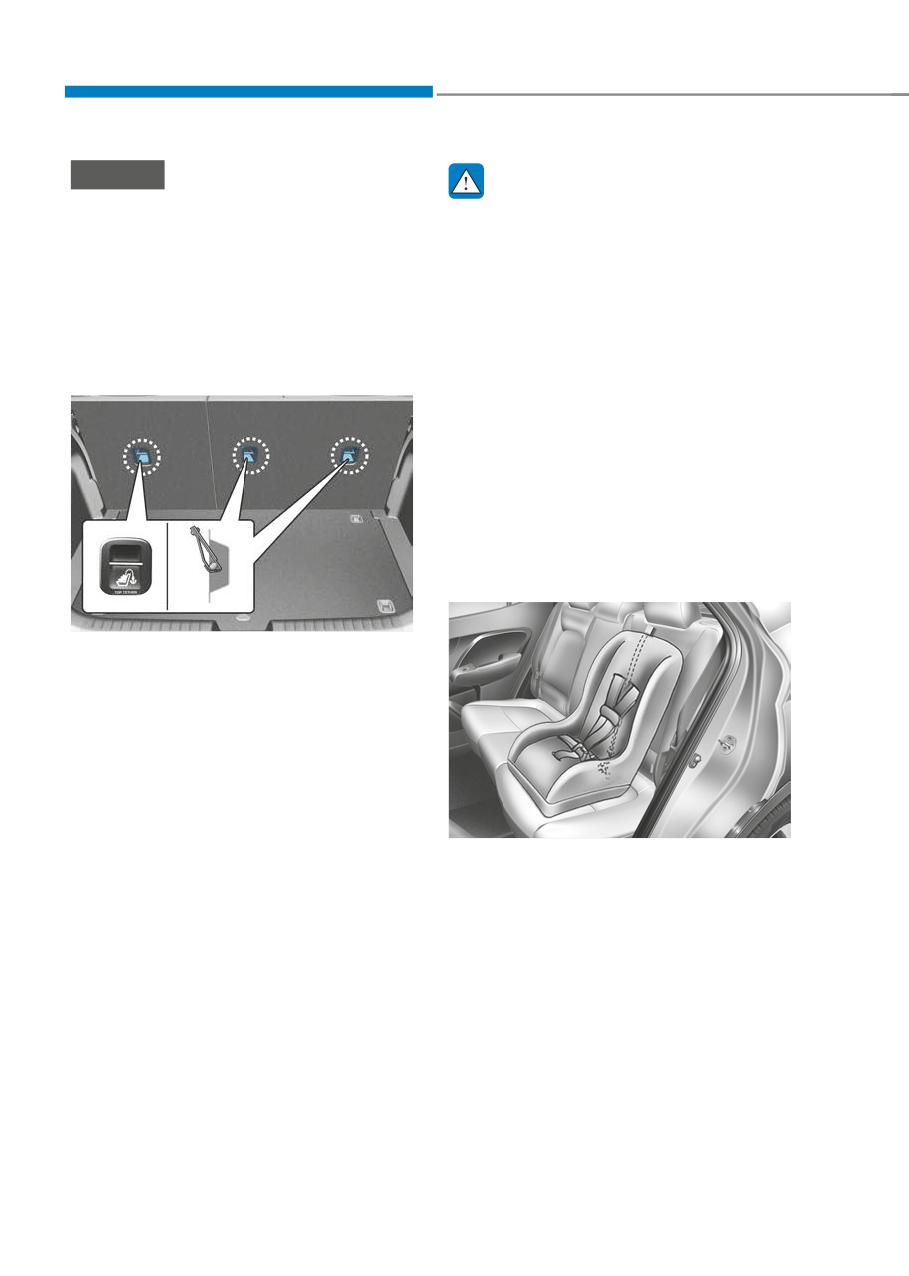

OQX039021N
First secure the child restraint with
the LATCH lower anchors or the seat
belt. If the child restraint manufacturer
recommends that the top tether strap
be attached, attach and tighten the
top tether strap to the top tether strap
anchor.
Child restraint hook holders are located
on the rear of the seatbacks.
OQX039022N
To install the tether anchor:
1. Route the child restraint tether strap
over the child restraint seatback.
Route the tether strap under the
head restraint and between the head
restraint posts, or route the tether
strap over the top of the vehicle
seatback. Make sure the strap is not
twisted.
2. Connect the tether strap hook to the
tether anchor, then tighten the tether
strap according to the child seat
manufacturer’s instructions to firmly
secure the child restraint to the seat.
3-28
03
3. Check that the child restraint is
To install a child restraint system on the
securely attached to the seat by
rear seats, do the following:
pushing and pulling the seat forward-
1. Place the child restraint system
and-back and side-to-side.
on a rear seat and route the lap/
shoulder belt around or through the
Securing a Child Restraint with Lap/
child restraint, following the restraint
shoulder Belt
manufacturer’s instructions.
When not using the LATCH system, all
Be sure the seat belt webbing is not
child restraints must be secured to a
twisted.
vehicle rear seat with the lap part of a
Make sure to insert the belt into the
lap/shoulder belt.
guide(1).
WARNING
NOTICE
ALWAYS place a rear-facing child
When using the rear center seat belt,
restraint in the rear seat of the vehicle.
you should also refer to the “Rear Seat
Placing a rear-facing child restraint in
Belt - Passenger’s 3-point system”
the front seat can result in serious injury
section in this chapter.
or death if the child restraint is struck
by an inflating air bag.

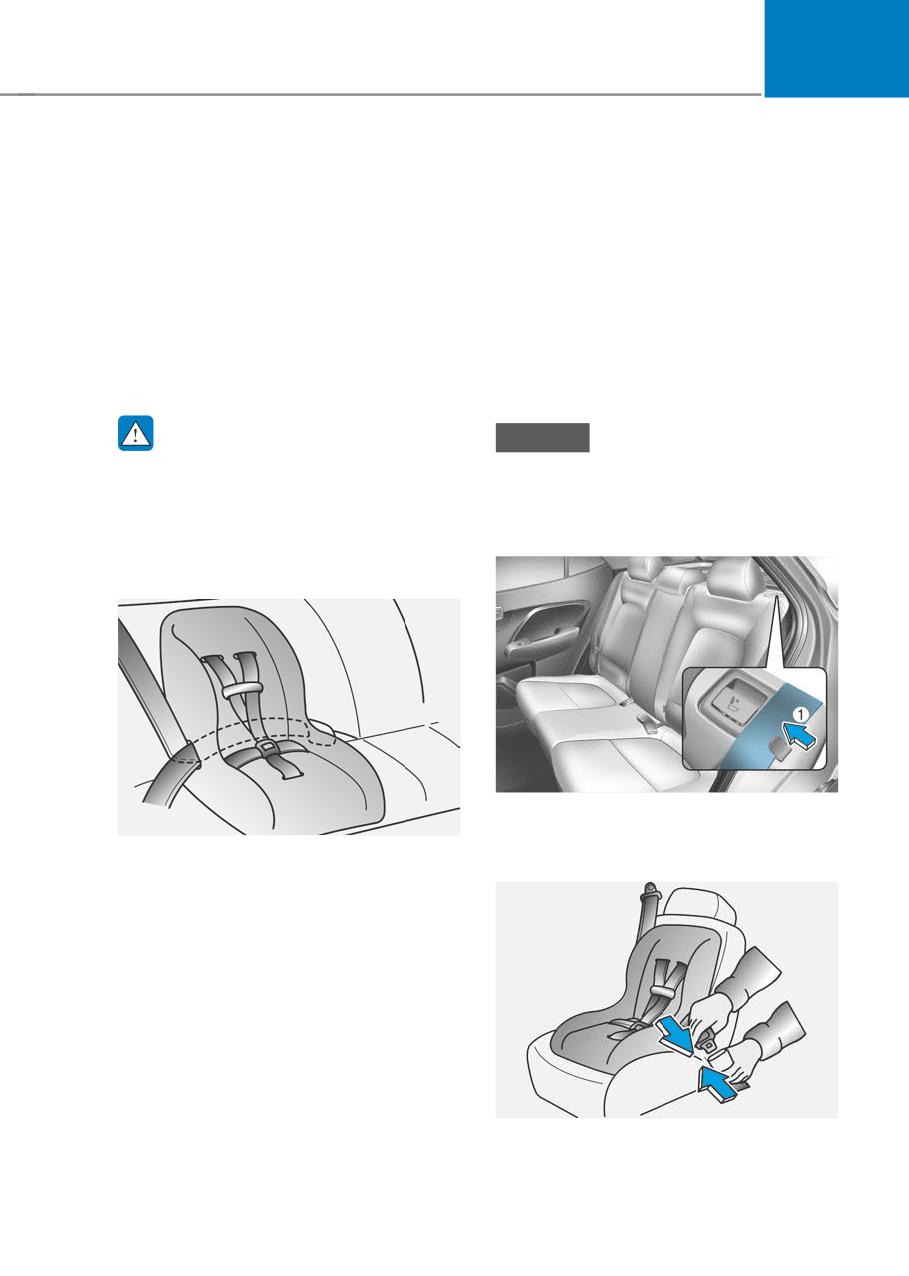

OQX039057N
2. Make sure to insert the belt into the
OHI038145
guide (1) and check that the seat belt
Automatic locking mode
is not twisted.
Since all passenger seat belts move
freely under normal conditions and
only lock under extreme or emergency
conditions (emergency locking mode),
you must manually pull the seat belt all
the way out to shift the retractor to the
“Automatic Locking” mode to secure a
child restraint.
The “Automatic Locking” mode will
help prevent the normal movement of
the child in the vehicle from causing
the seat belt to loosen and compromise
OHI038146
the child restraint system. To secure a
child restraint system, use the following
3. Fasten the lap/shoulder belt latch
into the buckle. Listen for the distinct
procedure.
“click” sound.
3-29
Safety System
6. Remove as much slack from the belt
Information
as possible by pushing down on the
Position the release button so that it is easy
child restraint system while feeding
to access in case of an emergency.
the shoulder belt back into the
retractor.
7. Push and pull on the child restraint
system to confirm that the seat belt
is holding it firmly in place. If it is not,
release the seat belt and repeat steps
2 through 6.
8. Double check that the retractor is in
the “Automatic Locking” mode by
attempting to pull more of the seat
belt out of the retractor. If you cannot,
the retractor is in the “Automatic
Locking” mode.

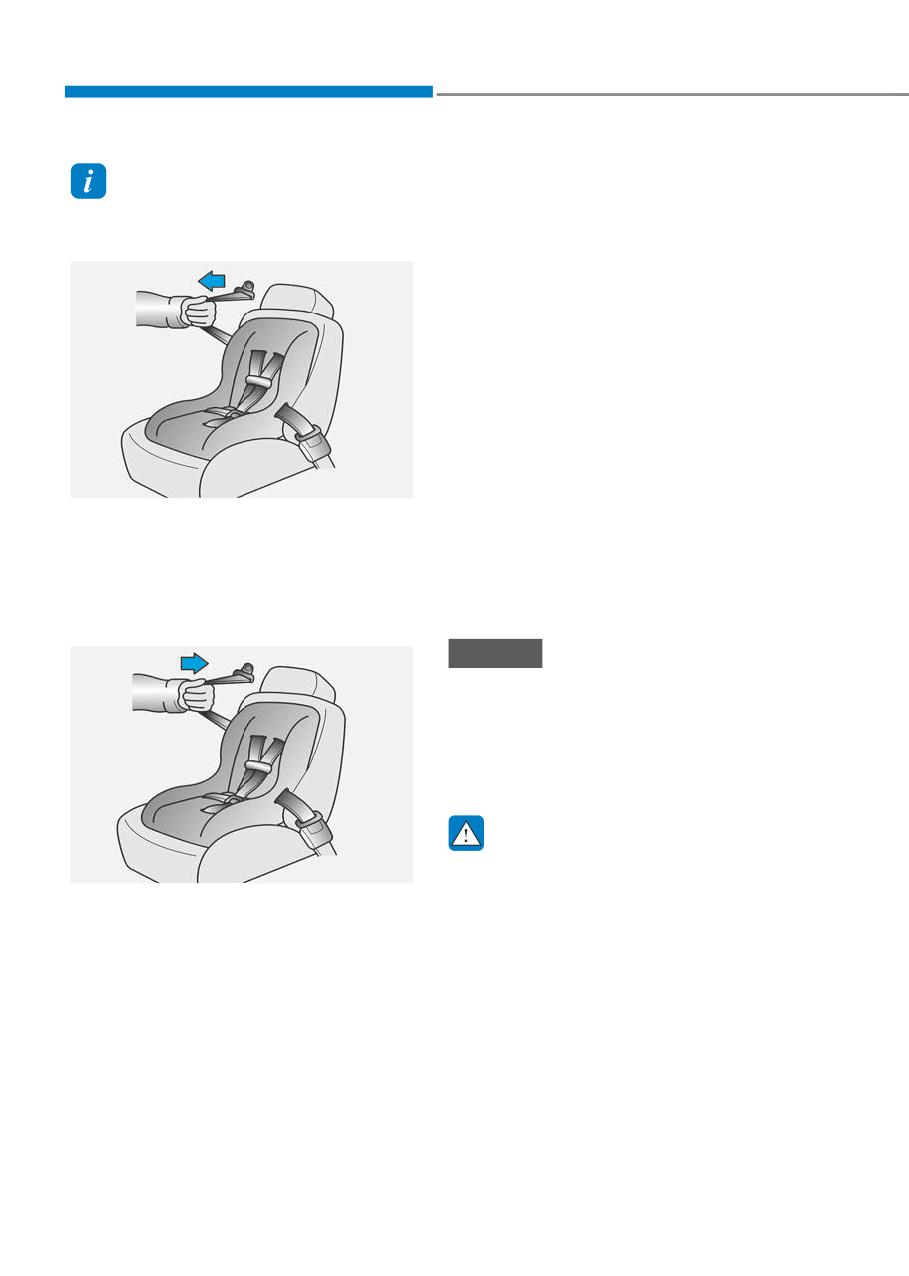

OLF034076
4. Pull the shoulder portion of the
If your CRS (child restraint system)
seat belt all the way out. When the
manufacturer instructs or recommends
shoulder portion of the seat belt
you to use a tether anchor with the lap/
is fully extended, it will shift the
shoulder belt, refer to the previous pages
retractor to the “Automatic Locking”
for more information.
(child restraint) mode.
NOTICE
When the seat belt is allowed to
retract to its fully stowed position, the
retractor will automatically switch from
the “Automatic Locking” mode to the
emergency lock mode for normal adult
usage.
WARNING
If the retractor is not in the “Automatic
OLF034075
Locking” mode, the child restraint
5. Slowly allow the shoulder portion of
can move when your vehicle turns or
the seat belt to retract and listen for
stops suddenly. A child can be seriously
an audible “clicking” or “ratcheting”
injured or killed if the child restraint
sound. This indicates that the retractor
is not properly anchored in the car,
is in the “Automatic Locking” mode.
including manually pulling the seat belt
If no distinct sound is heard, repeat
all the way out to shift the rectractor to
steps 3 and 4.
the “Automatic Locking” mode.
To remove the child restraint, press the
release button on the buckle and then
pull the lap/shoulder belt out of the
restraint and allow the seat belt to retract
fully.
3-30
03
AIR BAG - ADVANCED SUPPLEMENTAL RESTRAINT SYSTEM
The actual air bags in the vehicle may differ from the illustration.

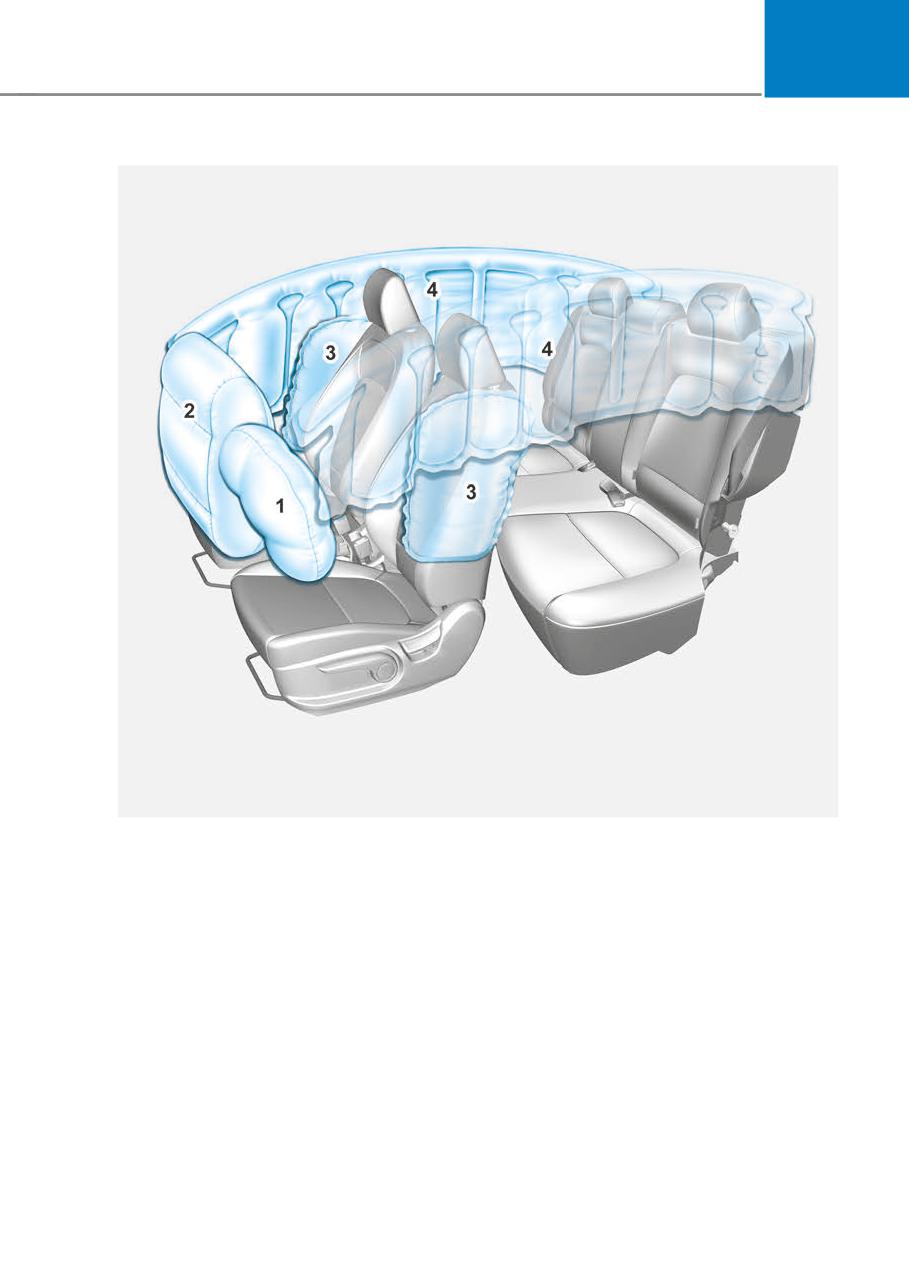

OQX039023N
1. Driver’s front air bag
2. Passenger’s front air bag
3. Side air bag
4. Curtain air bag
3-31
Safety System
This vehicle is equipped with an Advanced Supplemental Air Bag System for the
driver’s seat and front passenger’s seats.
The front air bags are designed to supplement the three-point seat belts. For these air
bags to provide protection, the seat belts must be worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Air bags are designed to supplement seat belts, but do not replace them. Also, air bags
are not designed to deploy in every collision. In some accidents, the seat belts are the
only restraint protecting you.
WARNING
AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts and child restraints - every trip, every time, everyone! Even
with air bags, you can be seriously injured or killed in a collision if you are improperly
belted or not wearing your seat belt when the air bag inflates.
NEVER place a child in any child restraint or booster seat in the front passenger seat.
An inflating air bag could forcefully strike the infant or child causing serious or fatal
injuries.
ABC - Always Buckle Children under age 13 in the back seat. It is the safest place
for children of any age to ride. If a child age 13 or older must be seated in the front
seat, he or she must be properly belted and the seat should be moved as far back as
possible.
All occupants should sit upright with the seatback in an upright position, centered
on the seat cushion with their seat belt on, legs comfortably extended and their
feet on the floor until the vehicle is parked and is turned off. If an occupant is out of
position during an accident, the rapidly deploying air bag may forcefully contact the
occupant causing serious or fatal injuries.
You and your passengers should never sit or lean unnecessarily close to the air bags
or lean against the door or center console.
Move your seat as far back as possible from front air bags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the
center of the steering wheel and the chest.
3-32
03
Where Are the Air Bags?
The purpose of the SRS is to provide the
vehicle’s driver and front passengers
Driver’s And Passenger’s Front Air
with additional protection than that
Bags
offered by the seat belt system alone.
Your vehicle is equipped with an
The advanced SRS offers the ability to
Advanced Supplemental Restraint
control the air bag inflation within two
System (SRS) and lap/shoulder belts at
levels. A first stage level is provided for
both the driver and passenger seating
moderate-severity impacts. A second
positions.
stage level is provided for more severe
The SRS consists of air bags which are
impacts.
located in the center of the steering
According to the impact severity, the
wheel, in the driver’s side lower crash
SRS Control Module (SRSCM) controls
pad below the steering wheel column
the air bag inflation. Failure to properly
and the passenger’s side front panel pad
wear seat belts can increase the risk or
above the glove box.
severity of injury in an accident.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
WARNING
„
Driver’s front air bag
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:
Seat belts must be worn at all times
to help keep occupants positioned
properly.
Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.

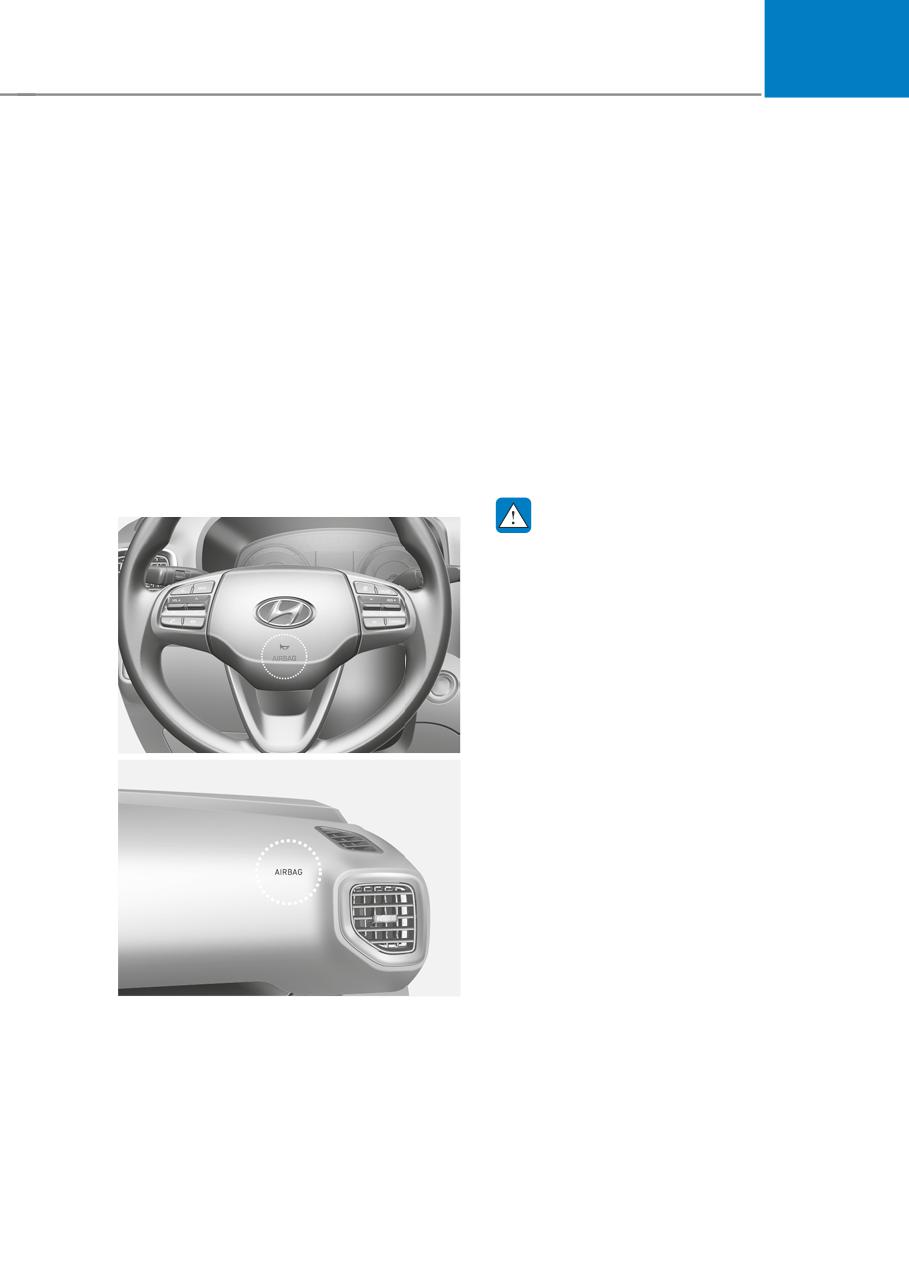

OQX039024L
Never lean against the door or center
„„
Passenger’s front air bag
console.
Do not allow the front passenger
to place their feet or legs on the
dashboard.
No objects (such as crash pad cover,
cellular phone holder, cup holder,
air fresheners or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
OQX039035L
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.
3-33
Safety System

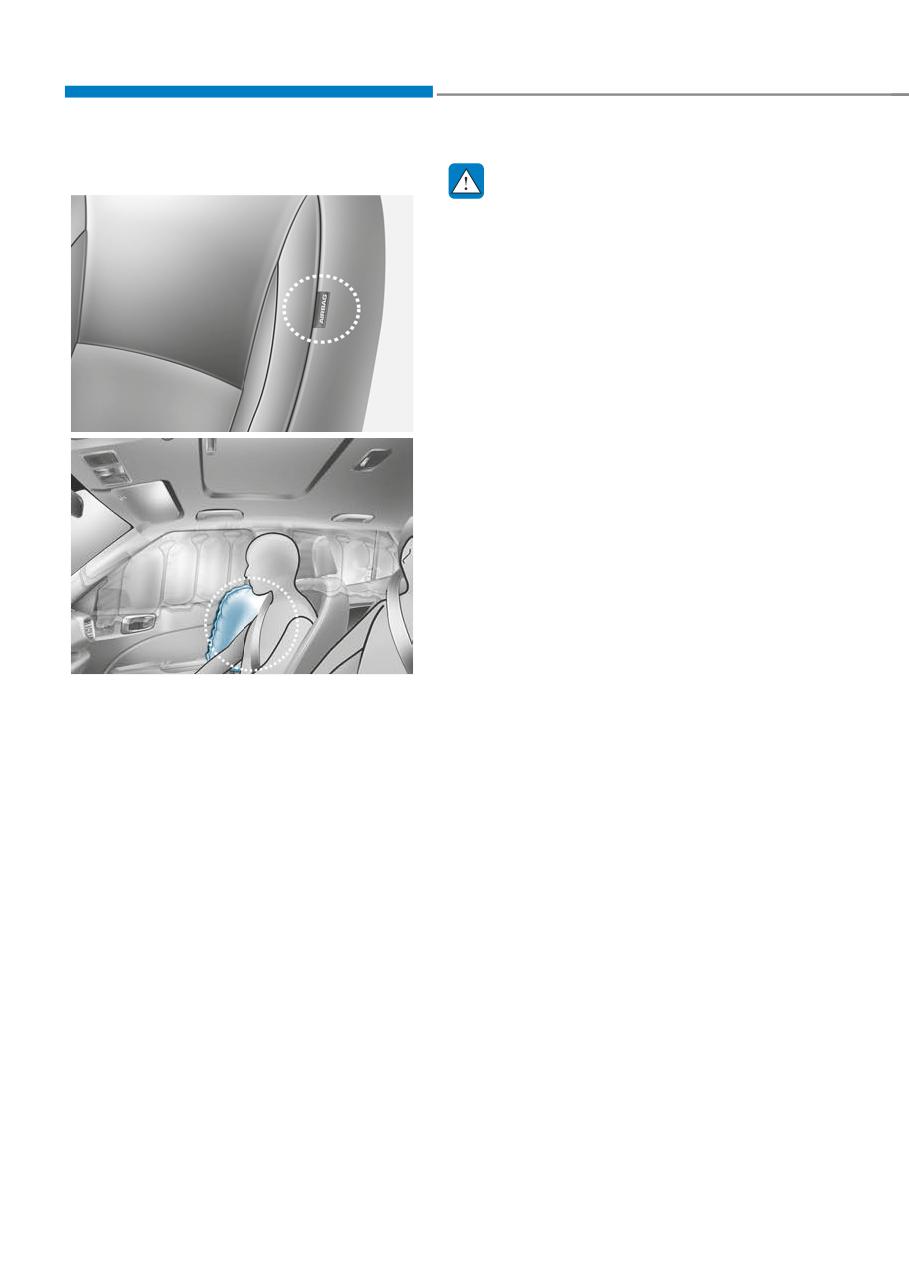

Side Air Bags
WARNING
To reduce the risk of serious injury or
death from an inflating side air bag,
take the following precautions:
Seat belts must be worn at all times
to help keep occupants positioned
properly.
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
OIB034021
between the doors and seats.
Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.
Do not use any accessory seat
covers. This could reduce or prevent
the effectiveness of the system.
Do not place any objects over the
air bag or between the air bag and
yourself. Also, do not attach any
objects around the area the air bag
OQX039048
inflates such as the door, side door
Your vehicle is equipped with a side air
glass, front and rear pillar.
bag in each front seat. The purpose of
Do not place any objects between
the air bag is to provide the vehicle’s
the door and the seat. They may
driver and the front passenger with
become dangerous projectiles if the
additional protection than that offered by
side air bag inflates.
the seat belt alone.
Do not install any accessories on the
The side air bags are designed to deploy
side or near the side air bags.
during certain side impact collisions,
depending on the crash severity.
Do not put any objects between the
side airbag label and seat cushion. It
The side and curtain air bags on both
could cause harm if the vehicle is in a
sides of the vehicle may deploy if a
crash severe enough to cause the air
rollover or possible rollover is detected.
bags to deploy.
The side air bags are not designed to
Do not cause impact to the doors
deploy in all side impact or rollover
when the ignition switch button is in
situations.
the ON position as this may cause the
side air bags to inflate.
If the seat or seat cover is damaged,
have the vehicle checked and
repaired by an authorized HYUNDAI
dealer.
3-34
03
Curtain Air Bags
WARNING
To reduce the risk of serious injury or
death from an inflating curtain air bag,
take the following precautions:
All seat occupants must wear
seat belts at all times to help keep
occupants positioned properly.
Properly secure child restraints as far
away from the door as possible.
Do not place any objects over the air
bag. Also, do not attach any objects

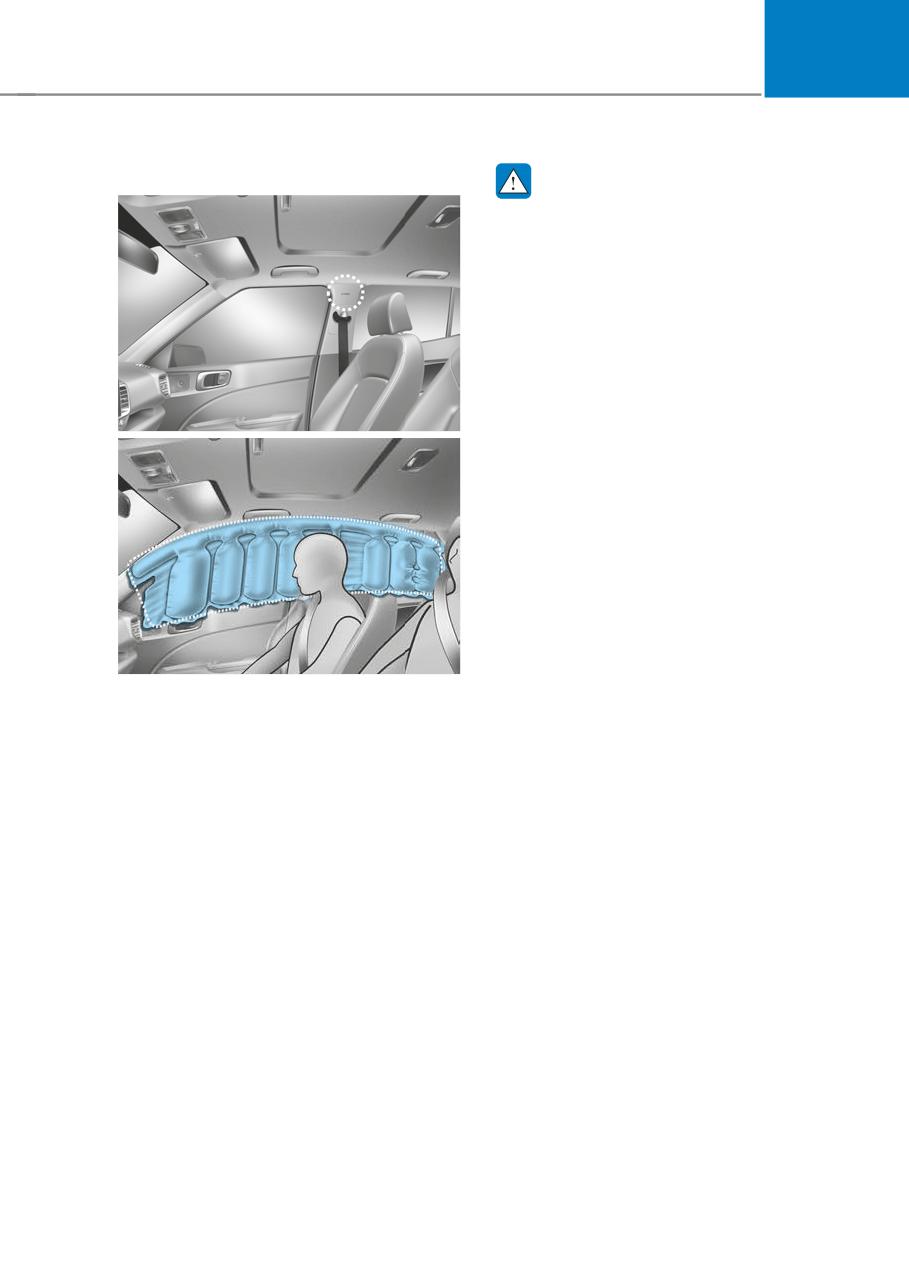

OQX039052
around the area the air bag inflates
such as the door, side door glass,
front and rear pillar, roof side rail.
Do not hang other objects except
clothes, especially hard or breakable
objects. In an accident, it may cause
vehicle damage or personal injury.
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
OQX039053
Do not attempt to open or repair
Curtain air bags are located along both
the side curtain air bags yourself. If
sides of the roof rails above the front and
necessary, have the air bag inspected
rear doors.
by an authorized HYUNDAI dealer.
They are designed to help protect the
heads of the front seat occupants and
the rear outboard seat occupants in
certain side impact collisions.
The curtain air bags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
The side and curtain air bags on both
sides of the vehicle may deploy if a
rollover or possible rollover is detected.
The curtain air bags are not designed
to deploy in all side impact or rollover
situations.
3-35
Safety System
SRS warning light
How Does the Air Bag System
Operate?
The SRS (Supplement Restraint System)
air bag warning light on the instrument
panel displays the air bag symbol
depicted in the illustration. The system
checks the air bag electrical system for
malfunctions. The light indicates that
there is a potential malfunction with your
air bag system, which could include your
side and curtain air bags used for rollover
protection.

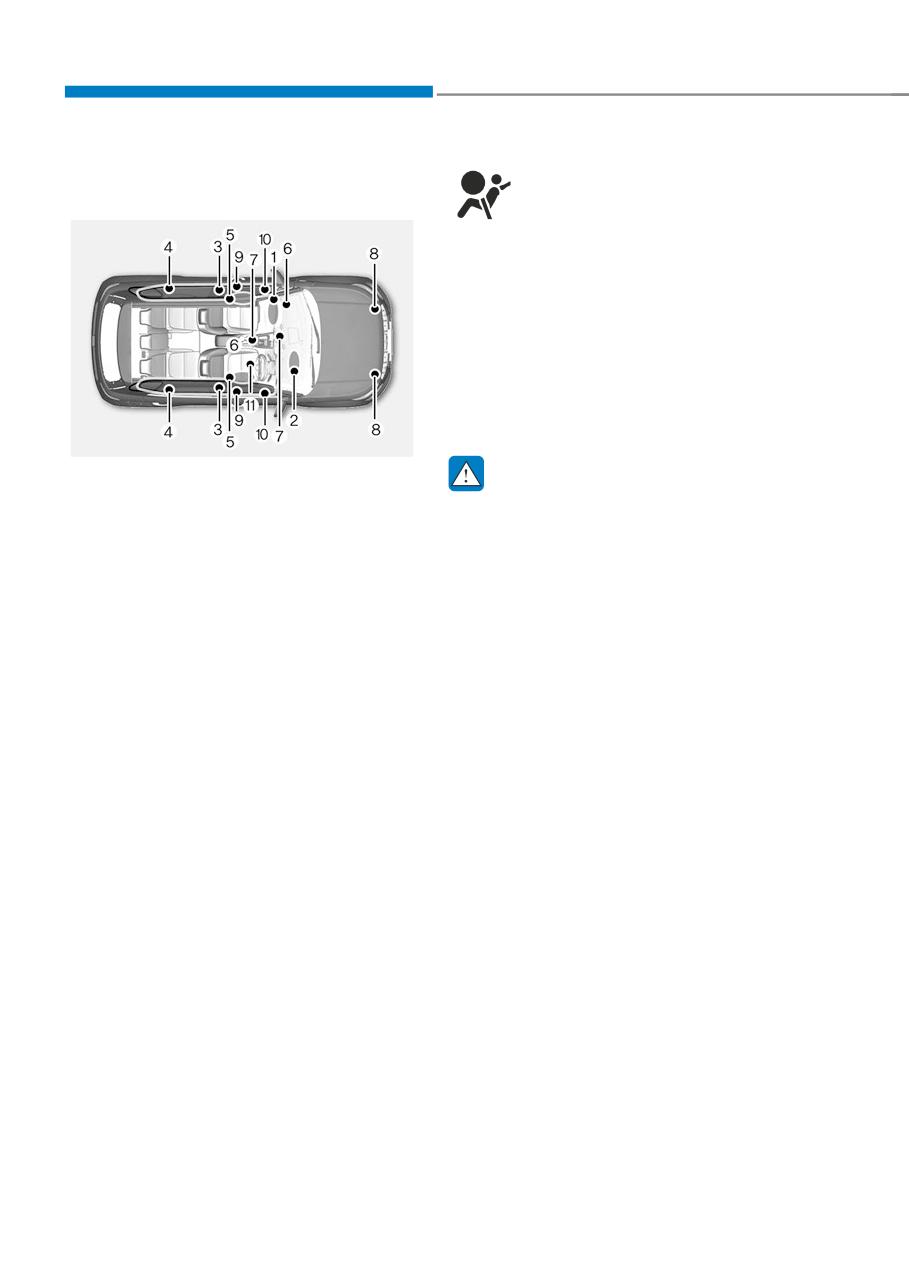

OQX039027
The SRS consists of the following
WARNING
components:
If your SRS malfunctions, the air bag
1. Driver’s front air bag module
may not inflate properly during an
2. Passenger’s front air bag module
accident, increasing the risk of serious
injury or death.
3. Side air bag modules
If any of the following conditions occur,
4. Curtain air bag modules
your SRS is malfunctioning:
5. Retractor pre-tensioner
The light does not turn on for
6. Air bag warning light
approximately six seconds when the
7. SRS control module (SRSCM)/Rollover
ignition switch is in the ON position.
sensor
The light stays on after illuminating
8. Front impact sensors
for approximately six seconds.
9. Side impact sensors
The light comes on while the vehicle
is in motion.
10. Side pressure sensors
The light blinks when the engine is
11. Occupant classification system
running.
Have an authorized HYUNDAI dealer
The SRSCM (Supplemental Restraint
System Control Module) continually
inspect the SRS as soon as possible if
any of these conditions occur.
monitors all SRS components while the
ignition switch is in the ON position to
determine if a crash impact is severe
enough to require air bag deployment or
pre-tensioner seat belt deployment.
3-36
03
During a frontal collision, sensors will
In addition to inflating in certain side
detect the vehicle’s deceleration. If the
collisions, vehicles equipped with a
rate of deceleration is high enough, the
rollover sensor, side and curtain air
control unit will inflate the front air bags.
bags will inflate if the sensing system
detects a rollover.
The front air bags help protect the driver
and front passenger by responding to
When a rollover is detected, side and
frontal impacts in which seat belts alone
curtain air bags will remain inflated
cannot provide adequate restraint. When
longer to help provide protection
needed, the side air bags help provide
from ejection, especially when used in
protection in the event of a side impact
conjunction with the seat belts.
or rollover.
To help provide protection, the air
Air bags are activated (able to inflate
bags must inflate rapidly. The speed
if necessary) only when the ignition
of air bag inflation is a consequence
switch is in the ON position.
of extremely short time in which
to inflate the air bag between the
Air bags inflate in the event of certain
frontal or side collisions to help
occupant and the vehicle structures
before the occupant impacts those
protect the occupants from serious
physical injury.
structures. This speed of inflation
reduces the risk of serious or life-
Generally, air bags are designed to
threatening injuries and is thus a
inflate based upon the severity of
necessary part of air bag design.
a collision, its direction, etc. These
However, the rapid air bag inflation
two factors determine whether
can also cause injuries which can
the sensors produce an electronic
include facial abrasions, bruises and
deployment/inflation signal.
broken bones because the inflation
The front air bags will completely
speed also causes the air bags to
inflate and deflate in an instant. It is
expand with a great deal of force.
virtually impossible for you to see the
There are even circumstances under
air bags inflate during an accident. It is
which contact with the air bag can
much more likely that you will simply
cause fatal injuries, especially if the
see the deflated air bags hanging out
occupant is positioned excessively
of their storage compartments after
close to the air bag.
the collision.
You can take steps to help reduce the
risk of being injured by an inflating air
bag. The greatest risk is sitting too close
to the air bag. An air bag needs about 10
inches (25 cm) of space to inflate. NHTSA
recommends that drivers allow at least
10 inches (25 cm) between the center of
the steering wheel and the chest.
3-37
Safety System
„
Driver’s front air bag (1)
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:
NEVER place a child restraint in the
front passenger seat.
Always properly restrain children
under age 13 in the rear seats of the
vehicle.
Adjust the front passenger’s and
ODN8039077L
driver’s seats as far to the rear as
When the SRSCM detects a sufficiently
possible while allowing you to
severe impact to the front of the vehicle,
maintain full control of the vehicle.
it will automatically deploy the front air
Hold the steering wheel with
bags.
hands at the 9 o’clock and 3 o’clock
positions.
„
Driver’s front air bag (2)
Never place anything or anyone
between the air bag and the seat
occupant.
Do not allow the front passenger
to place their feet or legs on the
dashboard.
ODN8039078L
Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of the
air bags. Further opening of the covers
allows full inflation of the air bags.
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver or the front passenger forward
motion, reducing the risk of head and
chest injury.
3-38
03
„
Driver’s front air bag (3)
What to Expect After an Air Bag
Inflates
After a frontal or side air bag inflates, it
will deflate very quickly. Air bag inflation
will not prevent the driver from seeing
out of the windshield or being able
to steer. Curtain air bags may remain
partially inflated for some time after they
deploy.
ODN8039079L
WARNING
„„
Passenger’s front air bag
After an air bag inflates, take the
following precautions:
Open your windows and doors as
soon as possible after impact to
reduce prolonged exposure to the
smoke and powder released by the
inflating air bag.
Do not touch the air bag storage
area’s internal components
immediately after an air bag has
ODN8039080L
inflated. The parts that come into
contact with an inflating air bag may
After complete inflation, the air bag
be very hot.
immediately starts deflating, enabling
the driver to maintain forward visibility
Always wash exposed skin areas
and the ability to steer or operate other
thoroughly with cold and mild soap.
controls.
Always have an authorized
HYUNDAI dealer replace the air bag
immediately after deployment. Air
WARNING
bags are designed to be used only
To prevent objects from becoming
once.
dangerous projectiles when the
passenger’s air bag inflates:
Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.
Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
3-39
Safety System
Noise And Smoke from Inflating Air
Occupant Classification System
Bag
(OCS)
When the air bags inflate, they make a
loud noise and may produce smoke and
powder in the air inside of the vehicle.
This is normal and is a result of the
ignition of the air bag inflator. After the
air bag inflates, you may feel substantial
discomfort in breathing because of the
contact of your chest with both the seat
belt and the air bag, as well as from
breathing the smoke and powder. The
powder may aggravate asthma for some
people. If you experience breathing

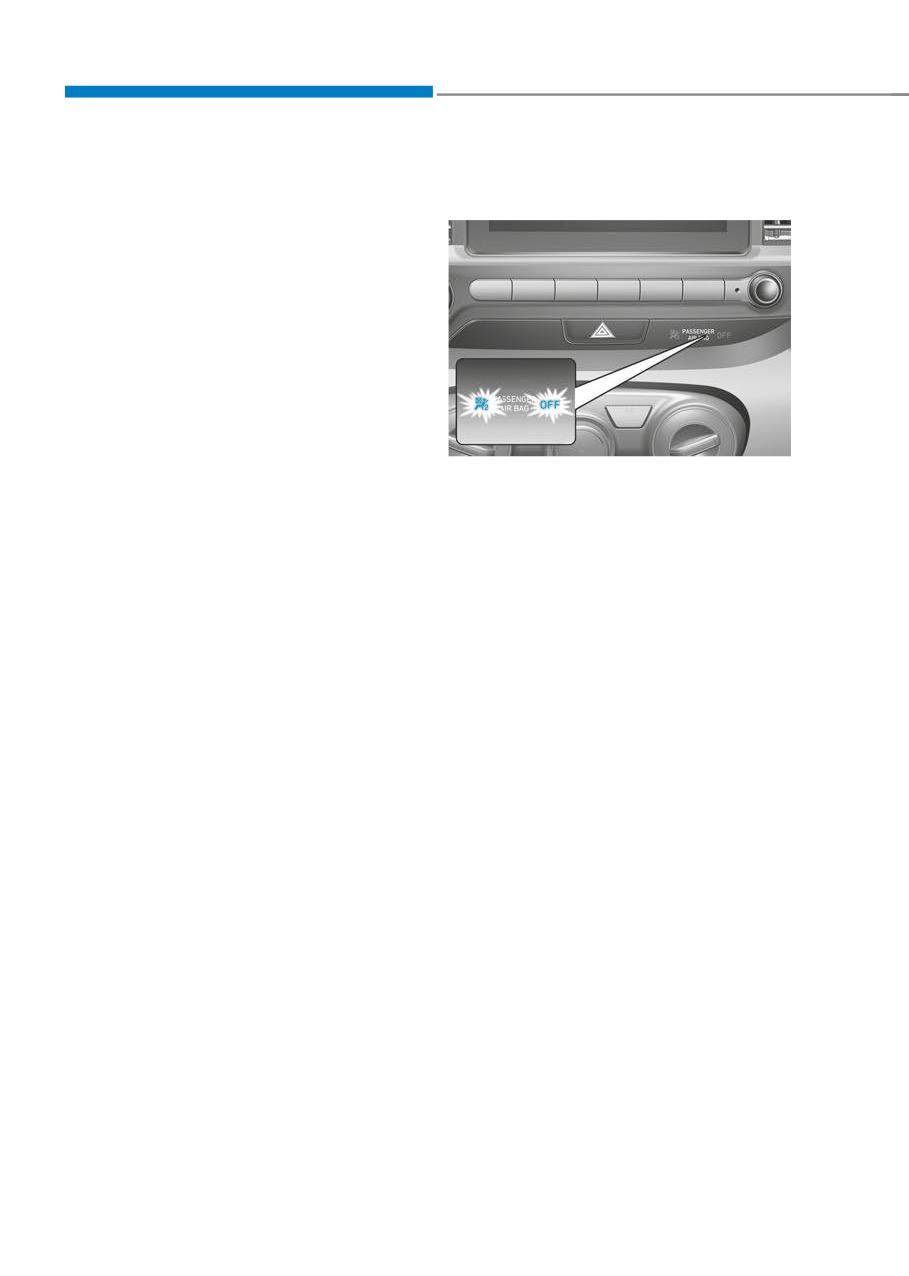

OQX039025L
problems after an air bag deployment,
seek medical attention immediately.
Your vehicle is equipped with an
Occupant Classification System (OCS) in
Though the smoke and powder are
the front passenger’s seat.
nontoxic, they may cause irritation to
the skin, eyes, nose, throat, etc. If this is
Main Components of the Occupant
the case, wash and rinse with cold water
Classification System
immediately and seek medical attention
if the symptoms persist.
• A detection device located within the
front passenger seat cushion.
• Electronic system to help determine
whether the passenger air bag
systems should be activated or
deactivated.
• An indicator light located on the
instrument panel which illuminates
the words “PASSENGER AIR BAG OFF”
indicating the front passenger air bag
system is deactivated.
• The instrument panel air bag indicator
light is interconnected with the OCS.
The OCS is designed to help detect
the presence of a properly-seated
front passenger and determine if the
passenger’s front air bag should be
enabled (may inflate) or not.
The purpose is to help reduce the risk
of injury or death from an inflating air
bag to certain front passenger seat
occupants, such as children, by requiring
the air bag to be automatically turned
OFF.
3-40
03
For example, if a child restraint of the
Always be sure that you and all vehicle
type specified in the regulations is on the
occupants are seated properly and
seat, the occupant classification sensor
wearing the seat belt properly for the
can detect it and cause the air bag to
most effective protection by the air bag
turn OFF.
and the seat belt.
Front passenger seat adult occupants
The OCS may not function properly if the
who are properly seated and wearing the
passenger takes actions which can affect
seat belt properly, should not cause the
the classification system. These include:
passenger air bag to be automatically
• Failing to sit in an upright position.
turned OFF. For small adults it may be
• Leaning against the door or center
turned OFF, however, if the occupant
console.
does not sit in the seat properly (for
example, by not sitting upright, by sitting
• Sitting towards the sides of the front
on the edge of the seat, or by otherwise
of the seat.
being out of position), this could cause
• Putting their legs on the dashboard or
the sensor to turn the air bag OFF.
resting them on other locations which
You will find the “PASSENGER AIR BAG
reduce the passenger weight on the
OFF” indicator on the center fascia
front seat.
panel. This system detects the conditions
• Wearing the seat belt improperly.
1-4 in the following table and activates or
• Reclining the seatback.
deactivates the front passenger air bag
based on these conditions.
• Wearing a thick cloth like ski wear or
hip protection wear.
• Putting an additional thick cushion on
the seat.
• Putting electrical devices (for
example, notebook, satellite radio) on
the seat with inverter charging.
3-41
Safety System
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning light
Devices
Condition detected by the
“PASSENGER
SRS warning
Front passenger
occupant classification system
AIR BAG OFF”
light
air bag
indicator light
1. Adult *1
Off
Off
Activated
2. Infant *2 or child restraint
system with 12 months old
On
Off
Deactivated
*3 *4
3. Unoccupied
On
Off
Deactivated
4. Malfunction in the system
Off
On
Activated
*1 : The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may recognize him/her as a child depending on his/her
physique and posture.
*2 : Do not allow children to ride in the front passenger seat. When a larger child who has
outgrown a child restraint system sits in the front passenger seat, the system may
recognize him/her as an adult depending upon his/her physique or sitting position.
*3 : Never install a child restraint system on the front passenger seat.
*4 : The PASSENGER AIR BAG “OFF” indicator may turn on or off when a child above 12
months to 12 years old (with or without child restraint system) sits in the front passenger
seat. This is a normal condition.
3-42
03
WARNING
Riding in an improper position or placing weight on the front passenger’s seat when
it is unoccupied by a passenger adversely affects the OCS. To reduce the risk of
serious injury or death:
NEVER put a heavy load in the front seat or seatback
pocket, or hang any items on the front passenger
seat.
OVQ036013NB
NEVER place your feet on the front passenger
seatback.
OLMB033100
NEVER sit with your hips shifted towards the front of
the seat.
OLMB033101
NEVER ride with the seatback reclined when the
vehicle is moving.
OLMB033103
NEVER place your feet or legs on the dashboard.
OLMB033102
3-43
Safety System

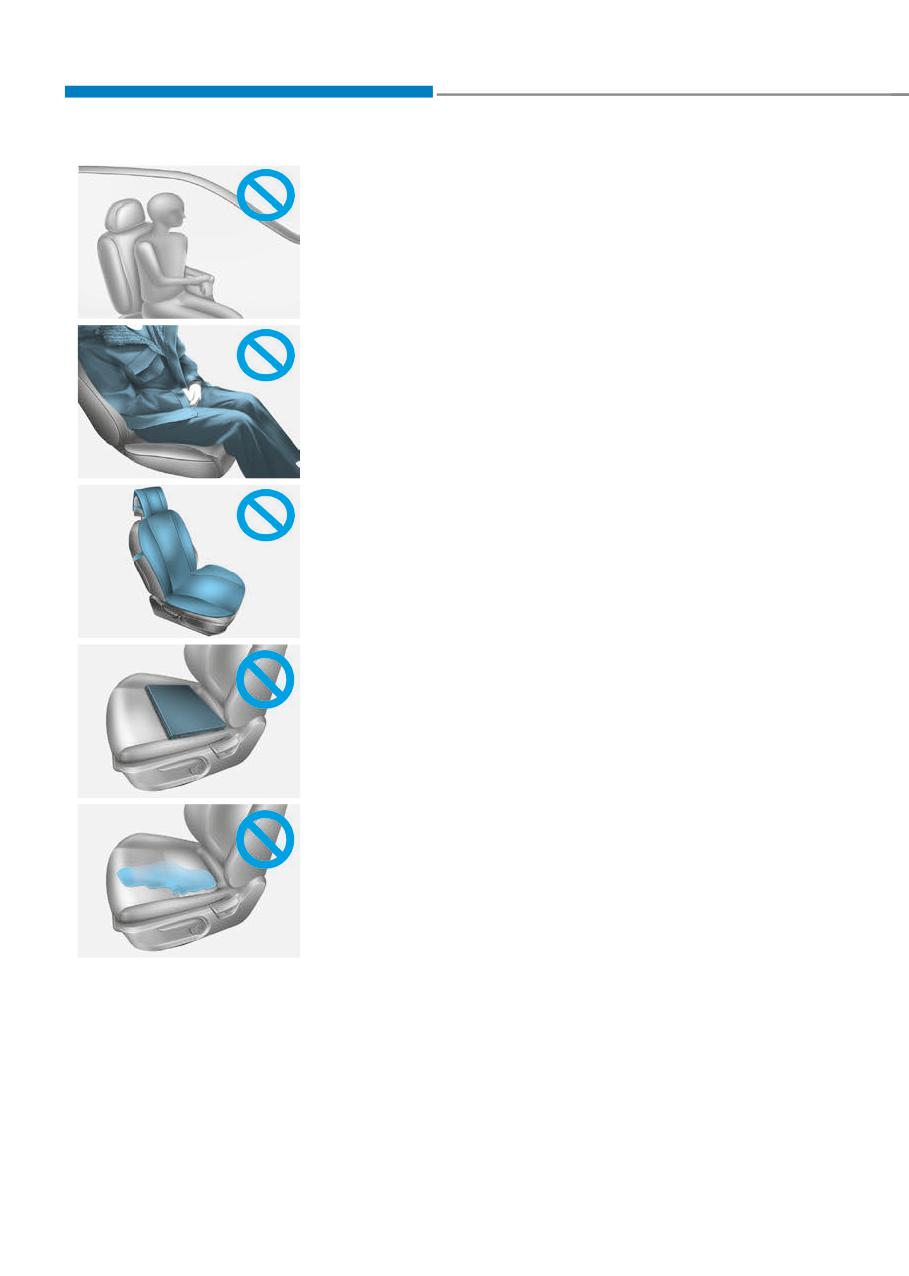

NEVER lean on the door or center console or sit on
one side of the front passenger seat.
OLMB033104
Do not sit on the passenger seat wearing heavily
padded clothes such as ski wear and hip protector.
ODH035900K
Do not use car seat accessories such as thick blankets
and cushions which cover up the car seat surface.
ODH035901K
Do not place electronic devices such as laptops, DVD
player, or conductive materials such as water bottles
on the passenger seat.
Do not use electronic devices such as laptops and
satellite radios which use inverter chargers.
OQX039046
If large quantity of liquid has been spilled on the
passenger seat, the air bag warning light may
illuminate or malfunction.
Therefore, make sure the seat has been completely
dried before driving the vehicle.
OQX039047
Do not place sharp objects on the front passenger seat. These may damage the
occupant detection system, if they puncture the seat cushion.
Do not place any items under the front passenger seat.
When changing or replacing the seat or seat cover, use original items only.
The OCS has been developed based on using original HYUNDAI car seats only.
Altering or changing the authentic parts may result in system malfunction and
increase risk of injury when in collision. Any of the above could interfere with the
proper operation of the OCS sensor thereby increasing the risk of an injury in an
accident.
3-44
03
WARNING
Never allow an adult passenger to ride
in the front passenger seat when the
“PASSENGER AIR BAG OFF” indicator
is illuminated. During a collision, the
air bag will not inflate if the indicator
is illuminated. Have your passenger
reposition themselves in the seat. If the
“PASSENGER AIR BAG OFF” indicator
remains illuminated after the passenger
B990A01O
repositions themselves properly
and the vehicle is restarted, have
Proper seated position for OCS
the passenger move to the rear seat
If the “PASSENGER AIR BAG OFF”
because the air bag will not inflate.
indicator is on when an adult is seated
in the front passenger seat, place the
NOTICE
ignition switch in the LOCK/OFF position
and ask the passenger to sit properly
The “PASSENGER AIR BAG OFF”
(sitting upright with the seat back in an
indicator illuminates for approximately
upright position, centered on the seat
4 seconds after the ignition switch is
cushion with their seat belt on, legs
in the ON position or after the engine
comfortably extended and their feet
is started. If the front passenger seat
on the floor). Restart the engine and
is occupied, the OCS will then classify
have the person remain in that position.
the front passenger after several more
This will allow the system to detect the
seconds.
person and to enable the passenger air
bag. If the “PASSENGER AIR BAG OFF”
indicator is still on, ask the passenger to
move to the rear seat.
3-45
Safety System

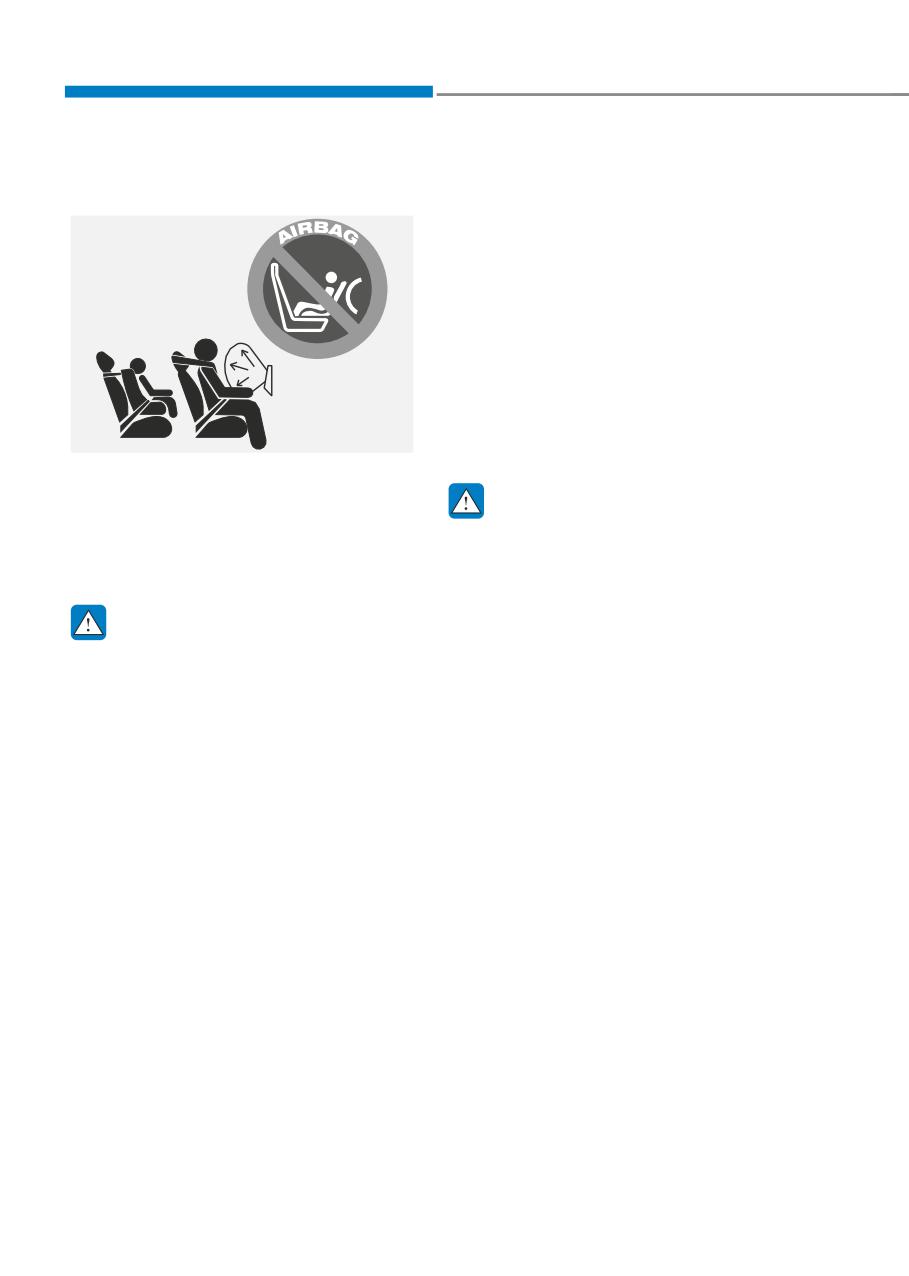

Do Not Install a Child Restraint in the
Why Didn’t My Air Bag Go Off in
Front Passenger’s Seat
a Collision?
Air bags are not designed to inflate in
every collision. There are certain types
of accidents in which the air bag would
not be expected to provide additional
protection. These include rear impacts,
second or third collisions in multiple
impact accidents, as well as low speed
impacts. Damage to the vehicle indicates
a collision energy absorption, and is not
an indicator of whether or not an air bag
should have inflated.
1JBH3051
Even though your vehicle is equipped
Air Bag Collision Sensors
with the OCS, never install a child
WARNING
restraint in the front passenger’s seat.
An inflating air bag can forcefully strike a
To reduce the risk of an air bag
child or child restraint resulting in serious
deploying unexpectedly and causing
or fatal injury.
serious injury or death:
Do not hit or allow any objects to
impact the locations where air bags
WARNING
or sensors are installed.
NEVER place a rear-facing or front-
Do not perform maintenance on or
facing child restraint in the front
around the air bag sensors. If the
passenger’s seat of the vehicle.
location or angle of the sensors is
An inflating frontal air bag could
altered, the air bags may deploy
forcefully strike a child resulting in
when they should not or may not
serious injury or death.
deploy when they should.
Always properly restrain children in
Do not install bumper guards or
an appropriate child restraint in the
replace the bumper with a non-
rear seat of the vehicle.
genuine HYUNDAI parts. This may
adversely affect the collision and air
bag deployment performance.
Place the ignition switch in the
LOCK/OFF or ACC position when the
vehicle is being towed to prevent
inadvertent air bag deployment.
Have all air bag repairs conducted by
an authorized HYUNDAI dealer.
3-46
03

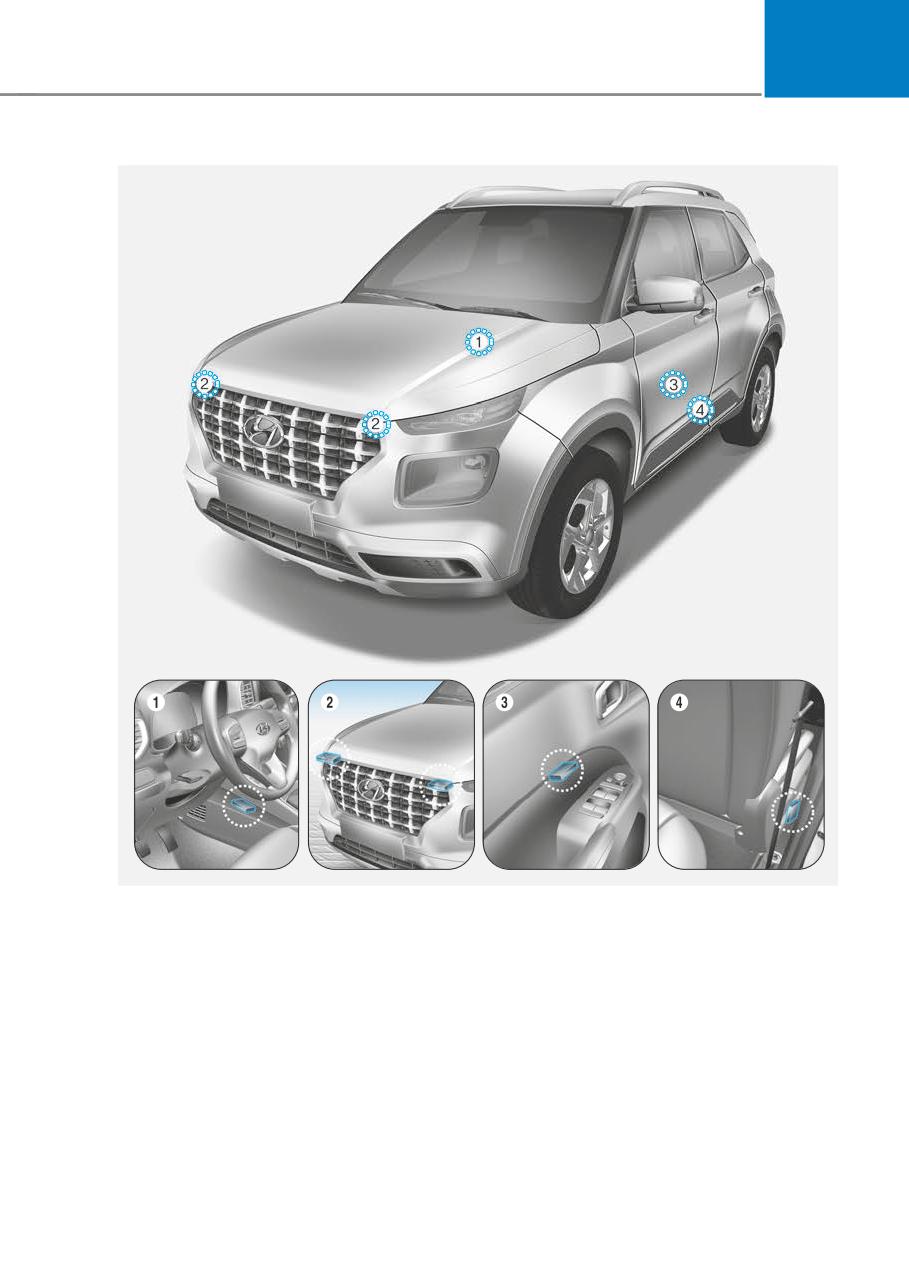

OQX039029L/OQX039030L/OQX039028L/OQX039036L/OQXI039029
1. SRS control module/Rollover sensor
2. Front impact sensor
3. Side pressure sensor
4. Side impact sensor
3-47
Safety System

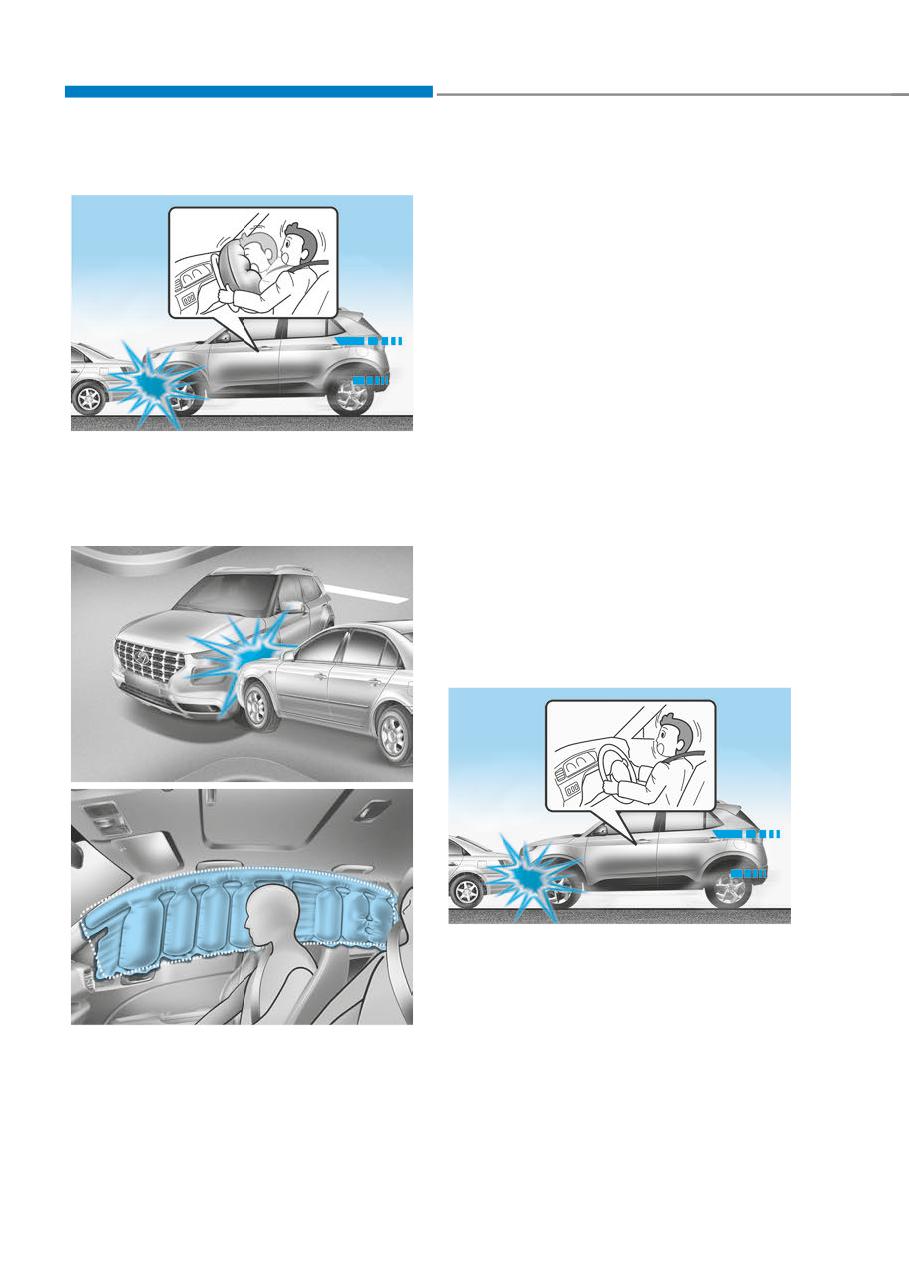

Air Bag Inflation Conditions
Side and curtain air bags
Side and curtain air bags are designed
to inflate when an impact is detected by
side collision sensors depending on the
severity of impact resulting from a side
impact collision.
Although the driver’s and front
passenger’s air bags are designed to
inflate only in frontal collisions, they also
may inflate in other types of collisions
if the front impact sensors detect a
sufficient impact. Side and curtain air
OQXI039030
bags are designed to inflate only in side
impact collisions or rollover situations,
Front air bags
but they may inflate in other collisions
Front air bags are designed to inflate
if the side impact sensors detect a
in a frontal collision depending on the
sufficient impact.
severity of impact of the front collision.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the air bags may deploy. Drive carefully
on unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended air bag deployment.
Air Bag Non-inflation Conditions
OQX039042L
OQXI039031
In certain low-speed collisions the air
bags may not deploy. The air bags are
designed not to deploy in such cases
because they may not provide benefits
OQX039053
beyond the protection of the seat belts.
3-48
03

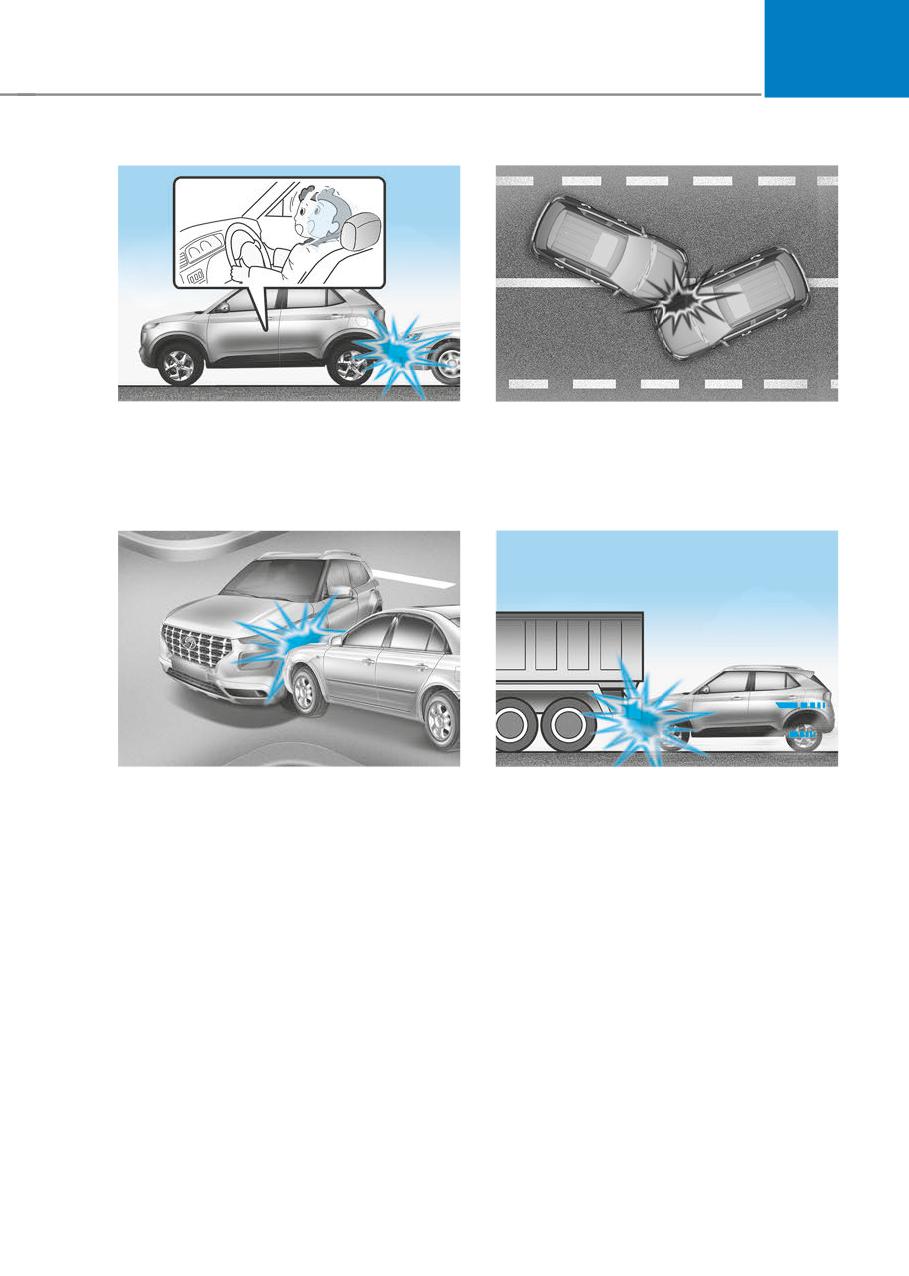

OQXI039032
OQX039040L
Front air bags are not designed to inflate
In an angled collision, the force of impact
in rear collisions, because occupants
may direct the occupants in a direction
are moved backward by the force of the
where the air bags would not be able to
impact. In this case, inflated air bags
provide any additional benefit, and thus
would not provide any additional benefit.
the sensors may not deploy any air bags.
OQX039042L
OQXI039034
Front air bags may not inflate in side
Just before impact, drivers often brake
impact collisions, because occupants
heavily. Such heavy braking lowers the
move in the direction of the collision,
front portion of the vehicle causing it
and thus in side impacts, front air bag
to “ride” under a vehicle with a higher
deployment would not provide additional
ground clearance. Air bags may not
occupant protection.
inflate in this “underride” situation
because deceleration forces that are
However, side and curtain air bags may
inflate depending on the severity of
detected by sensors may be significantly
reduced by such “underride” collisions.
impact.
3-49
Safety System
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS air bag
warning light does not illuminate when
the ignition switch is in the ON position,
or continuously remains on, have your
vehicle immediately inspected by an
authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any

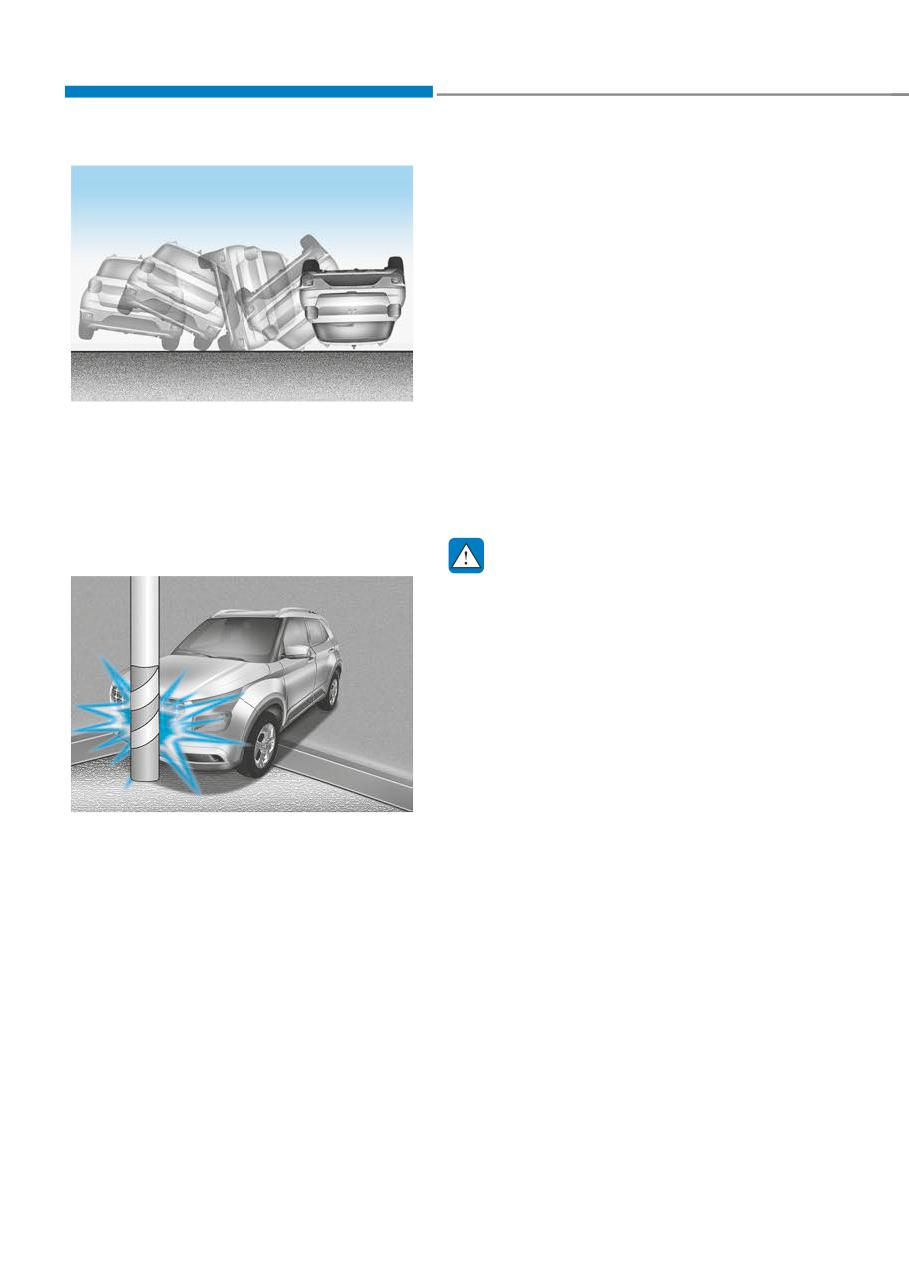

OQXI039035
work on the steering wheel, the front
Front air bags may not inflate in rollover
passenger’s panel, front seats and roof
accidents because air bag deployment
rails must be performed by an authorized
may not provide protection to the
HYUNDAI dealer. Improper handling of
occupants.
the SRS system may result in serious
However, side and curtain air bags may
personal injury.
inflate when the vehicle is rolled over by
a side impact collision.
WARNING
To reduce the risk of serious injury or
death, take the following precautions:
Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.
Do not place objects over or near
the air bag modules on the steering
wheel, instrument panel, or the front
passenger’s panel above the glove
OQX039043L
box.
Air bags may not inflate if the vehicle
Clean the air bag pad covers with
collides with objects such as utility poles
a soft cloth moistened with plain
or trees, where the point of impact is
water. Solvents or cleaners could
concentrated and the collision energy is
adversely affect the air bag covers
absorbed by the vehicle structure.
and proper deployment of the
system.
Always have inflated air bags
replaced by an authorized HYUNDAI
dealer.
If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed.
Consult an authorized HYUNDAI
dealer for the necessary information.
Failure to follow these precautions
could increase the risk of personal
injury.
3-50
03
Additional Safety Precautions

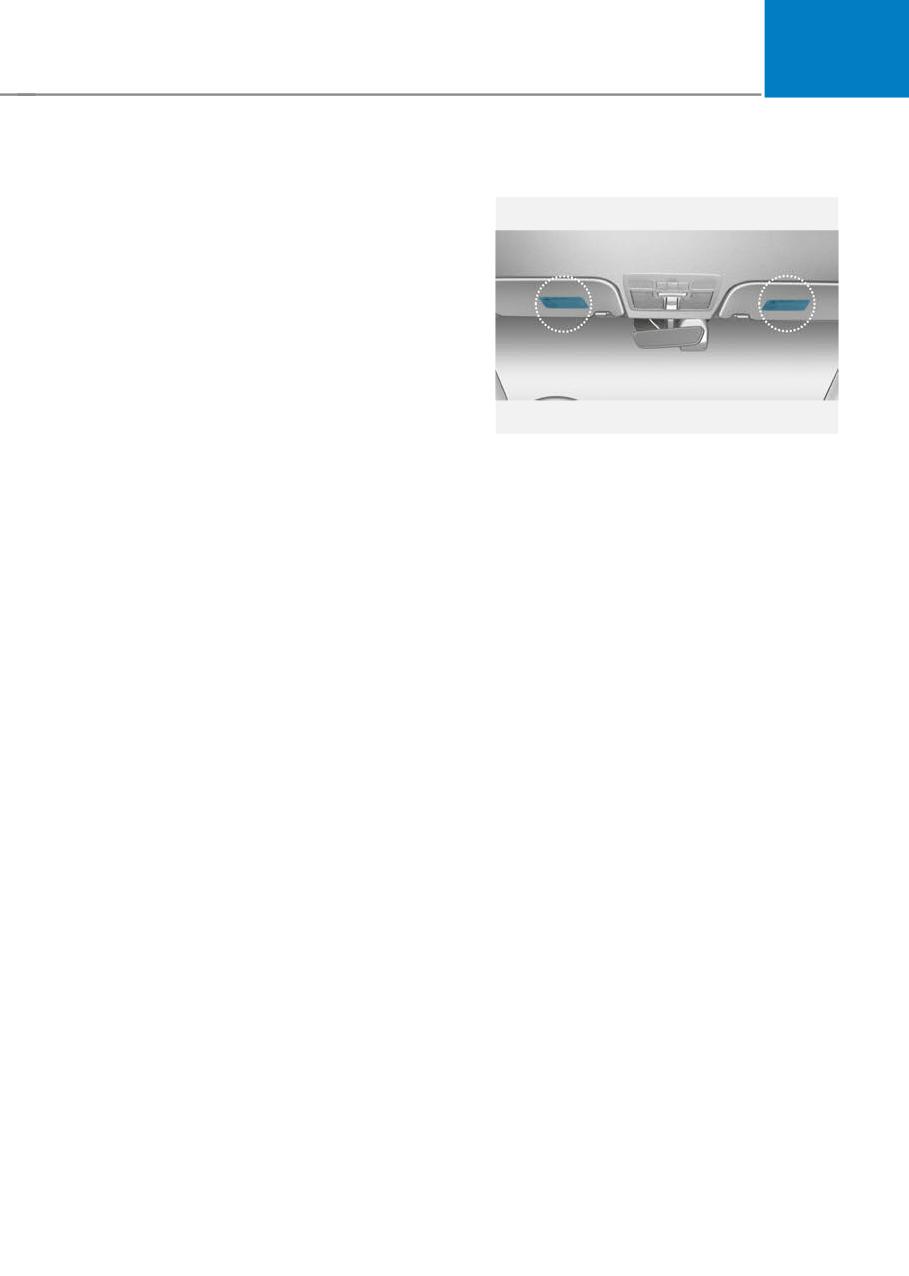

Air Bag Warning Labels
Passengers should not move out of
or change seats while the vehicle is
moving. A passenger who is not wearing
a seat belt during a crash or emergency
stop can be thrown against the inside of
the vehicle, against other occupants, or
be ejected from the vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
by the seat belt and increase the chance
OQX039031N
of serious injury in a crash.
Air bag warning labels, required by the
Do not modify the front seats.
U.S. National Highway Traffic Safety
Modification of the front seats could
Administration (NHTSA), are attached
interfere with the operation of the
to alert the driver and passengers of
supplemental restraint system sensing
potential risks of the air bag system. Be
components or side air bags.
sure to read all of the information about
the air bags that are installed on your
Do not place items under the front
vehicle in this Owners Manual.
seats. Placing items under the front seats
could interfere with the operation of the
supplemental restraint system sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the ignition
switch is in the ON position may cause
the air bags to inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding Equipment to or Modifying
Your Air Bag equipped Vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal or ride
height, this may affect the operation of
your vehicle’s air bag system.
3-51
4.Instrument Cluster
Instrument Cluster
4-4
Instrument Cluster Control
4-5
Adjusting Instrument Cluster Illumination
4-5
Gauges and Meters
4-5
Speedometer
4-5
Tachometer
4-6
Engine Coolant Temperature Gauge
4-6
Fuel Gauge
4-6
Outside Temperature Gauge
4-7
Odometer
4-7
Range
4-8
Transmission Shift Indicator
4-8
Intelligent variable transmission
4-8
Warning and Indicator Lights
4-9
Air Bag Warning Light
4-9
Seat Belt Warning Light
4-9
Parking Brake & Brake Fluid Warning Light
4-9
4
Anti-lock Brake System (ABS) Warning Light
4-10
Electronic Brake Force Distribution (EBD) System Warning Light
4-10
Motor Driven Power Steering (MDPS) Warning Light
4-11
Malfunction Indicator Lamp (MIL)
4-11
Charging System Warning Light
4-12
Engine Oil Pressure Warning Light
4-12
Low Fuel Level Warning Light
4-12
Master Warning Light
4-13
Low Tire Pressure Warning Light
4-13
Electronic Stability Control (ESC) Indicator Light
4-14
Electronic Stability Control (ESC) OFF Indicator Light
4-14
Immobilizer Indicator Light (without Smart Key)
4-14
Immobilizer Indicator Light (with Smart Key)
4-15
Turn Signal Indicator Light
4-15
Headlight Warning Light
4-15
High Beam Indicator Light
4-16
Light ON Indicator Light
4-16
High Beam Assist (HBA) Indicator Light
4-16
Forward Safety Warning Light
4-16
Lane Safety Light
4-16
Cluster Display Messages
4-17
Shift to P or N to Start Engine(for Smart Key System and Intelligent variable
transmission)
4-17
Shift to P (for Smart Key System)
4-17
Low Key Battery(for Smart Key System)
4-17
Press Brake Pedal to Start Engine(for Smart Key System)
4-17
Key Not in Vehicle(for Smart Key System)
4-17
Key Not Detected(for Smart Key System)
4-17
Press START Button Again(for Smart Key System)
4-17
Battery Discharging Due to External Electrical Devices
4-17
Press Clutch Pedal to Start Engine (for Smart Key System and Manual
4
Transmission)
4-18
Press START Button with Key(for Smart Key System)
4-18
Check BRAKE SWITCH Fuse(for Smart Key System)
4-18
Door, Hood, Liftgate Open Indicator
4-18
Sunroof Open
4-18
Icy Road Warning Light
4-19
Low Pressure
4-19
Lights Mode
4-20
Wiper
4-20
Low Fuel
4-20
Engine Overheated
4-20
Check Headlight
4-20
4.Instrument Cluster
Cluster Display
4-21
Cluster Display Control
4-21
Cluster Display Modes
4-22
Quick Guide Help
4-23
Trip Computer Mode
4-23
Drive Assist Mode
4-23
Master Warning Mode
4-24
User Settings Mode
4-24
Trip Computer
4-31
Trip Modes
4-31
Drive Info
4-32
Since Refueling
4-32
Accumulated Info
4-32
Vehicle Settings (Infotainment System)
4-33
Vehicle Settings menu
4-33
Setting Your Vehicle
4-33
4
Instrument Cluster

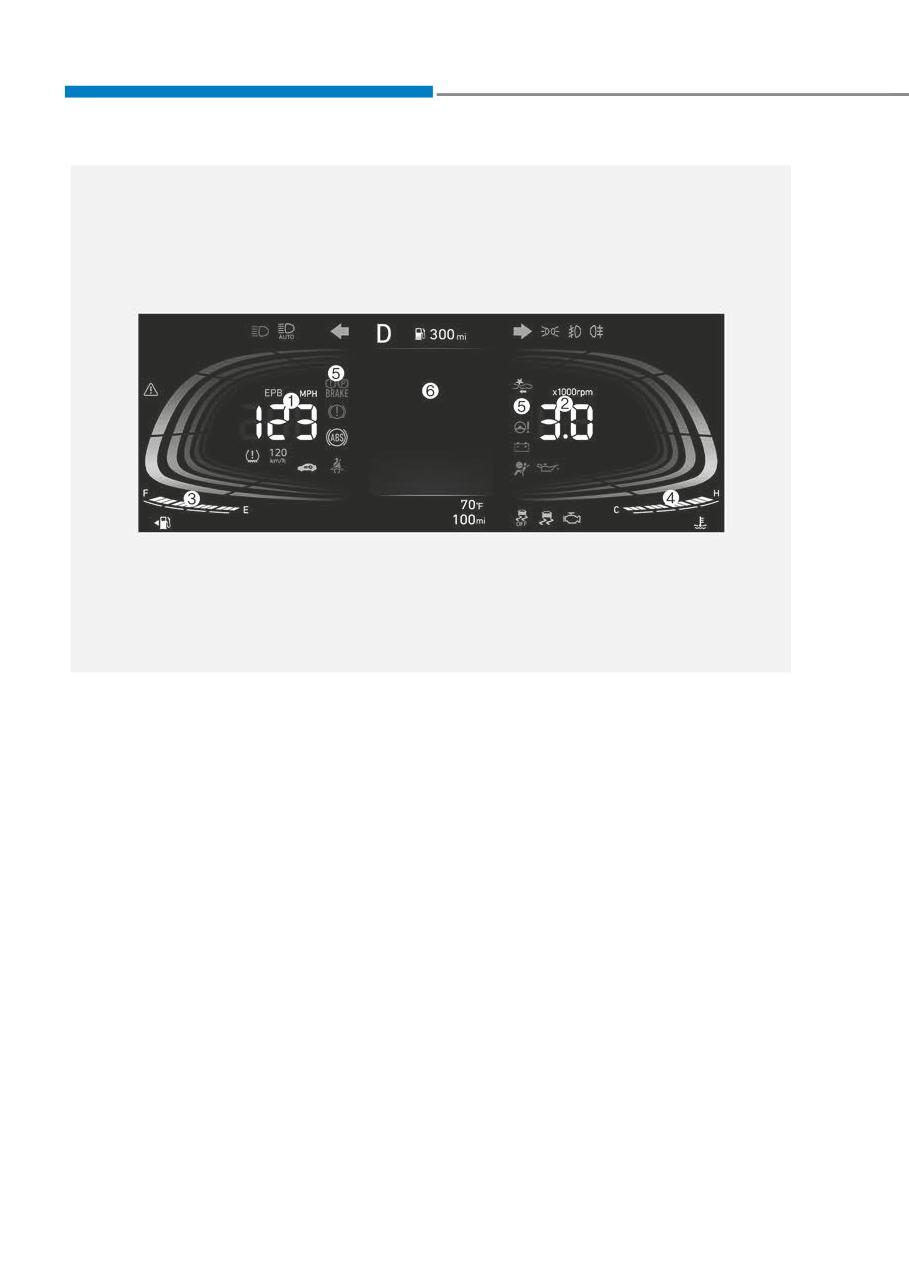

INSTRUMENT CLUSTER
OQX042062N
1. Speedometer
4. Engine coolant temperature gauge
2. Tachometer
5. Warning and indicator lights
3. Fuel gauge
6. Cluster display (including trip computer)
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the "Gauges and Meters" in this chapter.
4-4
04

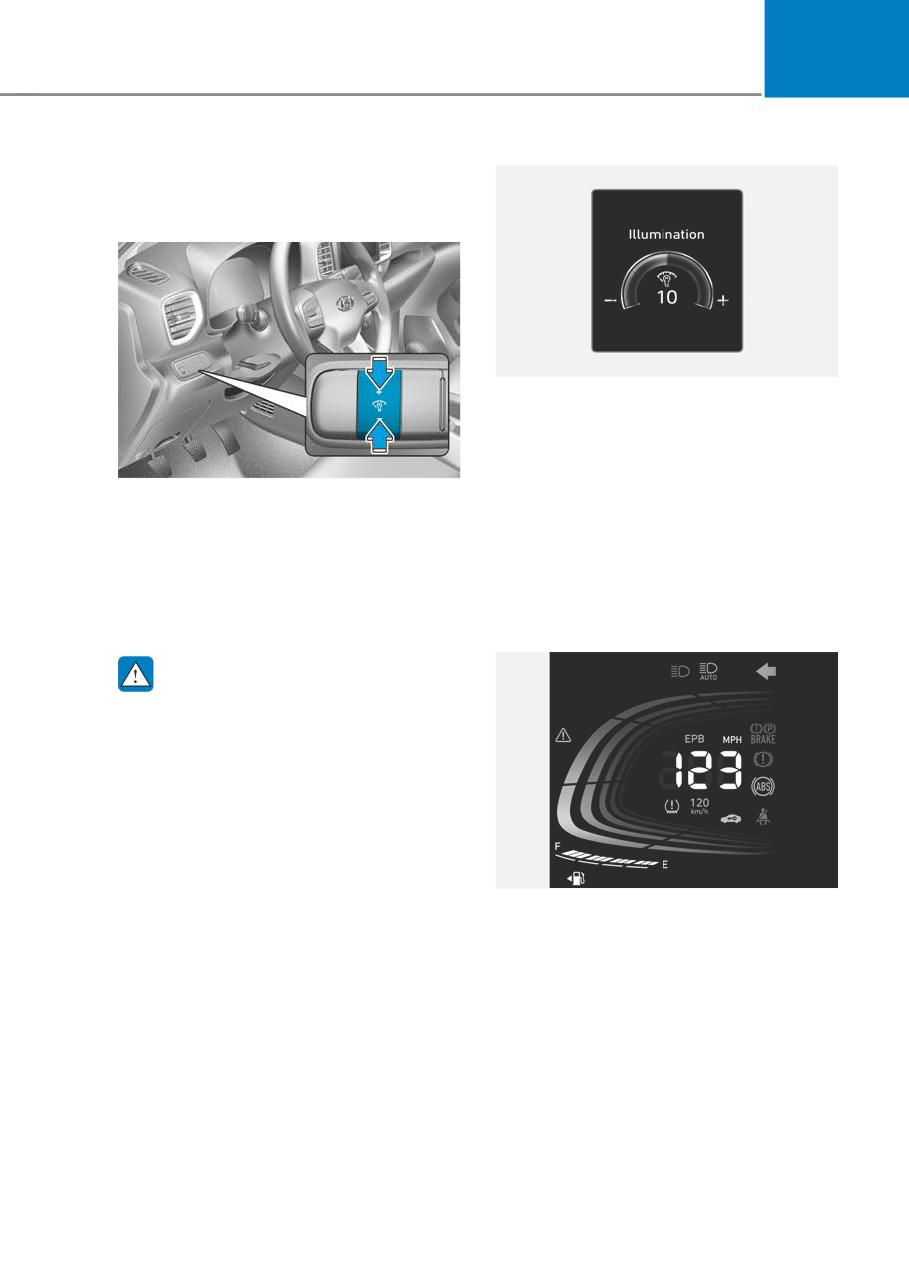

Instrument Cluster Control
Adjusting Instrument Cluster
Illumination
OUS4041035L
• The brightness of the instrument
panel illumination is displayed.
• If the brightness reaches the
maximum or minimum level, a chime
OQX049010N
will sound.
When the vehicle's parking lamps or
For information regarding the
headlights are on, press the illumination
illumination setting on your audio
control button to adjust the brightness of
display, refer to the "Setup" section of
the instrument panel illumination.
your infotainment system manual.
When pressing the illumination control
button, the interior switch illumination
Gauges and Meters
intensity is also adjustable.
Speedometer
WARNING
Never adjust the instrument cluster
while driving. Doing so could lead to
driver distraction which may cause an
accident and lead to vehicle damage,
serious injury, or death.
OQX042006N
The speedometer indicates the speed of
the vehicle and is calibrated in miles per
hour (MPH) and/or kilometers per hour
(km/h).
4-5
Instrument Cluster

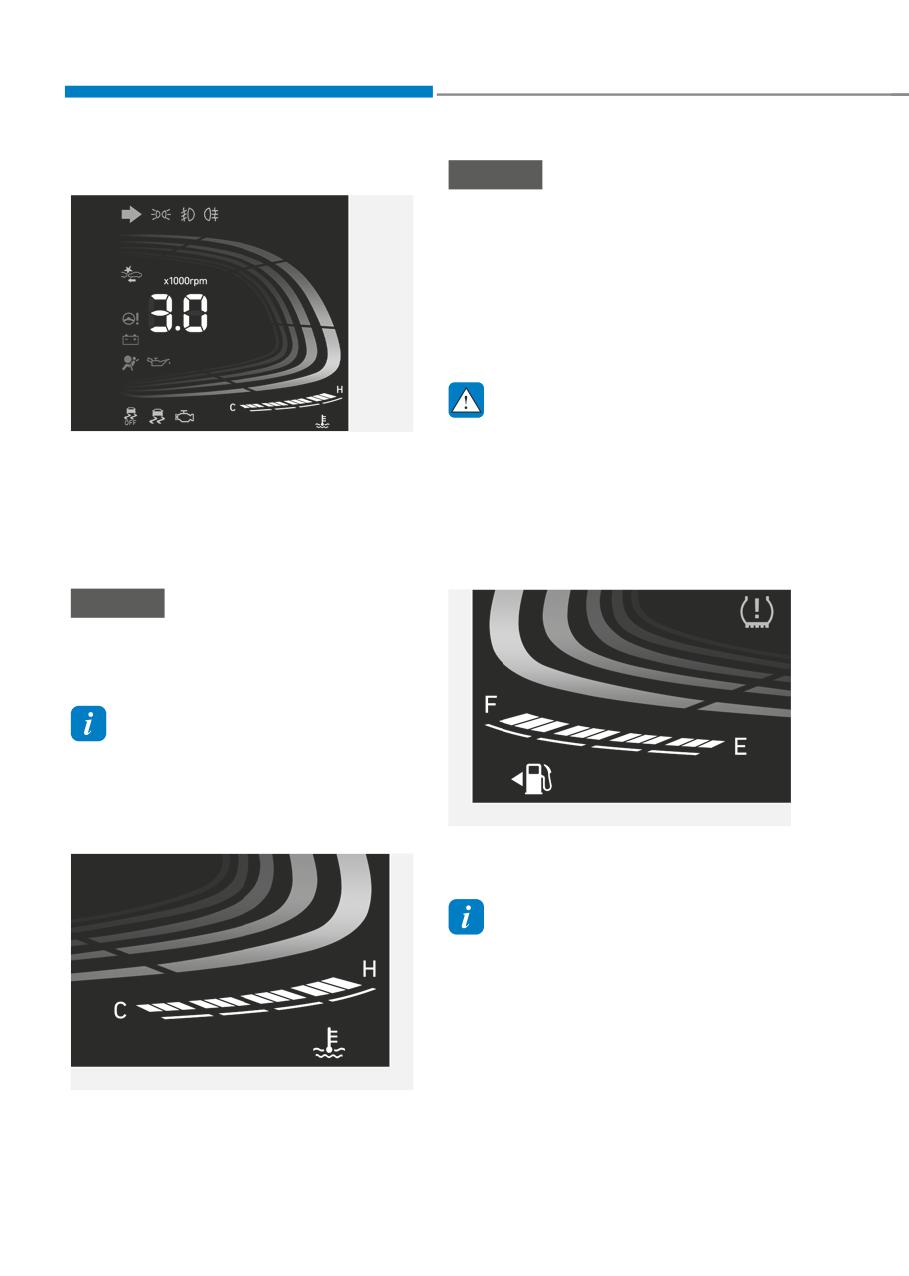

Tachometer
NOTICE
If the gauge pointer moves beyond
the normal range area toward the "H"
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your engine
overheats, refer to "If the Engine
Overheats" in chapter 8.
WARNING
OQX042008N
Never remove the radiator cap or
The tachometer indicates the
reservoir cap when the engine is hot.
approximate number of engine
The engine coolant is under pressure
revolutions per minute (RPM).
and could severely burn. Wait until the
engine is cool before adding coolant to
Use the tachometer to select the correct
the reservoir.
shift points and to prevent lugging and/
or over-revving the engine.
Fuel Gauge
NOTICE
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
Information
When entering the tachometer's
RED ZONE, the number color of the
tachometer is changed to RED.
OQX042043N
Engine Coolant Temperature Gauge
This gauge indicates the approximate
amount of fuel remaining in the fuel tank.
Information
The fuel tank capacity is given in
chapter 2.
The fuel gauge is supplemented by
a low fuel warning light, which will
illuminate when the fuel tank is nearly
empty.
On inclines or curves, the fuel gauge
OQX042042N
pointer may fluctuate or the low fuel
This gauge indicates the temperature
warning light may come on earlier than
of the engine coolant when the ignition
usual due to the movement of fuel in
switch is in the ON position.
the tank.
4-6
04
For vehicles equipped with Automatic
WARNING
Climate Control, you can also:
Running out of fuel can expose vehicle
- Press and hold the AUTO and OFF
occupants to danger.
buttons on the climate control unit for
You must stop and obtain additional
3 seconds
fuel as soon as possible after the
warning light comes on or when the
Both the temperature unit on the cluster
gauge indicator comes close to the "E
display and climate control screen will
(Empty)" level.
change.
NOTICE
Information
Avoid driving with an extremely low
The infotainment system may change after
fuel level. Running out of fuel could
software updates. For more information,
cause the engine to misfire and damage
refer to the user's manual provided in
the catalytic converter.
the infotainment system and the quick
reference guide.

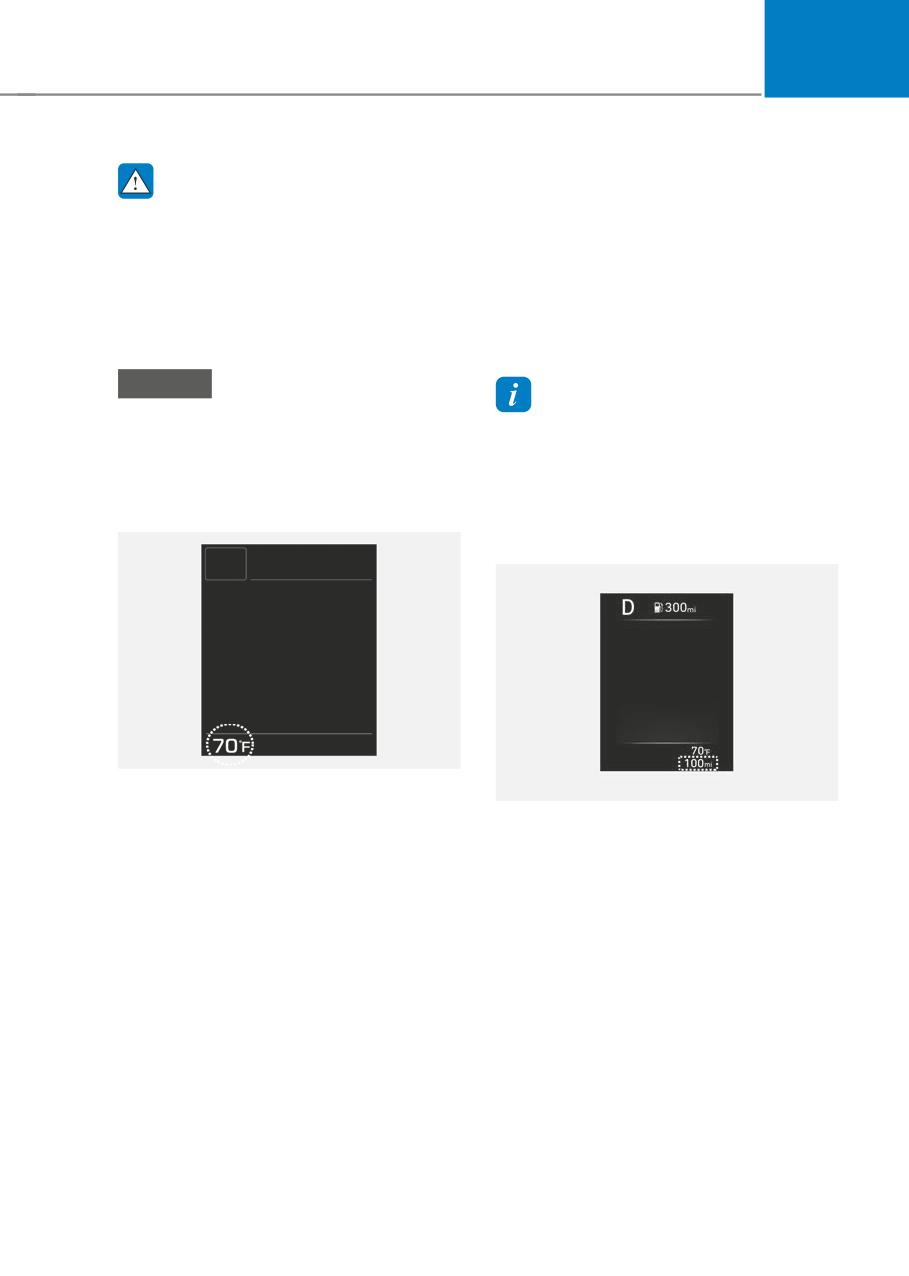

Outside Temperature Gauge
Odometer
OPD047463N
This gauge indicates the current outside
OQX042061N
air temperature by 1°F (1°C).
The odometer indicates the total
• Temperature range: -40°F ~ 140°F
distance that the vehicle has been
(-40°C ~ 60°C)
driven and should be used to determine
Note that the temperature indicated
when periodic maintenance should be
on the cluster display may not change
performed.
as quickly as the outside temperature
(there may be a slight delay before the
temperature changes.)
You can change the temperature unit
from °F to °C or °C to °F in the User
Settings mode in the cluster:
• Go to User Settings Mode → Other →
Temperature Unit.
4-7
Instrument Cluster

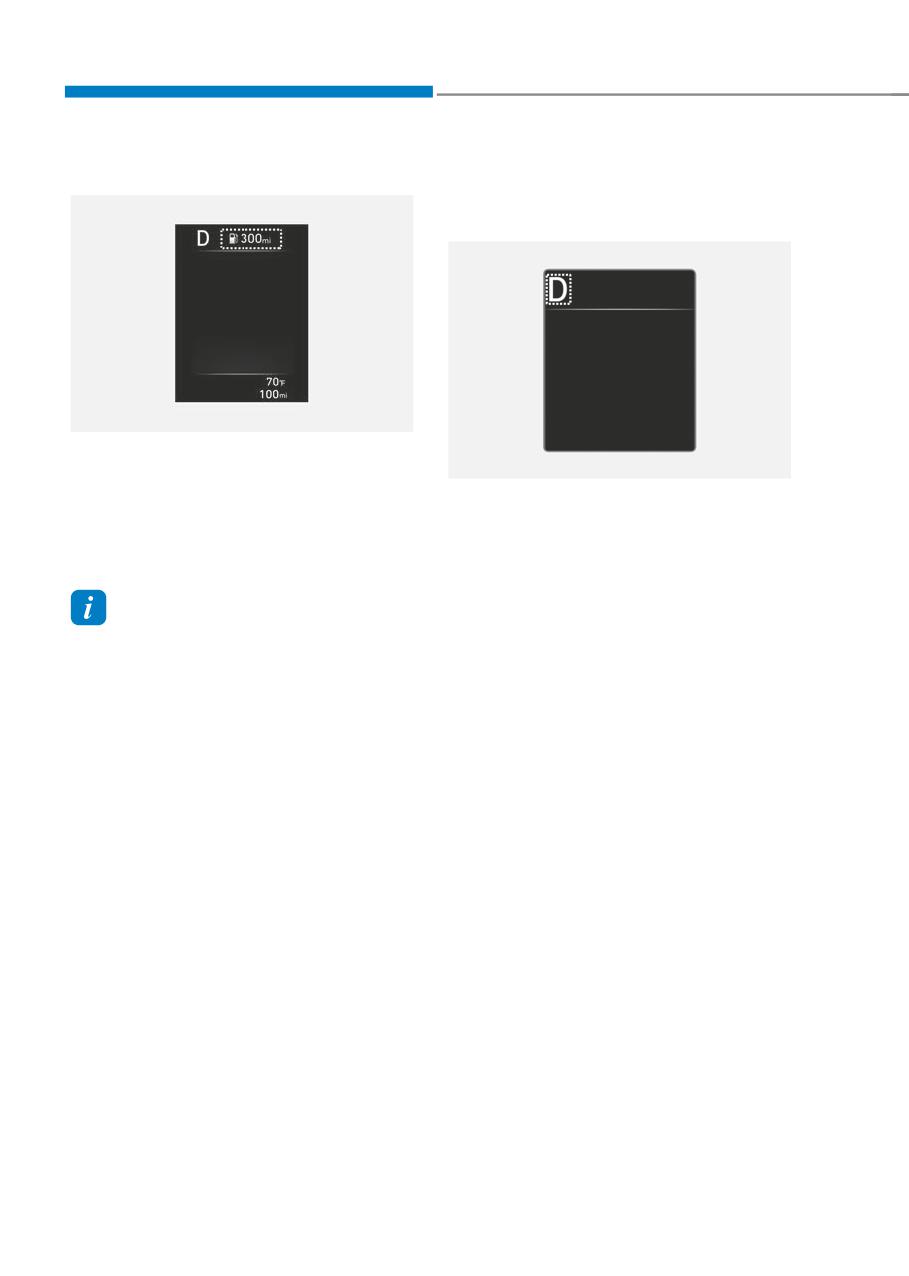

Range
Transmission Shift Indicator
Intelligent variable transmission
(if equipped)
OQX042056N
• The range is the estimated distance
the vehicle can be driven with the
OAX041008
remaining fuel.
This indicator displays which gear
• If the estimated distance is below
position is selected.
1 mi. (1 km), the trip computer will
• Park : P
display "----" as range.
• Reverse : R
• Neutral : N
Information
• Drive : D
If the vehicle is not on level ground or
• Manual shift Mode : 1, 2, 3, 4, 5, 6
the battery power has been interrupted,
the range function may not operate
correctly.
The range may differ from the actual
driving distance as it is only an estimate
of the available driving range for the
vehicle and driving conditions.
The trip computer may not register
additional fuel if less than 1.6 gallon (6
liters) of fuel are added to the vehicle.
The range may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
4-8
04
Warning and Indicator Lights
Parking Brake & Brake Fluid
Warning Light
Information
This warning light illuminates:
Make sure that all warning lights are OFF
• When you place the ignition switch to
after starting the engine. If any light is still
the ON position.
ON, this indicates a situation that needs
attention.
- The parking brake light illuminates
for about 3 seconds and will then
turn off once the parking brake is
Air Bag Warning Light
released.
• Whenever the parking brake is
applied.
This warning light illuminates:
• Whenever the brake fluid level in the
• When you place the ignition switch to
reservoir is low.
the ON position.
- If the warning light illuminates
- The air bag warning light illuminates
with the parking brake released, it
for about 6 seconds and then turns
indicates that the brake fluid level in
off when all checks have been
the reservoir is low.
performed
• The air bag warning light will remain
If the brake fluid level in the reservoir is
illuminated if there is a malfunction
low:
with the Safety Restraint System (SRS)
1. Drive carefully to the nearest safe
air bag operation.
location and stop your vehicle.
In this case, have the vehicle
2. With the engine stopped, check
inspected by an authorized HYUNDAI
the brake fluid level immediately
dealer.
and add fluid as required (For more
information, refer to "Brake Fluid" in
chapter 9). After adding brake fluid,
Seat Belt Warning Light
check all brake components for fluid
leaks. If a brake fluid leak is found, or
if the warning light remains on, or if
This warning light informs the driver that
the brakes do not operate properly, do
the seat belt is not fastened.
not drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
For more information, refer to “Seat
Belts” in chapter 3.
dealer.
4-9
Instrument Cluster
Dual-diagonal braking system
Anti-lock Brake System (ABS)
Warning Light
Your vehicle is equipped with
dualdiagonal braking systems. This
means you still have braking on two
This warning light illuminates:
wheels even if one of the dual systems
• When you place the ignition switch to
should fail.
the ON position.
With only one of the dual systems
- The ABS warning light illuminates
working, more than normal pedal travel
for about 3 seconds and then turns
and greater pedal pressure is required to
off.
stop the vehicle.
• Whenever there is a malfunction with
Also, the vehicle will not stop in as short
the ABS.
a distance with only a portion of the
brake system working.
Note that the hydraulic braking
system will still be operational even if
If the brakes fail while you are driving,
there is a malfunction with the ABS.
shift to a lower gear for additional engine
braking and stop the vehicle as soon as it
is safe to do so.
Electronic Brake Force
Distribution (EBD) System
Warning Light
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
These two warning lights illuminate at the
ON is dangerous. If the Parking Brake &
same time while driving:
Brake Fluid Warning Light illuminates
When the ABS and regular brake system
with the parking brake released, it
indicates that the brake fluid level is
may not work normally.
low.
In this case, have the vehicle inspected
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer.
by an authorized HYUNDAI dealer.
WARNING
Electronic Brake Force Distribution
(EBD) System Warning Light
When both ABS and Parking Brake &
Brake Fluid Warning Lights are on, the
brake system will not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking.
In this case, avoid high speed driving
and abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
4-10
04
Malfunction Indicator Lamp
Information - Electronic Brake
(MIL)
Force Distribution (EBD)
System Warning Light
This warning light illuminates:
When the ABS Warning Light is on
• When you place the ignition switch to
or both ABS and Parking Brake &
the ON position.
Brake Fluid Warning Lights are on, the
- The malfunction indicator light
speedometer, odometer, or tripmeter may
illuminates for about 3 seconds and
not work. Also, the MDPS Warning Light
then goes off.
may illuminate and the steering effort may
increase or decrease.
• Whenever there is a malfunction with
either the emission control system or
In this case, have the vehicle inspected by
the engine or the vehicle powertrain.
an authorized HYUNDAI dealer as soon
If this occurs, have the vehicle
as possible.
inspected by an authorized HYUNDAI
dealer.
Motor Driven Power Steering
(MDPS) Warning Light
NOTICE
Driving with the Malfunction Indicator
This warning light illuminates:
Lamp (MIL) on may cause damage to
• When you place the ignition switch to
the emission control system which
the ON position.
could affect drivability and/or fuel
- The Motor Driven Power Steering
economy.
Warning light illuminates for about 3
seconds and then goes off.
NOTICE
• Whenever there is a malfunction with
If the Malfunction Indicator Lamp
the MDPS.
(MIL) illuminates, potential catalytic
If this occurs, have the vehicle
converter damage is possible which
inspected by an authorized HYUNDAI
could result in loss of engine power.
dealer.
In this case, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
4-11
Instrument Cluster
Charging System Warning
NOTICE
Light
If the engine is not turned OFF
immediately after the Engine Oil
When this warning light illuminates while
Pressure Warning Light is illuminated,
the engine is running, the battery is not
severe damage could occur.
being charged. Immediately turn OFF
all electrical accessories. Try not to use
Low Fuel Level Warning Light
electrically operated controls, such as the
power windows. Keep the engine running.
Have the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
This warning light illuminates:
When the fuel tank is nearly empty. Add
fuel as soon as possible.
Engine Oil Pressure Warning
Light
NOTICE
This warning light illuminates:
Driving with the Low Fuel Level warning
light on or with the fuel level below "E"
When the engine oil pressure is low.
can cause the engine to misfire and
damage the catalytic converter.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check
the engine oil level (For more
information, refer to "Engine Oil" in
chapter 9). If the level is low, add oil
as required.
If the warning light remains on after
adding oil or if oil is not available, have
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
Continued driving with the warning
light on may cause engine failure.
4-12
04
Master Warning Light
This warning light remains ON after
blinking for approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
This indicator light illuminates:
When there is a malfunction with the
When there is a malfunction in operation
TPMS.
in any of the following systems:
In this case, have the vehicle inspected
• Exterior lamp (if equipped)
by an authorized HYUNDAI dealer as
• Blind-Spot Collision Warning (if
soon as possible.
equipped)
For more information, refer to "Tire
• Tire Pressure Monitoring System
Pressure Monitoring System (TPMS)" in
(TPMS)
chapter 8.
To identify the details of the warning,
look at the cluster display.
WARNING
Safe Stopping
Low Tire Pressure Warning
The TPMS cannot alert you to severe
Light (if equipped)
and sudden tire damage caused by
external factors.
This warning light illuminates:
If you notice any vehicle instability,
• When you place the ignition in the ON
immediately take your foot off the
position.
accelerator pedal, apply the brakes
- It illuminates for approximately 3
gradually with light force, and slowly
seconds and then goes off.
move to a safe position off the road.
• When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires is
displayed on the cluster display.)
For more information, refer to "Tire
Pressure Monitoring System (TPMS)" in
chapter 8.
4-13
Instrument Cluster
Electronic Stability Control
Electronic Stability Control
(ESC) Indicator Light
(ESC) OFF Indicator Light
This indicator light illuminates:
This indicator light illuminates:
• When you place the ignition switch to
• When you place the ignition switch to
the ON position.
the ON position.
- The Electronic Stability Control
- It illuminates for approximately 3
indicator light illuminates for about
seconds and then goes off.
3 seconds and then goes off.
• When you deactivate the ESC system
• Whenever there is a malfunction with
by pressing the ESC OFF button.
the ESC system.
For more information, refer to
If this occurs, have the vehicle
“Electronic Stability Control (ESC)” in
inspected by an authorized HYUNDAI
chapter 6.
dealer.
Immobilizer Indicator Light
This indicator light blinks:
(without Smart Key)
While the ESC is operating.
(if equipped)
For more information, refer to
This indicator light illuminates:
“Electronic Stability Control (ESC)” in
• When the vehicle detects the
chapter 6.
immobilizer in the key with the
ignition switch in the ON position.
- At this time, you can start the
engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks:
• When there is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
4-14
04
Immobilizer Indicator Light
Turn Signal Indicator Light
(with Smart Key)
(if equipped)
This indicator light illuminates for up to
This indicator light blinks:
30 seconds:
When you operate the turn signal
When the vehicle detects the smart key
indicator stalk.
in the vehicle with the Engine Start/Stop
button in the ACC or ON position.
If any of the following occur, there may be
• Once the smart key is detected, you
a malfunction with the turn signal system.
can start the engine.
• The turn signal indicator light
• The indicator light goes off after
illuminates but does not blink
starting the engine.
• The turn signal indicator light blinks
rapidly
This indicator light blinks for a few seconds:
• The turn signal indicator light does not
When the smart key is not in the vehicle.
illuminate at all
• If the smart key is not detected, you
If any of these conditions occur, have
cannot start the engine.
your vehicle inspected by an authorized
HYUNDAI dealer.
This indicator light illuminates for 2
seconds and goes off:
Headlight Warning Light
If the smart key is in the vehicle and the
(if equipped)
Engine Start/Stop button is ON, but the
vehicle cannot detect the smart key.
This warning light illuminates:
In this case, have the vehicle inspected
If one of the exterior bulbs (headlight,
by an authorized HYUNDAI dealer.
stop lamp, high mounted stop lamp) is
not operating properly. One of the bulbs
This indicator light blinks:
may need to be replaced. If the vehicle
When there is a malfunction with the
is equipped with LED headlights, have
immobilizer system.
the vehicle inspected by an authorized
In this case, have the vehicle inspected
HYUNDAI dealer.
by an authorized HYUNDAI dealer.
Information
When replacing the bulb, use the same
wattage bulb.
For more details, refer to "Light bulbs" in
chapter 9.
4-15
Instrument Cluster
High Beam Indicator Light
Forward Safety Warning
Light (if equipped)
This indicator light illuminates:
This warning light illuminates:
• When the headlights are on and in the
• When you set the ignition switch to
high beam position.
the ON position.
• When the turn signal lever is pulled
- The Forward Safety warning light
into the Flash-to-Pass position.
illuminates for approximately 3
seconds and then goes off.
• [Continuously Yellow] When Forward
Light ON Indicator Light
safety/Forward cross-traffic safety of
Forward Collision-Avoidance Assist is
Off/Disabled/Malfunction.
This indicator light illuminates:
• [Blinking Red] When Forward safety/
When the tail lights or headlights are on.
Forward cross-traffic safety of
Forward Collision-Avoidance Assist is
operating
High Beam Assist (HBA)
Indicator Light (if equipped)
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
This indicator light illuminates:
For more information, refer to "Forward
• When the high-Beam is on with the
Collision-Avoidance Assist (FCA)" in
light switch in the AUTO light position.
chapter 7.
- White: When High Beam Assist is
ready to operate.
Lane Safety Light (if
- Green: When High Beam Assist is
equipped)
operating.
• If your vehicle detects oncoming or
This indicator light illuminates:
preceding vehicles, High Beam Assist
(HBA) will switch the high beam to
• [Green] When Lane Keeping Assist
low beam automatically.
operating conditions are satisfied.
For more information, refer to "High
• [Grey] When Lane Keeping Assist
Beam Assist (HBA)" in chapter 5.
operating conditions are not satisfied.
• [Yellow] Whenever there is a
malfunction with Lane Keeping Assist.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more information, refer to "Lane
Keeping Assist (LKA)" in chapter 7.
4-16
04
Cluster Display Messages
Key Not in Vehicle
(for Smart Key System)
Shift to P or N to Start Engine
(for Smart Key System and
This warning message is displayed if the
Intelligent variable transmission)
smart key is not in the vehicle when you
press the Engine Start/Stop button.
This warning message is displayed if you
try to start the engine with the shift lever
When attempting to start the vehicle,
not in the P (Park) or N (Neutral) position.
always have the smart key with you.
Key Not Detected
Information
(for Smart Key System)
You can start the engine with the shift
This warning message is displayed if the
lever in the N (Neutral) position. But, for
smart key is not detected when you press
your safety, start the engine with the shift
the Engine Start/Stop button.
lever in the P (Park) position.
Press START Button Again
Shift to P (for Smart Key System)
(for Smart Key System)
This message is displayed if you try to
This message is displayed if you were
turn off the engine without the shift lever
unable to start the vehicle when the
in P (Park) position.
Engine Start/Stop button was pressed.
If this occurs, the Engine Start/Stop
If this occurs, attempt to start the engine
button turns to the ACC position (If you
by pressing the Engine Start/Stop button
press the Engine Start/Stop button once
again.
more, it will turn to the ON position).
If the warning message appears each
time you press the Engine Start/Stop
Low Key Battery
button, have your vehicle inspected by
(for Smart Key System)
an authorized HYUNDAI dealer.
This warning message is displayed if the
battery of the smart key is discharged
Battery Discharging Due to External
while changing the Engine Start/Stop
Electrical Devices (if equipped)
button to the OFF position.
This message is displayed if the battery
voltage is weak due to any non-factory
Press Brake Pedal to Start Engine
electrical accessories (for example,
(for Smart Key System)
dashboard camera) while parking. Be
This warning message is displayed if the
careful that the battery is not discharged.
Engine Start/Stop button changes to
If the warning message appears after
the ACC position twice by pressing the
removing the non-factory electrical
button repeatedly without depressing
accessories, have the vehicle inspected
the brake pedal.
by an authorized HYUNDAI dealer.
You can start the vehicle by depressing
the brake pedal and then pressing the
Engine Start/Stop button.
4-17
Instrument Cluster
Press Clutch Pedal to Start Engine

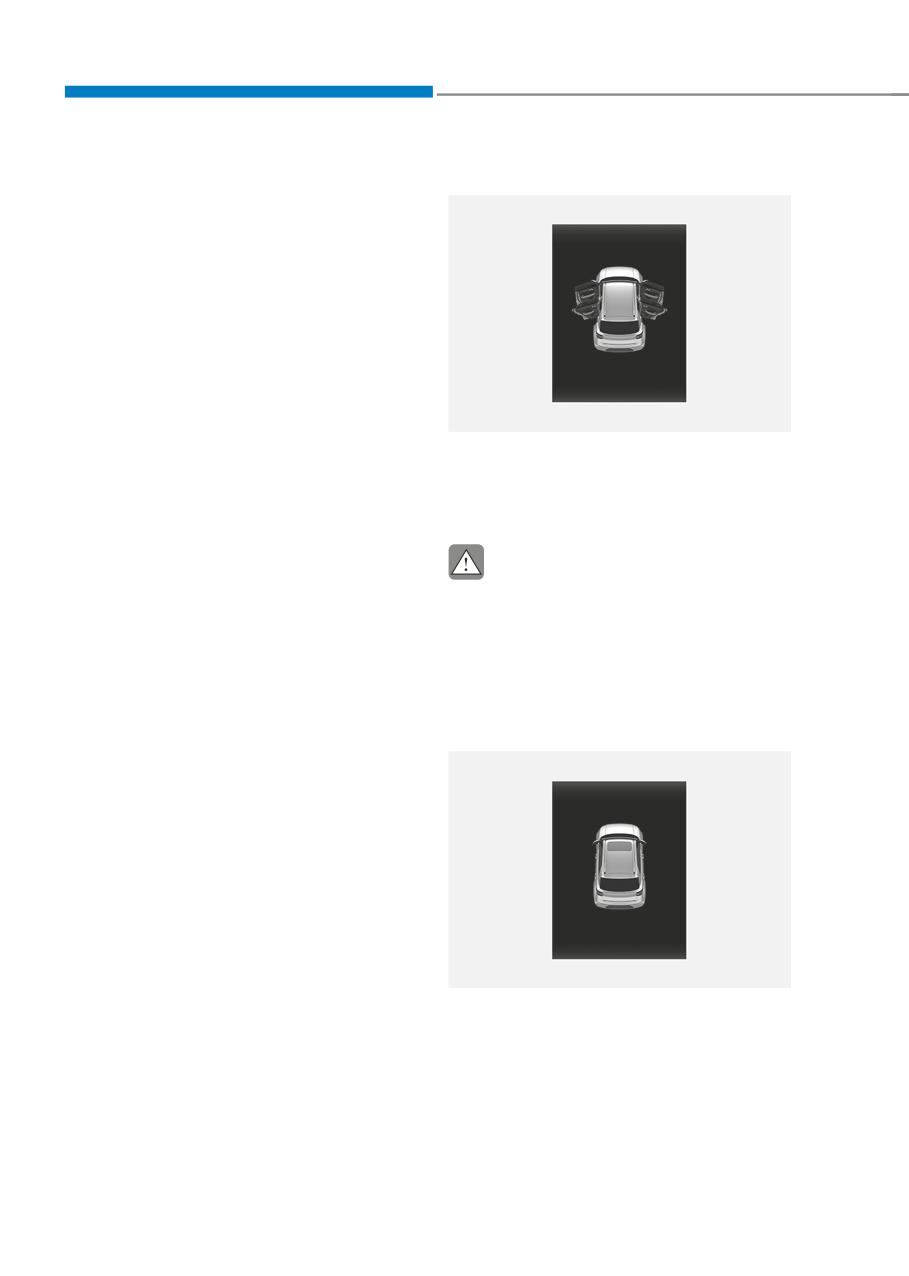

Door, Hood, Liftgate Open Indicator
(for Smart Key System and Manual
Transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START Button with Key
(for Smart Key System)
OQX042014N
This warning is displayed if any door or
This warning message is displayed if you
press the Engine Start/Stop button while
the hood or the liftgate is left open. The
warning will indicate which door is open
the warning message "Key not detected"
is displayed.
in the display.
At this time, the immobilizer indicator
light blinks.
CAUTION
Before driving the vehicle, you should
Check BRAKE SWITCH Fuse
confirm that the door/hood/liftgate
(for Smart Key System)
is fully closed. Also, check there is no
This warning message is displayed if the
door/hood/liftgate open warning light
brake switch fuse is disconnected.
or message displayed on the instrument
You need to replace the fuse with a new
cluster.
one before starting the engine.
Sunroof Open (if equipped)
If that is not possible, you can start the
engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
OQX042015N
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
4-18
04

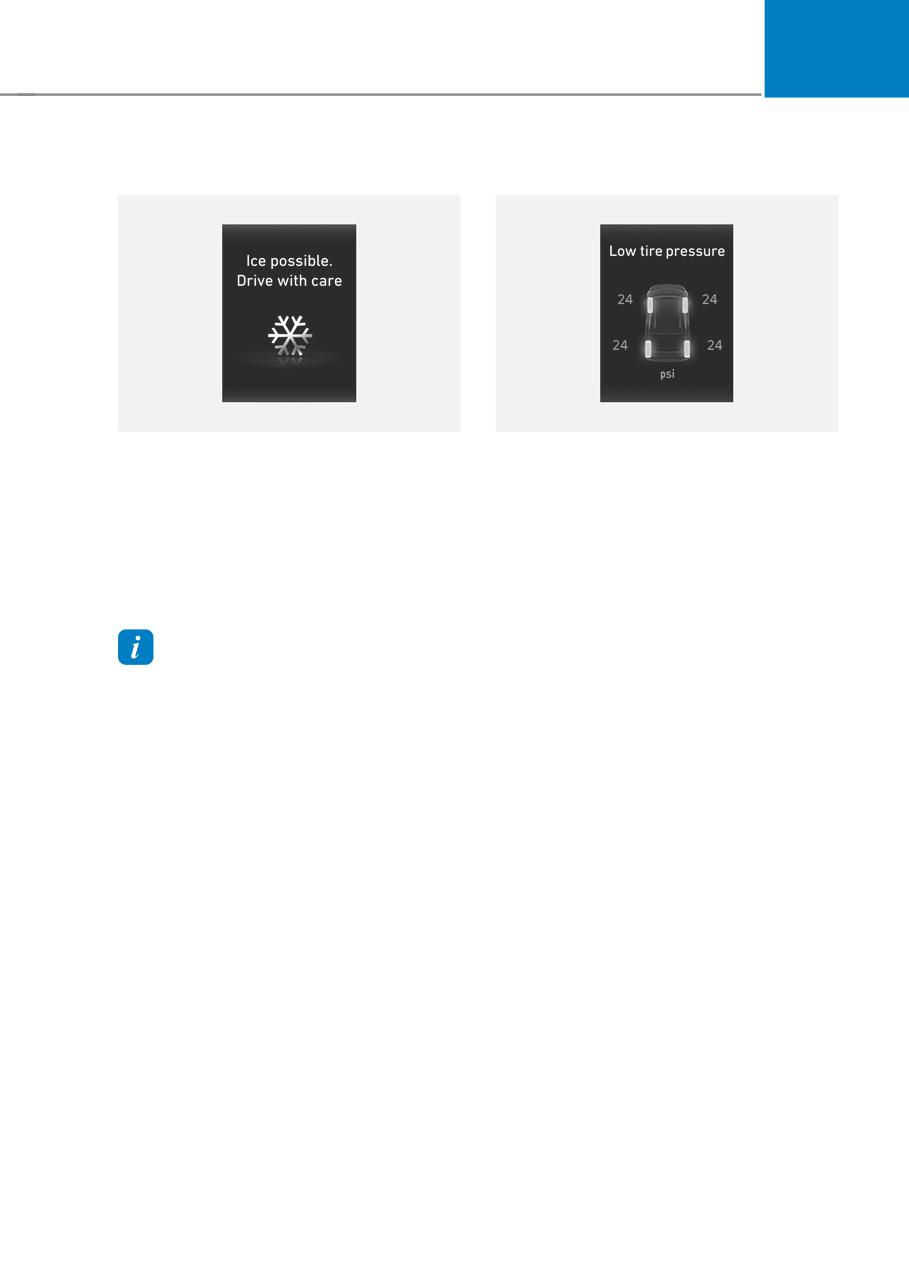

Icy Road Warning Light (if equipped)
Low Pressure
OQX042046N
OQX042018N
This warning light is to warn the driver
This warning message is displayed if the
that the road may be icy.
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
When the temperature on the outside
temperature gauge is approximately
For more information, refer to "Tire
below 40°F (4°C), the Icy Road Warning
Pressure Monitoring System (TPMS)" in
Light and Outside Temperature Gauge
chapter 8.
blinks 10 times, and then illuminates.
Also, the warning chime sounds 3 times.
Information
If the icy road warning light appears while
driving, you should drive more attentively
and safely and refrain from speeding,
rapid acceleration, sudden braking or
sharp turning, etc.
4-19
Instrument Cluster

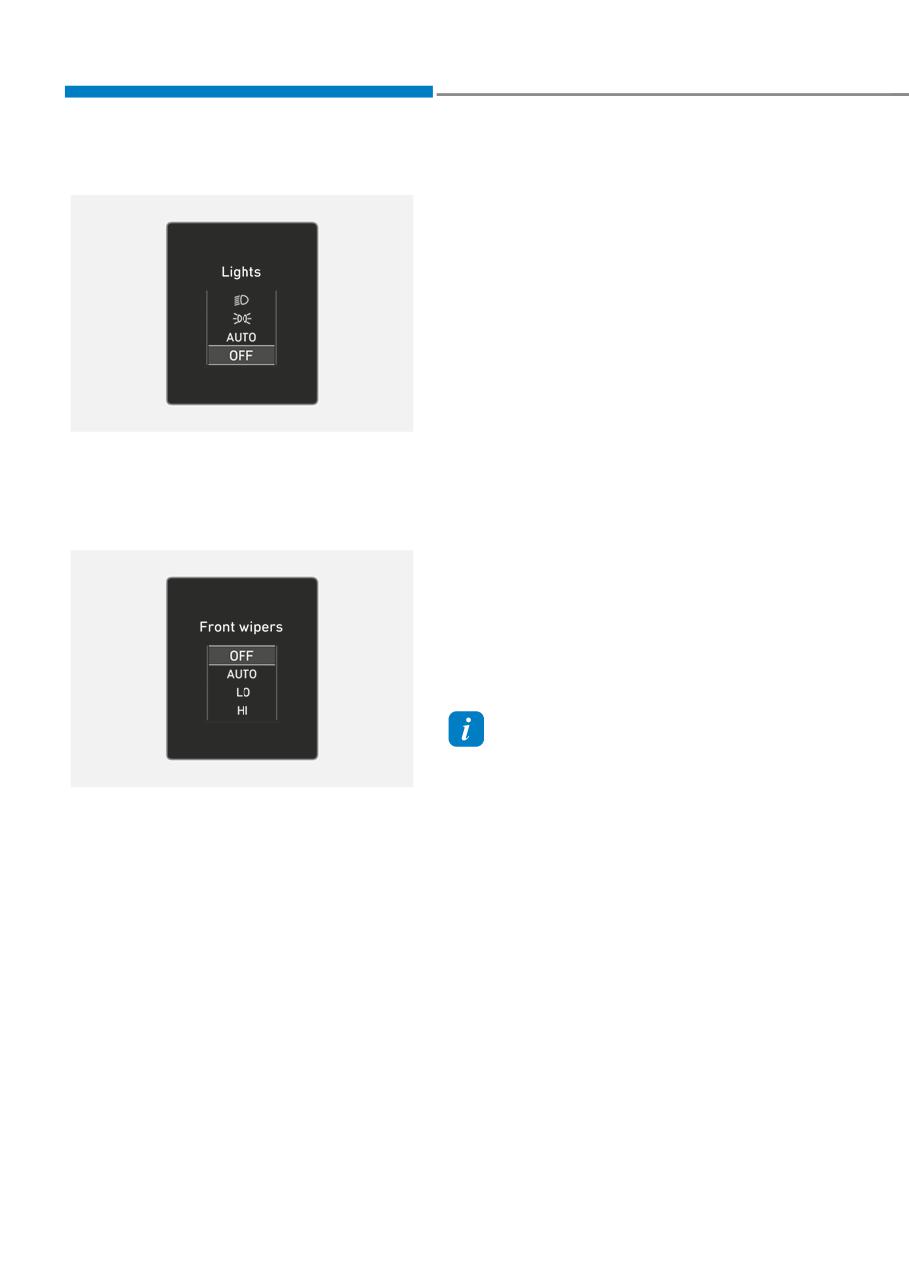

Lights Mode
Low Fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the nearest
fueling station and refuel as soon as
possible.
Add fuel as soon as possible.
Engine Overheated
OSU2I049029
This indicator displays which exterior
This warning message is displayed
when the engine coolant temperature
light is selected using the lighting
control.
is above 248°F (120°C). This means that
the engine is overheated and may be
damaged.
Wiper
If your vehicle has overheated, refer to
“If the Engine Overheats” in chapter 8.
Check Headlight (if equipped)
This warning message is displayed if the
headlights are not operating properly. A
headlights bulb may need to be replaced.
Information
Make sure to replace the burned out bulb
OSU2I049031
with a new one of the same wattage rating.
This indicator displays which wiper speed
is selected using the wiper control.
4-20
04

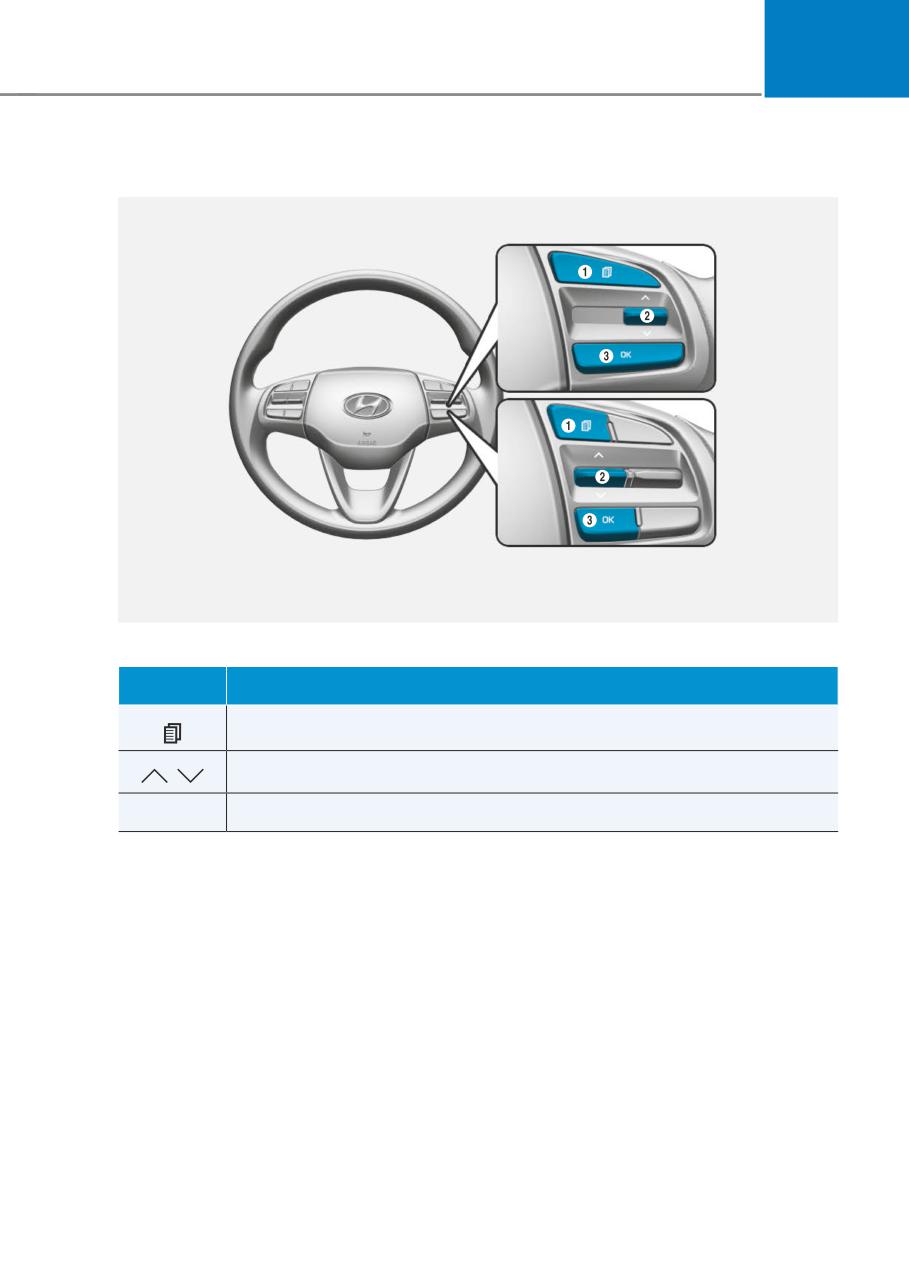

CLUSTER DISPLAY
Cluster Display Control
OQX069070
The cluster display modes can be changed by using the control buttons.
Switch
Function
MODE button for changing modes
,
MOVE switch for changing items
OK
SELECT/RESET button for setting or resetting the selected item
4-21

















Content      ..      1       2         ..



//////////////////////////////////////////
