Driver Assistance System
Rear Cross-Traffic Collision-
WARNING
Avoidance Assist disabled
ś Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Collision-Avoidance
Assist may not operate properly.
ś Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly in an area (for example,
open terrain), where any objects are
not detected after turning ON the
engine.
ONX4OB071090
CAUTION
When the rear bumper around the rear-
Turn off Rear Cross-Traffic Collision-
side radar or sensor is covered with
Avoidance Assist to install or remove a
foreign material, such as snow or rain,
trailer, carrier, or another attachment.
or installing a trailer or carrier, it can
Turn on Rear Cross-Traffic Collision-
reduce the detecting performance and
Avoidance Assist when finished.
temporarily limit or disable Rear Cross-
Traffic Collision-Avoidance Assist.
Limitations of Rear Cross-Traffic
If this occurs, the ‘Rear Cross-Traffic
Collision-Avoidance Assist
6DIHW\ V\VWHP GLVDEOHG 5DGDU EORFNHGŔ
Rear Cross-Traffic Collision-Avoidance
warning message appears on the cluster.
Assist may not operate properly, or it
Rear Cross-Traffic Collision-Avoidance
may operate unexpectedly under the
Assist will operate properly when
following circumstances:
such foreign material or trailer, etc., is
ś Departing from where trees or grass
removed.
are overgrown
If Rear Cross-Traffic Collision-Avoidance
ś Departing from where roads are wet
Assist does not operate properly after it
is removed, have the vehicle inspected
ś Speed of the approaching vehicle is
fast or slow
by an authorized HYUNDAI dealer.
%UDNLQJ FRQWURO PD\ QRW ZRUN GULYHUŔV
attention is required in the following
circumstances:
ś The vehicle severely vibrates while
driving over a bumpy road, uneven
road or concrete patch
ś Driving on a slippery surface due to
snow, water puddle, ice, etc.
ś The tire pressure is low or a tire is
damaged
ś The brake is modified
7-148
07
ś When the vehicle is in a complex
Information
parking environment
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in this chapter.
WARNING
ś Driving near a vehicle or structure
ONX4OB071092
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
which are parking or pulling out
near your vehicle (for example, a
vehicle leaving beside your vehicle,
a vehicle parking or pulling out in
the rear area, a vehicle approaching
ONX4OB071091
your vehicle making a turn, etc.).
[A] : Structure
If this occurs, the function may
Rear Cross-Traffic Collision-
unnecessarily warn the driver and
Avoidance Assist may be limited
control the brake.
when driving near a vehicle or
Always check your surroundings
structure, and may not detect the
while backing up.
vehicle approaching from the left or
right. If this occurs, the function may
not warn the driver or control the
brakes when necessary.
Always check your surroundings
while backing up.
7-149
Driver Assistance System
ś When the vehicle is parked
ś When the vehicle is on or near a
diagonally
slope
ONX4OB071093
ONX4OB071094
[A] : Vehicle
Rear Cross-Traffic Collision-
Rear Cross-Traffic Collision-
Avoidance Assist may be limited
Avoidance Assist may be limited
when the vehicle is on a uphill or
when backing up diagonally,
downhill slope, or near it, and may
and may not detect the vehicle
not detect the vehicle approaching
approaching from the left or right.
from the left or right. If this occurs,
If this occurs, the function may not
the function may not warn the
warn the driver or control the brakes
driver or control the brakes when
when necessary.
necessary.
Always check your surroundings
Always check your surroundings
while backing up.
while backing up.
7-150
07
ś Pulling into the parking space where
ś When the vehicle is parked rearward
there is a structure
ONX4OB071096
ONX4OB071095
Rear Cross-Traffic Collision-
[A] : Structure, [B] : Wall
Avoidance Assist may detect vehicles
Rear Cross-Traffic Collision-
passing by behind you when parking
Avoidance Assist may detect vehicles
in reverse into a parking space.
passing by in front of you when
If this occurs, the function may
parking in reverse into a parking
unnecessarily warn the driver and
space with a wall or structure in the
control the brake.
rear or side area. If this occurs, the
Always check your surroundings
function may unnecessarily warn the
while backing up.
driver and control the brake.
Always check your surroundings
WARNING
while backing up.
ś When you are towing a trailer or
turn off Rear Cross-Traffic Collision-
Avoidance Assist for safety reasons.
ś Rear Cross-Traffic Collision-
Avoidance Assist may not operate
normally if interfered by strong
electromagnetic waves.
ś Rear Cross-Traffic Collision-
Avoidance Assist may not operate
for 3 seconds after the vehicle is
started, or the rear corner radars are
initialized.
7-151
Driver Assistance System
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
7-152
07
'(&/$5$7,21 2) &21)250,7<
Front Radar
Rear Corner Radar
The radio frequency components (Front
The radio frequency components (Rear
Radar) complies :
Corner Radar) complies:
OANATEL124
OANATEL275
7-153
8.Emergency Situations
Hazard Warning Flasher
8-2
In Case of an Emergency while Driving
8-2
If the Engine Stalls while Driving
8-2
If the Engine Stalls at a Crossroad or Crossing
8-2
If you have a Flat Tire while Driving
8-3
If the Engine will not Start
8-3
Jump Starting
8-4
If the Engine Overheats
8-7
Tire Pressure Monitoring System (TPMS)
8-9
Check Tire Pressure
8-9
Tire Pressure Monitoring System
8-10

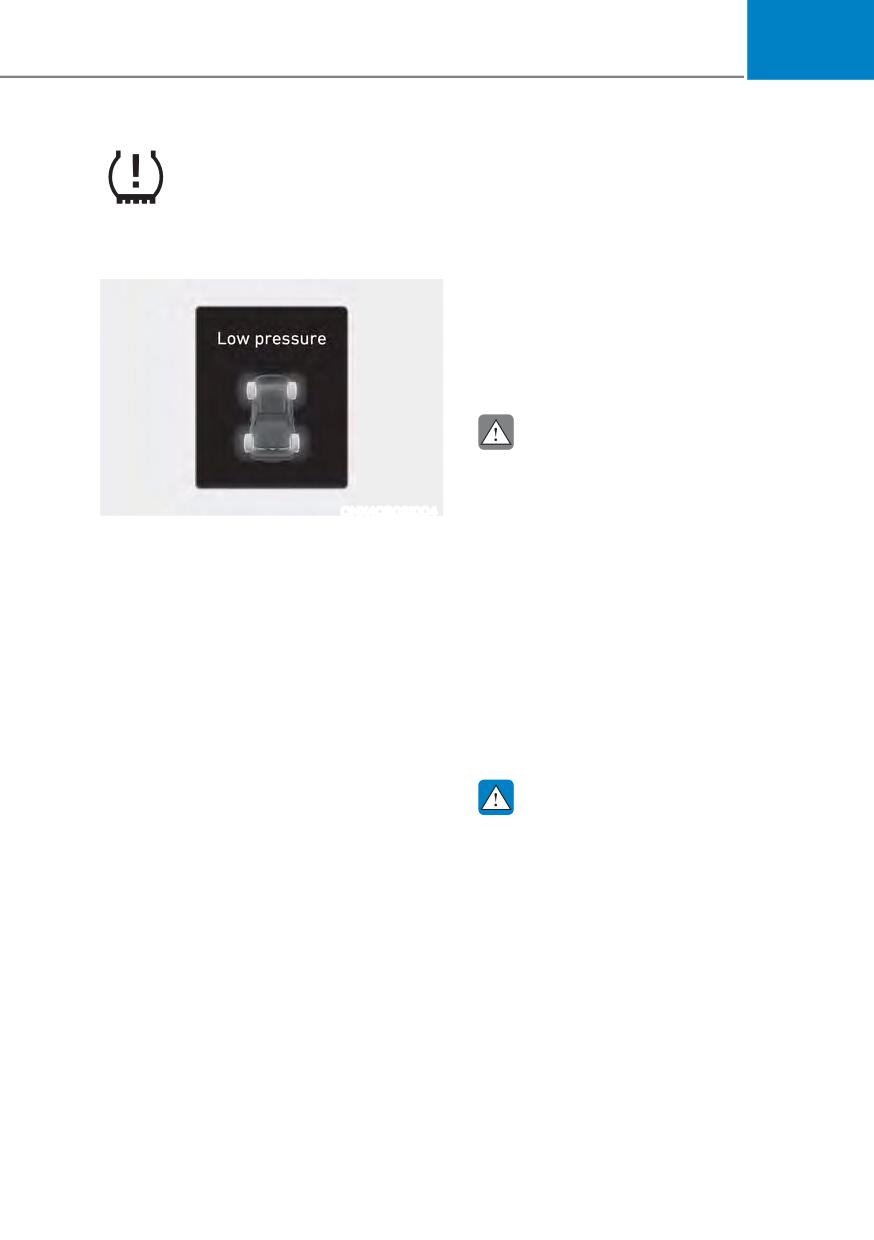

Low Tire Pressure Warning Light
8-11

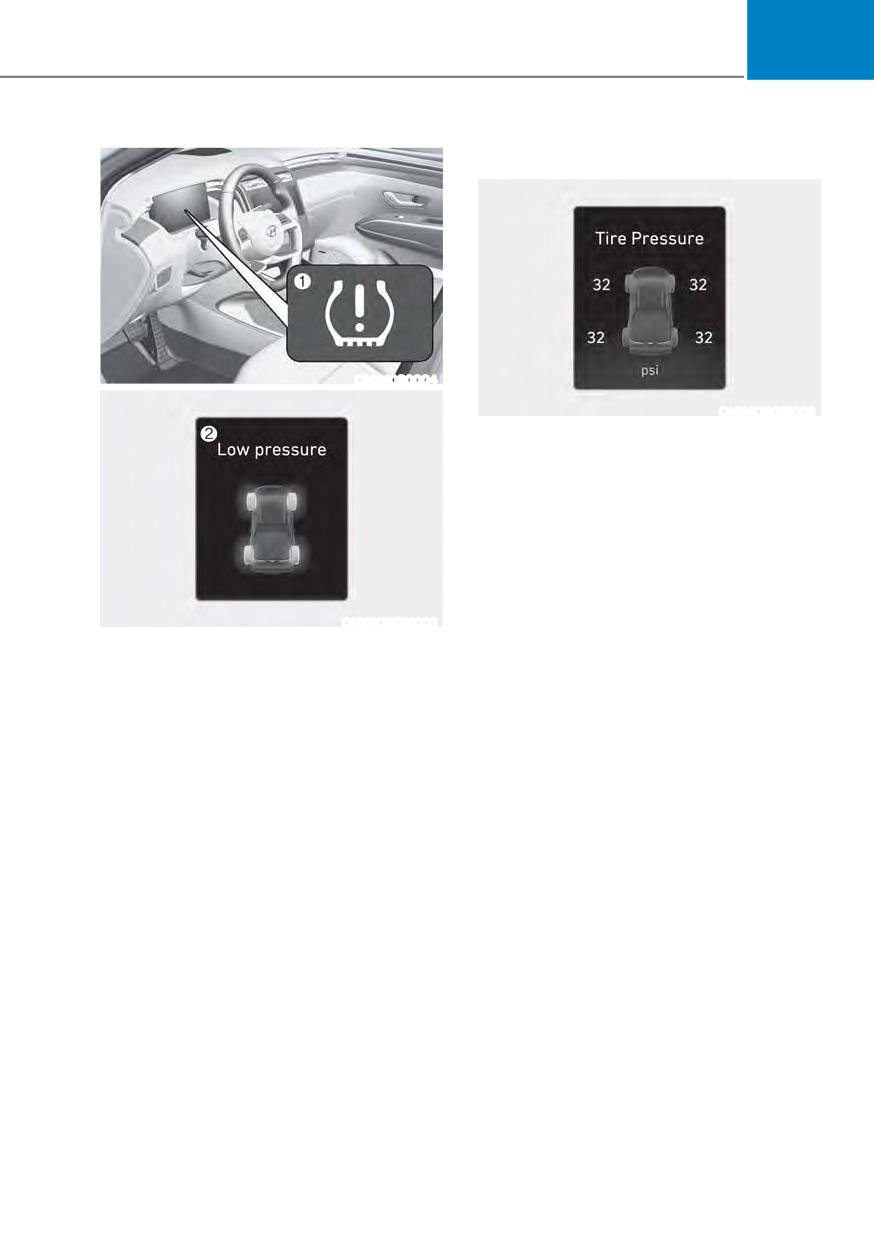

Low Tire Pressure Position and Tire Pressure Display
8-11
TPMS Malfunction Indicator
8-12
Changing a Tire with TPMS
8-12
If You Have a Flat Tire
8-14

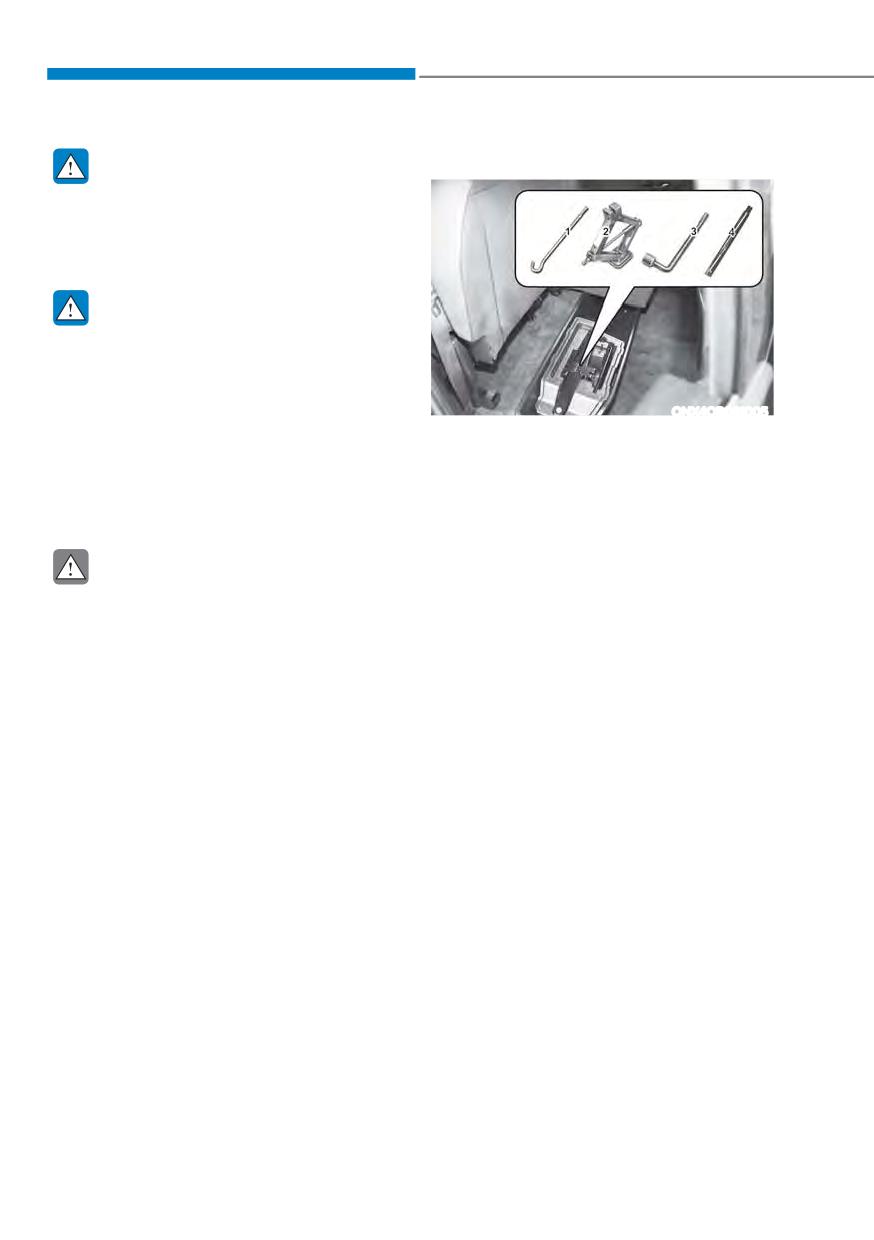

Jack and Tools
8-14

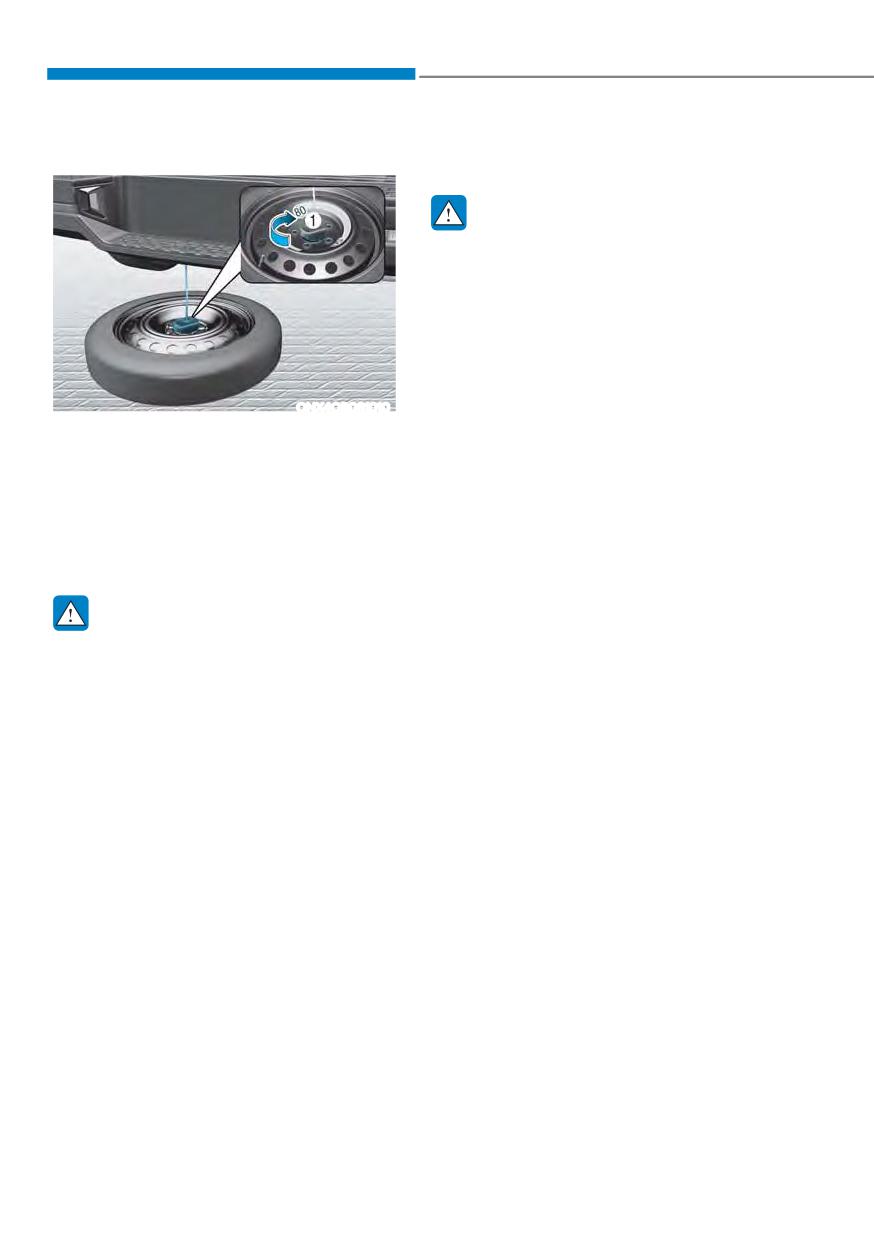

Removing and Storing the Spare Tire
8-15

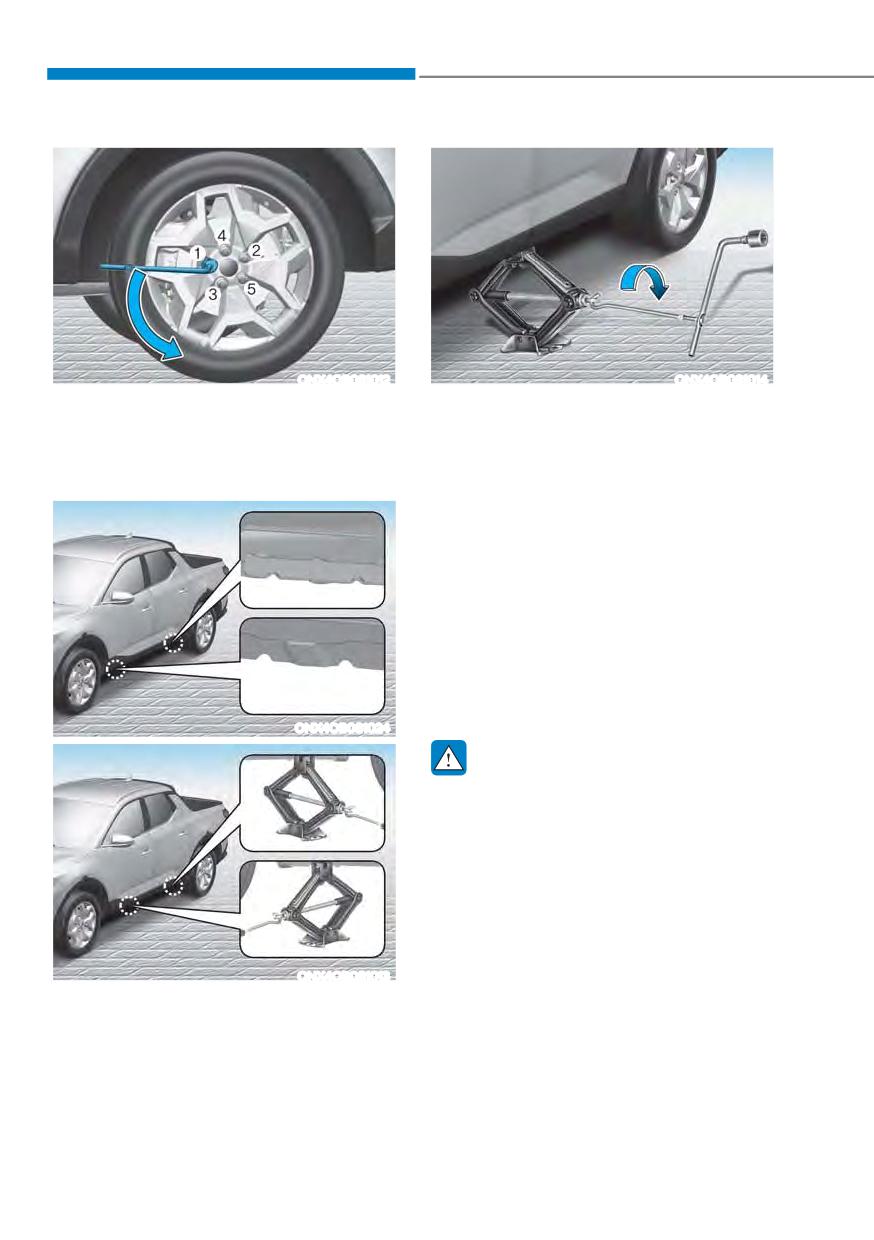

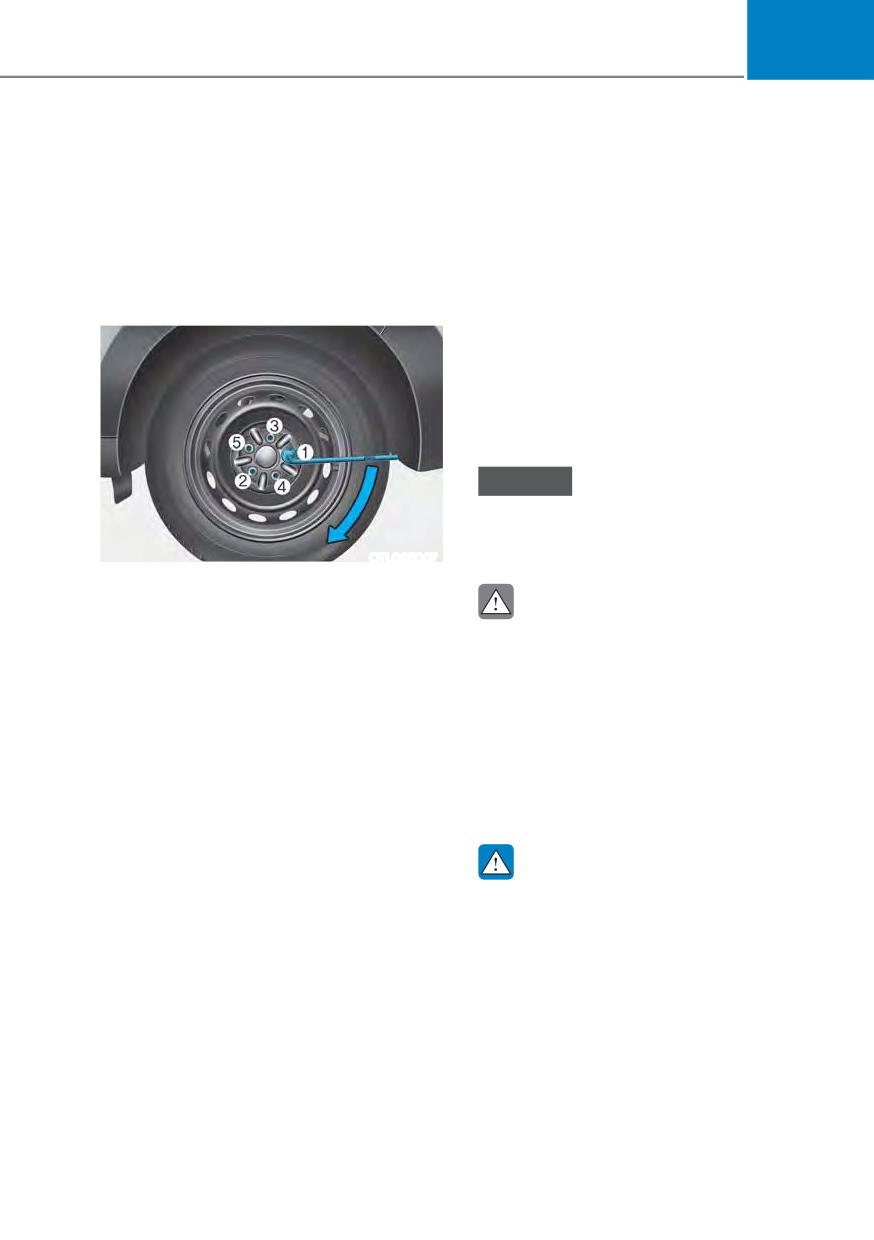

Changing Tires
8-16
Storing the Flat Tire
8-21
Jack Label
8-22
Towing
8-23
Towing Service
8-23
8
Emergency Situations
HAZARD WARNING
IN CASE OF AN EMERGENCY
FLASHER
WHILE DRIVING
If the Engine Stalls while Driving
ś Reduce your speed gradually, keeping
a straight line. Move cautiously off the
road to a safe place.
ś Turn on your hazard warning flasher.
ś Try to start the engine again. If your
vehicle will not start, contact an
authorized HYUNDAI dealer or seek
other qualified assistance.
ONX4080001
If the Engine Stalls at a Crossroad
The hazard warning flasher serves as
or Crossing
a warning to other drivers to exercise
extreme caution when approaching,
If the engine stalls at a crossroads or
overtaking, or passing your vehicle.
crossing, if safe to do so, shift the gear to
N (Neutral) and then push the vehicle to
It should be used whenever emergency
a safe location.
repairs are being made or when the
vehicle is stopped near the edge of a
roadway.

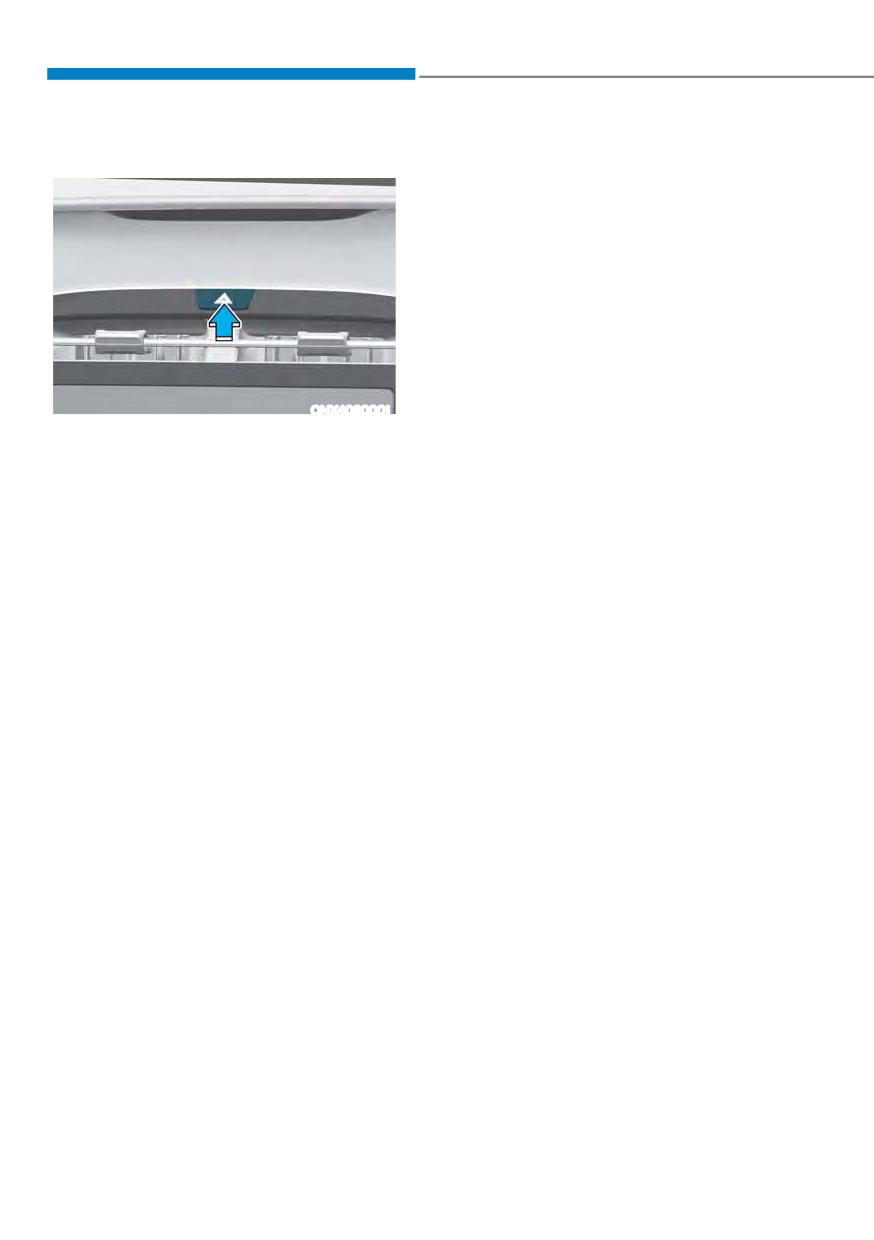

To turn the hazard warning flasher ON
or OFF, press the hazard warning flasher
button located on the dash.
Note that the ignition or the engine does
not have to be on in order to enable the
hazard warning flashers. The hazard
warning flasher button is located in the
center dash panel. All turn signal lights
will flash simultaneously.
ś The hazard warning flasher operates
regardless of whether your vehicle is
running or not.
ś The turn signals do not work when the
hazard flasher is on.
8-2
08
IF THE ENGINE WILL NOT
If you have a Flat Tire while
START
Driving
ś Be sure to shift the gear to N (Neutral)
If a tire goes flat while you are driving:
or P (Park). The engine starts only
when the gear is in N (Neutral) or P
ś
Take your foot off the accelerator
(Park).
pedal and let the vehicle slow down
while driving straight ahead. Do not
ś Turn on the interior light. If the light
apply the brakes immediately or
dims or goes out when you operate
attempt to pull off the road as this
the starter, the battery is drained.
may cause loss of vehicle control
See instructions for “Jump Starting”
resulting in an accident. When the
provided in this chapter.
vehicle has slowed to such a speed
ś Check the fuel level and add fuel if
that it is safe to do so, brake carefully
necessary.
and pull off the road. Drive off the
If the vehicle still does not start, call
road as far as possible and park on
an authorized HYUNDAI dealer for
firm, level ground. If you are on a
assistance.
divided highway, do not park in the
median area between the two traffic
lanes.
NOTICE
ś
When the vehicle is stopped, press the
Push or pull starting the vehicle may
hazard warning flasher button, shift
cause the catalytic converter to
the gear to P (Park), apply the parking
overload which can lead to damage to
brake, and press the Engine Start/Stop
the emission control system.
button to the OFF position or place
the ignition switch in the LOCK/OFF
position.
ś
Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.
ś
When changing a flat tire, follow the
instructions provided later in this
chapter.
8-3
Emergency Situations

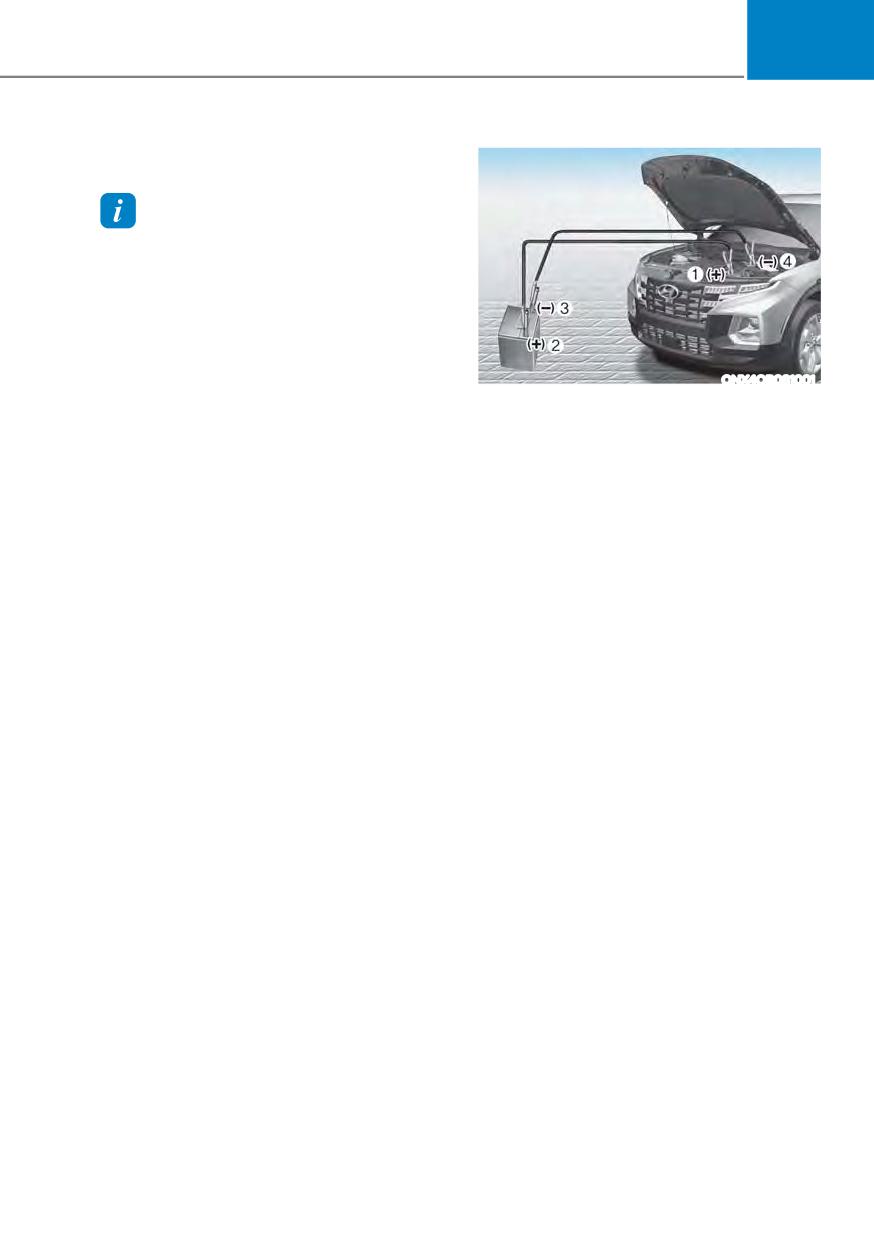

JUMP STARTING
Jump starting can be dangerous if done
If acid gets into your eyes, flush your
incorrectly. Follow the jump starting
eyes with clean water for at least 15
procedure in this section to avoid serious
minutes and get immediate medical
injury or damage to your vehicle. If in
attention. If acid gets on your skin,
doubt about how to properly jump start
thoroughly wash the area. If you feel
your vehicle, we strongly recommend
pain or a burning sensation, get medical
that you have a service technician or
attention immediately.
towing service do it for you.
ś When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
WARNING
battery carrier or with your hands on
To prevent SERIOUS INJURY or DEATH
opposite corners.
to you or bystanders, always follow
ś Do not attempt to jump start your
these precautions when working near
vehicle if your battery is frozen.
or handling the battery:
ś NEVER attempt to recharge the
Always read and follow
battery when the vehicle’s battery
instructions carefully when
cables are connected to the battery.
handling a battery.
ś The electrical ignition system works
with high voltage.
Wear eye protection designed
NEVER touch these components
to protect the eyes from acid
with the engine running or when the
splashes.
Engine Start/Stop button is in the ON
position or when the ignition switch
Keep all flames, sparks, or
is in the ON position.
smoking materials away from
the battery.
Hydrogen is always present
in battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
8-4
08
Jump starting procedure
Information

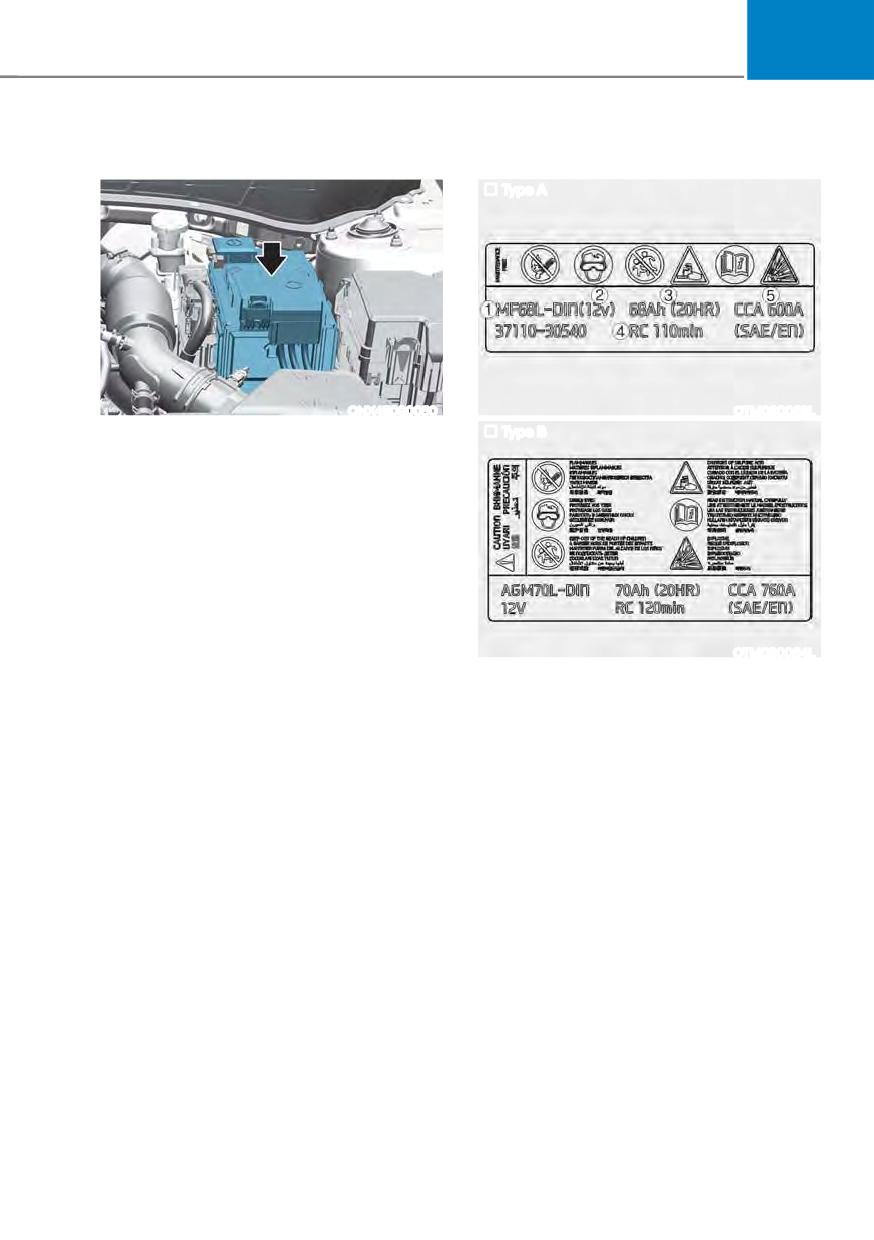

Your vehicle has a 12V maintenance free
battery located in the engine room. When
attempting to jump start your vehicle,
open the engine hood and follow the
procedures below.
1. Position the vehicles close enough
ONX4OB081001
that the jumper cables will reach, but
do not allow the vehicles to touch.
5. Connect the jumper cables in
the exact sequence shown in the
2. Avoid fans or any moving parts in the
illustration. First connect one jumper
engine compartment at all times, even
cable to the red, positive (+) jumper
when the vehicles are turned off.
terminal of your vehicle (1).
3. Turn off all electrical devices such as
radios, lights, air conditioning, etc.
6. Connect the other end of the jumper
cable to the red, positive (+) battery/
Put the vehicles in P (Park) and set the
jumper terminal of the assisting
parking brake. Turn both vehicles OFF.
vehicle (2).
4. Open the engine hood.
7. Connect the second jumper cable to
the black, negative (-) battery/ chassis
ground of the assisting vehicle (3).
8. Connect the other end of the second
jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
8-5
Emergency Situations
9. Start the engine of the assisting
Information
vehicle and let it run at approximately
2,000 RPM for a few minutes. Then
An inappropriately disposed
start your vehicle.
battery can be harmful to
the environment and human
10. Keep your vehicle operating for at
health. Dispose of the battery
least 30 minutes at idle or driving to
according to your local law(s) or
assure your battery receives enough
regulations.
charge to be able to start on its
own after the vehicle is shut off. A
completely discharged battery may
NOTICE
require as long as 60 minutes runtime
To prevent damage to your vehicle:
to fully recharge it. If the vehicle is run
ś Only use a 12-volt power supply
for less, the vehicle may not restart.
(battery or jumper system) to jump
If your vehicle will not start after a few
start your vehicle.
attempts, it probably requires service.
ś Do not attempt to jump start your
In this event please seek qualified
vehicle by push-starting.
assistance. If the cause of your battery
discharging is not apparent, have your
vehicle checked by an authorized
CAUTION
HYUNDAI dealer.
ś Do not store jumper cables in pickup
bed floor including underbed
Disconnect the jumper cables in the
storage.
exact reverse order you connected them:
ś Main latch release is electronic type.
1. Disconnect the jumper cable from the
It cannot easily be opened in the
black, negative (-) chassis ground of
case of a power failure.
your vehicle (4).
ś If you have a lot of cargo placed
2. Disconnect the other end of the
in the bed area, all cargo must be
jumper cable from the black, negative
removed to access underbed storage
(-) battery/chassis ground of the
and jumper cables.
assisting vehicle (3).
3. Disconnect the second jumper cable
from the red, positive (+) battery/
jumper terminal of the assisting
vehicle (2).
4. Disconnect the other end of the
jumper cable from the red, positive (+)
jumper terminal of your vehicle (1).
8-6
08
IF THE ENGINE OVERHEATS
If your temperature gauge indicates
4. Check for coolant leaking from the
overheating, you experience a loss of
radiator, hoses or under the vehicle. (If
power, or hear loud pinging or knocking,
the air conditioning had been in use, it
the engine may be overheating. If this
is normal for cold water to be draining
happens, you should:
from it when you stop.)
1. Pull off the road and stop as soon as it
5. If engine coolant is leaking out, stop
is safe to do so.
the engine immediately and call the
nearest authorized HYUNDAI dealer
2. Shift the gear to P (Park) and set the
for assistance.
parking brake. If the air conditioning is
ON, turn it OFF.
3. If engine coolant is running out under
WARNING
the vehicle or steam is coming out
Never remove the engine
from the hood, stop the engine. Do
coolant cap and/or water-
not open the hood until the coolant
cooled intercooler coolant
has stopped running or the steaming
cap or the drain plug while the
has stopped. If there is no visible
engine and radiator are hot.
loss of engine coolant and no steam,
leave the engine running and check
Hot coolant and steam may blow out
to be sure the engine cooling fan is
under pressure, causing serious injury.
operating. If the fan is not running,
Turn the engine off and wait until the
turn the engine off.
engine cools down. Use extreme care
when removing the coolant cap. Wrap
a thick towel around it, and turn it
WARNING
counterclockwise slowly to the first
While the engine is running,
stop. Step back while the pressure is
keep hands, clothing and tools
released from the cooling system. When
away from the moving parts
you are sure all the pressure has been
such as the cooling fan and
released, press down on the cap, using
drive belt to prevent serious
a thick towel, and continue turning
injury.
counterclockwise to remove it.
8-7
Emergency Situations
6. If you cannot find the cause of the
CAUTION
overheating, wait until the engine
temperature has returned to normal.
ś Serious loss of coolant indicates a
Then, if coolant has been lost,
leak in the cooling system and should
carefully add coolant to the reservoir
be checked as soon as possible by an
to bring the fluid level in the reservoir
authorized HYUNDAI dealer.
up to the halfway mark.
ś When the engine overheats from
7. Proceed with caution, keeping alert
low engine coolant, suddenly adding
for further signs of overheating. If
engine coolant may cause cracks
overheating happens again, call
in the engine. To prevent damage,
an authorized HYUNDAI dealer for
add engine coolant slowly in small
assistance.
quantities. It may require several
refilling cycles to properly fill the
engine cooling system. If necessary,
an authorized HYUNDAI dealer
should be consulted to perform this
task.
8-8
08
7,5( 35(6685( 021,725,1* 6<67(0 ǣ7306Ǥ
Check Tire Pressure
ONX4080004
ONX4OB081003
ś You can check the tire pressure in the
Warning mode on the cluster.
Refer to the “Cluster Display Modes”
in chapter 4.
ś Tire pressure is displayed after a few
minutes of driving after initial engine
start up.
ś If tire pressure is not displayed when
the vehicle is stopped, “Drive to
ONX4OB081002
display” message will appear. After
(1) Low Tire Pressure Telltale/TPMS
driving, check the tire pressure.
Malfunction Indicator
ś The displayed tire pressure values may
(2) Low Tire Pressure Warning Message
differ slightly from those measured
and Tire Pressure Display (Shown on
with a tire pressure gauge.
the cluster display)
ś You can change the tire pressure
measurement units in the User
Settings mode on the instrument
cluster.
- psi, kpa, bar (Refer to “View
Modes” in chapter 4).
8-9
Emergency Situations
Tire Pressure Monitoring System
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating
WARNING
properly. The TPMS malfunction
indicator is combined with the low
Over-inflation or under-inflation can
tire pressure telltale. When the system
reduce tire life, adversely affect vehicle
detects a malfunction, the telltale will
handling, and lead to sudden tire failure
flash for approximately one minute and
that may cause loss of vehicle control
then remain continuously illuminated.
resulting in an accident.
This sequence will continue upon
subsequent vehicle start-ups as long as
Each tire, including the spare (if
the malfunction exists.
provided), should be checked monthly
when cold and inflated to the inflation
When the malfunction indicator is
illuminated, the system may not be able
pressure recommended by the vehicle
manufacturer on the vehicle placard
to detect or signal low tire pressure as
telltale. TPMS malfunctions may occur
or tire inflation pressure label. (If your
vehicle has tires of a different size than
for a variety of reasons, including the
installation of replacement or alternate
the size indicated on the vehicle placard
or tire inflation pressure label, you should
tires or wheels on the vehicle that
prevent the TPMS from functioning
determine the proper tire inflation
pressure for those tires.)
properly.
Always check the TPMS malfunction
As an added safety feature, your
vehicle has been equipped with a tire
telltale after replacing one or more tires
or wheels on your vehicle to ensure that
pressure monitoring system (TPMS)
that illuminates a low tire pressure
the replacement or alternate tires and
wheels allow the TPMS to continue to
telltale when one or more of your tires is
significantly under-inflated. Accordingly,
function properly.
when the low tire pressure telltale
illuminates, you should stop and check
NOTICE
your tires as soon as possible, and inflate
If any of the below happens, have
them to the proper pressure. Driving on
the system checked by an authorized
a significantly under-inflated tire causes
HYUNDAI dealer.
the tire to overheat and can lead to tire
failure.
1. The Low Tire Pressure Telltale/ TPMS
Malfunction Indicator does not
Under-inflation also reduces fuel
illuminate for 3 seconds when the
efficiency and tire tread life, and may
ignition switch is placed to the ON
affect the vehicle’s handling and
position or engine is running.
stopping ability.
2. The TPMS Malfunction Indicator
Please note that the TPMS is not a
remains illuminated after blinking for
substitute for proper tire maintenance,
approximately 1 minute.
and it is the driver’s responsibility to
maintain correct tire pressure, even if
3. The Low Tire Pressure Position
under-inflation has not reached the level
Telltale remains illuminated.
to trigger illumination of the TPMS low
tire pressure telltale.
8-10
08
Low Tire Pressure
If you cannot reach a service station or
if the tire cannot hold the newly added
Warning Light
air, replace the low pressure tire with the
spare tire.
Low Tire Pressure Position and
The Low Tire Pressure Telltale will remain
Tire Pressure Display
on and the TPMS Malfunction Indicator
may blink for one minute and then
remain illuminated (when the vehicle
is driven approximately 10 minutes at
speed above 15.5 mph (25 km/h)) until
you have the low pressure tire repaired
and replaced on the vehicle.
CAUTION
In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if
the tire pressure was adjusted to the
ONX4OB081004
recommended tire inflation pressure
When the tire pressure monitoring
in warm weather. It does not mean
system warning indicators are
your TPMS is malfunctioning because
illuminated and a warning message
the decreased temperature leads to a
displayed on the cluster display, one
proportional lowering of tire pressure.
or more of your tires is significantly
When you drive your vehicle from a
under-inflated. The Low Tire Pressure
warm area to a cold area or from a cold
Position Telltale will indicate which
area to a warm area, or the outside
tire is significantly underinflated by
temperature is greatly higher or lower,
illuminating the corresponding position
you should check the tire inflation
light.
pressure and adjust the tires to the
If either telltale illuminates, immediately
recommended tire inflation pressure.
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
WARNING
your tires as soon as possible. Inflate the
Low pressure damage
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
Significantly low tire pressure makes
pressure label located on the driver’s
the vehicle unstable and can contribute
side center pillar outer panel.
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.
8-11
Emergency Situations
TPMS Malfunction
Changing a Tire with TPMS
Indicator
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
The TPMS Malfunction Indicator
on. Have the flat tire repaired by an
will illuminate after it blinks for
authorized HYUNDAI dealer as soon as
approximately one minute when there
possible or replace the flat tire with the
is a problem with the Tire Pressure
spare tire.
Monitoring System.
Have the system checked by an
NOTICE
authorized HYUNDAI dealer as soon as
It is recommended that you do not
possible.
use a puncture-repairing agent not
approved by HYUNDAI dealer or the
NOTICE
equivalent specified for your vehicle to
repair and/or inflate a low pressure tire.
If there is a malfunction with the TPMS,
Tire sealant not approved by HYUNDAI
the individual tire pressures in the
dealer or the equivalent specified for
cluster display will not be available.
your vehicle may damage the tire
Have the system checked by an
pressure sensor.
authorized HYUNDAI dealer as soon as
possible.
The spare tire (if equipped) does not
come with a tire pressure monitoring
NOTICE
sensor. When the low pressure tire or
The TPMS Malfunction Indicator may
the flat tire is replaced with the spare
illuminate after blinking for one minute
tire, the Low Tire Pressure Telltale will
if the vehicle is near electric power
remain on. Also, the TPMS Malfunction
supply cables or radio transmitters
Indicator will illuminate after blinking
such as police stations, government
for one minute if the vehicle is driven
and public offices, broadcasting
at speed above 15.5 mph (25 km/h) for
stations, military installations, airports,
approximately 10 minutes.
transmitting towers, etc.
Once the original wheel equipped with
Additionally, the TPMS Malfunction
a tire pressure monitoring sensor is
Indicator may illuminate if snow chains
reinflated to the recommended pressure
are used or electronic devices such as
and reinstalled on the vehicle, the
computers, chargers, remote starters,
Low Tire Pressure Telltale and TPMS
navigation, etc. This may interfere with
Malfunction Indicator will go off within a
normal operation of the TPMS.
few minutes of driving.
8-12
08
If the indicators do not extinguish after a
WARNING
few minutes, please visit an authorized
HYUNDAI dealer.
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
Each wheel is equipped with a tire
(TPMS) components may interfere
pressure sensor mounted inside the tire
with the system’s ability to warn the
behind the valve stem (except for the
driver of low tire pressure conditions
spare tire). You must use TPMS specific
and/or TPMS malfunctions. Tampering
wheels. It is recommended that you
with, modifying, or disabling the Tire
always have your tires serviced by an
Pressure Monitoring System (TPMS)
authorized HYUNDAI dealer.
components may void the warranty for
You may not be able to identify a tire
that portion of the vehicle.
with low pressure by simply looking at it.
Always use a good quality tire pressure
gauge to measure. Please note that a tire
Information
that is hot (from being driven) will have a
This device complies with Part 15 of the
higher pressure measurement than a tire
FCC rules.
that is cold.
Operation is subject to the following three
A cold tire means the vehicle has been
conditions:
sitting for 3 hours and driven for less
1. This device may not cause harmful
than 1 mile (1.6 km) in that 3 hour period.
interference.
Allow the tire to cool before measuring
2. This device must accept any
the inflation pressure. Always be sure
the tire is cold before inflating to the
interference received, including
interference that may cause undesired
recommended pressure.
operation.
3. Changes or modifications not expressly
WARNING
approved by the party responsible
ś The TPMS cannot alert you to severe
for compliance could void the user’s
and sudden tire damage caused by
authority to operate the equipment.
external factors such as nails or road
debris.
ś If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
8-13
Emergency Situations
IF YOU HAVE A FLAT TIRE
WARNING
Jack and Tools
Changing a tire can be dangerous.
Follow the instructions in this section
when changing a tire to reduce the risk
of serious injury or death.
WARNING
Driving on a flat tire will cause
permanent damage to the tire. Re-
inflating a tire after it has been driven
on while severely underinflated or flat
ONX4OB081005
may cause a blowout and a serious
crash. Never attempt to re-inflate a tire
(1) Jack handle
that has been driven on while severely
(2) Jack
underinflated or flat. In this case,
(3) Wheel nut wrench
repair or replace the flat tire as soon as
possible.
(4) Socket
The jack and wheel lug wrench are stored
in storage box under the right rear seat.
CAUTION
The jack and tools for changing the
Be careful as you use the jack handle to
spare tire are located in a foam storage
stay clear of the flat end. The flat end
container located underneath the right
has sharp edges that could cause cuts.
rear seat inside the vehicle.
The jack and the tools provided are
to assist you in changing a spare tire
only. To prevent the jack and the tools
from rattling around when driving
your vehicle, always be sure to store it
properly.
Follow the instructions in this manual
and use extreme caution when changing
a tire in order to reduce the possibility of
personal injury.
Jacking instructions
The jack is provided for emergency tire
changing only.
ś To prevent the jack from rattling
while the vehicle is in motion, store it
properly.
ś Follow jacking instructions to reduce
the possibility of personal injury.
8-14
08
Removing and Storing the Spare
Tire
Your spare tire is stored underneath your
vehicle, below the pickup bed area.
To remove the spare tire:
ONX4OB081008
2. Connect the socket and wheel nut
wrench.
3. Use the wheel nut wrench to loosen
the bolt enough to lower the spare
tire.
Turn the wrench counterclockwise
ONX4OB081007
until the spare tire reaches the
ground.
1. To easily remove the spare tire cap,
insert a coin or a flathead driver and
turn counterclockwise as engraved on
the cap.
ONX4OB081009
4. After the spare tire reaches the
ground, continue to turn the wrench
counterclockwise, and draw the spare
tire outside. Never rotate the wrench
excessively, otherwise the spare tire
carrier may be damaged.
5. Remove the retainer (1) from the
center of the spare tire.
8-15
Emergency Situations
To store the spare tire :
Changing Tires
WARNING
A vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby. Take the following safety
precautions:
ś Do not get under a vehicle that is
supported by a jack.
ś NEVER attempt to change a tire in
the lane of traffic. ALWAYS move the
ONX4OB081010
vehicle completely off the road on
1. Lay the tire on the ground with the
level, firm ground away from traffic
valve stem facing up.
before trying to change a tire. If you
2. Place the wheel under the vehicle
cannot find a level, firm place off
and install the retainer (1) through the
the road, call a towing service for
wheel center.
assistance.
3. Turn the wrench clockwise until it
ś Be sure to use the jack provided with
clicks.
the vehicle.
ś ALWAYS place the jack on the
designated jacking positions on the
WARNING
vehicle and NEVER on the bumpers
Ensure the spare tire retainer is properly
or any other part of the vehicle for
aligned with the center of the spare tire
jacking support.
to prevent the spare tire from rattling.
ś Do not start or run the engine while
Otherwise, it may cause the spare tire
the vehicle is on the jack.
to fall off the carrier and lead to an
ś Do not allow anyone to remain in the
accident.
vehicle while it is on the jack.
ś Keep children away from the road
and the vehicle.
8-16
08
Follow these steps to change your
WARNING
vehicle’s tire:
Tire jack
1. Park on a level, firm surface.
Do not place any portion of your body
2. Shift the gear to P (Park), apply the
under a vehicle that is only supported
parking brake, and press the Engine
by a jack since the vehicle can easily roll
Start/Stop button to the OFF position
off the jack. Use vehicle support stands.
or place the ignition switch in the
LOCK/OFF position.
WARNING
3. Press the hazard warning flasher
button.
Running vehicle on jack
4. Remove the wheel lug wrench, jack,
ś Do not start or run the engine of the
jack handle, and spare tire from the
vehicle while the vehicle is on the
vehicle.
jack as this may cause the vehicle to
fall off the jack.
ś To prevent the jack from rattling
while the vehicle IS in motion, store
it properly.
NOTICE
Retreaded tires
Possibly substantial variations in
the design and age of the tire casing
structures can limit service life and
have a negative impact on road safety.
ONX4OB081011
[A] : Block
5. Block both the front and rear of the
tire diagonally opposite of the tire you
are changing.
8-17
Emergency Situations
ONX4OB081012
ONX4OB081014
6. Loosen the wheel nuts
8. Insert the jack handle into the jack
counterclockwise one turn each in
and turn it clockwise, raising the
the order shown above, but do not
vehicle until the tire just clears
remove any wheel nuts until the tire
the ground. This measurement is
has been raised off of the ground.
approximately 1.2 inches (30 mm).
Before removing the wheellug nuts,
make sure the vehicle is stable and
that there is no chance for movement
or slippage.
9. Loosen the lug nuts with the wheel
lug nut wrench and remove them with
your fingers. Remove the wheel from
the studs and lay it flat on the ground
out of the way. Remove any dirt or
debris from the studs, mounting
surfaces and wheel.
ONX4OB081024
WARNING
Wheels may have sharp edges. Handle
them carefully to avoid possible severe
injury. Before putting the wheel into
place, be sure that there is nothing on
the hub or wheel (such as mud, tar,
gravel, etc.) that interferes with the
wheel from fitting solidly against the
hub.
If there is, remove it. If there is not
ONX4OB081013
good contact on the mounting surface
between the wheel and hub, the wheel
7. Place the jack at the designated
nuts could come loose and cause the
jacking position under the frame
loss of a wheel. Loss of a wheel may
closest to the tire you are changing.
result in loss of control of the vehicle.
The jacking positions are plates
This may cause serious injury or death.
welded to the frame with two
notches. Never jack at any other
position or part of the vehicle. Doing
so may damage the side seal molding
or other parts of the vehicle.
8-18
08
10. Install the spare tire onto the studs of
If you have a tire gauge, check the
the hub.
tire pressure (see “Tires and Wheels”
section in chapter 2 for tire pressure
11. Tighten the lug nuts with your fingers
instructions.). If the pressure is lower or
onto the studs with the smaller end of
higher than recommended, drive slowly
the lug nuts closest to the wheel.
to the nearest service station and adjust
12. Lower the vehicle to the ground
it to the recommended pressure. Always
by turning the jack handle
reinstall the valve cap after checking
counterclockwise.
or adjusting tire pressure. If the cap
is not replaced, air may leak from the
tire. If you lose a valve cap, buy another
and install it as soon as possible. After
changing tires, secure the flat tire and
return the jack and tools to their proper
storage locations.
NOTICE
Check the tire pressure as soon as
possible after installing a spare tire.
OTL065007
Adjust it to the recommended pressure.
13. Use the wheel lug wrench to tighten
the wheel nuts in the order shown.
CAUTION
Double-check each wheel nuts until
Your vehicle has metric threads on the
they are tight. After changing tires,
studs and wheel nuts. Make certain
have an authorized HYUNDAI dealer
during tire changing that the same nuts
tighten the wheel nuts to their proper
that were removed are reinstalled. If
torque as soon as possible. The wheel
you have to replace your wheel nuts
nuts should be tightened to 79~94
make sure they have metric threads to
lbf.ft (11~13 kgf.m).
avoid damaging the studs and ensure
the wheel is properly secured to the
hub. Consult an authorized HYUNDAI
dealer for assistance.
WARNING
Wheel studs
If the studs are damaged, they may lose
their ability to retain the wheel. This
could lead to the loss of the wheel and a
collision resulting in serious injuries.
If any of the equipment such as the jack,
wheel nuts, studs, or other equipment
is damaged or in poor condition, do not
attempt to change the tire and call for
assistance.
8-19
Emergency Situations
Use of compact spare tires
ś Do not use more than one compact
spare tire at a time.
Compact spare tires are designed for
emergency use only. Drive carefully on
ś Do not tow a trailer while the compact
the compact spare tire and always follow
spare tire is installed.
the safety precautions.
Information
WARNING
When the original tire and wheel are
To prevent compact spare tire failure
repaired and reinstalled on the vehicle, the
and loss of control possibly resulting in
wheel nuts torque must be set correctly.
an accident:
The correct wheel nuts tightening torque
is 79~94 lbf.ft (11~13 kgf.m).
ś Use the compact spare tire only in an
emergency.
ś NEVER operate your vehicle over 50
NOTICE
mph (80 km/h).
To prevent damaging the compact
ś Do not exceed the vehicle’s
spare tire and your vehicle:
maximum load rating or the load
ś
Drive slowly enough for the road
carrying capacity shown on the
conditions to avoid all hazards, such
sidewall of the compact spare tire.
as a potholes or debris.
ś Do not use the compact spare tire
ś
Avoid driving over obstacles. The
continuously. Repair or replace the
compact spare tire diameter is
original tire as soon as possible to
smaller than the diameter of a
avoid failure of the compact spare
conventional tire and reduces the
tire.
ground clearance approximately 1
inch (25 mm).
When driving with the compact spare tire
ś
Do not use tire chains on the
mounted to your vehicle:
compact spare tire. Because of the
ś Check the tire pressure after installing
smaller size, a tire chain will not fit
the compact spare tire. The compact
properly.
spare tire should be inflated to 60 psi
ś
Do not use the compact spare tire
(420 kPa).
on any other wheels, nor should
ś Do not take this vehicle through
standard tires, snow tires, wheel
an automatic car wash while the
covers or trim rings be used with the
compact spare tire is installed.
compact spare wheel.
ś Do not use the compact spare tire on
any other vehicle because this tire
has been designed especially for your
vehicle.
ś The compact spare tire’s tread life is
shorter than a regular tire. Inspect
your compact spare tire regularly and
replace worn compact spare tires with
the same size and design, mounted on
the same wheel.
8-20
08
Storing the Flat Tire
The full size flat tire should be stored
and fixed in the vehicle until you reach
a service station.
Information
Do not store the flat tire on the spare
tire carrier underneath your vehicle.
ONX4OB081026
4. Pull the strap (1) to tighten the strap
firmly.
5. Try moving the flat tire to see if it is
properly secured.
CAUTION
Never leave the flat tire unfixed in the
vehicle. An unsecured flat tire may
ONX4OB081025
cause damage to the vehicle when the
1. Take out the strap which is stored in
vehicle makes sharp turns, suddenly
the storage box under the right rear
stops, or is in an accident.
seat. Connect the two straps with the
buckle, if necessary, before using the
strap to fix the flat tire.
2. Place the flat tire on the floor of the
bed area.
3. Pass one end of the strap through the
wheel center and connect both strap
hooks to each D-rings (A-A’ or B-B’).
8-21
Emergency Situations
Jack Label
OOS067043
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack must be vertical under the
lifting point.
8. Shift the gear to the P position on vehicles with automatic transmission.
9. The jack should be used on firm level ground.
10. Jack manufacture
11. Production date
12. Representative company and address
8-22
08
TOWING
Towing Service
If any of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the rear wheels on
the ground, use a towing dolly under the
rear wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
For AWD vehicles, it must be towed
with a wheel lift and dollies or flatbed
A
equipment with all the wheels off the
ONX4OB081016
ground.
[A] : Dollies
If emergency towing is necessary, have it
NOTICE
done by an authorized HYUNDAI dealer
Do not lift the vehicle by the tow fitting
or a commercial tow-truck service.
or body and chassis parts. Otherwise
Proper lifting and towing procedures
the vehicle may be damaged.
are necessary to prevent damage to
the vehicle. The use of wheel dollies or
CAUTION
flatbed is recommended.
For FWD vehicles, it is acceptable to tow
ś Do not tow the vehicle with the front
wheels on the ground as this may
the vehicle using a tow truck as long as
the front wheels (which are the drive
cause damage to the vehicle.
wheels) are off the ground. The rear
wheels can be on the ground without the
use of dollies.
For AWD vehicles, all wheels must be off
the ground. Therefore, a flat bed trailer is
recommended.
ONX4OB081017
ś Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
ONX4OB081018
8-23
Emergency Situations
When towing your vehicle in an
emergency without wheel dollies:
1. Release EPB before turning off the
engine.
2. Place the ignition switch to the OFF
position.
3. Change the gear to N (Neutral) while
pressing the brake pedal.
4. Place the ignition switch to the ACC
position.
CAUTION
Failure to shift the gear to N (Neutral)
may cause internal damage to the
transmission.
8-24
9.Maintenance
Engine Compartment
9-3
Maintenance Services
9-4
Owner’s Responsibility
9-4
Owner Maintenance Precautions
9-4
Owner Maintenance
9-5
Owner Maintenance Schedule
9-6
Scheduled Maintenance Services
9-7
Normal Maintenance Schedule
9-9
Maintenance Under Severe Usage Conditions
9-13
Explanation of Scheduled Maintenance Items
9-15
Engine Oil
9-18
Checking the Engine Oil Level
9-18
Checking the Engine Oil and Filter
9-19
Engine Coolant
9-21
Checking the Coolant Level
9-21
Changing Coolant
9-23
Brake Fluid
9-24
Checking the Brake Fluid Level
9-24
Washer Fluid
9-25
Checking the Washer Fluid Level
9-25
Air Cleaner
9-26
Filter Replacement
9-26
Cabin Air Filter
9-28
Filter Inspection
9-28
Filter Replacement
9-28
Wiper Blades
9-29
Blade Inspection
9-29
Blade Replacement
9-29
Battery
9-32
For Best Battery Service
9-33
Battery Capacity Label
9-33
Battery Recharging
9-34
9
Reset Items
9-35
Tires and Wheels
9-36
Tire Care
9-36
Recommended Cold Tire Inflation Pressures
9-36
Check Tire Inflation Pressure
9-37
Tire Rotation
9-38
Wheel Alignment and Tire Balance
9-39
Tire Replacement
9-39
Wheel Replacement
9-40
Tire Traction
9-40
Tire Maintenance
9-40
Tire Sidewall Labeling
9-41
Tire Terminology and Definitions
9-44
All Season Tires
9-47
Summer Tires
9-47
Low Aspect Ratio Tires
9-48
Fuses
9-49
Instrument Panel Fuse Replacement
9-50
Engine Compartment Panel Fuse Replacement
9-51
Fuse/Relay Panel Description
9-52
Light Bulbs
9-58
Headlight, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement
9-59
Side Repeater Lamp Replacement
9-60
Rear Combination Lamp Replacement
9-60
High Mounted Stop Lamp and Top Mounted Bed Lamp /
Side Mounted Bed Lamp Replacement
9-62
License Plate Lamp Replacement
9-63
Interior light replacement
9-63
Tonneau Cover
9-65
Tonneau Cover Maintenance
9-65
Cleaning the Canister
9-65
Tonneau Cover Spring Adjustment
9-66
Appearance Care
9-67
Exterior Care
9-67
Interior Care
9-72
9
Emission Control System
9-76
Crankcase Emission Control System
9-76
Evaporative Emission Control System
9-76
Exhaust Emission Control System
9-77
California Perchlorate Notice
9-79
09
ENGINE COMPARTMENT
„ Smartstream G2.5 GDI
„ Smartstream G2.5 T-GDI
The actual engine compartment in the vehicle may differ from the illustration.
ONX4OB091016/ONX4OB091001
1. Engine coolant reservoir
5. Engine oil filler cap (2.5 T-GDI’s filler
cap is under the engine cover)
2. Brake fluid reservoir
6. Windshield washer fluid reservoir
3. Air cleaner
4. Engine oil dipstick
7. Fuse box
8. Battery
9-3
Maintenance
MAINTENANCE SERVICES
You should exercise the utmost care
Owner Maintenance Precautions
to prevent damage to your vehicle and
Inadequate, incomplete or insufficient
injury to yourself whenever performing
servicing may result in operational
any maintenance or inspection
problems with your vehicle that could
procedures.
lead to vehicle damage, an accident, or
Have your vehicle maintained and
personal injury. This chapter provides
repaired by an authorized HYUNDAI
instructions only for the maintenance
dealer. An authorized HYUNDAI dealer
items that are easy to perform.
meets HYUNDAI’s high service quality
Your vehicle should not be modified
standards and receives technical support
in any way. Such modifications may
from HYUNDAI in order to provide you
adversely affect the performance, safety
with a high level of service satisfaction.
or durability of your vehicle and may, in
addition, violate conditions of the limited
Owner’s Responsibility
warranties covering the vehicle.
Maintenance service and record
retention are the owner’s responsibility.
NOTICE
You should retain documents that show
Improper owner maintenance during
proper maintenance has been performed
the warranty period may affect
on your vehicle in accordance with
warranty coverage. For details, read
the scheduled maintenance service
the separate Service Passport provided
charts shown on the following pages.
with the vehicle. If you’re unsure
You need this information to establish
about any servicing or maintenance
your compliance with the servicing
procedure, have it done by an
and maintenance requirements of your
authorized HYUNDAI dealer.
vehicle warranties.
Detailed warranty information is
provided in your Owner’s Handbook &
Warranty Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
9-4
09
OWNER MAINTENANCE
The following lists are vehicle checks and
WARNING
inspections that should be performed
Performing maintenance work on a
by the owner or an authorized HYUNDAI
vehicle can be dangerous. If you lack
dealer at the frequencies indicated to
sufficient knowledge and experience
help ensure safe, dependable operation
or the proper tools and equipment
of your vehicle.
to do the work, have it done by an
Any adverse conditions should be
authorized HYUNDAI dealer. ALWAYS
brought to the attention of your dealer as
follow these precautions for performing
soon as possible.
maintenance work:
These Owner Maintenance vehicle
ś Park your vehicle on level ground.
checks are generally not covered by
Shift the vehicle to P (Park), apply the
warranties and you may be charged for
parking brake, and place the ignition
labor, parts and lubricants used.
switch in the OFF position.
ś Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.
ś If you must run the engine during
maintenance, do so in an outdoor
area or in an area with plenty of
ventilation.
ś Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts (including
strut bars) while the engine is operating
or hot. Doing so could result in serious
personal injury. Turn the engine off and
wait until the metal parts cool down
to perform maintenance work on the
vehicle.
9-5
Maintenance
Owner Maintenance Schedule
At least monthly:
When you stop for fuel:
ś Check coolant level in the engine
coolant reservoir.
ś Check the coolant level in the engine
coolant reservoir.
ś Check the operation of all exterior
lights, including the stoplights, turn
ś Check the windshield washer fluid
signals and hazard warning flashers.
level.
ś Check the inflation pressures of all
ś Check for low or under-inflated tires.
tires including the spare for tires that
are worn, show uneven wear, or are
WARNING
damaged.
Be careful when checking your coolant
ś Check for loose wheel lug nuts.
level if the engine is hot. This may
result in coolant being blown out of the
At least twice a year:
opening and cause serious burns and
ś Check radiator, heater and air
other injuries.
conditioning hoses for leaks or
damage.
While operating your vehicle:
ś Check windshield washer spray and
ś Note any changes in the sound of the
wiper operation. Clean wiper blades
exhaust or any smell of exhaust fumes
with a clean cloth dampened with
in the vehicle.
washer fluid.
ś Check for vibrations in the steering
ś Check headlight alignment.
wheel. Notice if there is any increased
ś Check muffler, exhaust pipes, shields
steering effort or looseness in the
and clamps.
steering wheel, or change in its
straight-ahead position.
ś Check the seat belts for wear and
function.
ś Notice if your vehicle constantly turns
slightly or “pulls” to one side when
At least once a year:
traveling on smooth, level road.
ś Clean body and door drain holes.
ś When stopping, listen and check for
unusual sounds, pulling to one side,
ś Lubricate door hinges and hood
increased brake pedal travel or “hard-
hinges.
to-push” brake pedal.
ś Lubricate door and hood locks and
ś Check the automatic transmission
latches.
or dual clutch transmission P (Park)
ś Lubricate door rubber weather strips.
function.
ś Check the air conditioning system.
ś Check the parking brake.
ś Inspect and lubricate automatic
ś Check for fluid leaks under your
transmission linkage and controls.
vehicle (water dripping from the air
ś Clean the battery and terminals.
conditioning system during or after
use is normal).
ś Check the brake fluid level.
9-6
09
SCHEDULED MAINTENANCE SERVICES
Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.
ś Repeated driving short distance of less than 5 miles (8 km) in normal temperature or
less than 10 miles (16 km) in freezing temperature
ś Extensive engine idling or low speed driving for long distances
ś Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
ś Driving in areas using salt or other corrosive materials or in very cold weather
ś Driving in heavy dust conditions
ś Driving in heavy traffic area
ś Driving on uphill, downhill, or mountain road
ś Using for towing or camping, and driving with loading on the roof
ś Driving as a patrol car, taxi, other commercial use of vehicle towing
ś Frequently driving under high speed or rapid acceleration/deceleration
ś Frequently driving in stop-and-go condition
ś Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After the
periods or distance shown in the chart, continue to follow the prescribed maintenance
intervals.
Information
After driving more than 10 years or 100,000 miles, use severe maintenance schedule.
9-7
Maintenance
Information
ś It is normal for engine oil to be consumed during driving. The engine oil level should
be checked on regular basis.
ś The engine oil change interval for normal operating conditions is based on the use
of the recommended engine specification in chapter 2. If the recommended engine
oil specification is not used, then replace the engine oil according to the maintenance
schedule under severe operating conditions.
ś The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
style, the remaining oil life alert will appear on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by
an authorized HYUNDAI dealer. Oil Life Management System works when the
recommended engine oil is used.
- If the recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage conditions. Also, check the engine oil level
regularly as this system assumes that the engine oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Oil Change Reminder, select ‘RESET’ from
the instrument cluster or infotainment system screen. Then, select ‘Yes’ when the
message “Has the engine oil been changed? Press [Yes] to reset the oil life.” appears
on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.
9-8
09
9-9
Maintenance
9-10
09
9-11
Maintenance
9-12
09
Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance
Driving
Maintenance item
Maintenance intervals
operation
condition
Engine oil and engine oil
Replace every 5,000 miles
R
D, H, I, L
filter*1
(8,000 km) or 6 months
Replace more frequently
Air cleaner filter
R
depending on the
C, E
condition
Replace more frequently
A, B, F, G, H,
Spark plugs
R
depending on the
I, K
condition
Steering gear box, linkage &
Inspect more frequently
C, D, E, F, G,
boots / lower arm ball joint,
I
depending on the
H, I
upper arm ball joint
condition
Inspect more frequently
Disc brakes and pads, calipers
C, D, G, H,
I
depending on the
and rotors
J, K
condition
*1 : Requires <API SN PLUS(or above) Full synthetic> grade engine oil. if a lower grade engine
oil(mineral oil including Semi-synthetic) is used, then the engine oil and engine oil filter
must be replaced as indicated severe maintenance condition.
NOTICE
After 10 years or 100,000 miles, use severe maintenance schedule.
9-13
Maintenance
Maintenance
Maintenance
Driving
Maintenance item
operation
intervals
condition
Inspect more
Parking brake (if equipped)
I
frequently depending
C, D, G, H
on the condition
Replace more
Climate control air filter
R
frequently depending
C, E
(for evaporator and blower unit)
on the condition
Dual clutch transmission fluid
Replace every 56,000
A, C, D, E, F,
R
(if equipped)
miles (91,000 km)
G, H, I, J, K
Replace every 72,000
C, D, E, G,
Rear differential oil (AWD)
R
miles (120,000 km)
H, I, J
Replace every 72,000
C, D, E, G,
Transfer case oil (AWD)
R
miles (120,000 km)
H, I, J
Inspect more
C, D, E, F,
Drive shaft
I
frequently depending
G, H, I, J
on the condition
Inspect more
C, D, E, F,
Propeller shaft
I
frequently depending
G, H, I, J
on the condition
Severe driving conditions
A. Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature
B. Extensive engine idling or low speed driving for long distances
C. Driving on rough, dusty, muddy, unpaved, graveled or saltspread roads
D. Driving in areas using salt or other corrosive materials or in very cold weather
E. Driving in heavy dust conditions
F. Driving in heavy traffic area
G. Driving on uphill, downhill, or mountain roads
H. Using for towing or camping, and driving with loading on the roof
I. Driving for patrol car, taxi, commercial car or vehicle towing
J. Frequently driving under high speed or rapid acceleration/deceleration
K. Frequently driving in stop-and-go conditions
L. Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
9-14
09
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
Engine Oil and Filter
Fuel Lines, Fuel Hoses and
The engine oil and filter should be
Connections
changed at the intervals specified in the
Check the fuel lines, fuel hoses and
maintenance schedule. If the vehicle
connections for leakage and damage.
is being driven in severe conditions,
Have an authorized HYUNDAI dealer
more frequent oil and filter changes are
replace any damaged or leaking parts
required.
immediately.
Drive Belts
Fuel Filter
Inspect all drive belts for evidence
The fuel filter is considered to be
of cuts, cracks, excessive wear or oil
maintenance free but periodic inspection
saturation and replace if necessary.
is recommended for this maintenance
Drive belts should be checked
depends on fuel quality. If there are
periodically for proper tension and
some important matters like fuel flow
adjusted as necessary.
restriction, surging, loss of power, hard
starting problem etc., replace the fuel
filter immediately. Consult an authorized
Information
HYUNDAI dealer for details.
When you are inspecting the belt, turn the
engine off.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Your
HYUNDAI dealer will help to determine if
replacement is needed.
Vacuum Crankcase Ventilation
Hoses
Inspect the surface of hoses for evidence
of heat and/or mechanical damage.
Hard and brittle rubber, cracking,
tears, cuts, abrasions, and excessive
swelling indicate deterioration. Particular
attention should be paid to examine
those hose surfaces nearest to high heat
sources, such as the exhaust manifold.
Inspect the hose routing to ensure that
the hoses do not come in contact with
any heat source, sharp edges or moving
component which might cause heat
damage or mechanical wear. Inspect
all hose connections, such as clamps
and couplings, to make sure they are
secure, and that no leaks are present.
Hoses should be replaced immediately if
there is any evidence of deterioration or
damage.
9-15
Maintenance
Air Cleaner Filter
Automatic Transmission Fluid
Have the air cleaner filter replaced by an
The automatic transmission fluid level
authorized HYUNDAI dealer.
does not need to be checked under
normal usage conditions.
Spark Plugs
Have the automatic transmission fluid
Make sure to install new spark plugs of
changed by an authorized HYUNDAI
the correct heat range.
dealer according to the maintenance
schedule.
When installing new spark plugs, be sure
that the ignition coils are clean and free
of any oil or debris. Clean and wipe off
Information
the bottom portion of the ignition coil in
Automatic transmission fluid color is red
order to prevent any contamination with
when new.
the spark plug during installation.
As the vehicle is driven, the automatic
transmission fluid will begin to look
WARNING
darker.
Do not remove spark plugs from the
This is a normal condition. It does not
vehicle when the engine is hot. You
need to be replaced based on the color
may damage the engine and may also
change.
risk burn injury.
NOTICE
Cooling System
The use of a non-specified fluid could
Check cooling system components, such
result in transmission malfunction and
as radiator, coolant reservoir, hoses and
failure.
connections for leakage and damage.
Replace any damaged parts.
Use only specified automatic
transmission fluid. (Refer to
“Recommended Lubricants and
Engine Coolant
Capacities” section in chapter 2.)
The coolant should be changed at the
intervals specified in the maintenance
Dual clutch transmission fluid
schedule.
(if equipped)
Inspect the dual clutch transmission fluid
according to the maintenance schedule.
9-16
09
Brake Hoses and Lines
Drive Shaft and Related
Visually check for proper installation,
Check the drive shaft, boots, clamps,
chafing, cracks, deterioration and any
rubber couplings and center-bearing
leakage. Replace any deteriorated or
rubber for cracks, deterioration, or
damaged parts immediately.
damage. Replace any damaged parts
and if necessary, repack the grease.
Brake Fluid
Suspension Mounting Bolts
Check the brake fluid level in the brake
fluid reservoir. The level should be
Check the suspension connections for
between the MIN and the MAX marks
looseness or damage. Retighten to the
on the side of the reservoir. Use only
specified torque.
hydraulic brake fluid conforming to DOT
4 specification.
Steering Gear Box, Linkage &
Boots/Lower Arm Ball Joint
Parking Brake
With the vehicle stopped and the engine
Inspect the parking brake system
off, check for excessive free-play in the
including the parking brake button and
steering wheel. Check the linkage for
cables.
bends or damage. Check the dust boots
and ball joints for deterioration, cracks,
Brake Discs, Pads, Calipers and
or damage.
Rotors
Replace any damaged parts.
Check the pads, the discs and the rotors
for any excessive wear-out. Inspect
Air Conditioning Refrigerant
calipers for any fluid leakage.
Check the air conditioning lines and
For more information on checking the
connections for leakage and damage.
pads or lining wear limit, refer to the
HYUNDAI web site.
9-17
Maintenance
ENGINE OIL
Checking the Engine Oil Level
„ Smartstream G2.5 GDI
Engine oil is used for lubricating,
cooling, and operating various hydraulic
components in the engine. Engine oil
consumption while driving is normal,
and it is necessary to check and refill the
engine oil regularly. Also, check and refill
the oil level within the recommended
maintenance schedule to prevent
deterioration of oil performance.
ODN8A080107
Check the engine oil following the below
„ Smartstream G2.5 T-GDI
procedure.
Gasoline engine
1. Follow all of the oil manufacturer’s
precautions.
2. Be sure the vehicle is on the level
ground in P (Park) with the parking
brake set and the wheels blocked.
3. Turn the engine on and warm
the engine up until the coolant
ONX4OB091017
temperature reaches a constant
6. Pull the dipstick out again and check
normal temperature.
the level. The level should be between
4. Turn the engine off, remove the oil
F (Full) and L (Low).
filler cap and pull the dipstick out.
Wait for 15 minutes for the oil to return
to the oil pan.
5. Wipe the dipstick clean and re-insert
it fully.
9-18
09
„ Smartstream G2.5 GDI
Checking the Engine Oil and
Filter
ONX4E090059
„ Smartstream G2.5 T-GDI
OCN7092026
ś
The lubrication, rust prevention,
cooling, and cleaning effect of the
engine oil will gradually degrade
during its use. Have the engine oil
and filter changed by an authorized
HYUNDAI dealer according to the Oil
Life Management System instructions
or the Maintenance Schedule at the
beginning of this chapter.
ONX4OB091018
ś
If the maintenance schedule to
7. If the oil level is below the L, add
replace engine oil is exceeded,
enough oil to bring the level to F.
the engine oil performance may
deteriorate, and the engine condition
Use only the specified engine oil (Refer
may be affected. Therefore, replace
to “Recommended Lubricants and
the engine oil according to the
Capacities” section in chapter 2).
maintenance schedule.
ś
To keep the engine in optimal
NOTICE
condition, use the recommended
To prevent damage to your engine:
engine oil and filter. If the
recommended engine oil and filter are
ś Do not spill engine oil when adding
not used, replace it according to the
or changing engine oil. Wipe off
maintenance schedule under severe
spilled oil immediately.
usage conditions.
ś The engine oil consumption may
ś
The purpose of the maintenance
increase while you break in a new
schedule for engine oil replacement
vehicle and it will be stabilized after
is to prevent oil deterioration and it is
driving 4,000 miles (6,000 km).
irrelevant to oil consumption. Check
ś The engine oil consumption can be
and refill engine oil regularly.
affected by driving habits, climate
conditions, traffic conditions,
oil quality, etc. Therefore, it is
recommended that you inspect the
engine oil level regularly and refill it
if necessary.
9-19
Maintenance
NOTICE
Information
Never add any additives to the engine
When the oil pressure is low due to
oil. Engine oil additives can change the
insufficient engine oil, the Engine
properties of engine oil and may cause
Oil Pressure (
) warning light will
serious engine failure.
illuminate. In addition, the enhanced
engine protection system, which limits
the engine’s power is activated and the
Malfunction Indicator Lamp (
) will
illuminate when the vehicle is driven in
this state continuously. When oil pressure
is restored, the Engine Oil Pressure
warning light will turn off and the engine
power will no longer be limited.
However, for gasoline 2.5 GDI engine and
2.5 turbo engine, when the oil pressure
is restored, the warning light and the
enhanced engine protection system will
turn off after the engine is restarted.
CAUTION
The engine oil is very hot immediately
after the vehicle has been driven and
can cause burns during replacement.
Replace the engine oil after the engine
oil has cooled down.
WARNING
CALIFORNIA PROPOSITION 65
WARNING
Engine oil contains chemicals known to
the State of California to cause cancer,
birth defects and reproductive harm.
Used engine oil may cause irritation or
cancer of the skin if left in contact with
the skin for prolonged periods of time.
Always protect your skin by washing
your hands thoroughly with soap and
warm water as soon as possible after
handling used oil.
9-20
09
ENGINE COOLANT
The high-pressure cooling system has a
WARNING
reservoir filled with year-round antifreeze
coolant. The reservoir is filled at the
Never remove the engine
factory.
coolant cap and/or water-
cooled intercooler coolant
Check the antifreeze protection and
cap or the drain plug while
coolant level at least once a year, at
the engine and radiator are
the beginning of the winter season and
hot. Hot coolant and steam
before traveling to a colder climate.
may blow out under pressure,
causing serious injury.
Checking the Coolant Level
Turn the vehicle off and wait until the
engine cools down. Use extreme care
when removing the engine coolant cap.
Wrap a thick towel around it, and turn
it counterclockwise slowly to the first
stop. Step back while the pressure is
released from the cooling system. When
you are sure all the pressure has been
released, press down on the cap, using
a thick towel, and continue turning
counterclockwise to remove it.
ONX4OB091019
Information
Check the condition and connections
of all cooling system hoses and
The coolant level is influenced by the
heater hoses. Replace any swollen or
engine temperature. Before checking or
deteriorated hoses.
refilling the coolant, turn the engine off.
The coolant level should be filled
between the MAX and the MIN marks on
the side of the coolant reservoir when
the engine is cool.
If the coolant level is low, add enough
distilled (deionized) water to bring the
level to the MAX mark, but do not overfill.
If frequent additions are required, see an
authorized HYUNDAI dealer for a cooling
system inspection.
9-21
Maintenance
WARNING
WARNING
Make sure the coolant cap is properly
closed after refilling coolant. Otherwise
the engine could be overheated while
driving.
„ Engine compartment front view
The electric motor for the cooling fan
may continue to operate or start up
when the engine is not running and
can cause serious injury. Keep hands,
clothing and tools away from the
rotating fan blades of the cooling fan.
Always turn off the vehicle unless the
vehicle has to be inspected with the
engine on. Be cautious as the cooling
OOSH089010L
fan may operate if the negative (-)
1. Check if the coolant cap label is
battery terminal is not disconnected.
straight in front.
OJX1099046
2. Make sure that the tiny protrusions
inside the coolant cap are securely
interlocked.
9-22
09
Recommended coolant
Changing Coolant
ś When adding coolant, use only
Have coolant changed by an authorized
deionized water, distilled water or soft
HYUNDAI dealer according to the
water for your vehicle and never mix
Maintenance Schedule at the beginning
hard water in the coolant filled at the
of this chapter.
factory.
ś An incorrect coolant mixture can
WARNING
result in severe malfunction or engine
damage.
Do not use engine coolant or antifreeze
in the washer fluid reservoir.
ś The engine in your vehicle has
aluminum engine parts and must be
Engine coolant can severely obscure
protected by an phosphate-based
visibility when sprayed on the
ethylene glycol coolant to prevent
windshield and may cause loss of
corrosion and freezing.
vehicle control resulting in an accident.
ś Do not use alcohol or methanol
Engine coolant may also cause damage
coolant or mix them with the specified
to paint and body trim.
coolant.
ś Do not use a solution that contains
NOTICE
more than 60% antifreeze or less than
To prevent damage to engine parts, put
35% antifreeze, which would reduce
a thick towel around the engine coolant
the effectiveness of the solution.
cap and/or inverter coolant cap before
refilling the coolant to prevent the
For mixing percentage, refer to the
coolant from overflowing into engine
following table:
parts, such as the alternator.
Mixture Percentage
Ambient
(volume)
Temperature
Antifreeze
Water
5°F (-15°C)
35
65
-13°F (-25°C)
40
60
-31°F (-35°C)
50
50
-49°F (-45°C)
60
40
Information
If in doubt about the mix ratio, a 50%
water and 50% antifreeze mix is the
easiest to mix together as it will be the
same quantity of each. It is suitable to
use for most temperature ranges of -31°F
(-35°C) and higher.
9-23
Maintenance
BRAKE FLUID
Checking the Brake Fluid Level
WARNING
Do not let brake fluid enter into your
eyes. If brake fluid gets in your eyes,
flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE
ś Do not allow brake fluid to contact
the vehicle’s body paint, as it will
result in paint damage.
ONX4OB091020
ś NEVER use brake fluid which has
Check the fluid level in the reservoir
been exposed to open air for an
periodically. The fluid level should be
extended time, as its quality cannot
between MAX and MIN marks on the side
be guaranteed. It should be disposed
of the reservoir.
of properly.
Before removing the reservoir cap and
ś Do not use the wrong type of brake
adding brake fluid, clean the area around
fluid. A few drops of mineral based
the reservoir cap thoroughly to prevent
oil, such as engine oil in your brake
brake fluid contamination.
system can damage brake system
parts.
If the level is low, add the specified brake
fluid to the MAX level. The level will fall
with accumulated mileage. This is a
Information
normal condition associated with the
wear of the brake linings. If the fluid level
Use only the specified brake fluid (refer
is excessively low, have the brake system
to “Recommended Lubricants and
be checked by an authorized HYUNDAI
Capacities” section in chapter 2).
dealer.
WARNING
If the brake system requires frequent
additions of fluid this could indicate a
leak in the brake system. Have that the
vehicle be inspected by an authorized
HYUNDAI dealer.
9-24
09
WASHER FLUID
Checking the Washer Fluid Level
WARNING
To prevent serious injury or death, take
the following safety precautions when
using washer fluid:
ś Do not use engine coolant or
antifreeze in the washer fluid
reservoir. Engine coolant can
severely obscure visibility when
sprayed on the windshield and
may cause loss of vehicle control
resulting in an accident or damage to
paint and body trim.
ONX4OB091021
ś Do not allow sparks or flame to
Check the fluid level in the washer fluid
contact the washer fluid or the
reservoir and add fluid if necessary.
washer fluid reservoir. Washer fluid
Plain water may be used during summer
may contain alcohol and can be
months if washer fluid is not available.
flammable.
However, use washer solvent with
ś Do not drink washer fluid and avoid
antifreeze characteristics in cold climates
contact with skin. Washer fluid is
to prevent freezing.
harmful to humans and animals.
ś Keep washer fluid away from
children and animals.
9-25
Maintenance
AIR CLEANER
Filter Replacement
„ Smartstream G2.5 GDI
OTM090006
ONX4OB091022
1. Pull up the air cleaner filter cover (1).
„ Smartstream G2.5 T-GDI
ONX4OB091023
OTM090007
The air cleaner filter can be cleaned for
2. Pull down the lever to the UNLOCK (2)
inspection using compressed air. Do not
position.
attempt to wash or to rinse it, as water
will damage the filter. If soiled, the air
cleaner filter must be replaced.
9-26
09
OTM090008
3. Replace the air cleaner filter.
4. Reassemble the air cleaner cover in
the reverse order.
Information
If the vehicle is operated in extremely
dusty or sandy areas, replace the element
more often than the usual recommended
intervals (refer to “Maintenance Under
Severe Usage Conditions” in this chapter).
NOTICE
ś Do not drive with the air cleaner filter
removed. This will result in excessive
engine wear.
ś When removing the air cleaner filter,
be careful that dust or dirt does not
enter the air intake, or damage may
result.
ś Use HYUNDAI genuine parts or the
equivalent specified for your vehicle.
Use of non-genuine parts could
damage the air flow sensor.
9-27
Maintenance
CABIN AIR FILTER
Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a long period, it should be inspected
more frequently and replaced sooner.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
ONX4090010
Filter Replacement
3. Press and hold the lock on the right
side of the cover.
4. Pull out the cover.
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ONX4090009
1. Open the glove box and remove the
support rod (1).
ONX4090011
Install a new cabin air filter in the
correct direction with the arrow symbol
Ƣ IDFLQJ GRZQZDUGV WR SUHYHQW QRLVH
and improve effectiveness.
ONX4090042
2. Push in both sides of the glove box as
shown. This will ensure that the glove
box stopper pins will get released
from its holding location allowing the
glove box to hang.
9-28
09
WIPER BLADES
Blade Inspection
Blade Replacement
Contamination of either the windshield
When the wipers no longer clean
or the wiper blades with foreign matter
adequately, the blades may be worn or
can reduce the effectiveness of the
cracked, and require replacement.
windshield wipers.
Common sources of contamination are
NOTICE
insects, tree sap, and hot wax treatments
ś In order to prevent damage to the
used by some commercial car washes. If
hood and the wiper arms, the wiper
the blades are not wiping properly, clean
arms should only be lifted when in
both the window and the blades with a
the top wiping position.
good cleaner or mild detergent, and rinse
thoroughly with clean water.
ś Always return the wiper arms to the
windshield before driving.
NOTICE
To prevent damage to the wiper blades,
arms or other components, do not:
ś Use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
ś Attempt to move the wipers
manually.
ś Use non-specified wiper blades.
Information
Commercial hot waxes applied by
automatic car washes have been known to
make the windshield difficult to clean.
Information
Wiper blades are consumable items.
Normal wear of the wipers may not be
covered by your vehicle warranty.
9-29
Maintenance
Front windshield wiper service
Type A
positions
OGSR076067
ONX4090038
This vehicle has a “hidden” wiper design
which means that the wipers cannot
be lifted when they are in their bottom
resting position.
1. Within 20 seconds of turning off the
engine, lift and hold the wiper lever
up to the MIST position for about 2
seconds until the wipers move to the
top wipe position.
2. At this time you can lift the wipers off
OGSR076066
the windshield.
1. Lift up the wiper blade clip. Then lift
3. Gently put the wipers back down onto
up the wiper blade.
the windshield.
2. While pushing the lock (1), pull down
4. Turn the wipers to any ON position
the wiper blade (2).
to return the wipers to the bottom
resting position.
OGSR076068
3. Remove the wiper blade from the
wiper arm.
4. Install a new wiper blade assembly in
the reverse order of removal.
5. Return the wiper arm on the
windshield.
9-30
09
Type B
CAUTION
If the wiper arm receives too much
force while pulling the blade, the center
part may be damaged.
CAUTION
ś The wiper could not operate for
approx. 10 seconds when the wiper
is operated without washer fluid or
the blades are frozen. This is not a
malfunction, it is a wiper protection
OTM090039
system activated by motor overload
1. Raise the wiper arm.
circuit within the wiper motor.
ś The front windshield should be
cleaned with water hose and wiped
with clean towel with wiper blades
raised up. Also, the wiper blades
should be wiped clean when the
grease or wax is applied to the
blades.
OTM090040
2. Lift up the wiper blade clip (1). Then
pull down the blade assembly (2) and
remove it.
OTM090041
3. Install the new blade assembly in the
reverse order of removal.
4. Return the wiper arm on the
windshield.
9-31
Maintenance
BATTERY
ś When lifting a plastic-cased battery,
WARNING
excessive pressure on the case may
To prevent SERIOUS INJURY or DEATH
cause battery acid to leak. Lift with a
to you or bystanders, always follow
battery carrier or with your hands on
these precautions when working near
opposite corners.
or handling the battery:
ś Do not attempt to jump start your
vehicle if your battery is frozen.
Always read and follow
instructions carefully when
ś NEVER attempt to recharge the
handling a battery.
battery when the vehicle’s battery
cables are connected to the battery.
Wear eye protection designed
ś The electrical ignition system works
to protect the eyes from acid
with high voltage. NEVER touch
splashes.
these components with the engine
running or when the ignition switch
is in the ON position.
Keep all flames, sparks, or
smoking materials away from
the battery.
WARNING
Hydrogen is always present
CALIFORNIA PROPOSITION 65
WARNING
in battery cells, is highly
combustible, and may explode
Battery posts, terminals, and related
if ignited.
accessories contain lead and lead
Keep batteries out of reach of
compounds, chemicals known to the
State of California to cause cancer,
children.
birth defects and reproductive harm.
Batteries also contain other chemicals
known to the State of California
Batteries contain sulfuric acid
to cause cancer. Wash hands after
which is highly corrosive. Do
handling.
not allow acid to contact your
eyes, skin or clothing.
NOTICE
If acid gets into your eyes, flush your
ś When you do not use the vehicle for a
eyes with clean water for at least 15
long time in a low temperature area,
minutes and get immediate medical
disconnect the battery and keep it
attention. If acid gets on your skin,
indoors.
thoroughly wash the area. If you feel
pain or a burning sensation, get medical
ś Always charge the battery fully to
attention immediately.
prevent battery case damage in low
temperature areas.
NOTICE
If you connect unauthorized electronic
devices to the battery, the battery may
be discharged. Never use unauthorized
devices.
9-32
09
For Best Battery Service
Battery Capacity Label
„ Type A
ONX4E090050
OTM090063L
ś Keep the battery securely mounted.
„ Type B
ś Keep the battery top clean and dry.
ś Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.
ś Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.
ś If the vehicle is not going to be used
for an extended time, disconnect the
battery cables.
OTM090064L
1. MF68L-DIN : The HYUNDAI model
name of battery
2.
12V : The nominal voltage
3. 68Ah (20HR) : The nominal capacity
(in Ampere hours)
4. RC 110min : The nominal capacity (in
Ampere hours)
5. 600A : The cold-test current in
amperes by SAE/EN
9-33
Maintenance
Battery Recharging
ś The negative battery cable must
be removed first and installed last
By battery charger
when the battery is disconnected.
Your vehicle has a maintenance-free,
Disconnect the battery charger in the
calcium-based battery.
following order:
ś If the battery becomes discharged
1. Turn off the battery charger main
over a short time (because, for
switch.
example, the headlights or interior
2. Unhook the negative clamp from
lights were left on while the vehicle
the negative battery terminal.
was not in use), recharge it by slow
charging (trickle) for 10 hours.
3. Unhook the positive clamp from
the positive battery terminal.
ś If the battery gradually discharges
because of high electrical load while
ś Use batteries for replacement from
the vehicle is being used, recharge it
an authorized HYUNDAI dealer.
at 20-30A for two hours.
NOTICE
WARNING
AGM battery (if equipped)
Always follow these instructions when
ś Absorbent Glass Mat (AGM) batteries
recharging your vehicle’s battery to
are maintenance-free and have
avoid the risk of SERIOUS INJURY or
the AGM battery serviced by an
DEATH from explosions or acid burns:
authorized HYUNDAI dealer. For
charging your AGM battery, use only
ś Before performing maintenance or
fully automatic battery chargers that
recharging the battery, turn off all
are specially developed for AGM
accessories and stop the engine.
batteries.
ś Keep all flames, sparks, or smoking
ś When replacing the AGM battery,
materials away from the battery.
use parts for replacement from an
ś Always work outdoors or in an area
authorized HYUNDAI dealer.
with plenty of ventilation.
ś Do not open or remove the cap on
ś Wear eye protection when checking
top of the battery. This may cause
the battery during charging.
leaks of internal electrolyte that
ś The battery must be removed from
could result in severe injury.
the vehicle and placed in a well
ventilated area.
ś Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.
9-34
09
By jump starting
After a jump start from a good battery,
drive the vehicle for 20-30 minutes
before it is shutoff. The vehicle may
not restart if you shut it off before the
battery had a chance to adequately
recharge. See “Jump Starting” in chapter
8 for more information on jump starting
procedures.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected.
ś Auto up/down window (see chapter 5)
ś Sunroof (see chapter 5)
ś Trip computer (see chapter 5)
ś Climate control system (see chapter 5)
ś Infotainment system (see
infotainment system manual)
9-35
Maintenance
TIRES AND WHEELS
WARNING
Tire Care
For proper maintenance, safety, and
Tire failure may cause loss of
maximum fuel economy, you must
vehicle control resulting in an
always maintain recommended
accident. To reduce risk of SERIOUS
tire inflation pressures and stay
INJURY or DEATH, take the
within the load limits and weight
following precautions:
distribution recommended for your
ś
Inspect your tires monthly for
vehicle.
proper inflation as well as wear
and damage.
ś
The recommended cold tire
pressure for your vehicle can be
found in this manual and on the
tire label located on the driver’s
side center pillar. Always use a
tire pressure gauge to measure
tire pressure. Tires with too
much or too little pressure wear
unevenly causing poor handling.
ONX4E010022
ś
Check the pressure of the
All specifications (sizes and
spare every time you check the
pressures) can be found on a label
pressure of the other tires on
attached to the driver’s side center
your vehicle.
pillar.
ś
Replace tires that are worn, show
uneven wear, or are damaged.
Recommended Cold Tire
Worn tires can cause loss of
Inflation Pressures
braking effectiveness, steering
All tire pressures (including the
control, or traction.
spare) should be checked when the
ś
ALWAYS replace tires with the
tires are cold. “Cold tires” means the
same size, type, construction and
vehicle has not been driven for at
tread pattern as each tire that
least three hours or driven less than 1
was originally supplied with this
mile (1.6km).
vehicle. Using tires and wheels
Warm tires normally exceed
other than the recommended
recommended cold tire pressures
sizes could cause unusual
by 4 to 6 psi (28 to 41 kPa). Do not
handling characteristics, poor
release air from warm tires to adjust
vehicle control, or negatively
the pressure or the tires will be
affect your vehicle’s Anti-Lock
under-inflated. For recommended
Brake System (ABS) resulting in a
inflation pressure, refer to “Tire and
serious accident.
Wheels” section in chapter 2.
9-36
09
WARNING
Check Tire Inflation Pressure
Check your tires, including the spare
Recommended pressures must be
tire, once a month or more.
maintained for the best ride, vehicle
handling, and minimum tire wear.
How to check
Over-inflation or under-inflation
Use a good quality tire pressure
can reduce tire life, adversely
gauge to check tire pressure. You
affect vehicle handling, and lead to
can not tell if your tires are properly
sudden tire failure that could result
inflated simply by looking at them.
in loss of vehicle control resulting in
Radial tires may look properly
an accident.
inflated when they are under-
Severe under-inflation can lead
inflated.
to severe heat build-up, causing
Remove the valve cap from the tire
blowouts, tread separation and
valve stem. Press the tire gauge
other tire failures that can result in
firmly onto the valve to get a
the loss of vehicle control resulting
pressure measurement. If the cold
in an accident. This risk is much
tire inflation pressure matches the
higher on hot days and when
recommended pressure on the tire
driving for long periods at high
and loading information label, no
speeds.
further adjustment is necessary. If
the pressure is low, add air until you
CAUTION
reach the recommended pressure.
Make sure to put the valve caps
ś Under-inflation results in
back on the valve stems. Without
excessive wear, poor handling
the valve cap, dirt or moisture could
and reduced fuel economy.
get into the valve core and cause
Wheel deformation is also
air leakage. If a valve cap is missing,
possible. Keep your tire pressures
install a new one as soon as possible.
at the proper levels. If a tire
frequently needs refilling, have
If you overfill the tire, release air by
it checked by an authorized
pushing on the metal stem in the
HYUNDAI dealer.
center of the tire valve. Recheck the
tire pressure with the tire gauge. Be
ś Over-inflation produces a harsh
sure to put the valve caps back on
ride, excessive wear at the center
the valve stems. Without the valve
of the tire tread, and a greater
cap, dirt or moisture could get into
possibility of damage from road
the valve core and cause air leakage.
hazards.
If a valve cap is missing, install a new
one as soon as possible.
9-37
Maintenance
Tire Rotation
Information
To equalize tread wear, HYUNDAI
The outside and inside of the
recommends that the tires
unsymmetrical tire is distinguishable.
be rotated according to the
When installing an unsymmetrical
maintenance schedule or sooner if
tire, be sure to install the side marked
irregular wear develops.
“outside” face the outside. If the side
During rotation, check the tires for
marked “inside” is installed on the
correct balance.
outside, it will have a negative effect
When rotating tires, check for
on vehicle performance.
uneven wear and damage. Abnormal
wear is usually caused by incorrect
WARNING
tire pressure, improper wheel
ś Do not use the compact spare
alignment, out-of-balance wheels,
tire for tire rotation.
severe braking or severe cornering.
Look for bumps or bulges in the
ś Do not mix bias ply and radial ply
tread or side of the tire. Replace
tires under any circumstances.
the tire if you find any of these
This may cause unusual handling
conditions. Replace the tire if fabric
characteristics that may cause
or cord is visible. After rotation, be
loss of vehicle control resulting in
sure to bring the front and rear tire
an accident.
pressures to specification and check
wheel bolt tightness (proper torque
is 79.6-94.0 lbf.ft [11.0-13.0 kgf.m]).
OHI078078
Disc brake pads should be inspected
for wear whenever tires are rotated.
9-38
09
Wheel Alignment and Tire
WARNING
Balance
To reduce the risk of DEATH or
The wheels on your vehicle were
SERIOUS INJURY:
aligned and balanced carefully at the
ś
Replace tires that are worn, show
factory to give you the longest tire
uneven wear, or are damaged.
life and best overall performance.
Worn tires can cause loss of
In most cases, you will not need to
braking effectiveness, steering
have your wheels aligned again.
control, and traction.
However, if you notice unusual tire
ś
Always replace tires with the
wear or your vehicle pulling one way
same size as each tire that was
or the other, the alignment may need
originally supplied with this
to be reset.
vehicle. Using tires and wheels
If you notice your vehicle vibrating
other than the recommended
when driving on a smooth road, your
sizes could cause unusual
wheels may need to be rebalanced.
handling characteristics, poor
vehicle control, or negatively
NOTICE
affect your vehicle’s Anti-Lock
Brake System (ABS) resulting in a
Incorrect wheel weights can
serious accident.
damage your vehicle’s aluminum
wheels. Use only approved wheel
ś
When replacing tires (or wheels),
weights.
it is recommended to replace
the two front or two rear tires (or
Tire Replacement
wheels) as a pair. Replacing just
one tire can seriously affect your
vehicle’s handling.
Tread wear indicator
ś
Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, HYUNDAI recommends
that tires be replaced after six (6)
years of normal service.
ś
Heat caused by hot climates or
frequent high loading conditions
OHI078080
can accelerate the aging process.
If the tire is worn evenly, a tread
Failure to follow this warning
wear indicator will appear as a solid
may cause sudden tire failure,
band across the tread. This shows
which could lead to a loss of
there is less than 1/16 inch (1.6mm) of
vehicle control resulting in an
tread left on the tire. Replace the tire
accident.
when this happens.
Do not wait for the band to appear
across the entire tread before
replacing the tire.
9-39
Maintenance
Compact spare tire replacement
Wheel Replacement
A compact spare tire has a shorter
When replacing the metal wheels
tread life than a regular size tire.
for any reason, make sure the new
Replace it when you can see the
wheels are equivalent to the original
tread wear indicator bars on the tire.
factory units in diameter, rim width
The replacement compact spare tire
and offset.
should be the same size and design
tire as the one provided with your
Tire Traction
new vehicle and should be mounted
Tire traction can be reduced if you
on the same compact spare tire
drive on worn tires, tires that are
wheel. The compact spare tire is
improperly inflated or on slippery
not designed to be mounted on a
road surfaces. Tires should be
regular size wheel, and the compact
replaced when tread wear indicators
spare tire wheel is not designed for
appear. To reduce the possibility of
mounting a regular size tire.
losing control, slow down whenever
there is rain, snow or ice on the road.
WARNING
Tire Maintenance
The original tire should be repaired
In addition to proper inflation,
or replaced as soon as possible to
avoid failure of the spare and loss
correct wheel alignment helps to
decrease tire wear. If you find a tire
of vehicle control resulting in an
accident. The compact spare tire
is worn unevenly, have your dealer
check the wheel alignment.
is for emergency use only. Do not
operate your vehicle over 50 mph
When you have new tires installed,
(80 km/h) when using the compact
make sure they are balanced. This
spare tire.
will increase vehicle ride comfort
and tire life. Additionally, a tire
should always be rebalanced if it is
removed from the wheel.
9-40
09
Tire Sidewall Labeling
Example tire size designation:
This information identifies and
(These numbers are provided as
describes the fundamental
an example only; your tire size
characteristics of the tire and also
designator could vary depending on
provides the tire identification
your vehicle.)
number (TIN) for safety standard
245/60R18 105H
certification. The TIN can be used to
identify the tire in case of a recall.
245 - Tire width in millimeters.
60 - Aspect ratio. The tire’s section
height as a percentage of its
width.
R - Tire construction code (Radial).
18 - Rim diameter in inches.
105 - Load Index, a numerical code
associated with the maximum
load the tire can carry.
H - Speed Rating Symbol. See the
speed rating chart in this section
B0464EU01
for additional information.
1. Manufacturer or brand name
Wheel size designation
Manufacturer or brand name is
Wheels are also marked with
shown.
important information that you need
2. Tire size designation
if you ever have to replace one. The
following explains what the letters
A tire’s sidewall is marked with a
and numbers in the wheel size
tire size designation. You will need
designation mean.
this information when selecting
replacement tires for your car.
Example wheel size designation:
The following explains what the
7.5J X 18
letters and numbers in the tire size
7.5 - Rim width in inches.
designation mean.
J - Rim contour designation.
18 - Rim diameter in inches.
9-41
Maintenance
Tire speed ratings
4. Tire ply composition and material
The chart below lists many of the
The number of layers or plies of
different speed ratings currently
rubber-coated fabric in the tire. Tire
being used for passenger vehicle
manufacturers also must indicate the
tires. The speed rating is part of the
materials in the tire, which include
tire size designation on the sidewall
steel, nylon, polyester, and others.
of the tire. This symbol corresponds
The letter “R” means radial ply
to that tire’s designed maximum safe
construction; the letter “D“ means
operating speed.
diagonal or bias ply construction;
and the letter “B” means belted-bias
Speed Rating
ply construction.
Maximum Speed
Symbol
S
112 mph (180 km/h)
5. Maximum permissible inflation
T
118 mph (190 km/h)
pressure
H
130 mph (210 km/h)
This number is the greatest amount
V
149 mph (240 km/h)
of air pressure that should be put in
the tire. Do not exceed the maximum
W
168 mph (270 km/h)
permissible inflation pressure. Refer
Y
186 mph (300 km/h)
to the Tire and Loading Information
label for recommended inflation
3. Checking tire life (TIN : Tire
pressure.
Identification Number)
Any tires that are over six years old,
6. Maximum load rating
based on the manufacturing date,
This number indicates the maximum
(including the spare tire) should be
load in kilograms and pounds that
replaced by new ones. You can find
can be carried by the tire. When
the manufacturing date on the tire
replacing the tires on the vehicle,
sidewall (possibly on the inside of
always use a tire that has the same
the wheel), displaying the DOT Code.
load rating as the factory installed
The DOT Code is a series of numbers
tire.
on a tire consisting of numbers and
English letters. The manufacturing
date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT shows a
plant code number, tire size and
tread pattern and the last four
numbers indicate week and year
manufactured.
For example:
DOT XXXX XXXX 1523 represents that
the tire was produced in the 15th
week of 2023.
9-42
09
7. Uniform tire quality grading
Traction - AA, A, B & C
Quality grades can be found where
The traction grades, from highest
applicable on the tire sidewall
to lowest, are AA, A, B and C. Those
between tread shoulder and
grades represent the tire’s ability to
maximum section width.
stop on wet pavement as measured
under controlled conditions on
For example:
specified government test surfaces
TREADWEAR 200
of asphalt and concrete. A tire
TRACTION AA
marked C may have poor traction
TEMPERATURE A
performance.
Tread wear
WARNING
The tread wear grade is a
The traction grade assigned to
comparative rating based on the
this tire is based on straight ahead
wear rate of the tire when tested
braking traction tests, and does not
under controlled conditions on a
include acceleration, cornering,
specified government test course.
hydroplaning, or peak traction
For example, a tire graded 150 would
characteristics.
wear one-and-a-half times (1½) as
well on the government course as a
tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
due to variations in driving habits,
service practices and differences in
road characteristics and climate.
These grades are molded on the
sidewalls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicle
may vary with respect to grade.
9-43
Maintenance
Temperature - A, B & C
Tire Terminology and Definitions
The temperature grades are A (the
Air pressure
highest), B and C representing the
The amount of air inside the tire
tire’s resistance to the generation
pressing outward on the tire. Air
of heat and its ability to dissipate
pressure is expressed in pounds per
heat when tested under controlled
square inch (psi) or kilopascal (kPa).
conditions on a specified indoor
laboratory test wheel.
Accessory weight
Sustained high temperature can
This means the combined weight
cause the material of the tire to
of optional accessories. Some
degenerate and reduce tire life,
examples of optional accessories
and excessive temperature can
are automatic transmission, power
lead to sudden tire failure. Grades
seats, and air conditioning.
B and A represent higher levels of
performance on the laboratory test
Aspect ratio
wheel than the minimum required
The relationship of a tire’s height to
by law.
its width.
Belt
WARNING
A rubber coated layer of cords that
The temperature grade for this
is located between the plies and the
tire is established for a tire that
tread. Cords may be made from steel
is properly inflated and not
or other reinforcing materials.
overloaded. Excessive speed,
under-inflation, over-inflation, or
Bead
excessive loading, either separately
The tire bead contains steel wires
or in combination, can cause heat
build-up and possible sudden
wrapped by steel cords that hold the
tire onto the rim.
tire failure. This may cause loss
of vehicle control resulting in an
accident.
9-44
09
Bias ply tire
Intended outboard sidewall
A pneumatic tire in which the plies
The side of an asymmetrical tire,
are laid at alternate angles less than
that must always face outward when
90 degrees to the centerline of the
mounted on a vehicle.
tread.
Kilopascal (kPa)
Cold tire pressure
The metric unit for air pressure.
The amount of air pressure in a tire,
measured in pounds per square inch
Light Truck (LT) tire
(psi) or kilopascals (kPa) before a tire
A tire designated by its manufacturer
has built up heat from driving.
as primarily intended for use on
lightweight trucks or multipurpose
Curb weight
passenger vehicles.
This means the weight of a motor
vehicle with standard and optional
Load ratings
equipment including the maximum
The maximum load that a tire is rated
capacity of fuel, oil and coolant, but
to carry for a given inflation pressure.
without passengers and cargo.
Load index
DOT markings
An assigned number ranging from
A code molded into the sidewall
1 to 279 that corresponds to the
of a tire signifying that the tire
loadcarrying capacity of a tire.
is in compliance with the U.S.
Department of Transportation motor
Maximum inflation pressure
vehicle safety standards. The DOT
The maximum air pressure to which
code includes the Tire Identification
a cold tire may be inflated. The
Number (TIN), an alphanumeric
maximum air pressure is molded
designator which can also identify
onto the sidewall.
the tire manufacturer, production
plant, brand and date of production.
Maximum load rating
The load rating for a tire at the
GVWR
maximum permissible inflation
Gross Vehicle Weight Rating
pressure for that tire.
GAWR FRT
Gross Axle Weight Rating for the
Front Axle.
GAWR RR
Gross Axle Weight Rating for the
Rear axle.
9-45
Maintenance
Maximum loaded vehicle weight
Pneumatic tire
The sum of curb weight; accessory
A mechanical device made of rubber,
weight; vehicle capacity weight; and
chemicals, fabric and steel or other
production options weight.
materials, that, when mounted on
an automotive wheel provides the
Normal occupant weight
traction and contains the gas or fluid
The number of occupants a vehicle
that sustains the load.
is designed to seat multiplied by 150
Pneumatic options weight
pounds (68 kg).
The combined weight of installed
Occupant distribution
regular production options weighing
Designated seating positions.
over 5 lb. (2.3 kg) in excess of the
standard items which they replace,
Outward facing sidewall
not previously considered in
curb weight or accessory weight,
An asymmetrical tire has a particular
including heavy duty breaks, ride
side that faces outward when
levelers, roof rack, heavy duty
mounted on a vehicle. The outward
battery, and special trim.
facing sidewall bears white lettering
or bears manufacturer, brand, and/or
Recommended inflation pressure
model name molding that is higher
or deeper than the same moldings
Vehicle manufacturer’s
on the inner facing sidewall.
recommended tire inflation pressure
as shown on the tire placard.
Passenger (P-Metric) tire
Radial ply tire
A tire used on passenger cars
and some light duty trucks and
A pneumatic tire in which the ply
multipurpose vehicles.
cords that extend to the beads are
laid at 90 degrees to the centerline
Ply
of the tread.
A layer of rubber-coated parallel
Rim
cords.
A metal support for a tire and upon
which the tire beads are seated.
Sidewall
The portion of a tire between the
tread and the bead.
Speed rating
An alphanumeric code assigned to a
tire indicating the maximum speed
at which a tire can operate.
9-46
09
Traction
Vehicle placard
The friction between the tire and
A label permanently attached
the road surface. The amount of grip
to a vehicle showing the
provided.
original equipment tire size and
recommended inflation pressure.
Tread
All Season Tires
The portion of a tire that comes into
contact with the road.
HYUNDAI specifies all season
tires on some models to provide
Treadwear indicators
good performance for use all year
Narrow bands, sometimes called
round, including snowy and icy
“wear bars”, that show across the
road conditions. All season tires
tread of a tire when only 1/16 inch of
are identified by ALL SEASON and/
tread remains.
or M+S (Mud and Snow) on the tire
sidewall. Snow tires have better
UTQGS
snow traction than all season tires
Uniform Tire Quality Grading
and may be more appropriate in
some areas.
Standards is a tire information
system that provides consumers
Summer Tires
with ratings for a tire’s traction,
temperature and treadwear.
HYUNDAI specifies summer tires on
Ratings are determined by tire
some models to provide superior
manufacturers using government
performance on dry roads. Summer
testing procedures. The ratings are
tire performance is substantially
molded into the sidewall of the tire.
reduced in snow and ice. Summer
tires do not have the tire traction
Vehicle capacity weight
rating M+S (Mud and Snow) on
The number of designated seating
the tire side wall. If you plan to
positions multiplied by 150 lbs. (68
operate your vehicle in snowy or icy
kg) plus the rated cargo and luggage
conditions, HYUNDAI recommends
load.
the use of snow tires or all season
tires on all four wheels.
Vehicle maximum load on the tire
Longer wearing tires can be more
Load on an individual tire due to curb
susceptible to irregular tread wear.
and accessory weight plus maximum
It is very important to follow the tire
occupant and cargo weight.
rotation interval in this chapter to
achieve the tread life potential of
Vehicle normal load on the tire
these tires.
Load on an individual tire that is
Cuts and punctures in radial-ply tires
determined by distributing to each
are repairable only in the tread area,
axle its share of the curb weight,
because of side wall flexing. Consult
accessory weight, and normal
your tire dealer for radial-ply tire
occupant weight and dividing by 2.
repairs.
9-47
Maintenance
WARNING
CAUTION
Do not mix bias ply and radial ply
The side wall of a low aspect ratio
tires under any circumstances.
tire is shorter than the normal one.
This may cause unusual handling
Thus, the low-aspect wheel and
characteristics that may cause loss
tire are easily damaged. Follow the
of vehicle control resulting in an
below instructions.
accident.
ś
When driving on a rough road or
driving off a road, be careful not
Low Aspect Ratio Tires
to damage the tires and wheels.
(if equipped)
After driving, inspect the tires
The aspect ratio is lower than 50 on
and wheels.
low aspect ratio tires.
ś
When passing over a pothole,
Because low aspect ratio tires are
speed bump, manhole, or curb
optimized for handling and braking,
stone, drive the vehicle slowly so
their sidewall is a little stiffer than
as not to damage the tires and
a standard tire. Also low aspect
wheels.
ratio tires tend to be wider and
ś
When there is an impact on a tire,
consequently have a greater contact
inspect the tire condition. Or,
patch with the road surface. In some
you can contact an authorized
instances they may generate more
HYUNDAI dealer.
road noise compared with standard
ś
Inspect the tire condition and
tires.
pressure every 8,000 miles
(13,000 km) to prevent tire
damage.
ś
It is difficult to recognize a tire
damage only with your eyes.
When there is a slight hint of a
tire damage, check and replace
the tire to prevent the damage
caused by air leakage.
ś
When a tire is damaged while
driving on a rough road, off a
road, or over obstacles, such as a
pothole, manhole, or curb stone,
your warranty does not cover the
damage.
ś
The tire information is specified
on the tire side wall.
9-48
09
FUSES
A vehicle’s electrical system is protected
Ŷ Blade type
from electrical overload damage by
fuses.
This vehicle has 5 fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
Normal
Blown
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
Ŷ Cartridge type
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Normal
Blown
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
Ŷ Multi type
using the system involved. Immediately
consult an authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.
ś A higher capacity fuse could cause
Normal
Blown
damage and possibly cause a fire.
ś Do not install a wire or aluminum
OTM078035
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
9-49
Maintenance
Instrument Panel Fuse
Replacement
„ Driver’s side
ONX4OB091024
5. Pull the suspected fuse straight out.
Use the removal tool (1) provided in
ONX4090013
the engine compartment fuse panel.
1. Turn the vehicle off.
6. Check the removed fuse; replace it if
2. Turn all other switches off.
it is blown. Spare fuses are provided in
3. Open the fuse panel cover.
the instrument panel fuse panels (or in
the engine compartment fuse panel).
4. Refer to the label on the inside of
the fuse panel cover to locate the
7. Push in a new fuse of the same
suspected fuse location.
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.
9-50
09
Engine Compartment Panel Fuse
NOTICE
Replacement
After checking the fuse panel in the
Blade fuse / Cartridge fuse
engine compartment, securely install
the fuse panel cover. You may hear a
„ Blade type fuse
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.
Multi fuse
„ Multi type
ONX4OB091025
„ Cartridge type fuse
ONX4OB091027
If the multi fuse or midi fuse is blown,
consult an authorized HYUNDAI dealer.
ONX4OB091026
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it if it
is blown. To remove or insert the fuse,
use the removal tool in the engine
compartment fuse panel.
5. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
9-51
Maintenance
Fuse/Relay Panel Description
Information
Instrument panel fuse panel
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
ONX4090019
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
ONX4OB091002
9-52
09
Instrument panel fuse panel
Fuse Name
Fuse Rating
Circuit Protected
SUNROOF1
20A
Sunroof Glass Motor Controller
IBU1
7.5A
IBU
Console Switch, Upper Console Switch, A/T Shift Lever
MODULE6
10A
Indicator
AMP, A/C Control Switch, A/C Control Module, Electro
Chromic Mirror,
Data Link Connector, Audio, A/V & Navigation Head
MODULE5
10A
Unit,
Front Wireless Charger, Front Air Ventilation Seat Control
Module,
Front Seat Warmer Control Module
CLUSTER
7.5A
Instrument Cluster
IBU2
10A
IBU, Ignition Switch, IAU, BLE Unit
AIR BAG2
10A
SRS Control Module
A/C Control Module, A/C Control Switch,
A/C
7.5A
E/R Junction Block (PTC Heater Relay)
S/HEATER
Front Air Ventilation Seat Control Module, Front Seat
20A
DRV/PASS
Warmer Control Module
High-mounted Stop Lamp, Side Mounted Bed Lamp LH/
CARGO LP
10A
RH
A/BAG IND
7.5A
Instrument Cluster, Overhead Console Lamp
TAILGATE
10A
Tailgate Relay
OPEN
WASHER
15A
Multifunction Switch
SAFETY
25A
Passenger Safety Power Window Module
P/WINDOW RH
P/WINDOW
25A
Power Window Main Switch
LH
SAFETY
25A
Driver Safety Power Window Module
P/WINDOW LH
9-53
Maintenance
Fuse Name
Fuse Rating
Circuit Protected
Front View Camera, Crash Pad Switch, WD ECM,
MODULE4
7.5A
ADAS Parking ECU
SRS Control Module, Passenger Occupant Detection
AIR BAG1
15A
Sensor
Hazard Switch, Key Solenoid, Crash Pad Switch, Data
Link Connector, Rain Sensor, Driver/Passenger Smart
MODULE9
10A
Key Outside Handle, Sport Mode Switch, E/R Junction
Block (E-CVVT Relay)
IBU, IAU, Audio, A/V & Navigation Head Unit, Keyboard,
MODULE1
10A
Intergrated Parking Assist Unit
Front Air Ventilation Seat Control Module, AC Inverter
MODULE8
7.5A
Module, Front Seat Warmer Control Module, AC Inverter
Outlet
BED
10A
Bed Storage Relay
STORAGE
P/WINDOW
Power Window Main Switch, Passenger Power Window
25A
RH
Switch
AMP
25A
AMP
Instrument Cluster, Driver/Passenger Door Mood Lamp,
MEMORY
10A
Mood Lamp Unit, Crash Pad Mood Lamp, A/C Control
Module, A/C Control Switch
MULTIMEDIA
25A
Audio, A/V & Navigation Head Unit
DOOR
Center Door Lock Relay, Center Door Unlock Relay, Two
20A
LOCK
Turn Unlock Relay
BRAKE
10A
Stop Lamp Switch, IBU
SWITCH
MODULE2
15A
Front USB Charger, Rear USB Charger
MODULE7
7.5A
IBU, IAU
MDPS
7.5A
MDPS Unit
P/SEAT
30A
Driver Power Seat Switch, Driver Power Seat Module
DRV
MODULE3
7.5A
Stop Lamp Switch, IAU, Sport Mode Switch (DCT)
9-54
09
Engine compartment fuse panel
Information
(Engine room junction block)
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse panel
in your vehicle, refer to the fuse panel
label.
ONX4OB091028
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
ONX4OB091004
9-55
Maintenance
Engine compartment fuse panel
Fuse
Type
Fuse Name
Circuit Protected
Rating
MDPS
80A
MDPS Unit
COOLING FAN1
80A
[G4KP] Cooling Fan Controller
COOLING FAN2
60A
[G4KN] Cooling Fan Controller
B+2
60A
ICU Junction Block (IPS7, IPS8, IPS9, IPS10, IPS11, IPS12)
ICU Junction Block (Fuse - P/SEAT DRV, SAFETY P/
B+3
60A
WINDOW RH, S/HEATER DRV/PASS, SUNROOF1, BED
MULTI
STORAGE, Power Window Main Relay)
FUSE
E-CVVT1
50A
E/R Junction Block (E-CVVT Relay)
BLOWER
40A
E/R Junction Block (Blower Relay)
EPB1
40A
ESC Module
REAR HEATED
40A
E/R Junction Block (Rear Heated Relay)
TRAILER 1
30A
[G4KP] Trailer Connector
ICU Junction Block (Fuse - DOOR LOCK, SAFETY P/
WINDOW LH, TAILGATE OPEN, AMP, IBU2, AIR BAG2,
B+4
40A
CARGO LP, BRAKE SWITCH, MODULE9, Long Term
Load Latch Relay)
EPB2
60A
ESC Module
FUEL PUMP
20A
E/R Junction Block (Fuel Pump Relay)
4WD
20A
AWD ECM
TRAILER 2
30A
[G4KN] Trailer Controller
AMS
10A
Battery Sensor
TRAILER 3
30A
[G4KN] Trailer Connector
ECU2
15A
PCM/ECM
VACUUM PUMP1
20A
[G4KP] E/R Junction Block (Vacuum Pump Relay)
FUSE
TCU1
15A
[G4KN] PCM
ROOF LIGHT FRT
15A
Accessory Light Switch
E-CVVT2
20A
[G4KP] ECM
E/R Junction Block (Rear Heated Relay), Driver/
HEATED MIRROR
10A
Passenger Power Outside Mirror
VACUUM PUMP2
10A
[G4KP] ESC Module
TCU3
60A
[G4KP] TCM
EOP
60A
[G4KP] Electronic Oil Pump
B+1
50A
ICU Junction Block (IPS1, IPS3, IPS4, IPS5, IPS6,)
PTC HEATER
50A
E/R Junction Block (PTC Heater Relay)
INVERTER
30A
AC Inverter Module
9-56
09
Engine compartment fuse panel
Fuse
Type
Fuse Name
Circuit Protected
Rating
ACC1
50A
ACC Relay
MAIN
60A
Main Relay
WIPER3
40A
Front Wiper1 On Relay
IG1
60A
IG1 Relay
IG2
60A
IG2 Relay, E/R Junction Block (Start Relay)
SENSOR1
20A
Ignition Coil #1/#2/#3/#4
ACC2
20A
ICU Junction Block (Fuse - MODULE1, MODULE2)
SENSOR5
15A
Injector #1/#2/#3/#4 (MPI)
SENSOR4
10A
E/R Junction Block (Fuel Pump Relay)
SENSOR2
15A
Oxygen Sensor (Up), Oxygen Sensor (Down)
A/C Comp Relay, Oil Control Valve (Exhaust),
Valiable Oil Pump Solenoid, Purge Control Solenoid
SENSOR3
10A
Valve, Cooling Fan Controller, Canister Close Valve
FUSE
[G4KN] Variable Intake Solenoid Valve / [G4KP] RCV
Control Solenoid Valve
POWER OUTLET
20A
Front Power Outlet
A/C
10A
A/C Comp Relay
HORN
10A
Horn Relay
ECU1
20A
PCM/ECM
WIPER1
30A
Front Wiper2 (Low) Relay, Front Wiper Motor
WIPER2
7.5A
IBU
ECU3
10A
PCM/ECM
MODULE
7.5A
[G4KP] E/R Junction Block (Vacuum Pump Relay)
FCA
10A
Front Radar
EPB3
10A
ESC Module
TCU2
15A
[G4KP] TCM
9-57
Maintenance
LIGHT BULBS
Consult an authorized HYUNDAI dealer
Information - Headlight
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
and rear combination lamp
because other parts of the vehicle must
desiccant (if equipped)
be removed before you can get to the
This vehicle is equipped with desiccant
bulb. This is especially true for removing
packs to reduce fogging inside the
the headlight assembly to get to the
headlight and rear combination lamp due
bulb(s).
to moisture. The desiccant pack is made
Removing/installing the headlight
of moisture absorbing materials and its
assembly can result in damage to the
performance may change based on the
vehicle.
used period or environment. If fogging
inside the headlight or rear combination
lamp due to moisture continues for a long
WARNING
time, consult an authorized HYUNDAI
ś Prior to replacing a lamp, depress
dealer.
the foot brake, move the shift button
into P (Park) apply the parking brake,
place the ignition switch to the
Information
LOCK/OFF position, and take the key
The headlight and tail lamp lenses could
with you when leaving the vehicle
appear frosty if the vehicle is washed after
to avoid sudden movement of the
driving or the vehicle is driven at night in
vehicle and to prevent possible
wet weather. This condition is caused by
electric shock.
temperature difference between the lamp
ś Be aware the bulbs may be hot and
inside and outside and, it does not indicate
may burn your fingers.
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlight
NOTICE
on. The removable level may differ
Be sure to replace the burned-out bulb
depending on lamp size, lamp position
with one of the same wattage rating.
and environmental condition. However, if
Otherwise, it may cause damage to the
moisture is not removed, have the vehicle
fuse or electrical wiring system.
is inspected by an authorized HYUNDAI
dealer.
NOTICE
To prevent damage, do not clean the
headlight lens with chemical solvents
or strong detergents.
9-58
09
Headlight, Position Lamp, Turn
Information
Signal Lamp, Daytime Running
ś A normally functioning lamp may
Light (DRL) Replacement
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized HYUNDAI dealer.
ś The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlight
switch may turn on when the headlight
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
ONX4OB091007
occurs, have the system checked by an
(1) Headlight (Low)
authorized HYUNDAI dealer.
(2) Headlight (High)
(3) Daytime running light/Position light
Information
(4) Turn signal lamp
The headlight aiming should be adjusted
(5) Side marker
after an accident or after the headlight
assembly is reinstalled.
If the LED lamp does not operate,have
the system be inspected by an
authorized HYUNDAI dealer. The LED
lamps cannot be replaced as a single unit
because it is an integrated unit. The LED
lamps has to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
9-59
Maintenance
Side Repeater Lamp
Rear Combination Lamp
Replacement
Replacement
ONX4090024
ONX4OB091008
If the LED lamp (1) does not operate,
(1) Tail lamp
have the system be inspected by an
(2) Turn signal lamp/ Stop Lamp
authorized HYUNDAI dealer.
(3) Tail lamp
The LED lamps cannot be replaced as
(4) Rear side marker
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
9-60
09
ONX4OB091009
ONX4OB091015
Turn signal lamp/ Stop lamp
6. Remove the bulb from the socket
by pressing it in and rotating it
1. Turn off the engine.
counterclockwise until the tabs on the
2. Open the liftgate.
bulb align with the slots in the socket.
3. Remove the lamp assembly retaining
Pull the bulb out of the socket.
bolts with cross-tip screw driver.
7. Insert a new bulb by inserting it into
4. Remove the rear combination lamp
the socket and rotating it until it locks
assembly from the body of the
into place.
vehicle.
8. Install the socket into the assembly by
5. Remove the socket from the
aligning the tabs on the socket with
assembly by turning the socket
the slots in the assembly. Push the
counterclockwise until the tabs on
socket into the assembly and turn the
the socket align with the slots on the
socket clockwise.
assembly.
9. Reinstall the lamp assembly to the
body of the vehicle.
9-61
Maintenance
Tail lamp/Rear side marker
High Mounted Stop Lamp
If the LED lamp does not operate,have
and Top Mounted Bed Lamp
the system be inspected by an
/ Side Mounted Bed Lamp
authorized HYUNDAI dealer. The LED
Replacement
lamps cannot be replaced as a single unit
because it is an integrated unit. The LED
„ High mounted stop lamp and top mounted
bed lamp
lamps has to be replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Reverse lamp
ONX4OB091010
„ Side mounted bed lamp
ONX4OB091012
1. Turn off the engine.
2. Remove the socket from the
assembly by turning the socket
ONX4OB091011
counterclockwise until the tabs on
the socket align with the slots on the
[A] : High Mounted Stop Lamp
assembly.
[B] : Top Mounted Bed Lamp
3. Remove the bulb from the socket
If the LED light source does not operate,
by pressing it in and rotating it
have the system be inspected by an
counterclockwise until the tabs on the
authorized HYUNDAI dealer.
bulb align with the slots in the socket.
The LED light source cannot be
Pull the bulb out of the socket.
replaced as a single unit because it is
4. Insert a new bulb by inserting it into
an integrated part of the lamp. The LED
the socket and rotating it until it locks
lamp has to be replaced as a unit.
into place.
A skilled technician should check or
repair the LED lamp, because it may
damage related parts of the vehicle.
9-62
09
License Plate Lamp Replacement
Interior light replacement
Map/Rear lamp (LED)
„ Map lamp
ONX4OB091012
1. Using flat-blade screwdriver, gently
ONX4OB091013
pry on the inside edge of the lamp
„ Room lamp
housing, compressing the metal clip
on the opposite side. Once clip is
compressed, lamp will rotate out of
location in bumper.
2. Remove Bulb by rotating bulb in the
direction indicated on holder.
3. Remove bulb from holder by pulling it
straight out.
4. Install a new bulb.
5. Reinstall the lamp by compressing the
ONX4OB091031
clip in the bumper and rotating the
If the LED lamp does not operate,
lamp to hook the housing back into
have the system be inspected by an
place on the bumper.
authorized HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
9-63
Maintenance
Map lamp, Room lamp and Sunvisor
„ Sunvisor lamp
lamp (Bulb type)
„ Room lamp
OJS078041
1. Using a flat-head screwdriver, gently
pry the lens from the interior light
ONX4OB091032
housing.
„ Map lamp
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior
light housing notches and snap the
lens into place.
NOTICE
Be careful not to damage the cover, tab,
ONX4OB091033
and plastic housing.
9-64
09
TONNEAU COVER
Tonneau Cover Maintenance
ś Tonneau cover should be cleaned on a
regular basis using water with normal
car shampoo.
ś Drains should be cleaned often to
assure proper function of water
management.
ś When cleaning, use a soft, lint free
cloth or brush. Rinse soap foam off
thoroughly with fresh water, and dry
with a clean cloth.
ONX4OB051091
ś Do not use abrasive cleaning tools
2. Remove the lid.
such as steel wool, hard brushes,
3. Remove dirt and debris from the
as these may damage the coating
canister.
surface and change the color or gloss
levels of the finish.
Cleaning the Canister
It is recommended to clean the canister
at least once a year to remove dirt
and debris. In order to access the
canister, the lid must be removed and
reassembled.
To remove the lid:
ONX4OB051092
4. Reassemble the lid. Torque screws to
1.8 Nm. (It is also recommended to
apply a small amount of removable
threadlocker.)
ONX4OB051090
1. Remove the 2 screws on the lid. Take
care not to lose them.
9-65
Maintenance
Tonneau Cover Spring
Adjustment
The retraction spring is located inside of
the canister and has been pre-adjusted
to the proper tension. If needed in
adverse conditions, the tension can be
easily adjusted. Adjustments can be
made using the pinion located on the
right side of the canister.
To adjust the tension:
ONX4OB051094
3-1. Rotate the pinion clockwise to
increase the tension for faster
opening.
ONX4OB051093
1. Press the pinion inward to release the
locking mechanism.
2. Using and 8 mm socket to maintain
pressure on the pinion, rotate the
ONX4OB051095
pinion.
3-2. Rotate the pinion counterclockwise
to decrease the tension for slower
opening.
4. Rotate the pinion 1 revolution, then
check the operation. Keep adjusting
until desired operation is reached.
WARNING
ś The main spring may cause injury
if the canister is opened without
relieving the spring tension.
ś Extreme tightening or loosening
can damage the spring. (It is not
recommended to rotate more than
30 revolutions.)
9-66
09
APPEARANCE CARE
Exterior Care
High-pressure washing
Exterior general caution
ś When using high-pressure washers,
make sure to maintain sufficient
It is very important to follow the label
distance from the vehicle.
directions when using any chemical
cleaner or polish. Read all warning and
Insufficient clearance or excessive
caution statements that appear on the
pressure can lead to component
label.
damage or water penetration.
ś Do not spray the camera, sensors or
Finish maintenance
its surrounding area directly with a
Washing
high pressure washer. Shock applied
from high pressure water may cause
To help protect your vehicle’s finish from
the device to not operate normally.
rust and deterioration, wash it thoroughly
and frequently at least once a month
ś Do not bring the nozzle tip close to
with lukewarm or cold water.
boots (rubber or plastic covers) or
connectors as they may be damaged
If you use your vehicle for off-road
if they come into contact with high
driving, you should wash it after each
pressure water.
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
WARNING
sure the drain holes in the lower edges
After washing the vehicle, test the
of the doors and rocker panels are kept
brakes while driving slowly to see
clear and clean.
if they have been affected by water
Insects, tar, tree sap, bird droppings,
before getting on the road. If braking
industrial pollution and similar deposits
performance is impaired, dry the
can damage your vehicle’s finish if not
brakes by applying them lightly while
removed immediately.
maintaining a slow forward speed.
Even prompt washing with plain water
may not completely remove all these
NOTICE
deposits. A mild soap, safe for use on
painted surfaces, should be used.
ś Do not use strong soap, chemical
detergents or hot water, and do not
After washing, rinse the vehicle
wash the vehicle in direct sunlight
thoroughly with lukewarm or cold water.
or when the body of the vehicle is
Do not allow soap to dry on the finish.
warm.
ś Be careful when washing the side
windows of your vehicle.
ś Especially, with high-pressure water,
water may leak through the windows
and wet the interior.
ś To prevent damage to the plastic
parts, do not clean with chemical
solvents or strong detergents.
9-67
Maintenance
NOTICE
Waxing
A good coat of wax is a barrier between
your paint and contaminate. Keeping
a good coat of wax on your vehicle will
help protect it.
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle before
waxing. Use a good quality liquid or
paste wax, and follow the manufacturer’s
instructions. Wax all metal trim to protect
it and to maintain its luster.
ONX4OB091003
Removing oil, tar, and similar materials
ś Water washing in the engine
with a spot remover will usually strip the
compartment including high
wax from the finish. Be sure to re-wax
pressure water washing may cause
these areas even if the rest of the vehicle
the failure of electrical circuits
does not yet need waxing.
located in the engine compartment.
ś Never allow water or other liquids
NOTICE
to come in contact with electrical/
ś Wiping dust or dirt off the body with
electronic components inside the
a dry cloth will scratch the finish.
vehicle as this may damage them.
ś Do not use steel wool, abrasive
cleaners, or strong detergents
NOTICE
containing highly alkaline or
Matte paint finish vehicle (if equipped)
caustic agents on chrome-plated or
Automatic car wash which uses rotating
anodized aluminum parts. This may
brushes should not be used as this can
result in damage to the protective
damage the surface of your vehicle. A
coating and cause discoloration or
steam cleaner which washes the vehicle
paint deterioration.
surface at high temperature may result
the oil to adhere and leave stains that is
NOTICE
difficult to remove.
Matte paint finish vehicle (if equipped)
Use a soft cloth (for example, microfiber
Do not use any polish protector such as
towel or sponge) when washing your
vehicle and dry with a microfiber towel.
a detergent, an abrasive and a polish.
In case wax is applied, remove the wax
When you hand wash your vehicle, you
should not use a cleaner that finishes
immediately using a silicon remover
and if any tar or tar contaminant is on
with wax. If the vehicle surface is too
dirty (sand, dirt, dust, contaminant,
the surface use a tar remover to clean.
However, be careful not to apply too
etc.), clean the surface with water
before washing the car.
much pressure on the painted area.
9-68
09
Finish damage repair
Bright-metal maintenance
Deep scratches or stone chips in the
ś To remove road tar and insects, use
painted surface must be repaired
a tar remover, not a scraper or other
promptly. Exposed metal will quickly
sharp object.
rust and may develop into a major repair
ś To protect the surfaces of bright metal
expense.
parts from corrosion, apply a coating
of wax or chrome preservative and rub
NOTICE
to a high luster.
ś During winter weather or in coastal
If your vehicle is damaged and requires
any metal repair or replacement,
areas, cover the bright metal parts
with a heavier coating of wax or
be sure the body shop applies anti-
corrosion materials to the parts
preservative. If necessary, coat the
parts with non-corrosive petroleum
repaired or replaced.
jelly or other protective compound.
NOTICE
Underbody maintenance
Matte paint finish vehicle (if equipped)
Corrosive materials used for ice and
In case of matte paint finish vehicles,
snow removal and dust control may
it is impossible to modify only the
collect on the underbody. If these
damaged area and repair of the whole
materials are not removed, accelerated
part is necessary. If the vehicle is
rusting can occur on underbody parts
damaged and painting is required, have
such as the fuel lines, frame, floor pan
your vehicle maintained and repaired
and exhaust system, even though they
by an authorized HYUNDAI dealer. Take
have been treated with rust protection.
extreme care, as it is difficult to restore
Thoroughly flush the vehicle underbody
the quality after the repair.
and wheel openings with lukewarm or
cold water once a month, after off-road
driving and at the end of each winter. Pay
special attention to these areas because
it is difficult to see all the mud and dirt.
It will do more harm than good to wet
down the road grime without removing
it. The lower edges of doors, rocker
panels, and frame members have drain
holes that should not be allowed to clog
with dirt; trapped water in these areas
can cause rusting.
WARNING
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired, dry
the brakes by applying them lightly
while maintaining a slow forward
speed.
9-69
Maintenance
Aluminum wheel maintenance
High-corrosion areas
The aluminum wheels are coated with a
If you live in an area where your vehicle is
clear protective finish.
regularly exposed to corrosive materials,
corrosion protection is particularly
ś Do not use abrasive cleaner, polishing
important. Some of the common causes
compound, solvent, or wire brushes
of accelerated corrosion are road salts,
on aluminum wheels.
dust control chemicals, ocean air and
ś Clean the wheel when it has cooled.
industrial pollution.
ś Use only a mild soap or neutral
detergent, and rinse thoroughly with
Moisture breeds corrosion
water. Also, clean the wheels after
Moisture creates the conditions in
driving on salted roads.
which corrosion is most likely to occur.
ś Do not wash the wheels with high-
For example, corrosion is accelerated
speed car wash brushes.
by high humidity, particularly when
ś Do not use any cleaners containing
temperatures are just above freezing. In
acid or alkaline detergents.
such conditions, the corrosive material is
kept in contact with the vehicle surfaces
Corrosion protection
by moisture that is slow to evaporate.
Protecting your vehicle from corrosion
Mud is particularly corrosive because
it is slow to dry and holds moisture in
By using the most advanced design
contact with the vehicle. Although the
and construction practices to combat
mud appears to be dry, it can still retain
corrosion, HYUNDAI produces vehicles
moisture and promote corrosion.
of the highest quality. However, this is
only part of the job. To achieve the long-
High temperatures can also accelerate
term corrosion resistance your vehicle
corrosion of parts that are not properly
can deliver, the owner’s cooperation and
ventilated so the moisture can be
assistance is also required.
dispersed. For all these reasons, it is
particularly important to keep your
vehicle clean and free of mud or
Common causes of corrosion
accumulations of other materials. This
The most common causes of corrosion
applies not only to the visible surfaces
on your vehicle are:
but particularly to the underside of the
ś Road salt, dirt and moisture that is
vehicle.
allowed to accumulate underneath
the vehicle.
ś Removal of paint or protective
coatings by stones, gravel, abrasion
or minor scrapes and dents which
leave unprotected metal exposed to
corrosion.
9-70















Content      ..     4      5      6
