09
BRAKE FLUID
Checking the Brake Fluid Level
WARNING
If brake fluid comes in contact with your
eyes, flush your eyes with clean water for
at least 15 minutes and get immediate
medical attention.
NOTICE
ś Do not allow brake fluid to contact the
vehicle’s body paint, because paint
damage may occur.
ś Never use brake fluid that has been
ONX4090006
exposed to open air for an extended

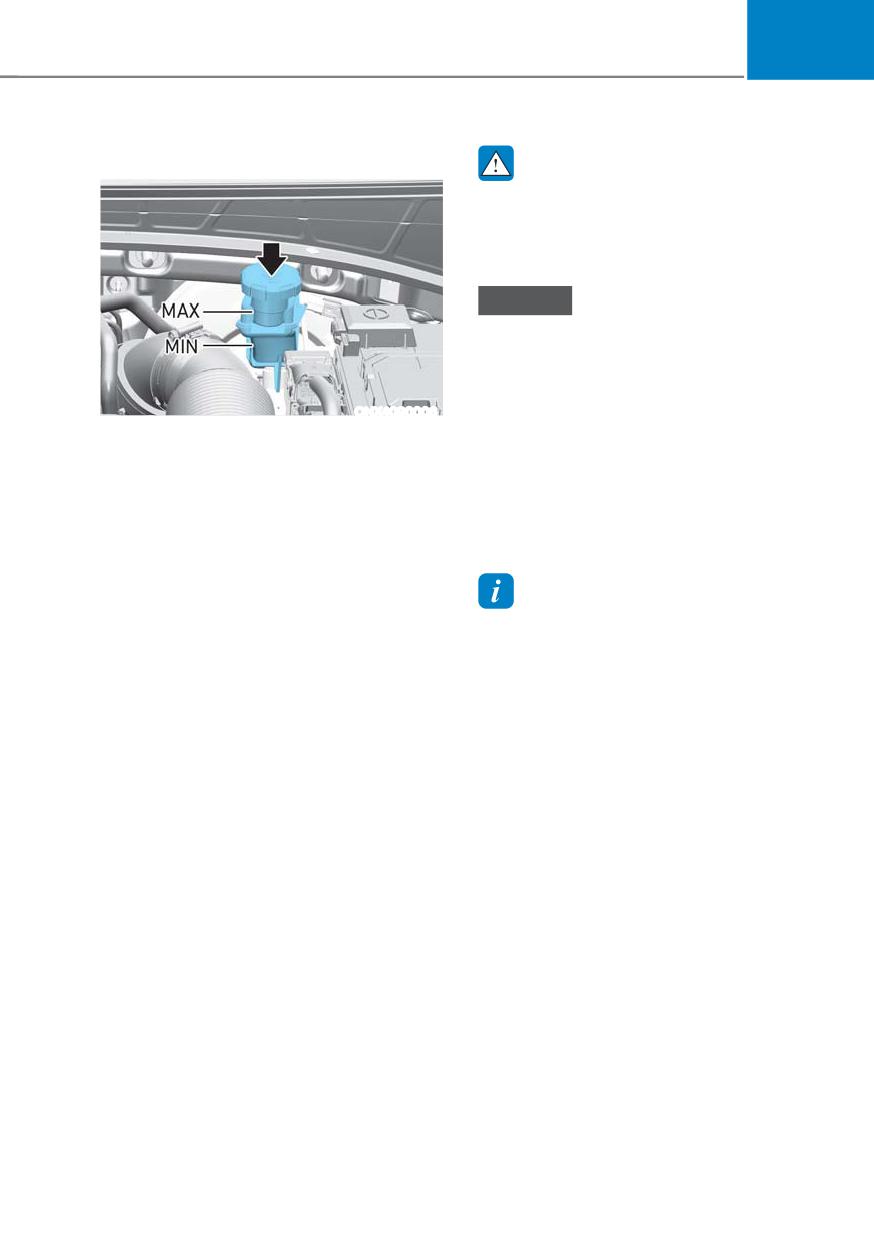

Check the fluid level in the reservoir
time and dispose of it properly.
periodically. The fluid level must be
ś Do not use the wrong type of brake
between the MAX and the MIN marks on
fluid. A few drops of mineral based
the side of the reservoir.
oil such as engine oil in your brake
Before removing the reservoir cap and
system may damage the brake system
adding brake fluid, clean the area around
parts.
the reservoir cap thoroughly to prevent
brake fluid contamination.
Information
If the level is low, add the specified brake
fluid to the MAX level. If the fluid level
Use only the brake fluid specified in
is excessively low or frequent additions
the “Recommended Lubricants and
are required, have the brake system
Capacities” section in Chapter 10.
inspected by an authorized HYUNDAI
dealer.
9-23
CarManuals2.com
Maintenance
WASHER FLUID
Checking the Washer Fluid Level
WARNING
To prevent serious injury or death:
ś Do not use engine coolant or
antifreeze in the washer fluid
reservoir. Engine coolant can severely
limit your visibility when sprayed on
the windshield and may cause loss of
vehicle control resulting in a collision.
ś Do not allow sparks or flame to
contact the washer fluid or the
washer fluid reservoir. Washer fluid
may contain alcohol and can be
ONX4090007
flammable.

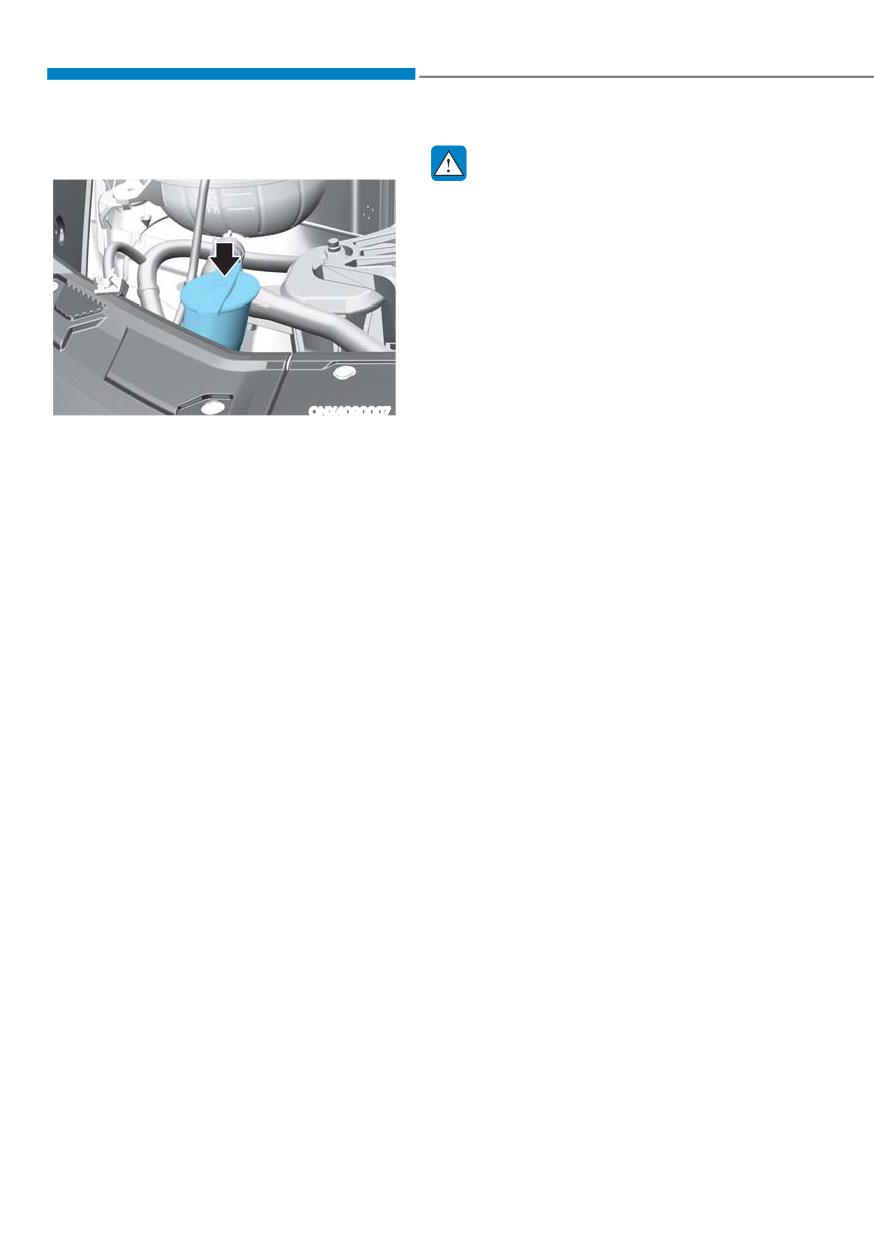

Check the fluid level in the washer fluid
ś Do not drink washer fluid and avoid
reservoir and add fluid if necessary.
contact with skin.
Plain water can be used during summer
months if washer fluid is not available.
However, use washer fluid with
antifreeze in cold climates to prevent
freezing.
9-24
CarManuals2.com
09

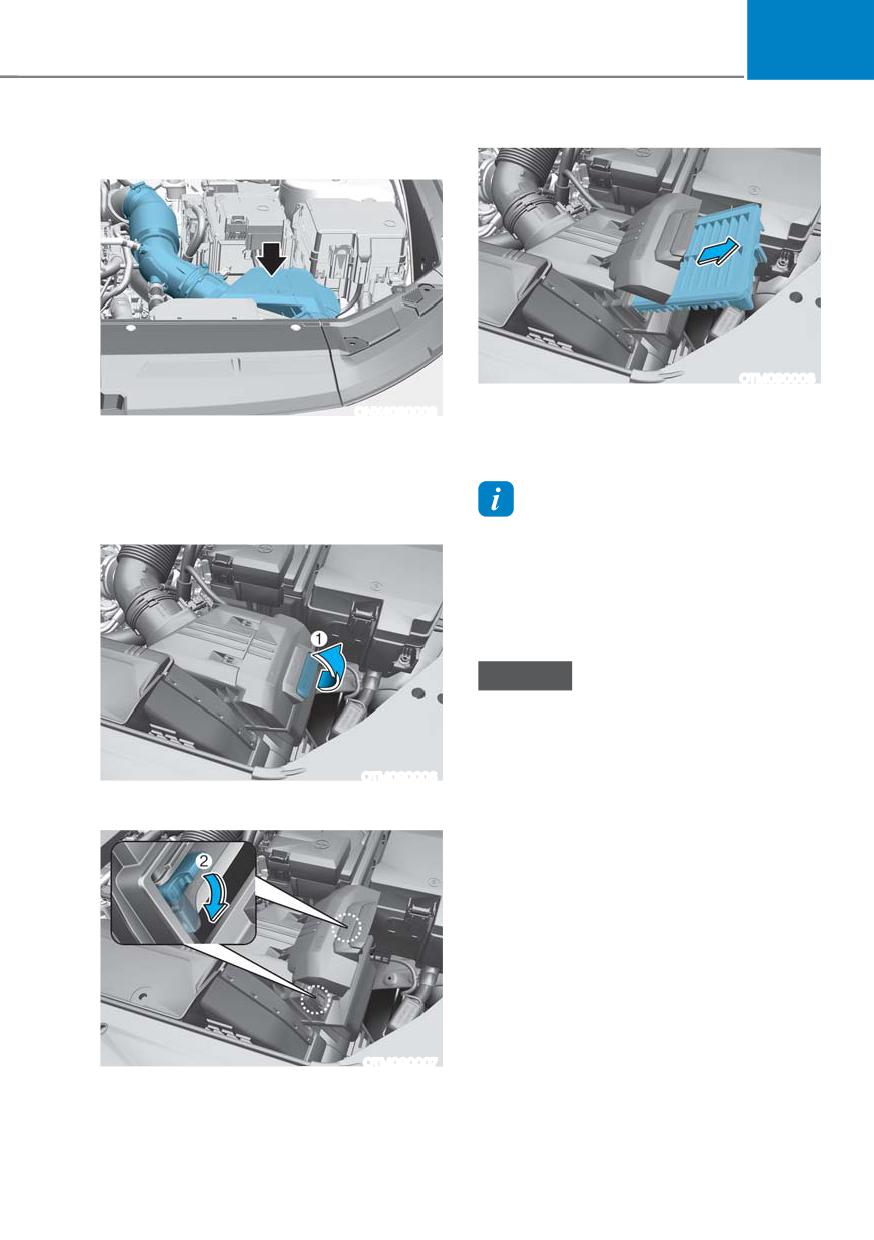

AIR CLEANER
Filter Replacement
OTM090008
3. Replace the air cleaner filter.
ONX4090008
4. Reassemble the air cleaner cover in
The air cleaner filter can be cleaned for
the reverse order.
inspection using compressed air. Do
not attempt to wash or rinse it, because
water can damage the filter. If soiled,
Information
replace the air cleaner filter.
If the vehicle is operated in extremely
dusty or sandy areas, replace the
element more often than the usual
recommended intervals (refer to
“Maintenance Under Severe Usage
Conditions” in this chapter).
NOTICE
ś Do not drive with the air cleaner filter
removed. This may result in excessive
engine wear.
OTM090006
ś When removing the air cleaner filter,
be careful that dust or dirt does not
1. Pull up the air cleaner filter cover M.
enter the air intake. It may cause
damage.
ś Use HYUNDAI genuine parts or the
equivalent specified for your vehicle.
Use of non-genuine parts may
damage the air flow sensor.
OTM090007
2. Pull down the lever to the UNLOCK N
position.
9-25
CarManuals2.com
Maintenance
CABIN AIR FILTER
Filter Inspection
The cabin air filter must be replaced
according to the Maintenance Schedule.
If the vehicle operates in severely air-
polluted cities or on dusty rough roads
for a long time, have it inspected more
frequently and replaced immediately.
Replace the cabin air filter by following
the procedure below and be careful to
avoid damaging other components.
ONX4090010
Filter Replacement
3. Press and hold the lock on the right
side of the cover.
4. Pull out the cover.
5. Replace the cabin air filter.
6. Reassemble in the reverse order of
disassembly.
NOTICE
ONX4090009

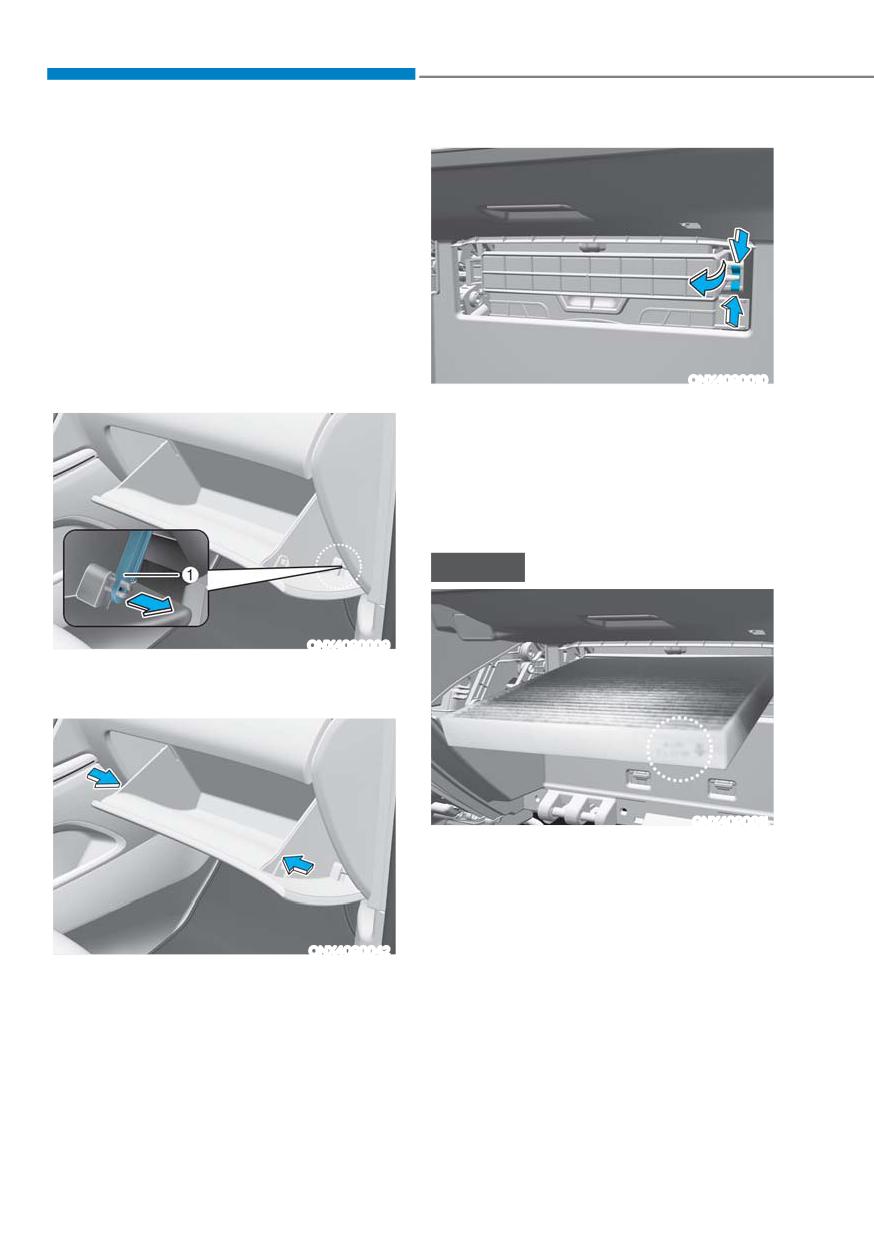

1. Open the glove box and remove the
support rod M.
ONX4090011
Install a new cabin air filter with the
DUURZ V\PERO Ƣ IDFLQJ GRZQ WR
improve effectiveness.
ONX4090042
2. Push in both sides of the glove box to
release the glove box stopper pins and
allow the glove box to hang open.
9-26
CarManuals2.com
09

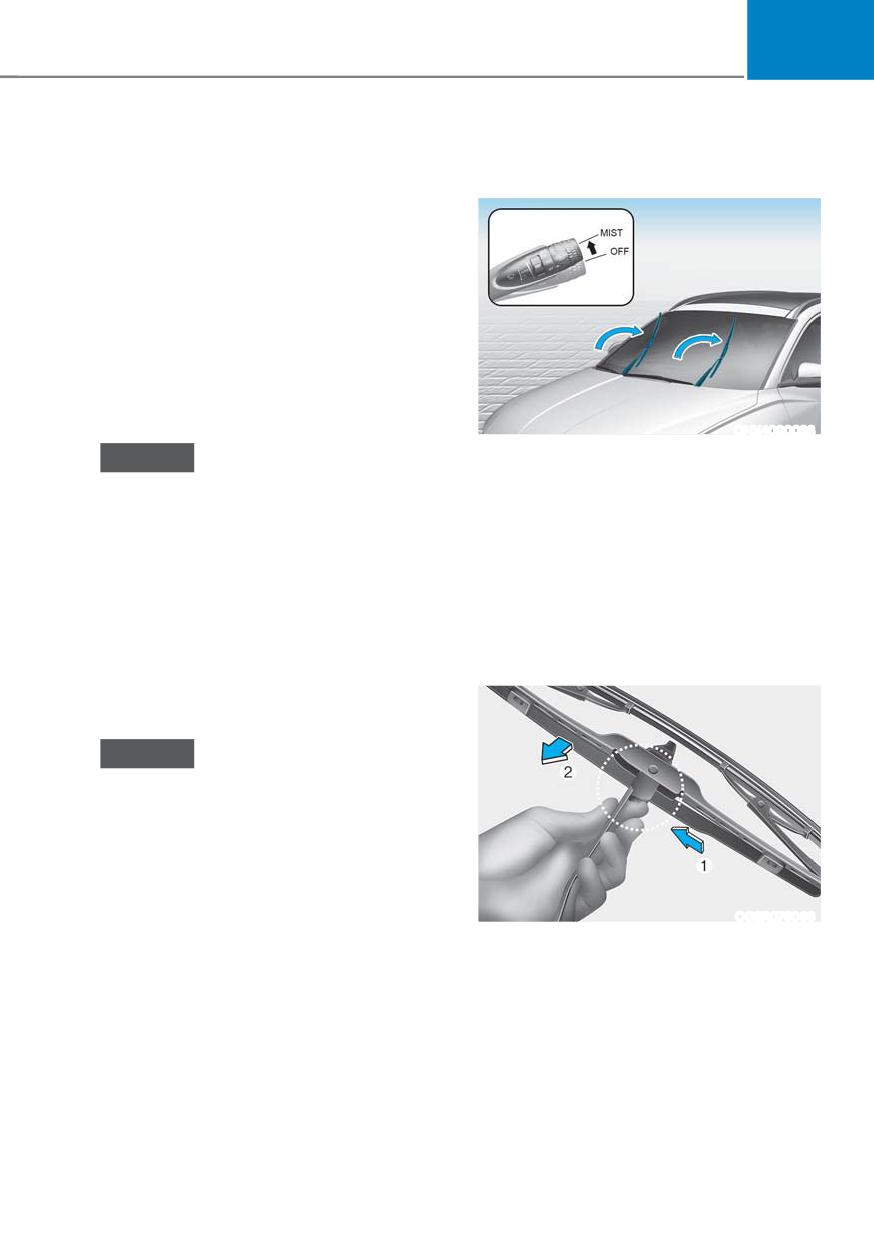

WIPER BLADES
Blade Inspection
Front windshield wiper blade
replacement
Contamination of the windshield or
wiper blades with foreign substances
may reduce the effectiveness of the
windshield wipers.
Common sources of contamination are
insects, tree sap, and hot wax treatments
used by some commercial car washes. If
the blades are not wiping properly, clean
both the window and the blades with
glass cleaner or mild detergent, and rinse
thoroughly with clean water. Replace
blades as needed.
ONX4090038
NOTICE
This vehicle has a “hidden” wiper design
that cannot be lifted when in their
To prevent damage to the wiper blades,
bottom resting position.
arms, or other components, do not:
1. Within 20 seconds of turning off the
ś Use gasoline, kerosene, paint thinner,
engine, lift and hold the wiper lever
or other solvents on or near them.
up to the MIST position for about 2
ś Attempt to move the wipers manually.
seconds until the wipers move to the
top wipe position.
Blade Replacement
2. Lift the wipers off the windshield.
When the wipers no longer clean
adequately, the blades may be worn or
Type A
cracked. Replace the wipers with new
ones.
NOTICE
To prevent damage:
ś Never use non-specified wiper blades.
ś Lift the wiper arms when in the top
wiping position.
ś Always return the wiper arms to the
windshield before driving.
OGSR076066

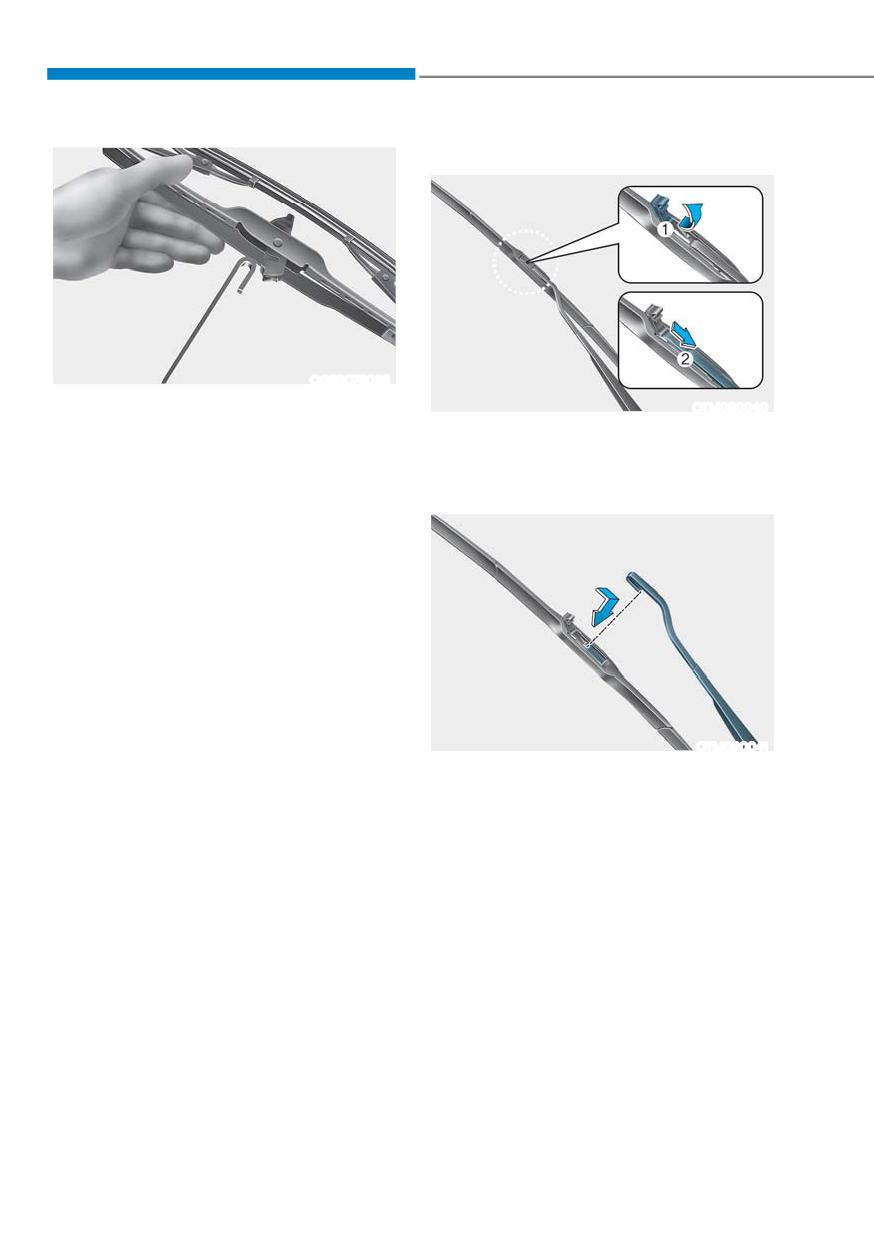

3. Rotate the wiper blade to access the
clip.
4. While pushing the clip M, pull down
the wiper blade N.
9-27
CarManuals2.com
Maintenance
Type B
OGSR076068
5. Remove the wiper blade from the
OTM090040
wiper arm.
3. Lift up the wiper blade clip M. Then
6. Install a new wiper blade assembly in
pull down the wiper blade N.
the reverse order of removal.
4. Remove the wiper blade from the
7. Gently put down the wiper back onto
wiper arm.
the windshield.
8. Turn the wipers to any ON position to
return the wiper arms to the bottom
resting position.
OTM090041
5. Install a new wiper blade assembly in
the reverse order of removal.
6. Gently put down the wiper back onto
the windshield.
7. Turn the wipers to any ON position to
return the wiper arms to the bottom
resting position.
9-28
CarManuals2.com
09

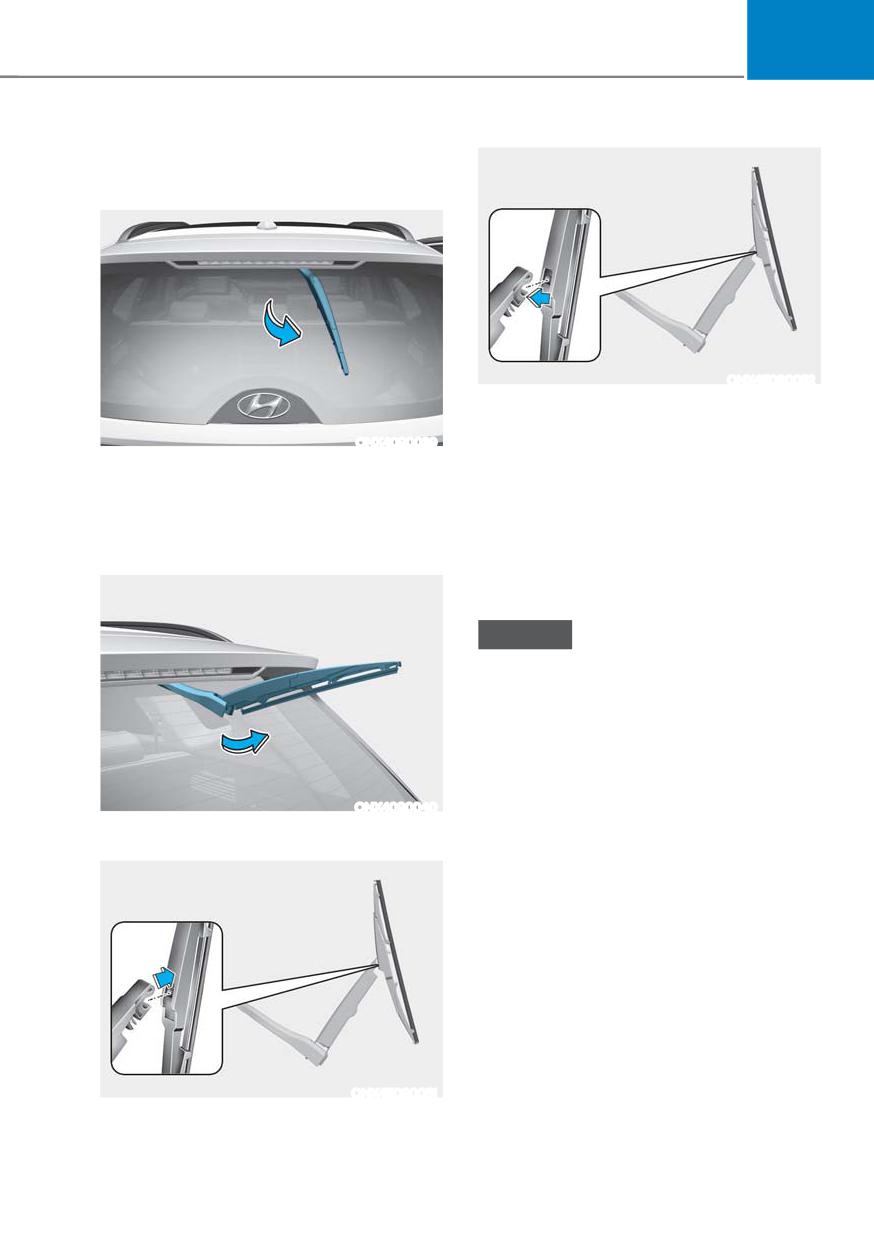

Rear window wiper blade
replacement
ONX4E090052
4. Install the new blade assembly by
inserting the center part into the slot
ONX4090039
in the wiper arm until it clicks into
1. Within 20 seconds after the vehicle
place.
ignition is OFF, pull down the wiper
If the replacement is complete, put
lever to MIST position for over 2
down the wiper arm onto the rear
seconds until the wiper moves down
windshield, and turn the vehicle
to the bottom middle part.
ignition to ON and operate the
wipers to check the blade is installed
correctly.
NOTICE
The rear wiper may not operate for
about 10 seconds if the wiper is operated
without washer fluid or the blades are
frozen to prevent damage to the motor.
ONX4090040
2. Raise the wiper arm.
ONX4E090051
3. Lift up the wiper blade, and pull it out.
9-29
CarManuals2.com
Maintenance
BATTERY
ś Lift a battery with a battery carrier or
WARNING
with your hands on opposite corners.
To prevent serious injury or death to you
When lifting a plastic-cased battery,
or bystanders when working near or
excessive pressure on the case may
handling the battery:
cause battery acid to leak.
ś Do not attempt to jump start your
Always read and follow
vehicle if your battery is frozen.
instructions carefully when
handling a battery.
ś Never attempt to recharge the battery
when the vehicle’s battery cables are
connected to the battery.
Wear eye protection designed
to protect the eyes from acid
ś The electrical ignition system works
splashes.
with high voltage. Never touch these
components with the engine running
Keep all flames, sparks, or
or when the ignition switch is in the
ON position.
smoking materials away from
the battery.
NOTICE
Hydrogen gas is always present
To prevent battery damage:
in battery cells. It is highly
ś Always fully charge the battery and
combustible, and may explode
if ignited.
store indoors when you do not plan to
use the vehicle for a long time if the
Keep batteries out of reach of
outside temperature is low enough to
children.
cause the battery to freeze.
ś Always fully charge the battery to
prevent battery case damage in low
Batteries contain sulfuric acid
temperature areas.
that is highly corrosive. Do not
allow acid to contact your eyes,
ś Never connect unauthorized devices
skin, or clothing.
to the battery.
If acid gets into your eyes, flush
your eyes with clean water
for at least 15 minutes and get
immediate medical attention.
If acid gets on your skin,
thoroughly wash the area. If you
feel pain or a burning sensation,
get medical attention
immediately.
9-30
CarManuals2.com
09

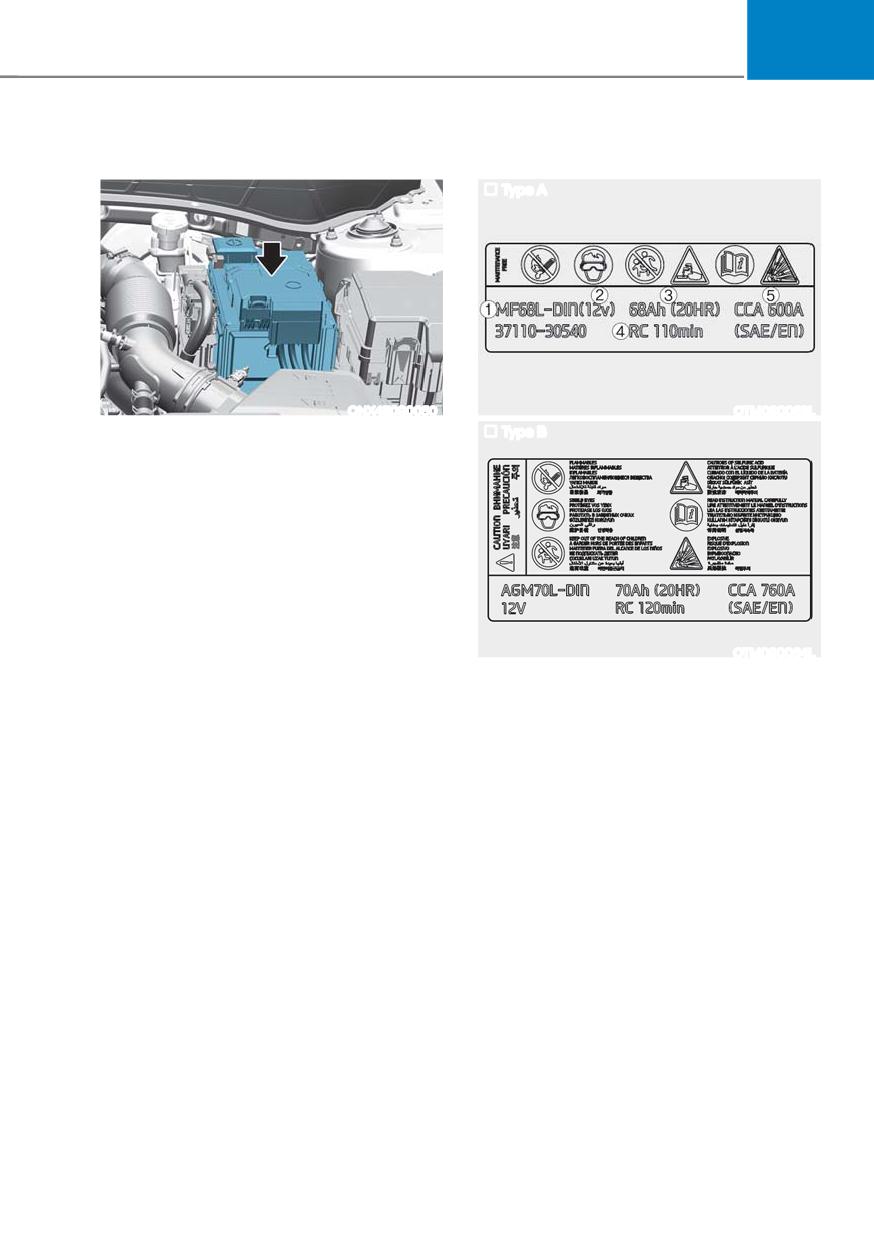

For Longer Battery Life
Battery Capacity Label
„ Type A
ONX4E090050
OTM090063L
ś Keep the battery top clean and dry.
„ Type B
ś Keep the terminals and connections
clean, tight, and coated with
petroleum jelly or terminal grease.
ś Rinse any spilled electrolyte from the
battery immediately with a solution of
water and baking soda.
ś If the vehicle is not going to be used
for an extended period of time,
disconnect the battery cables.
OTM090064L
1. MF68L-DIN: The HYUNDAI model
name of battery
2.
12V: The nominal voltage
3. 68Ah (20HR): The nominal capacity (in
Ampere hours)
4. RC 110min: The nominal capacity (in
Ampere hours)
5. 600A: The cold-test current in
amperes by SAE/EN
9-31
CarManuals2.com
Maintenance
Battery Recharging
ś Remove the negative battery cable
first and install it last when the battery
By battery charger
is disconnected. Disconnect the
Your vehicle has a maintenance-free,
battery charger in the following order:
calcium-based battery.
1. Turn off the battery charger main
Should your vehicle’s battery become
switch.
discharged either run the engine for
2. Unhook the negative clamp from
at least 60 minutes driving or at idle.
the negative battery terminal.
Alternatively you may connect a fully
automatic regulated charger to the
3. Unhook the positive clamp from
engine compartment front jumper posts
the positive battery terminal.
or at the battery.
NOTICE
WARNING
AGM battery (if equipped)
To prevent the risk of serious injury or
Absorbent Glass Mat (AGM) batteries
death from explosions or acid burns:
are maintenance-free and should be
serviced by an authorized HYUNDAI
ś Before performing maintenance or
dealer. Only charge using fully automatic
recharging the battery, turn off all
battery chargers that are specifically for
accessories and stop the engine.
AGM batteries.
ś Keep all flames, sparks, or smoking
materials away from the battery.
ś Always work outdoors or in an area
CAUTION
with plenty of ventilation.
Do not open or remove the cap on top
ś Wear eye protection when checking
of the battery. This may cause leaks of
the battery during charging. Do not
internal electrolyte that could result in
contact the battery. This may result in
severe injury.
serious injury.
ś Remove the battery from the vehicle
and place it in a well ventilated area.
ś Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin boiling
violently.
9-32
CarManuals2.com
09
By jump starting
Reset Items
After a jump start from a good battery,
The following items may need to be reset
drive the vehicle for 20-30 minutes
after the battery has been discharged or
before it is shut off. The vehicle may not
disconnected:
restart if you shut it off before the battery
ś Auto up/down window (refer to
had a chance to adequately recharge.
Chapter 5)
Refer to the “Jump Starting” section in
ś Sunroof (refer to Chapter 5)
Chapter 8 for more information on jump
starting procedures.
ś Trip computer (refer to Chapter 4)
ś Climate control system (refer to
Chapter 5)
Information
ś Integrated Memory System (refer to
An inappropriately disposed
Chapter 5)
battery may be harmful to
the environment and human
ś Clock (refer to the infotainment
system manual)
health. Dispose of the battery
according to your local law(s) or
ś Infotainment system (refer to the
regulations.
infotainment system manual)
9-33
CarManuals2.com
Maintenance
TIRES AND WHEELS
WARNING
Tire Care
For proper maintenance, safety,
Tire failure may cause loss of vehicle
and maximum fuel economy,
control and result in a collision. To
always maintain the recommended
reduce risk of serious injury or death:
tire inflation pressures and stay
ś
Inspect your tires monthly for
within the load limits and weight
proper inflation as well as wear
distribution recommended for your
vehicle.
and damage.
ś
The recommended cold tire

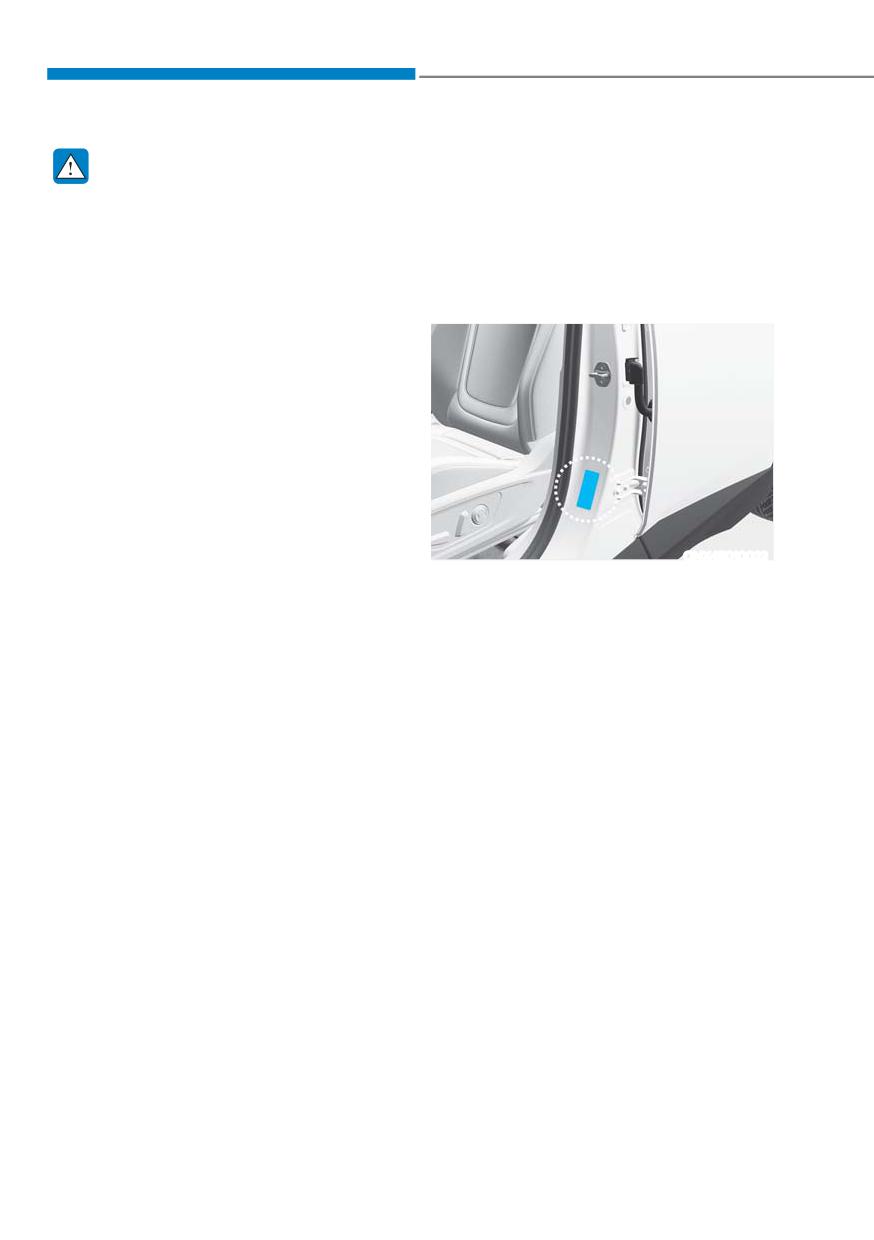

pressure for your vehicle can be
found in this manual and on the
tire label located on the driver’s
side center pillar. Always use a tire
pressure gauge to measure tire
pressure. Tires with too much or
too little pressure wear unevenly
causing poor handling.
ś
Check the pressure of the spare
ONX4E010022
every time you check the pressure
All specifications (sizes and
of the other tires on your vehicle.
pressures) can be found on a label
ś
Replace tires that are worn, show
attached to the driver’s side center
uneven wear, or are damaged.
pillar.
Worn tires may cause loss of
braking effectiveness, steering
Recommended Cold Tire
control, or traction.
Inflation Pressures
ś
Always replace tires with the
Check all tire pressures (including
same size, type, construction,
the spare) when the tires are cold.
and tread pattern as each tire that
“Cold tires” mean the vehicle has not
was originally supplied with this
been driven for at least three hours
vehicle. Using tires and wheels
or driven less than 1 mile (1.6 km).
other than the recommended
Warm tires normally exceed the
sizes may cause unusual handling
recommended cold tire pressures
characteristics, poor vehicle
by 4 to 6 psi (28 to 41 kPa). Do not
control, or negatively affect your
release air from warm tires to adjust
vehicle’s Anti-Lock Brake System
the pressure. The tires are under-
(ABS).
inflated. For the recommended
inflation pressure, refer to the “Tire
and Wheels” section in Chapter 10.
9-34
CarManuals2.com
09
WARNING
Check Tire Inflation Pressure
Check your tires, including the spare
ś
Recommended pressures must
be maintained for the best ride,
tire, at least once a month.
vehicle handling, and minimum
tire wear.
How to check
ś
Over-inflation or under-inflation
Use a good quality tire pressure
can reduce tire life, adversely
gauge to check the tire pressure.
affect vehicle handling, and lead
You cannot tell if your tires are
to sudden tire failure that may
properly inflated simply by looking at
result in loss of vehicle control
them. Radial tires may look properly
resulting in a collision.
inflated when they are under-
ś
Severe under-inflation may lead
inflated.
to severe heat build-up, causing
blowouts, tread separation, and
Remove the valve cap from the tire
other tire failures that result in loss
valve stem. Press the tire gauge
of vehicle control resulting in a
firmly onto the valve to get a
collision. This risk is much higher
pressure measurement. If the cold
on hot days and when driving for a
tire inflation pressure matches the
long time at high speeds.
recommended pressure on the tire
ś
Under-inflation may cause
and loading information label, no
excessive wear, poor handling,
further adjustment is necessary. If
and reduced fuel economy. Wheel
the pressure is low, add air until it
deformation is also possible. Keep
reaches the recommended pressure.
your tire pressures at the proper
levels. If a tire frequently needs
Be sure to put the valve caps back on
refilling, have it inspected by an
the valve stems. Without the valve
authorized HYUNDAI dealer.
cap, dirt or moisture may get into the
ś
Over-inflation produces a harsh
valve core and cause air leakage. If
ride, excessive wear at the center
a valve cap is missing, install a new
of the tire tread, and a greater
one as soon as possible.
possibility of damage from road
If you overfill the tire, release air by
hazards.
pushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gauge. Be
sure to put the valve caps back on
the valve stems. Without the valve
cap, dirt or moisture may get into the
valve core and cause air leakage. If
a valve cap is missing, install a new
one as soon as possible.
9-35
CarManuals2.com
Maintenance

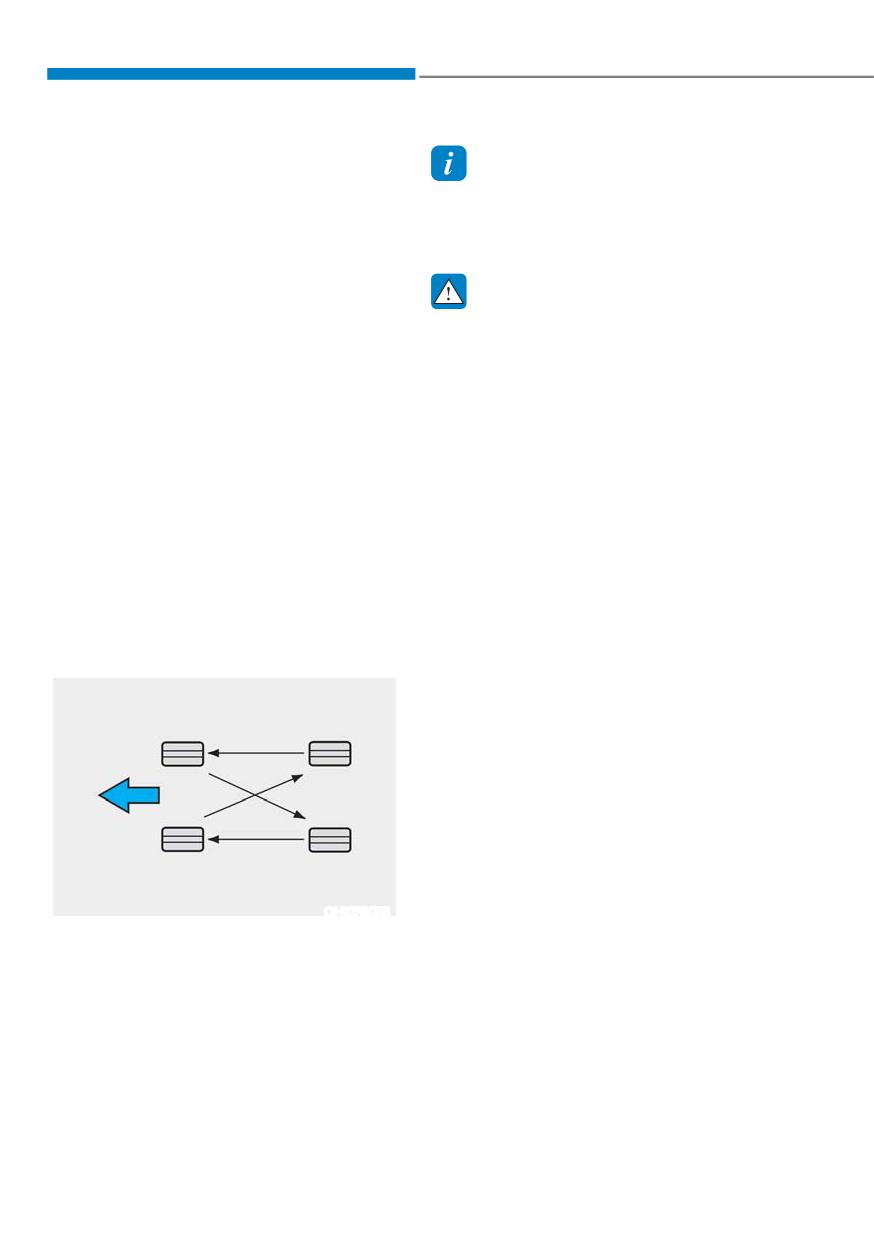

Tire Rotation
Information
To equalize tread wear, HYUNDAI
When installing an unsymmetrical
recommends that the tires
tire, install the side marked “outside”
be rotated according to the
facing out.
maintenance schedule or sooner if
irregular wear develops.
WARNING
During rotation, check the tires for
correct balance.
ś Do not use the compact spare tire
for tire rotation.
When rotating tires, check for
uneven wear and damage. Abnormal
ś Do not mix bias ply and radial ply
wear is usually caused by incorrect
tires under any circumstances.
tire pressure, improper wheel
This may cause unusual handling
alignment, out-of-balance wheels,
characteristics that may cause
severe braking, or severe cornering.
loss of vehicle control and result in
Look for bumps or bulges in the
a collision.
tread or side of the tire. Replace
the tire if you find any of these
conditions. Replace the tire if fabric
or cord is visible. After rotation, be
sure to bring the front and rear tire
pressures to specification and check
wheel nut torque (proper torque is
79~94 lbf·ft (11~13 kgf·m)).
OHI078078
Disc brake pads should be inspected
for wear whenever tires are rotated.
9-36
CarManuals2.com
09
Wheel Alignment and Tire
WARNING
Balance
To reduce the risk of serious injury or
The wheels on your vehicle were
death:
aligned and balanced carefully at
ś
Replace tires that are worn, show
the factory, and you may not need
uneven wear, or are damaged.
to have your wheels aligned again.
Worn tires may cause loss of
If you notice unusual tire wear or
braking effectiveness, steering
your vehicle pulling to one side, the
control, and traction.
alignment may need to be adjusted.
ś
Always replace tires with the same
If you notice your vehicle vibrating
size as each tire that was originally
when driving on a smooth road, your
supplied with this vehicle. Using
wheels may need to be rebalanced.
tires and wheels other than the
recommended sizes may cause
NOTICE
unusual handling characteristics,
Only use approved wheel weights or
poor vehicle control, or negatively
your vehicle’s aluminum wheels may be
affect your vehicle’s Anti-Lock
damaged.
Brake System (ABS).
ś
When replacing tires (or wheels),
Tire Replacement
it is recommended to replace
the two front or two rear tires (or

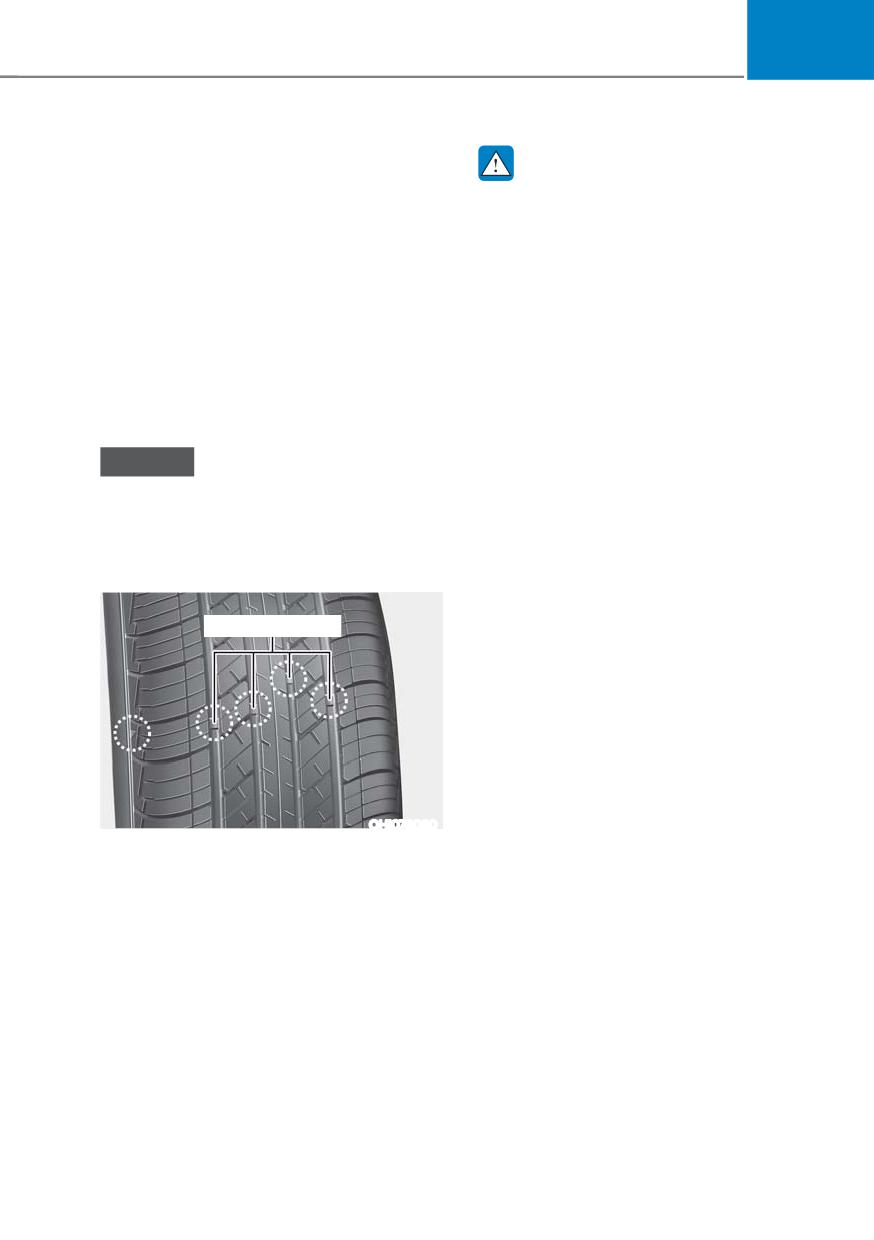

Tread wear indicator
wheels) as a pair. Replacing just
one tire may seriously affect your
vehicle’s handling.
ś
Tires degrade over time, even
when they are not being used.
Regardless of the remaining tread,
HYUNDAI recommends that tires
be replaced after six (6) years.
ś
Driving in hot climates or
OHI078080
excessive loading may accelerate
If the tire is worn evenly, a tread
the tire aging process.
wear indicator appears as a solid
band across the tread. This shows
there is less than 1/16 inch (1.6mm) of
tread left on the tire. Replace the tire
when this happens.
Do not wait for the band to appear
across the entire tread before
replacing the tire.
9-37
CarManuals2.com
Maintenance
Compact spare tire replacement
Wheel Replacement
(if equipped)
When replacing the metal wheels
A compact spare tire has a shorter
for any reason, make sure the new
tread life than a regular size tire.
wheels are equivalent to the original
Replace it when you can see the
factory units in diameter, rim width,
tread wear indicator bars on the tire.
and offset.
The replacement compact spare tire
should be the same size and design
Tire Traction
tire as the one provided with your
Tire traction can be reduced if
vehicle and must be mounted on the
you drive on worn tires or the tires
same compact spare tire wheel. The
that are improperly inflated, or on
compact spare tire is not designed to
slippery road surfaces. Replace the
be mounted on a regular size wheel,
tires when tread wear indicators
and the compact spare tire wheel is
appear. To reduce the possibility of
not designed for mounting a regular
losing control, slow down whenever
size tire.
there is rain, snow, or ice on the
road.
WARNING
Tire Maintenance
The normal size tire should be
repaired or replaced as soon as
In addition to proper inflation,
possible to avoid failure of the spare
correct wheel alignment helps
and loss of vehicle control resulting
decrease the tire wear. If you find
in a collision.
a tire is worn unevenly, have your
dealer check the wheel alignment.
The compact spare tire is for
When you have new tires installed,
emergency use only. Do not operate
make sure they are balanced. This
your vehicle over 50 mph (80 km/h)
may increase ride comfort and tire
when using the compact spare tire.
life. Additionally, a tire must always
be rebalanced if it is removed from
the wheel.
9-38
CarManuals2.com
09
Tire Sidewall Labeling
Example tire size designation:
This information identifies and
(These numbers are provided as
describes the fundamental
an example only. Your tire size
characteristics of the tire and also
designator may vary depending on
provides the tire identification
your vehicle.)
number (TIN) for safety standard
235/60R18 102H
certification. The TIN can be used to
identify the tire in case of a recall.
235 - Tire width in millimeters.
60 - Aspect ratio. The tire’s section
height as a percentage of its
width.
R - Tire construction code (Radial).
18 - Rim diameter in inches.
102 - Load Index, a numerical code
associated with the maximum
load the tire can carry.
H - Speed Rating Symbol. See the
speed rating chart in this section
B0464EU01
for additional information.

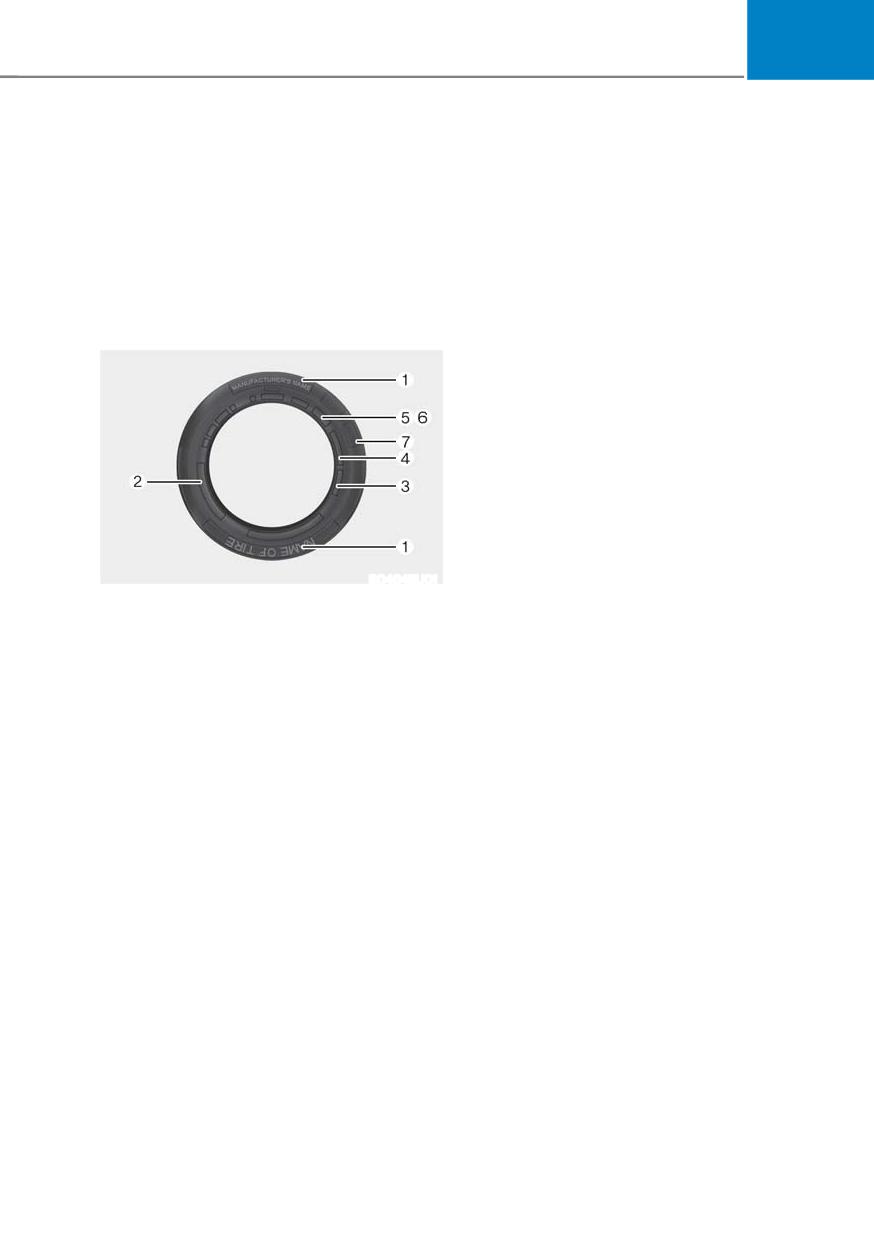

1. Manufacturer or brand name
Wheel size designation
Manufacturer or brand name is
Wheels are also marked with
shown.
important information that you need
if you ever have to replace one.
2. Tire size designation
Example wheel size designation:
A tire’s sidewall is marked with
a tire size designation. You need
7.5J X 18
this information when selecting
7.5 - Rim width in inches.
replacement tires for your vehicle.
J - Rim contour designation.
The following explains what the
18 - Rim diameter in inches.
letters and numbers in the tire size
designation mean.
9-39
CarManuals2.com
Maintenance
Tire speed ratings
4. Tire ply composition and material
The chart below lists many of the
The number of layers or plies of
different speed ratings currently
rubber-coated fabric in the tire. Tire
being used for passenger vehicle
manufacturers also must indicate the
tires. The speed rating is part of the
materials in the tire, which include
tire size designation on the sidewall
steel, nylon, polyester, and others.
of the tire. This symbol corresponds
The letter “R” means radial ply
to that tire’s designed maximum safe
construction. The letter “D“ means
operating speed.
diagonal or bias ply construction;
and the letter “B” means belted-bias
Speed Rating
Maximum Speed
ply construction.
Symbol
S
112 mph (180 km/h)
5. Maximum permissible inflation
T
118 mph (190 km/h)
pressure
H
130 mph (210 km/h)
This number is the greatest amount
V
149 mph (240 km/h)
of air pressure that should be put in
the tire. Do not exceed the maximum
W
168 mph (270 km/h)
permissible inflation pressure. Refer
Y
186 mph (300 km/h)
to the Tire and Loading Information
label for recommended inflation
3. Checking tire life (TIN: Tire
pressure.
Identification Number)
Any tires that are over six years old,
6. Maximum load rating
based on the manufacturing date,
This number indicates the maximum
(including the spare tire) must be
load in kilograms and pounds that
replaced by new ones. You can find
can be carried by the tire. When
the manufacturing date on the tire
replacing the tires on the vehicle,
sidewall (possibly on the inside of
always use a tire that has the same
the wheel), displaying the DOT Code.
load rating as the factory installed
The DOT Code is a series of numbers
tire.
on a tire consisting of numbers and
English letters. The manufacturing
date is designated by the last four
digits (characters) of the DOT code.
DOT: XXXX XXXX OOOO
The front part of the DOT shows a
plant code number, tire size, and
tread pattern and the last four
numbers indicate the week and year
manufactured.
For example:
DOT XXXX XXXX 1523 represents that
the tire was produced in the 15th
week of 2023.
9-40
CarManuals2.com
09
7. DOT Tire Quality Grading (U.S.
Traction - AA, A, B & C
Vehicles)
The traction grades, from highest to
The tires on your vehicle meet all U.S.
lowest, are AA, A, B, and C. Those
Federal Safety Requirements. All tires
grades represent the tire’s ability to
are also graded for treadwear, traction,
stop on wet pavement as measured
and temperature performance according
under controlled conditions on
to Department of Transportation (DOT)
specified government test surfaces
standards.
of asphalt and concrete. A tire
marked C may have poor traction
Uniform tire quality grading
performance.
Quality grades can be found where
applicable on the tire sidewall
WARNING
between tread shoulder and
maximum section width.
The traction grade assigned to
For example:
this tire is based on straight ahead
braking traction tests, and does not
TREADWEAR 200
include acceleration, cornering,
TRACTION AA
hydroplaning, or peak traction
TEMPERATURE A
characteristics.
Tread wear
Temperature - A, B & C
The tread wear grade is a
The temperature grades are A (the
comparative rating based on the
highest), B and C representing the
wear rate of the tire when tested
tire’s resistance to the generation
under controlled conditions on a
of heat and its ability to dissipate
specified government test course.
heat when tested under controlled
For example, a tire graded 150 would
conditions on a specified indoor
wear one-and-a-half times (1½) as
laboratory test wheel.
well on the government course as a
Sustained high temperature may
tire graded 100.
cause the material of the tire to
The relative performance of tires
degenerate and reduce tire life,
depends upon the actual conditions
and excessive temperature may
of their use, however, and may
lead to sudden tire failure. The
depart significantly from the norm
grade C corresponds to a level of
due to variations in driving habits,
performance that all passenger
service practices, and differences in
car tires must meet the Federal
road characteristics and climate.
Motor Vehicle Safety Standard
No. 109. Grades A and B represent
These grades are molded on the
sidewalls of passenger vehicle tires.
higher levels of performance on
the laboratory test wheel than the
The tires available as standard or
optional equipment on your vehicle
minimum required by law.
may vary depending on the grade.
9-41
CarManuals2.com
Maintenance
WARNING
Tire Terminology and Definitions
Air pressure
The temperature grade for this
tire is established for a tire that is
The amount of air inside the tire
pressing outward on the tire. Air
properly inflated and not overloaded.
Excessive speed, under-inflation,
pressure is expressed in pounds per
square inch (psi) or kilopascal (kPa).
over-inflation, or excessive loading,
either separately or in combination,
Accessory weight
may cause heat build-up and
possible sudden tire failure.
This means the combined weight
of optional accessories. Some
examples of optional accessories
are automatic transmission, power
seats, and air conditioning.
Aspect ratio
The relationship of a tire’s height to
its width.
Belt
A rubber coated layer of cords that
is located between the plies and the
tread. Cords may be made from steel
or other reinforcing materials.
Bead
The tire bead contains steel wires
wrapped by steel cords that hold the
tire onto the rim.
9-42
CarManuals2.com
09
Bias ply tire
Intended outboard sidewall
A pneumatic tire in which the plies are
The side of an asymmetrical tire,
laid at alternate angles less than 90
that must always face outward when
degrees to the centerline of the tread.
mounted on a vehicle.
Cold tire pressure
Kilopascal (kPa)
The amount of air pressure in a tire,
The metric unit for air pressure.
measured in pounds per square inch
(psi) or kilopascals (kPa) before a tire
Light Truck (LT) tire
has built up heat from driving.
A tire designated by its manufacturer
as primarily intended for use on
Curb weight
lightweight trucks or multipurpose
This means the weight of a motor
passenger vehicles.
vehicle with standard and optional
equipment including the maximum
Load ratings
capacity of fuel, oil and coolant, but
The maximum load that a tire is rated
without passengers and cargo.
to carry for a given inflation pressure.
DOT markings
Load index
A code molded into the sidewall
An assigned number ranging from 1
of a tire signifying that the tire
to 279 that corresponds to the load
is in compliance with the U.S.
carrying capacity of a tire.
Department of Transportation motor
vehicle safety standards. The DOT
Maximum inflation pressure
code includes the Tire Identification
The maximum air pressure to which
Number (TIN), an alphanumeric
a cold tire may be inflated. The
designator which can also identify
maximum air pressure is molded
the tire manufacturer, production
onto the sidewall.
plant, brand and date of production.
Maximum load rating
GVWR
The load rating for a tire at the
Gross Vehicle Weight Rating
maximum permissible inflation
pressure for that tire.
GAWR FRT
Gross Axle Weight Rating for the
Front Axle.
GAWR RR
Gross Axle Weight Rating for the
Rear axle.
9-43
CarManuals2.com
Maintenance
Maximum loaded vehicle weight
Pneumatic tire
The sum of curb weight; accessory
A mechanical device made of rubber,
weight; vehicle capacity weight; and
chemicals, fabric and steel or other
production options weight.
materials, that, when mounted on
an automotive wheel provides the
Normal occupant weight
traction and contains the gas or fluid
The number of occupants a vehicle
that sustains the load.
is designed to seat multiplied by 150
Pneumatic options weight
pounds (68 kg).
The combined weight of installed
Occupant distribution
regular production options weighing
Designated seating positions.
over 5 lb. (2.3 kg) in excess of the
standard items which they replace,
Outward facing sidewall
not previously considered in
curb weight or accessory weight,
An asymmetrical tire has a particular
including heavy duty breaks, ride
side that faces outward when
levelers, roof rack, heavy duty
mounted on a vehicle. The outward
battery, and special trim.
facing sidewall bears white lettering
or bears manufacturer, brand, and/or
Recommended inflation pressure
model name molding that is higher
or deeper than the same moldings
Vehicle manufacturer’s
on the inner facing sidewall.
recommended tire inflation pressure
as shown on the tire placard.
Passenger (P-Metric) tire
Radial ply tire
A tire used on passenger cars
and some light duty trucks and
A pneumatic tire in which the ply
multipurpose vehicles.
cords that extend to the beads are
laid at 90 degrees to the centerline
Ply
of the tread.
A layer of rubber-coated parallel
Rim
cords.
A metal support for a tire and upon
which the tire beads are seated.
Sidewall
The portion of a tire between the
tread and the bead.
Speed rating
An alphanumeric code assigned to a
tire indicating the maximum speed
at which a tire can operate.
9-44
CarManuals2.com
09
Traction
Vehicle placard
The friction between the tire and
A label permanently attached
the road surface. The amount of grip
to a vehicle showing the
provided.
original equipment tire size and
recommended inflation pressure.
Tread
All Season Tires
The portion of a tire that comes into
contact with the road.
HYUNDAI specifies all season
tires on some models to provide
Treadwear indicators
good performance for use all year
Narrow bands, sometimes called
round, including snowy and icy
“wear bars”, that show across the
road conditions. All season tires
tread of a tire when only 1/16 inch of
are identified by ALL SEASON and/
tread remains.
or M+S (Mud and Snow) on the tire
sidewall. Snow tires have better
UTQGS
snow traction than all season tires
Uniform Tire Quality Grading
and may be more appropriate in
some areas.
Standards is a tire information
system that provides consumers
Summer Tires
with ratings for a tire’s traction,
temperature and treadwear.
HYUNDAI specifies summer tires on
Ratings are determined by tire
some models to provide superior
manufacturers using government
performance on dry roads. Summer
testing procedures. The ratings are
tire performance is substantially
molded into the sidewall of the tire.
reduced in snow and ice. Summer
tires do not have the tire traction
Vehicle capacity weight
rating M+S (Mud and Snow) on
The number of designated seating
the tire side wall. If you plan to
positions multiplied by 150 lbs. (68
operate your vehicle in snowy or icy
kg) plus the rated cargo and luggage
conditions, HYUNDAI recommends
load.
the use of snow tires or all season
tires on all four wheels.
Vehicle maximum load on the tire
Load on an individual tire due to curb
and accessory weight plus maximum
occupant and cargo weight.
Vehicle normal load on the tire
Load on an individual tire that is
determined by distributing to each
axle its share of the curb weight,
accessory weight, and normal
occupant weight and dividing by 2.
9-45
CarManuals2.com
Maintenance
Snow Tires
Radial-Ply Tires
If you use snow tires, they should
Radial-ply tires provide improved
be the same size and have the same
tread life, road hazard resistance
load capacity as the original tires.
and smoother high speed ride. The
Snow tires should be installed on
radial-ply tires used on this vehicle
all four wheels. Otherwise, poor
are of belted construction, and are
handling may result. Snow tires
selected to complement the ride
should carry 4 psi (28 kPa) more
and handling characteristics of
air pressure than the pressure
your vehicle. Radial-ply tires have
recommended for the standard
the same load carrying capacity,
tires on the tire label located on the
as bias-ply or bias belted tires of
driver’s side center pillar, or up to the
the same size, and use the same
maximum pressure shown on the tire
recommended inflation pressure.
sidewall, whichever is less. Do not
Mixing of radial-ply tires with
drive faster than 75 mph (120 km/h)
bias-ply or bias belted tires is not
when your vehicle is equipped with
recommended. Any combinations of
snow tires.
radial-ply and bias-ply or bias belted
tires when used on the same vehicle
will seriously deteriorate vehicle
handling. The best rule to follow is to
use identical radial-ply tires as a pair
for the the front tires and rear tires.
Longer wearing tires can be more
susceptible to irregular tread wear.
It is very important to follow the tire
rotation interval in this chapter to
achieve the tread life potential of
these tires. Cuts and punctures in
radial-ply tires are repairable only in
the tread area, because of sidewall
flexing. Consult your tire dealer for
radial-ply tire repairs.
WARNING
Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that may cause loss
of vehicle control and result in a
collision.
9-46
CarManuals2.com
09
FUSES
This vehicle has 2 (or 3) fuse panels, one

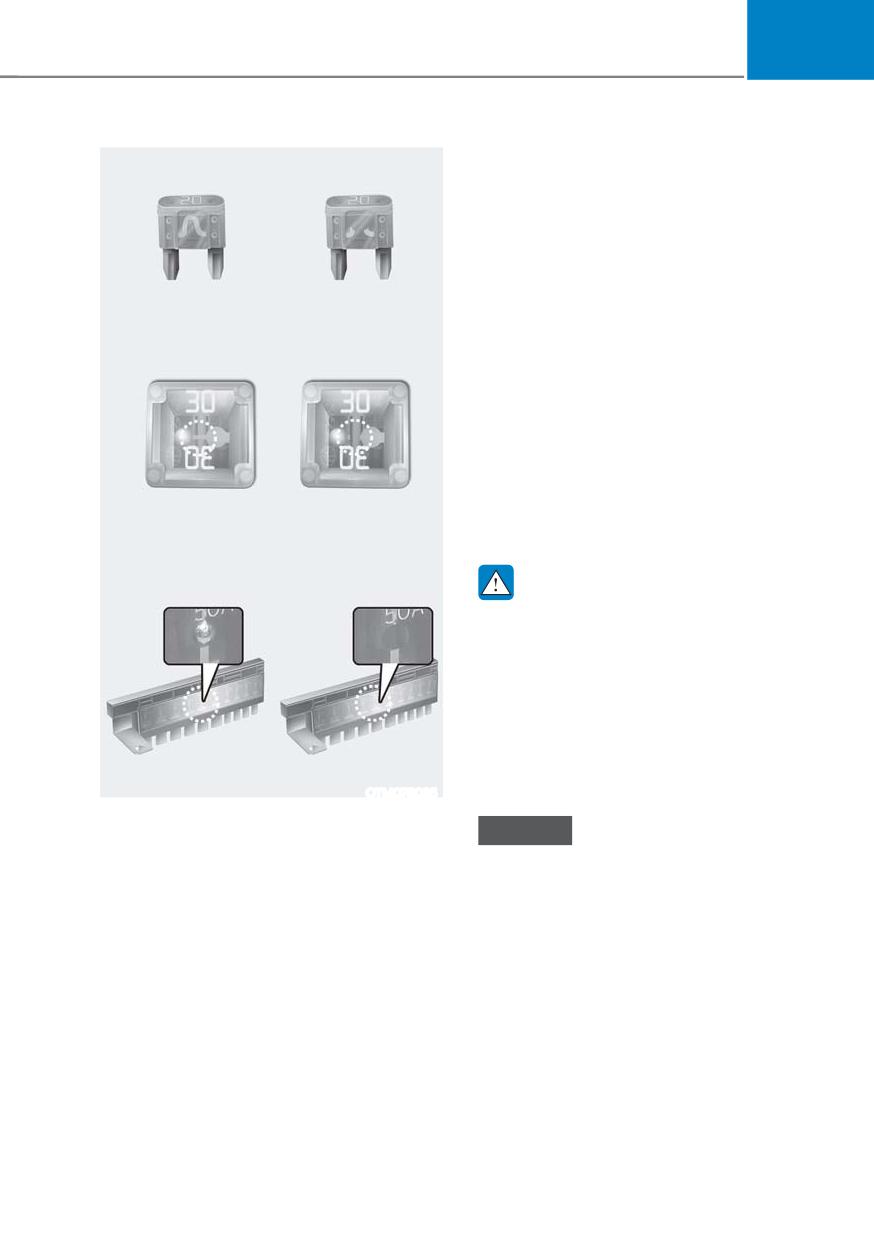

Ŷ Blade type
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
Normal
Blown
fuse is melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Ŷ Cartridge type
Before replacing a blown fuse, turn off
the engine and all switches, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
Normal
Blown
indicates an electrical problem. Avoid
using the system involved and contact an
authorized HYUNDAI dealer.
Ŷ Multi type
WARNING
Never replace a fuse with anything but
another fuse of the same rating.
ś A higher capacity fuse may cause
damage and possibly cause a fire.
ś Do not install a wire or aluminum
foil instead of the proper fuse - even
Normal
Blown
as a temporary repair. It may cause
extensive wiring damage and possibly
a fire.
OTM078035
A vehicle’s electrical system is protected
from electrical overload damage by
NOTICE
fuses.
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.
9-47
CarManuals2.com
Maintenance
Instrument Panel Fuse
Replacement
„ Driver’s side
ONX4090046
5. Pull the suspected tool straight out.
Use the removal tool M provided in
ONX4090013
the engine compartment fuses panel
1. Turn off the vehicle.
cover.
2. Turn off all other switches.
6. Check the removed fuse and replace it
3. Open the fuse panel cover.
if it is blown. Spare fuses are provided
in the instrument panel fuse panels
4. Refer to the label on the inside of
(or in the engine compartment fuse
the fuse panel cover to locate the
panel).
suspected fuse location.
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it is not tight, contact an
authorized HYUNDAI dealer.
In an emergency, if you do not have a
spare fuse, use a fuse of the same rating
from a circuit you may not need for
operating the vehicle.
If the headlights or other electrical
components do not work and the fuses
are undamaged, check the fuse panel in
the engine compartment.
9-48
CarManuals2.com
09
Engine Compartment Panel Fuse
NOTICE
Replacement
Always securely install the fuse panel
Blade fuse/Cartridge fuse
cover. Water may contact the fuse and
cause an electrical failure.

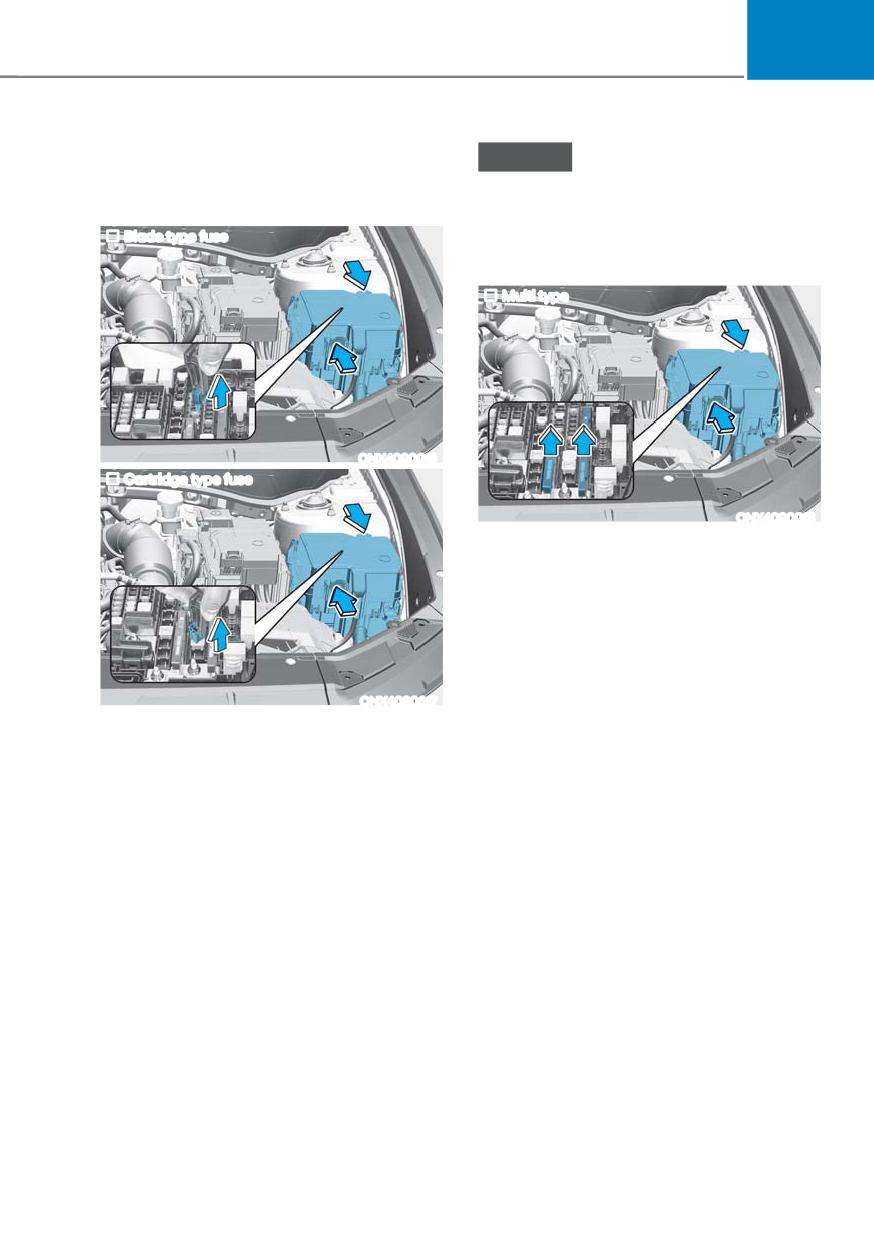

„ Blade type fuse
Multi fuse
„ Multi type

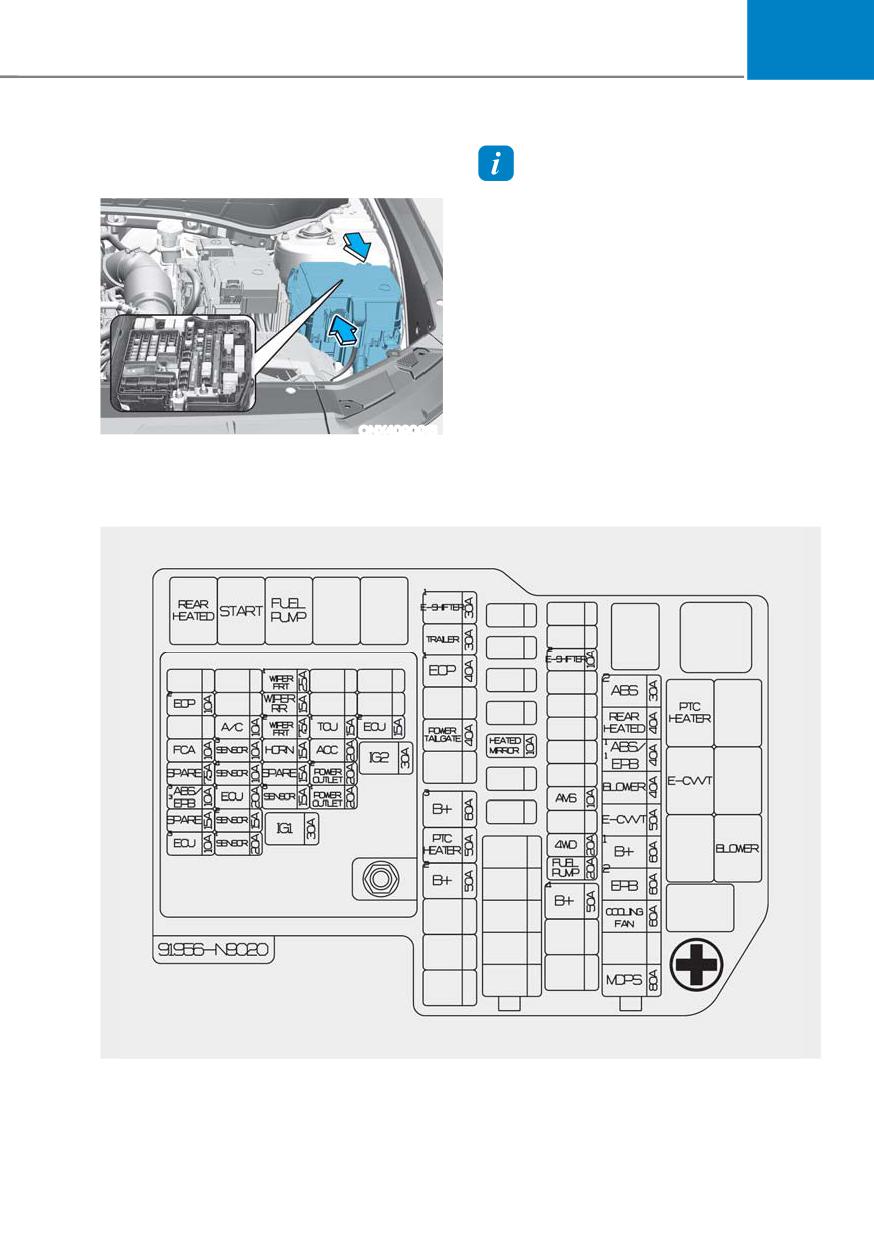

ONX4090018
„ Cartridge type fuse
ONX4090016
If the multi fuse or midi fuse is blown,
contact an authorized HYUNDAI dealer.
ONX4090017
1. Turn off the vehicle.
2. Turn off all other switches.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Refer to the label on the inside of
the fuse panel cover to locate the
suspected fuse location.
5. Pull the suspected fuse straight out.
Use the removal tool M provided in
the engine compartment fuses panel
cover.
6. Check the removed fuse and replace
it if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
7. Push in a new fuse of the same
rating, and make sure it fits tightly in
the clips. If it is not tight, contact an
authorized HYUNDAI dealer.
9-49
CarManuals2.com
Maintenance
Fuse Panel Description
Information

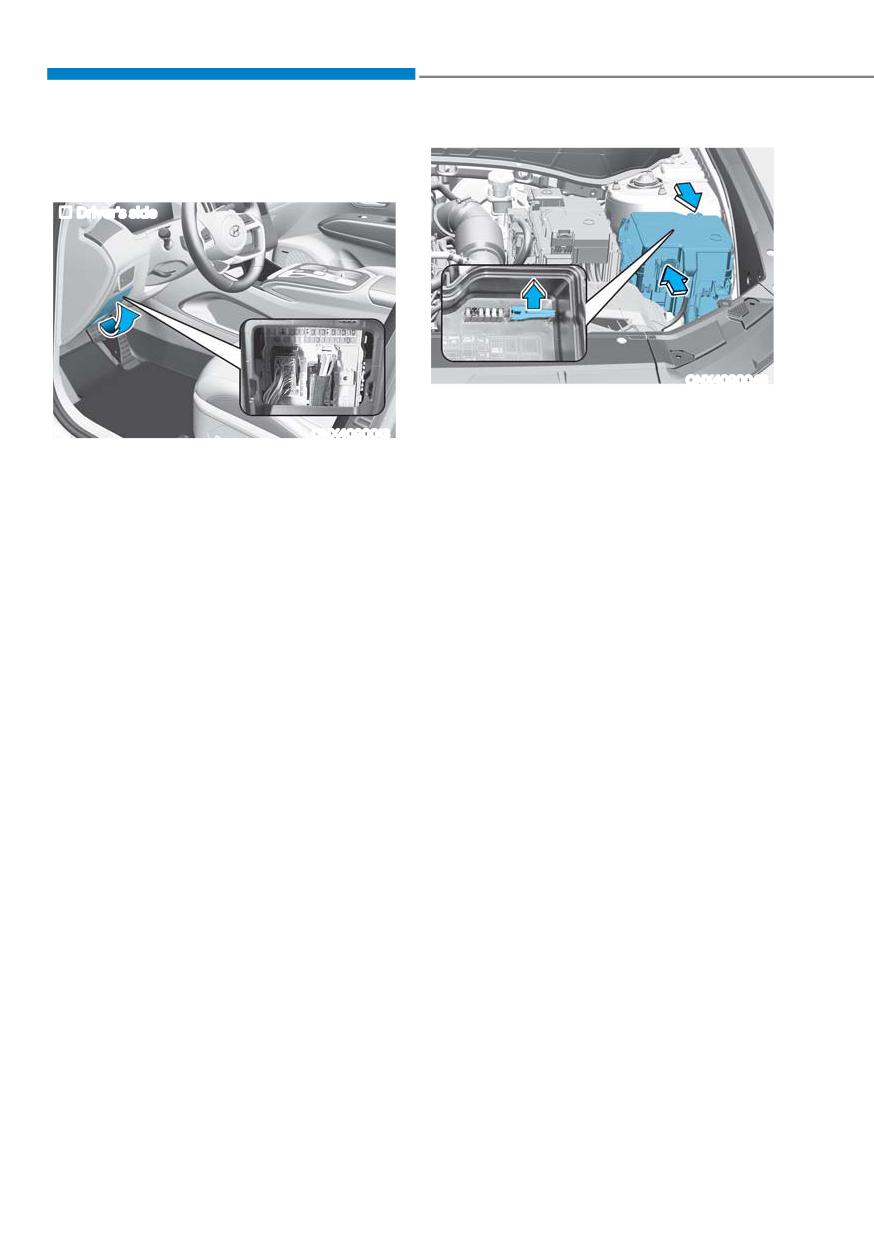

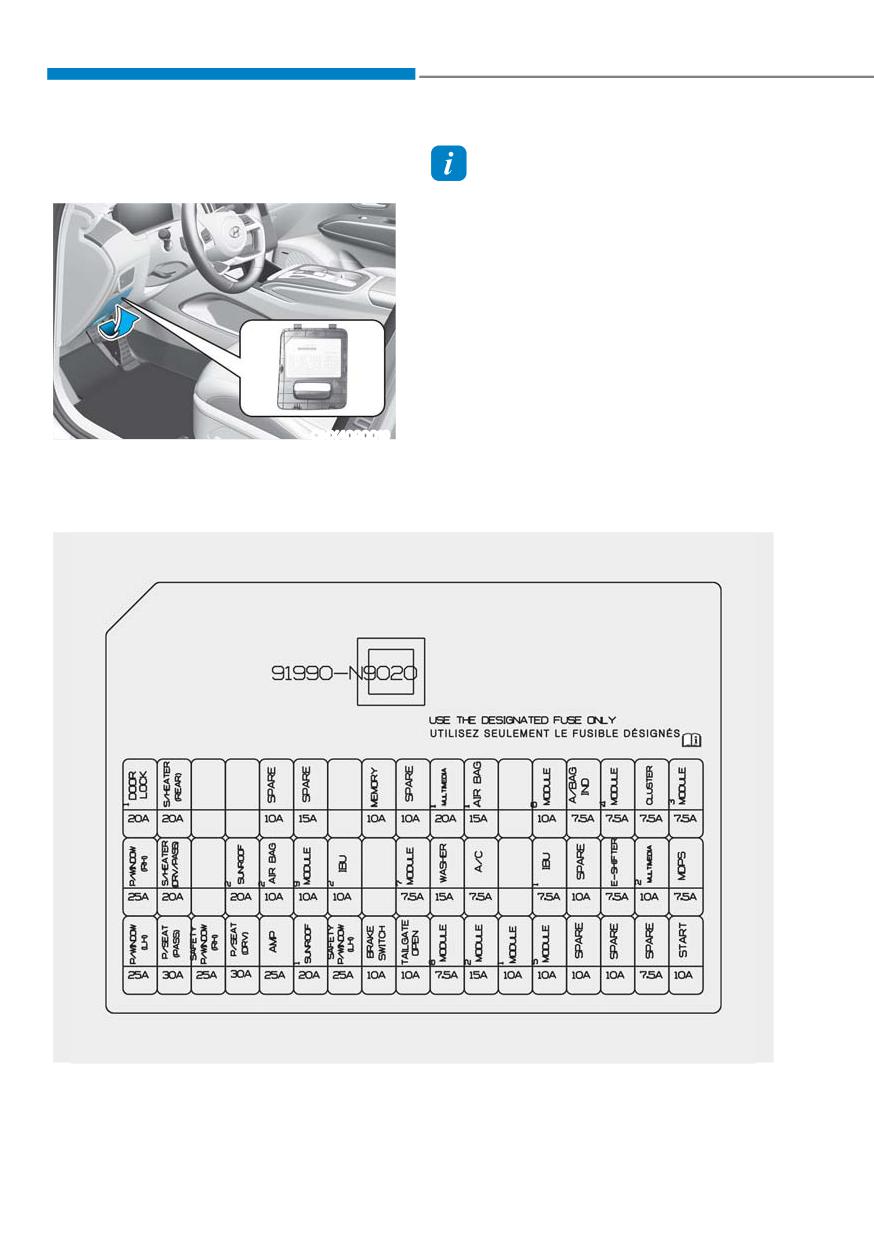

Instrument panel fuse panel
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. When you inspect the fuse panel
on your vehicle, refer to the fuse panel
label in your vehicle.
ONX4090019
Inside the fuse panel cover, you can find
the label describing fuse names and
ratings.
ONX4090020N
9-50
CarManuals2.com
09
Instrument panel fuse panel
Fuse Name
Fuse Rating
Circuit Protected
Center Door Lock/Unlock Relay, Driver Door Unlock
DOOR LOCK1
20A
Relay
P/WINDOW
Power Window Main Switch
25A
(RH)
Passenger Power Window Switch
P/WINDOW
25A
Power Window Main Switch
(LH)
S/HEATER
20A
Rear Seat Warmer Control Module
(REAR)
S/HEATER
Front Air Ventilation Seat Control Module,
20A
(DRV/PASS)
Front Seat Warmer Control Module
P/SEAT
30A
Passenger Power Seat Switch
(PASS)
SAFETY
P/WINDOW
25A
Passenger Safety Power Window Module
(RH)
SUNROOF2
20A
Sunroof Controller (Blind Motor)
P/SEAT
30A
Driver Power Seat Switch, Driver IMS Control Module
(DRV)
AIR BAG2
10A
SRS Control Module
AMP
25A
Low DC-DC Converter
Driver/passenger Smart Key Outside Handle, Crash Pad
MODULE9
10A
Switch, Hazard Switch, Key Solenoid, Rain Sensor, Data
Link Connector
SUNROOF1
20A
Sunroof Controller (Glass Motor)
IBU, Ignition Switch, Sport Mode Switch, IAU,
IBU2
10A
BLE(Bluetooth Low Energy) Unit
SAFETY
P/WINDOW
25A
Driver Safety Power Window Module
(LH)
Diver IMS Control Module, Power Liftgate Unit, Mood
Lamp, Mood Lamp Unit
MEMORY
10A
Driver/Passenger Door Mood Lamp, Rear Occupant
Alert (ROA)Sensor, Crash Pad Mood Lamp, A/C Control
Module, Front A/C Control Swith, Low DC-DC Converter
BRAKE
10A
Stop Lamp Switch, IBU
SWITCH
MODULE7
7.5A
IAU, IBU
9-51
CarManuals2.com
Maintenance
Fuse Name
Fuse Rating
Circuit Protected
LIFTGATE
10A
Liftgate Relay
OPEN
MULTIMEDIA1
20A
Low DC-DC Converter
WASHER
15A
Multifunction Switch
Front Air Ventilation Seat Control Module, Front Seat
MODULE8
7.5A
Warmer Control
Module, Rear Seat Warmer Control Module
SRS Control Module, Passenger Occupant Detection
AIR BAG1
15A
Sensor
E/R Junction Block(PTC Heater Relay), A/C Control
A/C
7.5A
Module, Front A/C Control Switch
MODULE2
15A
Front/Rear USB Charger Connector
Low DC/DC Converter Power Outside Mirror Switch,
MODULE1
10A
IBU, IAU
MODULE6
10A
Console Switch, EPB Switch, A/T Shift Lever Indicator
IBU1
7.5A
IBU
Driver IMS Control Module, Front/Rear Seat Warmer
Control Module, AMP, Audio, Front Air Ventilation Seat
MODULE5
10A
Control Module, A/V & Navigation Head Unit, Front A/C
Control Switch, A/C Control Module, Electro Chromic
Mirror, Low DC-DC Converter Front Wireless Charger
A/BAG IND
7.5A
Instrument Cluster, Overhead Console Lamp
IBU, Multifunction Front View Camera, Crash Pad
MODULE4
7.5A
Switch, Intergrated Parking Assist Unit, AWD ECM
E-SHIFTER
7.5A
Electronic Shift Switch, SCU
CLUSTER
7.5A
Instrument Cluster
MULTIMEDIA2
10A
Low DC-DC Converter
MODULE3
7.5A
Stop Lamp Switch, Overhead Console Lamp, IAU
MDPS
7.5A
MDPS Unit
Ignition Switch, E/R Junction Block (Start Relay),
START
10A
Transaxle Range Switch, IBU, Burglar Alarm Relay
9-52
CarManuals2.com
09
Engine compartment fuse panel
Information
(Engine room junction block)
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. When you inspect the fuse panel
on your vehicle, refer to the fuse panel
label in your vehicle.
ONX4090015
Inside the fuse panel cover, you can find
the label describing fuse names and
ratings.
ONX4090021N
9-53
CarManuals2.com
Maintenance
Engine compartment fuse panel
Fuse
Type
Fuse Name
Circuit Protected
Rating
MDPS
80A
MDPS Unit
COOLING FAN
60A
Cooling Fan Controller
EPB2
60A
ESC Module
ICU Junction Block (IPS01,IPS02, IPS03, IPS04,
B+1
60A
MULTI
IPS05)
FUSE-1
E-CVVT
50A
E/R Junction Block (E-CVVT Relay)
BLOWER
40A
E/R Junction Block (Blower Relay)
EPB1
40A
ESC Module
REAR HEATED
40A
E/R Junction Block (Rear Heated Relay)
ICU Junction Block (Fuse - DOOR LOCK1, SAFETY
P/WINDOW (LH), LIFTGATE OPEN, S/HEATER
B+4
50A
(REAR),
AIR BAG2, BRAKE SWITCH, MODULE9, IBU2, Long
Term Load Latch Relay)
FUEL PUMP
20A
E/R Junction Block (Fuel Pump Relay)
AWD
20A
AWD ECM
AMS
10A
Battery Sensor
E-SHIFTER2
10A
SCU, Electronic Shift Switch
HEATED
E/R Junction Block (Rear Heated Relay), Driver/
10A
MIRROR
Passenger Power Outside Mirror
FUSE
B+2
50A
ICU Junction Block (IPS06, IPS07. IPS08, IPS11)
PTC HEATER
50A
E/R Junction Block (PTC Heater Relay)
ICU Junction Block (Fuse - AMP, P/SEAT (DRV), P/
SEAT (PASS), SAFETY P/WINDOW(RH), S/HEATER
B+3
60A
(DRV/PASS),
SUNROOF1, SUNROOF2, Power Window Main
Relay)
POWER
40A
Power Liftgate Unit
LIFTGATE
EOP1
40A
Electronic Oil Pump
TRAILER
30A
Trailer Connector
E-SHIFTER1
30A
SCU
9-54
CarManuals2.com
09
Engine compartment fuse panel
Fuse Name
Fuse Rating
Circuit Protected
IG1
30A
PDM (IG1) Relay
IG2
30A
PDM (IG2) Relay, E/R Junction Block (RLY.3)
ECU3
10A
PCM
EPB3
10A
ESC Module
FCA
10A
Front Radar
EOP2
10A
Electronic Oil Pump
SENSOR1
20A
Ignition Coil #1~#4
SENSOR2
15A
Oxygen Sensor (UP/DOWN)
ECU1
20A
PCM
SENSOR4
10A
E/R Junction Block (Fuel Pump Relay)
Oil Control Valve, Valiable Oil Pump Solenoid, Purge
Control Solenoid Valve, Variable Intake Solenoid Valve,
SENSOR3
10A
Cooling Fan Controller, Canister Close Valve, A/C Comp
Relay
A/C
10A
A/C Comp Relay
SENSOR5
15A
Injector #1~#4
HORN
15A
Horn Relay
WIPER FRT2
7.5A
Front Wiper (Low) Relay, PCM, IBU
ICU Junction Block (Rear Wiper Relay), Rear Wiper
WIPER RR
15A
Motor
WIPER FRT1
25A
Front Wiper (Low) Relay, Front Wiper Motor
POWER OUTLET1
20A
Luggage Power Outlet
POWER
20A
Front Power Outlet
OUTLET2
ACC
20A
ICU Junction Block (Fuse - MODULE1, MODULE2)
TCU1
15A
PCM
ECU2
15A
PCM
9-55
CarManuals2.com
Maintenance
LIGHT BULBS
Consult an authorized HYUNDAI dealer
Information - Headlight
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
desiccant (if equipped)
because other parts of the vehicle must
This vehicle is equipped with desiccant
be removed before you can get to the
to reduce fogging inside the headlight
bulb. This is especially true for removing
due to moisture. The desiccant is
the headlight assembly to get to the
consumable and its performance may
bulb(s).
change based on the used period or
Removing/installing the headlight
environment. If fogging inside the
assembly may result in damage to the
headlight due to moisture continues
vehicle.
for a long time, contact an authorized
HYUNDAI dealer.
WARNING
Information
ś Prior to replacing a light bulb, depress
the brake pedal, shift to P (Park), apply
The headlight and tail light lenses could
the parking brake, move the ignition
appear to have condensation inside if
switch to the LOCK/OFF position,
the vehicle is washed after driving or
and take the key with you when
if the vehicle is driven in wet weather.
leaving the vehicle to avoid sudden
This condition is caused by a higher
movement of the vehicle and to
temperature inside the light and a cooler
prevent possible electric shock.
outside temperature. Moisture that
condenses in the light is removed after
ś Be aware the bulbs may be hot and
driving with the light on. If the moisture
may burn your fingers.
is not removed, contact an authorized
HYUNDAI dealer.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage to prevent
damage to the fuse or electrical wiring
system.
NOTICE
To prevent damage, do not clean the
headlight lens with chemical solvents or
strong detergents.
9-56
CarManuals2.com
09

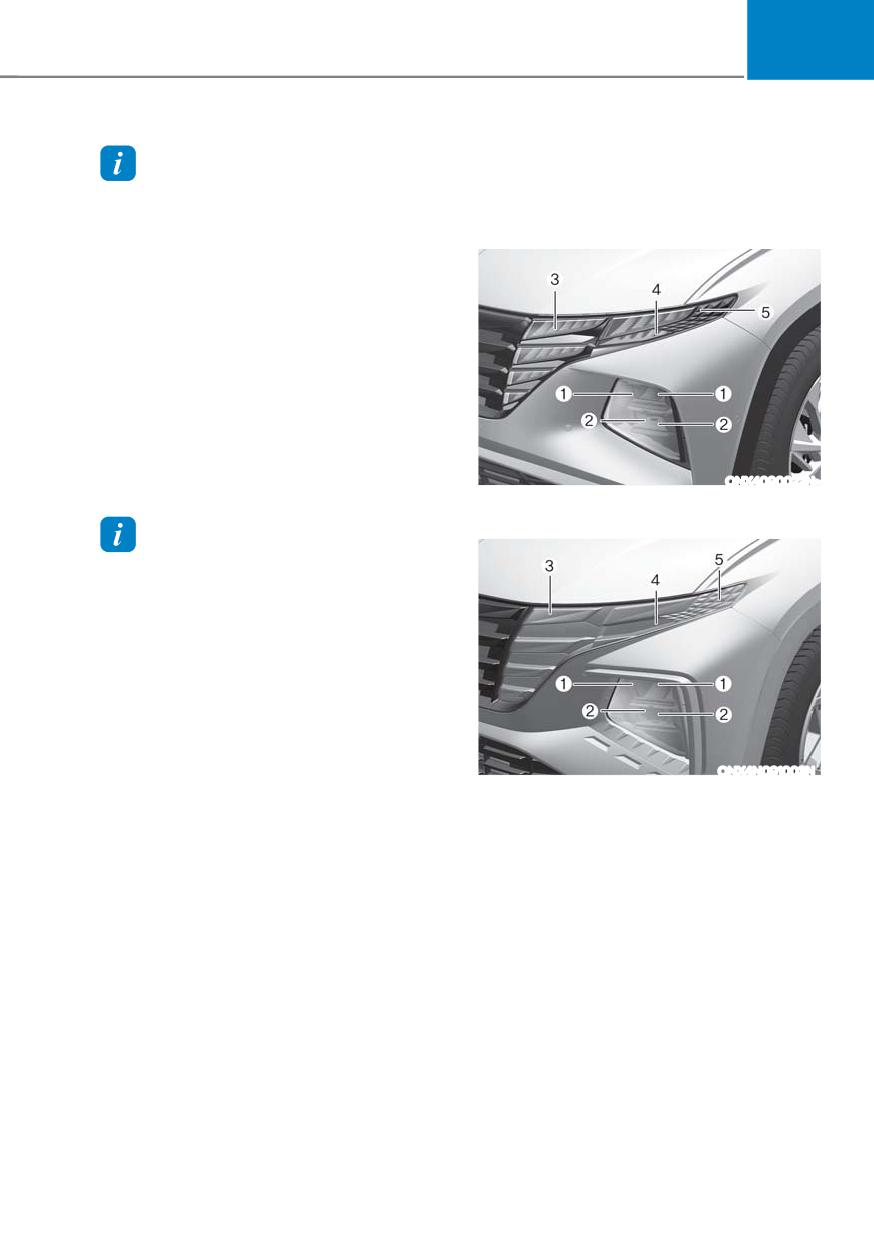

Headlight, Parking light, Turn
Information
Signal light, Daytime Running
ś A normally functioning light may
Light (DRL) Replacement
flicker momentarily to stabilize the
vehicle’s electrical control system.
Type A
If the light goes out, or continues
to flicker, contact an authorized
HYUNDAI dealer.
ś The parking light may not turn on
when the parking light switch is
turned on, but the parking light and
headlight switch may turn on when
the headlamp switch is turned on.
This may be caused by network failure
or vehicle electrical control system
malfunction. If this occurs, contact an
authorized HYUNDAI dealer.
ONX4090022N
Type B (N Line)
Information
Adjust the headlight aim after an
accident or the headlight is replaced.
ONX4N091003N
M Headlight (Low)
N Headlight (High)
O Daytime Running Light (DRL)/
Parking light
P Turn signal light
Q Front side marker
If the LED light does not operate, contact
an authorized HYUNDAI dealer for
replacement.
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
9-57
CarManuals2.com
Maintenance

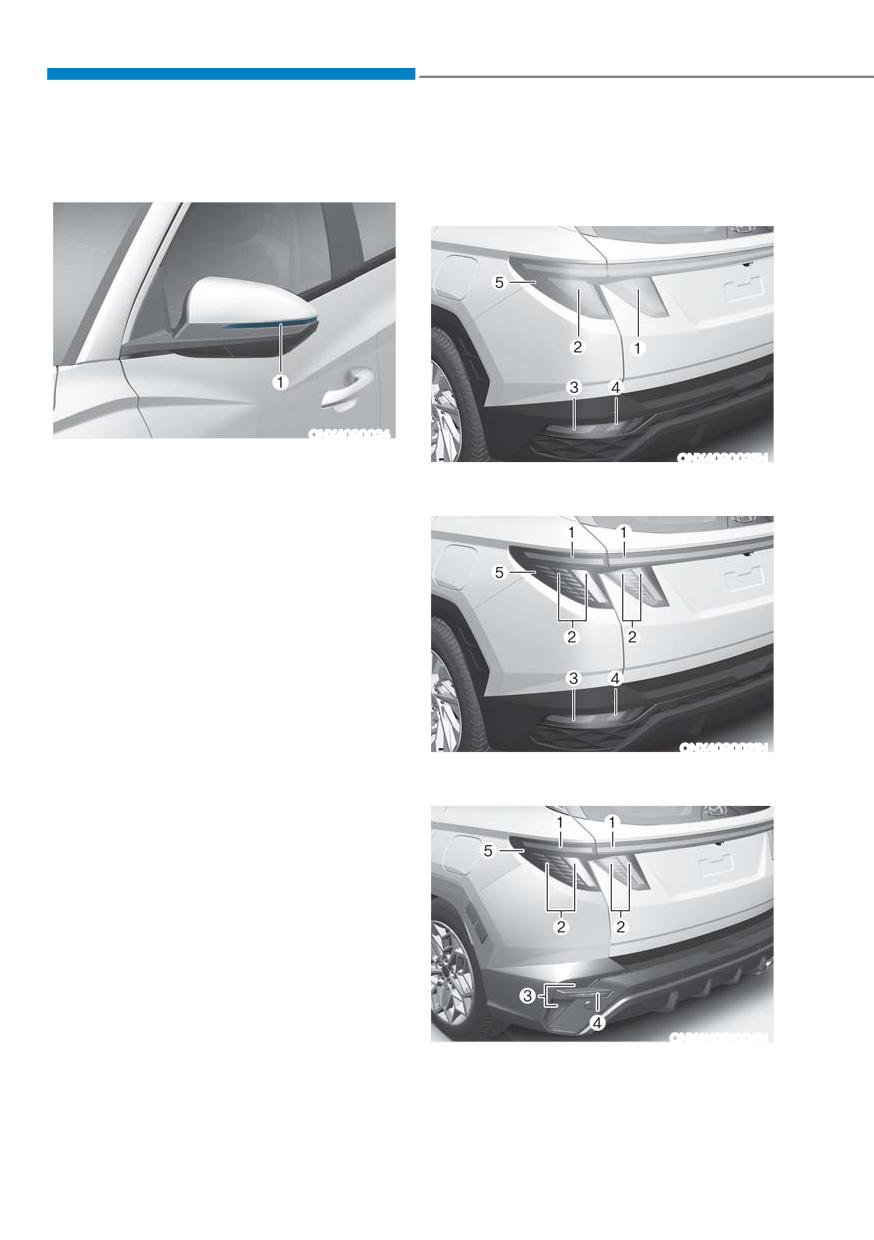

Side Repeater Light
Rear Combination Light
Replacement
Replacement
Type A
ONX4090024
If the LED light M does not operate,
ONX4090025N
contact an authorized HYUNDAI dealer
for replacement.
Type B
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
ONX4090031N
Type C (N Line)
ONX4N091004N
M Tail light
N Tail/Stop light
O Turn signal light
P Reverse light
Q Rear side marker
9-58
CarManuals2.com
09

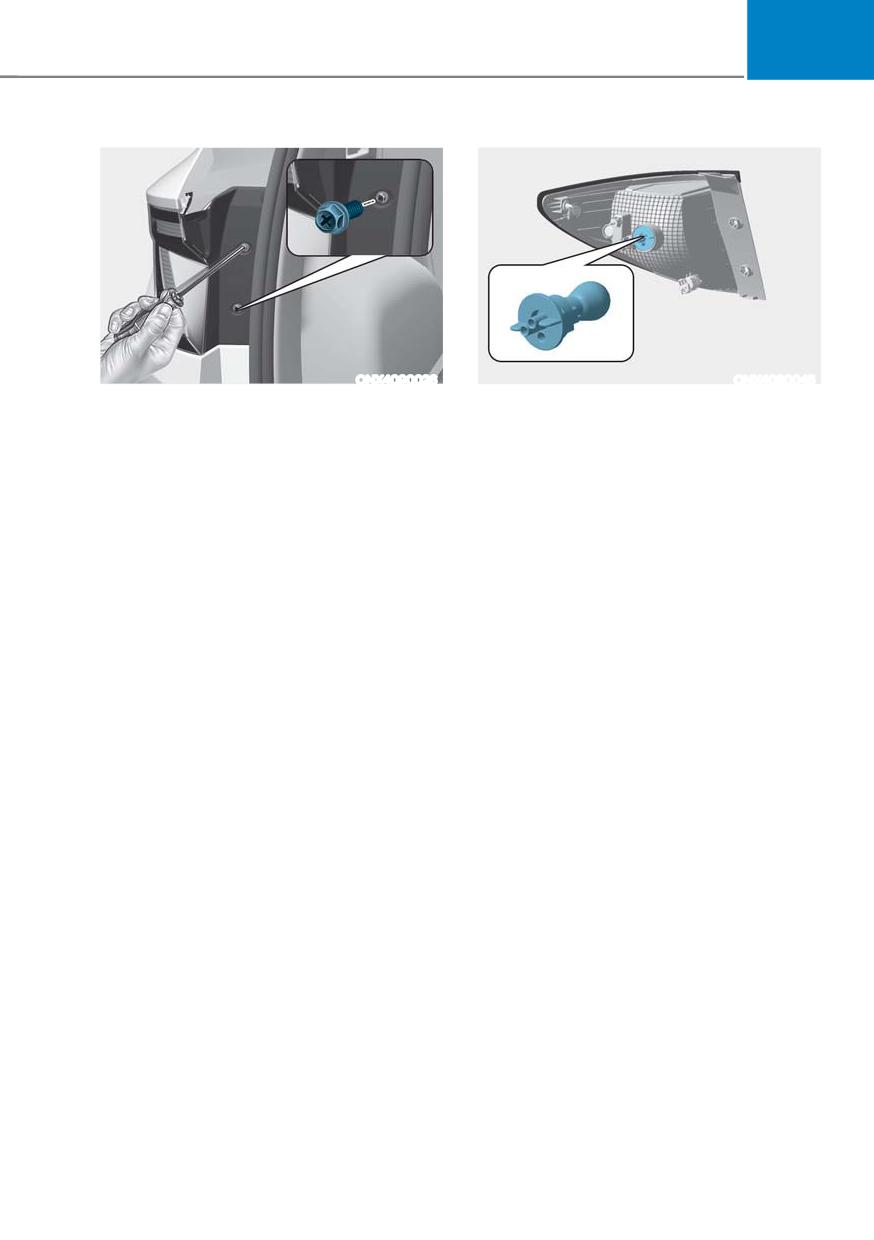

ONX4090026
ONX4090045
Stop/Tail light (Outside)
6. Remove the bulb from the socket
by pushing it in and rotating it
1. Turn off the engine.
counterclockwise until the tabs on the
2. Open the liftgate.
bulb align with the slots in the socket.
3. Loosen the light assembly retaining
Pull the bulb out of the socket.
screws with a cross-tip screwdriver.
7. Insert a new bulb by inserting it into
4. Remove the rear combination light
the socket and rotating it until it locks
assembly from the body of the
into place.
vehicle.
8. Install the socket into the assembly by
5. Remove the socket from the
aligning the tabs on the socket with
assembly by turning the socket
the slots in the assembly. Push the
counterclockwise until the tabs on
socket into the assembly and turn the
the socket align with the slots on the
socket clockwise.
assembly.
9. Reinstall the light assembly to the
body of the vehicle.
9-59
CarManuals2.com
Maintenance

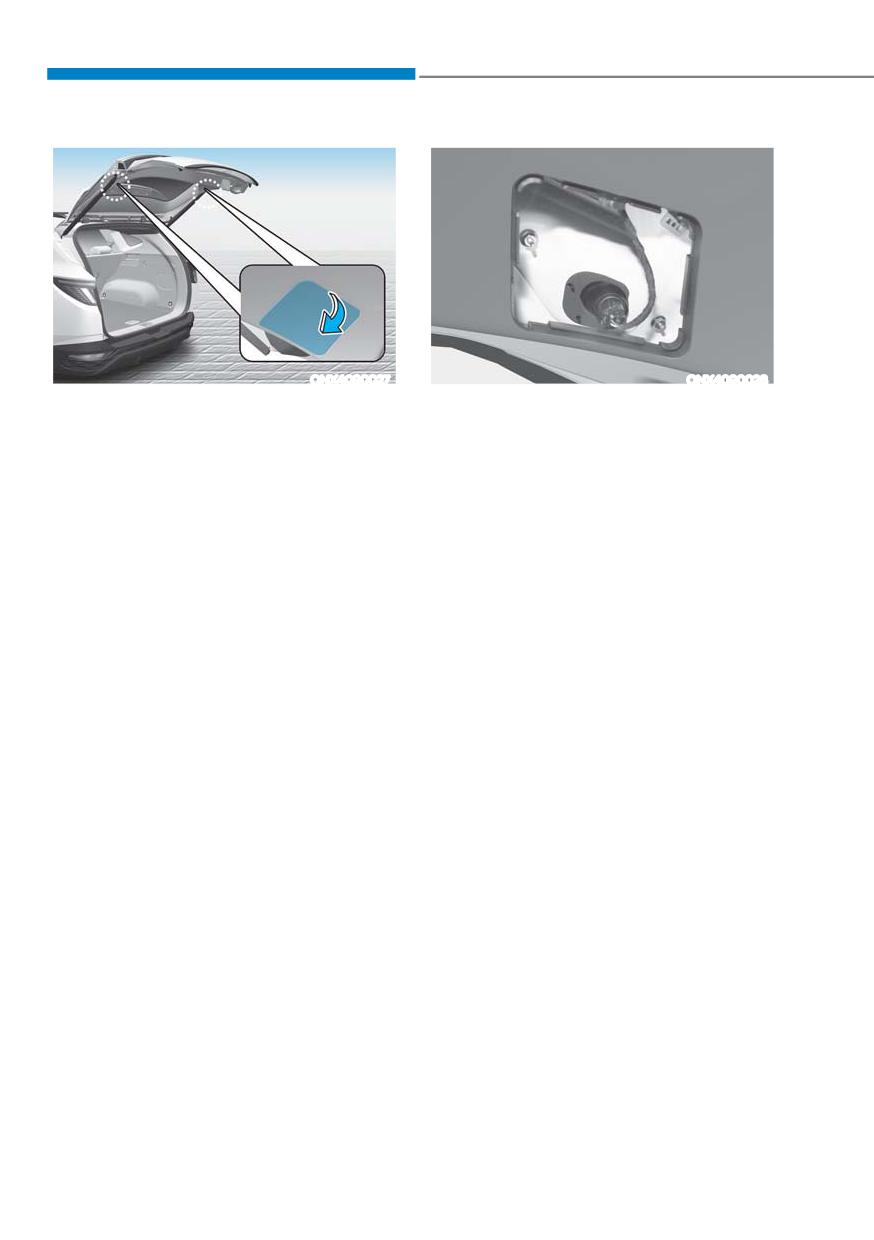

ONX4090027
ONX4090028
Tail light (Inside)
5. Remove the bulb from the socket
by pushing it in and rotating it
1. Turn off the engine.
counterclockwise until the tabs on the
2. Open the liftgate.
bulb align with the slots in the socket.
3. Remove the service cover using a
Pull the bulb out of the socket.
flat-blade screwdriver.
6. Insert a new bulb by inserting it into
4. Remove the socket from the
the socket and rotating it until it locks
assembly by turning the socket
into place.
counterclockwise until the tabs on
7. Install the socket into the assembly by
the socket align with the slots on the
aligning the tabs on the socket with
assembly.
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the light assembly to the
body of the vehicle.
9-60
CarManuals2.com
09

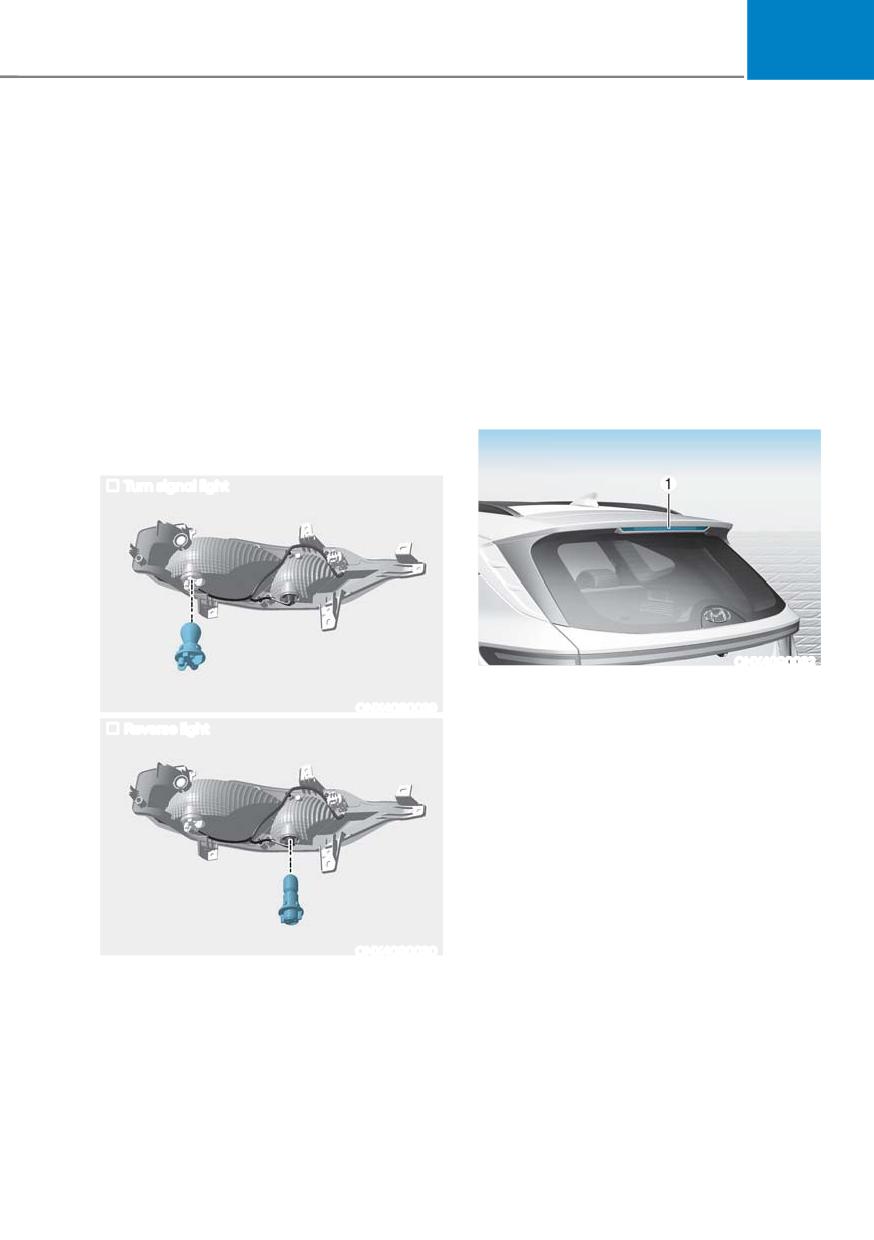

Turn signal light/Reverse light
Stop&Tail light/Reverse light/Rear side
marker (LED type)
1. Turn off the engine.
If the LED light does not operate, contact
2. Remove the socket from the
an authorized HYUNDAI dealer for
assembly by turning the socket
replacement.
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
The LED light cannot be replaced as a
single unit. A skilled technician should
3. Remove the bulb from the socket
check or repair the LED light, for it may
by pressing it in and rotating it
damage related parts of the vehicle.
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
High Mounted Stop Light
Replacement
4. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
„ Turn signal light
ONX4090032
If the LED light M does not operate,
ONX4090029
contact an authorized HYUNDAI dealer
„ Reverse light
for replacement.
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
ONX4090030
9-61
CarManuals2.com
Maintenance

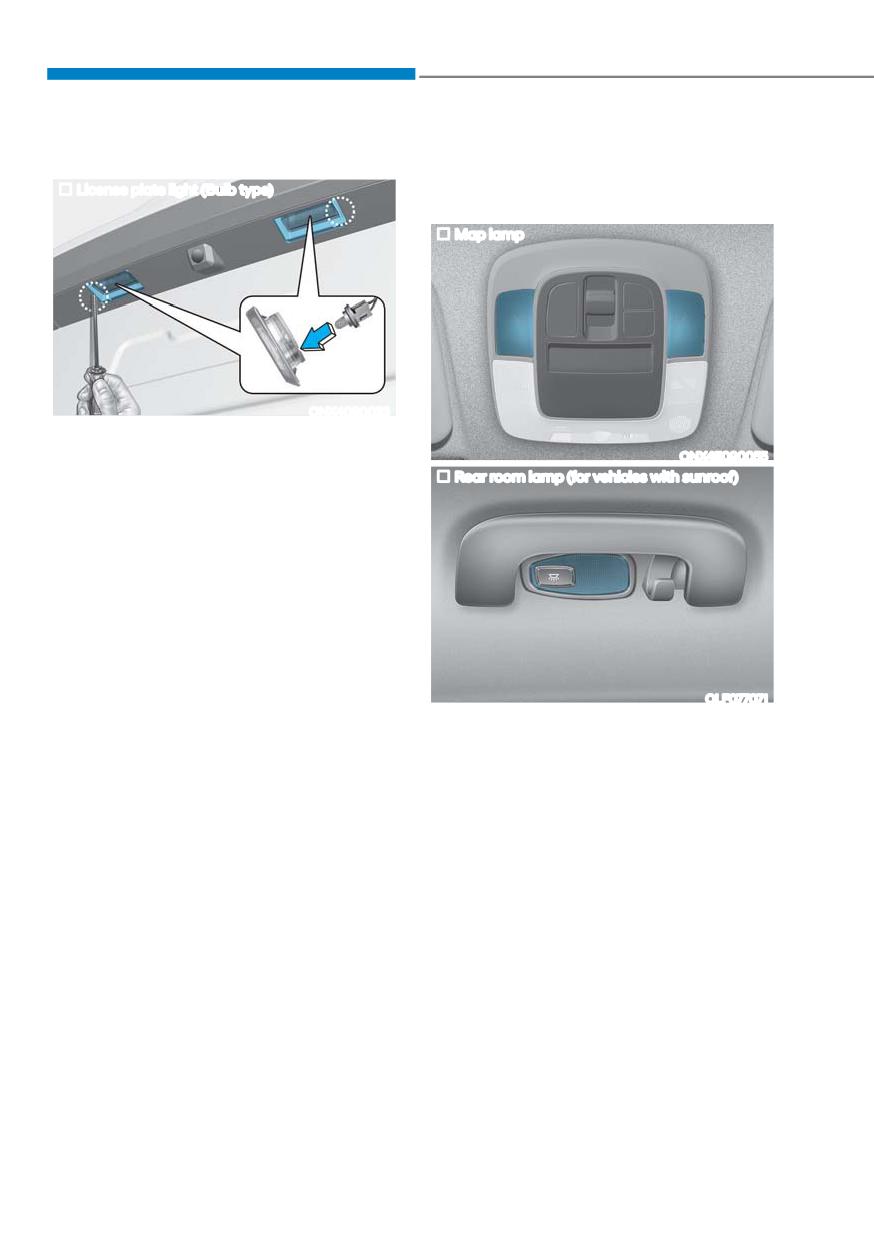

License Plate Light Replacement
Interior Light Replacement
„ License plate light (Bulb type)
Map lamp, Rear room lamp
(LED type)
„ Map lamp
ONX4090033
License plate light (Bulb type)
1. Using a flat-blade screwdriver, gently
ONX4E090055
pry the lens cover from the lamp
„ Rear room lamp (for vehicles with sunroof)
housing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb.
4. Reinstall in the reverse order.
License plate light (LED type)
If the LED light does not operate, contact
an authorized HYUNDAI dealer for
replacement.
OLF077071
If the LED light does not operate, contact
The LED light cannot be replaced as a
an authorized HYUNDAI dealer for
single unit. A skilled technician should
replacement.
check or repair the LED light, for it may
damage related parts of the vehicle.
The LED light cannot be replaced as a
single unit. A skilled technician should
check or repair the LED light, for it may
damage related parts of the vehicle.
9-62
CarManuals2.com
09

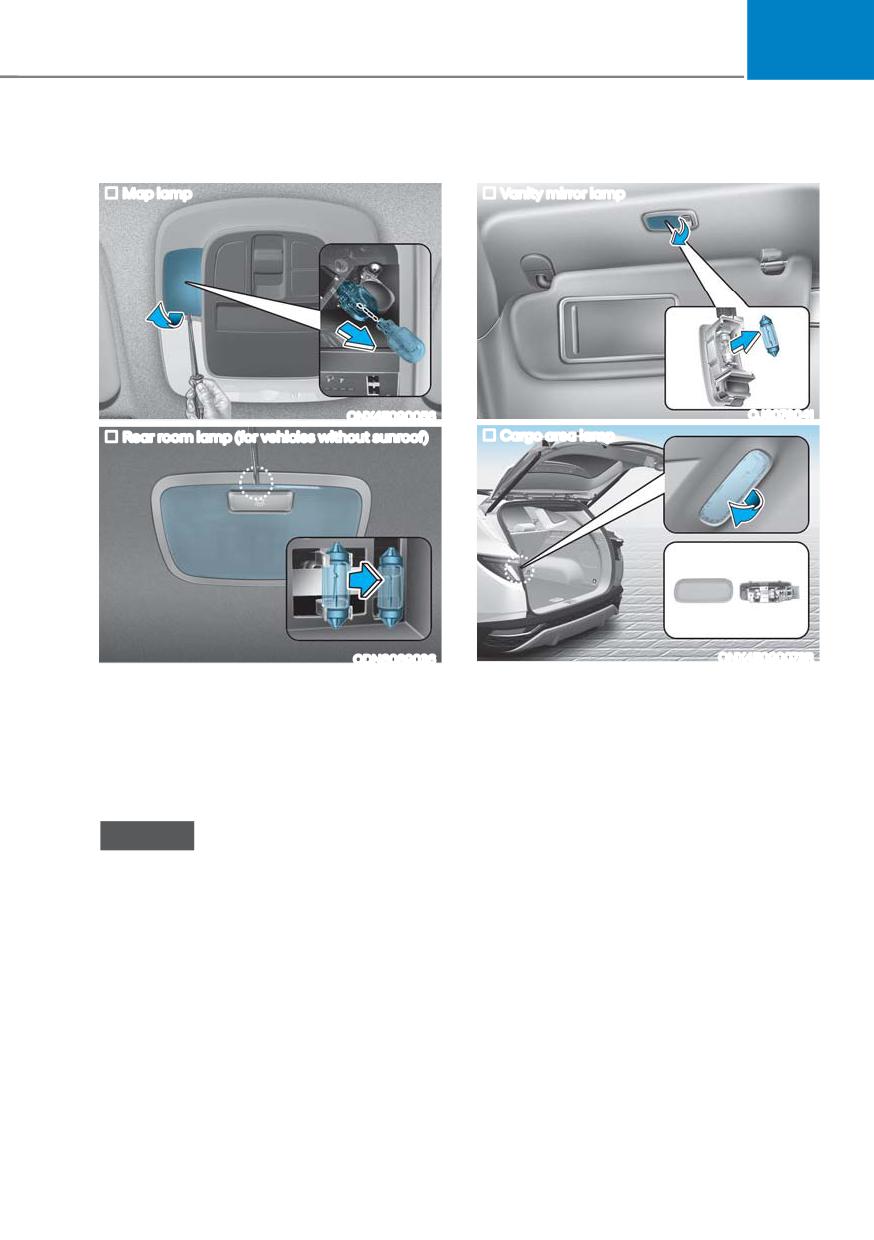

Map lamp, Rear room lamp, Vanity mirror lamp, Cargo area lamp (Bulb type)
„ Map lamp
„ Vanity mirror lamp
ONX4E090056
OJS078041
„ Rear room lamp (for vehicles without sunroof)
„ Cargo area lamp
ODN8089036
ONX4E090073R
1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior light housing notches and snap the lens into
place.
NOTICE
Be careful not to damage the cover, tab, and plastic housing.
9-63
CarManuals2.com
Maintenance
APPEARANCE CARE
Exterior Care
NOTICE
Exterior general caution
ś Do not use strong soap, chemical
detergents, or hot water, and do not
It is very important to follow the label
directions when using any chemical
wash the vehicle in direct sunlight or
when the body of the vehicle is warm.
cleaner or polish. Read all warning and
caution statements that appear on the
ś To prevent damage to the plastic
label.
parts, do not clean with chemical
solvents or strong detergents.
Finish maintenance
Washing
NOTICE
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month
with lukewarm or cold water.
If you use your vehicle for off-road
driving, wash it after each off-road trip.
Pay special attention to the removal of
any accumulation of salt, dirt, mud, and
other foreign materials. Make sure the
drain holes in the lower edges of the
doors and rocker panels are kept clear
and clean.

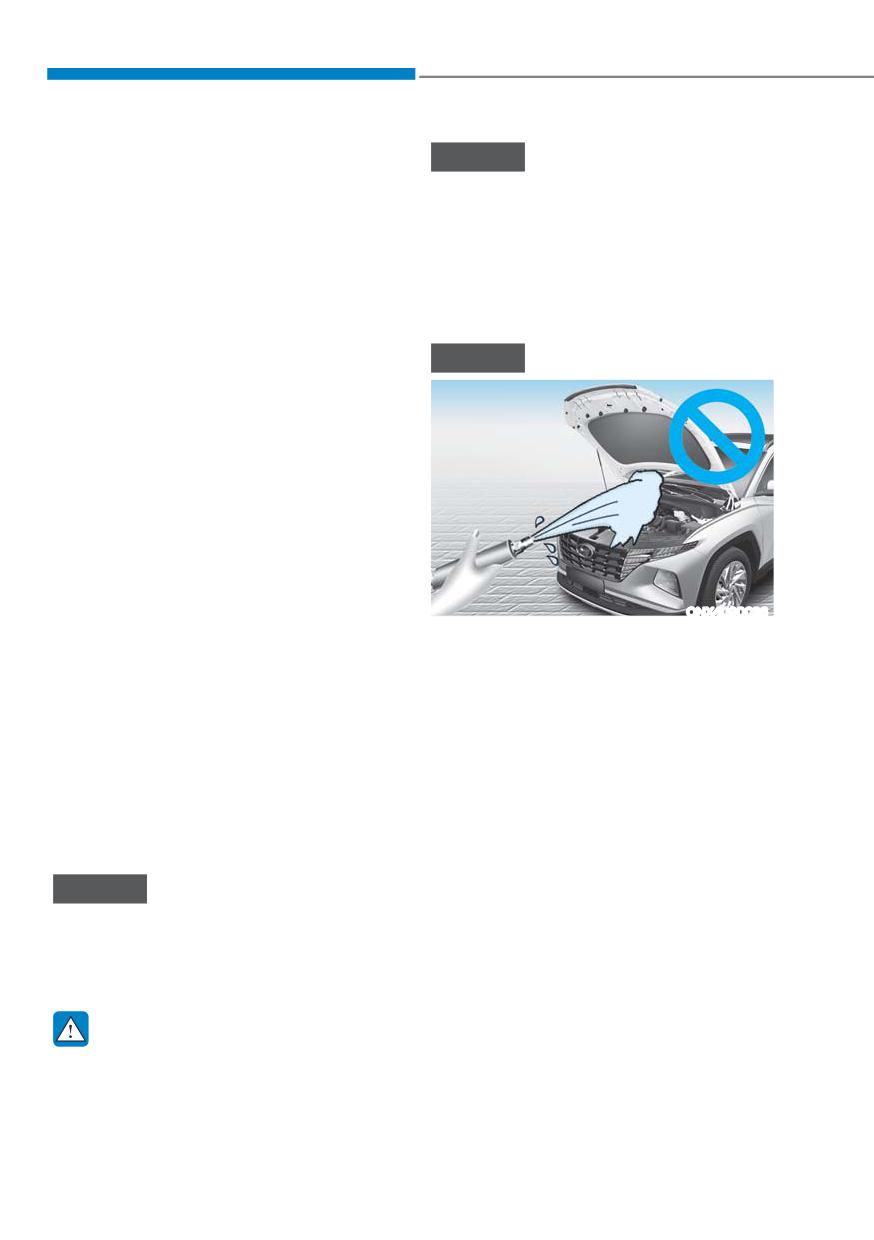

ONX4090036
Insects, tar, tree sap, bird droppings,
ś Water washing in the engine
industrial pollution, and similar deposits
compartment including high pressure
may damage your vehicle’s finish if not
water washing may cause the failure
removed immediately.
of electrical circuits located in the
Even prompt washing with plain water
engine compartment.
may not completely remove all these
ś Never allow water or other liquids
deposits. Use a mild soap, safe for use on
to come in contact with electrical/
painted surfaces.
electronic components inside the
After washing, rinse the vehicle
vehicle to prevent damage.
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
NOTICE
High pressure water may damage front
and rear cameras, sensors, vehicle trim,
and boots (rubber or plastic covers) or
connectors.
WARNING
After washing the vehicle, dry the
brakes by applying them lightly while
maintaining a slow forward speed.
9-64
CarManuals2.com
09
NOTICE
Waxing
Matte paint finish vehicle (if equipped)
A good coat of wax helps protect your
paint from contaminants.
To prevent damage the matte finish:
Wax the vehicle when water no longer
ś
Do not go through an automatic car
beads on the paint.
wash with rotating brushes.
Always wash and dry the vehicle before
ś
Avoid using a steam cleaner. High
waxing. Use a good quality liquid or
temperature steam may leave stains
paste wax, and follow the manufacturer’s
that are difficult to remove.
instructions. Wax all metal trim to protect
ś
Use a soft cloth (for example,
it and to maintain its luster.
microfiber towel or sponge) when
Removing oil, tar, and similar materials
washing your vehicle and dry with
with a spot remover usually strips the
a microfiber towel. When you hand
wax from the finish. Be sure to re-wax
wash your vehicle, do not use a
these areas even if the rest of the vehicle
cleaner that finishes with wax. If the
does not yet need waxing.
vehicle surface is too dirty (sand, dirt,
dust, contaminant, etc.), clean the
surface with water before washing the
NOTICE
vehicle.
ś Do not wipe dust or dirt off the body
with a dry cloth to prevent scratching
the finish.
ś Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or
caustic agents on chrome-plated or
anodized aluminum parts to prevent
discoloration or paint deterioration.
NOTICE
Matte paint finish vehicle (if equipped)
Do not use any polish protector such as
detergent, abrasive, or polish. If wax is
applied, remove the wax immediately
using a silicone remover. If any tar or tar
contaminant is on the surface, use a tar
remover to clean.
Be careful not to apply too much
pressure on the painted area.
9-65
CarManuals2.com
Maintenance
Finish damage repair
Underbody maintenance
Deep scratches or stone chips on
Corrosive materials used for ice and
the painted surface must be repaired
snow removal and dust control may
promptly. Exposed metal quickly rusts
collect on the underbody. If these
and may develop into a major repair
materials are not removed, accelerated
expense.
rusting may occur on underbody parts
such as fuel lines, frame, floor pan, and
exhaust system, even though they have
Information
been treated with rust protection.
If your vehicle is damaged and requires
Thoroughly flush the vehicle underbody
any metal repair or replacement,
and wheel openings with lukewarm or
make sure the body shop applies anti-
cold water once a month, after off-road
corrosion materials to the parts repaired
driving and at the end of each winter. Pay
or replaced.
special attention to these areas because
it is difficult to see all the mud and dirt. It
does more harm than good to wet down
NOTICE
the road grime without removing it. The
Matte paint finish vehicle (if equipped)
lower edges of doors, rocker panels, and
It is impossible to modify only repaint
frame members have drain holes that
the damaged area. The whole part must
must not be allowed to clog with dirt.
be repainted as necessary. If the vehicle
Trapped water in these areas may cause
is damaged and painting is required,
rusting.
contact an authorized HYUNDAI dealer.
Aluminum wheel maintenance
Bright-metal maintenance
The aluminum wheels are coated with a
ś To remove road tar and insects, use
clear protective finish.
a tar remover, not a scraper or other
sharp object.
NOTICE
ś To protect the surfaces of bright metal
ś Do not use abrasive cleaner, polishing
parts from corrosion, apply a coating
compound, solvent, or wire brushes
of wax or chrome preservative and rub
on aluminum wheels.
to a high luster.
ś Use only a mild soap or neutral
ś During winter weather or in coastal
detergent, and rinse thoroughly with
areas, cover the bright metal parts
water. Also, clean the wheels after
with a heavier coating of wax or
driving on salted roads.
preservative. If necessary, coat the
parts with non-corrosive petroleum
ś Do not wash the wheels with high-
jelly or other protective compound.
speed car wash brushes.
ś Do not use any cleaners containing
acid or alkaline detergents.
9-66
CarManuals2.com
09
Corrosion protection
High-corrosion areas
Protecting your vehicle from corrosion
If you live in an area where your vehicle is
regularly exposed to corrosive materials,
By using the most advanced design
corrosion protection is particularly
and construction practices to combat
important. Some of the common causes
corrosion, HYUNDAI produces vehicles
of accelerated corrosion are road salts,
of the highest quality. However, this is
dust control chemicals, ocean air, and
only part of the job. To achieve the long-
industrial pollution.
term corrosion resistance your vehicle
can deliver, the owner’s cooperation and
assistance are also required.
Moisture breeds corrosion
Moisture breeds corrosion and creates
Common causes of corrosion
the conditions in which corrosion is most
likely to occur. For example, corrosion
The most common causes of corrosion
is accelerated by high humidity,
on your vehicle are:
particularly when temperatures are just
ś Road salt, dirt, and moisture that is
above freezing. In such conditions, the
allowed to accumulate underneath
corrosive material is kept in contact with
the vehicle.
the vehicle surfaces by moisture that is
ś Removal of paint or protective
slow to evaporate.
coatings by stones, gravel, abrasion,
Mud is particularly corrosive because
minor scrapes, and dents that leave
it is slow to dry and holds moisture in
unprotected metal exposed to
contact with the vehicle. Although the
corrosion
mud appears to be dry, it can still retain
moisture and promote corrosion.
High temperatures may also accelerate
corrosion of parts that are not properly
ventilated so the moisture can be
dispersed. For all these reasons, it is
particularly important to keep your
vehicle clean and free of mud or
accumulation of other materials. This
applies not only to the visible surfaces
but particularly to the underside of the
vehicle.
9-67
CarManuals2.com
Maintenance
To help prevent corrosion
Keep your garage dry
Keep your vehicle clean
Do not park your vehicle in a damp,
poorly ventilated garage. This creates a
The best way to prevent corrosion is
favorable environment for corrosion.
to keep your vehicle clean and free of
corrosive materials. Attention to the
This is particularly true if you wash your
underside of the vehicle is particularly
vehicle in the garage or drive it into the
important.
garage when it is still wet or covered with
snow, ice, or mud. Even a heated garage
ś If you live in a high-corrosion area -
may contribute to corrosion unless it is
where road salts are used, near the
well ventilated so moisture is dispersed.
ocean, areas with industrial pollution,
acid rain, etc.-, you should take extra
Keep paint and trim in good condition
care to prevent corrosion. In winter,
Scratches or chips in the finish must be
hose off the underside of your vehicle
covered with “touch-up” paint as soon
at least once a month and be sure to
as possible to reduce the possibility
clean the underside thoroughly when
of corrosion. If bare metal is showing
winter is over.
through, the attention of a qualified body
ś When cleaning underneath the
and paint shop is recommended.
vehicle, pay particular attention to the
Bird droppings are highly corrosive and
components under the fenders and
may damage painted surfaces in just a
other areas that are hidden from view.
few hours. Always remove bird droppings
Do a thorough job. Just dampening
as soon as possible.
the accumulated mud rather than
washing it away may accelerate
corrosion rather than prevent it. Water
under high pressure and steam are
particularly effective in removing
accumulated mud and corrosive
materials.
ś When cleaning lower door panels,
rocker panels, and frame members,
make sure that drain holes are kept
open so that moisture can escape and
not be trapped inside to accelerate
corrosion.
9-68
CarManuals2.com
09
Interior Care
Cleaning the upholstery and interior
Interior general precautions
trim
Vehicle interior surfaces (if equipped)
Prevent caustic solutions such as
perfume and cosmetic oil, from
Remove dust and loose dirt from interior
contacting the interior parts because
surfaces with a whisk broom or a vacuum
they may cause damage or discoloration.
cleaner.
If they do contact the interior parts,
If necessary, clean interior surfaces with
wipe them off immediately. Refer to the
a mixture of warm water and mild non-
instructions for the proper way to clean
detergent cleaner (test all cleaners on a
vehicle interior surfaces.
concealed area before use).
NOTICE
Fabric (if equipped)
ś Never allow water or other liquids
Remove dust and loose dirt from
to come in contact with electrical/
fabric with a whisk broom or vacuum
electronic components inside the
cleaner. Clean with a mild soap solution
vehicle because this may damage
recommended for upholstery or carpets.
them.
Remove fresh spots immediately with
a fabric spot cleaner. If you do not pay
ś When cleaning leather products
attention to fresh spots immediately,
(steering wheel, seats, etc.), use
the fabric may be stained and its color
neutral detergents or low alcohol
may be affected. Also, its fire-resistant
content solutions. If you use high
properties may be reduced if the material
alcohol content solutions or acid/
is not properly maintained.
alkaline detergents, the color of the
leather may fade or the surface may
get stripped off.
NOTICE
Using anything but recommended
cleaners and procedures may affect the
fabric’s appearance and fire-resistant
properties.
9-69
CarManuals2.com
Maintenance
Leather (if equipped)
ś
Caring for the leather seats
ś Features of seat leather
- Vacuum the seat periodically to
remove dust and sand on the seat. It
- Leather is made from the outer skin
prevents abrasion or damage of the
of an animal, which goes through a
leather and maintain its quality.
special process to be available for
use. Because it is a natural product,
- Wipe the natural leather seat cover
each part differs in thickness or
often with a dry or soft cloth.
density.
- Use of proper leather protector may
Wrinkles may appear as a natural
prevent abrasion of the cover and
result of stretching and shrinking
helps maintain the color. Be sure to
depending on the temperature and
read the instructions and consult
humidity.
a specialist when using leather
coating or protective agent.
- The seat is made of stretchable
fabric to improve comfort.
- Light colored (beige, cream beige)
leather may be easily contaminated
- The parts contacting the body are
and the stains may be noticeable.
curved and the side supporting
area is high which provides driving
- Avoid wiping with a wet cloth. It
comfort and stability.
may cause the surface to crack.
- Wrinkles may appear naturally
ś
Cleaning the leather seats
from usage. It is not a fault of the
- Remove all spills instantly.
products.
- For Cosmetic products (sunscreen,
foundation, etc.)
NOTICE
Apply cleansing cream on a cloth
ś Wrinkles or abrasions that appear
and wipe the contaminated spot.
naturally from usage are not covered
Wipe off the cream with a damp
by warranty.
loth and then wipe with a dry cloth.
ś Belts with metallic accessories,
- For Beverages (coffee, soft drink,
zippers, or keys inside the back pocket
etc.)
may damage the seat fabric.
Apply a small amount of neutral
ś Be sure not to wet the seat. It may
detergent and wipe until it does not
change the nature of natural leather.
smear.
ś Jeans or clothes that could bleach
- For oil
may contaminate the surface of the
Remove oil instantly with an
seat covering fabric.
absorbable cloth and wipe with
stain remover used only for natural
leather.
- Chewing gum
Harden the gum with ice and
remove it gradually.
9-70
CarManuals2.com
09
ś Handling prime napa leather (if
Cleaning the seat belt webbing
equipped)
Clean the belt webbing with any
Try to avoid excessive sunlight and
mild soap solution recommended for
heat exposure. Excessive sunlight
cleaning upholstery or carpet. Follow the
and heat exposure naturally fades
instructions provided with the soap.
and dries out napa leather, causing
wrinkles and discoloration. If the napa
leather is wet with liquid, immediately
WARNING
clean it with lint-free cloth to minimize
Do not bleach or re-dye the webbing
damage. Do not scratch the napa
because this may weaken the seat belt.
leather surface with a sharp object.
If your napa leather seat is bright
Cleaning the interior window glass
colored, it may be contaminated or
If the interior glass surfaces need to be
stained from dyed materials such as
cleaned, use a glass cleaner. Follow the
jeans.
directions on the glass cleaner container.
Interior wooden trim
NOTICE
ś Use a wooden furniture protector (for
example, wax, coating compound) to
Do not scrape or scratch the inside of the
clean the interior wooden trim.
rear window. This may result in damage
ś Sharp objects (for example, driver,
to the rear window defroster grid.
knife), adhesive materials, or tapes
may damage the interior wooden trim.
ś Any strong impacts may damage the
interior wooden trim.
ś If the coating finish over the interior
wooden trim is removed, moisture
may damage or change wood traits.
ś If the interior wooden trim is
damaged, you may get a splinter from
the wood surface. Have the damaged
interior wooden trim replaced by an
authorized HYUNDAI dealer.
9-71
CarManuals2.com
Maintenance
EMISSION CONTROL SYSTEM
The emission control system of your
1. Crankcase Emission Control
vehicle is covered by a written limited
System
warranty. Please see the warranty
The positive crankcase ventilation system
information contained in the Owner’s
is employed to prevent air pollution
Handbook & Warranty Information
caused by blow-by gases being emitted
booklet in your vehicle.
from the crankcase. This system supplies
Your vehicle is equipped with an
fresh filtered air to the crankcase through
emission control system to meet all
the air intake hose. Inside the crankcase,
applicable emission regulations. There
the fresh air mixes with blow-by gases,
are three emission control systems, as
which then pass through the PCV valve
follows:
into the induction system.
(1) Crankcase emission control system
2. Evaporative Emission Control
(2) Evaporative emission control system
System Including Onboard
(3) Exhaust emission control system
Refueling Vapor Recovery
(ORVR)
In order to ensure the proper function
The Evaporative Emission Control System
of the emission control systems, it
is designed to prevent fuel vapors from
is recommended that you have your
escaping into the atmosphere. The
vehicle inspected and maintained
ORVR system is designed to allow the
by an authorized HYUNDAI dealer in
vapors from the fuel tank to be loaded
accordance with the maintenance
into a canister while refueling at the gas
schedule in this manual.
station, preventing the escape of fuel
vapors into the atmosphere.
NOTICE
Canister
For the Inspection and Maintenance Test
(with Electronic Stability Control (ESC)
Fuel vapors generated inside the fuel
system)
tank are absorbed and stored in the
onboard canister. When the engine is
ś To prevent the vehicle from misfiring
running, the fuel vapors absorbed in the
during dynamometer testing, turn
canister are drawn into the surge tank
the Electronic Stability Control (ESC)
through the purge control solenoid valve.
system off by pressing the ESC switch
(ESC OFF light illuminated).
Purge Control Solenoid Valve (PCSV)
ś After dynamometer testing is
The purge control solenoid valve is
completed, turn the ESC system back
on by pressing the ESC switch again.
controlled by the Engine Control Module
(ECM). When the engine coolant
temperature is low during idling, the
PCSV closes so that evaporated fuel
is not taken into the engine. After the
engine warms up during ordinary driving,
the PCSV opens to introduce evaporated
fuel to the engine.
9-72
CarManuals2.com
09
3. Exhaust Emission Control
Operating precautions for catalytic
System
converters (if equipped)
The Exhaust Emission Control System
controls exhaust emissions while
WARNING
maintaining good vehicle performance.
The exhaust system and catalytic system
When the engine starts or fails to start,
are very hot while the engine is running
excessive attempts to restart the engine
or immediately after the engine is turned
may cause damage to the emission
off. To avoid serious injury or death:
system.
ś Do not park, idle, or drive the vehicle
over or near flammable objects, such
Engine exhaust (carbon monoxide)
as grass, vegetation, paper, leaves,
precautions
etc. A hot exhaust system may ignite
ś Carbon monoxide is present with
flammable items under your vehicle.
other exhaust fumes. If you smell
ś Keep away from the exhaust system
exhaust fumes in your vehicle, drive
and catalytic converter or you may get
with all the windows fully open. Have
burned.
your vehicle inspected and repaired
immediately.
Also, do not remove the heat sink
around the exhaust system, do not
ś Do not operate the engine in confined
seal the bottom of the vehicle, and
or closed areas (such as garages) any
do not coat the vehicle for corrosion
more than what is necessary to move
control. It may present a fire risk
the vehicle in or out of the area.
under certain conditions.
ś When the vehicle is stopped in an
open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
ś Never sit in a parked or stopped
vehicle for an extended time with the
engine running.
ś When the engine stalls or fails to
start, excessive attempts to restart
the engine may cause damage to the
emission control system.
For more information, refer to
“Carbon Monoxide” at the beginning
of Chapter 6.
WARNING
Engine exhaust gases contain carbon
monoxide (CO). Though colorless and
odorless, it is dangerous and could be
lethal if inhaled. Follow the instructions
on this page to avoid CO poisoning.
9-73
CarManuals2.com
Maintenance
FUEL REQUIREMENTS
Your vehicle is equipped with a catalytic
Gasoline Engine
converter emission control device.
Unleaded
Your new vehicle is designed to perform
NOTICE
optimally with unleaded fuel having
To prevent damage to the catalytic
an octane number ((R+M)/2) of 87
converter and to your vehicle, take the
(Research Octane Number 91) or higher.
following precautions:
Your new vehicle is designed to obtain
ś Use only UNLEADED FUEL for
maximum performance with UNLEADED
gasoline engines.
FUEL, as well as minimize exhaust
emissions and spark plug fouling.
ś Do not operate the vehicle when
there are signs of engine malfunction,
Gasoline containing ethanol and
such as misfire or a noticeable loss of
methanol
performance.
Gasohol, a mixture of gasoline and
ś Do not misuse or abuse the engine.
ethanol (also known as grain alcohol) are
Examples of misuse are coasting with
being marketed along with or instead
the engine off and descending steep
of leaded or unleaded gasoline. For
grades in gear with the engine off.
example, “E15” is a gasohol comprised of
ś Do not operate the engine at high
15% ethanol and 85% gasoline.
idle speed for extended an extended
Do not use gasohol containing more than
period of time (5 minutes or more).
15% ethanol, and do not use gasoline or
ś Do not modify or tamper with any
gasohol containing any methanol. Do
part of the engine or emission control
not use gasohol containing more than
system. Have all inspections and
15% ethanol, and do not use gasoline or
adjustments made by an authorized
gasohol containing any methanol. Never
HYUNDAI dealer.
use leaded fuel or leaded gasohol. Use of
ś Avoid driving with an extremely low
these fuels may damage the fuel system,
fuel level.
engine control system, and emission
Running out of fuel may cause the
control system.
engine to misfire, damaging the
catalytic converter.
Discontinue using gasohol of any
kind if problems occur. “E85” fuel
Failure to follow these precautions may
is an alternative fuel comprised of
void your vehicle warranty.
85% ethanol and 15% gasoline, and
is manufactured exclusively for use
in Flexible Fuel Vehicles. “E85” is not
compatible with your vehicle. Use
of “E85” may result in poor engine
performance and damage to your
vehicle’s engine and fuel system.
NOTICE
Damage to the fuel system or
performance issues caused by the use of
these fuels may not be covered by your
New Vehicle Limited Warranty.
9-74
CarManuals2.com
09
Using Fuel Additives (except
Detergent Fuel Additives
Detergent Fuel Additives)
HYUNDAI recommends that you use
Using fuel additives such as:
good quality gasolines treated with
detergent additives such as TOP TIER
- Silicone fuel additive
Detergent Gasoline, which help prevent
- Ferrocene (iron-based) fuel additive
deposit formation in the engine. These
- Other metallic-based fuel additives
gasolines will help the engine run
cleaner and enhance performance of
May result in cylinder misfire, poor
the Emission Control System. For more
acceleration, engine stalling, damage
information on TOP TIER Detergent
to the catalyst, or abnormal corrosion,
Gasoline, go to the website (www.
and may cause damage to the engine
toptiergas.com).
resulting in a reduction in the overall life
For customers who do not use TOP Tier
of the powertrain.
Detergent Gasoline regularly, and have
- The Malfunction Indicator Lamp (MIL)
problems starting or the engine does
may illuminate.
not run smoothly, detergent-based
fuel additives that you can purchase
separately may be added to the gasoline.
NOTICE
If TOP TIER Detergent Gasoline is
Damage to the fuel system or
not available, one bottle of additive
performance issues caused by the use of
added to the fuel tank according to the
these fuel additives may not be covered
maintenance schedule is recommended
by your New Vehicle Limited Warranty.
(refer to the Maintenance Schedule in
this chapter).
Gasoline containing MMT
Additives are available from your
Some gasoline contains harmful
authorized HYUNDAI dealer along with
manganese-based fuel additives such
information on how to use them.
as MMT (Methylcyclopentadienyl
Manganese Tricarbonyl).
NOTICE
HYUNDAI does not recommend the use
Never add any fuel system cleaning
of gasoline containing MMT.
agents or other additives to the fuel
This type of fuel can reduce vehicle
tank other than HYUNDAI fuel additives
performance and affect your emission
to prevent damage to the engine and
control system.
engine components.
The malfunction indicator lamp on the
Contact an authorized HYUNDAI dealer
cluster may come on.
for additional information.
9-75
CarManuals2.com
Maintenance
CALIFORNIA PERCHLORATE NOTICE
Notice to California Vehicle Dismantlers:The airbag module, safety belt pretensioners,
and remote batteries must be disposed of according to Title 22 California Code of
Regulations Section 67384.10 (a). Special handling may be necessary. See: www.
dtsc.ca.gov/hazardouswaste/perchlorate. Contact an authorized HYUNDAI dealer for
handling and disposal.
9-76
CarManuals2.com
10.Vehicle Information,
Reporting Safety Defects,
and Consumer Information
Dimensions
10-2
Engine
10-2
Bulb Wattage
10-3
Tires and Wheels
10-4
Air Conditioning System
10-5
Volume and Weight
10-5
Recommended Lubricants and Capacities
10-6
Recommended SAE Viscosity Number
10-7
Vehicle Identification Number (VIN)
10-8
Vehicle Certification Label
10-8
Tire Specification and Pressure Label
10-8
Engine Number
10-9
Refrigerant Label
10-9
Operation in Foreign Countries
10-9
Hyundai Vehicle Owner Privacy Policy
10-10
Vehicle Data Collection and Event Data Recorders
10-11
Reporting Safety Defects
10-12
FCC Statement
10-12
Consumer Information
10-13
10
CarManuals2.com
Vehicle Information, Reporting Safety Defects, and Consumer Information
DIMENSIONS
Items
in (mm)
Overall length
182.3 (4,630) / 182.7 (4,640) (N Line)
Overall width
73.4 (1,865)
Overall height
65.6 (1,665) (2WD) / 66.34 (1,685) (AWD)
Front
Rear
Tread
17” : 63.78 (1,620)
17” : 64.06 (1,627)
19” : 63.58 (1,615)
19” : 63.85 (1,622)
Wheelbase
108.5 (2,755)
ENGINE
Displacement
Bore x Stroke
Engine
Firing order
No. of cylinders
cu. in (cc)
in. (mm)
152.4
3.5 x 4
Smartstream G 2.5 GDI
1-3-4-2
4, in-line
(2,497)
(88.5 x 101.5)
10-2
CarManuals2.com
10
BULB WATTAGE
Light bulb
Bulb type
Wattage
High
LED
LED
Headlight
Low
LED
LED
Daytime Running Light (DRL) / Parking light
LED
LED
Front
Turn signal light
LED
LED
Side marker
LED
LED
Side repeater light (Side mirror)
LED
LED
Tail light
P21/5W
5/21
Type A
Tail/Stop light
P21/5W
5/21
Tail light
LED
LED
Type B
Tail/Stop light
LED
LED
Turn signal light
PY21W
21
Bulb type
P21W
21
Rear
Reverse light
LED type
LED
LED
Bulb type
P21/5W
5/21
Side marker
LED type
LED
LED
W5W
5
License plate light
LED
LED
High mounted stop light
LED
LED
Bulb type
W10W
10
Map lamp
LED type
LED
LED
Rear room lamp (for vehicles without sunroof)
FESTOON
10
Interior
Rear room lamp (for vehicles with sunroof)
LED
LED
Glove box lamp
W5W
5
Vanity mirror lamp
FESTOON
5
Cargo area lamp
FESTOON
10
10-3
CarManuals2.com
Vehicle Information, Reporting Safety Defects, and Consumer Information
TIRES AND WHEELS
Inflation pressure
psi (kPa)
Wheel nut
Wheel
Items
Tire size
torque lbf·ft
size
Normal load
Maximum load
(kgf·m, N·m)
Front
Rear
Front
Rear
235/65 R17 7.0J X 17
Full size tire
35 (240)
235/55 R19
7.5J X 19
79-94
(11-13, 107-127)
Compact
T135/90 D17
4.0B x 17
60 (420)
spare tire
NOTICE
ś It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 1 psi (7 kPa) for every 12
°F (7 °C) temperature drop. If extreme temperature variations are expected, recheck
your tire pressure as necessary to keep them properly inflated.
ś Tire inflation pressures may vary depending on changes in elevation. If driving
in areas of higher or lower elevation, be sure to check and adjust for proper tire
inflation.
ś Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction, and tread
pattern supplied with the vehicle. If not, it can damage the related parts or make it
work irregularly.
10-4
CarManuals2.com
10
AIR CONDITIONING SYSTEM
Items
Weight of volume
Classification
Refrigerant
19.40 (550) ± 0.88 (25)
R-1234yf
oz. (g)
Compressor lubricant
4.23 (120) ± 0.35 (10)
PAG
oz. (g)
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
Items
2WD
AWD
Gross vehicle weight
4,629 (2,100)
4,761 (2,160)
lbs. (kg)
Cargo area volume
Behind 1st row
74.8 (2,119)
FX IW Ţ
Behind 2st row
38.7 (1,095)
10-5
CarManuals2.com
Vehicle Information, Reporting Safety Defects, and Consumer Information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote the engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant
Volume
Classification
Engine oil *1 (drain and refill)
Recommends
Full synthetic, API SN PLUS/SP or
6.13 US qt.
2
ILSAC GF-6 *
Ţ
SAE: 0W-20
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine
6.87 US qt.
Automatic transmission fluid
ATF SP-IV or other brands meeting
Ţ
the above specification approved by
HYUNDAI Motor Co.
MIXTURE, Antifreeze with water
10.04 US qt.
Coolant
(Ethylene glycol base coolant for
Ţ
aluminum radiator)
SAE J1704 DOT-4 LV, FMVSS 116 DOT-4,
Brake fluid
As required
ISO4925 CLASS-6
0.56 ~ 0.67 US qt.
Rear differential oil (AWD)
a
Ţ
HYPOID GEAR OIL API GL-5, SAE
75W/85
(SK HCT-5 GEAR OIL 75W/85 or
0.65 ~ 0.71 US qt.
EQUIVALENT)
Transfer case oil (AWD)
a
Ţ
14.27 US gal.
Refer to the “Fuel Requirements”
Fuel
Ţ
section in Chapter 9.
*1 : Refer to the recommended SAE viscosity numbers.
*2 : Requires <API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral type, semi-synthetic, lower grade spec, etc.) is used, replace
the engine oil and engine oil filter as indicated in maintenance under severe usage
conditions.
NOTICE
Severe engine and transmission damage may result from the use of poor quality fuels
and lubricants that do not meet HYUNDAI specifications. Always use high quality fuels
and lubricants that meet the specifications listed in the recommended table.
10-6
CarManuals2.com
10
Recommended SAE Viscosity Number
NOTICE
ś Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
ś Never add any additives to the engine oil. Engine oil additives can change the
properties of engine oil and may cause serious engine failure.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended may result in engine damage.
When choosing an oil, consider the range of temperature your vehicle is operated in
before the next oil change. Proceed to select the recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
°C
-30
-20
-10
0
10
20
30
40
50
Temperature
(°F)
-10
0
20
40
60
80
100
120
Smartstream
Engine Oil
0W-20
G2.5 GDI
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Committee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
10-7
CarManuals2.com
Vehicle Information, Reporting Safety Defects, and Consumer Information

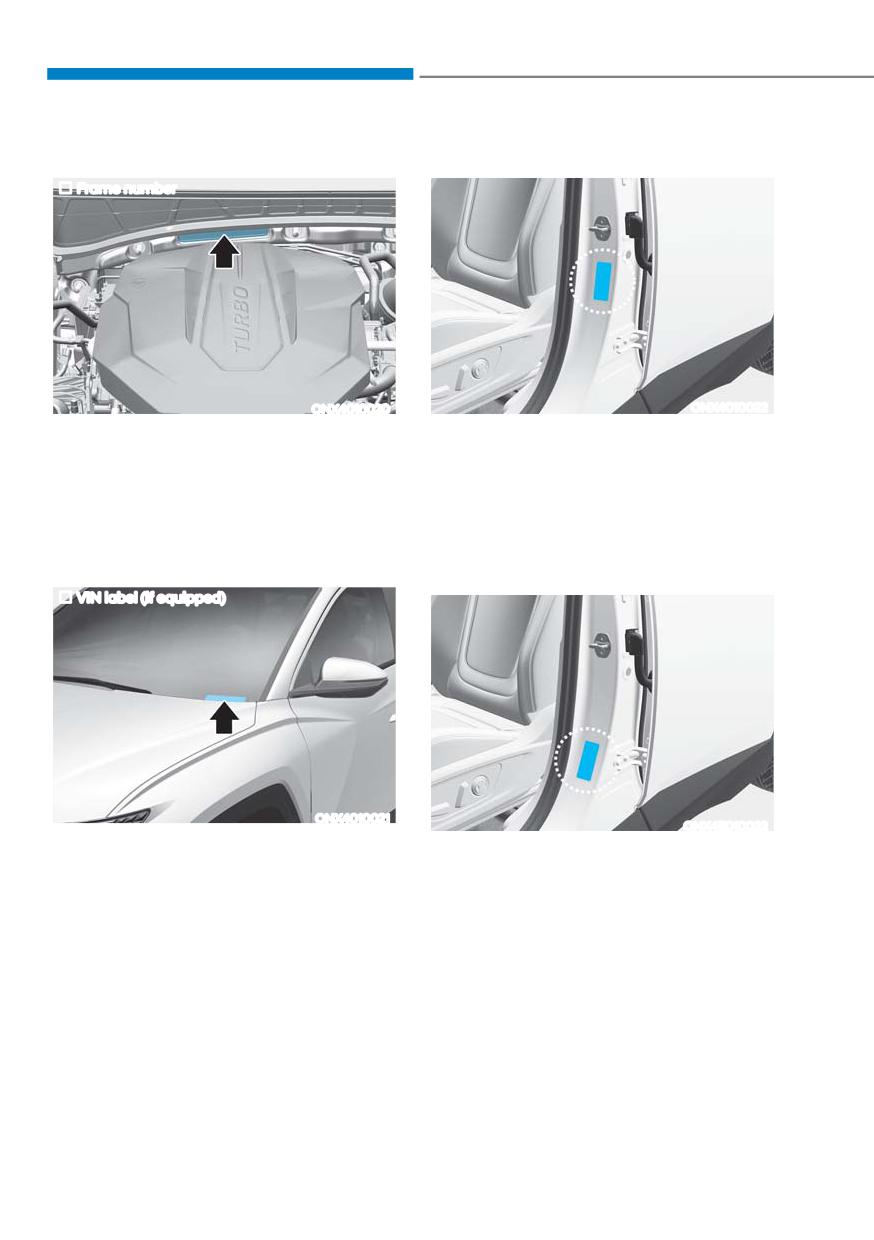

VEHICLE IDENTIFICATION
VEHICLE CERTIFICATION
180%(5 ǣ9,1Ǥ
LABEL
„ Frame number
ONX4010020
ONX4010022
The vehicle identification number (VIN)
The vehicle certification label attached
is the number used in registering your
on the driver’s (or front passenger’s)
vehicle and in all legal matters pertaining
side center pillar gives the vehicle
to its ownership, etc.
identification number (VIN).
The number is punched on the body
panel between the engine and the
TIRE SPECIFICATION AND
interior of the vehicle.
PRESSURE LABEL
„ VIN label (if equipped)
ONX4010021
ONX4E010022
The VIN is also on a plate attached to
The tires supplied on your new
the top of the left side dashboard. The
vehicle are chosen to provide the best
number on the plate can easily be seen
performance for normal driving.
through the windshield from outside.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
10-8
CarManuals2.com
10

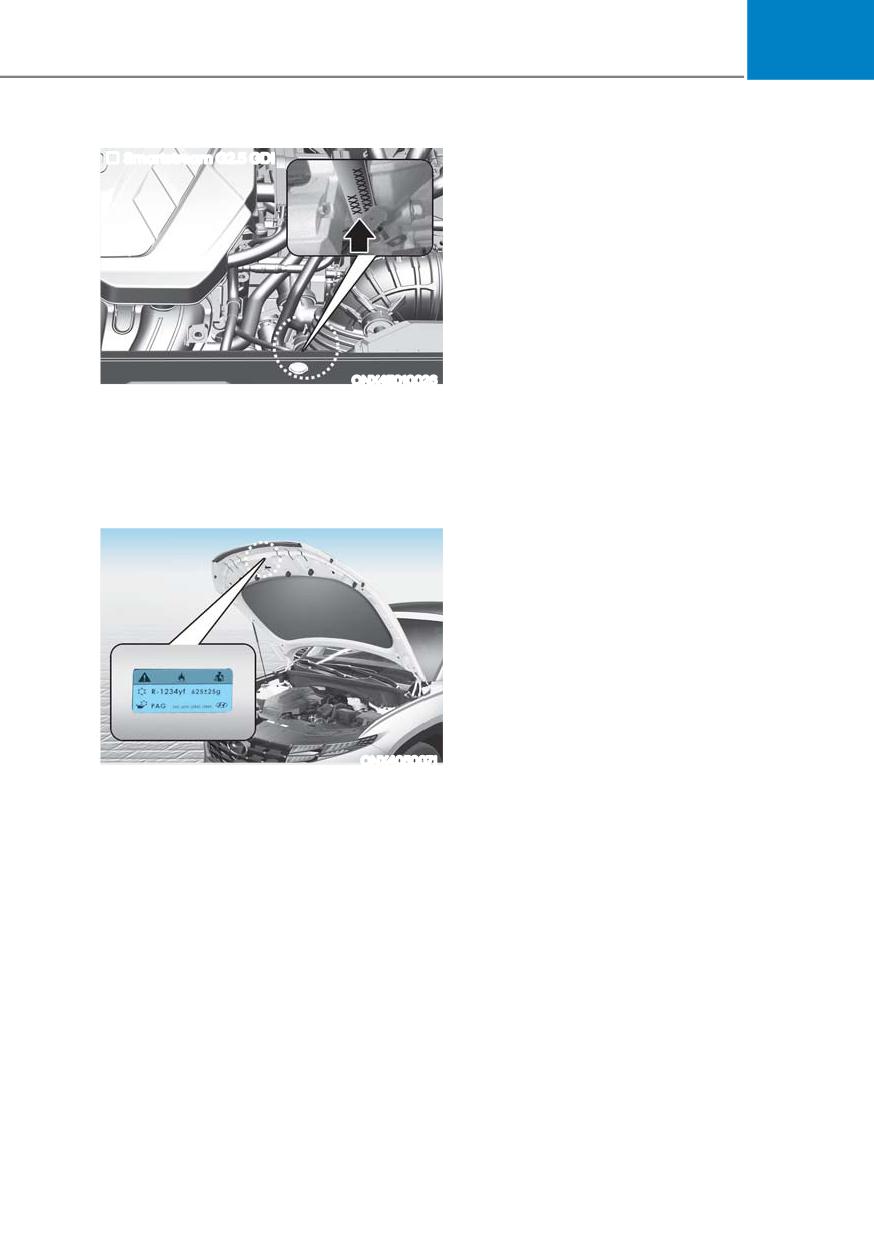

ENGINE NUMBER
OPERATION IN FOREIGN
„ Smartstream G2.5 GDI
COUNTRIES
If you are going to drive your vehicle in
another country, be sure to:
ś Observe all regulations regarding
registration and insurance.
ś Determine that acceptable fuel is
available.
ONX4E010026
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
ǣ,) (48,33('Ǥ
ONX4050071
The refrigerant label provides
information such as refrigerant type and
amount. (R-1234yf)
10-9
CarManuals2.com
Vehicle Information, Reporting Safety Defects, and Consumer Information
HYUNDAI VEHICLE OWNER PRIVACY POLICY
Your Hyundai vehicle may be equipped with technologies and services that use
information collected, generated, recorded, or stored by the vehicle. Hyundai has
created a Vehicle Owner Privacy Policy to explain how these technologies and services
collect use and share this information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy,
please contact our Customer Care Center at:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728 800-633-5151
consumeraffairs@hmausa.com
Hyundai’s Customer Care representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST and Saturday between 6:30 AM and
3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
10-10
CarManuals2.com
10
VEHICLE DATA COLLECTION AND EVENT DATA RECORDERS
This vehicle is equipped with an event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
ś How various systems in your vehicle were operating;
ś Whether or not the driver and passenger safety belts were buckled/fastened;
ś How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
ś How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving conditions and no
personal data (for example, name, gender, age, and crash location) are recorded.
However, other parties, such as law enforcement, could combine the EDR data with
the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties,
such as law enforcement, that have the special equipment, can read the information if
they have access to the vehicle or the EDR.
10-11
CarManuals2.com
Vehicle Information, Reporting Safety Defects, and Consumer Information
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.
FCC Statement
The following regulatory statement applies to all Radio Frequency (RF) devices
equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and with Innovation, Science and
Economic Development Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d`Innovation, Science and Economic
Development applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d’en compromettre le fonctionnement.
La operación de este equipo está sujeta a las siguientes dos condiciones:
1. es posible que este equipo o dispositivo no cause interferencia perjudicial y
2. este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que
pueda causar su operación no deseada.
Information
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
10-12
CarManuals2.com
10
CONSUMER INFORMATION
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
CAUTION”, and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com
Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
10-13
CarManuals2.com















Content      ..     4      5      6
