Convenience Features
Rear Window Wiper and Washer
Auto rear wiper (if equipped)
The rear wiper operates while the vehicle
is in reverse with the front wiper on.
You can select the function from the
Settings menu in the instrument cluster
or infotainment system. Select:
ś User Settings > Convenience > Auto
Rear Wiper (in R) (for cluster type)
ś Setup > Vehicle > Convenience >
Auto Rear Wiper (in R) (for
infotainment system type)
ONX4050043N
Information

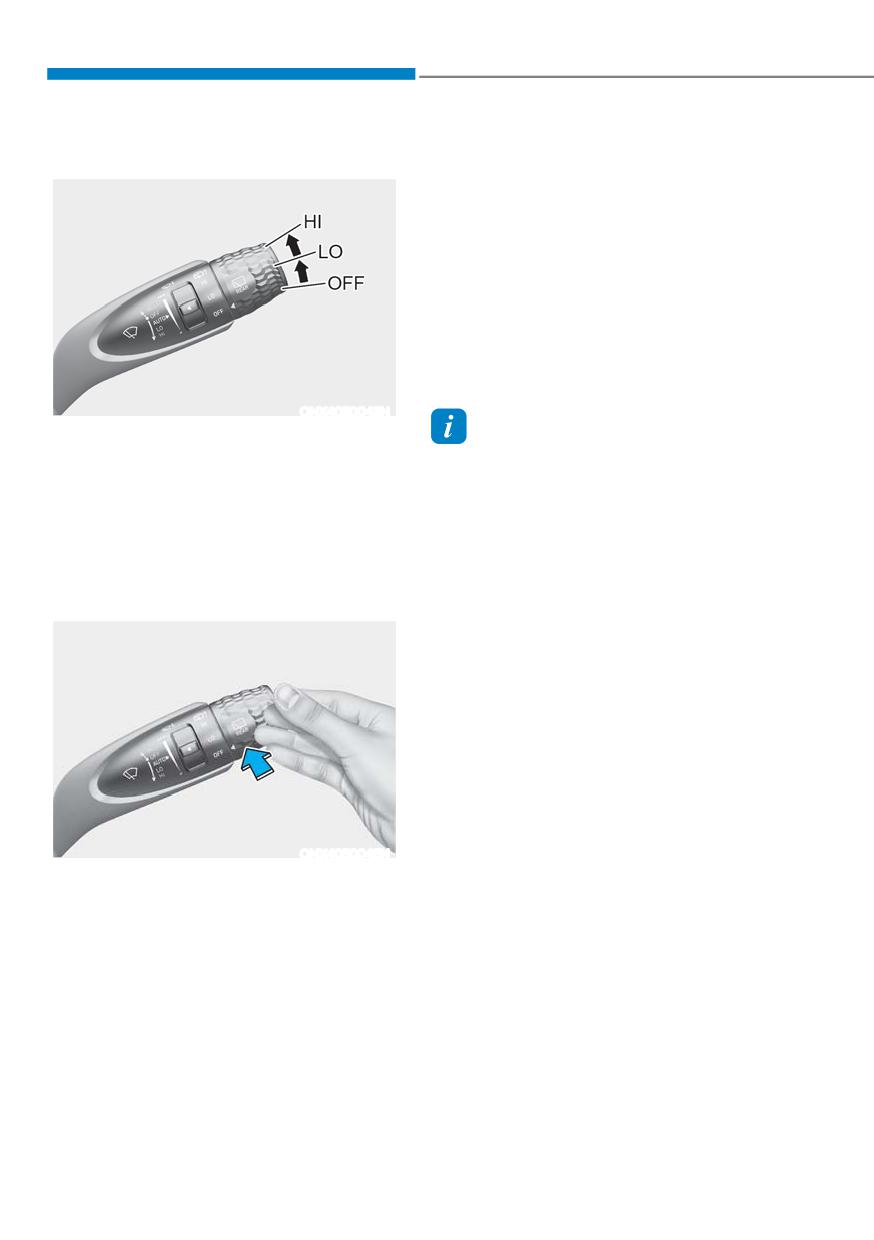

The rear window wiper and washer
switch is located at the end of the wiper
ś For more information on the cluster
and washer switch lever. Turn the switch
type Settings menu, refer to the
to the desired position to operate the
“Cluster Display” section in Chapter 4.
rear wiper and washer.
ś The infotainment system may change
HI - High wiper speed
after software updates. For more
LO - Low wiper speed
information, refer to the user’s manual
provided in the infotainment system
OFF - Off
and the quick reference guide.
ONX4050045N
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1-3 cycles. The spray and wiper
operation continues until you release the
lever.
5-84
CarManuals2.com
05

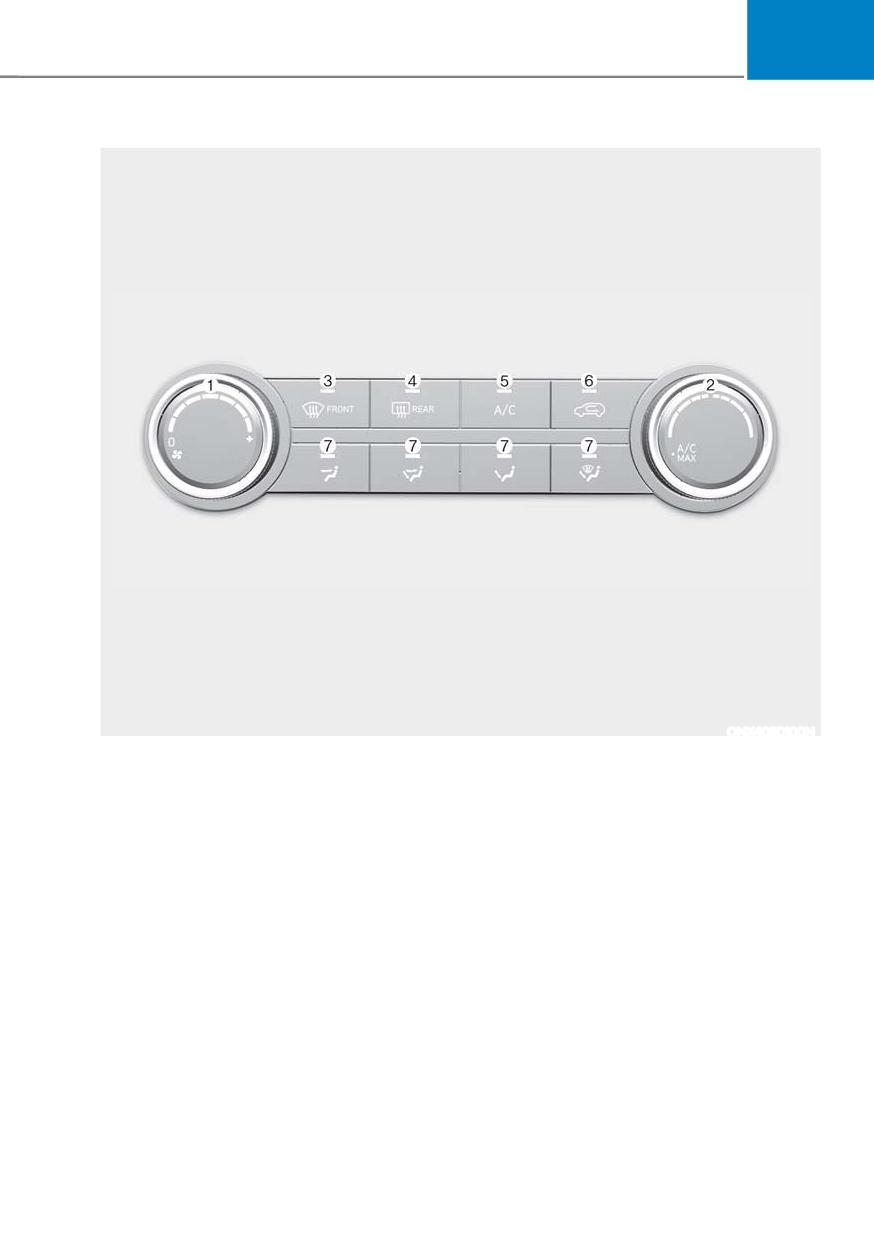

0$18$/ &/,0$7( &21752/ 6<67(0 ǣ,) (48,33('Ǥ
ONX4050100N
M Fan speed control knob
Q A/C (air conditioning) button
N Temperature control knob
R Air intake control button
O Front windshield defroster button
S Mode selection button
P Rear window defroster button
5-85
CarManuals2.com
Convenience Features
Heating and Air Conditioning
3. Set the temperature control to the
desired position.
1. Start the engine.
4. Set the air intake control to the
2. Set the mode to the desired position.
outside (fresh) air position.
To improve the effectiveness of
5. Set the fan speed control to the
heating and cooling, select:
desired speed.
- Heating:
6. If air conditioning is desired, turn on
- Cooling:
the air conditioning system.

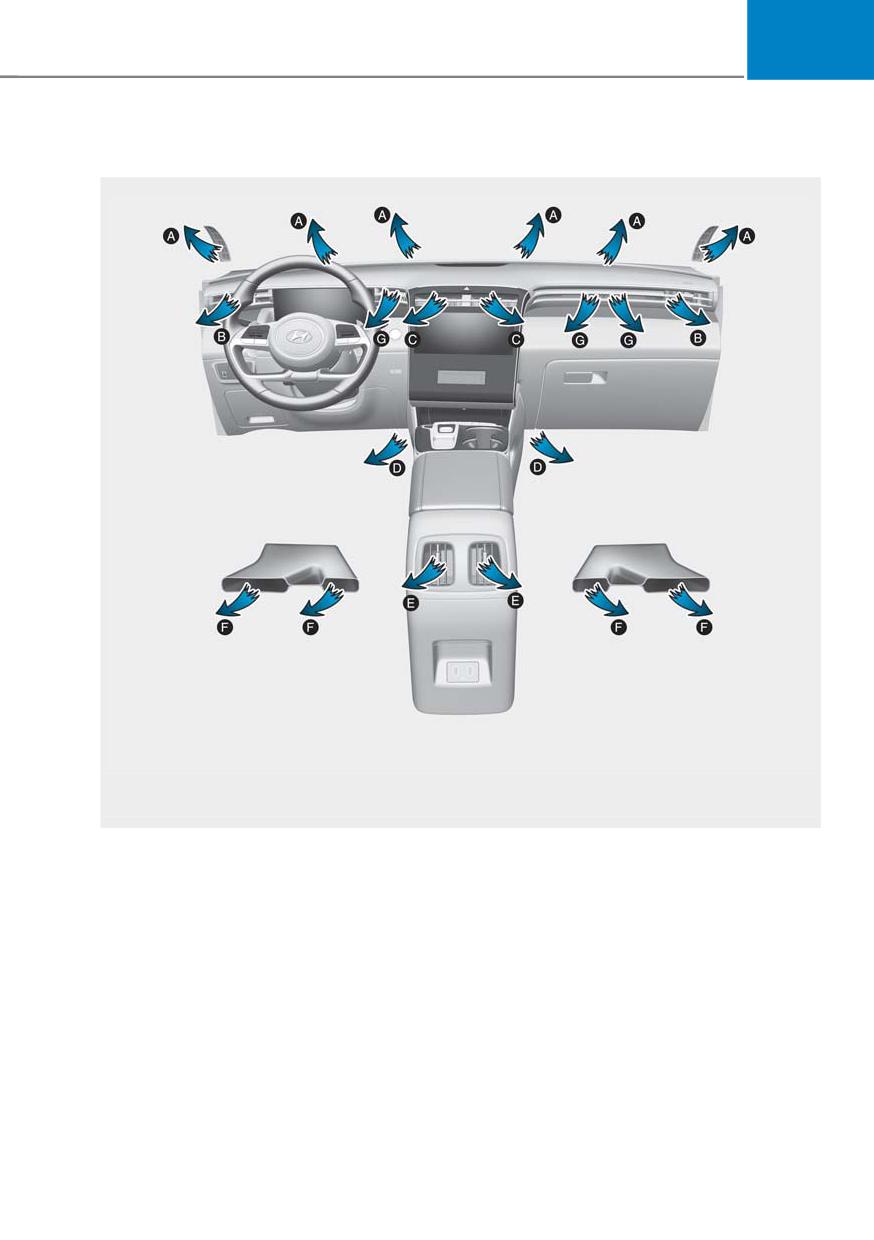

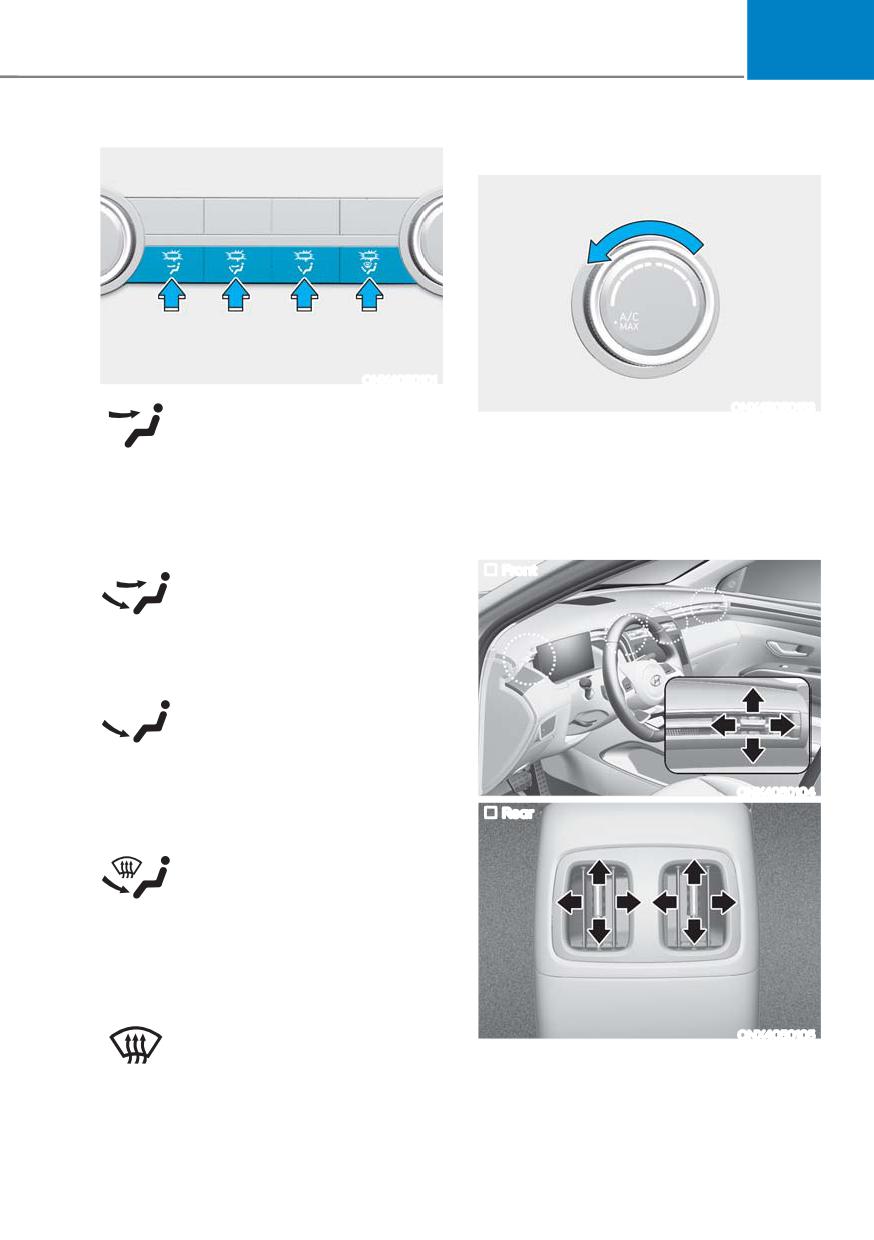

Mode selection
The actual shape of climate control system may differ from the illustration.
ONX4050102
The mode selection button controls the direction of the air flow through the ventilation
system.
5-86
CarManuals2.com
05
MAX A/C-Level (B, C, E)
ONX4050101
ONX4E050153
Face-Level (B, C, E)
The MAX A/C mode is used to cool the
inside of the vehicle faster. Air flow is
Air flow is directed toward the upper
directed toward the upper body and face.
body and face. Additionally, each outlet
The air conditioning and recirculated air
can be controlled to direct the air
are both selected. Turn the fan speed
discharged from the outlet.
mode to adjust.
„ Front
Bi-Level (B, C, D, E, F)
Air flow is directed toward the face and
the floor.
Floor-Level (A, B, D, E, F)
Most of the air flow is directed to the
floor, with a small amount of the air
ONX4050104
being directed to the windshield and side
„ Rear
window defrosters.
Floor/Defrost-Level
(A, B, D, E, F)
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
ONX4050105

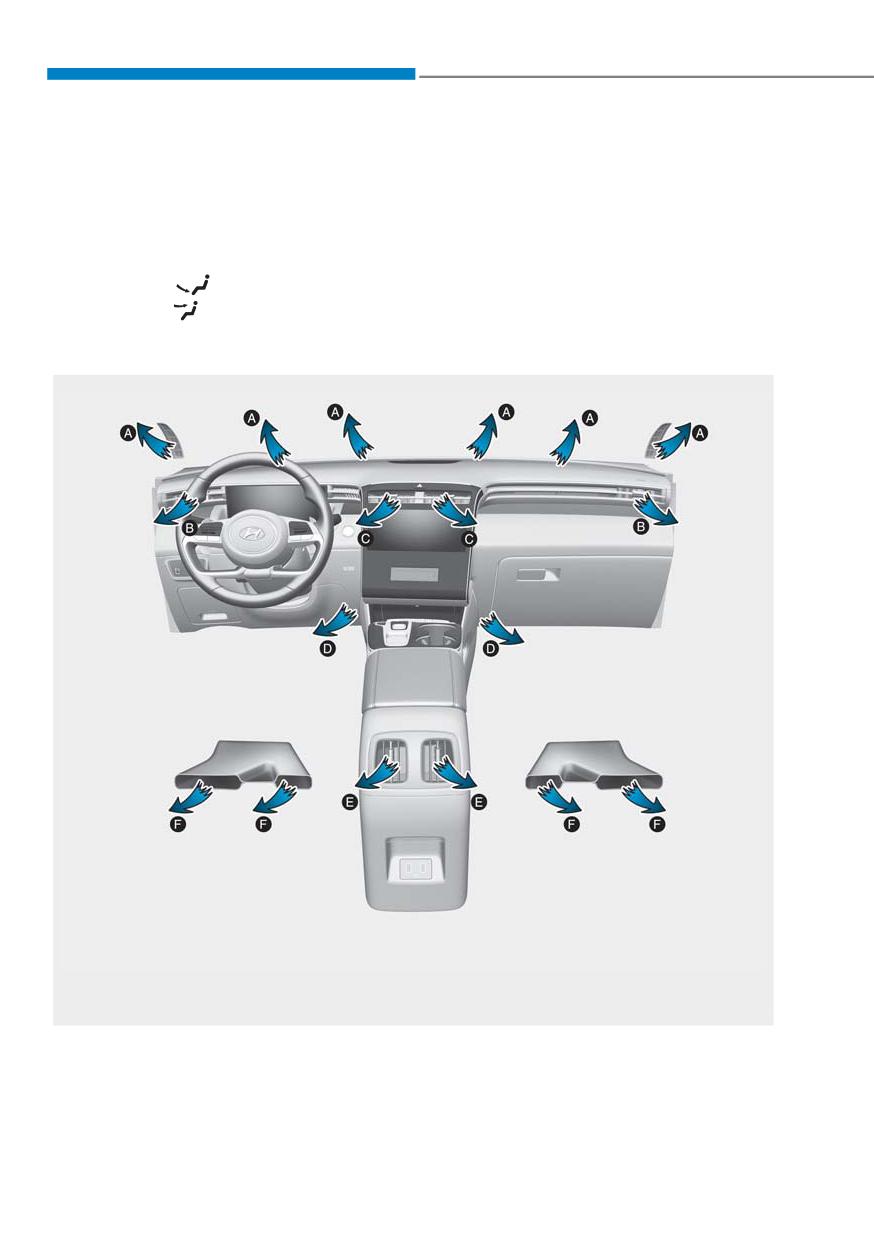

Front defroster (A, B)

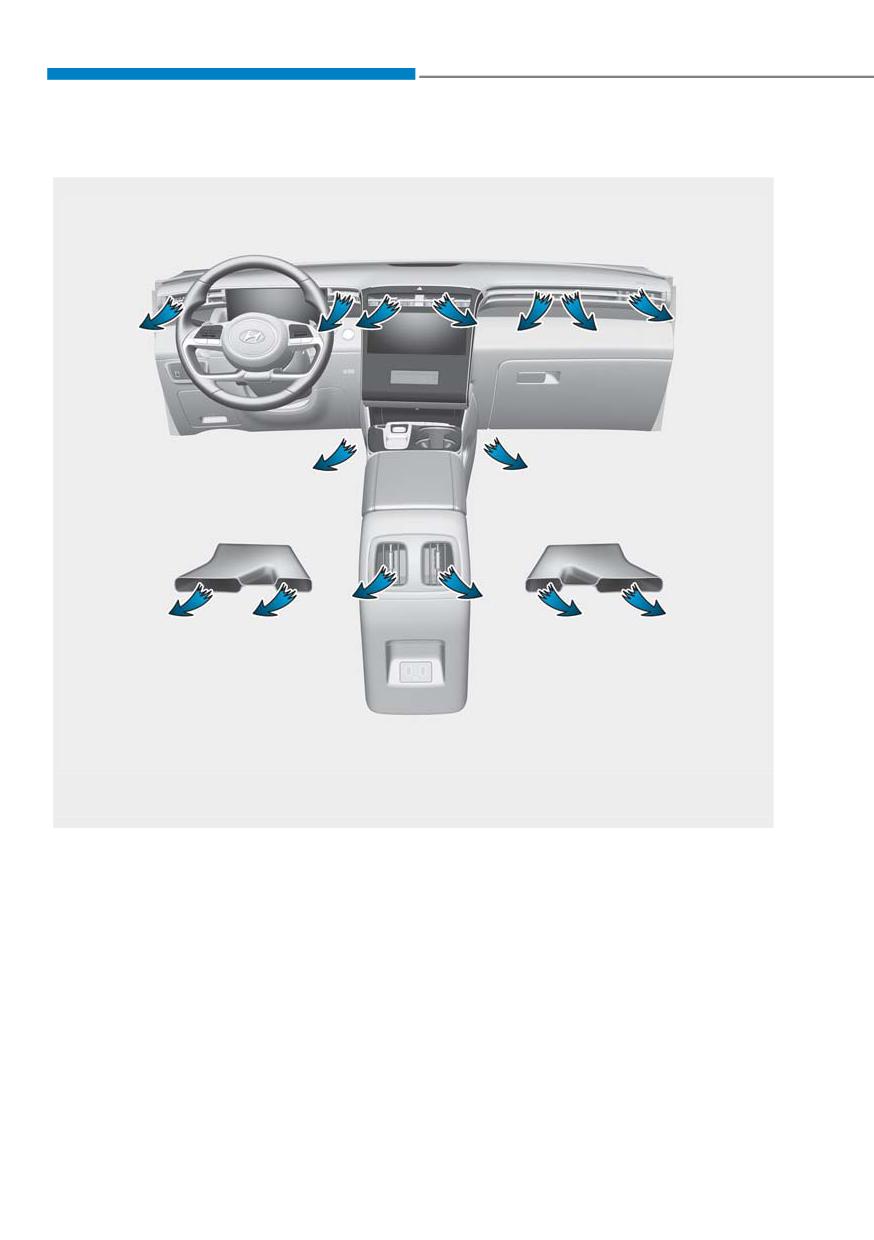

Instrument panel vents
Most of the air flow is directed to the
The instrument panel vent air flow can
windshield with a small amount of air
be directed up/down or left/right using
directed to the side window defrosters.
the vent adjustment lever. The air flow
can also be CLOSED using the vent
adjustment lever.
5-87
CarManuals2.com
Convenience Features

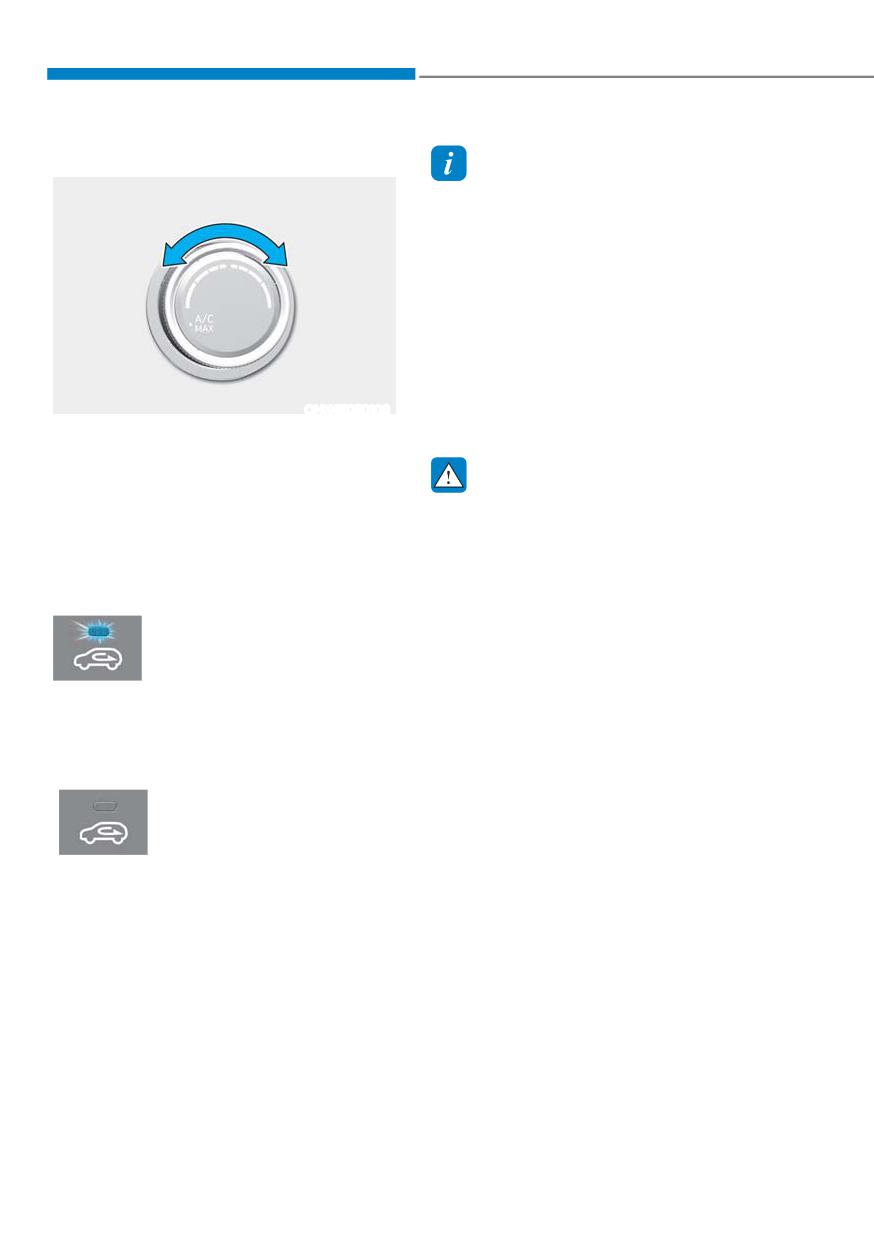

Temperature control
Information
Using the system in the fresh air position
is recommended.
Prolonged operation of the heater in
the recirculated air position (without air
conditioning selected) can cause fogging
of the windshield and side windows
and the air within the passenger
compartment will become stale.
In addition, prolonged use of the air
conditioning with the recirculated air
ONX4E050106
position selected will result in excessively
The temperature increases by turning
dry air in the passenger compartment.
the knob to the right. The temperature
decreases by turning the knob to the left.
WARNING
Air intake control
To prevent serious injury or death:
To select outside (fresh) air or
ś Continued climate control system
recirculated air, press this button.
operation in the recirculated air
position may allow humidity to
increase inside the vehicle that could
Recirculated air position
fog the windshield and the side
With the recirculated air
windows and obscure visibility.
selected, air from the
ś Do not sleep in a vehicle with the air
passenger compartment is
conditioning or heating system on.
drawn through the climate
control system.
ś Continued climate use of recirculated
air may cause drowsiness or
sleepiness, and loss of vehicle
control. Set the air intake control to
Outside (fresh) air position
the outside (fresh) air position while
With the outside (fresh)
driving.
air selected, air enters the
vehicle from outside and is
drawn through the climate
control system.
5-88
CarManuals2.com
05
Fan speed control
System Operation
Ventilation
1. Set the mode to the
position.
2. Set the air intake control to the
outside (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating

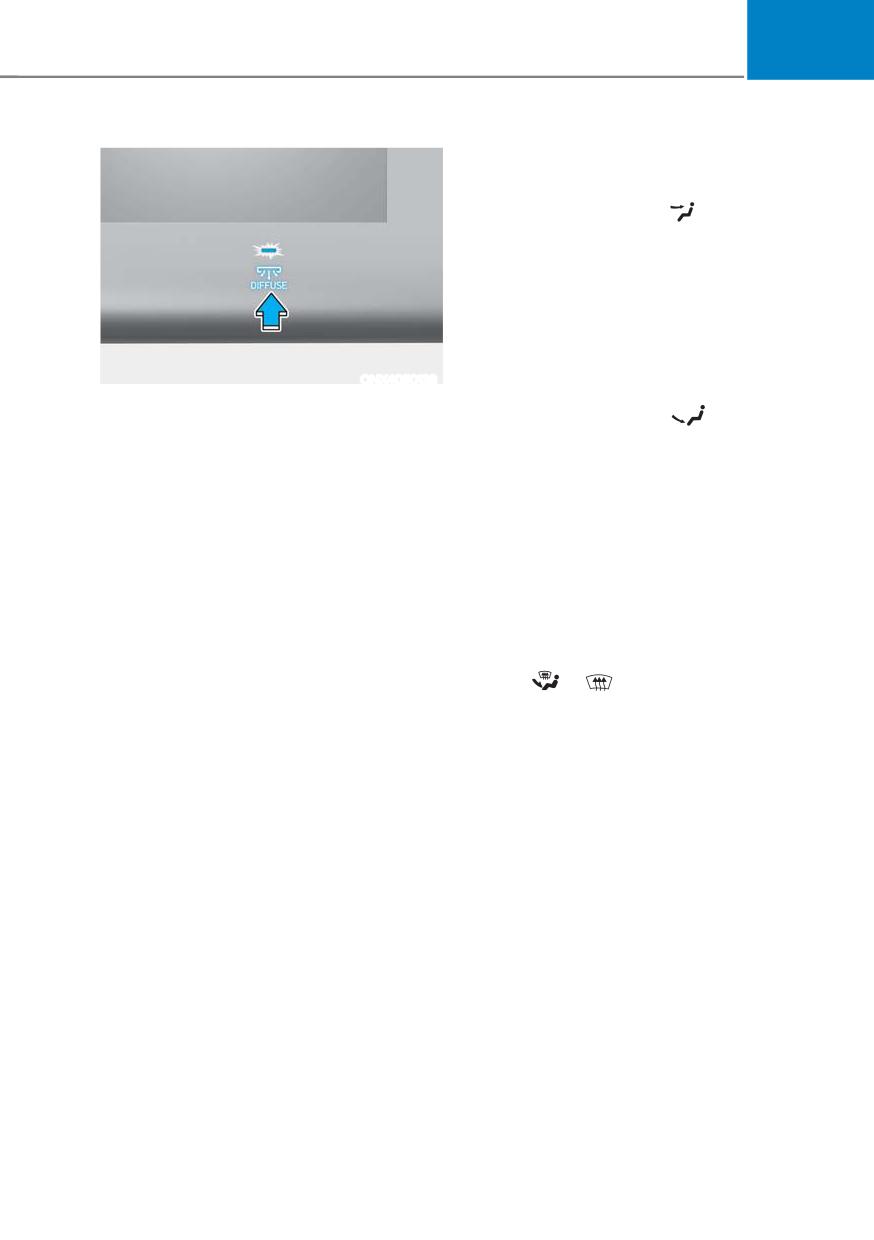

ONX4050107N
1. Set the mode to the
position.
Turn the knob to the right to increase
2. Set the air intake control to the
the fan speed and airflow. Turn the knob
outside (fresh) air position.
to the left to decrease fan speed and
airflow.
3. Set the temperature control to the
desired position.
Setting the fan speed control knob to the
“0” position turns off the fan.
4. Set the fan speed control to the
desired speed.
5. If desired, turn the air conditioning ON
Information
with the temperature control knob set
Operating the fan speed when the
to heat in order to dehumidify the air
ignition switch is in the ON position may
before it enters into the cabin.
cause the battery to discharge.
If the windshield fogs up, set the mode
to the
or
position.
Air conditioning (A/C) (if equipped)
Operation Tips
ś To help keep dust or unpleasant fumes
from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculated
air position. Be sure to return the
control to the fresh air position when
the irritation has passed to keep fresh
air in the vehicle. This can help keep
the driver alert and comfortable.
ś To prevent interior fog on the
ONX4050108
windshield, set the air intake control

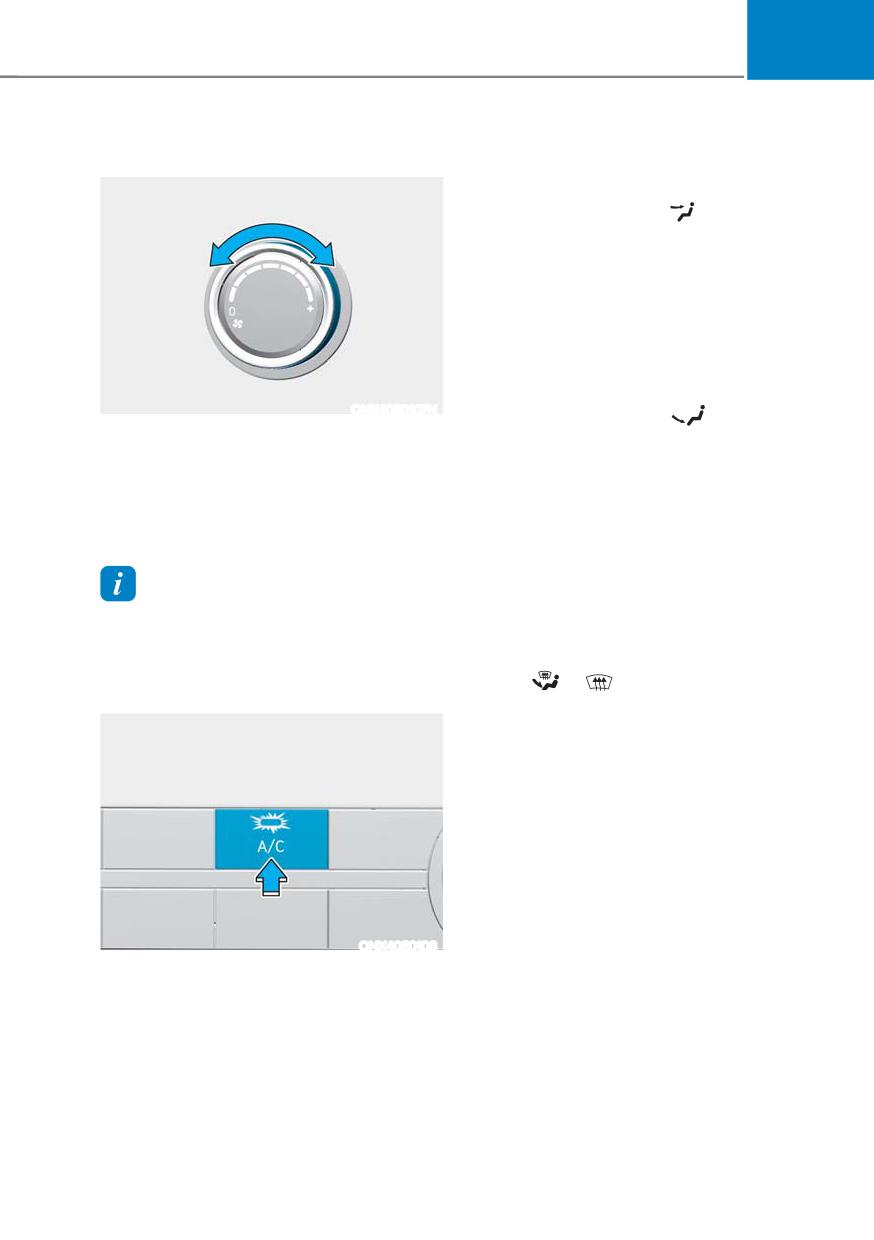

Press the A/C button to turn on the air
to the fresh air position and the fan
conditioning system (indicator light ON).
speed to the desired position, turn
Press the button again to turn off the air
on the air conditioning system, and
conditioning system.
adjust the temperature control to the
desired temperature.
5-89
CarManuals2.com
Convenience Features
Air conditioning
Air conditioning system operation tips
1. Start the engine. Press the air
ś
If the vehicle has been parked in
conditioning button.
direct sunlight during hot weather,
open the windows for a short time
2. Set the mode to the position.
to let the hot air inside the vehicle
3. Set the air intake control to the
escape.
outside air or recirculated air position.
ś
After sufficient cooling has been
4. Adjust the fan speed control and
achieved, switch back from the
temperature control as desired.
recirculated air position to the fresh
outside air position.
NOTICE
ś
To help reduce moisture inside of
ś When using the air conditioning
the windows on rainy or humid
days, decrease the humidity inside
system, monitor the temperature
gauge closely while driving up hills
the vehicle by operating the air
conditioning system with the windows
or in heavy traffic when outside
temperatures are high. Continue
and sunroof closed.
to use the fan but turn off the
ś
Use the air conditioning system every
air conditioning system if the
month for a few minutes to ensure
temperature gauge indicates the
maximum system performance.
engine is overheating.
ś
If you operate the air conditioner
ś Always use the air conditioning
excessively, the difference between
with the windows closed. In humid
the temperature of the outside air and
weather, if the windows are open and
that of the windshield may cause the
the air conditioning is running, water
outer surface of the windshield to fog
droplets may form inside the vehicle
up, causing loss of visibility. In this
and potentially damage electrical
case, set the mode selection knob to
equipment.
the
position and set the fan speed
control knob to the lowest speed
setting.
5-90
CarManuals2.com
05
System Maintenance
Air conditioning refrigerant label
Air Conditioning Performance and
Maintenance at Your HYUNDAI
Dealer
If the amount of refrigerant is too low
or too high, the performance of the air
conditioning is reduced. Have the system
be inspected by an authorized HYUNDAI
dealer.
NOTICE
ś
The refrigerant system should only
ONX4050071
be serviced by trained and certified

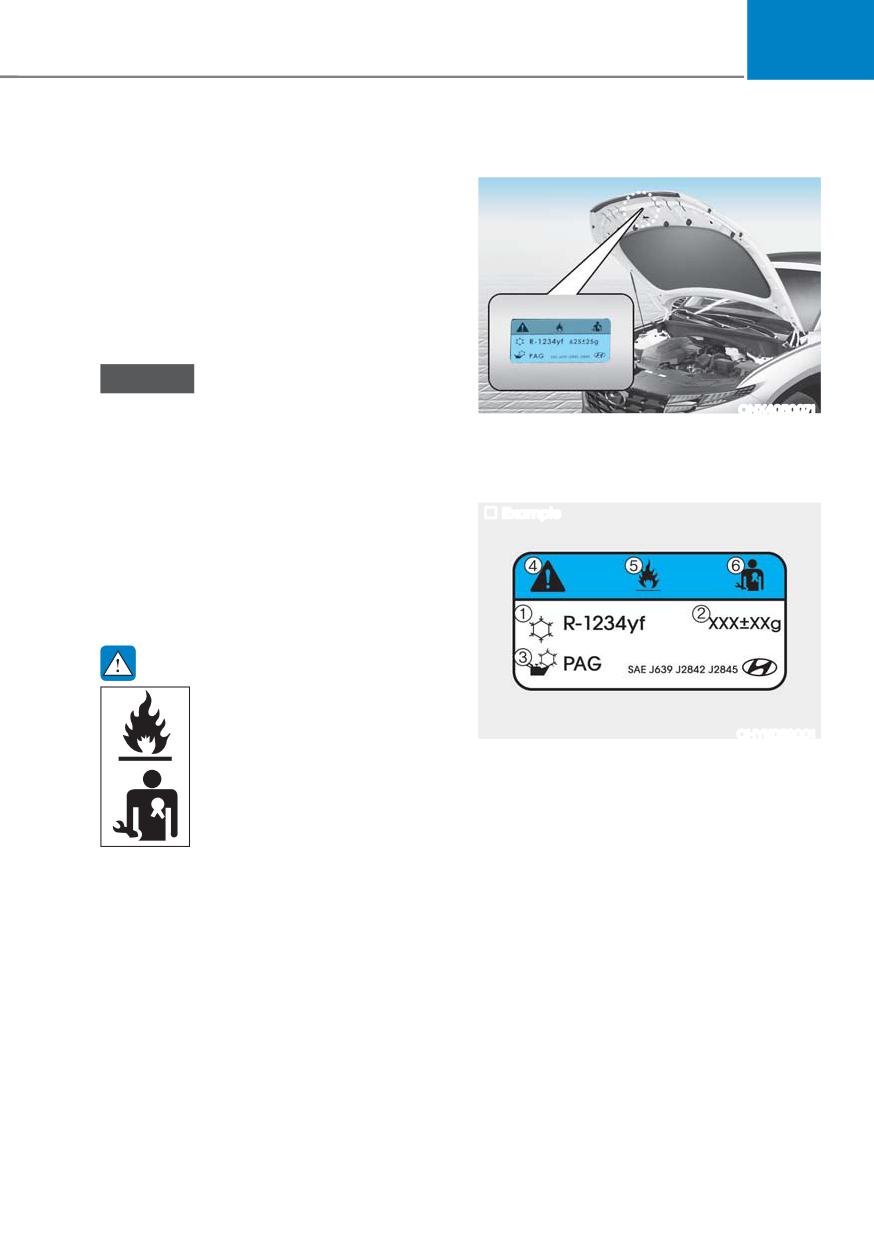

You can find out which air conditioning
technicians in a well-ventilated area to
refrigerant is applied to your vehicle on
ensure proper and safe operation.
the label located inside of the hood.
ś
Never repair the air conditioning
evaporator (cooling coil) or replace
„ Example
with the one removed from a used or
salvaged vehicle. A new replacement
evaporator must be certified (and
labeled) as meeting SAE Standard
J2842.
WARNING
To prevent serious injury,
have the air conditioning
system be serviced by
OHYK059001
only trained and certified
Each symbol and specification on the
technicians. R-1234yf is
air conditioning refrigerant label is
flammable and operated at
represented as the following:
high pressure.
M Classification of refrigerant
Reclaim all refrigerants with
N Amount of refrigerant
proper equipment. Venting
refrigerants directly to the
O Classification of compressor lubricant
atmosphere is harmful to
P Caution
individuals and environment.
Q Flammable refrigerant
R To require registered technician to
service air conditioning system
5-91
CarManuals2.com
Convenience Features
$8720$7,& &/,0$7( &21752/ 6<67(0 ǣ,) (48,33('Ǥ
„ Type A
„ Type B
The actual shape of air conditioner may differ from the illustration.
ONX4050110N/ONX4050140L

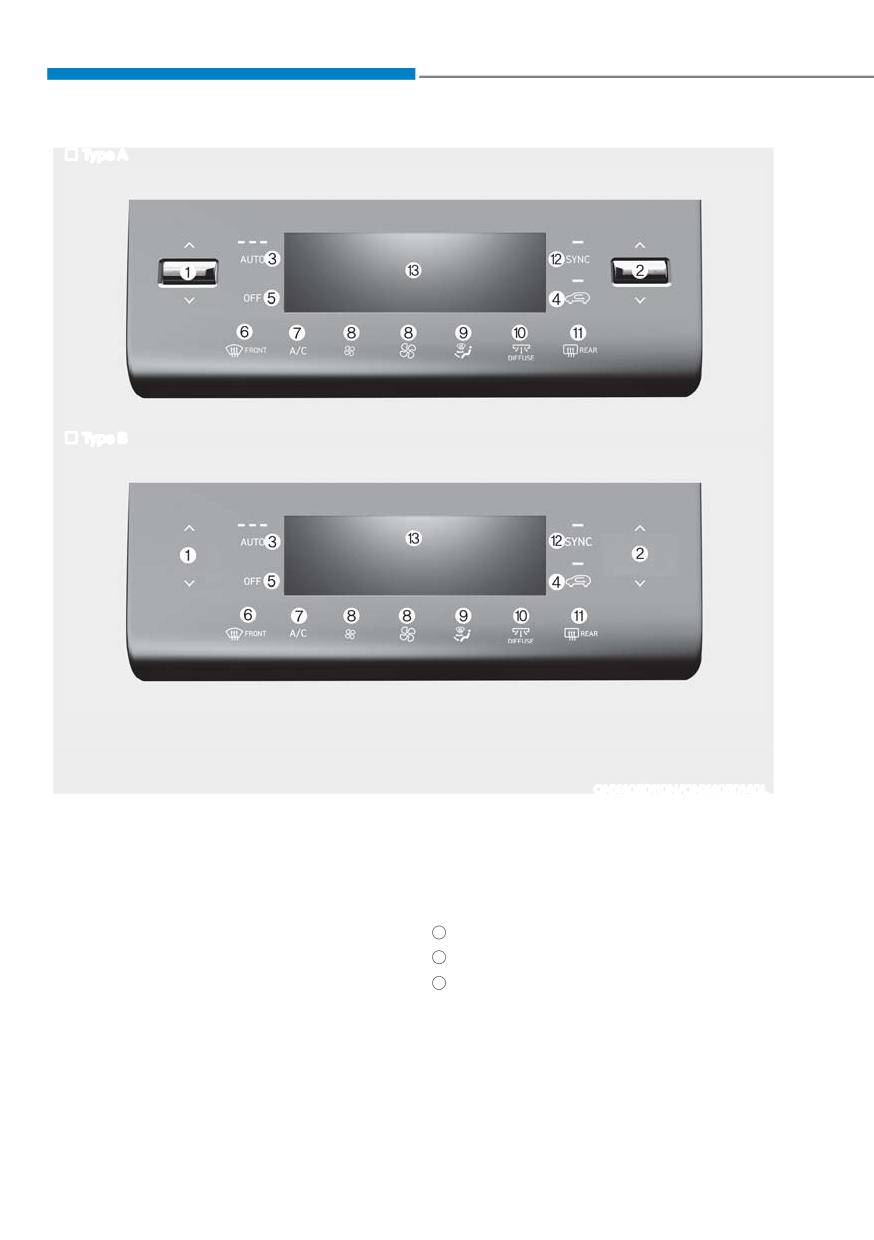

M Driver’s temperature control button/
S A/C (air conditioning) button
knob
T Fan speed control button
N Passenger’s temperature control
U Mode selection button
button/knob
V Multi Air Mode button
O AUTO (automatic control) button
11 Rear window defroster button
P Air intake control button
12 SYNC button
Q OFF button
13 Climate control information screen
R Front windshield defroster button
5-92
CarManuals2.com
05
Automatic Heating and Air
2. Turn the temperature control button/
knob to set the desired temperature.
Conditioning
If the temperature is set to the lowest
The Automatic Climate Control System
setting (Lo), the air conditioning
is controlled by setting the desired
system operates continuously. After
temperature.
the interior has cooled sufficiently,
1. Press the AUTO button. The
adjust the button/knob to a higher
modes, fan speeds, air intake, and
temperature set point whenever
air conditioning are controlled
possible.
automatically by the temperature
setting.
To turn off the automatic operation,
select any button of the following
buttons:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The "AUTO" sign
illuminates on the information screen
once again.)
- Fan speed control button
ONX4E050162
The selected function is controlled
manually while other functions operate

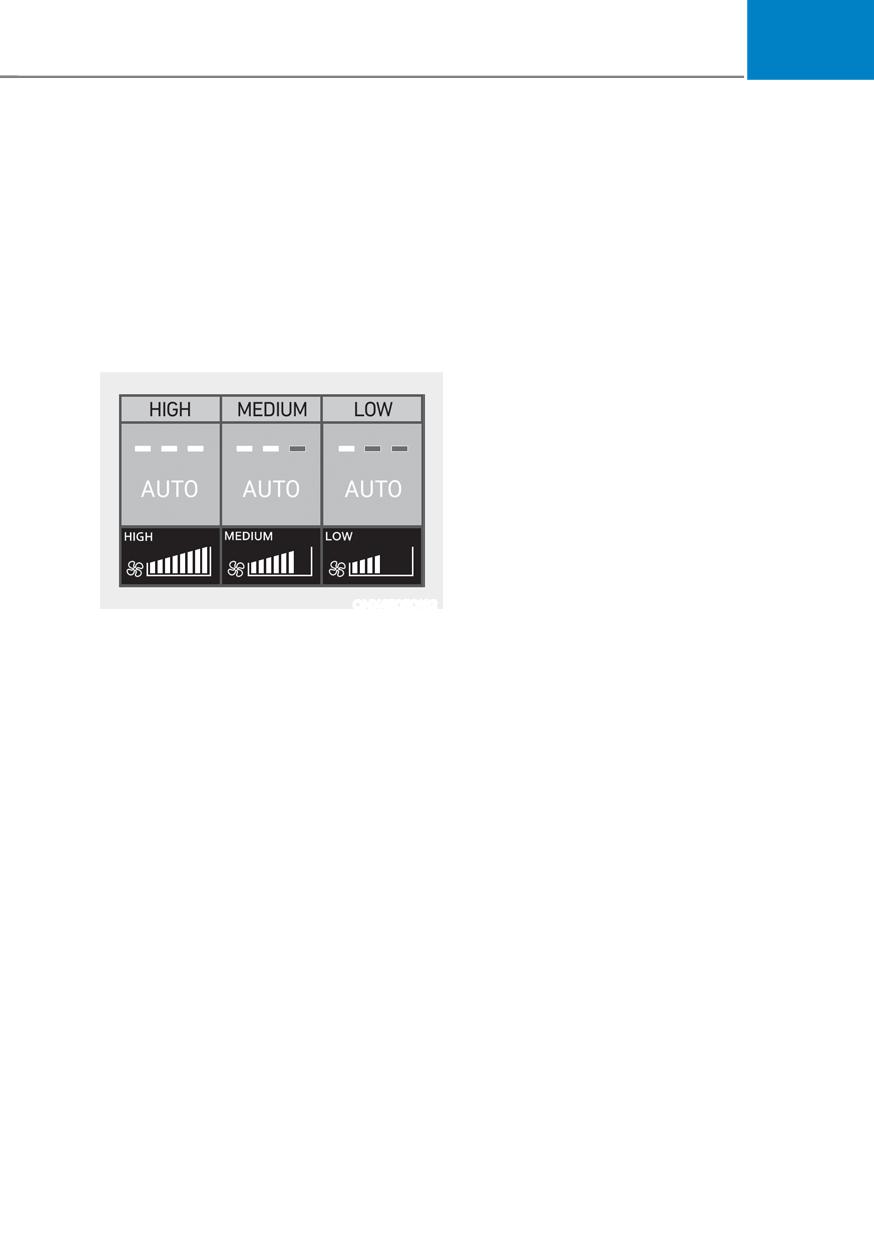

You can control the fan speed in three
automatically.
stages by pressing the AUTO button
during automatic operation.
For your convenience and to improve
the effectiveness of the climate control,
- HIGH: Provides rapid air conditioning
use the AUTO button and set the
and heating with the maximum fan
temperature to 72 °F (22 °C).
speed setting.
- MEDIUM: Provides air conditioning
and heating with the mid-level fan
speed setting.
- LOW: Fan speed is set to the lowest
setting range (1 to 3 bars range).
5-93
CarManuals2.com
Convenience Features
Manual Heating and Air
Information
Conditioning
1. Start the engine.
2. Set the mode to the desired position.
For improving the effectiveness of
heating and cooling, select:
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to the
ONX4050072
outside (fresh) air position.

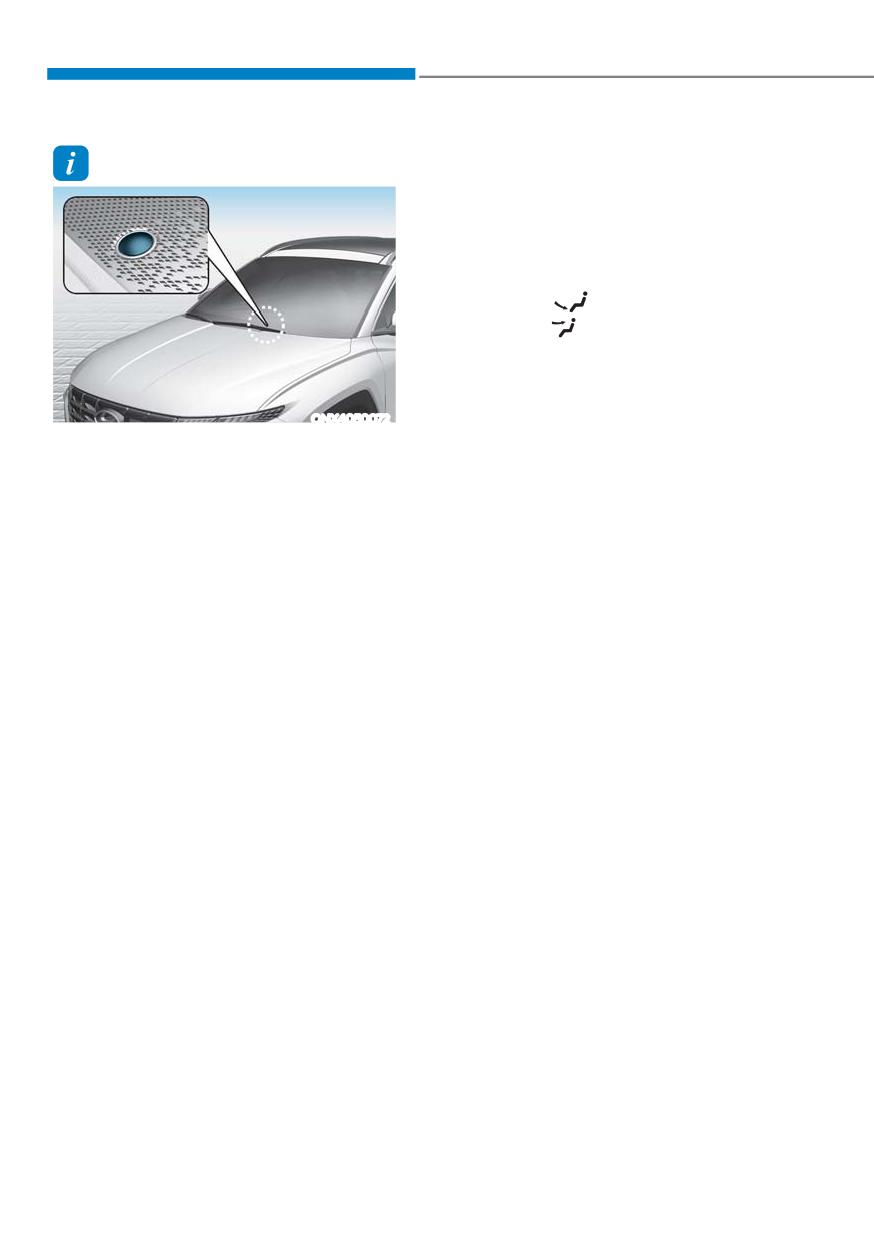

Never place anything near the sensor to
5. Set the fan speed control to the
ensure better control of the heating and
desired speed.
cooling system.
6. If air conditioning is desired, turn on
the air conditioning system.
7. Press the AUTO button to convert to
full automatic control of the system.
5-94
CarManuals2.com
05
Mode selection
The actual shape of climate control system may differ from the illustration.
ONX4050118
The mode selection button controls the direction of the air flow through the ventilation
system.
5-95
CarManuals2.com
Convenience Features
Floor-Level (A, B, D, E, F)
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and side
window defrosters.
Floor/Defrost-Level
(A, B, D, E, F)
Most of the air flow is directed to the
ONX4050117
floor and the windshield with a small

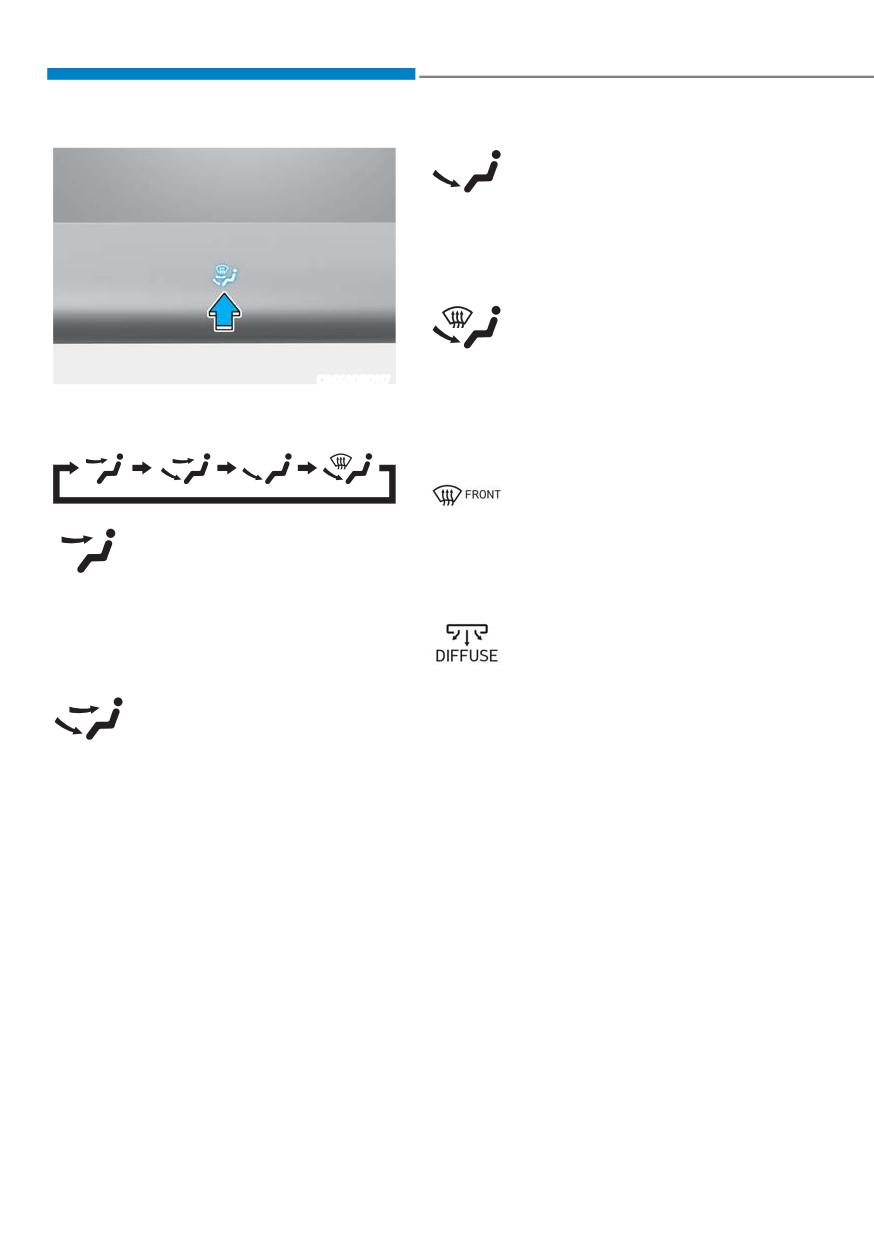

The air flow outlet direction is cycled as
amount directed to the side window
follows:
defrosters.
Defrost-Level (A, B)
Most of the air flow is directed to the
Face-Level (B, C, E)
windshield with a small amount of air
directed to the side window defrosters.
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
Multi air mode (B, C, D, E, F, G)
discharged from the outlet.
Gentle breezes come out from the outlet
vents.
Bi-Level (B, C, D, E, F)
Air flow is directed toward the face and
the floor.
5-96
CarManuals2.com
05
„ Front
Temperature control
„ Type A
ONX4050104
„ Rear
ONX4050114
„ Type B
ONX4050105
Instrument panel vents
ONX4050115

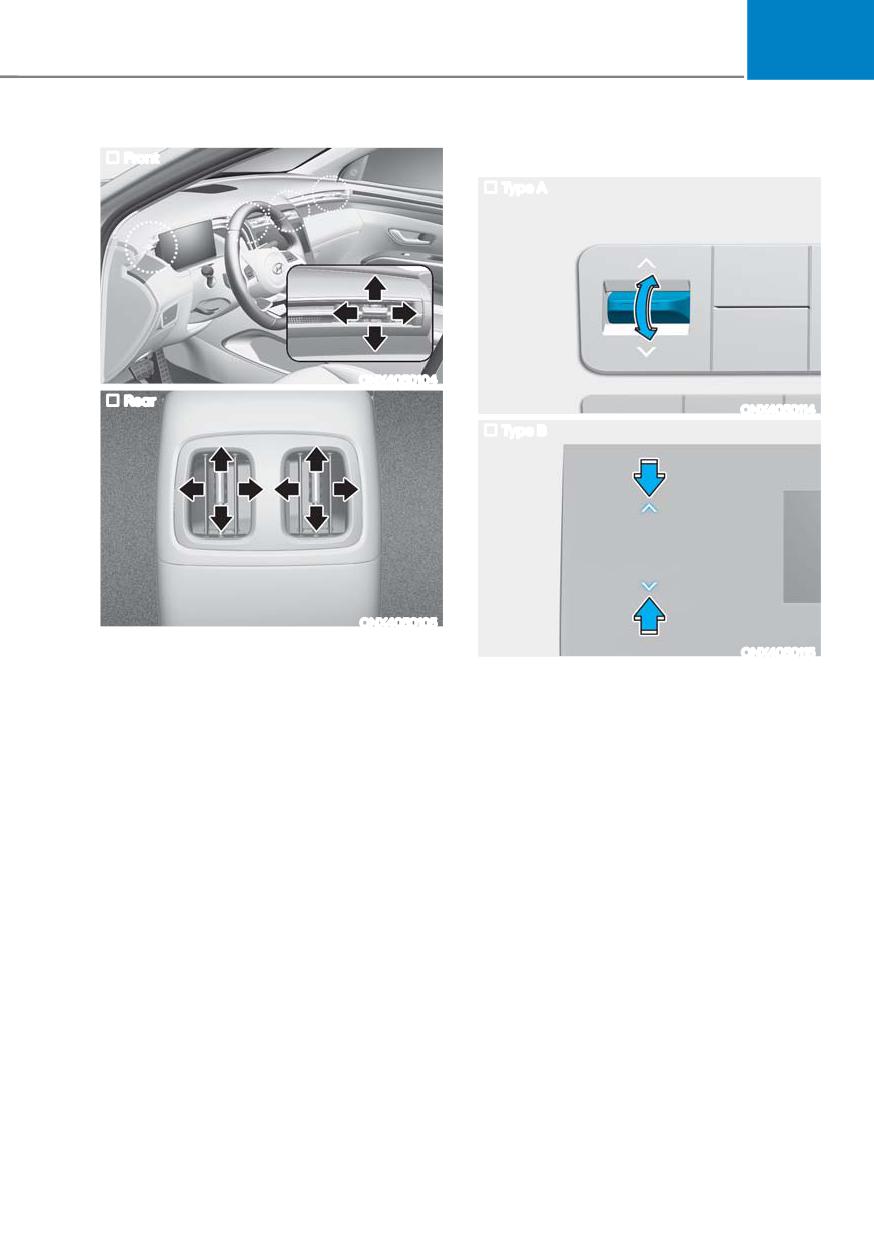

The instrument panel vent air flow can
The temperature setting increases when
be directed up/down or left/right using
you toggle up or press the UP arrow on
the vent adjustment lever. The air flow
the touchscreen (if equipped).
can also be CLOSED using the vent
The temperature setting decreases when
adjustment lever.
you toggle down or press the DOWN
arrow on the touchscreen (if equipped).
5-97
CarManuals2.com
Convenience Features
Air intake control
To select outside (fresh) air or
recirculated air, press this button.
Recirculated air position
With the recirculated air
selected, air from the
passenger compartment is
drawn through the climate
control system.
ONX4050122
Outside (fresh) air position
Adjusting the temperature equally

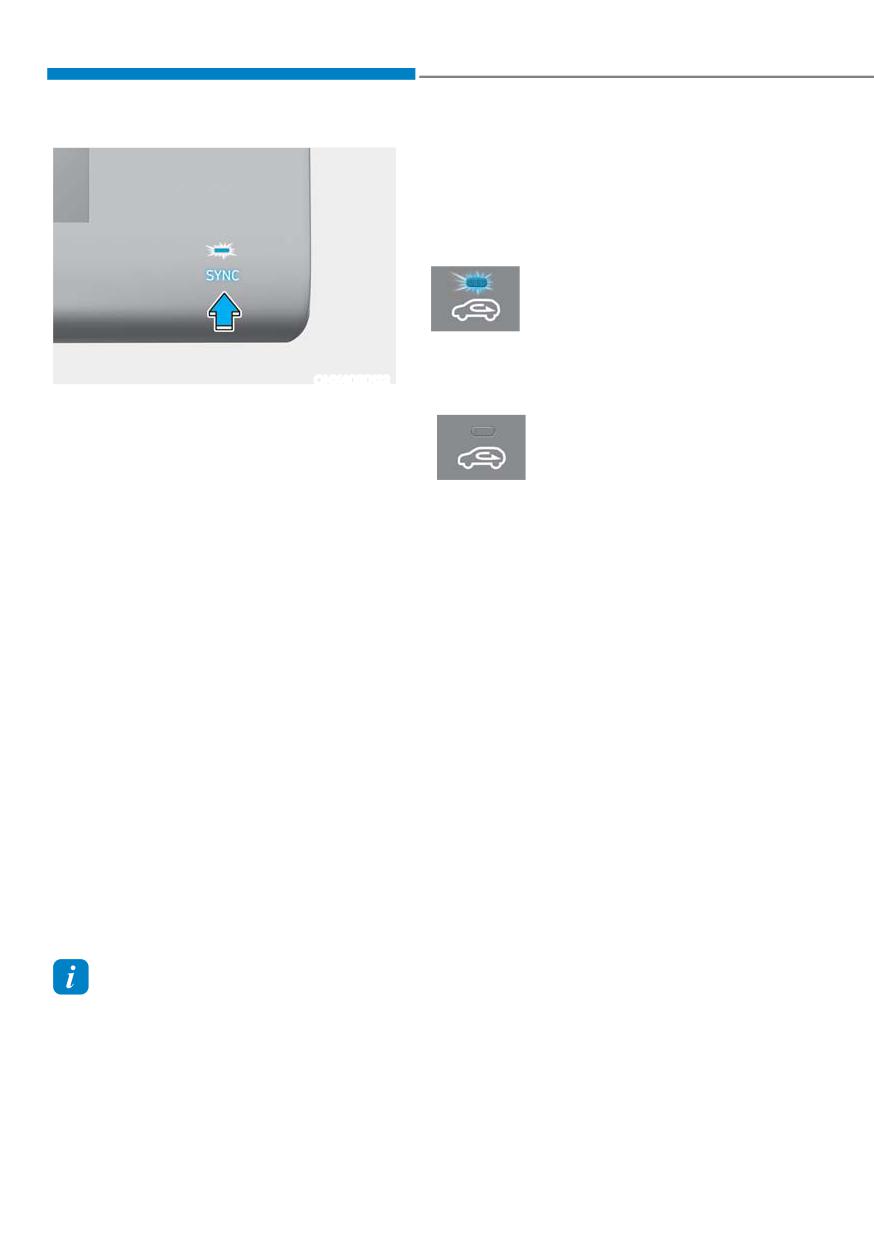

Press the SYNC button (indicator light
With the outside (fresh)
ON) to adjust the driver and passenger
air selected, air enters the
side temperature equally.
vehicle from outside and is
drawn through the climate
Adjusting the temperature individually
control system.
Press the SYNC button (indicator light
OFF) again to adjust the driver and
passenger side temperature individually.
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display is reset to Fahrenheit.
To change the temperature unit from °C
to °F or °F to °C:
- Setup > Unit > Temperature Unit >
°F/°C (for cluster type)
- Setup > General Settings > Unit >
Temperature Unit > °C/°F (for
infotainment system type)
The temperature unit on both the
cluster display and the climate control
information screen is changed.
Information
ś For more information on the cluster
type Settings menu, refer to the
“Cluster Display” section in Chapter 4.
ś The infotainment system may change
after software updates. For more
information, refer to the user's manual
provided in the infotainment system
and the quick reference guide.
5-98
CarManuals2.com
05

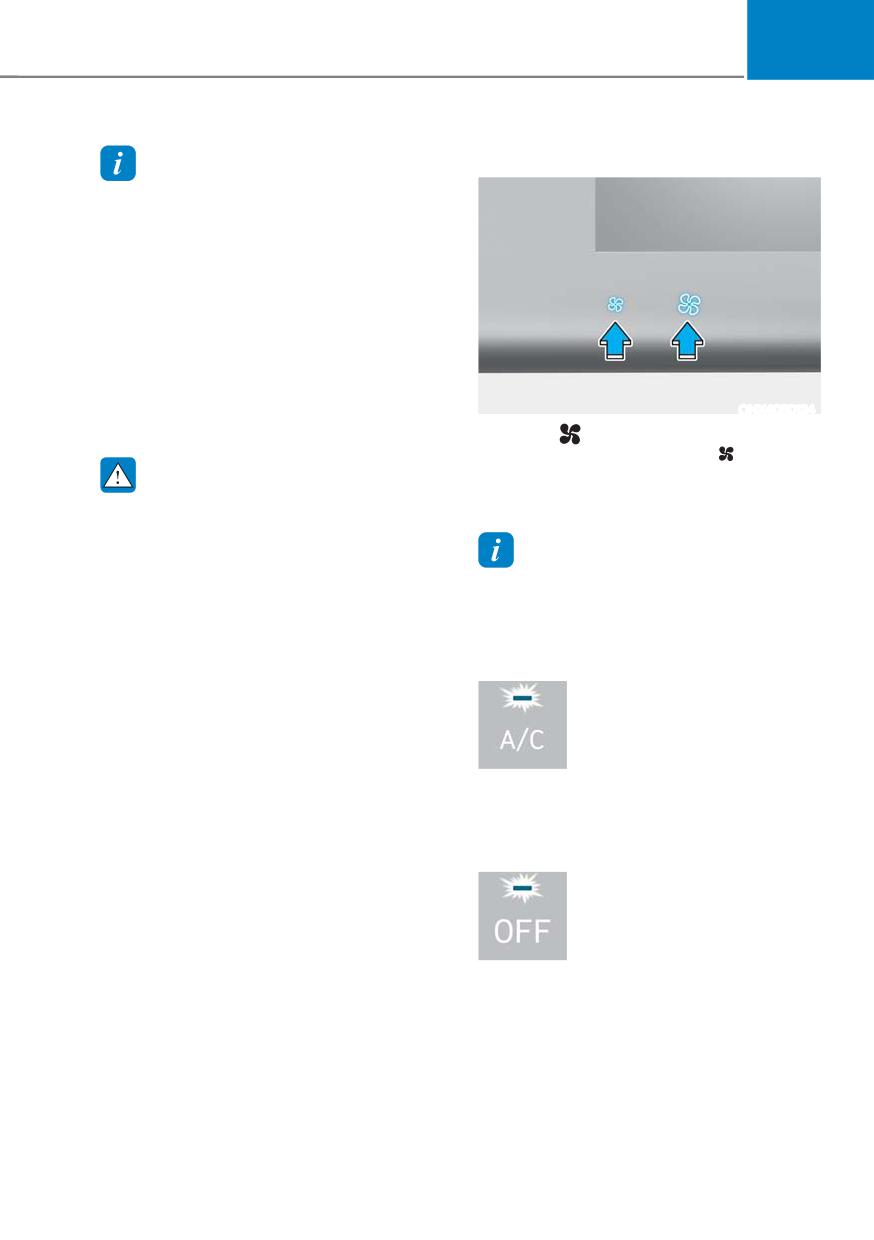

Fan speed control
Information
Using the system in the fresh air position
is recommended.
Prolonged operation of the heater in
the recirculated air position (without air
conditioning selected) can cause fogging
of the windshield and side windows
and the air within the passenger
compartment will become stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in excessively
ONX4050124
dry air in the passenger compartment.
Press the
button to increase fan
speed and airflow. Press the
button to
WARNING
decrease fan speed and airflow.
Pressing the OFF button turns off the fan.
To prevent serious injury or death:
ś Continued climate control system
operation in the recirculated air
Information
position may allow humidity to
Operating the fan speed when the
increase inside the vehicle that could
ignition switch is in the ON position may
fog the windshield and the side
cause the battery to discharge.
windows and obscure visibility.
ś Do not sleep in a vehicle with the air
Air conditioning
conditioning or heating system on.
Press the A/C button to turn
ś Continued climate use of recirculated
on the air conditioning
air may cause drowsiness or
system (indicator light ON).
sleepiness, and loss of vehicle
Press the button again to
control. Set the air intake control to
turn off the air conditioning
the outside (fresh) air position while
system.
driving.
OFF mode
Press the OFF button to turn
off the climate control
system .
You can still operate the
mode buttons and air intake
buttons as long as the
ignition switch is in the ON
position.
5-99
CarManuals2.com
Convenience Features
Multi air mode
The actual shape of climate control system may differ from the illustration.
ONX4050129
5-100
CarManuals2.com
05
System Operation
Ventilation
1. Set the mode to the
position.
2. Set the air intake control to the
outside (fresh) air position.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
ONX4050128
Heating
When the multi air mode button is
1. Set the mode to the
position.
pressed, air flow is directed to the face-
level and floor-level through the air vents
2. Set the air intake control to the
along the instrument panel for the driver
outside (fresh) air position.
and passenger. The multi-air mode LED
3. Set the temperature control to the
indicator illuminates. If the multi air
desired position.
mode button is pressed when the air
4. Set the fan speed control to the
volume is beyond level 4, it decreases to
desired speed.
level 3.
5. If desired, turn the air conditioning ON
with the temperature control knob set
OFF
to heat in order to dehumidify the air
If you press the multi air button again,
before it enters into the cabin.
the indicator turns OFF and the directed
If the windshield fogs up, set the mode
air flow is adjusted according to the
to the
or
position.
previous setting before the multi air
mode was enabled.
Operation Tips
If you press the MODE selection button,
the airflow changes based on the MODE
ś To help keep dust or unpleasant fumes
selected.
from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculated
air position. Be sure to return the
control to the fresh air position when
the irritation has passed to keep fresh
air in the vehicle. This can help keep
the driver alert and comfortable.
ś To prevent interior fog on the
windshield, set the air intake control
to the fresh air position and the fan
speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
5-101
CarManuals2.com
Convenience Features
Air conditioning
Air conditioning system operation tips
1. Start the engine. Press the air
ś
If the vehicle has been parked in
conditioning button.
direct sunlight during hot weather,
open the windows for a short time
2. Set the mode to the position.
to let the hot air inside the vehicle
3. Set the air intake control to the
escape.
outside air or recirculated air position.
ś
After sufficient cooling has been
4. Adjust the fan speed control and
achieved, switch back from the
temperature control as desired.
recirculated air position to the fresh
outside air position.
NOTICE
ś
To help reduce moisture inside of
ś When using the air conditioning
the windows on rainy or humid
days, decrease the humidity inside
system, monitor the temperature
gauge closely while driving up hills
the vehicle by operating the air
conditioning system with the windows
or in heavy traffic when outside
temperatures are high. Continue
and sunroof closed.
to use the fan but turn off the
ś
Use the air conditioning system every
air conditioning system if the
month for a few minutes to ensure
temperature gauge indicates the
maximum system performance.
engine is overheating.
ś
If you operate the air conditioner
ś Always use the air conditioning
excessively, the difference between
with the windows closed. In humid
the temperature of the outside air and
weather, if the windows are open and
that of the windshield may cause the
the air conditioning is running, water
outer surface of the windshield to fog
droplets may form inside the vehicle
up, causing loss of visibility. In this
and potentially damage electrical
case, set the mode selection button to
equipment.
the
position and set the fan speed
control knob to the lowest speed
setting.
5-102
CarManuals2.com
05
System Maintenance
Air conditioning refrigerant label
Air Conditioning Performance and
Maintenance at Your HYUNDAI
Dealer
If the amount of refrigerant is too low
or too high, the performance of the air
conditioning is reduced. Have the system
be inspected by an authorized HYUNDAI
dealer.
NOTICE
ś
The refrigerant system should only
ONX4050071
be serviced by trained and certified
You can find out which air conditioning
technicians in a well-ventilated area to
refrigerant is applied to your vehicle on
ensure proper and safe operation.
the label located inside of the hood.
ś
Never repair the air conditioning
evaporator (cooling coil) or replace
„ Example
with the one removed from a used or
salvaged vehicle. A new replacement
evaporator must be certified (and
labeled) as meeting SAE Standard
J2842.
WARNING
To prevent serious injury,
have the air conditioning
system be serviced by
OHYK059001
only trained and certified
Each symbol and specification on the
technicians. R-1234yf is
air conditioning refrigerant label is
flammable and operated at
represented as the following:
high pressure.
M Classification of refrigerant
Reclaim all refrigerants with
N Amount of refrigerant
proper equipment. Venting
refrigerants directly to the
O Classification of compressor lubricant
atmosphere is harmful to
P Caution
individuals and environment.
Q Flammable refrigerant
R To require registered technician to
service air conditioning system
5-103
CarManuals2.com
Convenience Features
:,1'6+,(/' '()5267,1* $1' '()2**,1*
WARNING
Manual Climate Control System
To defog inside windshield
Do not use the defrost-level
position
during the cooling operation in extremely
humid weather. The outer surface of the
windshield may fog and reduce visibility,
causing a collision that results in serious
injury or death.
Set the mode selection button to the
face-level
position and lower the fan
speed.
ś For maximum defrost performance,
set the temperature control to the
ONX4050132
highest temperature setting and
the fan speed control to the highest

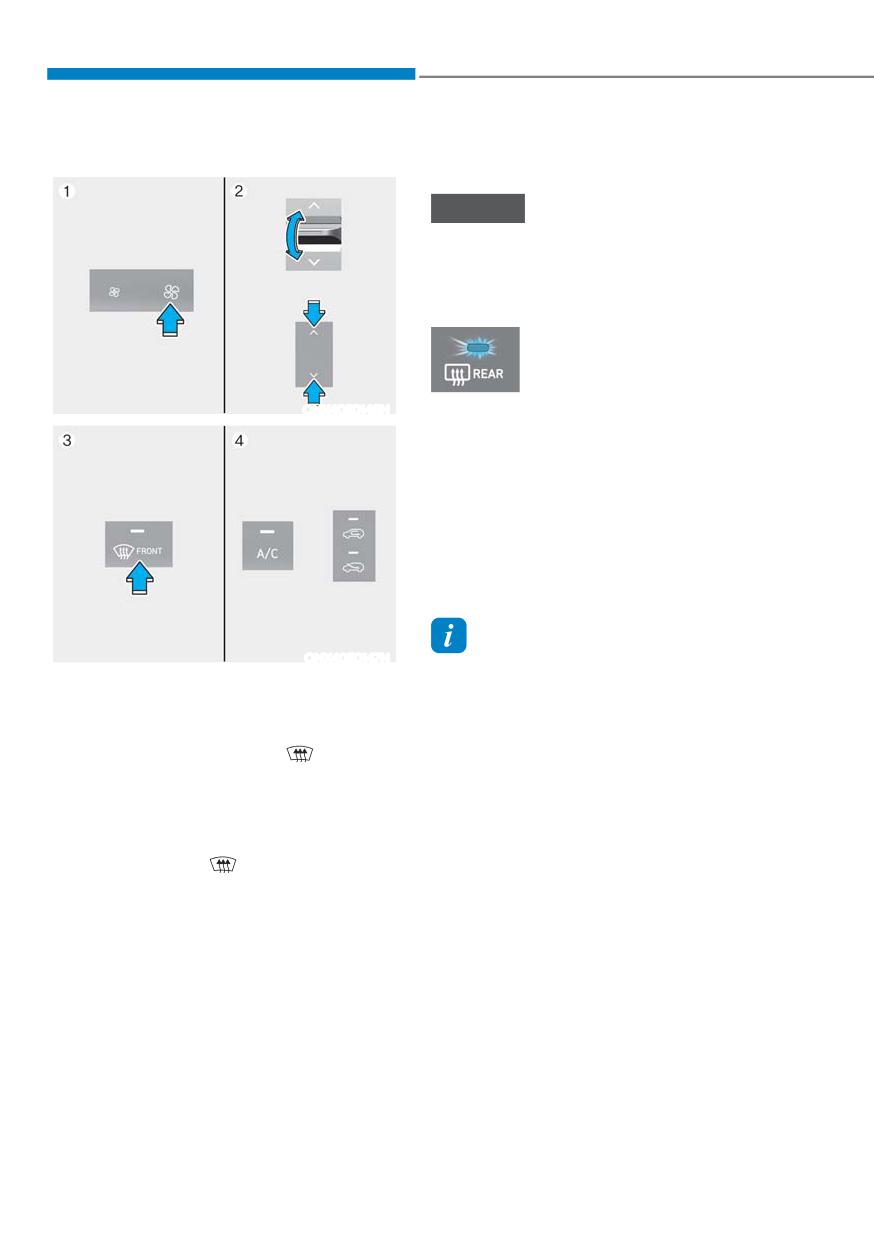

1. Select any fan speed.
setting.
2. Select the desired temperature.
ś If warm air to the floor is desired while
3. Press the defrost button (
).
defrosting or defogging, select the
4. The outside (fresh) air is selected
floor-defrost position.
automatically. The air conditioning
ś Before driving, clear all snow and ice
automatically operates if the mode
from the windshield, rear window,
is selected to the defrost-level
side view mirrors, and all side
position.
windows.
If the air conditioning and outside
ś Clear all snow and ice from the hood
(fresh) air position are not selected
and air inlet to improve heater and
automatically, press the corresponding
defroster efficiency and to reduce the
button.
probability of fogging up the inside of
the windshield.
5-104
CarManuals2.com
05

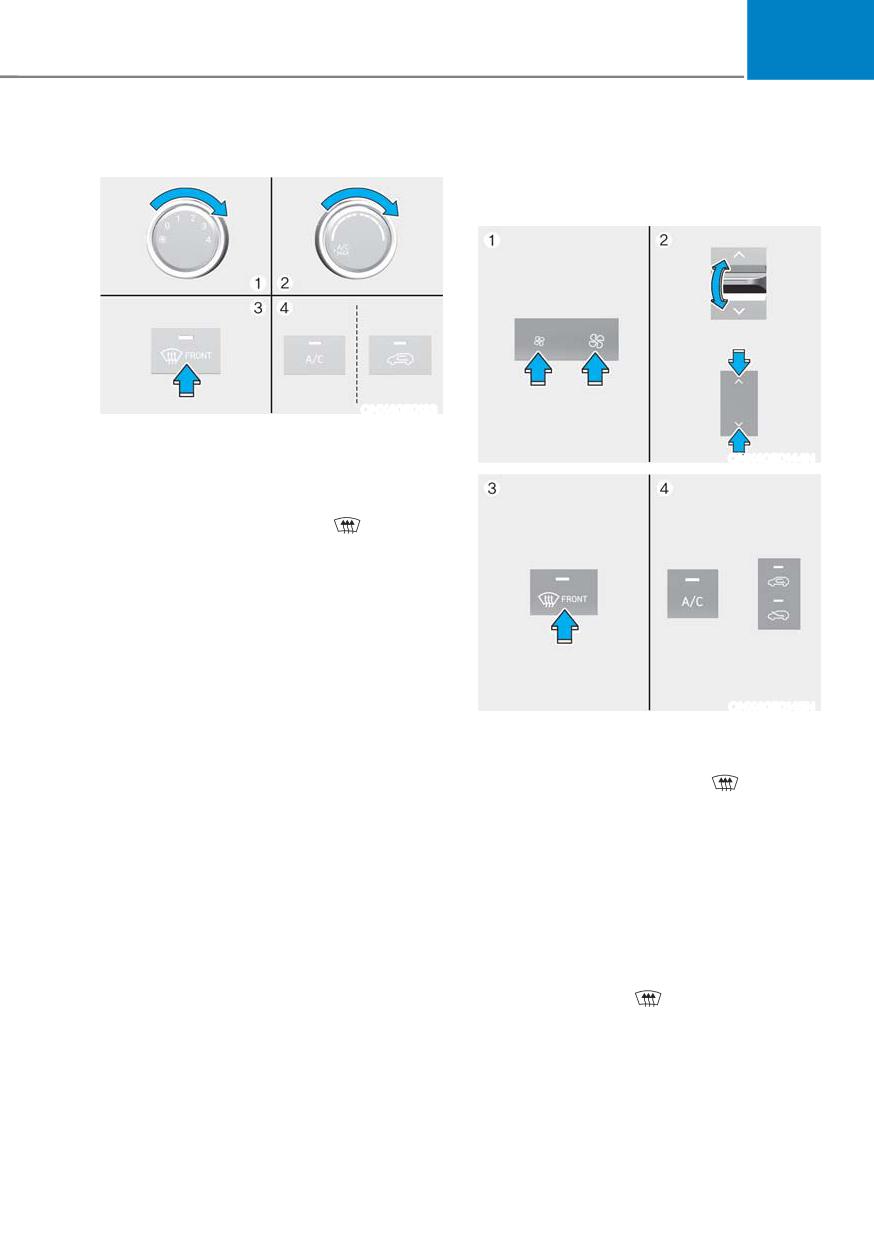

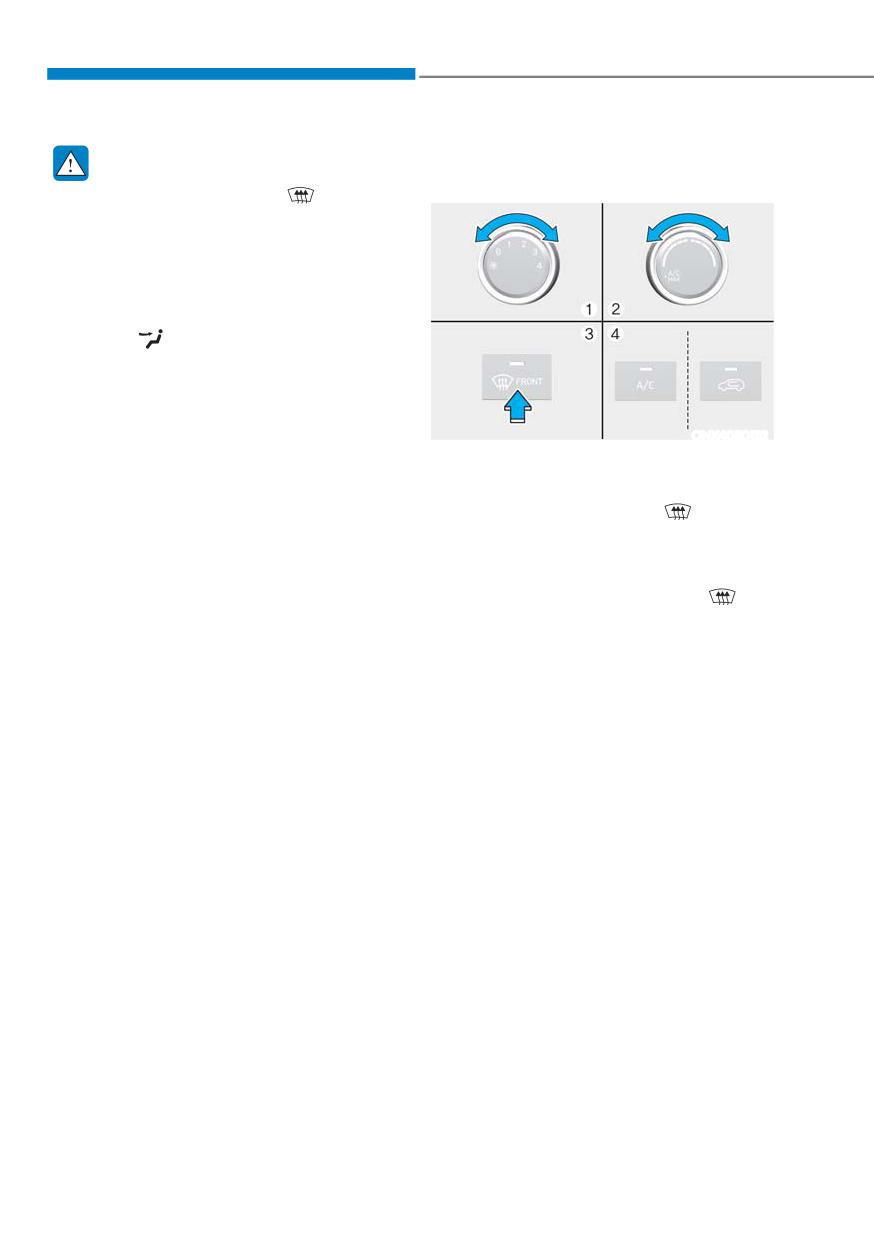

To defrost outside windshield
Automatic Climate Control
System
To defog inside windshield
ONX4050133
1. Set the fan speed to the highest
(extreme right) position.
ONX4050144N
2. Set the temperature to the hottest
position.
3. Press the defrost button (
).
4. The outside (fresh) air and air
conditioning is selected automatically.
ONX4050145N
1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defrost button (
).
4. The air conditioning turns on
according to the detected ambient
temperature, the outside (fresh) air
position and higher fan speed are
selected automatically.
If the air conditioning, outside (fresh)
air position and higher fan speed are
not selected automatically, adjust the
corresponding button or knob.
If the defrost-level
position is
selected, the fan speed increases.
5-105
CarManuals2.com
Convenience Features
To defrost outside windshield
Rear Window Defroster
NOTICE
Never use sharp instruments or window
cleaners containing abrasives to clean
the window to prevent damage to the
rear window defroster.
The defroster heats the
window to remove frost, fog,
and thin ice from the interior
and exterior of the rear
ONX4050146N
window, while the engine is
running.
ś To activate it, press the rear window
defroster button located in the
center control panel. The indicator
on the rear window defroster button
illuminates when the defroster is ON.
ś To turn it off, press the rear window
defroster button again.
Information
ONX4050147N
ś If there is heavy accumulation of snow
1. Set fan speed to the highest position.
on the rear window, brush it off before
2. Set temperature to the extreme hot
operating the rear defroster.
(HI) position.
ś The rear window defroster
3. Press the defrost button (
).
automatically turns off after about 20
minutes or when the ignition switch is
The air conditioning turns on according
in the LOCK/OFF position.
to the detected ambient temperature
and the outside (fresh) air position is
Side view mirror defroster (if
selected automatically.
equipped)
If the defrost-level
position is
The side view mirror defrosters operate
selected, lower fan speed is adjusted to
higher fan speed.
when you turn on the rear window
defroster.
5-106
CarManuals2.com
05
&/,0$7( &21752/ $'',7,21$/ )($785(6

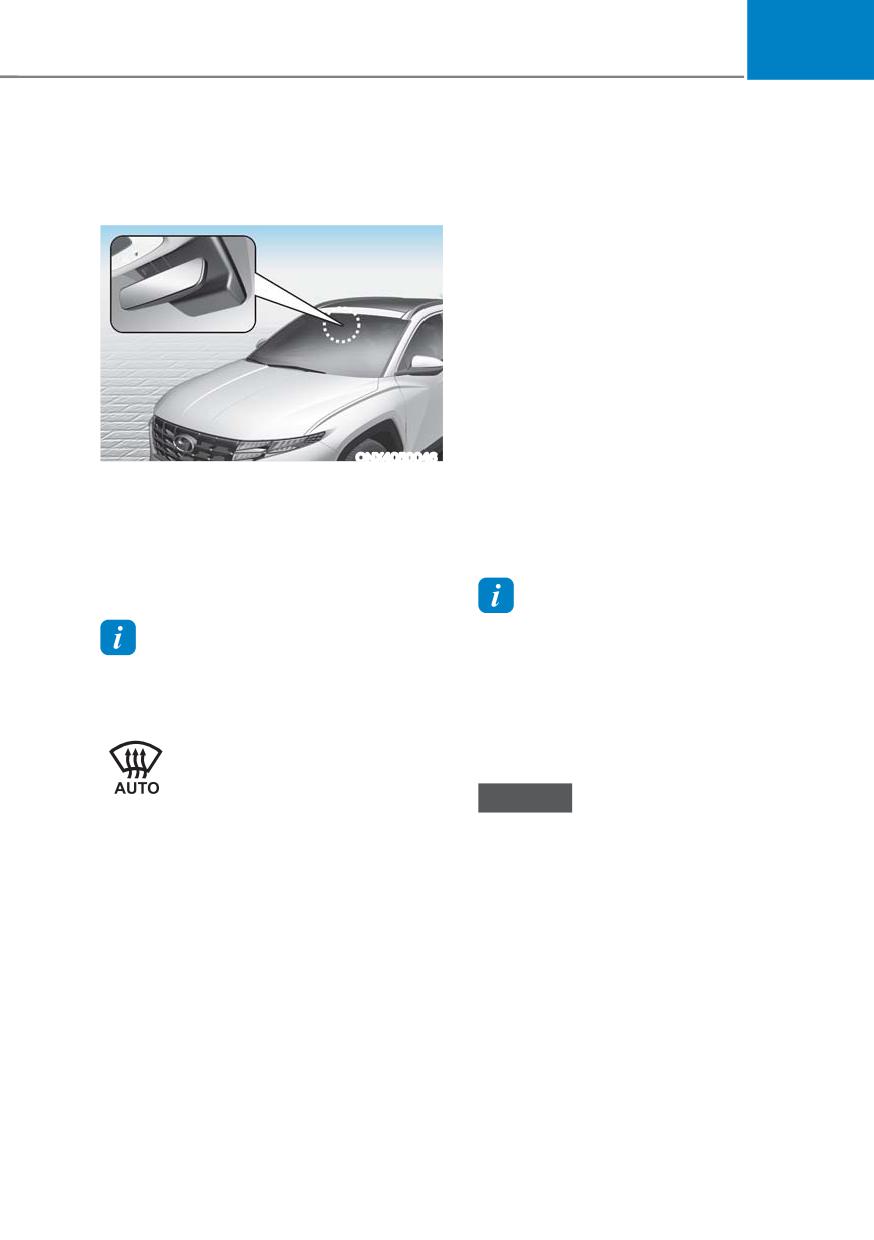

Auto Defogging System
Turning the Auto Defogging System
on Models with Automatic
ON or OFF
Temperature Control
Climate control system
Press the front windshield defroster
button for 3 seconds when the ignition
switch is in the ON position. When the
Auto Defogging system is turned off, the
ADS OFF symbol blinks 3 times and “ADS
OFF” appears on the climate control
information screen.
When the Auto Defogging system is
turned on, the ADS OFF symbol blinks 6
times without a signal.
ONX4050046
Infotainment system
Auto Defogging reduces the likelihood of
Auto Defogging system can be turned
fogging up the inside of the windshield
on and off by selecting Setup > Vehicle >
by sensing moisture on the inside of the
Climate > Defog/Defrost Options > Auto
windshield.
Defog from the Settings menu.
The auto defogging system operates
when the heater or air conditioning is on.
Information
ś Do not select recirculated air while the
Information
Auto defogging system is operating.
The Auto Defogging system may not
ś When Auto Defogging system is
operate normally, when the outside
operating, fan speed adjustment,
temperature is below 14 °F (-10 °C).
temperature adjustment, and air
intake control selection are all
When the Auto Defogging
disabled.
System operates, the indicator
illuminates.
NOTICE
If high amount of humidity is detected in
Do not remove the sensor cover located
the vehicle, the Auto Defogging system
on the top of the windshield glass.
is enabled.
Damage may not be covered by your
The following steps are performed
vehicle warranty.
automatically:
Step 1) Air conditioning turns on and
Fresh mode is selected.
Step 2) Defrost-level is selected.
Step 3) Fan speed is set to MAX.
If the air conditioning is off or
recirculated air is manually selected
while Auto Defogging system is ON,
the Auto Defogging system indicator
will blink 3 times to signal that manual
operation has been canceled.
5-107
CarManuals2.com
Convenience Features
Recirculating Air when Washer
Sunroof Inside Air Recirculation
Fluid is Used (if equipped)
(if equipped)
Recirculation mode automatically
When the sunroof is opened, the fresh
activates to reduce the scent of the
mode is automatically selected. If you
washer fluid entering the cabin when the
press the air intake control button,
windshield washer is used.
the recirculation mode is selected but
changes back to the fresh mode after 3
When it is shifted to the recirculation
minutes. When the sunroof is closed, the
mode, the unpleasant scent may flow
air intake position returns to the previous
into the vehicle.
position.
However, in cold weather to prevent
the windshield from fogging up, the
Auto Dehumidify (if equipped)
recirculation mode may not be selected.
Recirculation mode switches off
Turning Activate upon Washer Fluid
automatically after 5 to 30 minutes,
Use ON or OFF
depending on the outside temperature,
and the air intake changes to fresh mode.
Climate control system
To turn the Activate upon Washer Fluid
Turning Auto Dehumidify ON or OFF
Use feature on or off, select Floor-level
Climate control system
(
) mode, and then press the air
intake control ( ) button four times
To turn the Auto Dehumidify feature on
within two seconds while pressing the
or off, select Face-level (
) mode and
A/C button.
while holding down the A/C button,
press the air intake control (
)
When Activate upon Washer Fluid Use
button at least five times within three
ON is turned on, the air intake control
seconds. When Auto Dehumidify is
button indicator blinks 6 times. When
turned on, the air intake control button
turned off, the indicator blinks 3 times.
indicator blinks 6 times. When turned off,
the indicator blinks 3 times.
Infotainment system
Activate upon Washer Fluid Use can be
Infotainment system
turned on and off by selecting Setup >
Auto Dehumidify can be turned on
Vehicle > Climate > Recirculate Air >
and off by selecting Setup > Vehicle >
Activate upon Washer Fluid Use from
Climate > Automatic Ventilation > Auto
the Settings menu.
Dehumidify from the Settings menu.
5-108
CarManuals2.com
05
Scheduled Ventilation Control (if
Automatic Controls for the
equipped)
Driver Based on Climate Control
The Scheduled Ventilation Control
System Settings (if equipped)
releases hot air in the vehicle to lower
The temperature of the driver’s seat
the cabin temperature before getting in
warmer, the air ventilated seat, and
the vehicle.
steering wheel heater are automatically
Depending on the outside ambient
controlled depending on the inside and
temperature, the blower is operated for 5
outside temperature of the vehicle when
to 15 minutes while the vehicle is parked.
the engine is running.
These features can be enabled from
This feature must be enabled from
the Settings menu in the infotainment
the Settings menu in the infotainment
system.
system.
Select: Setup > Vehicle > Seat (or Climate)
Select: Setup > Vehicle > Automatic
> Warmer/Ventilation Features > Link to
Ventilation > Scheduled Ventilation
Climate Settings for Auto-Adjustment
Control
For more information on Auto Comfort
The starting time can be set within 24
Control, refer to the “Seat Warmers” and
hours. Schedule Ventilation Control
“Air ventilation seats” sections in Chapter
operates only once when the feature is
3 and the “Steering Wheel Heater”
set.
section in Chapter 5.
Information
The infotainment system may change
after software updates. For more
information, refer to the user’s manual
provided in the infotainment system and
the quick reference guide.
5-109
CarManuals2.com
Convenience Features
6725$*( &203$570(17
WARNING
Glove Box
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items may
catch fire and/or explode if the vehicle
is exposed to hot temperatures for an
extended period of time.
WARNING
Always keep the storage compartment
covers closed securely while driving.
ONX4050048
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop or

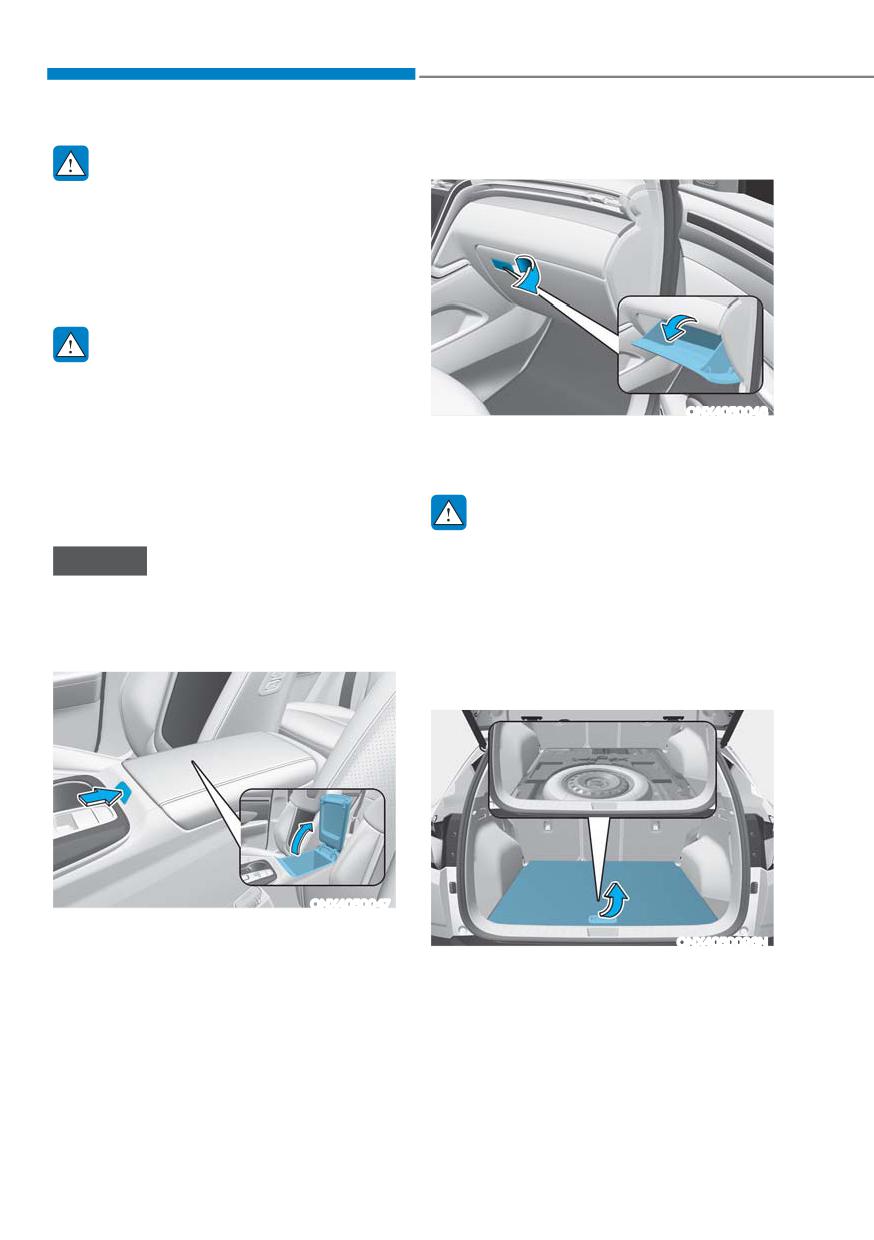

To open:
turn quickly, or if there is a collision, the
Pull the lever.
items may fly out of the compartment
and may cause an injury if they strike the
driver or passengers.
WARNING
Always close the glove box door after
NOTICE
use.
To avoid possible theft, do not leave
An open glove box door may cause
valuables in the storage compartments.
serious injury to a passenger in a
collision, even if the passenger is
Center Console Storage
wearing a seat belt.
Cargo Tray
ONX4050047
To open:
ONX4050096N
Press the button.
You can place a first aid kit, a reflector
triangle (front tray), tools, etc. in the box
for easy access.
ś Grasp the handle on the top of the
cover and lift it.
5-110
CarManuals2.com
05
,17(5,25 )($785(6

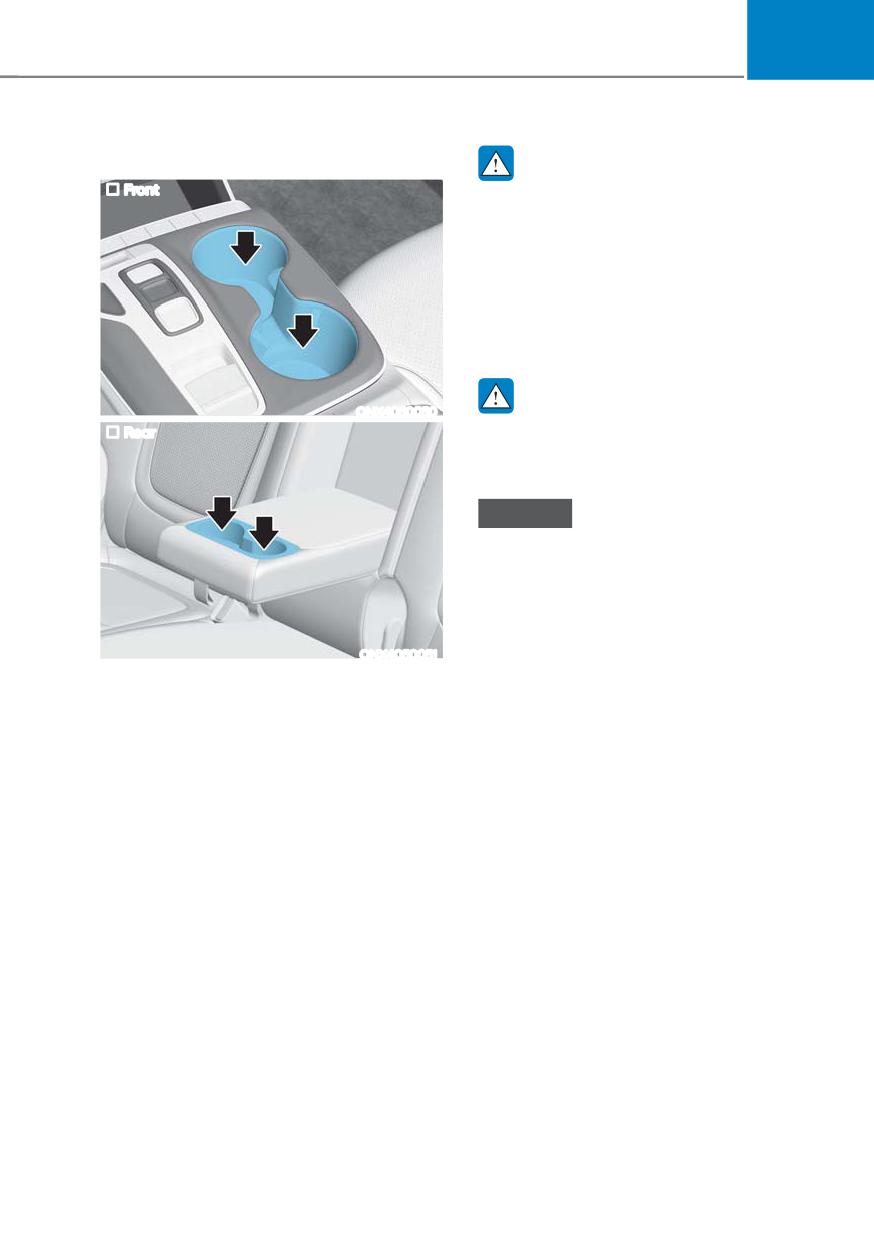

Cup Holder
WARNING
„ Front
ś Avoid abrupt starting and braking
when the cup holder is used to
prevent spilling your drink. If hot liquid
spills, you may be burned.
Such a burn to the driver may cause
loss of vehicle control resulting in a
collision.
ś Only use soft cups in the cup holders.
WARNING
ONX4050050
„ Rear
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE
ś Keep your drinks sealed while driving
to prevent spilling.
ś When cleaning spilled liquids, do not
use hot air to blow out or dry the cup
holder.
ONX4050051
ś Keep cans or bottles out of direct sun
Cups or small beverages cups may be
light and do not put them in a hot
vehicle. Otherwise, they may explode.
placed in the cup holders.
5-111
CarManuals2.com
Convenience Features
Sunvisor
Power Outlet
„ Front
OTM048089
ONX4E050166
„ Rear

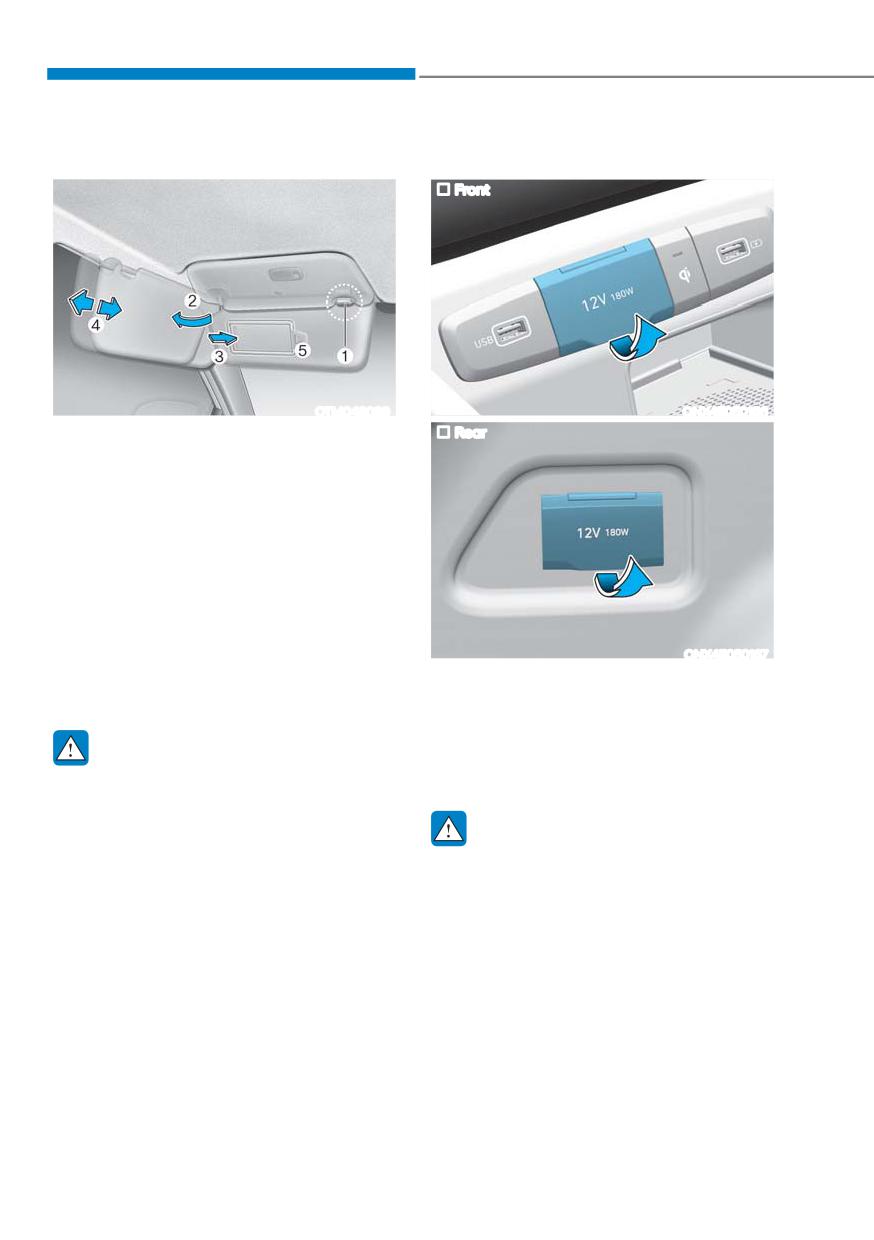

To use the sunvisor, pull it downward.
To use the sunvisor to block the sun
from the side window, pull it downward,
release it from the bracket M and swing it
to the side N toward the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover O.
Adjust the sunvisor forward or backward
P as needed (if equipped). Use the ticket
holder Q to hold tickets.
Close the vanity mirror cover securely
ONX4E050167
and return the sunvisor to its original
The power outlet is designed to provide
position after use.
power for mobile phones or other
devices designed to operate with vehicle
electrical systems. The devices should
WARNING
draw less than 180 watts with the engine
Do not block your view when using the
running.
sunvisor.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
5-112
CarManuals2.com
05
NOTICE
USB Charger
To prevent damage to the power outlets:
„ Front (type A)
ś Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for an extended period
of time with the engine off may cause
the battery to discharge.
ś Only use 12 volts electric accessories
that are less than 180 watts in the
electric capacity.
ś Adjust the air conditioner or heater to
ONX4N050002N
the lowest operating level when using
„ Front (type B)
the power outlet.
ś Close the cover when not used.
ś Some electronic devices may cause
electronic interference when plugged
into a vehicle’s power outlet.
ś Push the plug in as far as it goes. The
plug may overheat and the fuse may
open.
ś Only connect devices with reverse
current protection or the current from
ONX4N050001N
the device battery may cause the
„ Rear (if equipped)
vehicle’s electrical/electronic system
to malfunction.
ONX4N050003N

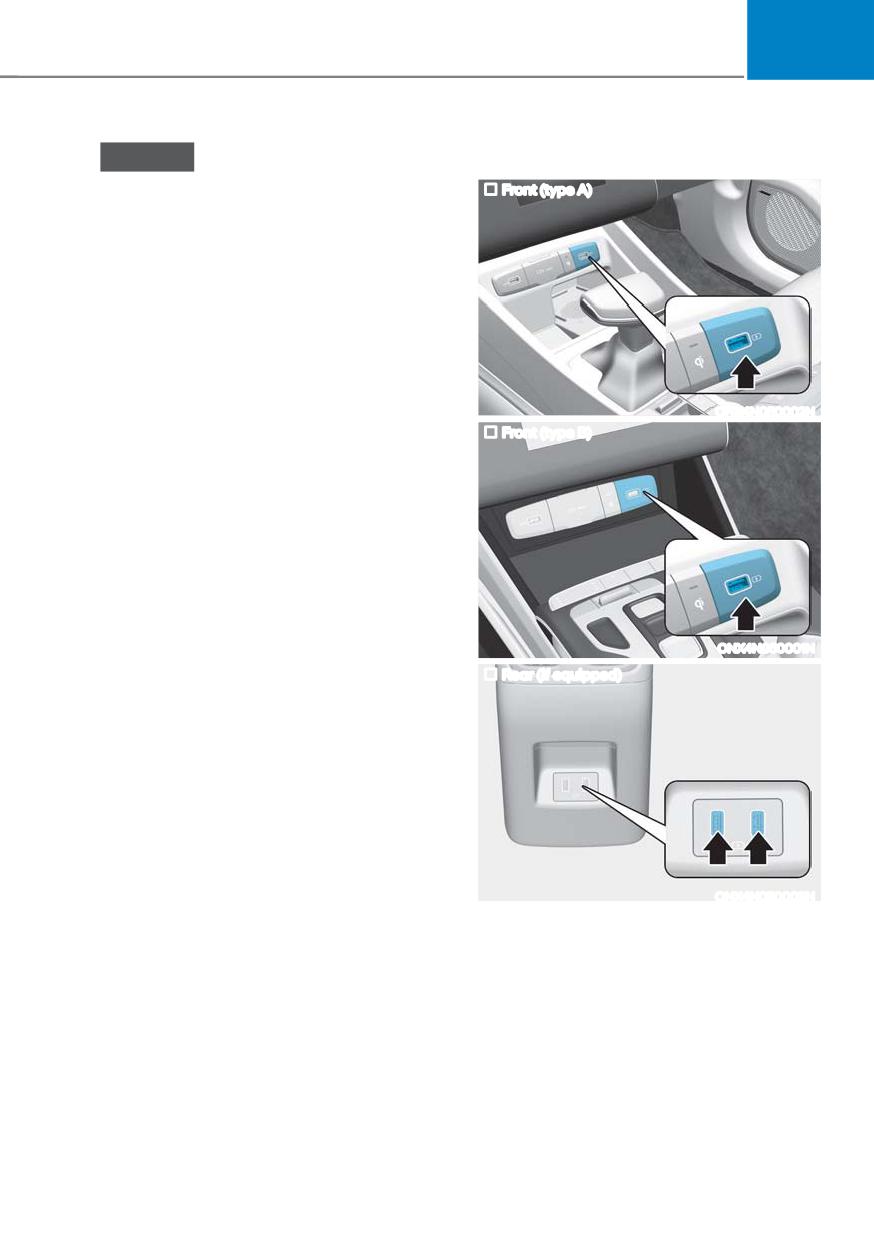

The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the ignition switch is in the ACC or
ON (or START) position.
5-113
CarManuals2.com
Convenience Features
The USB charger is designed to recharge
Charging your smartphone
batteries of small size electrical devices
The wireless smartphone charging
using a USB cable.
system charges only Qi-enabled
The electrical devices can be recharged
smartphones (
). Visit your smartphone
when the ignition switch is in the ACC or
manufacturer’s website to check
ON (or START) position.
whether your smartphone supports the
The battery charging state may be
Qi technology.
monitored on the electrical device.
Disconnect the USB cable from the USB
The wireless charging process starts
when you put a Qi-enabled smartphone
port after use.
on the wireless charging unit with the
ś A smartphone or a tablet PC that does
screen facing up.
not use a USB cable to charge should
1. The wireless smartphone charger is
be charged using its own charger.
available when all doors are closed,
ś Do not attempt to use the charging
and when the ignition switch is in the
terminal to turn ON an audio or to play
ON or START position.
media with the infotainment system.
2. Turn on the wireless charging function
from the Settings menu in the

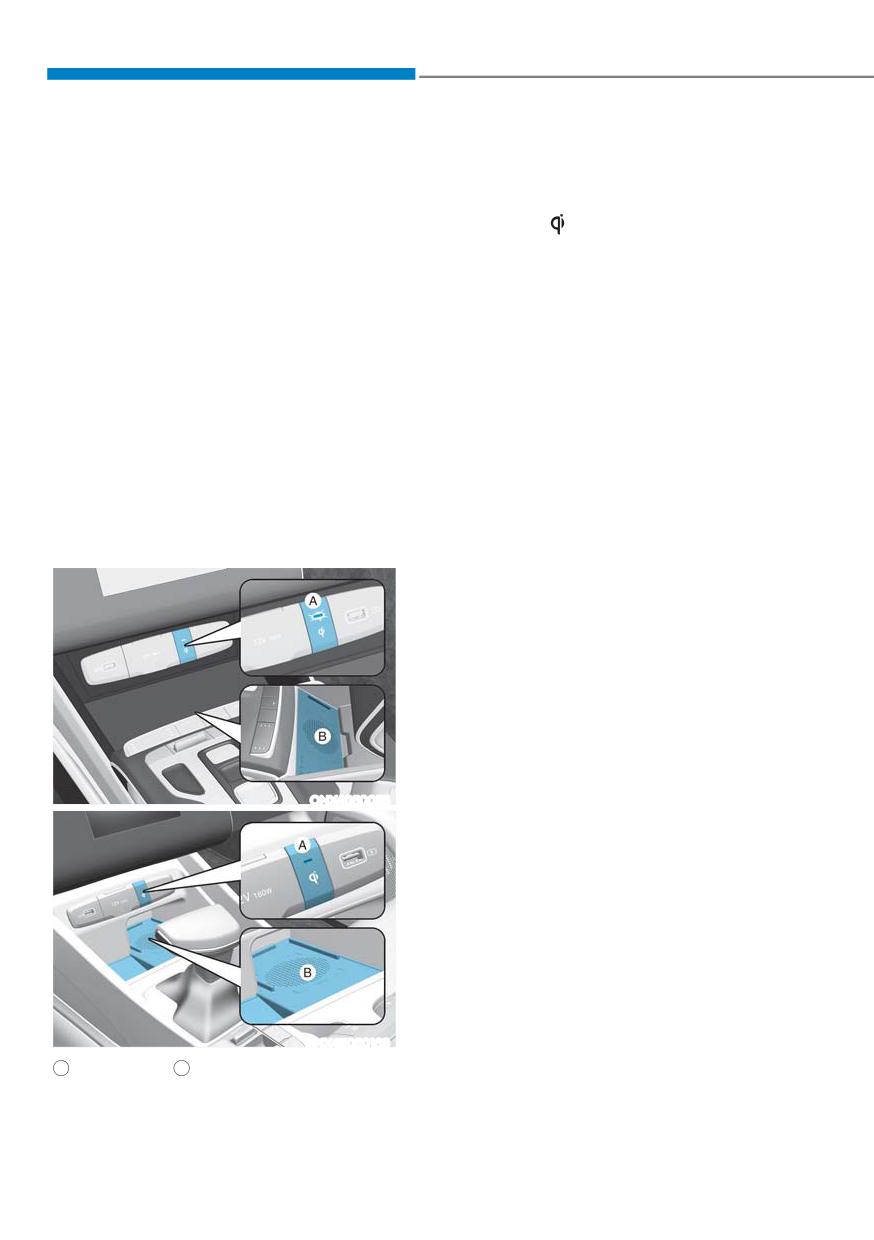

Wireless Smartphone Charging
instrument cluster or infotainment
System (if equipped)
system.
Select:
- User Settings > Convenience >
Wireless Charging System (for
cluster type)
- Setup > Vehicle > Convenience
> Wireless Charging System (for
infotainment system type)
3. Place the smartphone on the center
of the wireless charging pad. The
indicator light is orange when the
ONX4050055
smartphone is charging and turns blue
when phone charging is complete.
ONX4E050169
A : Indicator light, B : Charging pad
5-114
CarManuals2.com
05
Information
Information
ś Remove other items, including the
ś
The wireless smartphone charging
smart key from the wireless charging
system may not support smartphones
pad.
that do not meet the Qi specification
( ).
ś For flip type smartphones, when
using wireless charging, place the
ś
Wireless charging may stop
smartphone folded with the device’s
temporarily when the smart key is
back placed on the center of the
used, or when starting the vehicle or
wireless charging unit.
locking/unlocking the doors.
ś
When charging certain smartphones,
If your smartphone is not charging:
the charging indicator may not change
- Move the smartphone on the charging
to blue when the smartphone is fully
pad.
charged.
- Make sure the indicator light is
ś
The wireless charging process
orange.
may temporarily stop, when the
temperature abnormally increases
inside the wireless smartphone
The indicator light blinks orange for 10
charging system. The wireless
seconds if there is a malfunction in the
charging process does not restart,
wireless charging system.
until the temperature falls.
The system warns you with a message
ś
The wireless charging process may
on the cluster display if the smartphone
stop when there is any metallic item,
is still on the wireless charging unit after
such as coin, between the wireless
the vehicle is turned OFF and the front
smartphone pad and smartphone.
door is opened.
ś
For some manufacturer’s
smartphones, the system may
not warn you even though the
smartphone is left on the wireless
charging unit. This is due to the
particular characteristic of the
smartphone and not a malfunction of
the wireless charging.
ś
When charging some smartphones
with a self-protection feature, the
wireless charging speed may decrease
and the wireless charging may stop.
ś
If the smartphone has a thick case, it
may not charge.
ś
Some magnetic items such as credit
cards, phone cards, or transit cards
may be damaged if left with the
smartphone during the charging
process.
5-115
CarManuals2.com
Convenience Features
ś When any smartphone without
WARNING
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound because the vehicle discerns
compatibility of the object placed on
the charging pad. It does not affect
your vehicle or the smartphone.
ś If the ignition switch is OFF, the
charging stops.
Clock
The clock can be set from the
infotainment system.
OTM048096
For more information, refer to the
infotainment system manual.
Only hang soft clothing without heavy,
sharp or breakable objects in the clothes
pockets. In a collision or when the
WARNING
curtain airbag is inflated, the objects
could move and cause serious injury.
Do not attempt to adjust the clock while
driving.
Floor Mat Anchor(s)

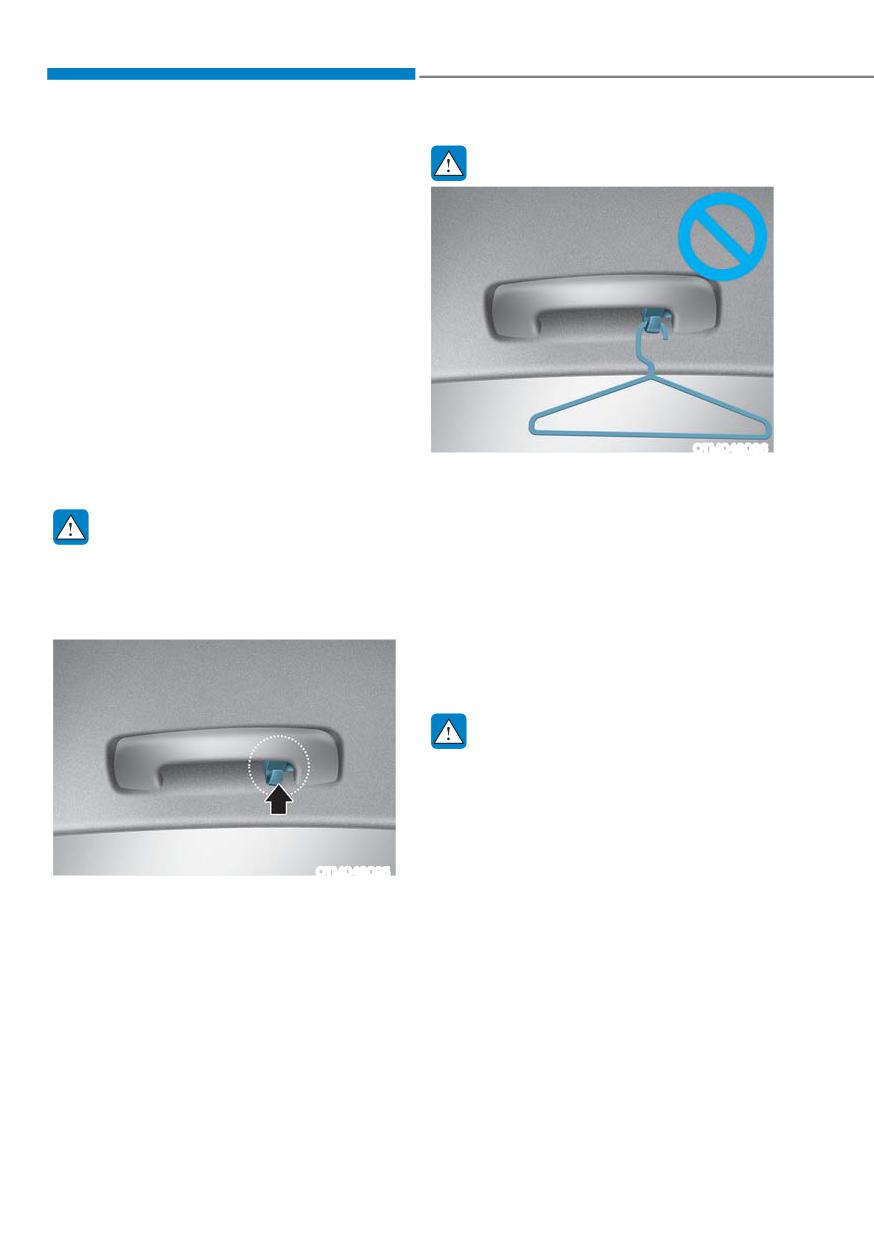

Coat Hook
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle
and prevent the mats from sliding
forward.
WARNING
To prevent serious injury or death from
a floor mat interfering with the brake or
accelerator pedals:
ś Remove any protective film on the
carpet before installing a floor mat.
OTM048095
ś Check floor mats are securely
These hooks are not designed to hold
attached to the vehicle’s floor mat
large or heavy items.
anchor(s) before driving.
ś Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.
ś Do not stack floor mats on top of
another mat (for example, all weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat must be
installed in each position.
ś To avoid any interference with pedal
operation, install only HYUNDAI floor
mats designed for use in your vehicle.
5-116
CarManuals2.com
05
Cargo Net Holder (if equipped)

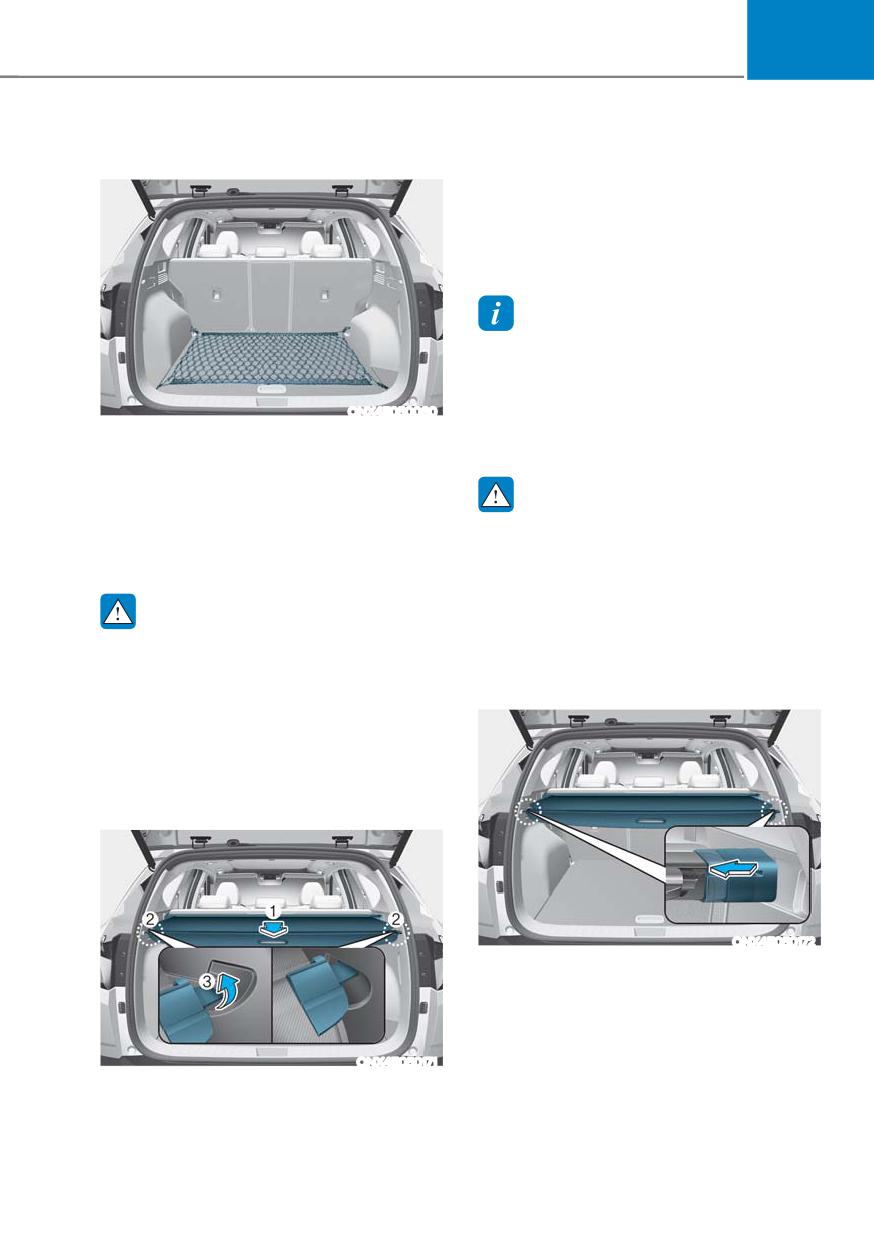

When the cargo security screen is not
used:
Pull the cargo security screen backward
and up to release it from the guides.
The cargo security screen automatically
slides back in.
Information
The cargo security screen may not
automatically slide back in if the cargo
security screen is not fully pulled out.
Pull the cargo screen out all the way and
ONX4E050080
then slowly allow the screen to retract
To keep items from shifting in the cargo
back in.
area, use the 4 holders located in the
cargo area side trim to attach the cargo
net.
WARNING
Make sure the cargo net is securely
ś Do not place objects on the cargo
attached to the holders in the cargo
security screen. Such objects may
board.
be thrown about inside the vehicle
and possibly injure vehicle occupants
during a collision or when braking.
WARNING
ś Never allow anyone to ride in the
Avoid eye injury. Do not overstretch the
cargo area.
cargo net. Always keep your face and
body out of the cargo net’s recoil path.
Removing the cargo security screen
Do not use the cargo net when the strap
has visible signs of wear or damage.
Cargo Security Screen (if
equipped)
Using the cargo security screen
ONX4E050172
1. Push one side of the cargo screen
inward to compress the spring and
then release the screen from the
vehicle.
2. While the spring is compressed, pull
ONX4E050171
out the cargo security screen.
1. Pull the cargo security screen toward
3. Open the cargo tray and keep the
the rear of the vehicle by the handle
cargo security screen in the tray.
M.
2. Insert the guide pin N into the guides
on both sides O.
5-117
CarManuals2.com
Convenience Features

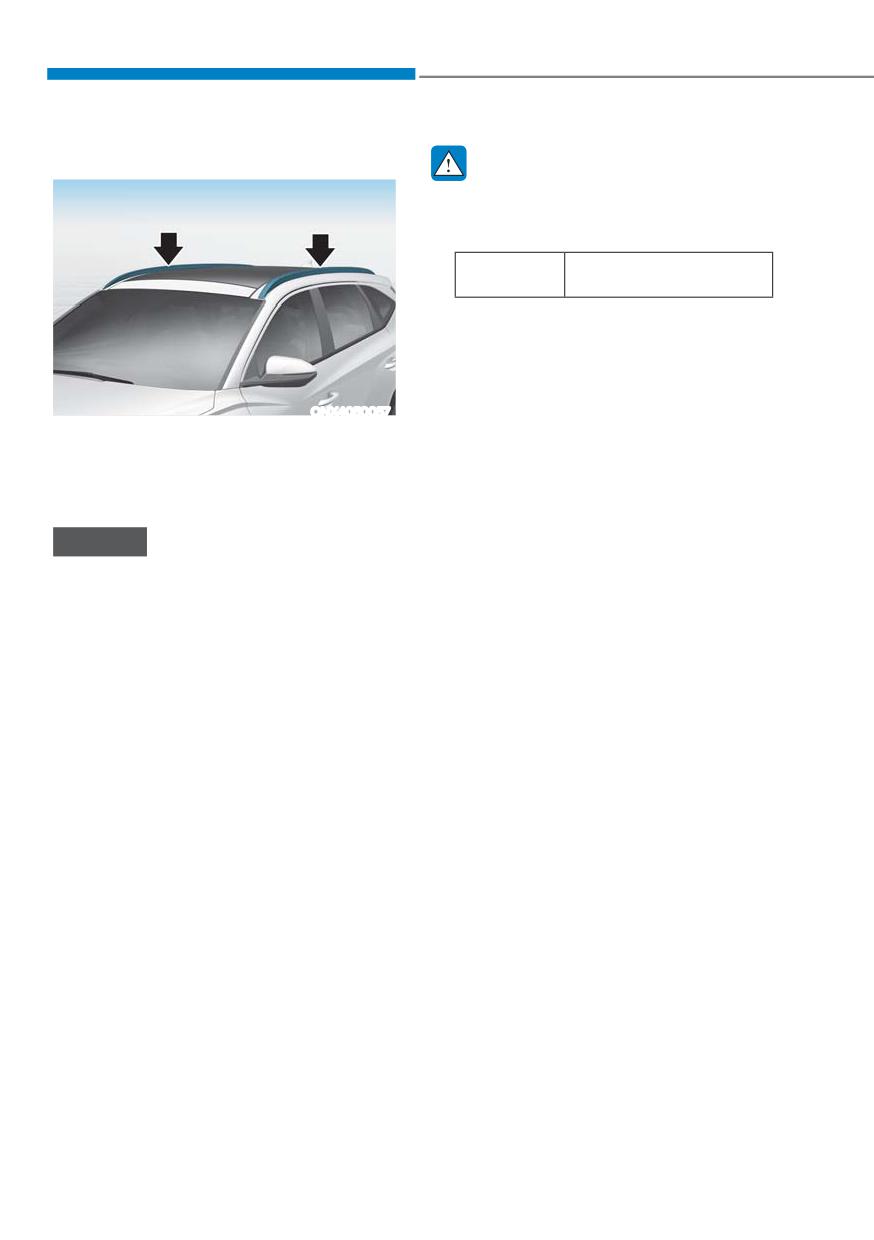

(;7(5,25 )($785(6
Roof Side Rails (if equipped)
WARNING
ś
Loading cargo or luggage in excess of
the specified weight limit on the roof
side rails may damage your vehicle.
ROOF SIDE
220 lbs. (100 kg)
RAILS
EVENLY DISTRIBUTED
ś
Avoid sudden starts, braking, sharp
turns, abrupt maneuvers, or high
speeds that may result in loss of
vehicle control or rollover resulting
in a collision. The vehicle center
ONX4050057
of gravity is higher when items are
Your vehicle may come equipped with
loaded onto the roof side rails.
roof side rails. If your vehicle is equipped
ś
Always drive slowly and turn corners
with roof rack rails, you can add roof rack
carefully when carrying items on the
crossbars as an accessory (not shown).
roof side rails. Severe wind updrafts
caused by passing vehicles or natural
NOTICE
causes, can cause sudden upward
pressure on items loaded on the roof
ś If the vehicle is equipped with a
side rails. This is especially true when
sunroof, do not position the cargo
carrying large, flat items such as wood
onto the roof side rails in such a way
panels or mattresses. This may cause
that it may interfere with sunroof
the items to fall off the roof side rails
operation.
and cause damage to your vehicle or
ś Always take precautions to make sure
others around you.
the cargo does not damage the roof.
ś
To prevent damage or loss of cargo
ś When carrying large objects on the
while driving, check frequently
roof side rails, make sure they do
before or while driving to make sure
not exceed the overall roof length or
the items on the roof side rails are
width.
securely fastened.
ś When carrying cargo on the roof side
rails, take necessary precautions to
make sure the cargo does not damage
the roof of the vehicle.
ś When carrying large objects on the
roof side rails, make sure they do
not exceed the overall roof length or
width.
5-118
CarManuals2.com
05

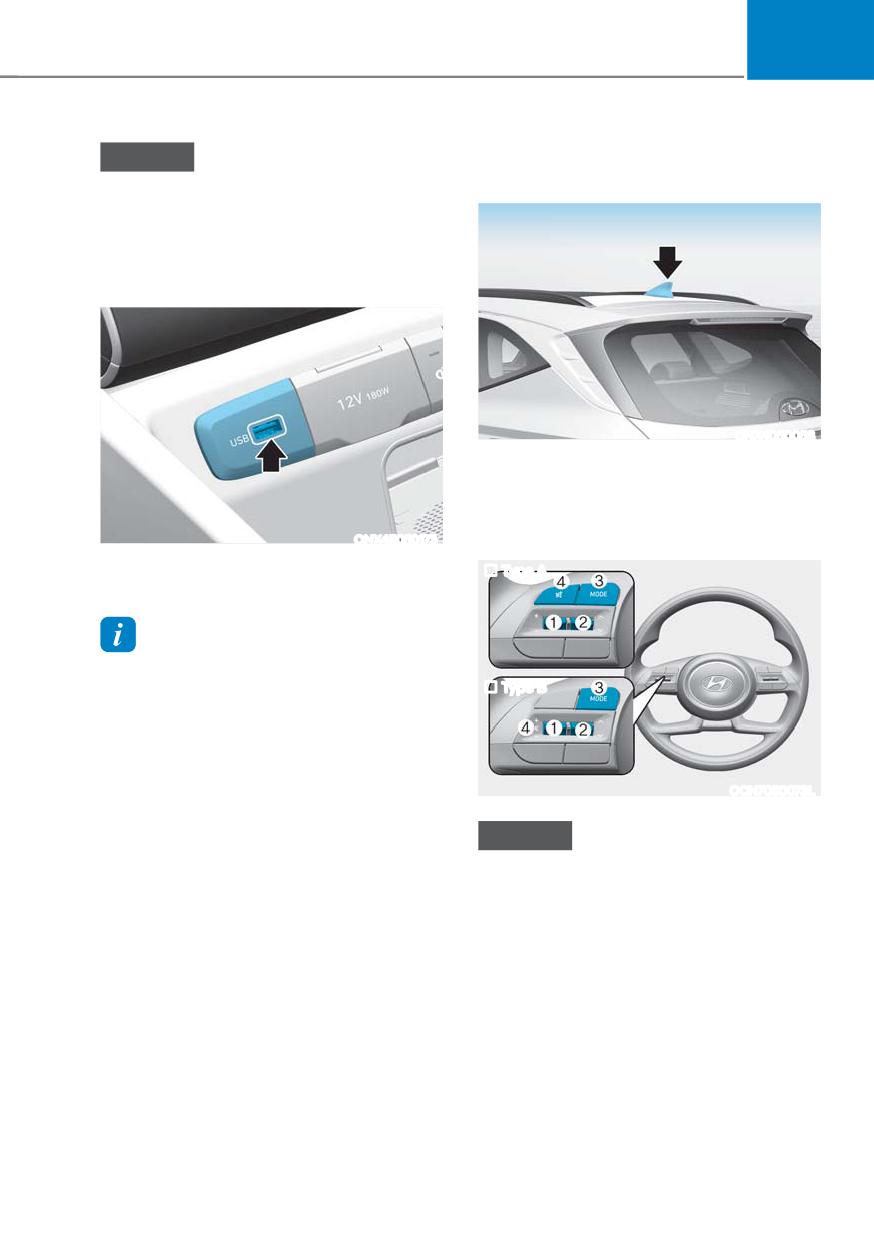

,1)27$,10(17 6<67(0
NOTICE
Antenna
If you install an aftermarket HID
Shark fin antenna
headlight, your vehicle’s audio and
electronic devices may not function
properly.
USB Port
ONX4050058
The shark fin antenna receives
transmitted data (for example, AM/FM,
GPS).
ONX4E050173
Steering Wheel Remote Controls
You can use an USB cable to connect
„ Type A
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise
„ Type B
may occur during playback. If this
happens, disconnect the USB cable and
use the portable audio device’s power
source.
OCN7050073L
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
5-119
CarManuals2.com
Convenience Features
VOLUME (VOL + / VOL -) (1)
Infotainment System
ś Rotate the VOLUME scroll up to
(if equipped)
increase volume.
For more information, refer to the
ś Rotate the VOLUME scroll down to
infotainment system manual.
decrease volume.

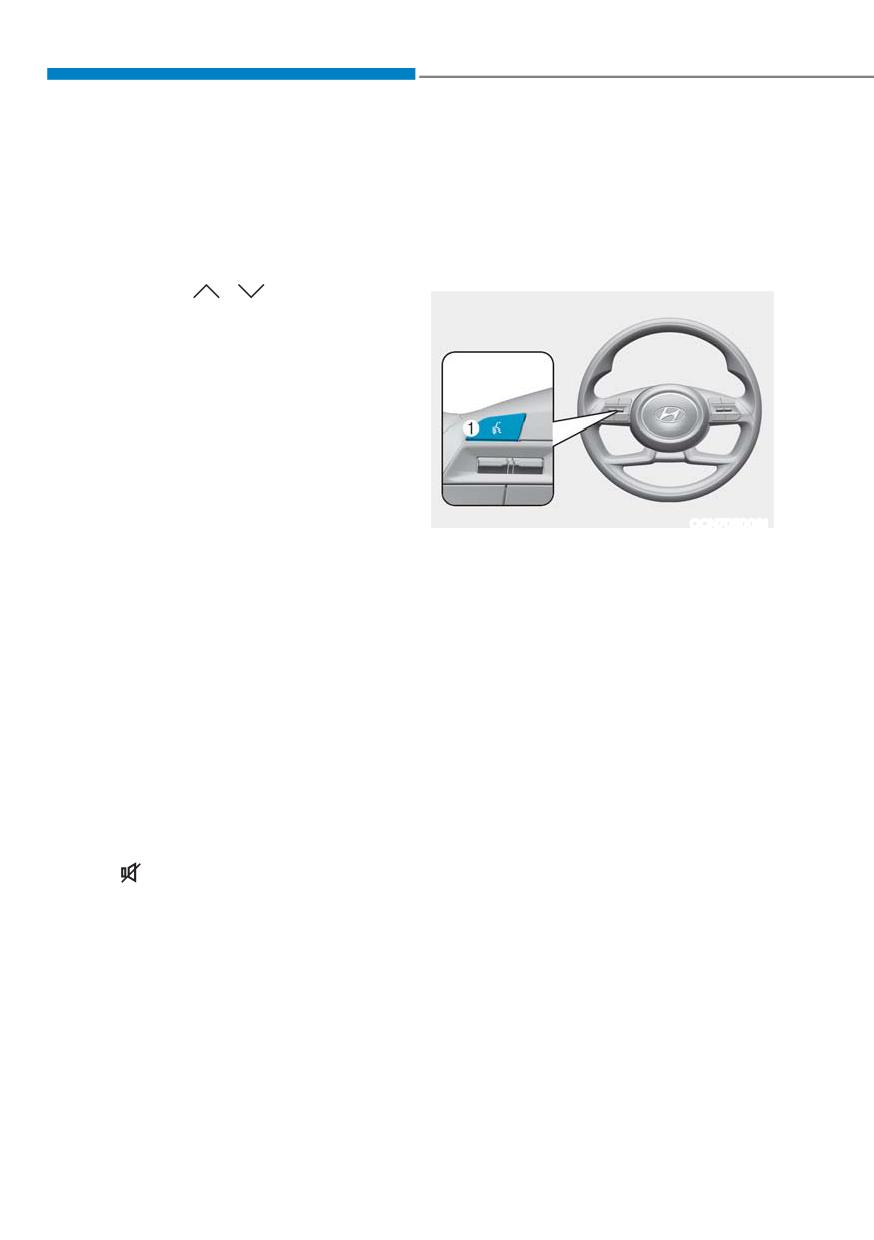

Voice Recognition (if equipped)
SEEK/PRESET (
/
) (2)
If the SEEK/PRESET switch is pressed
up or down and held for 0.8 seconds
or more, it functions in the following
modes:
ś RADIO mode
It functions as the AUTO SEEK select
button. It seeks until you release the
button.
ś MEDIA mode
It functions as the FF/RW button.
OCN7050081
For more information, refer to the
If the SEEK/PRESET switch is pressed
infotainment system manual.
up or down, it functions in the following
modes:
ś RADIO mode
It functions as the PRESET STATION
UP/DOWN button.
ś MEDIA mode
It functions as the TRACK UP/DOWN
button.
MODE (3)
Press the MODE button to toggle
through Radio or Media modes.
MUTE (
) (4)
ś Press the MUTE button to mute the
sound.
ś Press the MUTE button again to
activate the sound.
For more information, refer to the
infotainment system manual.
5-120
CarManuals2.com
05
Bluetooth® Wireless Technology
Using a Cellular Phone or a Two-
way Radio
When a cellular phone is used inside the
vehicle, its signal may interfere with the
audio system.
WARNING
TWO-WAY RADIO OR CELLULAR PHONE
INSTALLATION
Do not install or adjust any two-way
radio or cellular telephone improperly. It
ONX4050062
may adversely affect electronic systems.
Your vehicle is equipped with electronic
fuel injection and other electronic
components. Carefully follow the radio
manufacturer’s instructions or consult
your authorized HYUNDAI dealer for
precautionary measures or special
instructions if you choose to install one
of these devices.
WARNING

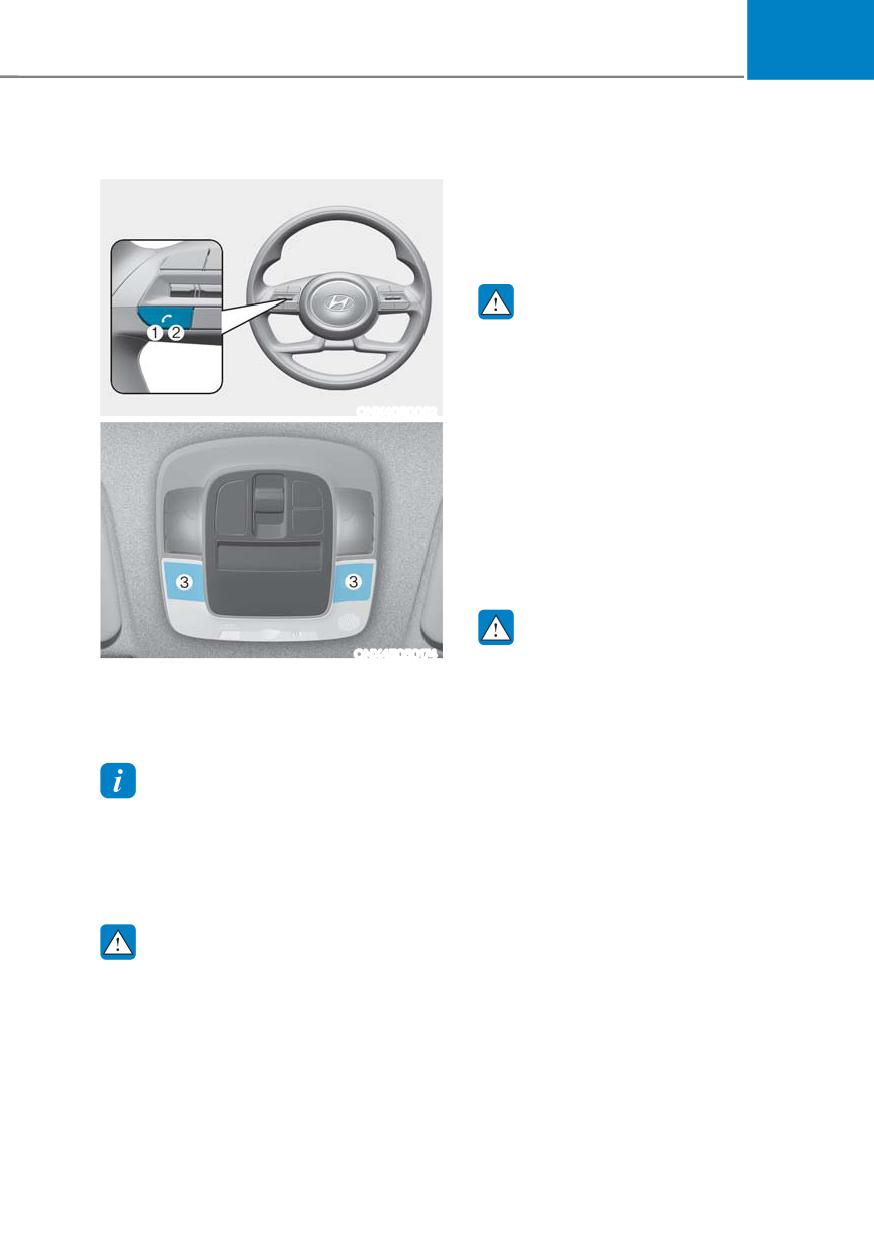

ONX4E050174
Do not use a cellular phone while driving.
M Call/Answer button
Otherwise, it may cause a collision,
resulting in serious injury or death. Stop
N Call end button
at a safe place to use a cellular phone.
O Microphone
Information
The infotainment system may change
after software updates. For more
information refer to the user’s manual
provided in the infotainment system and
the quick reference guide.
WARNING
To prevent driver distraction, minimize
your use of these features while driving.
Distraction may cause a collision,
resulting in serious injury or death.
5-121
CarManuals2.com
6.Driving Your Vehicle
Before Driving
6-4
Before Entering the Vehicle
6-4
Before Starting
6-4
Vehicle Break-in Process
6-5
Key Ignition Switch
6-6
Key Ignition Switch Positions
6-7
Starting the Engine
6-8
Turning Off the Engine
6-8
Push Button Start Ignition Switch
6-9
Push Button Start Ignition Switch Positions
6-10
Starting the Engine
6-11
Turning Off the Engine
6-12
Remotely Starting the Engine
6-12
Vehicle Auto-Shut Off
6-13
Operating Conditions
6-13
System Operation
6-13
Deactivating Conditions
6-13
Automatic Transmission
6-14
Automatic Transmission Operation
6-14
Cluster Display Message (Button type)
6-19
6
Paddle Shifter (Manual shift mode)
6-20
Good Driving Practices
6-21
Braking System
6-22
Power-assist Brakes
6-22
Disc Brakes Wear Indicator
6-22
Electronic Parking Brake (EPB)
6-23
Auto Hold
6-27
Anti-lock Brake System (ABS)
6-30
Electronic Stability Control (ESC)
6-31
Vehicle Stability Management (VSM)
6-34
Trailer Stability Assist (TSA)
6-34
Hill-Start Assist Control (HAC)
6-35
Downhill Brake Control (DBC)
6-35
Good Braking Practices
6-37
CarManuals2.com
Idle Stop and Go (ISG) System
6-38
ISG System Operation
6-38
ISG System Off
6-40
Conditions that Restart the Engine
6-40
ISG Malfunction
6-41
Calibrating the Battery Sensor
6-41
Drive Mode Integrated Control System
6-42
All Wheel Drive (AWD)
6-44
AWD Operation
6-45
Emergency Precautions
6-48
Special Driving Conditions
6-49
Hazardous Driving Conditions
6-49
Rocking the Vehicle
6-49
Smooth Cornering
6-49
Driving at Night
6-49
Driving in the Rain
6-50
Driving In Flooded Areas
6-50
Highway Driving
6-50
Winter Driving
6-51
Snow or Icy Conditions
6-51
6
Winter Precautions
6-53
Trailer Towing
6-54
If You Decide to Pull a Trailer
6-55
Towing Equipment and Accessories
6-58
Driving with a Trailer
6-59
Maintenance When Towing a Trailer
6-61
Vehicle Load Limit
6-62
The Loading Information Label
6-62
CarManuals2.com
06
WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO may cause unconsciousness and
death.
Engine exhaust contains carbon monoxide that cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO may cause unconsciousness and death by asphyxiation.
Make sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change
the oil or for any other purposes. If you hear a change in the sound of the exhaust or
drive over something that strikes the underneath side of the vehicle, have the exhaust
system checked as soon as possible by an authorized HYUNDAI dealer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for an extended period of time with people inside the
vehicle.
If it is necessary to idle the engine for a long time with people inside the vehicle, be
sure to do so only in an open area with the air intake set at “Fresh” and fan control set
to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To ensure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windshield clear of snow, ice, leaves, or other obstructions.
If you must drive with the liftgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and the fan
control set to high.
6-3
CarManuals2.com
Driving Your Vehicle
BEFORE DRIVING
Before Entering the Vehicle
WARNING
ś Make sure all windows, outer side
To reduce the risk of serious injury or
view mirror(s), and outside lights are
death:
clean and unobstructed.
ś Always wear your seat belt. All
ś Remove frost, snow, or ice from both
passengers must be properly belted
the front and rear windshield as well
whenever the vehicle is moving. For
as the front side windows.
more information, refer to the “Seat
ś Visually check the tires for uneven
Belts” section in Chapter 3.
wear and damage.
ś Always drive defensively. Do not
ś Check under the vehicle for any sign
assume that the other drivers are
of leaks.
seeing your vehicle. They may not act
as you expect. Be prepared to react
ś Make sure there are no obstacles
behind you if you intend to back up.
to avoid a possible collision. Plan your
movements anticipating the "worst-
case" scenario.
Before Starting
ś Stay focused on driving. Driver
ś
Make sure the hood, the liftgate, and
distraction may cause a collision.
the doors are securely closed and
locked.
ś Leave plenty of space between you
and the vehicle in front of you.
ś
Adjust the position of the seat and
steering wheel.
ś
Adjust the inside and side view
WARNING
mirrors.
Never drink or take drugs while driving.
ś
Verify all the lights work.
Drinking or taking drugs while driving is
ś
Fasten your seat belt. Check that all
dangerous and may result in a collision,
passengers have fastened their seat
causing serious injury or death.
belts.
Drunk driving is the number one
ś
Check the gauges and indicators
contributor to the highway death
in the instrument panel and the
toll each year. Even a small amount
messages on the instrument display
of alcohol can affect your reflexes,
when the ignition switch or engine
perceptions, and judgment. Just one
start/stop button is in the ON position.
drink may reduce your ability to respond
ś
Check that any items you are carrying
to changing conditions and emergencies
are stored properly or fastened down
and your reaction time gets worse with
securely.
each additional drink.
Driving while under the influence of
drugs is as dangerous or more dangerous
than driving under the influence of
alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs while driving. If you are drinking
or taking drugs, never drive. Do not ride
with a driver who has been drinking or
taking drugs. Choose a designated driver
or call a taxi.
6-4
CarManuals2.com
06
Vehicle Break-in Process
By following a few simple precautions for
the first 600 miles (1,000 km), you can
add to the performance, economy, and
life of your vehicle.
ś While driving, avoid sudden
acceleration.
ś Do not maintain a single speed
for a long time, either fast or slow.
Varying the engine speed is needed to
properly break-in the engine.
ś Avoid hard stops, except in
emergencies, to allow the brakes to
seat properly.
ś Fuel economy, engine performance,
and engine oil consumption may differ
depending on the vehicle break-in
process and be stabilized after 4,000
miles (6,000 km). New engines may
consume more oil during the vehicle
break-in period.
ś Do not tow a trailer during the first
1,200 miles (2,000 km) of operation.
6-5
CarManuals2.com
Driving Your Vehicle

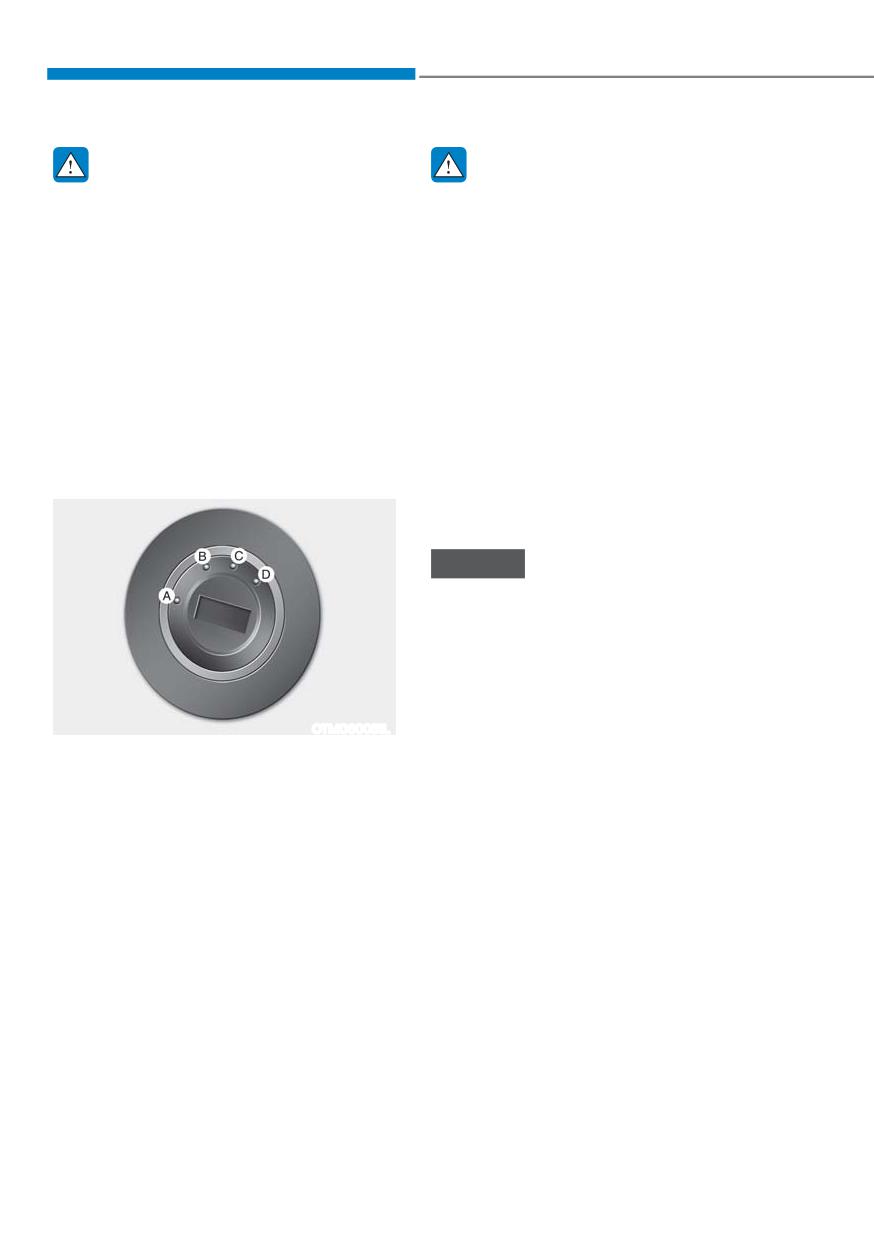

.(< ,*1,7,21 6:,7&+ ǣ,) (48,33('Ǥ
WARNING
WARNING
To reduce the risk of serious injury or
ś Never turn the ignition switch to
death:
the LOCK or ACC position while
the vehicle is moving except in
ś Never allow children or any person
an emergency. This may result in
who is unfamiliar with the vehicle to
the engine turning off and loss of
touch the ignition switch or related
power assist for the steering and
parts. Unexpected and sudden vehicle
brake systems. This may cause loss
movement may occur.
of directional control and braking
ś Never reach through the steering
function, which could cause a
wheel for the ignition switch, or any
collision.
other control, while the vehicle is
moving. The presence of your hand or
ś Before leaving the driver's seat,
always make sure the shift lever is
arm in this area may cause a loss of
vehicle control resulting in a collision.
in the P (Park) position, apply the
parking brake, turn the ignition switch
to the LOCK position, and take the
keys with you to prevent unintended
vehicle movement.
NOTICE
Never use aftermarket keyhole covers.
These covers may prevent the vehicle
from recognizing the key and not allow
the vehicle to start.
OTM060051L
: Lock, : ACC, : ON, : START
Whenever the front door is opened, the
ignition switch illuminates if the ignition
switch is not in the ON position. The
light goes off immediately when the
ignition switch is turned ON or goes off
after about 30 seconds when the door
is closed. (for vehicles equipped with
ignition switch illumination)
6-6
CarManuals2.com
06
Key Ignition Switch Positions
Switch
Action
Notes
Position
To turn the ignition switch to the LOCK
Always stop the vehicle before turning
position, push the key in at the ACC
the ignition switch to the LOCK
position and turn the key towards the
position.
LOCK position.
LOCK
The ignition key can be removed in
the LOCK position.
The steering wheel locks to protect
the vehicle from theft.
Some electrical accessories are
If difficulty is experienced turning the
usable. The steering wheel unlocks.
ignition switch to the ACC position,
ACC
turn the key while turning the steering
wheel right and left to release.
This is the normal key position when
Do not leave the ignition switch in the
the engine has started. All features
ON position when the engine is not
and accessories are usable.
running to prevent the battery from
ON
The warning lights can be checked
discharging.
when you turn the ignition switch
from ACC to ON.
To start the engine, turn the ignition
The engine attempts to start until you
switch to the START position. The
release the key.
START
switch returns to the ON position
when you let go of the key.
6-7
CarManuals2.com
Driving Your Vehicle
Starting the Engine
Information
ś Do not wait for the engine to warm up
WARNING
or race the engine while the vehicle
remains stationary.
ś Always wear appropriate shoes when
operating your vehicle. Unsuitable
ś Start driving at moderate engine
shoes such as high heels, ski boots,
speeds. Do not rapidly accelerate and
sandals, and flip-flops may interfere
decelerate while driving.
with your ability to use the brake,
accelerator, and clutch pedals. Do not
NOTICE
drive barefoot.
To prevent damage to the vehicle:
ś Do not start your vehicle with the
ś Do not hold the ignition key in the
accelerator pedal depressed. Place
START position for more than 10
your foot firmly on the brake pedal
seconds. Wait 5 to 10 seconds before
while starting your vehicle.
trying again.
ś Wait until the engine is at normal idle
ś Do not turn the ignition switch to
before shifting gears and releasing
the START position with the engine
the brake. Your vehicle may move
running. It may damage the starter.
suddenly if your vehicle is shifted
while the engine RPM is high. It may
ś If the engine stalls while the vehicle
cause damage to the transmission
is moving, shift to N (Neutral) and
system.
use the ignition switch to attempt to
restart the engine.
ś Do not push or tow your vehicle to
1. Make sure the parking brake is
start the engine.
applied.
Turning Off the Engine
2. Make sure the shift lever/button is in
P (Park).
1. Stop the vehicle and depress the
brake pedal fully.
3. Depress the brake pedal.
2. Make sure the shift lever/button is in
4. Turn the ignition switch to the START
P (Park).
position. Hold the key (maximum of 10
seconds) until the engine starts, and
3. Turn the ignition switch to the LOCK
then release the key.
position and apply the Electronic
Parking Brake (EPB).
4. Take the key with you when you leave
the vehicle.
6-8
CarManuals2.com
06
386+ %87721 67$57 ,*1,7,21
6:,7&+ ǣ,) (48,33('Ǥ
WARNING
ś
Never press the Push Button Start
ignition switch while the vehicle is
moving except in an emergency.
This may result in the vehicle turning
off and loss of power assist for the
steering and brake systems. This may
cause loss of directional control and
braking function, which could cause a
collision.

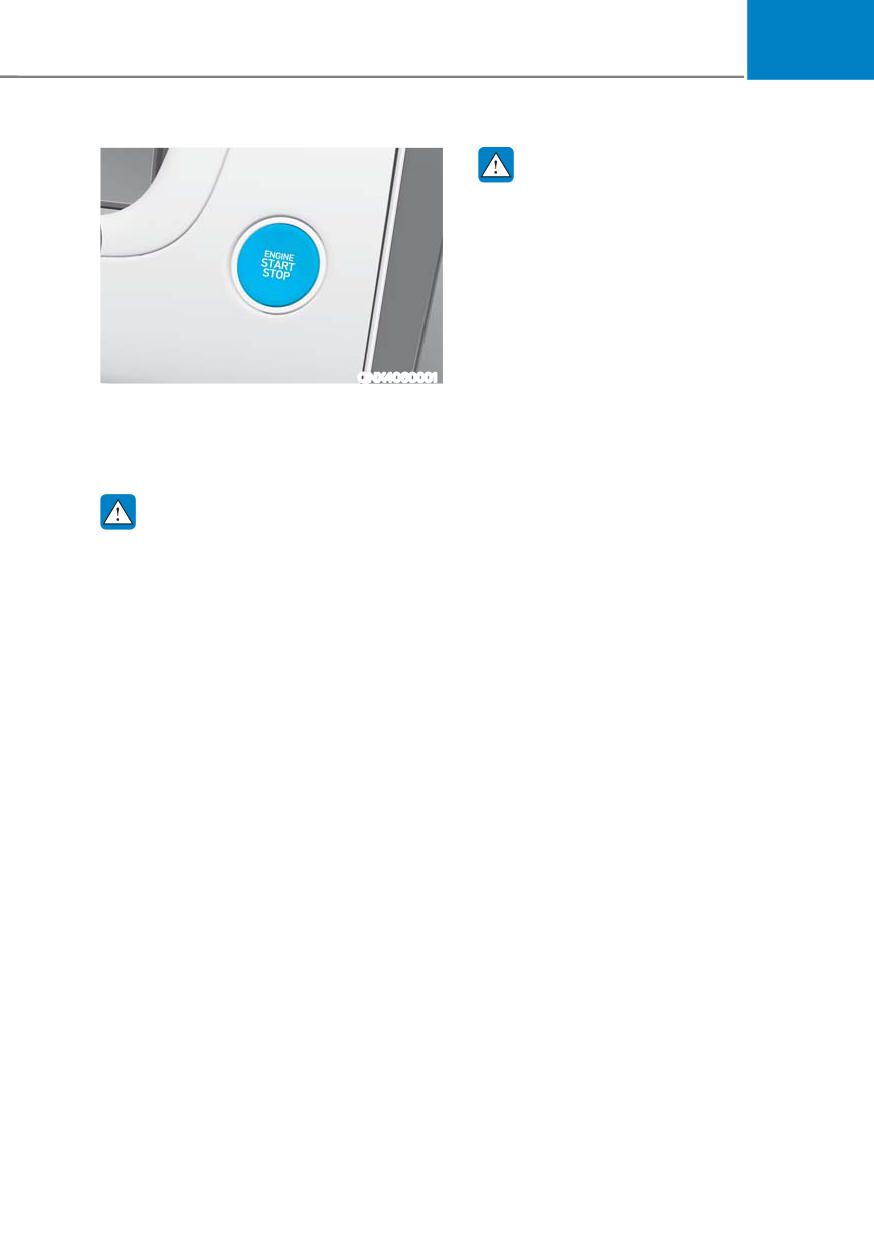

ONX4060001
ś
Before leaving the driver’s seat, always
Whenever the front door is opened,
make sure the gear is in the P (Park)
the Push Button Start ignition switch
position, apply the parking brake,
illuminates and goes off 30 seconds after
press the Push Button Start ignition
the door is closed.
switch to the OFF position, and take
the Smart Key with you. Unexpected
vehicle movement may occur if these
WARNING
precautions are not followed.
To turn off the vehicle in an emergency:
ś
Never reach through the steering
wheel for the Push Button Start
Press and hold the Push Button Start
ignition switch or any other control
ignition switch for more than two
while the vehicle is moving. The
seconds. Or rapidly press and release the
presence of your hand or arm in this
Push Button Start ignition switch three
area may cause a loss of vehicle
times (within three seconds).
control resulting in a collision.
If the vehicle is still moving, you can
restart the vehicle without depressing
the brake pedal by pressing the Push
Button Start ignition switch with the gear
in the N (Neutral) position.
6-9
CarManuals2.com
Driving Your Vehicle
Push Button Start Ignition Switch Positions
Button
Action
Notes
Position
To turn off the engine, press the Push
Always stop the vehicle before
Button Start ignition switch with the
pressing the Push Button Start ignition
vehicle shifted to P (Park).
switch to the OFF position.
For button type shift gear vehicles, if
the Push Button Start ignition switch
is pressed with the vehicle shifted to D
(Drive), R (Reverse), or N (Neutral), the
OFF
gear automatically shifts to P (Park).
For lever type shift gear vehicles, if
the Push Button Start ignition switch
is pressed with the gear shifted to D
(Drive), R (Reverse), or N (Neutral),
the Push Button Start ignition switch
changes to the ACC position.
Press the Push Button Start ignition
If you leave the Push Button Start
switch when the button is in the OFF
ignition switch in the ACC position
position without depressing the brake
for more than one hour, the battery
ACC
pedal.
power turns off automatically to
Some of the electrical accessories are
prevent the battery from discharging.
usable.
Press the Push Button Start ignition
Do not leave the Push Button Start
switch while it is in the ACC position
ignition switch in the ON position
ON
without depressing the brake pedal.
when the engine is not running to
The warning lights can be checked
prevent the battery from discharging.
before the engine is started.
To start the engine, depress the brake
If you press the Push Button Start
pedal and press the Push Button Start
ignition switch without depressing the
ignition switch with the gear shifted
brake pedal, the engine does not start
to the P (Park) or the N (Neutral)
and the Push Button Start ignition
START
position.
switch changes as follows:
For your safety, start the engine
2)) Ɵ $&& Ɵ 21 Ɵ 2)) RU $&&
with the gear shifted to the P (Park)
position.
6-10
CarManuals2.com
06
Starting the Engine
1. Always carry the smart key with you.
2. Make sure the parking brake is
applied.
WARNING
3. Make sure the shift lever/button is in
ś
Always wear appropriate shoes when
P(Park).
operating your vehicle. Unsuitable
4. Depress the brake pedal.
shoes such as high heels, ski boots,
sandals, and flip-flops may interfere
5. Press the Push Button Start ignition
with your ability to use the brake,
switch.
accelerator, and clutch pedals. Do not
drive barefoot.
Information
ś
Do not start your vehicle with the
ś Do not wait for the engine to warm up
accelerator pedal depressed. Place
or race the engine while the vehicle
your foot firmly on the brake pedal
remains stationary.
while starting your vehicle.
ś Start driving at moderate engine
ś
Wait until the engine is at normal idle
speeds. Do not rapidly accelerate and
before shifting gears and releasing
decelerate while driving.
the brake. Your vehicle may move
suddenly if your vehicle is shifted
while the engine RPM is high. It may
NOTICE
cause damage to the transmission
To prevent damage to the vehicle:
system.
ś Do not press the Push Button Start
ignition switch for more than 10
Information
seconds except when the stop lamp
fuse is blown.
ś
The vehicle starts by pressing the
Push Button Start ignition switch, only
When the stop lamp fuse is blown,
when the smart key is in the vehicle.
replace the fuse. If you cannot replace
the fuse, start the engine by pressing
ś
The vehicle may not start even if the
and holding the Push Button Start
smart key is in the vehicle but it is not
ignition switch for 10 seconds with the
near you (for example, in the cargo
Push Button Start ignition switch in
area).
the ACC position.
ś
When the Push Button Start ignition
ś If the engine stalls while the vehicle is
switch is in the ACC or ON position, if
moving, shift to N (Neutral) and use
any door is open, the system checks
the Push Button Start ignition switch
for the smart key. When the smart
to attempt to restart the engine.
key is not in the vehicle, the
indicator blinks and the warning,
ś Do not push or tow your vehicle to
"Key not in vehicle" appears. When
start the engine.
all doors are closed, the chime also
sounds for about 5 seconds.
6-11
CarManuals2.com
Driving Your Vehicle

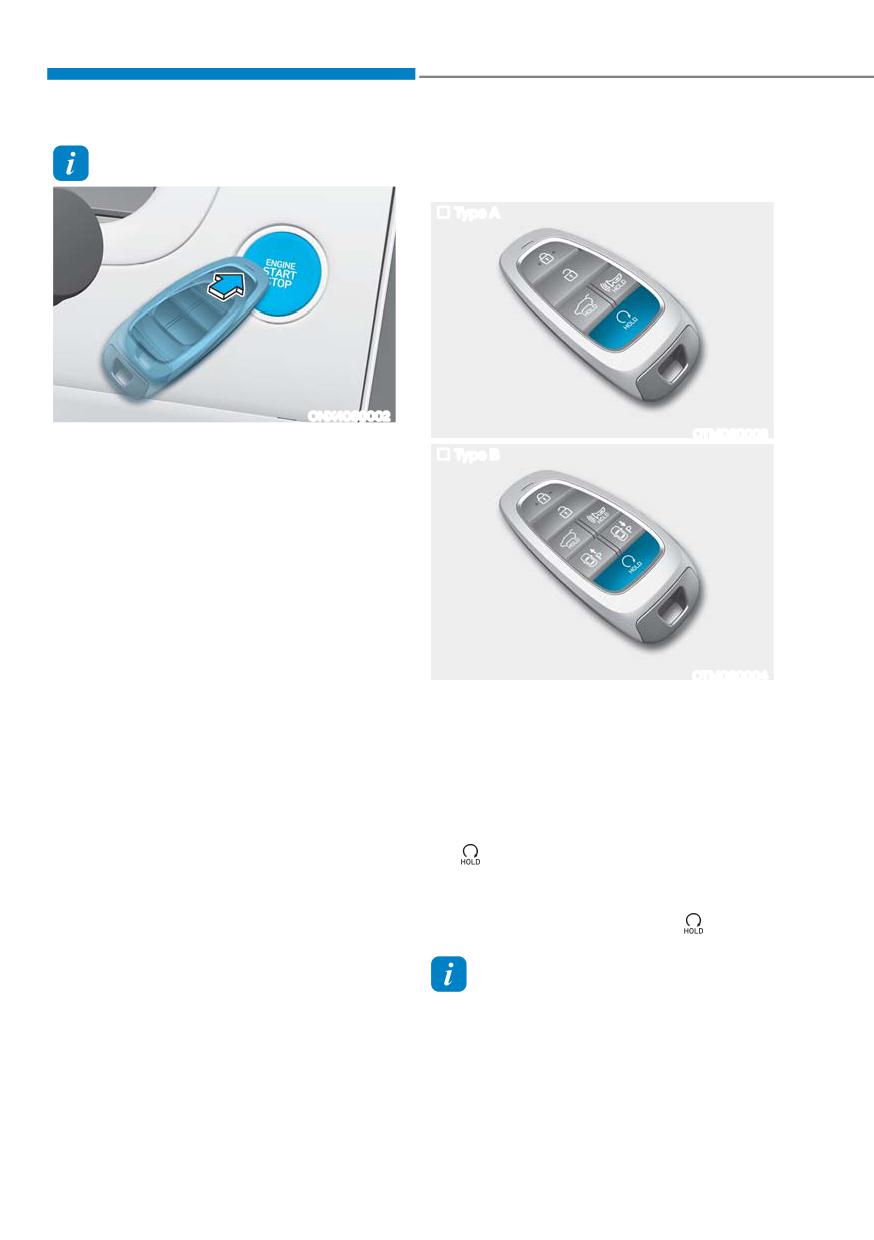

Remotely Starting the Engine (if
Information
equipped)
„ Type A
ONX4060002
OTM060003
If the smart key battery is weak or the
„ Type B
smart key does not work correctly, press
the Push Button Start ignition switch
with the smart key.
Turning Off the Engine
1. Stop the vehicle and depress the
brake pedal fully.
2. Make sure the shift lever/button is in
P (Park).
3. Apply the Electronic Parking Brake
OTM060004
(EPB).
You can start the vehicle using the
4. Press the Push Button Start ignition
switch to the OFF position.
Remote Start button on the smart key.
5. Take the key with you when you leave
To start the vehicle remotely:
the vehicle.
1. Press the door lock button within 32
feet (10 m) from the vehicle.
2. Press and hold the remote start button
(
) within 4 seconds.
To turn off the engine:
Press the remote start button (
) once.
Information
ś The vehicle does not remotely start if
the hood or liftgate is open.
ś The vehicle must be in P (Park).
ś The engine turns off if you get in the
vehicle without a registered smart key
or you do not get in the vehicle within
10 minutes.
6-12
CarManuals2.com
06
9(+,&/( $872ǘ6+87 2)) ǣ,) (48,33('Ǥ
If your vehicle is parked and the engine
System Operation
is left on for a long period of time, the
engine turns off automatically to help
reduce fuel consumption and prevent
carbon dioxide poisoning.
Operating Conditions
Vehicle Auto-Shut Off timer operates
when all the following conditions are
satisfied:
ś
The driver does not fasten their seat
belt.

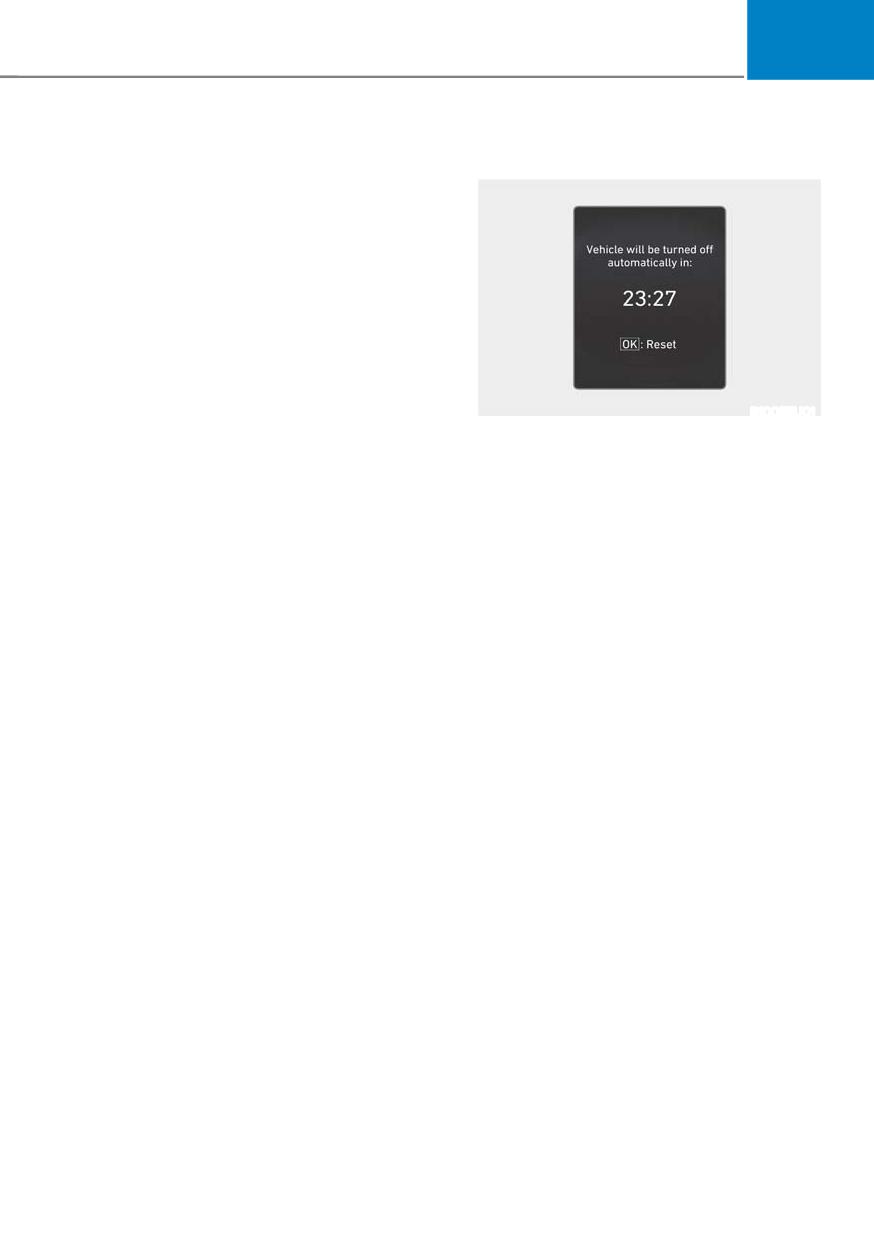

B1005EU01
ś
No occupant is detected in the
passenger's seat.
When all the conditions are satisfied, the
Vehicle Auto-Shut Off operates and turns
ś
The vehicle is stopped and the gear
the engine off automatically after 60
shift is in P (Park).
minutes.
ś
If the brake or accelerator pedals have
A timer appears on the instrument
not been depressed.
cluster 30 minutes before vehicle shuts
ś
The infotainment system is not being
off.
updated.
Resetting cluster timer
A timer appears on the instrument
cluster after 30 minutes and is reset by:
ś Releasing the accelerator pedal or
brake pedals.
ś Pressing the OK button on the
steering wheel while the timer
appears on the instrument cluster.
Deactivating Conditions
The system does not automatically shut
off the engine if:
ś The driver’s seat belt is fastened.
ś An occupant is detected in the
passenger's seat.
ś Driving over 2 mph (3 km/h).
ś The gear is shifted to R (Reverse), D
(Drive), or N (Neutral).
6-13
CarManuals2.com
Driving Your Vehicle
$8720$7,& 75$160,66,21

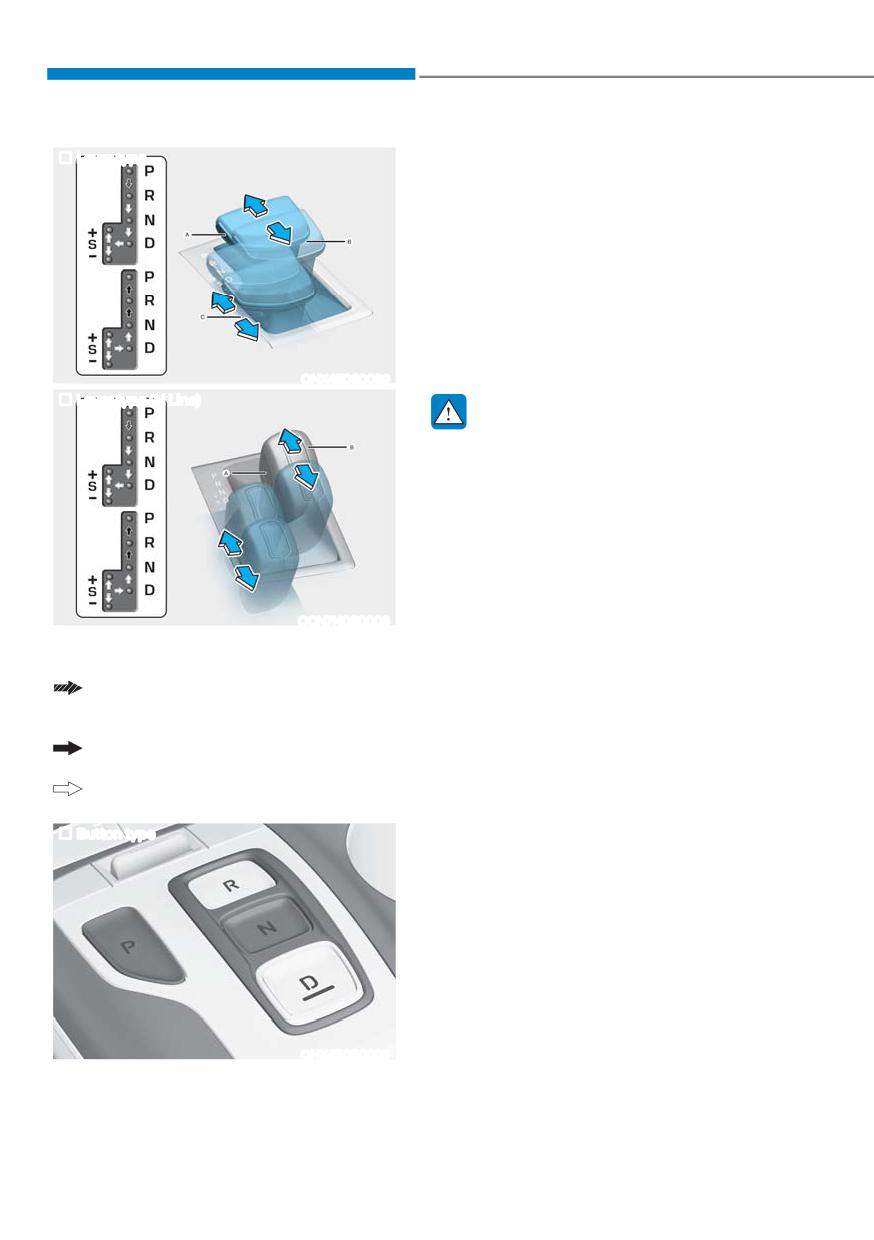

„ Lever type
Automatic Transmission
Operation
The automatic transmission has eight
forward speeds and one reverse speed.
The individual speeds are selected
automatically in the D (Drive) position.
The indicator on the instrument cluster
displays the shift lever/button position
when the ignition switch is in the ON
position.
ONX4E060039
„ Lever type (N Line)
WARNING
To reduce the risk of serious injury or
death:
ś Always check the surrounding
areas near your vehicle for people,
especially children, before shifting
into D (Drive) or R (Reverse).
ś Before leaving the driver’s seat,
always make sure the shift lever/
button is in the P (Park) position, then
OCN7N060008
apply the parking brake, and place
: Shift lever, : Shift release button,
the ignition switch in the LOCK/OFF
: Manual shift mode
position. Unexpected and sudden
Depress the brake pedal and press the
vehicle movement may occur if these
Shift release button while moving the
precautions are not followed.
shift lever.
ś Do not use engine braking (using the
Press the Shift release button while
manual shift mode or paddle shifters
moving the shift lever.
to shift from a higher gear to a lower
The shift lever can freely operate.
gear) on slippery roads. The vehicle
may lose traction with the roadway,
„ Button type
resulting in a collision.
ONX4E060003
Depress the brake pedal whenever
pressing the shift button to change gear
or shifting to P (Park).
6-14
CarManuals2.com
06
P (Park)
NOTICE
Always come to a complete stop before
For shift button vehicles, when the
shifting into P (Park).
vehicle is stopped in R (Reverse) or D
To shift from P (Park), depress the brake
(Drive), if the driver’s door is opened and
the driver's seat belt is unfastened, the
pedal firmly and make sure your foot is
not depressing the accelerator pedal.
gear shifts to P (Park) automatically.
If you cannot shift the lever out of P
If the vehicle is moving in R (Reverse) or
(Park), refer to the "Shift-Lock Release"
D (Drive) and the driver’s door is opened
section in this chapter if equipped with a
and the driver's seat belt is unfastened,
shift lever.
the gear may not shift to P (Park)
automatically to prevent transmission
damage.
WARNING
ś Shifting into P (Park) while the vehicle
N (Neutral)
is moving may cause you to lose
The wheels and transmission are not
control of the vehicle.
engaged.
ś When parking on an incline, shift the
Use N (Neutral) if you need to restart a
gear to P (Park), apply the parking
stalled engine, or if it is necessary to stop
brake, and turn the wheels toward
with the engine ON. Shift into P (Park)
the curb to prevent the vehicle from
if you need to leave your vehicle for any
rolling downhill.
reason.
ś Do not use the P (Park) position
Always depress the brake pedal when
instead of the parking brake.
you are shifting from N (Neutral) to
another gear.
R (Reverse)
Use this position to drive the vehicle
WARNING
backward.
ś Do not shift into gears unless your
foot is firmly on the brake pedal.
NOTICE
ś Do not shift gears with the accelerator
Always come to a complete stop before
pedal depressed. Wait until the engine
shifting into or out of R (Reverse) to
RPM is normal. The vehicle may
prevent damaging the transmission.
suddenly move if you shift gears and
release the brake pedal when the RPM
is high.
6-15
CarManuals2.com
Driving Your Vehicle

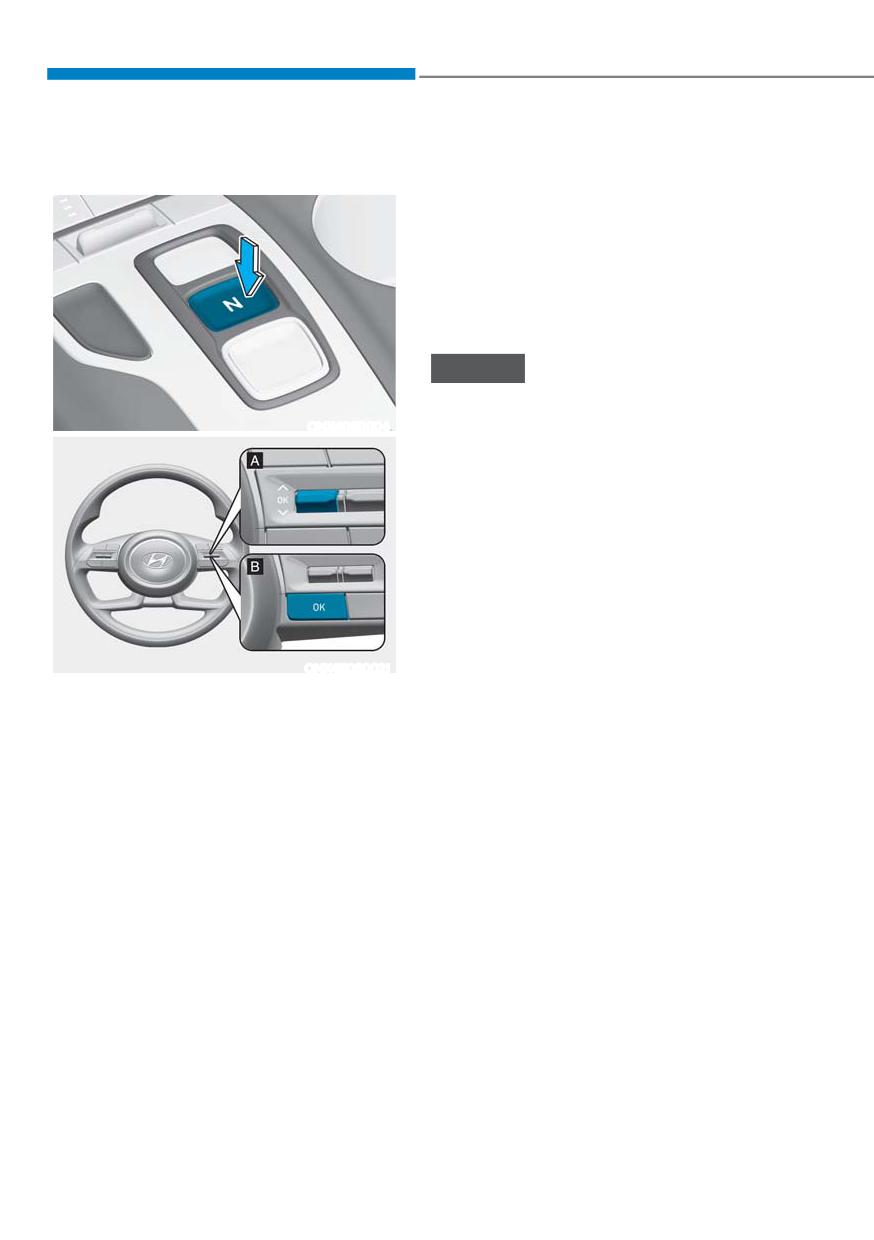

To stay in N (Neutral) when vehicle is OFF
5. When the message, "Vehicle will
(button type)
stay in (N). Change gear to cancel“
appears on the cluster display, press
the Push Button Start ignition switch
while depressing the brake pedal.
If you open the driver's door, the gear
shifts to P (Park) and the Push Button
Start ignition switch changes to the
OFF position.
NOTICE
With the gear in N (Neutral) the Push
Button Start ignition switch is in the ACC
ONX4060004
position. Note that the doors cannot be
locked in the ACC position. The battery
may discharge if left in the ACC position
for a long time.
D (Drive)
The transmission automatically shifts
through an 8-gear sequence, providing the
best fuel economy and power.
Shift to D (Drive) while depressing the
brake pedal with the engine ON. Then
ONX4E060021
release the brake pedal and depress the
If you want to stay in N (Neutral) after the
accelerator pedal.
engine is OFF (ignition switch in the ACC
For extra power when passing another
position), do the following:
vehicle or driving uphill, depress the
1. Release the parking brake when the
accelerator pedal fully. The transmission
engine is running or the Push Button
automatically downshifts to the next lower
Start ignition switch is in the ON
gear.
position. If Auto Hold is activated, turn
off Auto Hold.
For shift button vehicles, when the vehicle
2. Press the N (Neutral) button while
is stopped in D (Drive), if you open the
driver’s door with the seat belt unfastened,
depressing the brake pedal.
the gear shifts to P (Park) automatically.
3. Take your foot off the brake pedal. The
If the vehicle is moving in D (Drive), and
message, "Press and hold OK button
to stay in Neutral when vehicle is Off"
you open the driver’s door with the seat
belt unfastened, the gear may not shift
appears on the cluster display.
to P (Park) automatically to protect the
4. Press and hold the OK button on
automatic transmission.
the steering wheel for more than 1
second.
The DRIVE MODE switch, located on the
shift lever/button console, allows the driver
to switch from NORMAL mode to SPORT
mode (if equipped).
For more information, refer to the "Drive
Mode Integrated Control System" section
later in this chapter.
6-16
CarManuals2.com
06

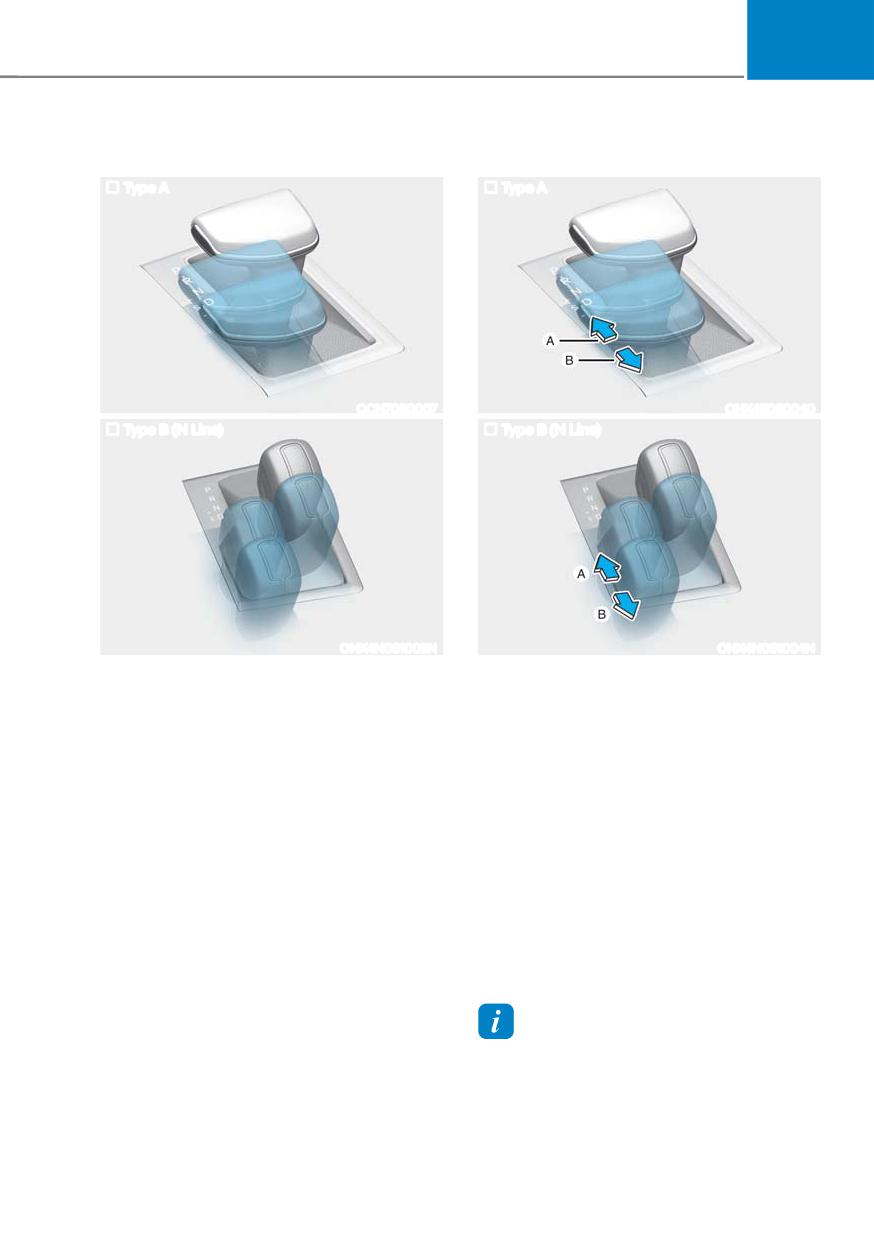

DS (Drive Sporty) mode
Manual shift mode (lever type)
„ Type A
„ Type A
OCN7060007
ONX4E060040
„ Type B (N Line)
„ Type B (N Line)
ONX4N061003N
ONX4N061004N
: + (Up), : - (Down)
To shift into DS mode, move the shift
lever from D (Drive) to the left, without
Whether the vehicle is stationary or
upshifting to the + or downshifting to
moving, the manual shift mode is
the -.
selected by pushing the shift lever from
The engine and transmission control
the D (Drive) position into the manual
logic is automatically optimized for
gate. To return to D (Drive), push the shift
sporty driving.
lever back into the main gate.
In DS mode, if you move the shift lever
In manual shift mode, moving the shift
+ (Up) or - (Down), the gear changes to
lever backward and forward allows you
the manual shift mode. If the shift lever
to select the desired range of gears for
is moved back to D (Drive), it changes to
the current driving conditions.
D (Drive) and shifts automatically. The
+ (Up): Push the lever forward once to
vehicle performs according to the mode
shift up one gear.
selected from the drive mode (NORMAL,
- (Down): Pull the lever backwards once
SPORT).
to shift down one gear.
Information
ś Downshifts are made automatically
when the vehicle slows down. When
the vehicle stops, the first gear is
automatically selected.
ś When the engine RPM approaches the
red zone, the transmission upshifts
automatically.
6-17
CarManuals2.com
Driving Your Vehicle
ś If the driver pushes the lever to + (Up)
Shift-lock release (lever type)
or - (Down), the transmission may not
If the shift lever cannot be moved from
shift if the next gear is outside of the
P (Park) into R (Reverse) with the brake
allowable engine RPM range.
pedal depressed then:
ś When driving on slippery roads, push

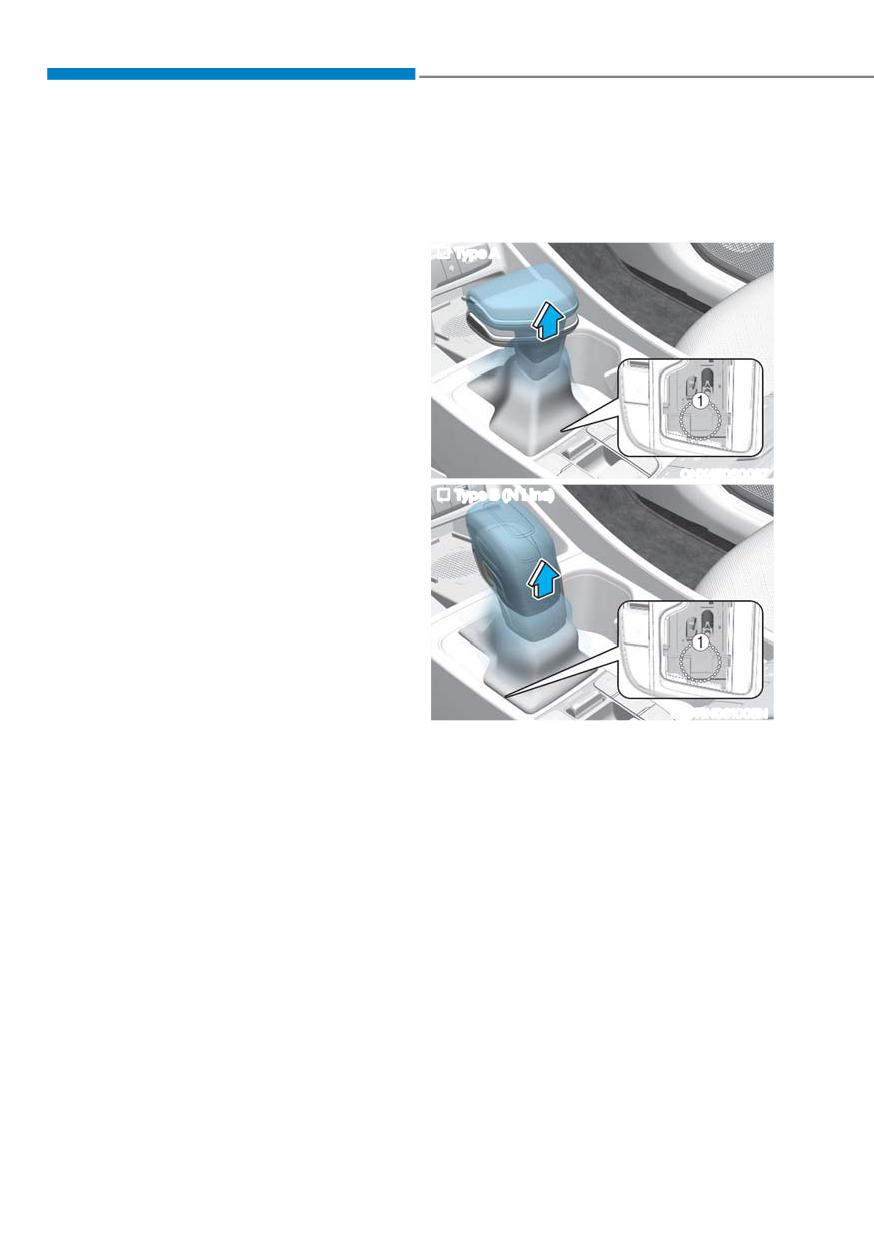

„ Type A
the shift lever to + (Up) side to shift
into the second gear that is better for
smooth driving on a slippery road.
Push the shift lever to - (Down) side to
shift back to the 1st gear.
Ignition key interlock system (if
equipped)
The ignition key cannot be removed
unless the shift lever is in the P (Park)
position.
ONX4E060037
„ Type B (N Line)
Shift-lock system
For your safety, the automatic
transmission has a shift-lock system that
prevents the transmission from shifting
from P (Park) into R (Reverse) unless the
brake pedal is depressed.
To shift the transmission from P (Park)
into R (Reverse):
1. Depress and hold the brake pedal.
ONX4N061005N
2. Start the engine or place the ignition
switch in the ON position.
1. Place the ignition switch in the LOCK/
OFF position.
3. Depress the brake pedal and put the
gear in R (Reverse).
2. Apply the parking brake.
3. Carefully lift the shift lever cover.
4. Move the shift lever while holding
the release button M with a tool (for
example, flathead screw-driver).
If you need to use the shift-lock release,
have the system inspected by an
authorized HYUNDAI dealer immediately.
6-18
CarManuals2.com
06
When the battery is discharged
Cluster Display Message
(button type):
(Button type)
You cannot shift gears when the battery
is discharged.
Information
In an emergency:
ś The actual message may differ from
1. Connect jumper cables from another
the following cluster display message.
vehicle or from another battery
following the “Jump Starting”
ś The following messages may differ
directions in Chapter 8.
depending on the vehicle model.
2. Release the parking brake with the
Shifting conditions not met. Reduce
ignition switch in the ON position.
speed, then shift
3. Shift the gear to N (Neutral). Refer to
This message appears when the engine
the “To stay in N (Neutral) when the
RPM is too high or when driving too fast
engine is OFF (button type)” section in
to shift gears.
this chapter.
Decrease the engine RPM or slow down
Parking
before shifting gears.
Always come to a complete stop and
Press brake pedal to change gear
continue to depress the brake pedal.
Shift the gear to P (Park), apply the
This message appears when the brake
parking brake, and place the ignition
pedal is not depressed while shifting out
switch in the LOCK/OFF position. Take
of P (Park).
the key with you when exiting the
Depress the brake pedal and then shift
vehicle.
the gear.
Shift to P after stopping
WARNING
This message appears when the gear is
ś When you stay in the vehicle with
shifted to P (Park) while the vehicle is
the engine running, be careful not
moving.
to depress the accelerator pedal for
a long time. The engine or exhaust
Stop the vehicle before shifting to P
system may overheat and start a fire.
(Park).
ś The exhaust gas and the exhaust
PARK engaged
system are so hot and may cause
burns. Keep away from the exhaust
Make sure that the vehicle is completely
system components.
stopped before shifting to P (Park).
ś Do not stop or park over flammable
Press and hold the OK button on the
materials, such as dry grass, paper,
steering wheel to stay in Neutral
or leaves. They may ignite and cause
a fire.
This message appears when pressing the
N (Neutral) button. If you want to stay in
N (Neutral) after turning off the engine,
press and hold the OK button on the
steering wheel more than 1 second.
6-19
CarManuals2.com
Driving Your Vehicle
Vehicle will stay in (N). Change gear

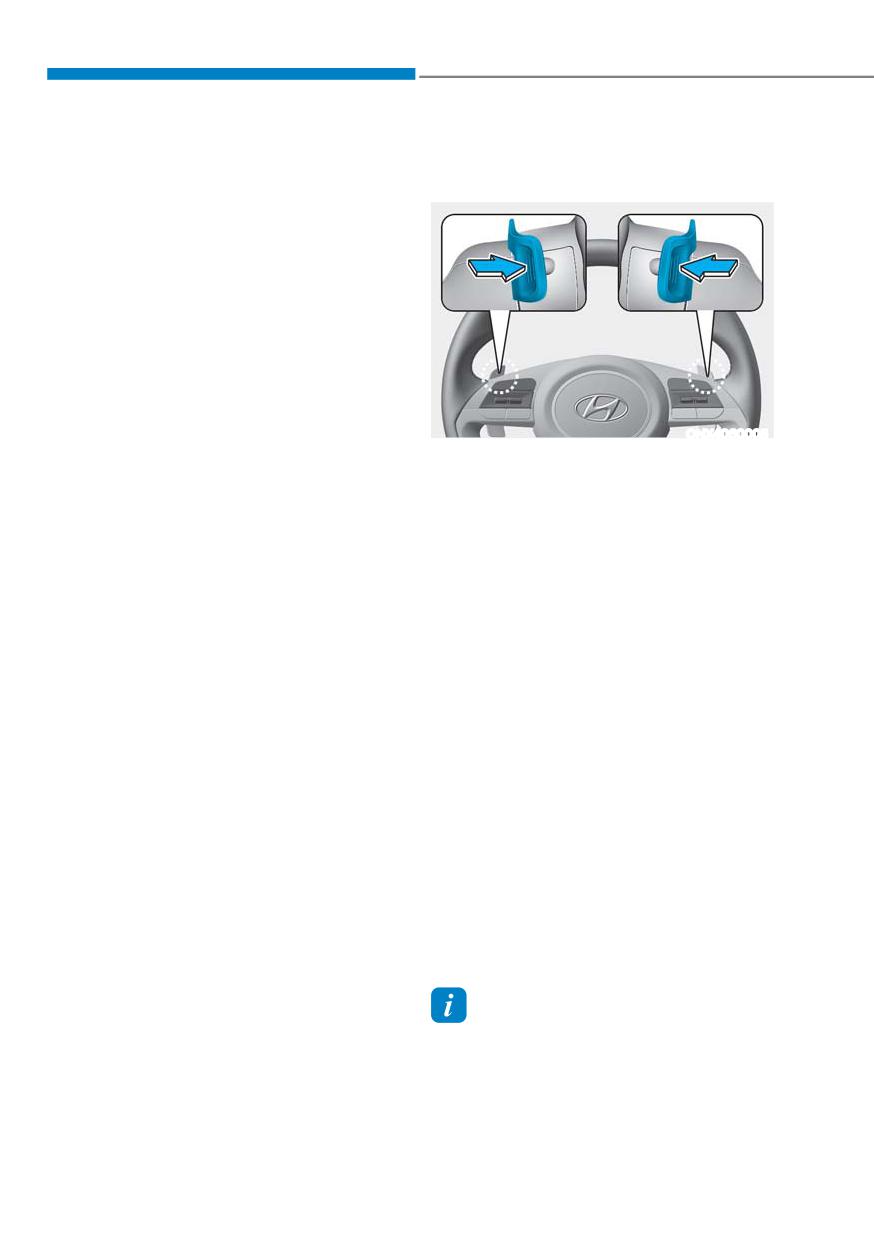

Paddle Shifter (Manual shift
to cancel
mode)
This message appears when pressing the
OK button on the steering wheel after
the message, “Press and hold OK button
to stay in Neutral when vehicle is Off”
appears. The gear stays in N (Neutral)
after turning off the engine.
NEUTRAL engaged
This message appears when the N
(Neutral) position is engaged.
Gear already selected
ONX4060005
This message appears when pressing the
The paddle shifter is available when the
current shift button again.
shift button is in the D (Drive) position.
Shift button held down
With the shift button in the D position
This message appears when the shift
The paddle shifter operates when the
button is pressed continuously or the
vehicle speed is more than 6 mph (10
shift button does not properly operate.
km/h).
Clean the area around the gear shift
Pull the [+] or [-] paddle shifter once
button.
to shift up or down one gear and the
Have the vehicle inspected by an
system changes from automatic mode to
authorized HYUNDAI dealer.
manual shift mode.
Shifter system malfunction! Service
To change back to automatic shift mode
immediately
from manual shift mode, do one of the
This message appears when the
followings:
transmission or the shift button does not
- Pull the [+] paddle shifter for more
properly operate in the P (Park) position.
than one second.
Immediately have the vehicle inspected
- Press the D button.
by an authorized HYUNDAI dealer.
The manual shift mode also changes
Check shift controls
back to automatic shift mode if:
This message appears when there is a
- The accelerator pedal is gently
malfunction with the transmission shift
depressed for more than 6 seconds
button.
while driving or the vehicle stops.
Immediately have the vehicle inspected
by an authorized HYUNDAI dealer.
Information
If the [+] and [-] paddle shifters are pulled
at the same time, gear shift may not
occur.
6-20
CarManuals2.com
06
Good Driving Practices
WARNING
ś
Never shift the gear from P (Park) or N
To reduce the risk of serious injury or
(Neutral) to any other gear when the
death:
accelerator pedal is depressed.
ś
Always wear your seatbelt. In a
ś
Never shift the gear into P (Park) when
collision, an unbelted occupant is
the vehicle is moving. Completely
significantly more likely to be seriously
stop before shifting into R (Reverse) or
injured or killed than a properly belted
D (Drive).
occupant.
ś
Do not shift to N (Neutral) when
ś
Avoid high speeds when cornering or
driving to prevent a loss of engine
turning.
braking and transmission damage that
ś
Do not make quick steering wheel
may cause a collision.
movements, such as sharp lane
ś
Never attempt to select a gear that is
changes or fast, sharp turns.
opposite the direction of the vehicle
ś
The risk of rollover greatly increases
motion. Check the gear position
if you lose control of your vehicle at
before driving. Stop the vehicle before
highway speeds.
shifting to the desired gear. The
engine may stop, causing a collision.
ś
Loss of control often occurs if two or
more wheels drop off the roadway
ś
Do not drive with your foot resting
and the driver over steers to reenter
on the brake pedal. Even light, but
the roadway.
consistent pedal pressure may result
in the brakes overheating, brake wear,
ś
In the event your vehicle leaves the
and possibly even brake failure.
roadway, do not steer sharply. Instead,
slow down before pulling back into
ś
When driving with shifter paddles or
the travel lanes.
using manual shift mode, slow down
before shifting to a lower gear. The
ś
HYUNDAI recommends you follow all
vehicle may not shift to a lower gear
posted speed limits.
if the engine RPMs are outside of the
allowable range.
ś
Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.
ś
Exercise extreme caution when
driving on a slippery surface. Be
especially careful when braking,
accelerating, or shifting gears. On a
slippery surface, an abrupt change in
the vehicle speed may cause the drive
wheels to lose traction and may cause
loss of vehicle control resulting in a
collision.
ś
Optimum vehicle performance and
economy is obtained by smoothly
depressing and releasing the
accelerator pedal.
6-21
CarManuals2.com
Driving Your Vehicle
%5$.,1* 6<67(0
Power-assist Brakes
ś When descending down a long or
steep hill, use the paddle shifter or
Your vehicle has power-assisted brakes
shift lever and manually downshift
that adjust automatically through normal
to a lower gear in order to control
usage.
your speed without using the brake
If the engine is not running or is turned
pedal excessively. Applying the
off while driving, the power assist for
brakes continuously will cause the
the brakes does not work. You can still
brakes to overheat and may result
stop your vehicle by applying greater
in a temporary loss of braking
force to the brake pedal than typical.
performance.
The stopping distance, however, may be
ś Wet brakes may impair the vehicle's
longer than with power brakes.
ability to safely slow down and the
When the engine is not running, the
vehicle may also pull to one side when
reserve brake power is partially depleted
the brakes are applied. Applying the
each time the brake pedal is depressed.
brakes lightly indicates whether they
Do not pump the brake pedal when the
have been affected in this way. Always
power assist has been interrupted.
test your brakes in this fashion after
driving through deep water. To dry the
brakes, lightly tap the brake pedal to
Information
heat up the brakes while maintaining
ś When the brake pedal is depressed
a safe forward speed until the brake
under certain driving conditions
performance returns to normal. Avoid
or weather conditions, you may
driving at high speeds until the brakes
temporarily hear a noise. This is
function correctly.
normal and does not indicate a
problem with your brakes.
Disc Brakes Wear Indicator
ś While driving on a road with deicing
When your brake pads are worn and new
chemicals, brake noise or abnormal
pads are required, you may hear a high
tire wear may occur due to deicing
pitched warning sound from your front
chemicals. In a safe traffic condition,
or rear brakes. You may hear this sound
additionally apply the brakes to
come and go or it may occur whenever
remove deicing chemicals on the
you depress the brake pedal.
brake discs and pads.
Information
WARNING
Always replace both the left and right
Take the following precautions:
brake pads on the front and rear axles at
ś Do not drive with your foot resting
the same time.
on the brake pedal. This creates
abnormal high brake temperatures,
excessive brake lining and pad wear,
and increased stopping distances.
6-22
CarManuals2.com
06

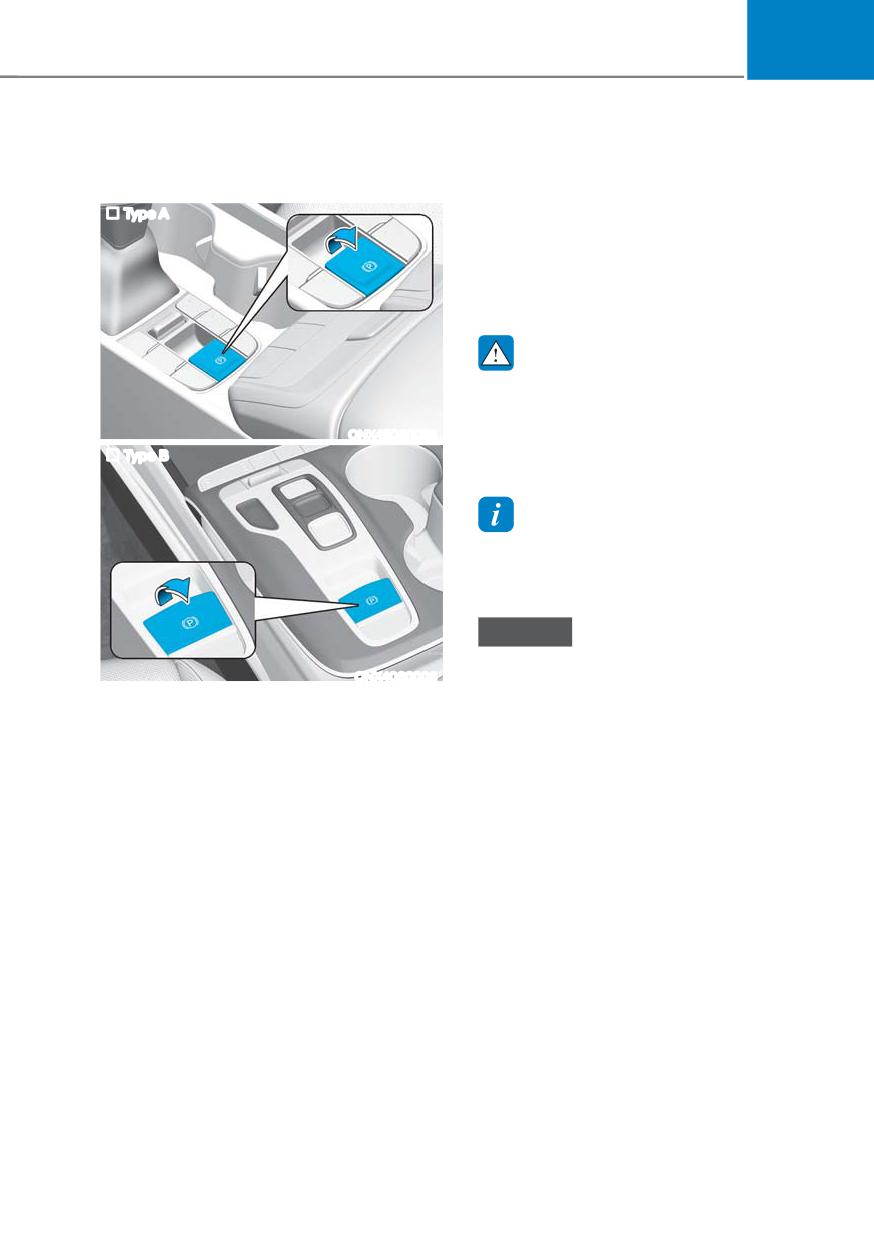

Electronic Parking Brake (EPB)
Emergency braking

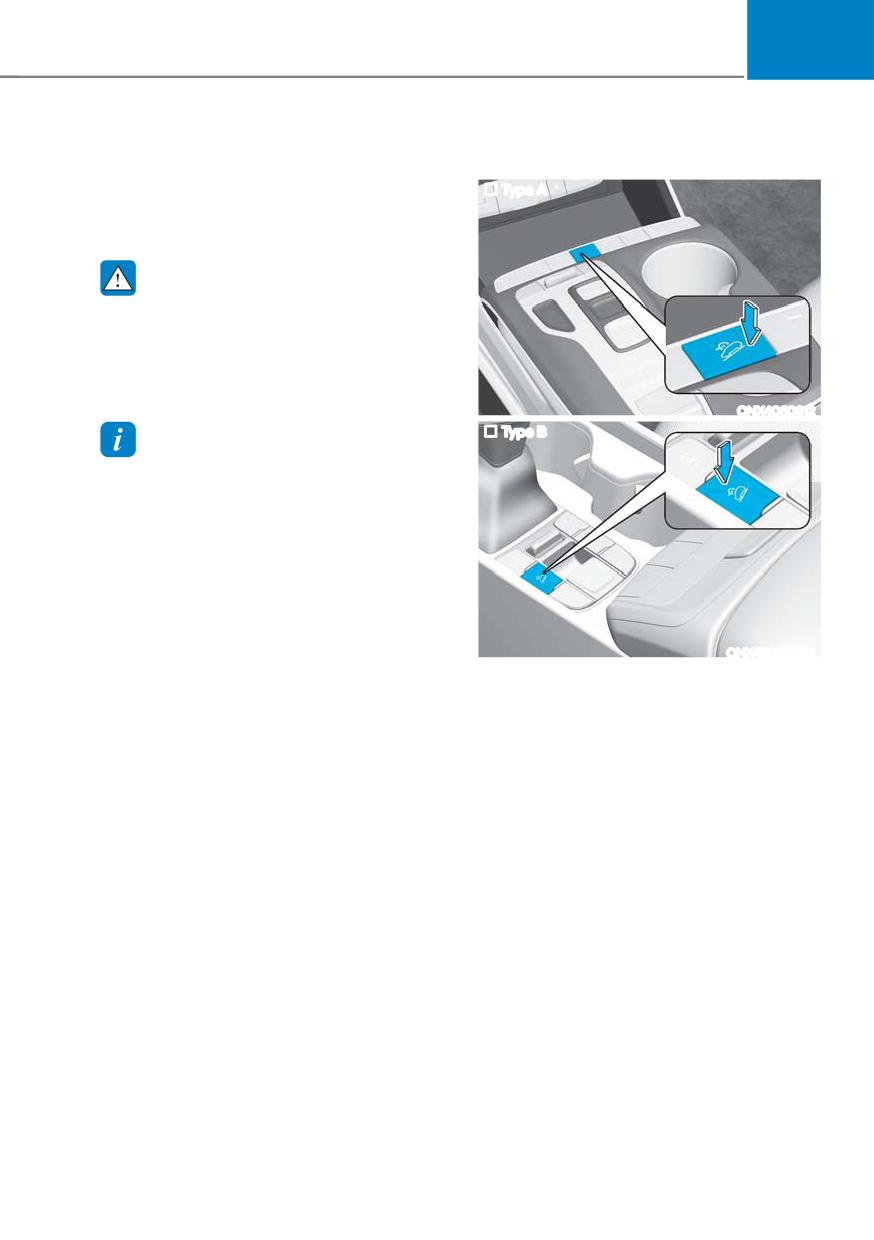

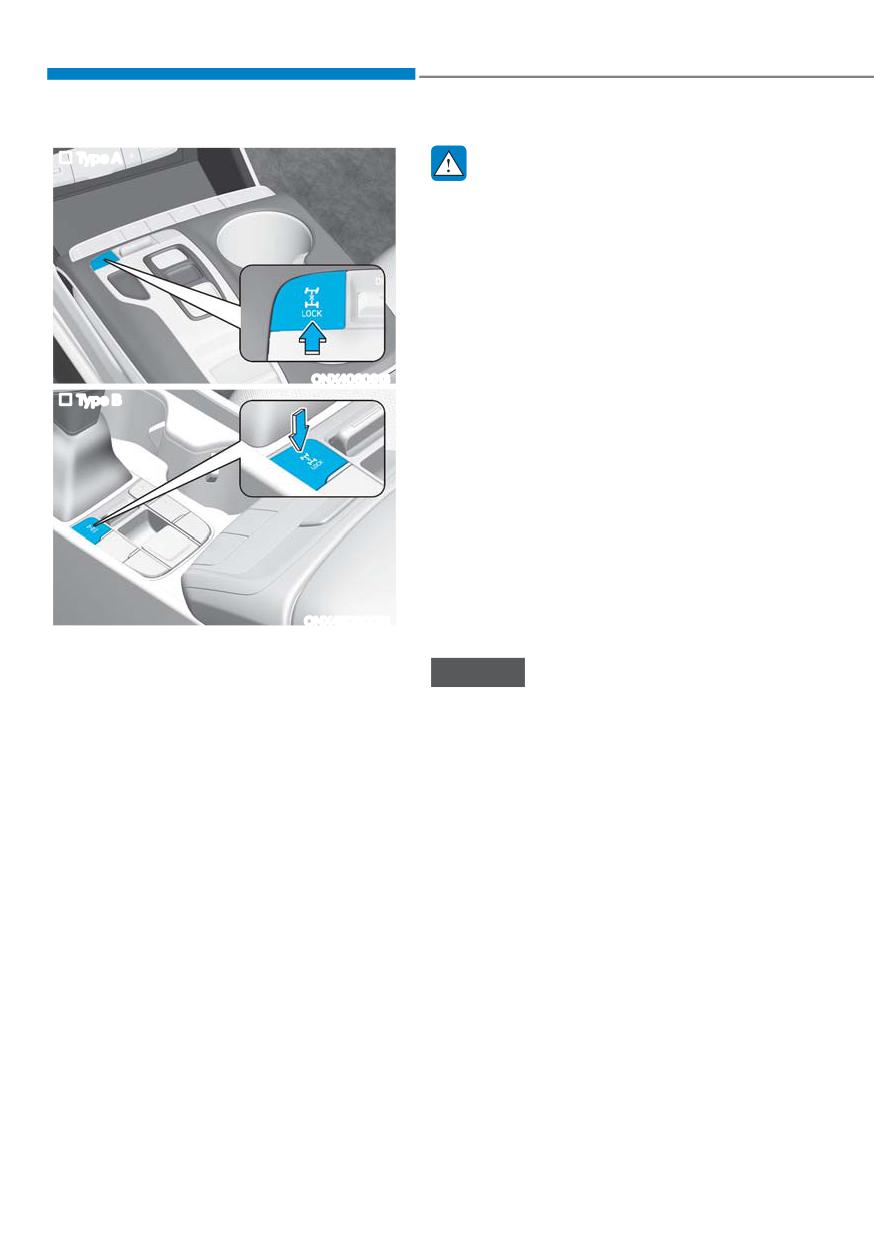

Applying the parking brake
If there is a problem with the brake
pedal while driving, emergency braking
„ Type A
is possible by pulling up and holding
the EPB switch. Braking is possible only
while you are holding the EPB switch.
However, braking distance may be longer
than normal.
WARNING
To reduce the risk of serious injury or
death, do not operate the EPB while
the vehicle is moving except in an
ONX4E060036
emergency situation. It may damage the
„ Type B
brake system and cause a collision.
Information
During emergency braking, the Parking
Brake warning light illuminates and you
may hear a clicking noise.
NOTICE
If you notice a noise or burning smell
ONX4060006
when the EPB is used for emergency
To apply EPB (Electronic Parking Brake):
braking, have the system inspected by an
authorized HYUNDAI dealer.
1. Depress and hold the brake pedal.
2. Pull up the EPB switch.
Make sure the Parking Brake warning
light comes on.
EPB (Electronic Parking Brake) may be
automatically applied when:
ś Requested by other systems.
ś The driver turns the vehicle off while
Auto Hold is operating.
6-23
CarManuals2.com
Driving Your Vehicle

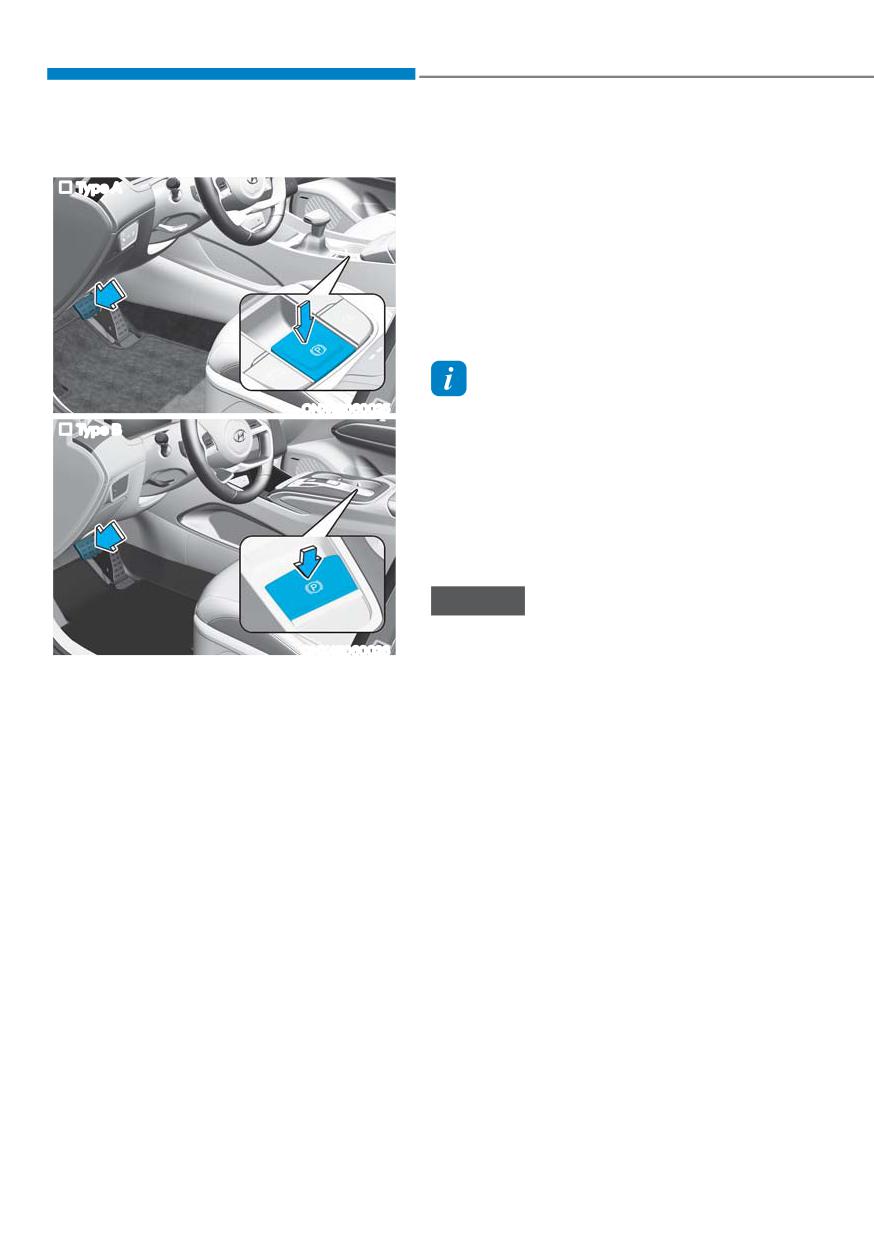

Releasing the parking brake
To release EPB (Electronic Parking Brake)
automatically:
„ Type A
ś Gear in P (Park) or in N (Neutral)
With the engine running, depress the
brake pedal and shift out of P (Park) or
N (Neutral) to R (Reverse) or D (Drive).
Make sure the doors, hood, and
liftgate are closed and the seat belt is
fastened.
Information
ONX4E060025
ś You can engage EPB even though
„ Type B
the ignition switch is in the LOCK/
OFF position (only if battery power is
available), but you cannot release it.
ś Depress the brake pedal and release
the parking brake manually with the
EPB switch before you drive downhill
or when backing up.
NOTICE
ś If the Parking Brake warning light is
ONX4E060026
still on even though the EPB has been
To release EPB (Electronic Parking
released, have the system inspected
Brake):
by an authorized HYUNDAI dealer.
1. Move the ignition switch to ON or
ś Do not drive your vehicle with EPB
applied. It may cause excessive brake
START.
pad and brake rotor wear.
2. Press the EPB switch while depressing
the brake pedal.
Make sure the Parking Brake warning
light goes off.
6-24
CarManuals2.com
06

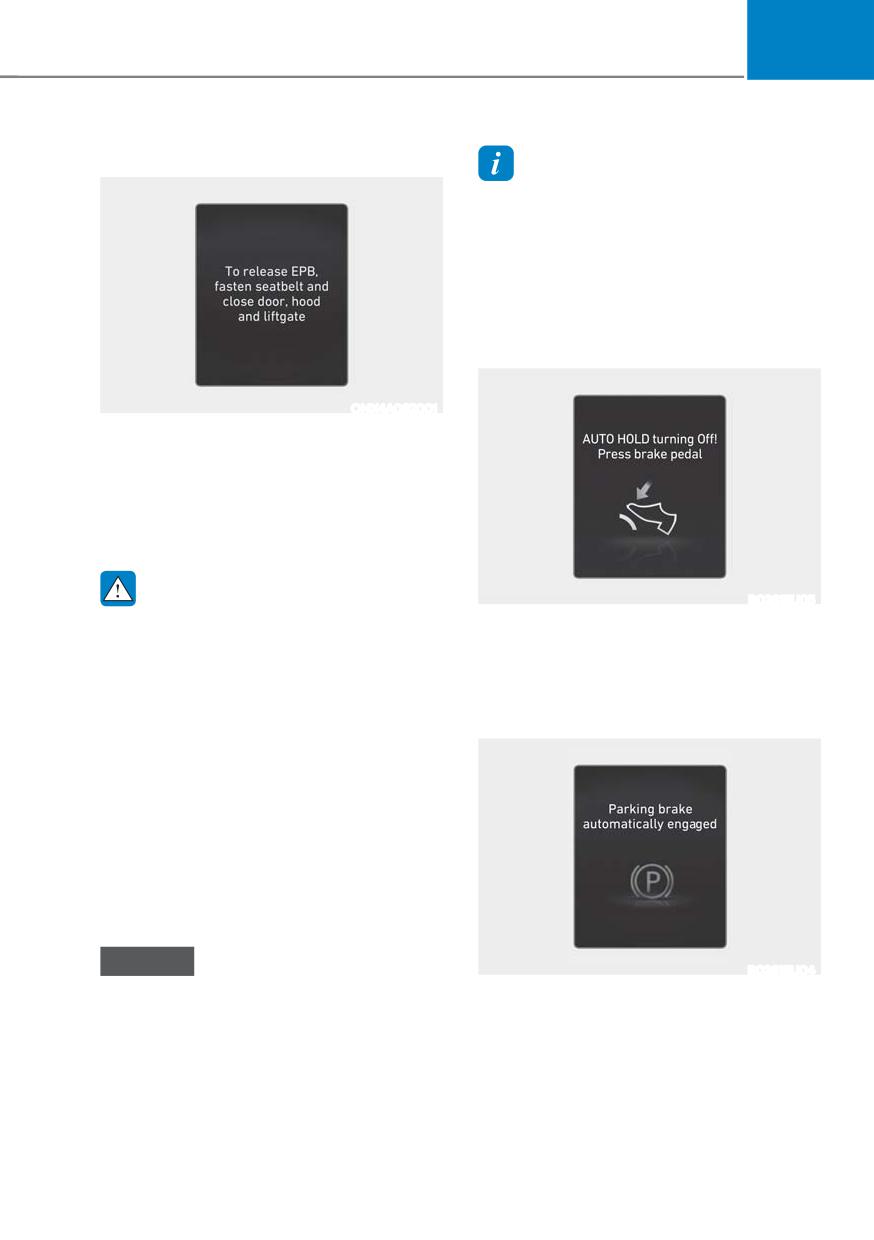

Warning messages
Information
ś A clicking sound may be heard while
operating or releasing the EPB. These
conditions are normal and indicate
that EPB is functioning properly.
ś When leaving your keys with a parking
attendant or assistant, be sure to
inform him/her how to operate the
EPB.
ONX4A062001
To release EPB, fasten seatbelt and close
door, hood and liftgate
If the driver's seat belt is unfastened,
or the hood, liftgate, doors are open,
and you try to drive with EPB applied, a
warning sounds and a message appears.
WARNING
B0261EU05
To prevent serious injury or death from
AUTO HOLD turning Off! Press brake
unintended vehicle movement:
pedal
ś Always come to a complete stop and
When the conversion from Auto Hold to
continue to depress the brake pedal
EPB is not working properly, a warning
before parking, shift the gear into P
sounds and a message appears.
(Park), pull up the EPB switch, and
move the ignition switch to the LOCK/
OFF position. Take the key with you
when leaving the vehicle.
ś Never allow anyone who is unfamiliar
with the vehicle to touch the EPB
switch.
ś Only release EPB when you are seated
inside the vehicle with your foot firmly
on the brake pedal.
NOTICE
B0261EU04
Driving with the parking brake on may
Parking brake automatically engaged
overheat the braking system and cause
When EPB is applied while Auto Hold
premature wear or damage to brake
is activated, a warning sounds and a
parts.
message appears.
6-25
CarManuals2.com
Driving Your Vehicle
EPB malfunction
Parking brake warning light
Electronic Parking Brake (EPB) warning
This light illuminates when the
light illuminates if the ignition switch is
Parking Brake is applied with
in the ON position and goes off in about
the ignition switch in the START
3 seconds if the system is operating
or ON position.
normally.
Before driving, make sure the Parking
If the EPB warning light remains on,
Brake is released and the Parking Brake
comes on while driving, or does not
warning light is OFF.
come on when the ignition switch is ON,
If the Parking Brake warning light
the EPB may have malfunctioned.
remains on after the Parking Brake is
If this occurs, have the system inspected
released while the engine is running,
by an authorized HYUNDAI dealer.
there may be a malfunction in the brake
The EPB warning light may illuminate
system.
when the ESC indicator comes on to
If possible, stop driving the vehicle
indicate that ESC is not working properly,
immediately. If that is not possible,
but it does not indicate a malfunction of
use extreme caution while operating
EPB.
the vehicle and only continue to drive
the vehicle until you can reach a safe
location.
NOTICE
ś If the Parking Brake warning light does
not illuminate or blinks after the EPB
switch has been pulled, the EPB may
not be applied.
ś If the EPB warning light is still on or
the Parking Brake warning light blinks
when the EPB warning light is on,
press the switch, and then pull it up.
Repeat this one more time. If the EPB
warning does not go off, have your
vehicle towed on a flatbed tow truck
to an authorized HYUNDAI dealer.
6-26
CarManuals2.com
06

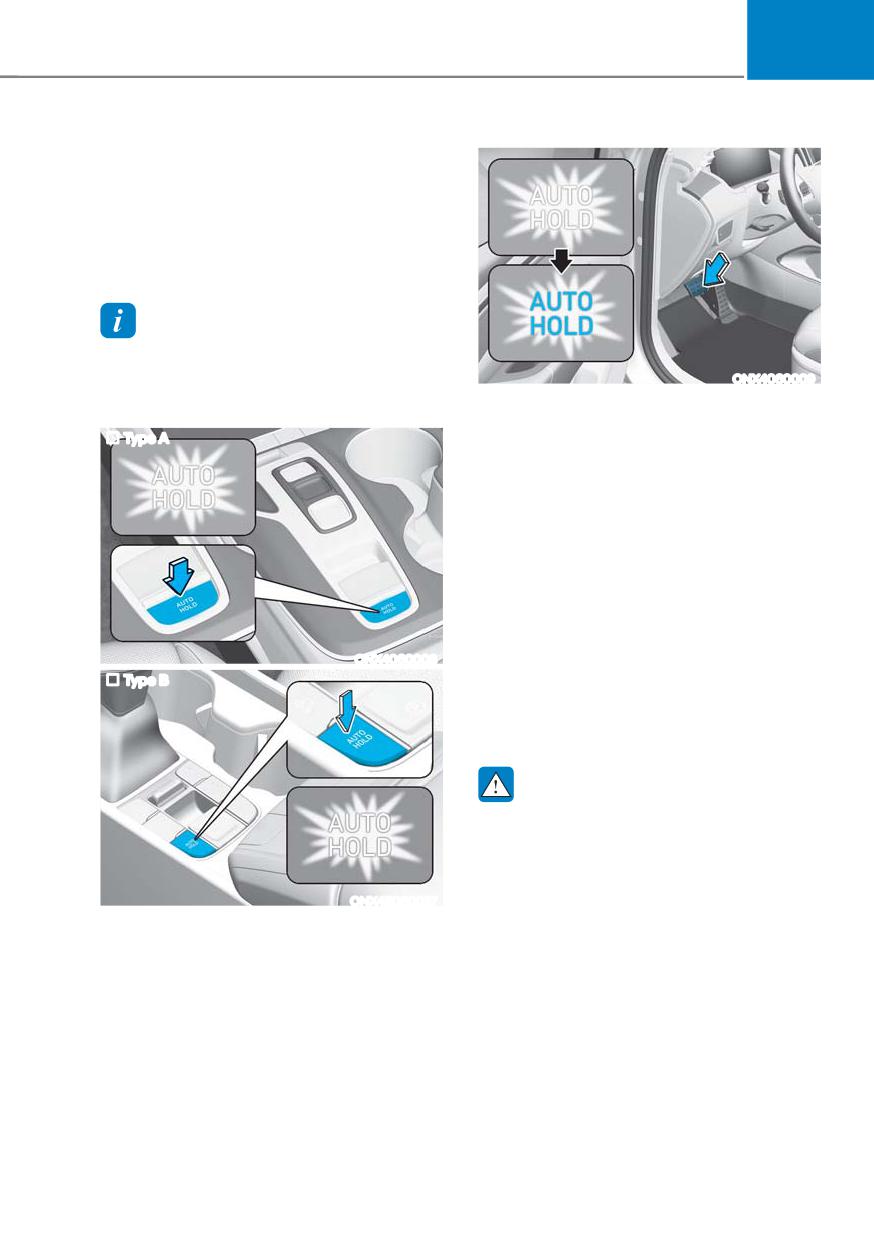

Auto Hold
Auto Hold maintains the vehicle in a
standstill even though the brake pedal is
not depressed after the driver brings the
vehicle to a complete stop by depressing
the brake pedal.
Information
When the vehicle is restarted, the last
setting for Auto Hold is applied.
ONX4060009
2. When you stop the vehicle completely
To apply:
by depressing the brake pedal, Auto
„ Type A
Hold maintains the brake pressure
to hold the vehicle stationary. The
indicator changes from white to
green.
The vehicle remains stationary even if
you release the brake pedal.
To release:
If you depress the accelerator pedal
with the gear in D (Drive) or manual shift
ONX4060008
mode or R (Reverse) (vehicle equipped
„ Type B
with shift button), the Auto Hold is
released automatically and the vehicle
starts to move. The AUTO HOLD indicator
changes from green to white.
WARNING
Always look around your vehicle before
depressing the accelerator pedal to
release Auto Hold.
ONX4E060027
1. With the driver’s door, hood, and
liftgate (vehicles equipped with
shift button) closed, press the AUTO
HOLD switch. The white AUTO HOLD
indicator comes on and the system is
in standby.
6-27
CarManuals2.com
Driving Your Vehicle

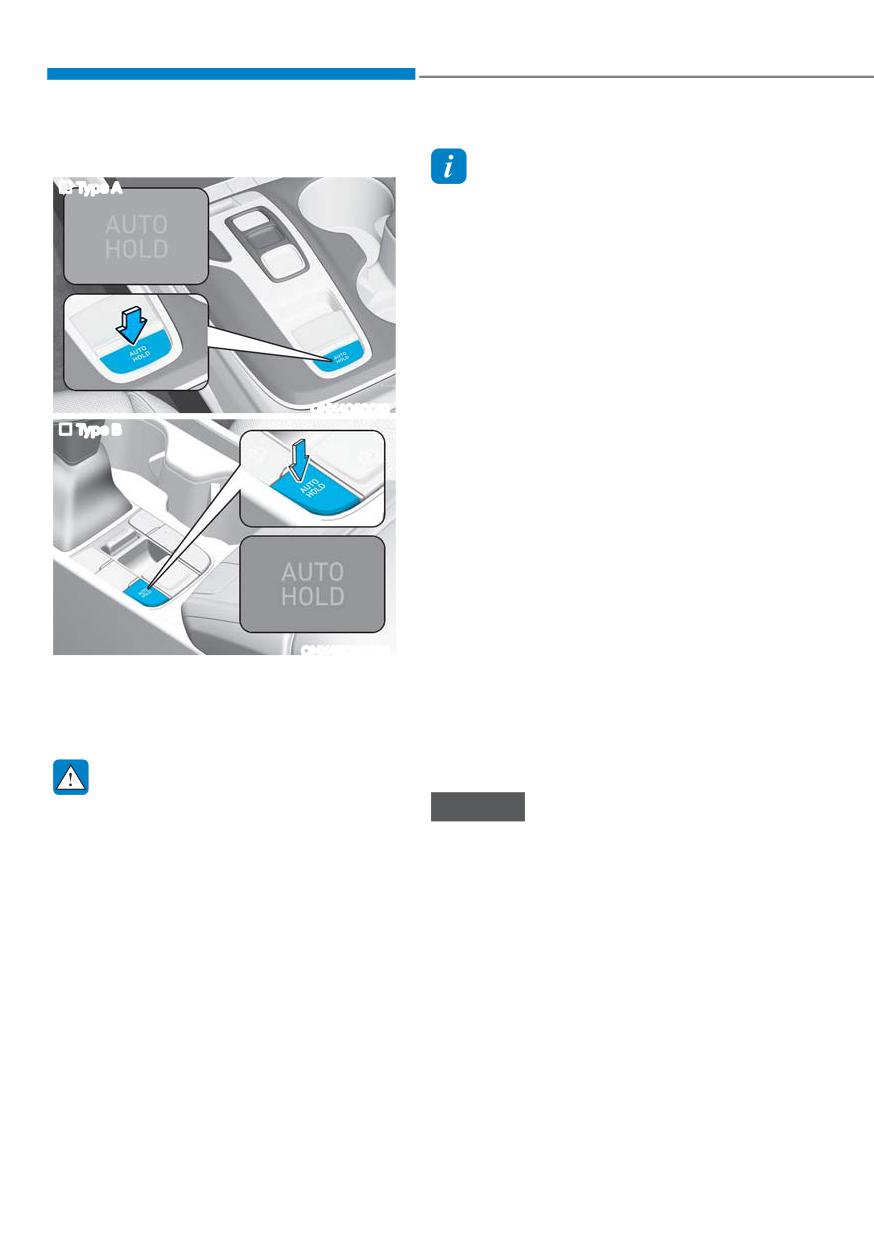

To cancel:
Information
„ Type A
ś
The Auto Hold does not operate when:
- The driver's door or hood is opened.
- The liftgate is opened (for vehicles
equipped with shift button).
- The gear is in P (Park).
- The gear is in R (Reverse) (for
vehicles equipped with shift lever).
- EPB is applied.
ś
The Auto Hold automatically switches
ONX4060010
to EPB when:
„ Type B
- The driver's door or hood is opened.
- The vehicle is in a standstill for more
than 10 minutes.
- The vehicle is on a steep slope.
- The vehicle moves several times.
- The liftgate is opened.
The Parking Brake warning light
comes on, the AUTO HOLD indicator
changes from green to white, and
a warning sounds and a message
ONX4E060028
appears to inform you that EPB has
1. Depress and hold the brake pedal.
been automatically engaged. Before
2. Press the AUTO HOLD switch.
driving, depress the brake pedal,
check the surrounding area, and
The AUTO HOLD indicator turns off.
release the parking brake manually
with the EPB switch.
WARNING
To prevent unintended vehicle
NOTICE
movement, always depress your foot on
If the AUTO HOLD indicator changes
the brake pedal to cancel the Auto Hold
to yellow, or the driver's door, hood,
before you:
or liftgate open detection system
ś Drive downhill.
malfunctions, Auto Hold does not
ś Drive the vehicle in R (Reverse). (for
work properly. Contact an authorized
vehicles equipped with shift button)
HYUNDAI dealer.
ś Park the vehicle.
6-28
CarManuals2.com
06

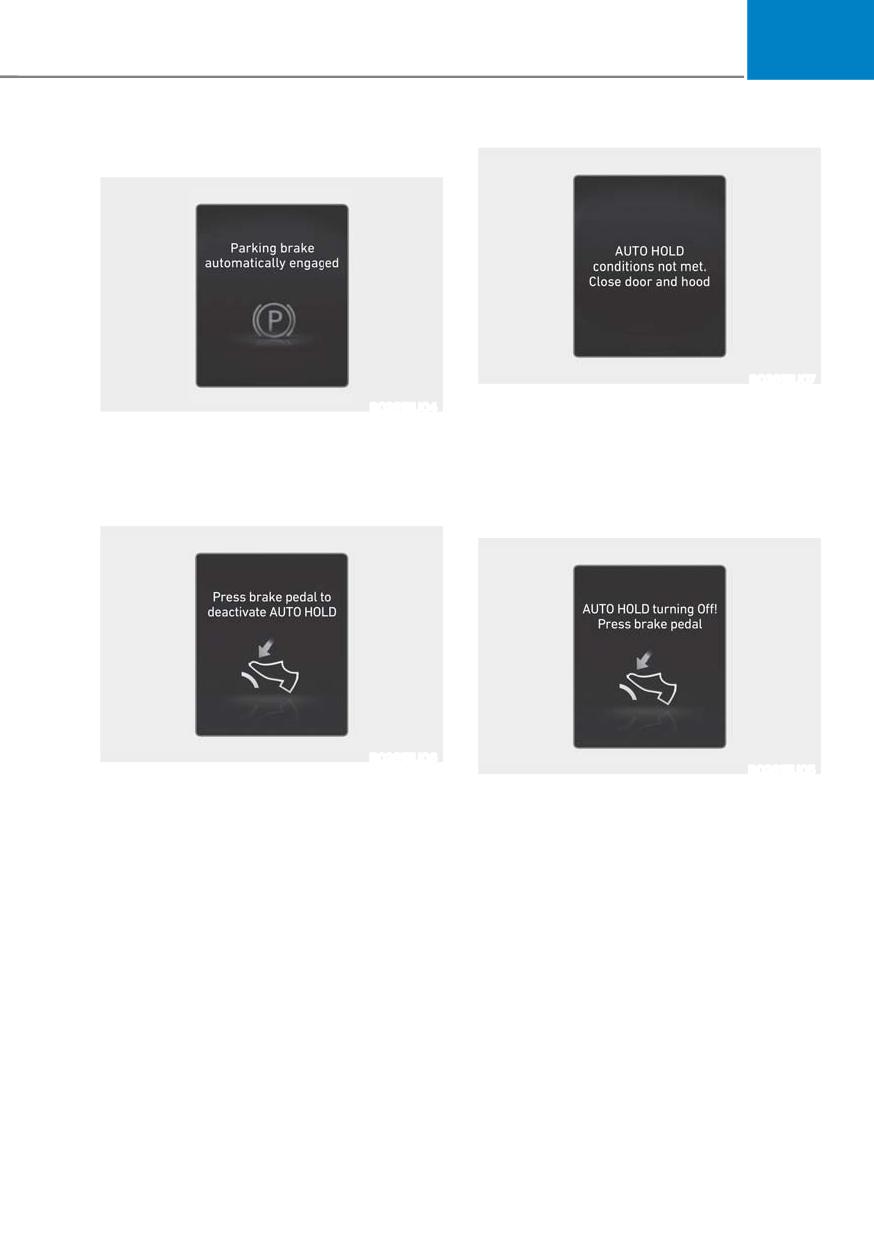

Warning messages
B0261EU07
B0261EU04
AUTO HOLD conditions not met.
Close door and hood
Parking brake automatically engaged
When you press the AUTO HOLD switch,
When EPB is applied while Auto Hold
if the driver's door and hood are not
is activated, a warning sounds and a
closed, a warning sounds and a message
message appears.
appears on the cluster display.
B0261EU06
B0261EU05
Press brake pedal to deactivate AUTO
AUTO HOLD turning Off! Press brake
HOLD
pedal
If you did not apply the brake pedal when
When the conversion from Auto Hold to
you release Auto Hold by pressing the
EPB is not working properly, a warning
AUTO HOLD switch, a warning sounds
sounds and a message appears.
and a message appears.
6-29
CarManuals2.com
Driving Your Vehicle
Anti-lock Brake System (ABS)
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
WARNING
do not attempt to modulate your brake
Anti-Lock Braking System (ABS) or
pressure and do not try to pump your
Electronic Stability Control (ESC)
brakes. Depress your brake pedal as hard
system does not prevent accidents
as possible.
due to improper or dangerous driving
When you apply your brakes under
maneuvers. Even though vehicle control
conditions that may lock the wheels, you
is improved during emergency braking,
may hear sounds from the brakes, or feel
always maintain a safe distance between
a corresponding sensation in the brake
you and objects ahead of you. Always
pedal. This is normal and it means your
reduce the vehicle speed in extreme road
ABS is active.
conditions.
ABS does not reduce the time or distance
The braking distance for vehicles
to stop the vehicle.
equipped with ABS or ESC may be longer
Always maintain a safe distance from the
than for those without these systems in
vehicle in front of you.
the following road conditions:
ABS does not prevent a skid that results
ś Rough, gravel, or snow-covered roads.
from sudden changes in direction, such
ś On roads where the road surface is
as trying to take a corner too fast or
pitted or has different surface height.
making a sudden lane change. Always
ś Tire chains are installed on your
drive at a safe speed for the road and
vehicle.
weather conditions.
Never test the safety features of an
ABS cannot prevent a loss of stability.
ABS or ESC equipped vehicle by high
Always steer moderately when braking
speed driving or cornering. It may cause
hard. Severe or sharp steering wheel
a collision and endanger the safety of
movement can still cause your vehicle to
yourself or others.
veer into oncoming traffic or off the road.
On loose or uneven road surfaces,
ABS is an electronic braking system that
operation of the anti-lock brake system
helps prevent a braking skid. ABS allows
may result in a longer stopping distance
the driver to steer and brake at the same
than for vehicles equipped with a
time.
conventional brake system.
The ABS (
) warning light stays on for
several seconds after the ignition switch
is in the ON position.
During that time, ABS goes through
self-diagnosis and the light goes off if
everything is normal. If the light stays on,
contact an authorized HYUNDAI dealer
as soon as possible.
6-30
CarManuals2.com
06
WARNING

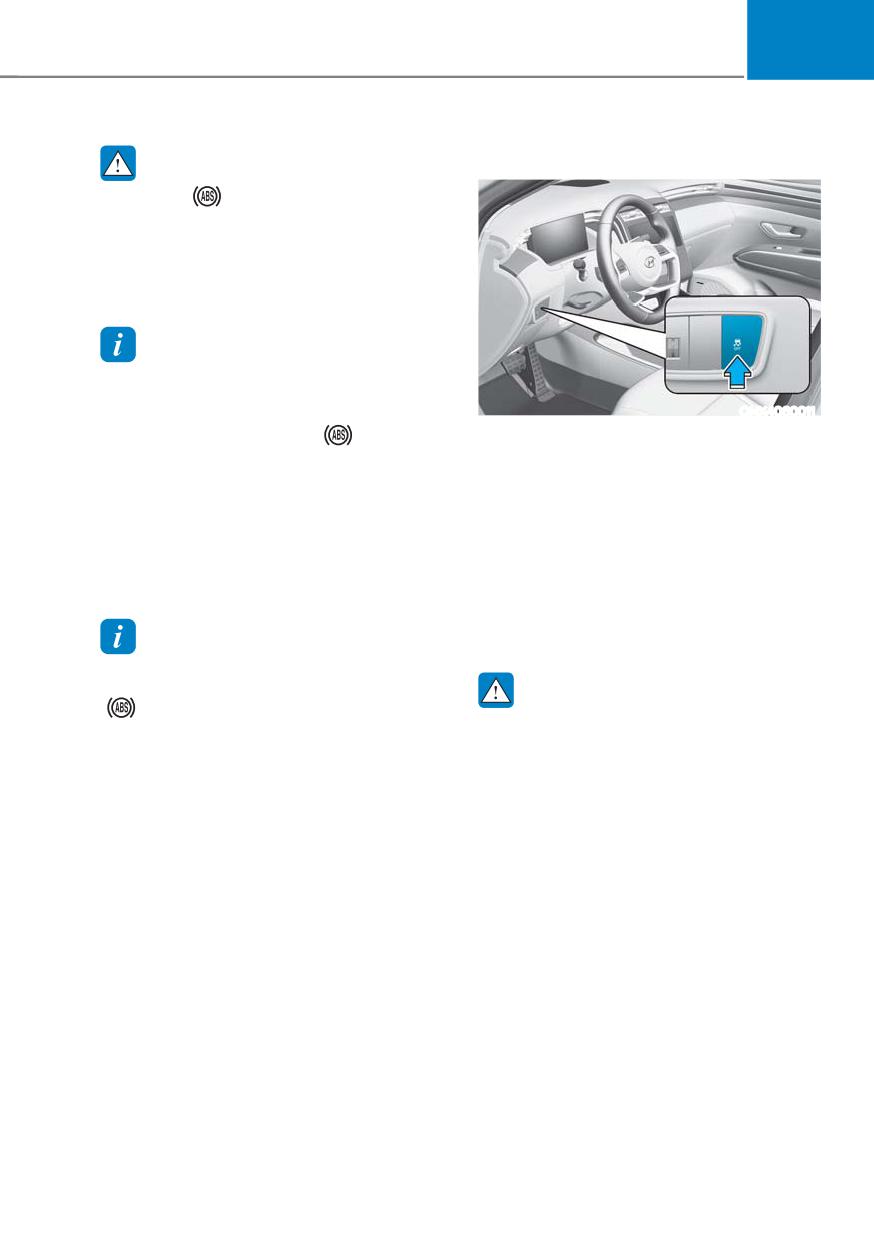

Electronic Stability Control (ESC)
If the ABS (
) warning light is on
and stays on, you may have a problem
with the ABS. Your power brakes work
normally. To reduce the risk of serious
injury or death, contact your authorized
HYUNDAI dealer as soon as possible.
Information
When you drive on a road having poor
traction, such as an icy road, and apply
ONX4060011
your brakes continuously, ABS is active
continuously and the ABS (
) warning
Electronic Stability Control helps stabilize
light may illuminate. Pull your vehicle
the vehicle during cornering maneuvers.
over to a safe place and turn off the
ESC checks where you are steering and
vehicle.
where the vehicle is actually going. ESC
Restart the vehicle. If the ABS warning
applies braking pressure to any one of
light is off, your ABS system is normal.
the vehicle's brakes and intervenes in the
engine management system to assist the
If not, contact an authorized HYUNDAI
dealer as soon as possible.
driver with keeping the vehicle on the
intended path. It is not a substitute for
safe driving practices. Always adjust your
Information
speed and driving to the road conditions.
When you jump start your vehicle
because of a drained battery, the ABS
WARNING
(
) warning light may turn on at the
same time. It does not mean your ABS
Never drive too fast for the road
conditions when cornering. ESC does not
is malfunctioning. Have the battery
recharged before driving the vehicle.
prevent a collision.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on wet
surfaces may result in severe collisions.
6-31
CarManuals2.com
Driving Your Vehicle
ESC operation
ESC OFF condition
ESC ON condition
To cancel ESC operation:
When the ignition switch is in the ON
position, ESC and the ESC OFF indicator
lights illuminate for about three seconds.
ś
State 1
After both lights go off, ESC is enabled.
Press the ESC OFF button briefly.
The ESC OFF indicator light and the
When operating
message, "Traction Control disabled"
When ESC is operating, the ESC
illuminate.
indicator light blinks:
The traction control function of ESC
(engine management) is disabled,
but the brake control function of ESC
ś When you apply your brakes under
(braking management) still operates.
conditions that may lock the wheels,
you may hear sounds from the brakes,
ś
State 2
or feel a corresponding sensation in
Press and hold the ESC OFF button
the brake pedal.
continuously for more than 3 seconds.
ś If Cruise Control has been used
The ESC OFF indicator light and
when ESC activates, Cruise Control
the message, "Traction & Stability
automatically disengages. Refer to
Control disabled" illuminate and a
the “Cruise Control (CC)” section in
warning chime sounds. Both the
Chapter 7 (if equipped).
traction control function of ESC
(engine management) and the brake
ś When moving out of the mud or
driving on a slippery road, the engine
control function of ESC (braking
management) are disabled.
RPM (revolutions per minute) may
not increase even if you depress the
If the ignition switch is moved to the
accelerator pedal all the way. This is
LOCK/OFF position when ESC is off,
to maintain the stability and traction
ESC remains off. Upon restarting the
of the vehicle and does not indicate a
vehicle, ESC automatically turns on
problem.
again.
6-32
CarManuals2.com
06

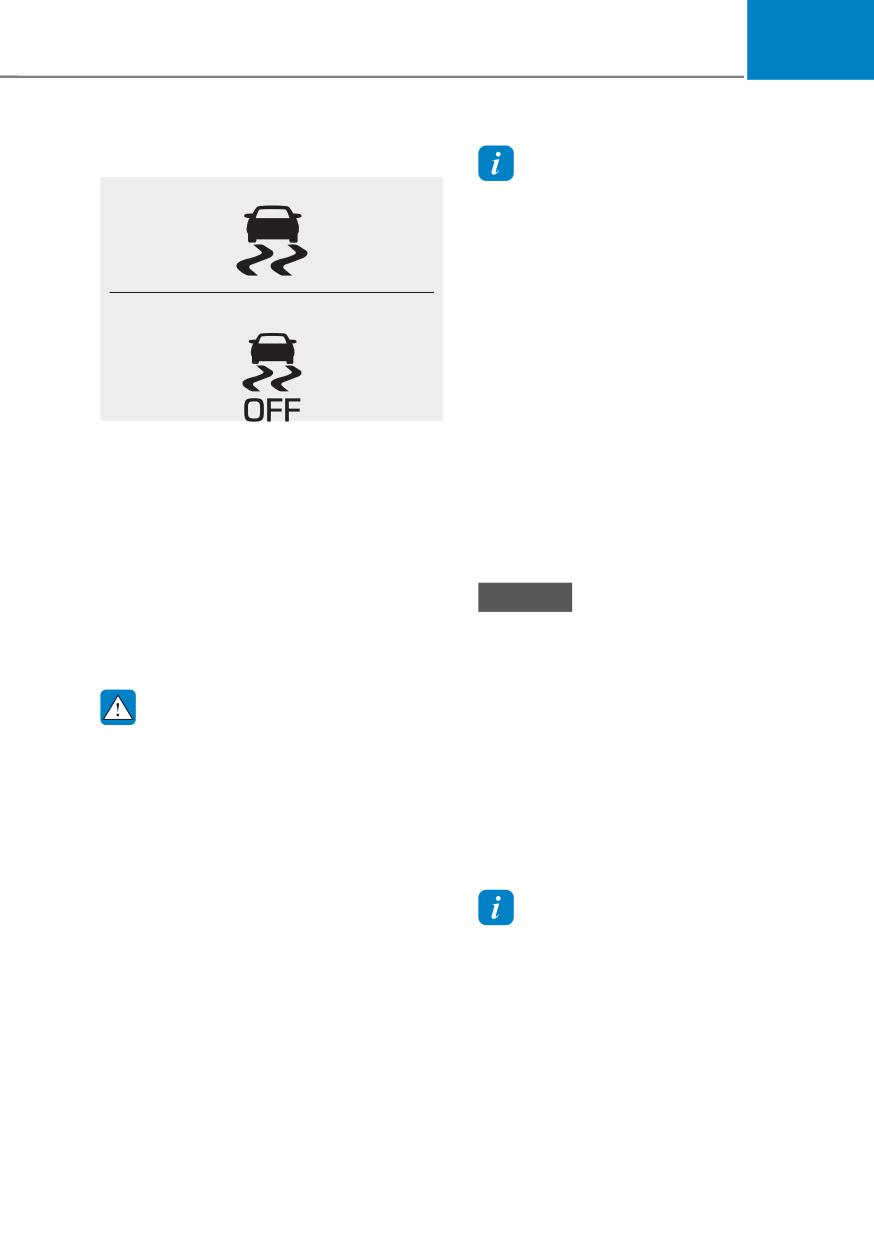

Indicator lights
Information
Ŷ ESC indicator light (blinks)
Driving with wheels and tires with
different sizes may cause the ESC system
to malfunction. Before replacing tires,
make sure all four tires and wheels are
the appropriate size for your vehicle.
Never drive the vehicle with different
Ŷ ESC OFF indicator light (comes on)
sized wheels and tires installed.
ESC OFF usage
When Driving
The ESC OFF mode should only be used
briefly to help free the vehicle if stuck in
When the ignition switch is in the
snow or mud, by temporarily stopping
ON position, the ESC indicator light
operation of ESC, to maintain wheel
illuminates, then goes off if the ESC
torque.
system is operating normally.
To turn off ESC while driving, press the
The ESC indicator light blinks whenever
ESC OFF button while driving on a flat
ESC is operating.
road surface.
If the ESC indicator light stays on, have
your vehicle inspected by an authorized
NOTICE
HYUNDAI dealer as soon as possible.
To prevent damage to the transmission:
The ESC OFF indicator light comes on
when ESC is turned off.
ś Do not allow wheel(s) of one axle
to spin excessively while the ESC,
ABS, and Parking Brake warning
WARNING
lights appear. The repairs would not
be covered by the vehicle warranty.
When ESC is blinking, this indicates ESC
Reduce engine power and do not spin
is active:
the wheel(s) excessively while these
ś Drive slowly and NEVER attempt to
lights appear.
accelerate.
ś When operating the vehicle on a
ś Never turn off ESC while the ESC
dynamometer, make sure ESC is
indicator light is blinking. You may
turned off (ESC OFF light illuminated).
lose control of the vehicle and collide.
Information
Turning ESC off does not affect ABS or
standard brake system operation.
6-33
CarManuals2.com
Driving Your Vehicle
Vehicle Stability Management
VSM OFF condition
(VSM)
To cancel VSM operation, press the ESC
OFF button. ESC OFF (
) indicator light
Vehicle Stability Management is a
illuminates.
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
To turn on VSM again, press the ESC OFF
stay stable when accelerating or braking
button again. The ESC OFF indicator light
suddenly on wet, slippery, and rough
goes out.
roads where traction over the four tires
can suddenly become uneven.
WARNING
If the ESC (
) indicator light or MDPS
WARNING
(
) warning light stays illuminated
VSM is not a substitute for safe driving
or blinks, your vehicle may have a
practices. To prevent serious injury or
malfunction with the VSM system. Have
death:
the vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.
ś Always monitor the speed and the
distance to the vehicle ahead of you.
Trailer Stability Assist (TSA)
ś Never drive too fast for the road
conditions. Excessive speed in bad
Trailer Stability Assist is operated as a
weather or on slippery and uneven
vehicle stability control system. The
roads may result in severe collisions.
Trailer Stability Assist stabilizes the
vehicle and trailer when the trailer sways
VSM operation
or oscillates. In most cases, trailer sway
happens at high speeds.
When operating
Factors that can cause trailer sway
When you apply your brakes under
include:
conditions that can activate ESC, you
may hear sounds from the brakes, or feel
- High speed
a corresponding sensation in the brake
- Strong crosswinds
pedal. This is normal and it means your
- Improper overloading
VSM is active.
- Sudden steering inputs
- Uneven road
Information
VSM does not operate when:
When the Trailer Stability Assist detects
sway, the front brakes are applied
ś Driving on a banked road such as
automatically. If it is not enough braking,
gradient or incline.
the brakes are applied on all wheels
ś Driving in reverse.
automatically and engine power is
ś The ESC OFF indicator light is on.
reduced.
ś The MDPS (Motor Driven Power
Steering) warning light (
) is on or
blinks.
6-34
CarManuals2.com
06
Hill-Start Assist Control (HAC)
Downhill Brake Control (DBC)
Hill-Start Assist Control helps prevent
„ Type A
the vehicle from rolling backwards when
starting from a stop on a hill.
WARNING
Always be ready to depress the
accelerator pedal when starting from
a stop on an uphill slope. Hill-Start
Assist Control activates only for about 2
seconds.
ONX4060012
„ Type B
Information
ś Hill-Start Assist Control does not
operate when the gear is shifted to P
(Park) or N (Neutral).
ś Hill-Start Assist Control activates even
when the ESC (Electronic Stability
Control) is off. It does not activate, if
the ESC is not operating normally.
ONX4E060029
Downhill Brake Control assists when
descending down a steep hill without
having to depress the brake pedal.
The system automatically applies the
brakes to maintain vehicle speed below
a certain speed and allows the driver
to concentrate on steering the vehicle
down hill.
The system is turned off whenever the
engine is turned off.
Press the button to turn on the system
and press the button again to turn it off.
6-35
CarManuals2.com
Driving Your Vehicle

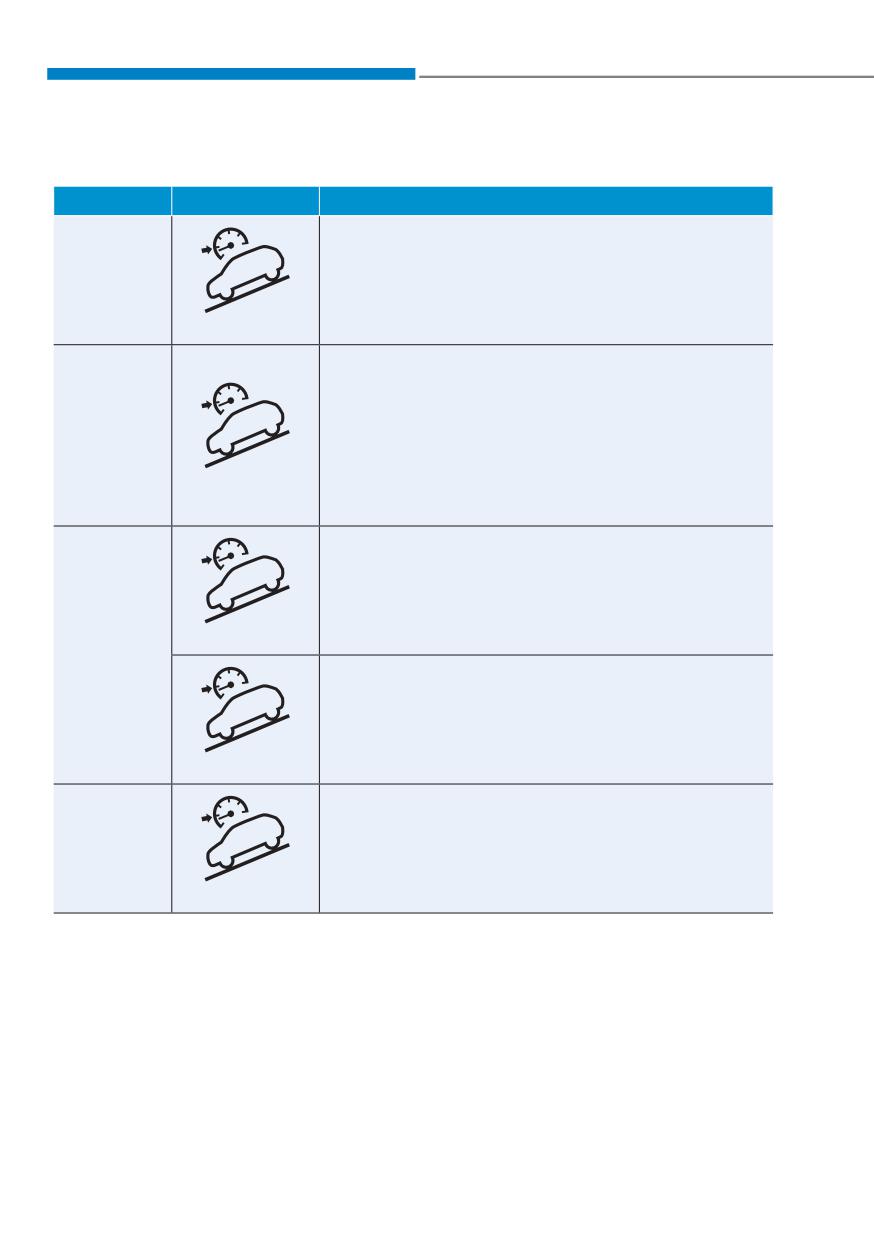

System operation
Mode
Indicator
Description
Press the Downhill Brake Control button when vehicle
speed is under 37 mph (60 km/h). Downhill Brake
Standby
Control turns on and enters the standby mode. The
system does not turn on if vehicle speed is over 37 mph
(60 km/h).
Green light on
In the standby mode, Downhill Brake Control activates
under the following conditions:
ś The hill is steep enough.
ś The brake pedal or accelerator pedal is not depressed.
Activated
ś Vehicle speed is within 2~25 mph (4~40 km/h) range.
Within the activation speed range 2~25 mph (4~40
Green light blink
km/h), the driver can control the vehicle speed by
depressing the brake pedal or accelerator pedal.
Downhill Brake Control will turns off under the following
conditions:
ś The Downhill Brake Control button is pressed again.
ś Vehicle speed is over 37 mph (60 km/h).
Green light off
Deactivated
Downhill Brake Control is deactivated but maintains the
standby mode under the following conditions:
ś The hill is not steep enough.
ś Vehicle speed is between 25~37 mph (40~60 km/h).
Green light on
The yellow warning light illuminates when the system
may have malfunctioned or may not work properly
System
during activation. If this occurs, Downhill Brake Control
malfunction
is deactivated. Contact an authorized HYUNDAI dealer
as soon as possible.
Yellow light on
6-36
CarManuals2.com
06
Good Braking Practices
WARNING
Whenever leaving the vehicle or parking,
always come to a complete stop and
continue to depress the brake pedal.
Shift the gear to the P (Park) position,
apply the parking brake, and move the
ignition switch to the LOCK/OFF position.
Vehicles parked with the parking brake

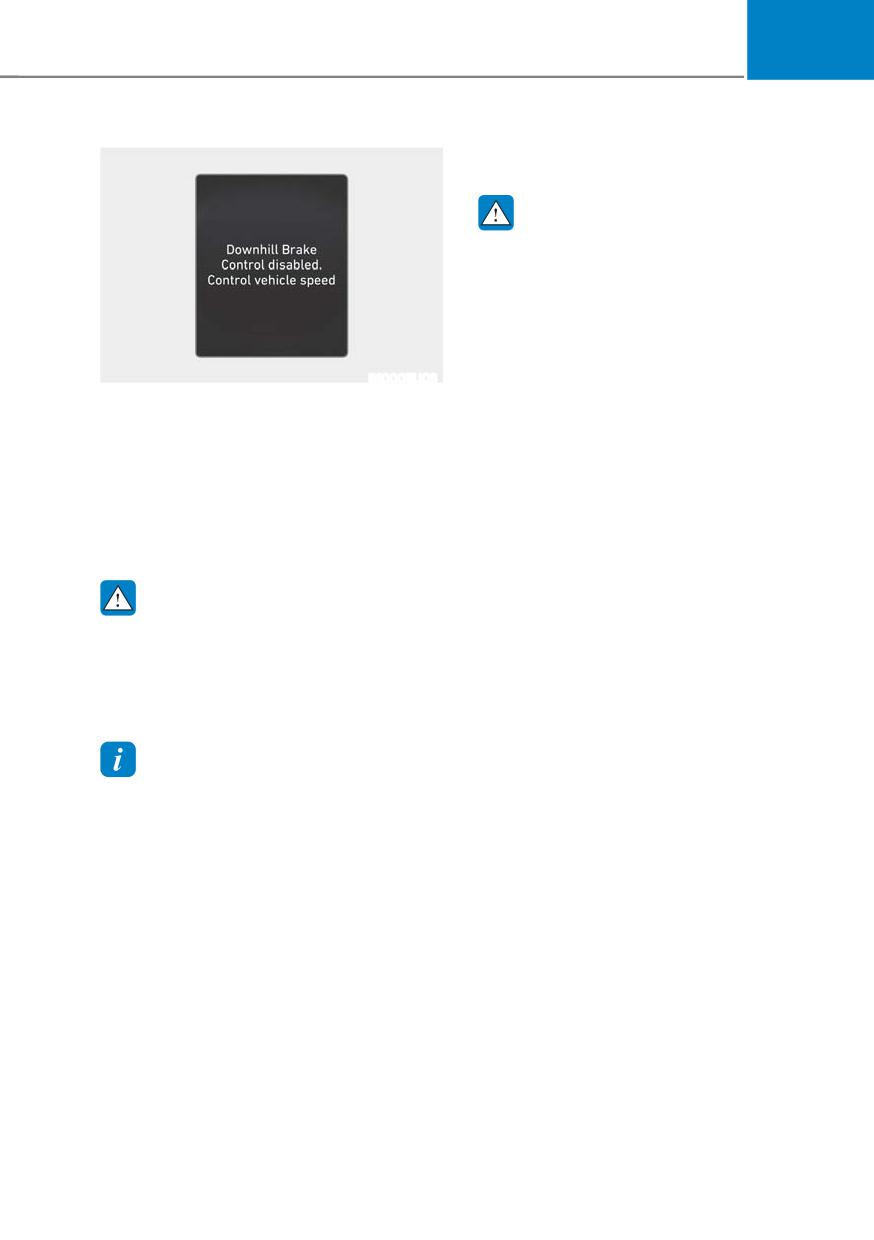

B1000EU03
not applied or not in P (Park) may roll
Downhill Brake Control disabled. Control
inadvertently and may cause injury to
vehicle speed
the driver and others. ALWAYS apply the
If Downhill Brake Control is not working
parking brake before exiting the vehicle.
properly, this warning message appears
on the cluster display and you may hear a
Wet brakes can be dangerous! The
warning sound. If this occurs, control the
brakes may get wet if the vehicle is
vehicle speed by depressing the brake
driven through standing water or if it
pedal.
is washed. Your vehicle may not stop
quickly if the brakes are wet. Wet brakes
may cause the vehicle to pull to one side.
WARNING
To dry the brakes, apply the brakes
Always turn off Downhill Brake Control
lightly until the braking action returns to
on normal roads. The system might
normal. If the braking action does not
activate inadvertently from the standby
return to normal, stop as soon as it is
mode when driving through speed
safe to do so and contact an authorized
bumps or making sharp curves.
HYUNDAI dealer for assistance.
DO NOT drive with your foot resting on
Information
the brake pedal. Even light, but constant
pedal pressure may result in the brakes
ś Downhill Brake Control may not
overheating, brake wear, and possibly
deactivate on steep inclines even
even brake failure.
though the brake pedal or accelerator
pedal is depressed.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
ś Downhill Brake Control may not
vehicle pointed straight ahead while you
always maintain vehicle speed at a
are slowing down. When you are moving
certain speed.
slowly enough for it to be safe to do
ś Downhill Brake Control does not
so, pull off the road and stop in a safe
operate when:
location.
- The gear is in P (Park).
Keep your foot firmly on the brake pedal
- ESC is activated.
when the vehicle is stopped to prevent
the vehicle from rolling forward.
ś Noise or vibration may occur from the
brakes when Downhill Brake Control is
activated.
ś The rear stop light comes on when
Downhill Brake Control is activated.
6-37
CarManuals2.com
Driving Your Vehicle
,'/( 6723 $1' *2 ǣ,6*Ǥ 6<67(0
Idle Stop and Go helps reduce fuel
Auto stop
consumption by automatically shutting
When ISG is on, the engine stops
down the engine, when the vehicle is at
automatically when both of the following
a standstill (for example, red stop light,
occur:
stop sign, and traffic jam).
1. Vehicle speed decreases to 0 mph (0
ISG system is always active, when the
km/h) (full stop condition).
engine is running.
2. Brake pedal is depressed and gear is
in D (Drive) or N (Neutral).
Information
The Auto Stop (
) indicator illuminates
When the engine is automatically started
in green on the instrument cluster, when
by the ISG system, warning lights (for
the engine stops.
example, ABS, ESC, ESC OFF, MDPS,
and parking brake warning light) may
Information
illuminate for a few seconds if the battery
voltage is low and does not indicate a
Idle stop cannot occur again until the
malfunction with the ISG system.
vehicle speed goes above 3 mph (5
km/h) and then comes to a full stop
ISG System Operation
again.
Prerequisite for activation
In Auto Stop mode, if the hood is
ś The driver's seatbelt is fastened.
opened, ISG system is deactivated.
ś The driver's door and hood are closed.
When the system is deactivated, the ISG
ś The brake vacuum pressure is
OFF button indicator illuminates and the
adequate.
message, "Auto Stop is off. Shift to P or
ś The battery sensor is activated and
N and start engine manually" appears on
the battery is sufficiently charged.
the cluster display with a warning sound.
ś Outside temperature is not too low or
If this occurs, depress the brake pedal
too high.
and restart the engine manually.
ś The vehicle is driven over a constant
speed and stops.
ś The climate control system satisfies
the conditions.
ś The vehicle is sufficiently warmed up.
ś ISG related parts are working properly.
ś The incline is gradual.
ś The steering wheel is turned less than
180 degrees before the vehicle stops.
Information
If the Auto Stop (
) indicator is white
on the instrument cluster, the ISG
system does not meet the prerequisites
above and is not active. If the Auto Stop
(
) indicator is yellow, have the system
inspected by an authorized HYUNDAI
dealer.
6-38
CarManuals2.com
06
Auto start
When ISG stops the engine
automatically, the engine restarts if:
- The brake pedal is released.
- You take your foot off the brake pedal
and then depress the accelerator
pedal when Auto Hold is activated.
- You shift the gear from N (Neutral)
or D (Drive) to R (Reverse) or P (Park)
while depressing the brake pedal.

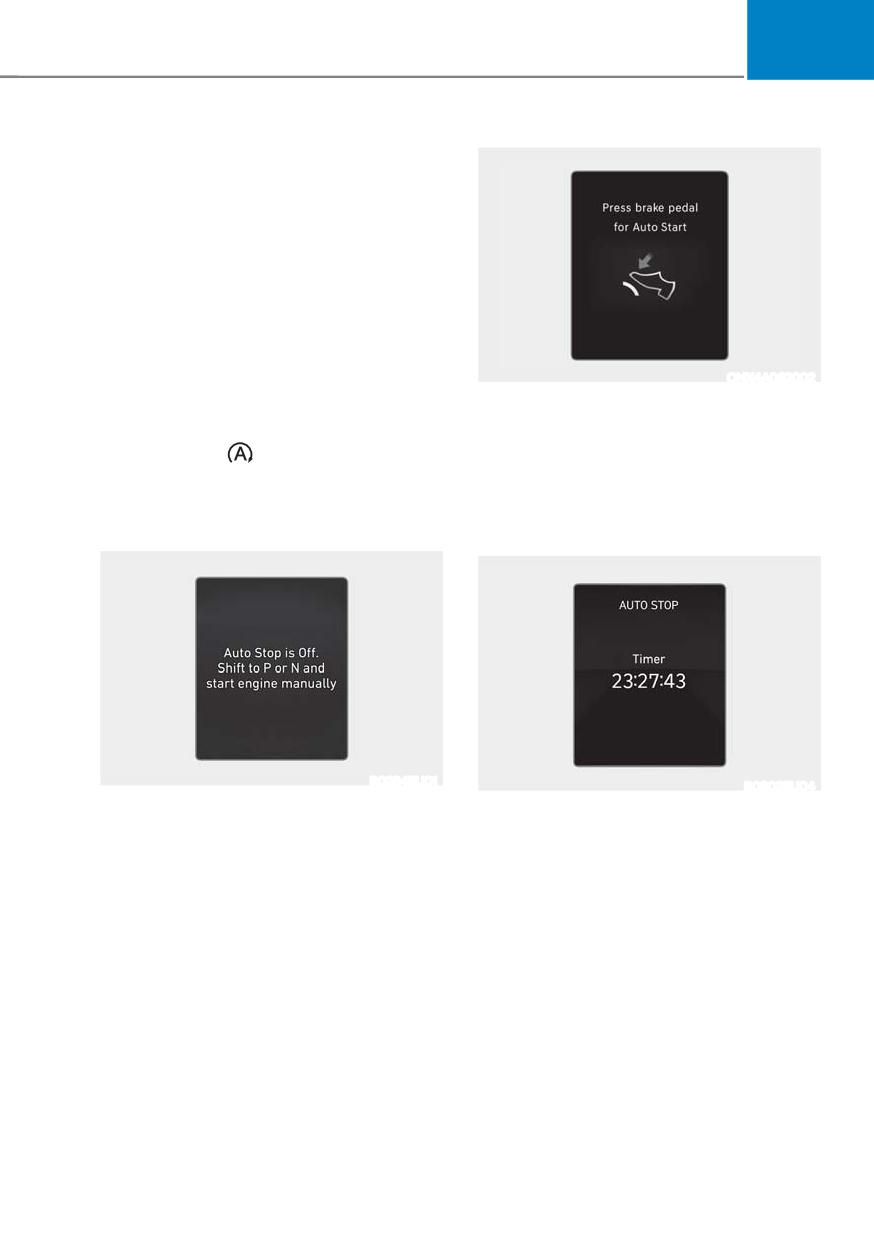

ONX4A062002
- You shift the gear from N (Neutral) to
Press brake pedal for Auto Start
D (Drive) while depressing the brake
pedal.
When the gear is shifted from N (Neutral)
The Auto Stop (
) indicator goes to
to R (Reverse), D (Drive), or Manual
shift mode without the brake pedal
white on the instrument cluster, when
the engine is restarted.
depressed, a message appears on the
cluster display. To activate auto start,
depress the brake pedal.
Cluster display messages
B0284EU01
B0802EU04
Auto Stop is Off. Shift to P or N and start
AUTO STOP elapsed time
engine manually
AUTO STOP display shows the elapsed
When the system is deactivated, the ISG
time of engine stop by the Idle Stop and
off button indicator illuminates and a
Go system.
message appears on the cluster display
You may check AUTO STOP elapsed
with a warning sound if:
time in the Trip Computer mode on the
- The hood is opened.
instrument cluster.
- ISG system is not working normally.
Refer to the “Trip Computer” section in
If this occurs, depress the brake pedal
Chapter 4.
and restart the engine manually. For your
safety, restart the vehicle in the P (Park)
position.
6-39
CarManuals2.com
Driving Your Vehicle

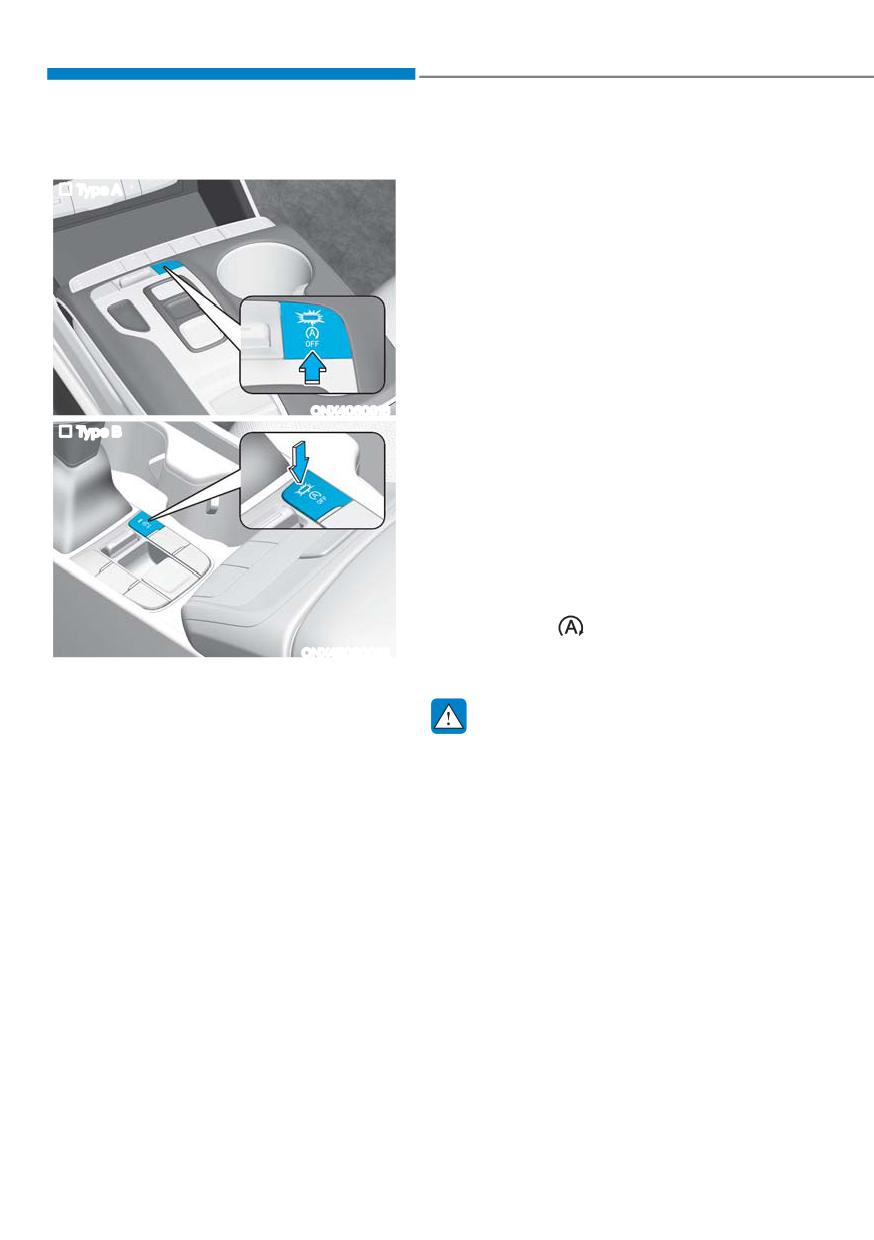

ISG System Off
Conditions that Restart the
„ Type A
Engine
The engine is automatically restarted if:
ś The brake vacuum pressure is low.
ś The engine has stopped for about 5
minutes.
ś The air conditioning is ON with the fan
speed set to a certain high level.
ś The front defroster is ON.
ś The battery is weak.
ś The cooling and heating performance
ONX4060016
of the climate control system is
„ Type B
unsatisfactory.
ś The vehicle is shifted to P (Park) or R
(Reverse) when Auto Hold is activated.
ś The door is opened or the seatbelt
is unfastened when Auto Hold is
activated.
ś The EPB switch is pressed when Auto
Hold is activated.
The Auto Stop (
) indicator blinks in
green for 5 seconds on the instrument
ONX4E060033
cluster when the engine is restarted.
Press the ISG OFF button to turn off the
ISG system. The ISG OFF button indicator
illuminates. To use the system, press the
WARNING
ISG OFF button again.
When the engine is in Idle Stop mode,
the engine may restart without the
driver taking any action. Before leaving
the vehicle or working in the engine
compartment, turn off the engine by
moving the ignition switch to the OFF
position, shifting to P (Park), applying the
parking brake, and taking the key with
you when you leave the vehicle.
6-40
CarManuals2.com
06
ISG Malfunction
Information
ISG system may not operate if:
The ISG system may not operate in the
ś The Auto Stop (
) indicator
following situations.
illuminates in yellow on the
- There is a malfunction with the ISG
instrument cluster.
system.
ś The ISG OFF button illuminates.
- The battery is weak.
Contact an authorized HYUNDAI dealer
- The brake vacuum pressure is low.
for assistance.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Calibrating the Battery Sensor
If the AGM battery is reconnected or
NOTICE
replaced, the ISG system does not
operate immediately. If you want to use
ś Use only a genuine HYUNDAI AGM
the system, the battery sensor needs to
battery for replacement. If not, the
be calibrated following the procedure.
ISG system may not operate properly.
ś Do not recharge the AGM battery
with a general battery charger. It may
1. Turn off the engine.
damage or explode the AGM battery.
2. Disconnect all electronic devices
ś Do not remove the battery cap. The
that were additionally installed after
battery electrolyte, which is harmful
the vehicle was delivered, such as
to the human body may leak out.
navigation, dashcam, etc.
3. After 4 hours with the engine off, turn
the engine on and off 3 to 4 times.
6-41
CarManuals2.com
Driving Your Vehicle
'5,9( 02'( ,17(*5$7(' &21752/ 6<67(0

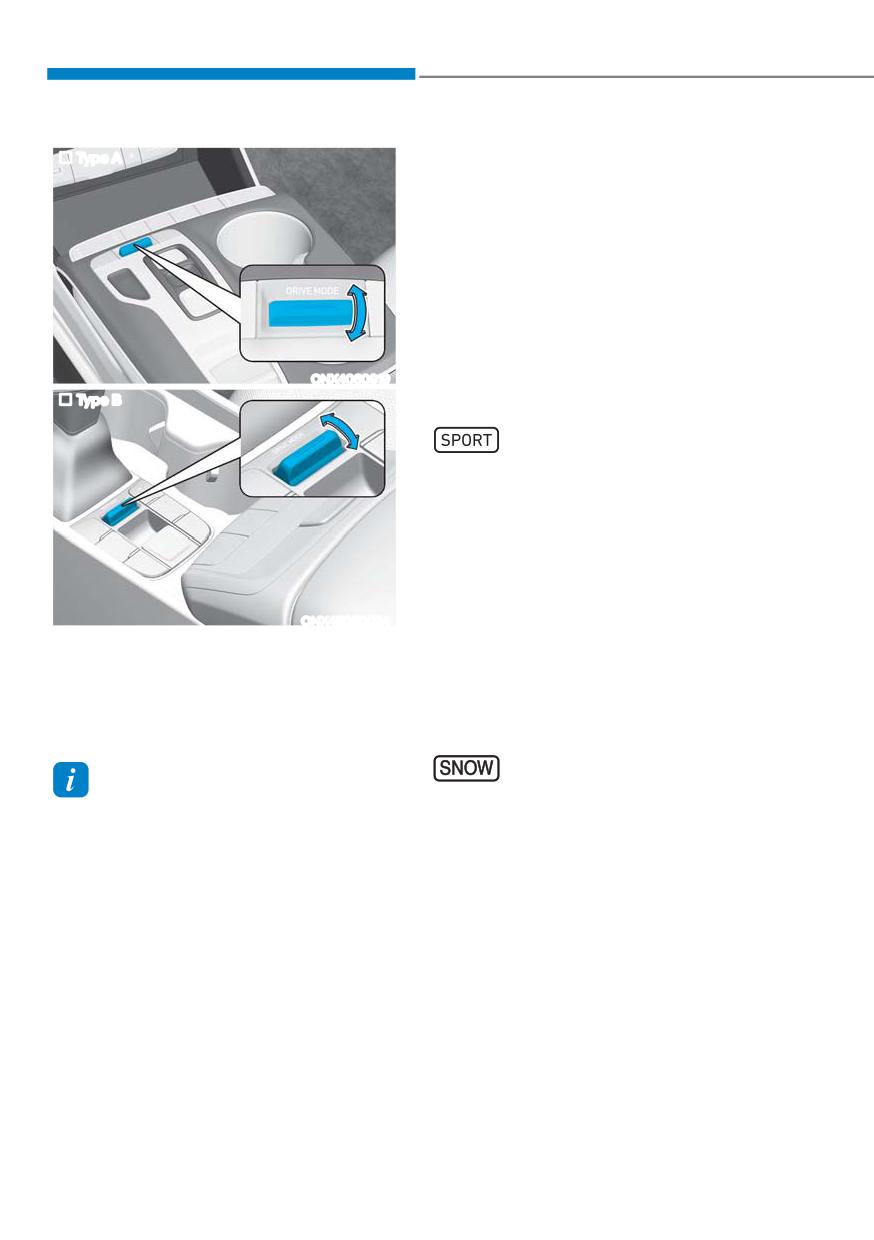

„ Type A
The mode changes, as the following,
whenever the DRIVE MODE button is
pressed or toggled.
NORMAL ļ SPORT ļ SMART ļ SNOW
(AWD)
NORMAL ļ SPORT ļ SMART (2WD)
When the NORMAL mode is selected,
it does not appear on the instrument
cluster.
ONX4060019
SPORT mode
„ Type B
SPORT mode provides sporty
but firm riding.
In SPORT mode, the fuel
efficiency may decrease.
ś When the SPORT mode is selected,
the SPORT indicator illuminates on the
instrument cluster.
ś When the SPORT mode is activated:
- The engine RPM tends to remain
ONX4E060034
raised over a certain time even after
The drive mode can be selected
releasing the accelerator pedal.
according to the driver’s preference or
- Upshifts are delayed when
road condition.
accelerating.
The system resets to NORMAL mode,
when the engine is restarted.
SNOW mode (if equipped)
SNOW mode offers special
traction tuning for snow
Information
optimizing available traction in
If there is a problem with the instrument
adverse conditions. Snow mode
cluster, the drive mode is in NORMAL
adjusts the left and right wheel
mode and may not change to SPORT
slip control, engine torque,
mode.
and shift patterns according to
available traction levels.
ś When the SNOW mode is selected,
the SNOW indicator illuminates on the
instrument cluster.
6-42
CarManuals2.com
06
SMART mode (if equipped)
Various driving situations, which you may
encounter in SMART mode
SMART mode selects the
proper driving mode between
ś The driving mode automatically
NORMAL, and SPORT by
changes to SMART SPORT, when you
judging the driver's driving
abruptly accelerate the vehicle or
habits (mild or dynamic) from
repetitively operate the steering wheel
the brake pedal depression or
In this mode, your vehicle drives in a
the steering wheel operation.
lower gear for abrupt accelerating/
decelerating and increases the engine
ś
When the SMART mode is selected,
brake performance.
the SMART indicator illuminates on
the instrument cluster.
ś You may still sense the engine brake
performance, even when you release
ś
The vehicle starts in SMART mode,
the accelerator pedal in SMART
when the engine has been turned OFF
SPORT mode. It is because your
in SMART mode.
vehicle remains to be in a lower gear
over a certain period of time for next
Information
acceleration.
ś The driving mode automatically
ś
When using the SMART mode, if your
changes to SMART SPORT mode only
acceleration pedal input is gradual,
in harsh driving conditions. In most
the drive mode maximizes the fuel
driving situations, the driving mode is
efficiency.
set to SMART NORMAL mode.
ś
When your vehicle is in SMART
mode and your driving style is more
SMART mode deactivates automatically
aggressive so that your acceleration
pedal input is more abrupt, the drive
SMART mode may deactivate if:
mode changes to reflect a more
ś The driver manually shifts gears.
SPORT driving characteristic.
ś Cruise Control may deactivate the
SMART mode. When a higher speed
is set by Cruise Control, it starts
to control the vehicle speed and
deactivates the SMART mode.
ś Extremely high/low transmission
oil temperatures may temporarily
deactivate the SMART mode, because
the transmission is outside its normal
operating condition.
6-43
CarManuals2.com
Driving Your Vehicle
$// :+((/ '5,9( ǣ$:'Ǥ ǣ,) (48,33('Ǥ
„ Type A
WARNING
To reduce the risk of serious injury or
death:
ś Do not drive in conditions that exceed
the vehicle's intended design such as
challenging off-road conditions.
ś Avoid high speeds when cornering or
turning.
ś Do not make quick steering wheel
movements, such as sharp lane
ONX4060013
changes or fast, sharp turns.
„ Type B
ś The risk of a rollover is greatly
increased if you lose control of your
vehicle at highway speeds.
ś Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.
ś In the event your vehicle leaves the
roadway, do not steer sharply. Instead,
slow down before pulling back into
ONX4E060031
the travel lanes.
The All Wheel Drive (AWD) system
delivers engine power to all front and
NOTICE
rear wheels for maximum traction. AWD
is useful when extra traction is required
ś Do not drive in water if the water
on roads such as slippery, muddy, wet, or
level is higher than the bottom of the
vehicle.
snow-covered roads.
ś Check your brake condition once you
AWD may also be used for occasional
are out of mud or water. Depress the
off-road use such as established
brake pedal several times as you move
unpaved roads and trails. Always reduce
slowly until you feel normal braking
the speed to a level that is appropriate
condition return.
for those conditions.
ś Shorten your scheduled maintenance
interval if you drive in off-road
conditions such as sand, mud, or
water (refer to the "Maintenance
Under Severe Usage Conditions"
section in Chapter 9).
ś Always wash your vehicle thoroughly
after off-road use, especially the
bottom of the vehicle.
ś Make sure that a full time AWD vehicle
is towed by a flat-bed tow truck.
6-44
CarManuals2.com
06

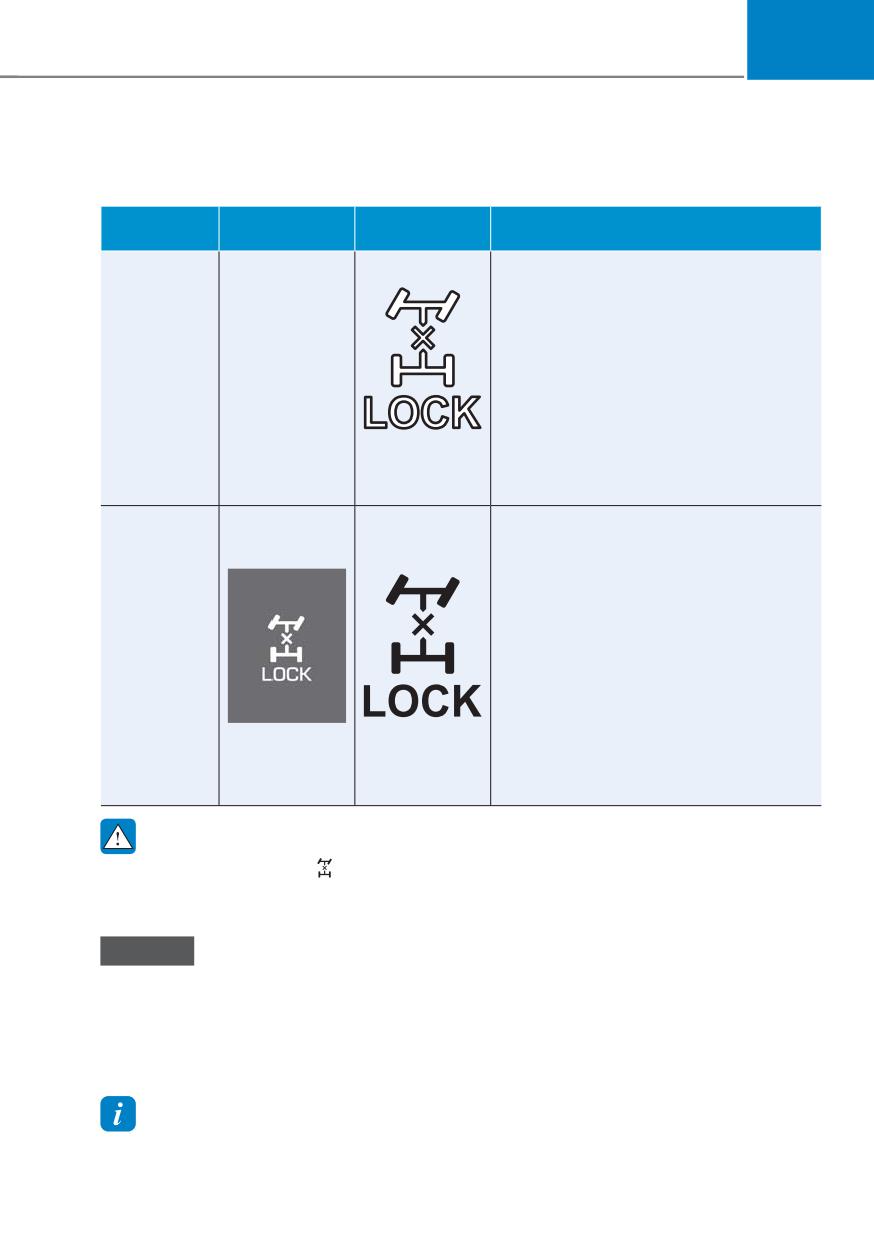

AWD Operation
Four Wheel Drive (AWD) mode selection
Transfer
Selection
Indicator light
Description
mode
button
ś AWD Auto is used when driving on
roads in normal conditions, roads in
urban areas, and on highways.
ś All wheels are in operation when your
AWD AUTO
vehicle travels at a constant speed.
(AWD
Required traction forces on front and
LOCK is
rear wheels may differ depending on
deactivated)
road conditions and driving conditions,
which are automatically controlled by
the system.
(not
illuminated)
ś The cluster displays how the four
wheels’ traction forces are distributed.
ś AWD Lock mode maximizes the
vehicle’s traction under extreme
driving conditions such as unpaved
off-road, sandy roads, and muddy
roads.
ś AWD Lock mode operates only when
travelling at 37 mph (60 km/h) or less.
AWD LOCK
When traveling over 37 mph (60 km/h),
the mode switches to AWD Auto.
ś When AWD Lock mode illuminates, the
cluster does not display the front/rear
(illuminated)
wheel traction force distribution status.
ś Press the AWD Lock mode switch
again to switch back to AWD Auto.
WARNING
If the AWD warning light (
) stays illuminated on the instrument cluster, your vehicle
may have a malfunction with the AWD system. Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as possible.
NOTICE
ś Maintain the AWD Auto mode when driving on roads in normal conditions.
ś Driving on normal roads with the AWD Lock mode on, especially when cornering
may cause mechanical noise or vibration. Driving in this mode for prolonged periods
may damage parts of the power train. The noise and vibration disappear when the
AWD Lock mode is deactivated.
Information
When the AWD Lock mode is deactivated, a sensation may be felt as the driving power
is delivered entirely to the front wheels.
6-45
CarManuals2.com
Driving Your Vehicle
For safe AWD operation
Driving in sand or mud
Before driving
ś Maintain slow and constant speeds.
Make sure all passengers always wear
ś Use tire chains when driving in mud if
their seat belts.
necessary.
ś Keep a sufficient distance between
Driving on snow-covered or icy roads
your vehicle and the vehicle in front.
ś Start off slowly by applying the
ś Reduce the vehicle speed and always
accelerator pedal gently.
check the road condition.
ś Use snow tires or tire chains.
ś Avoid speeding, rapid acceleration,
ś Keep a sufficient distance between
sudden brake applications, and sharp
turns to prevent getting stuck.
your vehicle and the vehicle in front.
ś Use engine braking during
deceleration.
NOTICE
ś Avoid speeding, rapid acceleration,
When the vehicle is stuck in snow, sand,
sudden brake applications, and sharp
or mud, place a non-slip material under
turns to prevent skids.
the drive wheels to provide traction OR
slowly spin the wheels in forward and
reverse causing a rocking motion that
Information
may free the vehicle. Avoid running the
When using Snow Tires, mount them on
engine continuously at high RPM to
all four wheels.
prevent damage to the AWD system.
When using tire chains, install them on
the rear tires. However, driving speed
must be below 20 mph (30 km/h) and
minimize the driving distance. High-
speed or long term driving with tire
chains installed may malfunction or
damage the AWD system.
For more information on Snow Tires and
Tire Chains, refer to the "Winter Driving"
section later in this chapter.
6-46
CarManuals2.com
06
Driving up or down hills
Additional driving conditions
ś Driving uphill
ś Become familiar with the off-road
conditions before driving.
- Before starting off, check if it is
possible to drive uphill.
ś Always pay attention when driving off-
- Drive as straight as possible.
road and avoid dangerous areas.
ś Drive slowly when driving in heavy wind.
ś Driving downhill
ś Reduce vehicle speed when
- Do not change gears while driving
cornering. The center of gravity
downhill. Select a gear before
of AWD vehicles is higher than
driving downhill.
conventional 2WD vehicles. The
- Drive slowly when using engine
vehicle is more likely to roll over if you
braking while driving downhill.
turn the steering wheel too quickly.
- Drive straight as possible.
ś Always hold the steering wheel firmly
when you are driving off-road.
WARNING
ś Exercise extreme caution driving up or
WARNING
down steep hills. The vehicle may roll
Do not grab the inside of the steering
over in the grade, terrain, and water/
wheel when you are driving off-road. You
mud conditions.
may hurt your arm by a sudden steering
ś Do not drive across steep hills. A
maneuver or from steering wheel
slight change in the wheel angle
rebound due to an impact with objects
may destabilize the vehicle. A stable
on the ground. You may lose control
vehicle may lose stability if the vehicle
of the steering wheel that may lead to
stops its forward motion. Your vehicle
serious injury or death.
may roll over, resulting in a serious
injury or death.
Driving through water
ś Try to avoid driving in deep standing
water. It may stall your engine and
clog your exhaust pipes.
ś If you need to drive in water, stop
your vehicle, set the vehicle in AWD
Lock mode, and drive under 5 mph (8
km/h).
ś Do not change gears while driving in
water.
6-47
CarManuals2.com
Driving Your Vehicle
Emergency Precautions
Tires
Do not use tires or wheels with different
size and type from the one installed on
your vehicle. It may affect the safety
and performance of your vehicle, which
could cause steering failure or rollover
causing serious injury.
When replacing the tires, be sure to
equip all four tires with the the same

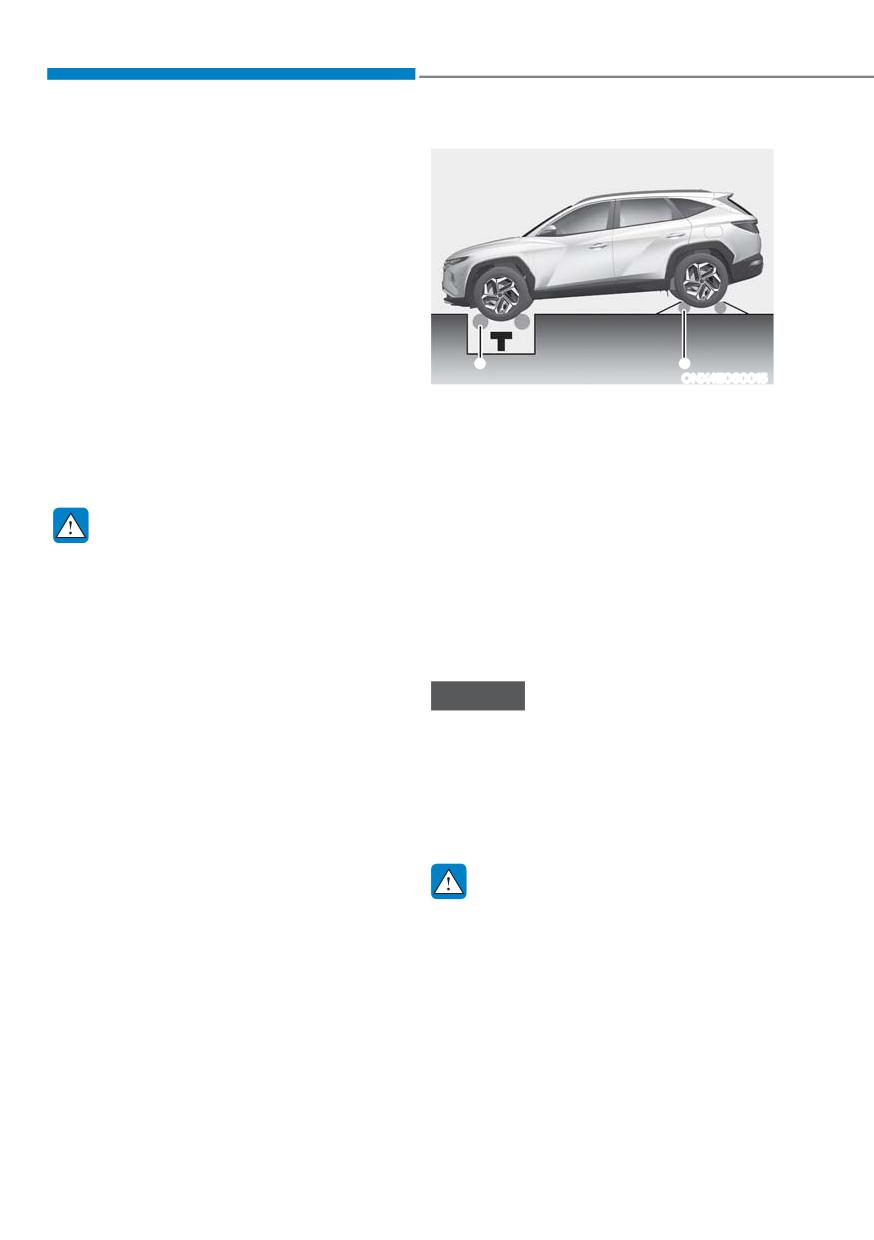

A
B
size, type, tread, brand, and load-
ONX4E060015
carrying capacity. If you equip your
: Roll tester (Speedometer)
vehicle with any tire/wheel combination
: Temporary free roller
not recommended by HYUNDAI for off-
If a 2WD roll tester must be used:
road driving, do not use these tires for
highway driving.
1. Check the tire pressures
recommended for your vehicle.
2. Place the front wheels on the roll
WARNING
tester for a speedometer test as
Never start or run the engine while a
shown in the illustration.
full-time AWD vehicle is raised on a jack.
3. Release the parking brake.
The vehicle may slip or roll off of a jack
4. Place the rear wheels on the
causing serious injury or death.
temporary free roller as shown in the
illustration.
Towing
AWD vehicles must be towed with all
NOTICE
the wheels off the ground. For more
information, refer to the "Towing" section
ś Never engage the parking brake while
in Chapter 8.
performing the test.
ś When the vehicle is lifted up, do not
Dynamometer testing
operate the front and rear wheel
A full-time AWD vehicle must be
separately. All four wheels should be
tested on a special four wheel chassis
operated.
dynamometer.
WARNING
Keep away from the front of the vehicle
while the vehicle is in gear on the
dynamometer. The vehicle may jump
forward and cause serious injury or
death.
6-48
CarManuals2.com
06
63(&,$/ '5,9,1* &21',7,216
Hazardous Driving Conditions
WARNING
When hazardous driving conditions are
Always turn off the ESC system before
encountered such as water, snow, ice,
rocking the vehicle. If the vehicle
mud, and sand:
is stuck and excessive wheel spin
ś Drive cautiously and allow for longer
occurs, the temperature in the tires
braking distances.
may increase very quickly. If the tires
ś Avoid abrupt braking or steering.
become damaged, a tire blow out or tire
explosion may occur - you and others
ś If your vehicle is stuck in snow,
may be injured. Do not attempt this
mud, or sand, use the second
procedure if people or objects are near
gear. Accelerate slowly to avoid
the vehicle.
unnecessary wheel spin.
If you attempt to free the vehicle, the
ś Put sand, rock salt, tire chains, or
vehicle may overheat quickly, possibly
other non-slip materials under the
causing an engine compartment fire or
wheels to provide additional traction,
other damage. Try to avoid spinning the
if stuck in ice, snow, or mud.
wheels as much as possible to prevent
overheating of the tires or the engine. DO
WARNING
NOT allow the vehicle to spin the wheels
above 35 mph (56 km/h).
Downshifting with an automatic
If you are still stuck after rocking the
transmission while driving on slippery
vehicle a few times, have the vehicle
surfaces may cause a collision. The
pulled out by a tow vehicle to avoid
sudden change in tire speed may
engine overheating, possible damage to
cause the tires to skid. Be careful when
the transmission, and tire damage. Refer
downshifting on slippery surfaces.
to the “Towing” section in Chapter 8.
Rocking the Vehicle
Smooth Cornering
If it is necessary to rock the vehicle to
Avoid braking or gear changing in
free it from snow, sand, or mud, first turn
corners, especially when roads are wet.
the steering wheel right and left to clear
Ideally, cornering should be taken under
the area around your front wheels. Then,
gentle acceleration.
shift back and forth between R (Reverse)
and a forward gear.
Driving at Night
Try to avoid spinning the wheels, and do
not race the engine.
Night driving presents more hazards than
driving in the daylight. Here are some
To prevent transmission wear, wait until
important tips to remember:
the wheels stop spinning before shifting
gears. Release the accelerator pedal
ś Slow down and keep more distance
while shifting, and press lightly on the
between you and other vehicles,
accelerator pedal while the transmission
because it may be more difficult to
is in gear. Slowly spinning the wheels in
see at night, especially in areas where
forward and reverse directions causes a
there are no street lights.
rocking motion that may free the vehicle.
ś Adjust your mirrors to reduce the glare
from other drivers’ headlights.
ś Keep your headlights clean and
properly aimed. Dirty or improperly
aimed headlights can make it much
more difficult to see at night.
6-49
CarManuals2.com
Driving Your Vehicle
ś Avoid staring directly at the headlights
Driving In Flooded Areas
of oncoming vehicles. You may be
Avoid driving through flooded areas
temporarily blinded, and it takes
unless you are sure the water is not
several seconds for your eyes to
deeper than the bottom of the wheel
readjust to the darkness.
hub. If you are not sure, turn around and
find a different route.
Driving in the Rain
Drive through any water slowly. Allow
Rain and wet roads can make driving
adequate stopping distance because the
dangerous. When driving in the rain or on
brake performance can be reduced.
slick pavement:
After driving through water, dry the
ś Slow down and allow extra following
brakes by gently applying them several
distance. A heavy rainfall makes
times while the vehicle is moving slowly.
it harder to see and increases the
distance needed to stop your vehicle.
Highway Driving
ś Turn OFF your Cruise Control. (if
Tires
equipped)
Adjust the tire inflation pressure, as
ś Replace your windshield wiper blades
specified. Under-inflation may overheat
when they show signs of streaking or
or damage the tires.
missing areas on the windshield.
Do not install worn-out or damaged tires,
ś Make sure your tires have enough
which may reduce traction or fail.
tread. If your tires do not have enough
tread, making a quick stop on wet
pavement may cause a skid and
Information
possibly lead to a collision.
Never over-inflate your tires above the
ś Turn on your headlights to make it
maximum inflation pressure, as specified
easier for others to see you. Using
on your tires.
your headlights when using your
windshield wipers is required in some
Fuel, engine coolant and engine oil
jurisdictions.
Driving at higher speeds on the highway
ś Driving too fast through large puddles
consumes more fuel and is less efficient
may affect your brakes. If you must go
than driving at a slower, more moderate
through puddles, try to drive through
speed. Maintain a moderate speed
them slowly.
to conserve fuel when driving on the
ś If you believe your brakes are wet,
highway.
apply them several times while the
Check both the engine coolant level and
vehicle is moving slowly.
the engine oil before driving.
Hydroplaning
Drive belt
If the road is wet enough and you are
A loose or damaged drive belt may
driving fast enough, your vehicle may
overheat the engine.
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as the
depth of tire tread decreases.
6-50
CarManuals2.com
06
WINTER DRIVING
Snow or Icy Conditions
Tire chains
You need to keep sufficient distance

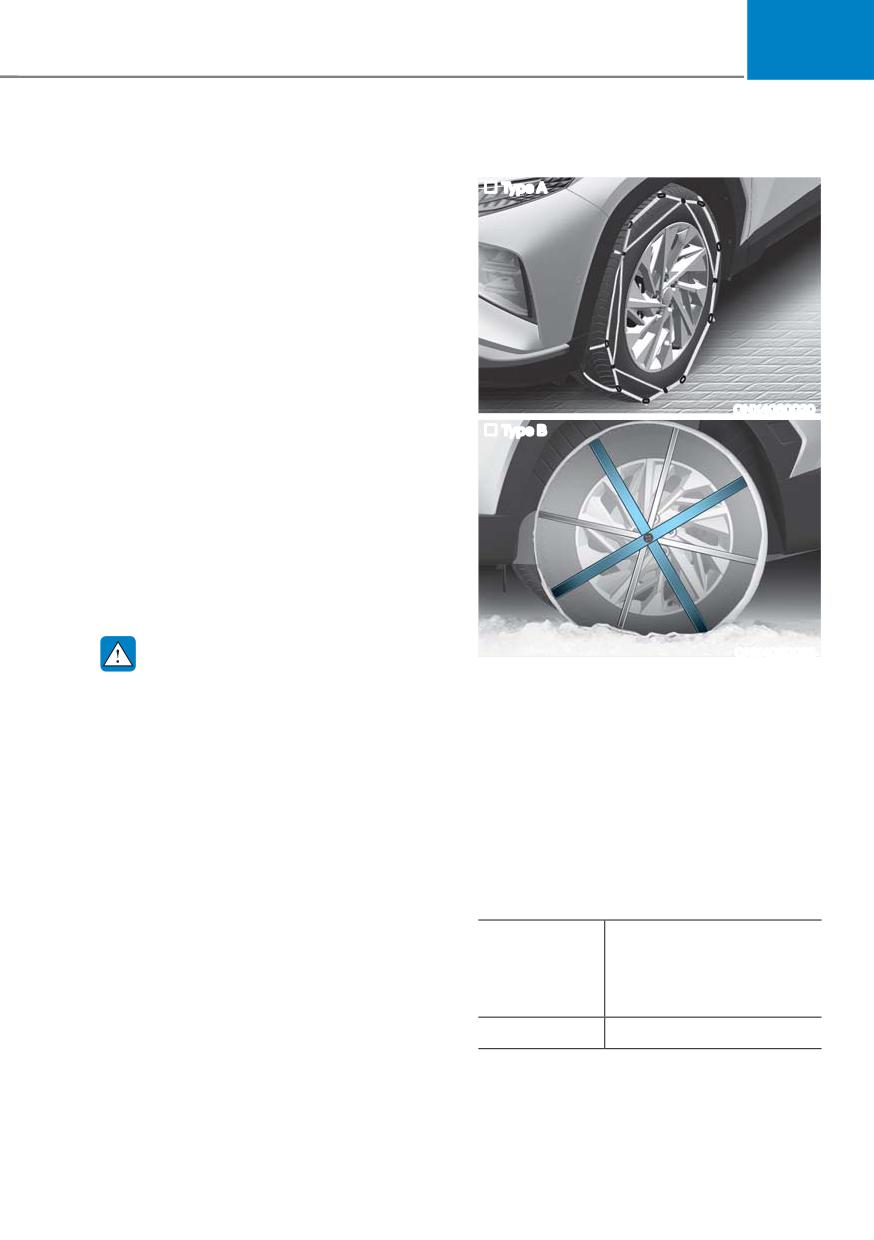

„ Type A
between your vehicle and the vehicle in
front.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are very hazardous
practices. When decelerating, use engine
braking to the fullest extent. Sudden
brake applications on snowy or icy roads
may cause the vehicle to skid.
To drive your vehicle in deep snow, it
ONX4060020
may be necessary to use snow tires or to
„ Type B
install tire chains on your tires.
Always carry emergency equipment. You
may want to carry tire chains, tow straps
or chains, a flashlight, emergency flares,
sand, a shovel, jumper cables, a window
scraper, gloves, ground cloth, coveralls, a
blanket, etc.
Snow tires
ONX4080023
WARNING
Since the sidewalls of radial tires are
Snow tires should be equivalent in size
thinner than other types of tires, they
and type to the vehicle’s standard tires.
may be damaged by mounting some
Otherwise, the safety and handling of
types of tire chains on them. Therefore,
your vehicle may be adversely affected.
the use of snow tires is recommended
instead of tire chains. If tire chains must
Use snow tires when the road
be used, use genuine HYUNDAI Parts
temperature is below 45 °F (7 °C). If you
and install the tire chains after reviewing
mount snow tires on your vehicle, be
the instructions provided with the tire
sure to use the same inflation pressure
chains. Damage to your vehicle caused
as the original tires. Mount snow tires on
by improper tire chain use is not covered
all four wheels to balance your vehicle’s
by your vehicle manufacturer’s warranty.
handling in all weather conditions.
The traction provided by snow tires on
Wire chain (Under
dry roads may not be as high as your
0.47 inches (12 mm)
vehicle’s original equipment tires. Check
235/65R17
thickness) or Fabric-
with the tire dealer for maximum speed
recommendations.
type chain
235/55R19
Fabric-type chain
When using tire chains, attach them to
the front wheels.
6-51
CarManuals2.com
Driving Your Vehicle
Chain installation
WARNING
When installing tire chains, follow the
The use of tire chains may adversely
manufacturer’s instructions and mount
affect vehicle handling:
them as tightly possible. Drive slowly
ś Drive less than 20 mph (30 km/h)
(less than 20 mph (30 km/h) or the
or the chain manufacturer’s
chain manufacturer’s recommended
recommended speed limit, whichever
speed limit) with chains installed. If you
is lower.
hear the chains contacting the body or
ś Drive carefully and avoid bumps,
chassis, stop and tighten them. If they
holes, sharp turns, and other road
still make contact, slow down until the
hazards, which may cause the vehicle
noise stops. Remove the tire chains as
to bounce.
soon as you begin driving on cleared
roads.
ś Avoid sharp turns or locked wheel
braking.
When mounting snow chains, park the
vehicle on level ground away from traffic.
ś Install tire chains only in pairs and on
Turn on the vehicle's Hazard Warning
the front tires. Installing tire chains
Flasher and place a triangular emergency
on the tires provides a greater driving
warning device behind the vehicle (if
force, but does not prevent side skids.
available). Always place the vehicle in P
(Park), apply the parking brake, and turn
Information
off the engine before installing snow
chains.
Do not install studded tires without first
checking local and municipal regulations
for possible restrictions against their use.
NOTICE
When using tire chains:
ś Wrong size chains or improperly
installed chains may damage your
vehicle’s brake lines, suspension,
body, and wheels.
ś Use SAE “S” class or wire chains.
ś If you hear noise caused by chains
contacting the body, retighten the
chains to prevent contact with the
vehicle body.
ś To prevent body damage, retighten
the chains after driving 0.3~0.6 miles
(0.5~1.0 km).
ś Do not use tire chains on vehicles
equipped with aluminum wheels. If
unavoidable, use a wire type chain.
ś Use wire chains less than 0.47 inches
(12 mm) thick to prevent damage to
the chain’s connection.
6-52
CarManuals2.com
06
Winter Precautions
To prevent locks from freezing
Use high quality ethylene glycol coolant
Spray approved de-icing fluid or glycerin
into key holes. When a lock opening is
Your vehicle is delivered with high quality
already covered with ice, spray approved
ethylene glycol coolant in the cooling
de-icing fluid over the ice to remove it.
system. It is the only type of coolant
When an internal part of a lock freezes,
that should be used because it helps
try to thaw it with a heated key. Carefully
prevent corrosion in the cooling system,
use the heated key to avoid an injury.
lubricates the water pump, and prevents
freezing. Be sure to replace or replenish
Use approved window washer anti-
your coolant in accordance with the
freeze solution
maintenance schedule in Chapter
9. Before winter, have your coolant
Add window washer anti-freeze solution,
tested to make sure that its freezing
as specified on the window washer
point is sufficient for the temperatures
container. Window washer anti-freeze
anticipated during the winter.
solution is available from an authorized
HYUNDAI dealer, and most vehicle
Check battery and cables
accessory outlets.
Winter temperatures may affect the
battery performance. Inspect the battery
NOTICE
and cables, as specified in Chapter 9. The
Do not use engine coolant or other types
battery charging level can be checked
of anti-freeze solution, to prevent any
by an authorized HYUNDAI dealer or in a
damage to the vehicle paint.
service station.
Check windshield wipers
Change to “winter weight” oil if
Check the following conditions:
necessary
ś Ice or snow is removed from the front
In some regions in winter, it is
windshield and rear window.
recommended to use the “winter
weight” oil with lower viscosity. In
ś The wiper blades are not frozen or
addition, replace the engine oil and filter
stuck to the window.
if it is close to the next maintenance
interval. Fresh engine oil ensures
Do not let your parking brake freeze
optimum engine operation during the
Under some conditions, your parking
winter months. When you are not sure
brake may freeze in the engaged
about a type of winter weight oil, contact
position. This is most likely to happen
an authorized HYUNDAI dealer.
when there is an accumulation of snow
or ice around or near the rear brakes or
Check spark plugs and ignition system
the brakes are wet. When there is the
Inspect the spark plugs, as specified in
risk that your parking brake may freeze:
Chapter 9. If necessary, replace them.
temporarily apply the parking brake with
Also check all ignition wirings and
the gear in P (Park), then block the rear
components for any cracks, wear, and
wheels, and then release the parking
damage.
brake.
6-53
CarManuals2.com
Driving Your Vehicle
75$,/(5 72:,1*
Do not let ice and snow accumulate
Towing a trailer requires experience. The
underneath
combination of the vehicle and trailer
itself is not as responsive as the vehicle
Under some conditions, snow and
by itself. Towing a trailer also requires
ice may build up under the fenders
additional equipment and adequate
and interfere with the steering. When
planning before a trip. Plan your trip
driving in such conditions during the
according to the speed limits for towing
severe winter, check underneath the
a trailer that may differ from state to
vehicle on a regular basis, to make sure
state. Always follow the posted speed
that the front wheels and the steering
limits while towing a trailer.
components are not blocked.
Remember that driving your vehicle with
Carry emergency equipment
a trailer is different from normal driving.
Driving with a trailer causes changes
In accordance with weather conditions,
to acceleration, braking, handling and
carry appropriate emergency equipment,
stability, and fuel economy. For safety
while driving. Some of the items you may
of you and passengers, do not overload
want to carry include tire chains, tow
your vehicle or trailer. Refer to the table
straps or chains, flashlight, emergency
in this section for the maximum towing
flares, sand, shovel, jumper cables,
capacity and payload.
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
This section contains important trailering
recommendations and safety rules. Many
of these recommendations are important
Do not place objects or materials in the
considerations for the safety of you and
engine compartment
your passengers. Be sure to read this
Putting objects or materials in the engine
section carefully and plan ahead before
compartment may cause an engine
towing a trailer.
failure or a fire, because they may block
the engine cooling. Such damage is not
covered by the manufacturer’s warranty.
WARNING
To prevent serious injury or death:
Drive your vehicle when water vapor
ś If you do not use correct equipment
condenses and accumulates inside the
and/or drive improperly, you can
exhaust pipes
lose control of the vehicle when you
When the vehicle is stopped for a
are pulling a trailer. For example, if
long time in winter while the engine is
the trailer is too heavy, the braking
running, water vapor may condense and
performance may be reduced. Pull a
accumulate inside the exhaust pipes.
trailer only if you have followed all the
Water in the exhaust pipes may cause
steps in this section.
noise, etc., but it is drained driving at
ś Before towing, make sure the
medium to high speed.
total trailer weight, GCW (Gross
Combination Weight), GVW (Gross
Vehicle Weight), GAW (Gross Axle
Weight), and trailer tongue load are all
within the limits.
ś When you tow a trailer, make sure to
turn off the Idle Stop and Go system.
6-54
CarManuals2.com
06
If You Decide to Pull a Trailer
Total trailer weight
ś Consider using a sway control. You
Do not exceed the maximum allowable
can ask a trailer hitch dealer about
weight of the trailer, cargo, and
sway control.
everything in or on it. Refer to the table
on the following page for the maximum
ś Hyundai recommends that you do
allowable trailer weight.
not tow with your vehicle for the first
1,200 miles (2,000 km) to allow the
engine to properly break in.
WARNING
ś Do not exceed 65 mph (104 km/h)
Exceeding the load limit or improperly
or the posted towing speed limit,
loading your vehicle and trailer can cause
whichever is lower, when towing a
a collision, resulting in serious injury or
trailer. Note that towing speed limits
death.
differ by state. Always be aware of the
posted towing speed limit.
Be sure to check the loading of your
vehicle and trailer carefully before
ś Trailer instability is more likely to
driving.
occur when descending steep or long
downhill grades. Pay close attention
Trailer weight
and slow your vehicle speed when
descending a long downhill grade.
Allow more time and distance for
braking and do not brake suddenly.
Downshift the transmission to a lower
gear to reduce your vehicle speed
and also to help prevent brakes from
overheating.
ś Carefully observe the weight and load
limits provided in the following pages.

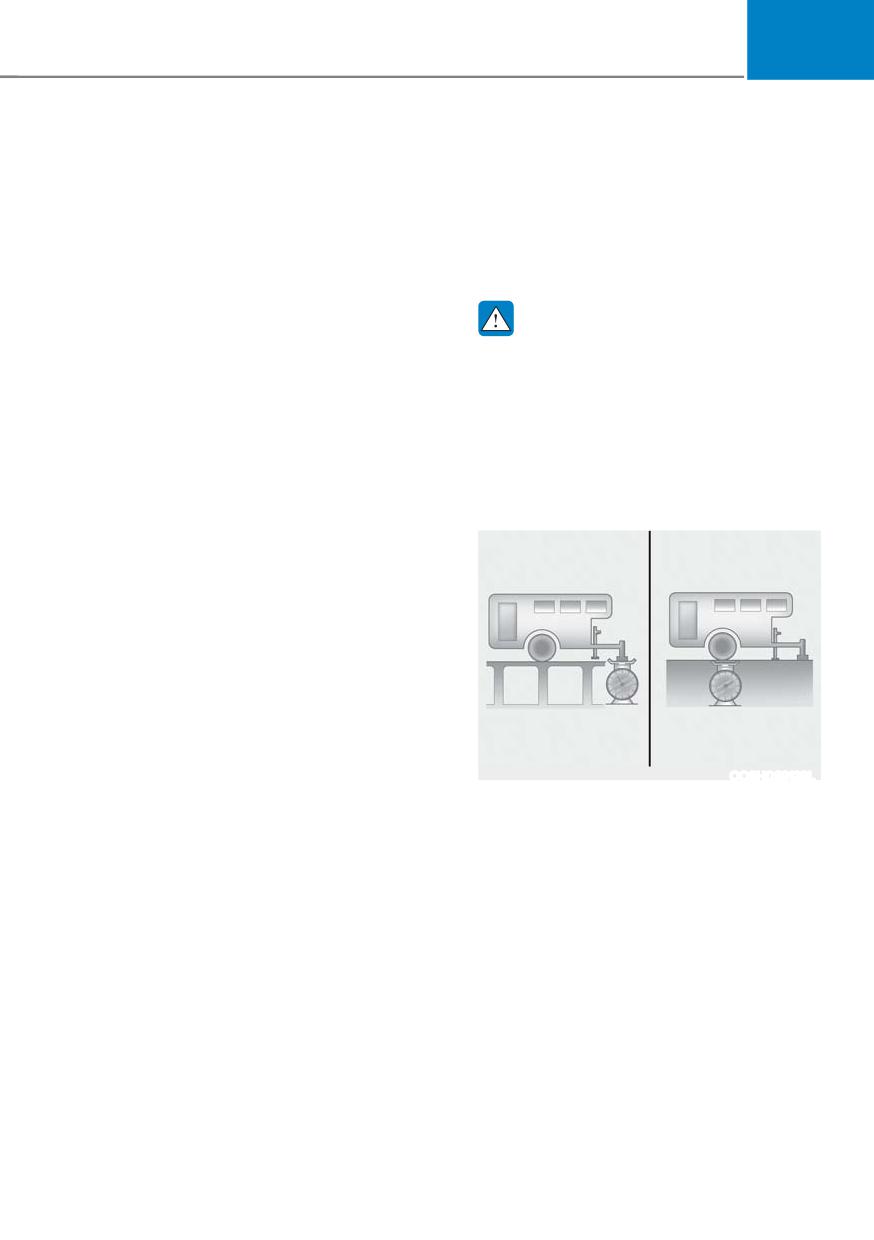

Tongue Load
Total Trailer Weight
Towing load limits
Your vehicle can tow a trailer if you
OOSH069129L
carefully observe the towing load limits,
Check if the total load is within limits
use proper equipment, and follow the
at a public scale. If a public scale is not
towing guidelines. Check the load limits
available, add the estimated weight
before driving.
of your cargo load to the weight of
your trailer (as specified by your trailer
manufacturer). In addition, measure the
tongue load with an appropriate scale or
tongue gauge, or estimate it based on
the cargo distribution.
6-55
CarManuals2.com
Driving Your Vehicle
Tongue load
How to Weigh the Trailer Loads at a
Public Scale
Fully load the vehicle and trailer before
going to the public scale. You and
passengers should remain in the vehicle
when performing the measurement.

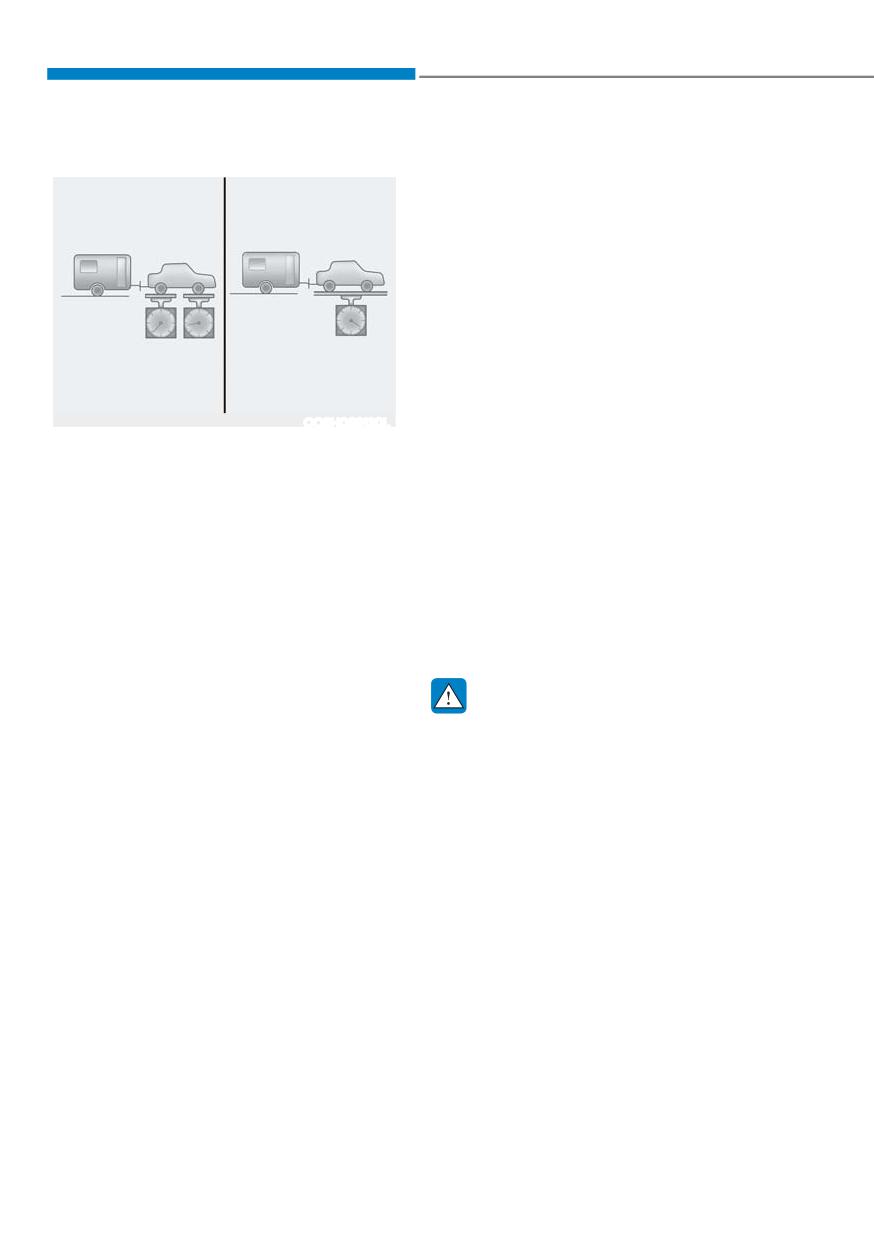

1. Measure the front gross axle weight.
2. Measure the gross vehicle weight.
3. Measure the rear gross axle weight.
4. Measure the gross combined weight
Gross Axle Weight
Gross Vehicle Weight
(vehicle and trailer).
5. Measure the hitched trailer weight.
OOSH069130L
6. Measure the unhitched trailer weight.
The tongue load is extremely important
when setting up your trailer for towing
To calculate the tongue load, subtract (5)
with your vehicle. Excessive tongue load
from (6).
reduces front tire traction and steering
control. For example, too little tongue
load can make the trailer unstable,
After you have loaded your trailer,
causing the trailer to sway because the
weigh the trailer and then the tongue
weight of the trailer is shifted to the rear.
separately, to see if the weights are
proper. If not, you can correct them
The tongue load measured at the hitch
simply by moving some items around in
when fully loaded should be within
the trailer.
10~15% of the total weight of the trailer.
Be sure to check the load of your vehicle
and trailer before driving. Check if the
WARNING
total load is within limits at a public
To prevent serious injury or death:
scale. In addition, measure the tongue
ś Never load a trailer with more weight
load with an appropriate scale or tongue
gauge.
in the rear than in the front. The front
must be loaded with about 60% of
If a public scale is not available, estimate
the total trailer load. The rear must be
the weight of your cargo load and add
loaded with about 40% of the total
the value to the weight of your trailer (as
trailer load.
specified by the trailer manufacturer).
ś Never exceed the maximum weight
Refer to the trailer's manual for
additional information.
limits of the trailer or trailer towing
equipment. Check weights and
Never exceed the gross vehicle weight
loading at a commercial scale or
rating (GVWR) for your vehicle.
highway patrol office equipped with
scales.
6-56
CarManuals2.com
06
Towing a trailer - Maximum towing limits
The following table indicates the maximum trailer weight for your vehicle. Do not
exceed the maximum allowable trailer weight. The maximum trailer weight includes
the weight of the trailer, any cargo, and equipment or items attached to the trailer.
The towing load in excess of these limits can seriously affect vehicle steering and
performance, and may damage the engine and drivetrain.
Item
Smartstream G2.5 GDI
Without braking
1,653 lbs. (750 kg)
system
Maximum trailer weight
With braking system
2,000 lbs. (907 kg)
Maximum tongue weight
220 lbs. (100 kg)
Any additional weight, cargo, or accessories in your vehicle will reduce the
maximum trailer weight and corresponding tongue load limits.
6-57
CarManuals2.com
Driving Your Vehicle
Towing Equipment and
Safety chains
Accessories
Always attach chains between your
Hitches
vehicle and your trailer.
Make sure that all equipment is
Instructions about safety chains may
properly installed and maintained, and
be provided by the hitch manufacturer
that it meets federal, state, and local
or trailer manufacturer. Follow the
regulations. Hyundai recommends that
manufacturer’s recommendation when
you have all trailer hitch equipment
attaching safety chains. Always leave just
installed at an authorized Hyundai dealer
enough slack so you can turn with your
with factory-recommended accessory
trailer. And, never allow safety chains to
parts that are specifically designed for
drag on the ground.
your vehicle.
Trailer brakes
Here are some rules to follow about
State or local regulations may require
hitches:
trailers to have their own braking system
ś
The bumpers on your vehicle are not
if the loaded weight of the trailer exceeds
certain minimums that can vary from
intended for hitches. Do not attach
rental hitches or other bumper-type
state to state.
hitches to them. Use only a frame-
Read and follow the instructions for
mounted hitch that does not attach to
the trailer's braking system when it is
the bumper.
installed, adjusted, and maintained
ś
Any part of the rear license plate or
properly. Never attempt to tap into your
vehicle's hydraulic braking system.
lighting devices of the vehicle must
not be obscured by the mechanical
coupling device.
WARNING
If the rear number plate and/or
Do not use a trailer with its own brakes
lighting devices can be obscured
unless you are absolutely sure that you
partially by any part of the mechanical
have properly set up the braking system.
coupling device, mechanical coupling
This is not a task for amateurs. Use an
devices that cannot be easily removed
experienced, competent trailer shop for
or repositioned without use of any
this work.
tools, except an easily operated (an
effort not exceeding 15 lbf.ft (20 Nm)
release key that is supplied by the
manufacturer of the coupling device,
are not permitted for use.
Note that the mechanical coupling
device that is fitted and not used must
always be removed or repositioned
if the rear number plate and/or rear
lighting devices are obscured by
any part of the mechanical coupling
device.
ś
A HYUNDAI trailer hitches are
available from an authorized
HYUNDAI dealer.
6-58
CarManuals2.com
06
Driving with a Trailer
Turn signals
Towing a trailer requires a certain
When you tow a trailer, your vehicle has
amount of experience. Before driving,
to have a different turn signal flasher and
acquaint yourself with the feel of
extra wiring. The green arrows on your
handling and braking with the added
instrument panel flashes whenever you
weight of the trailer. And always keep in
signal a turn or lane change. Properly
mind that the vehicle you are driving is
connected, the trailer lights also flash to
now longer and not nearly as responsive
alert other drivers when you are about to
as your vehicle is by itself.
turn, change lanes, or stop.
Before you start, check the trailer hitch
When towing a trailer, the green arrows
and platform, safety chains, electrical
on your instrument panel flashes for
connector(s), lights, tires, and brakes.
turns even if the bulbs on the trailer are
burned out. Thus, you may think drivers
During your trip, occasionally check the
behind you are seeing your signals when,
load is secure, and that the lights and
in fact, they are not. It is important to
trailer brakes are still working.
check occasionally to make sure the
trailer bulbs are still working. Check the
Following Distance
lights every time you disconnect and
Stay at least twice as far behind the
then reconnect the wires.
vehicle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
WARNING
heavy braking and sudden turns.
Do not connect a trailer lighting system
directly to your vehicle’s lighting system.
Passing Distance
Use an approved trailer wiring harness.
You need more passing distance when
Failure to do so may result in damage
you are towing a trailer. Because of the
to the vehicle electrical system and/or
increased vehicle length, you may need
personal injury. Contact an authorized
to go much farther beyond the passed
HYUNDAI dealer for assistance.
vehicle before you can return to your
lane.
Driving on hills
On a long uphill grade, shift down and
Backing up
reduce your vehicle speed to around 45
Hold the bottom of the steering wheel
mph (70 km/h) to reduce the possibility
with one hand. Then, to move the trailer
of engine and transmission overheating.
to the left, move your hand to the left. To
If you do not shift down, you might have
move the trailer to the right, move your
to use the brakes and your brakes may
hand to the right. Always back up slowly
overheat and may not operate efficiently.
and, if possible, have someone guide
If your trailer weighs more than the
you.
maximum trailer weight without trailer
brakes and you have an automatic
Making turns
transmission, drive in D (Drive) when
When you are turning with a trailer, make
towing a trailer.
wider turns than normal. Do this so your
Operating your vehicle in D (Drive)
trailer does not strike soft shoulders,
when towing a trailer can minimize heat
curbs, road signs, trees, or other objects.
build-up and extend the life of your
Avoid jerky or sudden maneuvers. Signal
transmission.
well in advance.
6-59
CarManuals2.com
Driving Your Vehicle
NOTICE
Parking on hills
To prevent engine and/or transmission
Generally, if you have a trailer attached
overheating:
to your vehicle, do not park your vehicle
on a hill.
ś
When towing a trailer on steep grades
(in excess of 6%) pay close attention
If you ever have to park your trailer on a
to the engine coolant temperature
hill:
gauge to make sure the engine does
1. Pull the vehicle into the parking
not overheat. If the needle of the
space. Turn the steering wheel in the
coolant temperature gauge moves
direction of the curb (right if headed
toward “H” (HOT), pull over and stop
down hill or left if headed up hill).
as soon as it is safe to do so, and allow
2. Shift the gear to P (Park).
the engine to idle until it cools down.
You may proceed once the engine has
3. Apply the parking brake and shut off
cooled sufficiently.
the vehicle.
ś
If you tow a trailer with the maximum
4. Place wheel chocks under the trailer
gross vehicle weight and maximum
wheels on the down hill side of the
trailer weight, it may cause the engine
wheels.
or transmission to overheat. When
5. Start the vehicle, hold the brakes, shift
driving in such conditions, allow the
to neutral, release the parking brake,
engine to idle until it cools down.
and slowly release the brakes until the
You may proceed once the engine or
trailer chocks absorb the load.
transmission has cooled sufficiently.
6. Reapply the brakes and the parking
ś
When towing a trailer, your vehicle
brake.
speed may be much slower than the
7. Shift the gear to P (Park) when the
general flow of traffic, especially when
vehicle is parked on an uphill grade
climbing an uphill grade. Use the right
and in R (Reverse) on a downhill.
hand lane when towing a trailer on
an uphill grade. Choose your vehicle
8. Shut off the vehicle and release the
vehicle brakes but apply the parking
speed according to the maximum
posted speed limit for vehicles with
brake.
trailers, the steepness of the grade,
and your trailer weight.
WARNING
To prevent serious injury or death:
ś Do not get out of the vehicle without
applying the parking brake firmly.
If you have left the engine running,
the vehicle may move suddenly. You
and others may be seriously or fatally
injured.
ś Do not apply the accelerator pedal to
hold the vehicle on an uphill.
6-60
CarManuals2.com
06
Driving the vehicle after it has been
Maintenance When Towing a
parked on a hill
Trailer
1. With the gear in P (Park), apply your
Your vehicle needs servicing more
brakes and hold the brake pedal down
often when you regularly pull a trailer.
while you:
Important items to pay particular
ś Start your engine.
attention to include engine oil,
transmission fluid, axle lubricant, and
ś Shift into gear.
cooling system fluid. Brake condition
ś Release the parking brake.
is another important item to frequently
2. Slowly remove your foot from the
check. If you are trailering, it is a good
brake pedal.
idea to review these items before you
3. Drive slowly until the trailer is clear of
start your trip. Do not forget to maintain
your trailer and hitch. Follow the
the chocks.
maintenance schedule that accompanies
4. Stop and have someone pick up and
your trailer and check it periodically.
store the chocks.
Preferably, conduct checking at the start
of each day’s driving. Most importantly,
all hitch nuts and bolts must be tight.
NOTICE
To prevent vehicle damage:
ś Due to higher load during trailer use,
overheating may occur on hot days
or during uphill driving. If the coolant
gauge indicates over-heating, switch
off the air conditioner and stop the
vehicle in a safe area to cool down the
engine.
ś Do not switch off the engine while the
coolant gauge indicates over-heating.
(Keep the engine idle to cool down
the engine)
ś When towing, check transmission
fluid more frequently.
ś If your vehicle is not equipped with an
air conditioner, install a condenser fan
to improve the engine performance
when towing a trailer.
6-61
CarManuals2.com
Driving Your Vehicle
9(+,&/( /2$' /,0,7
Two labels on your driver’s door sill
GVW (Gross Vehicle Weight)
show how much weight your vehicle
This is the Base Curb Weight
was designed to carry: the Tire and
plus actual Cargo Weight plus
Loading Information Label and the
passengers.
Certification Label.
Before loading your vehicle,
GVWR (Gross Vehicle Weight
familiarize yourself with the
Rating)
following terms for determining
This is the maximum allowable
your vehicle’s weight ratings, from
weight of the fully loaded vehicle
the vehicle’s specifications and the
(including all options, equipment,
Certification Label:
passengers and cargo). The GVWR
is shown on the Certification Label
Base Curb Weight
located on the driver’s door sill.
This is the weight of the vehicle
including a full tank of fuel and

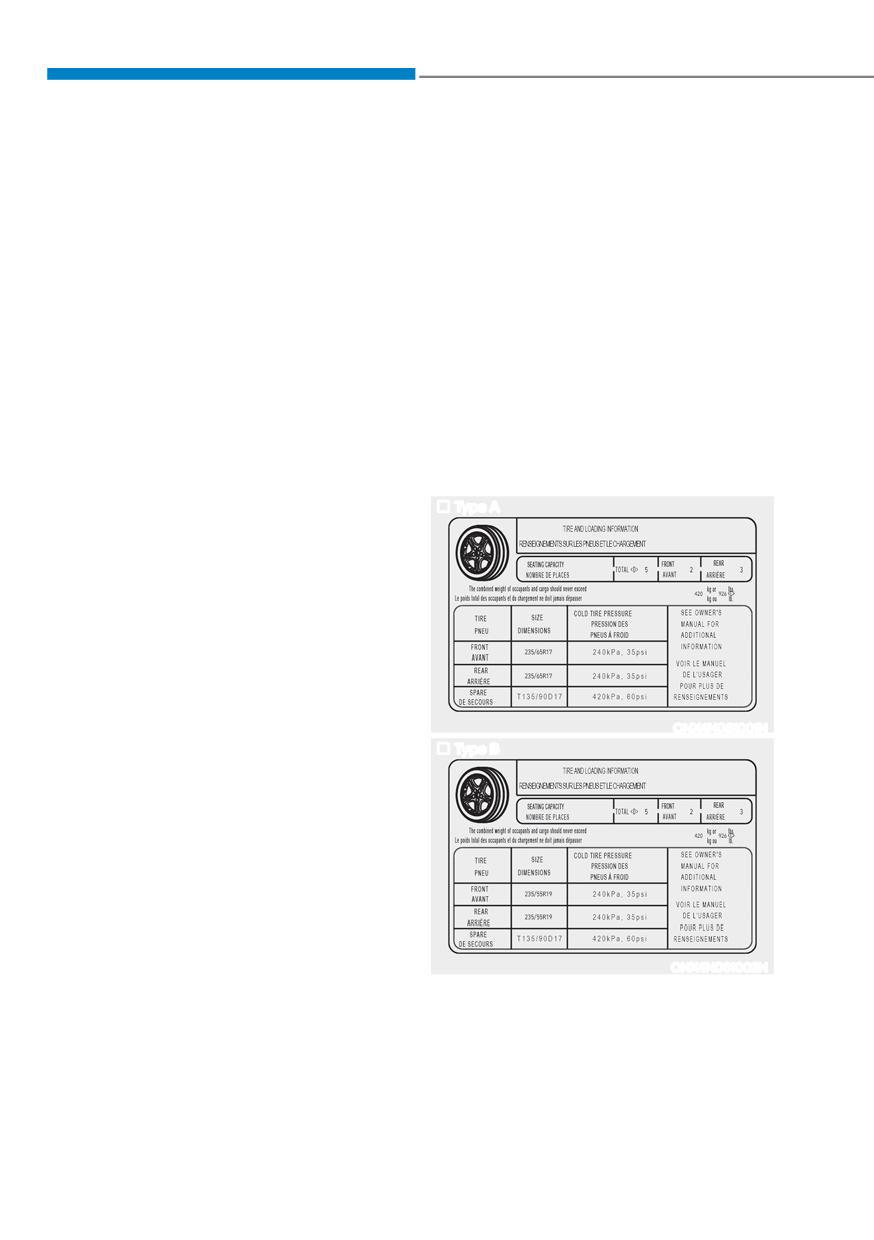

The Loading Information Label
all standard equipment. It does
„ Type A
not include passengers, cargo, or
optional equipment.
Vehicle Curb Weight
This is the weight of your new
vehicle when you picked it up from
your dealer plus any aftermarket
equipment.
Cargo Weight
ONX4N061001N
„ Type B
This figure includes all weight added
to the Base Curb Weight, including
cargo and optional equipment.
GAW (Gross Axle Weight)
This is the total weight placed on
each axle (front and rear) - including
vehicle curb weight and all payload.
GAWR (Gross Axle Weight Rating)
ONX4N061002N
This is the maximum allowable
The label located on the driver’s door
weight that can be carried by a single
jamb shows the original tire size,
axle (front or rear). These numbers
cold tire pressures recommended for
are shown on the Certification Label.
your vehicle, the number of people
The total load on each axle must
that can be in your vehicle and
never exceed its GAWR.
vehicle capacity weight.
6-62
CarManuals2.com

















Content      ..     1      2      3      4      ..
