Hyundai Tucson (2024 year). Manual in english - page 1





OWNER’S MANUAL
Operation
Maintenance
Specifications
All information in this Owner’s Manual is current at the time
of publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
CarManuals2.com
Californai Propostion 65
CALIFORNIA PROPOSITION 65
WARNING: Operating, servicing and maintaining a
passenger vehicle or off-highway motor vehicle can expose
you to chemicals including engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the State of California
to cause cancer and birth defects or other reproductive harm.
To minimize exposure, avoid breathing exhaust, do not idle
the engine except as necessary, service your vehicle in a well-
ventilated area and wear gloves or wash your hands frequently
when servicing your vehicle. For more information go to www.
P65Warnings.ca.gov/passenger-vehicle.
CarManuals2.com
Table of contents
Introduction
1
Picture Index
2
Seats & Safety System
3
Instrument Cluster
4
Convenience Features
5
Driving Your Vehicle
6
Driver Assistance System
7
Emergency Situations
8
Maintenance
9
Vehicle Information, Reporting Safety Defects,
10
and Consumer Information
Index
I
CarManuals2.com
1. Introduction
Introduction
1-2
HYUNDAI Motor America
1-2
1
Safety Messages
1-3
Vehicle Modifications
1-4
CarManuals2.com
Introduction
INTRODUCTION
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome
you to the growing number of discerning people who drive HYUNDAI. We are very
proud of the advanced engineering and high quality construction of each HYUNDAI we
build.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely
operate your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your
car be performed by an authorized HYUNDAI dealer. An authorized HYUNDAI dealer
are prepared to provide high-quality service, maintenance, and any other assistance
that may be required.
You may download an electronic version of this manual from owners.hyundaiusa.com.
HYUNDAI MOTOR AMERICA
publication may be reproduced, stored in any retrieval system or transmitted in
any form or by any means without the prior written permission of HYUNDAI Motor
America.
1-2
CarManuals2.com
01
SAFETY MESSAGES
Your safety, and the safety of others, are very important. This Owner’s Manual provides
you with many safety precautions and operating procedures. This information alerts
you to potential hazards that may hurt you or others, and may damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards
and what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow
safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE, and the SAFETY
ALERT SYMBOL will be used.
This is the safety alert symbol. It is used to alert you to potential physical injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death. The safety alert symbol precedes the signal words DANGER,
WARNING, and CAUTION.
DANGER
CAUTION
DANGER indicates a hazardous situation
CAUTION indicates a hazardous situation
that, if not avoided, will result in death or
that, if not avoided, could result in minor
serious injury.
or moderate injury.
NOTICE
WARNING
NOTICE indicates a situation that, if not
WARNING indicates a hazardous
avoided, could result in vehicle damage.
situation that, if not avoided, could result
in death or serious injury.
1-3
CarManuals2.com
Introduction
VEHICLE MODIFICATIONS
WARNING
Your HYUNDAI should not be modified in any way. Modifications may adversely affect
the performance, safety or durability of your HYUNDAI and may, violate conditions
of the limited warranties covering the vehicle. Certain modifications may also be in
violation of safety and emissions regulations established by the U.S. Department of
Transportation and other federal or state agencies.
If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge, and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some vehicle interior sounds (including welcome sound, navigation alerts, or warning
sounds) may be generated from the interior speakers or amplifier. Do not replace
these components with anything other than the original Hyundai factory parts. Any
unauthorized product may cause a malfunction of the vehicle interior sounds that may
affect the intended operation of the vehicle.
1-4
CarManuals2.com
2. Picture Index
Exterior Overview (Front View)
2-2
Exterior Overview (Rear View)
2-4
Interior Overview
2-6
Center Console Overview
2-7
Steering Wheel Control Overview
2-9
2
Engine Compartment Overview
2-10
CarManuals2.com
Picture Index

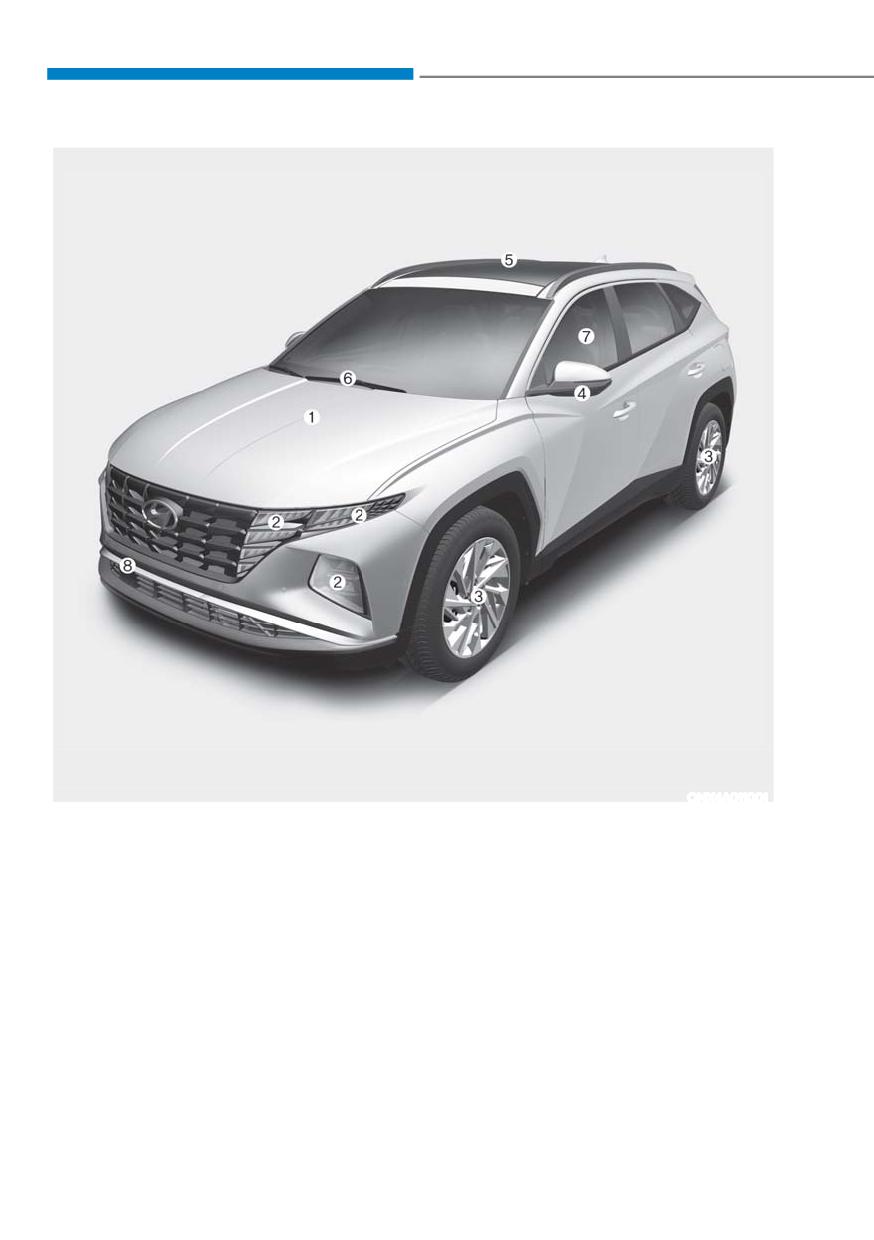

(;7(5,25 29(59,(: ǣ)5217 9,(:Ǥ
The actual shape may differ from the illustration.
ONX4A011001
1. Hood
5-58
5. Panoramic sunroof
5-54
2. Headlight
9-56
6. Front windshield wiper blades
9-27
3. Tires and wheels
9-34
7. Windows
5-50
4. Side view mirror
5-48
8. Front radar
7-140
2-2
CarManuals2.com
02

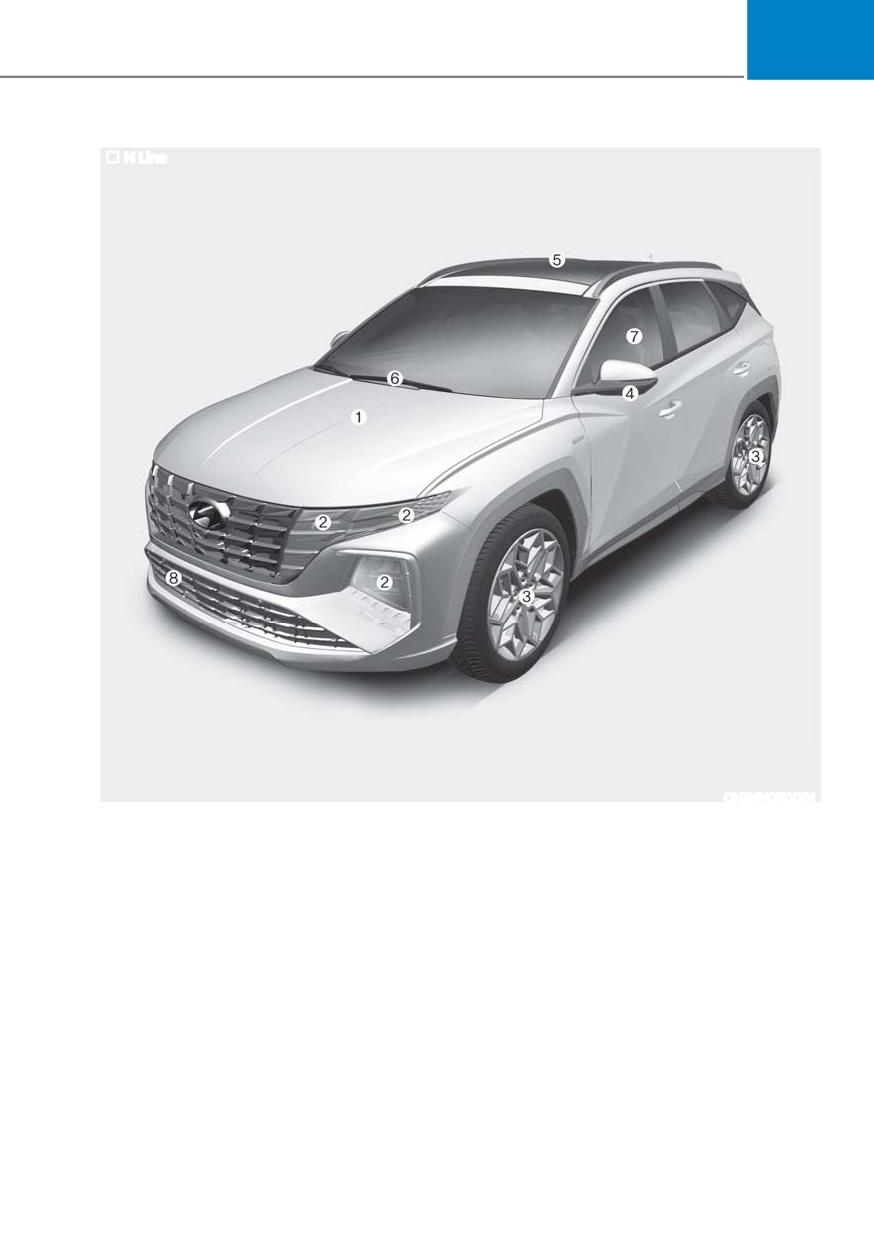

„ N Line
The actual shape may differ from the illustration.
ONX4N011001N
1. Hood
5-58
5. Panoramic sunroof
5-54
2. Headlight
9-56
6. Front windshield wiper blades
9-27
3. Tires and wheels
9-34
7. Windows
5-50
4. Side view mirror
5-48
8. Front radar
7-141
2-3
CarManuals2.com
Picture Index

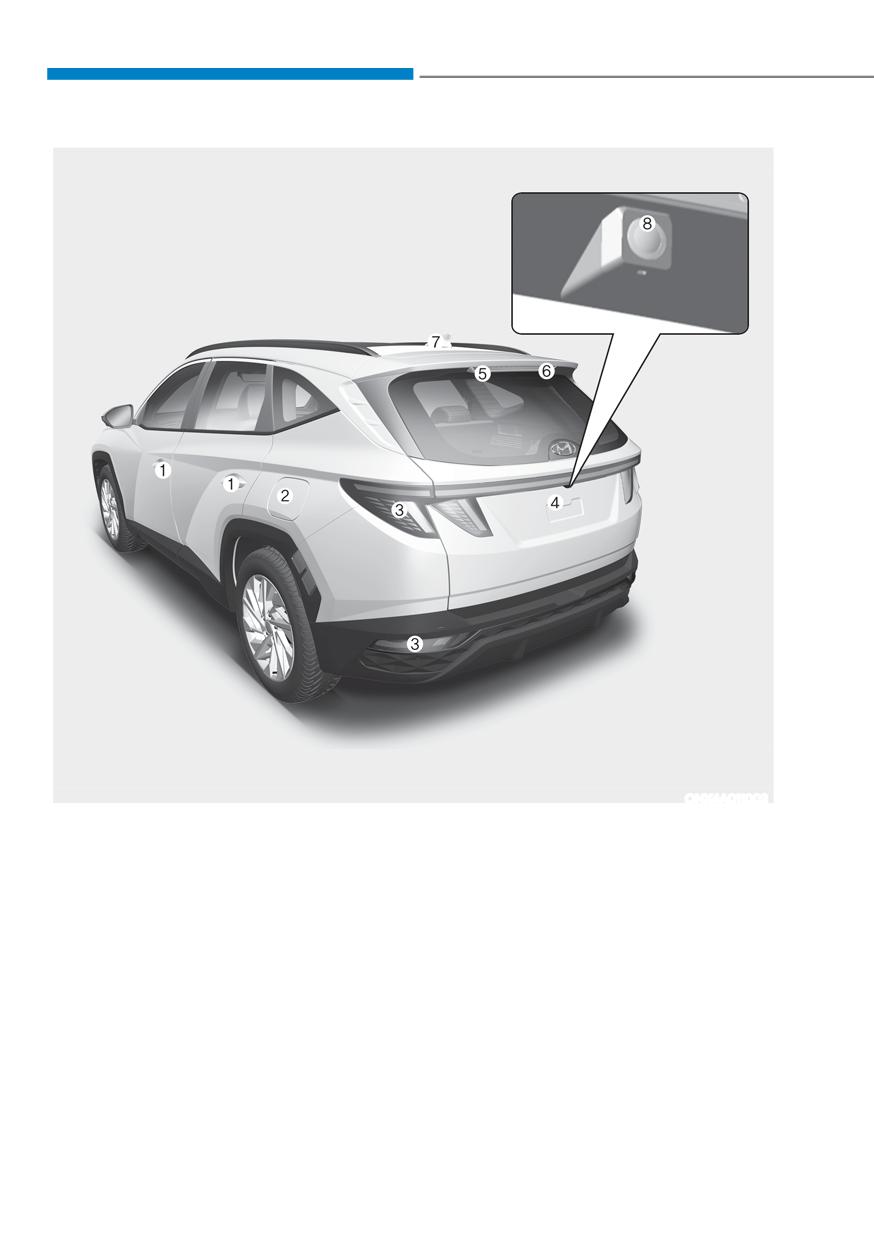

(;7(5,25 29(59,(: ǣ5($5 9,(:Ǥ
The actual shape may differ from the illustration.
ONX4A011002
1. Door handle
5-28
5. High mounted stop light
9-61
2. Fuel filler door
5-69
6. Rear window wiper blades
9-29
3. Rear combination light
9-58
7. Antenna
5-119
4. Liftgate
5-60
8. Wide-rear view camera
7-140
2-4
CarManuals2.com
02

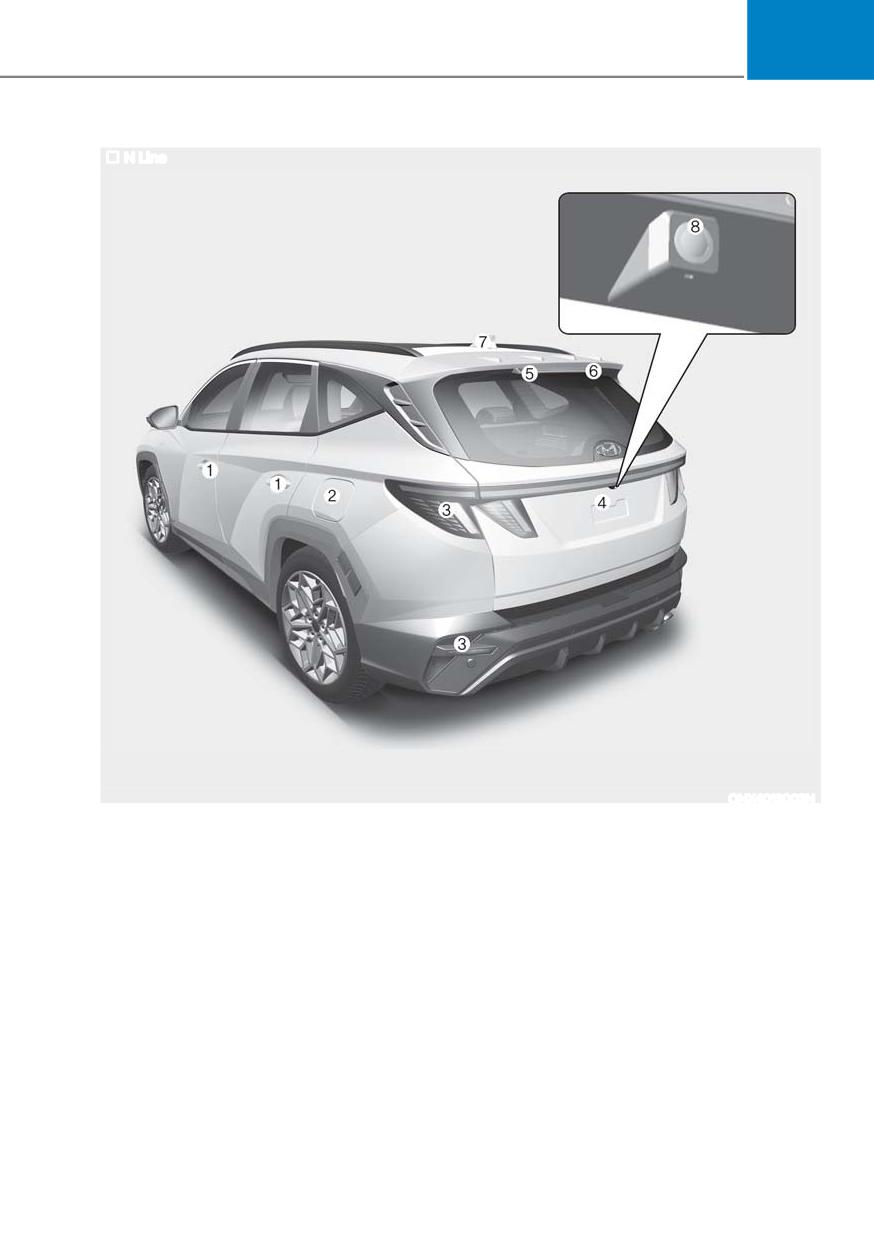

„ N Line
The actual shape may differ from the illustration.
ONX4013002N
1. Door handle
5-28
5. High mounted stop light
9-61
2. Fuel filler door
5-69
6. Rear window wiper blades
9-29
3. Rear combination light
9-58
7. Antenna
5-119
4. Liftgate
5-60
8. Wide-rear view camera
7-140
2-5
CarManuals2.com
Picture Index
,17(5,25 29(59,(:

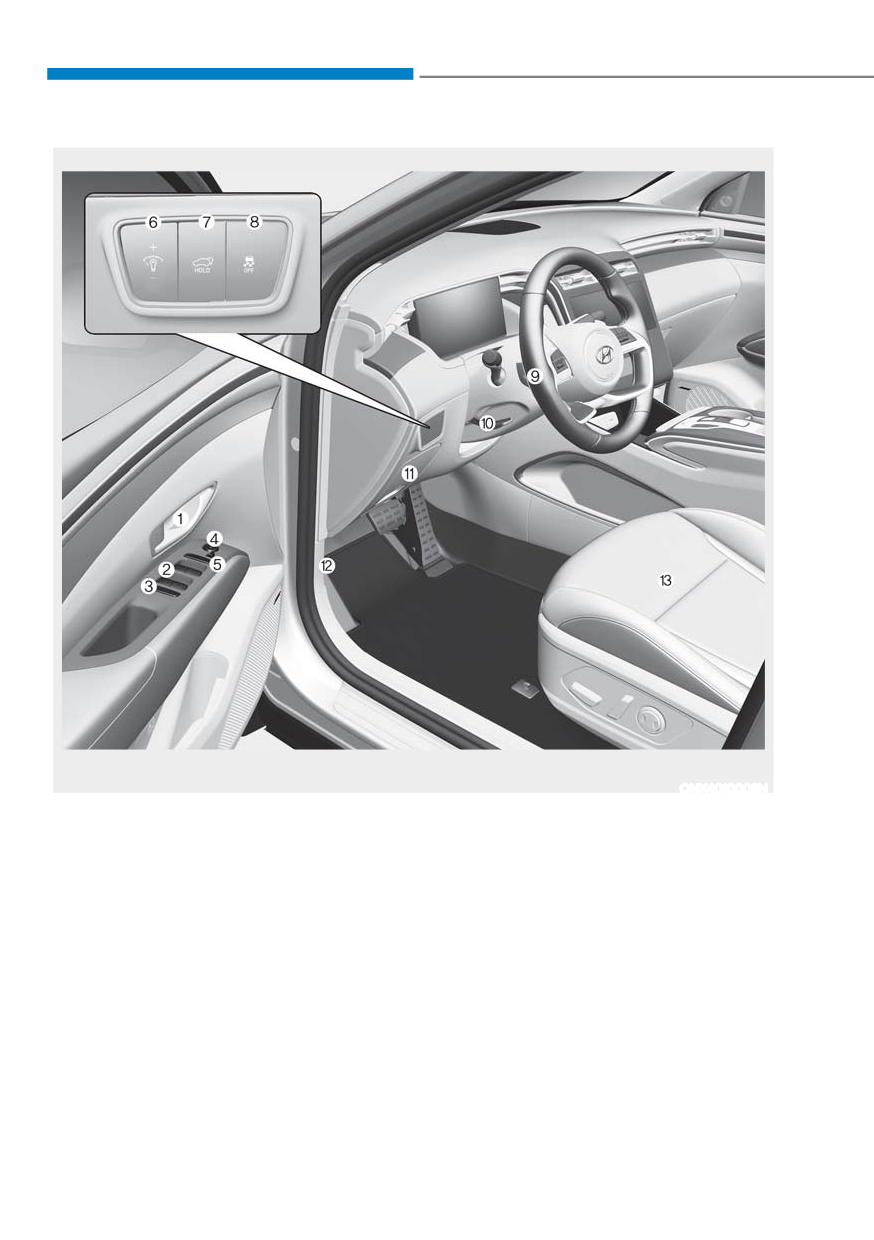

The actual shape may differ from the illustration.
ONX4010003N
1. Inside door handle
5-29
7. Power liftgate button
5-63
2. Power window switches
5-51
8. ESC OFF button
6-31
3. Power window lock button
5-52
9. Steering wheel
5-37
4. Side view mirror control switch
5-49
10. Steering wheel tilt/telescopic lever
5-38
5. Driver central door lock/unlock
11. Fuse box
9-48
switch
5-30
12. Hood release lever
5-58
6. Instrument panel illumination control
13. Seat
3-4
switch
4-5
2-6
CarManuals2.com
02
&(17(5 &2162/( 29(59,(:

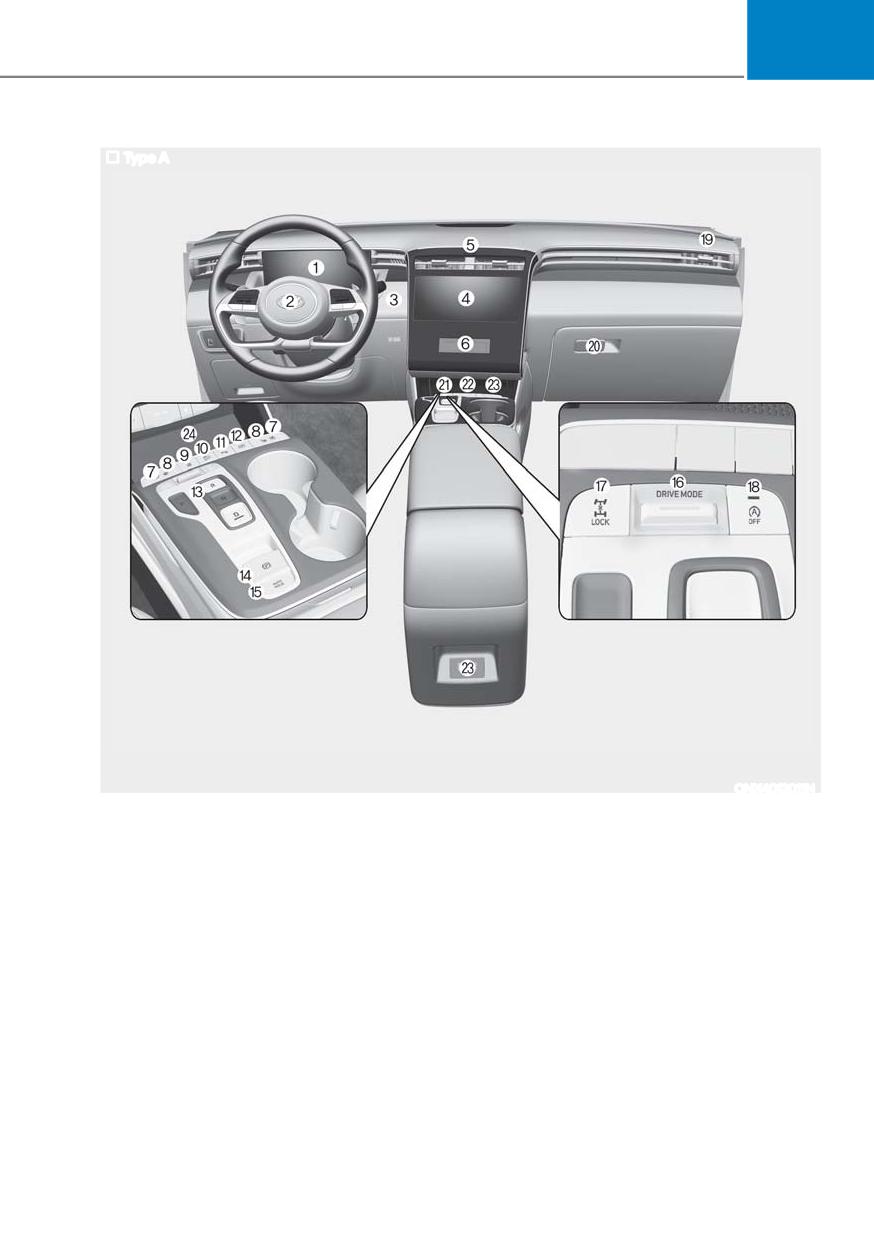

„ Type A
The actual shape may differ from the illustration.
ONX4012011N
1. Instrument cluster
4-4
13. Shift button
6-14
2. Driver’s front airbag
3-42
14. EPB (Electronic Parking Brake)
3. Push Button Start ignition switch
6-9
switch
6-23
15. Auto Hold switch
6-27
4. Infotainment system
5-120
16. Drive mode button
6-42
5. Hazard warning flasher button
8-2
17. AWD lock button
6-44
6. Climate control system
5-85, 5-92
18. ISG (Idle Stop and Go) OFF button
6-40
7. Air ventilation seat
3-17
19. Passenger’s front airbag
3-42
8. Seat warmer
3-16
9. Steering wheel heater
5-38
20.Glove box
5-110
21. USB port
5-119
10. DBC button
6-35
22. Power outlet
5-112
11. Parking Safety button
7-119
23. USB charger
5-113
12. Parking/View button
7-98, 7-102
24. Wireless charging system pad
5-114
2-7
CarManuals2.com
Picture Index

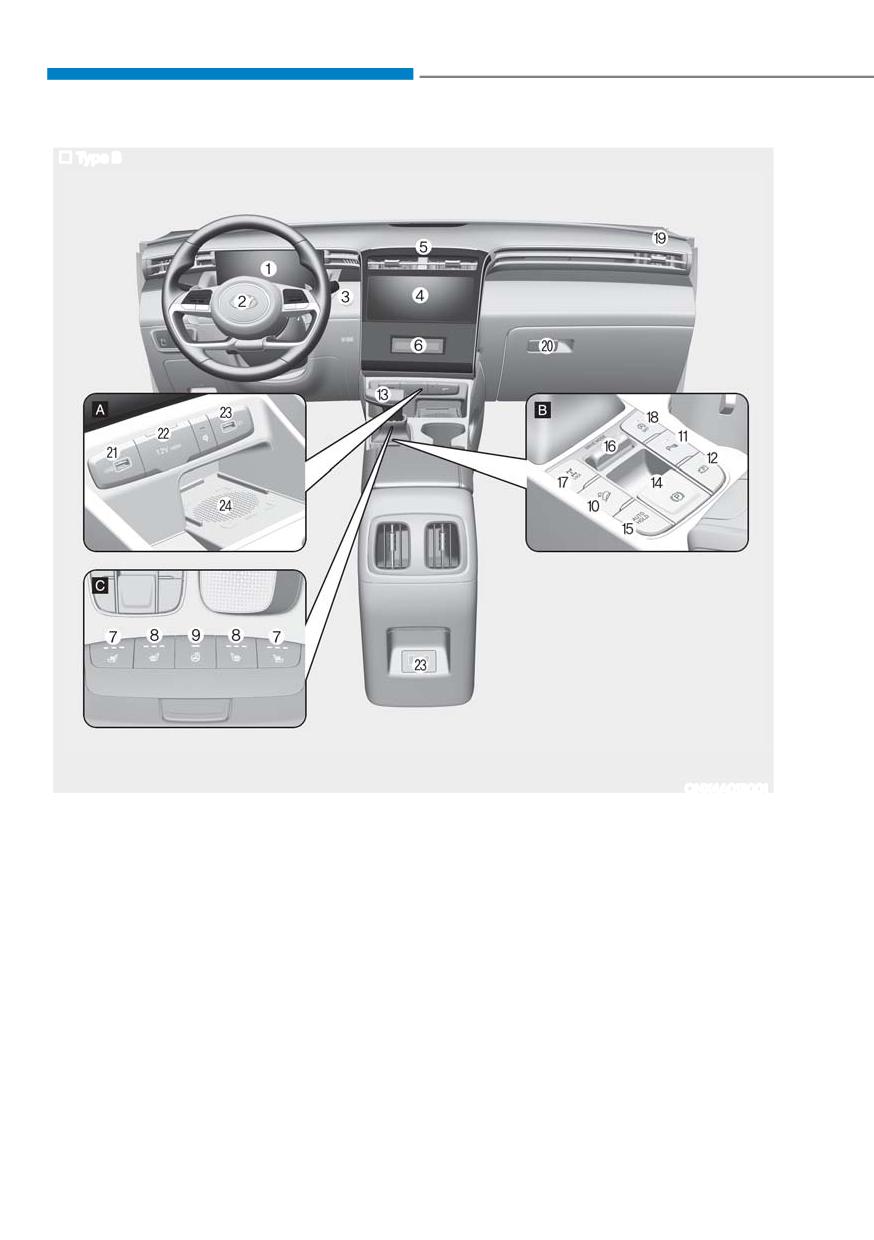

„ Type B
The actual shape may differ from the illustration.
ONX4A013001
1. Instrument cluster
4-4
13. Shift lever
6-14
2. Driver’s front airbag
3-42
14. EPB (Electronic Parking Brake)
switch
6-23
3. Key ignition switch
6-6
Push Button Start ignition switch
6-9
15. Auto Hold switch
6-27
4. Infotainment system
5-120
16. Drive mode button
6-42
5. Hazard warning flasher button
8-2
17. AWD lock button
6-44
6. Climate control system
5-85, 5-92
18. ISG (Idle Stop and Go) OFF button
6-40
7. Air ventilation seat
3-17
19. Passenger’s front airbag
3-42
8. Seat warmer
3-16
20.Glove box
5-110
9. Steering wheel heater
5-38
21. USB port
5-119
10. DBC button
6-35
22. Power outlet
5-112
11. Parking Safety button
7-119
23. USB charger
5-113
12. Parking/View button
7-98, 7-102
24. Wireless charging system pad
5-114
2-8
CarManuals2.com
02

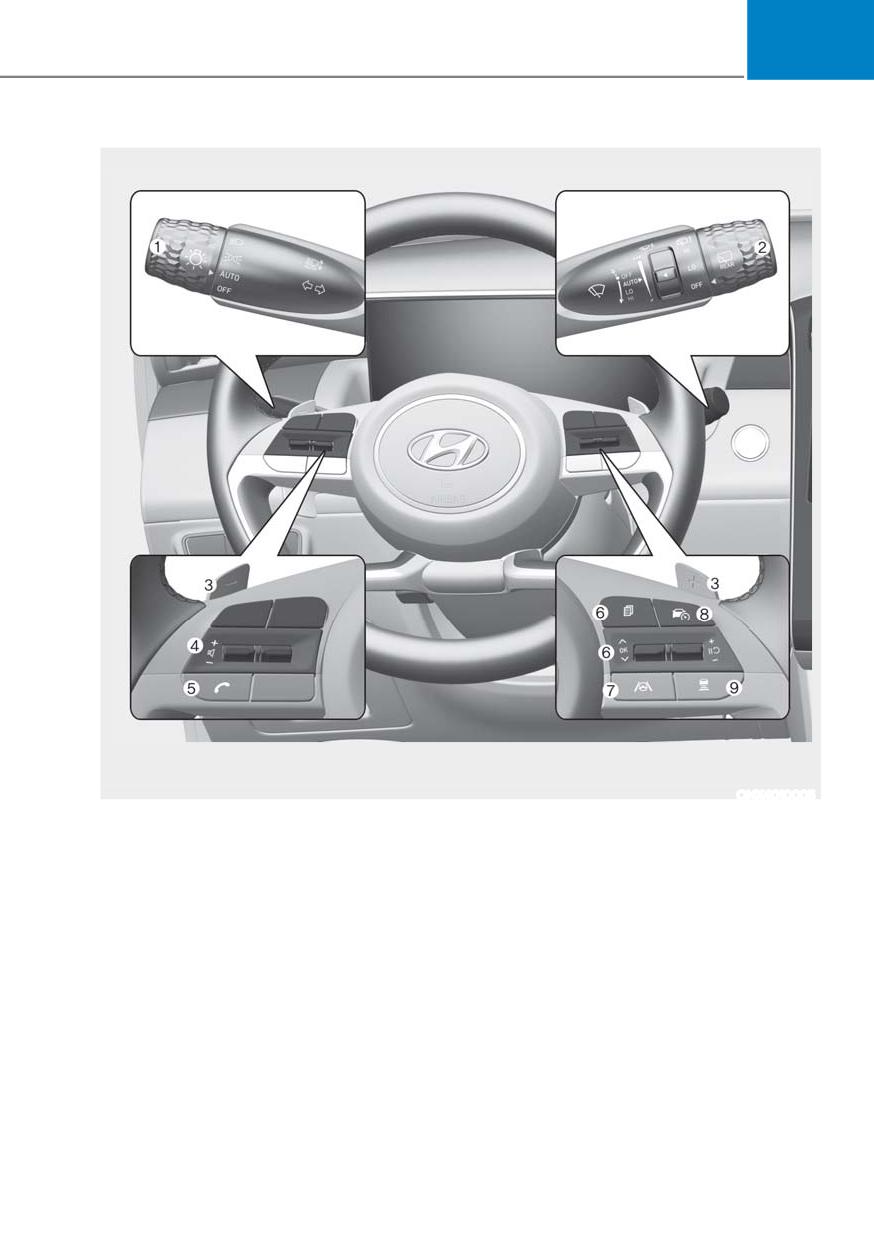

67((5,1* :+((/ &21752/ 29(59,(:
The actual shape may differ from the illustration.
ONX4010005
1. Turn signal lever/Headlight switch
5-72
6. Cluster display control
4-25
2. Wiper and washer control lever
5-82
7. Lane Driving Assist button
7-28
3. Paddle shifter
6-20
8. Driving Assist button
7-72
4. Audio remote control buttons
5-119
9. Vehicle Distance button
7-72
5. Bluetooth® hands-free phone
button
5-121
2-9
CarManuals2.com
Picture Index

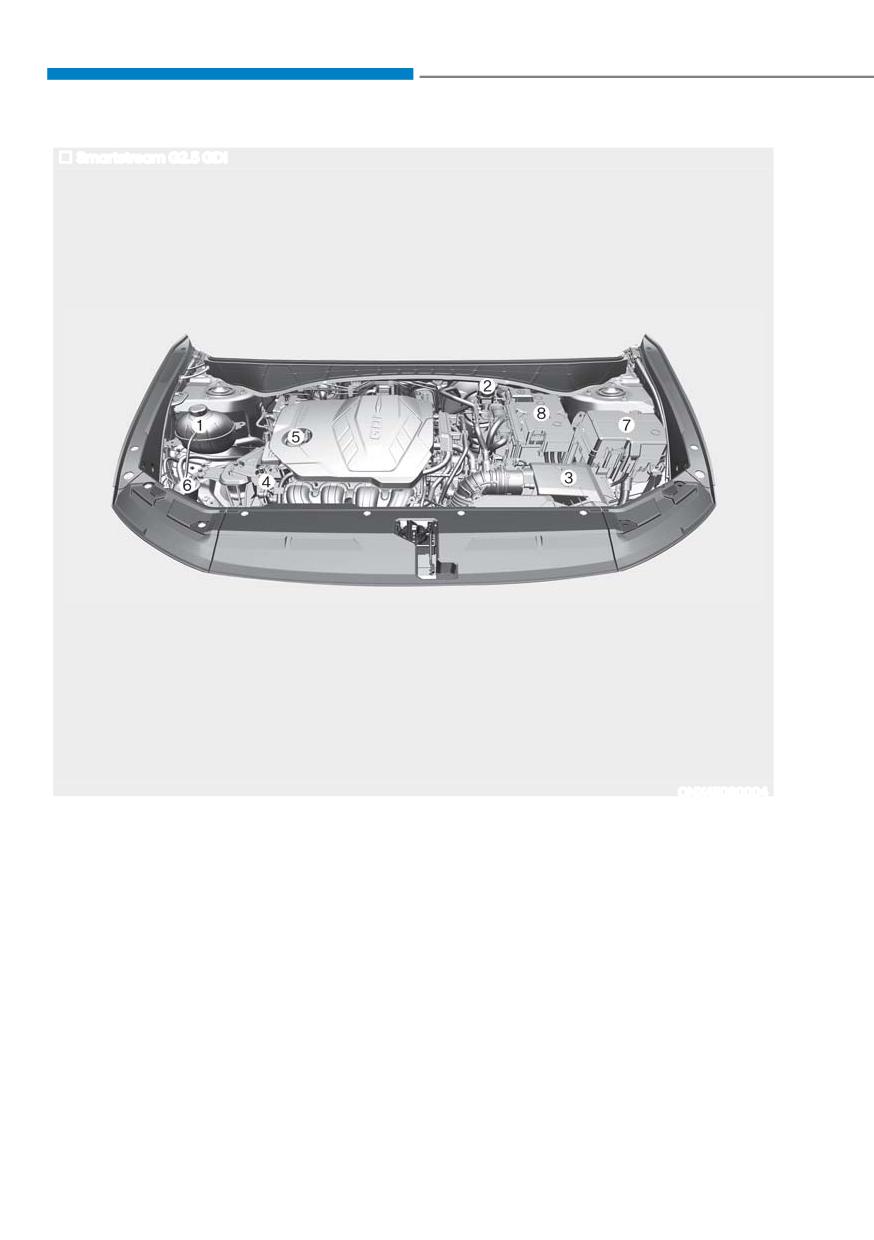

(1*,1( &203$570(17 29(59,(:
„ Smartstream G2.5 GDI
The actual engine compartment in the vehicle may differ from the illustration.
ONX4E090004
1. Engine coolant reservoir
9-20
5. Engine oil filler cap
9-18
2. Brake fluid reservoir
9-23
6. Windshield washer fluid reservoir
9-24
3. Air cleaner
9-25
7. Fuse box
9-49
4. Engine oil dipstick
9-18
8. Battery
9-30
2-10
CarManuals2.com
3. Seats & Safety System
This chapter provides you with important information about how to protect yourself and your
passengers. It explains how to properly use your seats and seat belts, and how your airbags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
Important Safety Precautions
3-2
Always Wear Your Seat Belt
3-2
Restrain All Children
3-2
Airbag Hazards
3-2
Driver Distraction
3-2
Never Drink or Take Drugs and Drive
3-2
Control Your Speed
3-2
3
Keep Your Vehicle In Proper Operating Condition - Inspecting Your Tires
3-3
Reducing the Risk of a Rollover
3-3
Seats
3-4
Safety Precautions
3-5
Front Seats
3-6
Rear Seats
3-10
Head Restraints
3-12
Seat Warmers
3-16
Air Ventilation Seat
3-17
Seat Belts
3-19
Seat Belt Safety Precautions
3-19
Seat Belt Warning Light
3-20
Seat Belt Restraint System
3-21
Additional Seat Belt Safety Precautions
3-27
Care of Seat Belts
3-29
Child Restraint System (CRS)
3-30
Children Always in the Rear
3-30
Selecting a Child Restraint System
3-31
Installing a Child Restraint System
3-32
Supplemental Restraint System - Airbags
3-40
SRS Components
3-42
Where are the Airbags?
3-42
How does the Airbag System Operate?
3-45
What to Expect After an Airbag Inflates
3-48
SRS Warning Light
3-48
Occupant Classification System (OCS)
3-49
Why didn’t My Airbag Go Off In a Collision?
3-54
SRS Care
3-58
Additional Safety Precautions
3-59
Airbag Warning Labels
3-59
CarManuals2.com
Seats & Safety System
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Drivers can become distracted when
and recommendations throughout this
they take their eyes and attention off
section, and throughout this manual.
the road or their hands off the wheel to
The safety precautions in this section are
focus on activities other than driving.
among the most important.
To reduce your risk of distraction and an
accident:
Always Wear Your Seat Belt
ś Set up your mobile devices (for
A seat belt is your best protection in all
example, MP3 players, phones,
types of accidents. Airbags are designed
navigation units, etc.) ONLY when
to supplement seat belts, not to replace
your vehicle is safely stopped and
them. So even though your vehicle is
parked.
equipped with airbags, always make sure
ś ONLY use your mobile device when
you and your passengers wear your seat
allowed by laws and conditions
belts, and wear them properly.
permit safe use. NEVER text or email
while driving. Most states have laws
Restrain All Children
prohibiting drivers from texting while
driving. Some states and cities also
All children under age 13 should ride
prohibit drivers from using handheld
in your vehicle properly restrained in a
phones while driving.
rear seat, not the front seat. Infants and
small children should be restrained in
ś NEVER let the use of a mobile device
an appropriate Child Restraint System.
distract you from driving. You have a
Larger children should use a booster
responsibility to your passengers and
seat with the lap/shoulder belt until they
others on the road to always drive
can use the seat belt properly without a
safely, with your hands on the wheel
booster seat.
as well as your eyes and attention on
the road.
Airbag Hazards
Never Drink or Take Drugs and
While airbags can save lives, they can
also cause serious or fatal injuries to
Drive.
occupants who sit too close to them, or
Drinking alcohol or taking drugs can
who are not properly restrained. Infants,
reduce your ability to respond to
young children, and short adults are at
changing conditions and emergencies.
the greatest risk of being injured by an
Do not drink or take drugs and drive, and
inflating airbag. Follow all instructions
do not let your friends drink or take drugs
and warnings in this manual.
and drive.
Driver Distraction
Control Your Speed
Driver distraction presents a serious and
Excessive speed is a major factor in crash
potentially deadly danger, especially for
injuries and deaths. Generally, the higher
inexperienced drivers. Safety should be
the speed, the greater the risk, but
the first concern when behind the wheel
serious injuries can also occur at lower
and drivers need to be aware of the wide
speeds. Never drive faster than is safe
array of potential distractions, such as
for current conditions, regardless of the
drowsiness, reaching for objects, eating,
maximum speed posted.
personal grooming, becoming distracted
from other passengers, and using mobile
phones.
3-2
CarManuals2.com
03
Keep Your Vehicle In Proper
WARNING
Operating Condition - Inspecting
Some Sports Utility Vehicles (SUVs) can
Your Tires
have a significantly higher rollover rate
Having a tire blowout or a mechanical
than other types of vehicles. To prevent
failure can be extremely hazardous. To
rollovers or loss of control:
reduce the possibility of a tire hazard
ś Take corners at slower speeds than
while driving, check your tire pressures
you would with a passenger vehicle.
regularly and also inspect the condition
ś Avoid sharp turns and abrupt
of your tires (tread depth, uneven wear,
maneuvers.
etc.). Be sure to perform all regularly
scheduled maintenance as indicated in
ś Do not modify your vehicle in any way
your Owner's Manual.
that you would raise the center of
gravity.
Reducing the Risk of a Rollover
ś Keep tires properly inflated.
Your multi-purpose passenger vehicle
ś Do not carry heavy cargo on the roof.
is defined as a Sports Utility Vehicle
(SUV). Some SUVs have higher ground
clearance and a narrower track to make
WARNING
them capable of performing in a wide
Fasten your seat belt properly. In a
variety of off-road applications. The
rollover crash, an unbelted person is
specific design characteristics can give
significantly more likely to be seriously
them a higher center of gravity than
injured or killed than a person wearing a
ordinary passenger vehicles making
seat belt.
them more likely to roll over if you make
abrupt turns. SUVs have a significantly
higher rollover rate than other types
of vehicles. Always make sure you and
your passengers wear your seat belts
properly and securely. In a rollover crash,
an unbelted person is significantly more
likely to be seriously injured or killed than
a person wearing a seat belt.
There are steps that a driver can make
to reduce the risk of a rollover. If at all
possible, avoid sharp turns or abrupt
maneuvers, do not load your vehicle
with heavy cargo on the roof, and never
modify your vehicle in any way.
3-3
CarManuals2.com
Seats & Safety System
SEATS
„ Manual
„ Power
The information provided may differ depending on which functions are
applicable to your vehicle.
ONX4PH032001N
Front seat
Rear seats
M Forward and rearward
U Seatback angle and folding
N Seatback angle
V Head restraint
O Seat cushion angle*
Armrest
P Seat height
Seat warmer*
Q Lumbar support (Driver’s seat)*
R Seat warmer*
*: if equipped
S Air ventilation seat*
T Head restraint
3-4
CarManuals2.com
03
Safety Precautions
WARNING
Adjusting the seats in a safe and
To reduce the risk of serious injury or
comfortable position plays an important
death from an inflating airbag:
role for the safety of driver and
ś Adjust the driver’s seat as far to the
passengers. Proper seating positions,
rear as possible while maintaining
secured seat belts, and protection
your ability to control the vehicle.
from airbags work together to provide
a measure of safety in the event of a
ś Adjust the front passenger seat as far
collision.
to the rear as possible.
ś Hold the steering wheel with hands at
the 9 o’clock and 3 o’clock positions
WARNING
to minimize the risk of injuries to your
Do not use a cushion that reduces friction
hands and arms.
between the seat and the passenger. The
ś Never place anything or anyone
passenger’s hips may slide under the lap
between you and the airbag.
portion of the seat belt during an accident
ś Do not allow the front passenger to
or a sudden stop.
place feet or legs on the dashboard to
Serious or fatal internal injuries could
minimize the risk of leg injuries.
result because the seat belt cannot
operate properly.
Seat belts
Airbags
Always fasten your seat belt before
starting any trip. At all times, passengers
You can take steps to reduce the risk
should sit upright and be properly
of being injured by an inflating airbag.
restrained with a seat belt. Infants and
Sitting too close to an airbag greatly
small children must be restrained in
increases the risk of injury in the event
appropriate Child Restraint Systems.
the airbag inflates.
The National Highway Traffic Safety
Administration (NHTSA) recommends
WARNING
that drivers allow at least 10 inches
To prevent serious injury or death:
(25 cm) between the center of the
ś Never use one seat belt for more than
steering wheel and their chest.
one occupant.
ś Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.
ś Never allow children or small infants
to ride on a passenger’s lap.
ś Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.
ś Do not allow the seat belt to become
caught or jammed.
3-5
CarManuals2.com
Seats & Safety System
Front Seats
Reclining seatback
Sitting in a reclined position when the
vehicle is moving can be dangerous.
WARNING
Even when buckled up, the effectiveness
To prevent serious injury or death:
of the restraint system (seat belts and/or
airbags) is greatly reduced by reclining
ś
Never attempt to adjust the seat while
your seatback.
the vehicle is moving. The seat could
respond with unexpected movement
Seat belts must be snug against your
and may cause loss of vehicle control
hips and chest to work properly.
resulting in a collision.
The more the seatback is reclined, the
ś
Do not place anything under the
greater the chance for the passenger’s
front seats. Loose objects, including
hips to slide under the lap belt or the
unsecured floor mats, in the driver’s
passenger’s neck to strike the shoulder
foot area could interfere with the
belt.
operation of the foot pedals.
ś
Do not allow anything to interfere
WARNING
with the normal position and proper
locking of the seatback.
Never ride with a reclined seatback when
the vehicle is moving.
ś
Do not place a cigarette lighter on the
floor or seat.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
ś
Use extreme caution when picking up
the event of a collision or sudden stop.
small objects trapped under the seats
or between the seat and the center
Driver and passengers should always sit
console. Your hands might be cut or
well back in their seats, properly belted,
injured by the sharp edges of the seat
and with the seatbacks upright.
mechanism.
Seat belts must be snug against your
ś
If there are occupants in the rear
hips and chest to work properly. When
seats, be careful while adjusting the
the seatback is reclined, the shoulder
front seat.
belt cannot do its job because it will not
ś
Make sure that the seat is locked in
be snug against your chest. Instead, it
place after the adjustment. If not, the
will be in front of you. During a collision,
seat might move unexpectedly.
you could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
3-6
CarManuals2.com
03
Manual seats - Seat adjustments
The front seat can be adjusted by using
the levers located underneath the front
part of the seat or on the outer side of
the seat.
ONX4030003
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
ONX4030002
2. Carefully lean back on the seat and
adjust the seatback to the desired
Forward and rearward adjustment
position.
To move the seat forward or rearward:
3. Release the lever and make sure the
1. Pull up the seat slide adjustment lever
seatback is locked in place.
and hold it.
2. Slide the seat to the desired position.
3. Release the lever and make sure the
seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.
ONX4030004
Seat height
To change the height of the seat:
ś Push down on the lever several times,
to lower the seat.
ś Pull up on the lever several times, to
raise the seat.
3-7
CarManuals2.com
Seats & Safety System
Power seats - Seat adjustment (if
equipped)
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion.
WARNING
Never allow children to remain in the
vehicle unattended. The power seats are
operable when the vehicle is turned off.
ONX4030006
Forward and rearward adjustment
NOTICE
To move the seat forward or rearward:
To prevent damage to the seats:
1. Push the control switch forward or
ś Always stop adjusting the seats when
rearward.
the seat has been adjusted as far
2. Release the switch once the seat
forward or rearward as possible.
reaches the desired position.
ś Do not adjust the seats longer than
necessary when the vehicle is turned
off. This may result in unnecessary
battery drain.
ś Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.
ONX4030007
Seatback angle
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
3-8
CarManuals2.com
03
ONX4030008
ONX4030009
Seat cushion tilt M
Lumbar support (for driver’s seat, if
equipped)
To change the angle of the front part of
the seat cushion:
To adjust the lumbar support:
1. Push the front portion of the control
1. Press the front portion of the switch M
switch up to raise or down to lower
to increase support or the rear portion
the front part of the seat cushion.
of the switch N to decrease support.
2. Release the switch once the seat
2. Release the switch once the lumbar
reaches the desired position.
support reaches the desired position.
Seat height N
Seatback pocket
To change the height of the seat:
1. Push the rear portion of the control
switch up to raise or down to lower
the height of the seat.
2. Release the switch once the seat
reaches the desired position.
ONX4030018
The seatback pocket is provided on the
back of the front seatbacks.
WARNING
Do not put heavy or sharp objects in the
seatback pockets. In a collision, they
could come loose from the pocket and
injure occupants.
3-9
CarManuals2.com
Seats & Safety System
Rear Seats
ONX4E030064
To fold down the rear seatback:
ONX4030019
1. Adjust the front seatback to the
Seatback angle
upright position and if necessary, slide
To recline the seatback:
the front seat forward.
1. Pull up the seatback recline lever.
2. Lower the rear head restraints to the
lowest position by pushing and holding
2. Hold the lever and adjust the seatback
the release button M and pushing
of the seat to the desired position.
down on the head restraint N.
3. Release the lever and make sure the
seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the rear cargo volume in the
vehicle.
WARNING
ONX4030060
ś Never allow passengers to sit on top
of the folded down seatback while the
vehicle is moving. This is not a proper
seating position and no seat belts are
available for use. This could result in
serious injury or death in a collision or
sudden stop.
ś Objects carried on the folded down
seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide forward
and property damage or serious injury
ONX4030030
or even death during a collision or
3. Insert the rear seat belt buckle in the
sudden stop.
pocket between the rear seatback and
cushion, and insert the rear seat belt
webbing in the guide to prevent the
seat belt from being damaged.
3-10
CarManuals2.com
03
WARNING
Make sure the engine is off, the vehicle is
shifted to P (Park), and the parking brake
is applied before loading or unloading
cargo to prevent unintended movement
of the vehicle.
WARNING
Cargo should always be secured to
ONX4030021
prevent it from moving in a collision and
causing serious injury or death to the
4. Pull up the seatback folding lever,
vehicle occupants. Do not place objects
then fold the seat toward the front of
in the rear seats, because they cannot be
the vehicle.
properly secured and may hit the front
seat occupants in a collision.
ONX4030022
To use unfold the rear seatback:
1. Lift and push the seatback rearward
while lifting up the front portion of the
folding lever.
2. Push the seatback firmly until it clicks
into place. Make sure the seatback is
locked in place.
WARNING
Lock the seatback properly. In a collision
or sudden stop, an unlocked seatback
may allow cargo to move forward with
great force and may result in serious
injury or death.
3-11
CarManuals2.com
Seats & Safety System
Remote seatback release handle
Head Restraints
(Cargo area)
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints are designed to help
protect passengers from whiplash and
other neck and spinal injuries during
a collision, especially a rear impact
collision. When there are no occupants
in the rear seats, adjust the rear head
restraints to the lowest height to improve
the driver's visibility.
WARNING
ONX4030023
To help reduce, the risk of serious
injury or death in an accident, take the
following precautions when adjusting
your head restraints:
ś Always adjust the head restraints
properly for all passengers BEFORE
starting the vehicle.
ś Never let anyone ride in a seat with
the head restraints removed or
reversed.
ś Adjust the head restraints so that the
ONX4030024
middle of the head restraint is at the
Pull the remote seatback release handle
same height as the top of the eyes.
located on either side in the rear cargo
area.
Armrest
OJKEV032104L
ś Never adjust the driver's head
restraint when the vehicle is moving.
ś Make sure the head restraint is locked
in place after adjustment.
ONX4030017
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback to use it.
3-12
CarManuals2.com
03
Front seat head restraints
WARNING
OTL035061
When passengers are sitting on the rear
seats, always raise the head restraints
above the lowest stored position.
ONX4E030035
The driver’s and front passenger’s seats
are equipped with adjustable head
restraint for the passengers safety and
comfort.
ONX4030011
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position M.
To lower the head restraint:
1. Press and hold the release button N
on the head restraint support.
2. Lower the head restraint to the
desired position O.
3-13
CarManuals2.com
Seats & Safety System
„ Type A
„ Type A
ONX4030012
ONX4030014
„ Type B
„ Type B
ONX4030013
ONX4030015
Removal/Reinstallation
To reinstall the head restraint:
To remove the head restraint:
1. Recline the seatback.
1. Recline the seatback N with the
2. Put the head restraint poles N into
seatback angle lever or switch M.
the holes while pressing the release
button M.
2. Raise the head restraint as far as it can
go.
3. Adjust the head restraint to the
appropriate height.
3. Press the head restraint release button
O while pulling the head restraint up
4. Return the seatback P with the
P.
seatback angle lever or switch O.
WARNING
WARNING
Never allow anyone to travel in a seat
Always make sure the head restraint is
with the head restraint removed.
locked in place and properly adjusted for
the passenger.
3-14
CarManuals2.com
03
Rear seat head restraint
ONX4030016
ONX4E030061
Removal/Reinstallation
The rear seats are equipped with head
To remove the head restraint:
restraint in all the seating positions for
1. Raise the head restraint as far as it can
the passenger’s safety and comfort.
go.
2. Press the head restraint release button
M while pulling up the head restraint
N.
To reinstall the head restraint:
1. Put the head restraint poles into the
holes O while pressing the release
button M.
2. Adjust the head restraint to the
appropriate height.
ONX4030020
Adjusting the height up and down
To raise the head restraint:
1. Pull it up to the desired position M.
To lower the head restraint:
1. Press and hold the release button N
on the head restraint support.
2. Lower the head restraint to the
desired position O.
3-15
CarManuals2.com
Seats & Safety System
Seat Warmers (if equipped)
„ Front seat (Type A)
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers off.
WARNING
The seat warmers may cause serious
burns, even at low temperatures and
ONX4030025
especially if used for long periods of
„ Front seat (Type B)
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should use
extreme caution, especially the following
types of passengers:
ś Infants, children, elderly or disabled
persons, or hospital outpatients.
ONX4E030066
ś People with sensitive skin or who burn
„ Rear seat (if equipped)
easily.
ś Fatigued individuals.
ś Intoxicated individuals.
ś People taking medication that may
cause drowsiness or sleepiness.
Never place anything on the seat that
insulates against heat when the seat
warmer is operating, such as blanket or
seat cushion.
ONX4030026
NOTICE
While the engine is running, press the
switches to warm the driver's seat, front
To prevent damage to the seat warmers
and seats:
passenger's seat, or the rear seats.
ś Never use a solvent such as paint
thinner, benzene, alcohol, or gasoline
to clean the seats.
ś Do not place heavy or sharp objects
on seats equipped with seat warmers.
ś Do not change the seat cover.
3-16
CarManuals2.com
03
ś
Manual temperature control
ś Auto Comfort Control (for driver’s
seat) (if equipped)
Each time you press the switch,
the temperature setting of the seat
- The seat warmer automatically
changes as follows:
controls the seat temperature
depending on the ambient
- Front seats
temperature and the set climate
OFF
HIGH (
)
control temperature when the
engine is running. If the seat
LOW (
)
MEDIUM (
)
warmer switch is pressed, the seat
- Rear seats
warmer is controlled manually.
- To use this feature, it can be
OFF Ɵ HIGH (
) Ɵ LOW (
)
enabled from the Settings menu in
the infotainment system.
ś
Automatic temperature control
Select: Setup > Vehicle > Seat (or
The temperature is automatically
Climate) > Warmer/Ventilation
controlled to prevent low temperature
Features > Link to Climate Settings
burns after manually turning on.
for Auto-Adjustment > Driver Seat
- Front seats
Warmer/Ventilation
OFF
Ɵ
+,*+
- The seat warmer defaults to the
OFF position whenever the ignition
ơ
Ƣ
0,1
switch is ON. However, if the Auto
LOW (
)
Ơ
0(',80
Comfort Control function is on,
0,1
the driver’s seat warmer turns on
and off depending on the ambient
- Rear seats
temperature and the set climate
OFF Ɵ HIGH (
) Ɵ LOW (
)
control temperature.
30 MIN
Air Ventilation Seat (if equipped)
If HIGH temperature is selected
The air ventilation seats cool the front
again after the seat warmer turns
seats by blowing air through small vent
off, the temperature is controlled
holes on the surface of the seat cushions
automatically again.
and seatbacks.
ś
When pressing the switch for more
When air ventilation is not desired, keep
than 1.5 seconds with the seat warmer
the switches in the OFF position.
operating, the seat warmer turns off.
ś
The seat warmer defaults to the OFF
position whenever the ignition switch
is in the ON position.
3-17
CarManuals2.com
Seats & Safety System
„ Type A
ś
Each time you press the switch, the
airflow changes as follows:
OFF
HIGH (
)
LOW (
)
MEDIUM (
)
ś
When pressing the switch for
more than 1.5 seconds with the air
ventilation seat operating, the air
ventilation seat turns off.
ś
The air ventilation seat defaults to the
ONX4030027
OFF position whenever the ignition
„ Type B
switch is placed to the ON position.
ś
Auto Comfort Control (for driver’s
seat) (if equipped)
-
The air ventilation seat
automatically controls the seat
temperature depending on the
ambient temperature and the
set climate control temperature
when the engine is running. If
the air ventilation seat switch is
pressed, the air ventilation seats are
ONX4E030067
controlled manually.
While the engine is running, press the
-
To use this feature, it can be
switch to cool the driver's seat or the
enabled from the Settings menu in
front passenger's seat.
the infotainment system.
Select: Setup > Vehicle > Seat (or
NOTICE
Climate) > Warmer/Ventilation
To prevent damage to the air ventilation
Features > Link to Climate Settings
seats:
for Auto-Adjustment > Driver Seat
ś Never use a solvent such as paint
Warmer/Ventilation
thinner, benzene, alcohol, or gasoline
-
The air ventilation seat defaults
to clean the seats.
to the OFF position whenever the
ignition switch is ON. However, if
ś Avoid spilling liquids on the surface
the Auto Comfort Control function
of the front seats and seatbacks.
is on, the air ventilation seat turns
This may cause the air vent holes
on and off depending on the
to become blocked and not to work
ambient temperature and the set
properly.
climate control temperature.
ś Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
the air vents not to work properly.
ś Do not change the seat covers.
ś If the air ventilation seats do not
operate, restart the vehicle. If there
is no change, have your vehicle
inspected by an authorized HYUNDAI
dealer.
3-18
CarManuals2.com
03
SEAT BELTS
Seat Belt Safety Precautions
ś Do not use the seat belt if it is twisted.
A twisted seat belt may not protect
Always fasten your seat belt and make
you properly in a collision.
sure all passengers have fastened their
seat belts before starting any trip.
ś Do not use a seat belt if the webbing
Airbags are designed to supplement the
or hardware is damaged. Have the
seat belt as an additional safety device,
seat belt replaced by an authorized
not a replacement. Most states require all
HYUNDAI dealer.
vehicle occupants wear seat belts.
ś Do not latch the seat belt into the
buckles intended for other seating
positions.
WARNING
ś Never unfasten the seat belt while
Seat belts must be used by ALL
driving. This may cause loss of vehicle
passengers whenever the vehicle is
control resulting in a collision.
moving. To prevent serious injury or
ś Make sure there is nothing in the
death:
buckle that could interfere with the
ś Children under the age of 13 should be
seat belt latch mechanism from
properly restrained in the rear seats.
fastening securely.
ś Never allow children to ride in the
ś Never modify seatbelt or install
front passenger seat. If a child age 13
devices that may prevent seatbelt
or older must be seated in the front
assembly from removing slack.
passenger seat, move the seat as far
back as possible and properly restrain
them in the seat.
WARNING
ś Never allow an infant or child to be
Damaged seat belts and seat belt
carried on an occupant’s lap.
assemblies do not operate properly.
ś Never ride with the seatback reclined
Always replace:
when the vehicle is moving.
ś Frayed, contaminated, or damaged
ś Do not allow children to share a seat
webbing.
or seat belt.
ś Damaged hardware.
ś Do not wear the shoulder belt under
ś The entire seat belt assembly after it
your arm or behind your back.
has been worn in an accident, even
if damage to webbing or assembly is
not apparent.
3-19
CarManuals2.com
Seats & Safety System
Seat Belt Warning Light
Seat belt warning light (for front
Seat belt warning light (for driver’s
passenger’s seat)
seat)
As a reminder to the front passenger, the
front passenger’s seat belt warning light
„ Instrument cluster
illuminates for about 6 seconds each
time the ignition is moved to the ON
position regardless of belt fastening.
If the passenger continues to not fasten
their seat belt and you drive over 6
mph (9 km/h), the warning light stays
illuminated.
If the passenger continues not to fasten
their seat belt and you drive over 12 mph
(20 km/h), the seat belt warning chime
1GQA2083
sounds for about 100 seconds and the
corresponding warning light blinks.
As a reminder to the driver, the seat belt
warning light illuminates for about 6
If the passenger unfastens their seat
seconds each time the ignition is moved
belt while you are driving under 12 mph
to the ON position regardless of seat belt
(20 km/h), the seat belt warning light
fastening. If the seat belt is not fastened,
illuminates until the seat belt is fastened.
a warning chime sounds for 6 seconds.
If the passenger unfastens the seat
If you continue not to fasten the seat belt
belt while you are driving over 12 mph
and you drive over 6 mph (9 km/h), the
(20 km/h), the seat belt warning chime
warning light stays illuminated.
sounds for about 100 seconds and the
If you continue not to fasten the seat
corresponding warning light blinks.
belt and you drive over 12 mph (20
km/h), the seat belt warning chime
WARNING
sounds for about 100 seconds and the
corresponding warning light blinks.
Riding in an improper position may
adversely affect the front passenger's
If you unfasten the seat belt while driving
seat belt warning system. Instruct the
under 12 mph (20 km/h), the seat belt
passenger to properly be seated when
warning light illuminates until the seat
the vehicle is moving.
belt is fastened.
If you unfasten the seat belt while driving
over 12 mph (20 km/h), the seat belt
Information
warning chime sounds for about 100
ś If the front passenger seat is not
seconds and the corresponding warning
occupied, the seat belt warning light
light blinks.
blinks or illuminates for 6 seconds.
ś The front passenger’s seat belt
warning may operate when luggage is
placed on the front passenger seat.
3-20
CarManuals2.com
03
Seat belt warning light (for rear
Seat Belt Restraint System
passenger’s seat)
WARNING
ONX4E030068
With the ignition switch ON, if the rear
ORS031127
passenger’s seat belt is not fastened, the
corresponding seat belt warning light
Improperly positioned seat belts may
will illuminate for 70 seconds. But, if the
increase the risk of serious injury in an
seatbelt is fastened after 6 seconds, the
accident. Take the following precautions
corresponding seat belt warning light will
when adjusting the seat belt:
immediately turn off.
ś Position the lap portion of the seat
If the seat belt is fastened, and then
belt as low as possible across your
unfastened while driving below 12 mph
hips, not on your waist, so that it
(20 km/h), the corresponding seat
fits snugly. This allows your strong
belt warning light will illuminate for 70
pelvic bones to absorb the force of
seconds.
a collision, reducing the chance of
internal injuries.
If the seat belt is fastened, and then
unfastened while driving above 12 mph
ś Position one arm under the shoulder
(20 km/h), the corresponding seat belt
belt and the other over the belt, as
warning light will blink and the warning
shown in the illustration.
chime will sound for approximately 35
ś Always position the shoulder belt
seconds.
anchor into the locked position at an
appropriate height.
ś Never position the shoulder belt
across your neck or face.
3-21
CarManuals2.com
Seats & Safety System
Driver's Seat Belt - 3-point system
Information
with emergency locking retractor
If you cannot smoothly pull the seat belt
out from the retractor, firmly pull the seat
belt out and release it. After release, the
belt may be pulled out smoothly.
Height adjustment
Adjust the height of the shoulder belt so
that it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
„ Front seat
ORS031126
To fasten your seat belt:
Pull belt out of the retractor and insert
the metal tab M into the buckle N. An
audible “click” sounds when the tab
locks into the buckle. Make sure the seat
belt is not twisted.
OTM030079
To adjust the height of the seat belt
anchor:
Pull it up M to raise the height. To lower
it, push it down O while pressing the
height adjuster button N.
Release the button to lock the anchor in
place. Try pushing the height adjuster
ORS031130
down to make sure that it is locked in
Place the lap belt M portion across your
place.
hips and the shoulder belt N portion
across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion
is adjusted manually so that it fits snugly
around your hips. If you lean forward in a
slow, easy motion, the belt extends and
moves with you.
If there is a sudden stop or collision, the
belt is locked in place. It also locks if you
try to lean forward too quickly.
3-22
CarManuals2.com
03
Passenger and Rear Seat Belts -
3-point system with convertible
locking retractor
This type of seat belt combines both
an emergency locking retractor and an
automatic locking retractor. Convertible
retractor type seat belts are installed
in the rear seat positions to help
accommodate the installation of child
restraint systems.
A convertible retractor is also installed
ORS031128
in the front passenger seat position,
To release your seat belt:
children should always be seated in the
Press the release button M in the locking
rear and never place any infant/child
buckle.
restraint system in the front seat.
The belt should automatically draw
back into the retractor. If this does not
To fasten your seat belt:
happen, check the belt is not twisted,
Pull the seat belt out of the retractor
then try again.
and insert the metal tab into the buckle.
An audible “click” sounds when the tab
locks into the buckle. Pull the shoulder
portion of the belt to snug the belt across
your hips and remove slack. Make sure
the seat belt is not twisted.
When not securing a child restraint,
the seat belt automatically adjusts to
the proper length only after the lap
belt portion of the seat belt is adjusted
manually so that it fits snugly across your
hips.
When the seat belt has been fully
extended from the retractor to allow
for the installation of a child restraint
system, the seat belt operation changes
to allow the belt to retract, but not to
extend (Automatic Locking Retractor
Type). Refer to the “Using a Child
Restraint System” section in this chapter.
3-23
CarManuals2.com
Seats & Safety System
Second row center seatbelt
(3-point rear center seat belt)
ORS031128
To release your seat belt:
Press the release button M in the locking
ODN8039026
buckle.
Insert the tongue plate M into the buckle
The belt should automatically draw
N until an audible “click" is heard,
back into the retractor. If this does not
indicating the latch is locked. Pull the
happen, check the belt is not twisted,
shoulder portion of the belt to snug the
then try again.
belt across your hips and remove slack.
Make sure the seat belt is not twisted.
When using the rear center seat belt, use
Information
the buckle with the “CENTER” mark.
ś The emergency locking mode
allows seated passengers to move
freely in their seats while keeping
Information
some tension on the belt. During a
If you cannot pull out the safety belt from
collision or sudden stop, the retractor
the retractor, firmly pull the belt out and
automatically locks the belt to help
release it. After release, pull out the belt
restrain the passengers.
smoothly.
ś To deactivate the automatic locking
mode, unbuckle the seat belt and
allow the belt to fully retract.
3-24
CarManuals2.com
03
Stowing the rear seat belt
Pretensioner seat belt (for driver
and front passenger seat)
ONX4030060
The rear seat belt buckles can be stowed
ONX4030059
in the pocket between the rear seatback
M: Retractor pretensioner,
and cushion when not in use.
N: Emergency fastening device (for driver’s seat only)
Your vehicle is equipped with driver’s
„ Rear seat
Pretensioner seat belts (Retractor
Pretensioner and Emergency Fastening
Device System). The pretensioner makes
sure the driver's and front passenger's
seat belt fits tightly against your body
in certain frontal or side collision(s). The
Emergency Fastening Device System
may be activated in some collisions
where the frontal collision(s) is severe
enough.
ONX4030030
When the vehicle stops suddenly, or
Routing the seat belt webbing through
if you try to lean forward too quickly,
the rear seat belt guides helps keep the
the seat belt retractor locks in place. In
seat belts from being trapped behind or
some frontal collisions, the pretensioner
under the seats.
activates and pulls the seat belt against
After inserting the seat belt, tighten the
your body.
belt webbing by pulling it up.
WARNING
When using the seat belt, use it after
taking it out of the guides.
If you pull the seat belt when it is stored
in the guides, it may damage the guides
and/or belt webbing.
3-25
CarManuals2.com
Seats & Safety System
WARNING
To prevent serious injury or death:
ś Always wear your seat belt and sit
properly in your seat.
ś Do not use the seat belt if it is loose or
twisted.
ś Do not place anything near the
buckle.
ś Always replace your pretensioner after
activation or an accident.
OOSN033110C
ś Have the pretensioner inspected,
The Pre-Tensioner Seat Belt System
serviced, repaired, or replaced by only
consists mainly of the following
an authorized HYUNDAI dealer.
components. Their locations are shown
in the illustration above:
ś Do not hit seat belt assemblies.
M SRS airbag warning light
N Retractor pretensioner
WARNING
O SRS control module
Do not touch the pretensioner seat
P Emergency fastening device
belt assemblies for several minutes
after they have been activated. When
the pretensioner seat belt mechanism
The sensor that activates the SRS
deploys during a collision, the
control module is connected with the
pretensioner can become hot and can
pretensioner seat belt. The SRS airbag
burn you.
warning light on the instrument cluster
illuminates for about 3-6 seconds after
the ignition switch is in the ON position,
WARNING
and then it turns off.
Have the system serviced by an
If the pretensioner is not working
authorized HYUNDAI dealer. Body work
properly, the warning light illuminates
on the front of the vehicle may damage
even if the SRS airbag is not
the pretensioner seat belt system.
malfunctioning. If the warning light does
not illuminate when starting the engine
or stays illuminated or illuminates while
driving, have the pretensioner seat belts
and/or SRS control module inspected by
an authorized HYUNDAI dealer as soon
as possible.
3-26
CarManuals2.com
03
Additional Seat Belt Safety
Information
Precautions
ś
The pretensioner seat belt system may
Seat belt use during pregnancy
be activated in certain frontal or side
collisions or rollover situations.
The seat belt should always be used
during pregnancy. The best way to
ś
When the pretensioner seat belts are
protect your unborn child is to protect
activated, a loud noise may be heard
yourself by always wearing the seat belt.
and fine dust, which may appear
to be smoke, may be visible in the
Pregnant women should always wear
passenger compartment.
a lap-shoulder seat belt. Place the
ś
Although it is non-toxic, the fine
shoulder belt across your chest, routed
between your breasts and away from
dust may cause skin irritation and
should not be inhaled for prolonged
your neck. Place the lap belt below your
belly and pull the shoulder portion so it
periods. Wash all exposed skin areas
thoroughly after an accident in which
fits SNUGLY across your hips and pelvic
bone, under the rounded part of your
the pre-tensioner seat belts were
activated.
belly.
WARNING
ś A pregnant woman is more vulnerable
to any impacts on the abdomen
during an abrupt stop or collision. If
you are in an accident while pregnant,
consult your doctor.
ś To reduce the risk of serious injury
or death to an unborn child during
an accident, do not let pregnant
women place the lap portion of the
seat belt above or over the area of the
abdomen where the unborn child is
located.
3-27
CarManuals2.com
Seats & Safety System
Seat belt use and children
Larger children
Infant and small children
Children under age 13 and who are
too large for a booster seat should
All 50 states have Child Restraint System
always occupy the rear seat and use the
laws that require children to travel in
available lap/shoulder belts. A seat belt
approved Child Restraint System devices,
should be snug against the hips and
including booster seats. The age at
be snug across the shoulder and chest
which seat belts can be used instead of
to restrain the child safely. A child’s
Child Restraint System may be different,
squirming could move the belt out of
so you should be aware of the specific
position. Adults should frequently check
requirements in your state where you
belt fit. In a collision, the safest place
are travelling. Infant and Child Restraint
for children is in the rear seats, using a
System must be properly placed and
Child Restraint System appropriate for
installed in a rear seat.
the child.
For more information, refer to the
If a larger child over age 13 must be
“Child Restraint Systems” section in this
seated in the front seat, the child must
chapter.
be securely restrained by the available
seat belt and the seat should be placed
WARNING
in the rearmost position.
Always properly restrain infants and
If the shoulder belt portion slightly
touches the child’s neck or face, try
small children in a Child Restraint System
appropriate for the child’s height and
placing the child closer to the center
of the vehicle. If the shoulder belt still
weight.
touches their face or neck, the child
To reduce the risk of serious injury or
needs to return to an appropriate booster
death to a child and other passengers,
seat in the rear seat.
Never hold a child in your lap or arms
when the vehicle is moving. Violent
forces during a collision will tear the
WARNING
child from your arms and throw the child
ś Always make sure children’s seat belts
against the interior or to be ejected from
are buckled and properly adjusted.
the vehicle.
ś Never allow the shoulder belt to
contact the child’s neck or face.
Small children are best protected from
injury in an accident when properly
ś Do not allow more than one child to
restrained in the rear seat by a Child
use a single seat belt.
Restraint System that meets the
requirements of the Federal Motor
Vehicle Safety Standards. Before buying
any Child Restraint System, make sure
that it has a label certifying that it
meets the applicable Safety Standards.
The Child Restraint System must be
appropriate for your child’s height and
weight. Check the label on the Child
Restraint System for this information.
Refer to the “Child Restraint Systems”
section in this chapter.
3-28
CarManuals2.com
03
Seat belt use and injured people
Care of Seat Belts
A seat belt should still be used when
Seat belt systems should never be
an injured person is being transported.
disassembled or modified.
Consult a physician for specific
recommendations.
Periodic inspection
All seat belts should be inspected
One person per belt
periodically for wear or damage of any
When two people (children or adults) are
kind. Any damaged parts should be
sitting together, never attempt to use a
replaced as soon as possible.
single seat belt. This could increase the
severity of injuries in a collision.
Keep belts clean and dry
Seat belts should be kept clean and
Do not lie down
dry. If belts become dirty, they can be
Sitting in a reclined position when the
cleaned by using a mild soap solution
vehicle is moving, can be dangerous.
and warm water. Bleach, dye, strong
Even when buckled up, the protections
detergents, or abrasives should not be
of your restraint system (seat belts and/
used because they may damage and
or airbags) is greatly reduced by reclining
weaken the fabric.
your seatback.
Seat belts must be snug against your
When to replace seat belts
hips and chest to work properly.
The entire seat belt assembly or
During a collision, you could be thrown
assemblies should be replaced if the
into the seat belt, causing neck or other
vehicle has been involved in an accident.
injuries.
This should be done even if no damage is
visible. Consult an authorized HYUNDAI
The more the seat back is reclined, the
dealer for assistance.
greater the chance for the passenger’s
hips to slide under the lap belt or the
passenger’s neck to strike the shoulder
belt.
WARNING
ś Never ride with a reclined seatback
when the vehicle is moving.
ś Do not ride with a reclined seatback.
It may increase your chance of serious
or fatal injuries in the event of a
collision or sudden stop.
ś Have the driver and all passengers
always sit well back in their seats,
properly belted, and with the
seatbacks upright.
3-29
CarManuals2.com
Seats & Safety System
&+,/' 5(675$,17 6<67(0 ǣ&56Ǥ
Children Always in the Rear
Child Restraint System
Infants and younger children must be
restrained in an appropriate rearward-
WARNING
facing or forward-facing Child Restraint
Always properly restrain children in the
System that has first been properly
rear seats of the vehicle. Children of all
secured to the rear seats of the vehicle.
ages are safer when restrained in the rear
Read and comply with the instructions
seat. A child riding in the front passenger
for installation and use provided by the
seat can be forcefully struck by an
manufacturer of the Child Restraint
inflating airbag resulting in serious injury
System.
or death.
WARNING
Children under age 13 should always
ride in the rear seats and must always be
Do not use an improperly secured child
properly restrained to minimize the risk
restraint. It may increase the risk of
of injury in a collision, sudden stop, or
serious injury or death in a collision.
sudden maneuver.
When using a Child Restraint System:
According to accident statistics, children
ś Never install a child or infant restraint
are safer when properly restrained in the
in the front passenger's seat.
rear seat than in the front seat. Even with
ś Always properly secure the child
airbags, children can be seriously injured
restraint system in the rear seat of the
or killed. Children too large for a Child
vehicle.
Restraint System must use the seat belts
provided.
ś Always follow the child restraint
system manufacturer's instructions for
All 50 states have child restraint laws that
installation and use.
require children to travel in approved
Child Restraint Systems.
ś Always properly restrain your child in
the child restraint.
The laws governing the age or height/
weight restrictions at which seat belts
ś If the head restraint prevents
can be used instead of Child Restraint
proper installation of a child seat
System differs among states, so
(as described in the Child Restraint
you should be aware of the specific
System manual), readjust or remove
requirements where you are travelling.
the head restraint for that seating
position.
Child Restraint Systems must be properly
placed and installed in the rear seat. Use
ś Do not use an infant carrier or a
a commercially available Child Restraint
child safety seat that "hooks" over a
System that meets the requirements
seatback. It may not provide adequate
of the Federal Motor Vehicle Safety
protection in an accident.
Standards (FMVSS 213).
ś After an accident, have an authorized
Child Restraint Systems are generally
HYUNDAI dealer check the Child
designed to be secured in a vehicle
Restraint System, seat belts, tether
seat by a lap/shoulder seat belt, or by
anchors, and lower anchors.
a LATCH system in the rear seats of the
vehicle.
3-30
CarManuals2.com
03
Selecting a Child Restraint
System
When selecting a Child Restraint System
for your child, always:
ś Make sure the Child Restraint System
has a label certifying that it meets
applicable Federal Motor Vehicle
Safety Standards (FMVSS 213).
ś Select a Child Restraint System based
on your child’s height and weight. The
B0065KO01
required label or the instructions for
Rearward-facing Child Restraint System
use typically provide this information.
With a rearward-facing Child Restraint
ś Select a Child Restraint System that
System, the collision forces are absorbed
fits the vehicle seating position where
by its shell instead of the child's body.
it is to be used.
The shell also supports the system's
ś Read and comply with the warnings
cradles and protects the head, neck and
and instructions for installation and
spine of the child. All children under the
use provided with the Child Restraint
age of one year must always ride in a
System.
rearward-facing Child Restraint System.
Convertible and 3-in-1 Child Restraint
Child Restraint System types
Systems typically have higher height and
weight limits for the rearward-facing
There are three main types of Child
position, allowing you to keep your child
Restraint Systems: rearward-facing,
rearward-facing for a longer period of
forward-facing, and booster seat Child
time.
Restraint Systems.
Continue using the Child Restraint
They are classified according to the
Systems in the rearward-facing position
child’s age, height, and weight.
as long as the child is within the height
and weight limits allowed by the Child
Restraint System’s manufacturer. It's the
best way to keep them safe. Once your
child has outgrown the rearward-facing
Child Restraint System, your child is
ready for a forward-facing Child Restraint
System with a harness.
WARNING
Never install a child or infant restraint in
the front passenger's seat.
Placing a rearward-facing child restraint
in the front seat may result in serious
injury or death, if the child restraint is
struck by an inflating airbag.
3-31
CarManuals2.com
Seats & Safety System
Installing a Child Restraint
System
WARNING
Before installing your Child Restraint
System, always read and follow
the instructions provided by the
manufacturer of the Child Restraint
System and in this manual to prevent
B0065KO02
serious injury or death if a collision
Forward-facing Child Restraint System
occurs.
A forward-facing Child Restraint System
provides restraint for the child’s body
WARNING
with a harness. Keep children in a
forward-facing Child Restraint System
If the vehicle head restraint prevents
with a harness until they reach the top
proper installation of a Child Restraint
height or weight limit allowed by your
System, readjust or remove the head
Child Restraint System’s manufacturer.
restraint for that seating position.
Once your child outgrows the forward-
facing Child Restraint System, your child
is ready for a booster seat.
Booster seats
A booster seat is a Child Restraint
System designed to improve the fit of
the vehicle’s seat belt system. A booster
seat positions the seat belt so that it
fits properly over the lap of your child.
Keep your children in booster seats until
they are big enough to fit in a seat belt
properly.
For a seat belt to fit properly, the lap belt
must lie snugly across the upper thighs,
not the stomach. The shoulder belt
should lie snug across the shoulder and
chest and not across the neck or face.
Children under age 13 must always be
properly restrained to minimize the risk
of injury in an accident, sudden stop, or
sudden maneuver.
3-32
CarManuals2.com
03
After selecting a proper Child Restraint
Lower Anchors and Tether for
System for your child and checking that
Children (LATCH System)
the Child Restraint System fits properly
The LATCH system connects a Child
in a rear seating position, there are three
Restraint System to the vehicle during
general steps for proper installation:
driving and in a collision. This system
ś Properly secure the Child Restraint
is designed to make installation of the
System to the vehicle. All Child
Child Restraint System easier and reduce
Restraint Systems must be secured
the possibility of improperly installing
to the vehicle with the a lap/shoulder
your Child Restraint System. The LATCH
belt or with a LATCH system in the
system uses anchors in the vehicle and
rear seat of the vehicle.
attachments on the Child Restraint
Make sure the Child Restraint System
System. The LATCH system eliminates
is firmly secured. After installing a
the need to use seat belts to secure the
Child Restraint System in the vehicle,
Child Restraint System to the rear seats.
push and pull the seat forwards and
Lower anchors are metal bars built into
backwards and from side to side to
the vehicle. There are two lower anchors
verify that it is securely attached
for each LATCH seating position that
to the seat. Install a Child Restraint
accommodates a Child Restraint System
System secured with a seat belt as
with lower attachments.
tightly as possible. Some side-to-side
To use the LATCH system in your vehicle,
movement can be expected.
install a Child Restraint System with
ś Secure a child in the Child Restraint
LATCH attachments.
System. Make sure the child is
The Child Restraint System manufacturer
properly strapped in the Child
provides you with instructions on how to
Restraint System according to the
use the Child Restraint System with its
Child Restraint System manufacturer’s
attachments for the LATCH anchors.
instructions.
CAUTION
Check the seating surface and buckles
before placing your child in the Child
Restraint System to prevent burns. A
Child Restraint System in a closed vehicle
can become very hot.
3-33
CarManuals2.com
Seats & Safety System
„ Rear passenger seat
ONX4030035
ONX4E030082
LATCH anchors have been provided in
A : Lower Anchor Position Indicator
the left and right outboard rear seating
B : Lower Anchor
positions. Their locations are shown
The lower anchor position indicator
in the illustration. There are no LATCH
symbols are located on the left and right
anchors provided for the center rear
rear seatbacks to identify the positions of
seating position.
the lower anchors in your vehicle.
The LATCH anchors are located between
WARNING
the seatback and the seat cushion of the
rear seat left and right outboard seating
Do not attempt to install a Child Restraint
positions.
System using LATCH anchors in the rear
center seating position. There are no
LATCH anchors provided for this seat. Do
WARNING
not use the outboard seat anchors for the
Before installing the Child Restraint
center seat. It may damage the anchors
that may break or fail in a collision
System, make sure that there are no
objects (for example, toys, pens, wires)
resulting in serious injury or death.
near the lower anchor area. Those
objects may damage either the seat belt
system or the Child Restraint System
during installation. If necessary, have
the vehicle inspected by an authorized
HYUNDAI dealer.
3-34
CarManuals2.com
03
Securing a Child Restraint System
WARNING
with the LATCH Anchors System
Take the following precautions when
To install a LATCH-compatible Child
using the LATCH system:
Restraint System in either of the rear
outboard seating positions:
ś Read and follow all installation
instructions provided with your Child
1. Move the seat belt buckle away from
Restraint System.
the lower anchors.
ś To prevent the child from reaching
2. Move any other objects away from
and taking hold of unretracted seat
the anchorages that could prevent
belts, buckle all unused rear seat belts
a secure connection between the
and retract the seat belt webbing
Child Restraint System and the lower
behind the child. Children can be
anchors.
strangled if a shoulder belt becomes
3. Place the Child Restraint System on
wrapped around their neck and the
the vehicle seat, then attach the seat
seat belt tightens.
to the lower anchors according to the
ś Never attach more than one
instructions provided by the Child
Child Restraint System to a single
Restraint System manufacturer.
anchorage. This could cause the
4. Follow the instructions of the Child
anchor or attachment to come loose
Restraint System’s manufacturer for
or break.
proper installation and connection of
ś Always have the LATCH system
the lower attachments on the Child
inspected by an authorized HYUNDAI
Restraint System to the lower anchors.
dealer after a collision. A collision can
damage the LATCH system and may
not properly secure the Child Restraint
System.
WARNING
Make sure that the combined weight of
the child and the child restraint system is
less than 65 lbs. (30 kg) for each LATCH
system.
3-35
CarManuals2.com
Seats & Safety System
Securing a Child Restraint System
seat with Tether Anchor system
ONX4030034
To install the tether anchor:
OTL035034
1. Route the Child Restraint System
First secure the child restraint with
top tether strap over the seatback.
the LATCH lower anchors or the seat
Route the tether strap under the
belt. If the child restraint manufacturer
head restraint and between the head
recommends that the top tether strap
restraint posts, or route the tether
be attached, attach and tighten the
strap over the top of the vehicle
top tether strap to the top tether strap
seatback. Make sure the strap is not
anchor.
twisted.
Tether anchors are located on the rear of
2. Connect the tether strap hook to
the seatbacks.
the tether anchor, then tighten the
top tether strap according to the
instructions of your Child Restraint
System’s manufacturer to firmly
secure the Child Restraint System.
3. Check the Child Restraint System is
secure by pushing and pulling the seat
forward and back and side-to-side.
3-36
CarManuals2.com
03
Securing a Child Restraint System
WARNING
with a lap/shoulder belt
Take the following precautions when
installing the top tether:
WARNING
ś Read and follow all installation
instructions provided with your Child
Always place a rearward-facing Child
Restraint System.
Restraint System in the rear seat of the
ś Never attach more than one Child
vehicle.
Restraint System to a single tether
Placing a rearward-facing child restraint
anchor. This could cause the
in the front seat may result in serious
anchorage or attachment to come
injury or death if the Child Restraint
loose or break.
System is struck by an inflating airbag.
ś Only attach the tether strap to the
correct tether anchor for that seating
When not using the LATCH system, all
position.
Child Restraint Systems must be secured
to a rear seat using the lap/shoulder belt.
ś Make sure that the Child Restraint
System anchors withstand the
combined weight of the child and the
child restraint system of less than 65
lbs. (30 kg) for each LATCH system.
Do not use them for adult seat belts,
harnesses, or for attaching other
items or equipment to the vehicle.
3-37
CarManuals2.com
Seats & Safety System
B0065KO03
OHI038145
2. Fasten the lap/shoulder belt latch into
Automatic locking mode
the buckle. Check a distinct “click”
Since all passenger seat belts move
sound is heard.
freely under normal conditions and
only lock under extreme or emergency
conditions (emergency locking mode),
Information
you must manually pull the seat belt all
Position the release button so it is easy to
the way out to shift the retractor to the
access in an emergency.
Automatic Locking mode to secure a
Child Restraint System.
The Automatic Locking mode will help
prevent the normal movement of the
child in the vehicle from causing the seat
belt to loosen and compromise the Child
Restraint System.
To install a Child Restraint System on the
rear seats:
1. Place the Child Restraint System on a
B0065KO04
rear seat and route the lap/shoulder
belt around or through the Child
3. Pull the shoulder portion of the
Restraint System, following the Child
seat belt all the way out. When the
Restraint System manufacturer’s
shoulder portion of the seat belt is
instructions. Make sure the seat belt
fully extended, it shifts the retractor to
webbing is not twisted.
the Automatic Locking (child restraint)
mode.
Information
When using the rear center seat belt,
refer to the "Passenger and Rear Seat
Belts - 3point system with convertible
locking retractor" section in this chapter.
3-38
CarManuals2.com
03
Information
When the seat belt is allowed to
retract to its fully stowed position, the
retractor automatically switches from
the Automatic Locking mode to the
emergency lock mode for normal adult
usage.
WARNING
B0065KO05
Make sure that the retractor is in the
4. Slowly allow the shoulder portion of
Automatic Locking mode. Otherwise,
the seat belt to retract and listen for
the child restraint may move when your
an audible "clicking" or "ratcheting"
vehicle turns or stops suddenly. A child
sound. This indicates that the retractor
may be seriously injured or killed if the
is in the Automatic Locking mode. If
child restraint is not properly anchored
no distinct sound is heard, repeat Step
in the vehicle including manually pulling
3 and 4.
the seat belt all the way out to shift the
5. Remove as much slack from the belt
retractor to the Automatic Locking mode.
as possible by pushing down on the
Child Restraint System while feeding
To remove the Child Restraint System,
the shoulder belt back into the
press the release button on the buckle
retractor.
and then pull the seat belt out of the
6. Push and pull on the Child Restraint
Child Restraint System and allow the seat
System to confirm that the seat belt
belt to retract fully.
is holding it firmly in place. If it is not,
release the seat belt and repeat Step 2
through 6.
7. Double check that the retractor is
in the Automatic Locking mode by
attempting to pull more of the seat
belt out of the retractor. If you cannot,
the retractor is in the Automatic
Locking mode.
If your Child Restraint System
manufacturer instructs or recommends
you to use a tether anchor with the lap/
shoulder belt, refer to the previous pages
for more information.
3-39
CarManuals2.com
Seats & Safety System
6833/(0(17$/ 5(675$,17 6<67(0 ǘ $,5%$*6
The actual airbags in the vehicle may differ from the illustration.
ONX4A033001
Driver’s front airbag
Curtain airbag
Passenger’s front airbag
Rear side air bag
Front side air bag
3-40
CarManuals2.com
03
Your vehicle is equipped with a Supplemental Airbag System for the driver’s seat and
front passenger’s seats.
The front airbags are designed to supplement the three-point seat belts. For these
airbags to provide protection, seat belts must be properly worn at all times when
driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Airbags are built into the vehicle as a supplementary system. They are not intended as
a replacement for wearing 3-point seat belts. Also, airbags are not designed to deploy
in every collision. In some accidents, the seat belts are the only restraint protecting
you.
WARNING
AIRBAG SAFETY PRECAUTIONS
ś Always use seat belts and Child Restraint Systems - every trip, every time, everyone!
Even with airbags, you can be seriously injured or killed in a collision if you are
improperly belted or not wearing your seat belt when the airbag inflates.
ś Never place a child in any Child Restraint System or booster seat in the front
passenger seat, unless the airbag is deactivated.
An inflating airbag could forcefully strike the infant or child causing serious or fatal
injuries.
ś ABC Always Buckle Children under age 13 in the back seat. It is the safest place
for children of any age to ride. If a child age 13 or older must be seated in the front
seat, he or she must be properly belted and the seat should be moved as far back as
possible.
ś Make sure that all occupants sit upright with the seatback in an upright position,
centered on the seat cushion with their seat belt on, legs comfortably extended,
and their feet on the floor until the vehicle is parked and the vehicle is turned off. If
an occupant is out of position during an accident, the rapidly deploying airbag may
forcefully contact the occupant causing serious or fatal injuries.
ś Never sit or lean unnecessarily close to the airbags or lean against the door or
center console.
Move your seat as far back as possible from front airbags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the
center of the steering wheel and the chest.
3-41
CarManuals2.com
Seats & Safety System
SRS Components
Where are the Airbags?
Driver’s and passenger’s front
airbags
„ Driver’s front airbag
ONX4A033005
The SRS consists of the following
components:
OCN7030036
Driver's front airbag module
„ Passenger’s front airbag
Passenger's front airbag module
Front side airbag modules
Rear side airbag modules
Curtain airbag modules
Retractor pretensioner
Airbag warning light
SRS control module (SRSCM)/
Rollover sensor
ONX4030037
Front impact sensors
The SRS consists of advanced airbags
Side impact sensors
located in the center of the steering
Side pressure sensors
wheel and the passenger’s side front
Emergency fastening device system
panel pad above the glove box.
Occupant classification system
The airbag locations are embossed with
Seat belt buckle sensor
the letters “AIRBAG”.
The purpose of the SRS is to provide the
vehicle's driver and front passenger with
additional supplemental protection that
the seat belt system does not provide
in case of a frontal impact of sufficient
severity.
The SRS uses sensors to gather
information about the driver’s and front
passenger's seat belt usage and impact
severity.
The seat belt buckle sensors determine
if the driver and front passenger's seat
belts are fastened. These sensors provide
the ability to control the SRS deployment
based on whether or not the seat belts are
fastened, and how severe the impact is.
3-42
CarManuals2.com
03
The SRS offers the ability to control the
Side airbags
airbag inflation within two levels. A first
„ Front side air bag
stage level is provided for moderate-
severity impacts. A second stage level is
provided for more severe impacts.
According to the impact severity and
seat belt usage, the SRS Control Module
(SRSCM) controls the airbag inflation.
Failure to properly wear seat belts may
increase the risk or severity of injury in a
collision.
ONX4030039
WARNING
„ Rear side air bag
To reduce the risk of serious injury or
death from inflating front airbags:
ś
Seat belts must be worn at all times
to help keep occupants positioned
properly.
ś
Move your seat as far back as
possible from front airbags, while still
maintaining control of the vehicle.
ś
Never lean against the door or center
console.
ONX4A033006
ś
Hold the steering wheel at the 9
o’clock and 3 o’clock positions, to
minimize the risk of injuries to your
hands and arms.
ś
Do not allow the front passenger
to place their feet or legs on the
dashboard.
ś
Never place any objects (such as
dashboard cover, mobile phone
holder, cup holder, perfume or
stickers) over or near the airbag
modules on the steering wheel,
ONX4A033002
instrument panel, windshield glass,
The side airbags are designed to deploy
and the front passenger’s panel
during certain side impact collisions,
above the glove box. Such objects
depending on the crash severity.
may cause harm if the vehicle is in a
The side airbags on both sides of the
collision severe enough to cause the
vehicle are designed to deploy when a
airbags to deploy.
rollover is detected by a rollover sensor.
ś
Do not attach any objects on the front
The side airbags are not designed to
windshield and inside mirror.
deploy in all side impact or rollover
situations.
3-43
CarManuals2.com
Seats & Safety System
Curtain airbags
WARNING
To reduce the risk of serious injury or
death from an inflating side airbag:
ś
Seat belts must be worn at all times
to help keep occupants positioned
properly.
ś
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
ś
Do not use any accessory seat
ONX4030040
covers. It may reduce or prevent the
effectiveness of the system.
ś
Do not hang other objects except
clothes. In an accident it may cause
vehicle damage or personal injury
especially when airbag is inflated.
ś
Do not place any objects over the
airbag location or between the airbag
and yourself. Also, do not attach any
objects around the area the airbag
inflates such as door, side door glass,
ONX4A033003
and front and rear pillar.
Curtain airbags are located along both
ś
Do not place any objects between the
sides of the roof rails above the front and
door and the seat. They may become
rear doors.
dangerous projectiles if the side
airbag inflates.
They are designed to help protect the
heads of the front seat occupants and
ś
Do not install any accessories on the
the rear outboard seat occupants in
side or near the side airbags.
certain side impact collisions.
ś
Do not cause an impact to the doors
The curtain airbags are designed to
when the ignition switch is in the ON
deploy during certain side impact
or START position because the side
collisions, depending on the crash
airbags can inflate.
severity.
ś
If the seat or seat cover is damaged,
have the vehicle serviced by an
authorized HYUNDAI dealer.
3-44
CarManuals2.com
03
For vehicles equipped with a rollover
How does the Airbag System
sensor the side and/or curtain airbags
Operate?
and pretensioners on both sides of
The SRSCM (Supplemental Restraint
the vehicle may deploy if a rollover or
System Control Module) continually
possible rollover is detected.
monitors all SRS components while the
The curtain airbags are not designed
ignition switch is ON to determine if a
to deploy in all side impact or rollover
crash impact is severe enough to require
situations.
airbag deployment or pretensioner seat
belt deployment.
WARNING
During a moderate to severe frontal
collision, sensors detect the vehicle’s
To reduce the risk of serious injury or
rapid deceleration. If the rate of
death from an inflating curtain airbag:
deceleration is high enough, the SRSCM
ś
All occupants must wear seat belts
inflates the front airbags with the force
at all times to help keep occupants
needed.
positioned properly.
The front airbags help protect the driver
ś
Properly secure a Child Restraint
and front passenger by responding to
System as far away from the door as
frontal impacts in which seat belts alone
possible.
cannot provide adequate restraint. When
ś
Do not place any objects over the
needed, the side airbags help provide
airbag. Also, do not attach any objects
protection in the event of a side impact
around the area the airbag inflates
or rollover by supporting the side upper
such as door, side door glass, front
body area.
and rear pillar, and roof side rail.
ś Airbags are activated (able to inflate
ś
Do not hang other objects except
if necessary) only when the ignition
clothes, especially hard or breakable
switch is in the ON or START position,
objects near airbag locations. In
and it may be activated within 3
an accident, it may cause vehicle
minutes after the engine is turned off.
damage or personal injury.
ś Airbags inflate in the event of certain
ś
Do not allow passengers to lean their
frontal or side collisions to help
heads or bodies onto doors, put their
protect the occupants from serious
arms on the doors, stretch their arms
physical injury.
out of the window, or place objects
ś There is no single speed at which
between the doors and seats.
the airbags will inflate. Generally,
ś
Do not open or repair the side curtain
airbags are designed to inflate based
airbags.
upon the severity of a collision and
its direction. Airbag deployment also
depends on a number of other factors
including vehicle speed, angles of
impact and the density and stiffness
of the vehicles or objects which your
vehicle impacts during a collision. The
determining factors are not limited to
those mentioned above.
3-45
CarManuals2.com
Seats & Safety System
ś
The front airbags completely inflate
You can take steps to reduce the risk
and deflate in an instant. It is virtually
of being injured by an inflating airbag.
impossible for you to see the airbags
The greatest risk is sitting too close to
inflate during an accident. It is much
the airbag. An airbag needs about 10
more likely that you simply see the
in. (25 cm) of space to inflate. NHTSA
deflated airbags hanging out of their
recommends that drivers allow at least
storage compartments after the
10 in. (25 cm) between the center of the
collision.
steering wheel and the chest.
ś
In addition to inflating in serious side
collisions, vehicles equipped with a
WARNING
rollover sensor, side and/or curtain
airbags inflate if the sensing system
To reduce the risk of serious injury or
detects a rollover.
death from an inflating airbag:
When a rollover is detected, curtain
ś
Never place a child restraint in the
airbags remain inflated longer to help
front passenger seat.
provide protection from ejection,
Always properly restrain children
especially when used in conjunction
under age 13 in the rear seats of the
with the seat belts, (if equipped with a
vehicle.
rollover sensor).
ś
Adjust the front passenger’s and
ś
To help provide protection, the
driver's seats as far to the rear as
airbags must inflate rapidly. The speed
possible while maintaining you to
of airbag inflation is a consequence
maintain full control of the vehicle.
of extremely short time in which the
ś
Hold the steering wheel with hands at
airbag inflates between the occupant
the 9 o'clock and 3 o'clock positions.
and the vehicle structures before the
occupant impacts those structures.
ś
Never place anything or anyone
This speed of inflation reduces the risk
between the airbag and the seat
of serious or life-threatening injuries
occupant.
and is thus a necessary part of airbag
ś
Do not allow the front passenger
design.
to place their feet or legs on the
However, the rapid airbag inflation
dashboard.
may also cause injuries that include
facial abrasions, bruises, and broken
bones because the inflation speed
also causes the airbags to expand
with great force.
ś
There are even circumstances under
which contact with the airbag may
cause fatal injuries, especially when
the occupant is positioned excessively
close to the airbag.
3-46
CarManuals2.com
03
„ Driver’s front airbag (1)
„ Driver’s front airbag (3)
ODN8039077L
ODN8039079L
When the SRSCM detects a sufficiently
„ Passenger’s front airbag
severe impact to the front of the vehicle,
it automatically deploys the front
airbags.
„ Driver’s front airbag (2)
ODN8039080L
After complete inflation, the airbag
immediately starts deflating, enabling
the driver to maintain forward visibility
and steer or operate other controls.
ODN8039078L
Upon deployment, tear seam in the pad
WARNING
cover separates from the expansion of
the airbags.
To prevent objects from becoming
dangerous projectiles when the
A fully inflated airbag, in combination
with a properly worn seat belt, slows the
passenger’s airbag inflates:
driver’s or the front passenger’s forward
ś Do not install or place any objects
motion, reducing the risk of head and
(drink holder, CD holder, stickers, etc.)
chest injury.
on the front passenger’s panel above
the glove box where the passenger’s
airbag is located.
ś Do not install a container of liquid air
freshener near the instrument cluster
or on the instrument panel surface.
3-47
CarManuals2.com
Seats & Safety System
What to Expect After an Airbag
Though the powder is nontoxic, it may
cause irritation to the skin, eyes, nose,
Inflates
throat, etc. If this is the case, wash and
After a frontal or side airbag inflates, it
rinse with cold water immediately and
deflates very quickly. Airbag inflation
seek medical attention if the symptoms
does not prevent the driver from seeing
persist.
out of the windshield or being able
to steer. Curtain airbags may remain
SRS Warning Light
partially inflated for some time after they
deploy.
WARNING
The SRS (Supplemental Restraint System)
After an airbag inflates, take the
airbag warning light on the instrument
following precautions:
panel displays the airbag symbol in the
illustration. The light indicates if there
ś Open your windows and doors as soon
is a potential problem with your airbag
as possible after impact to reduce
system, which could include your side
prolonged exposure to the powder
and/or curtain airbags used for rollover
released by the inflating airbag.
protection.
ś Do not touch the airbag storage area’s
internal components immediately
after an airbag has inflated. The
WARNING
parts that come into contact with an
If your SRS malfunctions, the airbags
inflating airbag may be very hot.
may not inflate properly during a
ś Always wash exposed skin areas
collision increasing the risk of serious
thoroughly with cold water and mild
injury or death.
soap.
Your SRS malfunctions in the following
ś Have an authorized HYUNDAI dealer
conditions:
inspect your vehicle and replace
ś The light does not turn on for about
components as required before
three to six seconds when the ignition
operating your vehicle again. Airbags
switch is in the ON position.
are designed to be used only once.
ś The light stays on after illuminating for
Noise and powder from inflating
about three to six seconds.
airbag
ś The light comes on while the vehicle
is moving.
When the airbags inflate, they make
a loud noise and may release powder
ś The light blinks when the engine is
inside the vehicle. After the airbag
running.
inflates, you may feel discomfort while
Have an authorized HYUNDAI dealer
breathing. This may be due to the
inspect the SRS as soon as possible.
impact of the airbag or the seat belt with
your chest and it may also be due to
breathing residual powder in the air and
around your vehicle. The powder may
aggravate asthma for some people. If
you experience breathing problems after
an airbag deployment, seek medical
attention immediately.
3-48
CarManuals2.com
03
Occupant Classification System
The OCS is designed to help detect
the presence of a properly seated
(OCS)
front passenger and determine if the
passenger’s front airbag should be
enabled (ready to inflate if required) or
not.
The purpose is to help reduce the risk of
injury or death from an inflating airbag to
certain front passenger seat occupants,
such as children, by requiring the airbag
to be automatically turned off.
For example, if a Child Restraint System
is installed on the seat, the Occupant
Classification System can detect it and
ONX4030057
turn off the front passenger airbag.
Your vehicle is equipped with an
Front passenger seat adult occupants
Occupant Classification System (OCS) in
who are properly seated and wearing
the front passenger’s seat.
the seat belt properly, should not cause
the passenger airbag to be automatically
Main components of the Occupant
turned off. For smaller adults, it may turn
Classification System
off. However, if the occupant does not
ś A detection device located within the
sit in the seat properly (for example, not
front passenger seat cushion.
sitting upright, sitting on the edge of
ś Electronic system to determine
the seat, or being out of position), this
whether the passenger airbag systems
may cause the sensor to turn the front
should be activated or deactivated.
passenger airbag off.
ś An indicator light located on the
You can find the “PASSENGER AIR
overhead console that illuminates the
BAG OFF” indicator on the overhead
words “PASSENGER AIR BAG OFF”
console panel. This system detects one
indicating the front passenger airbag
of the four conditions as described in
system is deactivated.
the following table and activates or
deactivates the front passenger airbag
ś The instrument cluster airbag
based on these conditions.
indicator light is interconnected with
the OCS.
Always make sure that you and all
occupants are seated properly and
wearing the seat belt properly for the
most effective protection by the airbag
and the seat belt.
3-49
CarManuals2.com
Seats & Safety System
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning light
Devices
Condition detected by the
“PASSENGER
Front
SRS warning
occupant classification system
AIR BAG OFF”
passenger
light
indicator light
airbag
1. Adult*1
Off
Off
Activated
2. Infant*2 or child restraint
On
Off
Deactivated
system with 12 months old *3 *4
3. Unoccupied
On
Off
Deactivated
4. Problems with OCS
Off
On
Activated
*1 : The system judges a person of adult size as an adult. When a smaller adult sits in the
front passenger seat, the system may recognize him/her as a child depending on his/her
physique and posture.
*2 : Do not allow children to ride in the front passenger seat. When a larger child who has
outgrown a Child Restraint System sits in the front passenger seat, the system may
recognize him/her as an adult depending on his/her physique or sitting position.
*3 : Never install a Child Restraint System on the front passenger seat.
*4 : The "PASSENGER AIR BAG OFF" indicator may turn ON or OFF when a child above 12
months to 12 years old (with or without Child Restraint System) sits in the front passenger
seat. This is a normal condition.
3-50
CarManuals2.com
03
WARNING
Riding in an improper position or placing weight on the front passenger’s seat when it
is unoccupied by a passenger, adversely affects the OCS. To reduce the risk of serious
injury or death:
ś Never put a heavy load in the front seat or seatback
pocket, or hang any items on the front passenger seat.
OHI038163
ś Never place your feet on the front passenger seatback.
OHI038156
ś Never sit with your hips shifted toward the front of the
seat.
OHI038155
ś Never ride with the seatback reclined when the vehicle
is moving.
OHI038157
ś Never place your feet or legs on the dashboard.
OHI039192N
3-51
CarManuals2.com
Seats & Safety System
ś Never lean on the door or center console or sit on one
side of the front passenger seat.
OHI038158
ś Do not sit on the passenger seat wearing heavily
padded clothes such as ski wear and hip protector.
OJX1039069
ś Do not use car seat accessories such as thick blankets
and cushions that cover up the car seat surface.
OJX1039070
ś Do not place electronic devices such as laptops, DVD
player, or conductive materials such as water bottles on
the front passenger seat.
ś Do not use electronic devices such as laptops and
satellite radios that use inverter chargers when seated
in the front passenger seat.
OJX1039071
ś Make sure the seat has been completely dried before
driving the vehicle. If large quantity of liquid has been
spilled on the front passenger seat, the airbag warning
light may illuminate or malfunction.
OJX1039072
ś Do not place sharp objects on the front passenger seat. These may damage the
occupant detection system, if they puncture the seat cushion.
ś Do not place any items under the front passenger seat.
ś When changing or replacing the seat or seat cover, use original items only. The OCS
has been developed based on using original HYUNDAI car seats only. Altering or
changing the authentic parts may result in system malfunction and increase risk of
injury in a collision. Any of the above may interfere with the proper operation of the
OCS sensor thereby increasing the risk of an injury in an accident.
3-52
CarManuals2.com
03
WARNING
Never allow an adult passenger to ride
in the front passenger seat when the
“PASSENGER AIR BAG OFF” indicator
is illuminated. During a collision, the
airbag does not inflate if the indicator is
illuminated. If the indicator is illuminated
while an adult is seated in the front
passenger seat, follow the steps in
the previous paragraph to have the
passenger reposition themselves in the
ORS031121
seat.
Proper seated position for OCS
If the "PASSENGER AIR BAG OFF"
If the “PASSENGER AIR BAG OFF”
indicator remains illuminated after the
indicator is on when an adult is seated
passenger sits in the proper seating
in the front passenger seat, move the
position, have the passenger sit in the
ignition switch to the OFF position and
rear seat of the vehicle instead.
ask the passenger to sit properly (sitting
upright with the seatback in an upright
position, centered on the seat cushion
Information
with their seat belt on, legs comfortably
The "PASSENGER AIR BAG OFF" indicator
extended, and their feet on the floor).
generally illuminates for about 4 seconds
Restart the engine and have the person
after the ignition switch is in the ON or
remain in that position. This allows
START position. But, if the ignition switch
the system to detect the person and
is in the ON or START position within 3
to enable the passenger airbag. If the
minutes after the engine is turned OFF,
“PASSENGER AIR BAG OFF” indicator is
the indicator does not illuminate. If the
still on, ask the passenger to move to the
front passenger seat is occupied, the
rear seat.
OCS classifies the front passenger after
several seconds.
3-53
CarManuals2.com
Seats & Safety System
Do not install a Child Restraint
Why didn’t My Airbag Go Off In a
System on the Front Passenger’s
Collision?
Seat
There are certain types of accidents
in which the airbag would not deploy
including rear impacts and second
or third collisions in multiple impact
accidents, as well as low speed impacts.
Damage to the vehicle indicates a
collision energy absorption, and is not
an indicator of whether or not an airbag
should have inflated.
Airbag collision sensors
OHI039193N
WARNING
Even though your vehicle is equipped
To reduce the risk of an airbag deploying
with the OCS, never install a Child
unexpectedly and causing serious injury
Restraint System in the front passenger’s
or death:
seat. An inflating airbag may forcefully
ś Do not hit or allow any objects to
strike a child or child restraint resulting in
impact the locations where airbags or
serious or fatal injury.
sensors are installed.
ś Do not perform maintenance on or
around the airbag sensors. If the
WARNING
location or angle of the sensors is
changed, the airbags may deploy
Never use a rearward facing Child
when they should not or may not
Restraint on a seat protected by an
deploy.
ACTIVE AIRBAG in front of it. It may
ś Do not install bumper guards with non
result in death or serious injury to the
genuine Hyundai or non-equivalent
CHILD. Children should always ride in the
parts. It may adversely affect the
rear seats.
collision and airbag deployment
performance.
ś Move the ignition switch to the OFF or
ACC position and wait for 3 minutes
before the vehicle is towed to prevent
unintended airbag deployment.
ś Have all airbag repairs are conducted
by an authorized HYUNDAI dealer.
3-54
CarManuals2.com
03
ONX4A031041/ONX4030042/ONX4A031056/ONX4030044/ONX4030043/ONX4030045
M SRS control module/Rollover sensor
P Side impact sensor (Acceleration)
N Front impact sensor
Q Side impact sensor (Acceleration)
O Side impact sensor (Pressure)
3-55
CarManuals2.com
Seats & Safety System
Airbag inflation conditions
Although the driver’s and front
passenger’s airbags are designed to
inflate in frontal collisions and side and
curtain airbags are designed to inflate
in side impact collisions, airbags may
inflate in other types of collisions if the
sensors detect a sufficient impact.
Also, the side and curtain airbags inflate
when a rollover is detected by a rollover
sensor.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
ONX4030046
the airbags may deploy. Drive carefully
on unimproved roads or on surfaces not
Front airbags
designed for vehicle traffic to prevent
Front airbags are designed to inflate
unintended airbag deployment.
in a frontal collision depending on the
severity of impact.
Airbag non-inflation conditions
ONX4030050
ONX4030047
In certain low-speed collisions, the
airbags may not deploy. The airbags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
ONX4A033004
Side and curtain airbags
Side and curtain airbags are designed
to inflate when an impact is detected by
side collision sensors depending on the
severity of impact resulting from a side
impact collision.
3-56
CarManuals2.com
03
ONX4030048
OTM030034
Front airbags are not designed to inflate
In an angled collision, the force of impact
in rear collisions, because occupants
may direct the occupants in a direction
are moved backward by the force of the
where the airbags would not be able to
impact.
provide any additional benefit, and thus
the sensors may not deploy any airbags.
ONX4030049
ONX4030051
Front airbags may not inflate in side
impact collisions, because occupants
Just before impact, drivers often brake
move in the direction of the collision.
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
Side and curtain airbags may inflate
"nosedive". This is particularly important
depending on the severity of impact.
when the vehicle in front has a higher
ground clearance. Airbags may not
inflate if your vehicle is in a "nosedive"
condition because the collision forces
detected by the sensors may have been
significantly reduced.
3-57
CarManuals2.com
Seats & Safety System
SRS Care
The SRS is virtually maintenance-free
and there are no parts you can safely
service by yourself. If the SRS airbag
warning light does not illuminate when
the ignition switch is in the ON position
or continuously remains on, have the
system immediately inspected by an
authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
ONX4030053
work on the steering wheel, the front
Front airbags may not inflate in
passenger’s panel, front seats, and
rollover accidents because front airbag
roof rails should be performed by an
deployment would not provide additional
authorized HYUNDAI dealer. Improper
occupant protection.
handling of the SRS system may result in
The side and curtain airbags may inflate
serious personal injury or death.
in a rollover situation, when detected by
the rollover sensor.
WARNING
To reduce the risk of serious injury or
death:
ś Do not attempt to modify or
disconnect the SRS components or
wiring, including the addition of any
kind of badges to the pad covers or
modifications to the body structure.
ś Do not place objects over or near
the airbag modules on the steering
wheel, instrument panel, and the front
passenger’s panel above the glove
ONX4030052
box.
Airbags may not inflate if the vehicle
ś Clean the airbag pad covers with
collides with objects such as utility poles
a soft cloth moistened with water.
or trees, where the point of impact is
Solvents or cleaners may adversely
concentrated and the collision energy is
affect the airbag covers and proper
absorbed by the vehicle structure.
deployment of the system.
ś Replace inflated airbags by an
authorized HYUNDAI dealer.
ś If components of the airbag system
must be discarded, or if the vehicle
must be scrapped, observe safety
precautions. Consult an authorized
HYUNDAI dealer for the necessary
information.
3-58
CarManuals2.com
03
Additional Safety Precautions
Airbag Warning Labels
Passengers should not move out of
or change seats while the vehicle
is moving. A passenger who is not
wearing a seat belt during a collision or
emergency stop can be thrown against
the inside of the vehicle, against other
occupants, or be ejected from the
vehicle.
Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the seat
belt can reduce the protection provided
ONX4030058N
by the seat belt and increase the chance
Airbag warning labels, required by the
of serious injury in a collision.
U.S. National Highway Traffic Safety
Do not modify the front seats.
Administration (NHTSA), are attached
Modification of the front seats may
to alert the driver and passengers of
interfere with the operation of the
potential risks of the airbag system. Be
Supplemental Restraint System sensing
sure to read all of the information about
components or side airbags.
the airbags that are installed on your
vehicle in this Owners Manual.
Do not place items under the front
seats. Placing items under the front seats
may interfere with the operation of the
Supplemental Restraint System sensing
components and wiring harnesses.
Do not cause impact to the doors.
Impact to the doors when the ignition
switch is in the ON or START position
may cause the airbags to inflate.
Modifications to accommodate
disabilities. If you require modification
to your vehicle to accommodate
a disability, contact the HYUNDAI
Customer Connect Center at 800-633-
5151.
Adding equipment to or modifying
your airbag equipped vehicle
If you modify your vehicle by changing
your vehicle’s frame, bumper system,
front end or side sheet metal, or ride
height, this may affect the operation of
your vehicle’s Supplemental Restraint
System.
3-59
CarManuals2.com
4. Instrument Cluster
Instrument Cluster
4-4
Instrument Cluster Control
4-5
Instrument panel illumination
4-5
Gauges and Meters
4-5
Speedometer
4-5
Tachometer
4-5
Engine coolant temperature gauge
4-6
Fuel gauge
4-6
Outside temperature gauge
4-7
Odometer
4-7
Distance to empty
4-8
Fuel economy (for 10.25-inch cluster)
4-8
Transmission Shift Indicator
4-8
Automatic transmission
4-8
4
Warning and Indicator Lights
4-9
Seat belt warning light
4-9
Airbag warning light
4-9
Parking brake warning light
4-9
Anti-lock Brake System (ABS) warning light
4-10
Electronic Brake Force Distribution (EBD) system warning light
4-10
Motor Driven Power Steering (MDPS) warning light
4-11
Charging system warning light
4-11
Engine Oil Level Warning Light
4-12
Engine oil pressure warning light
4-13
Low fuel level warning light
4-13
Malfunction Indicator Lamp (MIL)
4-13
Electronic Parking Brake (EPB) warning light
4-14
AUTO HOLD indicator light
4-14
Low tire pressure warning light
4-15
Forward Safety warning light
4-15
Lane Safety indicator light
4-15
All Wheel Drive (AWD) warning light
4-16
All Wheel Drive (AWD) LOCK indicator light
4-16
LED headlight warning light
4-16
Icy road warning light
4-17
Electronic Stability Control (ESC) indicator light
4-17
Electronic Stability Control (ESC) OFF indicator light
4-17
Immobilizer indicator light (without smart key)
4-18
Immobilizer indicator light (with smart key)
4-18
Downhill Brake Control (DBC) indicator light
4-18
CarManuals2.com
AUTO STOP indicator light
4-19
Turn signal indicator light
4-19
High beam indicator light
4-19
High Beam Assist indicator light
4-19
Cruise indicator light
4-19
SPORT mode indicator light
4-20
SMART mode indicator light
4-20
SNOW mode indicator light
4-20
Master warning light
4-20
Cluster Display Messages
4-21
Shift to P (if equipped with smart key)
4-21
Low key battery (if equipped with smart key)
4-21
Press brake pedal to start engine (if equipped with smart key)
4-21
Key not in vehicle (if equipped with smart key)
4-21
4
Key not detected (if equipped with smart key)
4-21
Press START button again (if equipped with smart key)
4-21
Press START button with key (if equipped with smart key)
4-21
Check BRAKE SWITCH fuse (if equipped with smart key)
4-21
Shift to P or N to start engine (if equipped with smart key)
4-21
Battery discharging due to external electrical devices
4-22
Door, Hood, Liftgate open indicator
4-22
Sunroof open indicator
4-22
Low tire pressure indicator
4-22
Lights
4-23
Wiper
4-23
Low washer fluid
4-24
Low fuel
4-24
Low engine oil
4-24
Engine overheated
4-24
Check headlight
4-24
Check turn signal
4-24
Check headlight LED
4-24
CarManuals2.com
4. Instrument Cluster
Cluster Display
4-25
Cluster Display Control
4-25
View Modes
4-26
Trip computer mode
4-27
Turn By Turn (TBT) mode
4-27
Driving Assist mode
4-27
Master warning mode
4-28
User Settings Mode
4-29
Quick guide (Help)
4-29
Shift to P to edit settings
4-29
User settings
4-30
Trip Computer (Type A)
4-35
Trip modes
4-35
Resetting average fuel economy
4-35
4
Drive Info
4-36
Since Refueling
4-36
Accumulated Info
4-36
Auto stop
4-37
Digital speedometer
4-37
Trip Computer (Type B)
4-37
Trip modes
4-37
Resetting average fuel economy
4-38
Drive Info
4-38
Since Refueling
4-39
Accumulated Info
4-39
Auto stop
4-39
Digital speedometer
4-39
Infotainment System Vehicle Settings
4-40
Setting Your Vehicle
4-40
CarManuals2.com
Instrument Cluster
INSTRUMENT CLUSTER
„ 4.2-inch
„ 10.25-inch
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the “Gauges and Meters” section in this chapter.
ONX4N041001N/OCN7040080N
M Tachometer
P Fuel gauge
N Speedometer
Q Warning and indicator lights
O Engine coolant temperature gauge
R Cluster display
4-4
CarManuals2.com
04
Instrument Cluster Control
Gauges and Meters
Instrument panel illumination
Speedometer
When the vehicle’s parking lights or
„ 4.2-inch
„ 10.25-inch
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
You can adjust the brightness of the
instrument panel illumination from the
Settings menu in the instrument cluster
or infotainment system when the ignition
switch is ON.
Select:
ś User Settings > Lights > Illumination
ONX4E040018
OCN7040005N
(for cluster type)
The speedometer indicates the speed of
ś Setup > Vehicle > Cluster >
the vehicle and is calibrated in miles per
Brightness (for infotainment system
hour (MPH) and/or kilometers per hour
type)
(km/h).
When the vehicle’s parking lights
Tachometer
or headlights are on, interior switch
„ 4.2-inch
„ 10.25-inch
illumination intensity and mood lights are
also adjusted.
WARNING
Never adjust the instrument panel
illumination while driving to prevent
death, serious injury, or vehicle damage.
Information
ONX4040004
OCN7040007
ś When the brightness setting reaches
The tachometer indicates the
either the minimum or maximum
approximate number of engine
level, a chime sounds.
revolutions per minute (RPM).
ś The infotainment system may change
Use the tachometer to select the correct
after software updates. For more
shift points and to prevent lugging and/
information, refer to the user's manual
or over-revving the engine.
provided in the infotainment system
and the quick reference guide.
NOTICE
Do not operate the engine within the
tachometer's RED ZONE to prevent
severe engine damage.
4-5
CarManuals2.com
Instrument Cluster
Engine coolant temperature gauge
Fuel gauge
„ 4.2-inch
„ 10.25-inch
„ 4.2-inch
„ 10.25-inch
ONX4040007
OTM040010
ONX4040008
OTM040012
This gauge indicates the temperature
This gauge indicates the approximate
of the engine coolant when the ignition
amount of fuel remaining in the fuel tank.
switch is in the ON position.
Information
NOTICE
ś The fuel tank capacity is given in
If the gauge pointer moves beyond the
Chapter 10.
normal range area toward the H (Hot)
ś The fuel gauge is supplemented by a
position, it indicates the engine coolant
low fuel warning light, that illuminates
is overheating.
when the fuel tank is nearly empty.
Do not continue driving with an
ś On inclines or curves, the fuel gauge
overheated engine. If your vehicle
pointer may fluctuate or the low fuel
overheats, refer to the “If the Engine
warning light may come on earlier
Overheats” section in Chapter 8.
than usual due to the movement of
fuel in the tank.
WARNING
Never remove the engine coolant
WARNING
reservoir cap when the engine is hot. The
Always refuel the vehicle as soon as
engine coolant is under pressure and
possible after the warning light comes on
may cause burn or injury. Always use a
or when the gauge indicator comes close
rag.
to E (Empty) level.
NOTICE
Avoid driving with an extremely low fuel
level. Running out of fuel may cause the
engine to misfire damaging the catalytic
converter.
4-6
CarManuals2.com
04
Outside temperature gauge
Odometer
„ Type A
„ Type B
„ 4.2-inch
„ 10.25-inch
OTMA048112
ONX4042023N
OTMA048183
OCN7040015N
The outside ambient temperature
The odometer indicates the total
appears in the lower portion of the
distance that the vehicle has been driven
cluster display. The temperature reads in
and is used to determine when periodic
Fahrenheit or Celsius depending on the
maintenance is required.
units selected from the Settings menu in
the instrument cluster or infotainment
system.
The temperature indicated on the
instrument cluster may not change as
quickly as the outside temperature.
Select:
ś User Settings > Units > Temperature
Unit > °F/°C (for cluster type)
ś Setup > General > Units >
Temperature Unit > °F/°C (for
infotainment system type)
Both the temperature unit on the
instrument cluster and climate control
information screen is changed.
Information
The infotainment system may change
after software updates. For more
information, refer to the user's manual
provided in the infotainment system and
the quick reference guide.
4-7
CarManuals2.com
Instrument Cluster
Distance to empty
Fuel economy (for 10.25-inch
cluster)
„ 4.2-inch
„ 10.25-inch
OAD048563L
OCN7040016N
OTMA040002
The distance to empty is the estimated
distance the vehicle can be driven with
The average fuel economy M and instant
the remaining fuel.
fuel economy N is displayed at the
bottom of the instrument cluster.
If the estimated distance is below 1 mile
(1 km), the trip computer displays “---” as
the distance to empty. When this occurs,
Automatic reset
refuel the vehicle immediately.
To automatically reset the average fuel
economy, select After vehicle start or
After refueling from the Settings menu
Information
in the instrument cluster or infotainment
ś The distance to empty may differ from
system.
the actual driving distance because it
is only an estimate as it is an estimate
Transmission Shift Indicator
of the available driving distance.
Automatic transmission
ś The distance to empty may differ
„ 4.2-inch
„ 10.25-inch
significantly based on driving
conditions, driving habits, and
condition of the vehicle.
ś If the vehicle is not on level ground
or the battery power has been
interrupted, the distance to empty
function may not operate correctly.
ś The distance to empty indicator may
not change accurately if less than 1.5
gallons (6 liters) of fuel are added to
the vehicle.
OTM040016
OCN7040013N
The Transmission Shift Indicator in the
upper corner of the cluster display
indicates the current gear or P (Park).
4-8
CarManuals2.com
04
Warning and Indicator Lights
Parking brake warning light
Information
This warning light illuminates:
Make sure that all warning lights are OFF
ś When the ignition switch is in the ON
after starting the engine. If any light is
position. The Parking Brake warning
still ON, this indicates a situation that
light illuminates for about 3 seconds
needs attention.
and then goes off once the parking
brake is released.
Seat belt warning light
ś Whenever the parking brake is
applied.
ś Whenever the brake fluid level in the
This warning light informs the driver that
reservoir is low.
the seat belt is not fastened.
- If the warning light illuminates
For more information, refer to the “Seat
with the parking brake released, it
Belts” section in Chapter 3.
indicates the brake fluid level in the
reservoir is low.
Airbag warning light
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe
This warning light illuminates:
location and stop your vehicle.
ś When the ignition switch is in the ON
2. With the engine stopped, check
position. The Airbag warning light
the brake fluid level immediately
illuminates for 3-6 seconds and then
and add fluid as required (For more
goes off.
information, refer to the “Brake
ś When there is a malfunction with the
Fluid” section in Chapter 9). After
SRS.
adding brake fluid, check all brake
components for fluid leaks. If a brake
If the Airbag warning light remains
illuminated while driving, have the
fluid leak is found, or if the warning
light remains on, or if the brakes do
vehicle inspected by an authorized
HYUNDAI dealer.
not operate properly, do not drive the
vehicle. Have the vehicle inspected by
an authorized HYUNDAI dealer.
4-9
CarManuals2.com
Instrument Cluster
Dual-diagonal braking system
Anti-lock Brake System (ABS)
Your vehicle is equipped with the dual-
warning light
diagonal braking system. This means you
still have braking on two wheels even if
This warning light illuminates:
one of the dual systems fails.
ś When the ignition switch is in the
With only one of the dual systems
ON position. The ABS warning light
working, more than normal pedal travel
illuminates for about 3 seconds and
and greater pedal force are required to
then goes off.
stop the vehicle.
ś Whenever there is a malfunction with
Also, the vehicle does not stop in a short
the ABS.
distance if only a portion of the braking
The hydraulic braking system still
system is working.
operates even if there is a malfunction
If you experience a malfunction with the
with the ABS.
braking system while driving, attempt
If the ABS warning light remains
to slow your vehicle by coasting or by
illuminated while driving, have the
using engine braking. You may be able to
vehicle inspected by an authorized
reduce your vehicle speed by manually
HYUNDAI dealer.
downshifting to a lower gear. Use manual
shift mode using either the gear shift
Electronic Brake Force
lever (if equipped) or the paddle shifters
Distribution (EBD) system
(if equipped) to shift to a lower gear.
warning light
WARNING
If the Parking Brake warning light
illuminates with the parking brake
When the ABS warning and
released, it indicates that the brake fluid
Parking Brake warning lights are on
level is low. Have the vehicle inspected
simultaneously, it may indicate a
by an authorized HYUNDAI dealer.
problem with the Electronic Brake Force
Distribution system.
If both the ABS warning light and the
Parking Brake warning light remain
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
4-10
CarManuals2.com
04
Charging system warning
WARNING
light
When both ABS and Parking Brake
warning lights are on, the braking
This warning light illuminates:
system does not work normally and
you may experience an unexpected
When there is a malfunction with either
and dangerous situation during sudden
the alternator or electrical charging
braking.
system.
Avoid high speed driving and abrupt
braking.
If there is a malfunction with either the
alternator or electrical charging system:
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
1. Drive carefully to the nearest safe
possible.
location and stop your vehicle.
2. Turn the engine OFF and check the
alternator drive belt for looseness or
Information
breakage.
When the ABS warning light is on or both
If the belt is adjusted properly, there
ABS and Parking Brake warning lights
may be a problem in the electrical
are on, the speedometer, odometer, or
charging system.
tripmeter may not work. Also, the MDPS
If the Charging system warning light
warning light may illuminate and the
remains illuminated while driving,
steering effort may increase or decrease.
have the vehicle inspected by an
authorized HYUNDAI dealer.
Motor Driven Power Steering
(MDPS) warning light
This warning light illuminates:
ś When the ignition switch is in the ON
position. The Motor Driven Power
Steering warning light illuminates for
about 3 seconds and then goes off.
ś Whenever there is a malfunction with
the motor driven power steering.
If the MDPS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
4-11
CarManuals2.com
Instrument Cluster
Engine Oil Level Warning
Information
Light (if equipped)
ś If you travel about 18~37 miles (30~60
km) after the engine warms up, after
The engine oil level warning light
adding the engine oil, the warning
illuminates when the engine oil level
light will go off.
should be checked.
ś If you cycle the ignition from OFF to
If the warning light comes on, check the
ON 3 times within 10 seconds, the
engine oil level as soon as possible and
warning light will go off immediately.
add engine oil as required.
However, when you turn off the
Slowly pour the recommended oil little
warning light without adding the
by little into a funnel. (Oil refill capacity
engine oil, the light will reappear
DERXW
a
86 TW
a Ţ 8VH
again after traveling about 18~37 miles
only the specified engine oil. (Refer
(30~60 km) after the engine warms
to “Recommended lubricants and
up.
capacities” in chapter 10.)
Do not overfill the engine oil. Make sure
NOTICE
the oil level is not above F (Full) mark on
the dipstick.
If the light comes on continuously after
adding the engine oil and travelling
about 18~37 miles (30~60 km) after
WARNING
the engine warms up, have the system
When the engine oil level warning light
checked by an authorized HYUNDAI
appears, it is necessary to check if you
dealer.
have replaced the Engine oil according to
Even if this light doesn’t come on after
the maintenance schedule in chapter 9.
the engine has started, the engine oil
If it has not been checked and followed,
level should be periodically checked and
the engine oil must be replaced first.
topped up if required.
4-12
CarManuals2.com
04
Engine oil pressure warning
Low fuel level warning light
light
This warning light illuminates:
This warning light illuminates:
When the engine oil pressure is low.
When the fuel tank is nearly empty.
Refuel the vehicle as soon as possible.
If the engine oil pressure is low:
ś Drive carefully to the nearest safe
NOTICE
location and stop your vehicle.
Driving with the Low Fuel Level warning
ś Turn the engine OFF and check the
light on or with the fuel level below "E"
engine oil level (For more information,
or "- - -" displayed may cause the engine
refer to the “Engine Oil” section in
to misfire and damage the catalytic
Chapter 9). If the level is low, add oil
converter.
as required.
If the warning light remains on after
adding oil or if oil is not available, have
Malfunction Indicator Lamp
the vehicle inspected by an authorized
(MIL)
HYUNDAI dealer.
This indicator light illuminates:
NOTICE
ś When the ignition switch is in the ON
position. The malfunction indicator
ś Continued driving with the warning
light illuminates for about 3 seconds
light on may cause engine failure.
and then goes off.
ś If the engine is not stopped
ś Whenever there is a malfunction with
immediately after the Engine Oil
either the emission control system or
Pressure warning light is illuminated,
the engine or the vehicle powertrain.
severe damage could result.
If the MIL warning light remains
illuminated while driving, have the
Information
vehicle inspected by an authorized
If engine oil pressure decreases due to
HYUNDAI dealer.
insufficient engine oil, etc., the Engine
ś If the enhanced engine protection
Oil Pressure warning light illuminates.
system activates due to the lack
The enhanced engine protection system
of engine oil, the engine power is
that limits engine power is activated. If
limited.
the engine oil pressure is restored, the
Engine Oil Pressure warning light and the
enhanced engine protection system turn
off. However, for gasoline 2.5 GDI engine,
when the engine oil pressure is restored,
the warning light and the enhanced
engine protection system turn off after
the engine is restarted.
4-13
CarManuals2.com
Instrument Cluster
NOTICE
AUTO HOLD indicator light
ś Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage
to the emission control system that
This indicator light illuminates:
could affect drivability and/or fuel
ś White: When you activate Auto Hold
economy.
by pressing the AUTO HOLD switch.
ś If the Malfunction Indicator Lamp
ś Green: When you stop the vehicle
(MIL) illuminates, catalytic converter
completely by depressing the brake
damage is possible that may result in
pedal with Auto Hold activated.
loss of engine power.
ś Yellow: Whenever a malfunction with
the Auto Hold is detected.
Electronic Parking Brake
If the AUTO HOLD indicator light
(EPB) warning light
remains YELLOW while driving, have
the vehicle inspected by an authorized
This warning light illuminates:
HYUNDAI dealer.
For more information, refer to the
ś When the ignition switch is in the
ON position. The EPB warning light
“Electronic Parking Brake (EPB)” section
in Chapter 6.
illuminates for about 3 seconds and
then goes off.
ś Whenever there is a malfunction with
EPB.
If the EPB warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.
4-14
CarManuals2.com
04
Low tire pressure warning
Forward Safety warning light
light
This warning light illuminates:
This warning light illuminates:
ś When the ignition switch is in the
ś When the ignition switch is in the ON
ON position. The Low Tire Pressure
position. The Forward Safety warning
warning light illuminates for about 3
light illuminates for about 3 seconds
seconds and then goes off.
and then goes off.
ś When one or more tires are
ś Whenever a malfunction with Forward
significantly underinflated. (The
Collision-Avoidance Assist is detected.
location of the underinflated tire
If this occurs, have the vehicle inspected
appears on the cluster display.)
by an authorized HYUNDAI dealer.
For more information, refer to the “Tire
For more information, refer to the
Pressure Monitoring System (TPMS)”
“Forward Collision-Avoidance Assist
section in Chapter 8.
(FCA)” section in Chapter 7.
This warning light remains ON after
blinking for about 60 seconds, or
Lane Safety indicator light
repeatedly blinks ON and OFF at 3 second
(if equipped)
intervals:
When there is a malfunction with the
This indicator light illuminates:
TPMS.
ś Green: When Lane Keeping Assist
If this occurs, have the vehicle inspected
operating conditions are met.
by an authorized HYUNDAI dealer as
ś White: When Lane Keeping Assist
soon as possible.
operating conditions are not met.
For more information, refer to the “Tire
ś Yellow: Whenever a malfunction with
Pressure Monitoring System (TPMS)”
Lane Keeping Assist is detected.
section in Chapter 8.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
WARNING
dealer.
ś The TPMS cannot alert you to severe
For more information, refer to the “Lane
Keeping Assist (LKA)” section in Chapter
and sudden tire damage caused by
external factors.
7.
ś If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.
4-15
CarManuals2.com
Instrument Cluster
All Wheel Drive (AWD)
LED headlight warning light
warning light (if equipped)
This warning light illuminates:
This warning light illuminates:
Whenever a malfunction with the AWD
ś When the ignition switch is in the ON
system is detected.
position. The LED headlight warning
light illuminates for about 3 seconds
If this occurs, have the vehicle inspected
and then goes off.
by an authorized HYUNDAI dealer.
ś Whenever there is a malfunction with
For more information, refer to the "All
a LED headlight.
Wheel Drive (AWD)" section in Chapter 6.
If the LED headlight warning light
remains illuminated while driving,
All Wheel Drive (AWD) LOCK
have the vehicle inspected by an
indicator light (if equipped)
authorized HYUNDAI dealer.
This indicator light illuminates:
This warning light blinks:
ś When the ignition switch is in the ON
Whenever there is a malfunction with a
position. The All Wheel Drive (AWD)
LED headlight related part.
LOCK indicator light illuminates for
If this occurs, have the vehicle inspected
about 3 seconds and then goes off.
by an authorized HYUNDAI dealer.
ś When you select AWD Lock mode by
pressing the AWD LOCK button.
Information
- The AWD LOCK mode increases the
drive power on a wet pavement,
Driving with the LED Headlight warning
snow covered roads, or off-road.
light on or blinking may reduce LED
headlight life.
NOTICE
Do not use AWD LOCK mode on dry
paved roads to prevent noise, vibration,
or damage of AWD related parts.
4-16
CarManuals2.com
04
Icy road warning light
Electronic Stability Control
(ESC) indicator light
This indicator light illuminates:
This indicator light illuminates:
To warn the driver the road may be icy.
ś When the ignition switch is in the
ON position. The Electronic Stability
When the outside temperature on the
Control indicator light illuminates for
temperature gauge is below 40 °F (4
about 3 seconds and then goes off.
°C), a single chime sounds, both the
outside temperature gauge and Icy Road
ś Whenever a malfunction with ESC
Warning indicator blink several times,
system is detected.
and then they remain illuminated.
If this occurs, have the vehicle
You can activate or deactivate the Icy
inspected by an authorized HYUNDAI
Road Warning function from the Settings
dealer.
menu in the instrument cluster or
infotainment system.
This indicator light blinks:
Select:
While ESC is operating.
ś User Settings > Cluster > Icy Road
For more information, refer to the
Warning (for cluster type)
“Electronic Stability Control (ESC)”
ś Setup > Vehicle > Cluster > Content
section in Chapter 6.
Selection > Icy Road Warning (for
infotainment system type)
Electronic Stability Control
(ESC) OFF indicator light
Information
(if equipped)
ś If the Icy Road warning light appears
This indicator light illuminates:
while driving, avoid speeding, rapid
ś When the ignition switch is in the ON
acceleration, sudden braking, or sharp
position. The ESC OFF indicator light
turning.
illuminates for about 3 seconds and
ś The infotainment system may change
then goes off.
after software updates. For more
ś When you deactivate ESC system by
information, refer to the user's manual
pressing the ESC OFF button.
provided in the infotainment system
For more information, refer to the
and the quick reference guide.
“Electronic Stability Control (ESC)”
section in Chapter 6.
4-17
CarManuals2.com
Instrument Cluster
Immobilizer indicator light
This indicator light illuminates for 2
(without smart key)
seconds and goes off:
ś If the smart key is in the vehicle and
This indicator light illuminates:
the Button Start ignition switch is
ON, but the vehicle cannot detect the
ś When the vehicle detects the
smart key, have the vehicle inspected
immobilizer in the key with the
by an authorized HYUNDAI dealer.
ignition switch in the ON position.
- At this time, you can start the
This indicator light blinks:
engine.
ś Whenever there is a malfunction with
- The indicator light goes off after
the immobilizer system, have the
starting the engine.
vehicle inspected by an authorized
HYUNDAI dealer.
This indicator light blinks:
ś Whenever there is a malfunction with
Downhill Brake Control (DBC)
the immobilizer system, have the
indicator light
vehicle inspected by an authorized
HYUNDAI dealer.
This indicator light illuminates:
ś When the ignition switch is in the ON
Immobilizer indicator light
position. The downhill brake control
(with smart key)
indicator light illuminates for about 3
seconds and then goes off.
This indicator light illuminates for up to
ś When you activate the system by
30 seconds:
pressing the DBC button.
ś When the vehicle detects the smart
key in the vehicle with the Button
This indicator light blinks:
Start ignition switch in the ACC or ON
When Downhill Brake Control system is
position.
operating.
- At this time, you can start the
engine.
This indicator light illuminates yellow:
- The indicator light goes off after
Whenever there is a malfunction with
starting the engine.
Downhill Brake Control system, have
the vehicle inspected by an authorized
This indicator light blinks for a few
HYUNDAI dealer.
seconds:
ś When the smart key is not in the
For more information, refer to the
vehicle, you cannot start the engine.
"Downhill Brake Control (DBC)" section
in chapter 6.
4-18
CarManuals2.com
04
AUTO STOP indicator light
High beam indicator light
This indicator light illuminates:
This indicator light illuminates:
When the engine enters the Idle Stop
ś When the headlights are on and turn
mode of ISG (Idle Stop and Go) system.
signal lever is moved to high beam
position.
When the engine automatically starts,
the AUTO STOP indicator on the cluster
ś When the turn signal lever is pulled
Illuminates to white.
into the Flash-to-Pass position.
For more information, refer to the "ISG
(Idle Stop and Go) system" section in
High Beam Assist indicator
Chapter 6.
light
Information
This indicator light illuminates:
When the ISG system automatically
When the high beam is on with the light
starts the engine, some warning lights
switch in the AUTO position.
(ABS, ESC, ESC OFF, MDPS or Parking
ś White: When High Beam Assist is
brake warning light) may turn on for a
ready to operate.
few seconds because of a low battery
ś Green: When High Beam Assist is
voltage but not a system malfunction.
operating.
Turn signal indicator light
If your vehicle detects oncoming
vehicles in front of you, High Beam Assist
switches the high beam to low beam
automatically.
This indicator light blinks:
For more information, refer to the “High
When you operate the turn signal lever.
Beam Assist (HBA)” section in Chapter 5.
If any of the following occur, there may
be a malfunction with the turn signal
Cruise indicator light
system.
(if equipped)
ś The turn signal indicator light
illuminates but does not blink.
This indicator light illuminates:
ś The turn signal indicator light blinks
When the Cruise Control system is
rapidly.
enabled.
ś The turn signal indicator light does not
For more information, refer to the "Cruise
illuminate at all.
Control (CC)" section in chapter 7.
If any of these occur, have the vehicle
inspected by an authorized HYUNDAI
dealer.
4-19
CarManuals2.com
Instrument Cluster
SPORT mode indicator light
Master warning light
This indicator light illuminates
This warning light illuminates:
When you select "SPORT" mode as the
If a malfunction is detected in any of the
drive mode.
following:
For more information, refer to the "Drive
ś Forward Collision-Avoidance Assist
Mode Integrated Control System" section
malfunction
in Chapter 6.
ś Forward Collision-Avoidance Assist
radar blocked
SMART mode indicator light
ś Blind-Spot Collision-Avoidance Assist
(if equipped)
malfunction (if equipped)
ś Blind-Spot Collision-Avoidance Assist
This indicator light illuminates:
radar blocked (if equipped)
When you select ''SMART" mode as the
ś LED headlight malfunction
drive mode.
(if equipped)
ś High Beam Assist malfunction
For more information, refer to the "Drive
(if equipped)
Mode Integrated Control System" section
in Chapter 6.
ś Smart Cruise Control malfunction (if
equipped)
SNOW mode indicator light
ś Smart Cruise Control radar blocked (if
(if equipped)
612:
equipped)
ś Tire Pressure Monitoring System
(TPMS) malfunction
This indicator light illuminates:
When you select ''SNOW" mode as the
If the issue is resolved, the Master
Warning Light turns off.
drive mode.
For more information, refer to the "Drive
Mode Integrated Control System" section
in Chapter 6.
4-20
CarManuals2.com
04
Cluster Display Messages
Press START button again (if
Shift to P (if equipped with smart
equipped with smart key)
key)
If you cannot start the vehicle after
the Push Button Start ignition switch is
This message appears if the Push Button
pressed, attempt to start the engine by
Start ignition switch is pressed to the
pressing the Push Button Start ignition
OFF position without the gear in the P
switch again.
(Park) position.
If the warning message appears each
If this occurs, the Push Button Start
time you press the Push Button Start
ignition switch goes to the ACC position.
ignition switch, have the vehicle
inspected by an authorized HYUNDAI
Low key battery (if equipped with
dealer.
smart key)
When the Push Button Start ignition
Press START button with key (if
switch is pressed to the OFF position,
equipped with smart key)
a message may appear, indicating the
This message appears and the
internal battery of the Smart Key is low.
immobilizer indicator blinks if you press
Replace the Smart Key battery.
the Push Button Start ignition switch
while the warning message, “Key not
Press brake pedal to start engine (if
detected” appears.
equipped with smart key)
This message appears if the Push
Check BRAKE SWITCH fuse (if
Button Start ignition switch is pressed
equipped with smart key)
repeatedly without depressing the brake
This message appears if the brake switch
pedal.
fuse is disconnected.
Start the vehicle by depressing the brake
Replace the fuse before starting the
pedal and then pressing the Push Button
engine.
Start ignition switch.
If that is not possible, start the engine by
Key not in vehicle (if equipped with
pressing the Engine Start/ Stop button
smart key)
for 10 seconds in the ACC position.
This message appears if the smart key
Shift to P or N to start engine (if
is not in the vehicle when you have
equipped with smart key)
left the vehicle with the Push Button
Start ignition switch in the ON or Start
This message appears if you try to start
position.
the engine in any other position except P
(Park) or N (Neutral).
Always turn OFF the engine before
leaving your vehicle.
Information
Key not detected (if equipped with
smart key)
You can start the engine with the gear in
N (Neutral). But, for your safety, always
This message appears if the smart key is
start the engine with the vehicle in P
not detected when you press the Push
(Park) with your foot depressing the brake
Button Start ignition switch.
pedal.
4-21
CarManuals2.com
Instrument Cluster
Battery discharging due to external
Sunroof open indicator (if equipped)
electrical devices (if equipped)
This message appears if the vehicle
battery voltage is low or if a current draw
is detected that could drain the vehicle
battery.
Do not connect any external electronic
devices to the battery system or battery
discharge may occur.
If this message appears on the cluster
and there are no other external electronic
devices connected to the vehicle, have
ONX4040010
the vehicle inspected by an authorized
HYUNDAI dealer.
This warning appears if you turn off the
engine when the sunroof is open.
Door, Hood, Liftgate open indicator
Close the sunroof securely before leaving
your vehicle.
Low tire pressure indicator
ONX4040009
This warning appears if any door or
hood or liftgate is left open. The warning
indicates which door is open on the
ONX4E040019
cluster display.
This warning message appears if the tire
pressure is low. The corresponding tire
on the vehicle illuminates.
WARNING
For more information, refer to the “Tire
Before driving the vehicle, confirm the
Pressure Monitoring System (TPMS)”
door, hood, and liftgate are fully closed.
section in Chapter 8.
Also, check there are no door, hood, and
liftgate open warning lights or messages
displayed on the instrument cluster.
4-22
CarManuals2.com
04
Lights
Wiper
OJX1049007L
OJX1049008L
This indicator displays which exterior
This indicator displays which wiper speed
light is selected using the lighting
is selected using the wiper control.
control.
You can activate or deactivate Wiper/
You can activate or deactivate Wiper/
Lights display function from the Settings
Lights display function from the Settings
menu in the instrument cluster or
menu in the instrument cluster or
infotainment system.
infotainment system.
Select:
Select:
ś User settings > Cluster > Wiper/
ś User settings > Cluster > Wiper/
Lights Display (for cluster type)
Lights Display (for cluster type)
ś Setup > Vehicle > Cluster > Content
ś Setup > Vehicle > Cluster > Content
Selection > Wiper/Lights Display (for
Selection > Wiper/Lights Display (for
infotainment system type)
infotainment system type)
Information
The infotainment system may change
after software updates. For more
information, refer to the user's manual
provided in the infotainment system and
the quick reference guide.
4-23
CarManuals2.com

















Content      ..      1       2         ..



//////////////////////////////////////////
