07
Driver Attention Warning
Limitations of Driver Attention
Malfunction and Limitations
Warning
Driver Attention Warning
Driver Attention Warning may not work
malfunction
properly in the following situations:
• The vehicle is driven violently
• The vehicle intentionally crosses over
lanes frequently
• The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist
Leading Vehicle Departure Alert function
• When the vehicle cuts in

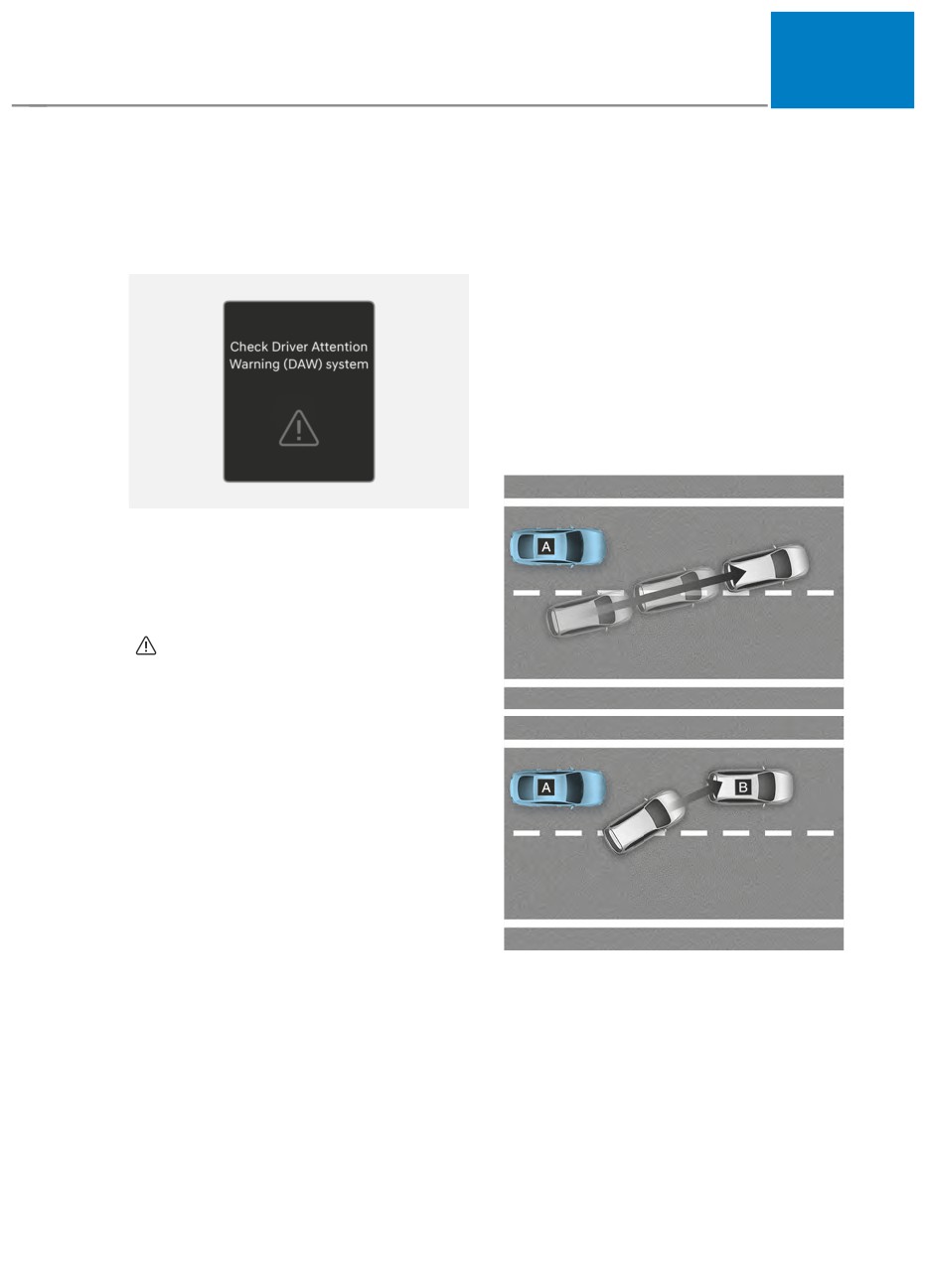

OTM070107L
When Driver Attention Warning is not
working properly, the ‘Check Driver
Attention Warning (DAW) system’
warning message will appear on the
cluster will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
OADAS040SD
OADAS042SD
[A] : Your vehicle, [B] : Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly.
7-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

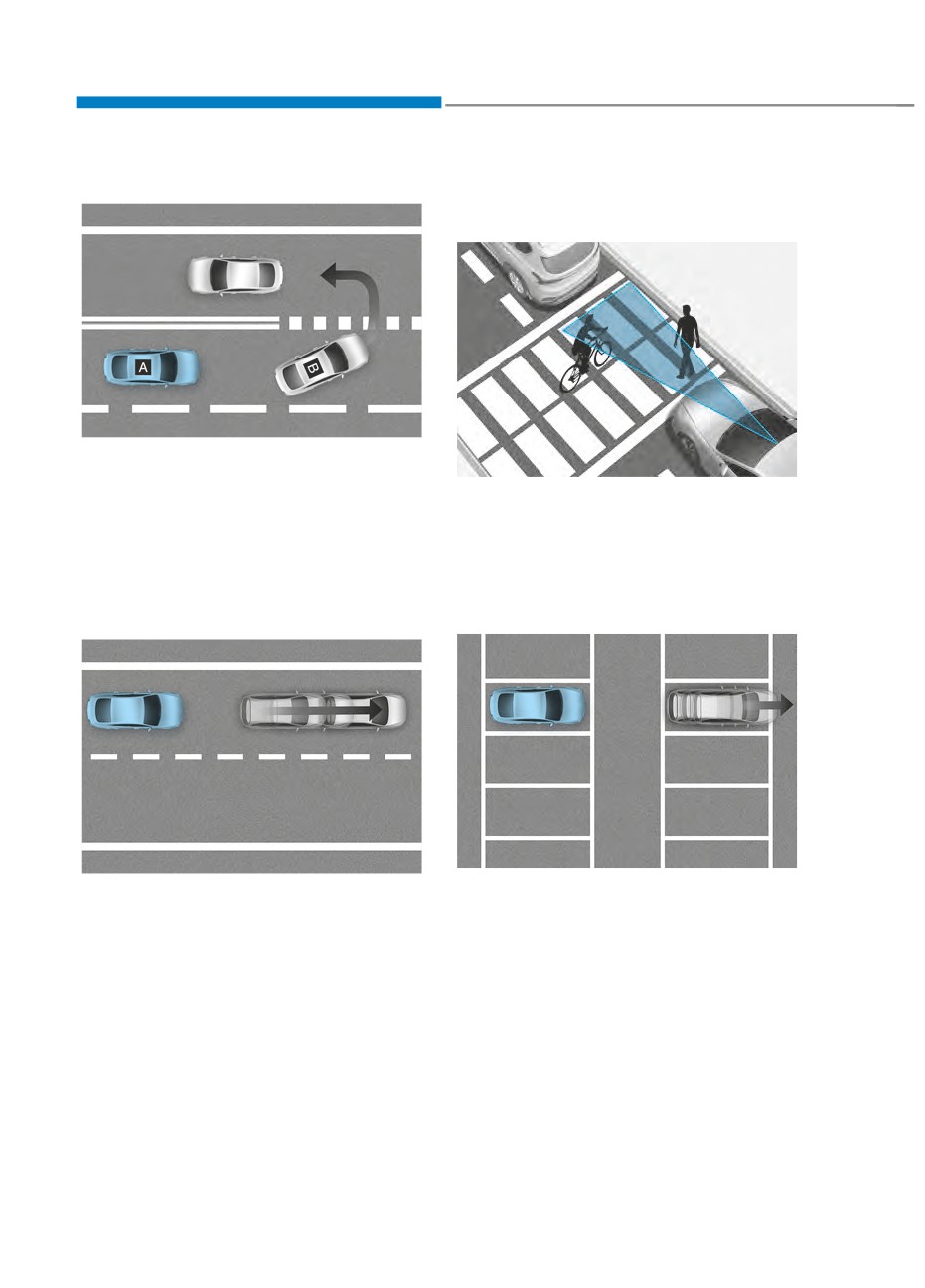

• When the vehicle ahead sharply steers
• When a pedestrian or bicycle is
between your vehicle and the vehicle
ahead
OADAS034SD
[A] : Your vehicle, [B] : Front vehicle
OADAS025SD
If the vehicle in front makes a sharp
turn, such as to turn left or right or
If there is a pedestrian(s) or bicycle(s)
in between your vehicle and the
make a U-turn, etc., Leading Vehicle
Departure Alert may not operate
vehicle in front, Leading Vehicle
Departure Alert may not operate
properly.
properly.
• When the vehicle ahead abruptly
departs
• When in a parking lot
OADAS024SD
OADAS027SD
If a vehicle parked in front drives away
If the vehicle in front abruptly departs,
Leading Vehicle Departure Alert may
from you, Leading Vehicle Departure
Alert may alert you that the parked
not operate properly.
vehicle is driving away.
7-48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

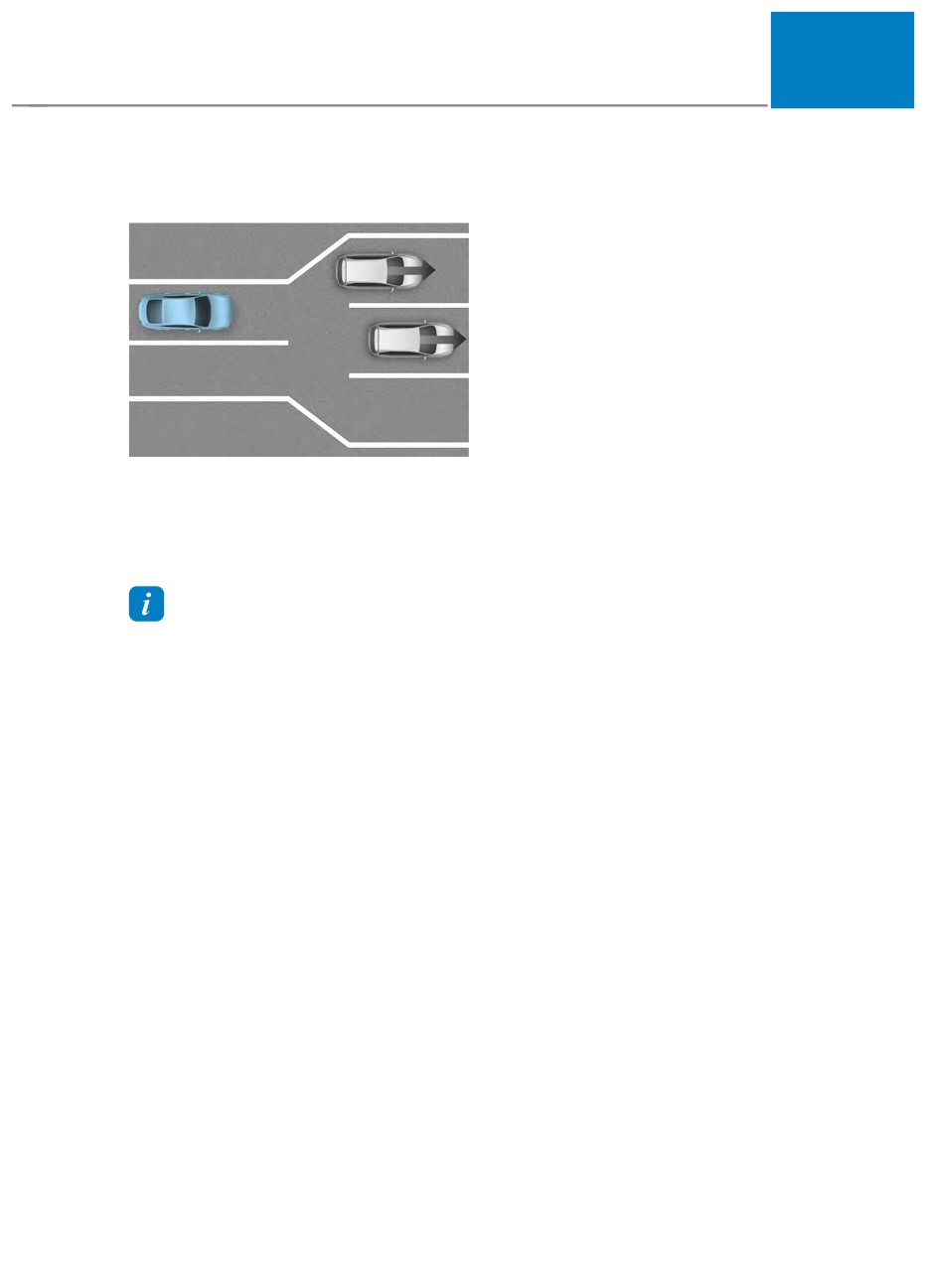

• When driving at a tollgate or
intersection, etc.
OCN7N071106L
If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in chapter 7.
7-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
CRUISE CONTROL (CC)
Cruise Control Operation
Setting speed
1. Accelerate to the desired speed,
which must be more than 20 mph (30
km/h).

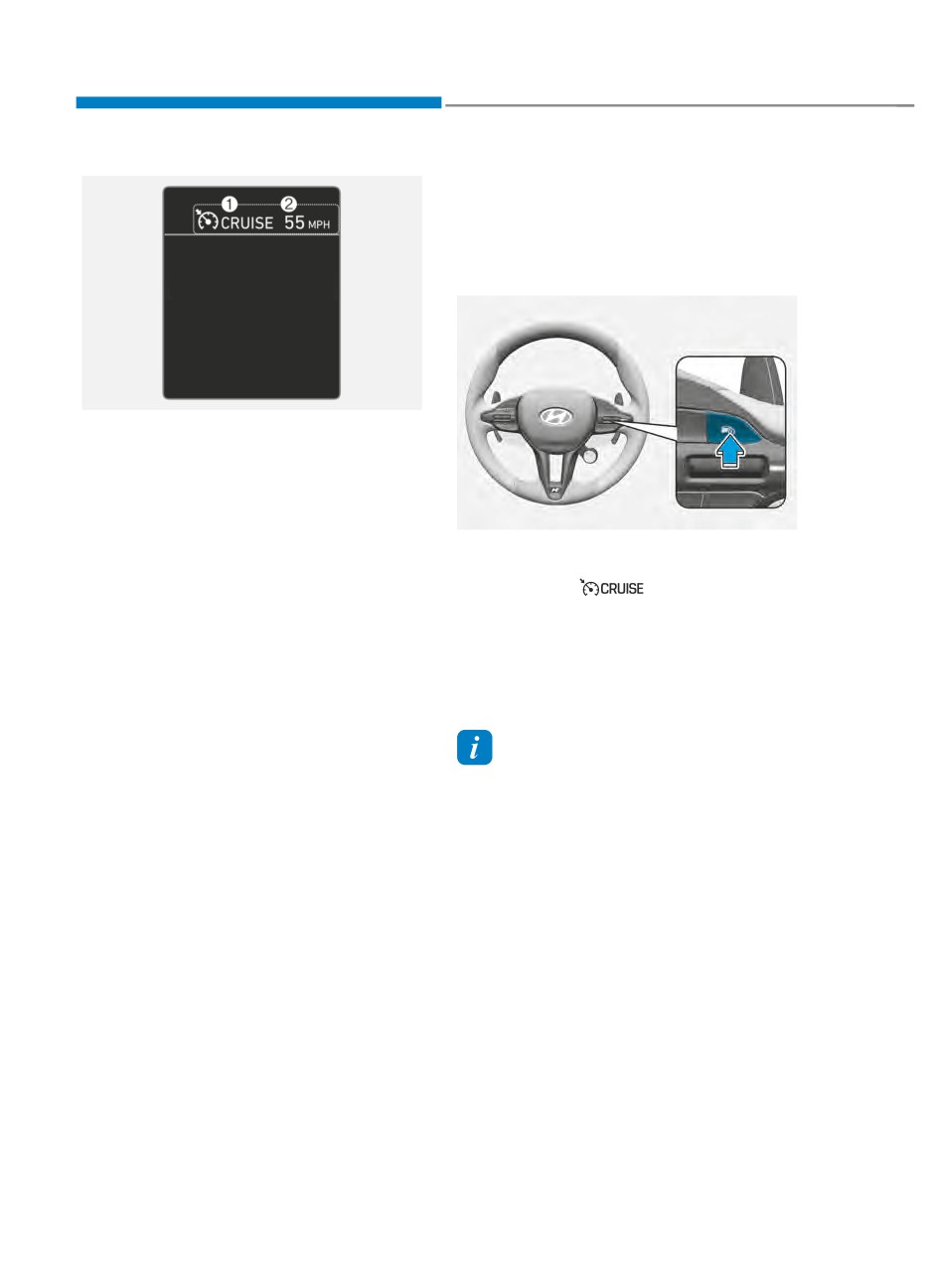

OIK057157N
(1) Cruise indicator
(2) Set speed
Cruise Control allows you to drive at
speeds above 20 mph (30 km/h) without
OCN7N071006
depressing the accelerator pedal.
2. Press the Driving Assist button at
the desired speed. The set speed
and Cruise (
) indicator will
illuminate on the cluster.
3. Release the accelerator pedal.
Vehicle speed will maintain the set
speed even when the accelerator
pedal is not depressed.
Information
The vehicle may slightly slow down
or speed up while driving uphill or
downhill.
The Driving Assist button symbol may
vary depending on your vehicle option.
7-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

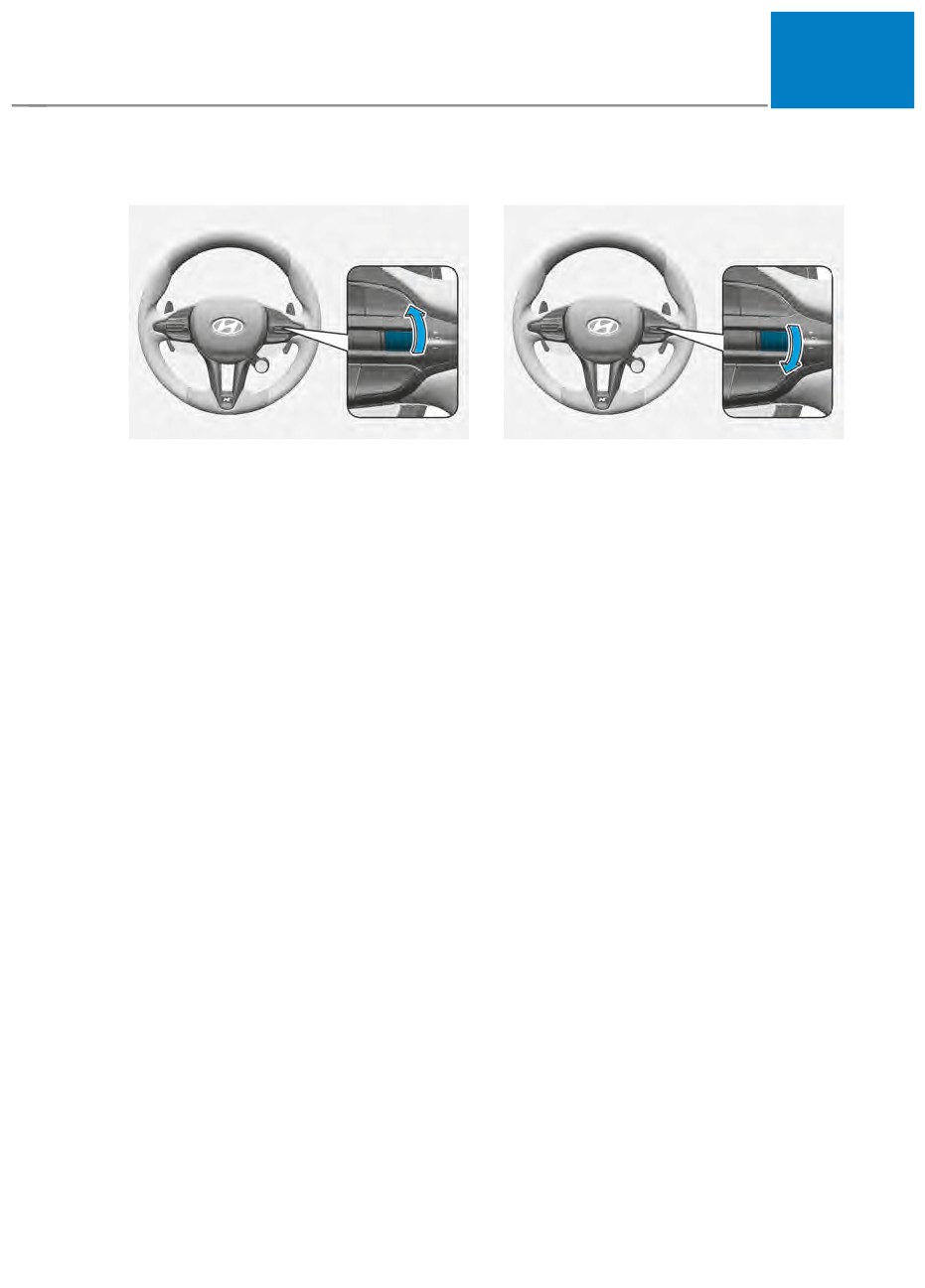

Increasing set speed
Decreasing set speed
OCN7N071134L
OCN7N071135L
Push the + switch up and release
• Push the - switch down and release
it immediately. The set speed will
it immediately. The set speed will
increase by 1 mph (1 km/h) each time
decrease by 1 mph (1 km/h) each time
the switch is operated in this manner.
the switch is operated in this manner.
Push the + switch up and hold it while
• Push the - switch down and hold it
monitoring the set speed on the
while monitoring the set speed on the
cluster. The set speed will increase to
cluster. The set speed will decrease to
the nearest multiple of five (multiple
the nearest multiple of five (multiple
of ten in km/h) at first, and then
of ten in km/h) at first, and then
increase by 5 mph (10 km/h) each
decrease by 5 mph (10 km/h) each
time the switch is operated in this
time the switch is operated in this
manner.
manner.
Release the switch when the desired
Release the switch at the speed you
speed is shown and the vehicle will
want to maintain.
accelerate to that speed.
Accelerating temporarily
If you want to speed up temporarily
when Cruise Control is on, depress the
accelerator pedal.
To return to the set speed, take your foot
off the accelerator pedal.
If you push the + switch up or - switch
down at increased speed, the set speed
will be set to the current increased
speed.
7-51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

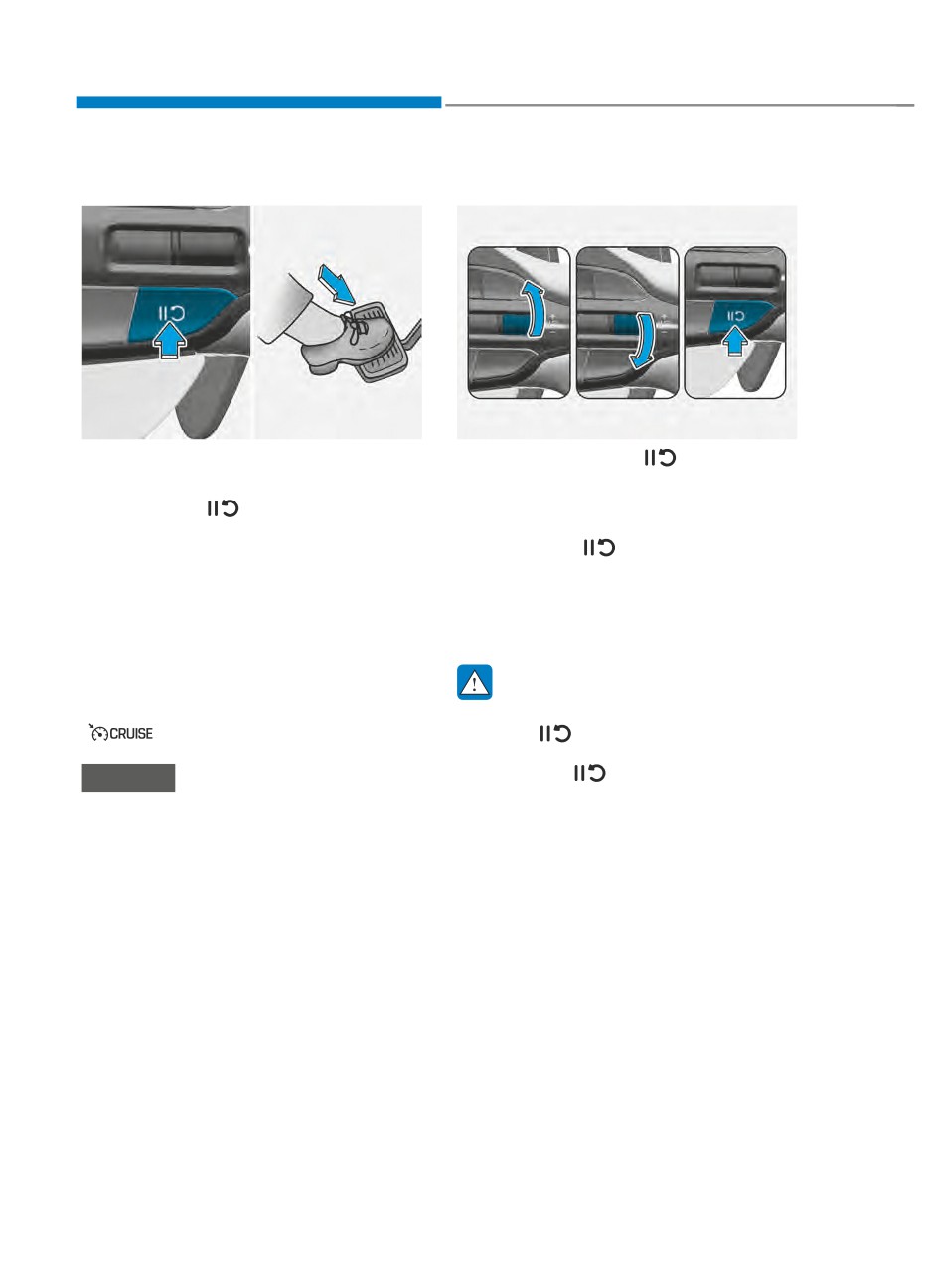

Temporarily pausing Cruise Control
Resuming Cruise Control
OCN7N071105L
OCN7N071136L
Cruise Control will be paused when:
Push the +, - switch or
button.
• Depressing the brake pedal.
If you push the + switch up or - switch
down, vehicle speed will be set to the
• Pushing the
button.
current speed on the cluster.
• Shifting the gear to N (Neutral).
If you push the
button, vehicle
• Decreasing the vehicle speed to less
speed will resume to the preset speed.
than approximately 20 mph (30 km/h).
The vehicle speed must be above 20
• ESC (Electronic Stability Control) is
mph (30 km/h) for Cruise Control to
operating.
resume.
• Downshifting to the 2nd gear when in
Manual Shift mode.
WARNING
The set speed will turn off but the Cruise
Check the driving condition before
(
) indicator will stay on.
using the
button. Driving speed
may sharply increase or decrease when
you press the
button.
NOTICE
If Cruise Control pauses during a
situation that is not mentioned, have
the vehicle inspected by an authorized
HYUNDAI dealer.
7-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Turning off Cruise Control
WARNING
Take the following precautions when
using Cruise Control:
Always set the vehicle speed under
the posted speed limit.
Keep Cruise Control off when the
function is not in use, to avoid
inadvertently setting a speed. Check
that the Cruise (
) indicator is
off.
Cruise Control does not substitute

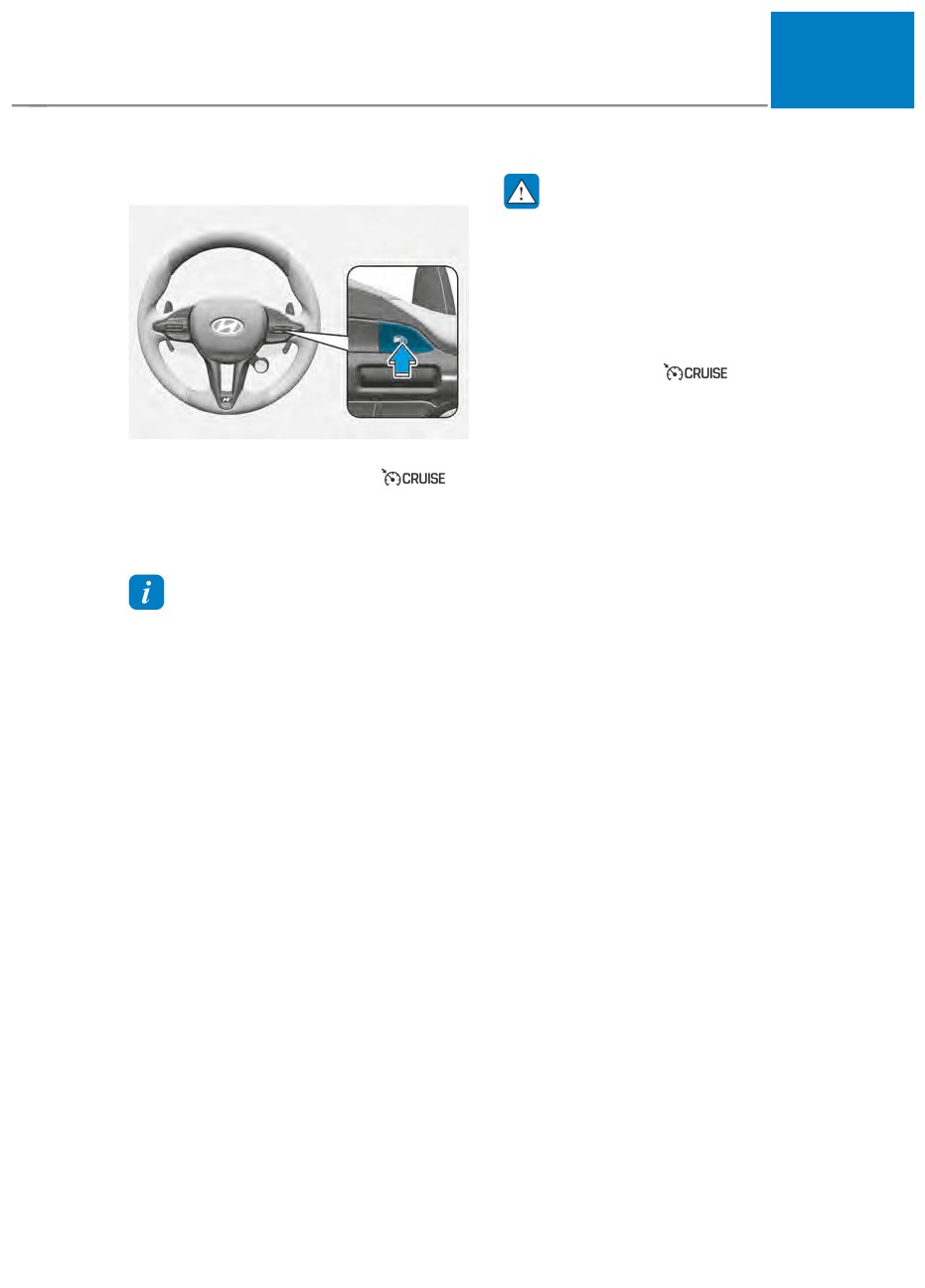

OCN7N071006
for proper and safe driving. It is the
Press the Driving Assist button to turn
responsibility of the driver to always
Cruise Control off. The Cruise (
)
drive safely and always be aware of
indicator will go off.
unexpected and sudden situations.
Always press the Driving Assist button to
Always drive cautiously to prevent
turn Cruise Control off when not in use.
unexpected and sudden situations
from occurring. Pay attention to the
road conditions at all times.
Information
Do not use Cruise Control when it
If your vehicle is equipped with Manual
may be unsafe to keep the vehicle at
Speed Limit Assist, press and hold the
a constant speed:
Driving Assist button to turn off Cruise
- When driving in heavy traffic, or
Control. However, Manual Speed Limit
when traffic conditions make it
Assist will turn on.
difficult to drive at a constant
speed
- When driving on rainy, icy, or
snow-covered roads
- When driving on hilly or windy
roads
- When driving in windy areas
- When driving with limited view
(possibly due to bad weather, such
as fog, snow, rain and sandstorm)
Do not use Cruise Control when
towing a trailer.
7-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
LANE FOLLOWING ASSIST (LFA)
Lane Following Assist is designed to help
Lane Following Assist Settings
detect lane markings and/or vehicles on
Setting features
the road, and assists the driver’s steering
to help center the vehicle in the lane.
Detecting sensor
OCN7N071137L
Turning Lane Following Assist On/Off
With the engine on, shortly press the
OCN7N071001N
Lane Driving Assist button located on the
[1] : Front view camera
steering wheel to turn on Lane Following
Assist. The white or green indicator
The front view camera is used as a
light will illuminate on the cluster.
detecting sensor to help detect lane
markings and vehicles in front.
Press the button again to turn off the
function.
Refer to the picture above for the
detailed location of the detecting sensor.
CAUTION
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
7-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Lane Following Assist Operation
Warning and control
OCN7N071092L
Warning Volume
With the engine on, select ‘Driver
OCN7N071039N
Assistance → Warning Volume’ from the
Lane Following Assist
Settings menu to change the Warning
Volume to ‘High’, ‘Medium’, ‘Low’ for
If the vehicle ahead and/or both lane
Hands-off warning.
markings are detected and your vehicle
speed is below 110 mph (180 km/h), the
If you change the Warning Volume,
green indicator light will illuminate
the Warning Volume of other Driver
on the cluster, and Lane Following Assist
Assistance systems may change.
will help center the vehicle in the lane by
assisting the steering wheel.
CAUTION
When the steering wheel is not assisted,
the green indicator light will blink
and change to white.
7-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
WARNING
The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.
Lane Following Assist does not
operate at all times. It is the
responsibility of the driver to safely
steer the vehicle and to maintain the
vehicle in its lane.
OCN7N071094L
The hands-off warning message
Hands-off warning
may appear late depending on road
conditions. Always have your hands
If the driver takes their hands off the
steering wheel for several seconds, the
on the steering wheel while driving.
‘Place hands on the steering wheel’
If the steering wheel is held very
warning message will appear and an
lightly, the hands-off warning
audible warning will sound in stages.
message may appear because Lane
First stage : Warning message
Following Assist may not recognize
that the driver has their hands on the
Second stage : Warning message (red
steering wheel.
steering wheel) and
audible warning
If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
OTM070117N
If the driver still does not have their
hands on the steering wheel after the
hands-off warning, the ‘Lane Following
Assist (LFA) canceled’ warning message
will appear and Lane Following Assist will
be automatically cancelled.
7-56

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Lane Following Assist
Information
Malfunction and Limitations
You may change settings from the
Lane Following Assist malfunction
infotainment system (Vehicle Settings),
whichever option that is provided with
your vehicle. For more details, see
"User Settings" section in chapter 4, or
"Vehicle Settings" section in supplied
Infotainment Manual.
When both lane markings are detected,
the lane lines on the cluster will change
from grey to white.
Images or colors may appear
differently depending on the instrument
panel specifications or theme.
OTM070118N
Lane undetected
Lane detected
When Lane Following Assist is not
working properly, the ‘Check Lane
Following Assist (LFA) system’ (or
‘Check LFA (Lane Following Assist)
system’) warning message will appear
on the cluster for several seconds,
and the master (
) warning light will
illuminate on the cluster. If this occurs,
we recommend that the vehicle be
inspected by an authorized HYUNDAI
dealer.
OCN7N071142L
OCN7N071143L
The images and colors in the cluster
Limitations of Lane Following Assist
may differ depending on the cluster
For more details on Lane Following Assist
type or theme selected from the
limitations, refer to “Lane Keeping Assist
cluster.
(LKA)” section in chapter 7.
If lane markings are not detected,
steering wheel control by Lane
Following Assist can be limited
WARNING
depending on whether a vehicle is in
For more details on Lane Following
front or the driving conditions of the
Assist precautions, refer to “Lane
vehicle.
Keeping Assist (LKA)” section in chapter
Even though the steering is assisted
7.
by Lane Following Assist, the driver
may control the steering wheel.
The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Following Assist than
when it is not.
7-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
REAR VIEW MONITOR (RVM)
Rear View Monitor Settings
Camera settings
OCN7N071007N
OCN7N071075N
• You can change Rear View Monitor
‘Display Contents’ or ‘Display Settings’
by touching the setup icon (
) on
the screen while Rear View Monitor
is operating, or selecting ‘Driver
Assistance → Parking Safety → Camera
Settings’ from the Settings menu
while the engine is on.
OCN7N071152L
• In the Display Settings, you can
Rear View Monitor shows the area
change the screen’s ‘Brightness’ and
behind the vehicle to assist you when
‘Contrast’.
parking or backing up.

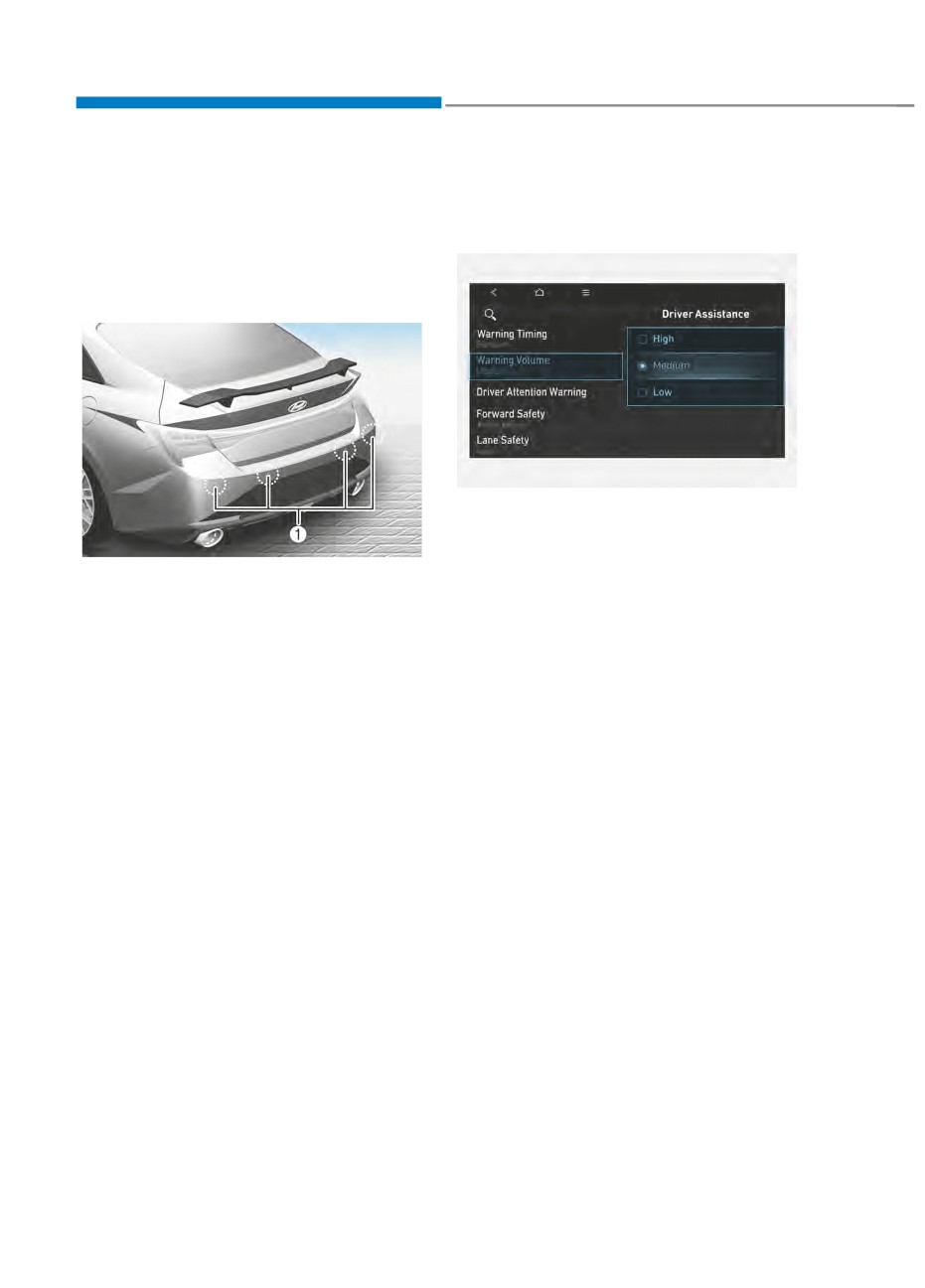

Detecting sensor
OCN7N071158N
[1] : Rear view camera
Refer to the picture above for the
detailed location of the detecting sensor.
7-58

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Rear View Monitor Operation
Rear view
Operating button
Operating conditions
Type A

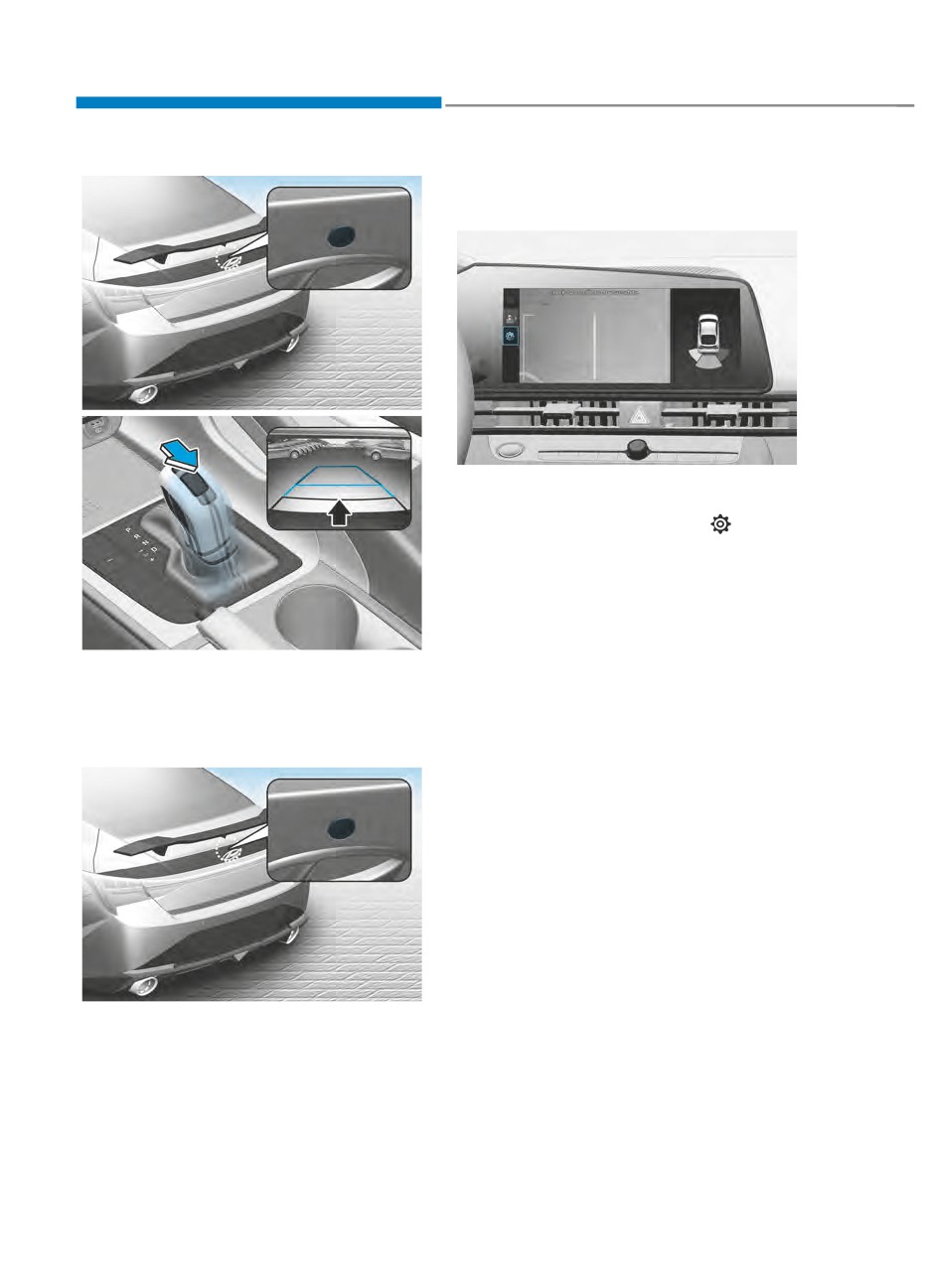

• Shift the gear to R (Reverse), the
image will appear on the screen.
• Press the Parking/View button (1)
while the gear is in P (Park), the image
will appear on the screen.
• When you touch the (
) icon, the rear
view is displayed on the screen.
Off conditions
• The rear view cannot be turned off
OCN7N071078L
when the gear is in R (Reverse).
Type B
• Press the Parking/View button (1)
again while the gear is in P (Park) with
the rear view on the screen, the rear
view will turn off.
• Shift the gear from R (Reverse) to P
(Park), the rear view will turn off.
OCN7N071138L

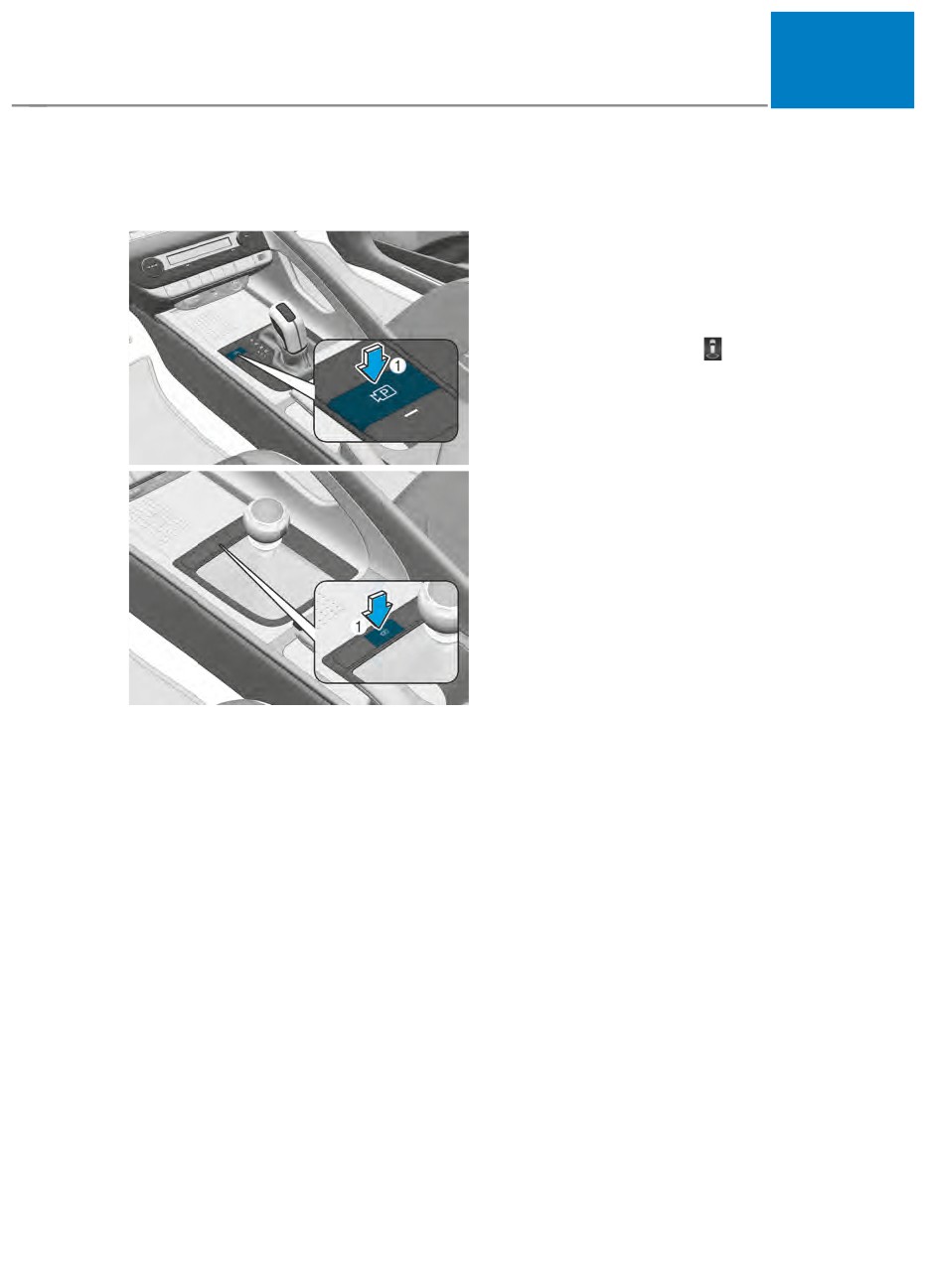

Parking/View button
Press the Parking/View button (1) to turn
on Rear View Monitor.
Press the button again to turn off the
function.
7-59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
Extended Rear View Monitor
Rear top view
The rear view will maintain showing on
the screen to help you when parking.
Operating conditions
Shift the gear from R (Reverse) to N
(Neutral) or D (Drive), the rear view will
appear on the screen.
Off conditions
• When the vehicle speed is above 6
mph (10 km/h), the rear view will turn
OCN7N071073L
off.

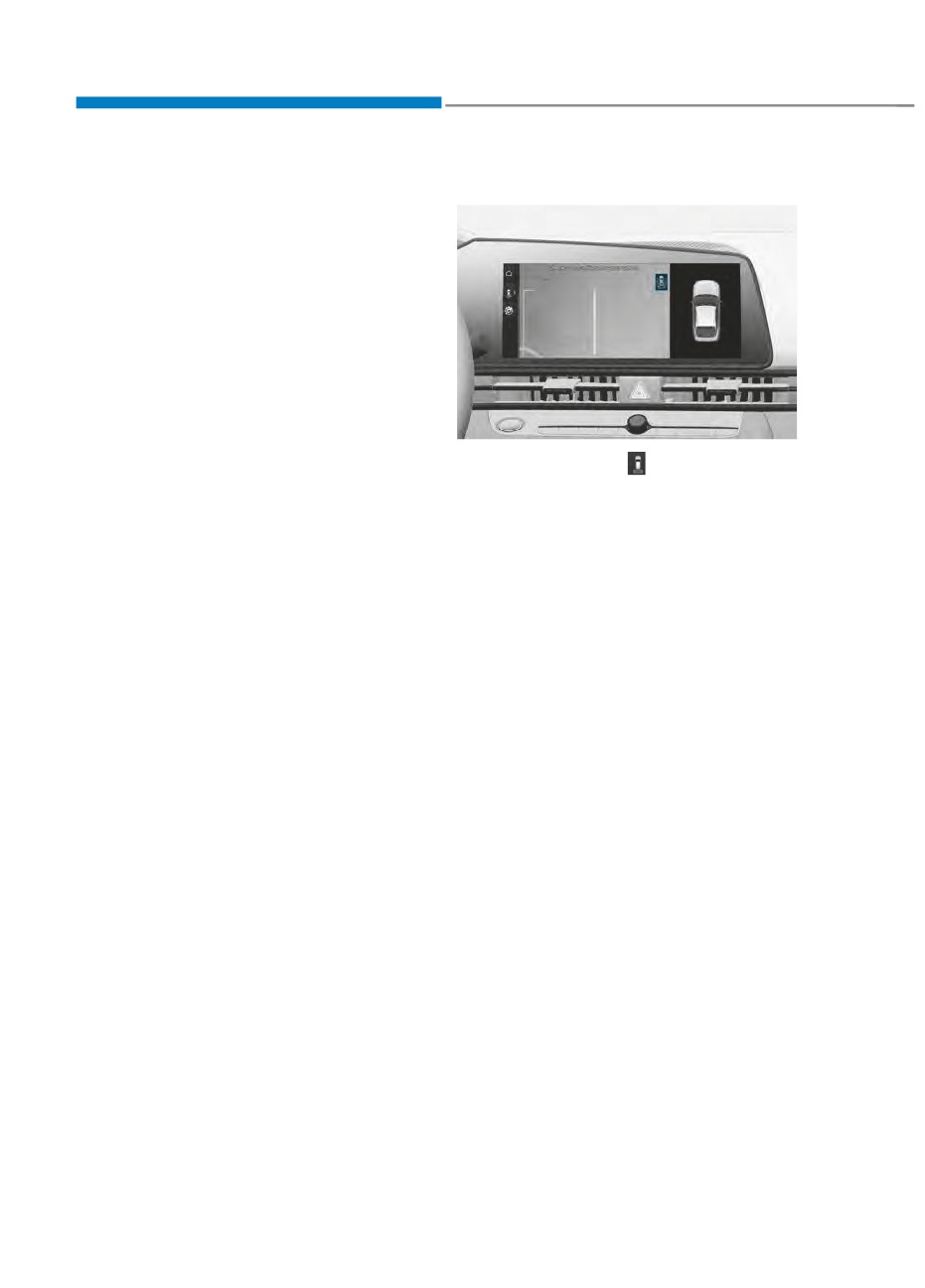

When you touch the icon, the top view
• Press the Parking/View button (1), the
is displayed on the screen and shows the
rear view will turn off.
distance from the vehicle in the back of
• Shift the gear to P (Park), the rear view
your vehicle while parking.
will turn off.
7-60

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

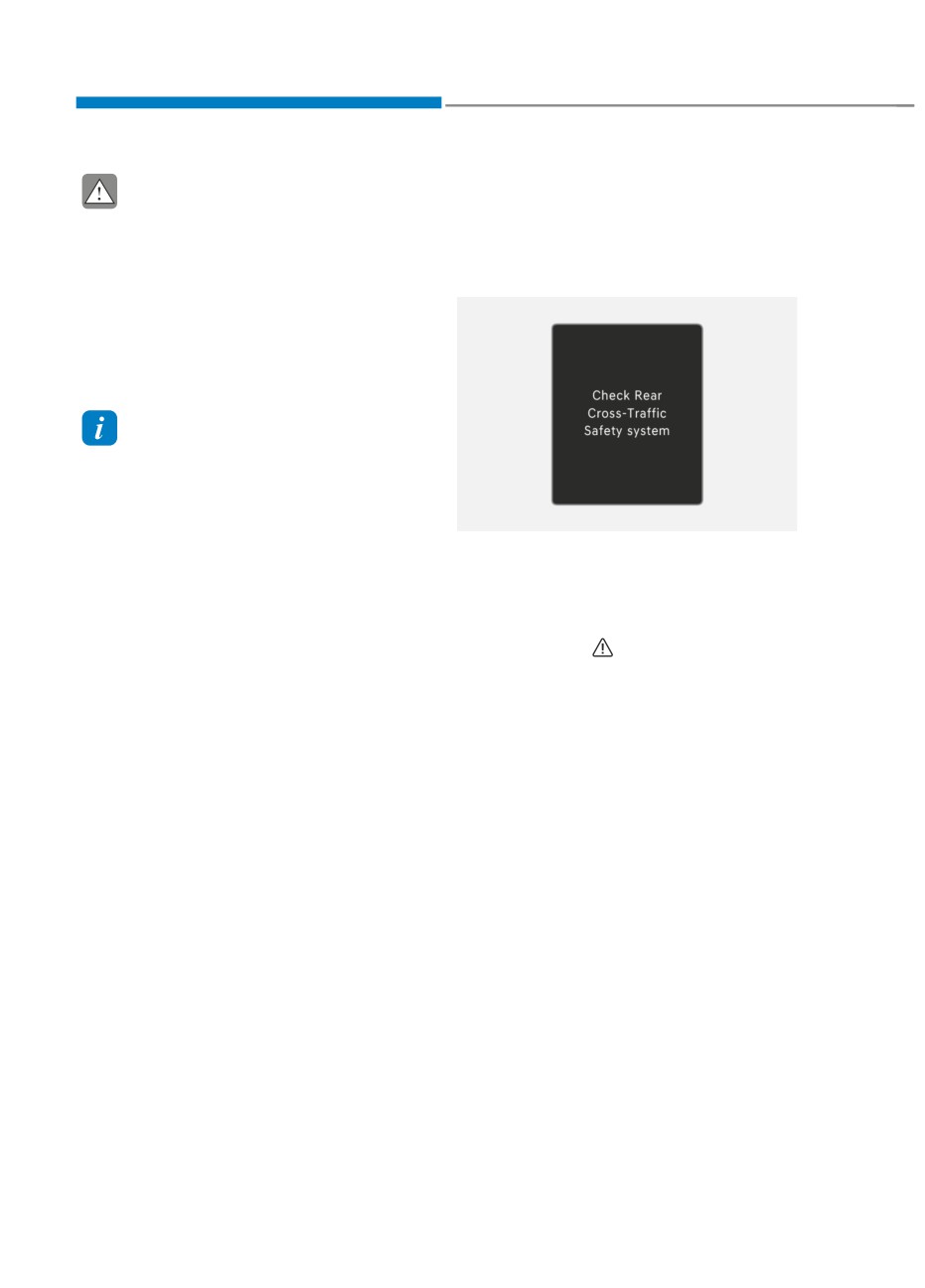

Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING
The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.
The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.
Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone etc.). This may damage the
camera lens.
7-61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
REAR CROSS-TRAFFIC COLLISION-AVOIDANCE ASSIST
(RCCA) (IF EQUIPPED)
Rear Cross-Traffic Collision-Avoidance
Detecting sensor
Assist is designed to help detect vehicles
approaching from the rear left and right
side while your vehicle is reversing,
and warn the driver that a collision is
imminent with a warning message and
an audible warning. Also, braking is
assisted to help prevent a collision.
OCN7N071126N
[1] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.

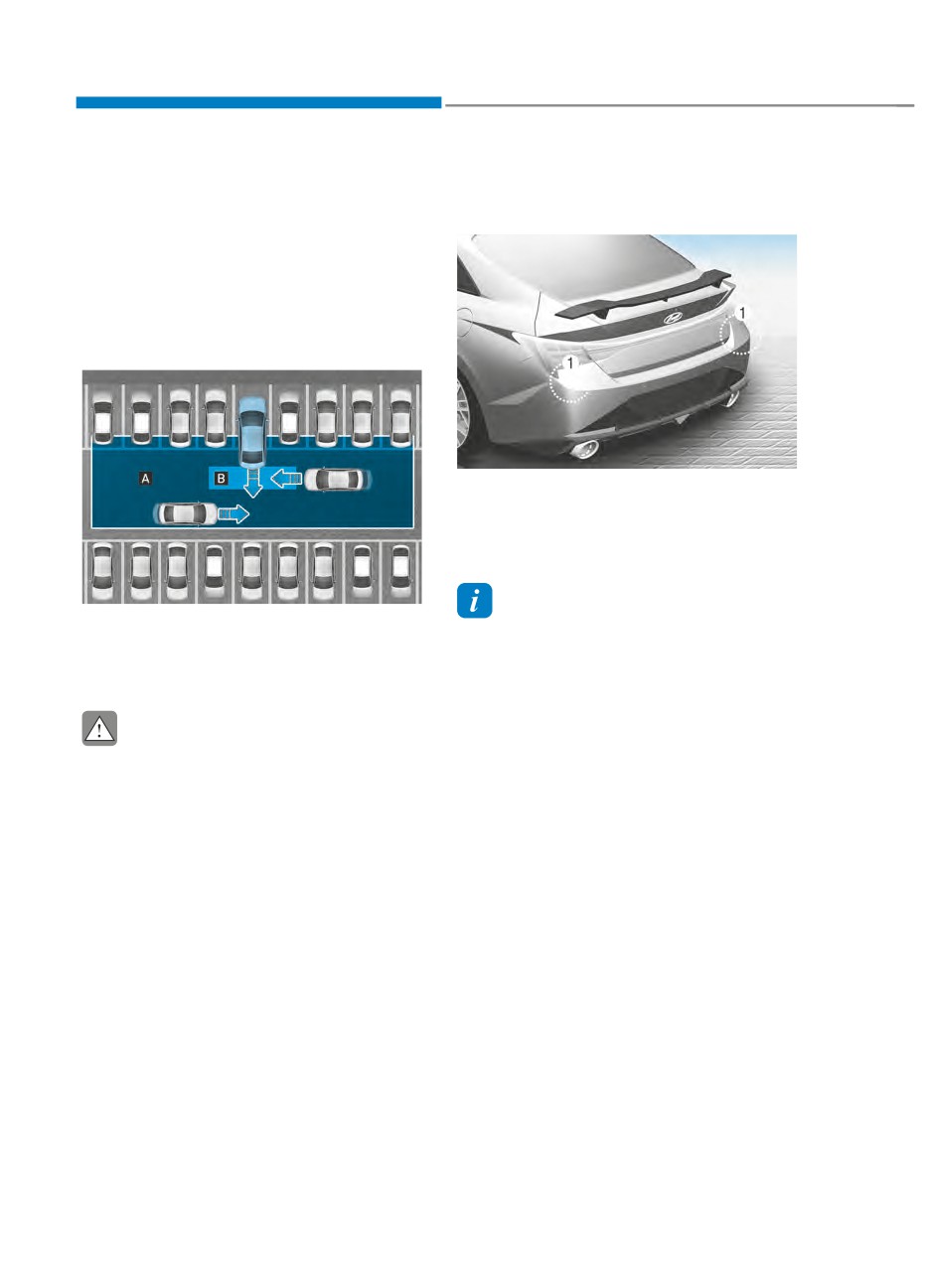

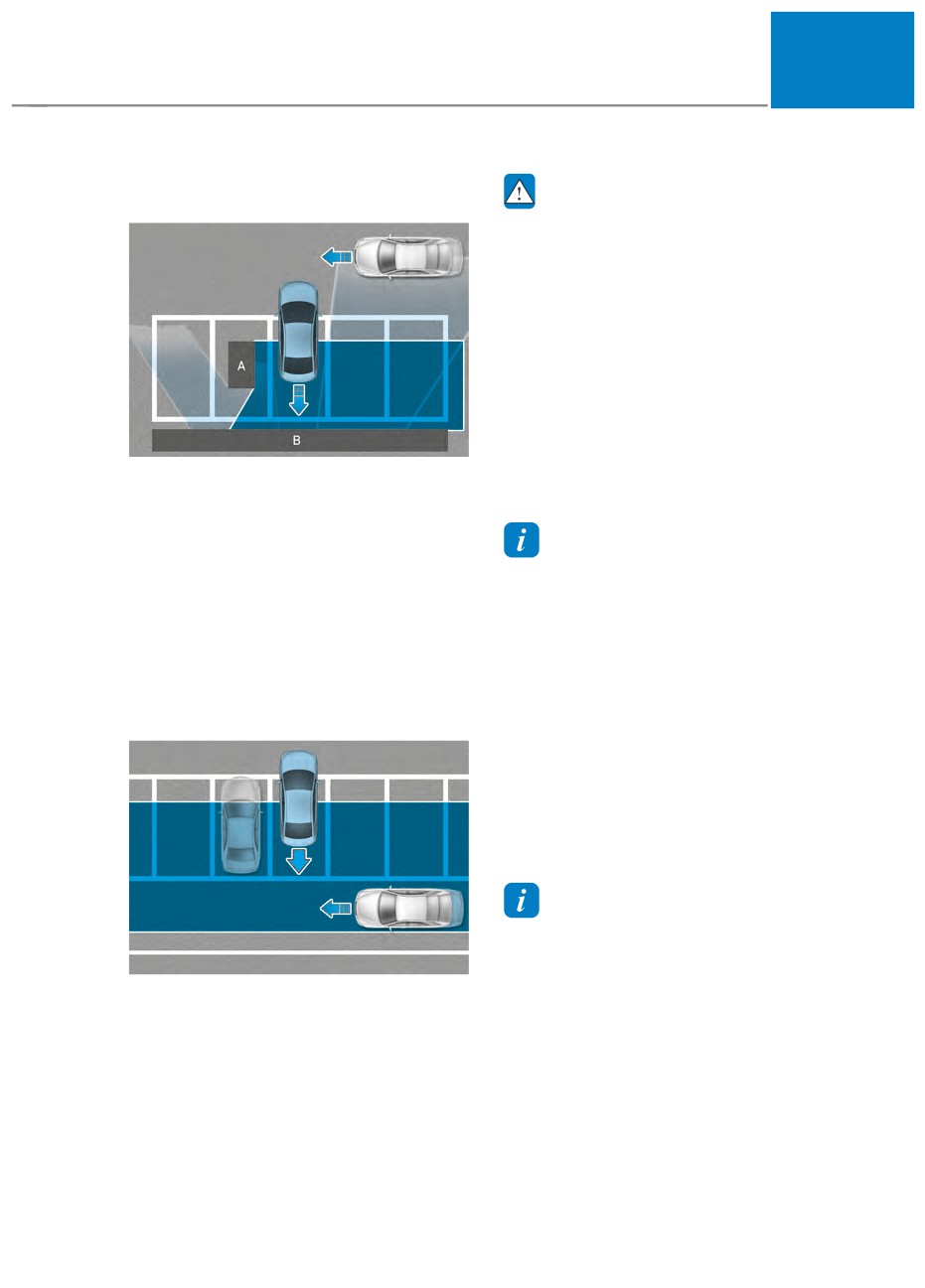

OHY059014
Information
[A] : Rear Cross-Traffic Collision Warning operating
range
For more details on the precautions of the
[B] : Rear Cross-Traffic Collision-Avoidance Assist
rear corner radar, refer to “Blind-Spot
operating range
Collision-Avoidance Assist (BCA)” section
in chapter 7.
CAUTION
Warning time may vary depending
on vehicle speed of the approaching
vehicle.
7-62

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Rear Cross-Traffic Collision-
Avoidance Assist Settings
Setting features

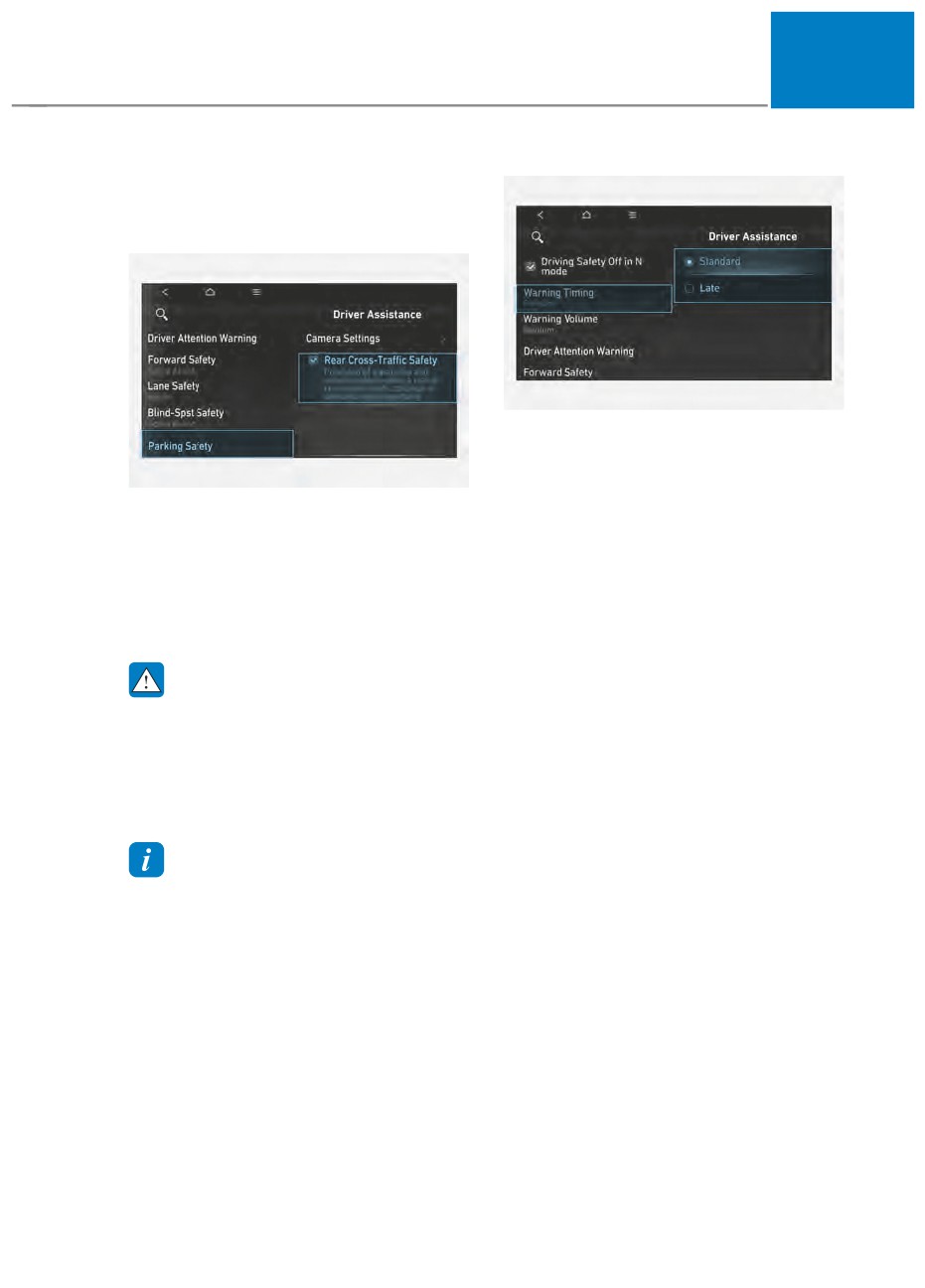

OCN7N071091L
Warning Timing
With the engine on, select ‘Driver
Assistance → Warning Timing’ from the
OCN7N071107N
Settings menu to change the initial
Rear Cross-Traffic Safety
warning activation time for Rear Cross-
With the engine on, select ‘Driver
Traffic Collision-Avoidance Assist.
Assistance → Parking Safety → Rear Cross-
When the vehicle is first delivered,
Traffic Safety’ from the Settings menu
Warning Timing is set to ‘Standard’. If you
to turn on Rear Cross-Traffic Collision-
change the Warning Timing, the Warning
Avoidance Assist and deselect to turn off
Timing of other Driver Assistance
the function.
systems may change.
WARNING
When the engine is restarted, Rear
Cross-Traffic Collision-Avoidance Assist
will always turn on. However, if ‘Off’ is
selected after the engine is restarted,
the driver should always be aware of
the surroundings and drive safely.
Information
Settings for Rear Cross-Traffic Collision-
Avoidance Assist include Rear Cross-
Traffic Collision Warning and Rear Cross-
Traffic Collision-Avoidance Assist.
7-63

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
CAUTION
The setting of the Warning Timing
and Warning Volume applies to
all functions of Rear Cross-Traffic
Collision-Avoidance Assist.
Even though ‘Standard’ is selected
for Warning Timing, if a vehicle from
the left or right side approach at a
high speed, the warning may seem
late.
OCN7N071092L
Select ‘Late’ for Warning Timing

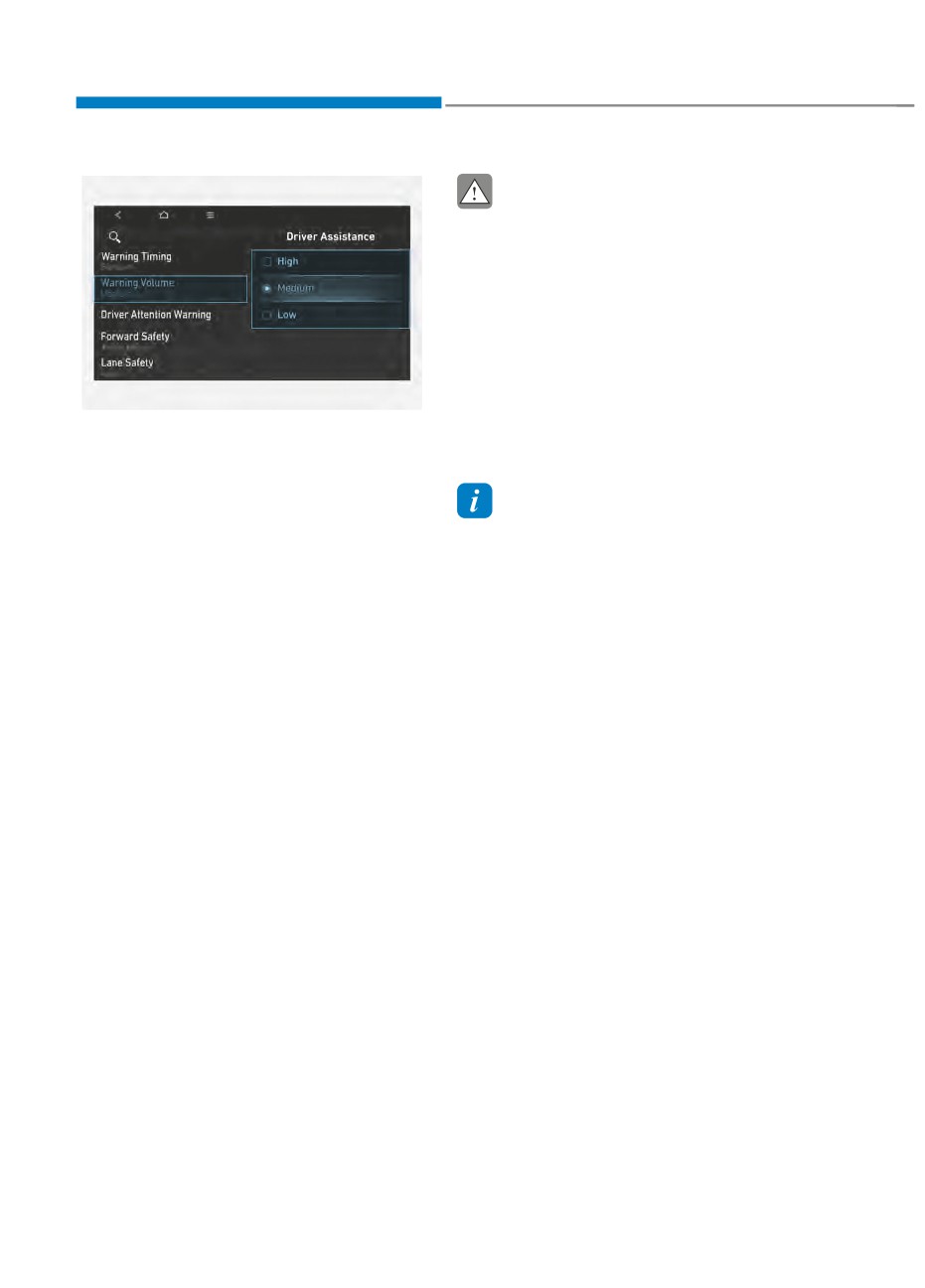

Warning Volume
when traffic is light and when driving
With the engine on, select ‘Driver
speed is slow.
Assistance → Warning Volume’ from the
Settings menu to change the Warning
Information
Volume to ‘High’, ‘Medium’, ‘Low’ for
Rear Cross-Traffic Collision-Avoidance
If the engine is restarted, Warning Timing
Assist.
and Warning Volume will maintain the
last setting.
If you change the Warning Volume,
the Warning Volume of other Driver
Assistance systems may change.
7-64

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Rear Cross-Traffic Collision-
Collision Warning
Avoidance Assist Operation
To warn the driver of an approaching
vehicle from the rear left/right side
Warning and control
of your vehicle, the warning light on
Rear Cross-Traffic Collision-Avoidance
the side view mirror will blink and a
Assist will warn and help control the
warning will appear on the cluster. At
vehicle depending on collision risk level:
the same time, an audible warning
‘Collision Warning’, ‘Emergency Braking’
will sound. If Rear View Monitor is
and ‘Stopping vehicle and ending brake
operating, a warning will also appear
control’.
on the infotainment system screen.
Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph
(8 km/h)
- The detected vehicle approaching
is within approximately 82 ft. (25 m)
from the left and right side of your
vehicle

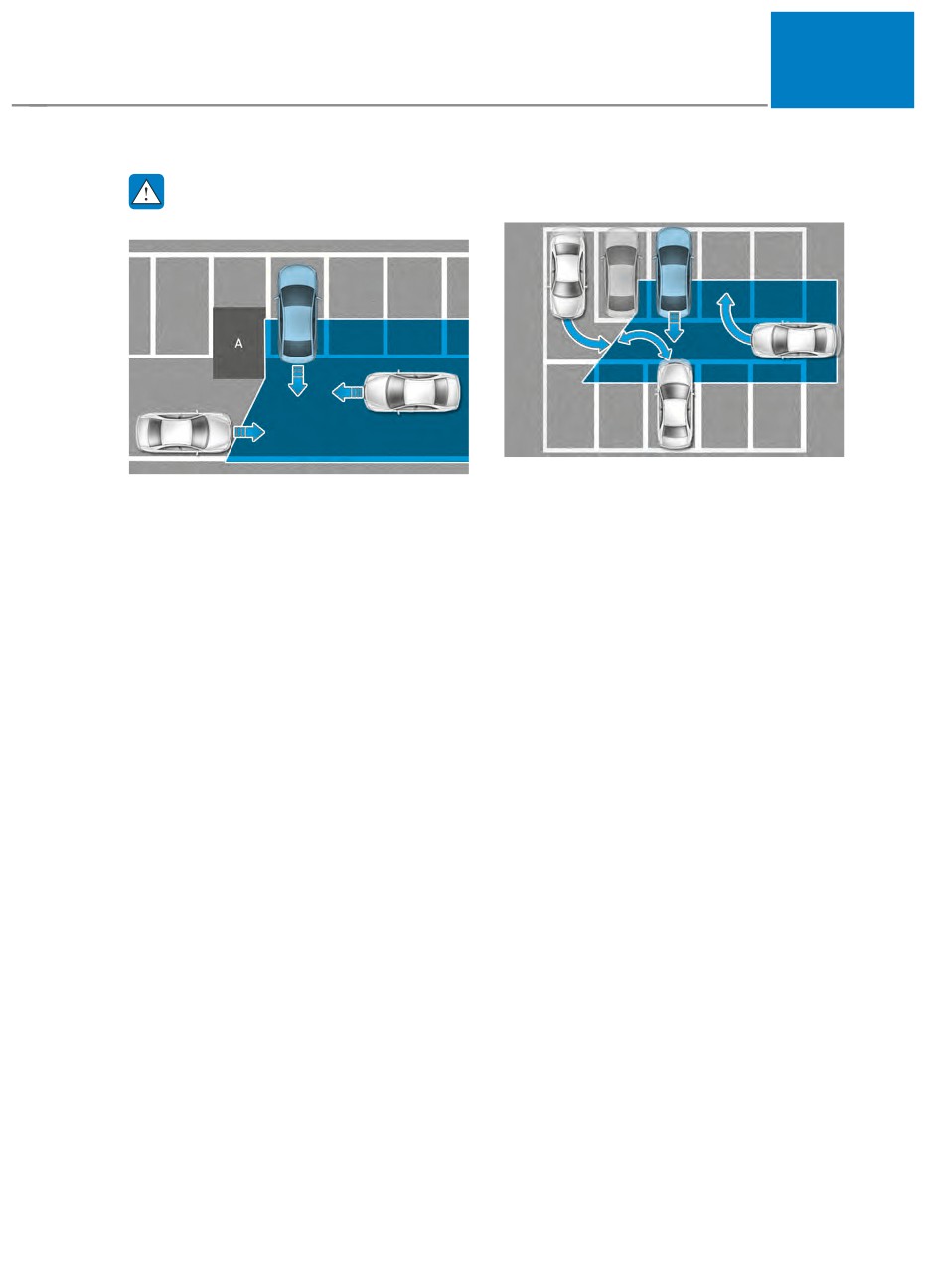

OCN7N071151
- The speed of the detected vehicle
approaching from the left and right
is above 3 mph (5 km/h).
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or
right side even though your vehicle
speed is 0 mph (0 km/h).
Images or colors may appear
OCN7N071040
differently depending on the instrument
panel specifications or theme.
OCN7N071076L
7-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
• Rear Cross-Traffic Collision-Avoidance
Assist will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- The vehicle speed is below 5 mph
(8 km/h)
- The approaching vehicle is within
approximately 5 ft. (1.5 m) from the
left and right side of your vehicle
- The speed of the vehicle
OCN7N071151
approaching from the left and right
is above 3 mph (5 km/h)
• Emergency Braking will be assisted
to help prevent collision with
approaching vehicles from the left
and right.
WARNING
Brake control will end when:
The approaching vehicle is out of the
detecting range
OCN7N071108L
The approaching vehicle passes
behind your vehicle
The approaching vehicle does not
drive toward your vehicle
The approaching vehicle speed slows
down
The driver depresses the brake pedal
with sufficient power
OCN7N071076L
Emergency Braking
• To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the side view mirror will blink and,
the 'Emergency Braking' warning
message will appear on the cluster.
At the same time, an audible warning
will sound. If Rear View Monitor is
operating, a warning will also appear
on the infotainment system screen.
7-66

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
You may not hear the warning sound
of Rear Cross-Traffic Collision-
Avoidance Assist if the surrounding
is noisy.
Rear Cross-Traffic Collision-
Avoidance Assist may not operate if
the driver applies the brake pedal to
avoid collision.
During Rear Cross-Traffic Collision-
Avoidance Assist operation, the
vehicle may stop suddenly injuring
OCN7N071035L
passengers and shifting loose
Stopping vehicle and ending brake control
objects. Always have the seat belt on

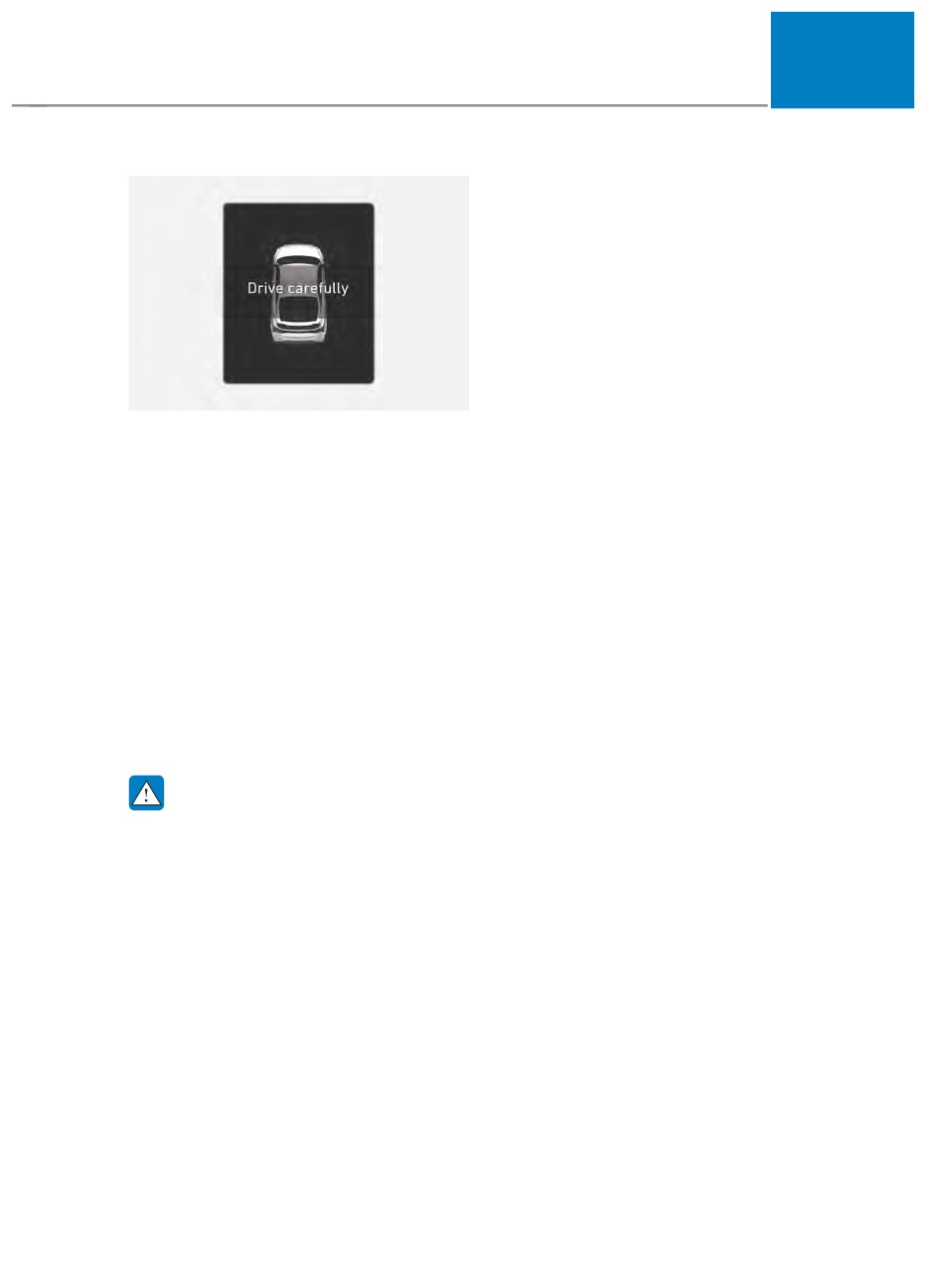

• When the vehicle is stopped due
and keep loose objects secured.
to emergency braking, the ‘Drive
Even if there is a problem with Rear
carefully’ warning message will
Cross-Traffic Collision-Avoidance
appear on the cluster.
Assist, the vehicle’s basic braking
• For your safety, the driver should
performance will operate properly.
depress the brake pedal immediately
When Rear Cross-Traffic Collision-
and check the surroundings.
Avoidance Assist is operating,
• Brake control will end after the vehicle
braking control by the system will
is stopped by emergency braking for
automatically cancel when the
approximately 2 seconds.
driver excessively depresses the
• During emergency braking, braking
accelerator pedal.
control by Rear Cross-Traffic Collision-
Rear Cross-Traffic Collision-
Avoidance Assist will automatically
Avoidance Assist does not operate
cancel when the driver excessively
in all situations or cannot avoid all
depresses the brake pedal.
collisions.
Rear Cross-Traffic Collision-
Avoidance Assist may warn the
WARNING
driver late or may not warn the driver
Take the following precautions when
depending on the road and driving
using Rear Cross-Traffic Collision-
conditions.
Avoidance Assist:
The driver has the responsibility to
For your safety, only change the
control the vehicle. Do not solely
Settings after parking the vehicle at a
depend on Rear Cross-Traffic
safe location.
Collision-Avoidance Assist. Rather,
If any other system’s warning
maintain a safe braking distance, and
message is displayed or audible
if necessary, depress the brake pedal
warning is generated, Rear Cross-
to reduce driving speed or to stop
Traffic Collision-Avoidance Assist’s
the vehicle.
warning message may not be
Never deliberately operate Rear
displayed and audible warning may
Cross-Traffic Collision-Avoidance
not be generated.
Assist on people, animal, objects,
etc. It may cause serious injury or
death.
7-67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
Rear Cross-Traffic Collision-
CAUTION
Avoidance Assist Malfunction
The brake control may not operate
and Limitations
properly depending on the status of
ESC (Electronic Stability Control).
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
There will only be a warning when:
The ESC (Electronic Stability Control)
warning light is on
ESC (Electronic Stability Control) is
engaged in a different function
Information
If braking is assisted by Rear Cross-
Traffic Collision-Avoidance Assist, the
driver must immediately depress the brake
pedal and check vehicle surroundings.
OTM070125N
Brake control will end when the
When Rear Cross-Traffic Collision-
driver depresses the brake pedal with
Avoidance Assist is not working properly,
sufficient power.
the ‘Check Rear Cross-Traffic Safety
After shifting the gear to R (Reverse),
system(s)’ warning message will appear
braking control will operate once for
on the cluster for several seconds,
left and right vehicle approach.
and the master (
) warning light will
illuminate on the cluster. If this occurs,
have the vehicle inspected by an
authorized HYUNDAI dealer.
7-68

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070100N

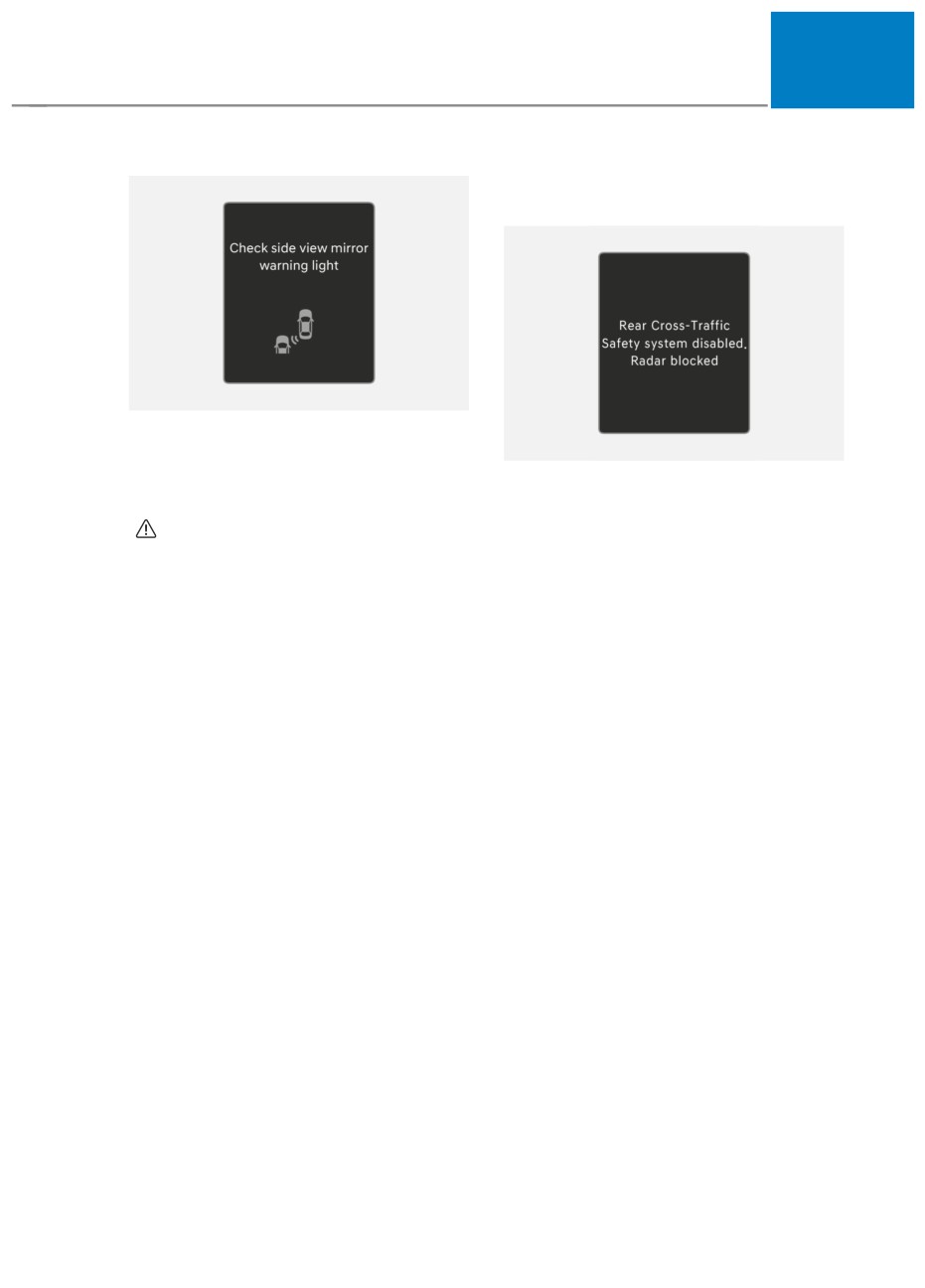

When the side view mirror warning
light is not working properly, the ‘Check
OTM070124N
side view mirror warning light’ warning
When the rear bumper around the rear-
message will appear on the cluster
side radar or sensor is covered with
for several seconds, and the master
foreign material, such as snow or rain,
(
) warning light will illuminate on the
or installing a trailer or carrier, it can
cluster. If this occurs, have the vehicle
reduce the detecting performance and
inspected by an authorized HYUNDAI
temporarily limit or disable Rear Cross-
dealer.
Traffic Collision-Avoidance Assist.
If this occurs, the ‘Rear Cross-Traffic
Safety system disabled. Radar blocked’
warning message will appear on the
cluster.
Rear Cross-Traffic Collision-Avoidance
Assist will operate properly when
such foreign material or trailer, etc., is
removed.
If Rear Cross-Traffic Collision-Avoidance
Assist does not operate properly after it
is removed, have the vehicle inspected
by an authorized HYUNDAI dealer.
7-69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
Limitations of Rear Cross-Traffic
WARNING
Collision-Avoidance Assist
Even though the warning message
Rear Cross-Traffic Collision-Avoidance
does not appear on the cluster, Rear
Assist may not operate properly, or it
Cross-Traffic Collision-Avoidance
may operate unexpectedly under the
Assist may not operate properly.
following circumstances:
Rear Cross-Traffic Collision-
• Departing from where trees or grass
Avoidance Assist may not operate
are overgrown
properly in an area (for example,
open terrain), where any substance
• Departing from where roads are wet
are not detected after turning ON the
• Speed of the approaching vehicle is
engine.
fast or slow
Braking control may not work, driver’s
CAUTION
attention is required in the following
Turn off Rear Cross-Traffic Collision-
circumstances:
Avoidance Assist to install or remove a
• The vehicle severely vibrates while
trailer, carrier, or another attachment.
driving over a bumpy road, uneven
Turn on Rear Cross-Traffic Collision-
road or concrete patch
Avoidance Assist when finished.
• Driving on a slippery surface due to
snow, water puddle, ice, etc.
• The tire pressure is low or a tire is
damaged
• The braking system has been modified
Information
For more details on the limitations of the
rear corner radar, refer to “Blind-Spot
Collision-Avoidance Assist (BCA)” section
in chapter 7.
7-70

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
When the vehicle is in a complex
WARNING
parking environment
Driving near a vehicle or structure
OHY059018
OHY059017
Rear Cross-Traffic Collision-
[A] : Structure
Avoidance Assist may detect vehicles
Rear Cross-Traffic Collision-
which are parking or pulling out
Avoidance Assist may be limited
near your vehicle (for example, a
when driving near a vehicle or
vehicle leaving beside your vehicle,
structure, and may not detect the
a vehicle parking or pulling out in
vehicle approaching from the left or
the rear area, a vehicle approaching
right. If this occurs, the function may
your vehicle making a turn, etc.).
not warn the driver or control the
If this occurs, the function may
brakes when necessary.
unnecessarily warn the driver and
control the brake.
Always check your surroundings
while backing up.
Always check your surroundings
while backing up.
7-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

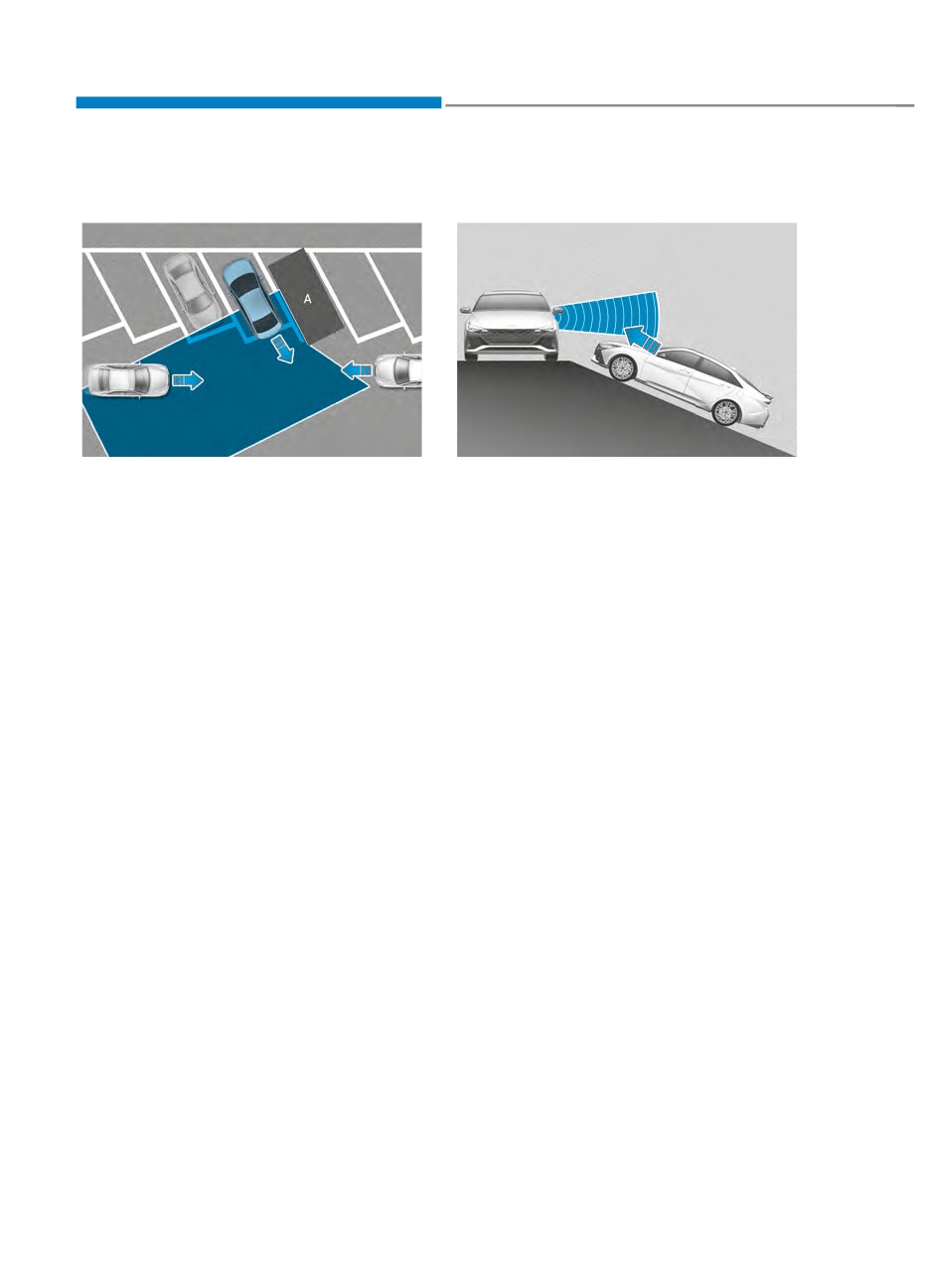

When the vehicle is parked
When the vehicle is on or near a
diagonally
slope
OHY059019
OCN7N071060
[A] : Vehicle
Rear Cross-Traffic Collision-
Rear Cross-Traffic Collision-
Avoidance Assist may be limited
Avoidance Assist may be limited
when the vehicle is on an uphill or
when backing up diagonally,
downhill slope, or near it, and may
and may not detect the vehicle
not detect the vehicle approaching
approaching from the left or right.
from the left or right. If this occurs,
If this occurs, the function may not
the function may not warn the
warn the driver or control the brakes
driver or control the brakes when
when necessary. Always check your
necessary.
surroundings while backing up.
Always check your surroundings
while backing up.
7-72

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Pulling into the parking space where
WARNING
there is a structure
When you are towing a trailer or
another vehicle, we recommend
that Rear Cross-Traffic Collision-
Avoidance Assist is turned off due to
safety reasons.
Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly if interfered by strong
electromagnetic waves.
Rear Cross-Traffic Collision-
Avoidance Assist may not operate
OHY059022
for 3 seconds after the vehicle is
[A] : Structure, [B] :Wall
started, or the rear corner radars are
initialized.
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
passing by in front of you when
Information
parking in reverse into a parking
space with a wall or structure in the
This device complies with Part 15 of the
FCC rules.
rear or side area. If this occurs, the
function may unnecessarily warn the
Operation is subject to the following three
driver and control the brake.
conditions:
Always check your surroundings
1. This device may not cause harmful
while backing up.
interference, and
2. This device must accept any
When the vehicle is parked rearward
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
OHY059020
This equipment complies with FCC
Rear Cross-Traffic Collision-
radiation exposure limits set forth for an
Avoidance Assist may detect vehicles
uncontrolled environment.
passing by behind you when parking
This equipment should be installed and
in reverse into a parking space.
operated with minimum distance of 8 in.
If this occurs, the function may
(20 cm) between the radiator (antenna)
unnecessarily warn the driver and
and your body.
control the brake.
This transmitter must not be co-located or
Always check your surroundings
operating in conjunction with any other
while backing up.
antenna or transmitter.
7-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
REVERSE PARKING DISTANCE WARNING (PDW)
Reverse Parking Distance Warning can
Reverse Parking Distance
help warn the driver if an obstacle is
Warning Settings
detected within a certain distance when
Warning Volume
the vehicle is moving forward or in
reverse at low speeds.
Detecting sensor
OCN7N071092L
With the engine on, select ‘Driver Assistance
→ Warning Volume’ from the Settings menu
to change the Warning Volume to ‘High’,
OCN7N071010N
‘Medium’ or ‘Low’ for Forward/Reverse
[1] : Rear ultrasonic sensors
Parking Distance Warning.
Refer to the picture above for the detailed
If you change the Warning Volume, the
location of the detecting sensors.
Warning Volume of other Driver Assistance
systems may change.
7-74

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07
Reverse Parking Distance
Reverse Parking Distance
Warning Operation
Warning Malfunction and
Reverse Parking Distance Warning
Limitations
• Reverse Parking Distance Warning
Reverse Parking Distance Warning
will operate when the gear is in R
malfunction
(Reverse).
After starting the engine, a beep will
• Reverse Parking Distance Warning
sound when the gear is shifted to R
helps detect a person, animal or
(Reverse) to indicate Reverse Parking
object in the rear when the vehicle’s
Distance Warning is operating properly.
rearward speed is below 6 mph (10
However, if one or more of the following
km/h).
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
Warning
foreign material. If it still does not work
indicator
properly, have the vehicle inspected by
Distance
Warning
when
an authorized HYUNDAI dealer.
from object
sound
driving
The audible warning does not sound.
backward
The buzzer sounds intermittently.
24~48 in.
Buzzer beeps
The ‘Parking sensor error or blocked’
(60~120 cm)
intermittently
warning message appears on the
cluster.
12~24 in.
Beeps more
(30~60 cm)
frequently
12 in.
Beeps
(30 cm)
continuously
• The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.
OCN7N071156N
• When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.
• The shape of the indicator in the
illustration may differ from the actual
vehicle.
7-75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System
Limitations of Reverse Parking
WARNING
Distance Warning
Reverse Parking Distance Warning
Reverse Parking Distance Warning
is a supplemental function. The
may not operate properly when:
operation of Reverse Parking
Distance Warning can be affected
- Moisture is frozen to the sensor
by several factors (including
- Sensor is covered with substance,
environmental conditions). It is the
such as snow or water (Forward/
responsibility of the driver to always
Reverse Parking Distance Warning
check the front and rear views before
will operate properly when such
and while parking.
substance is removed.)
Your new vehicle warranty does not
- The weather is extremely hot or cold
cover any accidents or damage to
- The sensor or sensor assembly is
the vehicle due to the malfunction of
disassembled
Forward/Reverse Parking Distance
Warning.
- The surface of the sensor is pressed
hard or hit with a hard object
Pay close attention when driving
near objects, pedestrians, and
- The surface of the sensor is
especially children. Some objects
scratched with a sharp object
may not be detected by the
- The sensors or its surrounding
ultrasonic sensors, due to the objects
area is directly sprayed with high
distance, size or material, all of
pressure washer
which can limit the effectiveness of
Reverse Parking Distance Warning
the sensor.
may malfunction when:
- Heavy rain or water spray is present
- Water flows on the surface of the
sensor
- Affected by another vehicle’s
sensors
- The sensor is covered with snow or
ice
- Driving on uneven road, gravel
roads or bushes
- Objects that generates ultrasonic
waves are near the sensor
- License plate is installed in a
different spot from the original
location
- The vehicle bumper height or
ultrasonic sensor installation has
been modified
- Attaching equipment or accessories
next to the ultrasonic sensors
7-76















Content      ..     11      12      13      14     ..
