Hyundai Elantra N (2022 year). Manual in english - page 8





-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OCN7050110L
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. SYNC button
5. OFF button
6. Front windshield defroster button
7. Air conditioning button
8. Air intake control button
9. Rear window defroster button
10.Fan speed control button
11. Mode selection button
12. Climate control information screen
5-89

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
Automatic Heating and Air
When you select the temperature to HI
or LO in AUTO mode, the fan speed is set
Conditioning
to ‘HIGH’.
Driver’s seat
Passenger’s seat
OCN7050112
OCN7050114

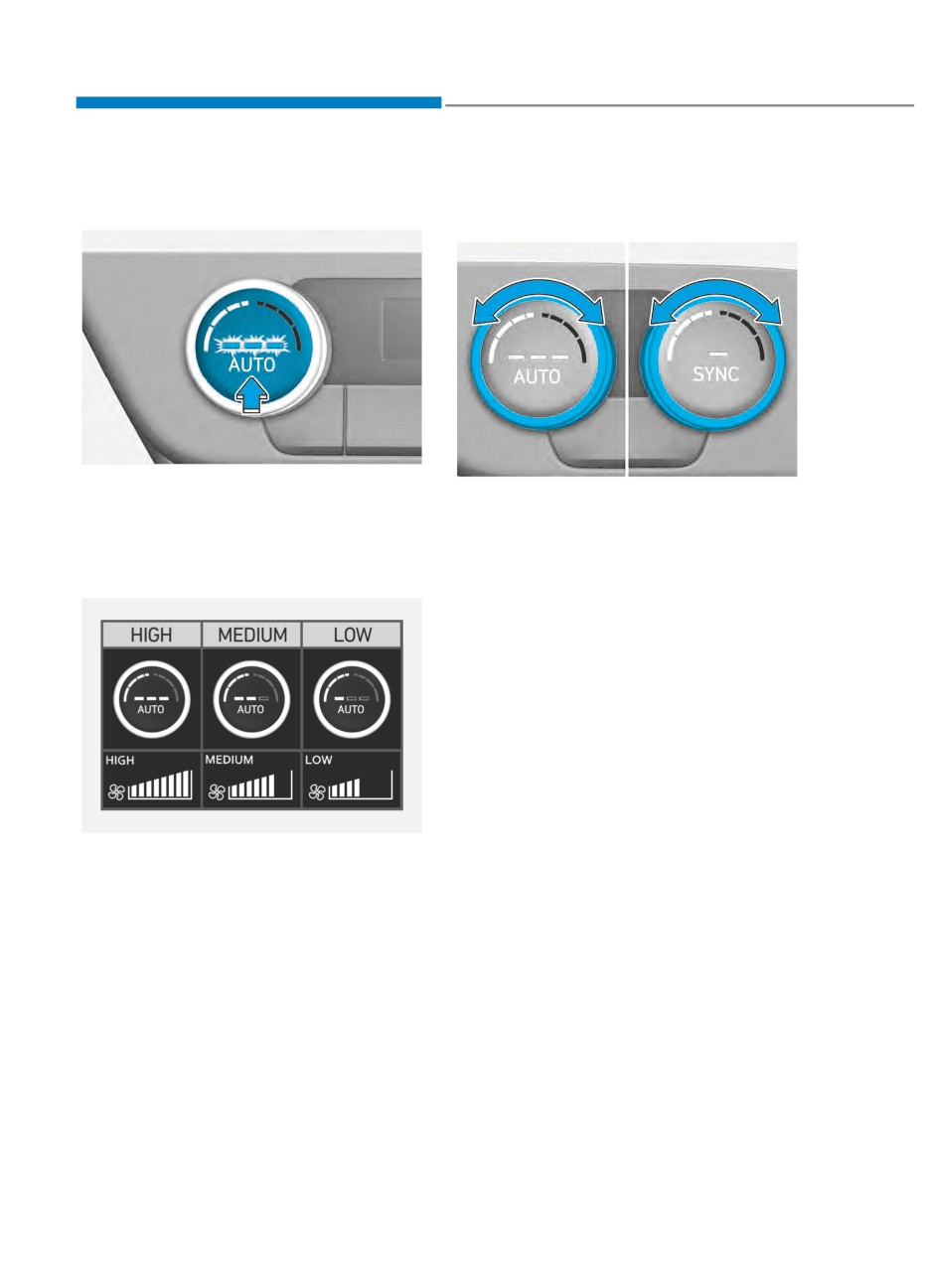

1. Press the AUTO button
2. Turn the temperature control knob
The modes, fan speeds, air intake and
to set the desired temperature. If
air-conditioning will be controlled
the temperature is set to the lowest
automatically according to the
setting (Lo), the air conditioning
temperature setting you select.
system will operate continuously.
To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defroster button
(Press the button one more time
to deselect the front windshield
defroster function. The ‘AUTO’ sign
will illuminate on the information
screen once again.)
- Fan speed control toggle switch
OCN7050113
The selected function will be
controlled manually while other
You can control the blower strength in
functions operate automatically.
three stages by pushing the AUTO button
during automatic operation.
For your convenience and overall
system efficiency, use the AUTO
- HIGH : Provide rapid air conditioning
button and set the temperature to
and heating with strong blower
72°F (22°C).
- MEDIUM : Provide air conditioning
and heating with medium strength
blower
- LOW : Is suitable for drivers that prefer
lower air speeds
5-90

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
Manual Heating and Air
Conditioning
The heating and cooling system can be
controlled manually by pushing buttons
other than the AUTO button. In this case,
the system works sequentially according
to the order of buttons selected. When
pressing any button except the AUTO
button while using automatic operation,
the functions not selected will be
controlled automatically.
OCN7N051133L

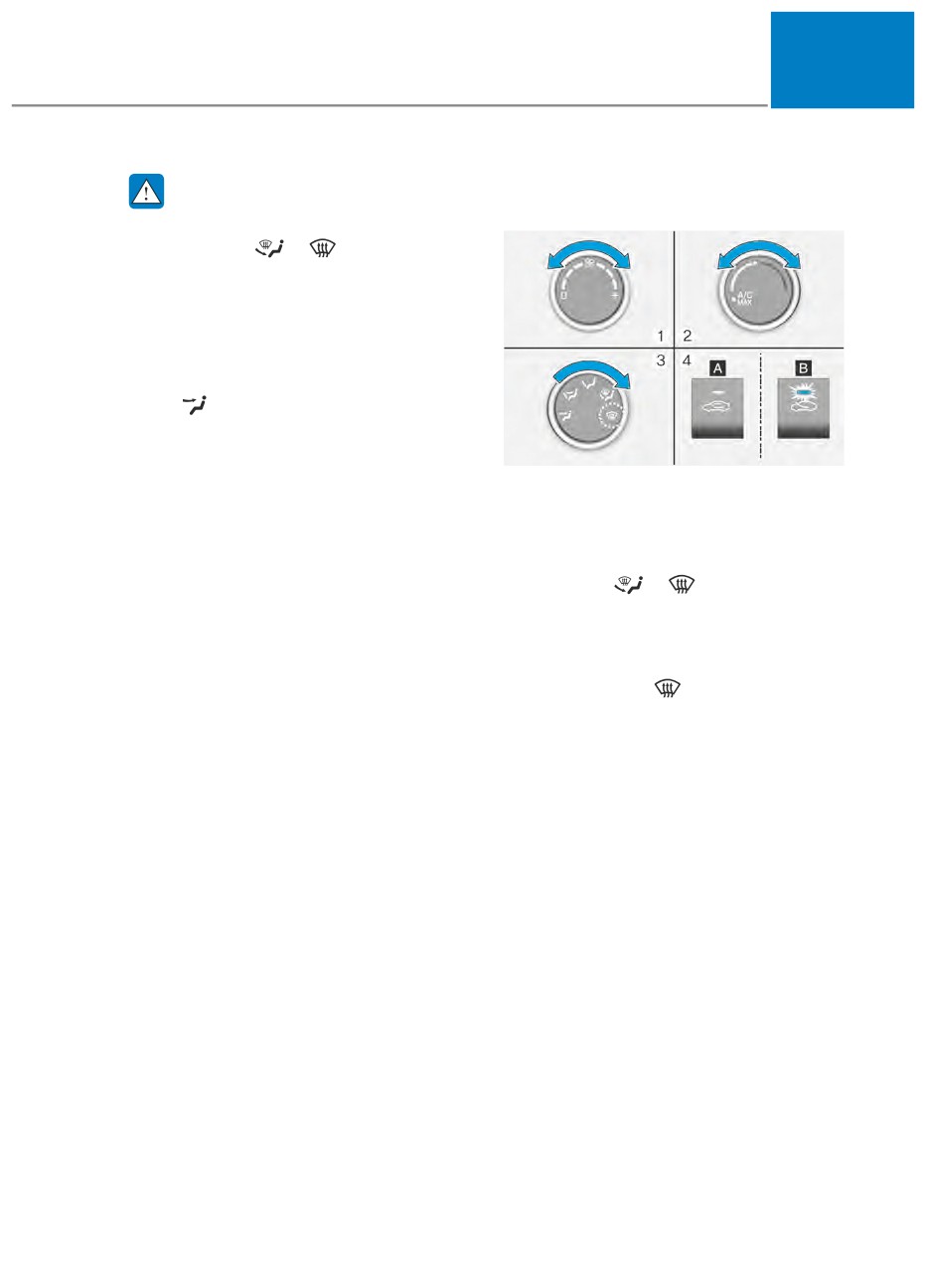

1. Start the engine.
2. Set the mode to the desired position.

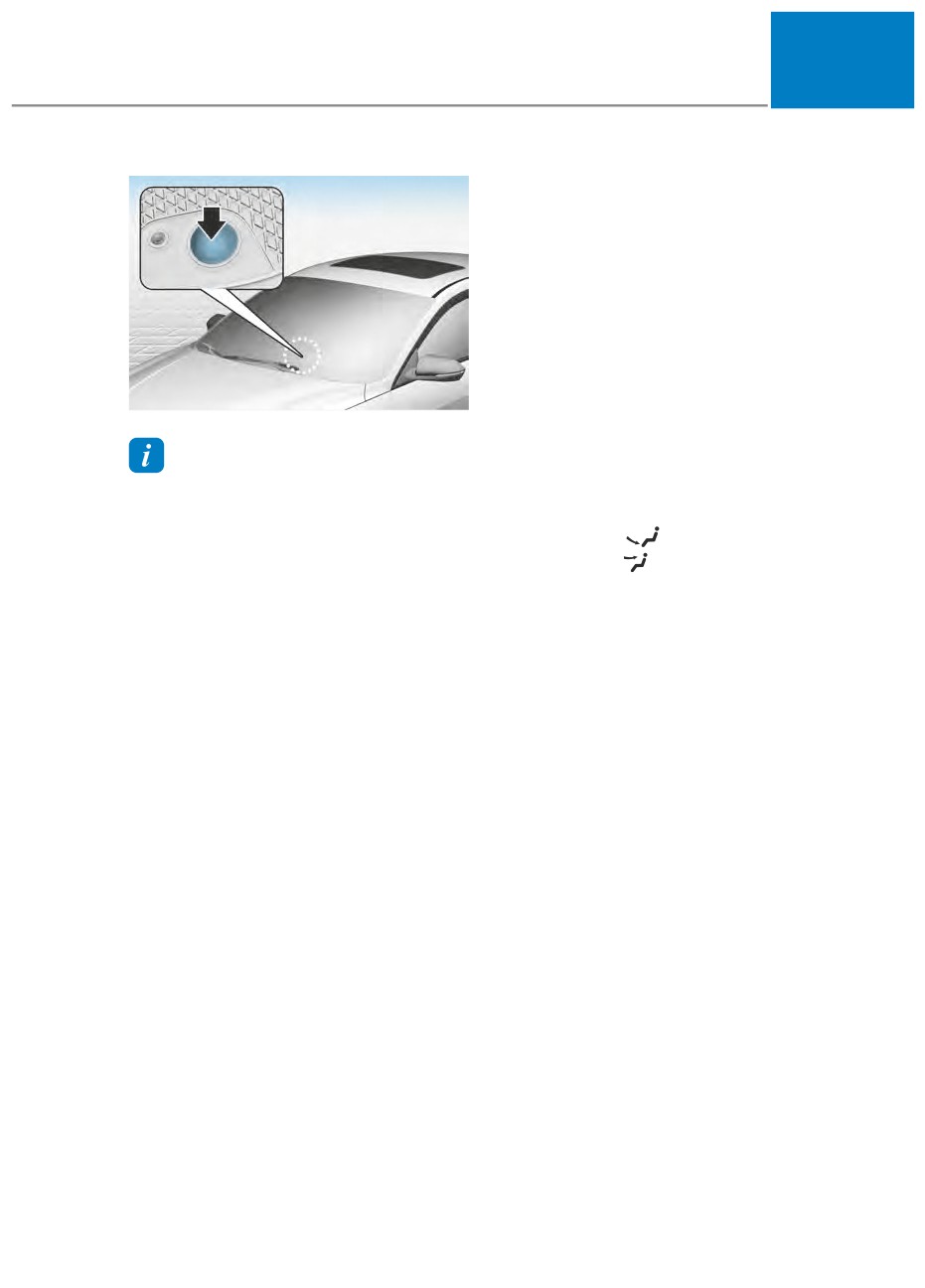

Information
To improve the effectiveness of
Never place anything near the sensor to
heating and cooling, select the mode
ensure better control of the heating and
according to the following:
cooling system.
- Heating:
- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to fresh
mode.
5. Set the fan speed control to the
desired speed.
6. If air conditioning is desired, turn the
air conditioning system on.
7. Press the AUTO button in order to
convert to full automatic control of
the system.
5-91

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

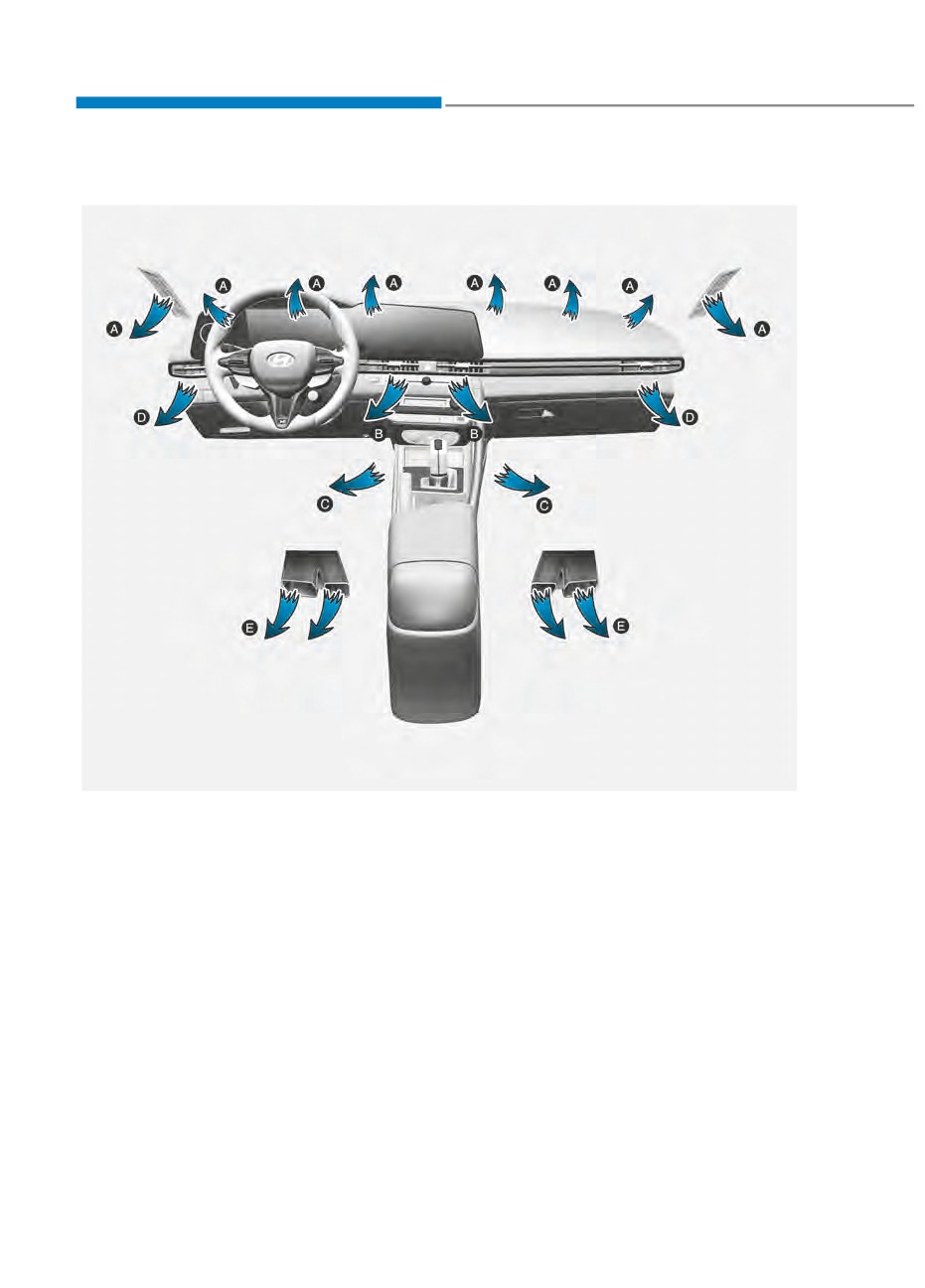

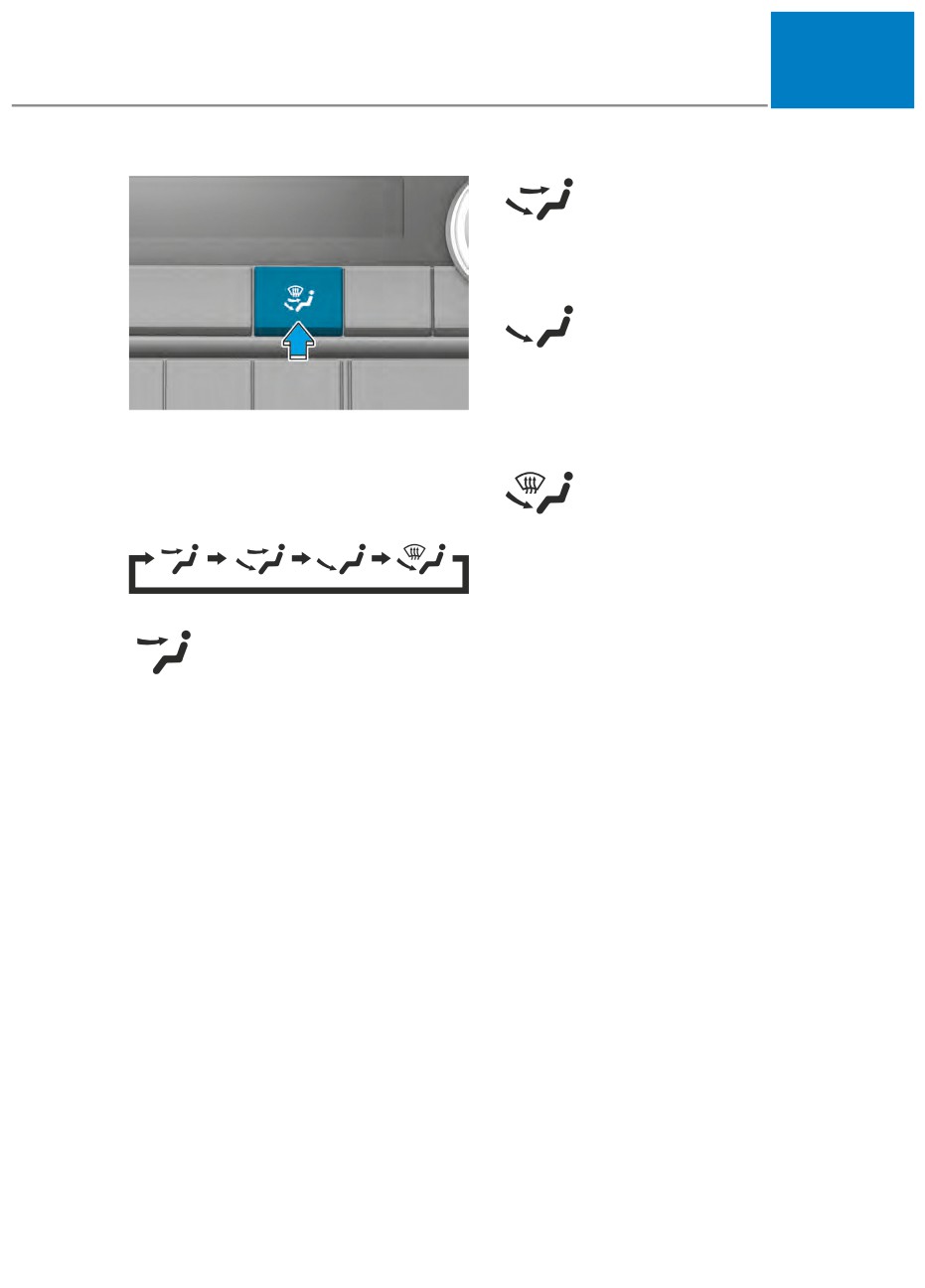

Mode selection
OCN7N051221N
5-92

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
Bi-Level (B, C, D, E)
Air flow is directed towards the face and
the floor.
Floor-Level (A, C, D, E)
Most of the air flow is directed to the
floor, with a small amount of the air
OCN7050115
being directed to the windshield and side
The mode selection toggle switch
window defrosters.
controls the direction of the air flow
through the ventilation system.
Floor & Defrost (A, C, D, E)
The air flow outlet direction is cycled as
follows:
Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.
Face-level (B, D)
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
5-93

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

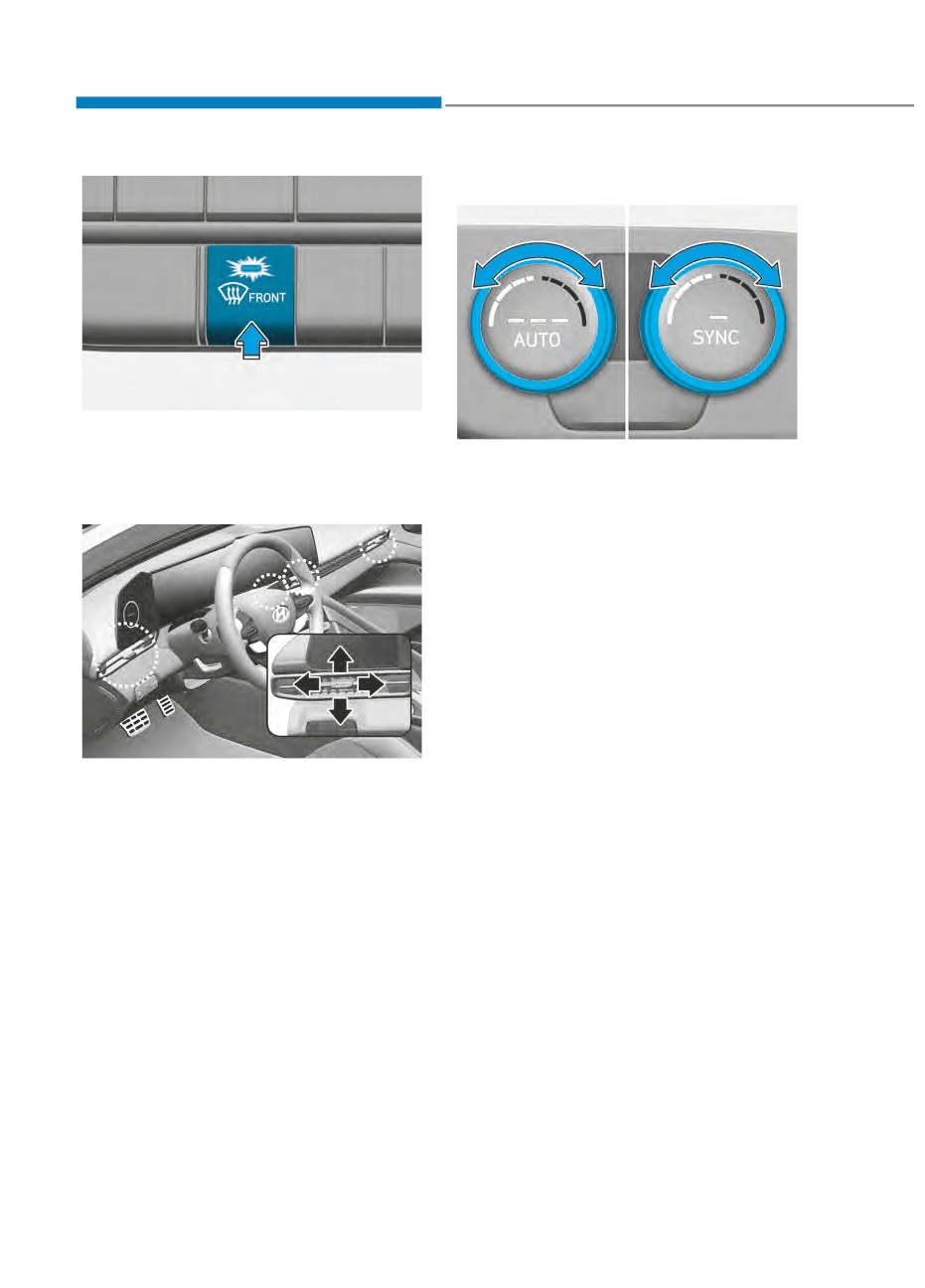

Temperature control
Driver’s seat
Passenger’s seat
OCN7050116
Defrost-Level (A, D)
OCN7050114
Most of the air flow is directed to the
The temperature will increase by turning
windshield with a small amount of air
the knob to the right.
directed to the side window defrosters.
The temperature will decrease by turning
the knob to the left.
The temperature will increase or
decrease by 1°F (0.5°C) for each
incremental location. When set to the
lowest temperature setting, the air
conditioning will operate continuously.
OCN7N051106
Instrument panel vents
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
To close the vent, push the air vent
lever in the opposite direction of the
passenger. To open the vent, push the
air vent lever in the same direction of the
passenger.
5-94

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Centigrade.
To change the temperature unit from °C
to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 seconds
while pressing the OFF button.
- Instrument clusterAutomatic climate
OCN7050117
control system
Adjusting the driver and passenger side
Go to User Settings → Other →
temperature equally
Temperature Unit.

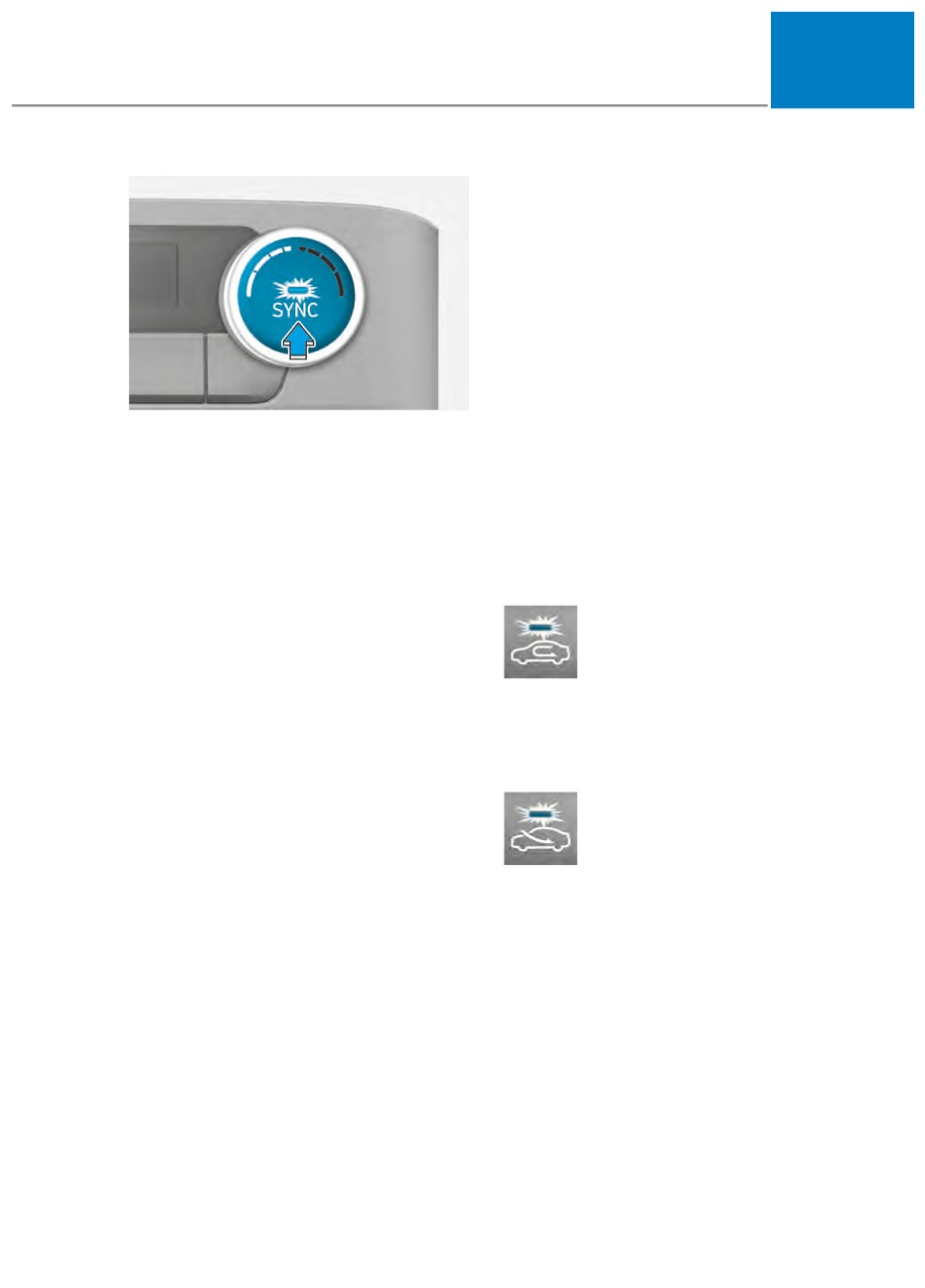

• Press the “SYNC” button to adjust
The temperature unit on both the
the driver and passenger side
cluster LCD display and the climate
temperature equally.
control screen will change.
• The passenger side temperature will
be set to the same temperature as the
Air intake control
driver side temperature.
Recirculated air position
• Turn the driver side temperature
With the recirculated air
control knob. The driver and
position selected, air from the
passenger side temperature will be
passenger compartment will
adjusted equally.
be drawn through the heating
• If you rotate the passenger’s
system and heated or cooled
temperature control knob, the SYNC
according to the function
button is off and the passenger
selected.
side temperature can be operated
individually.
Outside (fresh) air position
With the outside (fresh) air
Adjusting the driver and passenger side
position selected, air enters
temperature individually
the vehicle from outside and
Press the “SYNC” button again to
is heated or cooled according
adjust the driver and passenger side
to the function selected.
temperature individually. The button
indicator will turn off.
5-95

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

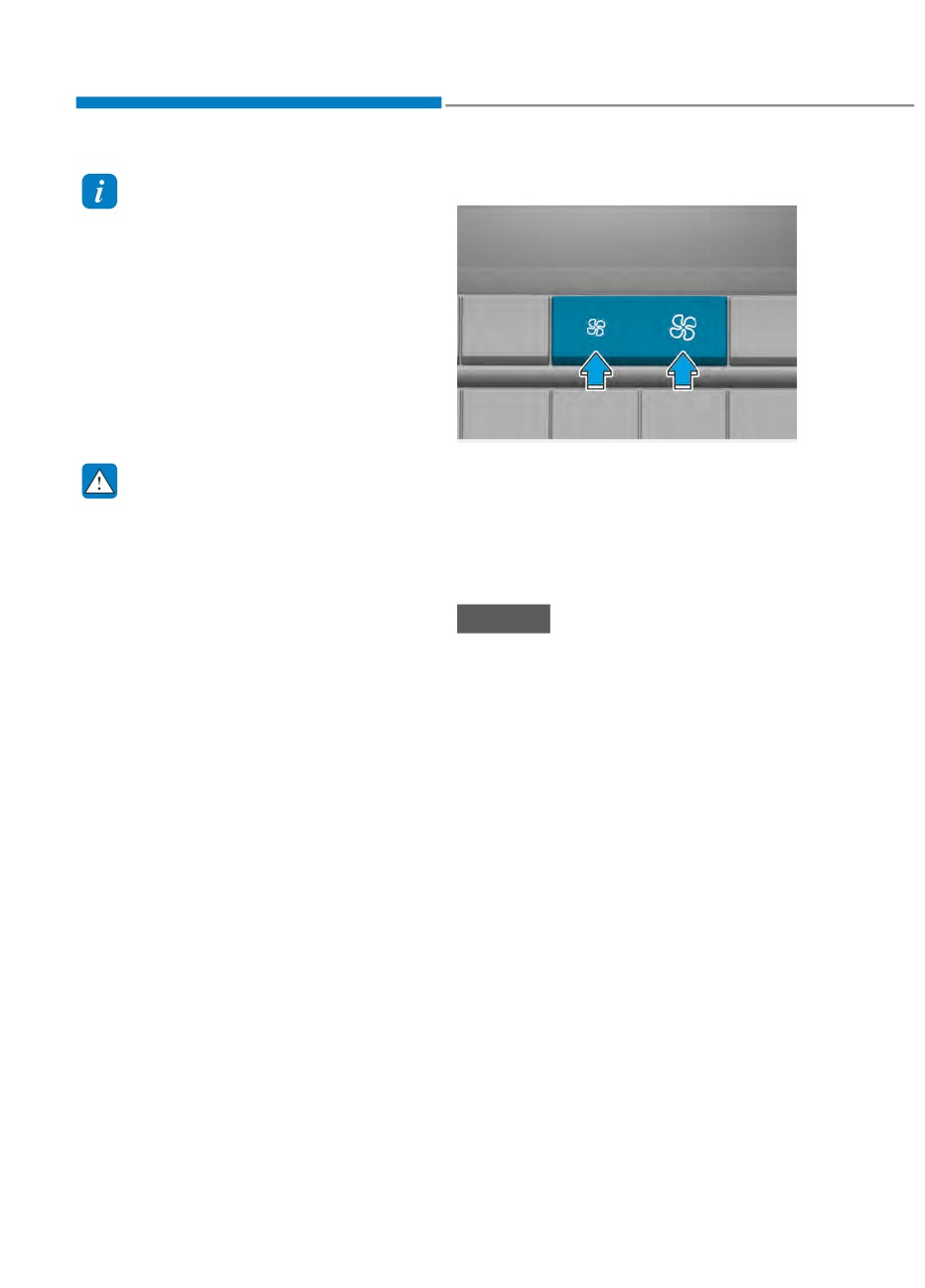

Fan speed control
Information
Operating the system primarily in Fresh
mode is recommended. Use Recirculation
mode temporarily only when needed.
Prolonged operation of the heater in
Recirculation mode and without the A/C
ON can cause fogging of the windshield.
In addition, prolonged use of the A/C
ON in Recirculation mode may result in
excessively dry, dehumidified air in the
cabin and may promote formation of
musty vent odor due to stagnant air.
OCN7050118

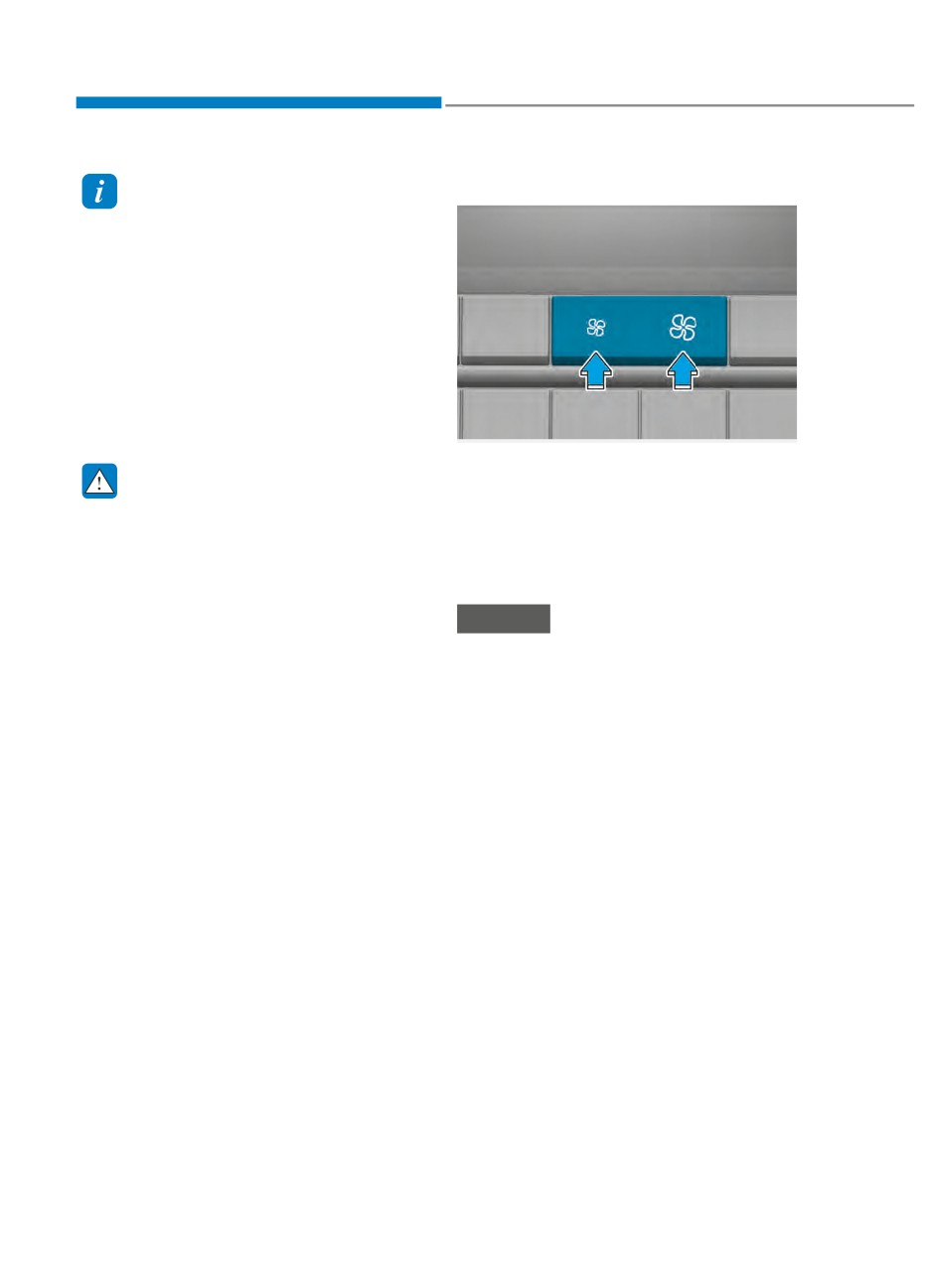

The fan speed can be set to the desired
WARNING
speed by using the fan speed control
toggle switch.
Continued use of the climate control
system operation in Recirculation
More air is delivered with higher fan
mode for a prolonged period of
speeds.
time may cause drowsiness to the
Pressing the OFF button turns off the fan.
occupants in the cabin. This may lead
to loss of vehicle control which may
NOTICE
lead to an accident.
Operating the fan speed when the
Continued use of the climate control
Engine Start/Stop button is in the ON
system operation in Recirculation
position could cause the battery to
mode with the A/C OFF may allow
discharge. Operate the fan speed when
humidity to increase inside the cabin.
the engine is running.
This may cause condensation to
accumulate on the windshield and
obscure visibility.
Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.
5-96

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

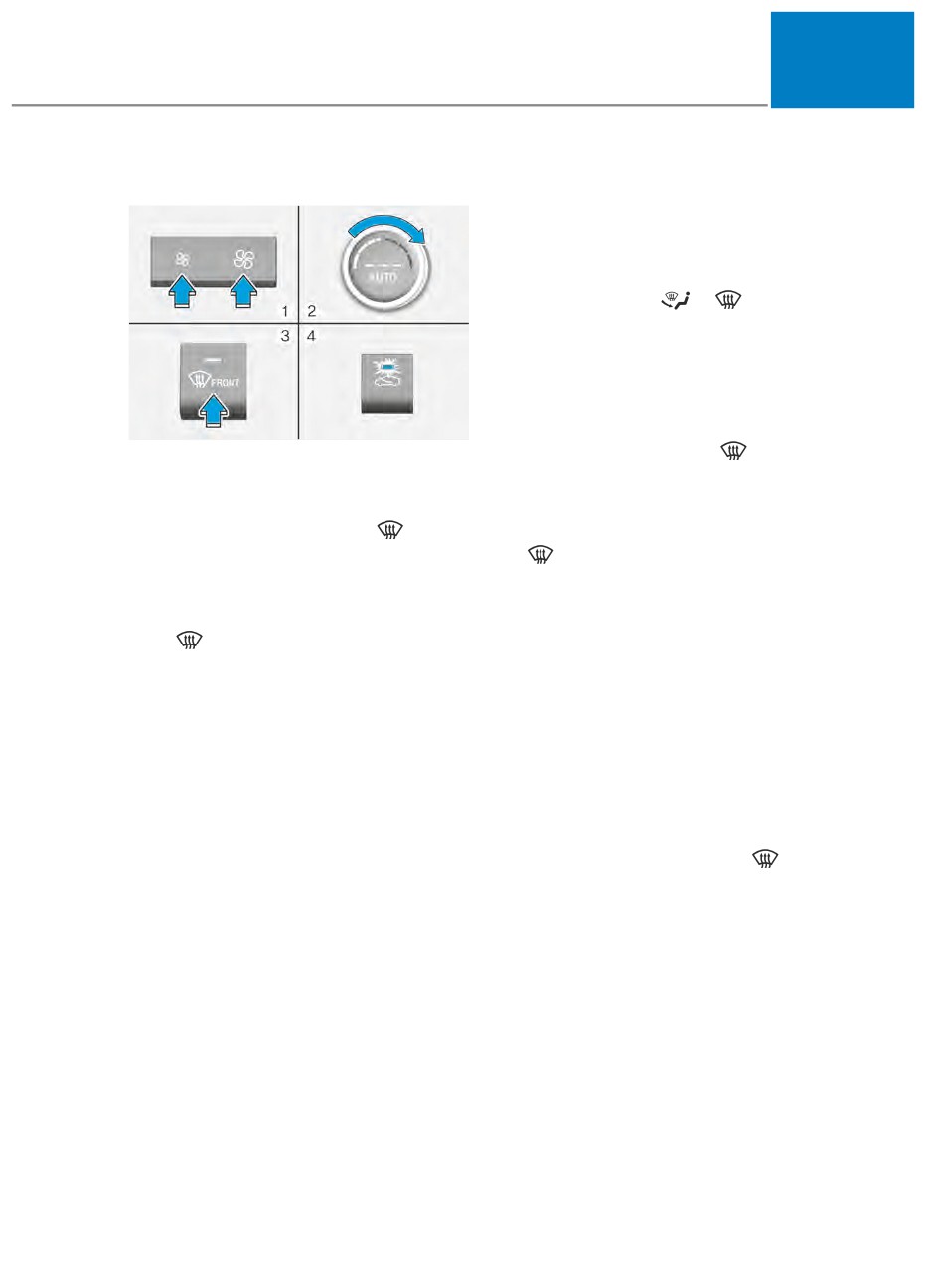

Air conditioning
System Operation
Ventilation
1. Select the Face Level
mode.
2. Set the air intake control to fresh
mode.
3. Set the temperature control to the
desired position.
4. Set the fan speed control to the
desired speed.
Heating
OCN7050119
1. Select the Floor Level
mode.

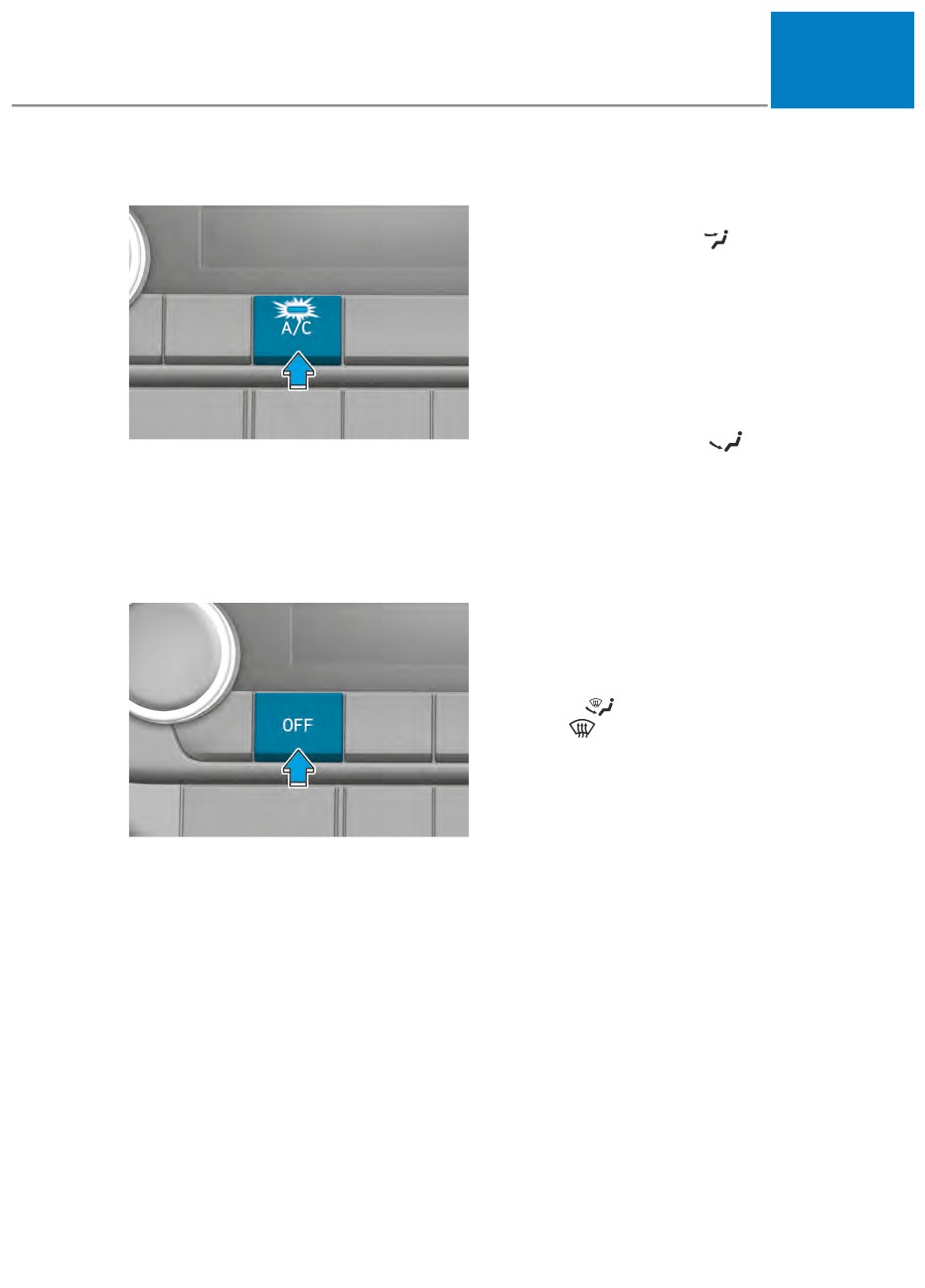

Push the A/C button to manually turn
2. Set the air intake control to fresh
the air conditioning system on (indicator
mode.
light will illuminate).
3. Set the temperature control to the
Push the button again to turn the air
desired position.
conditioning system off.
4. Set the fan speed control to the
desired speed.
OFF mode
5. If desired, turn the air conditioning ON
with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Front
& Deforst
mode or press the Front
Defrost
mode.
Operation Tips
• To help keep dust or unpleasant fumes
from entering the vehicle through the
OCN7050121
ventilation system, temporarily set the
Push the OFF button of the front to
air intake control to the recirculation
turn off the air climate control system.
mode. Be sure to return the control
However, you can still operate the mode
to fresh mode position when the
and air intake buttons as long as the
irritation has passed to keep fresh air
Engine Start/Stop button is in the ON
in the vehicle. This will help keep the
position.
driver alert and comfortable.
• To help prevent interior fog on the
windshield, set the air intake control
to fresh mode and fan speed to
the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.
5-97

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
Air conditioning
Air conditioning system operation tips

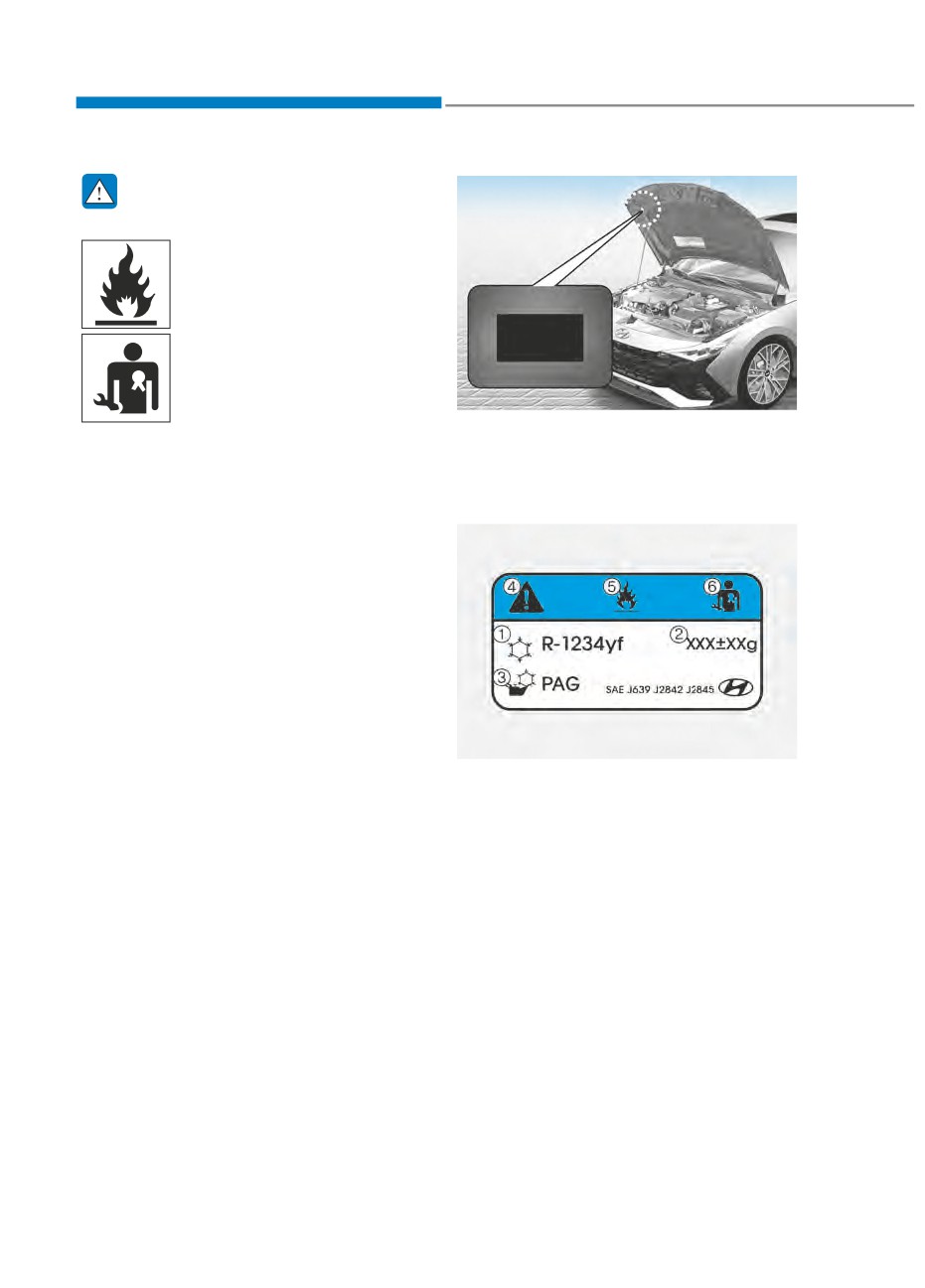

HYUNDAI Air Conditioning Systems are
If the vehicle has been parked in
filled with R-1234yf refrigerant.
direct sunlight during hot weather,
open the windows for a short time
1. Start the vehicle.
to let the hot air inside the vehicle
2. Push the air conditioning button.
escape.
3. Select the Face Level
mode.
After sufficient cooling has been
4. Set the air intake control to
achieved, switch back from
Recirculation mode temporarily to
recirculation mode to fresh mode.
allow the cabin to cool quickly. When
To help reduce moisture inside of
the desired temperature in the cabin
the windows on rainy or humid
is reached, change the air intake
days, decrease the humidity inside
control back to Fresh mode.
the vehicle by operating the air
5. Adjust the fan speed control and
conditioning system with the windows
temperature control to maintain
and sunroof closed.
maximum comfort.
During air conditioning system
operation, you may occasionally
NOTICE
notice a slight change in engine speed
as the air conditioning compressor
When using the air conditioning
cycles. This is a normal system
system, monitor the temperature
operation characteristic.
gauge closely while driving up
Use the air conditioning system
hills or in heavy traffic when
outside temperatures are high. Air
every month only for a few minutes
to ensure maximum system
conditioning system operation may
cause engine overheating. Continue
performance.
to use the blower fan but turn the
When using the air conditioning
air conditioning system off if the
system, you may notice clear water
temperature gauge indicates engine
dripping (or even puddling) on the
overheating.
ground under the passenger side of
the vehicle. This is a normal system
• When opening the windows in
humid weather, air conditioning
operation characteristic.
may create water droplets inside
If you operate the air conditioner
the vehicle. Since excessive water
excessively, the difference between
droplets may cause damage
the temperature of the outside air and
to electrical equipment, air
that of the windshield could cause
conditioning should only be used
the outer surface of the windshield to
with the windows closed
fog up, causing loss of visibility. In this
case, set the mode selection button to
the
position and set the fan speed
control knob to the lowest speed
setting.
5-98

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
System Maintenance
Checking the amount of air
conditioner refrigerant and
Cabin air filter
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
OIK047401L
It is important that the correct type and
[A] : Outside air, [B] : Recirculated air
amount of oil and refrigerant are used.
[C] : Cabin air filter, [D] : Blower
Otherwise, damage to the compressor
[E] : Evaporator core, [F] : Heater core
and abnormal system operation may
The cabin air filter is installed behind
occur. To prevent damage, the air
the glove box. It filters the dust or other
conditioning system in your vehicle
pollutants that enter the vehicle through
should only be serviced by trained and
the heating and air conditioning system.
certified technicians.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
NOTICE
the maintenance schedule. If the vehicle
is being driven in severe conditions such
The refrigerant system should only
as dusty or rough roads, more frequent
be serviced by trained and certified
cabin air filter inspections and changes
technicians to insure proper and safe
are required.
operation.
If the air flow rate suddenly decreases,
The refrigerant system should be
the system should be checked at an
serviced in a well-ventilated place.
authorized HYUNDAI dealer.
The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
Information
a used or salvaged vehicle and new
Replace the filter according to the
replacement MAC evaporators shall
Maintenance Schedule.
be certified (and labeled) as meeting
SAE Standard J2842.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent cabin air filter
inspections and changes are required.
When the air flow rate suddenly
decreases, have the system be checked
by an authorized HYUNDAI dealer.
5-99

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant is
mildly flammable and
operated at high pressure,
the air conditioning system
should only be serviced
by trained and certified
technicians. It is important
that the correct type
and amount of oil and
OCN7N051087N
refrigerant are used.
Air conditioning refrigerant label
All refrigerants should be reclaimed
You can find out which air conditioning
with proper equipment.
refrigerant is applied to your vehicle on
Venting refrigerants directly to the
the label located inside of the hood.
atmosphere is harmful to individuals
and environment. Failure to heed these
Example
warnings can lead to serious injuries.
OHYK059001
Each symbols and specification on
the air conditioning refrigerant label is
represented as below:
1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubricant
4. Caution
5. Flammable refrigerant
6. To require registered technician to
service air conditioning system
5-100

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
WINDSHIELD DEFROSTING AND DEFOGGING
Manual Climate Control System
WARNING
To defog inside windshield
Windshield heating
Do not use the
or
position
during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and
that of the windshield could cause the
outer surface of the windshield to fog
up, causing loss of visibility. In this case,
set the mode selection knob or button
to the position and fan speed control
knob or button to lower speed.
OCN7050122N
• For maximum defrost performance,
set the temperature control knob
[A] : Type A, [B] : Type B
to the highest temperature setting
1. Select any fan speed except “0”
(rotated all the way to the right) and
position.
the fan speed control to the highest
2. Select the desired temperature.
setting.
3. Select the
or
position.
• If warm air to the floor is desired while
defrosting or defogging, set the mode
4. Fresh mode air will be selected
to the floor-defrost position.
automatically. Additionally, the
air conditioning (if equipped) will
• Before driving, clear all snow and ice
automatically operate if the mode is
from the windshield, rear window,
selected to the
position.
side view mirrors, and all side
windows.
If the air conditioning and fresh mode
are not selected automatically, press the
• Clear all snow and ice from the
corresponding button manually.
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up inside of the
windshield.
5-101

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

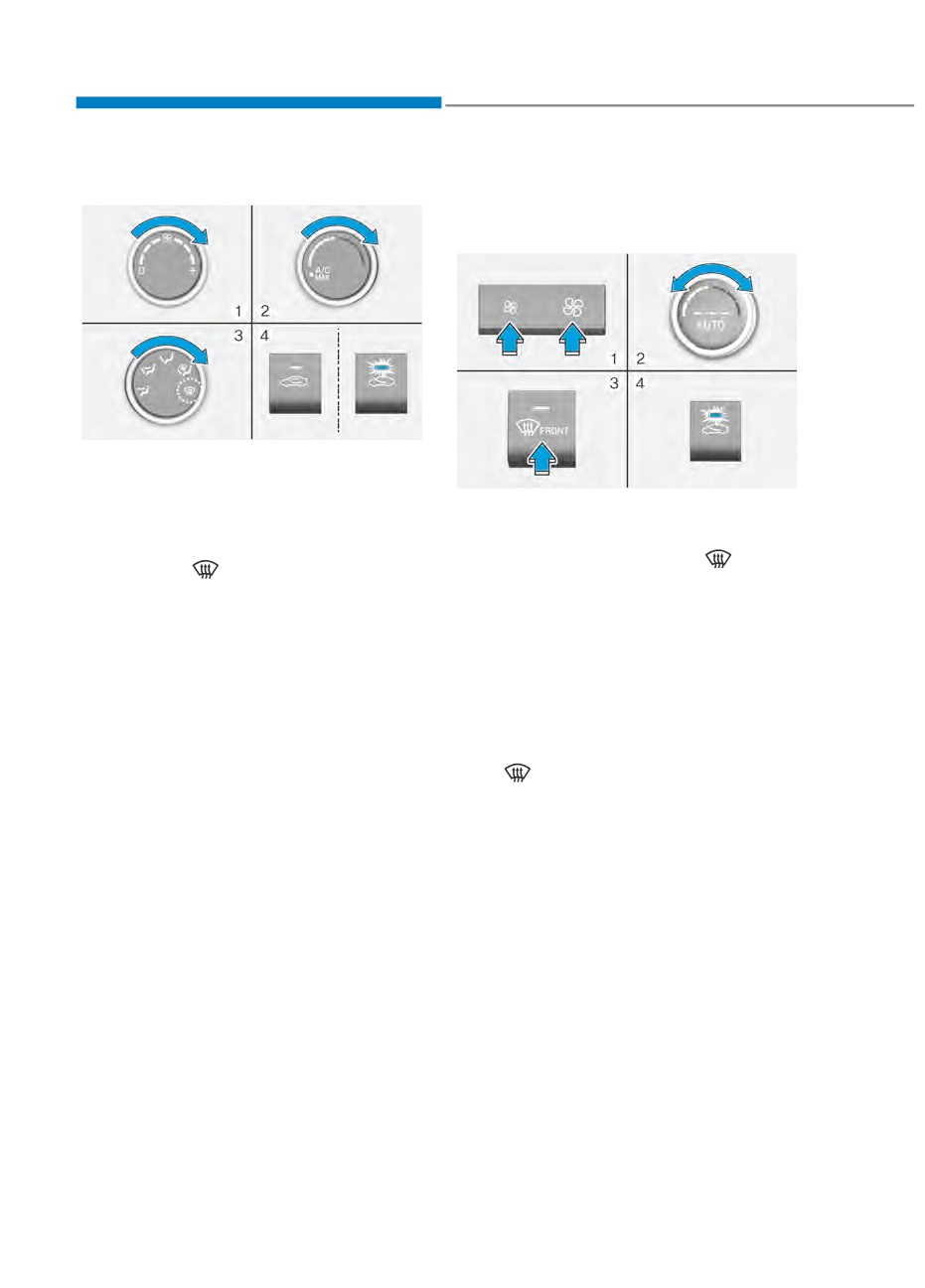

To defrost outside windshield
Automatic Climate Control
System
To defog inside windshield
OCN7050123N
1. Set the fan speed to the highest
setting (knob rotated all the way to
OCN7050124L
the right).
1. Select desired fan speed.
2. Set the temperature control to the
2. Select desired temperature.
highest temperature setting.
3. Press the defroster button (
).
3. Select the
position.
4. The air-conditioning will turn on
4. Fresh mode air and air conditioning
according to the detected ambient
(if equipped) will be selected
temperature, fresh mode and
automatically.
higher fan speed will be selected
automatically.
If the air-conditioning, fresh mode
and higher fan speed are not selected
automatically, adjust the corresponding
button or knob manually.
If the
position is selected, lower fan
speed is controlled to higher fan speed.
5-102

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
To defrost outside windshield
Defogging Logic (if equipped)
To help reduce the probability of fogging
up the inside of the windshield, the air
intake or air conditioning are controlled
automatically according to certain
conditions such as
or
position. To
cancel or return the defogging logic, do
the following
Manual climate control system
1. Press the Engine Start/Stop button to
the ON position.
OCN7050125L
2. Select defroster mode (
).
1. Set fan speed to the highest position.
3. Press the air intake control button at
2. Set temperature to the extreme hot
least 5 times within 3 seconds. The
(HI) position.
process should be completed within
3. Press the defroster button (
).
10 seconds after the defroster mode (
4. The air-conditioning will turn on
) is selected.
according to the detected ambient
The LED indicator on the air intake
temperature and fresh mode will be
button will blink 3 times to indicate that
selected automatically.
the defogging logic has been disabled.
If the
position is selected, lower fan
Repeat the steps again to re-enable the
speed is controlled to higher fan speed.
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Automatic climate control system
1. Press the Engine Start/Stop button to
the ON position.
2. Press the defroster button (
).
3. While pressing the air conditioning
button (A/C), press the air intake
control button at least 5 times within
3 seconds.
The automatic climate control
information screen will blink 3 times to
indicate that the defogging logic has
been disabled.
Repeat the steps again to re-enable the
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
5-103

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features

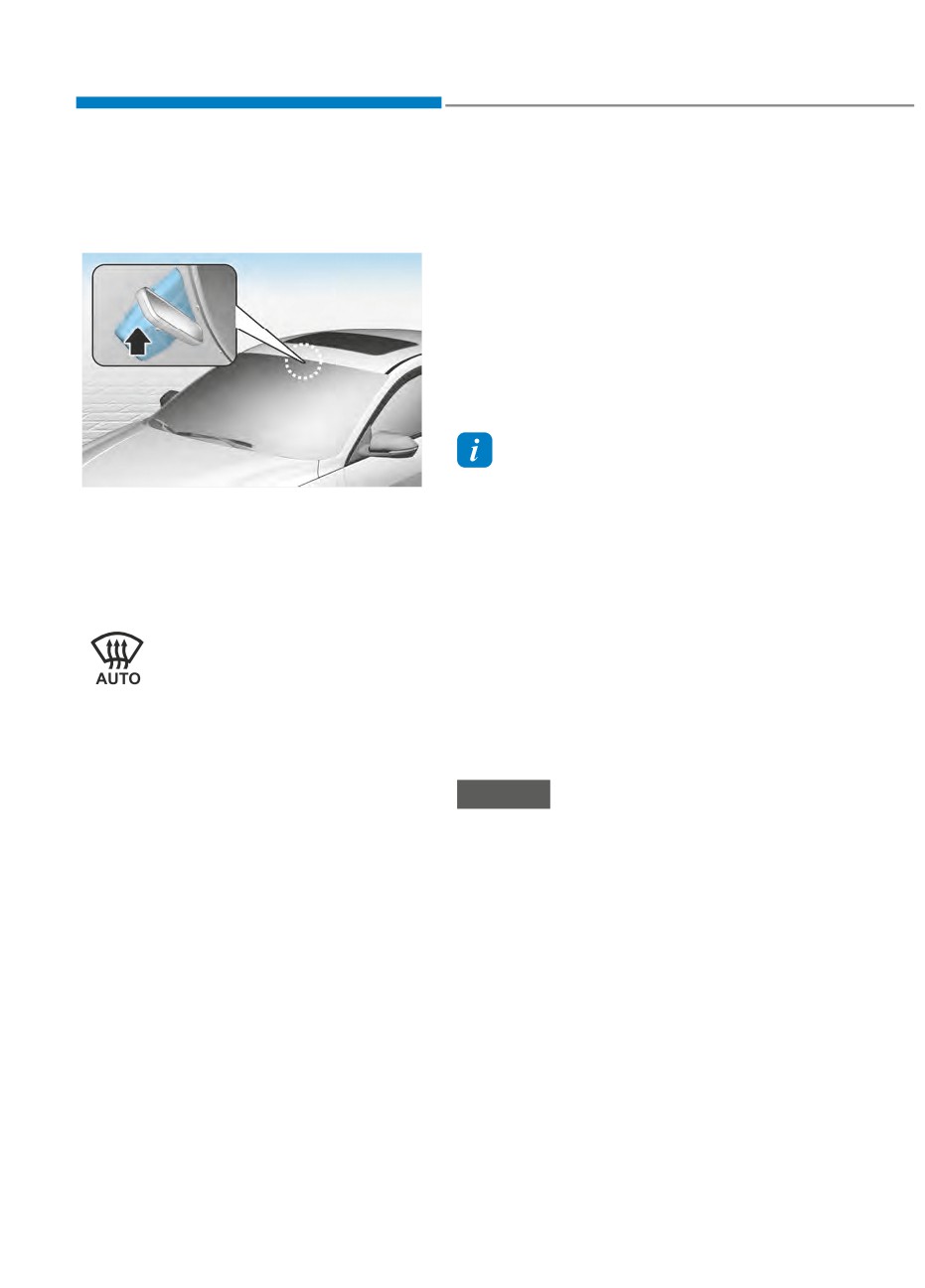

Auto Defogging System (only
To cancel or reset the Auto Defogging
System
for automatic climate control
system, if equipped)
Press the front windshield defroster
button for 3 seconds when the Engine
Start/Stop button is in the ON position.
When the Auto Defogging System is
canceled, defrost button indicator will
blink 3 times.
When the Auto Defogging System is
reset, defrost button indicator will blink 6
times without a signal.
Information
OCN7N051061L
When the air conditioning is turned
on by Auto defogging system, if you
Auto defogging helps reduce the
try to turn off the air conditioning, the
possibility of fogging up the inside of the
indicator will blink 3 times and the air
windshield by automatically sensing the
conditioning will not be turned off.
moisture on inside the windshield.
To maintain the effectiveness and
The auto defogging system operates
efficiency of the Auto Defogging
when the heater or air conditioning is on.
System, do not select Recirculation
When the Auto Defogging
mode while the system is operating.
System operates, the indicator
When the Auto Defogging System is
will illuminate.
operating, the fan speed adjustment
If a high amount of humidity is detected
knob, the temperature adjustment
in the vehicle, the Auto Defogging
knob, and the air intake control button
System will be enabled.
are all disabled.
The following steps will be performed
NOTICE
automatically:
Do not remove the sensor cover located
Step 1) The A/C button will turn ON.
on the upper end of the driver side
Step 2) The air intake control will change
windshield glass.
to Fresh mode under low outside
Damage to system parts could occur
temperature.
and may not be covered by your vehicle
Step 3) The mode will be changed to
warranty.
defrost to direct airflow to the
windshield.
Step 4) The fan speed will be increased.
5-104

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

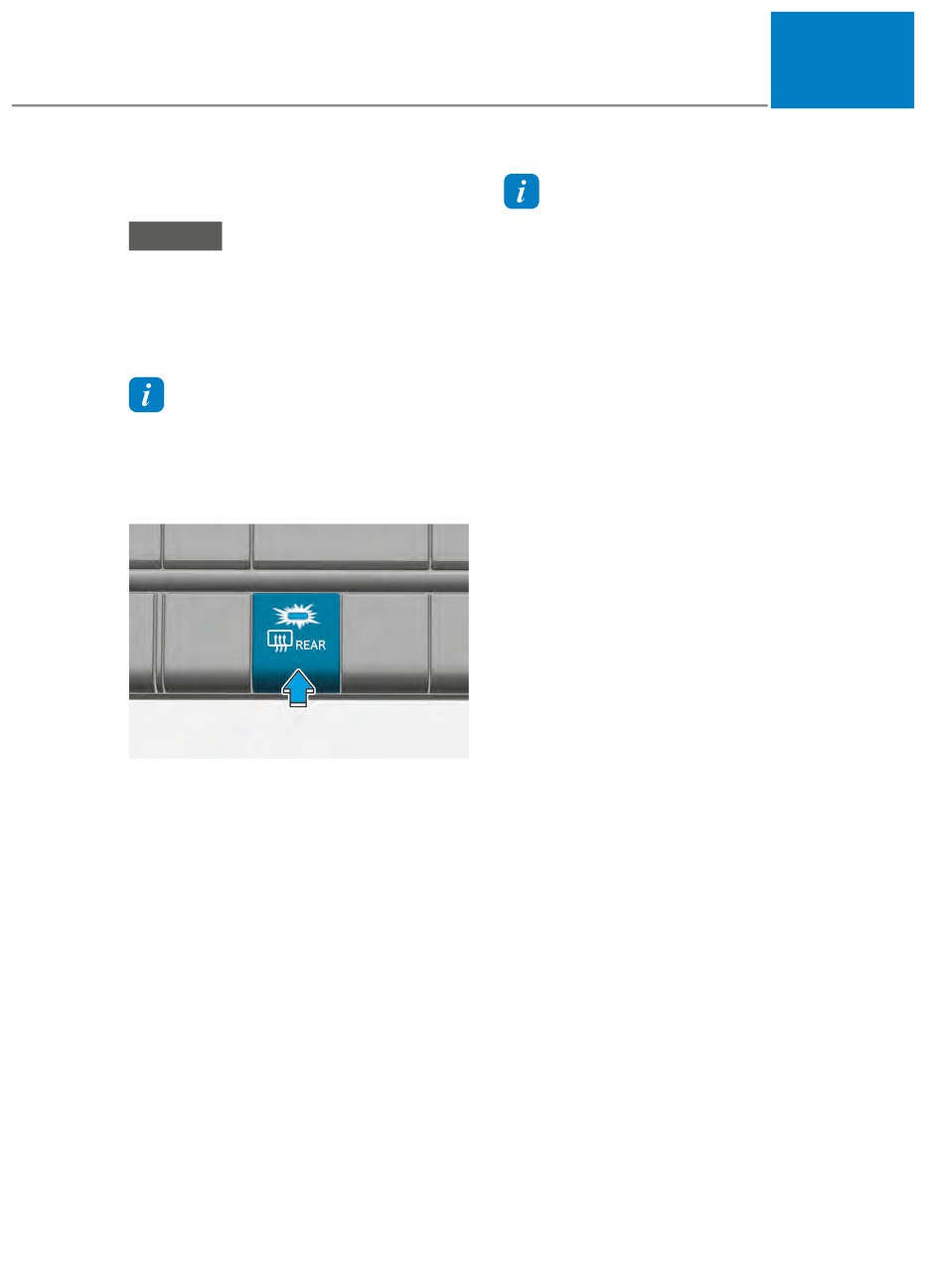

Defroster
Information
If there is heavy accumulation of snow
NOTICE
on the rear window, brush it off before
To prevent damage to the conductors
operating the rear defroster.
bonded to the inside surface of the rear
The rear window defroster
window, never use sharp instruments or
automatically turns off after
window cleaners containing abrasives
approximately 20 minutes or when the
to clean the window.
Engine Start/Stop button is in the OFF
position.
Information
Outside mirror defroster (if
If you want to defrost and defog the
equipped)
front windshield, refer to “Windshield
If your vehicle is equipped with the
Defrosting and Defogging” in this chapter.
outside mirror defrosters, they will
operate at the same time you turn on the
Rear window defroster
rear window defroster.
OCN7050136L
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while engine is running.
• To activate the rear window defroster,
press the rear window defroster
button located in the center facia
switch panel. The indicator on the rear
window defroster button illuminates
when the defroster is ON.
• To turn off the defroster, press the rear
window defroster button again.
5-105

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
CLIMATE CONTROL ADDITIONAL FEATURES
Sunroof Inside Air Recirculation
Automatic Ventilation (if
(if equipped)
equipped)
When the sunroof is opened, outside
The system automatically selects the
(fresh) air will be automatically selected.
fresh mode when the climate control
At this time, if you press the air intake
system operates over a certain period of
control button, recirculated air position
time (approximately 30 minutes) in low
will be selected but will change back
temperature with the recirculation mode
to outside (fresh) air after 3 minutes.
selected.
When the sunroof is closed, the air
intake position will return to the original
To cancel or reactivate the
position that was selected.
Automatic Ventilation
When the air conditioning system is on,
select Face Level
mode and press the
air recirculation mode button at least 5
times within 3 seconds while pressing
the A/C button.
When the automatic ventilation is
canceled, the indicator blinks 3 times.
When the automatic ventilation is
activated, the indicator blinks 6 times.
5-106

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
STORAGE COMPARTMENT

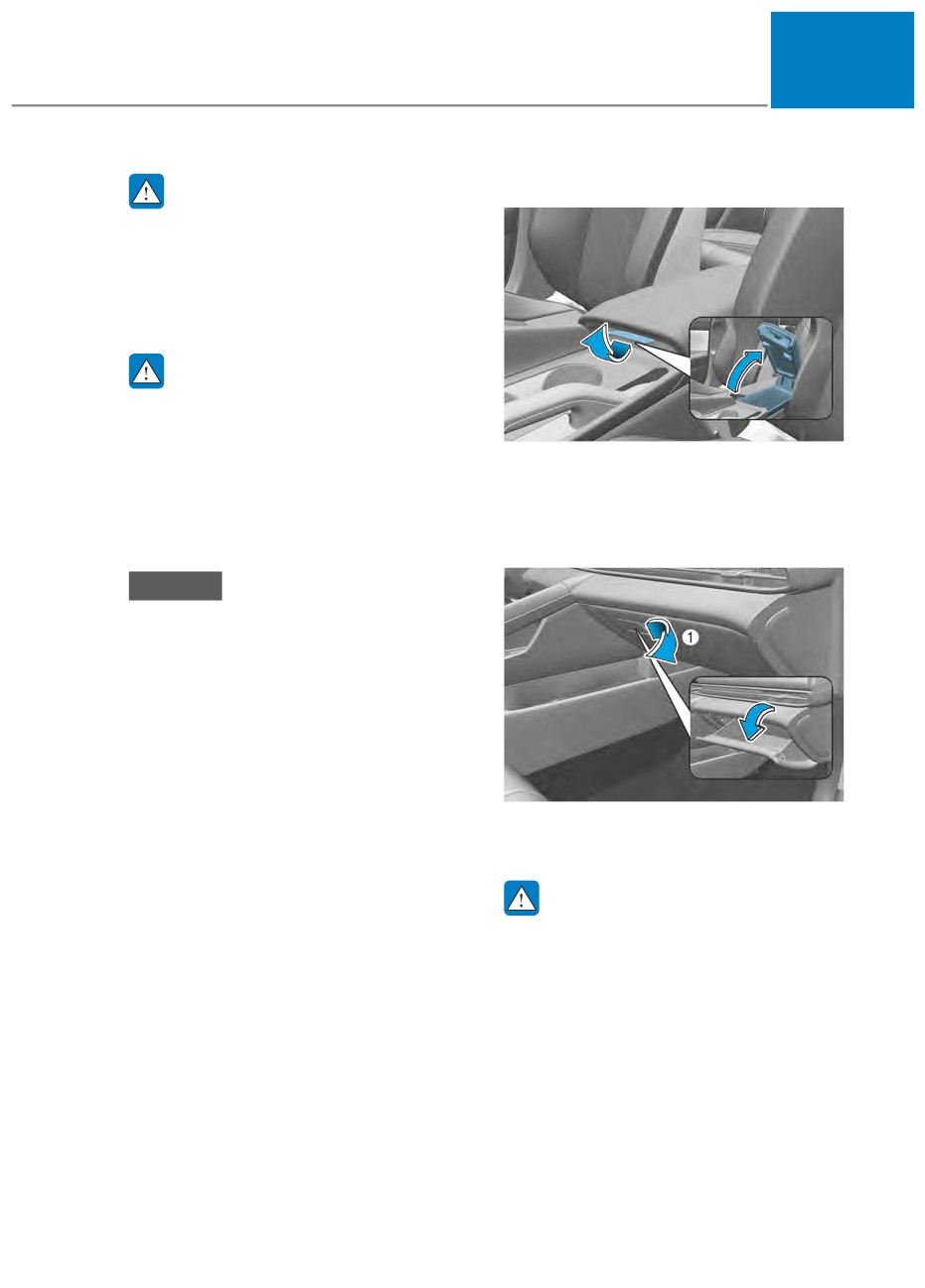

Center Console Storage
WARNING
Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items
may catch fire and/or explode if the
vehicle is exposed to hot temperatures
for extended periods.
WARNING
ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
OCN7N051062N
fast as the vehicle. If you have to stop
To open:
or turn quickly, or if there is a crash, the
Grab and hold the latch on the armrest
items may fly out of the compartment
then lift the lid.
and may cause an injury if they strike
the driver or a passenger.
Glove Box
NOTICE
To avoid possible theft, do not leave
valuables in the storage compartments.
OCN7050064
To open:
Pull the lever (1).
WARNING
ALWAYS close the glove box door after
use.
An open glove box door can cause
serious injury to the passenger in an
accident, even if the passenger is
wearing a seat belt.
5-107

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
INTERIOR FEATURES

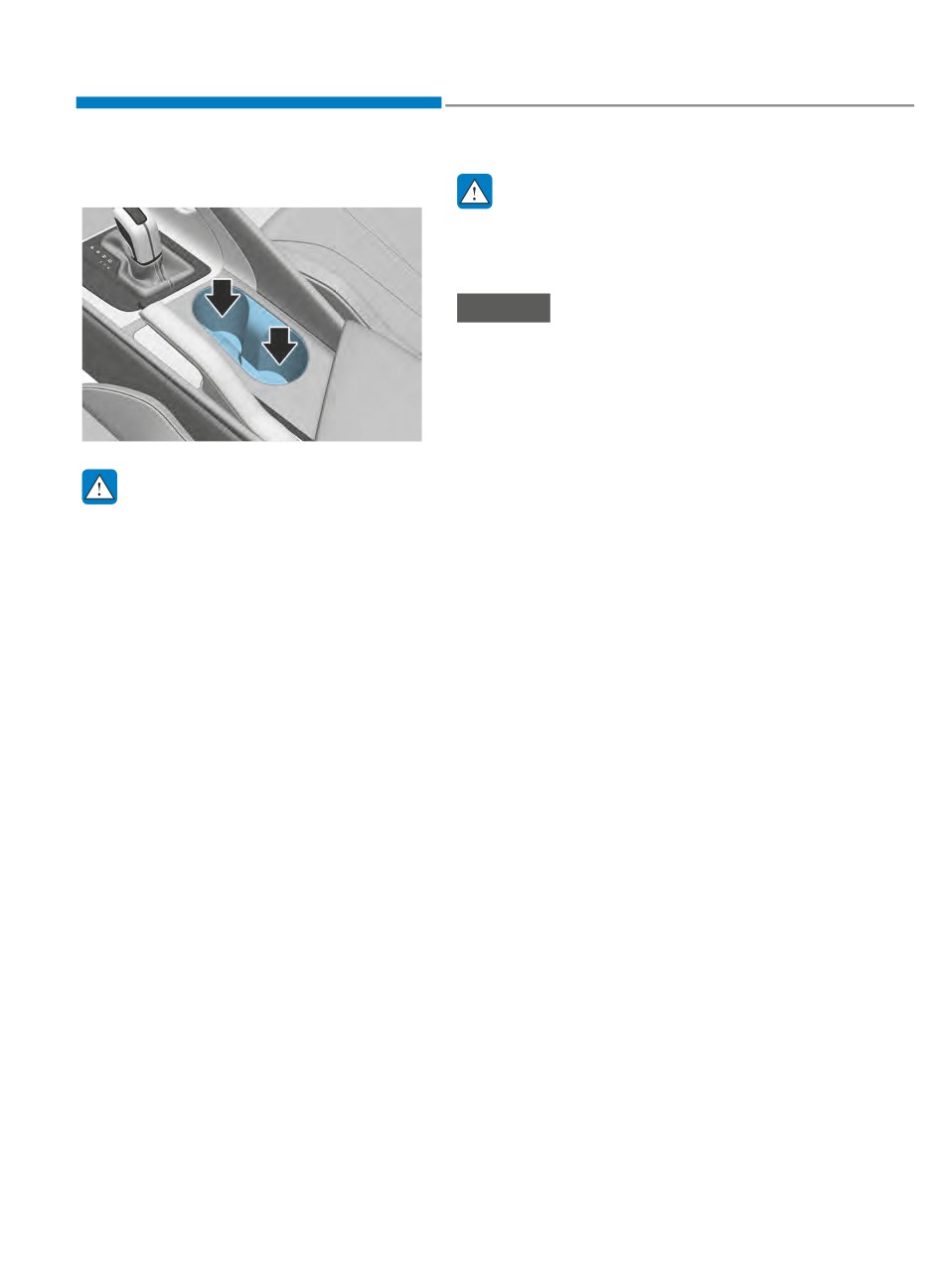

Cup Holder
WARNING
Keep cans or bottles out of direct sun
light and do not put them in a hot
vehicle. It may explode.
NOTICE
Keep your drinks sealed while driving
to prevent spilling your drink. If liquid
spills, it may get into the vehicle’s
electrical/electronic system and
damage electrical/electronic parts.
OCN7N051065N
When cleaning spilled liquids do not
use hot air to blow out or dry the cup
holder. This may damage the interior.
WARNING
Avoid abrupt starting and braking
when the cup holder is in use to
prevent spilling your drink. If hot
liquid spills, you could be burned.
Such a burn to the driver could cause
loss of vehicle control resulting in an
accident.
Do not place uncovered or unsecured
cups, bottles, cans, etc., in the cup
holder containing hot liquid while
the vehicle is in motion. Injuries may
result in the event of a sudden stop
or collision.
Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
5-108

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

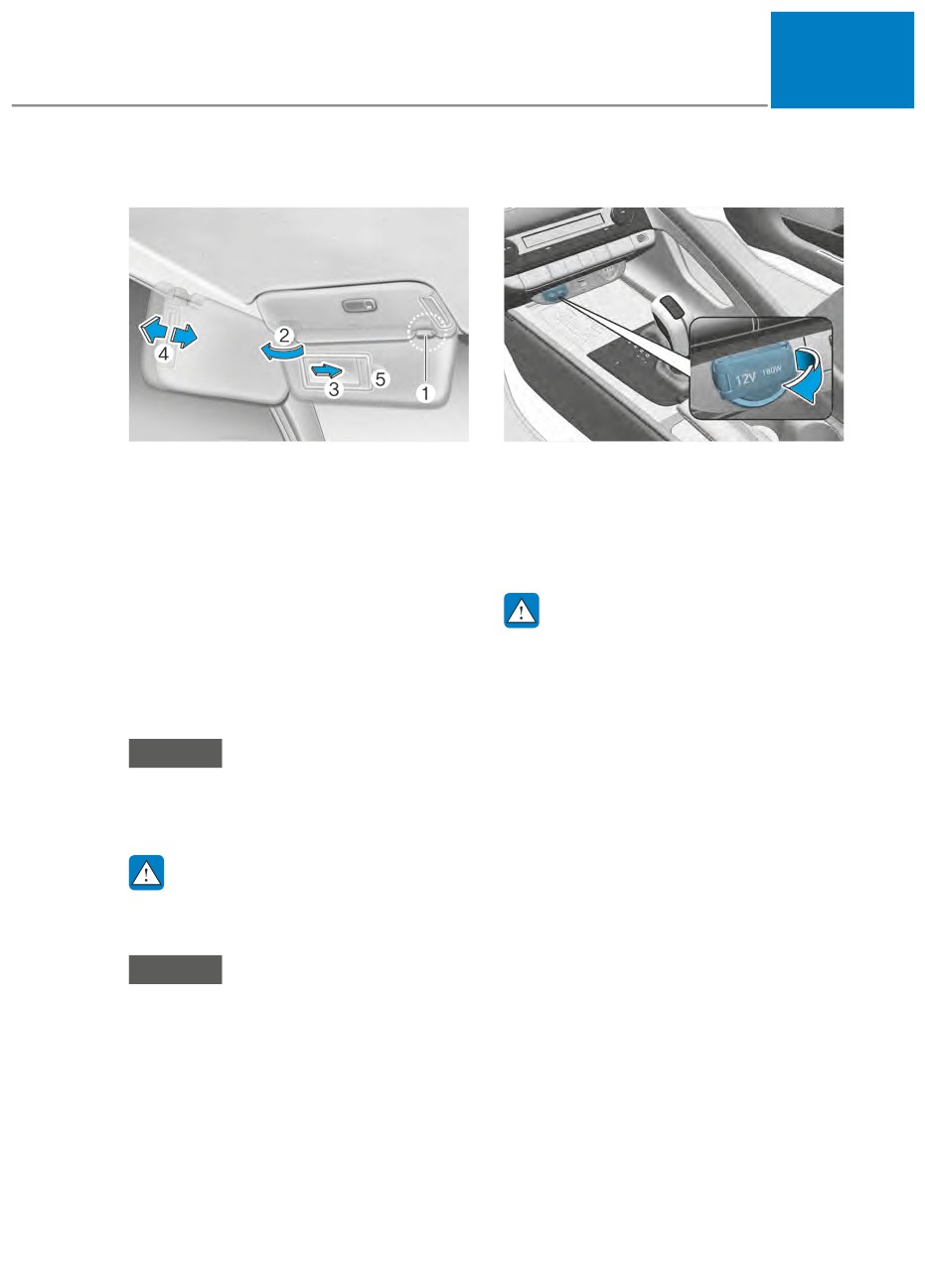

Sunvisor
Power Outlet
OCN7N051088N
OCN7N051068
To use a sunvisor, pull it downward.
The power outlet is designed to provide
To use a sunvisor for a side window, pull
power for mobile telephones or other
devices designed to operate with vehicle
it downward, unsnap it from the bracket
(1) and swing it to the side (2).
electrical systems. The devices should
draw less than 180 W with the engine
To use the vanity mirror, pull down the
running.
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4, if equipped) as needed.
WARNING
Use the ticket holder (5) to hold tickets.
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
Close the vanity mirror cover securely
into a power outlet or touch the power
and return the sunvisor to its original
outlet with a wet hand.
position after use.
NOTICE
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
For your safety, do not block your view
when using the sunvisor.
NOTICE
Do not put several tickets in the ticket
holder at one time. This could cause
damage to the ticket holder.
5-109

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
NOTICE
Wireless Cellular Phone
To prevent damage to the Power
Charging System (if equipped)
Outlets:
Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.
Only use 12V electric accessories
which are less than 180 W in electric
capacity.
Adjust the air-conditioner or heater
OCN7N051070
to the lowest operating level when
using the power outlet.

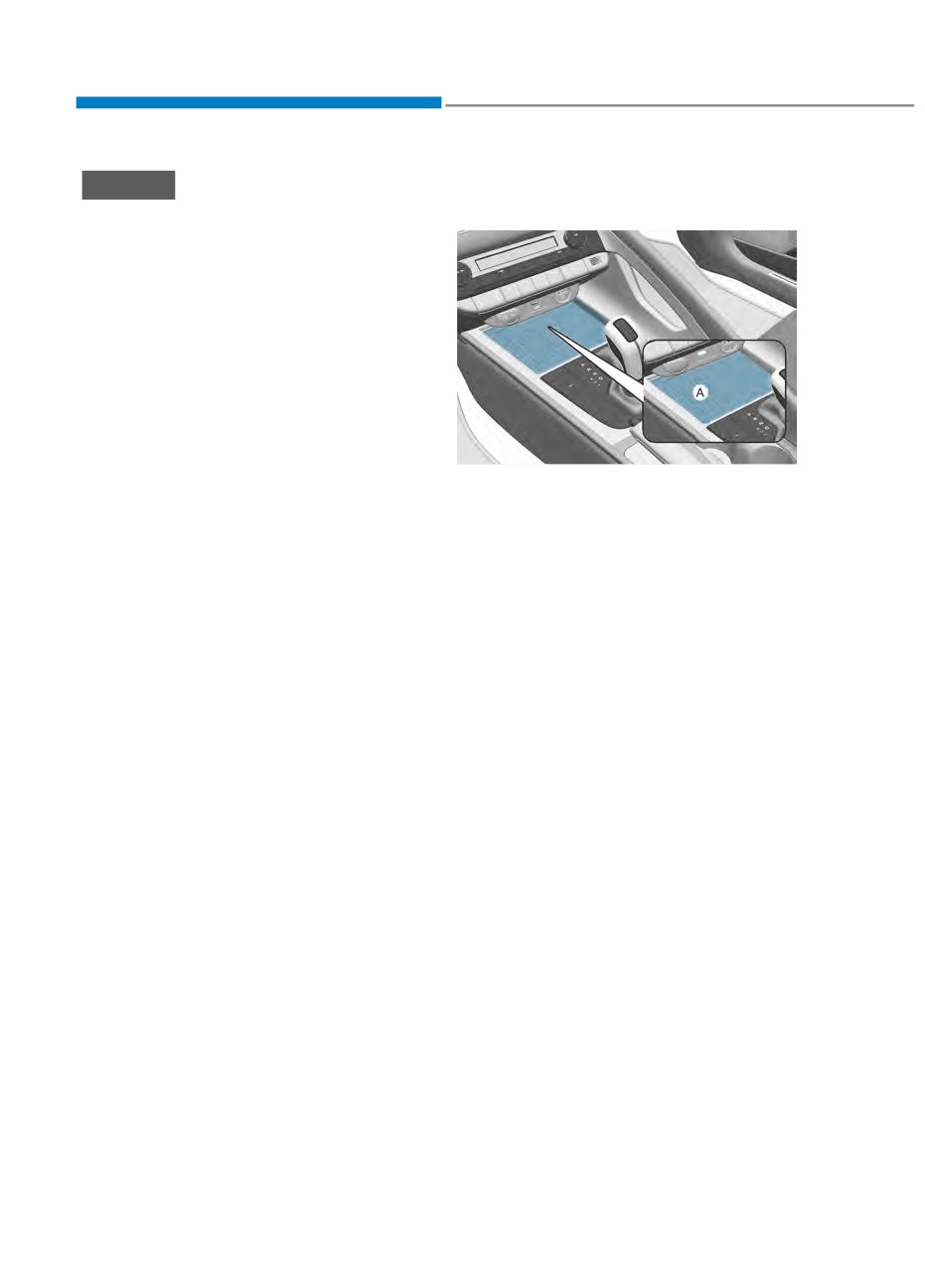

[A] : Charging pad
Close the cover when not in use.
There is a wireless cellular phone charger
inside the front console.
Some electronic devices can
cause electronic interference
The system is available when all doors
when plugged into a vehicle’s
are closed, and when the Engine Start/
power outlet. These devices may
Stop button is in the ON position.
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.
Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.
Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.
5-110

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
To charge a cellular phone
Information
The wireless cellular phone charging
For some manufacturers’ cellular phones,
system charges only the Qi-enabled
the system may not warn you even though
cellular phones (
). Read the label on
the cellular phone is left on the wireless
the cellular phone accessory cover or
charging unit. This is due to the particular
visit your cellular phone manufacturer’s
characteristic of the cellular phone and
website to check whether your cellular
not a malfunction of the wireless charging.
phone supports the Qi technology.
The wireless charging process starts
NOTICE
when you put a Qi-enabled cellular
phone on the wireless charging unit.
The wireless cellular phone charging
system may not support certain
1. Remove other items, including the
cellular phones, which are not
smart key, from the wireless charging
verified for the Qi specification (
).
unit. If not, the wireless charging
process may be interrupted. Place the
When placing your cellular phone
cellular phone on the center of the
on the charging mat, position the
charging pad.
phone in the middle of the mat for
2. When charging starts, a charging
optimal charging performance. If
your cellular phone is off to the side,
icon is displayed on the infotainment
system screen. However, depending
the charging rate may be less and in
some cases the cellular phone may
on the infotainment system screen,
the wireless charging icon may not be
experience higher heat conduction.
displayed. See the infotainment web
In some cases, the wireless charging
manual for details.
may stop temporarily when the
Smart Key is used, either when
3. You can turn ON or OFF the wireless
charging function in the user settings
starting the vehicle or locking/
unlocking the doors, etc.
mode on the instrument cluster. For
further information, refer to the “LCD
The wireless charging process may
Display Modes” in this chapter.
temporarily stop, when temperature
abnormally increases inside the
The system warns you with a message
wireless cellular phone charging
on the LCD display if the cellular phone
system. Stop the charging cellular
is still on the wireless charging unit after
phone and wait until temperature
the engine is turned OFF and the front
door is opened.
falls to a certain level.
The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless cellular phone
charging system and the cellular
phone.
5-111

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
When charging some cellular phones
Clock
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
WARNING
may stop.
Do not attempt to adjust the clock
If the cellular phone has a thick
while driving. Doing so may result in
cover, the wireless charging may not
distracted driving which may lead to
be possible.
an accident involving personal injury or
If the cellular phone is not
death.
completely contacting the charging
pad, wireless charging may not
For more information, please refer to
operate properly.
the manual that was supplied with your
vehicle.
Some magnetic items like credit
cards, phone cards or rail tickets may
be damaged if left with the cellular
phone during the charging process.
When any cellular phone without
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the cellular phone in any way.
Information
If the Engine Start/Stop button is in the
OFF position, the charging also stops.
Information
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
5-112

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

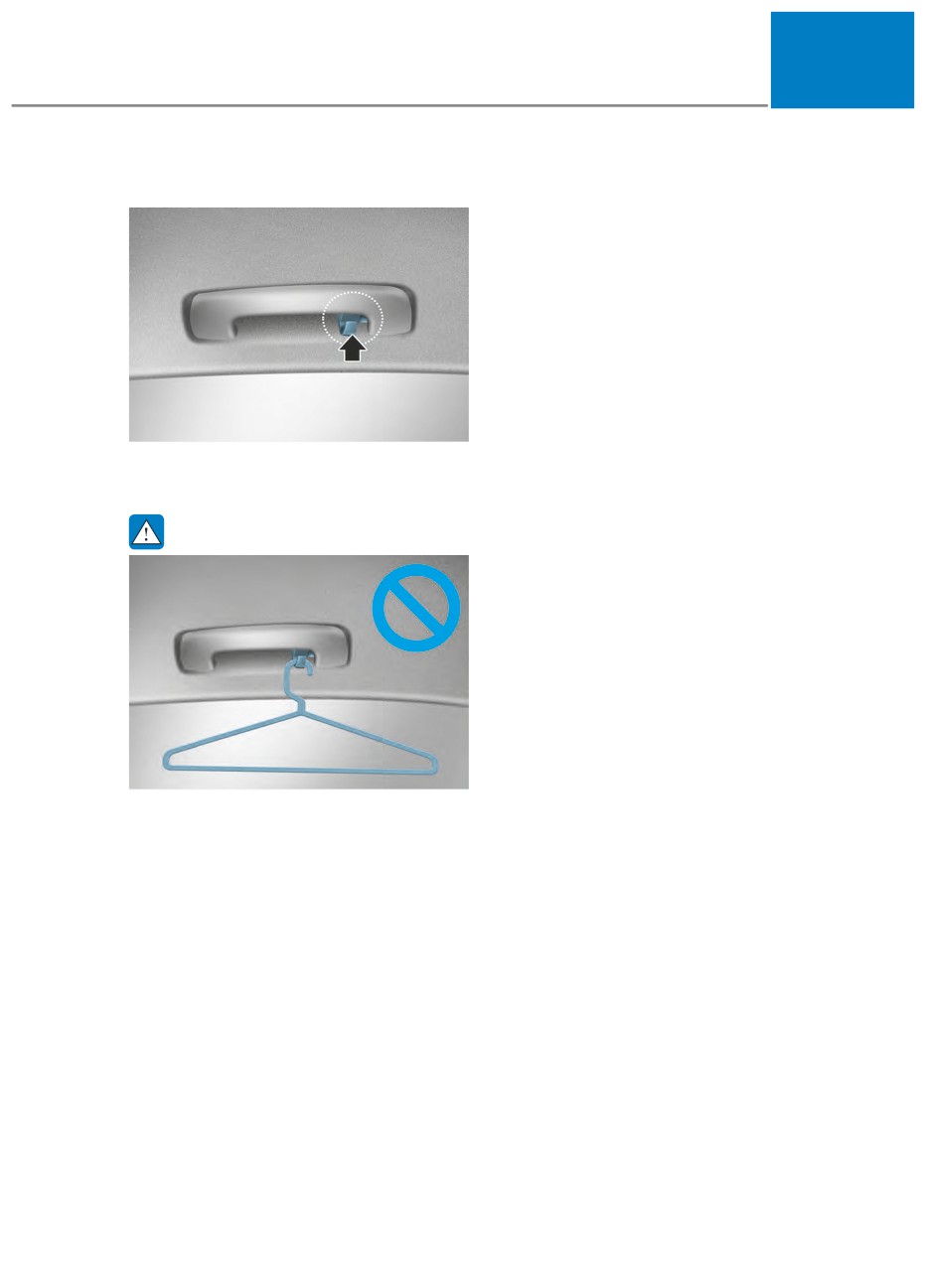

Coat Hook
OTM048095
These hangers are not designed to hold
large or heavy items.
WARNING
OCN7050071
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
5-113

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
INFOTAINMENT SYSTEM

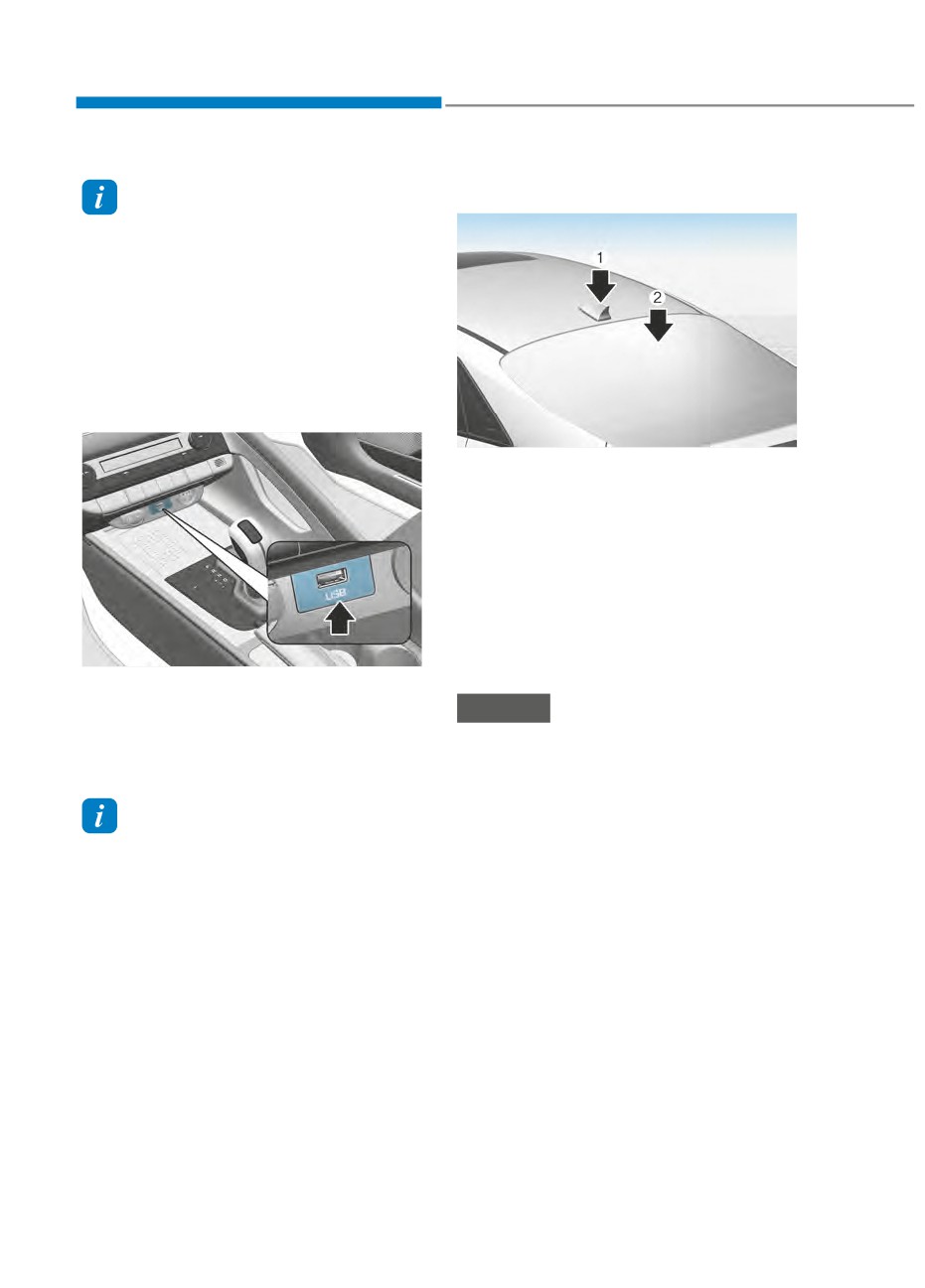

Antenna
Information
If you install an aftermarket HID
headlamp, your vehicle’s audio and
electronic device may malfunction.
Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand cleaner,
and air freshener from contacting the
interior parts because they may cause
damage or discoloration.
USB Port
OCN7N051072L
Shark fin antenna (1)
The shark fin antenna receives
transmitted data. (for example : GPS)
Glass antenna (2)
Your vehicle uses a glass antenna to
receive both AM and FM signals.
 The signals which antenna can
transmit and receive vary by the
OCN7N051074
vehicle option.
This is a convenient device that allows
external sound devices such as MP3 and
NOTICE
USB storage devices to be connected to
To prevent damage to the rear
the vehicle and played back through the
glass antenna, never use sharp
vehicle infotainment system.
instruments or window cleaner
containing abrasives to clean the
Information
window. Clean the inside surface of
the rear glass window with a piece of
When using a portable audio device
soft cloth.
connected to the power outlet, noise may
occur during playback. If this happens,
When putting a sticker on the inside
surface of the rear window, be
use the power source of the portable audio
device.
careful not to damage to the rear
glass antenna.
Avoid adding metallic coatings such
as Ni, Cd, etc.
These can degrade the receiving AM
and FM broadcast signals.
Do not put sharp instruments nearby
the rear glass antenna.
Tinted rear window may affect the
proper functioning of the antenna.
5-114

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05

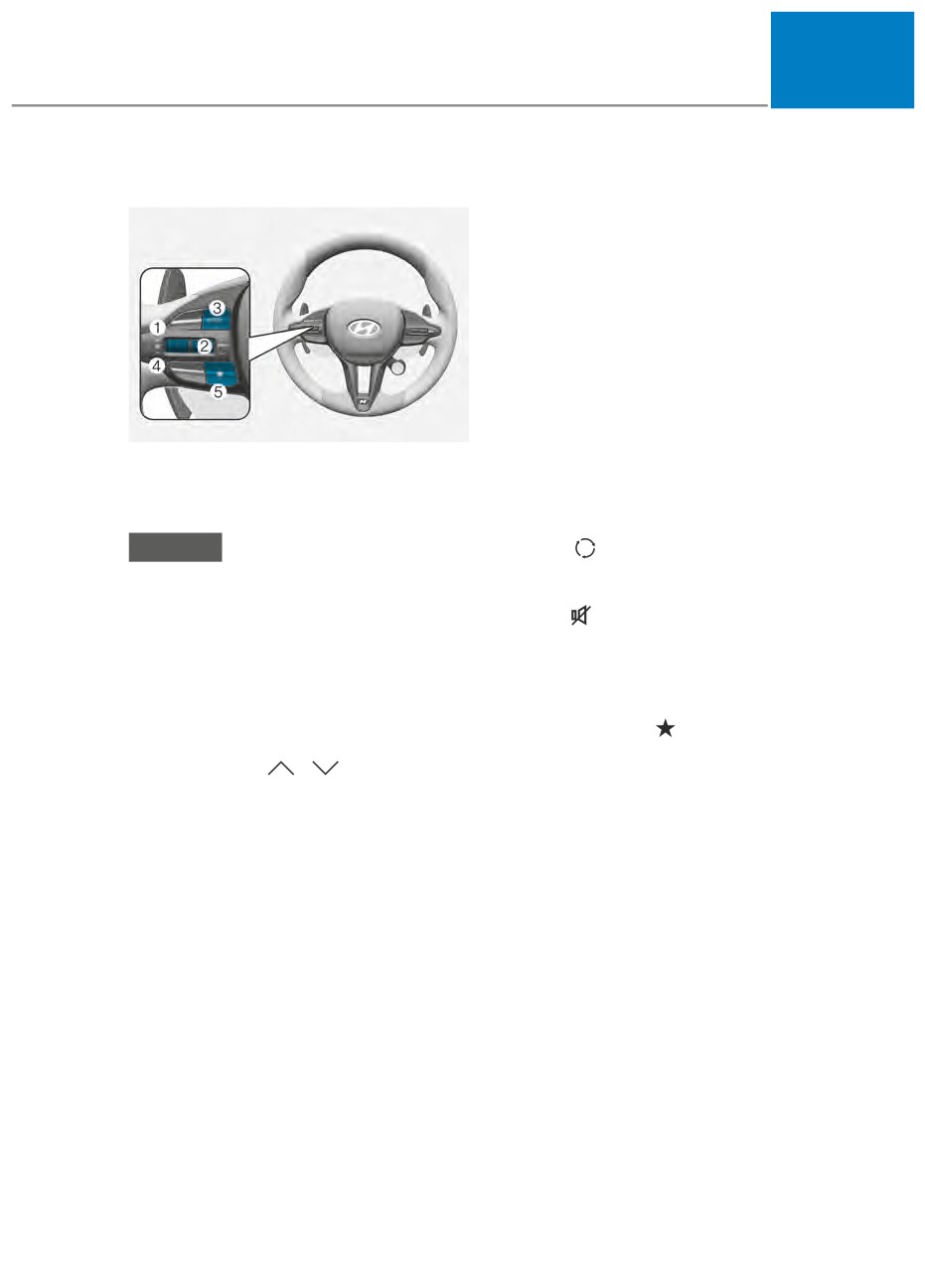

Steering Wheel Audio Control
RADIO mode
It will function as the AUTO SEEK
select switch. It will SEEK until you
release the switch.
MEDIA mode
It will function as the FF/REW switch.
If the SEEK/PRESET toggle switch is
moved up or down, it will function in
the following modes.
RADIO mode
It will function as the PRESET STATION
OCN7N051203
UP/DOWN switch.
The steering wheel audio control
MEDIA mode
switches are installed for your
It will function as the TRACK UP/
convenience.
DOWN switch.
NOTICE
MODE (
) (3)
Do not operate audio remote control
Press the MODE button to select Radio.
buttons simultaneously.
MUTE (
) (4)
VOLUME (VOL + / VOL -) (1)
• Press the button to mute the sound.
• Move the VOLUME toggle switch up
• Press the button again to activate the
to increase volume.
sound.
• Move the VOLUME toggle switch
down to decrease volume.
Custom button (
) (5)
You can set the function to be executed
SEEK/PRESET (
/
) (2)
by pressing the user button on the
If the SEEK/PRESET toggle switch is
steering wheel. It is convenient to set
moved up or down and held for 0.8
frequently used functions as user button
second or more, it will function in the
functions.
following modes.
For detailed information, refer to the
infotainment system manual separately
supplied.
5-115

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
Infotainment System (if
Bluetooth® Wireless Technology
equipped)
Hands-free (if equipped)
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
Voice Recognition (if equipped)
OCN7N051075
OCN7N071129L
Voice recognition allows you to
command a variety of infotainment
functions.
The Infotainment system may be
changed by an system update. Please
OCN7N051076
see additional information in supplied
You can use the phone wirelessly
Infotainment Manual
by using the Bluetooth® Wireless
Technology.
(1) Call / Answer button
(2) Microphone 1
(3) Microphone 2
For detailed information, refer to the
infotainment system manual separately
supplied.
5-116

-------------------------------------------------------------------------------------------------------------------------------------------------------------

05
How Vehicle Radio Works
AM (MW, LW) reception
FM reception
OJF045309L
OJF045308L
AM broadcasts can be received at
AM and FM radio signals are broadcast
greater distances than FM broadcasts.
This is because AM radio waves are
from transmitter towers located around
your city. They are intercepted by the
transmitted at low frequencies. These
long, low frequency radio waves can
radio antenna on your vehicle. This signal
is then received by the radio and sent to
follow the curvature of the earth rather
than travelling straight out into the
your vehicle speakers.
atmosphere. In addition, they curve
When a strong radio signal has reached
around obstructions so that they can
your vehicle, the precise engineering
provide better signal coverage.
of your audio system ensures the best
possible quality reproduction. However,
in some cases the signal coming to your
vehicle may not be strong and clear.
This can be due to factors, such as
the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.
5-117

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Convenience Features
FM radio station
These can result in certain listening
conditions which might lead you to
believe a problem exists with your radio.
The following conditions are normal and
do not indicate radio trouble :
OJF045310L
FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth’s surface. Because of this, FM
JBM004
broadcasts generally begin to fade at
short distances from the station. Also, FM
• Fading as your vehicle moves away
signals are easily affected by buildings,
from the radio station, the signal will
mountains, or other obstructions.
weaken and sound will begin to fade.
When this occurs, we suggest that you
select another stronger station.
• Flutter/Static Weak FM signals or
large obstructions between the
transmitter and your radio can disturb
the signal causing static or fluttering
noises to occur. Reducing the treble
level may lessen this effect until the
disturbance clears.
5-118















Content      ..     6      7      8      9     ..
