08

NOTICE

To avoid damage to your vehicle and

vehicle components when towing:

ś

Always pull straight ahead when

using the towing hooks. Do not pull

from the side or at a vertical angle.

ś

Do not use the towing hooks to pull

a vehicle out of mud, sand or other

conditions from which the vehicle

cannot be driven out under its own

OCN7070017

power.

ś

Use a towing cable or chain less than

ś

Limit the vehicle speed to 10mph

5 m (16 feet) long. Attach a white or

(15km/h) and drive less than 1 mile

red cloth (about 30 cm (12 inches)

(1.5 km) when towing to avoid serious

wide) in the middle of the cable or

damage to Intelligent variable

chain for easy visibility.

transmission.

ś

Drive carefully so the towing cable or

ś

The Intelligent variable transmission

chain remains tight during towing.

vehicle can be towed to a normal

vehicle only without oil leakage.

ś

Before towing, check the Intelligent

Check for oil leaks. Towing the

Variable Transmission (IVT) /Dual

vehicle with oil leakage may damage

clutch transmission for fluid leaks

the transmission.

under your vehicle. If the Intelligent

Variable Transmission (IVT) /Dual

clutch transmission fluid is leaking,

flatbed equipment or a towing dolly

must be used.

NOTICE

Accelerate or decelerate the vehicle

in a slow and gradual manner while

maintaining tension on the tow rope

or chain to start or drive the vehicle,

otherwise tow hooks and the vehicle

may be damaged.

8-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

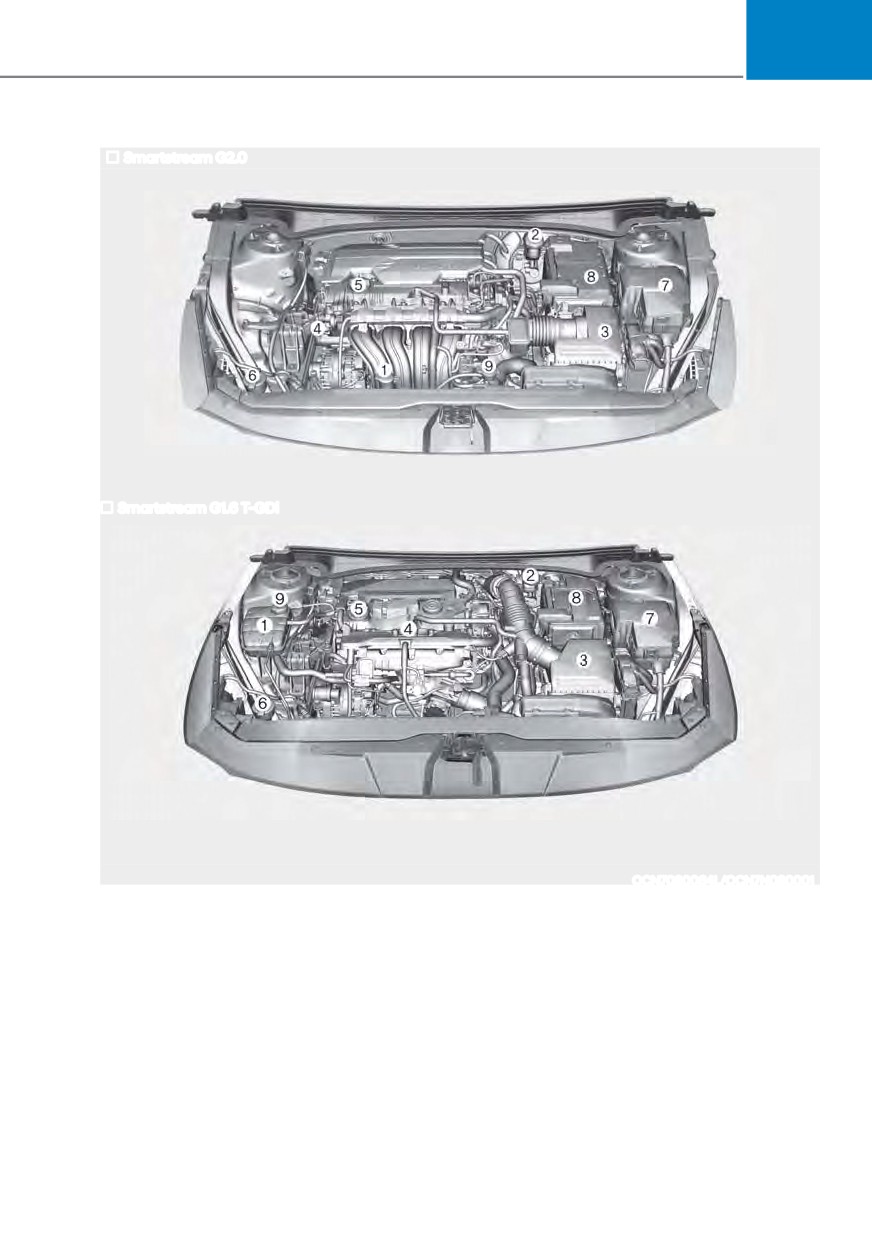

ENGINE COMPARTMENT

„ Smartstream G2.0

„ Smartstream G1.6 T-GDi

The actual engine compartment in the vehicle may differ from the illustration.

OCN7080064L/OCN7N080001

1. Engine coolant reservoir

6. Windshield washer fluid reservoir

2. Brake fluid reservoir

7. Fuse box

3. Air cleaner

8. Battery

4. Engine oil dipstick

9. Radiator cap

5. Engine oil filler cap

9-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

OWNER MAINTENANCE

The following lists are vehicle checks and

WARNING

inspections that should be performed

Performing maintenance work on a

by the owner or an authorized HYUNDAI

vehicle can be dangerous. If you lack

dealer at the frequencies indicated to

sufficient knowledge and experience or

help ensure safe, dependable operation

the proper tools and equipment to do

of your vehicle.

the work, have it done by an authorized

Any adverse conditions should be

HYUNDAI dealer.

brought to the attention of your dealer as

ALWAYS follow these precautions for

soon as possible.

performing maintenance work:

These Owner Maintenance vehicle

ś

Park your vehicle on level ground,

checks are generally not covered by

move the shift button into the P

warranties and you may be charged for

(Park) position, place the ignition

labor, parts and lubricants used.

switch in the LOCK/OFF position.

ś

Block the tires (front and back) to

Owner Maintenance Schedule

prevent the vehicle from moving.

When you stop for fuel:

Remove loose clothing or jewelry

ś Check the coolant level in the engine

that can become entangled in

coolant reservoir.

moving parts.

ś Check the windshield washer fluid

ś

If you must run the engine during

level.

maintenance, do so in an outdoor

ś Check the for low or under-inflated

area or in an area with plenty of

tires.

ventilation.

ś

Keep flames, sparks, or smoking

materials away from the battery and

WARNING

fuel-related parts.

Be careful when checking your coolant

level if the motor compartment is hot.

This may result in coolant being blown

out of the opening and cause serious

burns and other injuries.

Information

ś As it is normal for engine oil to be

consumed during driving, the engine

oil level should be checked on regular

basis.

ś The engine oil change interval for

normal operating conditions is based

on the use of the recommended engine

specification. If the recommended

engine oil specification is not used, then

replace the engine oil according to the

maintenance schedule under severe

operating conditions.

9-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Normal Maintenance Schedule

MAINTENANCE

Months

12

24

36

48

60

72

84

96

108

120

132

144

156

INTERVALS

Miles×1,000

8

16

24

32

40

48

56

64

72

80

88

96

104

MAINTENANCE

ITEM

Km×1,000

13

26

39

52

65

78

91

104

117

130

143

156

169

Smartstream

R

R

R

R

R

R

R

R

R

R

R

R

R

G2.0 Atkinson

Engine oil and engine oil filter *¹

Smartstream

R

R

R

R

R

R

R

R

R

R

R

R

R

G1.6 T-GDi

Fuel additives *2

Add fuel additives every 8,000 miles (13,000 km) or 12 months

Air cleaner filter

I

I

R

I

I

R

I

I

R

I

I

R

I

Air intake hose

I

I

I

I

I

I

I

I

I

I

I

I

I

Smartstream

Replace every 96,000 miles

G2.0 Atkinson

Spark plugs

Smartstream

Replace every 48,000 miles

G1.6 T-GDi

Rotate tires

Rotate tires every 8,000 miles (13,000 km) or 12 months

Cabin air filter

R

R

R

R

R

R

At first, inspect at 48,000 miles (78,000 km) or 72 months.

Drive belts *3

Thereafter, inspect every 8,000 miles (13,000 km) or 12 months

R: Replace or change.

I : Inspect and if necessary, adjust, correct, clean or replace.

*1 : Requires API SN PLUS (or above) grade engine oil. If a lower grade engine oil is used, then the engine oil and engine oil filter

must be replaced at every 5,000 miles (8,000 km) or 6 months as indicated for severe maintenance condition.

*2 : If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your

authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.

*3 : The drive belt should be replaced when cracks occur or tension is reduced excessively.

❈ As it is normal for engine oil to be consumed during driving, the amount of engine oil should be checked regularly.

❈ The replacement cycle of engine oil is set by the period which the performance of our recommended engine oil is maintained.

So, if recommended engine oil is not used, a replacement is required as indicated severe usage condition.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Normal Maintenance Schedule (CONT)

MAINTENANCE

Months

12

24

36

48

60

72

84

96

108

120

132

144

156

INTERVALS

Miles×1,000

8

16

24

32

40

48

56

64

72

80

88

96

104

MAINTENANCE

ITEM

Km×1,000

13

26

39

52

65

78

91

104

117

130

143

156

169

At first, replace at 120,000 miles (200,000 km) or 120 months.

Engine coolant

After that, replace every 24,000 miles (39,000 km) or 24 months

Battery condition

I

I

I

I

I

I

I

I

I

I

I

I

I

Brake lines, hoses and connections

I

I

I

I

I

I

I

I

I

I

I

I

I

Disc brakes and pads

I

I

I

I

I

I

I

I

I

I

I

I

I

Steering gear rack, linkage and boots / lower arm ball joint,

I

I

I

I

I

I

I

I

I

I

I

I

I

upper arm ball joint

Driveshaft and boots

I

I

I

I

I

I

I

I

I

I

I

I

I

Suspension mounting bolts

I

I

I

I

I

I

I

I

I

I

I

I

I

Air conditioner refrigerant

I

I

I

I

I

I

I

I

I

I

I

I

I

Air conditioner compressor

I

I

I

I

I

I

I

I

I

I

I

I

I

Exhaust pipe and muffler

I

I

I

I

I

I

I

I

I

I

I

I

I

Manual transmission fluid (if equipped) *1

Replace every 40,000miles or 4 years

Intelligent variable transmission fluid (if equipped) *2

No check, No service required

Dual clutch transmission fluid (if equipped) *1

I

I

I

R: Replace or change.

I : Inspect and if necessary, adjust, correct, clean or replace.

*1 : Manual transmission fluid/Dual clutch transmission fluid should be changed anytime they have been submerged in water.

*2 : Use only the specified intelligent variable transmission fluid. (Refer to “Recommended lubricants and capacities” section in

chapter 2 or the label in the engine compartment.)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Normal Maintenance Schedule (CONT)

MAINTENANCE

Months

12

24

36

48

60

72

84

96

108

120

132

144

156

INTERVALS

Miles×1,000

8

16

24

32

40

48

56

64

72

80

88

96

104

MAINTENANCE

ITEM

Km×1,000

13

26

39

52

65

78

91

104

117

130

143

156

169

Vapor hose, fuel filler cap and fuel tank

I

I

I

I

I

I

Fuel tank air filter

I

I

I

I

I

I

Fuel filter *1

-

Fuel lines, hoses and connections

I

I

I

I

I

I

Parking brake

I

I

I

I

I

I

Inspect every 8,000 miles (13,000 km) or 12 months,

Brake fluid

Replace every 48,000 miles (78,000 km) or 48 months

R: Replace or change.

I : Inspect and if necessary, adjust, correct, clean or replace.

*1 : The fuel filter is considered to be maintenance free but periodic inspection is recommended for this maintenance schedule

depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting

problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized HYUNDAI

dealer for details.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Maintenance Under Severe Usage Conditions

The following items must be serviced more frequently on cars mainly used under

severe driving conditions. Refer to the chart below for the appropriate maintenance

intervals.

R : Replace

I : Inspect and if necessary, adjust, correct, clean or replace

Maintenance

Driving

Maintenance item

Maintenance intervals

operation

condition

A, B, C, D,

Smartstream

E, F, G, H, I,

G2.0 Atkinson

Engine oil and

Replace every 5,000 miles

J, K, L

R

filter *¹

(8,000 km) or 6 months

A, B, C, D,

Smartstream

E, F, G, H, I,

G1.6 T-GDi

J, K, L

Inspect more frequently

Air cleaner filter

I

C, E

depending on the condition

Replace more frequently

A, B, F, G,

Spark plugs

R

depending on the condition

H, I, K

Steering gear rack, linkage and

Inspect more frequently

I

C, D, E, F, G

boots

depending on the condition

Inspect more frequently

Front suspension ball joints

I

C, D, E, F, G

depending on the condition

Disc brakes and pads, calipers

Inspect more frequently

I

C, D, E, G, H

and rotors

depending on the condition

Inspect more frequently

Parking brake

I

C, D, G, H

depending on the condition

Inspect more frequently

C, D, E, F,

Driveshaft and boots

I

depending on the condition

G, H, I, J

Replace more frequently

Cabin air filter

R

C, E, G

depending on the condition

Manual transmission fluid

Replace every 80,000miles

C, D, E, F,

R

(if equipped)

(120,000 km)

G, H, I, J

Intelligent variable transmission

Replace every 60,000miles

A, C, D, E, F,

R

fluid (if equipped)

(90,000 km)

G, H, I, K

Dual clutch transmission fluid

Replace every 80,000miles

C, D, E, F,

R

(if equipped)

(120,000km)

G, H, I, J

Replace every 72,000 miles

C, D, E, G,

Rear differential oil

R

(120,000 km)

H, I, J

Transfer case oil

No check, No service required

*1 : Requires <API SN PLUS (or above)> grade engine oil. If a lower grade engine oil (mineral

oil) is used, then the engine oil and engine oil filter must be replaced as indicated for

severe maintenance condition.

9-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

ENGINE OIL

Checking the Engine Oil Level

„ Smartstream G2.0

Engine oil is used for lubricating,

cooling, and operating various hydraulic

components in the engine. Engine oil

consumption while driving is normal,

and it is necessary to check and refill the

engine oil regularly. Also, check and refill

the oil level within the recommended

maintenance schedule to prevent

deterioration of oil performance.

Check the engine oil following the below

OCN7080066L

procedure.

„ Smartstream G1.6 T-GDi

1. Follow all of the oil manufacturer’s

precautions.

2. Be sure the vehicle is on the level

ground in P (Park) with the parking

brake set. If possible, block the

wheels.

3. Turn the engine on and allow the

engine to reach normal operating

temperature.

4. Turn the engine off and wait about

OCN7N080002

fifteen minutes for the oil to return to

6. Pull the dipstick out again and check

the oil pan.

the level.

5. Wipe the dipstick clean and re-insert

it fully.

9-16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

„ Smartstream G2.0

NOTICE

To prevent damage to your engine:

ś Do not spill engine oil when adding

or changing engine oil. Use a funnel

to help prevent oil from being spilled

on engine components. Wipe off

spilled oil immediately.

ś The engine oil consumption may

increase while you break in a new

vehicle and it will be stabilized after

OCN7080068L

driving 4,000 miles.

„ Smartstream G1.6 T-GDi

ś The engine oil consumption can be

affected by driving habits, climate

conditions, traffic conditions,

oil quality, etc. Therefore, it is

recommended that you inspect the

engine oil level regularly and refill it

if necessary.

OCN7N080003

7. If the oil level is below L, add enough

oil to bring the level to F.

Use only the specified engine oil. (refer

to “Recommended Lubricants and

Capacities” in chapter 2).

9-17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Checking the Engine Oil and

Information

Filter

When the oil pressure is low due to

insufficient engine oil, the Engine

Oil Pressure (

) warning light will

illuminate. In addition, the enhanced

engine protection system, which limits

the engine’s power is activated and the

Malfunction Indicator Lamp (

) will

illuminate when the vehicle is driven in

this state continuously. When oil pressure

is restored, the Engine Oil Pressure

warning light will turn off and the engine

power will no longer be limited.

ś

Have the engine oil and filter be

CAUTION

changed by an authorized HYUNDAI

dealer according to the Maintenance

The engine oil is very hot immediately

Schedule at the beginning of this

after the vehicle has been driven and

chapter.

can cause burns during replacement.

Replace the engine oil after the engine

ś

If the maintenance schedule to

oil has cooled down.

replace engine oil is exceeded,

the engine oil performance may

deteriorate, and the engine condition

WARNING

may be affected. Therefore, replace

CALIFORNIA PROPOSITION 65

the engine oil according to the

WARNING

maintenance schedule.

Engine oil contains chemicals known to

ś

To keep the engine in optimal

the State of California to cause cancer,

condition, use the recommended

birth defects and reproductive harm.

engine oil and filter. If the

Used engine oil may cause irritation or

recommended engine oil and filter are

cancer of the skin if left in contact with

not used, replace it according to the

the skin for prolonged periods of time.

maintenance schedule under severe

Always protect your skin by washing

usage conditions.

your hands thoroughly with soap and

ś

The purpose of the maintenance

warm water as soon as possible after

schedule for engine oil replacement

handling used oil.

is to prevent oil deterioration and it is

irrelevant to oil consumption. Check

and refill engine oil regularly.

9-18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

ENGINE COOLANT

The high-pressure cooling system has a

Checking the Engine Coolant

reservoir filled with year-round antifreeze

Level

coolant. The reservoir is filled at the

factory.

Check the antifreeze protection and

coolant level at least once a year, at

the beginning of the winter season and

before traveling to a colder climate.

NOTICE

ś When the engine overheats from

low engine coolant, suddenly adding

engine coolant may cause cracks

in the engine. To prevent damage,

OCN7080004

„ Smartstream G1.6 T-GDi

add engine coolant slowly in small

quantities.

ś Do not drive with no engine coolant.

It may cause water pump failure and

engine seizure, etc.

OCN7N080005

Check the condition and connections

of all cooling system hoses and

heater hoses. Replace any swollen or

deteriorated hoses.

The coolant level should be filled

between the F and the L marks on the

side of the coolant reservoir when the

engine is cool.

If the coolant level is low, add enough

distilled (deionized) water to bring the

level to the F mark, but do not overfill. If

frequent additions are required, see an

authorized HYUNDAI dealer for a cooling

system inspection.

9-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Recommended engine coolant

WARNING

ś When adding coolant, use only

distilled (deionized) water for your

vehicle and never mix hard water in

the coolant filled at the factory.

ś An improper coolant mixture can

result in severe malfunction or engine

damage.

ś The engine in your vehicle has

aluminum engine parts and must be

protected by an ethylene-glycol with

phosphate based coolant to prevent

OCN7080005

corrosion and freezing.

„ Smartstream G1.6 T-GDi

ś Do not use alcohol or methanol

coolant or mix them with the specified

coolant.

ś Do not use a solution that contains

more than 60% antifreeze or less than

35% antifreeze, which would reduce

the effectiveness of the solution.

For mixing percentage, refer to the

following table:

OCN7N080006

Mixture Percentage

1. Check if the radiator cap label is

Ambient

(volume)

straight In front.

Temperature

Antifreeze

Water

2. Make sure that the tiny protrusions

inside the radiator cap should be

5°F (-15°C)

35

65

securely interlocked.

-13°F (-25°C)

40

60

-31°F (-35°C)

50

50

-49°F (-45°C)

60

40

Information

If in doubt about the mix ratio, a 50%

water and 50% antifreeze mix is the

easiest to mix together as it will be the

same quantity of each. It is suitable to use

for most temperature ranges of - 31°F and

higher.

9-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

Changing Engine Coolant

WARNING

Have coolant changed by an authorized

The electric motor for the

HYUNDAI dealer according to the

cooling fan may continue to

Maintenance Schedule at the beginning

operate or start up when the

of this chapter.

engine is not running and can

cause serious injury. Keep

hands, clothing and tools away

WARNING

from the rotating fan blades of

the cooling fan.

Do not use engine coolant or antifreeze

in the washer fluid reservoir.

The electric motor for the cooling

Engine coolant can severely obscure

fan is controlled by engine coolant

visibility when sprayed on the

temperature, refrigerant pressure and

windshield and may cause loss of

vehicle speed. As the engine coolant

vehicle control resulting in an accident.

temperature decreases, the electric

Engine coolant may also cause damage

motor will automatically shut off. This is a

to paint and body trim.

normal condition.

NOTICE

To prevent damage to engine parts, put

a thick towel around the radiator cap

before refilling the coolant to prevent

the coolant from overflowing into

engine parts, such as the alternator.

9-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

BRAKE/CLUTCH FLUID

Checking the Brake/Clutch Fluid

Information

Level

Clean the filler cap before removing. Use

only DOT4 brake/clutch fluid from a

sealed container.

WARNING

Do not let brake fluid enter into your

eyes. If brake fluid gets in your eyes,

flush your eyes with clean water for

at least 15 minutes and get immediate

medical attention.

OCN7080006

NOTICE

Check the fluid level in the reservoir

ś

Do not allow brake/clutch fluid to

periodically. The fluid level should be

contact the vehicle’s body paint, as it

between MAX and MIN marks on the side

will result in paint damage.

of the reservoir.

ś

NEVER use brake fluid which has

Before removing the reservoir cap and

been exposed to open air for an

adding brake fluid, clean the area around

extended time, as its quality cannot

the reservoir cap thoroughly to prevent

be guaranteed. It should be disposed

brake fluid contamination.

of properly.

If the level is low, add fluid to the MAX

ś

Don’t put in the wrong type of fluid.

level. The level will fall with accumulated

A few drops of mineralbased oil, such

mileage. This is a normal condition

as engine oil in your brake system

associated with the wear of the brake

can damage system parts.

linings.

ś

To maintain the best braking

If the fluid level is excessively low, have

performance and ABS/ESC

the system be checked by an authorized

performance, have you use genuine

HYUNDAI dealer.

brake/clutch fluid that conform to

specifications.

Information

(Standard : SAE J1704 DOT-4 LV,

Use only the specified brake/clutch fluid.

ISO4925 CLASS-6 and FMVSS 116

Refer to “Recommended lubricants and

DOT-4)

capacities” in chapter 2.

Information

Before removing the brake/clutch filler

cap, read the warning on the cap.

9-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

WASHER FLUID

PARKING BRAKE

Checking the Washer Fluid Level

Checking the Parking Brake

OCN7080007

OCN7080072L

Check the fluid level in the washer fluid

Check the stroke of the parking brake by

reservoir and add fluid if necessary. Plain

counting the number of “clicks’’ heard

water may be used if washer fluid is not

while fully applying it from the released

available. However, use washer solvent

position. Also, the parking brake alone

with antifreeze characteristics in cold

should securely hold the vehicle on a

climates to prevent freezing.

fairly steep grade. If the stroke is more

or less than specified, have the system

be serviced by an authorized HYUNDAI

WARNING

dealer.

To prevent serious injury or death, take

Stroke : 5~8 “clicks’’ at a force of 44 lbs

the following safety precautions when

(20 kg, 196 N)

using washer fluid:

ś Do not use engine coolant or

antifreeze in the washer fluid

reservoir.

Engine coolant can severely obscure

visibility when sprayed on the

windshield and may cause loss

of vehicle control resulting in an

accident or damage to paint and

body trim.

ś Do not allow sparks or flames to

contact the washer fluid or the

washer fluid reservoir. Washer fluid

may contain alcohol and can be

flammable.

ś Do not drink washer fluid and avoid

contact with skin. Washer fluid is

harmful to humans and animals.

ś Keep washer fluid away from

children and animals.

9-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

AIR CLEANER

Filter Replacement

„ Type A

OCN7090011N

OCN7090010N

1. Loosen the air cleaner cover attaching

„ Type B (N Line)

clip (1) and open the cover.

OCN7N080004

The air cleaner filter can be cleaned for

OCN7090012N

inspection using compressed air. Do not

attempt to wash or to rinse it, as water

2. Replace the air cleaner filter.

will damage the filter. If soiled, the air

cleaner filter must be replaced.

9-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

OCN7080088N

3. Insert the air cleaner cover in the

hinge (2) and engage the clip (1) after

closing the cover.

4. Check that the cover is firmly

installed.

Information

If the vehicle is operated in extremely

dusty or sandy areas, replace the element

more often than the usual recommended

intervals (refer to “Maintenance Under

Severe Usage Conditions” in this chapter).

NOTICE

ś Do not drive with the air cleaner filter

removed. This will result in excessive

engine wear.

ś When removing the air cleaner filter,

be careful that dust or dirt does not

enter the air intake, or damage may

result.

ś Use HYUNDAI genuine parts. Use of

non-genuine parts could damage the

engine.

9-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

CABIN AIR FILTER

Filter Inspection

The cabin air filter should be replaced

according to the Maintenance Schedule.

If the vehicle is operated in severely

air-polluted cities or on dusty rough

roads for a long period, it should be

inspected more frequently and replaced

earlier. When you replace the cabin air

filter, replace it performing the following

procedure, and be careful to avoid

damaging other components.

OCN7080014

2. Remove the cabin air filter case while

Filter Replacement

pressing the lock on the right side of

the cover.

OCN7080013

1. Push in both sides of the glove box as

OIK077021

shown. This will ensure that the glove

3. Replace the cabin air filter.

box stopper pins will get released

from its holding location allowing the

4. Reassemble in the reverse order of

glove box to hang.

disassembly.

NOTICE

Install a new cabin air filter in the correct

GLUHFWLRQ ZLWK WKH DUURZ V\PERO Ƣ

facing downwards, otherwise, it may be

noisy and the effectiveness of the filter

may be reduced.

9-26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Front windshield wiper service

positions

OGSR076067

OCN7080015

1. Raise the wiper arm.

This vehicle has a “hidden” wiper design

which means that the wipers cannot

be lifted when they are in their bottom

resting position.

1. Within 20 seconds of turning off the

engine, lift and hold the wiper lever

up to the MIST position for about 2

seconds until the wipers move to the

top wipe position.

2. At this time you can lift the wipers off

the windshield.

3. Gently put the wipers back down onto

the windshield.

OGSR076066

4. Turn the wipers to any ON position

2. Lift up the wiper blade clip. Then pull

to return the wipers to the bottom

down the blade assembly and remove

resting position.

it.

OGSR076068

3. Install the new blade assembly.

4. Return the wiper arm on the

windshield.

9-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

09

BATTERY

If acid gets into your eyes, flush your

WARNING

eyes with clean water for at least 15

To prevent SERIOUS INJURY or DEATH

minutes and get immediate medical

to you or bystanders, always follow

attention. If acid gets on your skin,

these precautions when working near

thoroughly wash the area. If you feel

or handling the battery:

pain or a burning sensation, get medical

Always read and follow

attention immediately.

instructions carefully when

ś

When lifting a plastic-cased battery,

handling a battery.

excessive pressure on the case may

cause battery acid to leak. Lift with a

Wear eye protection designed

battery carrier or with your hands on

to protect the eyes from acid

opposite corners.

splashes.

ś

Do not attempt to jump start your

vehicle if your battery is frozen.

Keep all flames, sparks, or

ś

NEVER attempt to recharge the

smoking materials away from

battery when the vehicle’s battery

the battery.

cables are connected to the battery.

Hydrogen is always present

ś

The electrical ignition system works

in battery cells, is highly

with high voltage. NEVER touch

combustible, and may explode

these components with the engine

if ignited.

running or when the ignition switch

is in the ON position.

Keep batteries out of reach of

ś

Do not allow the (+) and (-) jumper

children.

cables to touch. It may cause sparks.

ś

The battery may rupture or explode

Batteries contain sulfuric acid

when you jump start with a low or

which is highly corrosive. Do

frozen battery.

not allow acid to contact your

ś

Leaked battery electrolyte due to

eyes, skin or clothing.

repeated driving on sharp curves

(for example, on circuits) may cause

safety problem. Avoid repeated

driving on sharp curves.

WARNING

CALIFORNIA PROPOSITION 65

WARNING

Battery posts, terminals, and related

accessories contain lead and lead

compounds, chemicals known to the

State of California to cause cancer,

birth defects and reproductive harm.

Batteries also contain other chemicals

known to the State of California

to cause cancer. Wash hands after

handling.

9-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

NOTICE

Battery Capacity Label

Always follow these instructions when

„ Example

handling your vehicle’s battery to

‡ Type A

prevent damage to your battery:

ś When you do not use the vehicle for a

long time in a low temperature area,

disconnect the battery and keep it

indoors.

ś Always charge the battery fully to

prevent battery case damage in low

temperature areas.

ś Prevent liquid from wetting the

OCN7080076L

battery terminals. The performance

of the battery may be degraded, and

‡ Type B

may cause injury. Be cautious when

loading liquid in the trunk.

ś Do not tilt the battery.

ś If you connect unauthorized

electronic devices to the battery, the

battery may be discharged. Never

use unauthorized devices.

For Best Battery Service

OCN7080077L

❈ The actual battery label in the vehicle may differ

from the illustration.

1. AGM70L-DIN: The HYUNDAI model

name of battery

2.

12V : The nominal voltage

3. 70Ah (20HR): The nominal capacity (in

Ampere hours)

4. RC 120min: The nominal reserve

capacity (in min.)

OCN7080016

5. CCA: The cold-test current in amperes

ś Keep the battery securely mounted.

by SAE

ś Keep the battery top clean and dry.

6. 760A: The cold-test current in

amperes by EN

ś Keep the terminals and connections

clean, tight, and coated with

petroleum jelly or terminal grease.

ś Rinse any spilled acid from the battery

immediately with a solution of water

and baking soda.

9-30

Content      ..     15      16      17      18     ..
