Battery Recharging

NOTICE

AGM battery (if equipped)

WARNING

ś Absorbent Glass Matt (AGM)

batteries are maintenance-free and

Always follow these instructions when

have the AGM battery be serviced

recharging your vehicle’s battery to

by an authorized HYUNDAI dealer.

avoid the risk of SERIOUS INJURY or

For charging your AGM battery, use

DEATH from explosions or acid burns:

only fully automatic battery chargers

Before performing maintenance or

that are specially developed for AGM

recharging the battery, turn off all

batteries.

accessories and place the ignition

ś When replacing the AGM battery,

switch to the LOCK/OFF position.

have you use parts for replacement

Keep all flames, sparks, or smoking

from an authorized HYUNDAI dealer.

materials away from the battery.

ś Do not open or remove the cap on

Always work outdoors or in an area

top of the battery. This may cause

with plenty of ventilation.

leaks of internal electrolyte that

Wear eye protection when checking

could result in severe injury.

the battery during charging.

By jump starting

The battery must be removed from

the vehicle and placed in a well

After a jump start from a good battery,

ventilated area.

drive the vehicle for 20-30 minutes

before it is shutoff. The vehicle may

Watch the battery during charging,

not restart if you shut it off before the

and stop or reduce the charging

battery had a chance to adequately

rate if the battery cells begin boiling

recharge. See “Jump Starting” in chapter

violently.

8 for more information on jump starting

Vehicle is equipped with the

procedures.

Absorbent Glass Mat (AGM) battery.

Do not charge the AGM battery with

a general charger. It may damage

Information

or explode the AGM battery. Only

An inappropriately disposed

charge the AGM battery with a

battery can be harmful to

charger that has AGM battery

the environment and human

setting.

health. Dispose of the battery

The negative battery cable must

according to your local law(s) or

be removed first and installed last

regulations.

when the battery is disconnected.

Disconnect the battery charger in the

Reset Items

following order:

Items should be reset after the battery

1. Turn off the battery charger main

has been discharged or the battery has

switch.

been disconnected.

2. Unhook the negative clamp from

ś Auto up/down window (See chapter 5)

the negative battery terminal.

ś Sunroof (See chapter 5)

3. Unhook the positive clamp from

ś Trip computer (See chapter 4)

the positive battery terminal.

ś Climate control system (See chapter 5)

Always use a genuine HYUNDAI

approved battery when you replace

the battery.

9-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

TIRES AND WHEELS

Tire Care

WARNING

For proper maintenance, safety, and

Tire failure may cause loss of

maximum fuel economy, you must

vehicle control resulting in an

always maintain recommended

accident. To reduce risk of SERIOUS

tire inflation pressures and stay

INJURY or DEATH, take the

within the load limits and weight

following precautions:

distribution recommended for your

Inspect your tires monthly for

vehicle.

proper inflation as well as wear

and damage.

The recommended cold tire

pressure for your vehicle can be

found in this manual and on the

tire label located on the driver’s

side center pillar. Always use a

tire pressure gauge to measure

tire pressure. Tires with too

much or too little pressure wear

unevenly causing poor handling.

Check the pressure of the

OCN7010009L

spare every time you check the

All specifications (sizes and

pressure of the other tires on

pressures) can be found on a label

your vehicle.

attached to the driver’s side center

Replace tires that are worn, show

pillar.

uneven wear, or are damaged.

Worn tires can cause loss of

Recommended Cold Tire

braking effectiveness, steering

Inflation Pressures

control, or traction.

All tire pressures (including the

ALWAYS replace tires with

spare) should be checked when the

the same type, size, brand,

tires are cold. “Cold tires” means the

construction and tread pattern

vehicle has not been driven for at

as each tire that was originally

least three hours or has been driven

supplied with this vehicle. Using

for less than one mile (1.6 km).

tires and wheels other than the

recommended sizes could cause

Warm tires normally exceed

unusual handling characteristics,

recommended cold tire pressures

poor vehicle control, or

by 4 to 6 psi (28 to 41 kPa). Do not

negatively affect your vehicle’s

release air from warm tires to adjust

Anti-Lock Brake System (ABS)

the pressure or the tires will be

resulting in a serious accident.

under-inflated. For recommended

inflation pressure, refer to “Tire and

Wheels” in chapter 2.

9-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Check Tire Inflation Pressure

WARNING

Check your tires, including the spare

Recommended pressures must be

tire, once a month or more.

maintained for the best ride, vehicle

handling, and minimum tire wear.

How to check

Over-inflation or under-inflation

can reduce tire life, adversely

Use a good quality tire pressure

gauge to check tire pressure. You

affect vehicle handling, and lead to

sudden tire failure that could result

can not tell if your tires are properly

inflated simply by looking at them.

in loss of vehicle control resulting in

an accident.

Radial tires may look properly

inflated when they are under-

Severe under-inflation can lead

inflated.

to severe heat build-up, causing

Remove the valve cap from the tire

blowouts, tread separation and

other tire failures that can result in

valve stem. Press the tire gauge

firmly onto the valve to get a

the loss of vehicle control resulting

in an accident. This risk is much

pressure measurement. If the cold

tire inflation pressure matches the

higher on hot days and when

driving for long periods at high

recommended pressure on the tire

label located on the driver’s side

speeds.

center pillar or in this manual. No

further adjustment is necessary. If

CAUTION

the pressure is low, add air until you

reach the recommended pressure.

Under-inflation results in

Make sure to put the valve caps

excessive wear, poor handling

back on the valve stems. Without

and reduced fuel economy.

the valve cap, dirt or moisture could

Wheel deformation is also

get into the valve core and cause

possible. Keep your tire pressures

air leakage. If a valve cap is missing,

at the proper levels. If a tire

install a new one as soon as possible.

frequently needs refilling, have

it checked by an authorized

If you overfill the tire, release air by

HYUNDAI dealer.

pushing on the metal stem in the

center of the tire valve. Recheck the

Over-inflation produces a harsh

tire pressure with the tire gauge. Be

ride, excessive wear at the center

sure to put the valve caps back on

of the tire tread, and a greater

the valve stems. Without the valve

possibility of damage from road

cap, dirt or moisture could get into

hazards.

the valve core and cause air leakage.

If a valve cap is missing, install a new

one as soon as possible.

A cold tire means the vehicle has

been sitting for 3 hours and driven

for less than 1 mile (1.6 km) in that 3

hour period.

Allow the tire to cool before

measuring the inflation pressure.

Always be sure the tire is cold before

inflating to the recommended

pressure.

9-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Tire Rotation

Without a spare tire

To equalize tread wear, HYUNDAI

recommends that the tires

be rotated according to the

maintenance schedule or sooner if

irregular wear develops.

During rotation, check the tires for

correct balance.

When rotating tires, check for

uneven wear and damage. Abnormal

wear is usually caused by incorrect

OHI078078

tire pressure, improper wheel

Disc brake pads should be inspected for

alignment, out-of-balance wheels,

wear whenever tires are rotated.

severe braking or severe cornering.

Look for bumps or bulges in the

tread or side of the tire. Replace

Information

the tire if you find any of these

Tires that are asymmetrical or

conditions. Replace the tire if fabric

directional can only be installed

or cord is visible. After rotation, be

on the wheel in one direction.

sure to bring the front and rear tire

The outside and inside of an

pressures to specification and check

asymmetrical tire is not easily

lug nut tightness (proper torque is

distinguishable. Pay careful

79~94 lbf·ft [11~13 kgf·m]).

attention to the markings on the

sidewalls of the tires, noting the

“outside” marking and also the

rotating direction before installing

them on the vehicle.

WARNING

ś Do not use the compact spare

tire for tire rotation.

ś Do not mix bias ply and radial ply

tires under any circumstances.

This may cause unusual handling

characteristics that may cause

loss of vehicle control resulting in

an accident.

9-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Wheel Alignment and Tire

Tire Replacement

Balance

Tread wear indicator

The wheels on your vehicle were

aligned and balanced carefully at the

factory to give you the longest tire

life and best overall performance.

In most cases, you will not need to

have your wheels aligned again.

However, if you notice unusual tire

wear or your vehicle pulling one way

or the other, the alignment may need

to be reset.

OLMB073027

If you notice your vehicle vibrating

If the tire is worn evenly, a tread wear

when driving on a smooth road, your

indicator will appear as a solid band

wheels may need to be rebalanced.

across the tread. This shows there is

less than 1/16 inch (1.6 mm) of tread

NOTICE

left on the tire. Replace the tire when

Improper wheel weights can

this happens.

damage your vehicle’s aluminum

Do not wait for the tread surface to

wheels. Use only approved wheel

become level with the tread wear

weights.

indicators before replacing the tire.

9-35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Compact spare tire replacement

WARNING

A compact spare tire has a shorter

To reduce the risk of DEATH or

tread life than a regular size tire.

SERIOUS INJURY:

Replace it when you can see the

Replace tires that are worn, show

tread wear indicator bars on the tire.

uneven wear, or are damaged.

The replacement compact spare tire

Worn tires can cause loss of

should be the same size and design

braking effectiveness, steering

tire as the one provided with your

control, and traction.

new vehicle and should be mounted

Always replace tires with the

on the same compact spare tire

same size as each tire that was

wheel. The compact spare tire is

originally supplied with this

not designed to be mounted on a

vehicle. Using tires and wheels

regular size wheel, and the compact

other than the recommended

spare tire wheel is not designed for

sizes could cause unusual

mounting a regular size tire.

handling characteristics, poor

vehicle control, or negatively

WARNING

affect your vehicle’s Anti-Lock

Brake System (ABS) resulting in a

The original tire should be repaired

serious accident.

or replaced as soon as possible to

Tires degrade over time, even

avoid failure of the spare and loss

when they are not being used.

of vehicle control resulting in an

Regardless of the remaining

accident. The compact spare tire

tread, HYUNDAI recommends

is for emergency use only. Do not

that tires be replaced after six (6)

operate your vehicle over 50 mph

years of normal service.

(80 km/h) when using the compact

spare tire.

When replacing tires, it is

recommended to replace the

two front or two rear tires as a

pair. Replacing just one tire can

seriously affect your vehicle’s

handling. If only replacing one

pair of tires, it is recommended

to install the pair of new tires on

the rear axle.

Heat caused by hot climates or

frequent high loading conditions

can accelerate the aging process.

Failure to follow this warning

may cause sudden tire failure,

which could lead to a loss of

vehicle control resulting in an

accident.

9-36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Wheel Replacement

When replacing the metal wheels

for any reason, make sure the new

wheels are equivalent to the original

factory units in diameter, rim width

and offset.

Tire Traction

Tire traction can be reduced if you

drive on worn tires, tires that are

improperly inflated or on slippery

OLMB073028

road surfaces. Tires should be

replaced when the tread depth is at

1. Manufacturer or brand name

least 2/32 inch (1.6 mm). To reduce

Manufacturer or brand name is

the possibility of losing control, slow

shown.

down whenever there is rain, snow

or ice on the road.

2. Tire size designation

A tire’s sidewall is marked with a

Tire Maintenance

tire size designation. You will need

In addition to proper inflation,

this information when selecting

correct wheel alignment helps to

replacement tires for your car.

decrease tire wear. If you find a tire

The following explains what the

is worn unevenly, have your dealer

letters and numbers in the tire size

check the wheel alignment.

designation mean.

When you have new tires installed,

Example tire size designation:

make sure they are balanced. This

(These numbers are provided as

will increase vehicle ride comfort

an example only; your tire size

and tire life. Additionally, a tire

designator could vary depending on

should always be rebalanced if it is

your vehicle.)

removed from the wheel.

205/55R16 91H

Tire Sidewall Labeling

205 -Tire width in millimeters.

This information identifies and

describes the fundamental

55 - Aspect ratio. The tire’s section

height as a percentage of its

characteristics of the tire and also

provides the tire identification

width.

number (TIN) for safety standard

R - Tire construction code (Radial).

certification. The TIN can be used to

16 - Rim diameter in inches.

identify the tire in case of a recall.

91 - Load Index, a numerical code

associated with the maximum

load the tire can carry.

H - Speed Rating Symbol. See the

speed rating chart in this section

for additional information.

9-37

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Wheel size designation

3. Checking tire life (TIN : Tire

Identification Number)

Wheels are also marked with

important information that you need

Any tires that are over six years old,

if you ever have to replace one. The

based on the manufacturing date,

following explains what the letters

(including the spare tire) should be

and numbers in the wheel size

replaced by new tires. You can find

designation mean.

the manufacturing date on the tire

Example wheel size designation:

sidewall (possibly on the inside of

the wheel), displaying the DOT Code.

6.5J X 16

The DOT Code is a series of numbers

on a tire consisting of numbers and

6.5 - Rim width in inches.

English letters. The manufacturing

J - Rim contour designation.

date is designated by the last four

16 - Rim diameter in inches.

digits (characters) of the DOT code.

DOT : XXXX XXXX OOOO

Tire speed ratings

The chart below lists many of the

The front part of the DOT shows a

plant code number, tire size and

different speed ratings currently

being used for passenger vehicle

tread pattern and the last four

numbers indicate week and year

tires. The speed rating is part of the

tire size designation on the sidewall

manufactured.

of the tire. This symbol corresponds

For example:

to that tire’s designed maximum safe

DOT XXXX XXXX 1422 represents that

operating speed.

the tire was produced in the 14th

week of 2022.

Speed Rating

Maximum Speed

Symbol

4. Tire ply composition and material

112 mph (180 km/h)

The number of layers or plies of

118 mph (190 km/h)

rubber-coated fabric in the tire. Tire

130 mph (210 km/h)

manufacturers also must indicate the

materials in the tire, which include

149 mph (240 km/h)

steel, nylon, polyester, and others.

168 mph (270 km/h)

The letter “R” means radial ply

186 mph (300 km/h)

construction; the letter “D” means

diagonal or bias ply construction;

and the letter “B” means belted-bias

ply construction.

9-38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

5. Maximum permissible inflation

Tread wear

pressure

The tread wear grade is a

This number is the greatest amount

comparative rating based on the

of air pressure that should be put in

wear rate of the tire when tested

the tire. Do not exceed the maximum

under controlled conditions on a

permissible inflation pressure. Refer

specified government test course.

to the Tire and Loading Information

For example, a tire graded 150 would

label for recommended inflation

wear one-and-a-half times (1½) as

pressure.

well on the government course as a

tire graded 100.

6. Maximum load rating

The relative performance of tires

This number indicates the maximum

depends upon the actual conditions

load in kilograms and pounds that

of their use, however, and may

can be carried by the tire. When

depart significantly from the norm

replacing the tires on the vehicle,

due to variations in driving habits,

always use a tire that has the same

service practices and differences in

load rating as the factory installed

road characteristics and climate.

tire.

These grades are molded on the

sidewalls of passenger vehicle tires.

7. Uniform tire quality grading

The tires available as standard or

optional equipment on your vehicle

Quality grades can be found where

may vary with respect to grade.

applicable on the tire sidewall

between tread shoulder and

maximum section width.

Traction AA, A, B & C

For example:

The traction grades, from highest

to lowest, are AA, A, B and C. Those

TREAD WEAR 200

grades represent the tire’s ability to

TRACTION AA

stop on wet pavement as measured

TEMPERATURE A

under controlled conditions on

specified government test surfaces

of asphalt and concrete. A tire

marked C may have poor traction

performance.

WARNING

The traction grade assigned to this

tire is based on straight-ahead

braking traction tests, and does not

include acceleration, cornering,

hydroplaning, or peak traction

characteristics.

9-39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Temperature A, B & C

Tire Terminology and Definitions

The temperature grades are A (the

highest), B and C representing the

Air Pressure

tire’s resistance to the generation

The amount of air inside the tire

of heat and its ability to dissipate

pressing outward on the tire. Air

heat when tested under controlled

pressure is expressed in pounds per

conditions on a specified indoor

square inch (psi) or kilopascal (kPa).

laboratory test wheel.

Sustained high temperature can

Accessory Weight

cause the material of the tire to

This means the combined weight

degenerate and reduce tire life, and

of optional accessories. Some

excessive temperature can lead to

examples of optional accessories

sudden tire failure. Grade C responds

are automatic transmission, power

to a level of performance which

seats, and air conditioning.

all passenger car tires must meet

under the Federal Motor Vehicle

Aspect Ratio

Safety Standard No. 109. Grades

The relationship of a tire’s height to

B and A represent higher levels of

its width.

performance on the laboratory test

wheel than the minimum required

by law.

Belt

A rubber coated layer of cords that

is located between the plies and the

WARNING

tread. Cords may be made from steel

The temperature grade for this

or other reinforcing materials.

tire is established for a tire that

is properly inflated and not

Bead

overloaded. Excessive speed,

The tire bead contains steel wires

under-inflation, over-inflation, or

wrapped by steel cords that hold the

excessive loading, either separately

tire onto the rim.

or in combination, can cause heat

build-up and possible sudden

Bias Ply Tire

tire failure. This may cause loss

of vehicle control resulting in an

A pneumatic tire in which the plies

are laid at alternate angles less than

accident.

90 degrees to the centerline of the

tread.

Cold Tire Pressure

The amount of air pressure in a tire,

measured in pounds per square inch

(psi) or kilopascals (kPa) before a tire

has built up heat from driving.

9-40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Curb Weight

Load Index

This means the weight of a motor

An assigned number ranging from 1

vehicle with standard and optional

to 279 that corresponds to the load

equipment including the maximum

carrying capacity of a tire.

capacity of fuel, oil and coolant, but

without passengers and cargo.

Maximum Inflation Pressure

The maximum air pressure to which

DOT Markings

a cold tire may be inflated. The

A code molded into the sidewall

maximum air pressure is molded

of a tire signifying that the tire

onto the sidewall.

is in compliance with the U.S.

Department of Transportation motor

Maximum Load Rating

vehicle safety standards. The DOT

The load rating for a tire at the

code includes the Tire Identification

maximum permissible inflation

Number (TIN), an alphanumeric

pressure for that tire.

designator which can also identify

the tire manufacturer, production

Maximum Loaded Vehicle Weight

plant, brand and date of production.

The sum of curb weight; accessory

GVWR

weight; vehicle capacity weight; and

production options weight.

Gross Vehicle Weight Rating

Normal Occupant Weight

GAWR FRT

The number of occupants a vehicle

Gross Axle Weight Rating for the

is designed to seat multiplied by 150

Front Axle.

pounds (68 kg).

GAWR RR

Occupant Distribution

Gross Axle Weight Rating for the

Designated seating positions.

Rear axle.

Intended Outboard Sidewall

Outward Facing Sidewall

An asymmetrical tire has a particular

The side of an asymmetrical tire,

that must always face outward when

side that faces outward when

mounted on a vehicle. The outward

mounted on a vehicle.

facing sidewall bears white lettering

or bears manufacturer, brand, and/or

Kilopascal (kPa)

model name molding that is higher

The metric unit for air pressure.

or deeper than the same moldings

on the inner facing sidewall.

Light truck (LT) tire

A tire designated by its manufacturer

Passenger (P-Metric) tire

as primarily intended for use on

A tire used on passenger cars

lightweight trucks or multipurpose

and some light duty trucks and

passenger vehicles.

multipurpose vehicles.

Load ratings

Ply

The maximum load that a tire is rated

A layer of rubber-coated parallel

to carry for a given inflation pressure.

cords.

9-41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Pneumatic tire

Tread

A mechanical device made of rubber,

The portion of a tire that comes into

chemicals, fabric and steel or other

contact with the road.

materials, that, when mounted on

an automotive wheel provides the

Treadwear Indicators

traction and contains the gas or fluid

Narrow bands, sometimes called

that sustains the load.

“wear bars”, that show across the

tread of a tire when only 1/16 inch of

Pneumatic options weight

tread remains.

The combined weight of installed

regular production options weighing

UTQGS

over 5 lb. (2.3 kg) in excess of the

Uniform Tire Quality Grading

standard items which they replace,

Standards is a tire information

not previously considered in

system that provides consumers

curb weight or accessory weight,

with ratings for a tire’s traction,

including heavy duty breaks, ride

temperature and treadwear.

levelers, roof rack, heavy duty

Ratings are determined by tire

battery, and special trim.

manufacturers using government

testing procedures. The ratings are

Recommended Inflation Pressure

molded into the sidewall of the tire.

Vehicle manufacturer’s

recommended tire inflation pressure

Vehicle Capacity Weight

as shown on the tire placard.

The number of designated seating

positions multiplied by 150 lbs. (68

Radial Ply Tire

kg) plus the rated cargo and luggage

A pneumatic tire in which the ply

load.

cords that extend to the beads are

laid at 90 degrees to the centerline

Vehicle Maximum Load on the Tire

of the tread.

Load on an individual tire due to curb

and accessory weight plus maximum

Rim

occupant and cargo weight.

A metal support for a tire and upon

which the tire beads are seated.

Vehicle Normal Load on the Tire

Load on an individual tire that is

Sidewall

determined by distributing to each

The portion of a tire between the

axle its share of the curb weight,

tread and the bead.

accessory weight, and normal

occupant weight and dividing by 2.

Speed Rating

Vehicle Placard

An alphanumeric code assigned to a

tire indicating the maximum speed

A label permanently attached

at which a tire can operate.

to a vehicle showing the

original equipment tire size and

Traction

recommended inflation pressure.

The friction between the tire and

the road surface. The amount of grip

provided.

9-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

All Season Tires

Radial-Ply Tires

HYUNDAI specifies all season

Radial-ply tires provide improved

tires on some models to provide

tread life, road hazard resistance

good performance for use all year

and smoother high speed ride. The

round, including snowy and icy

radial-ply tires used on this vehicle

road conditions. All season tires

are of belted construction, and are

are identified by ALL SEASON and/

selected to complement the ride

or M+S (Mud and Snow) on the tire

and handling characteristics of your

sidewall. Snow tires have better

vehicle.

snow traction than all season tires

Radial-ply tires have the same load

and may be more appropriate in

carrying capacity, as bias-ply or

some areas.

bias belted tires of the same size,

and use the same recommended

Summer Tires

inflation pressure. Mixing of radial-

ply tires with bias-ply or bias belted

HYUNDAI specifies summer tires on

tires is not recommended. Any

some models to provide superior

combinations of radial-ply and bias-

performance on dry roads. Summer

ply or bias belted tires when used

tire performance is substantially

on the same vehicle will seriously

reduced in snow and ice. Summer

deteriorate vehicle handling. The

tires do not have the tire traction

best rule to follow is: Identical pairs

rating M+S (Mud and Snow) on

of radial-ply tires should always be

the tire side wall. If you plan to

used as a set for the front tires and a

operate your vehicle in snowy or icy

set for the rear tires.

conditions, HYUNDAI recommends

the use of snow tires or all season

Longer wearing tires can be more

tires on all four wheels.

susceptible to irregular tread wear.

It is very important to follow the tire

Snow Tires

rotation interval in this chapter to

achieve the tread life potential of

If you equip your car with snow

these tires. Cuts and punctures in

tires, they should be the same size

radial-ply tires are repairable only in

and have the same load capacity as

the tread area, because of sidewall

the original tires. Snow tires should

flexing. Consult your tire dealer for

be installed on all four wheels;

radial-ply tire repairs.

otherwise, poor handling may result.

Snow tires should carry 4 psi (28 kPa)

more air pressure than the pressure

WARNING

recommended for the standard

Do not mix bias ply and radial ply

tires on the tire label on the driver’s

tires under any circumstances.

side of the center pillar, or up to the

This may cause unusual handling

maximum pressure shown on the tire

characteristics that may cause loss

sidewall, whichever is less. Do not

of vehicle control resulting in an

drive faster than 75 mph (120 km/h)

accident.

when your vehicle is equipped with

snow tires.

9-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Low Aspect Ratio Tires

CAUTION

The aspect ratio is lower than 50 on

It is not easy to recognize tire

low aspect ratio tires.

damage with your own eyes. But

Because low aspect ratio tires are

if there is the slightest hint of tire

optimized for handling and braking,

damage, have the tire checked

their sidewall is a little stiffer than

or replaced because the tire

a standard tire. Also low aspect

damage may cause air leakage

ratio tires tend to be wider and

from the tire.

consequently have a greater contact

If the tire is damaged by driving

patch with the road surface. In some

on a rough road, off road,

instances they may generate more

pothole, manhole, or curb stone,

road noise compared with standard

it will not be covered by the

tires.

warranty.

CAUTION

Because the sidewall of a low

aspect ratio tire is shorter than

a standard tire, the rim of the

wheel and the tire itself is more

easily susceptible to damage. Use

caution when driving and follow the

guidelines below to help minimize

damage to the wheel and tire:

ś When driving on a rough road

or off road, drive cautiously

because tires and wheels may

be damaged. And after driving,

inspect tires and wheels.

ś When passing over a pothole,

speed bump, manhole, or curb

stone, drive slowly so that

the tires and wheels are not

damaged.

ś If the tire is subjected to a severe

impact, have the tire and wheel

inspected by an authorized

HYUNDAI dealer.

ś Inspect the tire condition and

pressure every 1,800 miles

(3,000km).

9-44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUSES

Ŷ Blade type

If the electrical system does not work,

first check the driver’s side fuse panel.

Before replacing a blown fuse, turn the

engine and all switches off, and then

disconnect the negative battery cable.

Always replace a blown fuse with one of

the same rating.

If the replacement fuse blows, this

Normal

Blown

indicates an electrical problem.

Avoid using the system involved and

immediately consult an authorized

Ŷ Cartridge type

HYUNDAI dealer.

WARNING

NEVER replace a fuse with anything but

another fuse of the same rating.

ś A higher capacity fuse could cause

damage and possibly cause a fire.

Normal

Blown

ś Do not install a wire or aluminum

foil instead of the proper fuse -

Ŷ Multi fuse

even as a temporary repair. It may

cause extensive wiring damage and

possibly a fire.

NOTICE

Do not use a screwdriver or any other

metal object to remove fuses because

it may cause a short circuit and damage

the system.

Normal

Blown

OTM078035

A vehicle’s electrical system is protected

from electrical overload damage by

fuses.

This vehicle has 2 (or 3) fuse panels, one

located in the driver’s side panel bolster,

the other in the engine compartment

near the battery.

If any of your vehicle’s lights,

accessories, or controls do not work,

check the appropriate circuit fuse. If a

fuse has blown, the element inside the

fuse will be melted or broken.

9-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

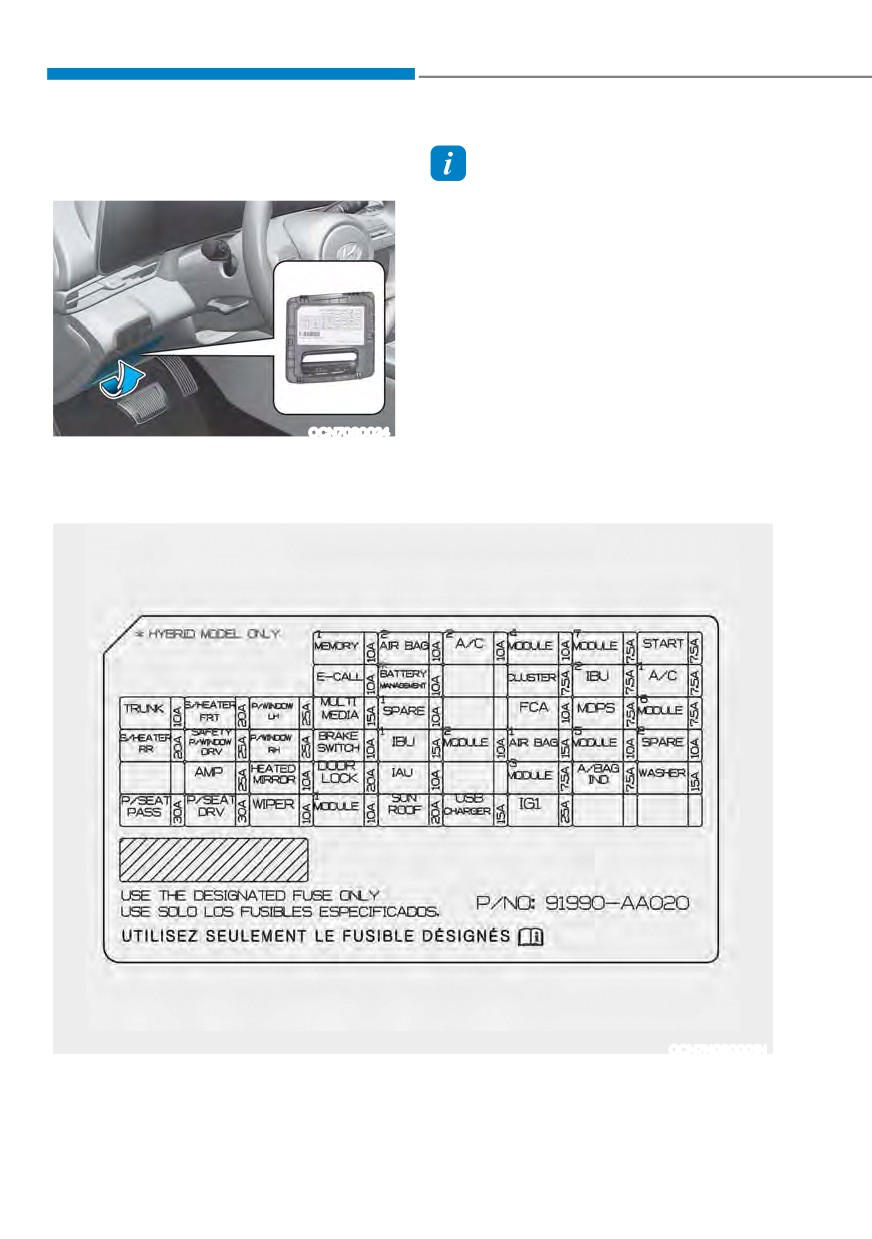

Instrument Panel Fuse

Replacement

OCN7080018

5. Pull the suspected fuse straight out.

Use the removal tool provided in the

OCN7080017

engine compartment fuse panel.

1. Turn the vehicle off.

6. Check the removed fuse; replace it if

2. Turn all other switches OFF.

it is blown. Spare fuses are provided in

3. Open the fuse panel cover.

the engine compartment fuse panel.

4. Refer to the label on the inside of

7. Push in a new fuse of the same

the fuse panel cover to locate the

rating, and make sure it fits tightly in

suspected fuse location.

the clips. If it fits loosely, consult an

authorized HYUNDAI dealer.

In an emergency, if you do not have a

spare fuse, use a fuse of the same rating

from a circuit you may not need for

operating the vehicle.

If the other electrical components do

not work and the fuses are undamaged,

check the fuse panel in the engine

compartment. If a fuse is blown, it must

be replaced with the same rating.

If the headlight, turn signal lamp, tail

lamp, interior lamp doesn’t work and

the fuses are undamaged, consult an

authorized HYUNDAI dealer.

9-46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

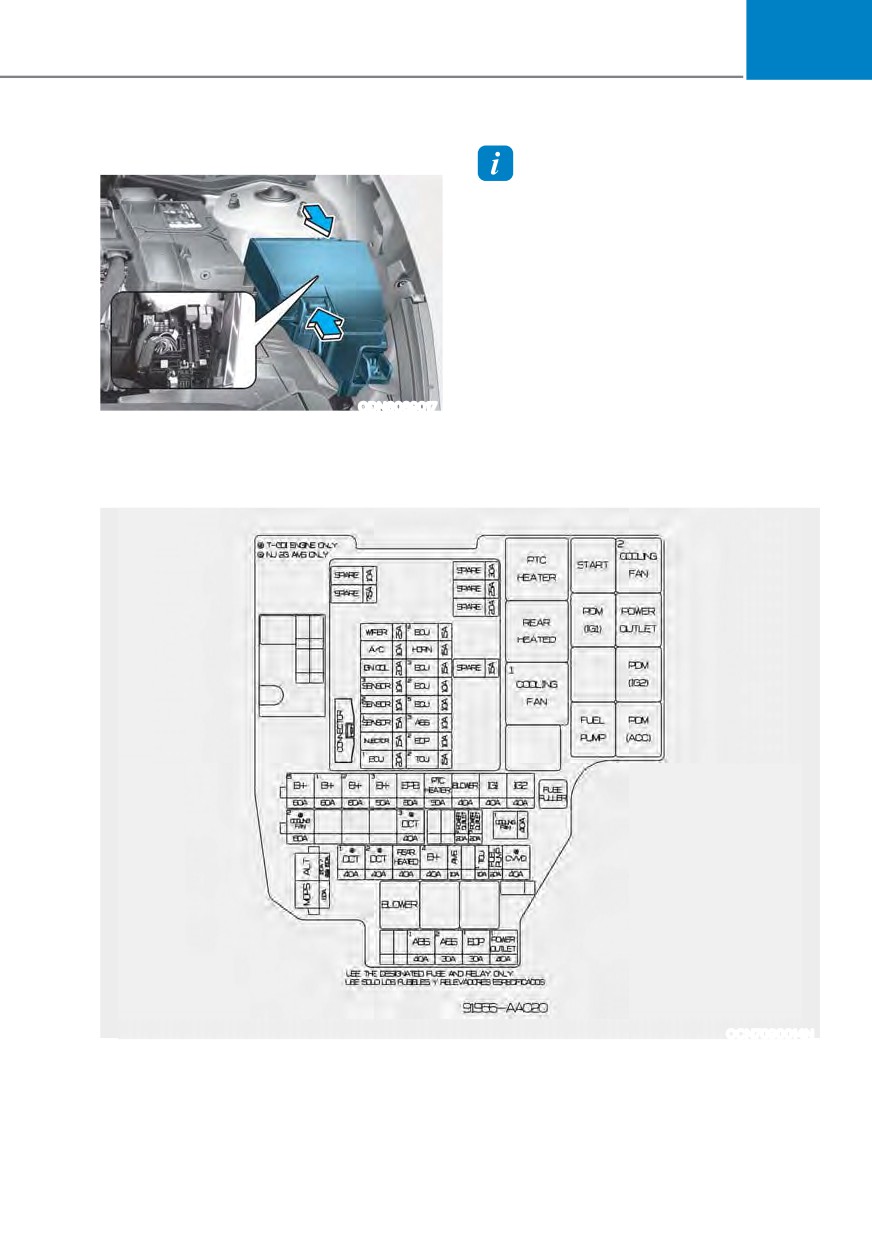

Engine Compartment Panel Fuse

CAUTION

Replacement

After checking the fuse box in the

Blade type fuse

engine compartment securely close

the fuse box cover inside the engine

compartment, until it clicks.

If the fuse box is not closed properly,

water may leak in side, possibly causing

a malfunction with the electrical

system.

Multi fuse (Main fuse)

OCN7080021

Cartridge type fuse

OCN7080020

If the multi fuse is blown, it must be

OCN7080022

removed as follows:

1. Turn the engine off.

1. Turn off the engine.

2. Turn all other switches OFF.

2. Disconnect the negative battery

cable.

3. Remove the fuse panel cover by

pressing the tap and pulling up.

3. Remove the fuse panel cover by

pressing the tab and pulling it up.

4. Check the removed fuse; replace it

if it is blown. To remove or insert the

4. Remove the nuts shown in the picture

fuse, use the fuse puller in the engine

above.

compartment fuse panel.

5. Replace the fuse with a new one of

5. Push in a new fuse of the same

the same rating.

rating, and make sure it fits tightly in

6. Reinstall in the reverse order of

the clips. If it fits loosely, consult an

removal.

authorized HYUNDAI dealer.

Information

If the multi fuse is blown, consult an

authorized HYUNDAI dealer.

9-47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver’s side fuse panel

Fuse Name

Fuse Rating

Circuit Protected

Instrument Cluster, A/C Controller, A/C Control Module,

MEMORY1

10A

DRV/PASS Folding Outside Mirror

AIR BAG2

10A

SRS Control Module

Lane Keeping Assist Unit (LINE), Crash Pad Switch, IBU,

MODULE4

10A

A/T Shift Lever Indicator, Front Console Switch

IAU,Cooling fan controller (N Line only), Rear Seat

MODULE7

7.5A

Warmer Control Module

Burglar Alarm Relay, Transaxle Range Switch, PCM/

START

7.5A

ECMIBU, E/R Junction Block (Start Relay) (Smartstream

G 2.0 Atkinson only)

CLUSTER

7.5A

Instrument Cluster

IBU2

7.5A

IBU

E/R Junction Block (PTC Heater Relay, Blower Relay),

A/C1

7.5A

A/C Control Module, A/C Controller

TRUNK

10A

Trunk Lid Latch

S/HEATER FRT

20A

Front Seat Warmer Control Module

P/WINDOW LH

25A

Power Window Main Switch

Audio, A/V & Navigation Head Unit, DC-DC Converter

MULTIMEDIA

15A

(Smartstream G 2.0 Atkinson ISG only)

FCA

10A

Forward Collision Avoidance Assist Unit

MDPS *¹

7.5A

MDPS Unit

MODULE6

7.5A

IBU

S/HEATER RR

20A

Rear Seat Warmer Control Module

SAFETY P/

25A

Driver Safety Power Window Module

WINDOW DRV

Power Window Main Switch, Passenger Power Window

P/WINDOW RH

25A

Switch

BRAKE SWITCH

10A

Stop Lamp Switch, IBU

IBU1

15A

IBU

*1 : MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)

9-49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Driver’s side fuse panel

Fuse Name

Fuse Rating

Circuit Protected

E/R Junction Block (Power Outlet Relay), AMP, IBU, IAU,

Audio, Power Outside Mirror Switch, DC-DC Converter

MODULE2

10A

(Smartstream G 2.0 Atkinson ISG only), A/V & Navigation

Head Unit

SRS Control Module, Passenger Occupant Detection

AIR BAG1

15A

Sensor

A/T Shift Lever Indicator, Front Wireless Charger, A/C

Controller,Electro Chromic Mirror, A/C Control Module,

Audio, A/V & Navigation Head Unit, AMP, DC-DC

MODULE5

10A

Converter (Smartstream G 2.0 Atkinson ISG only), Data

Link Connector, Rear Seat Warmer Control Module,

Front Seat Warmer Control Module

AMP, DC-DC Converter (Smartstream G 2.0 Atkinson ISG

AMP

25A

only)

DRV/PAS Outside Mirror Heated, A/C Control Module,

HEATED MIRROR

10A

A/C Controller, ECU (N Line only)

DOOR LOCK

20A

Door Lock/Unlock Actuator

IAU

10A

BLE Unit, IAU, Driver/Passenger Door NFC Module

MODULE3

7.5A

Sport Mode Switch, Stop Lamp Switch, IAU

A/BAG IND

7.5A

Instrument Cluster, Overhead Console Lamp

WASHER

15A

Multifunction Switch

P/SEATPASS

30A

Power Seat

P/SEATDRV

30A

Power Seat

WIPER

10A

PCM/ECM, IBU

Driver/Passenger Smart Key Outside Handle, Crash

MODULE1

10A

Pad Switch, Sport Mode Switch, Data Link Connector,

Hazard Switch, Key Solenoid

SUNROOF

20A

Sunroof Motor

USBCHARGER

15A

Front USB Charger

IG1

25A

PCB Block (Fuse - ABS3, ECU5, EOP2, TCU2)

9-50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Engine compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

[Smartstream G 2.0 Atkinson with AMS2]

Alternator, (Fuse - ABS1, ABS2, EOP1, POWER

150A

OUTLET1)

MULTI

ALT

180A

[Smartstream G 2.0 Atkinson & Smartstream

FUSE-3

G1.6 T-GDi without AMS2] Alternator, (Fuse -

ABS1, ABS2, POWER OUTLET1)

MDPS1

80A

MDPS Unit

COOLING

MULTI

60A

[G4FP] Cooling Fan Controller

FAN2

FUSE-2

DCT3

40A

[G4FP] SGA

PCB Block (Engine Control Relay, Fuse -

B+5

60A

ECU3, ECU4, HORN, WIPER, A/C)

ICU Junction Block (IPS2/IPS5/IPS6/IPS7/

B+1

60A

IPS14)

ICU Junction Block (IPS1/IPS4/IPS8/IPS9/

B+2

60A

IPS10)

ICU Junction Block (Fuse - TRUNK, AMP,

SAFETY P/WINDOW DRV, P/SEAT DRV, P/

B+3

50A

SEAT PASS, S/HEATER FRT, S/HEATER RR,

MULTI

Long Term Load Latch Relay)

FUSE-1

EPB

60A

ESC Control Module

PTC HEATER

50A

PTC HEATER

BLOWER Motor, Multipurpose Check

BLOWER

40A

Connector

E/R Junction Block (PDM (IG1/ACC) Relay),

IG1

40A

Ignition Switch

E/R Junction Block (PDM (IG2) Relay, Start

IG2

40A

Relay), Ignition Switch

9-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Engine compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

POWER

20A

Front Power Outlet

OUTLET2

POWER

20A

Not Used

OUTLET3

COOLING

Cooling Fan (Smartstream G 2.0 Atkinson

40A

FAN1

only)

DCT1

40A

[G4FP] TCM

DCT2

40A

[G4FP] TCM

REAR

40A

Rear Glass Heated

HEATED

ICU Junction Block (Fuse - AIR BAG2,

B+4

40A

IBU1, BRAKE SWITCH, DOOR LOCK, IAU,

MODULE1, SUNROOF,Power Window Relay)

FUSE

AMS

10A

Battery Sensor

TCU1

10A

[DCT] TCM, [M/T] Ignition Lock

Fuel Pump Control Module (T-GDI), Fuel

FUEL PUMP

20A

Pump Motor (NU MPI AKS)

CVVD

40A

[G4FP] CVVD Actuator

ABS Control Module, ESC Control Module,

ABS1

40A

Multipurpose Check Connector

ABS Control Module, ESC Control Module,

ABS2

30A

Multipurpose Check Connector

Electronic Oil Pump (Smartstream G 2.0

EOP1

30A

Atkinson ISG only)

POWER

40A

P/OUTLET FRT

OUTLET1

9-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Engine compartment fuse panel

Fuse Name

Fuse Rating

Circuit Protected

WIPER

25A

Wiper Motor

ECU4

15A

PCM/ECM

[G4FM] A/C Compressor (Smartstream G 2.0 Atkinson

A/C

10A

only)

HORN

15A

Horn

IGN COIL

20A

Ignition Coil #1~#4

ECU3

15A

PCM/ECM

SENSOR3

10A

E/R Junction Block (Fuel Pump Relay)

ECU2

10A

PCM/ECM (Smartstream G1.6 T-GDi only)

[G4NS] Variable Intake Solenoid Valve, Oil Pump

Solenoid Valve, Oil Control Valve #1/#2, Canister Close

Valve, Purge Control Solenoid Valve,

PCB Block (A/C Relay), E/R Junction Block (Cooling

SENSOR2

10A

Fan1/2 Relay)

[G4FP] Variable Oil Pump Solenoid, Oil Control Valve

#1/#2, Purge ControL Solenoid Valve, RCV Control

Solenoid Valve, CanisteR Close Valve

CVVD Actuator (Smartstream G1.6 T-GDi only), ECM/

ECU5

10A

PCM, Ignition Lock

SENSOR1

15A

Oxygen Sensor (UP/DOWN)

ABS Control Module, ESC Control Module, Multipurpose

ABS3

10A

Check Connector

[G4FM/G4FG/G4NA] Injector #1~#4 (Smartstream G 2.0

INJECTOR

15A

Atkinson only)

ECU1

20A

PCM/ECM

Transaxle Range Switch, [G4FP] TCM (Smartstream G1.6

TCU2

15A

T-GDi & DCT only)

9-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

LIGHT BULBS

Consult an authorized HYUNDAI dealer

Headlight, Parking Lamp,

to replace most vehicle light bulbs. It is

Daytime Running Light, Turn

difficult to replace vehicle light bulbs

Signal Lamp and Side Marker

because other parts of the vehicle must

be removed before you can get to the

bulb. This is especially true for removing

the headlight assembly to get to the

bulb(s).

Removing/installing the headlight

assembly can result in damage to the

vehicle.

Information

The headlight and tail lamp lenses could

OCN7090015N

appear frosty if the vehicle is washed after

driving or the vehicle is driven at night in

wet weather. This condition is caused by

temperature difference between the lamp

inside and outside and does not indicate

a problem with your vehicle. When

moisture condenses in the lamp, it will be

removed after driving with the headlight

on. The removable level may differ

depending on lamp size, lamp position

and environmental condition. However, if

moisture is not removed, have the vehicle

inspected by an authorized HYUNDAI

OCN7090016N

dealer.

(1)

Headlight (Low)

(2) Headlight (High)

WARNING

(3) Daytime running lamp (DRL)/

Parking lamp

ś Prior to replacing a lamp, depress

the foot brake, move the shift button

(4) Turn signal lamp

into P (Park) apply the parking brake,

(5) Side marker

place the ignition switch to the

LOCK/OFF position, and take the key

with you when leaving the vehicle

to avoid sudden movement of the

vehicle and to prevent possible

electric shock.

ś Be aware the bulbs may be hot and

may burn your fingers.

ś When the bulb is disconnected or the

lamp connector is removed while the

lamp is operating normally, the fuse

box electronics may recognize the

lamp as a malfunction. Therefore, a

fault record for the lamp may remain

in the Diagnostic Trouble Code (DTC)

recorded in the fuse box.

9-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

OLMB073042L

OCN7080042

Headlight (Halogen bulb)

1. Open the hood.

2. Disconnect the negative battery

cable.

WARNING

3. Remove the headlight bulb cover by

Handle halogen bulbs with care.

turning it counterclockwise.

Halogen bulbs contain pressurized

4. Disconnect the headlight bulb socket-

gas that will produce flying pieces

connector.

of glass that could cause injuries if

broken.

5. Unsnap the headlight bulb retaining

wire by pressing the end and pushing

Wear eye protection when changing

a bulb. Allow the bulb to cool down

it upward.

before handling it.

6. Remove the bulb from the headlight

assembly.

Always handle them carefully, and

7. Install a new headlight bulb and snap

avoid scratches and abrasions. If

the headlight bulb retaining wire into

the bulbs are lit, avoid contact with

position by aligning the wire with the

liquids.

groove on the bulb.

Never touch the glass with bare

8. Connect the headlight bulb socket-

hands. Residual oil may cause the

connector.

bulb to overheat and burst when lit.

9. Install the headlight bulb cover by

A bulb should be operated only when

turning it clockwise.

installed in a headlight.

If a bulb becomes damaged or

Information

cracked, replace it immediately and

carefully dispose of it.

The headlight aiming should be adjusted

after an accident or after the headlight

assembly is reinstalled at an authorized

HYUNDAI dealer.

9-56

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Headlight/Daytime running light (DRL) /

Parking lamp (LED type)

If the lamp (LED) does not operate, have

the system checked by an authorized

HYUNDAI dealer.

The LED lamps cannot be replaced as

a single unit because it is an integrated

unit. The LED lamps have to be replaced

with the unit.

A skilled technician should check or

repair the LED lamp, for it may damage

OCN7080043

related parts of the vehicle.

Turn signal lamp (Bulb type)

1. Open the hood.

2. Disconnect the negative battery

cable.

3. Remove the socket from

the assembly by turning the

socketcounterclockwise until the

tabs on the socket align with the slots

onthe assembly.

4. Remove the bulb from the socket

by pressing it in and rotating

itcounterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the socket.

5. Insert a new bulb by inserting it into

the socket and rotating it until it locks

into place.

6. Install the socket in the assembly by

aligning the tabs on the socket with

the slots in the assembly.

7. Push the socket into the assembly and

turn the socket clockwise.

9-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Side repeater lamp replacement

(if equipped)

OCN7090017N

Side marker (Bulb type)

1. Open the hood.

OCN7080074L

2. Disconnect the negative battery

If the LED lamp (1) does not operate,

cable.

have the vehicle checked by an

3. Remove the socket from the

authorized HYUNDAI dealer.

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on the

assembly.

4. Remove the bulb from the socket by

pulling out the bulb.

5. Insert a new bulb.

Side marker (LED type)

If the LED lamp does not operate, have

the vehicle checked by an authorized

HYUNDAI dealer.

9-58

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Bulb type

Rear combination lamp bulb

replacement

Type A

OCN7080073L

1. Remove the lamp assembly from the

OCN7090018N

vehicle by prying the lens and pulling

Type B

the assembly out.

2. Disconnect the bulb electrical

connector.

3. Separate the socket and the

lens parts by turning the socket

counterclockwise until the tabs on the

socket align with the slots on the lens

part.

4. Remove the bulb by pulling it straight

out.

OCN7H090026N

5. Insert a new bulb in the socket.

Type C

6. Reassemble the socket and the lens

part.

7. Connect the bulb electrical connector.

8. Reinstall the lamp assembly to the

body of the vehicle.

OCN7H090025N

(1) Stop lamp (LED or bulb)

(2) Tail lamp (LED or bulb)

(3) Turn signal lamp

(4) Reverse lamp

(5) Rear side marker (LED or bulb)

9-59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Maintenance

Tail/Stop lamp/Turn signal lamp/

Side marker (Outer lamp) (Bulb type)

1. Open the trunk lid.

OCN7080075L

OCN7080045

2. Remove the service cover by pulling

out the service cover.

OCN7090019N

[A] : Tail/Stop lamp, [B] : Turn signal lamp,

[C] : Rear side marker

5. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on the

OCN7080046

assembly.

3. Loosen the assembly retaining nuts.

6. Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on the

bulb align with the slots in the socket.

Pull the bulb out of the socket.

7. Insert a new bulb by inserting it into

the socket and rotating it until it locks

into place.

8. Install the socket in the assembly by

aligning the tabs on the socket with

the slots in the assembly. Push the

socket into the assembly and turn the

socket clockwise.

OCN7080047

4. Remove the rear combination light

assembly from the body of the

vehicle.

9-60

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Tail lamp/Stop lamp (Inner lamp)

Reverse lamp (Inner lamp)

(Bulb type)

1. Open the trunk.

1. Disconnect the connector and then

2. Loosen the retaining screw of the

remove the nuts by turning the nuts

counter clockwise.

trunk lid cover and then remove the

cover.

2. Take the light assembly out.

OCN7080040

OCN7080053

3. Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on the

assembly.

4. Remove the bulb by pulling it out.

5. Insert a new bulb by inserting it into

the socket.

6. Reinstall the trunk lid cover by

6. Install the light assembly to the trunk.

pushing in the screw.

7. Reinstall the trunk lid cover by

pushing in the screw.

Stop/Tail lamp and rear side marker

(LED type)

If the LED lamp does not operate, have

the vehicle checked by an authorized

HYUNDAI dealer.

9-61

Hyundai Elantra (2023 year). Manual in english - page 18
