Hyundai i800 (2016 year). Instruction - part 7
Features of your vehicle
Instrument Cluster Control
WARNING
Never adjust the instrument cluster
whilst driving. This could result in
loss of control and lead to an acci-
dent that may cause death, serious
injury, or property damage.
OTQ047046R
Adjusting Instrument Cluster
Illumination (if equipped)
When the vehicle’s parking lights or
headlights are on, rotate the illumination
control knob to adjust the instrument
panel illumination intensity.
4 40
Features of your vehicle
km, km/h
mi, MPH
Gauges

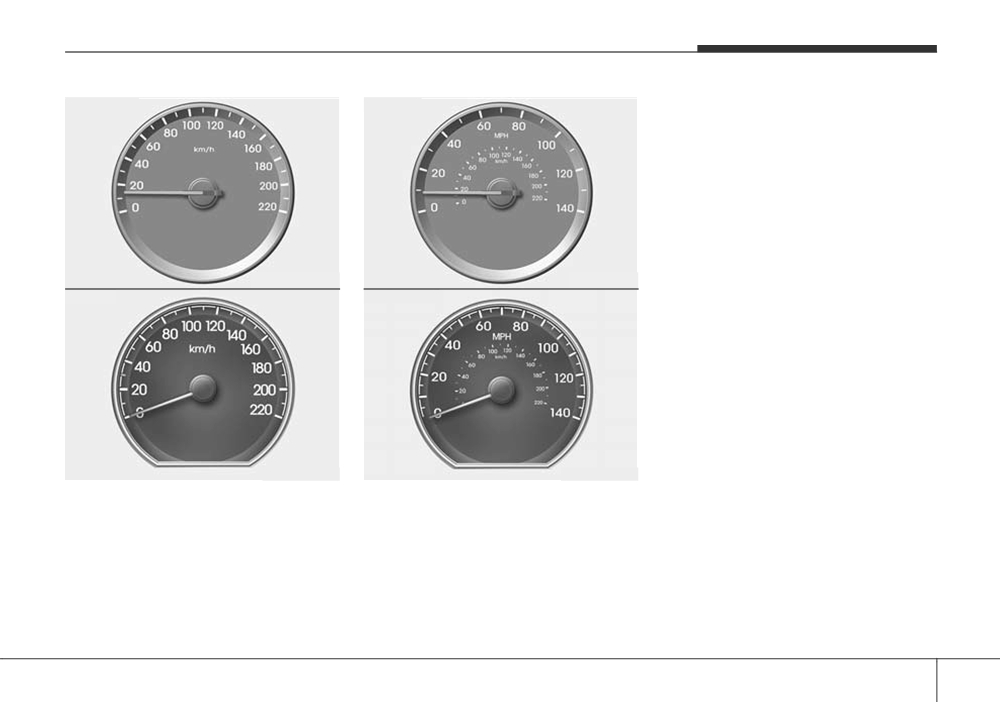

Speedometer (km or mile)
The speedometer indicates the forward
speed of the vehicle.
The speedometer is calibrated in miles
per hour and/or kilometers per hour.
OTQ045410
OTQ045411
OTQ045408
OTQ045409
4 41
Features of your vehicle
Petrol
The tachometer indicates the approxi-
Engine temperature gauge
mate number of engine revolutions per
This gauge shows the temperature of the
minute (rpm).
engine coolant when the ignition switch
Use the tachometer to select the correct
is ON.
shift points and to prevent lugging and/or
Do not continue driving with an overheat-
over-revving the engine.
ed engine. If your vehicle overheats, refer
When the door is open, or if the engine is
to “If the engine overheats” in section 6.
not started within 1 minute, the tachome-
ter pointer may move slightly in ON posi-
OTQ045402
tion with the engine OFF. This movement
CAUTION
Diesel
is normal and will not affect the accuracy
If the gauge pointer moves beyond
of the tachometer once the engine is run-
the normal range area toward the
ning.
“H” or “130” position, it indicates
overheating that may damage the
engine.
CAUTION
Do not operate the engine within
the tachometer's RED ZONE.
WARNING
This may cause severe engine dam-
Never remove the radiator cap
OTQ045401
age.
when the engine is hot. The engine
coolant is under pressure and
could cause severe burns. Wait
until the engine is cool before
adding coolant to the reservoir.
OTQ045403
Tachometer
4 42
Features of your vehicle
For Europe
Except Europe
WARNING - Fuel gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addition-
al fuel as soon as possible after the
warning light comes on or when the
gauge indicator comes close to the
“E” or “0” level.
OTQ045405
OTQ045404
CAUTION
Avoid driving with a very low fuel
level. If you run out of fuel, it could
cause the engine to misfire and
result in excessive loading of the
catalytic converter.
OTQ045407
OTQ045406
Fuel gauge
On inclines or curves, the fuel gauge
The fuel gauge indicates the approxi-
pointer may fluctuate or the low fuel
mate amount of fuel remaining in the fuel
warning light may come on earlier than
tank. The fuel tank capacity is given in
usual due to the movement of fuel in the
section 9. The fuel gauge is supplement-
tank.
ed by a low fuel warning light, which will
illuminate when the fuel tank is near
empty.
4 43
Features of your vehicle
■ Type A
■ Type A
OTQ045318
OTQ045319
OTQ047047R

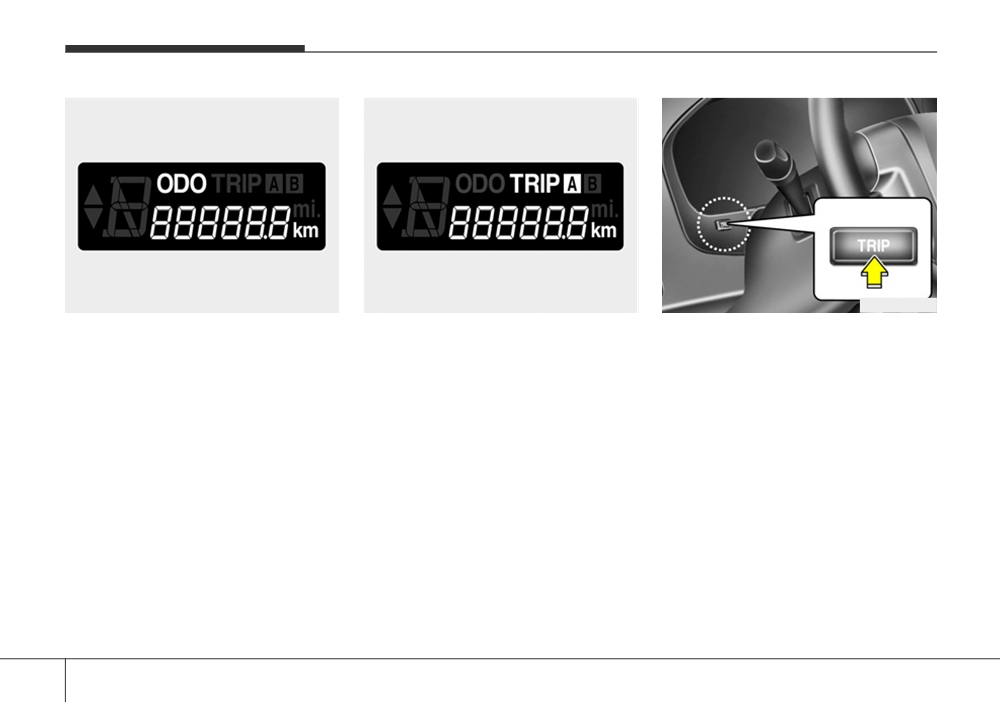

Odometer/Tripmeter
Tripmeter (km or mi)
Tripmeter A or B can be selected by
Odometer (km or mi)
TRIP A: Tripmeter A
pressing the TRIP button for less than 1
The odometer indicates the total dis-
TRIP B: Tripmeter B
second.
tance the vehicle has been driven.
The tripmeter indicates the distance of
Tripmeter A or B can be reset to 0.0 by
You will also find the odometer useful to
individual trips selected by the driver.
pressing the TRIP button for 1 second or
more, and then releasing.
determine when periodic maintenance
should be performed.
✽ NOTICE
It is forbidden that alteration of the
odometer of any vehicle with the intent
to change the mileage registered on the
odometer. The alteration may void your
warranty coverage.
4 44
Features of your vehicle
Push the TRIP button for less than 1 sec-
■ Type B
ond to select distance to empty, average
speed or tripmeter function as follows :
Distance to empty
Average speed
OTQ045323
■ Type C
Elapsed time*
OTQ047047R
Trip computer (if equipped)
Tripmeter
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving,
Urea level*
including distance to empty, tripmeter
and average speed on the display when
* :
if equipped
OTQ045326
the ignition switch is in the ON position.
\All stored driving information
(except
Odometer (km or mi)
odometer) is reset if the battery is dis-
The odometer Indicates the total dis-
connected. The odometer is always dis-
tance that the vehicle has been driven
played until the display is turned off.
and should be used to determine when
periodic maintenance should be per-
formed.
- Odometer range : 0 ~ 999999 kilome-
ters or miles.
4 45
Features of your vehicle
■ Type B
✽ NOTICE
■ Type B
•
If the vehicle is not on level ground or
the battery power has been interrupt-
ed, the “Distance to empty” function
may not operate correctly.
The trip computer may not register
additional fuel if less than 6 litres (1.6
gallons) of fuel are added to the vehi-
cle.
OTQ045320
•
The fuel consumption and distance to
OTQ045321
■ Type C
empty values may vary significantly
■ Type C
based on driving conditions, driving
habits, and condition of the vehicle.
•
The distance to empty value is an esti-
mate of the available driving distance.
This value may differ from the actual
driving distance available.
OTQ045304
OTQ045324

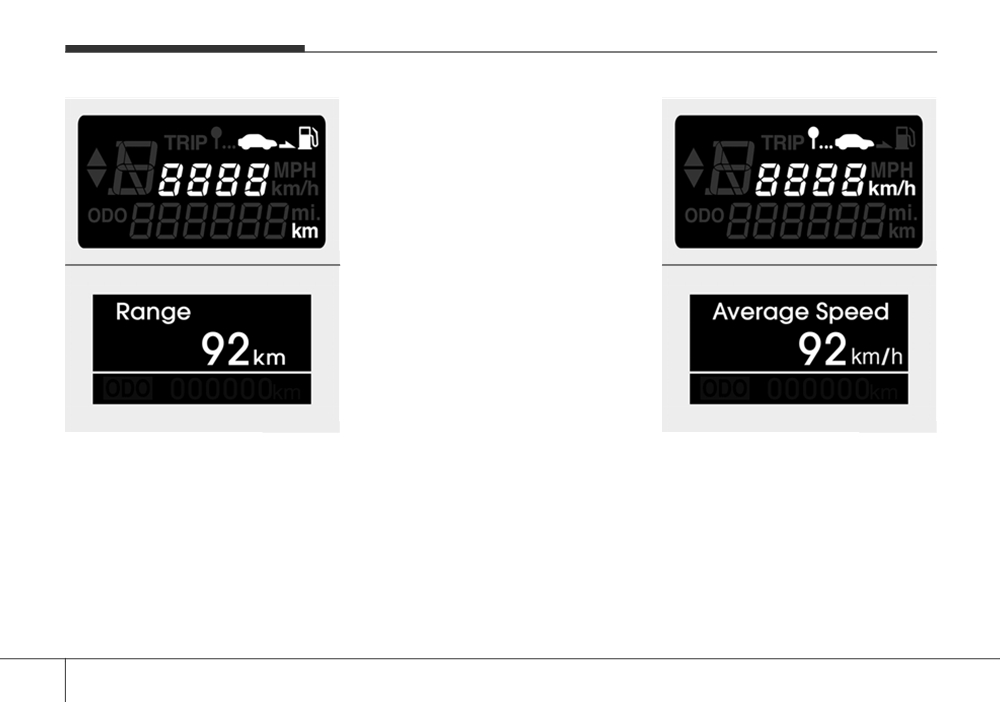

Distance to empty (km or miles)
Average speed (km/h or mph)
This mode indicates the estimated dis-
This mode calculates the average speed
tance to empty based on the current fuel
of the vehicle since the last average
in the fuel tank and the amount of fuel
speed reset.
delivered to the engine. When the
Even if the vehicle is not in motion, the
remaining distance is below
1 km (1
average speed keeps going whilst the
miles), “----” will be displayed and the dis-
engine is running.
tance to empty indicator will blink.
The meter's working range is from 0 to
The meter’s working range is from 1 to
999 km/h (0 to 999 mph).
9999 km (1 to 9999 miles).
4 46
Features of your vehicle
Pressing the TRIP button for more than 1
■ Type B
This mode indicates the distance of indi-
second, when the average speed is
vidual trip since the last tripmeter reset.
being displayed, clears the average
The meter's working range is from 0.0 to
speed to zero (---).
999.9 km (miles).
Pressing the TRIP button for more than 1
second when the tripmeter is being dis-
played clears the tripmeter to zero (0.0).
OTQ045322
■ Type C
OTQ045325
OTQ045301

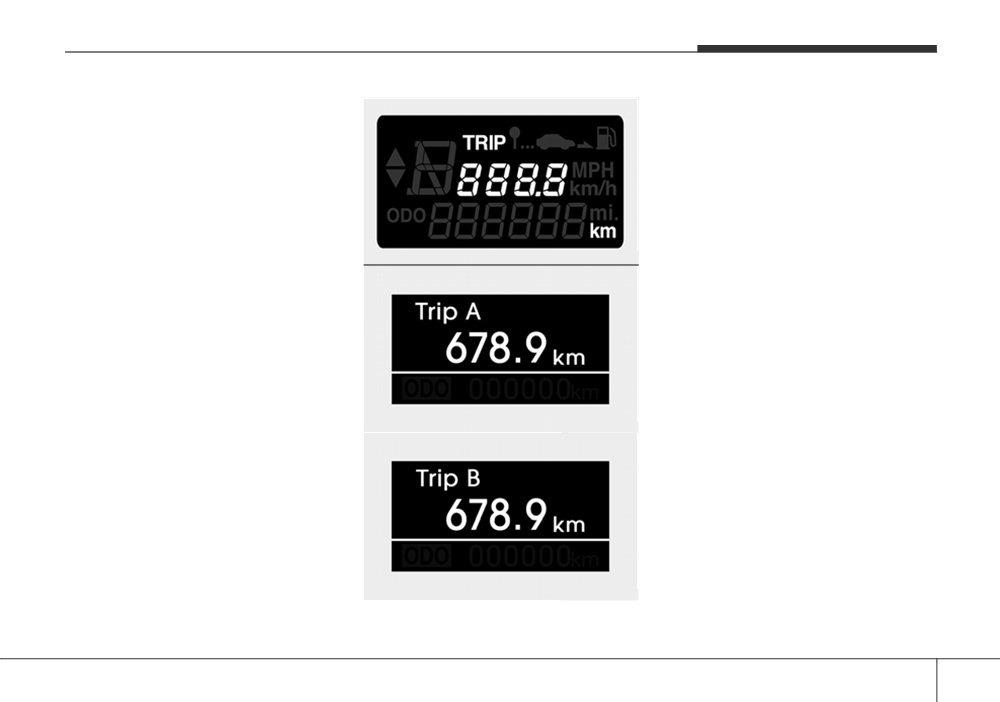

Tripmeter (km or miles)
4 47
Features of your vehicle
Warnings and indicators
Air bag warning light
Anti-lock brake system
(if equipped)
(ABS) warning light
All warning lights are checked by turning
(if equipped)
the ignition switch ON (do not start the
engine). If any light that does not illumi-
nate, we recommend that the system be
This warning light will illuminate for
This light illuminates if the ignition switch
checked by a HYUNDAI authorised
approximately 6 seconds each time you
is turned ON and goes off in approxi-
repairer.
turn the ignition switch to the ON posi-
mately 3 seconds if the system is operat-
After starting the engine, check to make
tion. This light also comes on when the
ing normally.
sure that all warning lights are off. If any
Supplemental Restraint System (SRS) is
If the ABS warning light remains on,
are still on, this indicates a situation that
not working properly. If the SRS air bag
comes on whilst driving, or does not
needs attention. When releasing the
warning light does not come on, or con-
come on when the ignition switch is
parking brake, the brake system warning
tinuously remains on after operating for
turned to the ON position, this indicates
light should go off. The fuel warning light
about 6 seconds when you turned the
that there may be a malfunction with the
will stay on if the fuel level is low.
ignition switch to the ON position or start-
ABS.
ed the engine, or if it comes on whilst
If this occurs, we recommend that the
driving, we recommend that the system
system be checked by a HYUNDAI
be inspected by a HYUNDAI authorised
authorised repairer.
repairer.
The normal braking system will still be
operational, but without the assistance of
the anti-lock brake system.
4 48
Features of your vehicle
Electronic brake force distribution (EBD)
Seat belt warning
Turn signal indicator
system warning light
■ Type A
■ Type B
Seat belt warning light
The blinking green arrows on the instru-
As a reminder to the driver, the seat belt
ment panel show the direction indicated
warning light will blink for approximately
by the turn signals. If the arrow comes on
6 seconds each time you turn the ignition
but does not blink, blinks more rapidly
If two warning lights illuminate at the
switch ON regardless of belt fastening.
than normal, or does not illuminate at all,
same time whilst driving, your vehicle
If the driver’s seat belt is unfastened after
a malfunction in the turn signal system is
may have a malfunction with the ABS
the ignition switch is ON, the seat belt
indicated. Your dealer should be consult-
and EBD system.
warning light blinks again for approxi-
ed for repairs.
In this case, your ABS and regular brake
mately 6 seconds.
system may not work normally. We rec-
High beam indicator
ommend that the system be checked by
Seat belt warning chime
a HYUNDAI authorised repairer.
If the driver's seat belt is not fastened
when the ignition switch is turned ON or
if it is unfastened after the ignition switch
WARNING
This indicator illuminates when the head-
is ON, the seat belt warning chime will
If the both ABS and brake warning
lights are on and in the high beam posi-
sound for approximately 6 seconds. At
lights are on and stay on, your vehi-
this time, if the seat belt is fastened, the
tion or when the turn signal lever is pulled
cle’s brake system will not work
chime will stop at once.
into the Flash-to-Pass position.
normally during sudden braking. In
this case, avoid high speed driving
and abrupt braking. We recommend
that the system be checked by a
HYUNDAI authorised repairer.
4 49
Features of your vehicle
Engine oil pressure
Engine oil level warning
warning light
CAUTION
light (Diesel engine,
If the oil pressure warning light
if equipped)
stays on whilst the engine is run-
This warning light indicates the engine oil
ning, serious engine damage may
When the engine oil is not enough, the
pressure is low.
result. The oil pressure warning
engine oil level warning light may be illu-
light comes on whenever there is
minated. If the warning light comes on,
If the warning light illuminates whilst driv-
insufficient oil pressure. In normal
check the engine oil level as soon as
ing:
operation, it should come on when
possible and add engine oil as required.
1. Drive safely to the side of the road and
the ignition switch is turned on,
Slowly pour the recommended the oil lit-
stop.
then go out when the engine is
tle by little into a funnel. (Oil refill capaci-
2. With the engine off, check the engine
started. If the oil pressure warning
ty: approximately 0.6 ~ 1.0 L)
oil level. If the level is low, add oil as
light stays on whilst the engine is
Use only the specified engine oil. (Refer
required.
running, there is a serious malfunc-
to "Recommended lubricants and capac-
If the warning light remains on after
tion.
ities" in section
9.) Do not overfill the
adding oil or if oil is not available, we rec-
If this happens, stop the car as
engine oil to ensure the oil level is not
ommend that you call a HYUNDAI autho-
soon as it is safe to do so, turn off
above F mark on the dipstick.
rised repairer.
the engine and check the oil level. If
the oil level is low, fill the engine oil
✽ NOTICE
to the proper level and start the
CAUTION
• Cycle the ignition from OFF to ON 3
engine again. If the light stays on
If the engine is not stopped imme-
times within 5 seconds, the warning
with the engine running, turn the
diately after the engine oil pressure
light will go off immediately.
engine off immediately. In any
warning light is illuminated, severe
However, when you turn off the warn-
instance where the oil light stays on
damage could result.
ing light without adding the engine oil,
when the engine is running, we rec-
the light may come on again.
ommend that the system be
checked by a HYUNDAI authorised
• If you drive the vehicle after adding
the engine oil, the warning light will
repairer.
go off within 1hour.
4 50
Features of your vehicle
Parking brake & brake fluid warning
3. Do not drive the vehicle if leaks are
CAUTION
light
found, the warning light remains on or
■ Type A
■ Type B
•
If the light comes on continuous-
the brakes do not operate properly.
ly after adding the engine oil and
We recommend that you contact a
driving the vehicle for 1 hour,we
HYUNDAI authorised repairer.
recommend that the system be
Your vehicle is equipped with dual-diago-
checked by an nearest authorized
Parking brake warning
nal braking systems. This means you still
HYUNDAI dealer.
This light is illuminated when the parking
have braking on two wheels even if one
•
Even if this light does not come
brake is applied with the ignition switch in
of the dual systems should fail. With only
on after the engine has started,
the START or ON position. The warning
one of the dual systems working, more
the engine oil should be checked
light should go off when the parking
than normal pedal travel and greater
and supplied periodically.
brake is released whilst engine is run-
pedal pressure are required to stop the
ning.
car. Also, the car will not stop in as short
The parking brake warning chime will
a distance with only a portion of the
sound to remind you that the parking
brake system working. If the brakes fail
brake is applied when you are driving
whilst you are driving, shift to a lower
above 10 km/h (6 mph). Always release
gear for additional engine braking and
the parking brake before you drive.
stop the car as soon as it is safe to do so.
To check bulb operation, check whether
the parking brake and brake fluid warning
Low brake fluid level warning
light illuminates when the ignition switch
If the warning light remains on, it may
is in the ON position.
indicate that the brake fluid level in the
reservoir is low.
If the warning light remains on:
WARNING
1. Drive carefully to the nearest safe
Driving the vehicle with a warning
location and stop your vehicle.
light on is dangerous. If the brake
2. With the engine stopped, check the
warning light remains on, we rec-
brake fluid level immediately and add
ommend that the system be
fluid as required. Then check all brake
checked by a HYUNDAI authorised
components for fluid leaks.
repairer.
4 51
Features of your vehicle
Low brake vacuum pressure warning
Shift pattern indicator
Automatic transmission
(diesel engine only, if equipped)
(if equipped)
shift indicator
If the warning light remains on, it may
(if equipped, For Europe)
indicate that the brake vacuum pump has
any problem. Therefore you should avoid
The indicator displays to show the auto-
In the Sports Mode, this indicator informs
high speed driving or sudden stop, and
matic transmission shift lever selection.
which gear is desired whilst driving to
you should depress the brake pedal
save fuel.
deeper and harder than usual in braking.
Manual transmission shift
• Shifting up : ▲2, ▲3, ▲4, ▲5*
We recommend that the system be serv-
indicator (if equipped)
• Shifting down :
▼1, ▼2, ▼3, ▼4*
iced by a HYUNDAI authorised repairer.
* : if equipped
This indicator informs you which gear is
WARNING
desired whilst driving to save fuel.
For example
•
Continuous braking whilst driv-
: Indicates that shifting up to the 3rd
ing on steep or long downhill
For example
gear is desired (currently the shift
may cause to descend the vacu-
: Indicates that shifting up to the 3rd
lever is in the 2nd or 1st gear).
um level in brake booster for a
gear is desired (currently the shift
: Indicates that shifting down to the
time and turn on the warning
lever is in the 2nd gear).
3rd gear is desired
(currently the
light. In this case, shift down the
: Indicates that shifting down to the
shift lever is in the 4th gear).
transmission. If the warning light
3rd gear is desired
(currently the
illuminate continuously, stop the
shift lever is in the 4th gear).
When the system is not working proper-
vehicle in the safe location and
ly, the indicator is not displayed.
wait until the warning light goes
✽ NOTICE
off.
When the system is not working proper-
•
Driving the vehicle with a warn-
ly, up/down arrow indicator and gear is
ing light on is dangerous. If the
not displayed.
brake warning light remains on,
we recommend that the system
be checked by a HYUNDAI autho-
rised repairer.
4 52
Features of your vehicle
O/D OFF Indicator
Tailgate open warning light
Immobiliser indicator
O/D
(if equipped)
(if equipped)
OFF
This indicator comes on when the O/D
This warning light blinks when the tail-
This light illuminates when the immobilis-
system is deactivated.
gate is not closed securely with the igni-
er key is inserted and turned to the ON
tion in any position.
position to start the engine.
Charging system warning
At this time, you can start the engine. The
light
Door ajar warning light
light goes out after the engine is running.
If this light blinks when the ignition switch
is in the ON position before starting the
This warning light indicates a malfunction
engine, we recommend that the system
This warning light illuminates when a
of either the generator or electrical
be checked by a HYUNDAI authorised
door is not closed securely with the igni-
charging system.
repairer.
tion in any position.
If the warning light comes on whilst the
vehicle is in motion:
1. Drive to the nearest safe location.
2. With the engine off, check the genera-
tor drive belt for looseness or break-
age.
3. If the belt is adjusted properly, a prob-
lem exists somewhere in the electrical
charging system. We recommend that
the system be checked by a HYUNDAI
authorised repairer.
4 53
Features of your vehicle
Low fuel level warning light
Malfunction indicator (MIL)
(check engine light)
CAUTION
Prolonged driving with the Emission
Control
System Malfunction
This warning light indicates the fuel tank
Indicator Light illuminated may
This indicator light is part of the Engine
is nearly empty. When it comes on, you
cause damage to the emission con-
Control System which monitors various
should add fuel as soon as possible.
trol systems which could effect dri-
emission control system components. If
Driving with the fuel level warning light on
vability and/or fuel economy.
this light illuminates whilst driving, it indi-
or with the fuel level below “E” or “0” can
cates that a potential malfunction has
cause the engine to misfire and damage
been detected somewhere in the emis-
the catalytic converter.
CAUTION - Petrol engine
sion control system.
This light will also illuminate when the
If the Emission Control System
ignition switch is turned to the ON posi-
Malfunction Indicator Light illumi-
nates, potential catalytic converter
tion, and will go out in a few seconds
damage is possible which could
after the engine is started. If it illuminates
whilst driving, or does not illuminate
result in loss of engine power.
when the ignition switch is turned to the
We recommend that the system be
ON position, we recommend that the
inspected by a HYUNDAI autho-
system be checked by a HYUNDAI
rised repairer.
authorised repairer.
Generally, your vehicle will continue to be
drivable, but we recommend that the sys-
tem be checked by a HYUNDAI autho-
rised repairer.
4 54
Features of your vehicle
DPF warning light
SCR warning light
(if equipped)
CAUTION - Diesel engine
(if equipped)
If the Emission Control System
Malfunction Indicator Light blinks,
some error related to the injection
The warning message is displayed, as
The warning message is displayed, as
quantity adjustment occurs which
above, when there is a DPF problem with
above, when there is a SCR problem with
could result in loss of engine power,
your vehicle, In this case, we recommend
your vehicle, In this case, we recommend
combustion noise and poor emis-
that the DPF system be inspected by a
that the SCR system be inspected by a
sion. We recommend that the system
HYUNDAI authorised repairer.
HYUNDAI authorised repairer.
be inspected by a HYUNDAI autho-
For more details, refer to the "DPF sys-
For more details, refer to the "Low Urea
rised repairer.
tem" in chapter 7.
warning message" in chapter 7.
CAUTION - Diesel engine
(if equipped with DPF)
When the malfunction indicator
light is blinks, it may stop blinking
after driving the vehicle at more
than 60km/h (37 mph) or at more
than second gear with 1500 ~ 2500
engine rpm for a certain time (for
about 25 minutes).
If the malfunction indicator light
continues to be blinked in spite of
the procedure, we recommend that
the system be checked by a
HYUNDAI authorised repairer.
If you continue to drive with the
malfunction indicator light blinking
for a long time, the DPF system can
be damaged and fuel consumption
can be worsen.
4 55
Features of your vehicle
ESP (ESC) indicator (Electronic
✽ NOTICE
ESP (ESC) OFF indicator
Stability Program) (if equipped)
(if equipped)
After reconnecting or recharging a dis-
■ Type A
■ Type B
charged battery, the ESP (ESC) indica-
■ Type A
■ Type B
tor may illuminate. In this case, turn the
steering wheel half way to the left and
ESP
ESP
right whilst the ignition switch is in the
OFF
ON position. Then, restart the engine
The ESP (ESC) indicator will illuminate
after the ignition is off. If the ESP (ESC)
The ESP (ESC) OFF indicator will illumi-
when the ignition switch is turned ON,
indicator does not turn off, we recom-
nate when the ignition switch is turned
but should go off after approximately 3
mend that the system be checked by a
ON, but should go off after approximate-
seconds. When the ESP (ESC) is on, it
HYUNDAI authorised repairer.
ly
3 seconds. To switch to ESP (ESC)
monitors the driving conditions. Under
OFF mode, press the ESP (ESC) OFF
normal driving conditions, the ESP
button. The ESP (ESC) OFF indicator will
(ESC) indicator will remain off. When a
illuminate indicating the ESP (ESC) is
slippery or low traction condition is
deactivated.
encountered, the ESP (ESC) will oper-
ate, and the ESP (ESC) indicator will
blink to indicate the ESP (ESC) is oper-
ating.
But, if the ESP (ESC) system malfunc-
tions the indicator illuminates and stays
on. We recommend that the system be
checked by a HYUNDAI authorised
repairer.
4 56
