Features of your vehicle
■ Type A
2. Insert a slim tool into the slot and gen-
tly pry open the transmitter centre
CAUTION
cover.
•
The keyless entry system trans-
3. Remove the battery cover (2).
mitter is designed to give you
4. Replace the battery with a new one.
years of trouble-free use, howev-
When replacing the battery, make sure
er it can malfunction if exposed to
the battery position.
moisture or static electricity.
5. Install the battery in the reverse order
If you are unsure how to use your
of removal.
transmitter or replace the battery,
we recommend that you contact a
HYUNDAI authorised repairer.
OTQ047003G
■ Type B
•
Using the wrong battery can
cause the transmitter to malfunc-
tion. Be sure to use the correct
battery.
•
To avoid damaging the transmit-
ter, don't drop it, get it wet, or
expose it to heat or sunlight.
•
An inappropriately disposed bat-
tery can be harmful to the envi-
ronment and human health.
Dispose the battery according to
OLM042302
your local law(s) or regulation.
Battery replacement
The transmitter uses a 3 volt lithium bat-
tery which will normally last for several
years. When replacement is necessary,
use the following procedure.

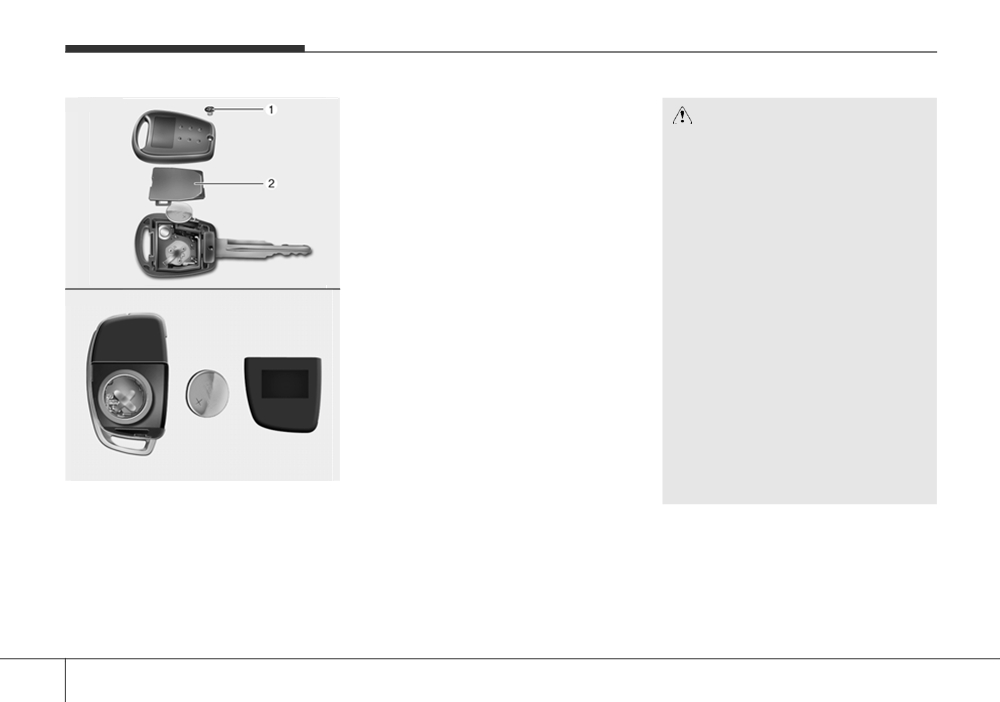

1. Remove the screw (1) using a cross-
tip screwdriver.
4 6
Features of your vehicle
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed stage
✽ NOTICE
Park the car and stop the engine. Arm
The theft-alarm system by the key can
the system as described below.
be activated by a HYUNDAI authorised
Armed
1. Remove the ignition key from the igni-
repairer. If you want this feature, we
stage
tion switch and exit the vehicle.
recommend that you consult a
2. Make sure that all doors (and tailgate)
HYUNDAI authorised repairer.
and engine bonnet are closed and
latched.
Do not arm the system until all pas-
Disarmed
Theft-alarm
sengers have left the vehicle. If the
3. Lock the doors using the transmitter of
stage
stage
the keyless entry system.
system is armed whilst a passen-
ger(s) remains in the vehicle, the
After completion of the steps above, the
alarm may be activated when the
hazard warning lights will blink once to
remaining passenger(s) leave the
indicate that the system is armed.
This system is designed to provide pro-
vehicle. If any door
(or tailgate) or
tection from unauthorised entry into the
engine bonnet is opened within 30
If any door (or tailgate) or engine bonnet

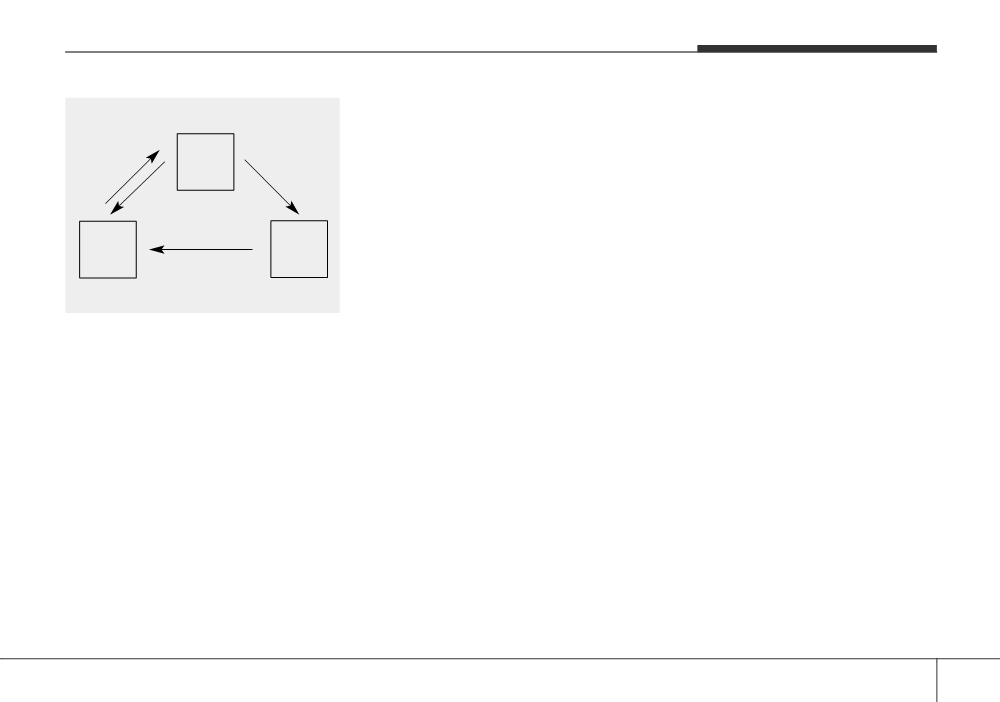

car. This system is operated in three
seconds after the system enters the
remains open, the hazard warning lights
stages: the first is the "Armed" stage, the
armed stage, the system is disarmed
will not blink and the theft-alarm will not
second is the "Theft-alarm" stage, and
to prevent an unnecessary alarm.
arm. If all doors (and tailgate) and engine
the third is the "Disarmed" stage. If trig-
bonnet are closed after the lock button is
gered, the system provides an audible
pressed, the hazard warning lights blink
alarm with blinking of the hazard warning
once.
lights.
4 7
Features of your vehicle
Theft-alarm stage
Disarmed stage
The alarm will be activated if any of the
CAUTION
The system will be disarmed when the
following occurs whilst the system is
Do not change, alter or adjust the
doors (and tailgate) are unlocked with the
armed.
transmitter.
theft-alarm system because it could
cause the theft-alarm system to
• A front or rear door is opened without
After depressing the unlock button, the
malfunction. We recommend that
using the transmitter.
hazard warning lights will blink twice to
the system be serviced by a
• The tailgate is opened without using
indicate that the system is disarmed.
HYUNDAI authorised repairer.
the transmitter.
After depressing the unlock button, if any
door (or tailgate) is not opened within 30
Malfunctions caused by improper
• The engine bonnet is opened.
seconds, the system will be rearmed.
alterations, adjustments or modifi-
The horn will sound and the hazard
cations to the theft-alarm system
warning lights will blink continuously for
✽ NOTICE
are not covered by your vehicle
approximately 30 seconds. To turn off the
manufacturer warranty.
system, unlock the doors with the trans-
• If the system is not disarmed with the
transmitter, insert the key into the
mitter.
ignition switch and start the engine.
Then the system will be disarmed.
• If you lose your keys, we recommend
that you consult a HYUNDAI autho-
rised repairer.
4 8
Features of your vehicle
DOOR LOCKS

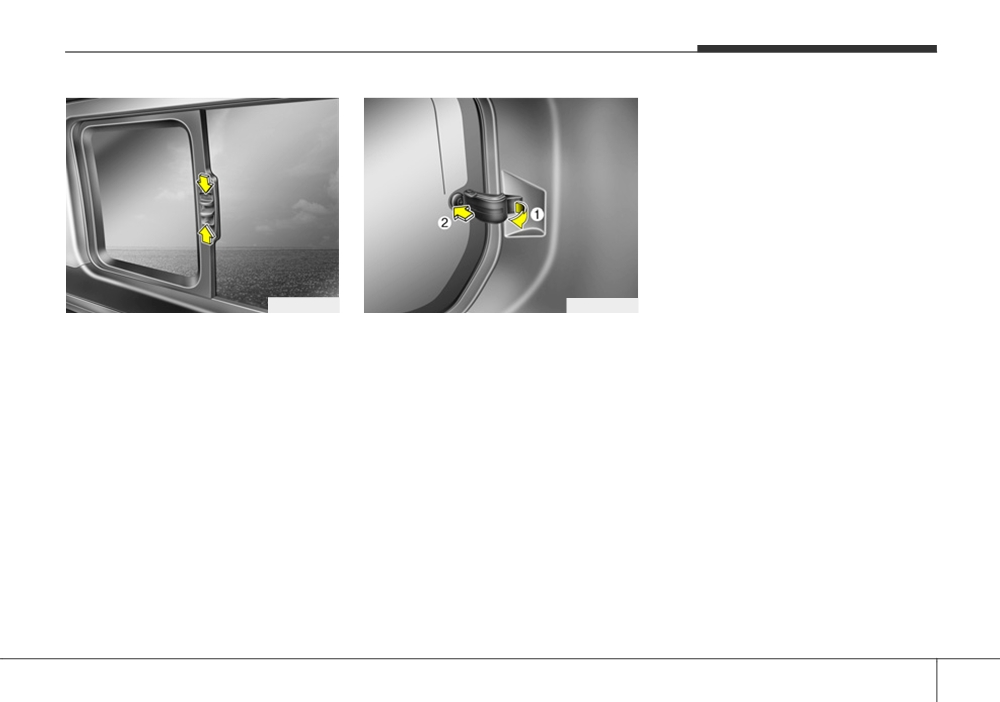

• When closing the door, push the door
Rear sliding doors
by hand. Make sure that doors are
closed securely.
✽ NOTICE
Unlock
• In cold and wet climates, door lock
Lock
and door mechanisms may not work
properly due to freezing conditions.
• If the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operating
OTQ047005/H
OTQ047006/H
temporarily in order to protect the
Operating door locks from out-
circuit and prevent damage to system
•
Once the rear doors are unlocked, they
side the vehicle
components.
may be opened by pulling the door
handle and sliding the door towards

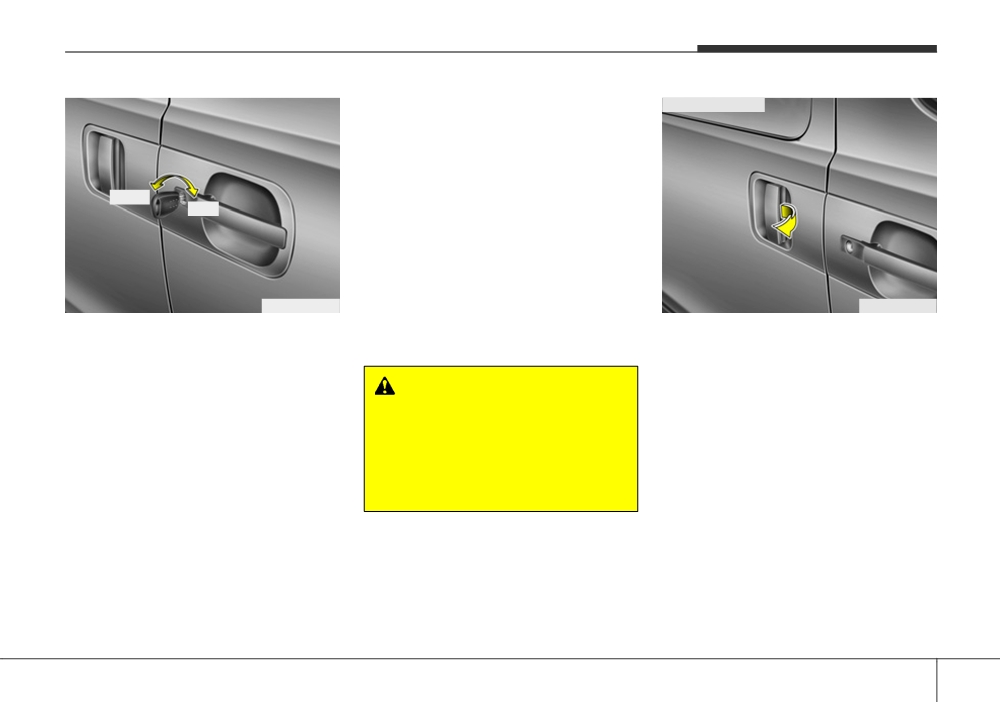

• Turn the key toward the rear of the
the rear of the vehicle.
vehicle to lock and toward the front of
WARNING
the vehicle to unlock.
•
When the rear door is fully open, the
• If you don't close the door
door will lock into an open position. To
• If you lock/unlock the driver’s door with
securely, the door may open
close the door, pull out the door handle
a key, all vehicle doors will lock/unlock
again.
and slide the door towards the front of
automatically. (if equipped)
• Be careful that someone's body
vehicle.
• If you lock the front passenger’s door
and hands are not trapped when
with a key all vehicle doors will lock
closing the door.
automatically. (if equipped)
• Doors can also be locked and
unlocked with the transmitter.
(if
equipped)
• Once the doors are unlocked, they may
be opened by pulling the door handle.
4 9
Features of your vehicle
Front door
✽ NOTICE
WARNING
Always remove the ignition key, engage
When the rear sliding door is not
the parking brake, close all windows
fully open, it is not latched and may
and lock all doors when leaving your
move unintentionally. This could
vehicle unattended.
result in a serious injury.
CAUTION
The left sliding door cannot be
opened when the fuel filler lid is
OTQ047007R
open. However, if the fuel filler lid is
Rear sliding door
opened after the door is opened
slightly, the left sliding door can be
slide rearward. Close the left sliding
door to prevent possible damage to
the door or the fuel filler lid.
OTQ047008
• To lock a door without the key, push the
inside door lock button (1) or central
door lock switch (2) to the “Lock” posi-
tion and close the door (3).
• If you lock the door with the central
door lock switch (2), all vehicle doors
will lock automatically. (if equipped)
4 10
Features of your vehicle
Front door
•

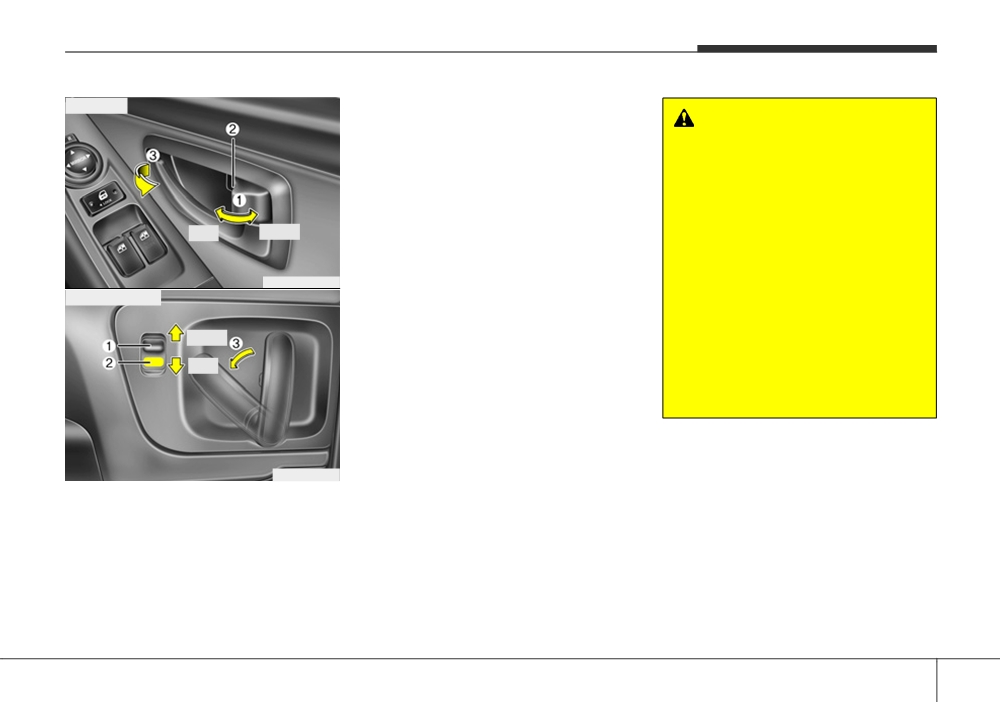

To lock a door, push the door lock but-
ton (1) to the “Lock” position. If the door
WARNING - Door lock mal-
is locked properly, the red mark (2) on
function
the door lock button will not be visible.
If a power door lock ever fails to
•
To open a door, pull the door handle
function whilst you are in the vehi-
(3) outward.
cle, try one or more of the following
•
If the inner door handle of the driver’s
techniques to exit:
door is pulled when the door lock but-
• Operate the door unlock feature
Lock
Unlock
ton is in lock position, the button is
repeatedly
(both electronic and
unlocked and door opens. (if equipped)
manual) whilst simultaneously
OTQ047009R
•
Front doors cannot be locked if the
pulling on the door handle.
Rear sliding door
ignition key is in the ignition switch and
• Operate the other door locks and
any front door is open.
handles, front and rear.
• Lower a front window and use the
Unlock
key to unlock the door from out-
Lock
side.
• Move to the cargo area and open
the tailgate. (if equipped)
OTQ047010

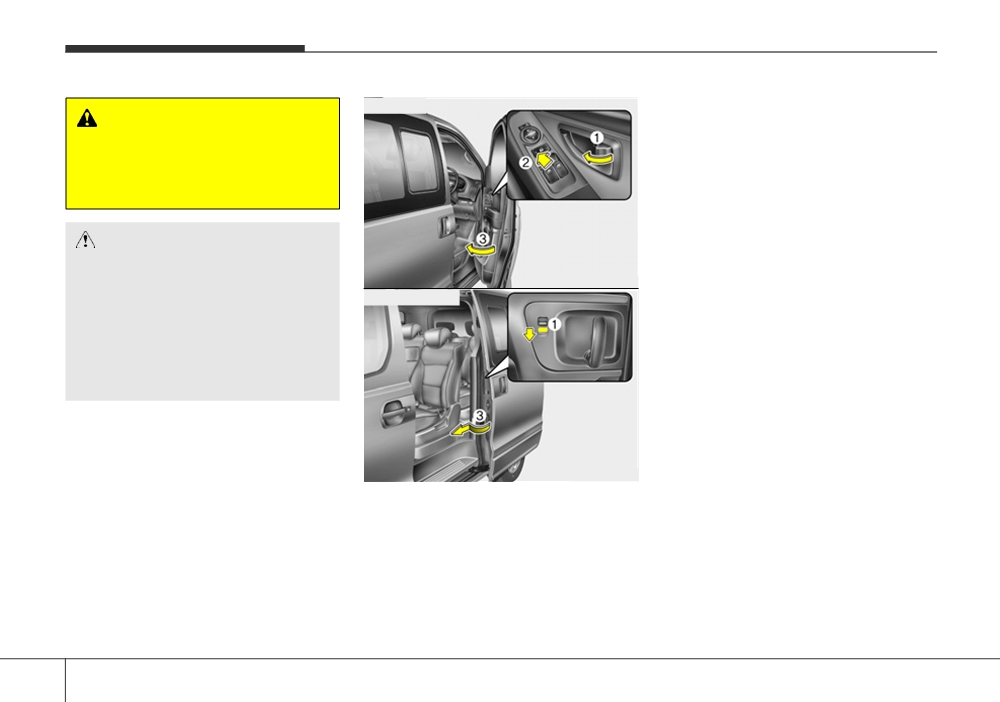

Operating door locks from inside
the vehicle
With the door lock button
• To unlock a door, push the door lock
button (1) to the “Unlock” position. The
red mark (2) on button will be visible.
4 11
Features of your vehicle
WARNING - Doors
WARNING - Unlocked
•
The doors should always be fully
vehicles
closed and locked whilst the
Leaving your vehicle unlocked can
vehicle is in motion to prevent
invite theft or possible harm to you
accidental opening of the door.
or others from someone hiding in
Locked doors will also discour-
your vehicle whilst you are gone.
age potential intruders when the
Always remove the ignition key,
vehicle stops or slows.
engage the parking brake, close all
•
Be careful when opening doors
windows and lock all doors when
and watch for vehicles, motorcy-
leaving your vehicle unattended.
cles, bicycles or pedestrians
OTQ047011R
approaching the vehicle in the
With central door lock switch
path of the door. Opening a door
WARNING - Unattended
(if equipped)
when something is approaching
children
can cause damage or injury.

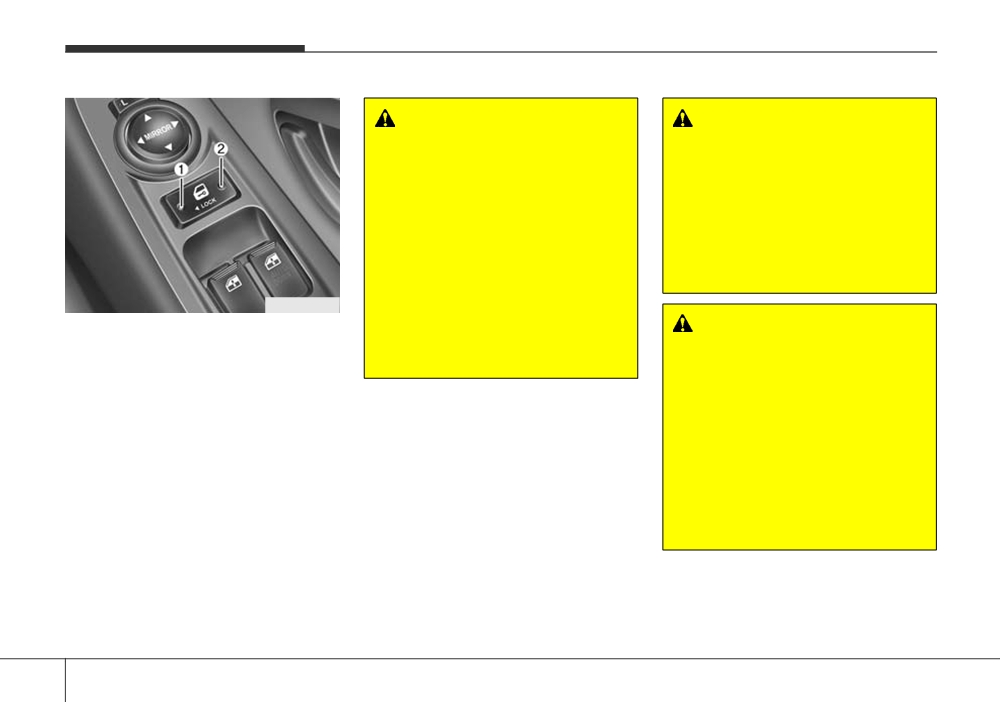

Operate by depressing the central door
An enclosed vehicle can become
lock switch.
extremely hot, causing death or
severe injury to unattended chil-
• When pushing down on the portion (1)
dren or animals who cannot escape
of the switch, all vehicle doors will lock.
the vehicle. Furthermore, children
might operate features of the vehi-
• When pushing down on the portion (2)
cle that could injure them, or they
of the switch, all vehicle doors will
could encounter other harm, possi-
unlock.
bly from someone gaining entry to
• If the key is in the ignition switch and
the vehicle. Never leave children or
any front door is open, the doors will
animals unattended in your vehicle.
not lock when the portion (1) of central
door lock switch is pressed.
4 12
Features of your vehicle
Impact sensing door unlock sys-

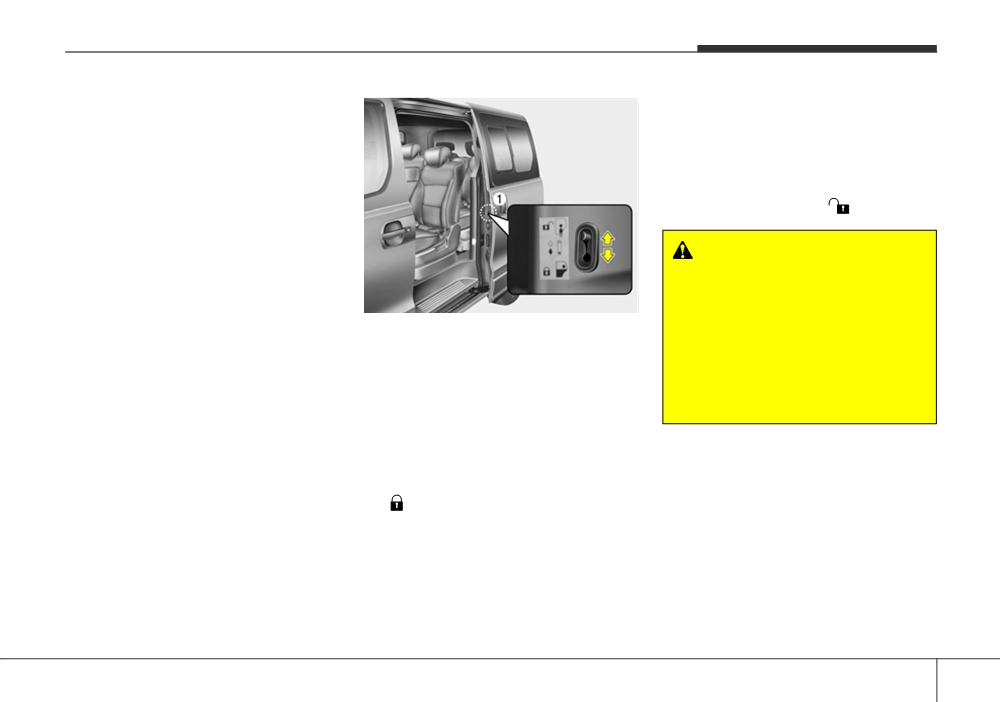

3. Close the rear door.
tem (if equipped)
To open the rear door, pull the outside
All doors will be automatically unlocked
door handle (1).
when the impact is delivered to impact
Even though the doors may be unlocked,
sensors whilst the ignition switch ON.
the rear door will not open by pulling the
However, the doors may not be unlocked
inner door handle until the rear door child
if mechanical problems occur with the
safety lock is unlocked (
).
door lock system or battery.
WARNING - Rear door
Speed sensing door lock system
locks
(if equipped)
If children accidentally open the
When the speed of the vehicle keeps
OTQ047012
rear doors whilst the vehicle is in
above 25 mph (40 km/h) for 1 second, it
motion, they could fall out and be
Child-protector rear door lock
will automatically lock all doors. For acti-
severely injured or killed. To pre-
vation of this fearture, we recommend
The child safety lock is provided to help
vent children from opening the rear
that you contact a HYUNDAI authorised
prevent children from accidentally open-
doors from the inside, the rear door
repairer.
ing the rear doors from inside the vehicle.
safety locks should be used when-
The rear door safety locks should be
ever children are in the vehicle.
used whenever children are in the vehi-
✽ NOTICE
cle.
A HYUNDAI authorised repairer can
1. Open the rear door.
select some auto door lock/unlock fea-
2. Push the child safety lock located on
tures as follows;
the front edge of the door to the lock
• Speed sensing auto door locking
(
) position. When the child safety
• Auto door unlock when the ignition
lock is in the lock position, the rear
key is removed from the ignition
door will not open even though the
switch
inner door handle is pulled.
If you want to select a door lock/unlock
feature, we recommend that you consult
a HYUNDAI authorised repairer.
4 13
Features of your vehicle
TAILGATE
■ Type A
• The tailgate can also be locked and
unlocked with the key if the vehicle is
equipped with a key hole on the tail-
gate.
• If unlocked, the tailgate can be opened
by pressing the handle switch and
pulling the handle up. (Type A)
• If unlocked, the tailgate can be opened
by pulling the handle. (Type B)
OTQ047013
✽ NOTICE
■ Type B
In cold and wet climates, door lock and
OTQ047212
door mechanisms may not work proper-

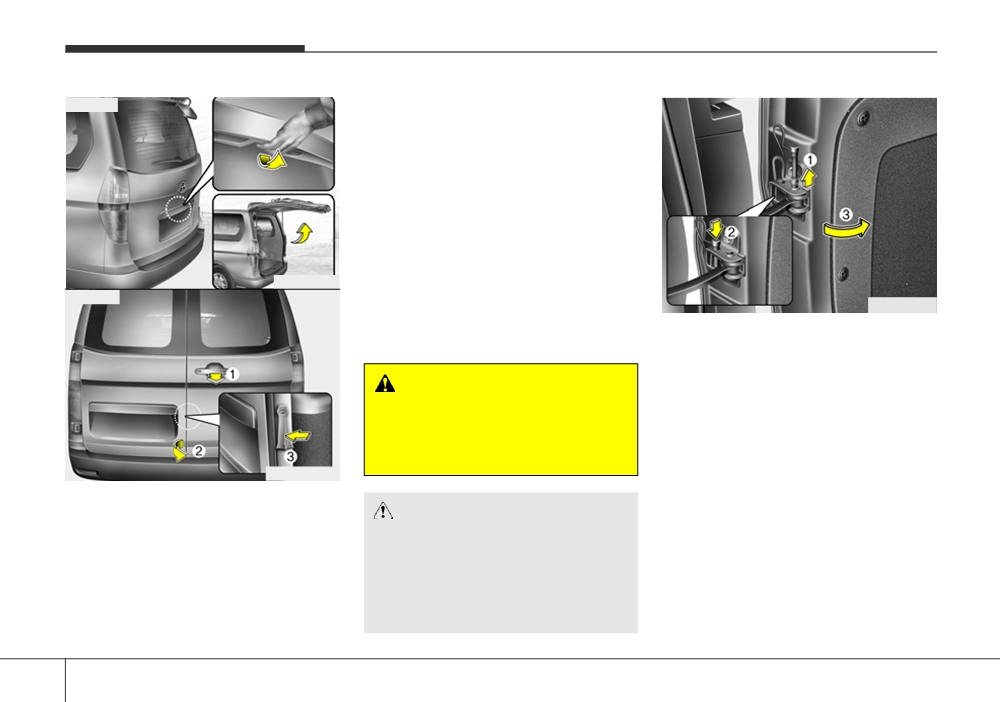

If your vehicle is equipped with twin
ly due to freezing conditions.
swing type tail gates, you may fully open
(if equipped) as follows ;
1. Open the tail gate.
WARNING
2. Remove the pin from the bracket hole
The tailgate swings upward. Make
and insert the pin into the pin hole.
sure no objects or people are near
3. Open the tail gate fully.
the rear of the vehicle when open-
ing the tailgate.
OTQ047013G
Opening the tailgate
CAUTION
• The tailgate is locked or unlocked
when all doors are locked or unlocked
Make certain that you close the tail-
with the key, transmitter or central door
gate before driving your vehicle.
lock switch. (if equipped)
Possible damage may occur to the
tailgate lift cylinders and attached
hardware if the tailgate is not
closed prior to driving.
4 14
Features of your vehicle
Closing the tailgate
CAUTION
To close the tailgate, lower and push
Insert the pin into the bracket hole
down the tailgate firmly. Make sure that
before closing the tail gate. Or the
the tailgate is securely latched.
tail gate checker and/or vehicle
damage is possible and a danger-
ous situation may occur.
WARNING - Exhaust
fumes
If you drive with the tailgate open,
you will draw dangerous exhaust
fumes into your vehicle which can
cause serious injury or death to
OTQ047213
vehicle occupants.

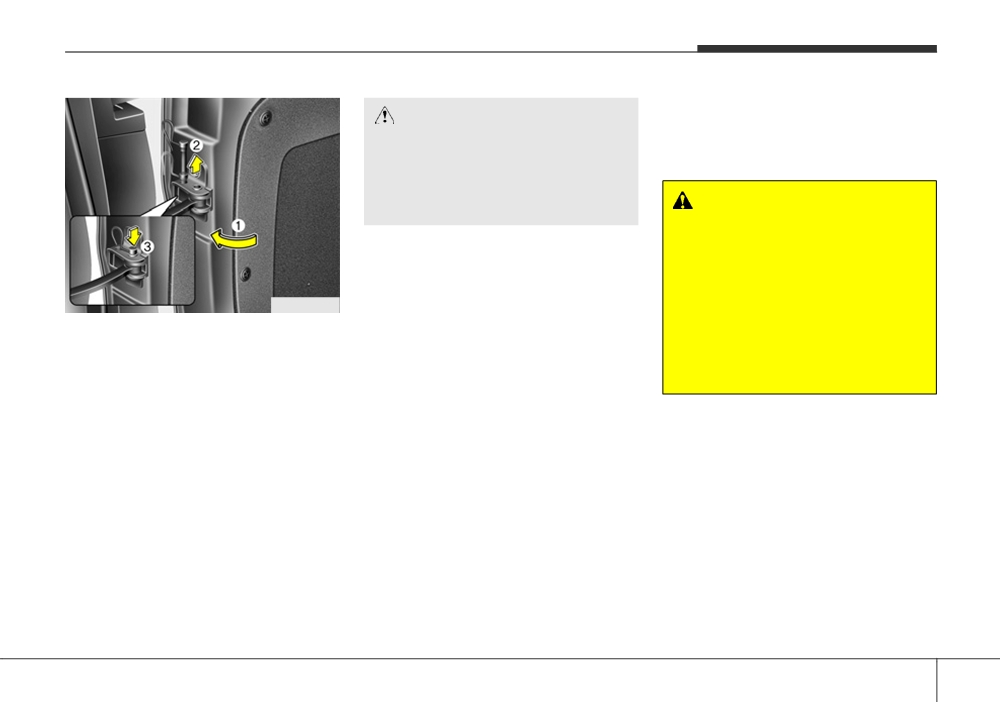

4. After use, before closing the tail gate,
If you must drive with the tailgate
pull out the pin from the pin hole.
open, keep the air vents and all win-
5. Align the checker arm hole and the tail
dows open so that additional out-
gate bracket hole, and insert the pin
side air comes into the vehicle.
into the bracket hole.
6. Close the tail gate.
4 15
Features of your vehicle
■ Type A
When someone is inadvertently locked in
WARNING - Rear cargo
the luggage compartment, if the lever is
area
pushed, the tailgate latch mechanism is
released and the tailgate is opened by
Occupants should never ride in the
pushing rearward.
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
WARNING
stops, occupants should always be
•
For emergencies, be fully aware
properly restrained.
of the location of the emergency
tailgate safety release lever in
OTQ047015
this vehicle and how to open the
■ Type B
tailgate if you are accidentally
locked in the luggage compart-
ment.
•
No one should be allowed to
occupy the luggage compartment
of the vehicle at any time. The
luggage compartment is a very
dangerous location in the event
of a crash.
•
Use the release lever for emer-
OTQ047015G
gencies only. Use extreme cau-
tion, especially whilst the vehicle
Emergency tailgate safety release
is in motion.
(if equipped)
Your vehicle is equipped with the emer-
gency tailgate safety release lever locat-
ed on the bottom of the tailgate.
4 16
Features of your vehicle

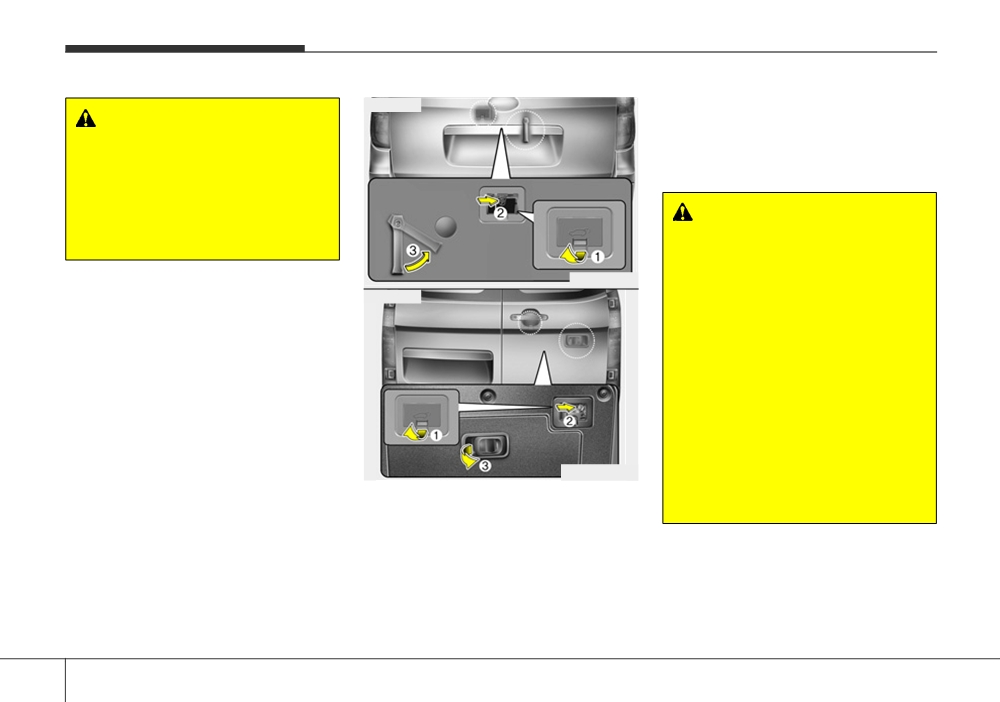

WINDOWS

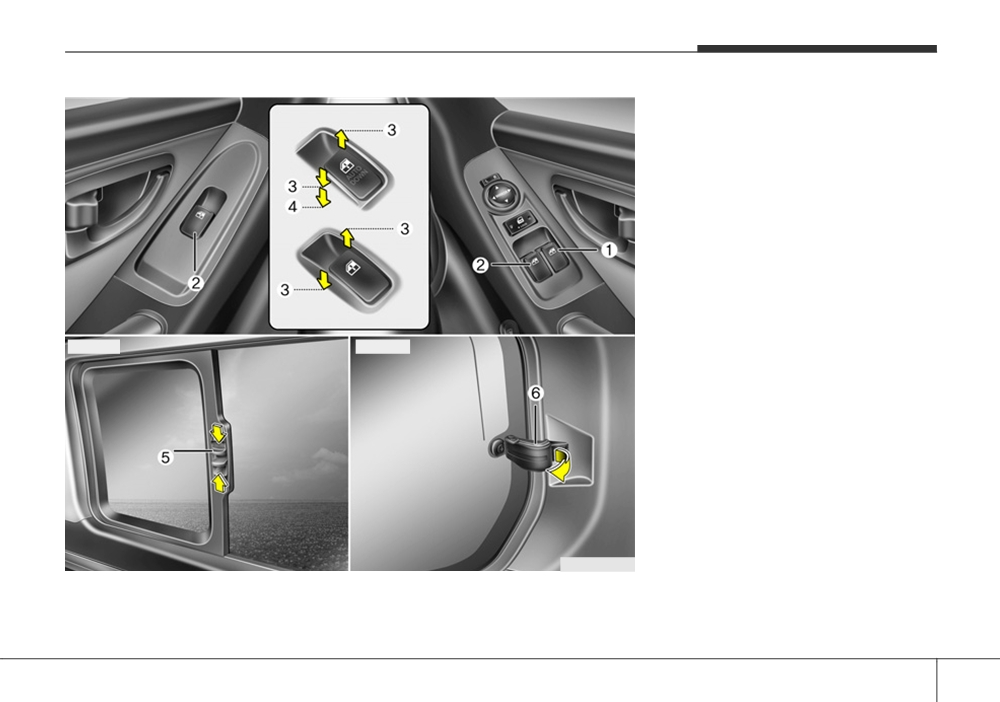

(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Window opening and closing
(4) Automatic power window down
(Driver’s window, if equipped)
(5) Rear seat window (Type A)
(6) Rear seat window (Type B)
✽ NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
■ Type A
■ Type B
OTQ047016R
4 17
Features of your vehicle
Power windows (if equipped)
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door's window. The driv-
er has a power window lock switch which
can block the operation of passenger
windows. The power windows can be
operated for approximately 30 seconds
after the ignition key is removed or turned
to the ACC or LOCK position. However, if
the front doors are opened, the power
OTQ047203R
OTQ047204R
windows cannot be operated within the
30 second period after the ignition key
Type A
Type B
removal.
Window opening and closing

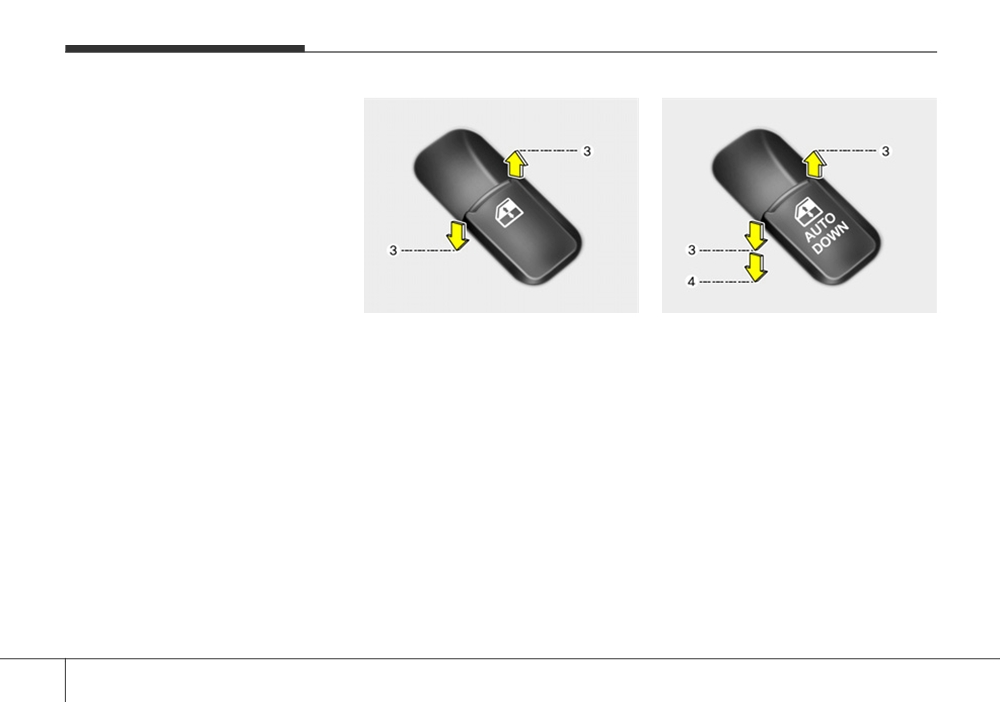

Auto down window
(if equipped)
(Driver’s window, if equipped)
✽ NOTICE
The driver’s door has a master power
Depressing the power window switch
Whilst driving, if you notice buffeting
window switch that controls all the win-
momentarily to the second detent posi-
and pulsation (wind shock) with either
dows in the vehicle.
tion
(4) completely lowers the driver’s
side window open, you should open the
To open or close a window, press down
window even when the switch is
opposite window slightly to reduce the
or pull up the front portion of the corre-
released. To stop the window at the
condition.
sponding switch to the first detent posi-
desired position whilst the window is in
tion (3).
operation, pull up the switch momentarily
to the opposite direction of the window
movement.
4 18
Features of your vehicle
CAUTION
WARNING - Windows
•
To prevent possible damage to
•
NEVER leave the keys in your
the power window system, do not
vehicle with unsupervised chil-
open or close two windows or
dren, when the engine is running.
more at the same time. This will
•
NEVER leave any child unattend-
also ensure the longevity of the
ed in the vehicle. Even very
fuse.
young children may inadvertently
•
Never try to operate the main
cause the vehicle to move, entan-
switch on the driver's door and
gle themselves in the windows,
the individual door window
or otherwise injure themselves or
switch in opposing directions at
others.
the same time. If this is done, the
OTQ047204R-1
•
Always double check to make
window will stop and cannot be
sure all arms, hands, head and
Type C
opened or closed.
other obstructions are safely out

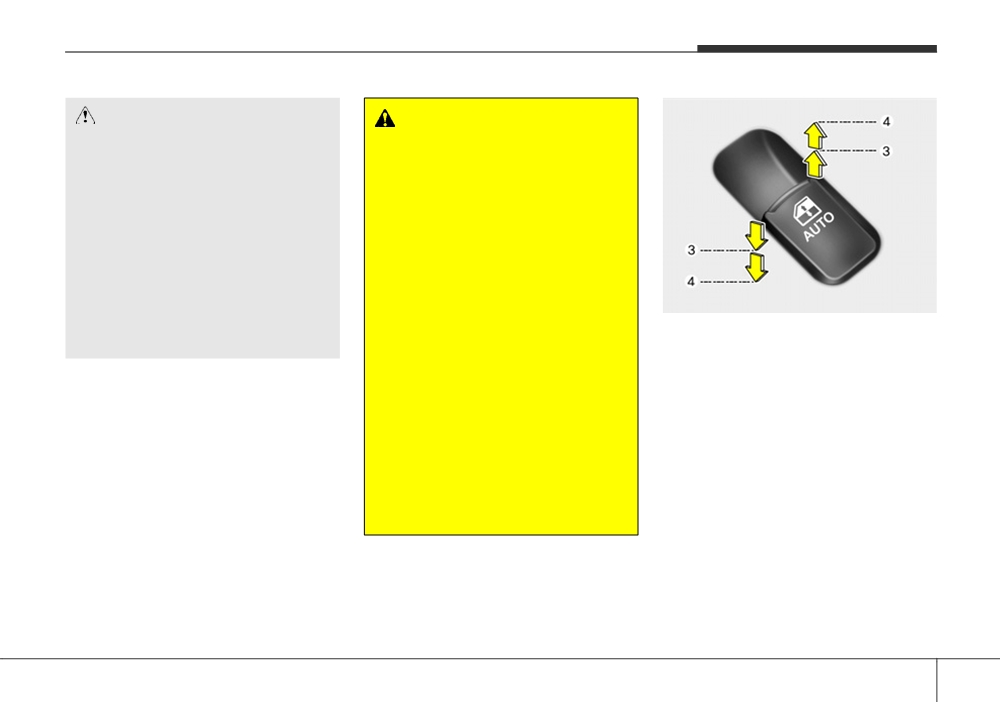

Auto up/down window
of the way before closing a win-
(Driver’s window, if equipped)
dow.
Depressing or pulling up the power win-
•
Do not allow children to play with
dow switch momentarily to the second
the power windows. Serious
detent position (4) completely lowers or
injury can result from uninten-
lifts the window even when the switch is
tional window operation by the
released. To stop the window at the
child.
desired position whilst the window is in
•
Do not extend face or arms out-
operation, pull up or depress and release
side through the window opening
the switch to the opposite direction of the
whilst driving.
movement.
4 19
Features of your vehicle
If the power window is not operated cor-
✽ NOTICE
rectly, the automatic power window sys-
The automatic reverse feature for the
tem must be reset as follows:
driver’s window is only active when the
1. Turn the ignition switch to the ON posi-
“auto up” feature is used by fully
tion.
pulling up the switch. The automatic
2. Close driver’s window and continue
reverse feature will not operate if the
pulling up on driver’s power window
window is raised using the halfway posi-
switch for at least 1 second after the
tion on the power window switch.
window is completely closed.
WARNING
Automatic reversal
Always check for obstructions
If the upward movement of the window is
before raising any window to avoid
3FDA2015
blocked by an object or part of the body,
injuries or vehicle damage. If an
the window will detect the resistance and
Manual windows (if equipped)
object less than 0.16 in. (4 mm) in
will stop upward movement. The window
To raise or lower the window, turn the
diameter is caught between the
will then lower approximately 11.8 in. (30
window regulator handle clockwise or
window glass and the upper win-
cm) to allow the object to be cleared.
counterclockwise.
dow channel, the automatic reverse
If the window detects the resistance
window may not detect the resist-
whilst the power window switch is pulled
ance and will not stop and reverse
up continuously, the window will stop
direction.
WARNING
upward movement then lower approxi-
When opening or closing the win-
mately 1 in. (2.5 cm). And if the power
dows, make sure your passenger's
window switch is pulled up continuously
again within 5 seconds after the window
arms, hands and body are safely
is lowered by the automatic window
out of the way.
reversal feature, the automatic window
reversal will not operate.
4 20
Features of your vehicle
OTQ047017
OTQ047018
Rear seat window
Rear seat window
(Type A, if equipped)
(Type B, if equipped)
To open the window, move the window
To open the windows, pull the rear por-
whilst pressing the handle the direction
tion of the latch out. Swing the latch for-
of the arrow.
ward and out, then lock it into the open
position by pushing outward until you
hear a click. To close the windows, pull
the handle inward. Then push the handle
rearward until you hear a click.
✽ NOTICE
In cold and wet climates, rear quarter
panel windows may not work properly
due to freezing conditions.
4 21
Features of your vehicle
BONNET
OTQ047019R
OTQ046020
OTQ047021
Opening the bonnet
2. Go to the front of the vehicle, raise the
3. Pull the support rod from the bonnet.
bonnet slightly, pull the secondary
4. Hold the bonnet open with the support
1. Pull the release lever to unlatch the
latch (1) inside of the bonnet centre
rod.
bonnet. The bonnet should pop open
and lift the bonnet (2).
slightly.
WARNING - Hot parts
Grasp the support rod in the area
WARNING
wrapped in rubber. The rubber will
Open the bonnet after turning off
help prevent you from being burned
the engine on a flat surface, shift-
by hot metal when the engine is
ing the shift lever to the P(Park)
hot.
position for automatic transmis-
sion and to the 1st(First) gear or
R(Reverse) for manual transmis-
sion, and setting the parking brake.
4 22
